Adrianna - Faucet INVENTUM - Free user manual and instructions

Product Type	3-in-1 boiling water tap
Brand	Inventum (HotSpot Titanium)
Model	Adrianna
Article Numbers	15412020 (Chrome U-outlet), 15412040 (PVD U-outlet)
EAN Codes	8716453008013 (Chrome), 8716453008037 (PVD)
Mounting Hole Diameter	Max 35 mm
Water Supply Pressure	1 - 5 bar (recommended pressure reducer above 5 bar)
Maximum Hot Water Temperature	80 °C
Power Supply	Low voltage via HotSpot Titanium boiler (control cable)
Functions	Boiling water, hot water, cold water
Safety System	IntelliProtect® (low voltage, LED indicator, 0.5s delay)
Indicator	LED lamp: steady when button pressed, flashes after 0.5s delay
Flow Rate	Minimum 2.2 L/min (if less, clean or replace mousseur)
Materials	Titanium inner tank, chrome or PVD finish
Maintenance	Descale annually if water hardness >12°dH; clean with soft cloth, no abrasive agents
Spare Parts Available	Mousseur, cartridge, retaining clip, hoses
Warranty	2 years (extendable to 5 years with online registration); lifetime corrosion warranty on titanium tank
Warranty Condition	If water hardness >14°dH, use water softener with ion exchanger
Compliance	2006/95/EC, 2004/108/EC; EN 60335-1, EN 60335-2-21, EN 50082-1
End of Life	Contains no toxic substances; recyclable packaging

Frequently Asked Questions - Adrianna INVENTUM

What is a 3-in-1 tap?

The Inventum Adrianna is a 3-in-1 tap that provides boiling water, hot water, and cold water from a single faucet, in combination with a HotSpot Titanium boiler.

How is the tap installed?

Installation requires a hole of max 35 mm in the worktop. Slide the tap through, secure with nuts, connect hot/cold water hoses and the red hose from the boiler, attach the retaining clip, and connect the control wire to the boiler. Refer to the installation manual for details.

What is the IntelliProtect® system?

IntelliProtect® ensures safety by operating at low voltage. The tap has an LED indicator: when the button is pressed, the LED lights steadily, then flashes after 0.5 seconds when water flows. A second press stops the water.

Can I use plastic cups for boiling water?

No. Do not use plastic disposable cups as they may not withstand high temperature. Use heat-resistant cups, glasses, or pans. Always use oven gloves or pot holders as the filled container becomes very hot.

How do I maintain the tap?

Clean with a soft cloth; avoid abrasive cleaners. Descale the tap outlet annually if water hardness exceeds 12°dH. If flow drops below 2.2 L/min, clean or replace the mousseur.

What is the warranty?

Standard 2-year warranty on parts, extendable to 5 years if you register the product online within 3 months of purchase. The titanium inner tank has a lifetime corrosion warranty. Labour, call-out, and shipping costs are excluded.

What if water hardness is high?

For water hardness above 12°dH, use a HotSpot Titanium filter with water softener. Above 14°dH, a water softener with ion exchanger is required to maintain warranty.

Can I install the tap myself?

Installation should be performed by a qualified specialist to ensure safety and compliance with local regulations. Incorrect installation may void warranty and cause hazards.

What should I do if the tap malfunctions?

Refer to the boiler manual's malfunction table. If unresolved, disconnect the plug and call your installer. Do not attempt self-repair; unauthorized repair voids warranty.

How do I replace the mousseur?

Unscrew the nut at the tap outlet (use a cloth for grip). Replace the mousseur or wash it clean. Reassemble in reverse order. A reduced flow (below 2.2 L/min) indicates cleaning or replacement is needed.

USER MANUAL Adrianna INVENTUM

3D rendered image of a kitchen sink with curved handle and faucet (no text or symbols)

hotspot titanium

3-in-1 tap 3-in-1-Wasserhahn 3-in-1 kraan

www.hotspot-titanium.com

The HotSpot Titanium 3-in-1 tap

With the purchase of HotSpot Titanium 3-in-1 tap you have bought a safe and reliable quality product. In combination with an HotSpot 4 or 8 liter Titanium boiler, this boiling water tap provides you with boiling water at constant temperature as well as hot and cold tap water like every kitchen faucet. The IntelliProtect® system ensures safety.

Certificate of conformity

HotSpot Titanium is a brand of Inventum Technologies B.V.

Inventum Technologies B.V. is an ISO 9001 certified company.

Inventum Technologies B.V. declares that the tap listed on the front is in accordance with:

• 2006/95/EC Low voltage directive
• 2004/108/EC EMC guideline

Harmonised standards:

EN 60335-1

EN 60335-2-21

EN 50082-1

Houten, October 2016

Line drawing of a kitchen faucet with handle and base (no text or symbols)

ALESSIO CHROME

C-OUTLET

art.no: 15412010

EAN:

8716453008006

ALESSIO PVD

C-OUTLET

art.no: 15412030

EAN:

8716453008020

Fig. 1.1 The HotSpot Titanium ALESSIO 3-in-1 tap

Line drawing of a kitchen faucet with handle and base (no text or symbols)

ADRIANNA CHROME

U-OUTLET

art.no: 15412020

EAN:

8716453008013

ADRIANNA PVD

U-OUTLET

art.no: 15412040

EAN:

8716453008037

Fig. 1.2 The HotSpot Titanium ADRIANNA 3-in-1 tap

CONTENTS

USER MANUAL

Certificate of conformity 2

1 Use of the manual 3

1.1 Application 3
1.2 Warranty 3
1.3 Liability 3

2 Scope of delivery 4

2.1 Packaging contents 4

3 Operation 4

4 Maintenance 5

4.1 Cleaning 5
4.2 The tap 5

5 Malfunctions 5
6 End of service life 5

INSTALLATION MANUAL

7 Installation 7

steps 1 t/m 9 7

User manual images

Fig. 1.1 HotSpot Alessio 3-in-1 tap 2
Fig. 1.2 HotSpot Adrianna 3-in-1 tap 2
Fig. 3.1 Indicator lamp 4
Fig. 7.1 Installing the tap to work top 6
Fig. 7.2 Attaching hose to boiling water tap 6
Fig. 7.3 Installing the retaining clip 6
Fig. 7.4 Connecting wire to boiler connector 6

1 Use of the manual

This manual is intended as a reference for the end user and the installation technician. Using this manual, the HotSpot Titanium 3-in-1 tap can be installed safely. Store this manual carefully, you may need to use it in the future.

Inventum has prepared this manual with care. However, no rights may be derived from it. In connection with continuous product innovation, Inventum reserves the right to change the specifications at all times and without prior notice.

1.1 Application

The tap should be connected to a HotSpot Titanium boiler and may only be used in combination with a HotSpot Titanium boiler. Any other or further use is not in accordance with the designated use. Only install and use the tap in perfect condition.

1.2 Warranty

This tap has been manufactured with great care and is warranted by Inventum for free of charge repair of all materials and/or construction faults.

Warranty provision

The responsibility for the implementation of warranty rests primarily with the installer or supplier where the HotSpot Titanium 3-in-1 tap was purchased. Therefore always consult your installer or supplier.

Warranty period

• Lifetime corrosion warranty on the titanium inner tank (without accessories);
• 2 years* on the other parts.
- After registration on the website the warranty period is 5 years.
* See www.hotspot-titanium.com for more details

Warranty conditions

• Register your product online within 3 months after purchase

- When claiming under the warranty, the model of the tap should be mentioned.

- The purchase invoice indicating the date of purchase must be submitted.

- Immediately after purchase the warranty card must be completed on the website www.hotspot-titanium.com.

The warranty applies only if:

- There are material and construction faults (all this at the discretion of the manufacturer);

• the tap is installed, used and maintained according to this installation manual;
• no constructive changes or modifications have been made to the tap;
• the defect is not a consequence of own fault, negligence or improper use.

Warranty exclusions

• Labour costs;
• Call-out charges;
• Shipping costs;
• Administration costs;
• Transport damage;
  • Secondary damage such as fire damage, water damage or bodily injury.
• In areas with a water hardness above 12 °dH, HotSpot Titanium recommends the use of a HotSpot Titanium filter with water softener. In areas with water hardness above 14 °dH HotSpot Titanium states the use of a water softener with ion exchanger as a warranty condition!

* dH = German Hardness

Service

You should always contact your installer or supplier if you have problems with the installation and/or the operation of the tap.

To order service parts please contact HotSpot Titanium.

N.B.

The failure of one or more components in no way justifies the replacement or return of the entire tap.

All relevant components can be obtained at short notice

1.3 Liability

Neither HotSpot Titanium nor your installer/retailer accept any liability for damage or bodily injury of any kind resulting from:

• failure to follow the instructions in this manual;
• carelessness during installation, use, maintenance and repair of the system;
• use not in accordance with the application;
• the use of components not supplied by the manufacturer;
  • consequential damage due to leakage.

The HotSpot Titanium 3-in-1 taps only operate with an original HotSpot Titanium boiler. See the user and installation manual of the boiler.

2 Delivery

2.1 Packaging contents

In addition to your HotSpot Titanium boiler you also have an HotSpot Titanium 3-in-1 tap in a separate package. This includes the following:

1) A HotSpot Titanium 3-in-1 tap fitted with hose and control cable.
2) A slipring with O-ring.
3) A steel pressure ring with rubber packing.
4) Two nuts for mounting the tap.
5) A user and installation manual for the tap.

To avoid dangerous situations, both the HotSpot Titanium boiler and the HotSpot Titanium 3-in-1 tap should be installed according to the accompanying installation instructions* by a qualified specialist.

* The installation instructions can be found at the back of this book.

3 Operation

The unique HotSpot Titanium 3-in-1 tap operates with an electronic control button in order to allow the water to flow from the tap. The IntelliProtect® system ensures safety by a completely safe low voltage.

The tap housing and the outlet will maintain a low temperature, even if you tap water for a longer time.

This appliance is not intended for use by persons (including children) with physical, mental and/or visual impairments, or lack of knowledge, unless supervised to that end by a competent person.

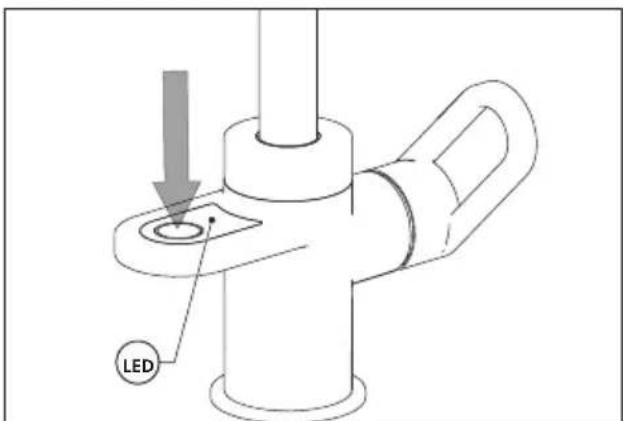

Fig. 3.1 Indicator lamp

In addition to the electronic control button there is an (LED) indicator lamp (see fig. 3.1). As soon as the electronic control button is pressed, this LED lights up continually. After a delay of 0.5 seconds the tap (*) opens and the indicator LED flashes.

If the pan fill option is selected, the indicator light steadily lits after 10 seconds to indicate that the water will run when the button is released.

The water stops flowing immediately if the push button is pressed again.

(*) intelliProtect® level 1, see for the settings of the protection the manual of the boiler.

• Avoid large forces and loading of the tap outlet.
• In connection with risk of burning, adjusting the tap outlet during tapping is not recommended.
• Holding the tap outlet just above the object to be filled is recommended; this imits the cooling down of the water, splashes and formation of steam.

Do not use plastic (disposable) cups to collect the boiling water. These cups are often not resistant to the high temperature!

A cup, glass or pan filled with water from the HotSpot Titanium will become very hot in a short time! Bear this in mind, use protection such as oven gloves or potgloves.

You should always be careful with the boiling water from the tap! Danger of scalding from direct skin contact!

Cups with a concave bottom must be carefully placed under the stream to prevent boiling water from running over the edge.

Have your HotSpot Titanium 3-in-1 tap descaled annually (Chapter 4 - Replacing Aerator) if you live in an area with waterhardness higher than 12^ .

4 Maintenance

Have your HotSpot Titanium 3-in-1 tap de-scaled annually if you live in an area with waterhardness higher than 12 °dH.

Make sure that, when cleaning or performing maintenance, the boiling water function of the faucet is not operated.

4.1 Cleaning

Both the boiler housing and the tap are easily cleaned with a soft cloth.

Do not use any aggressive or abrasive cleaning agents.

4.2 The tap

Depending on use and the hardness of the water, limescale may develop in the outlet of the tap. If the water flow is less than 2.2 liters per minute, you should clean the outlet or replace the mousseur. These mousseurs are available at HotSpot Titanium. Replacement is simple:

Replacing the cartridge

1. Remove the small cap at the bottom of the control lever;
2. Unscrew the adjustment screw in the control lever and remove it;
3. Loosen the lock nut;
4. Take out the cartridge and replace this with the new one;
5. Put back all the components by carrying out the above points in reverse order.

Replacing the mousseur in connection with scaling and/or contamination

1. Unscrew the nut of the tap outlet (if necessary with a cloth for better grip);
2. Replace the mousseur or wash it clean with water;
3. Put everything back in reverse order.

5 Malfunctions

The HotSpot Titanium 3-in-1 tap is a Dutch quality product, developed on the basis of years of experience and constructed using first class materials. When a malfunction occurs, you can resolve this on the basis of the table.* If the prescribed action does not have the desired effect, disconnect the plug from the socket outlet and call your installer. First note down the product name, type number and serial number of your HotSpot Titanium boiler. This information can be found on the back of the appliance.

* in the user and installation manual of the boiler

Your HotSpot Titanium 3-in-1 tap should only be repaired by a certified specialist. Self-repair can lead to dangerous situations! Unauthorized repair will void the warranty!

If the power cable is damaged, this should only be replaced by HotSpot Titanium's technical service department in order to avoid dangerous situations.

6 End of service life

The HotSpot Titanium 3-in-1 tap contains no toxic or harmful substances and may be offered to your local refurbishment organisation.

The packaging materials are also entirely recyclable.

7 Installation

When installing the HotSpot Titanium, the following must be complied with:

• Install the boiler according to the installation manual supplied with the boiler;
• Water pressure: 1 - 5 bar;
• Maximum hot water temperature: 80 °C
- When the water supply pressure exceeds 5 bar, a pressure reducing device is recommended to ensure proper operation;

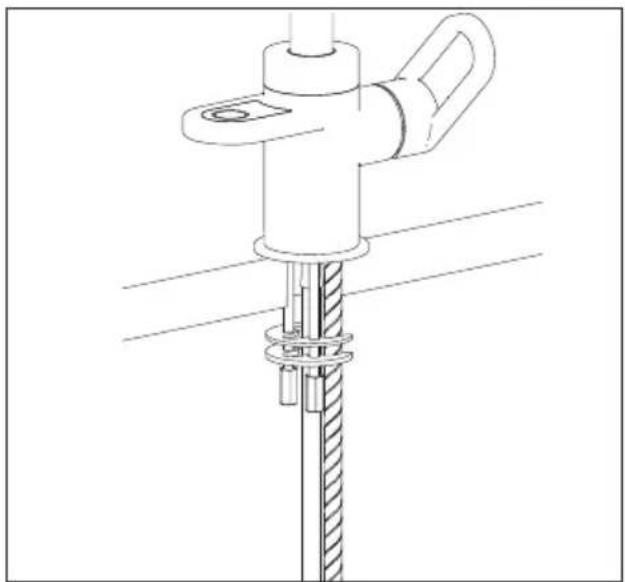

1. Drill a hole (maximum ∅ 35 mm) into the work top at the desired location.

2. Slide the tap with the hose through the worktop from top to bottom. The O-ring must be installed between the working top and the tap.

3. Screw the two separate threaded ends into the tap housing from below. The flat seat is optional.

4. Slide the U-shaped rubber packing and flat steel plate together with the nut over the threaded ends;

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 7.1 Fastening tap to work top

1. Place the nuts over the threaded ends and turn them tight under the worktop;

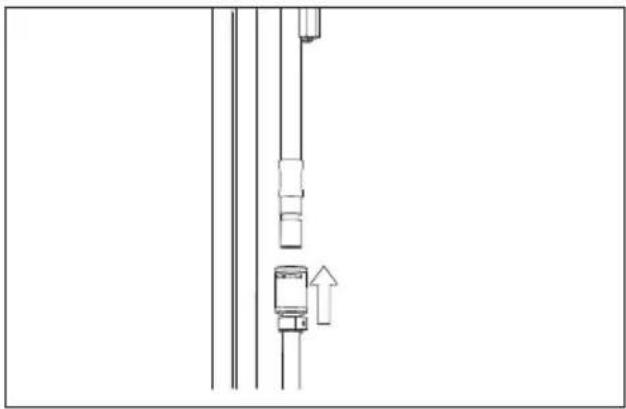

2. Connect the hot and cold water hoses, recognisable by the colour coding, to the mains system. Optionally, the hot water connection may be connected to the hot water hose of the combi boiler. Then remove the cap from the red hot water hose with the proper tool;

3. Slide the connector on the red hose that comes from the boiler, over the 3-in-1 tap connection until it can go no further;

Pure mechanical assembly diagram showing vertical and horizontal components with an upward arrow, no text or symbols present

Fig. 7.2 Attaching hose to 3-in-1 tap

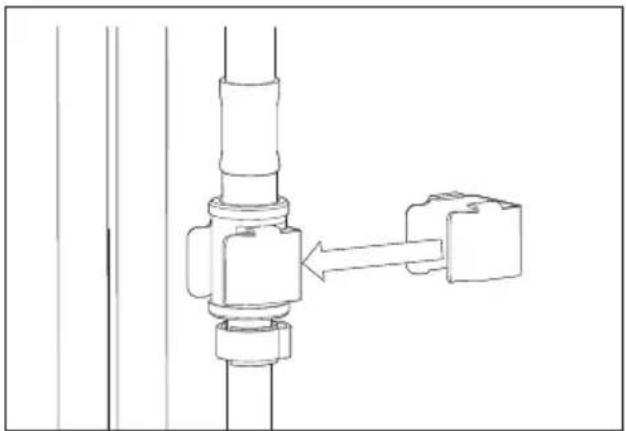

1. Secure the connector with the metal retaining clip supplied with the boiler. Note: the clip should neatly click around the connection housing. Make sure the connection has been made properly by pulling carefully on the hose;

Pure mechanical assembly diagram showing a valve or connector with no text, numbers, or symbols

Fig. 7.3 Attaching retaining clip

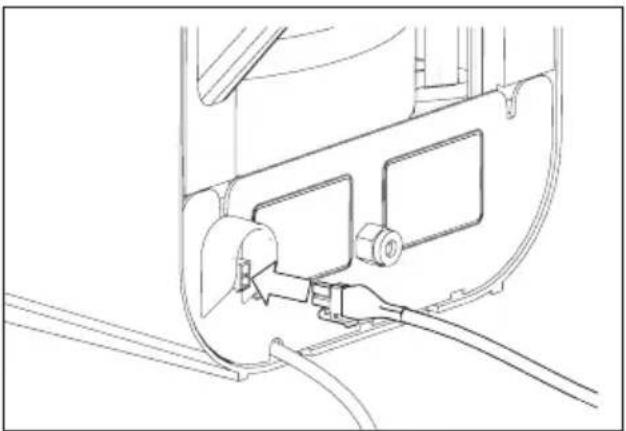

1. Connect the wire from the HotSpot Titanium 3-in-1 tap to the connector at the rear of the boiler (hook downwards) (see fig 7.4).

Technical line drawing of a vehicle's front and rear assembly (no text or symbols)

Fig. 7.4 Connecting wire to boiler connector

Refer to the HotSpot Titanium boiler installation and user manual for further details.

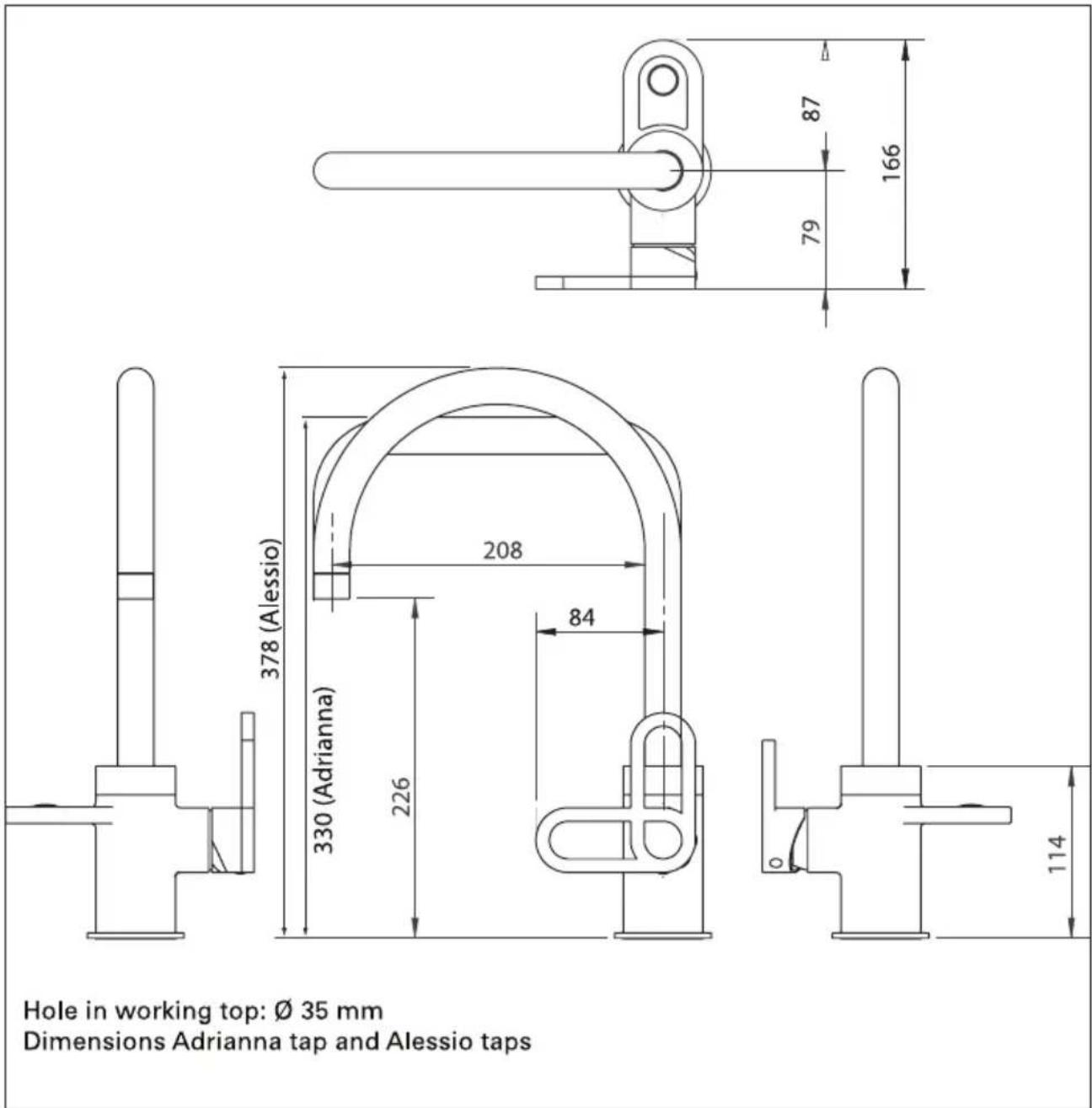

Dimensions

Fig. 8 HotSpot Titanium 3-in-1 tap

Line drawing of a kitchen faucet with handle and base (no text or symbols)

ALESSIO CHROM C-AUSLAUF Art.nr: 15412010 EAN: 8716453008006

ALESSIO PVD C-AUSLAUF Art.nr: 15412030 EAN: 8716453008020

Line drawing of a kitchen faucet with handle and base (no text or symbols)

ADRIANNA CHROM U-AUSLAUF Art.nr: 15412020 EAN: 8716453008013

ADRIANNA PVD U-AUSLAUF Art.nr: 15412040 EAN: 8716453008037

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure mechanical assembly diagram showing a valve or connector with no text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a kitchen faucet with handle and base (no text or symbols)

ALESSIO CHROOM

C-UITLOOP

art.nr: 15412010

EAN:

8716453008006

ALESSIO PVD

C-UITLOOP

art.nr: 15412030

EAN:

8716453008020

Fig. 1.1 De HotSpot Titanium 3-in-1 kraan type ALESSIO

Line drawing of a kitchen faucet with handle and base (no text or symbols)

ADRIANNA CHROOM

U-UITLOOP

art.nr: 15412020

EAN:

8716453008013

ADRIANNA PVD

U-UITLOOP

art.nr: 15412040

EAN:

8716453008037

Fig. 1.2 De HotSpot Titanium 3-in-1 kraan type ADRIANNA

INHOUDSOPGAVE

GEBRUIKERSHANDLEIDING

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical assembly or lifting mechanism without any text, numbers, or symbols

Fig. 7.2 Aanbrengen slang op 3-in-1 kraan

Pure mechanical assembly diagram showing a valve or connector with no text, numbers, or symbols

Fig. 7.3 Aanbrengen borgclip

Technical line drawing of a mechanical assembly with no visible text or symbols

Kaagschip 25, 3991 CS Houten

E-mail: [e-mail]
