Product type	Mixer tap for sink
Brand	Inventum
Model	IMK501ZWA
Material	Chrome-plated brass
Nominal pressure	0.3 MPa (max 0.5 MPa)
Operating temperature range	4°C to 70°C
Connections	Hot and cold water (connection hoses supplied)
Box contents	Faucet spout, aerator, plastic flange, sealing washers, fastening screws, hex keys, connection hoses
Installation	On worktop, requires drill if no existing hole
Care and cleaning	Clean with a mild product (dish soap), rinse and dry
Descaling	Clean the aerator with diluted household vinegar, rinse thoroughly
Safety instructions	Read the instruction manual before use, installation in accordance with local regulations
Warranty	See www.inventum.eu for terms and conditions
Replacement parts	Use only original parts
Use	Indoor use only

Frequently Asked Questions - IMK501ZWA INVENTUM

How to install the Inventum IMK501ZWA mixer tap?

Follow the steps in the instruction manual: drill a hole if necessary, fasten the tap with the flange and screws, connect the hot and cold water hoses respecting the colors (red for hot, blue for cold). Check for leaks.

What water pressure is required?

The nominal pressure is 0.3 MPa, with an operating range of 0.05 to 0.5 MPa.

How to descale the tap?

Unscrew the aerator and clean it with diluted household vinegar. Rinse thoroughly with clear water.

What cleaning products to use?

Use a mild dish soap and a non-abrasive cloth. Avoid products containing chlorine, acid, or aggressive descaling agents.

The tap is leaking, what to do?

Check the tightening of the connections and the condition of the sealing washers. If the problem persists, contact an installer.

Can I use the tap for hot water above 70°C?

No, the maximum allowed temperature is 70°C. A higher temperature could damage the tap.

Where can I find spare parts?

Use exclusively Inventum original parts. Check www.inventum.eu for availability.

How to flush the tap before first use?

Unscrew the aerator, open the water for a few minutes to flush out impurities, then screw the aerator back on.

What is the warranty of this tap?

The warranty conditions are available at www.inventum.eu. Damages due to incorrect installation are not covered.

Can I install the tap myself?

Yes, if you follow the instructions in the manual. If in doubt, call a professional installer.

USER MANUAL IMK501ZWA INVENTUM

1. Safety instructions page 8
2. Before using for the first time page 9
3. Installation of the mixer tap page 10
4. Using the mixer tap page 11
5. Cleaning & maintenance page 11

Deutsch

1 safety instructions

• Carefully and fully read the user manual prior to using the appliance and carefully store the manual for future reference.

• Only use this appliance for the purposes described in the user manual.

• Installation should take place in accordance with locally applicable regulations for construction and water. Consult an installer in case of doubt.
• Defective parts may only be replaced by original parts. Only for those parts will the manufacturer be able to guarantee that they meet the safety requirements.
• Damage as a result of incorrect connection, incorrect fitting or incorrect use does not fall under the warranty.

2 before using for the first time

Observe these instructions when using the appliance for the first time: carefully unpack the mixer tap and remove all packaging material. Keep the packaging (plastic bags and cardboard) out of the reach of children. After unpacking the mixer tap, check it for external damage that may have occurred during transport. Check that all components described below are included in the delivery.

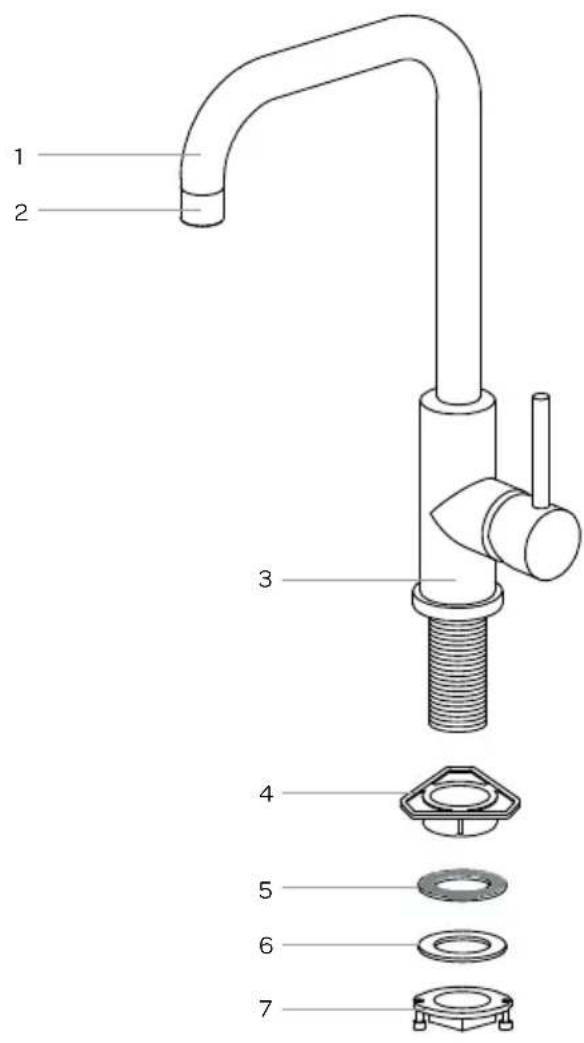

1. Tap spout
2. Perlator
3. Tap
4. Plastic flange
5. Rubber washer
6. Metal washer
7. Fastening ring and screws

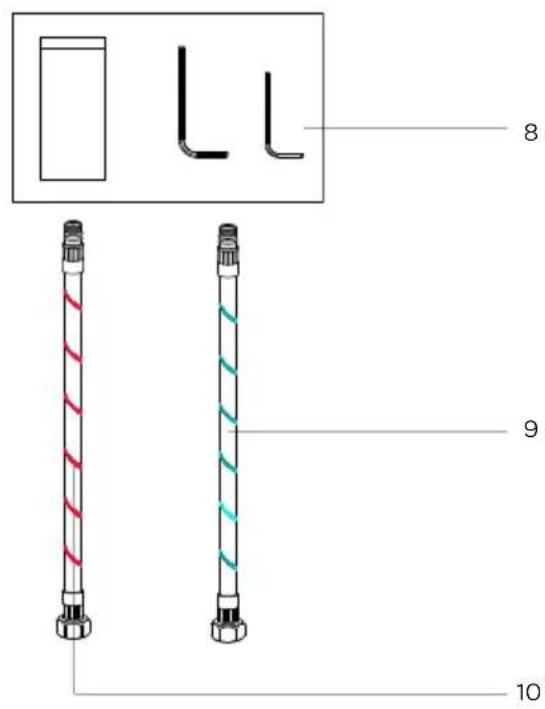

8. Bag with socket head wrenches
9. Connection hose - cold water
10. Connection hose - hot water

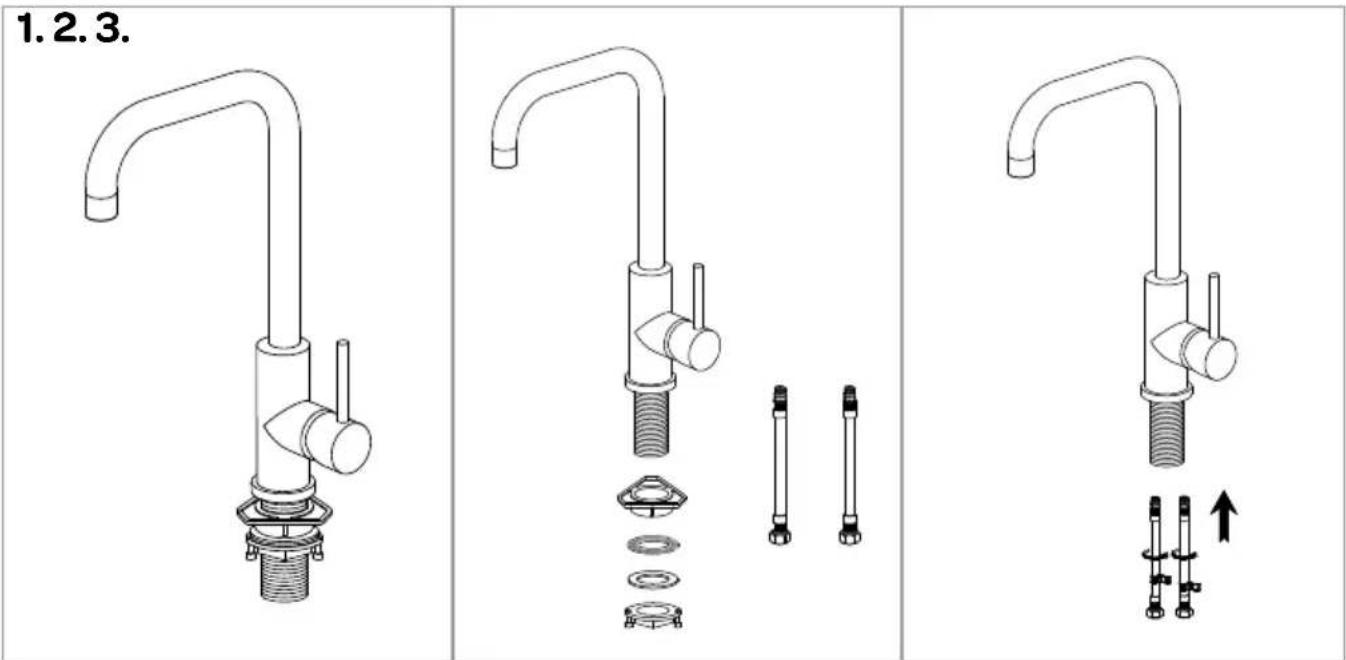

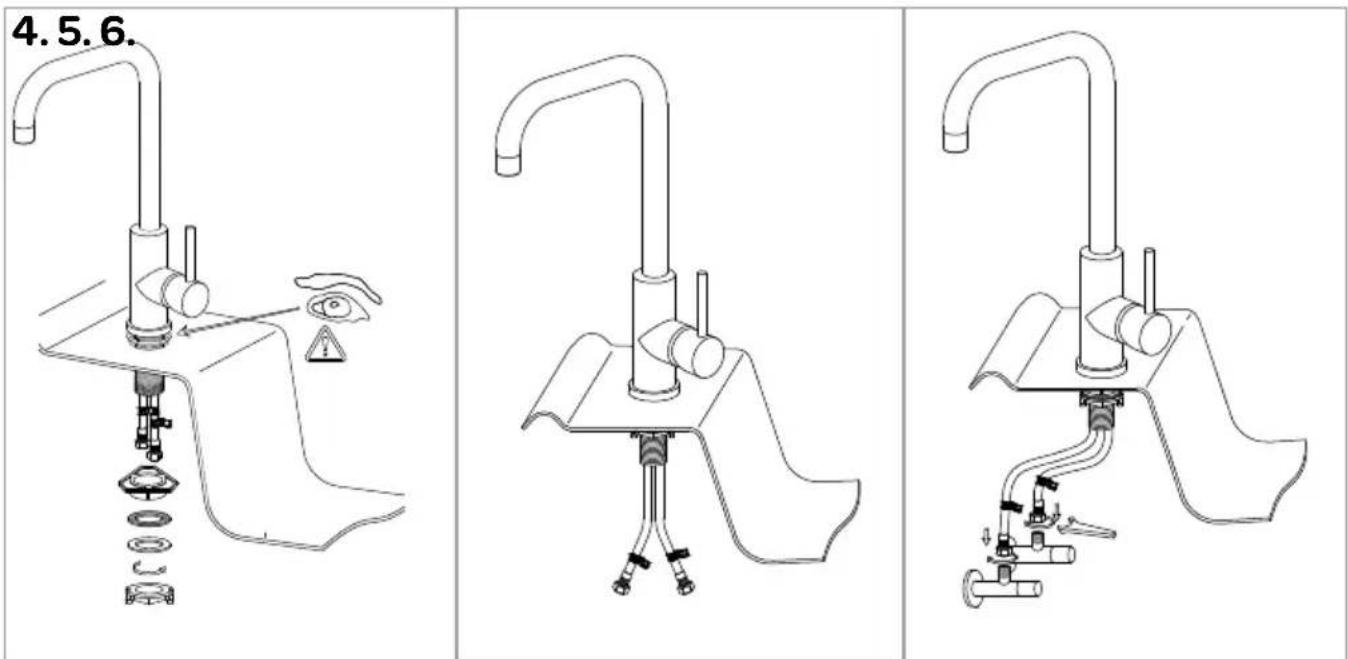

3 installation of the mixer tap

• Safety during use is only guaranteed if the assembly has taken place in a technically correct way and in accordance with these installation instructions. The installer is liable for damage caused by incorrect assembly.
  In case of incorrect installation or connection, the warranty becomes invalid.
• The nominal pressure of the mixer tap is 0.3MPa and the tap is able to function with a water pressure of 0.05 - 0.5MPa (including hot and cold water pressure).
• The mixer tap is suitable for indoor use with an average temperature of 4 - 70^
• During assembly, make sure the hot and cold water connections are correct.
• Tools to be used: screwdriver, water level, teflon tape and a drill, if there is no tap hole in the worktop yet.

Rinse the mixer tap clean before using it.
Unscrew the perlator and turn on the mixer tap for a number of minutes.
Turn off the mixer tap and screw back the perlator.
The mixer tap is ready for use.

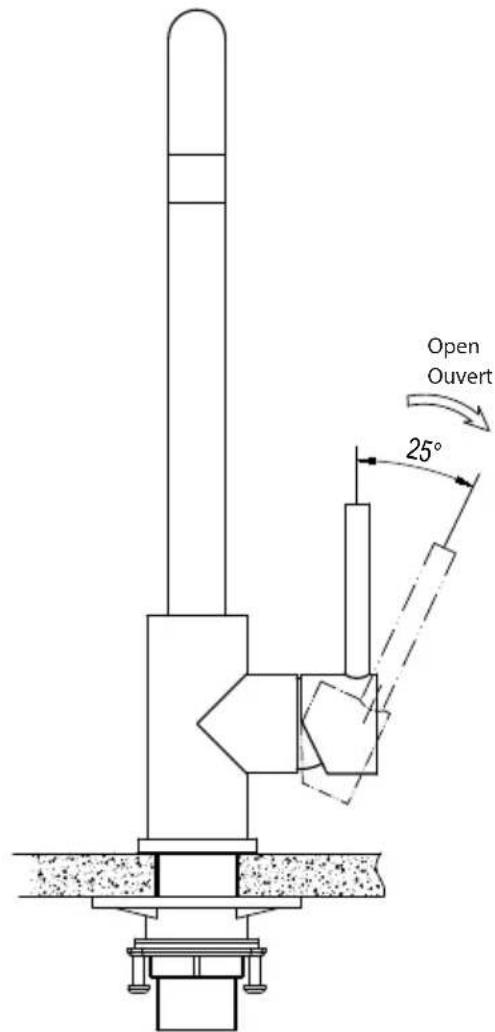

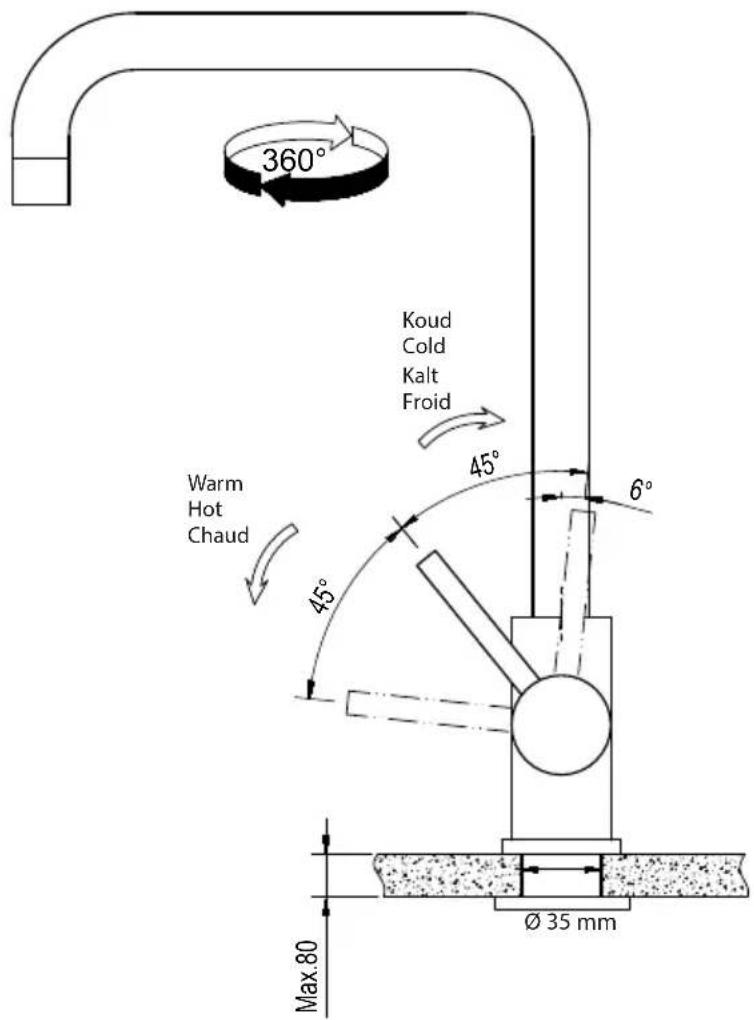

4 using the mixer tap

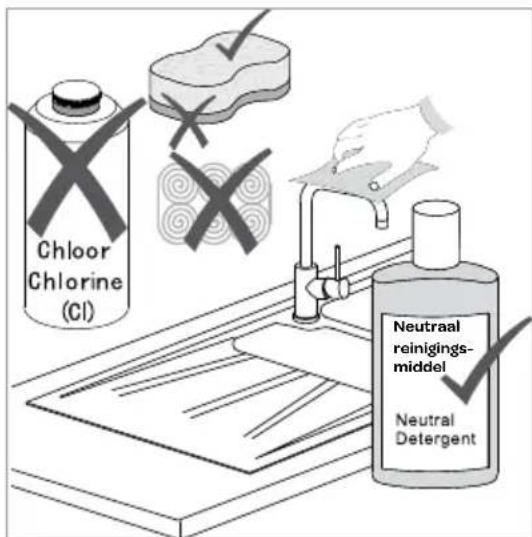

5 cleaning and maintenance

• When cleaning the mixer tap, do not use aggressive, abrasive cleaning agents such as chlorine or steel wool, or detergents that have limescale dissolving or acidic properties.
• Daily clean the mixer tap only with a soft, damp cloth and a mild detergents such as a washing-up liquid. Rinse thoroughly after cleaning and dry with a clean, dry cloth.
• Regularly clean the perlator in order to remove any accumulated scale. If necessary, you can use diluted household vinegar. Rinse thoroughly with water.

facebook.com/inventum1908

youtube.com/inventum1908

For general terms and conditions of service and warranty check the website.
