Product Type	Blender with coffee mill attachment
Model	Gorenje B800E
Power Consumption	800 W max
Voltage	220-240 V
Frequency	50 Hz
Noise Level	72 dB(A)
Blender Jug Capacity	1.5 liters
Blade Material	Stainless steel (removable)
Control	Rotary knob with Pulse function
Speed Settings	3 speeds (1, 2, 3) plus Pulse
Safety Lock	Interlock system prevents operation unless jug/coffee mill is correctly locked
Attachments	Blender jug, coffee mill (max 40g beans)
Max Continuous Operation (Blender)	1 minute
Max Continuous Operation (Coffee Mill)	30 seconds, then 60 min rest after 3 cycles
Cleaning Blender Jug	Hand wash only; quick clean with warm water and detergent using Pulse
Cleaning Motor Base	Wipe with damp sponge; never immerse
Dishwasher Safe	No (blender parts only hand wash)
Blade Handling	Extremely sharp; use caution when cleaning
Dimensions (approx.)	Not specified; compact countertop design
Weight (approx.)	Not specified
Warranty	Contact local Gorenje service center

Frequently Asked Questions - B800E GORENJE

Can I blend hot liquids in the Gorenje B800E blender?

No, you should not blend hot liquids. Allow them to cool before processing to avoid pressure buildup and potential splashing.

What is the maximum capacity of the blender jug?

The maximum capacity is 1.5 liters. Do not exceed the marked level on the jug.

How do I clean the blender blades safely?

The blades are extremely sharp. Use the quick cleaning method: half-fill the jug with warm water and a drop of detergent, then use the Pulse function for 1-2 seconds repeatedly. For thorough cleaning, unscrew the blade assembly and hand wash with warm soapy water.

Can I use the coffee mill for spices or other grains?

The coffee mill is designed for coffee beans only (max 40g). Using other hard items may damage the blades or motor.

Why won't my blender start?

Ensure the blender jug or coffee mill is correctly locked onto the base. The safety locking system prevents operation unless properly assembled. Check that the lid is also secured.

What does the Pulse function do?

The Pulse function runs the blender only while you press and hold the button. This gives you more control for chopping nuts, crushing ice, or grinding coffee.

How long can I operate the blender continuously?

Do not operate for more than 1 minute at a time. For the coffee mill, limit to 30 seconds per use and allow a 60-minute rest after three consecutive cycles.

Is the blender jug dishwasher safe?

No. Wash all parts (lid, jug, blade assembly, rubber seal) by hand in warm soapy water. Do not use a dishwasher.

What should I do if the power cord is damaged?

The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Contact Gorenje customer service.

Can I add ingredients while blending?

Yes. Remove the measuring cup from the lid and add ingredients through the pouring hole while the blender is running. Ensure the lid remains in place.

USER MANUAL B800E GORENJE

Exterior view of a modern kitchen blender with clear glass and black handle (no text or symbols visible)

B800E

Nastavni mešalnik	Navodila za uporabo	SI
Mikser	Upute za uporabu	BIH HR
Mikser	Uputstvo za upotrebu	BIH SRB MNE
Миксер	Упатства за употреба	MK
Blender	Instruction manual	GB
Standmixer	Gebrauchsanweisung	D
Миксер	Инструкции за употреба	BG
Mixér	Návod na použití	CZ
Mixér	Návod na obsluhu	SK
Mixer	Használati utasítás	H
Mixer	Instrukcja obsługi	PL
Mixer	Manual de utilizare	RO
Змішувач	Інцтрукція з експлуатації	UA
Мешалка	Инструкция по эксплуатации	RUS
Frullatore	Istruzioni d'uso	I
Міξερ	Обнүгес хрпσεωσ	GR

Slika.3
Slika.4

Pokrov otvora za dodavanje sastojaka/mjerica 1. Pokrov 2.

Slika.1
Slika.2

Poklopac otvora za dodavanje sastojaka/merica 1. Poklopac 2.

Vrč seckalice (1,5 litra) 3.

Odstranjivi nož 4.

Ukrasni obruč kućišta 5.

Kućište 6.

Slika.1
Slika.2

1. Skinite poklopac ili mericu sa vrča seckalice te stavite sastojke u vrč.

Poklopac s nameštenom mericom ponovno 4. stavite na vrč seckalice i vrč obrnite u suprotnom smeru od kazaljki na satu, da se uglavi. Više informacija naći ćete u poglavlju Bezbednosni sistem zaključavanja. Vodite računa da sadržaj vrča ne sme da prevaziđe označeni nivo, to jest najviše 1,5 litra.

Dugmetom za upravljanje izaberite brzinu 5. seckanja: 1, 2, 3, ili momentalno delovanje.

U funkciji momentalnog delovanja (pulsiranje) 6. seckalica će raditi sve dok držite pritisnuto dugme za momentalno delovanje. Takav način omogućuje više nadzora u seckanju npr. oraščića ili čokolade, ili za usitnjavanje leda.

Kad dugme za upravljanje obrnete na poziciju 1, 7. 2 ili 3, aparat će raditi neprekidno, sve dok isto dugme ne obrnete natrag u položaj 0.

Slika.3
Slika.4

1. Dugmetom za upravljanje izaberite traženu brzinu rada: 1, 2, 3, ili momentalno delovanje.
2. Kako fino je kava samlevena ovisi o količini zrna kafe i vremenu mlevenja.
3. Kod mlevenja kafe pridržavajte se narednih ograničenja što se tiče količine i vremena mlevenja: 40 g: najviše 15 do 30 sekundi.
4. Ako je vreme mlevenja kraće, kava će biti grublje samlevena.
   U funkciji momentalnog delovanja (pulsiranje) 8. seckalica će raditi sve dok držite pritisnuto dugme za momentalno delovanje. Takav način omogućuje više nadzora kod mlevenja.
5. Ako dugme za upravljanje okrenete u položaj 1, 2 ili 3, aparat će raditi neprekidno, sve dok isto dugme ne okrenete nazad na poziciju 0.

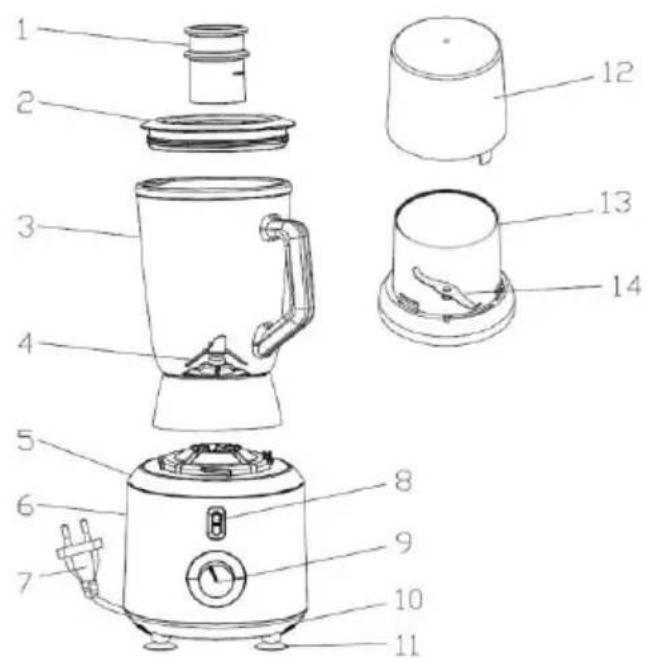

1. Lid on pouring hole/measuring cup
2. Lid
3. Blender jug Assy(1.5 litre)
4. Removable blade assembly
5. Main body decorative ring
6. Main body
7. Plug & power cord
8. Pulse button
9. Control knob
10. Base
11. Plastic feet
12. Coffee milling cover
13. Coffee milling bowl
14. Milling blade

Voltage: 220 - 240 V

Frequency: 50 Hz.

Power: 800 W max.

Noise level: Lc = 72 dB(A) Important

Safeguards

• Read all instructions carefully before you use the appliance.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
  • Children shall not play with the appliance.

• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• This appliance is intended to be used in household and similar applications such as :
• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.
• Ensure fingers are kept well away from the blades when in use.
• Do not blend hot ingredients.
  • Always operate on a flat surface.
• Ensure the control dial is in the off '0' position before plugging into the power outlet.
• Do not operate for more than 1 minutes at a time.
• Do not operate for more than 30 seconds for coffee mill at a time. After you have used the Coffee mill three times without interruption, a pause of around 60 minutes is necessary.
• Read carefully and save all the instructions provided with an appliance.
• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the Plug, do not pull on the cord.
• Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
• Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
• Do not use an appliance for any purpose other than its intended use.
• Do not place an appliance on or near a hot gas flame, electric element or on a heated oven. Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang over the edge of a table or bench top or touch any hot surface.
• Do not operate any electrical appliance with a damaged cord or after the appliance has been dropped or damaged in any manner.
• Do not immerse the appliance in water or any other liquid unless recommended.
• Never touch the blades while the machine is plugged in.

- Take special care when emptying and cleaning the blender jug, as the blades are extremely sharp.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

How to Use

1. Mount the Measuring Cup (1) onto the Lid (2). Secure the Lid onto blender jug and press down (FIG 1)

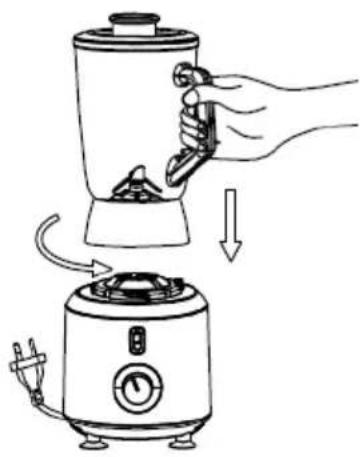

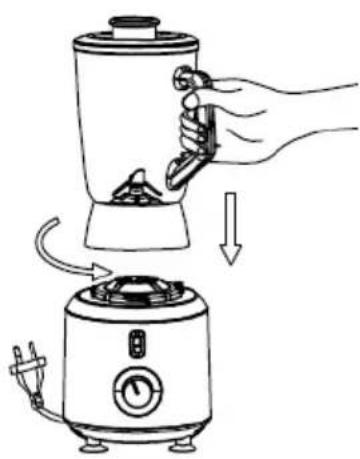

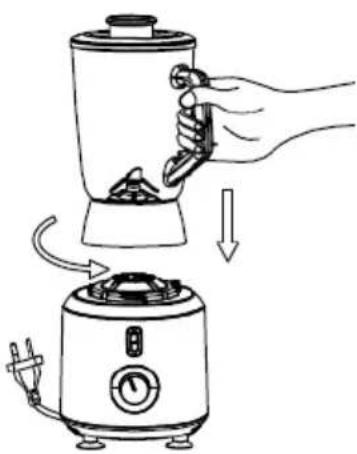

2. Place the blender jug on the Main body and rotate anticlockwise (figure 2). See also chapter 'Safety locking system'.

Diagram of a coffee maker with a lid and handle, showing internal components and downward arrows indicating flow or movement (no text or symbols)

FIG.1

Illustration of a hand using a blender to press down an electric cooker (no text or symbols present)

FIG.2

1. Remove the lid or the measuring cup from the blender jug and place ingredients into the jug.
2. Place the lid with the measuring cap back onto the blender jug and rotate the blender anticlockwise to lock. See also chapter 'Safety locking system'. Do not exceed the maximum indicated level-1.5 litres.
3. Using the selector control knob, select the desired blending speed1, 2, 3 or PULSE.
4. The PULSE function remains on as long as the PULSE button is pressed down, for greater control when blending, e.g. when chopping nuts or chocolates, or crushing ice.
5. Setting 1,2 and 3 will provide continuous blending until the control knob is turned to the '0' position.
6. You can add further ingredients while blending. For this, remove the measuring cup from the pouring hole.
7. After you have completed blending, turn the control knob to the '0' position.

Using your coffee mill

1. Fill with the required amount of coffee (max.40g) into the milling bowl(15)
2. Mount the Milling cover (14) onto the milling bowl (15). and press down (FIG 3)
3. Place the coffee mill on the Main body and rotate anticlockwise (figure 4). See also chapter 'Safety locking system'.

Diagram of a container with arrows indicating flow or movement, no text or symbols present

FIG.3

Line drawing of a kitchen appliance with a lid and power plug, showing a step-down view of the lid's top component (no text or symbols)

FIG.4

1. Using the selector control knob, select the desired blending speed1, 2, 3 or PULSE.
2. The fineness of the ground coffee depends on the quantity of beans and the grinding time.
3. To obtain ground coffee, the following quantities and times apply.
4. 40g: max. 15-30sec.
5. Shorter grinding times result in somewhat coarser coffee grains.
6. The PULSE function remains on as long as the PULSE button is pressed down, for greater control when milling.
7. Setting 1,2 and 3 will provide continuous milling until the control knob is turned to the '0' position.

Safety locking system

With safety in mind, this blender and coffee mill are designed with a safety locking system. Unless the lid and blending jug or coffee mill are positioned correctly and locked in place, the blender or coffee mill will not operate.

For correctly assembling the blender, operate as follows:

1. Place the main body on the table, with the front facing toward you.
2. Place the blending jug onto the main body with the handle to the right. The jug is placed correctly when the arrow on the jug is positioned right above the open lock on the motor base.
3. Turn the blending jug to the right until you hear a slight click. The arrows on the motor base and blending jug should now be aligned with each other. If this is the case, the blending jug is locked

correctly.

1. Position the lid onto the blender so that the long holding lip is facing toward you.
2. Turn this holding lip to the right, so that is it positioned right on top of the jug handle. Now the blender is ready for use.

For correctly assembling the coffee mill, operate as follows:

1. Place the main body on the table, with the front facing toward you.
2. Place the coffee mill onto the main body, turn the coffee mill to the right until you hear a slight click. The arrows on the motor base and the milling bowl should now be aligned with each other. If this is the case, the coffee mill is locked correctly.
3. Now the coffee mill is ready for use.

A Guide to Your Blender

Processing Task	Food	Suggested Setting	Suggested Processing Procedure
Aerating	Milkshakes, smoothies	2, 3	Use chilled milk. Blend it until desired consistency is achieved.
Chopping	Nuts, chocolate, garlic or herbs	PULSE	Process 1/2 cup at a time, to ensure evenly sized pieces.
Creaming	Butter or sugar	2, 3	Blend butter and sugar until creamed. It is advisable to top half way through and scrape the mixture down from the sides of the blender jug. DO NOT OVERPROCESS.
Crumbing	Bread crumbs, biscuit crumbs	2, 3	Break into pieces and process until crumbed.
Crushing Ice	Ice	1, 2, 3, PULSE	Add 1/4 cup of water. Use any setting or the PULSE button 3-4 times in succession for crushed iced
Emulsifying	Salad dressing	1, 2	Blend until well combined. Oil may be added to the mixture during processing through the pouring hole in the lid.
Making icing sugar	Crystal sugar	2, 3	Process for approximately 20 seconds for caster sugar and then a further 10 seconds for icing sugar.
Mixing	Batters, cades	1, 2	Process ingredients until just combined. DO NOT OVERPROCESS.
pureeing	Soups, vegetables, fruits	2, 3	Blend until smooth.

ATTENTION! Times for processing will vary with the quantity in the blender jug, these times are only a guide

Handy Blending Hints

• A brief whirl in the blender will rescue a lumpy gravy, or an eggs-based sauce that has separated.
• Food items for blending should be cut into cubes (approximately 2-3cm), this will assist in achieving an even result.
• Never fill the blender jug above the maximum level indicated.

• To ensure efficient mixing when blending dry mixtures, it may be necessary to stop the blender and push ingredients down the sides of the jug with a spatula.

• When pureeing fruit or vegetable, cooked or raw, cut into small pieces to facilitate blending.

• When blending a variety of ingredients together, blend the liquids, first, then add dry ingredients.
• Always ensure stones are removed from fruit and bones from meat as these can harm the blades.
• Do not process hot liquids in your blender. Allows to cool before processing.

Always ventilate the blender jug when pureeing warm ingredients. This is achieved by lifting the ingredient cup out of the lid, after starting the blender.

Care and Cleaning

Quick cleaning method

1. Half fill the blender with warm and a small amount of detergent.
2. Press the 'Pulse' function and hold for 1-2 seconds and release. Repeat 3-4 times.
3. Then remove the jug and rinse it under running water.
4. Clean the milling bowl and cover with a brush or dry cloth.
5. The milling cover may also be washed in cold or tepid water.

For thorough cleaning

1. Unscrew the blade assembly from the blender jug by turning the bottom of the blade assembly in an anti-clockwise direction.
2. Remove the rubber seal from the blade assembly.
3. Wash the blender lid, ingredient cup, rubber seal, blade assembly and blender jug in warm soapy water.
   3.

Caution: Take care when cleaning the blades as they are extremely sharp.

Note: Do not clean any part of the blender in the dishwasher.

To clean the motor base

Use a damp, soft sponge with detergent and wipe over the motor base.

Note: Never immerse the motor base in water.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!

Abb.3
Abb.4

ФИГ.1

Illustration of a hand using a blender to press down an electric cooker (no text or symbols present)

ФИГ.2

Simple line drawing of a container with arrows indicating flow or movement (no text or symbols)

ФИГ.3

Line drawing of a kitchen appliance with a lid and power plug, showing a step-down view of the lid's top component (no text or symbols)

ФИГ.4

OBR.3
OBR.4

Veko na nalievanie/odmerka 1. Veko 2.

Miska (1.5 litra) 3.

obr.1
obr.2

obr.3
obr.4

ábra.1
ábra.2

Diagram of a coffee maker with a lid and side arm, showing internal components and downward arrows indicating flow or movement (no text or symbols)

Rvsunek.1

Line drawing of a hand using a blender to press down a small appliance, showing the process (no text or symbols)

Rvsunek.2

Simple line drawing of a container with arrows indicating flow or movement (no text or symbols)

Rvsunek.3

Line drawing of a kitchen appliance with a lid, fan, and power plug (no text or symbols)

Rvsunek.4

Figura.1
Figura.2

Simple line drawing of a cup with arrows indicating rotation and movement (no text or symbols)

Figura.3

Line drawing of a kitchen appliance with a top hat and side panel, showing a curved arrow indicating rotation (no text or symbols)

Figura.4

Рис.1

Рис.3
Рис.4

Diagram of a coffee maker with a lid and handle, showing internal components and downward arrows indicating flow or movement (no text or symbols)

Illustration of a hand using a blender to press down a small electric cooker (no text or symbols present)

Рис.1
Рис.2

Рис.3
Рис.4

Figura.1
Figura.2

Eik.1
Eik.2

Simple line drawing of a container with arrows indicating flow or movement (no text or symbols)

Eik.3

Line drawing of a kitchen appliance with a top hat and side-mounted fan, showing a press mechanism (no text or symbols)

Eik.4
