BN700XG - Blender GORENJE - Free user manual and instructions

Product Type	Blender
Brand	Gorenje
Model	BN700XG
Power	700 W
Jar Capacity	1.5 L
Jar Material	Glass
Number of Speeds	Variable with pulse function
Blade Material	Stainless steel
Dimensions (H x W x D)	40.0 x 18.0 x 18.0 cm
Weight	2.5 kg
Power Cord Length	1.2 m
Voltage	220-240 V
Frequency	50/60 Hz
Dishwasher Safe Parts	Yes (jar, lid, blades)
Non-Slip Feet	Yes
Overload Protection	Yes
Safety Lock	Yes (lid lock)
Ice Crush Function	Yes
Smoothie Function	Yes
Measurement Marks	Yes (on jar)
Spout Design	Yes (for easy pouring)
Cleaning Brush Included	Yes
Spare Parts Available	Yes (jar, blades, lid, seal)
Repairability Index	High (user replaceable parts)

Frequently Asked Questions - BN700XG GORENJE

How do I clean the blender jar?

The jar, lid, and blades can be washed in the dishwasher on the top rack. Alternatively, rinse immediately after use and wash with warm soapy water.

Can I crush ice with this blender?

Yes, the BN700XG is equipped with a special ice crush function and sturdy stainless steel blades to handle ice cubes easily.

What is the maximum capacity for blending hot liquids?

Do not blend hot liquids above 60°C. The maximum capacity for hot ingredients is 1.0 L to avoid pressure buildup.

How do I use the pulse function?

Press the Pulse button repeatedly for short bursts. Use this for controlled chopping or when you need coarse textures.

Is the blender jar made of glass or plastic?

The jar is made of glass, which is heavy-duty and resistant to scratches and odors.

What should I do if the blender stops working during use?

It may be due to overload protection. Unplug the blender, let it cool for 15 minutes, then reduce the load and try again.

Can I blend dry ingredients like nuts or coffee beans?

Yes, but use the pulse function to avoid overheating. Do not operate continuously for more than 1 minute.

How do I replace the blade assembly?

Unscrew the blade base from the jar counterclockwise. Replace with a genuine Gorenje blade assembly and tighten securely.

What is the noise level of this blender?

The noise level is approximately 80 dB under full load. It operates at a moderate volume for a 700W blender.

Does the blender have a warranty?

Yes, Gorenje offers a standard 2-year warranty from the date of purchase against manufacturing defects.

USER MANUAL BN700XG GORENJE

Close-up of a Gorenjo blender with a lid and plastic cup (no visible text or symbols)

BN700XE

Nastavni mešalnik	Navodila za uporabo	SI
Mikser	Upute za uporabu	BIH HR
Mikser	Uputstvo za upotrebu	BIH SRB MNE
Миксер	Упатства за употреба	MK
Blender	Instruction manual	GB
Standmixer	Gebrauchsanweisung	D
Миксер	Инструкции за употреба	BG
Mixér	Návod na použití	CZ
Mixér	Návod na obsluhu	SK
Mixer	Használati utasítás	H
Mixer	Instrukcja obsługi	PL
Mixer	Manual de utilizare	RO
Змішувач	ництрукція з експлуатаціїл	UA
Мешалка	Инструкция по эксплуатации	RUS

SL Navodila za uporabo ....3

Simple line drawing of a bottle with a lid and arrow indicating direction (no text or symbols)

Vrč z rezilom namestite na motorno enoto. Pogonska enota ima varnostno stikalo. Če posode niste namestili pravilno, aparat ne bo deloval.

Aparat priključite na električno omrežje.

Line drawing of a blender with lid and control panel, no text or symbols present

Pritisnite stikalo za vklop/izklop (START / STOP). Bela lučka nad stikalom bo pričela utripati. Aparat je pripravljen na uporabo.

Vrtenje izklopite s pritiskom na stikalo START / STOP.

Ko pritisnete na stikalo PULSE, se prižge lučka nad stikalom, aparat se vklopi na visoki hitrosti in deluje 2 sekundi.

1. Veliki vrč
2. Oštrica (nož) NutriBlade
3. Motorni pogon
4. Upravljačka ploča
5. Gumene nožice
6. Pokrov za čuvanje

Važno:

Prije početka uporabe uređaja detaljno se upoznajte s korisničkim priručnikom i sačuvajte ga za možebitno kasnije korištenje.

Opasnost

Simple line drawing of a cylindrical container with a lid and arrow indicating direction (no text or symbols)

Line drawing of a blender with a handle and control panel, showing no text or symbols

Pritisnite prekidač START / STOP. Bijela lampica iznad tipke započinje bljeskati. Uređaj je spreman za uporabu.

Rad uređaja isključite pritiskom tipke START / STOP.

Pritiskom tipke PULSE upali se lampica iznad tipke, a uređaj se upućuje u rad na višoj brzini, i radi sekunde.

Ukoliko miksate sastojke kojima je dodana tekućina, maksimalno vrijeme neprekidnog djelovanja je 1 minuta. Nakon isteka tog vremena treba pričekati 1 minutu da se uređaj ohladi. Ovakav jednominutni interval smijete ponoviti najviše tri puta. Nakon toga pričekajte 3 minute da se uređaj ohladi!

U slučaju suhog mljevenja (bez dodane tekućine), maksimalno razdoblje neprekidnog rada je 30 sekundi. Nakon isteka tog vremena potrebno je pričekati 5 minuta da se uređaj ohladi.

Nakon završene uporabe isključite uređaj i iskopčajte priključni kabel iz utičnice električne energije.

1. Veliki vrč
2. Sečivo (nož) NutriBlade
3. Motorni pogon
4. Kontrolna tabla
5. Gumene nožice
6. Poklopac za čuvanje

Važno:

Simple line drawing of a cylindrical container with a lid and arrow indicating direction (no text or symbols)

Vrč s noževima (sečivima) namestite na pogonsku jedinicu.

Line drawing of a blender with a handle and control panel, showing no text or symbols

Pritisnite taster START / STOP. Bela lampica iznad tastera započne treptati. Aparat je pripremljen za upotrebu.

Rad aparata isključite pritiskom tastera START / STOP.

Pritiskom tastera PULSE upali se lampica iznad tastera, a aparat se upućuje u rad na višoj brzini, i radi 2 sekunde.

Ukoliko miksate sastojke kojima je dodana tečnost, maksimalno vreme neprekidnog delovanja je 1 minut. Nakon isteka tog vremena treba pričekati 1 minut da se aparat ohladi. Ovakav jednominutni interval smete ponoviti najviše tri puta. Nakon toga pričekajte 3 minuta da se aparat ohladi!

Simple line drawing of a bottle with a lid and arrow indicating direction (no text or symbols)

Line drawing of a blender with a handle and control panel, showing a black arrow pointing to the blade (no text or symbols)

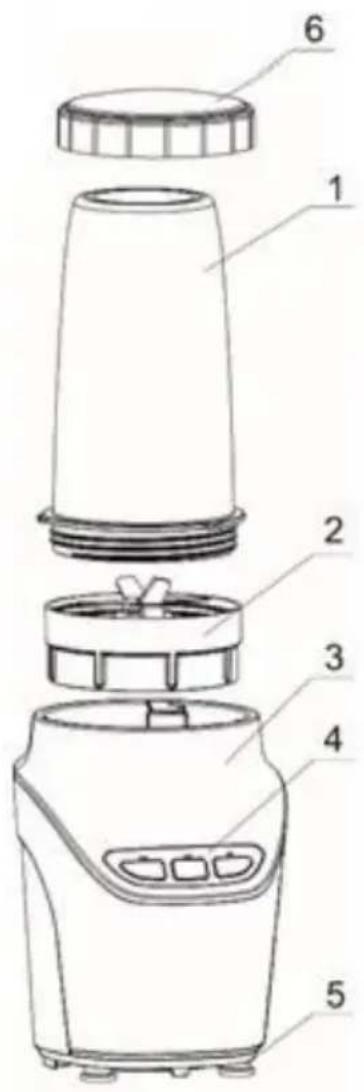

General description:

1. Large jug
2. NutriBlade blade
3. Motor unit
4. Control panel
5. Rubber feet
6. Storage lid

Important:

Before using the appliance for the first time, carefully read this instruction manual and save it for future reference.

Danger

Do not immerse the motor unit in water or any other liquid, and do not rinse it under running water, e.g. under a tap.

Warning

Before connecting the appliance to the power mains, make sure the voltage indicated on the bottom of the appliance matches the voltage of the power mains in your home.

Do not use the appliances, of the plug, power cord, or any other component is damaged.

If the power cord is damaged, it may only be replaced by Gorenje, Gorenje's authorized service and repair centre, or an adequately trained professional.

The appliance should not be used by children or persons with impaired physical or psychological skills, or persons with lacking experience and knowledge, unless such persons are supervised or advised by a person responsible for their safety.

Do not let the children play with the appliance. Do not leave the appliance to operate unattended.

Never mix carbonated beverages in the appliance. The pressure inside the jug can damage it and cause serious injury.

Do not mix or process hot liquids in the appliance.

If you notice any signs of damage on the appliance, discontinue its use and contact the nearest Gorenje authorized service and repair centre.

Do not put your hands or accessories near the blades.

Do not clean with water hotter than 80 °C.

Attention: The appliance is intended solely for personal household use.

Do not use attachments or spare parts by other manufacturers unless they are expressly recommended by Gorenje. In case of use of such attachments or accessories, the warranty shall be void.

Before switching on the appliance, make sure all components are correctly installed.

Make sure the motor unit is dry during appliance operation.

When there is water in the jug, the appliance should not be operated for longer than 1 minute.

When grinding dry ingredients, maximum operating time is 30 seconds.

If the motor stops, disconnect the appliance from the power mains and let it cool down before using it again (at least one hour).

The appliance is not suitable for outdoor use.

Attention: some seeds and stones may release cyanides in the body when ingested. Before use, always remove the seeds and stones of apples, plums, peaches, cherries, and apricots!

This equipment is labelled in compliance with the European Directive 2012/19/EC on Waste Electric and Electronic Equipment – WEEE. The Directive specifies the requirements for collection and management of waste electric and electronic

equipment effective in the entire European Union.

Preparing the appliance for use:

Remove the packaging.

Clean the appliance as instructed in the section "Cleaning".

Using the appliance:

Before juicing, thoroughly wash all ingredients. Cut the ingredients into smaller chunks.

Remove any hard seeds or stones.

NutriMix:

Add the ingredients and liquid of your choice into the large (1) or small (6) jug, up to the MAX marking.

Attach the NutriBlade blade (2) by screwing it onto the jug. Make sure the blade is firmly attached/screwed on.

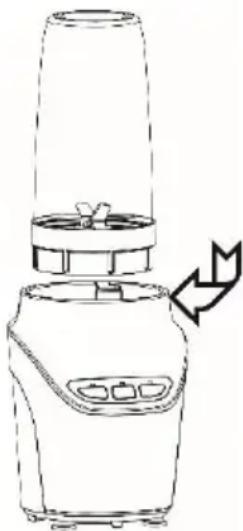

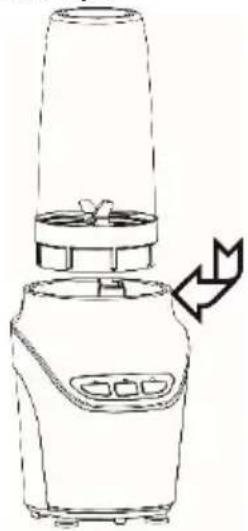

Place the jug with the blade onto the motor unit.

There is a safety switch on the motor unit. If the jug is not correctly positioned on the motor unit, the appliance will not operate.

Connect the appliance to the power mains.

Simple line drawing of a bottle with a cap and side screw, showing a directional arrow (no text or symbols)

Line drawing of a blender with a handle and control panel, showing no text or symbols

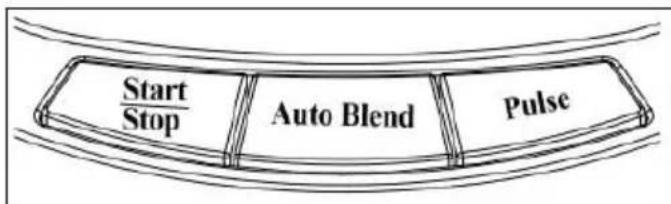

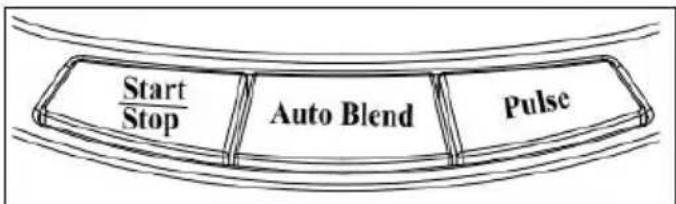

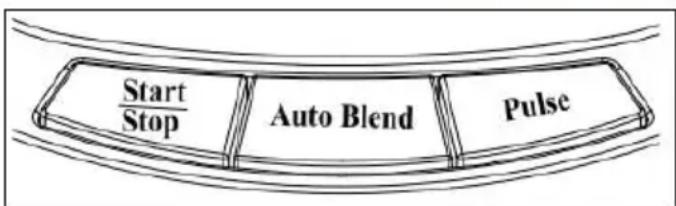

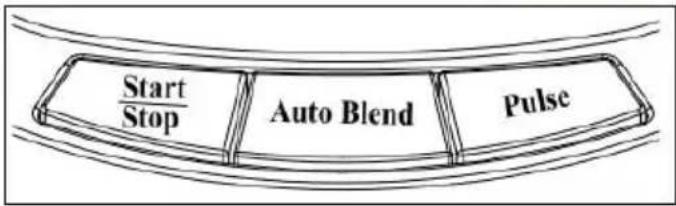

Press the START / STOP switch. White light above the switch will start to flash. The appliance is ready for use.

Switch off the rotation by pressing the START / STOP switch.

When you press the PULSE switch, the light above the switch will light up and the appliance will operate at high speed for 2 seconds.

When mixing ingredients with liquid, maximum continuous operating time is 1 minute. After one minute, switch off the appliance and wait for 1 minute to let it cool down. Such 1-minute cycle can be repeated up to three times in a row. Then, wait for 3 minutes for the appliance to cool down.

In case of dry grinding (without added liquid), maximum continuous operating time is 30 seconds. After thirty seconds, switch off the appliance and wait for 5 minutes to let it cool down.

After use, switch off the appliance and disconnect it from the power plug.

Only handle the appliance with dry hands.

Tips:

If there are too many ingredients in the jug and you have not added enough liquid, the mixture may be too dense. In such case, the ingredients at the top of the jug cannot sink to the blades at the bottom. In such case, remove the jug with the blade attached from the motor unit and shake it vigorously. Then, replace the jug with the blade onto the motor unit.

Cleaning:

Do not clean the appliance with scouring pads, caustic or corrosive cleaners or aggressive liquids like alcohol, gasoline, or acetone. Appliance is easier to clean if it is cleaned immediately after use.

Disassemble the appliance by observing the steps for assembly in the opposite order. Do not immerse the motor unit in water or wash it under a tap. Only use a damp cloth to clean it.

The blades are not dishwasher-safe. Use warm water and detergent for cleaning. Do not remove the gaskets during cleaning. Removing the gasket can lead to damage and leaks.

The jugs can be washed in the upper dishwasher basket at lower temperatures (lower than 80 °C).

Do not clean with metal cleaning accessories as these may damage the appliance.

Environment:

After the expiry of its useful life, do not discard the appliance with common household waste. Take is to an authorized recycling centre. This will help preserve the environment.

Warranty and repair:

For more information or in case of problems, please visit Gorenje website at www.gorenje.com or contact Gorenje customer service in your country (phone numbers are listed in the International Warranty Sheet). If there is no such centre in your country, please contact the local Gorenje dealer or Gorenje's small and innovative domestic appliance department.

GORENJE WISHES YOU A LOT OF PLEASURE IN USING YOUR APPLIANCE.

We reserve the right to modifications.

Beschreibung:

Simple line drawing of a cylindrical container with a lid and arrow indicating direction (no text or symbols)

Line drawing of a blender with a handle and control panel, showing no text or symbols

Simple line drawing of a bottle with a cap and arrow indicating direction (no text or symbols)

Line drawing of a blender with a handle and control panel, showing no text or symbols

Simple line drawing of a bottle with a lid and arrow indicating direction (no text or symbols)

Line drawing of a blender with a handle and control panel, showing no text or symbols

Simple line drawing of a cylindrical container with a lid and arrow indicating direction (no text or symbols)

Line drawing of a blender with a handle and control panel, showing no text or symbols

Stlačte tlačidlo START / STOP. Nad tlačidlom začne blikat' biele svetielko. Spotrebič je tak pripravený na použitie.

Simple line drawing of a bottle with a lid and arrow indicating direction (no text or symbols)

Line drawing of a blender with a handle and control panel, showing no text or symbols

Simple line drawing of a cylindrical container with a lid and arrow indicating rotation (no text or symbols)

Rozdrabnianie na sucho:

Line drawing of a blender with a handle and control panel, showing no text or symbols

Simple line drawing of a mechanical component with a downward arrow indicating rotation (no text or symbols)

Line drawing of a blender with a handle and control panel, showing no text or symbols

Simple line drawing of a plastic bottle with a cap and side port, showing a directional arrow (no text or symbols)

Line drawing of a blender with a handle and control panel, showing no text or symbols

Simple line drawing of a bottle with a lid and arrow indicating direction (no text or symbols)

Line drawing of a blender with a handle and control panel, showing no text or symbols
