USER MANUAL LL-T17A3 SHARP

Notice for Users in Europe

Notice for Users in the UK FOR CUSTOMERS IN U.K.

IMPORTANT The wires in this mains lead are coloured in accordance with the following code : GREEN-AND-YELLOW : Earth BLUE : Neutral BROWN : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows. The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth or coloured green or green-and-yellow. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. Ensure that your equipment is connected correctly-if you are in any doubt consult a qualified electrician. "WARNING :THIS APPARATUS MUST BE EARTHED"

Notice for Users in Australia

Service Inquiries Please contact your dealer for service if required or contact Sharp Corporation of Australia on 1 300 13 50 22 for referral to your nearest Sharp authorized Service Center.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna. - Increase the distance between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules.

WARNING – FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Notice for Users in the USA Declaration of Conformity

SHARP LCD Color Monitor LL-T17A3 This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undersized operation. Responsible Party : SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430 TEL :1-800-BE-SHARP

* As an ENERGY STAR Partner, SHARP has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance:www.eiae.org

Use nothing but the included cables and AC cord to insure compliance with FCC regulation for Class B computing equipment.

LL-T17A3-B Environmental requirements

Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur. The relevant TCO´95 and TCO’99 demand require that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

LL-T17A3-H Congratulations!

You have just purchased a TCO’95 or TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. This product meets the requirements for the TCO’95 or TCO’99 scheme which provides for an international environmental and quality labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation), Statens Energimyndighet (The Swedish National Energy Administration) and SEMKO AB. The requirements cover a wide range of issues: environment, ergonomics, usability, reduction of electric and magnetic fields, energy consumption and electrical safety.

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colour-generating layers of display screens must not contain any cadmium. The relevant TCO’99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. The relevant TCO’99 requirement states that batteries may not contain any mercury. Both TCO´95 and TCO´99 also demand that mercury is not present in any of the electrical or electronics components associated with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light system of flat panel monitors as there today is no commercially available alternative. TCO aims on removing this exception when a mercury free alternative is available.

What does the environmenal labelling involve?

The environmental demands has been developed by Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation). These demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

The relevant TCO’95 and TCO’99 requirement state that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence. Lead ** Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO’95 and TCO´99 requirement permit the inclusion of lead since no replacement has yet been developed.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO’99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

* Bio-accumulative is defined as substances which accumulate within living organisms

** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

9/12/2002, 6:02 PM Tips and safety precautions

- The TFT color LCD panel used in this monitor is made with the application of high precision technology. However, there may be minute points on the screen where pixels never light or are permanently lit. Also, if the screen is viewed from an acute angle there may be uneven colors or brightness. Please note that these are not malfunctions but common phenomena of LCDs and will not affect the performance of the monitor. - Do not leave the screen displaying idly for long periods of time, as this could cause afterimage to remain. - If the brightness is adjusted to the minimum setting it may be difficult to see the screen. - The quality of the computer signal may influence the quality of the display. We recommend using a computer able to emit high quality video signals. - Never rub or tap the monitor with hard objects. - Please understand that Sharp Corporation bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law. - This monitor and its accessories may be upgraded without advance notice.

- Insert the power plug directly into the AC outlet.

Adding an extension cord may lead to fire as a result of overheating. Monitor and accessory checklist - Please check that the following items are included in the package. - LCD monitor (1) - AC adapter (1) (model name: NL-A64J) - Analog signal cable (1) (model name: 0NIT15V1-0056(LL-T17A3-H) / 0NIT17A3-0115(LL-T17A3-B) ) - Audio cable (1) (model name: 0NIT17A3-0010(LL-T17A3-H) / 0NIT17A3-0116(LL-T17A3-B) ) - Utility Disk (For Windows/Macintosh) (1) - Operation manual (1) - Use only the cables supplied with the monitor. Notes: - You are advised to retain the carton in case the monitor needs to be transported. - Sharp Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission. - The shape of the supplied accessaries may not be exactly same as shown in this booklet.

- Do not use the monitor where ventilation is poor, where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam, as this could lead to fire. - Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock. - Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to come into contact with strong shocks or vibrations. Causing the monitor to fall or topple over may damage it. - Do not use in places where the monitor will be subject to direct sunlight, near heating equipment or anywhere else where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire. The Power Cord - Do not damage the power cord nor place heavy objects on it, stretch it or overly bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock. - Use only the AC adapter supplied with the monitor. Using an AC adapter other than that supplied may lead to fire.

- Do not use the AC adapter for other than the specified equipment. - Unplug the AC adapter if it is not used for long time. - Do not place any objects on the AC adapter. - Do not use the AC adapter outdoors. - Do not attempt to repair the AC adapter if it is broken or malfunctioning. Refer the servicing to the service representative. - Do not try to open the AC adapter. - Do not use water or wet cloth for cleaning the AC adapter. Manual Scope - In this booklet, Microsoft Windows XP will be referred to as [WindowsXP], Microsoft Windows Millenium as [WindowsMe], Microsoft Windows 2000 as [Windows2000], Microsoft Windows 98 as [Windows98], Microsoft Windows 95 as [Windows95], and Microsoft Windows Version 3.1 as [Windows3.1]. When there is no need to distinguish between programs, the term [Windows] will be used. - Microsoft and Windows are registered trademarks of Microsoft Corporation. - Macintosh is a registered trademark of Apple Computer, Inc. 8

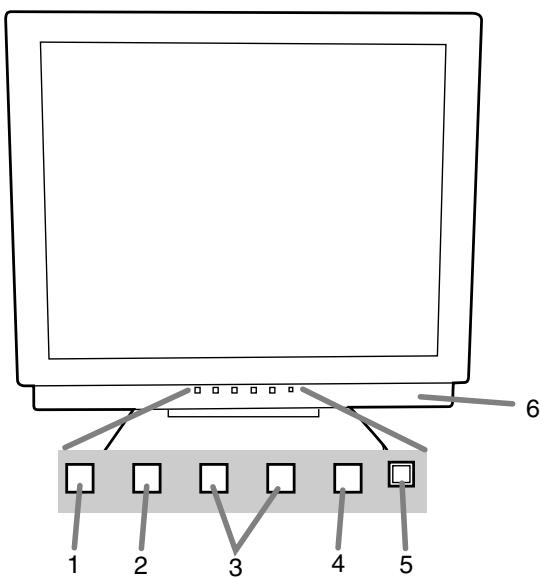

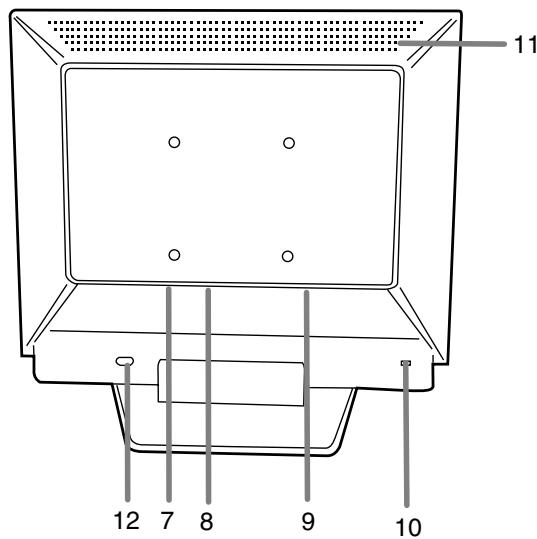

1. MENU button This button is used to pop-up, select and close the OSD (On Screen

Display) Menu. 2. / MODE button When the OSD Menu is displayed: This button is used to select menu options. When the OSD Menu is not displayed: This button is used to set COLOR MODE. buttons When the OSD Menu is displayed: 3. These buttons are used to increase or decrease the value of a selected option. When the OSD Menu is not displayed: These buttons are used to adjust backlight brightness and speaker volume. 4. Power button Pressing this button turns the power on. (After turning the power on, it may take a little time before the screen displays.) Press the button again to turn the power off. 5. Power LED This LED is lit green when in use and orange when in power-saving mode. 6. Speakers Audio entering via the monitor and the external device connected to the monitor can be heard. 7. Audio input terminal A computer’s audio output terminal can be connected here. The audio cable included should be used. 8. Power terminal The AC adapter is connected here. 9. Analog RGB input terminal The analog signal cable is connected here.The analog signal cable included should be used. 10. Security lock anchor By connecting a security lock (commercially available) to the security lock anchor, the monitor is fixed so that it cannot be transported. The security slot works in conjunction with Kensington Micro Saver Security Systems. 11. Ventilation openings Note: Never block the ventilation openings as this may lead to overheating inside the monitor and result in malfunction. 12. Lock disable button This button is used when folding back the display section.

9/12/2002, 6:02 PM Español

Standing up and adjusting the monitor

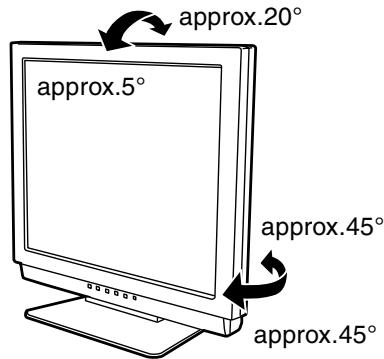

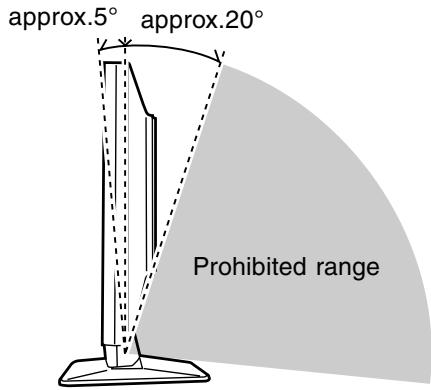

Adjust to an easy to view angle. approx.20°

- Pressure from hands on the LCD panel could cause damage. - Be careful not to allow your fingers to be pinched. - Be careful not to place any objects on the cables. Doing so may result in disconnection or other problems.

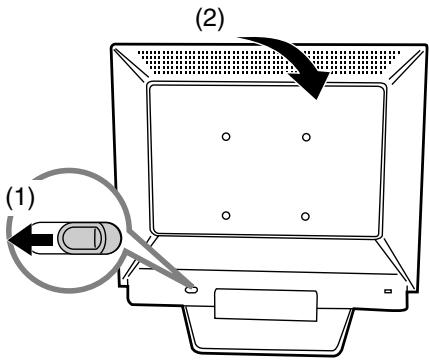

Standing up the monitor

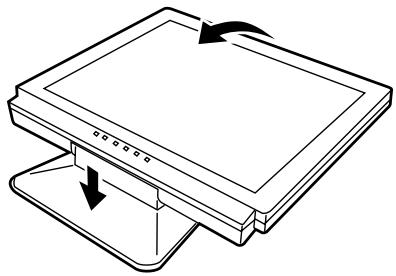

Press down on the stand and lift up the top section of the monitor.

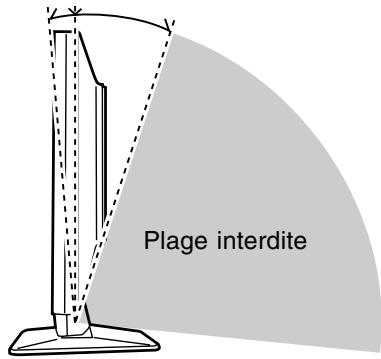

- Do not use the monitor when tilted back beyond approximately 20º.The monitor may fall over leading to injury or malfunction. approx.5° approx.20°

Folding up the monitor

1.Remove the AC adapter and the cable. 2. If carrying out adjustments to the monitor, place it upright. 3. While pressing the rear lock disable button (1), gently fold back the monitor (2).

9/12/2002, 6:02 PM Connecting the monitor and turning the monitor on and off

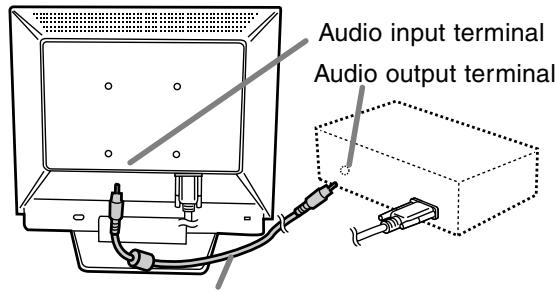

Audio input terminal

Connecting the monitor to a computer

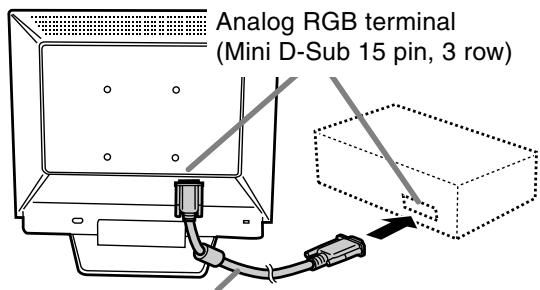

Analog RGB terminal (Mini D-Sub 15 pin, 3 row)

Connecting the monitor to a power source

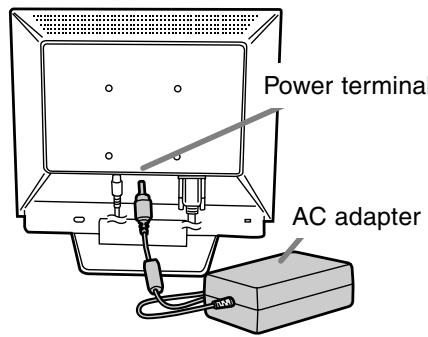

1.Connect the AC adapter to the monitor's power terminal.

- When connecting, ensure that both the monitor and computer are switched off.

- Be careful not to overly bend the cable or add extension cords as this could lead to a malfunction.

Connect the accessory audio cable

If connecting to a D-sub 15 pin 2 row Apple Power

Macintosh, attach a Macintosh conversion adapter (commercially available) to the analog signal cable.

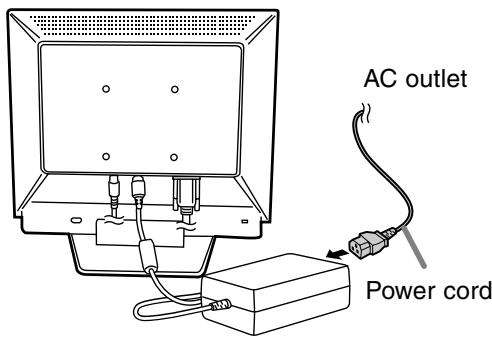

2.Attach the power cord to the AC adapter and place the power plug into the AC outlet.

Macintosh conversion adapter

- When connecting to a notebook, if the notebook computer's screen is set so that it is displaying at the same time, the MS-DOS screen may not be able to display properly. In this case, change the settings so that only the monitor is displaying.

10/3/2002, 12:01 PM Español

- Paying attention to connector direction, firmly insert the signal cable to terminal, and then tighten the screws at both sides.

Connecting the monitor and turning the monitor on and off

Turning the power on

Installing set-up information and the

ICC profile (for Windows)

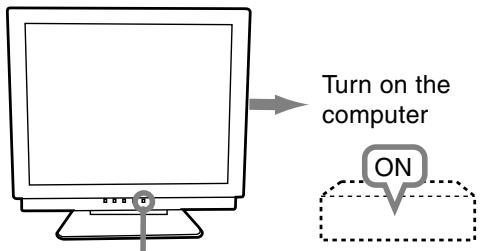

1.Press the monitor's POWER button.

2.Turn on the computer. The power LED will be lit green, and the screen will display an image.

Depending on the computer or OS, it may be necessary to use the computer to operate the installation of monitor set-up information etc. If so, follow the steps below to install the monitor set-up information. (Depending on the type of computer or

OS, command names and methods may differ. Please follow the computer’s own operation manual while reading this.)

Turn on the computer

ON About the ICC profile

An ICC (International Color Consortium) profile is a file that describes the color characteristics of the LCD monitor. By using an application that works together with an ICC profile, a high color resolution can be realized. - Windows98/2000/Me/XP all use the ICC profile. - When installing Windows98/2000/Me/XP setup information (described below), the ICC profile is also installed. If you would like to install the ICC program only, please refer to Installing the ICC profile on page 14. - When using an ICC profile, set [COLOR MODE] and [WHITE BALANCE] to [STD] .

Notes: - If using the monitor for the first time or after having changed the system settings during use, perform an automatic screen adjustment. - Depending on the computer or OS, it may be necessary to use the computer to install monitor set-up information. If so, follow the steps below to install the monitor set-up information.

Turning the power off

Installing set-up information

1. Turn the computer off.

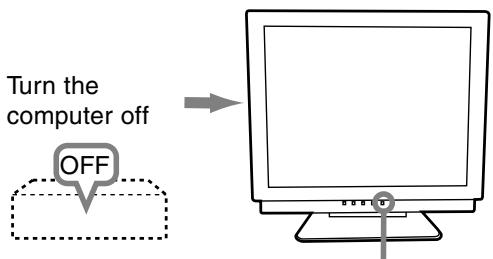

2. Press the monitor's POWER button. The Power LED will disappear.

Installing monitor set-up information into Windows95. This explanation assumes that the floppy disk drive is "A drive".

Turn the computer off

1. Place the Utility Disk (provided) into the computer's A drive.

2. Click on the [Start] button. From [Settings], choose [Control Panel]. 3. Double click on [Display]. 4. Click on [Settings], [Advanced Properties], and [Monitor], then [Change]. 5. Click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:] then click [OK]. 6. Confirm that the monitor details are selected, and click [OK]. 7. Check that the monitor details are displayed, then click [Apply]. 8. Click [OK], and close the window. 9. Remove the Utility Disk from the A drive.

OFF Press power button

If the monitor is not going to be used for a long period of time, be sure to unplug it from the AC outlet.

1. Place the Utility Disk (provided) into the computer's A drive.

2. Click on the [Start] button. From [Settings], choose [Control Panel]. 3. Double click on [Display]. 4. Click on [Settings], [Advanced] and [Monitor]. 5. Click on [Properties], [Driver] and [Update Driver]. 6. When [Upgrade Device Driver Wizard] appears, click [Next]. 7. Check [Display a list of the known drivers for this device so that I can choose a specific driver] and click [Next]. 8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK]. 9. Select the monitor from the list displayed and click [Next]. 10. Click [Next], confirm that the monitor's name appears on the screen, and click [Finish]. If [The Digital Signature Not Found] appears, click [Yes]. 11. Click on [Close]. 12. Click [OK], and close the window. 13. Remove the Utility Disk from the A drive.

1. Place the Utility Disk (provided) into the computer's A drive.

2. Click [Next]. 3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next]. 4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK]. 5. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish]. If the "Add New Hardware Wizard" appears, repeat the installation commands beginning from 2 above. 6. Remove the Utility Disk from the A drive. If the "Add New Hardware Wizard" has not appeared: 1. Place the Utility Disk in the computer's A drive. 2. Click on the [Start] button. From [Settings], choose [Control Panel]. 3. Double click on [Display]. 4. Click on [Settings], [Advanced] and [Monitor]. 5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change]. 6. Click [Next]. 7. Click on [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next]. 8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK]. 9. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish]. 10. Check that the monitor details are displayed, then click [Apply]. 11. Click [OK], and close the window. 12. Remove the Utility Disk from the A drive.

Installing monitor set-up information into WindowsMe, and setting the monitor's ICC profile as a predetermined value. This explanation assumes that the floppy disk drive is "A drive". If the "Add new Hardware Wizard" has appeared: 1. Place the Utility Disk (provided) into the computer's A drive. 2. Check [Specify the location of the driver [Advanced]] and click [Next]. 3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next]. 4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK]. 5. Select the monitor details from the list, then click [Next], [Next], and [Finish]. If the "Add new Hardware Wizard" appears, repeat the installation commands beginning from 2 above. 6. Remove the Utility Disk from the A drive. 13

9/12/2002, 6:02 PM Deutsch

If the "Add new Hardware Wizard" has appeared:

Installing monitor set-up information into Windows2000, and setting the monitor's ICC profile as a predetermined value.

This explanation assumes that the floppy disk drive is "A drive".

Installing monitor set-up information into Windows98, and setting the monitor's ICC profile as a predetermined value.

This explanation assumes that the floppy disk drive is "A drive".

Connecting the monitor and turning the monitor on and off

Installing the ICC profile

If the "Add New Hardware Wizard" has not appeared:

Installing the monitor’s ICC profile. (If the set-up information has already been installed, so too has the profile, and there is no need to install it.)

This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk in the computer's A drive.

2. Click on the [Start] button. From [Settings], choose [Control Panel]. 3. Double click on [Display]. 4. Click on [Settings], [Advanced] and [Monitor]. 5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change]. 6. Check [Specify the location of the driver [Advanced]] and click [Next]. 7. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.] and click [Next]. 8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK]. 9. Select the monitor details, then click [Next], [Next], and [Finish]. 10. Check that the monitor details are displayed, then click [Apply]. 11. Click [OK], and close the window. 12. Remove the Utility Disk from the A drive.

1. Place the Utility Disk in the computer’s A drive.

2. Click on the [Start] button. From [Settings], choose [Control Panel]. 3. Double click on [Display]. 4. Click on [Settings] and [Advanced]. 5. Click on [General] and from [Compatibility] select [Apply the new display setting without restarting], then click on [Color Management]. 6. Click [Add], and select [3 ½ Floppy [A:]] as the file location. 7. Choose the color profile that you would like to install, and click on [Add]. 8. Choose the profile and click on [Set As Default]. 9. Click [OK], and close the window. 10. Remove the Utility Disk from the A drive. - When using an ICC profile, set [COLOR MODE] and [WHITE BALANCE] to [STD] .

For WindowsXP Installing monitor set-up information into

WindowsXP, and setting the monitor's ICC profile as a predetermined value. This explanation assumes that the floppy disk drive is "A drive". 1. Place the Utility Disk in the computer's A drive. 2. Click on the [Start] button. Choose [Control Panel]. 3. Switch to "Classic View". 4. Double click on [Display]. 5. Click on [Settings], [Advanced] and [Monitor]. 6. Click on [Properties], [Driver] and [Update Driver]. 7. When [Hardware Update Wizard] appears, check [Install from a list or specific location [Advanced]] and click [Next]. 8. Check [Don't search. I will choose the driver to install.] and click [Next]. 9. Click on [Have Disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK]. 10. Select the monitor from the list displayed and click [Next]. If [has not passed Windows Logo testing...] appears, click [Continue Anyway]. 11. Confirm that the monitor's name appears on the screen. 12. Click on [Finish]. 13. Click on [Close]. 14. Click [OK], and close the window. 15. Remove the Utility Disk from the A drive.

9/12/2002, 6:02 PM Connecting the monitor and turning the monitor on and off

Information about the ColorSync profile (for MacOS)

About the ColorSync profile

ColorSync is the Apple Corporation's color management system and is a function that enables color resolution to be realized when used with a compatible application. A ColorSync profile describes the color characteristics of the LCD monitor. Notes: - This monitor's ColorSync profile works with MacOS8.5 or above. - When using the ColorSync profile, set [COLOR MODE] and [WHITE BALANCE] to [STD].

Setting up the ColorSync profile

- A floppy disk drive is necessary. In addition, it is necessary to have PC Exchange or File Exchange installed in your system. - Depending on the type of computer or OS, command names and methods may differ. Please follow the computer’s own operation manual while reading this.

1.Place the Utility Disk (provided) into the computer’s floppy disk drive.

2.Copy the profile to be used from the Mac folder on the Utility Disk to the ColorSync profile folder located within the system folder. 3.Using the ColorSync on the control panel, choose the profile to be used.

9/12/2002, 6:02 PM Adjusting the screen display and speaker volume

Adjustment lock function

Adjustment the backlight (right column)

Brightness of backlight can be adjusted.

By disabling the control buttons (i.e. setting the lock) any attempted changes to adjusted values will be voided.

1. Turn off the monitor power. 2.While pressing the MENU button, press the power button (i.e. turn the power on). [ADJUSTMENT LOCKED] will appear on the screen, and the lock will be set.

Speaker volume adjustment (p. 17)

Speaker volume can be adjusted. COLOR MODE setting (p. 17) Color tone can be set. Automatic screen adjustment (p.17) The CLOCK, PHASE, H-POS (horizontal positioning) and V-POS (vertical positioning) functions can be adjusted automatically.

- When the lock is in place, all buttons other than the power button are disabled.

Manual screen adjustment (p. 18)

Fine adjustments can be made using the On Screen Display (OSD) Menu.

Adjustment lock release

1. Turn off the monitor power. 2.While pressing the MENU button, press the power button (i.e. turn the power on). [ADJUSTMENT UNLOCKED] will appear on the screen, and the lock will be removed.

- All adjustments will be saved even after turning the power off.

Resetting all adjustment values

Adjusting the backlight

All adjustment values can be returned to their original ex-factory values in one command.

1. Turn off the monitor power. 2. Press the MENU button and the / MODE button simultaneously, and while doing this press the power button (i.e. turn the power on). Continue to press the button until [ALL RESET] appears on the screen. Reset is complete when the displayed message disappears.

1. Without the OSD Menu being displayed, push the or the button.

- While ALL RESET is displayed, the control buttons are disabled. - It is not possible to reset values when the adjustment lock is in place. Remove the adjustment lock before attempting to operate control buttons.

- On Screen display for adjustment disappears several seconds after the last operation.

ADJUSTMENT menu reset

Settings of items in the ADJUSTMENT Menu (CLOCK, PHASE, H-POS, V-POS) can be returned to their original ex-factory values. 1. Turn on the monitor power. 2. Press the MENU button and the button simultaneously. When [RESET] appears on the screen, the reset is complete.

2.Check that "BRIGHT" is selected.

If it is not selected, press the / MODE button and select "BRIGHT". 3. Adjust by pressing the button (darker) or button (lighter).

9/13/2002, 2:37 PM Automatic screen adjustment

1. Without the OSD Menu being displayed, push the or the button.

Options in the ADJUSTMENT Menu can be adjusted automatically (CLOCK, PHASE, H-POS,

V-POS). Note: - When setting up this monitor for the first time or after having changed an aspect of the current system, perform an automatic screen adjustment before use.

2.Check that "VOLUME" is selected.

If it is not selected, press the / MODE button and select "VOLUME". 3. Adjust by pressing the button (decrease) or button (increase).

To perform an automatic adjustment, first display an image that makes the entire screen very bright.

If you are using Windows, you can also use the Adjustment Pattern on the accompanying Utility Disk for Windows.

- On Screen display for adjustment disappears several seconds after the last operation.

Displaying the Adjustment Pattern (for Windows)

This explanation is for Windows 95/98/2000/Me/XP, and assumes that the floppy disk drive is [A drive]. Note: - If the floppy disk drive of your computer is not "A drive", please read the below substituting the floppy disk drive you are using in place of "A drive" or "A". 1. Place the Utility Disk (provided) into the computer's A drive. 2. Open [My Computer] and select [3 ½ Floppy (A:)]. If using Windows 3.1, open [File Manager] and choose "A drive". 3. Double click on [Adj_uty.exe] to run the Adjustment Program. The Adjustment Pattern will appear. Adjustment pattern

Color tone can be set as below.

STD Displays image with the color tone results from original scheme of liquid crystal panel. sRGB sRGB is international standard of color representation specified by IEC (International Electrotechnical Commission). Color conversion is made in taking account of liquid crystal’s characteristics and represents color tone close to it original image. VIVID Displays an image with dynamic and VIVID primary colors. - If COLOR MODE is set to [sRGB] or [VIVID], [WHITE BALANCE] in the ADJUSTMENT Menu is set to [STD].

After completing the adjustment, press the computer's [Esc] key to exit the Adjustment

Press the / MODE button when the ADJUSTMENT Menu is not displayed. Each time the button is pressed the next menu item appears. (STD → sRGB → VIVID → STD) On Screen display for adjustment disappears several seconds after the last operation.

- If your computer's display mode is set to 65K colors, you may see the different color levels in each color pattern or the gray scale may look colored. (This is due to the input signal specification and is not a malfunction.)

9/13/2002, 2:37 PM Français

Automatic adjustment screen display

VOLUME BRIGHT Deutsch

Adjusting the speaker volume

Adjusting the screen display and speaker volume

Adjusting the screen automatically

Manual screen adjustment

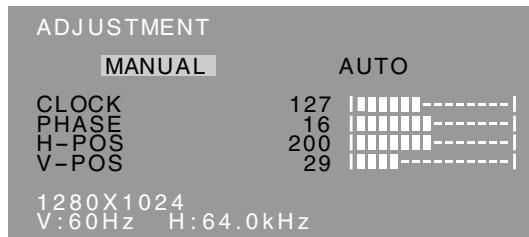

1. Press the MENU button.

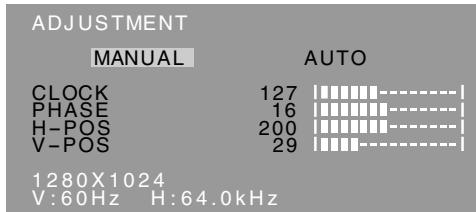

The ADJUSTMENT Menu will be displayed.

Adjustments can be made using On Screen

Display (OSD) Menu provided.

1.Display an image that makes the entire screen very bright. If using Windows, you can open and use the Adjustment Pattern on the accompanying

Utility Disk. (p. 17) 2.Press the MENU button. The ADJUSTMENT Menu will be displayed.

2. Press the button.

The screen will become dark and [ADJUSTING] will be displayed. After a few seconds the ADJUSTMENT Menu will return. (The automatic adjustment is now complete.) 3. Press the MENU button 4 times to make the On Screen Display (OSD) Menu disappear.

MANU A L C L OC K PHASE H- P O S V- P O S AUTO

At this point relevant menu options can be adjusted.

Each time the MENU button is pressed the next menu is selected. (ADJUSTMENT → GAIN CONTROL → WHITE BALANCE → MODE SELECT → OSD Menu disappears)

- In most cases automatic adjustment is sufficient. - It may not be possible to achieve correct adjustment with the first automatic adjustment. In such a case, try repeating automatic adjustment 2 or 3 times. - If necessary due to any of the following, manual adjustments (right column) can be performed after the automatic adjustment. - When further fine adjustment is needed. - When the computer’s video input signals are Composite Sync or Sync On Green. (Automatic adjustments may not be possible.) - When [OUT OF ADJUST] is displayed. (When the screen displays an entirely dark image, the automatic screen adjustment may be disabled. When making an automatic adjustment, be sure to either use the Adjustment Pattern or try displaying an image that makes the entire screen very bright.) - Automatic adjustment may not be achieved correctly depending on what is displayed on the screen - moving pictures or the MS-DOS prompt etc.

- The OSD Menu automatically disappears approximately 30 seconds after the last command. - This explanation is based on using the Adjustment Pattern (for Windows) to make adjustments.

9/12/2002, 6:02 PM Adjusting the screen display and speaker volume

B L AC K L E V E L CON T R A S T MANUAL: Individual menu options are manually adjusted.

AUTO: Every menu option is automatically adjusted.

MANUAL: Individual menu options are manually adjusted.

AUTO: Every menu option is automatically adjusted using the Auto Gain Control* function.

- Press the button to select [AUTO]. - To choose a menu option: / MODE button - To go to the next menu: MENU button

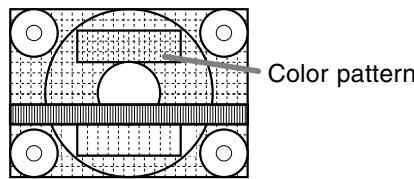

CLOCK The figure below demonstrates how to adjust so that vertical flicker noise is not emitted. ( buttons)

* Auto Gain Control function

- The Auto Gain Control adjusts contrast and black level based on the brightest color of the image displayed. If you are not using the Adjustment Pattern it is necessary to have an area of 5 mm x 5 mm of white displayed, and if not adjustments may not be possible. - If the signal coming from the computer is composite sync or sync on green, automatic adjustment cannot be performed. Please perform manual adjustment instead. - If [OUT OF ADJUST] is displayed, perform manual adjustment. - When using the Auto Gain Control function, set [WHITE BALANCE] to other than [USER]. If [USER] is set, the Auto Gain Control function cannot be used.

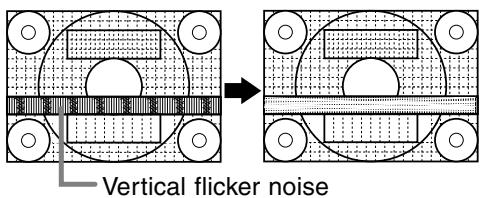

Vertical flicker noise

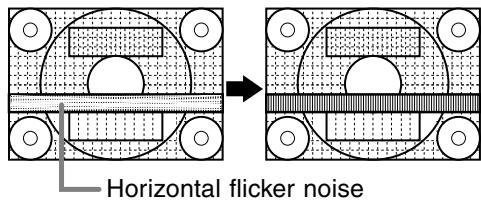

PHASE The figure below demonstrates how to adjust so that horizontal flicker noise is not emitted. ( buttons) Note: - Adjustments to PHASE should be made only after CLOCK has been correctly set.

BLACK LEVEL Total screen brightness can be adjusted while buttons) watching the color pattern. (

Horizontal flicker noise

H-POS (horizontal positioning) and V-POS

(vertical positioning) To center the screen image within the boundaries of the screen, adjust the left-right (H-POS) values buttons) and the up-down (V-POS) values. ( Screen frame

CONTRAST While watching the color pattern, adjustments can be made so that all graduations appear. ( buttons)

9/12/2002, 6:02 PM Deutsch

C L OC K PHASE H- P O S V-POS Français

G A I N C ON T R O L MANU A L Español

A D J U S T ME N T English

Adjusting the screen display and speaker volume

WH I T E B A L A N C E C OOL S TD MODE SELECT WA R M U S E R OS D H-POS I T I ON OS D V -POS I T I ON S C AL I NG INPUT

4 0 0 L I NE S L A NGUAGE Notes:

- On settings other than [STD] not all graduations can be displayed. To display all graduations, set to [STD]. - If COLOR MODE is set to [sRGB] or [VIVID], no other setting than [STD] can be selected. buttons to select [COOL], [·], [STD], - Use the [·], [WARM] or [USER]. - Selecting USER will display the setting values for [R-CONTRAST], [G-CONTRAST] and [BCONTRAST], in order to make fine adjustments. / MODE button to select - Use the [R-CONTRAST], [G-CONTRAST] and [B-CONTRAST]. - To go to the next menu: MENU button

- Depending on the resolution of the input signal, even if menu options can be selected, the display may not change. - To choose a menu option: / MODE button - When adjustment complete: MENU button OSD H-POSITION (OSD horizontal position) The position of the OSD display can be moved to buttons) the left and right. ( OSD V-POSITION (OSD vertical position) The position of the OSD display can be moved up and down. ( buttons) SCALING (Level of scaling) The sharpness of the image can be adjusted. ( buttons) Note: - When the display mode is set to less than 1280 x 1024 pixels, the display is enlarged to cover the whole screen (i.e. the side ratio of the display may change).

COOL Color tone bluer than standard

• Color tone slightly bluer than standard STD Color tone standard setting • Color tone slightly redder than standard WARM Color tone redder than standard USER R-CONTRAST

button for blue-green button for red button for purple button for green button for yellow button for blue

INPUT When connecting a Power Macintosh, set to [MAC].

( buttons) 400 LINES (degree of resolution) You can specify the horizontal resolution of a 400buttons) line screen when using US text, etc. ( 640: 640 X 400 dot mode 720: 720 X 400 dot mode (US text etc.) Note: - As the resolution input for other than 400 lines is done automatically, there is no need to set it. LANGUAGE You can chose the language used in OSD Menu. 1. Press the button. The Language Selection Menu will be displayed on the screen. 2. Use the / MODE button to choose a language. 3. Press the MENU button. Language Selection Menu will disappear.

9/12/2002, 6:02 PM LCD panel section

Use a soft dry cloth to lightly wipe away dirt and dust from the surface of the LCD panel. (A soft cloth such as gauze or that used for lens cleaning is suitable.)

No image appears on the monitor (Power LED is not lit)

- Are the AC adapter and the power cord connected properly? (p. 11)

- Never use thinner, benzine, alcohol, glass cleaner, etc, as this could lead to color change or change in shape. - Never scratch the monitor with anything hard or apply strong pressure as this could leave marks or result in malfunction.

No image appears on the monitor (Power LED is lit)

- Is the computer connected properly? (p. 11) - Is the computer turned on? - Does the computer's signal timing correspond to monitor specifications? (p. 23) - Is the computer in power-saving mode?

If the monitor will not be used for a long period of time, be sure to remove the power plug from the AC outlet.

Control buttons do not work

- Is the adjustment lock on? (p. 16) The image appears distorted - Does the computer's signal timing correspond to monitor specifications? (p. 23) - Perform automatic adjustment. (p. 17) - If you can change the refresh rate on the computer you are using, change the value to a lower frequency.

- Do not leave the monitor in contact with rubber or plastic items for long periods of time as this could lead to color change or change in shape.

No sound can be heard from the speakers - Is the audio cable connected correctly? (p. 11) - Perform the volume adjustment procedure.(p. 17) - These is no sound from the speakers when the display is in power save mode.

If you think the monitor may be faulty, please check the following points before taking it to be repaired.

If afterwards it still does not work, please contact the shop where you purchased the monitor or your nearest Sharp authorized Service Center.

When attempting to raise the display section, it is found hard to lift.

- Be sure to press the lock disable button while folding back the monitor. If this is not done it will become hard to lift the monitor next time. - If you forget to press the lock disable button while folding back the monitor, lift the monitor forward to the limit of its travel (approx.5°). Then while pressing the lock disable button, gently fold back the monitor again.(p. 10) 21

9/12/2002, 6:02 PM Deutsch

Use a soft dry cloth to lightly wipe away any grime from the cabinet and control panel.

If they are very dirty, apply neutral detergent to a dampened soft cloth, wring it out well and wipe away grime.

Cabinet and control panel section

The monitor's florescent tubes have a limited life span.

- If the screen darkens, persistently flickers or does not light up, it may be necessary to replace the florescent tube unit. Please inquire at the shop where you purchased the monitor or your nearest Sharp authorized Service Center. (Never attempt this replacement on your own.) - In the initial period of use, due to the characteristics of florescent tubes the screen may flicker. (This is not a malfunction.) Should this happen, check by first turning off the power, then turning it on again.

Always remove the plug from the AC outlet when cleaning the monitor.

Monitor care and repair

Product specifications

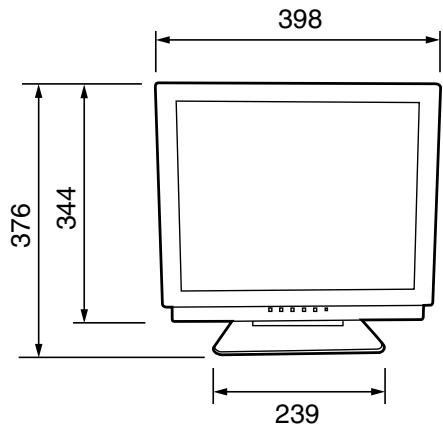

Dimensions (Units: mm)

43 cm measured diagonally TFT LCD module Resolution (max.) SXGA 1280 x 1024 pixels Displayable colors (max.) Approx.16.19 million colors (6bit + FRC) Brightness (max.) 250cd/m2 Dot pitch 0.264(H) x 0.264(V) mm Contrast ratio 500:1 Angle of visibility Left-right 160°; Up-down 135° Screen display size Horizontal 337.9 mm x Vertical 270.3 mm Video signal Analog RGB (0.7Vp-p) [75Ω] Sync signal Separate Sync (TTL level: +/-), Sync on Green, Composite Sync (TTL level: +/-) Expansion compensation Digital screening (Enlargement VGA/SVGA/XGA etc. to full screen size.) Plug & Play VESA DDC1/DDC2B compatible Power management VESA: based on DPMS Speaker output 1W + 1W Input signal terminal Mini D-sub 15 pin (3 row) Audio input terminal Mini stereo jack Screen tilt Upward approx.0 - 20°; downward approx.0 - 5° Screen swivel Approx.90° from left through right (Turn table type) Power supply AC100 - 240V, 50/60Hz (Use special AC adapter, type NL-A64J of Sharp Corporation.) Temperature of operating environment 5 - 35°C Power consumption Maximum 44W (Standby state: 3W) (Use special AC adapter.) Dimensions 398(W) x 188(D) x 376(H) mm Weight Approx. 6.5kg (Excluding AC adapter and analog signal cable.)

Special AC adapter: Approx. 1.5 m

Approx. H 147 mm x D 59 mm x H 32 mm

Analog signal cable: Approx. 1.8m Audio cable : Approx. 1.8m

9/12/2002, 6:02 PM Specifications

Power Macintosh series

640x480 832x624 1024x768 1152x870 1280x1024

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Red video signal input Green video signal input Blue video signal input GND GND For red video signal GND For green video signal GND For blue video signal GND +5V GND N.C. DDC data For Hsync signal input For Vsync signal input DDC clock

- Recommended resolution is 1280 x 1024.

- All are compliant only with non-interlaced. - Frequencies for Power Macintosh and Sun Ultra series are reference values. To connect, another adapter (commercially available) may be required. - If the monitor is receiving timing signals that are not compatible, [OUT OF TIMING] will appear. Follow your computer’s instruction manual to set the timing so that it is compatible with the monitor. - If the monitor is not receiving any signal (synch signal), [NO SIGNAL] will appear.

37.9kHz 37.5kHz 35.1kHz 37.9kHz 48.1kHz 46.9kHz 48.4kHz 56.5kHz 60.0kHz 67.5kHz 60.0kHz 64.0kHz 80.0kHz 31.5kHz 35.0kHz 49.7kHz 60.2kHz 68.7kHz 64.0kHz 80.0kHz 48.3kHz 53.6kHz 56.6kHz 61.8kHz 71.7kHz

(Mini D-sub connector with 15 pins)

60Hz 25.175MHz 72Hz 31.5MHz 75Hz 31.5MHz 56Hz 36.0MHz 60Hz 40.0MHz 72Hz 50.0MHz 75Hz 49.5MHz 60Hz 65.0MHz 70Hz 75.0MHz 75Hz 78.75MHz 75Hz 108.0MHz 60Hz 108.0MHz 60Hz 108.0MHz 75Hz 135.0MHz 70Hz 28.3MHz 66.7Hz 30.2MHz 74.6Hz 57.3MHz 75Hz 80.0MHz 75Hz 100.0MHz 60Hz 108.0MHz 75Hz 135.0MHz 60Hz 64.13MHz 66Hz 70.4MHz 70Hz 74.25MHz 66Hz 94.88MHz 67.2Hz 117.01MHz

Power management The monitor is based on VESA DPMS (Display Power Management Signaling). To activate the monitor's Power Management function, both the video card and the computer must conform to the VESA DPMS standard. DPMS mode

H-sync V-sync consumption

44W STANDBY SUSPEND Display off

This monitor supports the VESA DDC (Display Data Channel) standard. DDC is a signal standard for carrying out Plug & Play functions on the monitor or PC. It transfers information such as degree of resolution between the monitor and PC. You can use this function if your PC is DDC compliant and if it is set so that it can detect the Plug & Play monitor. There are many varieties of DDC due to the differences between systems. This monitor works with DDC1 and DDC2B.

9/13/2002, 2:37 PM Instructions for attaching a VESA compliant arm

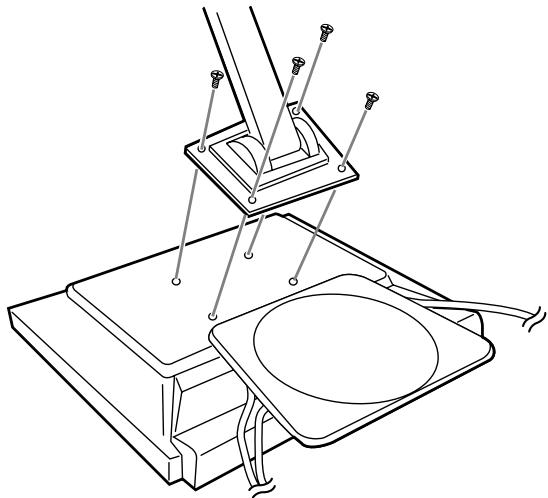

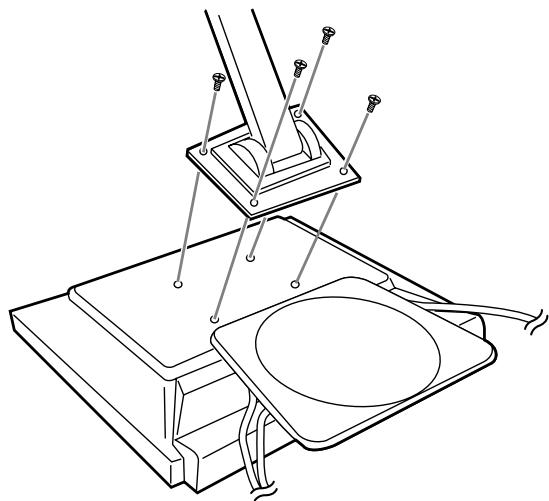

6. Attach the arm to the monitor with four screws.

An arm or stand based on the VESA standard

(commercially available) can be attached to the monitor. Procurement of the arm or stand is at the customer's discretion.

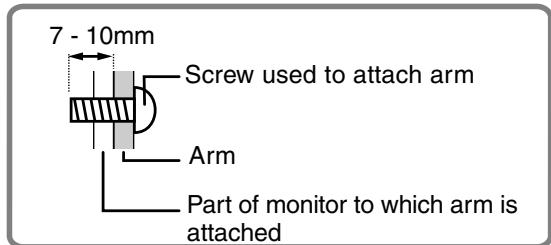

- The screws used to attach the arm should be M4 screws with a length of 7 mm ~ 10 mm protruding from the surface to be attached. Using different screws could lead to malfunction or may lead to the monitor falling off,internal damaged,personal injury.

1. Ensure that both the monitor and computer are switched off.

2.Unplug the power cord from the AC outlet. 3.Remove the analog signal and audio cables from the computer. 4.Fold back the display section. 1) If carrying out adjustments to the monitor, place it upright. 2) While pressing the rear lock disable button, gently fold back the monitor.

When choosing the arm to be installed please take note of the following points.

- The arm should be compatible with the VESA standard, and there must be a gap of 100mm x 100mm between the screw holes on the section to be attached. - The arm must not fall off or break off after being attached to the monitor.

Screw used to attach arm

7.Connect the analog signal and audio cables and power cord.

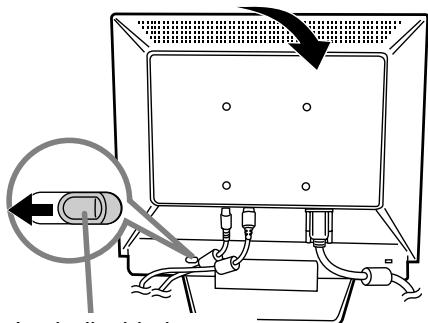

Lock disable button - Do not overly bend the cable or add extension cords as this could lead to malfunction. 5. Being careful not to damage the monitor, spread out a soft cloth and lay the monitor on it displayside down.

9/12/2002, 6:02 PM English

Part of monitor to which arm is attached

9/12/2002, 6:02 PM A D J U S T ME N T MANU A L C L OC K PHASE H- P O S V- P O S B L AC K LE V E L CONT RA S T CL OCK P HASE H- POS V- POS English

Menü ADJUSTMENT WH I TE BALANCE M ODE S E LE CT COOL OS D H - POS I T I ON OS D V - POS I T I ON S C A L I NG INPUT

4 0 0 L I NE S L A NGUA GE

37.9kHz 37.5kHz 35.1kHz 37.9kHz 48.1kHz 46.9kHz 48.4kHz 56.5kHz 60.0kHz 67.5kHz 60.0kHz 64.0kHz 80.0kHz 31.5kHz 35.0kHz 49.7kHz 60.2kHz 68.7kHz 64.0kHz 80.0kHz 48.3kHz 53.6kHz 56.6kHz 61.8kHz 71.7kHz

72Hz 31.5MHz 75Hz 31.5MHz 56Hz 36.0MHz 60Hz 40.0MHz 72Hz 50.0MHz 75Hz 49.5MHz 60Hz 65.0MHz 70Hz 75.0MHz 75Hz 78.75MHz 75Hz 108.0MHz 60Hz 108.0MHz 60Hz 108.0MHz 75Hz 135.0MHz 70Hz 28.3MHz 66.7Hz 30.2MHz 74.6Hz 57.3MHz 75Hz 80.0MHz 75Hz 100.0MHz 60Hz 108.0MHz 75Hz 135.0MHz 60Hz 64.13MHz 66Hz 70.4MHz 70Hz 74.25MHz 66Hz 94.88MHz 67.2Hz 117.01MHz

A D J U S T ME N T ADJ US TMENT MANUAL MANU A L AUTO C L OC K PHASE H- P O S V- P O S

GA I N CONT ROL MANUA L B L AC K LE V E L CONT RA S T MANUAL CL OCK P HASE H- POS V- POS Italiano

A DJ US TMENT Español

Menu ADJUSTMENT (REGLAGE)

WH I TE BALANCE COOL S TD OS D H - POS I T I ON OS D V - POS I T I ON S C A L I NG INPUT

4 0 0 L I NE S L A NGUA GE WARM USER Approx. 147 mm (L) x 59 mm (P) x 32 mm (H)

Câble de signal analogique: Approx. 1,8m

Câble audio: Approx. 1,8m

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

37.9kHz 37.5kHz 35.1kHz 37.9kHz 48.1kHz 46.9kHz 48.4kHz 56.5kHz 60.0kHz 67.5kHz 60.0kHz 64.0kHz 80.0kHz 31.5kHz 35.0kHz 49.7kHz 60.2kHz 68.7kHz 64.0kHz 80.0kHz 48.3kHz 53.6kHz 56.6kHz 61.8kHz 71.7kHz

Alimentation H-sync V-sync consommation

44W ADJ US TMENT MANUAL AUTO

A D J U S T ME N T MANU A L C L OC K PHASE H- P O S V- P O S AUTO

C L OC K PHASE H- P O S V-POS Français

A D J U S T ME N T English

Menu ADJUSTMENT (REGOLAZIONE)

WH I TE BALANCE COOL S TD O S D H - POS I T I ON O S D V - POS I T I ON S C A L I NG INPUT

4 0 0 L I NE S L A NGU A G E WARM USER

37.9kHz 37.5kHz 35.1kHz 37.9kHz 48.1kHz 46.9kHz 48.4kHz 56.5kHz 60.0kHz 67.5kHz 60.0kHz 64.0kHz 80.0kHz 31.5kHz 35.0kHz 49.7kHz 60.2kHz 68.7kHz 64.0kHz 80.0kHz 48.3kHz 53.6kHz 56.6kHz 61.8kHz 71.7kHz

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

ADJ US TMENT MANUAL AUTO

A D J U S T ME N T MANU A L C L OC K PHASE H- P O S V- P O S AUTO

B L AC K LE V E L CONT RA S T CL OCK P HASE H- POS V- POS English

Menú ADJUSTMENT WH I TE BALANCE M ODE S E LE CT COOL OS D H - POS I T I ON OS D V - POS I T I ON S C A L I NG INPUT

4 0 0 L I NE S L A NGUA GE

1280x960 1280x1024 US text Series Power Macintosh

640x480 832x624 1024x768 1152x870 1280x1024

37.9kHz 37.5kHz 35.1kHz 37.9kHz 48.1kHz 46.9kHz 48.4kHz 56.5kHz 60.0kHz 67.5kHz 60.0kHz 64.0kHz 80.0kHz 31.5kHz 35.0kHz 49.7kHz 60.2kHz 68.7kHz 64.0kHz 80.0kHz 48.3kHz 53.6kHz 56.6kHz 61.8kHz 71.7kHz

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Automatically detect Plug & Play monitors !"#$# !Change

! 7. Display a list of all the drivers in a specific location, so you can select the driver you want. !"#$%&'()*+,-./ !"#$%&'() ! Next ! 8. Models Have disk !"#$%Copy manufacturer's files from:

! 5. Properties Driver ! Update Driver !"#$ 6. Upgrade Device Driver Wizard !"# !" !"#$Next

7. Display a list of the known drivers for this device so that I can choose a specific driver

!"#$%&'()*+,-./012 !"#$%&'() !Next ! 8. Models Have disk !"#$%Copy manufacturer's files from:

Next ! 10. Next ! !"#$%&'() !"#$Finish !"# The Digital Signature Not Found !" ! Yes ! 11. Close

!"#$ 13. A !"#$%&'()

!"# 3. Display a list of all the drivers in a specific location, so you can select the driver you want. !"#$%&'()*+,-./ !"#$%&'()* Next !"# 4. Models Have disk !"#$%Copy manufacturer's files from:

5. !"#$%&'()*+,-./0 Next !Next ! Finish !"Add new Hardware Wizard !"#$% ! !2 !"#$%&'()*+ 6. A !"#$%&'()

2. Specify the location of the driver Advanced !"#$%&'( !Next ! 3. Display a list of all the drivers in a specific location, so you can select the driver you want. !"#$%&'()*+,-./ !"#$%&'()* ! Next !"# 4. Models Have disk !"#$%Copy manufacturer's files from:

!" 5. !"#$%&'()*+,-. Next !Next ! Finish !"Add new Hardware Wizard !"#$% ! !2 !"#$%&'()*+ 6. A !"#$%&'()

! 5. Options Automatically detect Plug & Play monitors !"#$# ! !Change

6. Specify the location of the driver

Advanced !"#$%&'( !Next !"# 7. Display a list of all the drivers in a specific location, so you can select the driver you want. !"#$%&'()*+,-./ !"#$%&'() ! Next ! 8. Models Have disk !"#$%Copy manufacturer's files from:

10. !"#$%&'()*+"#,-./0

!"#$ 12. A !"#$%&'()

!"#VIVID ADJUSTMENT WHITE BALANCE

STD →sRGB !"#→ VIVID →STD

!"#$%&'#()*+,-#(./01

A D J U S T ME N T MANU A L C L OC K PHASE H- P O S V-POS

ADJ US TMENT MANUAL A D J U S T ME N T GA I N C ON T R O L MANU A L MANUAL AUTO B L AC K L E V E L CON T R A S T Français

C L OC K PHASE H- P O S V- P O S Italiano

WH I TE BALANCE C OOL S TD

MODE SELECT WARM USER O S D H - POS I T I ON O S D V - POS I T I ON S C A L I NG INPUT

4 0 0 L I NE S L A NGU A G E

P/N: 0NIT17A3-0111 1925-1300-4150
