Product Type	Snow blower (self-propelled)
Brand	Meec Tools
Model	721-230
Clearing Width	535 mm (21 in)
Intake Height	510 mm (20 in)
Propulsion	Self-propelled, 4 forward gears + 1 reverse
Wheels	13" inflated rubber
Start Type	Recoil cord start
Ejection Distance	Up to 11 m (36 ft)
Engine Type	1-cylinder, 4-stroke, 163 cc
Fuel	Unleaded petrol (min 95 octane, max 10% ethanol)
Oil	5W-30 synthetic, 0.6 L capacity
Chute Rotation	190° (via crank)
Deflector Adjustment	60° (via crank)
Skid Adjustment	Yes, multiple positions
Safety Features	Auger brake, drive lever release, warning labels
Shear Bolts	2 shear bolts supplied, extra included
Noise Level (LwA)	105 dB(A) guaranteed
Vibration Level	7.4 m/s² (max)
Maintenance Intervals	Oil check every 5h, change every season or 25h; spark plug annually
Weight	Approx. 55 kg (estimated)

Frequently Asked Questions - 721-230 Meec Tools

How do I start the snow blower?

Turn ignition knob to ON, set throttle to hare (fast), use choke if cold, press primer bulb 3-5 times, then pull start cord slowly until resistance, then pull quickly.

What type of fuel should I use?

Use unleaded petrol with octane rating of at least 95. Up to 10% ethanol or 15% MTBE is acceptable. Never use E85 or old fuel.

How often should I change the engine oil?

Check oil level before each use and after 5 hours. Change oil every season or after 25 hours of operation. Use 5W-30 oil, capacity 0.6 L.

What should I do if the auger does not stop when I release the lever?

This indicates the auger lever cable is too tight. Loosen the lock nut and adjust the cable to allow proper disengagement. Refer to the manual for adjustment procedure.

How do I clear a clogged ejector chute?

Stop the engine immediately, remove ignition key, and wait for all moving parts to stop. Use the provided clearing tool or a stick to remove snow and ice. Never use hands.

What are the shear bolts for and how do I replace them?

Shear bolts protect the auger from damage. If the auger hits a solid object, the bolts break. Replace with only manufacturer-recommended shear bolts. Lubricate shaft before fitting new bolts.

How do I adjust the skids?

Loosen the four flange lock nuts and bolts, move skids to desired position (higher for light snow, lower for uneven surfaces), then retighten fully.

Can I store the machine with fuel in it?

No, for storage over 30 days, run the engine until fuel tank is empty to prevent deposits. Drain fuel into approved container, work outside away from ignition sources.

What is the recommended spark plug gap?

The electrode gap should be 0.6 to 0.8 mm. Use a feeler gauge to measure and adjust by gently bending the ground electrode.

What maintenance is required annually?

Change engine oil, check/replace spark plug, clean muffler area, lubricate gear linkage and auger bearing, check all fasteners and skids.

USER MANUAL 721-230 Meec Tools

Red Meec 5000 manual snowbar with visible blades and wheels (no text or symbols)

EN User instructions for snow blower

SE - Bruksanvisning i original

NO - Bruksanvisning i original

EN - Operating instructions in original

Date of production: 2014-11-19

© Jula AB

SVENSKA....7

SÄKERHETSANVISNINGAR....7

Utbildning 7

Före användning 7

SAFETY INSTRUCTIONS 88

Training 88

Before use....88

Handling fuel 89

Use 89

Maintenance and storage 90

Symbols 91

TECHNICAL DATA 93

DESCRIPTION 94

LEVERS 95

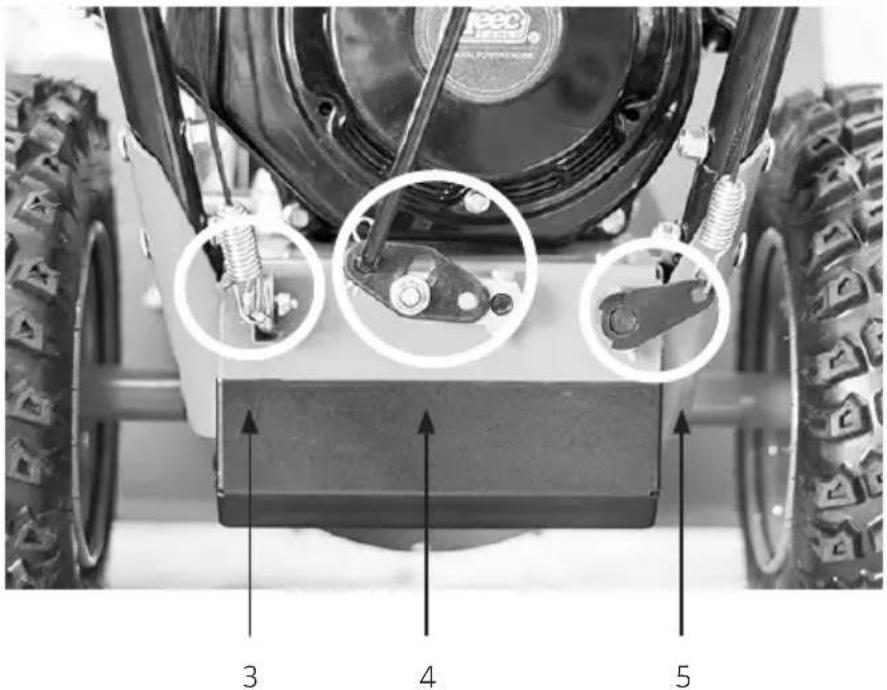

Skids 96

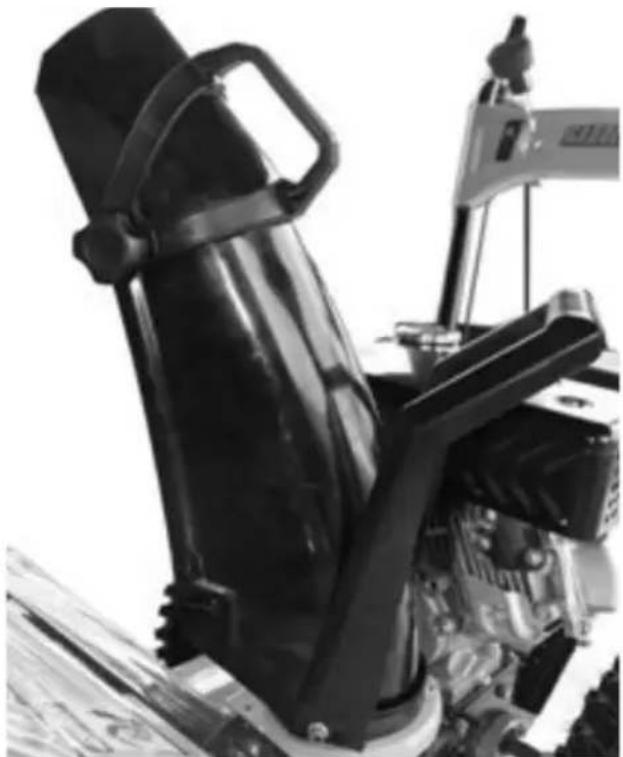

Control handle, ejector chute 96

Control handle, ejector deflector 96

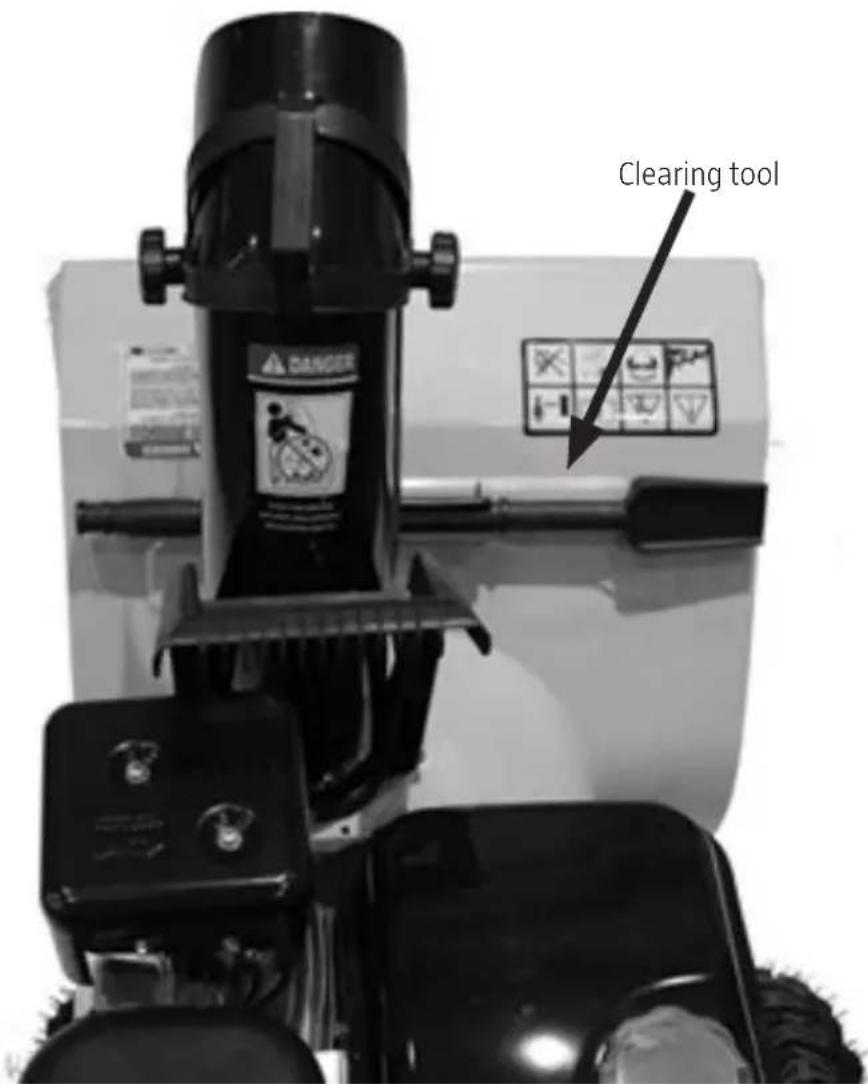

Clearing tool....97

Fuel recommendations 97

Oil recommendations 98

ASSEMBLY 98

Unpacking 98

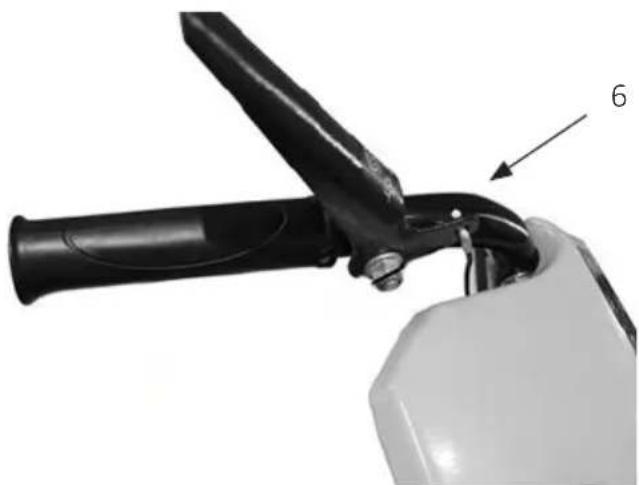

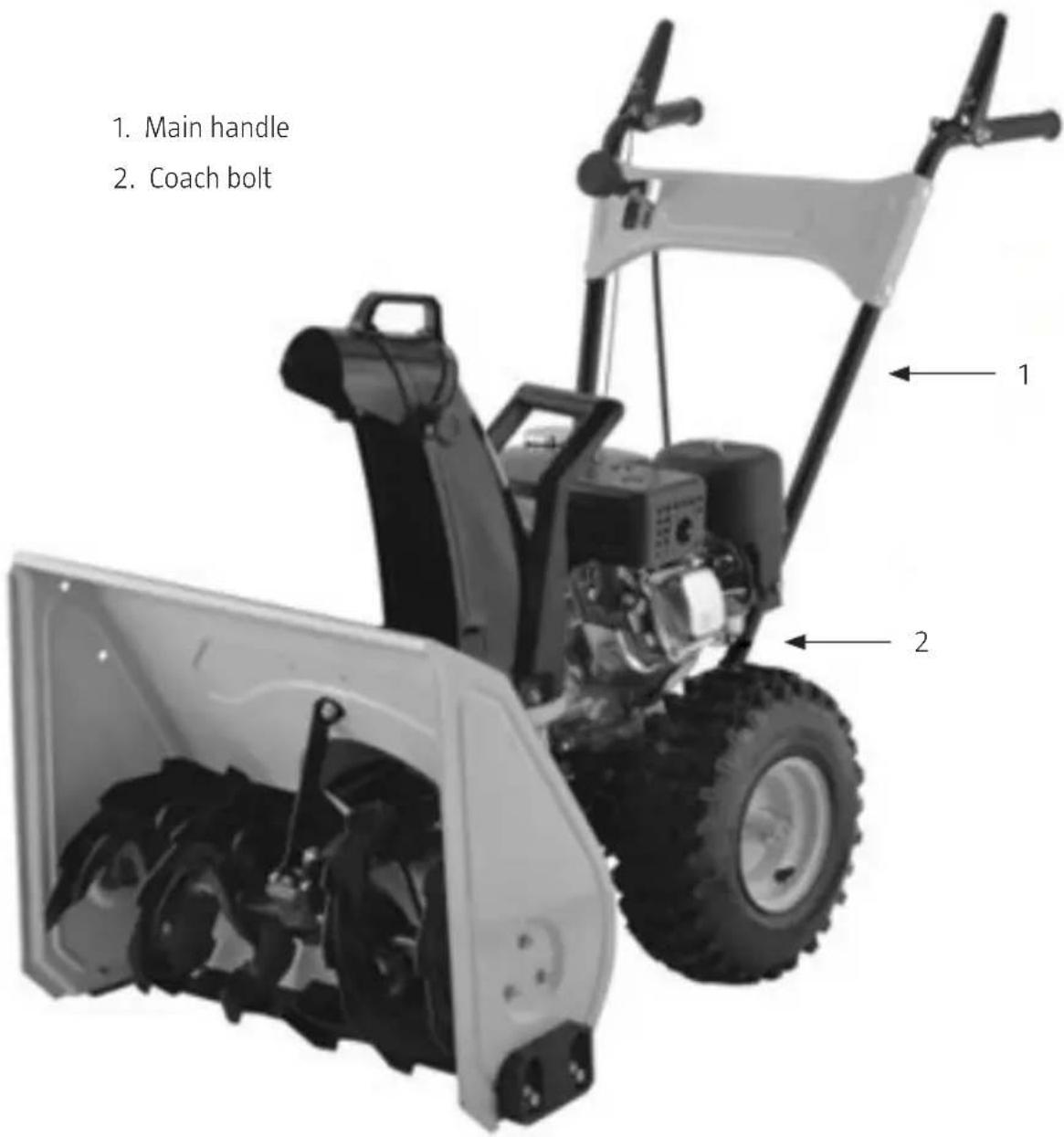

Lower and upper handle 99

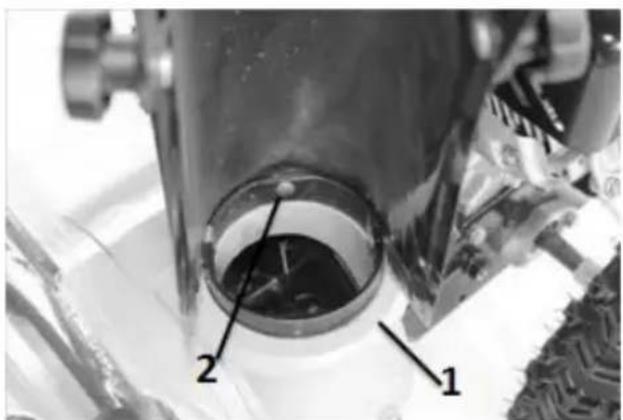

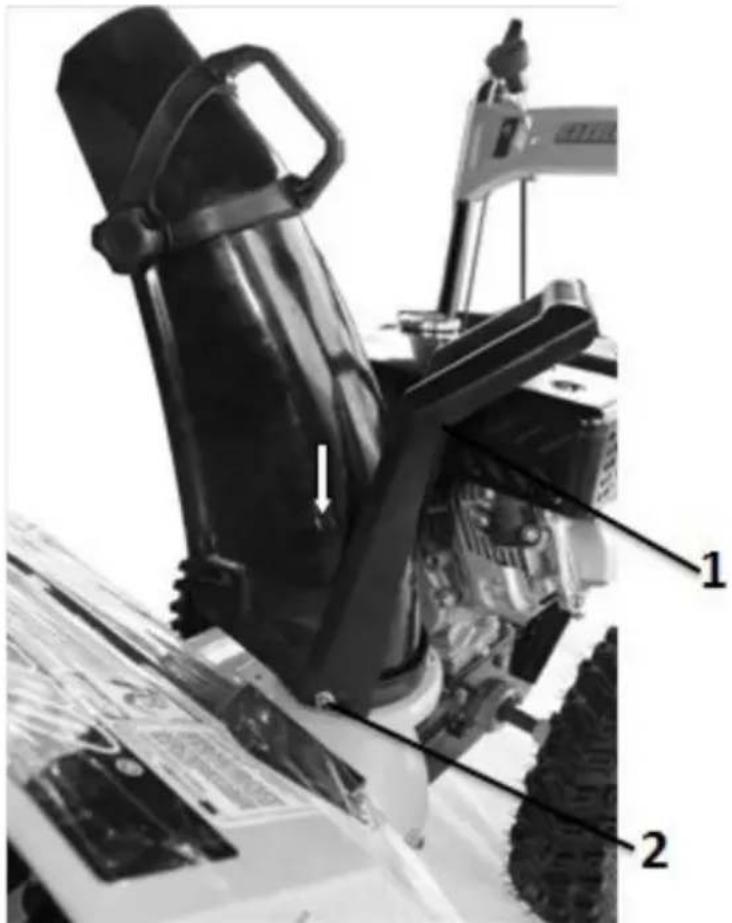

Ejector chute 101

SKIDS 102

OPERATION....102

Before use....102

Starting the engine 104

Propulsion, transmission 104

AUGER....105

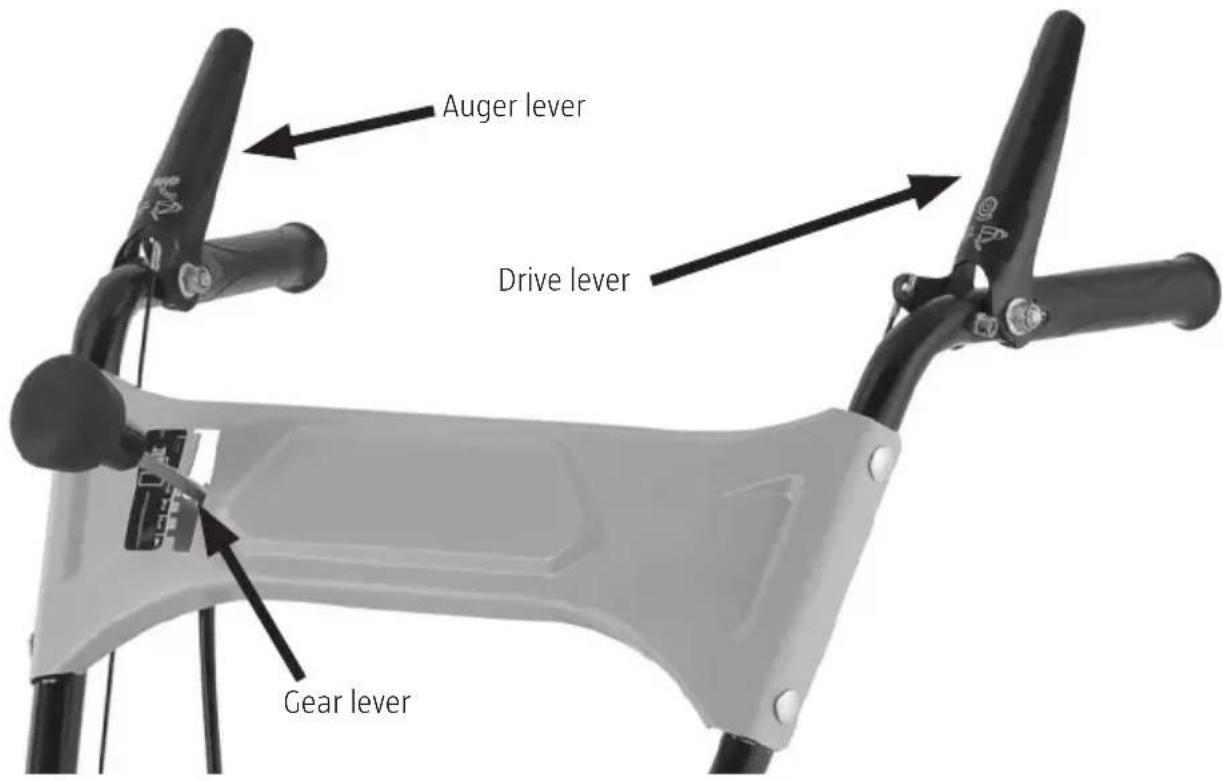

Drive lever and Gear lever 105

Switching off....106

Clearing the ejector chute .....106

MAINTENANCE 107

Engine maintenance 107

Lubrication 109

Service 110

Storage....112

TROUBLESHOOTING 113

SÄKERHETSANVISNINGAR

Close-up of a black industrial machine with visible structural components and no text or symbols

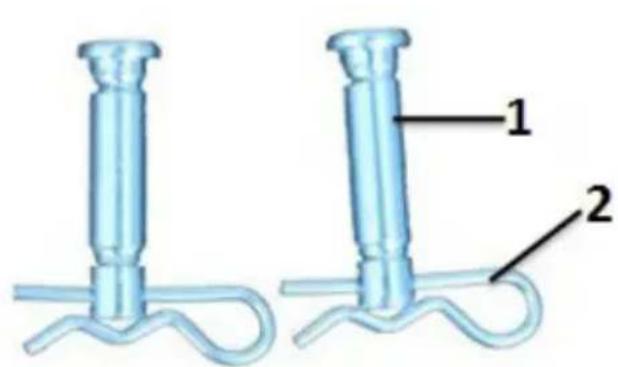

1. Brytpinne
2. Mutter

Close-up of a hand holding a black mechanical tool with a numbered label pointing to the handle (no text or symbols on the tool itself)

Close-up of a mechanical component with labeled parts (1, 2), showing internal structure and no readable text or symbols.

1. Skruv
2. Planbricka

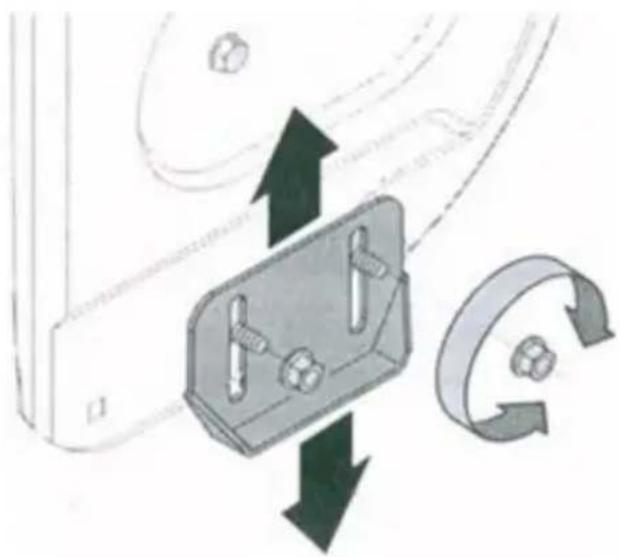

Inställning

Mechanical assembly diagram showing a bracket with bolts and directional arrows indicating motion (no text or symbols)

Mechanical component diagram showing a bracket with directional arrows indicating motion or force (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Värna om miljön!

VEDLIKEHOLD OG OPPBEVARING

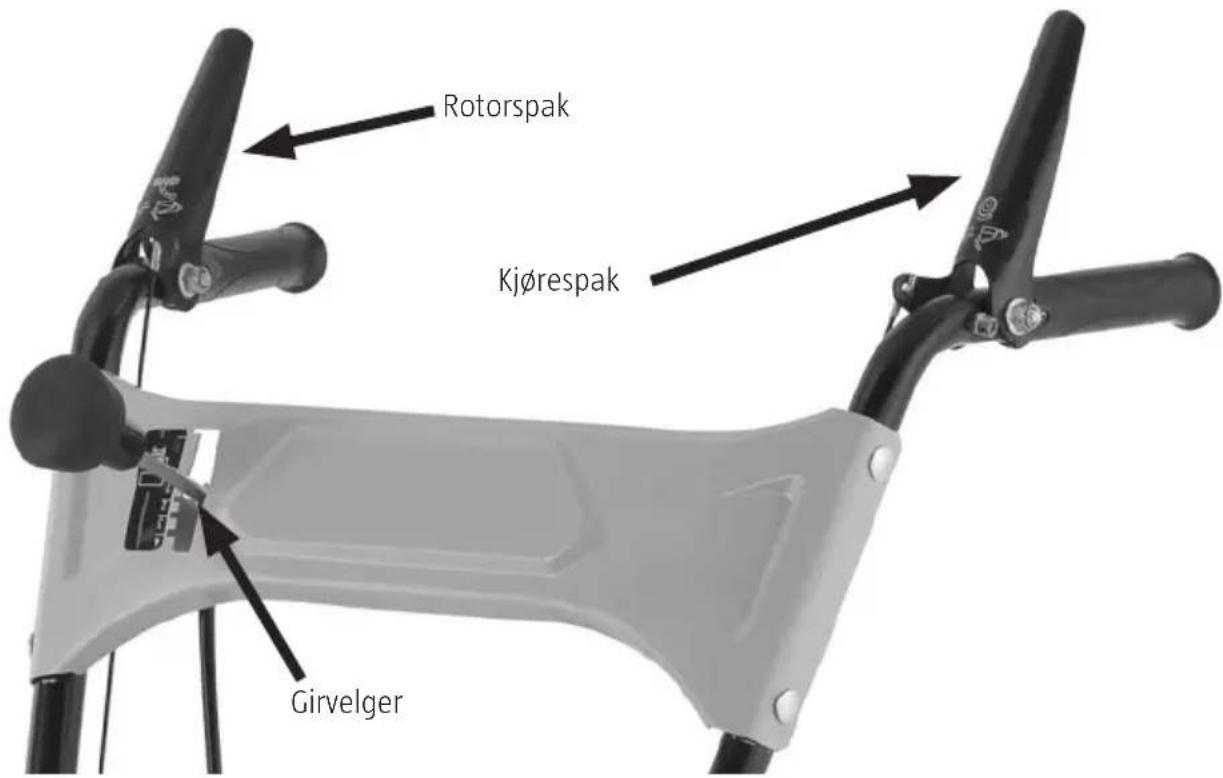

1. Rotorspak
2. Kjørespak
3. Girvelger
4. Motor
5. Utkastenhet
6. Renseverktøy
7. Rotor
8. Slepesko

9. Hjul

10. Drivstoffprimer

11. Gassregulering
12. Chokeregulator
13. Bensinkran
14. Tappeplugg
15. Tanklokk
16. Tenningsbryter (av/på)
17. Oljepåfyllingslokk
18. Håndtak, startsnor

ADVARSEL! Les alle anvisninger, sikkerhetsanvisninger og varselmerker på gressklipperen før bruk.

SPAK

KJ∅RESPAK

Close-up of a black industrial machine with visible components and no text or symbols

1. Brytepinne
2. Mutter

Close-up of a black and white manual tool handle with a numbered label pointing to the handle (no text or symbols on the tool itself)

Close-up of a mechanical component with labeled parts (1, 2), no readable text or symbols beyond labels

1. Skrue
2. Underlagsskive

Innstilling

Mechanical assembly diagram showing a bracket with arrows indicating direction of motion or force (no text or symbols)

Close-up of a mechanical device with visible springs and a labeled switch, showing no readable text or symbols.

Mechanical switch mechanism diagram showing bidirectional movement of a component with arrows indicating direction (no text or symbols)

1. Skrue
2. Brytepinne
3. Splint
4. Flenselåsemutter

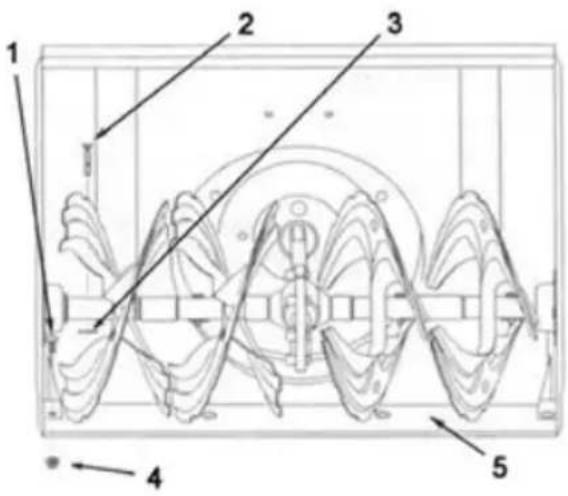

5. Skrapeplate

BYTT UT SKRAPEPLATEN

1. Løsne skruene og flensmutrene som fester skrapeplaten til maskinens deksel.
2. Skift ut skrapeplaten.
3. Monter den nye skrapeplaten med alle skruehodene på innsiden av dekselet.
4. Dra til så hardt som mulig.

OPPBEVARING

Close-up of a black industrial machine with visible structural components and no text or symbols

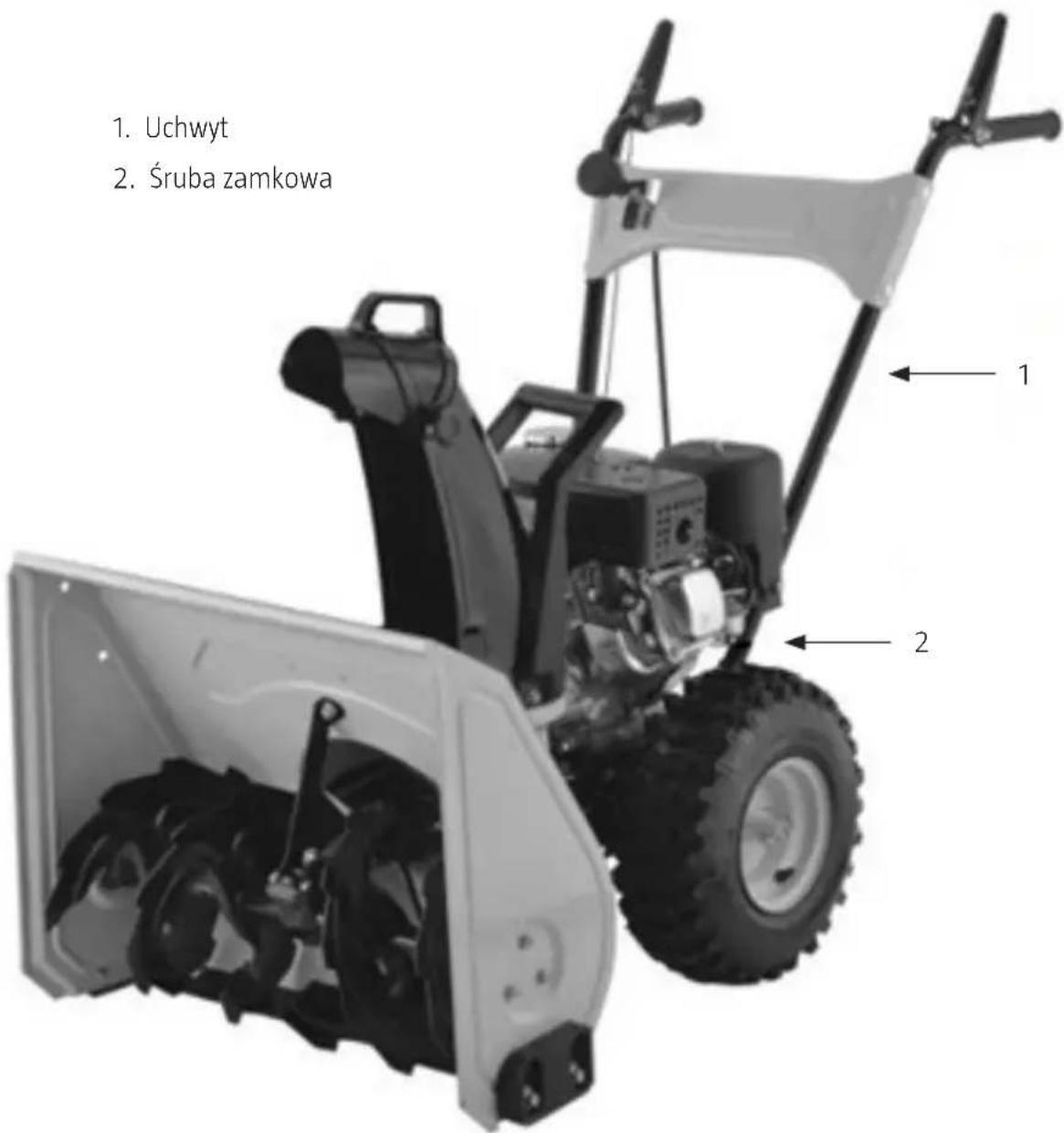

UCHWYTY DOLNY I GÓRNY

Close-up of a hand holding a black mechanical tool with a numbered label pointing to the handle (no text or symbols on the tool itself)

Close-up of a mechanical component with labeled parts (1, 2), showing internal structure and no readable text or symbols.

Mechanical assembly diagram showing a bracket with bolts and directional arrows indicating motion (no text or symbols)

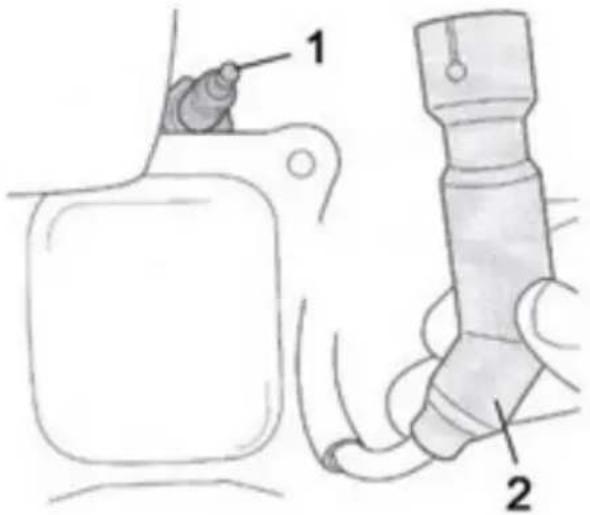

1. Elektroda

Diagram showing mechanical components with directional arrows indicating movement or force (no text or symbols)

Read the operating instructions carefully before use!

Please retain for future reference.

WARNING Some of the machine's components and engine exhaust fumes contain chemicals which can cause cancer, birth defects or other reproductive problems.

DANGER! The machine must only be used in accordance with these instructions. Read all warnings, safety instructions and other instructions. Failure to follow all instructions and safety information may result in serious personal injury.

TRAINING

• Read all instructions and safety instructions and all warning labels on the machine before assembly and use. Save these instructions for future use.
• Familiarise yourself with the machine's controls and how to use it. Learn how to quickly bring the machine to a stop and disengage the power.
• Do not allow children under the age of 14 to use the machine. Children over the ages of 14 are permitted to use the machine but only under adult supervision.
• Never let children or persons unfamiliar with the machine or who have not read these instructions operate it.
• Objects ejected by the machine can cause serious personal injury. Plan work to avoid ejection of material towards walls, bystanders, etc.
• Keep bystanders, especially children and pets at least 20 metres from where the machine is being used. Turn off the machine if anyone enters the work area.
• Be careful not to slip or fall especially when operating in reverse.

BEFORE USE

• Carefully inspect the area where the machine is to be used and remove any stones, wires or other foreign objects.
  • Always wear eye protection when working with or on the machine.
• Dress properly. Do not wear loose-fitting clothes or jewellery. These can get stuck in moving parts. Wear slip-resistant footwear.
• Machines fitted with an electric start engine must only be plugged into an earthed power socket.
• Adjust the hood height to prevent it picking up gravel and the like.
• Release and disengage all control levers before starting the engine.
• Make no adjustments while the engine is running, except when asked to do so in the instructions manual.
• Allow the engine and the machine to adjust to the outdoor temperature before clearing snow.

HANDLING FUEL

• Exercise caution when handling fuel as there is a risk for personal injury and/or property damage. Petrol is extremely flammable and can be explosive under certain conditions. Wash immediately if you get petrol on your skin or clothes.
• Use only an approved fuel can.
• Store and keep petrol away from sparks, open flames, heat sources and other ignition sources. Smoking is prohibited when handling fuel.
• Never refuel indoors.
• Never remove the fuel cap and refill the tank while the engine is running.
• Allow the engine to cool for at least 2 minutes before refilling fuel.

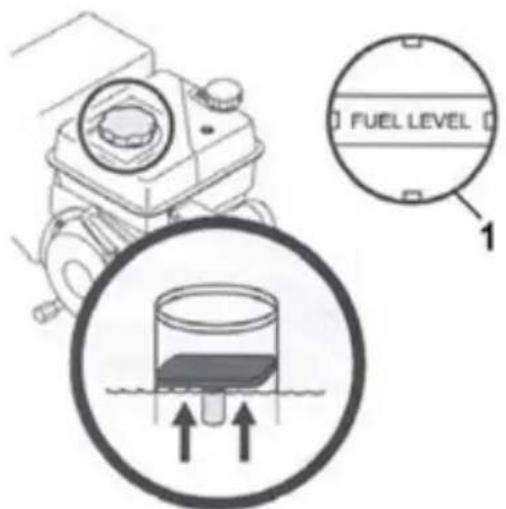

• Do not overfill the tank. Do not fill the petrol tank more than 1 cm below the filler pipe to allow the fuel to expand.
• Replace and tighten the fuel cap.
• Wipe up any spilled fuel immediately. Move the machine away from the refill area before starting it. Wait 5 minutes before starting the engine.
• Never store the machine or fuel can indoors where there are ignition sources such as boilers, immersion heaters, tumble dryers and electric motors which can cause sparks to avoid the risk fuel fumes igniting.
• Allow the machine to cool down for at least 5 minutes before storing it away.

USE

• Keep hands and fingers away from moving parts. There is a risk of serious personal injury and/or death.
• Never attempt to bypass or disengage the auger rotation – risk of serious personal injury.
• It must be possible to move control levers up and down and they must disengage automatically when released.
• Do not use the machine if the exit chute is missing or damaged. Safety devices must be fitted correctly and function properly.
• Never start the engine indoors or in an enclosed area. Engine exhaust fumes contain carbon monoxide, an odourless and lethal gas.
• Never use the machine when you are tired or under the influence of drugs, alcohol or medication.
• The muffler and engine become hot - risk of burns. Keep bystanders, especially children and pets at a safe distance.
• Be careful when working on or crossing entrances, roads, etc.
• Pay attention to traffic and hidden dangers.
• Be very careful when changing direction and on slopes.
• Plan the work so that ejected snow does not hit windows, walls, cars, etc. to avoid the risk of damage to property and/or personal injury.

• Never direct the ejector chute towards people or animals and never let anyone stand in front of the machine.

• Do not overload the machine by trying to remove too much snow too quickly.

• Never use the machine in poor visibility or low light. Keep proper footing and balance at all times and hold the handle firmly. Never run with the machine.
• Disengage the auger drive during transport and when the machine is not in use.
• Never operate the machine quickly on slippery surfaces. Be very careful when reversing or pulling the machine toward you.
• Never put your hands in the ejector chute or intake opening. Always use the accompanying clearing tool to clear the ejector chute. Never attempt to clear the ejector chute when the engine is running. Turn off the engine, disengage all control levers and wait until all moving parts have come to a complete standstill before attempting to clear the chute.
• Only use parts and accessories that are recommended by the manufacturer. Contact your dealer if you have any questions.

MAINTENANCE AND STORAGE

• Never modify the safety devices in any way. Regularly check that all safety devices are in place and are functioning properly.
• Turn off the engine and disengage all the control levers and wait until all moving parts have come to a complete standstill before performing repairs, lubrication and/or inspection. Pull off the spark plug cable and earth it to the engine to prevent accidental start.
• Check regularly that all bolt fasteners are correctly tightened. Retighten if necessary. Regularly check the machine visually for damage.
• Do not change the speed governor setting and do not over-rev the engine. The speed governor controls maximum permitted engine speed.
• Glide plates and skids wear over time. Regularly check all components and replace if necessary. Use only original spare parts recommended by the manufacturer, as the use of other spare parts can cause personal injury and/or damage to property.
• Regularly check that all the control levers can be moved up and down and automatically disengage when released. Adjust, if necessary, according to these instructions.
• Safety information and warning stickers on the machine must always be intact and legible. Replace immediately if this not the case.
• Observe applicable laws and regulations relating to fuel, oil, etc.
• Before putting the machine away for storage, let it run for several minutes to clear any snow. Otherwise the snow can freeze causing the auger to get stuck.
• Never store the machine or fuel can indoors where there are ignition sources such as boilers, immersion heaters, tumble dryers and electric motors which can cause sparks to avoid the risk fuel fumes igniting.
• Follow the instructions for storage.

WARNING Never let children or persons unfamiliar with the machine or who have not read these instructions operate it.

SYMBOLS

The following symbols appear on the machine. Read all instructions and safety instructions and all warning labels on the machine before assembly and use.

SYMBOL EXPLANATION
	WARNING Read the instruction manual.
	Read these instructions carefully - read these instructions carefully before assembly and use.
	Wear hearing protection.
	Wear safety goggles.
	WARNING Rotating parts! Keep hands and fingers away from moving parts when the machine is running. There is a risk of serious personal injury and/or death.
	WARNING Rotating parts! Keep hands and fingers away from moving parts when the machine is running. There is a risk of serious personal injury and/or death.
	WARNING Rotating parts! Keep hands and fingers away from moving parts when the machine is running. There is a risk of serious personal injury and/or death.
	WARNING Rotating parts! Keep hands and fingers away from moving parts when the machine is running. There is a risk of serious personal injury and/or death.
	WARNING Rotating parts! Wait until all moving parts have stopped completely before touching them.
	WARNING Rotating parts! Wait until all moving parts have stopped completely before touching them.
	WARNING Objects ejected by the machine can cause serious personal injury. Keep bystanders, especially children and pets at least 20 metres from where the machine is being used.
	WARNING Objects ejected by the machine can cause serious personal injury. Keep bystanders, especially children and pets at least 20 metres from where the machine is being used.
	WARNING Objects ejected by the machine can cause serious personal injury.Keep bystanders, especially children and pets at least 20 metres from where the machine is being used.
	WARNING Do not tilt the machine forward or back.
	Release the auger lever to disengage the auger.
	WARNING Petrol is extremely flammable. Allow the engine to cool for at least 2 minutes before refilling fuel.
	WARNING Petrol is explosive. Allow the engine to cool for at least 2 minutes before refilling fuel.
	WARNING Never start the engine indoors or in an enclosed area.Engine exhaust fumes contain carbon monoxide, an odourless and lethal gas.
	WARNING Do not use the machine in the rain or in wet areas.
	WARNING Remove the ignition key and read the instruction manual before cleaning, servicing and/or maintaining the machine.

WARNING Never let children or persons unfamiliar with the machine or who have not read these instructions operate it. Save these instructions for future use.

TECHNICAL DATA

Clearing width 535 mm

Intake height 510 mm
Propulsion	Self-propelled
Wheels 13" inflated rubber wheels
Gears 4 forward, 1 reverse
Start Cord start
Ejection length About 11 metres
Engine type 1 cylinder 4-stroke engine
Cylinder displacement 163 cc
Fuel	Petrol

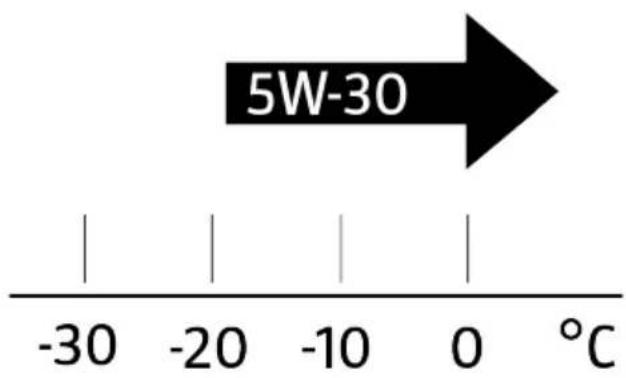

Recommended oil 5W-30 (temp. as low as -18°C)
Oil tank volume 0.6 L
Chute adjustment 2-way
Ejector chute 190° rotation
Deflector, ejector chute 60° rotation
Measured sound power level L_wA	103.5 dB(A), K = 1.5 dB(A)
Guaranteed sound power level L_wA	105 dB(A), K = 1.5 dB(A)
Sound pressure level L_pA	83.26 dB(A), K = 1.61 dB(A)
Max. vibration 7.4 m/s	^2 , K = 1.5 m/ s^2

WEAR HEARING PROTECTION

The declared vibration value, which has been measured by a standardised test method, can be used to compare different tools with each other and for a preliminary assessment of exposure.

WARNING The vibration during actual use may deviate from the stated value, depending on how the tool is used. It is therefore necessary to determine which safety precautions are required to protect the user, based on an actual operating conditions, taking into account all stages of the work cycle, e.g. the time when the machine is switched off and when it is idling, in addition to the time the power switch is on.

The figures stated are actual measured sound levels, which may not be necessarily safe to work with. Whilst there is a correlation between the stated sound level and the sound level experienced, this cannot be used reliably to determine whether or not safety precautions are required. Other factors influence noise levels in each individual case, for instance the acoustics in the work premises and any other sources of noise such as other machines or processes. The admissible sound level values can also vary from country to country. Users are obliged to determine any risks.

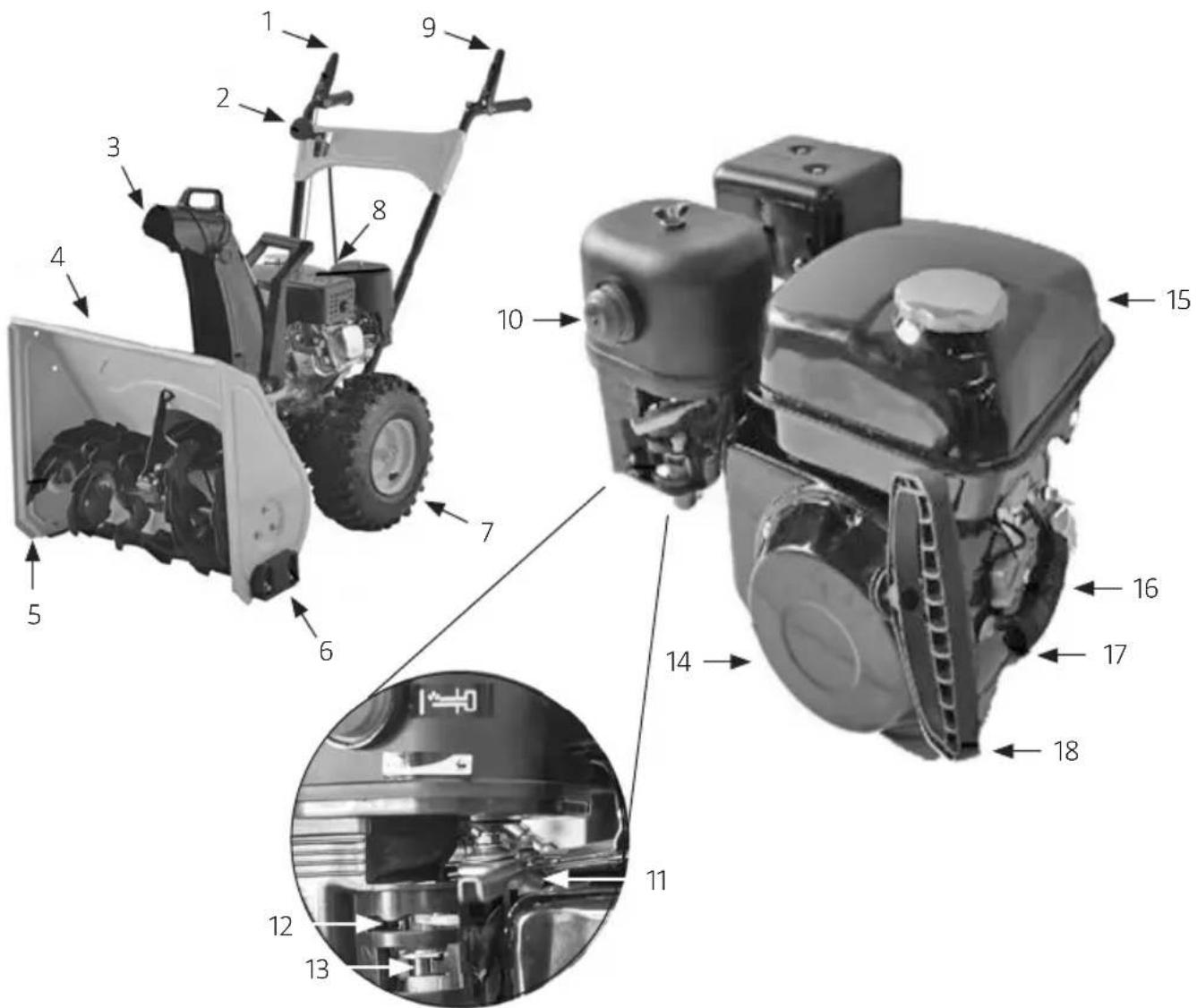

DESCRIPTION

1. Auger lever
2. Drive lever
3. Gear lever
4. Motor
5. Ejector chute
6. Clearing tool
7. Rotor
8. Guide plate

9. Wheels

10. Fuel pump bulb

11. Throttle
12. Choke
13. Petrol tap
14. Oil drain plug
15. Fuel cap
16. Ignition knob (off/on)
17. Oil filler cap
18. Handle, pull start cord

WARNING Read all the instructions, safety instructions and all the warning stickers on the machine prior to use.

LEVERS

DRIVE LEVER

The drive lever is on the left hand side of the handle. Press in the drive lever to propel the machine and release it to stop.

IMPORTANT! Release the drive lever before changing gear.

AUGER LEVER

The auger lever is on the right hand side of the handle. Press it in to engage the auger and release to stop ejecting the snow. Also release the drive lever to stop propelling the machine.

IMPORTANT! Check that the auger is working properly before each use. Carry out any adjustments and/or repairs as described in these instructions as otherwise there is a risk of personal injury and/or damage to property.

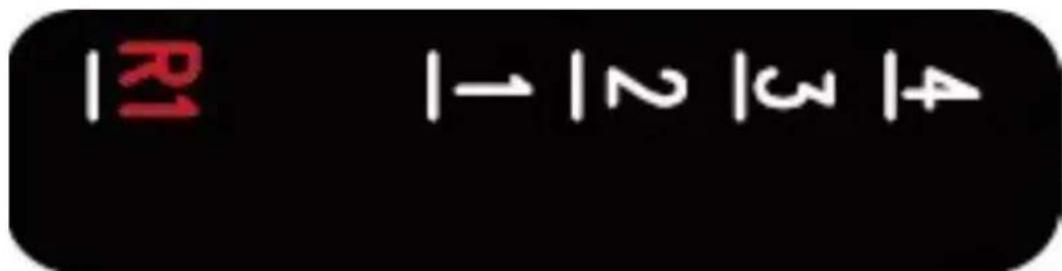

GEAR LEVER

The gear lever is found on the handle and has 5 positions, four forward gears and one reverse.

FORWARD DRIVE

The machine has 4 forward gears (1-4) with different speeds, where 1 is the lowest gear. Use the lowest gear when clearing snow.

IMPORTANT! Release the drive lever before changing gear.

REVERSE PROPULSION

The machine has one reverse gear (R1).

IMPORTANT! Release the drive lever before changing gear.

SKIDS

The distance between the glide plates and the ground is set by adjusting the skids. See the chapter on skids in the assembly section.

CONTROL HANDLE, EJECTOR CHUTE

Close-up of a black industrial machine with visible components and no text or symbols

Set the required ejection direction by turning the control handle as shown below.

1. Turn clockwise to turn the ejector chute to the right.

2. Turn anti-clockwise to turn the ejector chute to the left.

CONTROL HANDLE, EJECTOR DEFLECTOR

The ejector deflector controls the ejection height. Raise or lower the deflector using the control handle.

CLEARING TOOL

The clearing tool is attached at the back of the auger hood.

FUEL RECOMMENDATIONS

Use alkylate petrol or unleaded petrol with a rating of at least 95 octane. Petrol with at most 10% ethanol or 15% MTBE (methyl tertiary butyl ether) can be used. Never use old, contaminated fuel or fuel mixed with oil. Prevent water and debris getting into the fuel tank. Do not use E85.

OIL RECOMMENDATIONS

SYNTHETIC OIL

Use oil according to the table:

5W-30 (temp. as low as -18°C)

The engine's oil volume is 0.5 litres. Do not overfill.

Use only high-quality engine oil.

IMPORTANT! Use only oil recommended by the manufacturer. Using other oil can damage the engine.

ASSEMBLY

NOTE: The right and left sides of the machine are specified as viewed from the operating position behind the machine.

UNPACKING

Remove the plastic covering parts of the machine and unpack all the loose parts.

LOOSE PARTS

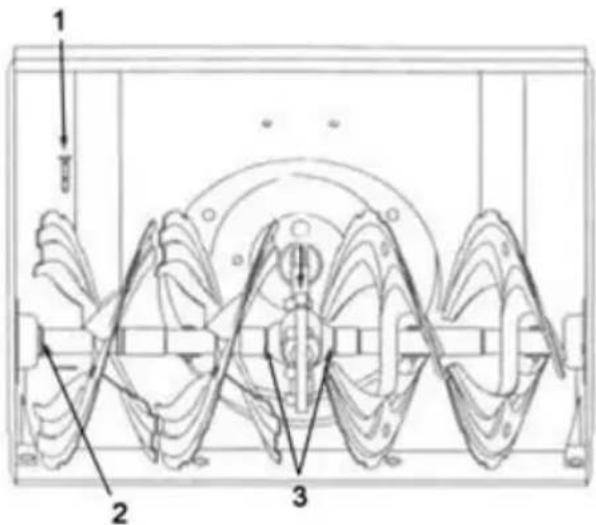

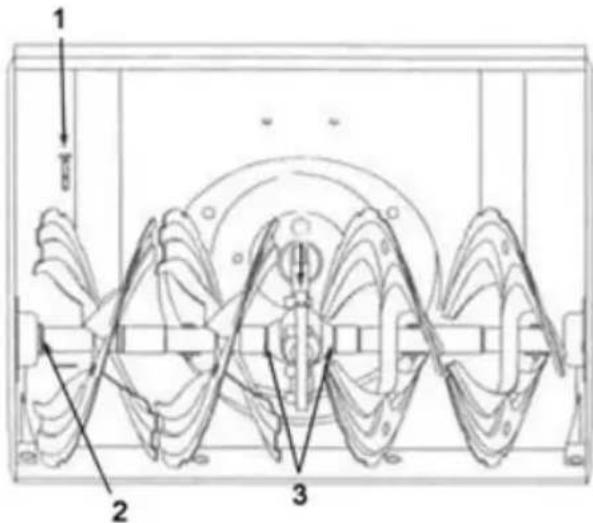

1. Shear bolt
2. Nut

The auger is fitted to the spiral shaft with two shear bolts. If the auger hits ice or another fixed object, the bolts can shear.

Two extra shear bolts are supplied. Keep them in a safe place until they are needed.

LOWER AND UPPER HANDLE

Fit the handle with the supplied coach bolts, cup washers and nuts.

1. Drive lever cable
2. Gear lever
3. Auger lever cable
4. Upper cable bracket

Close-up of a hand gripping a black lever handle and connector, with a numbered label '6' pointing to the handle (no text or symbols on the object itself)

IMPORTANT! Fit the drive lever cable and the auger lever cable: The drive lever cable is attached on the right hand side and auger lever cable on the left hand side.

WARNING Do not tension the cable too much as this prevents correct disengagement of the auger which can cause personal injury and/or damage to property.

EJECTOR CHUTE

• Remove the screw and the flat washer from the ejector chute.
• Press the ejector chute into place in its holder.
• Insert the screw with the washer into the hole in the ejector chute and tighten clockwise.

1. Ejector chute
2. Holder for ejector chute

Close-up of a mechanical component with labeled parts (1, 2), no readable text or symbols beyond labels

1. Screw
2. Flat washer

Adjustment

WARNING Make no adjustments while the engine is running, except when asked to do so in the instructions manual.

SKIDS

WARNING Do not drive the machine over gravel when the engine is running. Gravel can be drawn in and blown out which can cause personal injury and/or damage to property.

The distance between the glide plates and the ground can be adjusted as follows.

Mechanical assembly diagram showing a bracket with arrows indicating direction of motion or force (no text or symbols)

1. Move the guide plates up the auger hood for light snowfalls.

2. Set the guide plates in the centre position or lower for work on uneven surfaces.

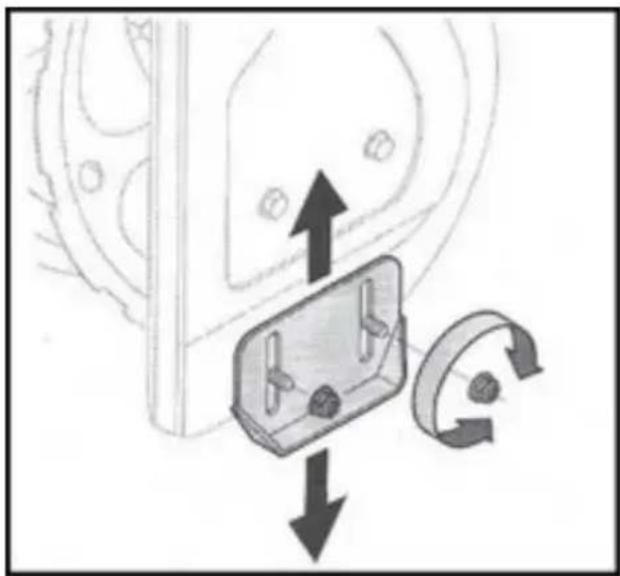

To move the skids:

1. Loosen the four flange lock nuts and bolts.

2. Move the skids to the desired position.

3. Check that the bottom of the skids rests on the ground along their entire length, to avoid the skids wearing unevenly.

4. Fully tighten the bolt fasteners.

OPERATION

BEFORE USE

WARNING Read all the instructions, safety instructions and all the warning stickers on the machine prior to use.

FUEL AND OIL

Fill with oil and petrol.

REFILLING FUEL

WARNING Exercise caution when handling fuels. Petrol is extremely flammable and can be explosive under certain conditions. Never refuel indoors or when the engine is running. Store and keep petrol away from sparks, open flames, heat sources and other ignition sources. Smoking is prohibited when handling fuel.

WARNING Exercise caution when handling fuels. Petrol is extremely flammable and can be explosive under certain conditions. Never refuel indoors or when the engine is running. Store and keep petrol away from sparks, open flames, heat sources and other ignition sources. Smoking is prohibited when handling fuel.

WARNING Keep hands and feet away from moving parts. Do not use easy start spray. The fumes are extremely flammable.

1. Clean the area around the fuel cap before opening the cap.
2. There may be a plastic cover in the fuel filling pipe to protect the tank during manufacture. Remove and discard this cover. Screw the fuel cap on the tank after filling with fuel.
3. The fuel tank has a level indicator. Fill up to the red plate in the sieve. Do not overfill.
4. Avoid spilling fuel when refilling. Spilt fuel and fuel fumes can cause fires. Wipe off any excess fuel before starting the engine.
5. Avoid repeated or long term skin contact with fuel and/or inhaling fuel fumes.
6. Replace and tighten the fuel cap.

1. Fuel level indicator, viewed from above.

CHECKING OIL LEVEL

IMPORTANT! The engine is supplied without oil. Fill with 0.6 litres of oil and check the oil level before starting the engine. Do not run the engine with too little oil as this can cause serious engine damage. The guarantee does not cover damage caused by running the engine with too little oil.

NOTE: Place the machine on a level surface to check the oil level. The engine must be turned off.

STARTING THE ENGINE

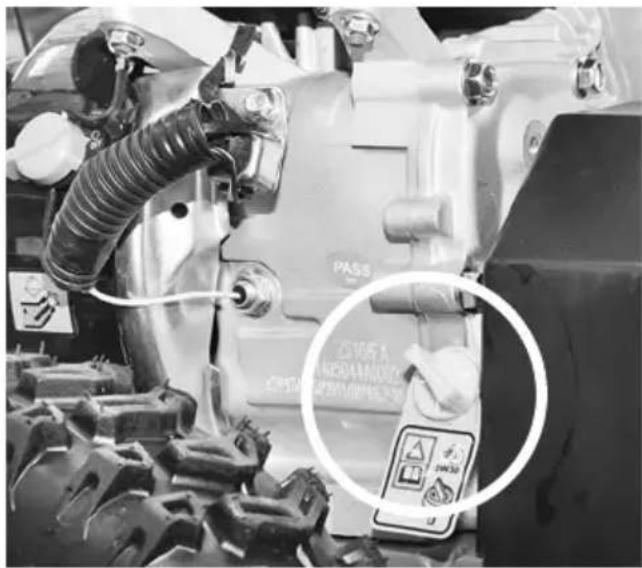

Close-up of a mechanical device with visible springs and a labeled 'PASS' button, showing no readable text or symbols.

NOTE: The level must be between the max. (H) and min. (L) markings.

1. Remove the oil filler cap with the dipstick and wipe the dipstick.

2. Insert the dipstick again without screwing it in, pull it out and read the oil level. Fill with oil if the level is low.

3. Recommended oil quality and volumes can be found in the technical data section.

4. NOTE: Do not overfill. Overfilling can cause smoke, make it hard to start the engine and/or cause the build-up of deposits on the spark plug.

5. Put the oil filler cap with the dipstick back in place and tighten it before starting the engine.

Follow the instructions below to start the engine.

NOTE: Check that the auger lever and the drive lever are disengaged (up) before starting the engine.

1. Turn the ignition knob to the ignition mode.
2. Set the throttle to high rpm position (hare symbol).
3. Use the choke if the engine is cold.
4. If the engine is cold, block the ventilation hole and press the pump bulb 3 to 5 times. If the engine is hot, block the ventilation hole and press the pump bulb once.
5. To start the engine, slowly pull the start cord until you feel some resistance and then pull it quickly. Hold the starter handle when the pull cord retracts after a start. If the cord retracts too quickly, the start handle can cause personal injury and/or damage to property. Repeat the process if needed.
6. Close the choke slowly when the engine gets hot. If the engine stops, start it again and let it run for a short time with the choke half open before you slowly slide the choke until it is closed (no choke).

NOTE: Always block the ventilation hole when you press the pump bulb. If the temperature is below -9°C, you may need to press the pump bulb a number of times.

PROPULSION, TRANSMISSION

1. Let the engine run at high speed and put it in a suitable gear for the job at hand. There are 4 forward gears and one reverse gear.
2. Press it in to engage the auger and release to stop ejecting the snow.
3. Press in the drive lever to propel the machine and release it to stop.
4. Release the drive lever before changing gear.

AUGER

STARTING THE AUGER

Press the auger lever toward the handle to engage the auger and release it to stop blowing snow.

AUGER LEVER FUNCTION CHECK

Check that the auger is working in accordance with these instructions.

IMPORTANT! Perform the following checks before the machine is used for the first time and before it is used at the start of a season.

IMPORTANT! Perform the adjustments in a well-ventilated area according to the instructions below.

Check the auger lever and make any adjustments in a well-ventilated area according to the instructions below.

1. When the auger lever is disengaged (up), there should be very little play on the cable but it must not be too tight.
2. Stand in the operating position behind the handle and engage the auger.
3. Keep the auger engaged for about 10 seconds and then release the auger lever. Repeat several times.
4. Allow the engine to run with the auger lever disengaged. Go to the front of the machine.
5. Check that the auger has come to a complete standstill and does not move.
6. Start the engine and check that the auger engages and disengages correctly.

Check that the drive lever and the gear lever work in accordance with the instructions below.

1. Turn off the engine and put the gear lever in the highest forward gear. Engage the drive lever and push the machine forward. The machine should move forward. Press in the drive lever. The wheels should stop moving.
2. Disengage the drive lever and push the machine forward again.
3. Move the gear lever to the highest reverse gear and back to the highest forward gear. It must be easy to move the gear lever and the wheels should rotate.
4. If the lever is stiff or if the wheels stop moving, loosen the lock nut on the drive lever cable and extend the cable by turning the nut one turn.
5. If the wheels do not stop moving when you engage the drive lever, loosen the lock nut on the drive lever cable and shorten the cable one turn of the nut.
6. Repeat the check and adjust again if necessary. Tighten the lock nut after adjustment.

SWITCHING OFF

1. Move the throttle to the low speed position (tortoise symbol).
2. Turn off the engine by turning the start/stop knob to the STOP position.
3. Wipe all the levers on the engine dry.

CLEARING THE EJECTOR CHUTE

The clearing tool is attached at the back of the auger hood.

Clear the ejector chute according to the instructions below.

1. Disengage the auger lever and the drive lever.
2. Turn off the engine by turning the start/stop knob to the STOP position.
3. Remove the clearing tool from its holder.
4. Clear away snow and ice using the clearing tool.

WARNING NEVER clear the ejector chute when the engine is running. Never use your hands to clear the ejector chute. Use the clearing tool or a stick. Put the clearing tool back in its holder and start the engine.

Stand in the operating position behind the handle and engage the auger lever for a few seconds to eject any snow and ice remaining in the ejector chute.

NOTE: Let the engine run for a few minutes. The engine does not produce maximum output until it reaches operating temperature.

WARNING The muffler, muffler guard and other engine parts can get very hot during use - risk of burn injuries.

1. Clear the snow as soon as possible for the best results.
2. If possible aim the ejector chute in the direction of the wind.
3. Let each row overlap the previous one.
4. The skids are normally placed 6 to 7 mm below the glide plates. If the snow is well packed, the skids can be moved upward to allow the glide plates to get closer to the ground. When driving on gravel, the skids can normally be sunk to lift the glide plates off the ground.
5. Once work is completed, let the machine run for a number of minutes until all the snow is ejected. Otherwise the snow can freeze causing the auger to get stuck.
6. Clean the machine carefully after each use.

MAINTENANCE

WARNING Turn off the engine and disengage all the control levers and wait until all moving parts have come to a complete standstill before performing repairs, lubrication and/or inspection. Pull off the spark plug cable and earth it to the engine to prevent accidental start. Always wear eye protection when working with or on the machine.

ENGINE MAINTENANCE

WARNING Switch off the engine and pull out the ignition key before carrying out any maintenance:

Maintenance schedule

Perform maintenance according to the table below. In demanding conditions, maintenance should be carried out at more regular intervals.

Remedy	After 5 hours of operation	Before each use and after 5 hours of operation	Every season and after 25 hours of operation	Every season and after 50 hours of operation	Every season and after 100 hours of operation	Service date
Motor oil check		X
Changing the engine oil				X
Spark plug check			X
Spark plug service					X
Cleaning muffler area		X

CHANGING THE ENGINE OIL

NOTE: Check the oil level before each use and after every 5 hours of operation.

1. Drain the fuel tank by running the engine until the fuel tank is empty. Check that the fuel cap is properly tightened.
2. Place a suitable container under the drain plug.
3. Remove the drain plug.
4. Tilt the engine to drain the oil into the container. Used oil must be disposed of in accordance with local regulations.

5. Insert the drain plug and tighten.

6. Fill with oil of the recommended grade to the upper level mark.

7. Put back the oil filler cap with the dipstick.

IMPORTANT! Wash your hands with soap and water after changing the oil.

NOTE: Used oil must be disposed of in accordance with local regulations.

SPARK PLUG

WARNING The muffler gets very hot when the engine has been running and remains hot long after the engine has been stopped - risk of burns.

For good engine performance, the spark plug must be clean and have the right spark plug gap.

1. Spark plug

2. Spark plug cap

3. Remove the spark plug cap from the spark plug and unscrew the spark plug using a spark plug spanner.

4. Check the spark plug. Discard the spark plug if it is visibly worn or if the insulator is cracked or broken. Clean the spark plug with a steel brush if it is to be used again.

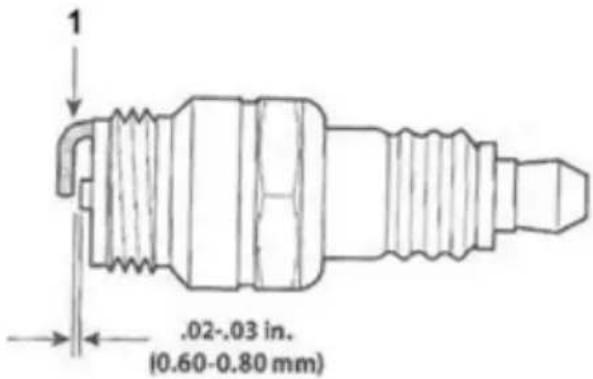

1. Electrode

- Measure the electrode gap with a feeler gauge. Correct the gap, if necessary, by gently bending the ground electrode. The gap should be 0.6 to 0.8 mm.

• Check that the gasket is in good condition. Unscrew the spark plug carefully by hand to avoid damaging the threading.
• Tighten the spark plug using the supplied wrench to compress the gasket.

NOTE: A new spark plug must be turned an extra half a turn after it has been screwed in place to compress the gasket. A used spark plug must be turned an extra 1/8–1/4 turn after it has been screwed in place to compress the gasket.

IMPORTANT! Tighten the spark plug correctly. A loose spark plug can overheat and damage the engine.

CLEANING THE ENGINE

Let the engine cool for at least 30 minutes before cleaning it. Regularly remove any debris that collects on the engine.

IMPORTANT! Never spray the engine with water. This can contaminate the fuel or the water can get in through the muffler and damage the engine.

WARNING Remove any deposits from the muffler before use (a fire risk).

WARNING Avoid contact with moving parts during maintenance tasks that have to be performed while the engine is running. The muffler, muffler guard and other engine parts can get very hot during use - risk of burn injuries.

LUBRICATION

GEAR LINKAGE

Using a suitable grease, lubricate the gear linkage at least once a year or after every 25 hours of operation.

IMPORTANT! Keep rubber wheels and aluminium belt pulleys free from grease and oil.

CONTROL HANDLE, EJECTOR CHUTE

Using suitable grease, lubricate the worm gear for setting the ejection direction.

TRANSMISSION

The gearbox is lubricated at the factory and is maintenance-free.

AUGER BEARING

Dismantle the auger shaft at least once per season and lubricate its bearings with a suitable lubricant such as WD40.

1. Shearbolt
2. Bearing
3. Shaftsleeve

DRIVE AND GEAR MECHANISM

Lubricate once a year or after 25 hours of operation. Remove the rear cover and lubricate bearings, shafts and gear components once a year using engine oil or lubricating spray (e.g. WD40). Keep rubber wheels and aluminium belt pulleys free from grease and oil.

SERVICE

WARNING Turn off the engine and disengage all the control levers and wait until all moving parts have come to a complete standstill before performing repairs, lubrication and/or inspection. Pull off the spark plug cable and earth it to the engine to prevent accidental start. Always wear eye protection when working with or on the machine.

AUGER

1. Shearbolt
2. Bearing
3. Shaftsleeve

The auger is fitted to the shaft using two shear bolts. If the auger hits ice or another fixed object, the bolts shear. If the auger does not rotate, check if the shear bolts are intact. Two extra shear bolts are supplied. Lubricate the shaft before fitting the new shear bolts.

IMPORTANT! Only use shear bolts recommended by the manufacturer. Injuries caused by use of other components is not covered by the guarantee.

GLIDE PLATES AND SKIDS

Check guide plates and skids for damage and replace if necessary.

REPLACING SKIDS

Mechanical component diagram showing a bracket with directional arrows indicating motion (no text or symbols)

1. Loosen the four flange lock nuts and bolts.
2. Replace the guide plates.
3. Move the skids to the desired position.
4. Check that the guide plates rest on the ground entirely to prevent uneven guide plate wear.
5. Fully tighten the bolt fasteners.

1. Screw
2. Shear bolt
3. Cotter pin
4. Flange lock nut
5. Guide plate

REPLACING GUIDE PLATES

1. Loosen the bolts and flange nuts holding the guide plates to the machine hood.
2. Replace the guide plates.
3. Fit the new guide plates with all the bolt heads on the inside of the hood.
4. Tighten as much as possible.

STORAGE

WARNING Never store the machine or fuel can indoors where there are ignition sources such as boilers, immersion heaters, tumble dryers and electric motors which can cause sparks to avoid the risk fuel fumes igniting.

WARNING Let the engine cool and drain the fuel into a suitable container. Work outside, at a safe distance from any ignition sources. Allow engine to cool. Store and keep petrol away from sparks, open flames, heat sources and other ignition sources. Smoking is prohibited when handling fuel. The fuel that remains in the engine in hot weather is broken down and can cause starting problems.

Follow the instructions below if the machine is not going to be used for at least 30 days.

1. Empty the carburettor and the fuel tank to prevent deposits forming in the fuel system.
2. Run the engine until the fuel tank is empty and the engine stops due to a shortage of fuel.
3. Replace the engine oil.

4. Remove the spark plug and pour two tablespoons of engine oil into the cylinder through the spark plug hole. Cover the spark plug hole with a cloth and turn the engine by pulling the starter cord several times to distribute the oil. Put the spark plug back in place.

5. Clean the engine and the area around the muffler.

6. Rub all untreated metal surfaces with an oily cloth to prevent corrosion.
7. Follow the lubricating instructions in the maintenance section.
8. Keep the machine clean and dry.

Store the machine in a dry, well-ventilated place. Never store the machine indoors where there are ignition sources such as boilers, immersion heaters, tumble dryers and electric motors which can cause sparks to avoid the risk fuel fumes igniting.

Store the machine on a flat surface. If the engine is tilted, fuel and/or oil can leak out.

NOTE: Apply a thin coat of oil to all untreated metal surfaces to prevent corrosion, particularly to chains, springs, bearings and wires.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE ACTION

Engine will not start	Empty fuel tank or old fuel.	⇒	Fill the tank with fresh petrol.
	Blocked fuel line.	⇒	Clear the fuel line.
	Loose spark plug lead.	⇒	Fit the spark plug lead to the spark plug.
	Defective spark plug.	⇒	Clean the spark plug. Adjust the electrode gap or replace the spark plug.
	Ignition key not inserted correctly.	⇒	Insert the ignition key correctly.
The engine does not run smoothly	Open the choke.	⇒	Close the choke entirely.
	Blocked fuel line or old fuel.	⇒	Clean the fuel line and fill the tank with fresh petrol.
	Water or dirt in the fuel system.	⇒	See the engine maintenance section.
	Check the oil level	⇒	Fill with oil if necessary.
	Carburettor not properly adjusted.	⇒	See the engine maintenance section.
Engine overheating Carburettor not properly adjusted.		⇒	See the engine maintenance section.
Low power	Loose spark plug lead.	⇒	Attach the spark plug lead to the spark plug.
	Ventilation hole in the fuel tank cap is blocked.	⇒	Clear the ventilation hole.
Heavy vibration Loose parts or damaged auger.		⇒	Turn off the engine immediately, remove the ignition key and wait until all moving parts have come to a standstill. Check for any damage. Tighten all bolt fasteners. Repair if necessary. Contact an authorised service centre if the problem remains.

PROBLEM POSSIBLE CAUSE ACTION

Forward drive does not work.	Drive belt loose or damaged.	⇒	Replace the belt.
The auger does not stop when the auger lever is released.	The auger lever cable is incorrectly adjusted.	⇒	Adjust the auger lever cable.
The machine does not eject snow	The ejector chute is blocked.	⇒	Turn off the engine immediately, remove the ignition key and wait until all moving parts have come to a standstill. Clear the ejector chute with the clearing tool or a stick.
	One or more shear bolts have sheared.	⇒	Replace the shear bolts.
	Foreign object blocking the auger.	⇒	Turn off the engine immediately and remove the ignition key. Remove the object from the auger.
	Auger lever cable incorrectly adjusted.	⇒	Adjust the auger lever cable.
	Auger drive belt loose or damaged.	⇒	Replace the belt.

Jula reserves the right to make changes. In the event of problems, please contact our service department by phoning

0200-88 55 88.

Jula AB, Box 363, SE-532 24 SKARA

www.jula.se

Symbol of a trash bin crossed with no visible text or labels

Värna om miljön!
