Viva Q7 Satellite - Tablet Allview - Free user manual and instructions

Product Type	Tablet
Brand	Allview
Model	Viva Q7 Satellite
Operating System	Android (version not specified)
Processor	1.3 GHz Quad-Core (estimated)
Display	7-inch touchscreen (estimated)
RAM	1 GB (estimated)
Internal Storage	8 GB (estimated)
Expandable Storage	MicroSD card up to 32 GB
Wi-Fi	802.11 b/g/n
Bluetooth	Yes (version not specified)
GPS	Yes, with Sygic offline navigation
Camera	Front and rear (resolution not specified)
Ports	MicroUSB, 3.5mm headphone jack, MicroSD slot
Battery	High capacity polymer, rechargeable via USB or AC adapter (5V/1A)
Charging	USB port or DC charger (5V~5.2V, 1A)
Dimensions	Approximately 190 x 110 x 10 mm (estimated)
Weight	Approximately 300 g (estimated)
Maintenance	Clean with soft dry cloth; avoid extreme temperatures and moisture
Safety	Use only approved charger; do not disassemble; avoid dropping
Repairability	Serviceable by authorized centers; battery replaceable by service
Accessories Included	USB cable, AC charger (if purchased), user manual

Frequently Asked Questions - Viva Q7 Satellite Allview

How do I turn on the tablet?

To turn on the device, press and hold the Power button located on the side until the screen lights up.

How can I extend battery life?

Reduce screen brightness, set a shorter screen timeout under Display settings, and disable Wi-Fi or Bluetooth when not in use.

Why is my Wi-Fi connection dropping?

Wi-Fi may turn off automatically when the device enters sleep mode to save power. It reconnects within about 5 seconds after waking the device.

How do I install apps from unknown sources?

Go to Settings > Security and enable 'Unknown sources' to allow installation of apps not from Google Play Store.

How do I insert a microSD card?

Insert the microSD card with the metal contacts facing up and gently push it into the slot until it clicks. Ensure the device is powered off before inserting or removing.

What should I do if the tablet won't turn on?

First, check if the battery is fully charged by connecting the charger for at least 30 minutes. If still not responding, press and hold the Power button for 10 seconds to force a reset.

Can I use any charger to charge the tablet?

It is recommended to use only the supplied charger or a compatible one with 5V~5.2V output and 1A current. Using a substandard charger may damage the device or cause safety hazards.

How do I perform a factory reset?

Go to Settings > Backup & Reset and select 'Factory Data Reset'. This will erase all data and restore the device to its original settings.

Why can't I play some video files?

The device supports common video formats, but some files may be incompatible due to encoding. Use a video converter on your PC to convert to a compatible format.

How do I use the Sygic GPS navigation?

Open the Sygic app, allow it to download necessary files, then select 'Start Trial' for a 30-day free trial. Choose maps and download them. You can later purchase a full license.

USER MANUAL Viva Q7 Satellite Allview

Illustration of a tablet device with no visible text or symbols on its surface

User manual....3

Three views of a smartphone showing front, side, and top views with numbered annotations (no text or symbols on the devices themselves)

EN

1 Camera 1 стая 1 камера 1 Kamera
2 Power 2 бутона за 2 кOUМПИ 2 Einschaltungskno
3 MicroUSB 3 Micro USB 3 φ15 micro 3 MikroUSB Muffe
4 Microphon 4 микрофон 4 микрофшо 4 Mikrofon
5 Earphone 5 жак за 5 акоустика 5 Muffe des
6 Volume 6 обем бутон 6 óykuu kouμπί 6 Lautstärke
7 MicroSD 7 MicroSD clot 7 MicroSD 7 MikroSD Slot
8 Speaker 8 говорител 8 μεγάφωνο 8 Lautsprecher
1 Kamera 1 Aparat 1 Camera 1 Kamera
2 Bekapcsol 2 Przycisk 2 Buton pornire 2 Dugme za
3 MicroUSB 3 Złącze micro 3 Mufa 3 MicroUSB
4 mikrofon 4 Mikrofon 4 Microfon 4 mikrofon
5 fülhallgató 5 Złącze 5 Mufa casti 5 Priključak za
6 hangerö 6 Przycisk 6 Buton volum 6 запремина
7 MicroSD 7 Złącze microSD 7 Slot MicroSD 7 MicroSD slot
8 hangszóró 8 Glośnik 8 Difuzor 8 zvučnik

HU

User manual VIVA Q7 Satellite

Foreword

Thank you for purchasing our product.

These operational guidelines for the user, to ensure you a quick and convenient to use, read the instructions carefully before use.

This player is a specialized top quality portable player product with a series of remarkable functions. There will be no separate notice in the case of any change in content of this text.

This company will continue to provide new functions for the development of the product, and there will be no separate change in the case of any change in the product's performance and functions. While this unit is used as a mobile hard disk, this company will not be held liable for the security of files saved in the disk.

If the actual setup and the application methods are not identical to those as set forth in this manual, please access to the latest product information of this company's website.

Basic Operations

Power on

In the shutdown state, long press Power button

Power off

In the power on state, long press the Power key 3 seconds then pop-up device options, select "Power off" for shut down.

Sleep

Under normal operating conditions, short press the power button, into hibernation. Now, the screen will close. Short press the power button again to resume the normal mode. You can set the device to enter sleep mode automatically after a desired time of non-operation.

Power reset

If you experience a slow operation of the device in normal use, you can shutdown and power on again to reset the operating system.

Screen time out

If you do not contact the player within the set time, and do no operate by the button, the screen will be automatically turned off.

In any state, short press Power button and for activation; Then skid the lock upwards to the green of spotted which will accomplish to access to the upper interface.

If it is necessary to deactivate the screen time out function, you can set the [Screen time out] option under [Display] function into "Never".

Using the Micro SD card

After this unit is connected with the computer, you will find two moving disks. The first one is the built-in memory disk for this unit and the other is the disk for the MicroSD card. If no card is inserted, the second disk can not be opened. This unit supports the extension of the MicroSD card from 128MB to 32GB.

Inserting and Pulling out the Micro SD card

Inserting:

En

Put the Micro SD card face up (side with words), and slightly force the card into the socket of the card, i.e. connecting the unit. Under this state, you can play the content in the Micro SD card.

Pulling:

Slightly push the Micro SD, and it will bounce by a section, and then you can take it out.

Caution:

Please perform inserting and pulling operation when power is off! Otherwise, it will lead to the loss or damage to the files within the unit! If no card is inserted, the computer will be unable to perform read and write operation for the disk notes of the later removable disk (Micro SD card).

Battery:

High capacity Polymer battery is used for this unit.

The duration available of the battery power depends on volume, types of playing files and operation of batteries. The player can be set up by the user as "user define power off time" or "display setup" to save batteries.

Charging:

This unit can be recharged by USB port, you can also use DC Charger:

- take out the DC charger, plug it into the wall outlet with AC 220V (output current 1A output voltage 5V\~5.2V), then plug in the charging jack into the device usb plug.

Warnings for charging:

A new battery may be empty and not charged before you get the device.

If the device is not used for long time, it is better to charge it to full capacity every 2 or 3 months during storage.

Power adapter is a key component of the portable player, which play a crucial role in keeping the portable player's normal work and protecting your security when using the player, a long-term customer survey and after-sales service Practice shows that the malfunction of the portable player, in many cases were caused by using inappropriate accessories, in particular the power adapter.

Using the substandard power adapter will shorten the life of the portable player by considerably, the voltage instability will seriously affected the normal work of the portable player and bring permanent damage on the player's performance and reliability. Using the substandard power adapter will also reduce the vocal quality of the players, shutdown the player when you use it. In addition, using the substandard power adapter will cause combustion and explosion which will disserve the safety of the consumers.

Return to main interface

In any interface, touch icon " " to access to main interface.

Return to upper interface or menu

In any interface, touch icon " <", click the " : " key to access to upper interface or menu. You can also click short press the " " key to accomplish it.

Points for Attention

1. Do not use the player in exceptionally cold or hot, dusty, damp or dry environments;
2. Do not allow the player to fall down while using it.
3. Please charge your battery when:
   A. Battery power icon shows an empty icon:
   B. The system automatically shuts down and the power is soon off when you switch on the unit once again;
   C. There is no response if you operate on any key;
4. Please do not disconnect power abruptly when the player is being formatted or in the process of uploading or downloading. Otherwise it may lead to the error in the

program;

1. When this unit is used as a mobile disk, the user shall store or export files in the proper file management operation method. Any improper operation method may lead to the loss of files, for which this Company will be held no liable;
2. Please do not disassemble this unit by yourself. If there is any issue, please contact the dealer;
3. There will be no separate notice in the case of any change in the functions and performance of this product;

To avoid the problems that might occur with the service shops approved by Visual Fan Ltd. (because Visual Fan reserves the right to stop the collaboration with any service shop which was previously approved and mentioned in the warranty card on the date on which the product batch was sold on the market), before taking a product to the service shop, please check the updated list of approved service shops on Allview website at the section: "Support&Service – Approved service".

We do not assume the responsibility in case the product is used other way than stated in the user guide. Our company reserves the right to bring modifications in the content of the user guide without making this fact public.

All the modifications will be listed on the company website (www.allviewmobile.com) in the section dedicated to the specific product which is subject to modifications. The content of this guide may vary from the one existing in electronic format within the product. In such case the latter one will be taken into consideration

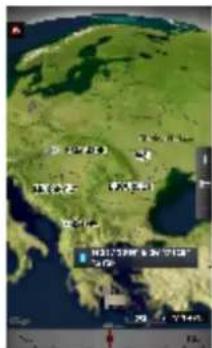

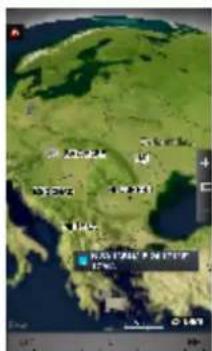

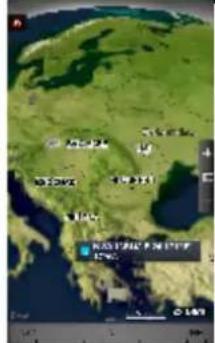

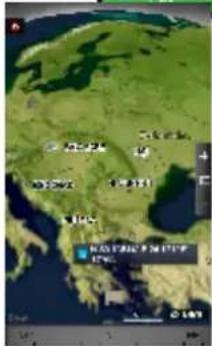

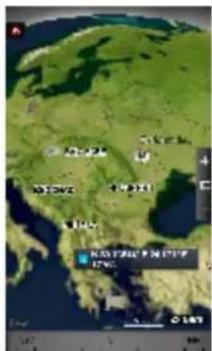

Activate your Sygic GPS Navigation

(optional)

The world's most popular offline GPS navigation app from Sygic is preinstalled on this device. Enjoy navigation in 90 countries around the globe for 30 days for free.

1. Click on Sygic icon and launch application.

2. The application will download necessary files.

1. Select "Start Trial" button.
2. Choose one or more maps and click "Proceed" to download.

3. Please don't close the application and wait until the end of the download.

4. Select "Continue trial" to use Sygic GPS navigation for 30 days for free. Or purchase the full lifetime license of the

navigation. If you choose trial you can purchase full lifetime license later in "My Sygie" menu.

1. Select the navigation voice.
2. You can join to Sygic community by entering your email.
3. Enjoy all your journeys with Sygic GPS navigation!

For more information and support, please visit our website http://help.svgic.com/.

Settings

In the main menu, select the "Settings" option to be able to access the System

Settings folder. Directly click can assess picture set options interface.

Description of functions:

1. WiFi

Wi-Fi: Open/close the wireless connection

2. Bluetooth

Wi-Fi: Open/close the bluetooth connection

3. Data usage

Display data usage

4. Sound setting

Volumes: set the notification, the media and the alarm clock volume:

Default notification: click to open notifications settings menu.

Touch sounds: if checked, the touch screen pressing will make a sound

5. Display settings

Brightness: adjust brightness of the screen.

Wallpaper: you can choose wallpaper from Gallery and Wallpaper

Sleep: Setting screensaver standby time.

When the device is in stand-by the Wi-Fi function will be deactivated to save battery.

Font size: set the font size

6. Storage

Check the PMP memory and available storage.

7. Battery

Shows information about battery status and usage

8. Apps

Here you can view and manage the installed applications

9. Accounts and sync

Information and sync settings for your user accounts.

10.Location services

Contains settings for activation or deactivation of the localization options.

11. Security

Screen lock: set screen lock method: slide, pattern, PIN, password and so on many kinds of mechanisms.

Make passwords visible: if marked you may see the letters typed in the password box.

Unknown sources: allows you to install applications that do not come from Google Play ^TM store.

12. Language & input

Set language and area, input method etc.

13. Backup & reset

Can backup, restore the machine settings and data

14. Date & time

Set the date, time, time zone and time display format

15. Accessibility

Options for screen rotation, text magnifier, password spelling etc.

16. Developer options

Settings and options for Android™ developers.

17. About device

Check the machine software version and other information.

Connect the computer

This machine can be connected to a PC through the USB cable, by which the data is copied or deleted. The specific procedure is as follows.

1. Connect the machine through the USB cable to the PC's USB port and you will get notification "USB already connected".
2. Click "USB already connected" notice options, and choose the "open USB storage devices", and you can manage the files from the memory of your machine.

Factory data reset

If this machine is infected, or third party software installed to run this machine is unusual, but through the recovery factory Settings, remove the third party software, and restore the state out by default. Into this machine "Settings"-" privacy ", select "Factory data reset" item, confirmed, will remove all of the data

Common troubleshooting

1. What is the APK file? It and Android PMP have what relation?

A: APK is the abbreviation of Android Package. APK files can be installed and executed directly to Android system of the machine. 2. How to put the APK application.

2. How to get the APK application

A: You can download via PC-side installation, you can also "Google Play store" online to download and install.

3. Why WIFI connection will interrupt

A: If set "screen time", when the player overtime in standby screen saver, WIFI function will be closed to save electricity purpose; When sensci player, WIFI function will be in about 5 seconds to resume automatic connection.

4. Why some download APK program not working properly

A: Download the APK software, mostly by the user to development, without the platform compatibility testing, and part of the hardware and software for Android system version has a special requirements, so there could be downloaded APK documents not compatible, not the normal operation of the phenomenon, the player itself quality problems.

5. Why does not the machine show charging state

A: When the battery is extremely low, need to use DC charger charging half an hour or more to show charging status

6. Why can't realize the gravity induction function

A: This machine support gravity feeling function, can be through the shaking to switch the screen machine did show, but some of the application does not support the gravity induction function, it can't realize the screen of switching function, this is the software support question, the functionality of the player.

7. Players can't boot

1) Check the battery no electricity
2) Connect the ac adapter after inspection again
3) If after charging still unable to boot, please contact our customer service

8. Can't Hear the voice in the headset

En

1) Please check the volume is set to 0

2) Please check whether the connection headphones

9. Player charging abnormalities

1) Please confirm that the use of the equipment complies with the charger of the player charger requirements
2) Such as connection USB charging, please do not connect to computers lead USB interface

10. Why some downloaded video cannot be played

This device is compatible with formats of video files from internet but due to the fact that video formats may vary there is a possibility not to be compatible with some of them. In these cases it is recommended to use the PC and some video conversion software to get to a compatible format.

DECLARATION En CONFORMITY

Nr.1335

We, S.C. Visual Fan S.R.L, with the social headquarters in Brasov, 61st Brazilor Street, post code 500314 Romania, registered at the Register of Commerce Brasov under nr. J08/818/2002.

CUI RO14724950, as importer, ensure, guarantee and declare on own responsibility according to

Art. 4 HG nr.1.022/2002 regarding the products and services regime, which could put in danger the life and health, security and labour protection, that the ALLVIEW product Q? Satellite does not put in danger the life, safety of labour, does cause adverse environmental impacts and is according to:

-The 2011/65/UE Directive regarding the usage restrictions of some dangerous substances in the electronic and electrical equipments.

-The Directive regarding the radio and telecommunications equipments R&TTE 1999/5/CEE (HG 88/2003)

-The Directive regarding the assurance of low voltage equipment users 73/32/CEE, modified by the 93/68/CEE (HG457/2003) Directive.

-The Directive regarding the electromagnetic compatibility 89/336/CEE, modified by the 92/31/CEE si 93/68/CEE (HG497/2003); RoHS Directive: EN50581:2012

-The safety requirements of the European Directive 2001/95/EC and of the EN 60065:2002/A12:2011 si EN 60950-1:2006/A1:2010/A11:2009/A12:2011 standards, regarding the decibel level limit of the commercialized devices.

The product had been evaluated according to the following standards:

-Health: EN 50360:2001, EN 50361; EN 62209-1 : 2006

-Safety: EN 60950-1:2001+A11:2004; EMC EN 301 489-01 V1.6.1 (09-2005)

EN 301 489-07 V1.3.1 (11-2005); EN 301 489-17 V1.2.1 (08-2002)

-Radio spectrum: EN 301 511 V9.0.2 (03-2003);EN 300 328 V1.7.1 (10-2006)

The conformity assessment procedure was done according to the 1999/5/CEE Directive (of the Annex II of HG nr. 88/2003) the documentation being at S.C. Visual Fan S.R.L., Brasov, 61st Brazilor Street, post code 500314, Romania at it will be put at disposal on demand. The products conformity assessment procedure was fulfilled with the participation of the following institutions: Phoenix Testlab GmbH

The product has the CE mark applied. The conformity declaration is available at www.allviewmobile.com.

CF 0700

Brasov Director

12.11.2014 Cotuna Gheorghe

Allview VIVA Q7 Satellite

уеб сайт

Настройки

12. Schedule power on/off

Спецификации

Ρυθμίσεις

Gr

• 1.00% (2004) or (2005) for the year, 2006

http://help.sygic.com/.

Konfigurációk

Funkciók leírása:

1.WiFi

Ustawienia

PL

DEKLARACJA ZGODNOŚCI WE

Nr.1335

De luat in considerare

Setari

1. Selektirajte glas za navigaciju.
2. Možete se udružiti zajednicom Sygie unošenjem e-mail adrese.
3. Uživajte svim putovanjima sa navigacijom putem GPS Sygic!

Najčešca pitanja i u _Sr^tvr divanje kvarova

1. Šta je APK datoteka? Da li su ona i Android PMP povczani i na koji način?

Google, Google Play, Android and other marks are trademarks of Google Inc.

Bulgarian (bg)
