USER MANUAL R-239 SHARP

This operation manual contains important information which you should read carefully before using your microwave oven.

Important: There may be a serious risk to health if this operation manual is not followed or if the oven is modified so that it operates with the door open.

F Chere cliente, cher client,

Congratulations on acquiring your new microwave oven, which from now on will make your kitchen chores considerably easier.

You will be pleasantly surprised by the kinds of things you can do with a microwave. Not only can you use it for rapid defrosting or heating up of food, you can also prepare whole meals.

In our test kitchen our microwave team has gathered together a selection of the most delicious international recipes which are quick and simple to prepare.

Be inspired by the recipes we have included and prepare your own favourite dishes in your microwave oven.

There are so many advantages to having a microwave oven which we are sure you will find exciting:

• Food can be prepared directly in the serving dishes, leaving less to wash up.
• Shorter cooking times and the use of little water and fat ensure that many vitamins, minerals and characteristic flavours are preserved.

We advise you to read the cookery book guide and operating instructions carefully. You will then easily understand how to use your oven.

Enjoy using your microwave oven and trying out the delicious recipes.

Achtung:

Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*.

In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product.

Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

D INHALT

Bedienungsanleitung

CARE AND CLEANING .GB-12

SERVICECALLCHECK .GB12

Cookbook

WHAT ARE MICROWAVES? .GB-13

SUITABLE OVENWARE .GB-13

TIPS AND ADVICE .GB-14-16

TABLES AND RECIPES .GB-17-23

SERVICE ADDRESSES 153-159

SPECIFICATIONS 162

D

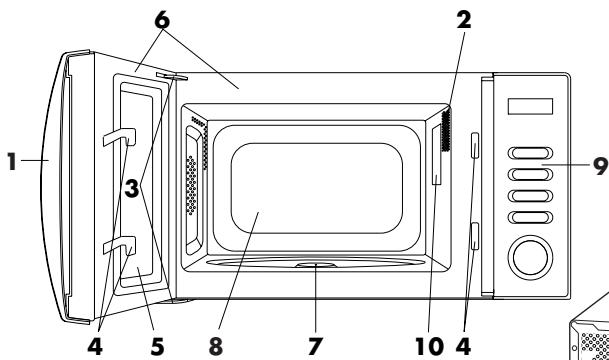

1 Door opening handle
2 Oven lamp
3 Door hinges
4 Door safety latches
5 Door
6 Door seals and sealing surfaces
7 Coupling
8 Oven cavity
9 Control panel
10 Waveguide cover

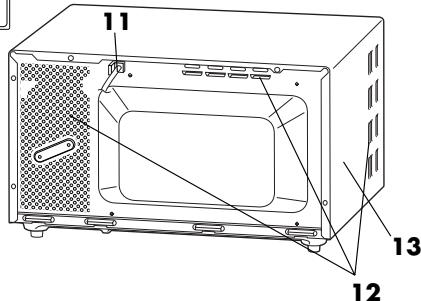

11 Power supply cord
12 Ventilation openings
13 Outer cabinet

D ZUBEHÖR

Check to make sure the following accessories are provided:

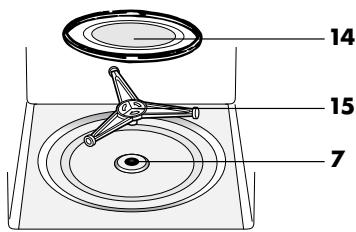

(14) Turntable (15) Roller stay

• Place the roller stay in the coupling (7) on the floor of the cavity.
• Then place the turntable on the roller stay.
• To avoid turntable damage, ensure dishes or containers are lifted clear of the turntable rim when removing them from the oven.

Note: When you order accessories, please mention two items: part name and model name to your dealer or SHARP authorised service agent.

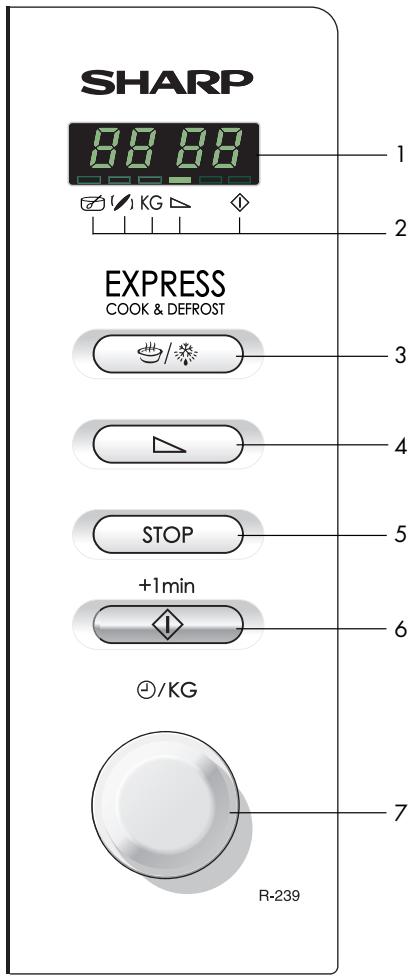

BEDIENFELD

1 Display

2 Symbole

The appropriate indicator will flash or light up, just above each symbol according to the instruction. When an indicator is flashing, do the necessary operation.

Stir
Turn over
KG Weight
Microwave power level
Cooking in progress

3 EXPRESS COOK & DEFROST button

Press to select one of the 12 automatic programmes.

1 EL Butter/Margarine

Frankreich

GEMUSETOPF

Ratatouille spécial

FONCTIONNEMENT MANUEL

COMMENT DISPOSER LES METS ?

30 P (240 W Ontdooistand):

VISFILEMT MET SAUS (EC-6)

VARIATIES OP CONVENTIONELE RECEPTEN

PICCOLE E GROSSE QUANTITA

COME CUOCERE CARNE, PESCE E POLLAME

circa 1 - 2 Min. 800 W

Consiglio:

IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To avoid the danger of fire.

The microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat foods resulting in a fire.

This oven is designed to be used on a countertop only. It is not designed to be built into a kitchen unit. Do not place the oven in a cabinet.

The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency.

The AC power supply must be 230V, 50Hz, with a minimum 10A distribution line fuse, or a minimum 10A distribution circuit breaker.

A separate circuit serving only this appliance should be provided.

Do not place the oven in areas where heat is generated. For example, close to a conventional oven.

Do not install the oven in an area of high humidity or where moisture may collect.

Do not store or use the oven outdoors.

If smoke is observed, switch off or unplug the oven and keep the door closed in order to stifle any flames.

Use only microwave-safe containers and utensils. See Page GB-13. Utensils should be checked to ensure that they are suitable for use in microwave ovens.

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

Clean the waveguide cover, the oven cavity, the turntable and roller stay after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire.

Do not place flammable materials near the oven or ventilation openings.

Do not block the ventilation openings.

Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire.

Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire.

To make popcorn, use only special microwave popcorn makers.

Do not store food or any other items inside the oven.

Check the settings after you start the oven to ensure the oven is operating as desired.

To avoid overheating and fire, special care must be taken when cooking or reheating foods with a high sugar or fat content, for example, Sausage rolls, Pies or Christmas pudding.

See the corresponding hints in operation manual and the cookery book section.

To avoid the possibility of injury

WARNING:

Do not operate the oven if it is damaged or malfunctioning. Check the following before use:

a) The door; make sure the door closes properly and ensure it is not misaligned or warped.
b) The hinges and safety door latches; check to make sure they are not broken or loose.
c) The door seals and sealing surfaces; ensure that they have not been damaged.
d) Inside the oven cavity or on the door; make sure there are no dents.
e) The power supply cord and plug; ensure that they are not damaged.

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

Do not operate the oven with the door open or alter the door safety latches in any way.

Do not operate the oven if there is an object between the door seals and sealing surfaces.

Do not allow grease or dirt to build up on the door seals and adjacent parts. Clean the oven at regular intervals and remove any food deposits. Follow the instructions for "Care and Cleaning" on page GB-12. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

To avoid the possibility of electric shock

Under no circumstances should you remove the outer cabinet. Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately, and call an authorised SHARP service agent.

Do not immerse the power supply cord or plug in water or any other liquid.

Do not let the power supply cord hang over the edge of a table or work surface.

Keep the power supply cord away from heated surfaces, including the rear of the oven.

Do not attempt to replace the oven lamp yourself or allow anyone who is not an electrician authorised by SHARP to do so. If the oven lamp fails, please consult your dealer or an authorised SHARP service agent.

If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised SHARP service agent.

To avoid the possibility of explosion and sudden boiling:

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off.

Take care when microwaving liquids. Use a wide-mouthed container to allow bubbles to escape.

Never heat liquids in narrow necked containers such as baby bottles, as this may result in the contents erupting from the container when heated and cause burns.

To prevent sudden eruption of boiling liquid and possible scalding:

1. Do not use excessive amount of time (See page GB-17).
2. Stir liquid prior to heating/reheating.
3. It is advisable to insert a glass rod or similar utensil (not metal) into the liquid whilst reheating.
4. Let liquid stand for at least 20 seconds in the oven at the end of cooking time to prevent delayed eruptive boiling.

Do not cook eggs in their shells, and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven.

Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

To avoid the possibility of burns

WARNING: The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Use pot holders or oven gloves when removing food from the oven to prevent burns.

Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns and eruption of boiling.

To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly.

Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature.

Always stand back from the oven door when opening it to avoid burns from escaping steam and heat.

Slice stuffed baked foods after heating to release steam and avoid burns.

Keep children away from the door to prevent them burning themselves.

To avoid misuse by children

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Do not lean or swing on the oven door. Do not play with the oven or use it as a toy.

Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. self-heating materials) designed to make food crisp, as they may be extra hot.

Other warnings

Never modify the oven in any way.

Do not move the oven while it is in operation.

This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

To promote trouble-free use of your oven and avoid damage.

Never operate the oven when it is empty.

When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and roller stay due to heat stress. The preheating time specified in the dishes instructions must not be exceeded.

Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven.

Use only the turntable and the roller stay designed for this oven. Do not operate the oven without the turntable.

To prevent the turntable from breaking:

(a) Before cleaning the turntable with water, leave the turntable to cool.
(b) Do not put hot foods or hot utensils on a cold turntable.
(c) Do not put cold foods or cold utensils on a hot turntable.

Do not place anything on the outer cabinet during operation.

NOTE:

If you are unsure how to connect your oven, please consult an authorised, qualified electrician.

Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure.

Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

INSTALLATION

1. Remove all packing materials from the inside of the oven cavity. Discard the loose polythene sheet from between the door and cavity. Remove the feature sticker, if attached, from the outside of the door.

Do not remove the protective film attached to the inside of the door.

REMOVE

DO NOT REMOVE

1. Check the oven carefully for any signs of damage.
2. Place the oven on a flat, level surface strong enough to support the oven's weight plus the heaviest item likely to be cooked. Do not place the oven in a cabinet.
3. Ensure there is a minimum free space above the oven of 15cm :

1. Securely connect the plug of the oven to a standard earthed (grounded) household electrical outlet.

Plug in the oven.

1. The oven display will flash:

1. Touch the STOP button the display will show:

To set the clock, see below.

Using the STOP button

Use the STOP button to:

1. Erase a mistake during programming.
2. Stop the oven temporarily during cooking.
3. Cancel a programme during cooking, touch twice.

SETTING THE CLOCK

There are two setting modes: 12 hour clock and 24 hour clock.

1. To set the 12 hour clock, hold the MICROWAVE POWER LEVEL button down for 3 seconds. 12R will appear in the display.
2. To set the 24 hour clock, press the MICROWAVE POWER LEVEL button once more after Step 1, in the example below 24H will appear in the display.

x1 and hold for 3 secs.

To set the clock, follow the example below.

Example:

To set the 24 hour clock to 23:35

1. Choose the clock function. Choose the 24 hour (12 hour clock) clock.

2. Set the hours. Rotate the TIMER/WEIGHT knob until the correct hour is displayed (23).

3. Press the MICROWAVE POWER LEVEL button to change from hours to minutes.

1. Set the minutes. Rotate the TIMER/WEIGHT knob until the correct minute is displayed (35).

1. Press the MICROWAVE POWER LEVEL button to start the clock.

Check the display.

NOTE:

1. You can rotate the TIMER/WEIGHT knob clockwise or counterclockwise.
2. Press the STOP button if you make a mistake during programming.
3. If the electrical power supply to your microwave oven is interrupted, the display will intermittently

show BB:BB after the power is reinstated. If this occurs during cooking, the programme will be erased. The time of day will also be erased.
4. When you want to reset the time of day, follow the above example again.

Your oven has 5 power levels. To choose the power level for cooking, follow the advice given in the recipe section. Generally the following recommendations apply:

100 P (800 W) used for fast cooking or reheating e.g. soup, casseroles, canned food, hot beverages, vegetables, fish, etc.

70 P (560 W) used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as cheese sauce and sponge cakes. At this reduced setting, the sauce will not boil over and food will cook evenly without over cooking at the sides.

50 P (400 W) for dense foods which require a long cooking time when cooked conventionally, eg. beef dishes, it is advisable to use this power setting to ensure the meat will be tender.
30 P (240 W) to defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard.
10 P (80 W) For gentle defrosting, eg. cream gateaux or pastry.

P = Percentage.

To set the power, touch the MICROWAVE POWER LEVEL button until the desired level is displayed. If MICROWAVE POWER LEVEL button is touched once, BGR will be displayed. If you miss your desired level, continue touching the MICROWAVE POWER LEVEL button until you reach the level again. If the level is not selected, the level 100 P is automatically set.

MANUAL OPERATION

Your oven can be programmed for up to 90 minutes. (90.00) The input unit of cooking (defrosting) time varies from 10 seconds to five minutes. It depends on the total length of the cooking (defrosting) time as shown on the table.

Cooking time Increasing unit

0-5 minutes

10 seconds

5-10 minutes

30 seconds

10-30 minutes

1 minute

30-90 minutes

5 minutes

Example:

Suppose you want to heat soup for 2 minutes and 30 seconds on 70P microwave power.

1. Enter the desired cooking time by rotating the TIMER/WEIGHT knob clockwise. (2 min. & 30 sec.)

2. Choose desired power by pressing the MICROWAVE POWER LEVEL button twice.

3. Press the START /+1min button to begin cooking.

Check the display.

NOTE:

1. When the door is opened during the cooking process, the cooking time on the digital display stops automatically. The cooking time starts to count down again when the door is closed and the START/+1min button is pressed.
2. If you wish to know the power level during cooking, press the MICROWAVE POWER LEVEL button. As long as your finger is touching the MICROWAVE POWER LEVEL button, the power level will be displayed.
3. You can rotate the TIMER/WEIGHT knob clockwise or counterclockwise. If you rotate the knob counterclockwise, the cooking time will decrease from 90 minutes by degrees.

1. MULTIPLE SEQUENCE COOKING

A maximum of 3 sequences can be input, consisting of manual cooking time and mode.

Example:

To cook: 5 minutes on 100 P power (Stage 1)

16 minutes on 30 P power (Stage 2)

STAGE 1

1. Enter the desired cooking time by rotating TIMER/WEIGHT knob.

2. Choose the desired power level by pressing the MICROWAVE POWER LEVEL button once.

x1

KG

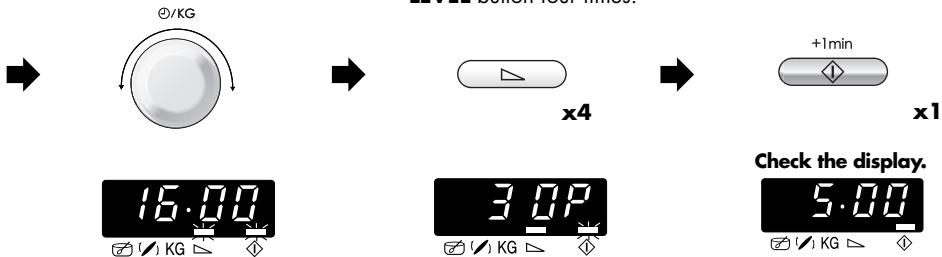

STAGE 2

1. Enter desired time by rotating TIMER/WEIGHT knob.

2. Choose the desired power level by pressing the MICROWAVE POWER LEVEL button four times.

3. Press the START /+1min button once to begin cooking.

(The oven will begin to cook for 5 minutes on 100P , and then for 16 minutes on 30P ).

NOTE:

If 100P is required on the final stage, it is not necessary to enter the power level.

2. MINUTE PLUS FUNCTION

The START/+1min button allows you to operate the two following functions:

a. Direct start

You can directly start cooking on 100P microwave power level for 1 minute by pressing the START/+1min button.

NOTE:

To avoid the misuse by children the START/+1min button can be used only within 3 minutes after preceding operation, i.e., closing the door, pressing the STOP button or cooking completion.

b. Extend the cooking time

You can extend the cooking time during manual cooking for multiples of 1 minute if the button is pressed while the oven is in operation.

3. TO CHECK THE POWER LEVEL

To check the microwave power level during cooking press the MICROWAVE POWER LEVEL button.

x1

As long as your finger is touching the MICROWAVE POWER LEVEL button the power level will be displayed.

The oven continues to count down although the display shows the power level.

EXPRESS COOK & DEFROST automatically works out the correct cooking mode and cooking time. You can choose from 7 EXPRESS COOK menus and 5 EXPRESS DEFROST menus. What you need to know when using this automatic function:

1. Press the EXPRESS COOK & DEFROST button once, the display will appear as shown.

The menu can be chosen by pressing the EXPRESS COOK & DEFROST button until the desired menu number is displayed. See pages GB-9-10 "EXPRESS COOK & DEFROST charts".

To select a defrost menu, press the EXPRESS COOK & DEFROST button at least 8 times. If you press the button 8 times, ed-1 will appear in the display. The menu will be changed automatically by holding down the EXPRESS COOK & DEFROST button.

1. The weight of the food can be input by rotating the TIMER/WEIGHT knob until the desired weight is displayed.

2. Enter the weight of the food only. Do not include the weight of the container.

3. For food weighing more or less than weights given in the cooking chart, use manual programmes. For best results, follow the cooking charts in the cookbook.

4. To start cooking press START/+1min button.

When action is required (e.g. to turn food over), the oven stops and the audible signals sound, remaining cooking time and any indicator will flash on the display. To continue cooking, press the START/+1min button.

1.

EXPRESS

COOK & DEFROST

/

x1

EXPRESS COOK & DEFROST button

2.

TIMER/WEIGHT knob

3.

START/+1min button

The final temperature will vary according to the initial food temperature. Check food is piping hot after cooking. If necessary, you can extend the cooking time and change the power level.

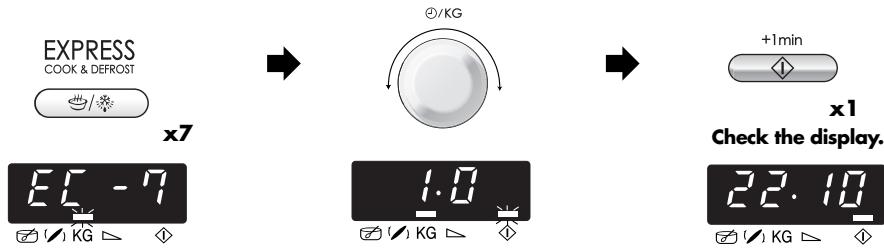

Example:

To cook gratin weighing 1,0kg using Express Cook EC-7.

1. Select the menu required by pressing the EXPRESS COOK & DEFROST button seven times.

2. Enter the weight by rotating the TIMER/WEIGHT knob clockwise.

3. Press the START/+1min button.

To use EXPRESS DEFROST, follow the above example for EXPRESS COOK.

BUTTON	EXPRESS COOK NO.	WEIGHT (Increasing Unit) / UTENSILS	PROCEDURE
x1	EC-1 Cook Frozen Vegetables e.g. Brussel sprouts, green beans, peas, mixed vegetables, broccoli	0,1 - 0,6 kg (100 g) (initial temp -18°C) Bowl and lid	• Add 1 tbsp water per 100 g and salt as desired. (For mushrooms no additional water is necessary). • Cover with a lid. • When audible signal sounds, stir and re-cover. • After cooking, let stand for approx. 2 minutes. NOTE: If frozen vegetables are compacted together, cook manually.
x2	EC-2 Cook Fresh Vegetables	0,1 - 0,6 kg (100 g) (initial temp 20°C) Bowl and lid	• Cut into small pieces, eg. strips, cubes or slices. • Add 1 tbsp water per 100 g and salt as desired. (For mushrooms no additional water is necessary). • Cover with a lid. • When audible signal sounds, stir and re-cover. • After cooking, let the food stand for approx 2 minutes.
x3	EC-3 Cook Frozen Ready Meals Stirrable type e.g. Noodles, Bolognese, Chinese Menus.	0,3 - 1,0 kg* (100 g) (initial temp -18°C) Bowl and lid * If the manufacturer instructs to add water, calculate the total amount for the program with additional liquid.	• Transfer meal to suitable microwave-proof dish. • Add some liquid if recommended by the manufacturer. • Cover with a lid. • Cook without cover if the manufacturer instructs. • When audible signal sounds, stir and re-cover. • After cooking, stir and let stand for approx. 2 minutes.
x4	EC-4 Cook Frozen Gratin e.g. macaroni gratin, lasagne, etc.	0,2 - 0,6 kg (100 g) (initial temp -18°C) Shallow, oval gratin dish and microwave foil or original container and microwave foil	• Remove the frozen gratin from the package. If the container is not suitable for microwave ovens, transfer gratin to a suitable microwave proof dish. • Cover with microwave foil. • If the container is suitable for microwave ovens, remove original paper cover and cover with microwave foil. • After cooking, let stand for approx. 5 minutes.
x5	EC-5 Cook Rice e.g. parboiled rice, Patna rice	0,1 - 0,3 kg (100 g) (initial temp 20°C) Bowl and lid	• Add cold water as follows. 250 ml per 100 g rice 450 ml per 200 g rice 650 ml per 300 g rice • Cover with a lid. • When audible signal sounds, stir and re-cover. • After cooking, stir and let stand for approx. 5 - 10 minutes.
x6	EC-6 Cook Fish fillet with sauce	0,4 - 1,2 kg* (100 g) (initial temp fish 5°C, Sauce 20°C) Gratin dish & microwave foil	• See recipes for Fish Fillet with Sauce on page GB-11. • Total weight of all ingredients.
x7	EC-7 Cook Gratin	0,5 - 1,0 kg* (100 g) (initial temp 20°C) Gratin dish	• See recipes for Gratin on page GB-11. • Total weight of all ingredients.
BUTTON	EXPRESS DEFROST NO.	WEIGHT(Increasing Unit) / UTENSILS	PROCEDURE
x8	Ed-1 Defrost Steaks and Chops	0,2 - 0,8 kg (100 g) (initial temp -18°C) (See note below) Flan dish	·Place the food in a flan dish in the centre of the turntable. ·When the audible signal sounds, turn the food over, rearrange and separate. Shield thin parts and warm spots with small pieces of aluminium foil. ·After defrosting, wrap in aluminium foil for 10 - 15 minutes, until thoroughly defrosted.
x9	Ed-2 Defrost Minced Meat	0,2 - 0,8 kg (100 g) (initial temp -18°C) (See note below) Flan dish	·Place the block of minced meat in a flan dish in the centre of the turntable. ·When the audible signal sounds, turn the food over. Remove the defrosted parts if possible. ·After defrosting cover with aluminium foil, stand for 5 - 10 minutes, until thoroughly defrosted.
x10	Ed-3 Defrost Poultry	0,9 - 1,5 kg (100 g) (initial temp -18°C) (See note below) Flan dish	·Place the poultry in a flan dish in the centre of the turntable. ·When the audible signal sounds, turn over and shield thin parts and warm spots with small pieces of aluminium foil. ·After defrosting, rinse with cold water, cover with aluminium foil and stand for 15 - 30 minutes until thoroughly defrosted. ·Finally clean the poultry under running water.
x11	Ed-4 Defrost Cake	0,1 - 1,4 kg (100 g) (initial temp -18°C) Plate	·Remove all packaging from the cake. ·Place on a plate in the middle of the turntable. ·After defrosting, cut the cake into similar sized pieces keeping space between each piece and let stand for 10 - 60 minutes until evenly defrosted.
x12	Ed-5 Defrost Bread	0,1 - 1,0 kg (100 g) (initial temp -18°C) Flan dish (Only sliced bread is recommended for this programme.)	·Distribute in a flan dish in the centre of the turntable. For 1,0 kg distribute directly on the turntable. ·When the audible signal sounds, turn over, rearrange and remove defrosted slices. ·After defrosting cover in aluminium foil and stand for 5 - 15 minutes, until thoroughly defrosted.

NOTE: Express Defrost

1 Steaks and Chops should be frozen in one layer.
2 Minced meat should be frozen in a thin shape.
3 After turning over, shield the defrosted portions with small, flat pieces of aluminium foil.
4 The poultry should be processed immediately after defrosting.

FISH FILLET WITH SAUCE (EC-6) Fish fillet with piquant sauce

Ingredients

0,4 kg	0,8 kg	1,2 kg
140 g	280 g	420 g	canned tomatoes (drained)
40 g	80 g	120 g	corn
4 g	8 g	12 g	chilli sauce
12 g	24 g	36 g	onion (finely chopped)
1 tsp	1-2 tsp	2 tsp	red wine vinegar mustard, thyme, cayenne pepper
200 g	400 g	600 g	fish fillet salt

FISH FILLET WITH SAUCE (EC-6) Fish fillet with curry sauce

Ingredients

0,4 kg	0,8 kg	1,2 kg
200 g	400 g	600 g	fish fillet salt
40 g	80 g	120 g	banana (sliced)
160 g	320 g	480 g	ready-made curry sauce

GRATIN (EC-7) Spinach gratin

Ingredients

0,5 kg	1,0 kg
5 g	10 g	butter or margarine (to grease the dish)
150 g	300 g	leaf spinach (defrosted, drained)
15 g	30 g	onion (finely chopped)
		salt, pepper, nutmeg
150 g	300 g	boiled potatoes (sliced)
35 g	75 g	cooked ham (diced)
50 g	100 g	crème fraîche
1	2	eggs
40 g	75 g	grated cheese
		paprika powder

GRATIN (EC-7) Potato-courgette-gratin

Ingredients

0,5 kg	1,0 kg
5 g	10 g	butter or margarine (to grease the dish)
200 g	400 g	potatoes (sliced) (fresh or boiled)
115 g	230 g	courgette (finely sliced)
75 g	150 g	crème fraîche
1	2	eggs
1/2	1	clove of garlic (crushed)
		salt, pepper
40 g	80 g	feta cheese (diced)
10 g	20 g	sunflower kernel
		paprika powder

Preparation

1. Mix ingredients for the sauce.
2. Place the fish fillet (e.g. Rosefish fillet) in a round gratin dish with the thin ends toward the centre and sprinkle with salt.
3. Mix a sauce from tomatoes, corn, chilli sauce, onion, vinegar and spices and spread the sauce on the fish fillet.
4. Cover with microwave foil and cook on EXPRESS COOK EC-6, "Fish Fillet with Sauce".
5. After cooking, let stand for approx. 2 minutes.

Preparation

1. Place the fish fillet in a round gratin dish with the thin ends toward the centre and sprinkle with salt.
2. Spread the banana and the ready-made curry sauce on the fish fillet.
3. Cover with microwave foil and cook on EXPRESS COOK EC-6, "Fish Fillet with Sauce".
4. After cooking, let stand for approx. 2 minutes.

Preparation

1. Mix together the drained leaf spinach with the onion and season with salt, pepper and nutmeg.
2. Grease the gratin dish.
3. Place alternate layers of potato slices, diced ham and spinach in the dish. The top layer should be spinach.
4. Mix the eggs with crème fraîche, add salt and pepper and pour over the vegetables.
5. Cover the gratin with the grated cheese, sprinkle with paprika powder and cook on EXPRESS COOK EG-7, "Gratin".
6. After cooking, let stand for 5 minutes.

Preparation

1. Grease the gratin dish and place alternate layers of potato slices and courgette in the dish.
2. Mix the eggs with crème fraîche, season with salt, pepper and garlic and pour over the vegetables.
3. Crumble the feta cheese and sprinkle over the grin.
4. Finally sprinkle the gratin with sunflower kernel and paprika powder and cook on EXPRESS COOK EC-7, "Gratin".
5. After cooking, let stand for 5 minutes.

CAUTION: DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE OR SCOURING PADS ON ANY PART OF YOUR MICROWAVE OVEN.

CLEAN THE OVEN AT REGULAR INTERVALS AND REMOVE ANY FOOD DEPOSITS - Keep the oven clean, or the oven could lead to a deterioration of the surface. This could adversely affect the life of the appliance and possibly result in a hazardous situation.

Oven exterior

The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel.

Oven controls

Open the door before cleaning to deactivate the oven controls. Care should be taken when cleaning the oven control. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner.

Oven Interior

1. For cleaning, wipe any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Do not remove the waveguide cover.
2. Make sure that mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven.
3. Do not use spray type cleaners on the oven interior.

Turntable and Roller stay

Remove the turntable and roller stay from the oven. Wash the turntable and roller stay in mild soapy water. Dry with a soft cloth. Both the turntable and the roller stay are dishwasher safe.

Door

To remove all trace of dirt, regularly clean both sides of the door, the door seals and adjacent parts with a soft, damp cloth. Do not use abrasive cleaner.

NOTE: A steam cleaner should not be used.

SERVICECALLCHECK

Please check the following before calling for service.

1. Power Supply

Check the power plug is properly connected to a suitable wall outlet.

Check the line fuse/circuit breaker is functioning properly.

1. Place a cup of water (approx. 150ml ) in the oven and close the door securely.

Programme the oven for one minute on 100 P power and start the oven.

Does the oven lamp come on?

YES NO

Does the turntable rotate?

YES NO

NOTE: The turntable turns in either direction.

Does the ventilation work?

(Place your hand over the ventilation openings and check for air flow.)

YES NO

After 1 minute does the signal sound?

YES NO

Does cooking in progress indicator go off?

YES NO

Is the cup with water warm after the above operation?

YES NO

If you answer "No" to any of the above questions, call a Service Technician appointed by SHARP and report the results of your check. See inside back cover for details of address.

NOTE: If you cook the food over the standard time with only 100 P (800 W), the power of the oven will lower automatically to avoid overheating. (The microwave power level will be reduced).

Cooking Mode	Standard time
Microwave 100 P	20 minutes

Microwaves are generated in the microwave oven by a magnetron and cause the water molecules in the food to oscillate.

SUITABLE OVENWARE

GLASS AND CERAMIC GLASS

Heat-resistant glass utensils are very suitable. The cooking process can be observed from all sides. They must not, however, contain any metal (e.g. lead

crystal), nor have a metallic overlay (e.g. gold edge, cobalt blue finish).

CERAMICS

Generally very suitable. Ceramics must be glazed, since with unglazed ceramics moisture can get into the ceramic. Moisture causes the material to heat up and may make it shatter. If you are not certain whether your utensil is suitable for the microwave, carry out the utensil suitability test.

PORCELAIN

Very suitable. Ensure that the porcelain does not have a gold or silver overlay and that it does not contain any metal.

PLASTIC AND PAPER UTENSILS

Heat resistant plastic utensils which are suitable for use in the microwave can be used to thaw, heat and cook food. Follow the manufacturer's recommendations.

Heat-resistant paper made for use in a microwave oven is also suitable. Follow the manufacturer's recommendations.

MICROWAVE FOIL

This, or heat-resistant foil, is very suitable for covering or wrapping. Please follow the manufacturer's recommendations.

ROASTING BAGS

Can be used in a microwave oven. Metal clips are not suitable for fastening them since the roasting bag foil might melt. Fasten the roasting bag with string and pierce it several times with a fork. Non heat-resistant food wraps are not recommended for use in a microwave oven.

BROWNING DISH

A special microwave dish made from ceramic glass with

Heat is generated by the friction which is caused, with the result that the food is thawed, heated or cooked.

a metal alloy base, which allows food to be browned. When using the browning dish a suitable insulator, e.g. a porcelain plate, must be placed between the turntable and the browning dish. Be careful to adhere exactly to the pre-heating time given in the manufacturer's instructions. Excessive pre-heating can damage the turntable and the turntable stand or can trigger the safety-device which will switch off the oven.

METAL

Generally speaking, metal should not be used, since microwaves do not pass through metal and therefore cannot reach the food. There are, however, exceptions: small strips of aluminium foil may be used to cover certain parts of the food, so that these do not thaw too quickly or begin to cook (e.g. chicken wings). Small metal skewers and aluminium containers (e.g. of ready-cooked meals) can be used. They must, however, be small in relation to the food, e.g. aluminium containers must be at least 23 to 34 filled with food. It is recommended that you transfer the food into a dish suitable for use in the microwave. When using aluminium containers or other metal utensils there must be a gap of approx. 2 cms between them and the walls of the cooking area, otherwise the walls could be damaged by possible arcing.

NO UTENSIL SHOULD HAVE A METAL OVERLAY - parts such as screws, bands or handles.

UTENSIL SUITABILITY TEST

If you are not sure whether your utensil is suitable for use in your microwave oven, carry out the following test: Place the utensil into the oven. Place a glass container filled with 150~ml of water

on or next to the utensil. Switch on the oven at 800 W power for 1 to 2 minutes. If the utensil stays cool or just warm to the touch, it is suitable. Do not use this test on a plastic utensil. It could melt.

TIME SETTINGS

In general the thawing, heating and cooking times are significantly shorter than when using a conventional cooker or oven. For this reason you should adhere to the recommended times given in this cookery book. It is better to set the times too short, rather than too long. Test the food after it has been cooked. It is better to have to cook something for a little longer than to overcook it.

INITIAL TEMPERATURES

Thawing, heating and cooking times are dependent upon the initial temperature of the food. Deep-frozen food and food stored in a refrigerator, for example, requires longer than food which has been stored at room temperature. For heating and cooking, normal storage temperatures are assumed (refrigerator temperature approx. 5^ , room temperature approx. 20^ ). For thawing the temperature of the deep freeze is assumed to be -18^ .

COOKING TIMES

All the times given in this cookery book are guidelines, which can be varied according to the initial temperature, weight and condition of the food (water or fat content etc.).

SALT, SPICES AND HERBS

Food cooked in your microwave retains its individual flavour better than it does when conventional preparation methods are used. For this reason you should use salt very sparingly and normally add it only after cooking. Salt absorbs liquid and dries out the outer layer of the food. Herbs and spices can be used as normal.

ADDITION OF WATER

Vegetables and other foods with a high water content can be cooked in their own juice or with the addition of a little water. This ensures that many vitamins and minerals are preserved.

FOOD IN SKINS OR SHELLS

Food such as sausages, chickens, chicken legs, baked potatoes, tomatoes, apples, egg yolks or such like should be pricked or pierced with a fork or small wooden skewer. This will enable the steam which forms to dissipate without splitting the skin or shell.

LARGE AND SMALL QUANTITIES

Microwave times are directly dependent upon the amount of food which you would like to thaw, heat or cook. This means that small portions cook more quickly than larger ones.

As a rule of thumb:

TWICE THE AMOUNT = ALMOST TWICE THE TIME
HALF THE AMOUNT = HALF THE TIME

DEEP AND SHALLOW CONTAINERS

Both containers have the same capacity, but the cooking time is longer for the deeper one. You should therefore choose as flat a container as possible with a large surface area. Only use deep containers for dishes where there is a danger of overcooking, e.g. for noodles, rice, milk etc..

ROUND AND OVAL CONTAINERS

Food cooks more evenly in round or oval containers than in containers with corners, since the microwave energy concentrates in the corners and the food in these areas could become overcooked.

COVERING

Covering the food retains the moisture within it and shortens the cooking time. Use a lid, microwave foil or a cover. Foods which are to be crispy, e.g. roasts or chickens, should not be covered.

As a general rule, whatever would be covered in a conventional oven should also be covered in a microwave oven. Whatever would be uncovered in an ordinary oven can also be left uncovered in a microwave oven.

TURING

Medium-sized items, such as hamburgers and steaks, should be turned over once during cooking, in order to shorten the cooking process. Large items, such as roasts and chickens, must be turned, since the upper side receives more microwave energy and could dry out if not turned.

STANDING TIME

Keeping to the standing time is one of the most important rules with microwaves. Almost all foods, which are thawed, heated or cooked in the microwave, require a certain amount of time to stand, during which temperature equalisation takes place and the moisture in the food is evenly distributed.

BROWNING AGENTS

After more than 15 minutes cooking time food acquires a brownness, although this is not comparable to the deep brownness and crispness obtained through conventional cooking. In order to obtain an appetising brown colour you can use browning agents. For the most part they simultaneously act as seasoning agents.

In the following table you will find some suggestions for substances you might use for browning and some of the uses to which you might put them.

BROWNING AGENT
DISH
METHOD

Melted butter and dried paprika	Poultry	Coat the poultry with the butter/paprika mixture
Dried paprika	Oven baked dishes"Cheese toasties"	Dust with paprika
Soya sauce	Meat and poultry	Coat with the sauce
Barbecue and Worcestershire sauce, Gravy	Roasts, Rissoles, Small roasted items	Coat with the sauce
Rendered down bacon fat or dried onions	Oven baked dishes, toasted items, soups, stews	Sprinkle pieces of bacon or dried onions on top
Cocoa, chocolate flakes, brown icing, honey and marmalade	Cakes and desserts	Sprinkle pieces on top of cakes and desserts or use to glaze

HEATING

• Ready-prepared meals in aluminium containers should be removed from the aluminium container and heated on a plate or in a dish.
• Remove the lids from firmly closed containers.
• Food should be covered with microwave foil, a plate or cover (obtainable from stores), so that the surface does not dry out. Drinks need not be covered.
• When boiling liquids such as water, coffee, tea or milk, place a glass stirrer in the container.
• If possible, stir large quantities from time to time, to ensure that the temperature is evenly distributed.
  The times are for food at a room temperature of 20^ . The heating time for food stored in a refrigerator should be increased slightly.
  After heating allow the food to stand for 1-2 minutes, so that the temperature inside the food can be evenly distributed (standing time).
• The times given are guidelines, which can be varied according to the initial temperature, weight, water content, fat content or the result which you wish to achieve.

THAWING

Your microwave is ideal for thawing. Thawing times are usually considerably shorter than in traditional

methods of thawing.

Here are a few tips. Take the frozen item out of its packaging and place on a plate for thawing.

BOXES AND CONTAINERS

Boxes and containers suitable for microwaves are particularly good for thawing and heating food, since they can withstand temperatures in a deep freeze (down to approx. -40^) as well as being heat-resistant (up to approx. 220^) . You can therefore use the same container to thaw, heat and even cook the food, without having to transfer it.

COVERING

Cover thin parts with small strips of aluminium foil before thawing. Thawed or warm parts should likewise be covered with aluminium strips during thawing. This stops the thin parts becoming too hot while thicker parts are still frozen.

CORRECT SETTING

It is better to choose a setting which is too low rather than one which is too high. By so doing you will ensure that the food thaws evenly.

If the microwave setting is too high, the surface of the food will already have begun to cook while the inside is still frozen.

TURNING/STIRRING

Almost all foods have to be turned or stirred from time to time. As early as possible, separate parts which are stuck together and rearrange them.

SMALL AMOUNTS

Thaw more quickly and evenly than larger ones. We recommend that you freeze portions which are as small as possible. By so doing you will be able to prepare whole menus quickly and easily.

FOODS REQUIRING CAREFUL HANDLING

Foods such as gateaux, cream, cheese and bread should only be partially thawed and then left to thaw completely at room temperature. By so doing you will avoid the outer areas becoming too hot while the inside is still frozen.

STANDING TIME

This is particularly important after thawing food, as the thawing process continues during this period. In the thawing table you will find the standing times for various foods. Thick, dense foods require a longer standing time than thinner foods or food of a porous nature. If the food has not thawed sufficiently, you may continue thawing it in the microwave oven or lengthen the standing time accordingly. At the end of the standing time you should process the food as soon as possible and not re-freeze it.

COOKING FRESH VEGETABLES

• When buying vegetables try to ensure that, as far as possible, they are of similar size. This is particularly important when you want to cook the vegetables whole (e.g. boiled potatoes).
• Wash the vegetables before preparing them, clean them and only then weigh the required quantity for the recipe and chop them up.
• Season them as you would normally, but as a rule only add salt after cooking.
• Add about 5 lbsps of water for 500g of vegetables. Vegetables which are high in fibre require a little more water. You will find information about this in the table.
  Vegetables are usually cooked in a dish with a lid. Those with a high moisture content, e.g. onions or boiled potatoes, can be cooked in microwave foil without adding water.
• After half the cooking time has elapsed, vegetables should be stirred or turned over.

After cooking allow the vegetables to stand for approx. 2 minutes, so that the temperature disperses evenly (standing time).
- The cooking times given are guidelines and depend upon the weight, initial temperature and condition of the type of vegetable in question. The fresher the vegetables, the shorter the cooking times.

COOKING MEAT, FISH AND POULTRY

• When buying food items, try to ensure that, as far as possible, they are of similar size. This will ensure that they are cooked properly.
  Before preparation wash meat, fish and poultry thoroughly under cold running water and pat them dry with kitchen paper. Then continue as normal.
• Beef should be well hung and have little gristle.
  Even though the pieces may be of a similar size, cooking results may vary. This is due, amongst other things, to the kind of food, variations in the fat and moisture content as well as the temperature before cooking.
• After the food has been cooking for 15 minutes it acquires a natural brownness, which may be enhanced by the use of a browning agent. If, in addition, you would like the surface to be crisp you should either use the browning dish or sear the food on your cooker and finish cooking it in your microwave. By doing this you will simultaneously obtain a brown base for making a sauce.
• Turn large pieces of meat, fish or poultry half way through the cooking time, so that they are cooked evenly from all sides.
• After cooking cover roasts with aluminium foil and allow them to stand for approx. 10 minutes (standing time). During this period the roast carries on cooking and the liquid is evenly distributed, so that when it is carved a minimum amount of juice is lost.

THAWING AND COOKING

Deepfrozen dishes can be thawed and cooked at the same time in one process in your microwave. You will find some examples in the table. Do take note, however, of the general advice given on "heating" and "thawing" food. Please refer to the manufacturer's instructions on the packaging when preparing deep-frozen dishes. These usually contain precise cooking times and offer advice on preparation.

ABBREVIATIONS USED

tbsp = tablespoon	KG = kilogram	DF = deep frozen
tsp = teaspoon	g = gram	MW = microwave
l.p. = large pinch	l = litre	MWO = microwave oven
s.p. = small pinch	ml = millilitre	min = minutes
Cup = cupful	cm = centimetre	sec = seconds
Sach. = sachet	DFC = dry fat content	dm = diameter

TABLE:HEATING FOOD AND DRINK

Food / Drink		Quantity -g/ml-	Power -Setting-	Time -Min-	Hints
Coffee, 1 cup		150	800W	approx.1	do not cover
Milk, 1 cup		150	800W	approx.1	do not cover
Water, 1 cup		150	800W	\(1^{1/2}-2\)	do not cover, bring to the boil
	6 cups	900	800W	10-12	do not cover, bring to the boil
	1 bowl	1000	800W	10-12	do not cover, bring to the boil
Platters (Vegetables, meat and trimmings)		400	800W	approx.4	sprinkle some water onto the sauce, cover stir half way through the heating time
Stew		200	800W	2-3	cover, stir after heating
Clear soup		200	800W	approx.2	cover, stir after heating
Cream soup		200	800W	approx.2	cover, stir after heating
Vegetables		200	800W	2-3	if necessary add some water, cover
		500	800W	4-5	stir half way through the heating time
Garnishes		200	800W	1-2	sprinkle with water, cover and stir from time to time.
		500	800W	4-5
Meat, 1 slice*		200	800W	3-4	thinly spread sauce over the top, cover
Fish fillet*		200	800W	2-3	cover
Sausages 2		180	560W	approx.2	pierce the skin several times
Cake, 1 piece		100	400W	\(1/2\)	place on a cake stand
Baby food, 1 glass		190	400W	approx.1	remove the lid, after heating stir well and test the temperature
Melting butter or margarine*		50	800W	approx.\(1/2\)	cover
Melting chocolate		100	400W	2-3	stir from time to time
Dissolving six sheets of gelatine		10	400W	\(1/2\)	dip into water, squeeze thoroughly and place in a soup bowl, stir from time to time
Glazing for a tart for \(1/4\) 1 of liquid		10	400W	5-6	mix the sugar in 250 ml of liquid, cover, stir well during and after heating

• Refrigerator temperature

TABLE: COOKING MEAT, FISH AND POULTRY

Fish and Poultry	Quantity -g-	Power -Setting-	Time -Min-	Hints	Standing time -Min-
Roasts (pork, veal, lamb)	500	800W	8-10*	season to taste, place in a shallow flan dish turn over after *	10
		400W	10-12
	1000	800W	20-23*		10
		400W	11-13
Roast beef (medium)	1000	800W	9-11*	season to taste, place in a quiche dish, turn over after *	10
		400W	5-7
Minced meat	1000	800W	16-18	prepare the minced meat mixture (half pork/half beef) place in a shallow casserole dish	10
Fish fillet	200	800W	3-4	season to taste, place on a plate, cover	3
Chicken	1200	800W	22-25*	season to taste, place in a casserole dish, turn half way through cooking time *	3
Chicken legs	200	800W	3-4	season to taste, place on a plate, cover	3

• When turning over remove the juices from the dish.

TABLE: THAWING

Food	Quantity -g-	Power -Setting-	Thawing time -Min-	Hints	Standing time -Min-
Roast meat (e.g. pork, beef, lamb, veal)	1500	80W	58-64	place on an upturned plate, turn half way through thawing time	30-90
	1000	80W	42-48		30-90
	500	80W	18-20		30-90
Steaks, escalopes, cutlets, liver	200	80W	7-8	turn half way through thawing time	30
Goulash	500	240W	8-12	separate and stir half way through thawing time	10-15
Sausages, 8	600	240W	6-9	place next to each other, turn half way through thawing time	5-10
4	300	240W	4-5		5-10
Duck, turkey	1500	80W	48-52	place upon an upturned plate, turn half way through thawing time	30-90
Chicken	1200	80W	39-43	place upon an upturned plate, turn half way through thawing time	30-90
	1000	80W	33-37	place upon an upturned plate, turn half way through thawing time	30-90
Chicken legs	200	240W	4-5	turn half way through thawing time	10-15
Whole fish	800	240W	9-12	turn half way through thawing time	10-15
Fish fillet	400	240W	7-10	turn half way through thawing time	5-10
Crabs	300	240W	6-8	turn half way through thawing time	30
Rolls, 2	80	240W	app.1	only partially thaw	-
Sliced bread for toasting	250	240W	2-4	remove outer slices after each minute has passed	5
White loaf, whole	750	240W	7-10	turn half way through thawing time (centre still frozen)	30
Cakes, per piece	100-150	80W	2-5	place on a cake stand	5
Cream cake, per piece	150	80W	3-4	place on a cake stand	10
Whole gateau, Ø 25cm		80W	20-24	place on a cake stand	30-60
Butter	250	240W	2-4	only partially thaw	15
Fruit such as strawberries	250	240W	4-5	spread them out evenly	5
raspberries, cherries, plums				turn half way through thawing time

TABLE: THAWING AND COOKING

Food	Quantity -g-	Power -Setting-	Cooking time -Min-	Added water -tbsps/ml-	Hints	Standing time -Min-
Fish fillet	300	800W	10-11	-	cover	1-2
Trout, 1 fish	250	800W	7-9	-	cover
Platter	400	800W	8-9	-	cover, stir half way through cooking time	-
Leaf spinach	300	800W	7-9	-	cover, stir once or twice during cooking	2
Broccoli	300	800W	7-9	3-5tbsps	cover, stir half way through cooking time	2
Peas	300	800W	7-9	3-5tbsps	cover, stir half way through cooking time	2
Kohlrabi	300	800W	7-9	3-5tbsps	cover, stir half way through cooking time	2
Mixed vegetables	500	800W	12-14	3-5tbsps	cover, stir half way through cooking time	2
Brussels sprouts	300	800W	7-9	3-5tbsps	cover, stir half way through cooking time	2
Red cabbage	450	800W	11-13	3-5tbsps	cover, stir half way through cooking time	2

TABLE: COOKING FRESH

Vegetable	Quantity -g-	Power -Setting-	Time -Min-	Hints	Added Water -tbsps/ml-
Leaf Spinach	300	800W	5-7	wash dry well, cover, stir once or twice during cooking	-
Cauliflower	800	800W	15-17	1 whole head, cover, divide into florets, stir	5-6tbsps
	500	800W	10-12	during cooking	4-5tbsps
Broccoli	500	800W	10-12	divide into florets, cover, stir occasionally during cooking	4-5tbsps
Mushrooms	500	800W	8-10	whole heads, cover, stir occasionally during cooking	-
Chinese leaves	300	800W	9-11	cut into strips, cover, stir occasionally during cooking	4-5tbsps
Peas	500	800W	9-11	cover, stir occasionally during cooking	4-5tbsps
Fennel	500	800W	9-11	cut into quarters, cover, stir occasionally during cooking	4-5tbsps
Onions	250	800W	5-7	whole, cook in microwave foil	-
Kohlrabi	500	800W	10-12	dice, cover, stir occasionally during cooking	50ml
Carrots	500	800W	10-12	cut into rings, cover, stir occasionally during cooking	4-5tbsps
	300	800W	9-12
Green peppers	500	800W	7-9	cut into strips, stir once or twice during cooking	4-5tbsps
Boiled potatoes (skins on)	500	800W	9-11	cover, stir occasionally during cooking	4-5tbsps
Leeks	500	800W	9-11	cut into rings, cover, stir occasionally during cooking	4-5tbsps
Red cabbage	500	800W	10-12	cut into strips, stir once or twice during cooking	50ml
Brussels sprouts	500	800W	9-11	whole sprouts, cover, stir occasionally during cooking	50ml
Boiled Potatoes (salted)	500	800W	9-11	cut into large pieces of a similar size, add a little salt, cover, stir occasionally during cooking	150ml
Celery	500	800W	9-11	dice finely, cover, stir occasionally during cooking	50ml
White cabbage	500	800W	10-12	cut into strips, cover, stir occasionally during cooking	50ml
Courgettes	500	800W	9-11	slice, cover, stir occasionally during cooking	4-5tbsps

RECIPIES

ADAPTING RECIPES FOR THE

MICROWAVE OVEN

If you would like to adapt your favourite recipes for the microwave, you should take note of the following:

Shorten cooking times by a third to a half. Follow the example of the recipes in this cookery book.

Foods which have a high moisture content such as meat, fish, poultry, vegetables, fruit, stews and soups can be prepared in your microwave without any difficulty. Foods which have little moisture, such as platters of food, should have the surface moistened prior to heating or cooking.

The amount of liquid to be added to raw foods, which are to be braised, should be reduced to about two thirds of the quantity in the original recipe. If necessary, add more liquid during cooking.

The amount of fat to be added can be reduced considerably. A small amount of butter, margarine or oil is sufficient to flavour food. For this reason your microwave is excellent for preparing low-fat foods as part of a diet.

HOW TO USE RECIPES

• All the recipes in this cookery book are calculated on the basis of 4 servings - unless otherwise stated.
• Recommendations relating to suitable utensils and the total cooking times are given at the beginning of every recipe.
• As a rule the quantities shown are assumed to be wholly consumable, unless specifically indicated otherwise.
• When eggs are given in the recipes they are assumed to have weight of approx. 55 g (grade M).

Germany

CAMEMBERT TOAST

Total cooking time: approx. 1-2 minutes

Utensil:

Ingredients

4 slices of bread for toasting

2 tbsp butter or margarine (20 g)

150g Camembert

4 tsp Cranberry jelly

Cayenne pepper

1. Toast the bread and spread with butter.
2. Cut the Camembert into slices and arrange on top of the toast. Put the cranberry jelly in the middle of the cheese and sprinkle with Cayenne pepper.
3. Place the toast on a plate and heat for 1-2 Mins. 800 W

Tip: You can vary this recipe according to your taste. For example, you can use fresh mushrooms and grated cheese or cooked ham, asparagus and Emmental cheese.

Netherlands

MUSHROOM SOUP

Championonsoep

Total cooking time: approx. 13-17 Minutes

Utensil: Bowl with Lid (2 | Capacity)

Ingredients

200 g mushrooms, sliced

1 onion (50 g), finely chopped

300 ml meat stock

300 ml Cream

2^1 / 2 tbsps Flour (25g)

2^1/2 tbspS Butter or Margarine (25 g) Salt & Pepper

1 Egg

150g Crème fraîche

1. Place the vegetables and the stock in the bowl, cover and cook.

8-9 Mins. 800 W

1. Blend all the ingredients in the mixer.
2. Mix the flour and butter to a dough and smooth into the soup. Season with salt and pepper, cover and cook. Stir after cooking.

5-6 Mins. 800 W

1. Mix the egg yolk with the cream, gradually stir into the soup. Heat for a short time, but do not let it boil!

1-2 Mins. 800 W

Allow the soup to stand for about 5 minutes after cooking.

Switzerland

ZÜRICH VEAL IN CREAM

Total cooking time: approx. 12-16 minutes

Utensil: dish with lid (2 l capacity)

Ingredients

600 g veal fillet

1 tbsp butter or margarine

1 onion (50 g), finely chopped

100 ml white wine

Seasoned gravity browning, for approx. 1 / 2 I gravity

300 ml cream

1 tbsp parsley, chopped

France

SOLE FILETS

Total cooking time: approx. 11-14 minutes
Utensil: shallow, oval oven dish with microwave foil (approx. 26 cm long)
Ingredients
400 g sole fillets
1 lemon, whole
2 tomatoes (150 g)
1 tsp butter or margarine for greasing
1 tbsp vegetable oil
1 tbsp parsley, chopped salt & pepper
4 tbsps white wine (30 ml)
2 tbsp butter or margarine (20g)

Greece

BRAISED LAMB WITH GREEN BEANS

Total cooking time: approx. 20-24 minutes

Utensil: shallow oval souffle mould with lid

(about 26 cm long)

Ingredients

1-2 tomatoes (100g)
400 g lamb, boned
1 tsp butter or margarine for greasing the bowl
1 onion (50 g), finely chopped
1 clove garlic, crushed
salt,pepper sugar
250 g finned green beans

1. Cut the fillet into finger-width strips.
2. Grease the dish all over with the butter. Put the onion and the meat into the dish, cover and cook. Stir once during cooking.

7-9 Mins. 800 W

1. Add the white wine, gravy browning and cream, stir, cover and continue cooking. Stir occasionally.

5-6 Mins. 800 W

1. Test the veal, stir the mixture once more and allow to stand for approx. 5 minutes. Serve garnished with parsley.

2. Wash the sole fillets and pat them dry. Remove any bones.

3. Cut the lemon and the tomatoes into thin slices.
4. Grease the oven dish with butter. Place the fish fillets inside and drizzle the vegetable oil over them.
5. Sprinkle parsley over the fish, place the tomato slices on top and season. Place the lemon slices on top of the tomatoes and pour the white wine over them.
6. Place small pats of butter on top of the lemon, cover and cook.

10-12 Mins. 800 W

After cooking allow the fish fillets to stand for approx. 2 minutes.

Tip: This recipe can also be used for Haddock, Halibut, Mullet, Plaice or Cod.

1. Skin and remove the stalks of the tomatoes, then purée in a blender or food processor.
2. Cut the lamb into large chunks. Grease the bowl with butter. Add meat, onions and garlic, season, cover and cook.

9-11 Mins. 800 W

1. Add beans and pureed tomatoes to the meat, cover and continue cooking.

11-13 Mins. 560 W

After cooking, leave the lamb to stand for approximately 5 minutes.

Tip:If you prefer to use fresh beans, these should be pre-cooked.

Italy

LASAGNE

Total cooking time 22-27 minutes

Utensils: Bowl with lid (2 l capacity) shallow square souffle mould with lid (approx 20 × 20 × 6 cm)

Ingredients

300 g tinned tomatoes
50 g ham, finely cubed
1 onion (50g) , finely chopped
1 clove of garlic, crushed
250 g minced meat (beef)
2 tbsp mashed tomato (30 g) salt, pepper oregano, thyme, basil, nutmeg
150 ml cream (crème fraîche)
100 ml milk
50 g grated Parmesan cheese
1 tsp mixed chopped herbs
1 tsp olive oil
1 tsp vegetable oil to grease the mould
125g lasagne verte
1 tbsp grated Parmesan cheese
1 tbsp butter or margarine

France

RATATOUILLE

Total cooking time 19-21 minutes
Utensils: Bowl with lid (2 l capacity)
Ingredients
5 tbsp olive oil (50 ml)
1 clove garlic, crushed
1 onion (50 g), sliced
1 small aubergine (250g) ,cut into cubes
1 courgette (200g) into cubes
pepper (200g) ,cut into large cubes
1 Small fennel (75g) cut into large cubes
1 bouquet garni
200 g tinned artichoke hearts, cut into quarters salt, pepper

1. Cut the tomatoes into slices, mix with the ham and onion, garlic, minced meat and mashed tomato. Season and cook with the lid on. Stir during cooking.

7-9 Mins. 800 W

1. Mix the cream with the milk, Parmesan cheese, herbs, oil, and spices.
2. Grease the souffle mould and cover the bottom of the mould with about 1/3 of the pasta. Put half of the minced meat mixture on the pasta and pour on some sauce. Put an additional 1/3 of the pasta on top followed by another layer of the minced meat mixture and some sauce, finishing with the remaining pasta on top. Finally, cover the pasta with lots of sauce and sprinkle with Parmesan cheese. Place butter flakes on top and cook with the lid on.

15-16 Mins. 560 W

After cooking, let the lasagne stand for approximately 5-10 minutes.

1. Place the olive oil and garlic clove in the bowl. Add the prepared vegetables, except the artichoke hearts, and season with pepper. Add the bouquet garni, cover and cook, stirring once.

18-20 Mins. 800 W

For the last 5 minutes, add the artichoke hearts and heat.

1. Season the ratatouille to taste with salt and pepper. Remove the bouquet garni before serving. After cooking, leave the ratatouille to stand for around 2 minutes.

Tip: Ratatouille can be served hot with meat dishes. Served cold, it also makes an excellent starter.

A bouquet garni consists of: one stalk of parsley, a bunch of herbs suitable for seasoning soup, one stalk of lovage, one stalk of thyme, several bay leaves.

Spain

BAKED POTATOES

Total cooking time 12-16 minutes

Utensils: Bowl with lid (2 l capacity) China plate

Ingredients

4 medium sized potatoes (400g)

100 ml water

60 g ham, cut into fine cubes

1/2 onion (25 g) finely cubed

75-100 ml milk

2 tbsp grated Parmesan cheese (20 g) salt, pepper

2 tbsp grated Emmental cheese

Denmark

FRUIT JELLY WITH VANILLA SAUCE

Total cooking time 10-13 minutes

Utensils: Dish with lid (2 l capacity)

(1 capacity)

Ingredients

150 g recurrants, washed and stalks removed

150 g strawberries, washed and haulms removed

150 g raspberries, washed and haulms removed

250ml white wine

100 g sugar

50 ml lemon juice

8 gelatin leaves

300 ml milk inside of ^1/_2 vanilla pod

30g sugar

15g food thickener

1. Place the potatoes in a dish, add the water, cover and cook. Rearrange halfway through cooking.

8-9 Mins. 800 W

Leave to cool.

1. Cut the potatoes lengthwise and carefully remove the potato from the skin. Mix the potato with the ham, onion, milk and Parmesan cheese to an even consistency. Season with salt and pepper.

2. Fill the potato skins with potato mixture and sprinkle with Emmental cheese. Place potatoes on a plate and cook.

4-6 Mins. 800 W

After cooking, leave to stand for approximately

2 minutes.

1. Put some of the fruit to one side for decoration. Puree the rest of the fruit with the white wine, put it into a dish, cover and heat.

7-9 Min. 800 W

Fold in the sugar and the lemon juice.

1. Soak the gelatin in cold water for approx. 10 minutes, then take it out and squeeze dry. Stir the gelatin in with the hot puree until it has dissolved. Place the jelly in the refrigerator and leave to set.

2. To make the vanilla sauce; put the milk into the other dish. Slit the vanilla pod and remove the inside. Stir this in with the milk, together with the sugar and the food thickener, cover and cook, stirring during cooking and again at the end.

3-4 Min. 800 W

1. Turn out the jelly onto a plate and decorate with the whole fruit. Add the vanilla sauce.

Tip: You can also use defrosted frozen fruits.

• SEULEMENT VALIDE POUR L'ALLEMAGNE ET L'AUTRICHE • SLECHTS GELDIG VOOR Duitsland EN OOSTENRUK • SOLTANTO VALIDO PER LA GERMANIA E L'AUSTRIA • SOLAMENTE VÁLIDO PARA ALEMANIA Y AUSTRIA • ONLY VALID FOR GERMANY AND AUSTRIA •

Puisance: Micro-ondes

Zekering/circuitonderbroker

Distribution line fuse/circuit breaker

AC Power required: Microwave

Output power: Microwave

Microwave Frequency

Outside Dimensions

Cavity Dimensions

Oven Capacity

Turntable

Weight

Oven lamp

: 230 V, 50 Hz, single phase
: Minimum 10 A
: 1,25 kW
: 800 W (IEC 60705)
: 2450 MHz* (Group 2/Class B)
: 460mm(W)× 275mm(H)× 380mm(D)
: 319 mm(W) x 211 mm(H) x 336 mm(D)**
: 22 litres**
:272mm
:approx.12kg
: 25 W/240-250 V

• This Product fulfils the requirement of the European standard EN55011.

In conformity with this standard, this product is classified as group 2 class B equipment.

Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food.

Class B equipment means that the equipment is suitable to be used in domestic establishments.

** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.

AS PART OF A POLICY OF CONTINUOUS IMPROVEMENT, WE RESERVE THE RIGHT TO ALTER DESIGN AND SPECIFICATIONS WITHOUT NOTICE.

SHARP
