DA26A - Iron Eldom - Free user manual and instructions

Product Type	Corded Steam Iron
Brand	Eldom
Model	DA26A
Power Consumption	2400 W
Voltage	220-240 V ~ 50/60 Hz
Soleplate Material	Ceramic
Water Tank Capacity	300 ml
Steam Output (Continuous)	Up to 40 g/min
Steam Boost	Up to 150 g/min
Vertical Steam	Yes
Spray Function	Yes
Anti-Drip System	Yes
Self-Cleaning Function	Yes
Auto Shut-Off	Yes, after 8 minutes (horizontal) / 30 seconds (vertical)
Cord Length	2.5 m
Dimensions (L x W x H)	29 x 12 x 15 cm
Weight	1.2 kg
Warranty	2 years

Frequently Asked Questions - DA26A Eldom

How do I descale my Eldom DA26A iron?

Use the self-cleaning function: fill the tank with water, set the iron to max temperature and steam setting, hold it over a sink, and press the self-clean button. Repeat if necessary. For heavy buildup, use a descaling solution as per manual.

What is the recommended temperature for ironing cotton?

Set the temperature dial to the highest setting (usually 3 dots or 'Cotton/Linen'). Wait for the thermostat light to go off before ironing.

Why is my iron leaking water?

This could be due to the temperature being too low for steam production. Ensure the iron is hot enough and the steam setting is appropriate. Also clean the anti-drip valve if clogged.

Can I use the iron for vertical steaming?

Yes, the DA26A features a vertical steam function. Hold the iron upright, press the steam boost button while it's hot, and steam hanging garments.

How do I clean the soleplate?

Wait until the iron is cool. Use a damp cloth with mild detergent or specialized soleplate cleaner. Avoid abrasive materials. For stubborn residue, use a baking soda paste.

What does the auto shut-off feature do?

The iron automatically turns off after 8 minutes of inactivity in the horizontal position or 30 seconds in the vertical position to prevent accidents.

How much water does the tank hold?

The water tank capacity is 300 ml, enough for about 15 minutes of continuous steaming.

Can I use tap water in the iron?

Yes, but in hard water areas, mix tap water with distilled water to reduce mineral buildup. Avoid using solely distilled water as it may affect steam production.

What should I do if the iron does not heat up?

Check the power cord and plug connection. Ensure the temperature dial is set to a non-zero position. If still not heating, contact customer service.

Is the iron cord retractable?

No, the Eldom DA26A has a fixed 2.5 m cord. There is no cord retraction mechanism.

USER MANUAL DA26A Eldom

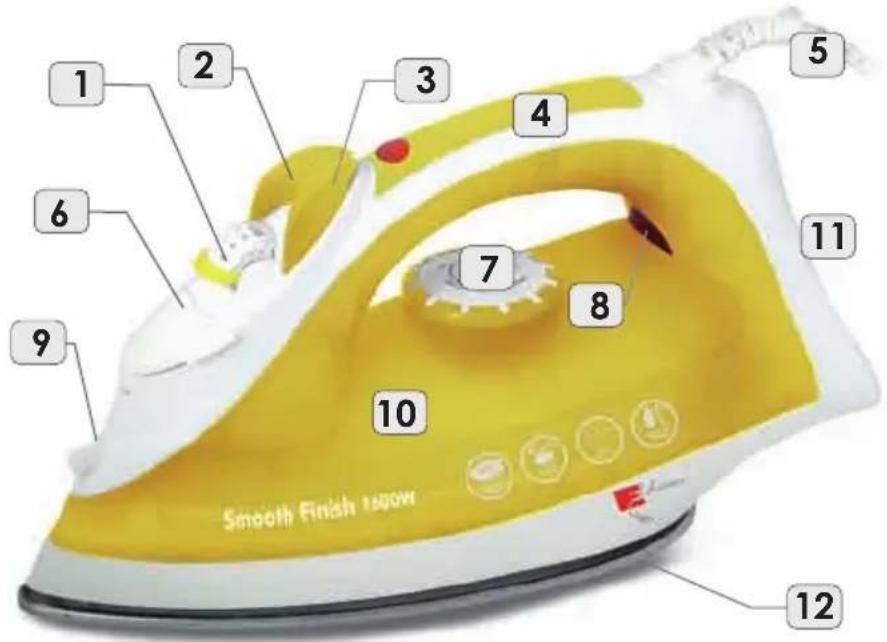

Yellow and white steam iron with a circular button, showing brand and model details (no text or symbols on the device itself)

ŻELAZKO Z NAWILŻACZEM DA26A

OPIS OGÓLNY

1. Dry/steam power selector and Self clean
2. Steam button
3. Spray button
4. Handle
5. Cord
6. Water-fill
7. Temperature dial
8. Control lamp
9. Spay nozzle
10. Water tank
11. Heel rest
12. ANODIUM soleplate

TECHNICAL DATA

• power: 1600 W
• steam power: 25g/min
• voltage: 230V\~50Hz

USING THE IRON

The modern ANODIUM soleplate is characterised by a high resistance to scratches, non-adhesive surface and perfect sliding properties. It is also easy to clean.

Before first use remove protectives attached to the soleplate (12) and unfold the cord (5) completely. During initial exploitation there may appear a harmless odour which has no influence upon the usage of the iron and quickly disappears.

Before connecting to the mains put the iron on the heel rest (11), turn the temperature dial to „0” setting and dry/steam power selector (1) to setting “0” (no steam). The temperature dial setting is marked by the control lamp (8),

After plugging in and temperature setting the light of the control lamp (8) comes on. It goes out when the chosen temperature is reached.

The ironing temperature should be adjusted to the fabric. If the type of fabric is unknown set for minimal temperature and gradually increase the temperature until a satisfying effect is reached.

DRY IRONING

Put the iron on the heel rest (11), turn dry/steam power selector (1) to setting "0". Before plugging in or operating turn the temperature dial to "0" setting.

STEAM IRONING

Steam ironing with additional steam function is only possible with high temperature. The highest temperature is marked on the temperature dial as "MAX". The steam power is regulated by dry/steam power selector (1).

Additional steam power is obtained by pressing steam button (1) in position „SELF CLEAN" and it facilitates ironing of exceptionally tough wrinkles.

NOTICE. Steam is hot and there is a danger of burning. The soleplate heats very quickly but it needs more time to cool down. It should not be touched.

FILING THE WATER TANK

Before filling the water tank make sure that the device is unplugged and that the dry/steam power selector (1) is set on "0".

Use room temperature ordinary tap water or distilled water for ironing. Never use mineral water or water containing too much lime or water destined for car batteries.

To fill the water tank use a special measuring cup, the shape of which is adjusted to water-fill hole. Do not fill the water tank straight from the tap! While pouring water into opening remember to stick to "MAX" level mark on the side of the water tank (10) and not to overfill.

SELF CLEAN

It is recommended to use the self clean function to prevent from any buildup in the iron. In order to do it, follow this instruction:

• fill the water tank until MAX line
• plug in and set the temperature dial (7) to "MAX"
• after the control lamp (8) goes out, unplug and hold horizontally e.g. over a sink
• Set the slide (1) to SELF CLEAN position for about one minute and shake the iron
• after cooling down wipe the soleplate with moistened cloth to remove any dirt

Water and steam coming from the iron during self cleaning are hot and there is a danger of burning.

WATER SPRAY

After filing the water tank you may sprinkle water on ironing surfaces by pressing spray button (3).

PRACTICAL ADVICE

• use tap or distilled water
• the iron has the heel rest (11) to be comfortably and firmly put
• marking lower temperature with temperature dial does not result in immediate temperature reduction. Wait until the control light comes on again.
• while dry ironing the water tank may be empty. Check if the dry/steam power selector is set on "0". You may use any range of temperatures depending on the kind of fabric. If the water tank is full you may use the spray function,
• the iron should be stored in vertical position, unplugged, cooled down and with no water
• dry iron at low temperatures

CLEANING AND MAINTENANCE

• before cleaning the appliance unplug it and wait until it cools down completely.
• the iron should not be immersed in water
• do not use abrasives or heavy duty wipes and sponges because they may destroy the appliance
• the iron and soleplate should be wiped with moistened cloth, and later with clean dry cloth.

SAFETY INSTRUCTIONS

• before first use familiarise with the whole instruction manual
• before plugging in make sure tally plate data are compliant to mains parameters
• plug the device in the socket with earthing
• before plugging in and unplugging position the temperature dial on "0"
• the appliance should be unplugged by pulling the plug not the cable
• before storing the iron wait until cools down completely and empty the water tank. For storing period you may wrap loosely the cord around the heel rest. Too tight wrapping may damage the cord.
• store in safe place, in vertical position to prevent the remaining water leaking from steam vents and damaging the soleplate
• keep the cord away from heat sources
• before filling the water tank unplug the iron
• do not leave without supervision when working
• contact with hot metal surfaces as well as the steam may result in burning.
  Be careful while ironing.
• the device should not be used by people (including children) with limited physical, sensory and mental abilities unless they are under supervision of a person responsible for their safety
  -do not leave children without supervision near the iron
• do not use outdoors
• do not immerse the cord or the appliance in water
• unplug before cleaning
• use only in households
• serves only for ironing clothes
• do not place in horizontal position on ironing board while ironing
• do not use with damaged cord
• if the cord is damaged, to avoid danger, exchange it by authorised service providers
• any mending of the device should be held by authorised service providers. Any modernisations or using spare parts or other elements other than original is forbidden and dangerous.
• Eldom sp.z o.o. shall not be responsible for any damages occurring as a result of improper usage

ENVIRONMENTAL PROTECTION

• the device is made of materials which can be reused or recycled
• the device should be handled to a special point which deals with collecting and recycling of electric and electronic equipment

GUARANTEE

• the device is designed to be used in households
• not for professional use
• the control lamp is not subject to guarantee
• the guarantee expires when device is used improperly
  Detailed warranty description in the annex.
