KBF 08122 - Freezer Kernau - Free user manual and instructions

Product Type	Freezer (built-under)
Brand	Kernau
Model	KBF 08122
Dimensions (H x W x D)	820-890 mm x 595 mm x 548 mm
Net Weight	Approximately 30 kg
Power Supply	220-240 V ~ 50 Hz
Climate Class	T, ST, N, SN (10°C to 43°C)
Refrigerant	R600a (isobutane)
Thermostat Control	Rotary knob, positions 1 to 5 (5 = coldest)
Freezing Capacity	Indicated on appliance label (kg/24h)
Storage Capacity	Max net capacity with drawers removed
Defrosting	Manual defrost required when frost exceeds 3-5 mm
Maintenance	Clean interior with bicarbonate solution; condenser cleaning twice yearly
Safety Features	Grounded plug, child lock (if applicable), avoid damage to refrigerant circuit
Installation	Built-under kitchen unit, minimum 50 cm from heat sources, 2 cm from other freezers
Included Accessories	Door hanger, bottom fixings, screws, hanger cover, tools required (spirit level, wrench, screwdriver)
Energy Saving Tips	Place in cool room, not near heat sources; cover all food; minimize door opening
Noise Level	Normal operating sounds (bubbling) acceptable
User Manual Languages	CS, DE, EN, PL (available online)

Frequently Asked Questions - KBF 08122 Kernau

How to set the thermostat on the KBF 08122?

Turn the knob from position 1 (warmest) to 5 (coldest). Position '•' turns off cooling. For fresh food freezing, set to 5 for 24 hours, then return to desired setting.

What is the maximum amount of fresh food that can be frozen in 24 hours?

Check the appliance label (rating plate) inside the freezer for the specific freezing capacity in kg/24h. Do not exceed that amount.

How to defrost the freezer?

Set thermostat to 5 for 24 hours before defrosting to freeze food solid. Then turn to '•', unplug, and leave door open. Remove defrost water with sponge. Do not use sharp tools.

Why is my freezer not cooling?

Check power supply, ensure plug is secure, thermostat is not on '•', and socket works. Also check if door is closed properly and ventilation slots are clear.

Can I store ice cream and frozen drinks?

Yes, but do not place glass bottles or cans with high alcohol content in the freezer. Ice cream and ice cubes should not be eaten immediately after removal to avoid frostbite.

How to clean the condenser?

Unplug the freezer. Use a soft brush or vacuum cleaner on the condenser coils at least twice a year to maintain efficiency.

What refrigerant does the KBF 08122 use?

The appliance uses R600a (isobutane), a flammable but environmentally friendly gas. Handle with care and ensure ventilation if a leak occurs.

What are the dimensions for installation?

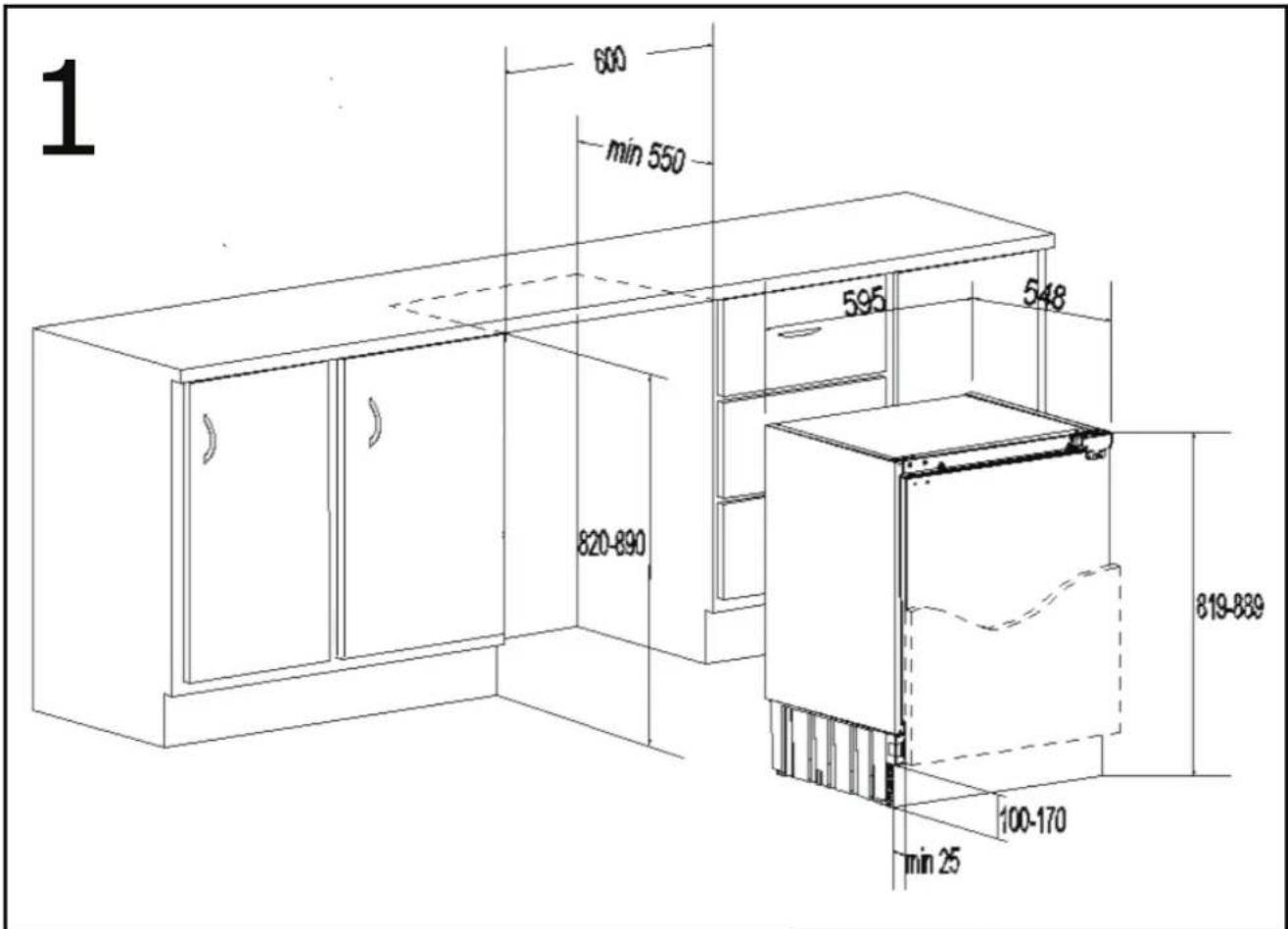

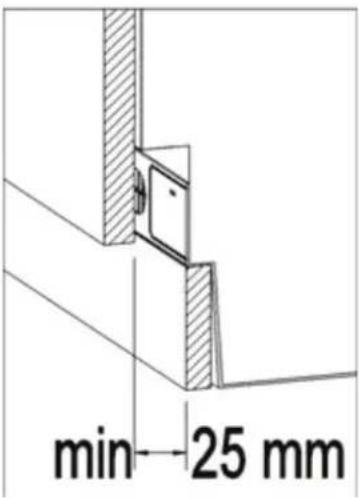

The built-in compartment should be at least 600 mm deep, 550 mm wide, and 820-890 mm high. Leave a 25 mm gap at the top and ensure proper ventilation.

Is it normal for the freezer to make bubbling sounds?

Yes, the refrigerant circulating in the system may produce gurgling or bubbling sounds even when the compressor is off. This is normal.

How to change the door opening direction?

The manual includes instructions for reversing the door. Use the provided door hanger, bottom fixings, and tools (spirit level, wrench, screwdriver). Refer to the installation section.

USER MANUAL KBF 08122 Kernau

White refrigerator with open door showing a multi-pack arrangement of colorful vegetable packaging (no visible text or symbols on the boxes)

www.kernau.com

SPIS TREŚCI

ZANIM UŻYJECIE SWOJEJ ZAMRAŻARKI....3

Diagram of two coiled heat exchangers with directional arrows indicating flow or movement (no text or symbols)

Line drawing of a container being poured into a tray of circular wells (no text or symbols)

Illustration of hands holding a grid-like object with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding teeth with a black X symbol indicating a dental or dental procedure (no text or labels present)

Illustration of a hand holding a coiled cable or wire, with no visible text or symbols

ROZMRAŻANIE ZAMRAŻARKI

Line drawing of a refrigerator interior showing the door, front panel, and side panel (no text or symbols)

Line drawing of a screw with a plus sign on top (no text or symbols)

1. Wkręt do drewna x17

Technical line drawing of a mechanical bracket component (no text or symbols)

1. Wieszak drzwi

Simple line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a cylindrical object with a slot, no text or symbols present

1. Pokrywa wieszaka

5. Śruba

6. Wspornik górny

Wymagane narzędzia

Technical line drawing of a mechanical component with two circular holes and a central notch (no text or symbols)

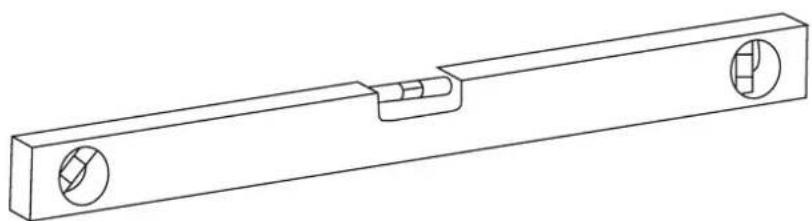

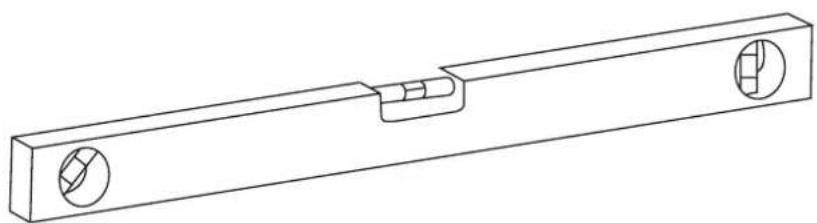

1. Poziomica

Simple line drawing of a wrench (no text or symbols)

1. Klucz

Simple line drawing of a mechanical bracket or support structure (no text or symbols)

1. Kątomierz

Line drawing of a screwdriver with a pointed tip and threaded end (no text or symbols)

1. Śrubokręt

INSTRUCTION BOOKLET BUILT-UNDER LARDER KBF 08122

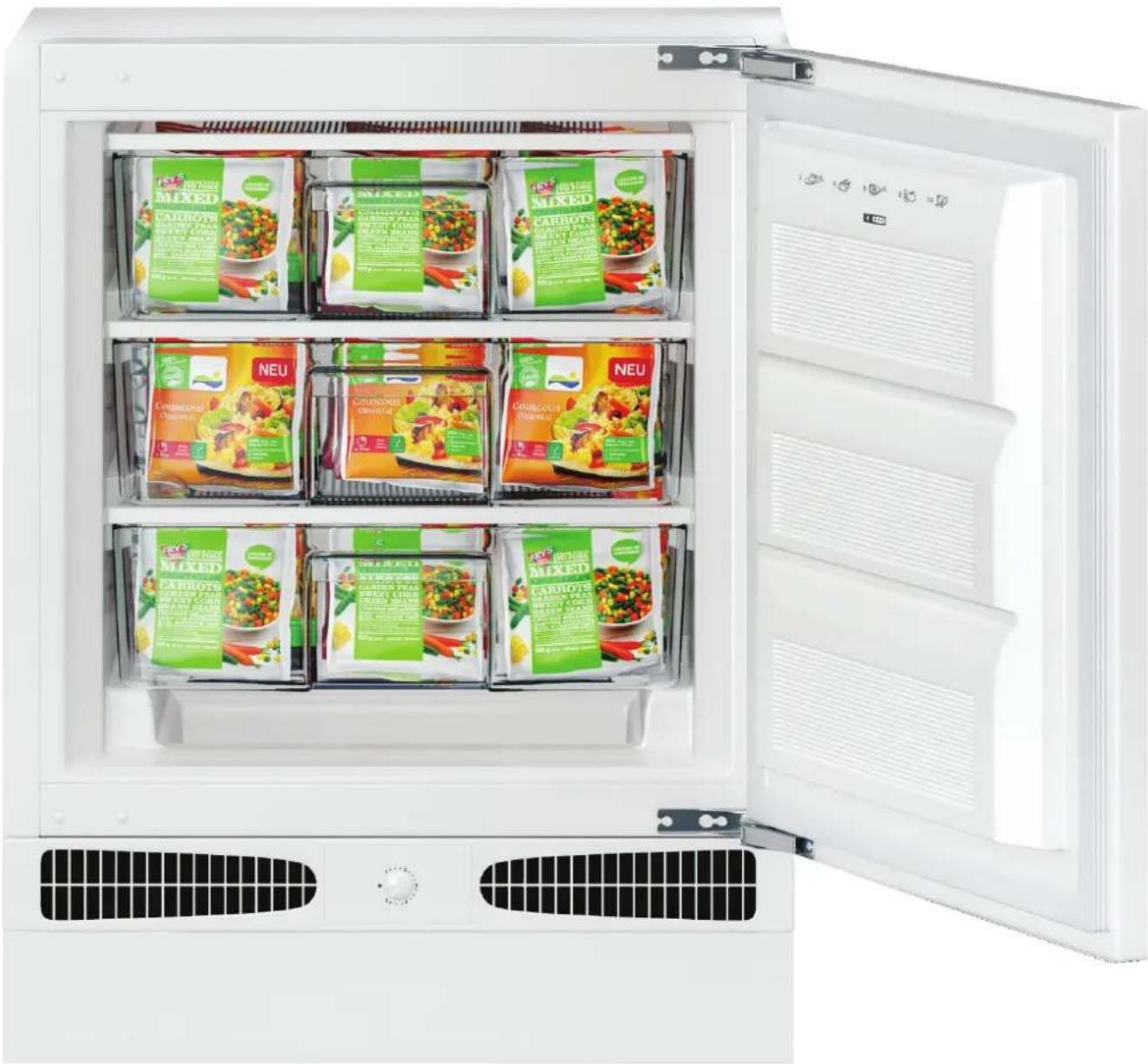

White refrigerator with open door showing front panel of a white appliance (no visible text or symbols on the main subject)

www.kernau.com

INDEX

BEFORE USING THE APPLIANCE....15

General warnings.... 15

Old and out-of-order fridges.... 16

Safety warnings.... 16

Installing and operating your freezer.... 17

Before using your fridge.... 18

HOW TO OPERATE THE APPLIANCE.... 18

Thermostat setting.... 18

FOOD STORAGE IN THE APPLIANCE.... 18

CLEANING AND MAINTENANCE.... 20

Defrosting the refrigerator.... 20

BEFORE CALLING YOUR AFTER SALES SERVICE.... 21

Tips for saving energy.... 22

PARTS OF THE APPLIANCE AND THE COMPARTMENTS....22

Installation instructions.... 23

INSTALLATION INSTRUCTIONS.... 48

BEFORE USING THE APPLIANCE

GENERAL WARNINGS

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance’s cooler elements from being damaged. R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.
• Whilst carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as;

• staff kitchen areas in shops, offices and other working environments

• farm houses and by clients in hotels, motels and other residential type environments
• bed and breakfast type environments;

• catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order freezer

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

- Please ask your local authority about the disposal of the WEEE for reuse, recycle and recovery purposes.

Notes:

- Please read the instruction manual carefully before installing and using your appliance.

We are not responsible for damage incurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

Safety warnings

• Do not use multiple sockets or an extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Do not plug-in or pull out the plug from the socket with wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer. Bottles or cans may explode.
• Do not place explosive or flammable material in your freezer for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the freezer.
• When taking ice made in the freezer, do not touch it, ice may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer!

• Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.
• Do not cover the body or top of freezer with lace. This affects the performance of your freezer.
• Fix the accessories in the freezer during transportation to prevent damage to accessories.

Installing and operating your freezer

Before starting to use your freezer, you should pay attention to the following points:

• Operating voltage for your freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• There can be an odour when you first switch on the appliance. It will disappear after the appliance starts to cool.
• Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of electrical system in your home.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you call an authorized electrician for assistance.
• The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).
• We do not take responsibility for damages that occur due to ungrounded usage.
• Place your freezer in a place where it won't be exposed to direct sunlight.
• Your freezer should never be used outdoors or left under the rain.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.
• When your freezer is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly, especially in the interior, before use (See Cleaning and Maintenance).

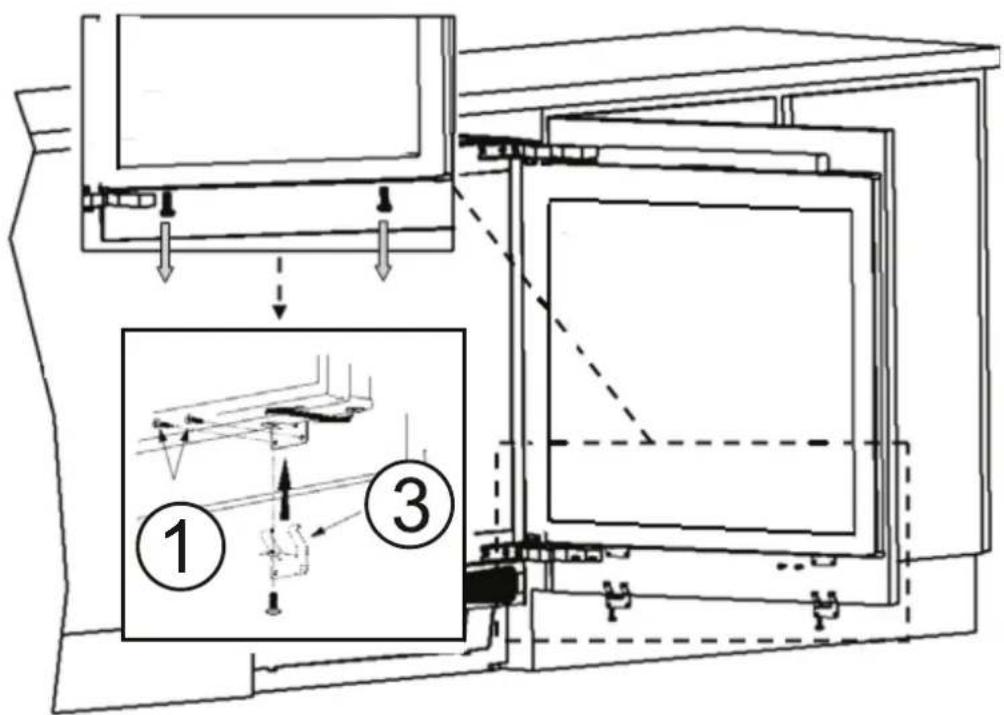

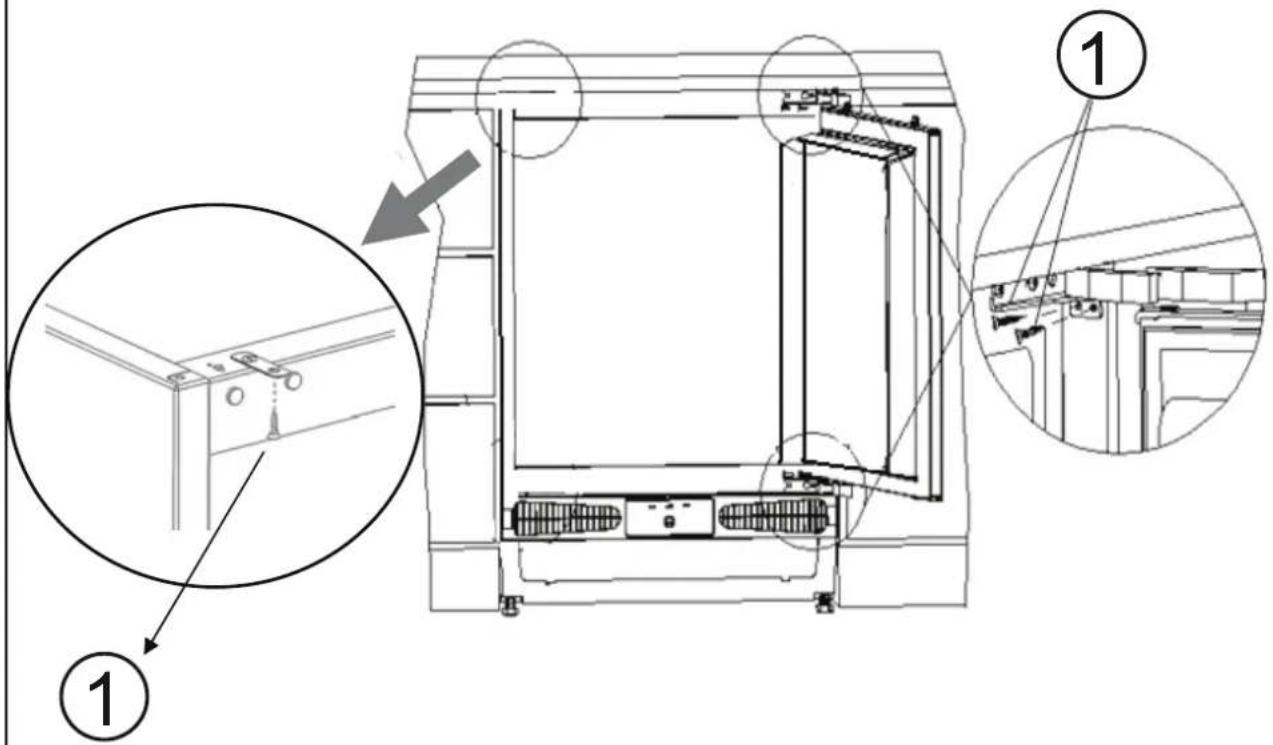

• Installation procedure into the kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.
• The adjustable front legs should be adjusted to make sure your appliance is level

and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

Two identical diagrams of a coiled heat exchanger with internal components, no text or symbols present.

- Before using your freezer, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Replace all parts after cleaning.

- Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.

- The freezer should be placed against a wall with a free distance not exceeding 75 mm.

Before using your freezer

- When it is operated for the first time or after transportation, keep your freezer in the upright position for 3 hours and plug it in to allow efficient operation. Otherwise, you may damage the compressor.

- Your freezer may have a smell when it is operated for the first time; the smell will fade away when your freezer starts to cool.

The freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained. “•” position shows thermostat is closed and no cooling will be available.

Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.

Freezer thermostat setting;

1 - 2 : For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.
3 - 4 : For long-term storage of food in the freezer compartment, you can set knob to medium position.
5: For freezing the fresh food. The appliance will run for colder temperatures.

Note; The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator and freezer compartments. If required, change the temperature setting.

FOOD STORAGE IN THE APPLIANCE

• This freezer is used for freezing fresh foods and for storing frozen foods for the period of time indicated on packaging, and for making ice cubes.
• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil (heavy grade), polythene bags and plastic containers are ideal. While freezing food; The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.
• For optimum appliance performance to reach maximum freezing capacity, turn knob to 5 position when placing fresh food in the freezer.
• After placing fresh food in the freezer, 24 hours position 5 is generally sufficient, after 24 hours, reset the thermostat to the desired position.

- Attention; In order to save energy, when freezing small amounts of food, reset the thermostat to the desired position.(Recommendation).

- Do not allow the fresh food to be frozen to come into contact with the already frozen food.

- Always mark the date and the content on the pack and do not exceed the stated storage time.

- In case of a power failure or malfunction, the freezer compartment will maintain a sufficiently low temperature for food storage. However, avoid opening the freezer door to slow down the temperature rise within the freezer compartment.

- The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is indicated on the name plate (see Freezing Capacity).

- Never place warm food in the freezer compartment.

- When purchasing and storing frozen food products; ensure that the packaging is not damaged.

- The storage time and the recommended temperature for storing frozen foods are indicated on the packaging. For storing and using, follow the manufacturer's instructions. If no information is provided, food should not be stored for more than 3 months.

- Place frozen food in the freezer compartment as soon as possible after buying it.

- Once the food is thawed, it must not be refrozen; you must cook it as quickly as possible in order to consume or to freeze once again.

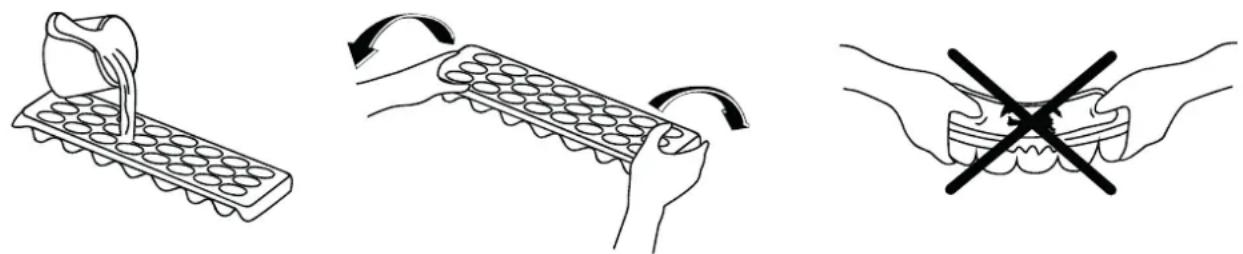

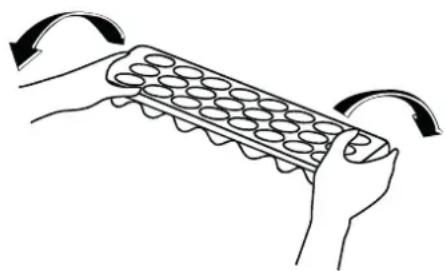

- When making ice cubes, fill the ice tray with water and place in freezer compartment. After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three steps of a dental tool: opening a tray, moving a tray with arrows indicating rotation, and removing it by hand (no text or symbols present)

Storage: If you want to use the maximum net capacity, you can remove the drawers and store the items directly on the cooling tubes. This will enable you to make use of the entire volume of the compartment.

CLEANING AND MAINTENANCE

- Disconnect the appliance from the power supply before cleaning.

• Do not clean the appliance by pouring water on it.
• The freezer compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water. Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed

reconnect the plug of the unit with dry hands.

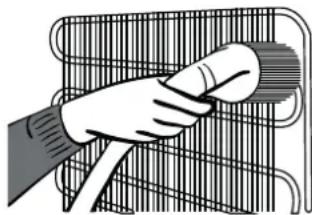

- You should clean the condenser with broom at least twice a year in order to provide energy saving and increase the productivity.

Illustration of a hand holding a tool over a wire rack (no text or symbols)

Defrosting the freezer

WARNING: Never use sharp metal tools, unless recommended by manufacturer, for this operation as they can damage the refrigeration circuit.

After a period of time, frost will build up in certain areas in the freezer. The frost, accumulated in the freezer, should be removed periodically (use the plastic scraper if available).

Complete defrosting will become necessary if the frost layer exceeds 3-5 mm to maintain the efficiency of the freezer.

• The day before you defrost, set the thermostat dial to position “5” to freeze the foods completely. (Recommendation)
• During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.
• Set the thermostat knob to position “•” and switch off the appliance.
• Leave the door open to accelerate defrosting. Remove the defrost water from the compartment.

If there is defrost water on the freezer floor, you can clear it away by using a sponge.

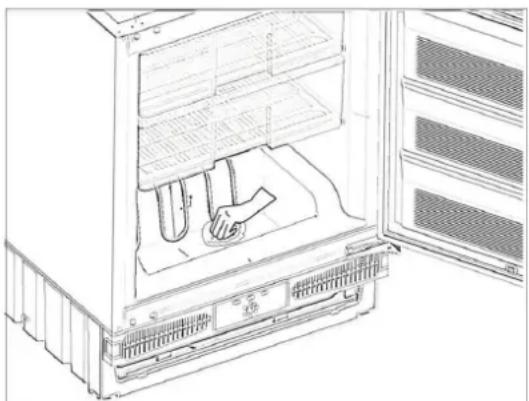

Line drawing of an open refrigerator with a hand inserting a cable into the drawer (no text or symbols)

KERNAU

• Clean the interior by hand with lukewarm water and a little detergent. Never use abrasive products or aggressive cleaning agents.
• Dry the inside of the unit, plug on the mains, and set the thermostat knob to position “5”. After 24 hours, reset the thermostat to the desired position.

BEFORE CALLING YOUR AFTER SALES SERVICE

If your freezer is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if;

• There is a power failure,
- The mains plug is not properly plugged in, or is loose
- The thermostat setting is on position “•”,
- The socket is defective. To check this, plug in another appliance that you know which is working into the same socket.

The appliance performs poorly;

Check if;

• You have overloaded the appliance,
  • The doors are not closed perfectly,
• There are not enough ventilation ducts on the kitchen unit as mentioned in the Installation Manual.

If there is noise;

• The cooling gas which circulates in the freezer circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different check if;
• The appliance is installed firmly as described in the installation manual.
• The objects on the appliance are vibrating.

If your freezer is not cooling enough;

Your freezer is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your freezer out of stated temperatures value limits in terms of cooling effectiveness.

Klasa klimatu	Temp. otoczenia
T	16 do 43 °C
ST	16 do 38 °C
N	16 do 32 °C
SN	10 do 32 °C

IMPORTANT NOTES:

• When power is off, to prevent any compressor problem you should un-plug the freezer. You should delay plugging in 5 – 10 minutes after you power supply. If you un-plug the freezer for a reason you should wait at least 5 min to plug it back in. It is important for avoiding damage to freezer's components.
• If you won't be using your freezer for a long time (such as on summer holidays), please disconnect the plug from the socket. Clean your freezer as per Part 4 of this document and leave the door open to prevent any humidification or odour formation.
• If there is still a problem with your freezer although you have followed the instructions in this book, please consult your nearest authorized service center.

Conformity information

- This appliance is designed for use at an ambient temperature within the 16^ C - 32^ C range.

Tips for saving energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker., etc). Otherwise use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. When placing, drinks and left-overs they must be covered. Otherwise humidity-increases in the appliance, therefore the working time gets longer. Also covering drinks and left-overs helps to save smell and taste.
4. When placing food and drinks, open the appliance door as briefly as possible.
5. Keep the covers closed of any different temperature compartment in the appliance (crisper, chiller ...etc).
6. The door gasket must be clean and pliable. Replace gaskets if worn.

PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Interior view of a white refrigerator with open door and internal compartments, labeled with numbers ① and ② (no text or symbols on the refrigerator itself)

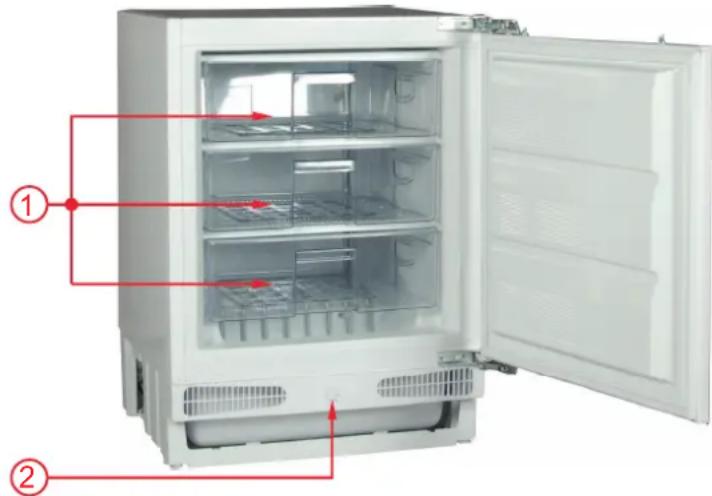

1) FREEZER DRAWERS
2) THERMOSTAT DIAL

The purpose of this presentation is informing you about the parts of your appliance. The parts may vary depending on the model of the appliance.

INSTALLATION INSTRUCTIONS

Installation Kit Contents

Line drawing of a screw with a plus sign on top (no text or symbols)

1. Wood screw x17

Technical line drawing of a mechanical bracket component (no text or symbols)

1. Door hanger

Simple line drawing of a mechanical bracket or clamp (no text or symbols)

1. Door Bottom Fixings x2

Simple line drawing of a cylindrical object with a slot, no text or symbols present

1. Hanger cover

5.Screw

6. Top bracket

Tools Required

Technical line drawing of a mechanical lever or support structure with two circular holes and a central notch (no text or symbols)

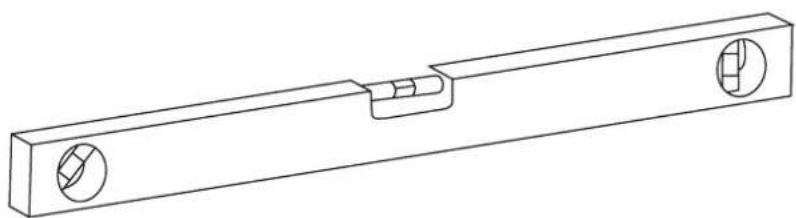

1. Spirit level

Line drawing of a wrench (no text or symbols)

8.Wrench

Simple line drawing of a structural bracket with mounting holes (no text or symbols)

9.Setsquare

Line drawing of a screwdriver with threaded tip and pointed tip (no text or symbols)

10.Screwdriver

NÁVOD K OBSLUZE LEDNIČKA/MRAZNIČKA KBF 08122

White refrigerator with open door showing front panel of a white appliance (no visible text or symbols on the main subject)

www.kernau.com

OBSAH

DŘÍVE NEŽ POUŽIJETE SVÉ ZAŘÍZENÍ......26

Diagram of two coiled heat exchangers with cooling arrows indicating airflow direction (no text or labels)

Line drawing of a pitcher pressing into a tray with circular wells (no text or symbols)

Illustration of hands holding a tray with circular wells, showing rotational arrows (no text or symbols)

Illustration of two hands holding dental crowns with a black X-shaped mark indicating a dental restorber (no text or symbols present)

Illustration of a hand holding a coiled cable or wire, with no visible text or symbols

Line drawing of an open refrigerator with a hand inserting a component (no text or symbols)

KERNAU

1) ŠUPLÍKY MRAZNIČKY 2) KNOFLÍK TERMOSTATU

Line drawing of a screw with a plus sign on top (no text or symbols)

1. Vrut do dřeva 17x

Technical line drawing of a mechanical bracket component (no text or symbols)

1. Dveřní závěs

Simple line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a cylindrical object with a slot, no text or symbols present

1. Krytka závěsu

5. Šroub

6. Horní vzpěra

Vyžadované nářadí

Technical line drawing of a mechanical lever or support structure with two circular holes and a central handle (no text or symbols)

1. Vodováha

Simple line drawing of a wrench (no text or symbols)

8.Klíč

Simple line drawing of a right-angle bracket with mounting holes (no text or symbols)

1. Úhloměr

Line drawing of a screwdriver with a pointed tip and threaded end (no text or symbols)

1. Šroubovák

White refrigerator with open door showing front panel of a white appliance (no visible text or symbols on the main subject)

www.kernau.com

INHALTSVERZEICHNIS

Diagram of two coiled heat exchangers with directional arrows indicating flow or movement (no text or symbols)

Illustration of a hand holding a coiled cable or wire, with no visible text or symbols

Abtauen

Line drawing of an open refrigerator with a hand placing a button on the drawer (no text or symbols)

Line drawing of a screw with a plus sign on top (no text or symbols)

Technical line drawing of a mechanical bracket component (no text or symbols)

1. Türhänger

Simple line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a cylindrical object with a slot, no text or symbols present

1. Blende des Hängers

5. Schrauben

6. Obere Halterung

Technical line drawing of a mechanical component with two circular holes and a central slot (no text or symbols)

1. Wasserwaage

Line drawing of a wrench (no text or symbols)

8.Schlüssel

Simple line drawing of a structural bracket with mounting holes (no text or symbols)

1. Winkelmesser

Line drawing of a screwdriver with a pointed tip and threaded end (no text or symbols)

1. Schraubenzieher

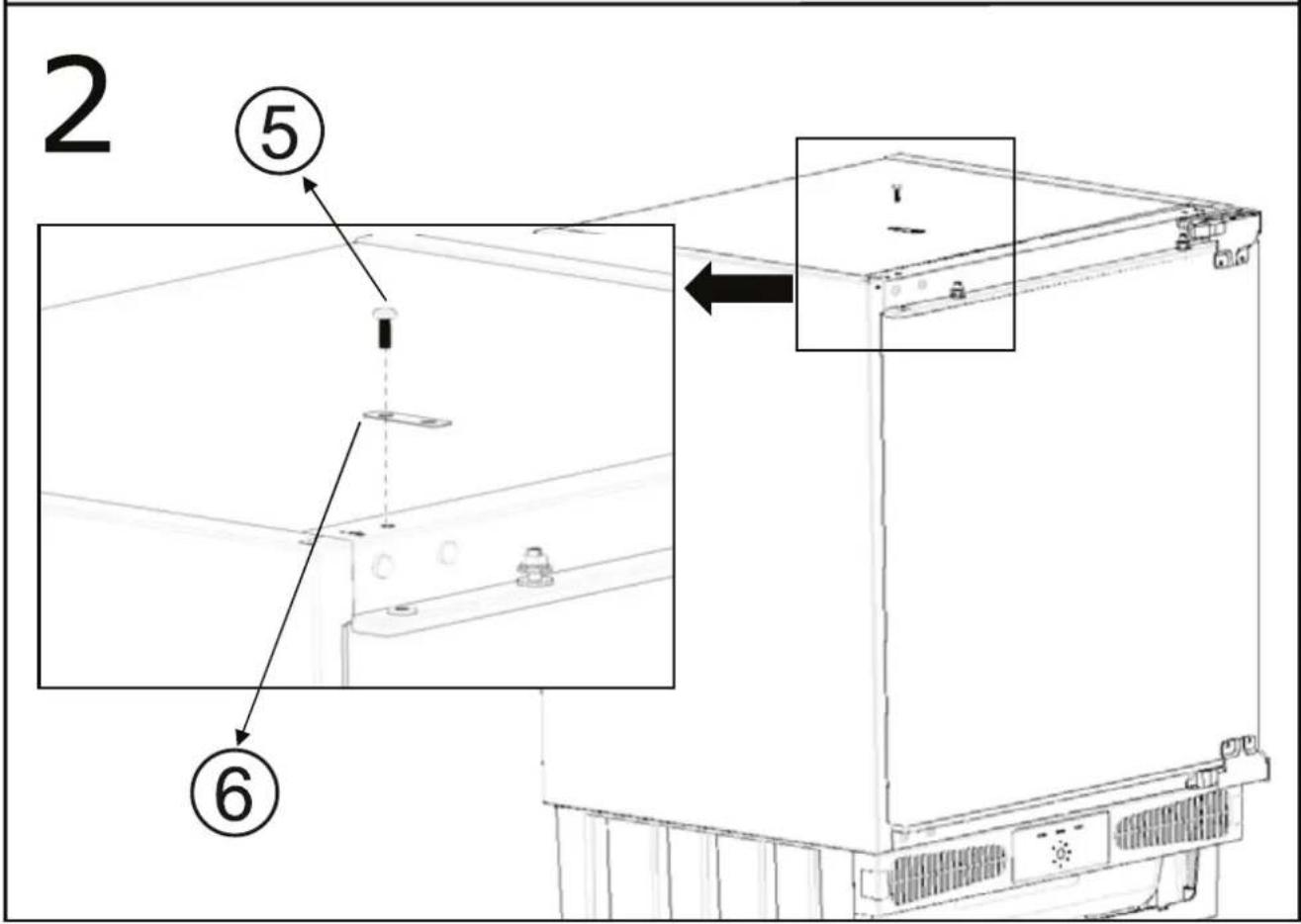

3

Illustration of two hands holding a rectangular object, enclosed in a circle (no text or symbols)

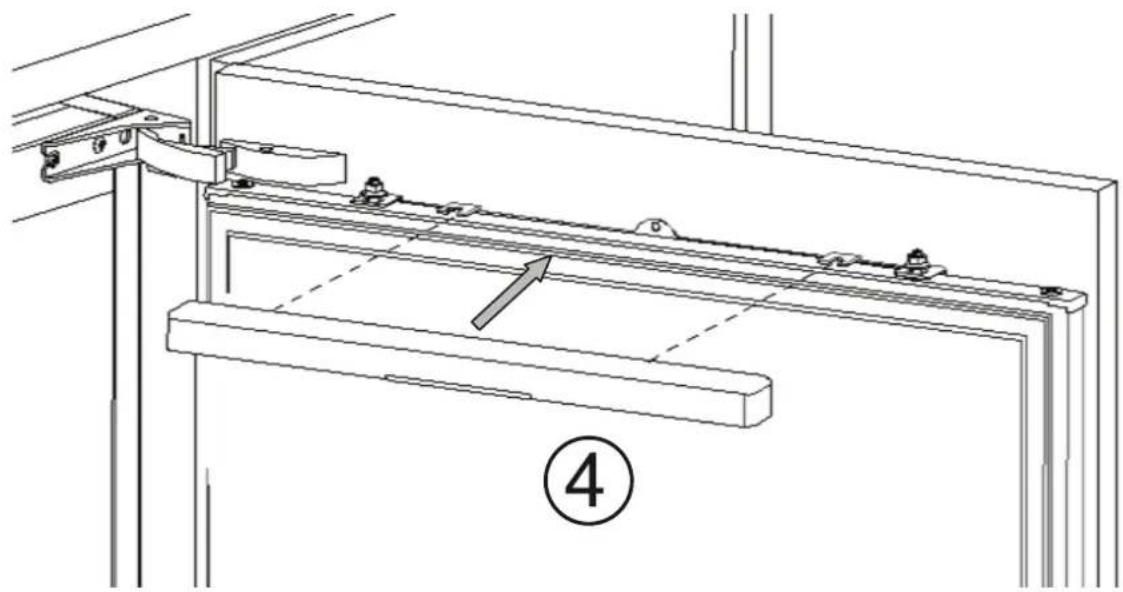

4

5

6

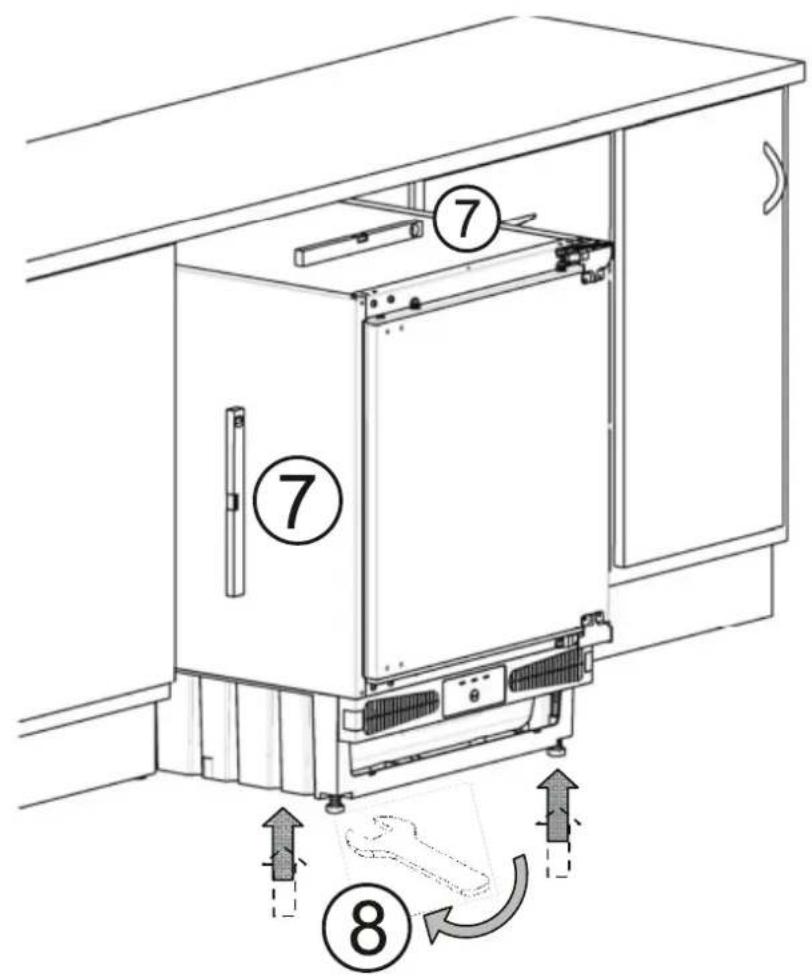

7

Simple line drawing of a table with two upward arrows and three small objects on the surface (no text or symbols)

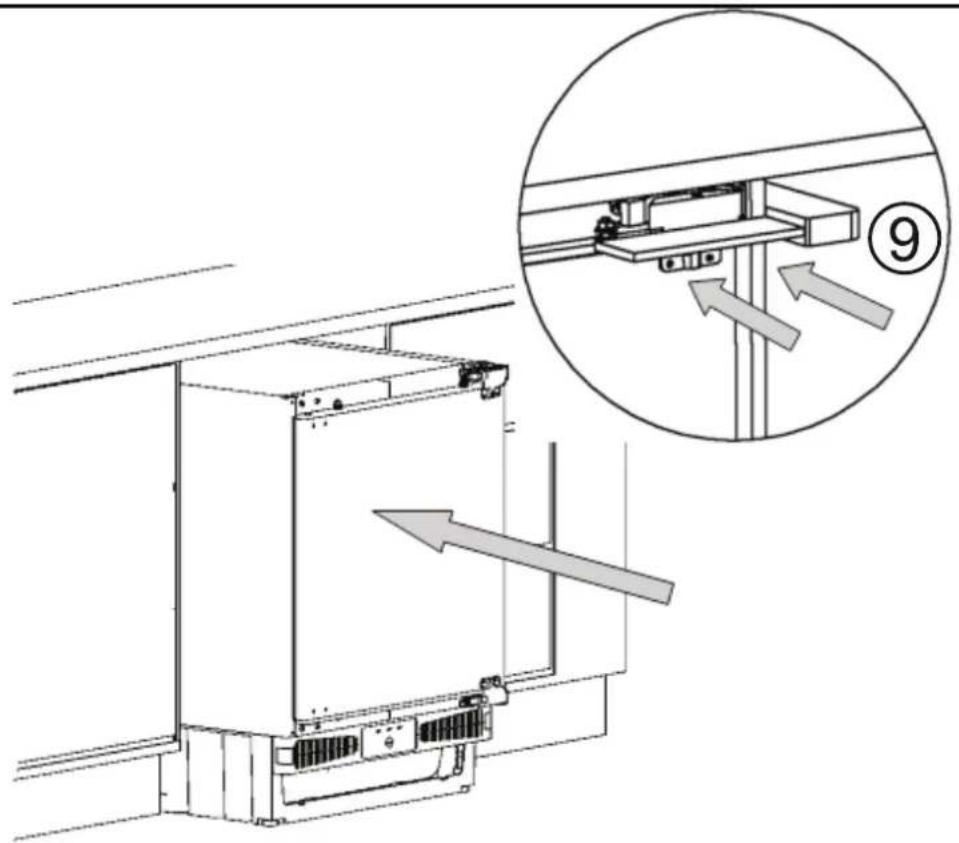

8

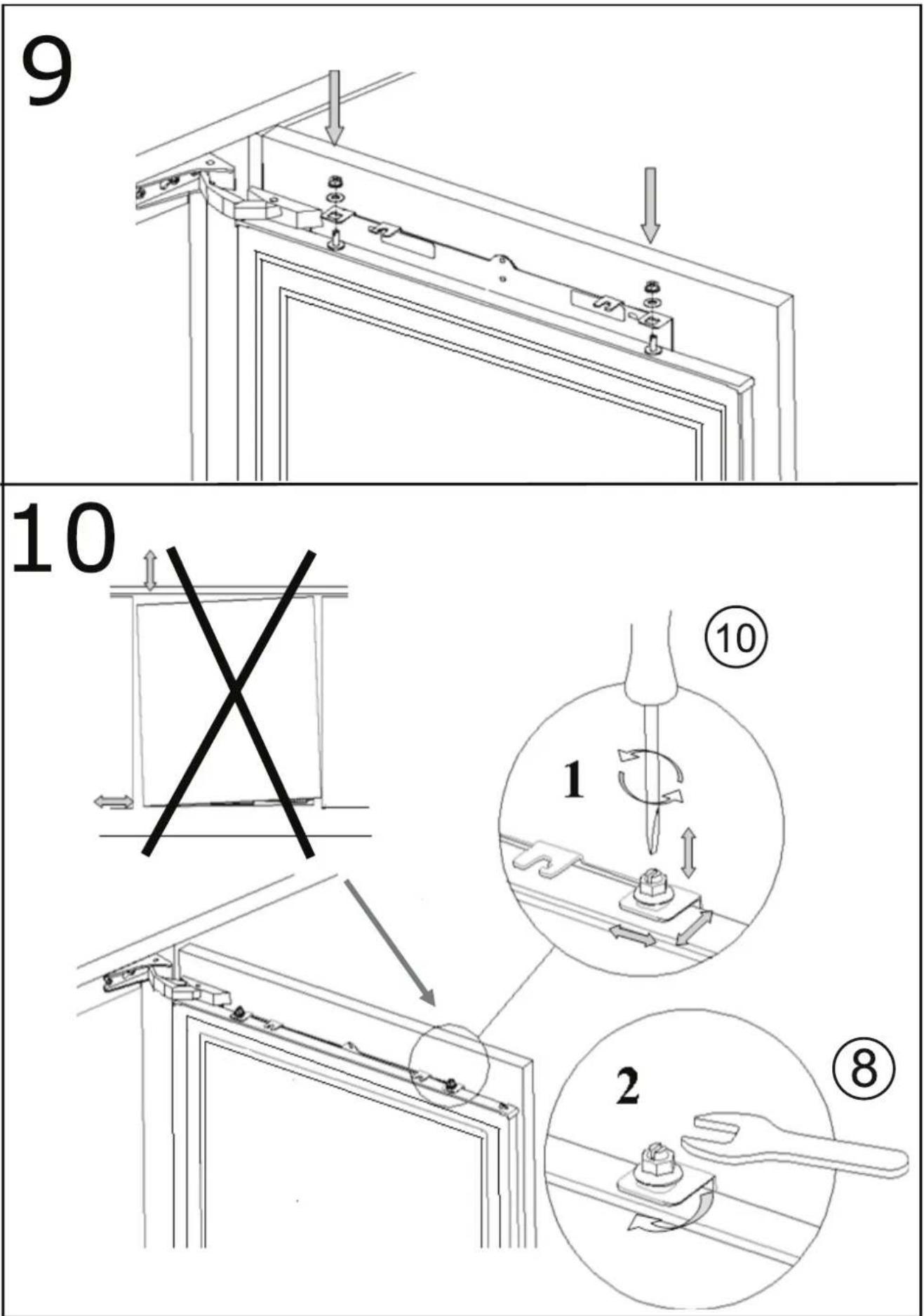

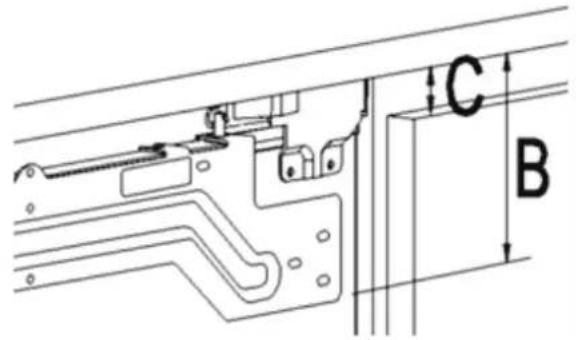

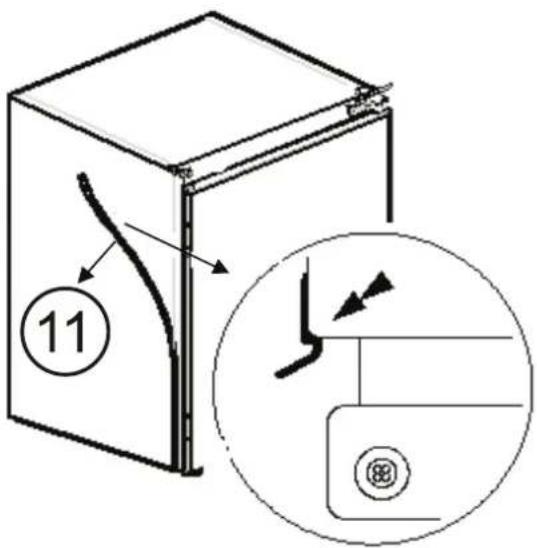

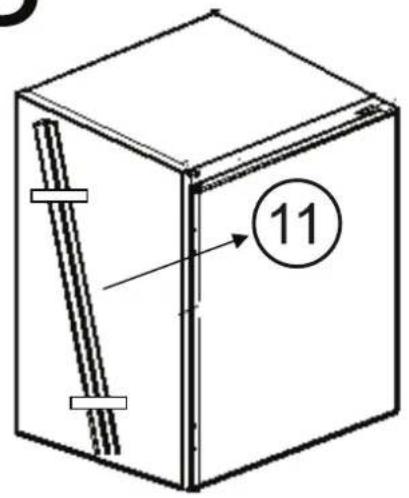

11

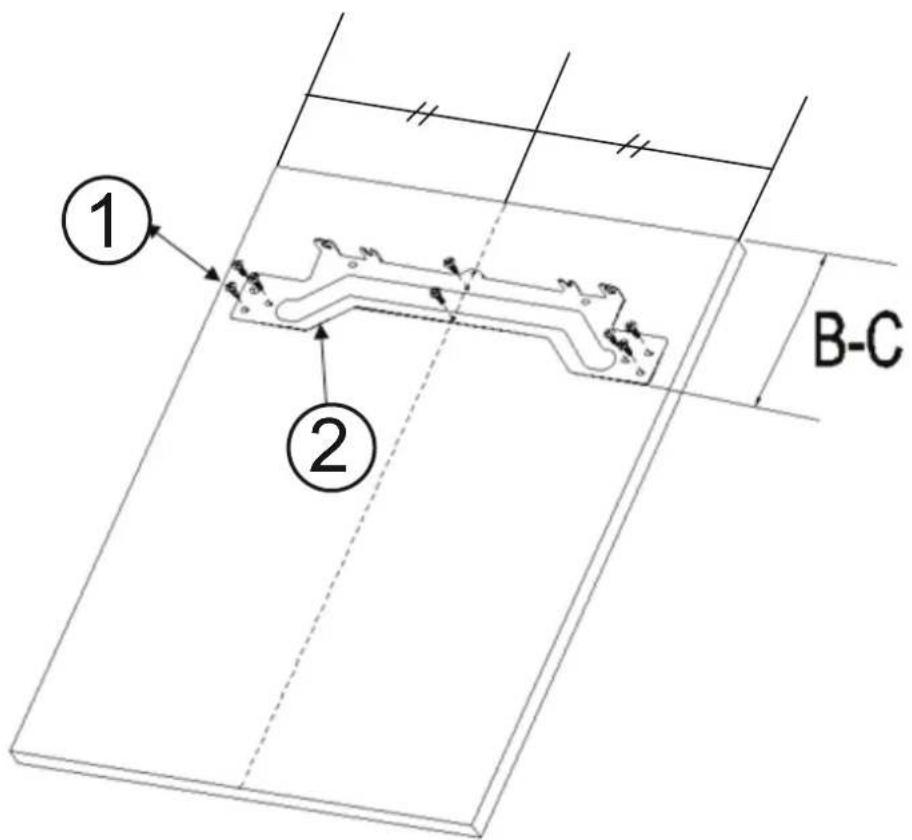

12

Technical line drawing of a structural frame assembly with no visible text or symbols

13

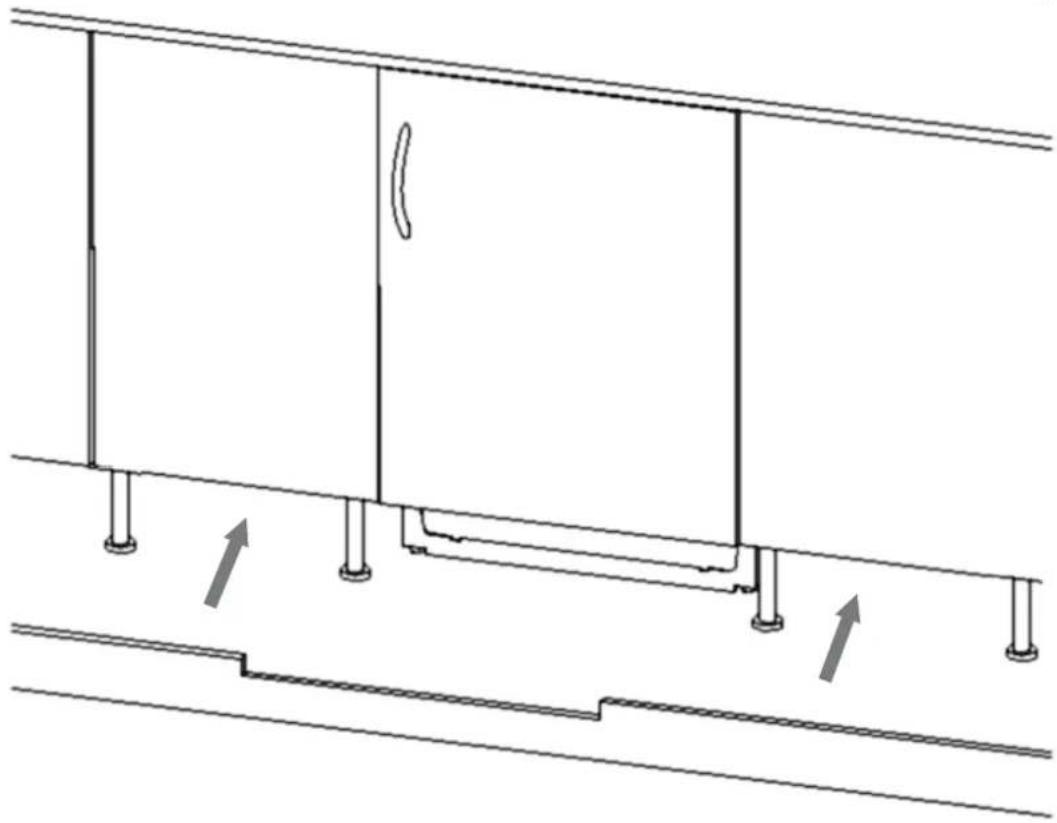

Technical line drawing of a cabinet or enclosure structure with two horizontal supports and directional arrows indicating movement (no text or symbols)

KERNAU

— Witaj w domu —
