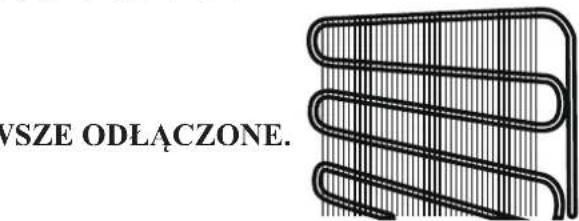

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

PRZED ROZPOCZĘCIEM KORZYSTANIA Z ZAMRAŻARKI

Illustration showing three steps of a food preparation procedure: egg drop, shell filling, and hand holding a tooth with a crossed-out tool (no text or symbols)

Technical line drawing of a mechanical device with two circular components and mounting brackets (no text or symbols)

Pure technical line drawing of a mechanical or electrical component without any text, numbers, or symbols

CZEŚĆ 3. WKŁADANIE ŻYWNOŚCI

Cartoon illustration of a smiling refrigerator with arms and legs, giving thumbs up and giving thumbs-up (no text or symbols)

Cartoon illustration of a smiling rectangular box with two baby dolls beside it (no text or symbols)

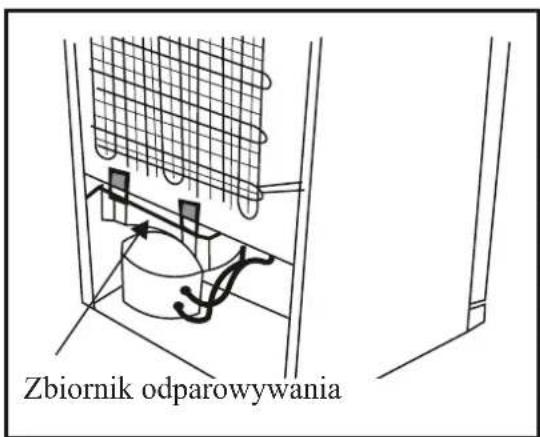

ROZMRAŻANIE

Line drawing of a cabinet interior showing internal shelves and door frame (no text or symbols)

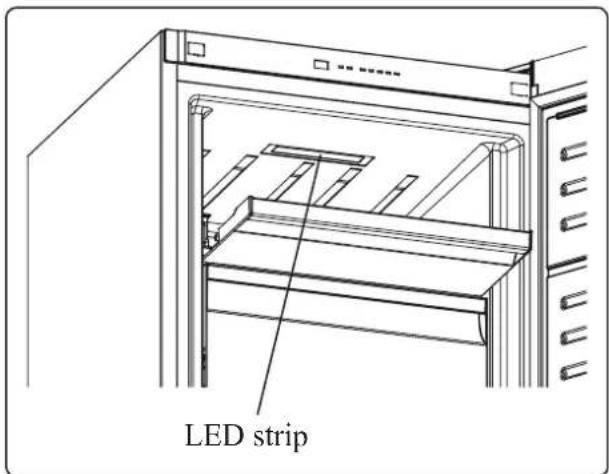

Pasek LED

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Technical line drawing of a mechanical assembly with two circular components and mounting brackets (no text or symbols)

Front view of a white stainless steel refrigerator with open doors and slats (no visible text or symbols)

www.kernau.com

INDEX

CHAPTER 1. BEFORE USING THE APPLIANCE ...... 25

• GENERAL WARNINGS 25
• OLD AND OUT-OF-ORDER FRIDGES 26
  • DURING USAGE 27
• INSTALLATION WARNINGS 27
• BEFORE USING YOUR FREEZER 28

CHAPTER 2. USING THE APPLIANCE ...... 29

• INFORMATION ON NO-FROST TECHNOLOGY 29
- DISPLAY AND CONTROL PANEL 9
- ACCESORIES 31

CHAPTER 3. FOOD STORAGE ...... 32

CHAPTER 4. CLEANING AND MAINTENANCE ...... 36

• DEFROSTING 36

CHAPTER 5. SHIPMENT AND REPOSITIONING .... 37

CHAPTER 6. BEFORE CALLING AFTER-SALES SERVICE ...... 38

• TIPS FOR SAVING ENERGY 39

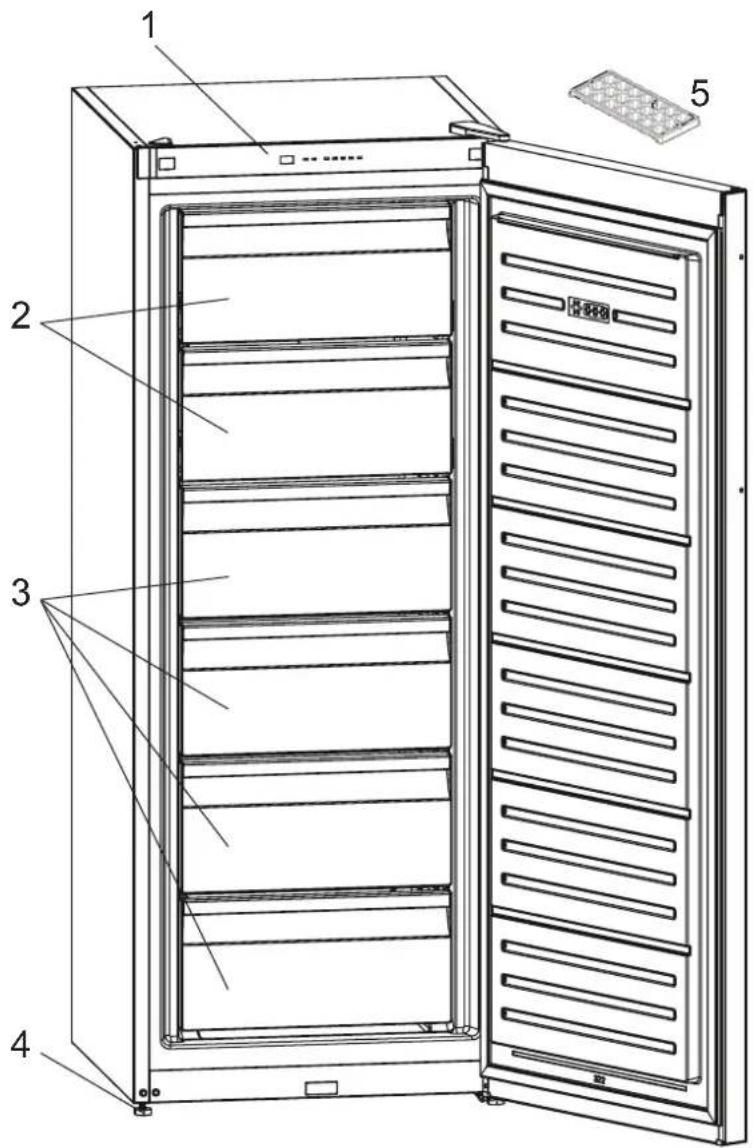

CHAPTER 7. DESCRIPTION OF THE APPLIANCE ...... 41

CHAPTER 8. DISPOSAL OF USED EQUIPMENT ...... 42

CHAPTER 1. BEFORE USING THE APPLIANCE

GENERAL WARNINGS

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions.

If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to home use only.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

OLD AND OUT-OF-ORDER FRIDGES

- If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE DECLARATION OF CONFORMITY

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

PACKAGING AND THE ENVIRONMENT

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

NOTES:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

DURING USAGE

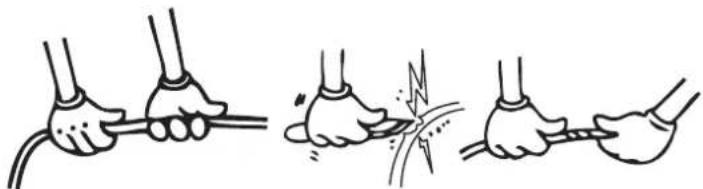

- Do not connect your freezer to the mains electricity supply using an extension lead.

• Do not use damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

Illustration of four hands performing a manual labor technique on a cable, showing different postures (no text or symbols present)

- This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.

- Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

- Do not place glass bottles or cans in your freezer as they will burst when the contents freeze.

• Do not place explosive or flammable material in your freezer.

- When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

- Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after they are removed from the ice-making compartment.

- Do not re-freeze thawed frozen food. This may cause health issues such as food poisoning.

- When the door of the freezer is closed, a vacuum seal will form. Wait for 1 minute before reopening it.

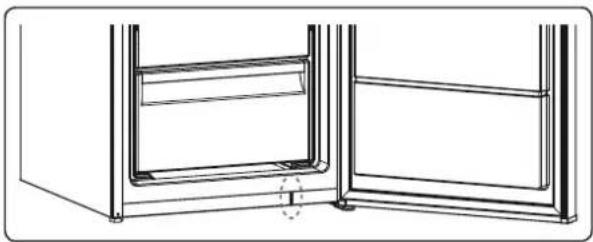

- This application is optional for easy opening of the door. With this application, a little condensation may occur around this area and you may remove it.

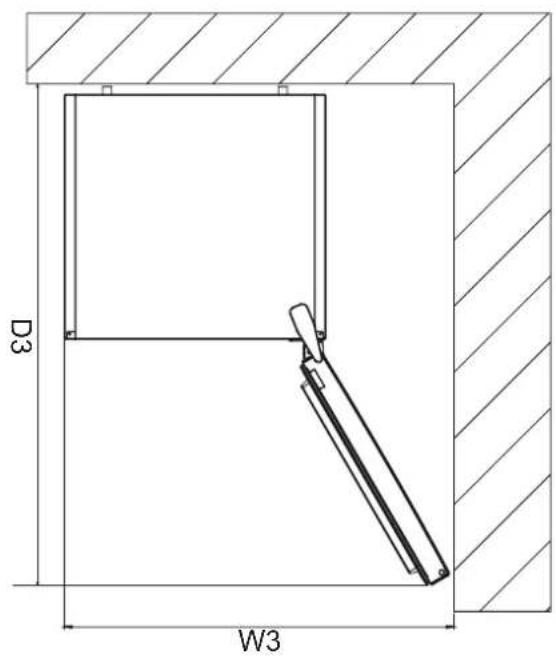

Technical line drawing of a door frame with open and closed doors, showing structural details (no text or symbols)

INSTALLATION WARNINGS

Before using your freezer for the first time, please pay attention to the following points:

• The operating voltage for your freezer is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Do not use plug adapter.
- Your freezer may have an odour when it is operated for the first time. This is normal and the odour will fade when your freezer starts to cool.
- Before connecting your freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
- The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your freezer where it will not be exposed to direct sunlight.

- Your freezer must never be used outdoors or exposed to rain.

- Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- If your freezer is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not cover the body or top of freezer with lace. This will affect the performance of your freezer.

- Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.

- Do not place heavy items on the appliance.

- Clean the appliance thoroughly before use (see Cleaning and Maintenance).

- Before using your freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the freezer after cleaning.

- Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.

- Install the two plastic distance guides (the parts on the black vanes -condenser- at the rear) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.

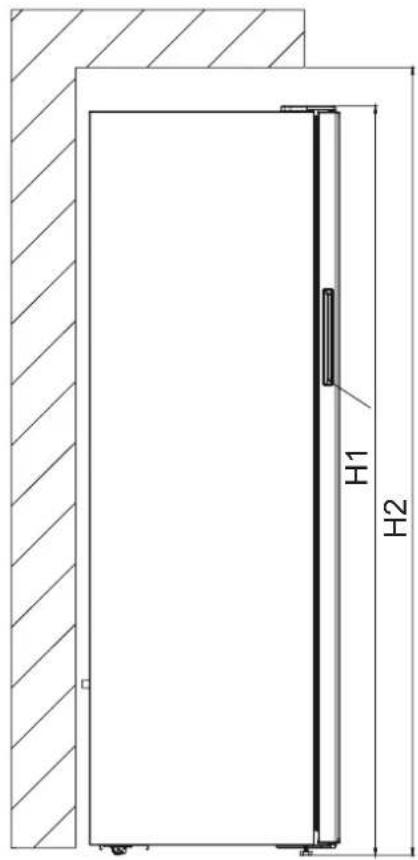

- The distance between the appliance and back wall must be a maximum of 75 mm.

Cartoon illustration of a distressed refrigerator with arms and legs, showing a sad face (no text or symbols)

Diagram of two coiled heat exchangers with internal structures and directional arrows (no text or labels)

- When using your freezer for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

- Your freezer may have a smell when it is operated for the first time. This is normal and the smell will fade away when your freezer starts to cool.

CHAPTER 2. USING THE APPLIANCE

INFORMATION ON NO-FROST TECHNOLOGY

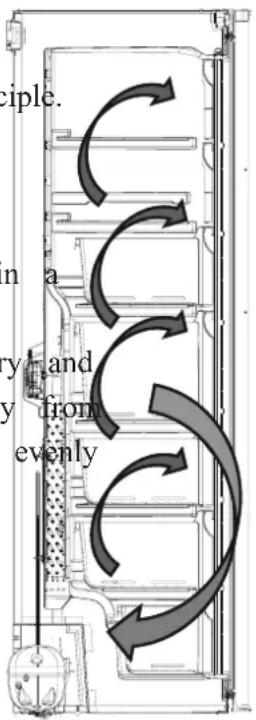

No-frost freezers differ from other static freezers in their operating principle. In normal freezers, the humidity entering the freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the freezer, place the food that needs to be kept frozen in separately cooled container and remove the ice gathered in the freezer compartment. The situation is completely different in no-frost freezers. Dry cold air is blown into the freezer compartment homogeneously and evenly several points via a blower fan. Cold air dispersed homogeneously and between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing. Therefore your no-frost freezer allows you ease of use, in addition to its huge capacity and stylish appearance.

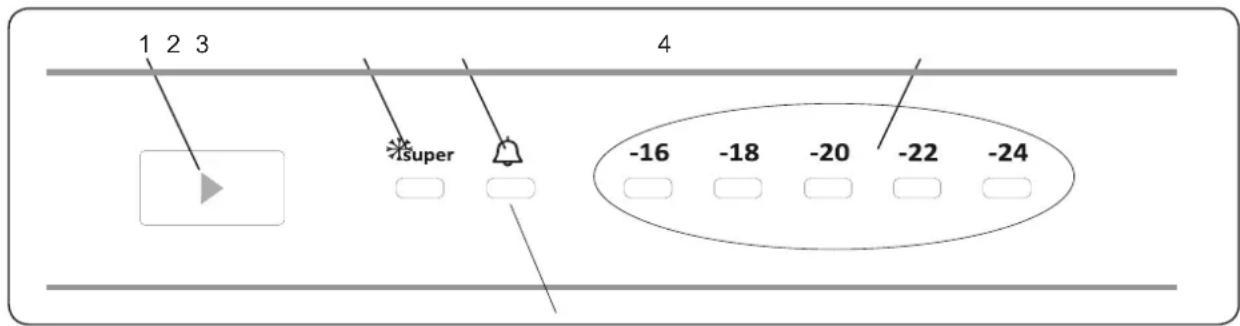

DISPLAY AND CONTROL PANEL

Using the Control Panel

1. Freezer temperature set button
2. Super freeze symbol (Super freeze LED)
3. Alarm symbol (Alarm LED)
4. Freezer adjusted temperature indicator

Lighting (If available)

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

Freezer Temperature Set Button

This button allows setting temperature of the freezer. In order to set values for freezer partition, press this button. Use this button also to activate super freeze mode.

ALARM SYMBOL (ALARM LED)

In case of a problem within the freezer, the alarm led will release red light.

SUPER FREEZER MODE

When Would It Be Used?

• To freeze huge quantities of food.
• To freeze fast food.
• To freeze food quickly.
• To store seasonal food for a long time.

How To Use?

• Press temperature set button until super freezing light comes on.
• Super freezing led will light during this mode.
• Maximum amount of fresh food (in kilograms) to be frozen within 24 hours is shown on the appliance label.
• For optimal appliance performance in maximum freezer capacity, set the appliance to active super freeze mode 24 hours before you put the fresh food into the freezer.

During This Mode:

If you press temperature set button, the mode will be cancelled and the setting will be restored from -16.

WARNING:

Super freeze mode will automatically cancel after 24 hours, depending on the environmental temperature or when the freezer sensor reaches a sufficiently low temperature.

FREEZER TEMPERATURE SETTINGS

• The initial temperature of the setting display is -18^ .
• Press freezer setting button once.
• Every time you press the button, the setting temperature will decrease. (-16 °C, -18 °C, -20 °C, -22 °C, -24 °C,... super freezing).
• If you press freezer setting button until super freezer symbol is displayed on freezer.
• Settings display and you do not press any button within the following 3 seconds, super freezing will blink.
• If you keep on pressing, it will restart from last value.

RECOMMENDED TEMPERATURE VALUES FOR FREEZER

WHEN TO ADJUST INNER TEMPERATURE
For minimum freezing capacity -16 °C, -18 °C
In normal usage -18 °C, -20 °C, -22 °C
For maximum freezing capacity -24 °C

IMPORTANT INSTALLATION INSTRUCTIONS

This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110 degrees F) and is powered with ‘Freezer Shield’ technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

TEMPERATURE ADJUSTMENT WARNINGS

- It is not recommended that you operate your freezer in environments colder than 10^ C in terms of its efficiency.

- Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the freezer and the ambient temperature in the location of your freezer.

- In order to allow your freezer to reach the operating temperature after being connected to mains, do not open the door frequently or place large quantities of food in the freezer. Please note that, depending on the ambient temperature, it may take 24 hours for your freezer to reach the operating temperature.

- A 5 minute delay function is applied to prevent damage to the compressor of your freezer when connecting or disconnecting to mains, or when an energy breakdown occurs. Your freezer will begin to operate normally after 5 minutes.

- Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. It not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

CLIMATE CLASS AND MEANING

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

ACCESORIES

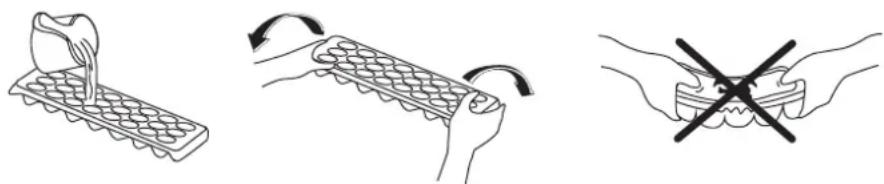

Making Ice cubes (Ice tray)

- Fill the ice tray with water and place in the freezer compartment.

- After the water has completely turned into ice, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three steps of a food item being handled: opening, rotating, and cutting into a bowl (no text or symbols)

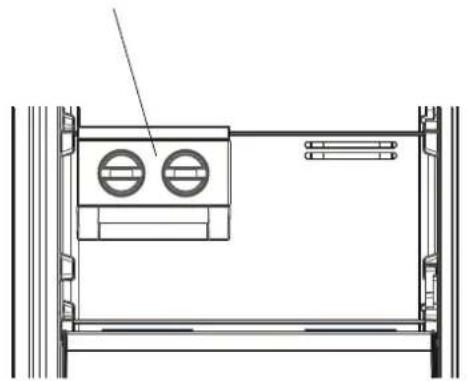

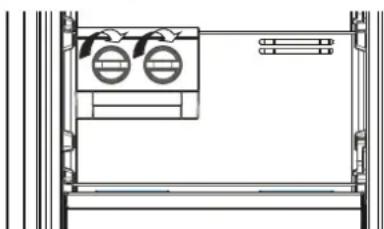

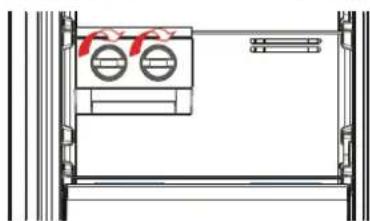

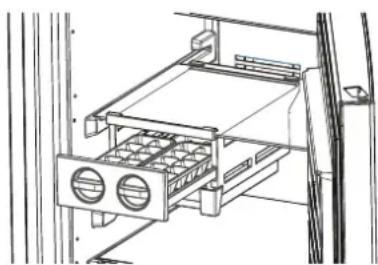

Making Ice Cubes (In some models)

• Pull the lever towards you and remove the ice maker tray
- Fill with water to the level of line
- Hold the left end of the lever and set the ice-tray on the icebox
- When ice cubes are formed, twist the lever to drop ice cubes into the ice box.

Do not fill the icebox with water in order to make ice. It can break.

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

Technical line drawing of a mechanical device with internal compartments and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with two circular components and mounting brackets (no text or symbols)

CHAPTER 3. FOOD STORAGE

• The freezer compartment is used for freezing fresh food, for storing frozen foods for the period of time indicated on packaging and for making ice cubes..
• Do not put fresh and warm food next to frozen food as it can thaw the frozen food.
• While freezing fresh foods (i.e. meat, fish and mincemeat) divide them in portions you will use in a single serving.
• For storing frozen foods, the instructions shown on frozen food packages should always be followed carefully. If no information is provided, food should not be stored for more than 3 months from the purchased date.
• Maximum load: if you want to store large quantities of food and use the maximum net capacity of the freezer, you can remove all the sliding drawers but you should keep the upper shelf flaps. Thanks to this, it is possible to store bulky items directly on the shelves.
• When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen food should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows signs of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated..
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.
• If you would use maximum freezing capacity of your freezer:
• While freezing fresh foods, the maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label. (your refrigerator has the capacity to freeze 25 kg at 25°C ambient)
• For optimum appliance performance to reach maximum freezing capacity, activate Super Freeze (SF) mode 24 hours before placing fresh food into the freezer.
• After placing fresh food into the freezer, 24 hours is generally sufficient for freezing. "Super Freeze" mode will be deactivated automatically in 2-3 days to save energy.
• If you would freeze a small amount (up to 3 kg) in your freezer:
• Place your food without touching already frozen food and activate “Fast Freezing” mode. You can put your food next to other frozen food after it is completely frozen (after minimum 24 hours).
• Do not re-freeze frozen food after it has thawed. This may cause health issues, such as food poisoning.
• Allow hot food to completely cool down before placing it in the freezer.
• When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.

FREEZING FRESH FOOD

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom of the compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours: during this period do not add other food to be frozen.

MEAT AND FISH PREPARATION		Maximum storage time (months)	Defrosting time at room temperature (in hours)
Steak	Wrap in foil	6 – 10	1 – 2
Lamb meat	Wrap in foil	6 – 8	1 – 2
Veal roast	Wrap in foil	6 – 10	1 – 2
Veal cubes	In small pieces	6 – 10	1 – 2
Lamb cubes	In pieces	4 – 8	2 – 3
Minced meat	In packaging without using spices	1 – 3 2 – 3
Giblets (pieces)	In pieces	1 – 3	1 – 2
Bologna sausage/salami	Should be kept packaged even if it has a membrane	1 – 2 —
Chicken and turkey	Wrap in foil	7 – 8	10 – 12
Goose and duck	Wrap in foil	4 – 8	10
Deer, rabbit, wild boar	In 2.5 kg portions or as fillets	9 – 12	10 – 12
Freshwater fish (Salmon, Carp, Crane, Catfish)	After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.	2	For comolete thawing.
Lean fish (Bass, Turbot, Flounder)		4 – 8
Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)		2 – 4
Shellfish	Clean and in a bag	4 – 6	For comolete thawing.
Caviar	In its packaging, or in an aluminium or plastic container	2 – 3	For comolete thawing.
Snails	In salty water, or in an aluminium or plastic container	3	For comolete thawing.

NOTE:

Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

VEGETABLES AND FRUITS	PREPARATION	Maximum storage time (months)	Defrosting time at room temperature (in hours)
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10 – 12	Can be used in frozen form.
String beans and beans	Wash, cut into small pieces and boil in water	10 – 13	Can be used in frozen form.
Beans	Hull, wash and boil in water	12	Can be used in frozen form.
Cabbage	Clean and boil in water	6 – 8	2
Eggplant	Cut into pieces of 2cm after washing	10 – 12	Separate the discs from each other.
Corn	Clean and pack with its stem or as sweet corn	12	Can be used in frozen form.
Carrot	Clean, cut into slices and boil in water	12	Can be used in frozen form.
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8 – 10	Can be used in frozen form.
Spinach	Wash and boil in water	6 – 9	2
Apple and pear	Peel and slice	8 – 10	(In the freezer) 5
Apricot and Peach	Cut into two pieces and remove the stone	4 – 6	(In the freezer) 4
Strawberry and Blackberry	Wash and hull	8 – 12	2
Cooked fruits	Add 10 % of sugar to the container	12	4
Plum, cherry, sourberry	Wash and hull the stems	8 – 12	5 – 7

NOTE:

Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

DAIRY PRODUCTS PREPARATION		Maximum storage time (months)	Storage conditions
Packet (Homogenized) Milk	In its own packet	2 – 3	Pure Milk – in its own packet
Cheese - excluding white cheese	In slices 6 – 8		Original packaging may be used for short-term storage.Keep wrapped in foil for longer periods.
Butter, margarine	In its packaging	6	—

	Maximum storage time (months)	Thawing time at room temperature (hours)	Thawing time in oven (minutes)
Bread	4 - 6	2 – 3	4-5 (220-225 °C)
Biscuits	3 - 6	1 – 1,5	5-8 (190-200 °C)
Pastry	1 - 3	2 – 3	5-10 (200-225 °C)
Pie	1 - 1,5	3 – 4	5-8 (190-200 °C)
Phyllo dough	2 - 3	1 – 1,5	5-8 (190-200 °C)
Pizza	2 - 3	2 – 4	15-20 (200 °C)

CHAPTER 4. CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water.

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food nearby (no text or symbols)

Make sure that no water enters the lamp housing and other electrical components.

Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer.

Do not use abrasive products, detergents or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

THE POWER SUPPLY MUST BE DISCONNECTED DURING CLEANING.

Pure diagram of a coiled spring or heat exchanger without any text, labels, or symbols

DEFROSTING

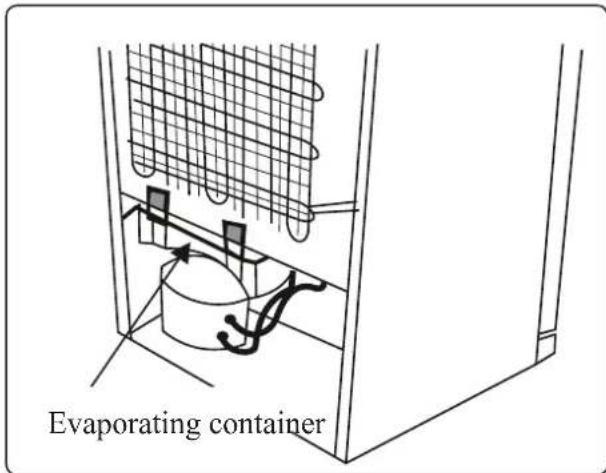

Your freezer has fully automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container below the condenser and evaporates there.

REPLACING LED LIGHTING

Depending on the model, one LED strip in the freezer is used to illuminate the interior of your appliance. To replace any of the LEDs, please contact the nearest Authorised Service Centre.

CHAPTER 5. SHIPMENT AND REPOSITIONING

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts (drawers, Ice trays and so on) or fix them into the appliance against shocks using bands when re-positioning or transporting.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

ALWAYS CARRY YOUR APPLIANCE IN THE UPRIGHT POSITION.

REPOSITIONING THE DOOR

• It is not possible to change the opening direction of your appliance door if door handles are installed on the front surface of the appliance door.
• It is possible to change the opening direction of the door on models without handles.
• If the door-opening direction of your appliance can be changed, contact the nearest Authorised Service Centre to change the opening direction.

CHAPTER 6. BEFORE CALLING AFTER-SALES SERVICE

Errors:

Your freezer will warn you if the temperatures for the freezer is at improper levels or if a problem occurs with the appliance. In case of a problem within the freezer, the alarm led will release red light.

ALARM INDICATORLED IS TURNING ON MEANING WHY WHAT TO DO
	„Failure”Warning	There is/are some part(s) out of order or there is a failure in the cooling process. The product is plugged for the first time or a long-time power interruption for 1 hour.	Check the door is open or not and check if the product working 1 hour. If the door is not open and the product had worked 1 hour, call service for assistance as soon as possible.

If you are experiencing a problem with your freezer, please check the following before contacting the after-sales service.

Your freezer is not operating, check if:

• There is power.
• The plug is correctly placed in the socket.
• The plug fuse or the mains fuse has blown.

- The socket is faulty. Examine this by plugging your freezer into a working socket.

What to do if your appliance performs poorly, check that:

• You have not overloaded the appliance.
  • The freezer temperature set to -16.
  • The doors are closed perfectly.
  • There is no dust on the condenser.
• There is enough place at the rear and side walls.

Your freezer is operating noisily:

Normal noises, cracking (ice cracking) noise occurs:

• During automatic defrosting.
• When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking noise occurs:

- When the thermostat switches the compressor on/off.

Motor noise:

- Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash occurs:

- Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs:

- Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs:

- In No-Frost freezers during normal operation of the system due to the circulation of air.

The edges of the freezer in contact with the door joint are warm:

- Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor, this is normal.

The door does not open or close properly, check if:

• There is food or packaging preventing the door from closing.
  • The door joints are broken or torn.
• Your freezer is on a level surface.

RECOMMENDATIONS:

• In the case of a power failure, or if the appliance is unplugged and plugged in again, the gas in the cooling system of your freezer will destabilise, causing the compressor protective thermal element to open. Your freezer will start to operate normally after 5 minutes.
• If the appliance will not be used for a long period of time (such as during holidays), disconnect the plug. Defrost and clean the freezer, leaving the door open to prevent the formation of mildew and odour.
• If the problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.
• This appliance is designed for domestic use and for the stated purposes only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these instructions, we emphasise that the manufacturer and the dealer will not be responsible for any repair or failure within the guarantee period.

TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
4. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
5. The door gasket must be clean and pliable. In case of wear, if your gasket is detachable, replace the gasket. If not detachable, you have to replace the door.

- The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks.

- The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.

• Repairs may be carried out by technicians only.

- If a component has to be replaced, ensure that only original spare parts are used.

- Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

- Contact information for your customer service can be found on the back of this document.

- Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Customer service:

PL: [phone]

Mon 7:00 - 17:00

Tue-Fri 9:00 - 17:00

[e-mail]

CHAPTER 7. DESCRIPTION OF THE APPLIANCE

This appliance is not intended to be used as a built-in appliance.

In some models there is a shelf with icematic in the top basket.

Technical line drawing of a mechanical or electrical enclosure with two circular components and a horizontal bar (no text or symbols)

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

* In some models

1. Control panel
2. Freezer flaps
3. Freezer drawers
4. Levelling feet
5. Ice tray / Icematic shelf *

Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

CHAPTER 8. DISPOSAL OF USED EQUIPMENT

Fig. A

Fig. B

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. A crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials.

Penalties may be imposed in accordance with national legislation for improper disposal of this product.

If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device.

Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

NVOD K OBSLUZE SKŘÍŇOVÁ MRAZNIČKA KFUF 15162 NF W

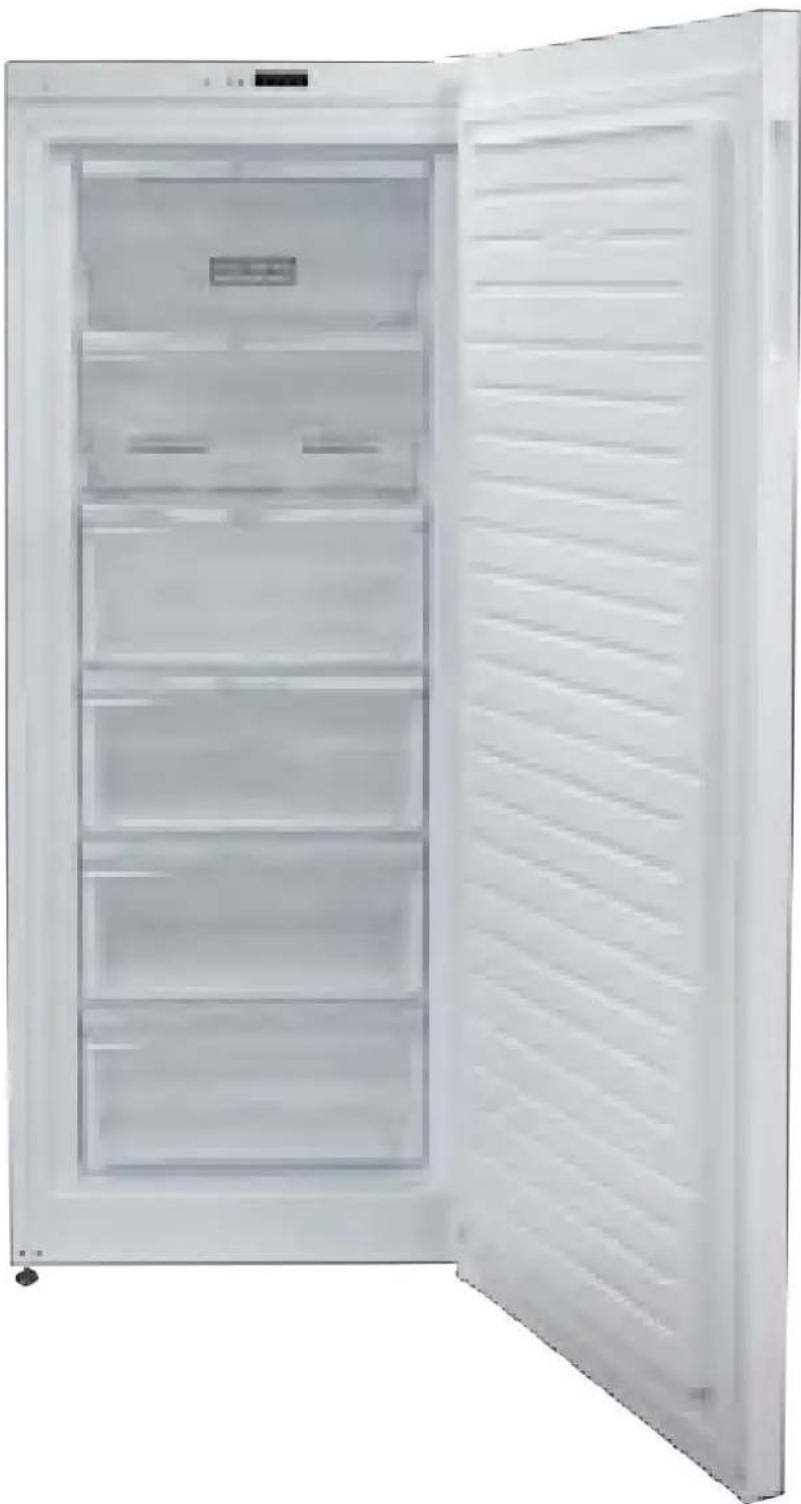

Front view of a white stainless steel refrigerator with open doors and slats (no visible text or symbols)

www.kernau.com

OBSAH

KAPITOLA .1 PŘED POUŽITÍM SPOTŘEBIČE 44

• OBECNÁ UPOZORNĚNÍ 44
- BEZPEČNOSTNÍ VAROVÁNÍ 45
INFORMACE O INSTALACI 46
- NEŽ ZAČNETE MRAZNIČKA POUŽÍVAT 47

KAPITOLA 2. INFORMACE O POUŽITÍ 48

• TECHNOLOGIE NO-FROST 48
  • DISPLEJ A OVLÁDACÍ PANEL 48
  • PŘÍSLUŠENSTVÍ 50

KAPITOLA 3. ROZMÍSTĚNÍ POTRAVIN VE SPOTŘEBIČI ...... 51

KAPITOLA 4. ČIŠTĚNÍ A ÚDRŽBA 54

• ROZMRAZOVÁNÍ 54

KAPITOLA 5. PŘEPRAVA A ZMĚNA MÍSTA INSTALACE.... 55

KAPITOLA 6. NEŽ BUDETE KONTAKOVAT SERVISNÍ CENTRUM 56

• TIPY PRO ÚSPORU ENERGIE 58

KAPITOLA 7. CHARAKTERISTIKY VÝROBKU 59

KAPITOLA 8. LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ ...... 60

KAPITOLA .1 PŘED POUŽITÍM SPOTŘEBIČE

OBECNÁ UPOZORNĚNÍ

Illustration of three hands performing a knot break operation, showing different postures (no text or symbols present)

Cartoon illustration of a distressed refrigerator with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Diagram of two coiled heat exchangers with heating elements (no text or labels)

NEŽ ZAČNETE MRAZNIČKA POUŽÍVAT

NASTAVENÍ TEPLOTY MRAZNIČKY

Illustration showing three steps of a dental tool: opening, pressing down, and removing a tooth (no text or symbols present)

Technical line drawing of a rack-mounted device with two circular vent grilles, labeled 'kociek' (no other text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

KAPITOLA 3. ROZMÍSTĚNÍ POTRAVIN VE SPOTŘEBIČI

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl, giving thumbs up (no text or symbols)

Illustration of three cartoon kitchen utensils: a refrigerator, a washing machine with a red cross mark, and a baby bottle (no text or symbols)

Pure diagram of a coiled heating element with no text or symbols

ROZMRAZOVÁNÍ

Simple line drawing of two children holding a large rectangular object (no text or symbols)

MRAZNIČKA PŘEVÁŽEJTE KOLMO.

PŘEMÍSTĚNÍ DVERÍ

Technical line drawing of a mechanical or electrical enclosure with two circular components and a horizontal panel (no text or symbols)

Front view of a white stainless steel refrigerator with open doors and slats (no visible text or symbols)

www.kernau.com

3MICT

Illustration showing three different techniques for connecting wires, with no text or symbols present.

Cartoon illustration of a distressed container with arms and legs, holding a paper labeled 'KG' (no text or symbols beyond the label)

Diagram of two coiled heat exchangers with cooling fans and a valve mechanism (no text or labels)

Diagram of a vertical cylindrical device with curved arrows indicating rotational flow, no text or symbols present.

Illustration showing three steps of a dental tool: slicing, holding a grid tray, and removing a tooth (no text or symbols)

(Ice matic — за наявности)

Technical line drawing of an indoor appliance with two circular vent slots and a control panel (no text or symbols)

Cartoon illustration of a smiling cube character giving thumbs up and giving medicine, with no text or symbols present.

Cartoon illustration of a refrigerator with a sad face and two smaller bottles nearby (no text or symbols)

Technical line drawing of a cabinet or rack unit with internal components and mounting brackets (no text or symbols)

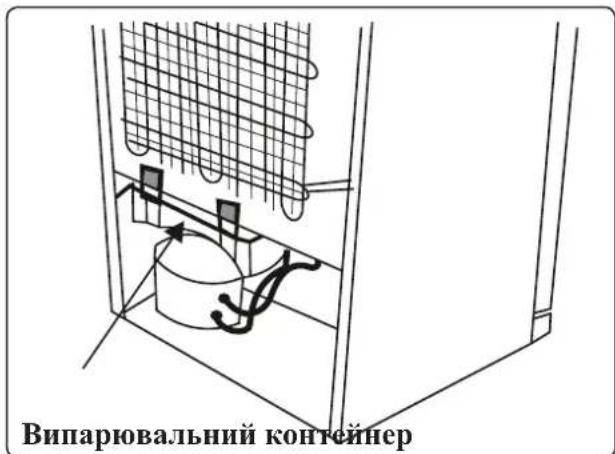

Pure diagram of a coiled heat exchanger or cooling unit (no text or symbols)

Simple line drawing of two children playing a board game (no text or symbols)

ТРАНСПОРТУВАТИ ХОЛОДИЛЬНИК ТРЕБА У ВЕРТИКАЛЬНОМУ ПОЛОЖЕННІ.

Technical line drawing of a mechanical or electrical enclosure with two circular components and a horizontal panel (no text or symbols)

Overall space required in use3

W3 mm 990

D3 mm 1243,5
