Product Type	Chest Freezer
Brand	Kernau
Model	KFUF 08253 W
Total Net Capacity	250 L
Dimensions (H x W x D)	85 x 100 x 65 cm
Net Weight	45 kg
Power Supply	220-240 V ~ 50 Hz
Energy Consumption	280 kWh/year
Energy Efficiency Class	A+
Climate Class	N-ST
Temperature Range	-18°C to -24°C
Refrigerant	R600a
Noise Level	41 dB(A)
Defrost Type	Manual
Storage Baskets	2
Lockable Lid	Yes
Interior Light	No
Temperature Control	Mechanical Thermostat
Fast Freeze Function	No
Reversible Door	No (Lid)

Frequently Asked Questions - KFUF 08253 W Kernau

How do I set the temperature on my Kernau KFUF 08253 W freezer?

The temperature is adjusted using a mechanical thermostat dial located inside the freezer or on the front panel. Turn the dial to a higher number for colder temperatures (usually -24°C) and a lower number for warmer (around -18°C). Refer to the manual for the exact dial markings.

How do I defrost the freezer?

This model requires manual defrosting. Unplug the freezer, remove all food, leave the lid open, and place towels to absorb melting ice. Never use sharp tools to remove ice. Once defrosted, wipe dry and restart.

What is the ideal temperature for storing frozen food?

The recommended temperature is -18°C or lower. This ensures food safety and quality. The freezer can reach -24°C for quick freezing.

How do I clean the freezer?

Unplug the freezer, remove all contents and baskets. Clean the interior with a mild detergent and warm water. Avoid abrasive cleaners. Wipe the exterior with a damp cloth. Dry thoroughly before plugging back in.

Why is my freezer making noise?

Some noise is normal due to the compressor and refrigerant flow. If excessive, check that the freezer is level and not touching walls or cabinets. Gurgling, clicking, or humming sounds are typical. Loud rattling may indicate a need to tighten screws or level feet.

Can I lock the freezer?

Yes, this model has a lockable lid. A key is usually provided. Use the key to lock the lid to secure contents, especially if children are present.

How much electricity does the freezer consume?

The estimated annual energy consumption is 280 kWh. Actual consumption depends on usage, ambient temperature, and how often the lid is opened.

What should I do if the freezer stops working?

First, check if the power cord is plugged in and the circuit breaker hasn't tripped. Ensure the thermostat is not set to off. If still not working, contact a qualified technician. Do not attempt to repair the refrigerant circuit yourself.

How do I arrange food in the chest freezer for maximum efficiency?

Store food in the baskets or directly in the chest. Avoid overfilling to allow air circulation. Place raw meat on the bottom to prevent dripping. Label items with dates. Use the fast freeze function if available to freeze small batches quickly.

What is the warranty period for this freezer?

Kernau typically offers a 2-year warranty on parts and labor. Check your purchase documentation or contact the seller for specific terms. Warranty does not cover misuse or normal wear.

USER MANUAL KFUF 08253 W Kernau

Simple line drawing of a cabinet or enclosure with a vertical door and two corner supports (no text or symbols)

SZANOWNY KLIENCIE,

Simple line drawing of a cabinet or storage unit with a lid and handle (no text or symbols)

Line drawing of a front view of a battery with a screwdriver inserted, showing internal structure and a circular icon labeled '福' (briomp) on the right side.

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing internal components (no text or symbols)

Simple line drawing of a rectangular frame with curved arrows indicating rotation or movement (no text or symbols)

Line drawing of a mechanical device with a mounted component and base plate (no text or symbols)

Simple line drawing of a rectangular device with a screw and handle, no text or symbols present

ROZDZIAŁ 4. INSTALACJA

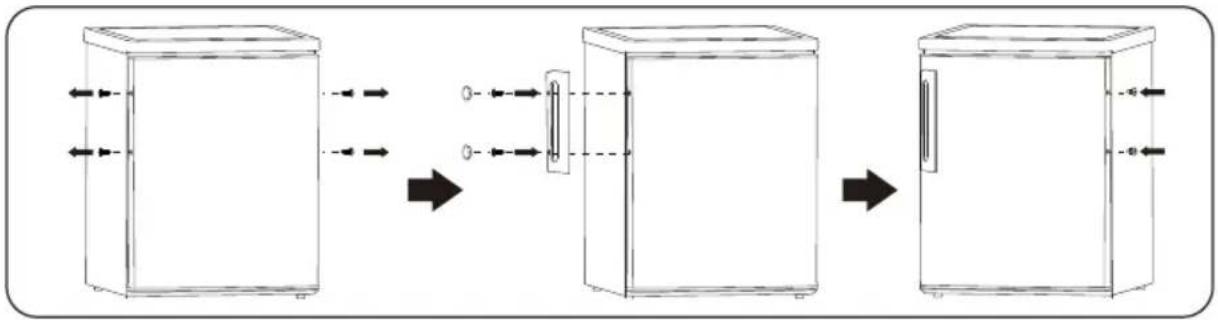

MONTAŻ KLAMKI DRZWI


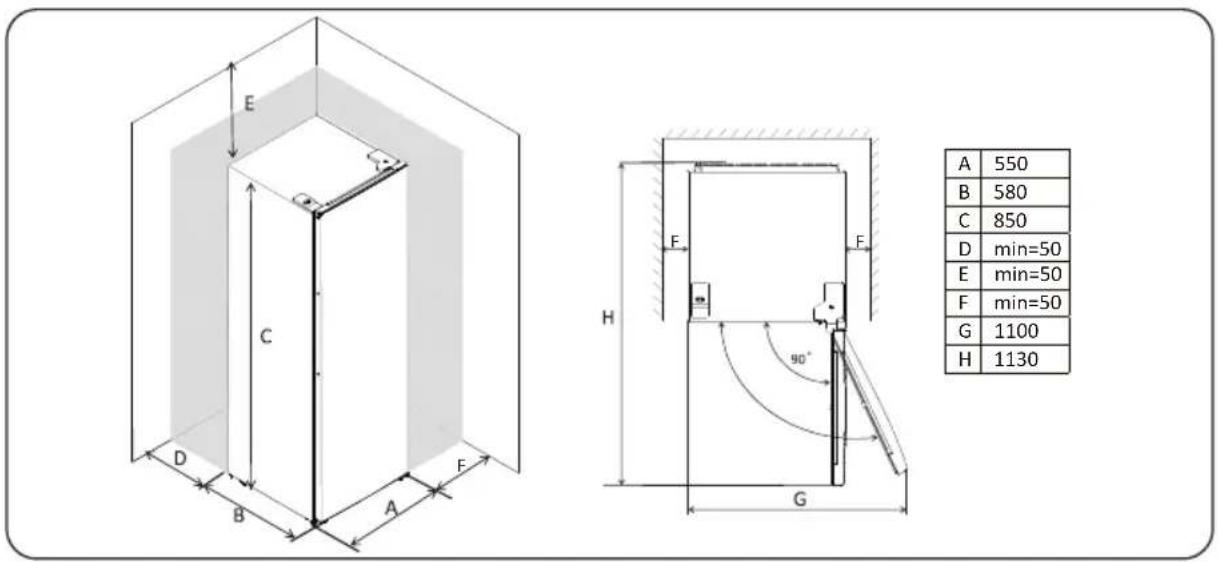

WYMAGANIA DOTYCZĄCE USTAWIENIA

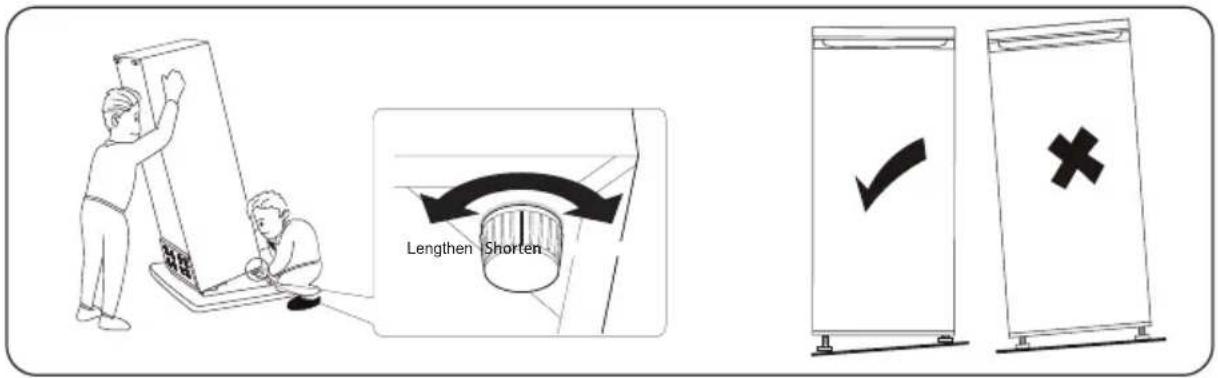

USTAWIANIE

CODZIENNE UŻYTKOWANIE

Simple line drawing of a cabinet or enclosure with a vertical door and two corner supports (no text or symbols)

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Caption Description
	Warning Risk of serious injury or death
	Risk of electric shock Dangerous voltage
	Fire	Risk of fire / flammable materials
	Attention	Risk of injury or material damage
	Important/Note	Information on correct operation of the system
	Read the instructions
	Hot surface

CONTENTS

CHAPTER 1. Safety information....25

General Safety Warnings....26

Daily use....28

Care and celaning....29

Installation....29

Service....30

Energy saving....30

Environment protection....30

Packing materials ....31

Disposal of the appliance....31

CHAPTER 2. Overview....32

CHAPTER 3. Reverse door....33

CHAPTER 4. Installation ....35

Electrical connection....36

CHAPTER 5. Daily use ....37

First use 37

Temperature Setting....37

Daily use....37

Freezing fresh food....37

Thawing....38

Ice-cube 38

Helpful hints and tips 38

Storing frozen food....39

Temperature setting recommendation ....39

Impact on Food Storage ....40

Hints for storage of frozen foods....40

Cleaning....40

Defrosting of the freezer....40

Troubleshooting....41

CHAPTER 6. Disposal of used equipment....42

CHAPTER 1. SAFETY INFORMATION

CE

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children aged from 3 to 8 years are allowed to load and unload this appliance.

- Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming trap for a child.

GENERAL SAFETY WARNINGS

WARNING:

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING:

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING:

Do not damage the refrigerant circuit.

WARNING!

Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING!

Do not touch the light bulb if it has been on for period of time because it could be very hot. ^1)

WARNING!

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING!

Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition
  – thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

- This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar no-retail applications.

WARNING!

Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING!

The light bulb supplied with this appliance is a „special use lamp bulb” usable appliance supplied. This „special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

DAILY USE

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. ^1)

- Store pre-packed frozen food in accordance with the frozen food manufacture's instructions. ^1)

- Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)

- Ice lollies can cause frost burns if consumed straight from the appliance. ^1)

• To avoid contamination of food, please respect the following instructions

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-. two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

CARE AND CELANING

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in te appliance. ^2)

INSTALLATION

IMPORTANT

For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

SERVICE

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
- This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

ENERGY SAVING

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Mak sure food don't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures
• All accessories, such as drawers, shelves balconies, should be kept there for lower energy consumption.

ENVIRONMENT PROTECTION

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliance marked by the symbol are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

PACKING MATERIALS

The materials with the symbol are recyclable.

Dispose the packaging in a suitable collection containers to recycle it.

DISPOSAL OF THE APPLIANCE

1. Disconnect the mains plug from the mains socket.

2. Cut of the mains cable and discard it.

WARNING!

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow and orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

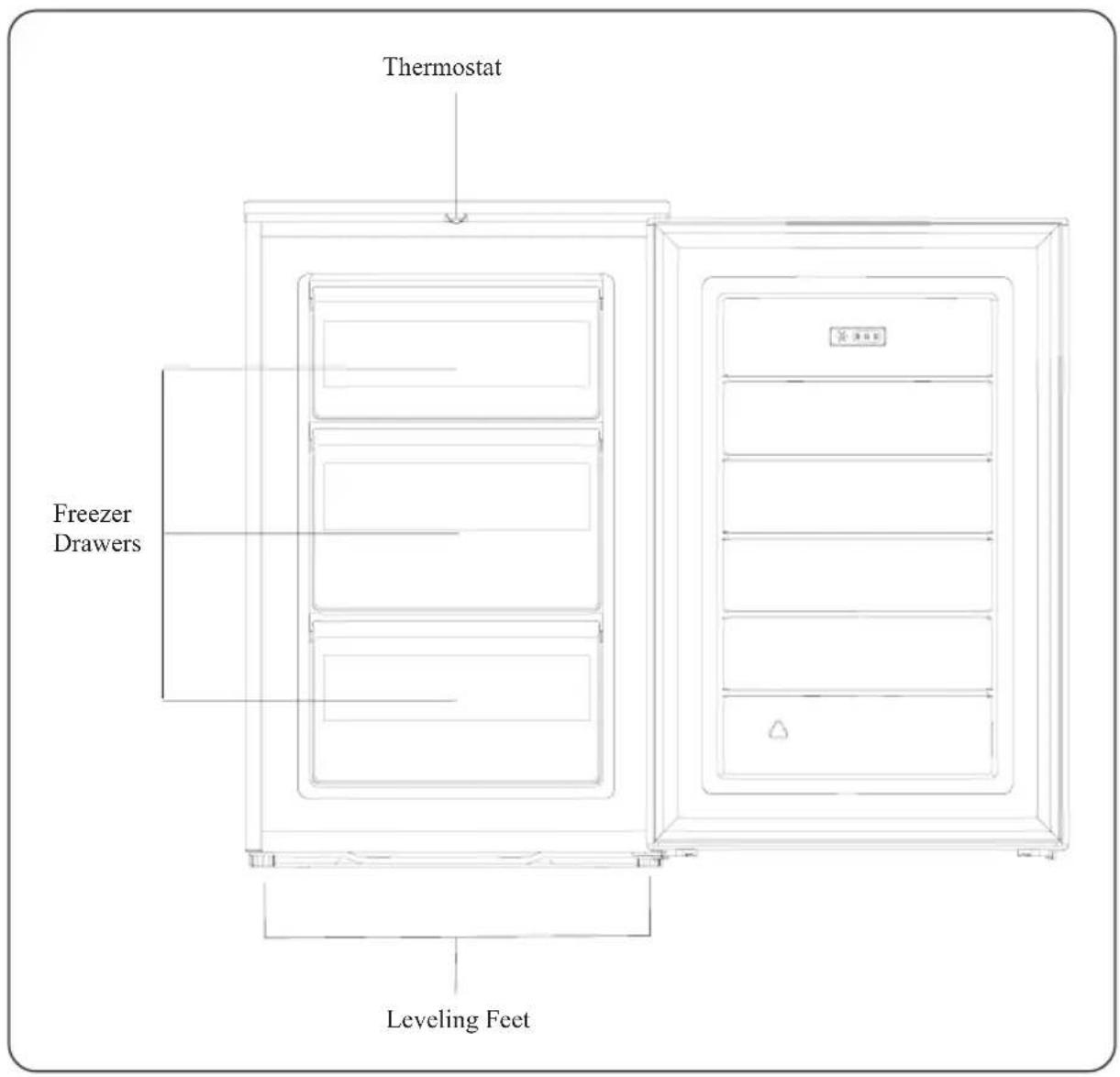

CHAPTER 2. OVERVIEW

NOTE:

Above picture is or reference only.

CHAPTER 3. REVERSE DOOR

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
  • To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.

• Remove two screws at rear side of top cover.

1. Remove top cover and thermostat knob place it aside.

Simple line drawing of a rectangular appliance with a lid and base, no text or symbols present

1. Unscrew top hinge and then remove door and place it on a soft pad to id scratch.

Line drawing of a kitchen appliance with a handle and a circular button labeled '锅' (bok), no text or symbols present.

1. Unscrew bottom hinge. Then remove the the adjustable feet from both side.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

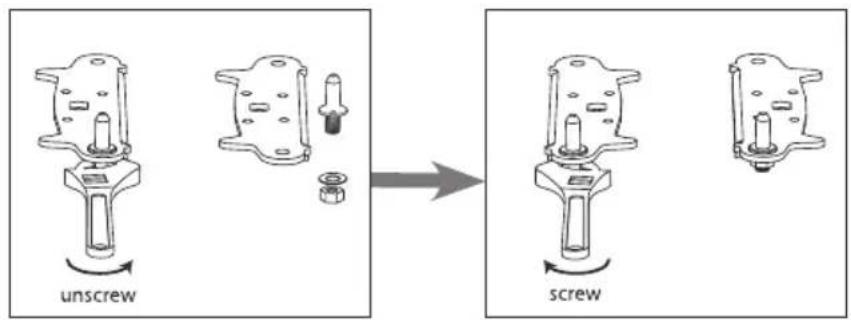

1. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

2. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

3. Place the door back on. Ensure the door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the top hinge.

4. Put the top cover and fix it with 2 screws on the back.

Technical line drawing of a mechanical assembly with a circular inset showing internal components (no text or symbols)

Simple line drawing of a rectangular frame with curved arrows indicating rotation or movement (no text or symbols)

Line drawing of a mechanical device with a mounted component and base plate (no text or symbols)

Simple line drawing of a rectangular device with a screw and handle, no text or symbols present

CHAPTER 4. INSTALLATION

INSTALL DOOR HANDLE

SPACE REQUIREMENT

Keep enough space of door open.

It is advisable to keep at least 50mm gap at two sides.

LEVELLING THE UNIT

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

POSITIONING

Install this appliance at a location where the ambient temperature correspondents to the climate class indicated on the rating plate of the appliance:

For refrigerating appliances for climate class:

Extended temperature:

This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

Temperature:

This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C .

Subtopical:

This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C .

Tropical:

This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

LOCATION

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 50 mm. Ideally, however, the appliance could not be positioned below overhanging wall units. Accurate leveling is ensured by one adjustable feet at the base of the cabinet.

WARNING!

It must be possible to disconnect the appliance from the mains power supply, the plug must therefore be easily accessible after installation.

This refrigerating appliance is not intended to be used as a built-in appliance.

ELECTRICAL CONNECTION

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

CHAPTER 5. DAILY USE

FIRST USE

Cleaning the interior

Before using the appliance for the first, time wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

IMPORTANT!

Do not use detergents or abrasive powders as these will damage the finish.

TEMPERATURE SETTING

• Plug on your appliance. The internal temperature is controlled by a thermostat. There are 3 settings MIN, NORMAL and MAX. MIN is warmest setting and MAX is coldest setting,
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

DAILY USE

Position different food in different compartments according to be below table

Refrigerator compartments Type of food
Freezer drawer(s) / shelf	Foods foe long-term storage,Bottom drawer/shelf for raw meat, poultry, fish.Middle drawer/shelf for frozen vegetables, chips.Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

FREEZING FRESH FOOD

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the bottom compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
• The freezing process lasts 24 hours; during this period do not add other food to be frozen.

THAWING

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case cooking will take longer.

ICE-CUBE

This appliance may be equipped with one or more trays for the production of ice-cubes.

HELPFUL HINTS AND TIPS

HINTS FOR FREEZING

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

STORING FROZEN FOOD

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

IMPORTANT!

In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under „rising time“, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

TEMPERATURE SETTING RECOMMENDATION

Temperature setting recommendation
Environment temperature Freezer compartment Fridge compartment
Summer /
Normal /
Winter /

• Information above give users recommendation of temperature setting.

IMPACT ON FOOD STORAGE

• Under Recommended setting, the best storage time of freezer in no more than 1 month.
• The best storage time may reduce under other settings.

HINTS FOR STORAGE OF FROZEN FOODS

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacture.

CLEANING

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

CAUTION!

The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

IMPORTANT!

Ethereal oils and organic solvents can attack parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
• Accumulation of dusi at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the appliance once a yeai with a soft brush or a vacuum cleaner ^1) .
  • After everything is dry place appliance back into service.

DEFROSTING OF THE FREEZER

The freezer compartment, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

• pull out the plug from the socket;
- remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
- keep the door open, and placing a basin underneath of the appliance to collect the defrost water;
- when defrosting is completed, dry the interior thoroughly
- replace the plug in the power socket to run the appliance again.

TROUBLESHOOTING

CAUTION!

Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

IMPORTANT!

There are some sounds during normal use (compressor refrigerant circulation).

Problem Possible	cause Solution
Appliance does not work.	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective. Check fuse, replace if necessary.
	Socket is defective.	Mains malfunctions are to be corrected by an electrician.
Appliance freezes too much.	Temperature is set too cold or the appliance runs at MAX setting.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build-up of frost on the door seal.	Door seal is not air-tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises.	Appliance is not level. Re-adjust the feet.
	The appliance is touching the wall of other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center. These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

CHAPTER 6. DISPOSAL OF USED EQUIPENT

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. a crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials. Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device. Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

Fig. A

Fig. B

KERNAU

Simple line drawing of a cabinet or enclosure with a vertical door and two corner supports (no text or symbols)

Simple line drawing of a rectangular appliance with a lid and base, no text or symbols present

Line drawing of a refrigerator interior with a water level sensor attached (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a circular inset showing internal components (no text or symbols)

Simple line drawing of a rectangular frame with curved arrows indicating rotation or direction (no text or symbols)

Line drawing of a mechanical device with a mounted component and base plate (no text or symbols)

Simple line drawing of a rectangular device with a screw and handle, no text or symbols present

РОЗДІЛ 4. МОНТАЖ
