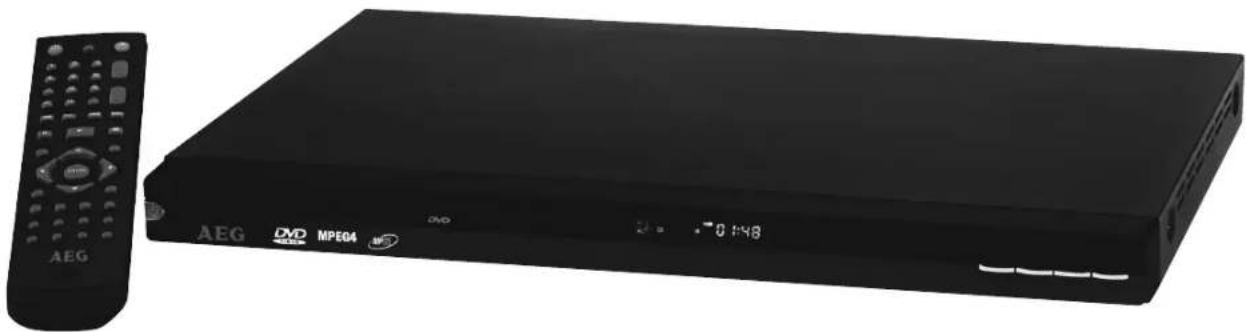

Black AEG DVD MPE04 controller with remote control (no visible text or symbols on device body)

PERFECT IN FORM AND FUNCTION

AEG

Deutsch

Inhalt

Overview of the Components ......Page 3

Instruction Manual Page 32

Technical Data Page 34

Guarantee Page 56

Overview of the Components

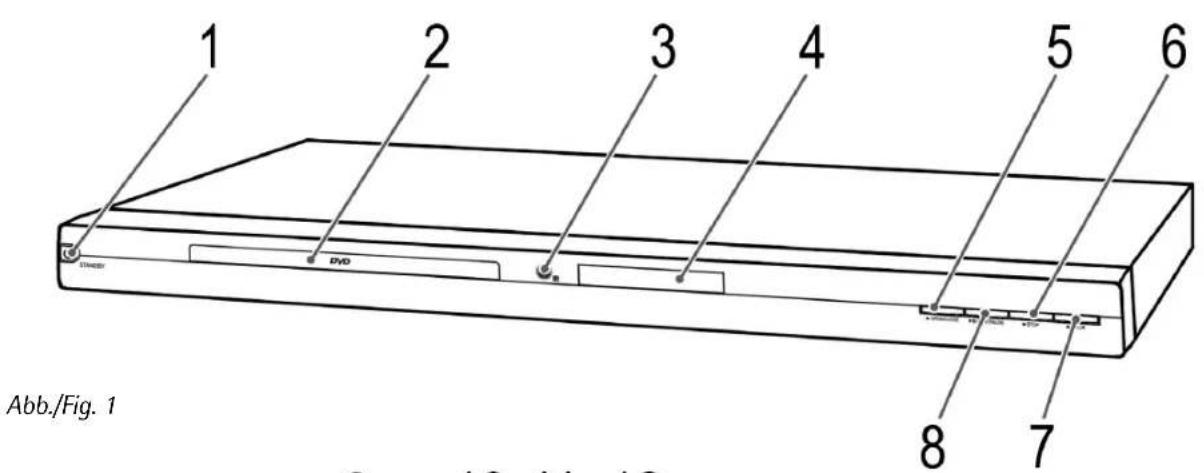

1 2 3 4 5 6 DVD 7 8 Abb./Fig. 1

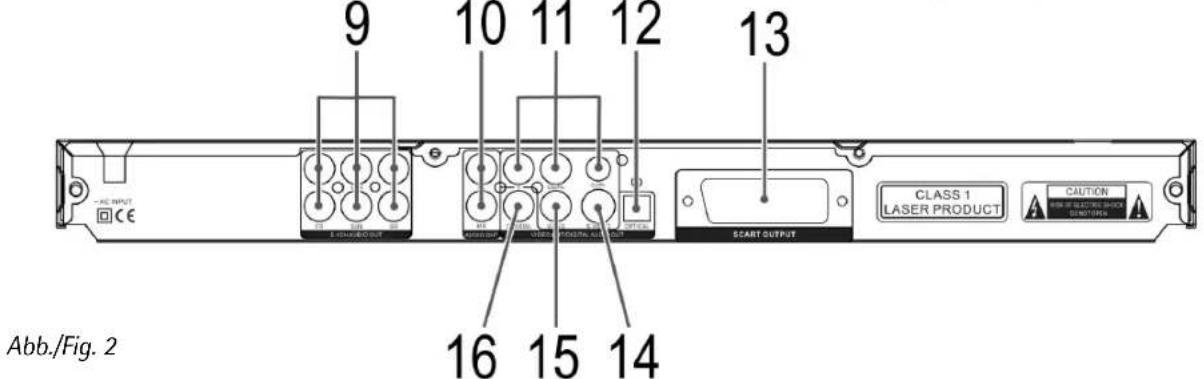

9 10 11 12 13 ISSUE/OUTPUT ISSUE/OUTPUT ISSUE/OUTPUT CLASS 1 LASER PRODUCT CAUTION BEET ELECTRONIC DETECTION SCART OUTPUT 16 15 14 Abb./Fig. 2

32 33 POWER VDD MODE OPENCLOSE 1 2 31 30 1 2 3 VOL 4 5 6 ZOOM 7 8 9 MUTE - 28 29 26 27 PATE FWD PREV NEXT 7 8 PAUSE PLAY STOP MENU TITLE 24 25 ENTER SETUP PBC 22 23 LANGUAGE ANGLE SUBTITLE DISCU TIME PROG RETURN REPEAT 20 21 STEP RL NIP SLOW 19 18 Abb./Fig. 3 13 14 15 16 17

4 Deutsch

Geräteteile

(Abb. 1 / Abb. 2)

Line drawing of a rectangular electronic device with ports and indicator lights (no text or symbols)

FL CEN SL ML FR SUB SR MR 5.1CH AUDIO OUT AUDIO OUT

Abb. 2/10

Stereo

1	TT: 01	KP: 05	6	TT:	KP:
2	TT:	KP:	7	TT:	KP:
3	TT:	KP:	8	TT:	KP:
4	TT:	KP:	9	TT:	KP:
5	TT:	KP:	10	TT:	KP:
		ENDE	START

Front Speaker; Center Speaker; Surround Speaker; Subwoofer

i HINWEIS:

To open or close the CD/DVD tray.

2 VOL +/−:

To increase/ reduce the volume.

3 ZOOM +/-:

To zoom in or out.

4 MUTE:

To switch of the sound.

5 PREVI:

To return to the previous chapter or song.

6 NEXT ▶▶I:

To jump to the next chapter or song.

7 PLAY ▶:

Start playback.

8 STOP ■: Stop play.

9 TITLE:

To show the Playback-Control for VCD.

10 ENTER:

Confirm the input.

11 PBC:

Displays the playback control of a VCD.

12 SUBTITLE:

To show/hide subtitles.

13 DISPLAY:

To display the play status on screen.

14 RETURN:

Returning to the previous menu.

15 REPEAT:

To repeat title, chapters, etc.

16 SLOW:

Slow motion. Press the „PLAY ►" button to continue the film.

17 N/P:

MULTI/NTSC/PAL colour norm switching.

18 R/L:

Switches between the right-hand and left-hand channel.

19 STEP:

To freeze the picture. Press again to show the next picture. Press the „PLAY▶“ button to continue the film.

20 TIME:

For direct accessing of a section on the CD/DVD.

21 PROG:

Call up DVD play list.

22 LANGUAGE:

To change the Audio settings.

23 ANGLE:

To select the viewing angle.

24 SETUP:

To start the setup menu.

25 Cursor buttons:

Navigation in screen menu.

26 MENU:

To display the main menu of the DVD/VCD.

27 PAUSE II:

To freeze the picture. Press the „PLAY ▶” button to continue the film.

28 REV ◀: Fast reverse.

29 FWD ▶: Fast forward.

30 10+:

For selecting the chapters/tracks above 9. Pressing again increases by a further 10.

31 Numerical buttons:

For direct selection of chapter or song number.

32 "POWER:

To activate standby mode.

33 VIDEO MODE:

Progressive scan/interlace switching.

34 English

Technical data

Type of equipment DVD-Player
Model DVD 4530
Voltage 230 V, 50 Hz
Output	25 W
Dimensions (W x H x D) 430 x 45 x 275 mm
Weight	1.84 kg
Laser	Semiconductor laser
Signal format	PAL/NTSC
Signal noise distance	>= 90 dB
Video output	1,0 V (P-P) 75 Ω
Analogue Audio output	2,0 V (rms)
S-Video output	(Y) 1,0 V (P-P), 75 Ω(C) 286 mV (P-P), 75 Ω
Operating environment	0°C bis 40°C, level base
Compatible media	DVD-Video (DVD Disc, DVD ±R/RW)MPEG-4 Video (von CD/DVD Disc, DVD±R/RW, CD-R/RW)Audio CD (von CD Disc, CD-R/RW)Video CD (von CD Disc, CD-R/RW)MP3 fi les (von CD/DVD Disc, DVD±R/RW, CD-R/RW)
Regional	2 (= Europe, Greenland, South Africa, Egypt and Middle East, Japan)

Table of Contents

Device parts 3/32

Remote control 3/33

Technical data 34

Safety instructions ....36

Setting up and connecting 38

Starting up 39

About the DVD-Player 42

Playing media 43

Working in file mode 46

Changing the default settings 48

Troubleshooting 55

Disposal 56

Guarantee....56

Declaration of conformity 56

OSD Menu overview ....57

English

Many thanks!

We are glad that you have made a decision in favour of the DVD-Player DVD 4530!

We would like to wish you much joy with your machine and thank you for your purchase!

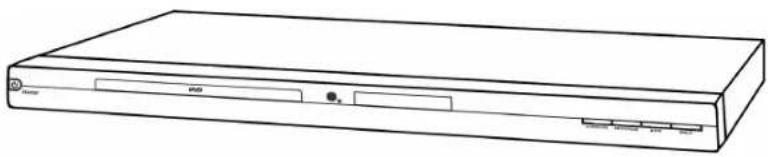

Line drawing of a rectangular electronic device with ports and indicator lights (no text or symbols)

Symbols in this operating manual

Important instructions for your safety are especially marked. You must follow these instructions to avoid accidents and damage to the machine:

WARNING:

Warns against dangers to your health and indicates potential risks of injury.

ATTENTION:

Indicates potential hazards for the player or other objects.

NOTE: Highlights tips and information for you.

Manufacturer address

ETV

We reserve the right to make technical and design-related changes in the course of ongoing product improvements.

English

Operating manual

Safety instructions

Read the complete operating manual before using the player.

Keep the manual in a safe place. If you pass the player on to a third party, pass on the operating manual as well.

Non-compliance with this manual can lead to severe injuries or damage to the machine.

We assume no liability for damage caused as a result of non-compliance with this operating manual.

The player may only be used in households for private use. It is not suitable for commercial use.

Children

Do not leave the machine unattended, and do not use it if children or persons who cannot assess the risk are nearby.
Children or persons who cannot assess the risks are not allowed to use the player. Keep the player out of reach.
Packaging material must not be used to play with. There is a risk of suffocation.

Power supply

The machine is operated with electrical current, which means there is in principle a risk of electric shock. For this reason, pay particular attention to the following:

■ Never touch the plug with wet hands.
If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.
Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.
Please ensure that during operation the electric lead is not wound around the device.
Never place the machine on the power cable while it is being operated.
Only use extension cables that are designed for the power consumption level of the machine.
- Keep the appliance away from rain and any moisture.
Only operate the machine if the electrical voltage stated on the type at the machine agrees with the voltage on your plug socket. The wrong voltage can destroy the machine.
Do not stand vases etc. on the appliance. Water could seep into the appliance.
Do not open the appliance.
Pull out the mains plug if the appliance is not to be used over a longer period of time.
Take care that nobody can trip over the power supply cable.

English

Laser

This appliance is classified as laser appliance of class 1 (CLASS 1 LASER). The associated label is attached to the outside of the appliance.

Laser beams can damage the eyes. Therefore observe the following:

Do not open the appliance. Do not attempt to dismantle the appliance.
In order to avoid any danger: Have service work only carried out by the manufacturer or an authorized service workshop.

Transport

Where to position the appliance

In order to avoid damage to the DVD, you should remove it before transporting the appliance.
Never move the machine when it is in operation.

Safe operation of the appliance presupposes that it is positioned in an appropriate place. Therefore observe the following:

• Protect the appliance against the influence of weather. Never use it in the open-air.
• Protect the appliance against moisture.
  Do not place any vessels filled with liquids, e.g. vases, on the device.
  Never place the appliance on or in direct vicinity of heat sources, such as e.g. hobs, ovens, etc.
  Do not expose the appliance to direct sunlight.
  Place the appliance so that a sufficient air supply is assured. This is to avoid a build up of heat inside the appliance. Make sure that the ventilation slots are not blocked.
• Protect the appliance against the mechanical vibrations.
  Always place the device on a firm and fl at surface.
• Protect the remote control against weather influences, moisture and high temperatures (e.g. by direct sunlight).

The player is able to show a still image on the TV-screen/monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver ⇒ Page 50, „General Setup”.
Do not increase the volume when the player is just playing very quiet sections. This could damage the speaker if very loud passages start all of a sudden after the quiet section.
Do not move the player with a DVD inserted. This could damage the DVD.
Do not put your hands into the DVD-slot. You could be injured.
Place only DVDs or CDs on the DVD-tray, as otherwise the player may be damaged.
Pull out the mains plug if the appliance is not to be used over a longer period of time.
Please disconnect the mains plug during thunderstorms.

38 English

Intended use

The DVD-Player is solely intended for the following tasks:

Playing of Video DVD/Video CD.

Playing of Audio-CD,

Any other use is considered non-intended use and is prohibited.

Defect

If the machine should become defective at some point:

If the power supply cable for this appliance is damaged, it must be replaced by the manufacturer or his customer services, in order to avoid hazards.

Should fluid have seeped into the player or if the player has been dropped down or damaged in any other way, the player must be examined by an authorized dealer. Disconnect the player from the power supply and consult an authorized dealer.

Setting up and connecting

Unpacking

Unpack the appliance and all accessories and check that the contents are complete.

ATTENTION:

Always transport/send the player in its original packaging to prevent it from being damaged. Keep the packaging for this purpose. Dispose of unnecessary packaging material in accordance with the regulations applicable in your country.

i NOTE:

Get in touch with your dealer immediately if you notice damage caused by transport.

Setting up

1. Place the player on a stable, heat resistant, horizontal and level surface. Keep a distance of at least 10 cm from walls and objects.

2. Connect the device to a properly installed power socket.

Remote control battery installation

Starting up

WARNING:

Leaking out battery acid can damage your health. Remove the battery from the battery compartment as soon as it is exhausted or if the remote control is not going to be used for a longer period of time. Wipe up leaked out battery acid with a cloth. In case of skin contact immediately wash the affected area. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes wash out the eyes and seek medical advice.

ATTENTION:

Mismatching battery types or new and used batteries must never be used together. Different battery types have different properties. Do not use old and new batteries together. The mutual use of old and new batteries can shorten the lifetime of the new batteries and possibly result in leakage of the old batteries. When disposing of old batteries you should strictly comply with the legal and environmental regulations applicable in your country. Do not throw batteries into fire!

i NOTE:

The lifetime of the enclosed batteries may be shortened because of storage.

1. Open and remove the battery compartment cover.
2. Insert two batteries of type AAA/R03 (1.5 V), ensure correct polarity (+ and -). Start with the negative pole (-).
3. Attach and close the battery compartment cover.

i NOTE:

The signals from the remote control are transmitted to the DVD-Player by infrared light. You should therefore take care that the DVD-Player is not exposed to the direct sunlight. This could make the transmission of signals from the remote control to the DVD-Player impossible.

Eff ective range of the remote control

If you want to use the remote control it has to be pointed at the remote control sensor on the front of the device. The distance between remote control and sensor should not exceed 7m. The angle of the remote control to the remote control sensor to right, left, top and bottom should not exceed 30°.

40

English

Connecting the Video cable

SCART OUTPUT

Fig. 2/13

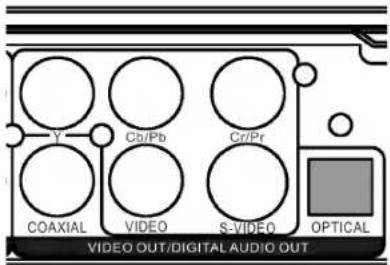

CoAXIAL VIDEO S-VIDEO Cb/Pb Cr/Pr OPTICAL VIDEO OUT/DIGITAL AUDIO OUT

Fig. 2/11

CoAXIAL Cb/Pb VIDEO S-VIDEO Cr/Pr OPTICAL VIDEO OUT/DIGITAL AUDIO OUT

Fig. 2/14

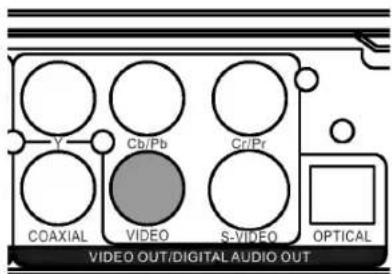

Y Coaxial Cb/Pb VIDEO Cr/Pr VIDEO OUT/DIGITAL AUDIO OUT S-VIDEO OPTICAL

Fig. 2/15

The video cable transmits the video data from your DVD-Player to the TV or the Video-Projector.

There are four different ways of connecting the DVD-Player with your TV/Video-Projector. Select one of these possibilities to suit your replay unit.

NOTE:

If you do not use a SCART connection it is necessary to make an additional audio connection for the transmission of the audio data (i.e. the sound).

SCART

SCART is used to transmit both Video and Audio data.

1. Plug the SCART jack firmly into the socket on the back of the player.
2. Plug the SCART jack into the corresponding socket on your playback device.

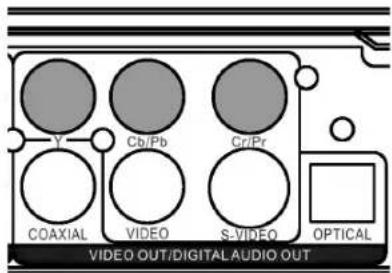

Component Video

Connection using a Component Video cable ensures a very high replay quality.

Component Video transmits only Video signals.

1. Plug each of the three jacks into the corresponding sockets on the DVD-Player.
2. Plug the jacks into the corresponding socket on your playback device.
   In the "Video" menu select the "Component" submenu. Here you can change the settings „CVBS“, „YUV“ and „RGB“ on the playback device that you have connected. Please see the operating instructions of the connected device for the correct setting.

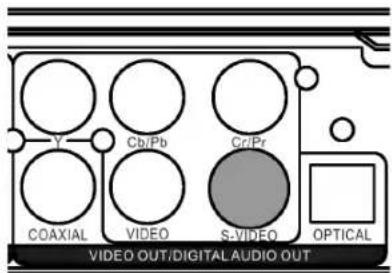

S-Video

Connection using a S-Video cable ensures a very high replay quality.

Component Video transmits only Video signals.

1. Plug the S-Video jack into the socket on the back of the player.
2. Plug the S-Video jack into the corresponding socket on your playback device.

Composite-Video

Composite-Video is used to transmit both Video data.

1. Plug the Composite-Video jack into the socket on the back of the player.
2. Plug the Composite-Video jack into the corresponding socket on your playback device.

Connecting the Audio cable

You can choose from three transmission methods for audio signals.

You must generally choose first whether you would like to have the sound coming from your TV, or through a Stereo or 5.1-Amplifi er. The Audio cable must then be connected to the TV or an amplifi er accordingly.

NOTE:

If your amplifi er is equipped with a digital output, you should use the amplifi er. You will experience a much better audio quality, and the installation is much easier.

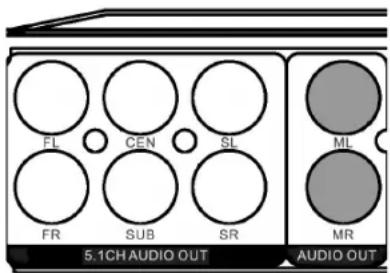

FL CEN SL ML FR SUB SR MR 5.1CH AUDIO OUT AUDIO OUT

Fig. 2/10

Stereo

Connect both Audio cables for the right and the left speakers to your playback device or your amplifier.

1. Plug the Audio jacks into the sockets on the back of the player.
2. Plug the Audio jacks into the corresponding sockets on your playback device or your amplifier.

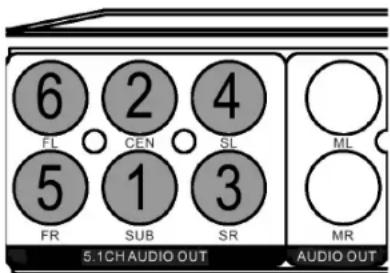

6 FL 2 4 CEN SL 5 1 3 FR SUB SR ML MR 5.1CH AUDIO OUT AUDIO OUT

Fig. 2/9

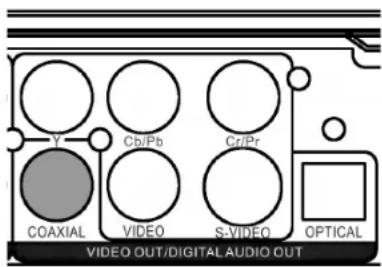

5.1-Audio signal

If you would like to achieve a replay of almost original quality you should use an Audio output by means of a 5.1-Audio signal.

This method uses 6 speakers. Four of these speakers are placed in the four corners of the room. One speaker is positioned close to the playback device. The sixth speaker serves the output of very low tones. With this arrangement of speakers a very natural stereophonic sound is achieved.

Connect the 5.1CH AUDIO OUT sockets on the back of the DVD player to the corresponding connections on the back of the subwoofer.

Proceed as follows:

1. Plug the Audio jacks into the sockets on the back of the player. Make sure that the jacks are correctly arranged:

2. (1) Connection for Subwoofer: Bass

3. (2) Connection for Center speaker
4. (3) Speaker rear right
5. (4) Speaker rear left
6. (5) Speaker front right

7. (6) Speaker front left

8. Plug the Audio jacks into the corresponding sockets on your playback device or your amplifier.

Connect the Coaxial cable for transmission of digital Audio signals to your playback device or your amplifier.

1. Plug the Audio jack into the socket on the back of the player.
2. Plug the Audio jack into the corresponding socket on your playback device or your amplifier.

42

English

Y Coaxial Cb/Pb VIDEO S-VIDEO Cr/Pr S-VIDEO OPTICAL VIDEO OUT/DIGITAL AUDIO OUT

Fig. 2/12

Switching on the player

STANDBY

Fig. 1/1

Optical

Connect an optical cable for transmitting the digital audio signal with your playback device or amplifier.

1. Insert the optical plug into the socket on the rear of the device.
2. Insert the optical plug into the corresponding socket of your playback device or amplifier.

Turn the DVD player on by pressing the „STANDBY“ button on the front of the device.

About the DVD-Player

With this DVD-Player you can play a vast variety of DVD-formats → Page 34, "Technical data".

However, you must be aware that in many cases DVDs are encrypted with a so-called "Regional Code". This specifies for which region in the world the DVD is intended. As an example, the DVDs marked with regional code "1" are intended for the USA and Canada. DVDs with regional code "2" are for use in Europe.

NOTE:

With your DVD-Player you can only play DVDs with regional code "2". There are both lots of burning and compressing methods as well as high quality differences in (burned) CDs/DVDs. Moreover, the music industry has not yet agreed on a fixed standard for copy protection. This may, in very isolated cases, result in problems when relaying CDs, DVDs and MP3 CDs. This is no malfunction of the player.

Furthermore, there may be isolated problems when playing CDs or DVDs which were created on a PC (e.g. holiday photographs). In case of problems check the settings of the DVD writing program on your computer. You should in particular make sure that the DVD has been finalized. For further information on this matter please refer to the operating manual of your recorder.

Input Not Possible

If a function or input selected by you is not possible, the adjacent symbol is shown on the screen.

English

Terminology

Track: "Track" is the designation for sections on an Audio-CD. This may be a song, the set of a symphony, etc.
Title/Chapter: Video-DVDs are divided into "Title" and „Chapters". A "Title" may be e.g. a particular film, the "Chapters" may be subsections of this film.
MPEG4: Your DVD player is also suitable for playing back files that have been compressed using the MPEG-4 system (short for Moving Picture Experts Group-4). MPEG-4 is a compression method by means of which large quantities of data can be reduced without any noticeable loss of picture and sound quality.

Playing media

Using the remote control

You transmit commands to the DVD-Player via remote control. It is thus important to point the end of the remote control towards the DVD-Player.

Loading a CD/DVD

1. Press the remote control button OPEN/CLOSE (Fig. 3/1). The CD/DVD tray opens.
2. Place the CD/DVD on the tray.
3. Press the remote control button OPEN/CLOSE (Fig. 3/1) again. The CD/DVD tray closes. The display (Fig. 1/2) first shows "LOAd". After a short while the type of the loaded medium is displayed (e.g. "DVD").

Understanding the onscreen DVD-menu

When playing DVDs you can view the on-screen menu by pressing the DISPLAY button (Fig. 3/13).

DVD-menu

Current title/total number of titles (1).
Current chapter/total number of chapters (2).
Time (3): This provides information about the duration and the remaining play time. By standard the play time expired of the current title is displayed. The display is in hours, minutes and seconds. Press the DISPLAY button (Fig. 3/13) once or several times to have further times displayed.

The following possibilities are available for selection

• time remaining to the end of the title,
• expired playing time of the chapter,
• time remaining to the end of the chapter.

Starting the replay

1. Place the CD/DVD on the CD/DVD-tray Page 43, "Loading a CD/DVD".
2. Press the "PLAY ►" button (Fig. 3/7) on the remote control.

i NOTE:

If the replay does not start or the replay is of poor quality, you should check the default settings of the DVD-Player.

44 English

Interrupting the replay	1. Press the „PAUSE II" button (Fig. 3/27) on the remote control. The replay is interrupted, the currently visible image is „frozen".2. Press the „PLAY ▶” button (Fig. 3/7) on the remote control to restart the „normal" replay.
Changing Audio-Language/Audio-Mode	Press the LANGUAGE button (Fig. 3/22) several times to change the Audio language. The available audio languages depend on the DVD.
Showing subtitles	Press the SUBTITLE button (Fig. 3/12) to display the current subtitle status. Press the button several times if you would like to activate or deactivate the subtitle function or if you want to choose a different subtitle language. The available subtitle languages depend on the DVD.
Stopping the replay	Press the „STOP ■” button (Fig. 3/8) during replay. The replay stops.Press the „PLAY ▶” button (Fig. 3/7) again, to continue the replay from the last position.Press the „STOP ■” button (Fig. 3/8) twice to stop the replay completely. Press the „PLAY ▶” button (Fig. 3/7) again, to replay the CD/DVD from the beginning.
Selecting previous chapter/track	Press the „PREV I◀◀” button (Fig 3/5) to jump to the start of the previous chapter or track.
Selecting next chapter/track	Press the „NEXT ▶▶I” button (Fig 3/6) to jump to the start of the next chapter or track.
Selecting track directly	Enter the number of the desired chapter/track with the Numerical Buttons on the remote control (Fig. 3/31).Replay of the chapter/track starts after a short while.
Accessing a section via menu	The on-screen menu enables comfortable access to any sections of a medium. To do this, proceed as follows:Select the desired category by repeatedly pressing the button TIME button (Fig. 3/20).Now move to the point from which the replay should start. Depending on the type of medium this may be a track number, a chapter or even a point in time. The input must be made with the Numerical Buttons (Fig. 3/31). Playback begins after a short time.
Repeating DVD-title/chapter	Choose the chapter or title to be repeated.Press the REPEAT button (Fig. 3/15). The message "Chapter" appears on the screen.Press the REPEAT button again, until the message "Title" or "All" is displayed.
Stopping repeat	Press the REPEAT button (Fig. 3/15) repeatedly until the message disappears from the screen.

English

Using the DVD-menu

Normally each DVD has its own menu. Here you can choose chapters, make settings, etc. This menu is specific for the DVD and can thus not be explained in detail.

Press the MENU button (Fig. 3/26) to access the DVD-menu. Use the Cursor Buttons (Fig. 3/25) to navigate in the Menu. Press the ENTER button (Fig. 3/10) to confirm.

If you are in a menu area for direct chapter selection, you can enter the number of this chapter with the Numerical Buttons (Fig. 3/31) on the remote control.

Using fast forward or reverse

The DVD-Player has a fast forward and a fast reverse feature.

1. Press the FWD ▶▶ (Fig. 3/29) or REV ◀◀ button (Fig. 3/28) to start fast forward or fast reverse. The current replay direction and the speed, e.g. „▶▶ x2" is now displayed on screen.

2. Press the FWD ▶ or REV ◀ button several times in order to change the speed. The speed can be accelerated by factor 2, 4, 8, 16 or 32.

3. Press the "PLAY ►" button (Fig. 3/7) to restart the "normal" replay when the desired section is reached.

Enlarging a screen section

You can change the screen section when viewing DVDs, VCDs or images.

Press the ZOOM button (Fig. 3/3) to change the screen section. Press the button several times to select the suitable zoom factor or to return to the original zoom factor.

NOTE:

With the cursor buttons (Fig. 3/25) you can move through the zoomed image.

Changing the viewing angle

Some DVDs offer the possibility to select the viewing angle.

Press the ANGLE button (Fig. 3/23) to change the viewing angle.

NOTE:

If changing the Viewing Angle is not possible, the message „∅will be displayed.

Repeat pressing the button to choose a different viewing angle, or to return to the original viewing angle.

46 English

Adjusting the volume

Press the VOL + button (Fig. 3/2) to increase the volume.

Press the VOL - button (Fig. 3/2) to reduce the volume.

i NOTE:

Please remember, that this will only change the output volume of the DVD-Player. In order to adjust the volume to your requirements you may also have to change the volume of the playback device.

When you press the R/L button (Fig 1/7) on the front panel, for the frist time, it turns to L-Mono. Press for the second, it turns to R-Mono. Press the button again, it return to stereo.

Creating a playlist (DVD)

Program

1	TT: 01	CH: 05	6	TT:
2	TT:	CH:	7	TT:
3	TT:	CH:	8	TT:
4	TT:	CH:	9	TT:
5	TT:	CH:	10	TT:
		EXIT	START

▶

It is possible that you may not wish to play the titles in the same order that they are to be found on the DVD. The function "Create Playlist" you can create your own playing order.

To do this, proceed as follows:

1. Press the PROG button (Fig. 3/21). A table is displayed. Here you can enter the desired order of the chapters/titles.

i NOTE:

However, your playlist will be lost when switching off the DVD-Players or when inserting a new DVD.

1. Use the Cursor Buttons (Fig. 3/25) to navigate in the table.

2. Enter the desired title and chapter at the relevant position in the table. Use the Numerical Buttons (Fig. 3/31) for this purpose.

3. Use the Cursor Buttons (Fig. 3/25) to select the command "Start" at the bottom of the screen to save the input.

4. Press the ENTER button (Fig. 3/10) on the remote control to confirm this command.

Deleting a playlist (DVD)

1. Press the PROG button. You will now see a table.
2. Use the Cursor Buttons (Fig. 3/25) to manoeuvre to the command "Stopp" at the bottom of the table.
3. Press the ENTER button (Fig. 3/10) on the remote control to confirm this command.
4. Press the PROG button to terminate this procedure.

Working in fi le mode

As well as being able to play back „normal“ fi lms or music from CDs/DVDs, this DVD player is also able to play back video or audio fi les from CDs or DVDs which are stored in the fi le system. Such media are frequently available if you create CDs of digital photographs or MP3 music on your computer.

Using CD/DVD

1. Place the CD or DVD on the tray Page 43, "Loading a CD/DVD".
2. Select the desired file(s) and start the replay Page 47, "Selecting file/directory and starting replay".

Selecting fi le/directory and starting replay

NOTE:

With the PROG button (Fig. 3/21) you can switch between the file and directory display.
If you have selected the file display any directories burnt on the CD will not be shown.

Media may contain numerous data/fi les and directories. You must therefore fi rst determine the data to be played.

1. Place the CD or DVD in the drive if you have not already done so.
2. A menu window appears in which the directories (if available) or the files are listed.
3. Use the Cursor Buttons (Fig. 3/25) to select the desired directory or file from the list.
4. Select this by pressing the "PLAY ►" button (Fig. 3/7).

File: Once you have selected a file, this is now displayed directly or played back.

Directory: If you have called up a directory, a list of fi les now opens.

Here too you can select the desired fi le with the Cursor buttons and the ENTER button (Fig. 3/10). If you have selected a fi le, this is now displayed or played back.

Please note:

There are both lots of burning and compressing methods as well as high quality differences in CDs/DVDs and burned CDs/DVDs.

For this reason there may occasionally be problems when fi les are played back (for example fi les are displayed but cannot be played back). This is no malfunction of the player.

NOTE:

With the "◀" button (Fig. 3/25) you can return from the files to the directories.
With the „NEXT ▶▶1“ and „PREV ◀◀◀” buttons you can display the next or previous 6 fi les.

Stopping the replay

Press the "STOP ■" button (Fig. 3/8) on the remote control to stop the replay.

Viewing pictures

The DVD player is suitable for displaying your digital photographs. These photos may be stored only any medium (DVD, CD, etc.) supported by the DVD player.

NOTE:

Please ensure a suitable size of the photos. Large size photos may take some time to be displayed or may not be displayed at all. It is of advantage if the size of the photo corresponds with the screen size of the playback device. For TVs this is normally 1024x576 pixel (TV-aspect 16:9) or 768x576 (TV-aspect 4:3).

Start the replay of photos by selecting the file from which the replay shall start → Page 47, "Selecting file/directory and starting replay".

Scrolling

Manual: Press the „PREV I◀◀“ (Fig. 3/5) or „NEXT ▶▶I“ button (Fig. 3/6) on the remote control to scroll forward or back.
Automatic: Press the „PLAY▶“ button (Fig. 3/7). The pictures change automatically.

Rotating a photo

You can use the Cursor buttons to rotate a photo during replay:

Mirror vertically: Cursor Button „▼“
Mirror horizontally: Cursor Button „▲“
Rotate clockwise for 90°: Cursor Button "▶"
Rotate counter-clockwise for 90°: Cursor Button "◀"

Changing the default settings

A large number of default settings can be comfortably changed via the screen menu.

Press the SETUP button (Fig. 3/24) on the remote control to start the menu for changing the default settings.

NOTE:

Many of these default settings can be changed via both the remote control and the menu. The difference is: If you change the default settings via the remote control, these changes will only be valid until the DVD-Player is switched off or the DVD is changed. However, any changes made in the menu are permanent.

Understanding the menu structure

The Setup menu has two menu levels:

Main menu: The main level is shown at the top edge of the screen by means of generic terms.
Sub-menu: The corresponding sub-menu options can be found under each of the main menu options.

Using the menu

Navigation and selection

Use the Cursor Buttons (Fig. 3/25) (▶ / ◀) on the remote control to browse through the main menu.
In contrast to this, you must use the Cursor Buttons (▼/▲) to move in the sub-menu.
Select a menu option with the ENTER button (Fig. 3/10).
Use the ENTER button also to select an option. The selected option is now highlighted.

Slide control

In some menus you will find slide controls with which you can adjust the volume or picture brightness, for example. The slide control is used as follows:

1. Select with the ENTER button.
2. Move the control with the Cursor Buttons (▼/▲).
3. Confirm the entry with the ENTER button.

Overview of the main menu

GENERAL = General Setup
AUDIO = Audio Setup Page
DOLBY = Dolby settings
VIDEO = Video Setup Page
PREFEREN = Preference Page

i NOTE:

Some of the menu settings are only available in stop mode (depending on the DVD).

General setup settings

GENERAL
TV DISPLAY	NORMAL/PSNORMAL/LBWIDE
ANGLE MARK	ONOFF
OSD LANG
CAPTIONS	ONOFF
SCREEN SAVER	ONOFF
HDCD	OFF1x2x
LAST MEMORY	ONOFF

TV Display

Here you can adapt the output of the DVD-Player to the TV-aspect.

Concerning the background: If you do not have a wide screen TV the TV-aspect will be 4:3. However, most feature fi lms have an aspect of 16:9, the image is therefore too wide for the TV-screen.

Here you can specify how the replay of the film is to be adapted to the playback device:

Normal/PS: You will only see the middle section of the film. The borders will be cut off.
Normal/LB: You will see the complete width of the film. The film is thus reduced in size, whereby black bars appear below and above the film
Wide: Select this option if you use a wide screen TV for replay. Please note that fi lms, that have been recorded with TV-aspect 4:3 can still be replayed using aspect 4:3. This means, that replaying this fi lm will not require the complete wide screen area of the television.

i NOTE:

The setting „Normal/PS" is not supported by all DVDs.

Angle Mark (Camera Angle)

If the DVD contains sequences recorded from different camera angles you can use the ANGLE button (Fig. 3/23) to select the various camera angles. This function is only available if the DVD contains scenes with various camera angles.

Before you can use this function it has to be activated.

On: The angle symbol is shown on the screen.
Off: No angle symbol is shown on the screen.

OSD Lang

Here you can select the language of the on-screen displays.

Subtitles (Captions)

Some DVDs contain commentaries that accompany the film, e.g. subtitles for the hard of hearing.

On: The commentary is displayed.
Off: No commentaries are displayed.

Screen saver

The player is able to display a still image for any time on the screen. This can cause damage to the screen. It is therefore recommended to activate the screen saver.

The following options are available:

On: The screen saver is activated (default setting).
Off: The screen saver is deactivated.

HDCD

It is possible to play back HDCD-encoded CDs and DVDs with this device. With the „HDCD" function you can then listen to high-quality sound with a greater degree of detail. Generally speaking, the greater the level of HDCD fi Itering, the better the quality of the sound.

Last Memory

Here you can define how the DVD player should behave if the user presses the „STOP ■” button (Fig. 3/8) during playback.

On: If the playback of a DVD, CD or VCD is stopped and then restarted, playback begins from the previous position.
Off: If the playback of a DVD, CD or VCD is stopped and then restarted, playback begins from the beginning of the medium.

Audio Setup

AUDIO
SPEAKER SETUP	DOWNMIX	LT/RT STEREO 5.1 KANAL
	FRONT SPEAKER	LARGE SMALL
	CENTER SPEAKER	LARGE SMALL OFF
	REAR SPEAKER	LARGE SMALL OFF
	SUBWOOFER	ON OFF
SPDIF SETUP	SPDIF OUTPUT	SPDIF OFF SPDIF/RAW SPDIF/PCM

Speaker Setup

Downmix

Change the characteristics of the speaker output:

LT/RT: Choose this setting if you want to play the DVD with the Pro Logic Dolby stereo effect. This produces a almost real 2-channel replay effect.
Stereo: Choose this setting if you want to play a DVD, that has been produced in the 5.1-Audio format, as 2-channel stereo sound.
5.1 Channel: Select this setting to transmit the Audio signal to the output device without changes.

Front Speaker; Center Speaker; Surround Speaker; Subwoofer

i NOTE:

The „Center Speaker“ and "Rear Speaker" menus can only be selected if the "5.1 Channel" option is activated in the "Downmix" menu.

Here you can set the characteristics of the loudspeakers.

Large: The loudspeaker produces bass and treble sounds.
Small: The loudspeaker produces only treble sounds.
Off: The loudspeaker does not produce any audio signals.

Digital Setup Page

SPDIF-Output (Digital Output)

Here you specify the settings for the digital Audio output.

SPDIF Off: Output of an analogue Audio signal, but no digital signal.
SPDIF/RAW: Output of a digital Audio signal. Use this setting if your amplifi er is no two-channel stereo amplifi er.
SPDIF/PCM: Output of a digital Audio signal that is converted to a 2-channel signal. Use this setting if your amplifi er is a two-channel stereo amplifi er.

i NOTE:

If there is no Audio output, even though you connected the DVD-Player to an amplifier, you will most likely have chosen an incorrect setting for the Audio output.

Dolby settings

DOLBY
DUAL MONO	STEREO L-MONO R-MONO MISCH-MONO
DYNAMIC

Dual/Mono

The Audio output is normally in stereo. Here you have the possibility to choose Mono-output instead of Stereo-output.

Stereo: The Audio output is in Stereo (default).
L-Mono: The Audio output is in Mono. In this case the signal of the "left" stereo channel is transmitted to all speakers.
R-Mono: The Audio output is in Mono. In this case the signal of the "right" stereo channel is transmitted to all speakers.
Mix Mono: The Audio output is in Mono. In this case the signal of the "both" stereo channel is transmitted to all speakers.

Dynamic

The term „Dynamic“ (Dynamic Range) describes the ratio of quietest and loudest sound. If the dynamic range is very large, you will experience very quiet and very loud sounds.

This may cause replay problems. Let us assume that you are watching a DVD in a relatively loud environment. You can now increase the volume to be able to hear also the very quiet passages, however with the disadvantage that loud passages will be unacceptably loud. In this case it would make sense to compress the dynamic range (i.e. reduce) and increase the output volume at the same time.

Video Setup Page

VIDEO
COMPONENT	CVBSYUVRGB
SCAN MODE	P-SCANINTERLACE
SHARPNESS	HIGHMIDDLELOW
BRIGHTNESS
CONTRAST

FULL -1/8: The dynamic range is compressed slightly (1/8) to full (FULL).
OFF: The dynamic range is not compressed at all (default).

Component (video output)

Select the video output option for the playback device that is connected and which you wish to use. Choosing the right signal format depends on the type of connection and the playback device (see also the operating manual of the replay unit).

CVBS: Select this option if your playback device is connected to the DVD player via the composite video and/or S-video connection.
YUV: Select this option if your playback device is connected to the DVD player via the component video connection.
RGB: Select this option if your playback device is connected to the DVD player via the SCART connection.

NOTE:

If you would like to select the „RGB" setting, please ensure that your playback device supports this setting.
By pressing the VIDEO MODE button (Fig. 3/33) you can also switch between the video output options. Whereby "YPbPr" corresponds to the "Progressive" setting (see "Scan Mode").

Scan Mode

Choosing the right signal format depends on the type of connection and the playback device (see also the operating manual of the replay unit).

Older replay units normally only support the so-called interlaced scanning method ("INTERLACE"). With this method the image is composed by means of two successively built up fields. The first field thereby consists of the even screen lines, the second one of the odd ones. With the "progressive" Video signal, in contrast, the complete image is build up in a single process. The thus achieved image quality is normally much higher.

The following options are available:

Progressive: Choose this option if your playback device supports progressive signals and is connected to the DVD-Player by means of a Component-Video cable.
Interlace: Choose this option if your playback device does not support progressive signals and is connected to the DVD-Player by means of a Component-Video cable.

NOTE:

The „Scan Mode" menu is only available if the „YUV" option or the „RGB" option is activated in the „Component" menu.
If the option „Scan Mode" is activated in the „Progressive" but your playback device does not support Progressive-Scan signals, no picture is displayed.

Sharpness; Brightness; Contrast

In these submenus it is possible to carry out various adjustments in order to adapt the video signal.

Preference Page

PREFEREN
TV TYPE	PALMULTINTSC
AUDIO
SUBTITLE
DISC MENU
PARENTAL	1. KID SAF2. G3. PG4. PG 135. PGR6. R7. NC 178. ADULT
PASSWORD	CHANGE
DEFAULT	RESET

TV Type

Match the output of the DVD-Player to the colour transfer system of your playback device.

The following options are available:

PAL: A system commonly used in Europe.
Multi: Select this setting if your playback device is a multi-system unit.
NTSC: A system primarily used in North America.

Audio; Subtitle; Disc Menu

Audio: Here you can select the preferred audio language.
Subtitle: Here you can select the preferred language for the film subtitles.
Disc Menu: Here you can select the preferred language for the DVD menus.

Child Lock (Protection of Minors)

Some DVD contain information concerning the target group. This method is comparable with the rating of cinema films (“Suitable only for persons of 12 years and over” e.g.).

If you have the child lock option activated a probably existing corresponding information is read from the DVD and compared with the value pre-set by you. If a DVD is intended for an older age group than the one pre-set by you, the DVD cannot be played.

The following child lock options are available:

Kid Saf: Suitable for children.
G: Suitable for all age groups.
PG: The presence of parents is recommended. Some scenes may be unsuitable for children.
PG 13: The presence of parents is strictly recommended. Some scenes may be unsuitable for children under the age of 13.
PGR: The presence of parents is strictly necessary.
R: Young persons under the age of 17 may only view this film in the presence of an adult.
NC17: Children and juveniles under the age of 17 are not allowed to watch this film.
Adult: The film must only be watched by adults.

Password

In this menu you can change the password for the child lock system.

In order to change the password, you must first enter the current password. The master password is „1234”.

NOTE:

If you forgot your password, you can deactivate the child lock system with this password.

Proceed as follows to change the password:

1. Enter the present password in the "New Password" line with the Numerical buttons (Fig. 3/31) of the remote control.
   To prevent the password from being read by unauthorized persons only the characters "XXXX" will appear on the screen.
2. Enter the new password in the „New Password“ line with the Numerical buttons of the remote control.
3. Confirm the new password by entering it again in the „Confirm PWD" line. Confirm your entry with the ENTER button (Fig. 3/10).

Default

Select the command „Default/Reset“ if you want to reset the player to the factory implemented default settings.

Any settings you have made will be lost.

Troubleshooting

Before sending the machine to the Customer Services, use the following table to check whether you can rectify the fault yourself.

Fault	Possible cause	Solution
The power supply light does not light	No power supply	⚠ WARNING:Before troubleshooting, switch the player off. Put the mains plug in correctly, if necessary, check the socket is working with another appliance.
	no power supply/ mains switch switched off	Switch the player on by the mains switch (Fig. 1/1).
No image displayed on screen	Video cable not correctly connected	⚠ WARNING:Before troubleshooting, switch the player off. Check the correct fi t of the Video cable „Connecting the Video cable". Make sure that the jacks are tightly in the sockets.
	no DVD/CD inserted Insert a CD/DVD.
	DVD/CD not compatible	Use only compatible media (see „Technical data").
	DVD/CD incorrectly placed in CD/DVD-tray	Turn the CD/DVD around.
	CD/DVD is dirty	Clean the CD/DVD around ⇒ „Handling CD/DVD”.
	CD/DVD is damaged Use a diff erent CD/DVD.
	Incorrect settings Check the settings of your DVD-Player.
	The child lock system is activated	Deactivate the child lock.
	The wrong TV mode has been selected (no P-SCAN-capable playback device).	Press theVIDEO MODEbutton (Fig. 3/33) to change the TV mode.
No response when pressing button	Power supply problem or static charging of appliance	Switch off the main switch and pull out the mains plug. Insert the mains plug into the socket and switch the player on again.
No sound Audio cable	not connected	⚠ WARNING:Before troubleshooting, switch the player off.
		Video plug for transmission of the Video signal, you must use and Audio cable in addition to the Video cable ⇒ „Connecting the Audio cable”.
	Amplifi er switched off If you use an amplifi er for Audio output: check whether the amplifi er is switched on.
	Incorrect settings Check the settings of your DVD-Player.
The remote control does not work	wrong direction The remote con trol is not pointed towards the DVD-Player.
	too far away Make sure that the remote control is not further than 7 m away from the player.
	Batteries empty Replace the batteries in the remote control ⇒ „Remote control battery installation”.
DVD cannot be played	DVD has not been fi nalized Use a fi nalized DVD.

Disposal

At the end of the service life of the appliance, in particular if it is malfunctioning, make the appliance unusable by pulling the mains plug out of the socket and separating the power cable. Dispose of the appliance according to the environmental regulations applicable in your country. Electrical waste may not be disposed of together with household waste. For any advice regarding recycling, contact your local municipal authorities or your dealer.

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Declaration of conformity

ETV Elektro-Technische Vertriebsgesellschaft mbH hereby declares that the device DVD 4530 is in conformity with the basic requirements of the European guideline for electromagnetic compatibility (2004/108/EG) and the low voltage guideline (93/68/EWG and 2006/95/EG).

OSD Menu Overview

GENERAL
TV DISPLAY NORMAL/PS	NORMAL/LBWIDE
ANGLE MARK ON	OFF
OSD LANG
CAPTIONS ON	OFF
SCREEN SAVER ON	OFF
HDCD OFF	1x2x
LAST MEMORY ON	OFF

AUDIO
SPEAKER SETUP DOWNMIX LT/RT		STEREO5.1 CHANNEL
	FRONT SPEAKER LARGE	SMALL
	CENTER SPEAKER LARGE	SMALLOFF
	REAR SPEAKER LARGE	SMALLOFF
	SUBWOOFER ON	OFF
SPDIF SETUP SPDIF OUTPUT SPDIF OFF		SPDIF/RAWSPDIF/PCM

DOLBY
DUAL MONO STEREO	L-MONOR-MONOMIX MONO
DYNAMIC

VIDEO
COMPONENT	CVBSYUVRGB
SCAN MODE P-SCAN	INTERLACE
SHARPNESS	HIGHMIDDLELOW
BRIGHTNESS
CONTRAST

PREFEREN
TV TYPE	PALMULTINTSC
AUDIO
SUBTITLE
DISC MENU
PARENTAL	1. KID SAF2. G3. PG4. PG 135. PGR6. R7. NC 178. ADULT
PASSWORD	CHANGE
DEFAULT	RESET

GARANTIE-KARTE
