CH-250 - Range hood Heinner - Free user manual and instructions

Product Type	Traditional Cooker Hood
Model	CH-250
Brand	Heinner
Suction Power	174 m³/h
Motor Power	1 x 100 W
Available Colors	White, Black, Grey
Energy Efficiency Class	E
Annual Energy Consumption	111.6 kWh/year
Fluid Dynamic Efficiency Class	F
Lighting Efficiency Class	G
Grease Filtering Efficiency Class	C
Airflow (Min/Max)	119 / 174 m³/h
Noise Level (Min/Max)	55 / 65 dB(A)
Power Consumption in Standby/Off	0 W
Lighting	Max 40 W, E14 olive-shaped bulb
Voltage / Frequency	AC 220-240 V / 50 Hz
Installation Height	65-75 cm above cooking surface
Ventilation Methods	Horizontal (back) and Vertical (top)
Filter Type	Grease filter (washable, dishwasher safe)
Control Type	Push buttons (Off, Low, Medium, High, Light)
Safety Features	Auto cut-off if installed too low

Frequently Asked Questions - CH-250 Heinner

What is the correct installation height for the Heinner CH-250 hood?

Install the hood 65-75 cm above the cooking surface for best performance.

How do I switch the speed of the hood?

Press low, middle, or high buttons to adjust the motor speed. Press 0 to turn off.

How do I turn the light on and off?

Press the light button once to turn on, and press again to turn off.

How do I clean the grease filter?

Remove the filter and soak in water at 40-50°C with mild detergent for 2-3 minutes. Gently brush with a soft brush. It is also dishwasher safe at 60°C.

Can I replace the light bulb myself?

Yes. Unplug the hood, open the filter, and replace with a max 40W E14 olive-shaped bulb. Then close the filter.

What does the auto cut-off safety feature do?

If the hood is installed too low (less than 65 cm), the safety cut-off may trip, turning off the device. Wait for it to reset and adjust the height.

How often should I clean the filter?

Clean the grease filter regularly, at least once a month or when visibly dirty, to maintain efficiency.

What is the difference between horizontal and vertical ventilation?

Horizontal vents air from the back; seal the top outlet. Vertical vents air from the top; seal the back outlet. Use the included cover to seal the unused outlet.

What should I do if the hood does not start?

Check that the hood is plugged in and that the speed control is not in the off (0) position. If still not working, contact a qualified technician.

What is the power consumption in standby mode?

The hood consumes 0 W in both standby and off modes.

USER MANUAL CH-250 Heinner

Line drawing of a front air duct system with mounting flanges and ventilation slots (no text or symbols)

• Hota traditionala
• Capacitate absorbtie: 174 ~m^3 / h
  • Culoare: alb/negru/gri

Diagram of a mounted device on a brick wall, showing two circular components and a central grille (no text or symbols)

Metoda B

Technical line drawing of two views (A and B) of a mechanical device with internal components, no visible text or symbols.

V. UTILIZARE

1. Pozitia "0" – hota va fi oprita
2. Butoanele "low", "middle" and "high" vor actiona motorul sa functionze la viteza mica, medie si, respectiv, mare
3. Daca apasati o data butonul "light", lumina se va aprinde. Pentru a stinge lumina, mai apasati o data.

VI. CURATARE SI MENTENANTA

Technical line drawing of a mechanical or architectural component with internal compartments and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a magnified inset showing fluid flow direction (no text or symbols)

VII. FISA TEHNICA

Capacitate absorbtie:	174 m^3/h
Motor	1x100W
Culoare:	Alb/negru/gri

INFORMATII PRIVIND DESEURI DE ECHIPAMENTE ELECTRICE SI ELECTRONICE (DEEE)

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.heinner.com, http://www.nod.ro

CE

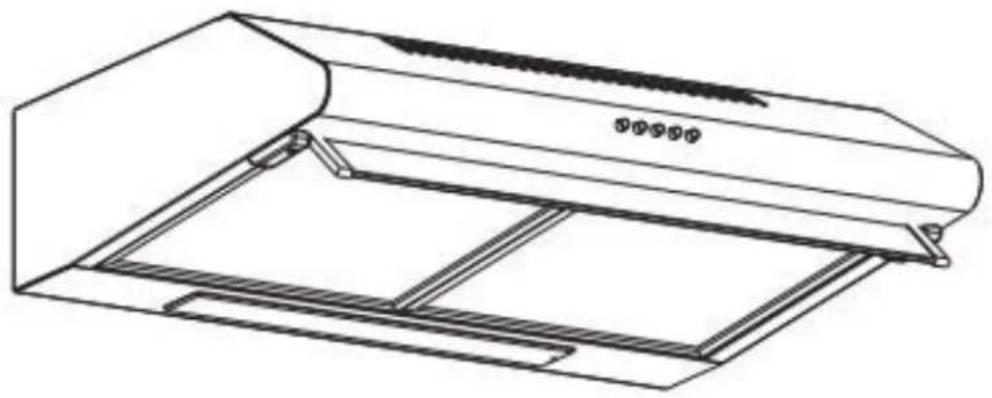

Line drawing of a front air duct system with mounting brackets and ventilation slots (no text or symbols)

• Traditional cooker hood
- Suction power: 174 ~m^3 / h
• Color: white/ black/ gry

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. CONTENT OF YOUR PACKAGE

▶ Traditional cooker hood
User manual
Warranty card

i

III. SAFETY PRECAUTIONS

If this product has arrived damaged please return for change or repair.

DO NOT INSTALL THIS APPLANCE IF YOU FOUND IT DANAGED.

Children should be supervised to ensure that they do not play with the appliance.

This appliance is designed for domestic use only.

Any installation work must be carried out by a qualified electrician or competent person.

There is a fire risk if cleaning is not carried out in accordance with the instructions.

Details concerning the method and frequency of cleaning are stated in the section.

"INSTALLATION AND MAINTENANCE".

Do not pull on the connection cord, but rather on the plug, to separate the appliance from the mains.

When cleaning the appliance, it must be off power first.

IV. INSTALLATION

INSTALLATION

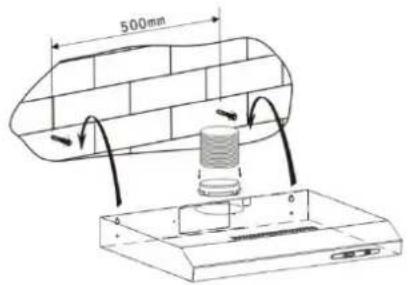

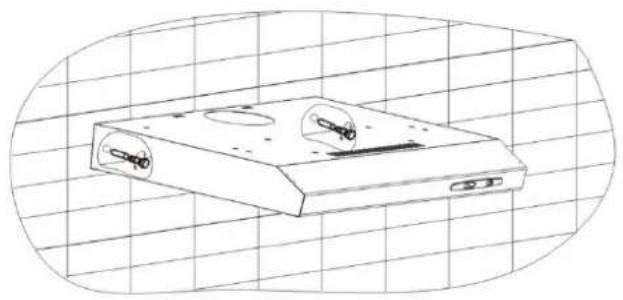

Method A

1. The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect.
2. To install onto the wall, drill 4 holes of ∅ 8mm on a suitable place according with the center distance of hole in the back of the cooker hood.
3. Insert the nut into the holes.
4. Insert the screws into the nuts and tight
5. Put up the cooker hood onto the fixed screws
6. Then use the attached accessories enclosed to turn the screws into the two holes of inside the hood, and then fix the screws to tighten the hood onto the wall.
7. Put the one way valve onto the cooker hood.

Pic 1

Pic 2

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

Pic 3

Line drawing of a computer monitor with two ports and a grid background (no text or symbols)

Pic 4

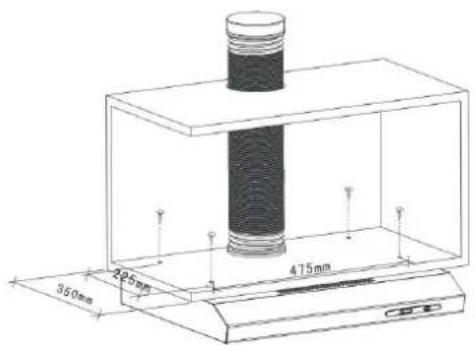

Method B

1) Drill 4 holes of ∅ 6mm at the bottom of the hanging Cup board.
2) Put the one way valve on the cooker hood, then install the cooker hood on the bottom of the cupboard, tighten the hood with enclosed 4 screws.
3) Install the adjusted board on the bottom of the hood in order to keep out the gap between hood back and cupboard.

Pic 5

Notice

There are 2 methods for ventilation, including 'horizontal ventilation' and 'vertical ventilation'. Please pay attention to the ventilation method when installation.

Horizontal ventilation: As shown in pic. 4A, please use the cover to seal the outlet on the top, then the air can be vented from back.

Vertical ventilation: As shown in pic 4B, please use the cover to seal the outlet on the back, then the air can be vented from top.

Technical line drawing of a rectangular electronic device with mounting holes and a circular component, labeled A (no text or symbols on the diagram itself)

Technical line drawing of a rectangular electronic device with a circular opening and labeled component B (no text or symbols beyond labels)

Pic 6

Diagram showing airflow or ventilation between two building walls, one with a pipe and arrow indicating direction (no text or symbols)

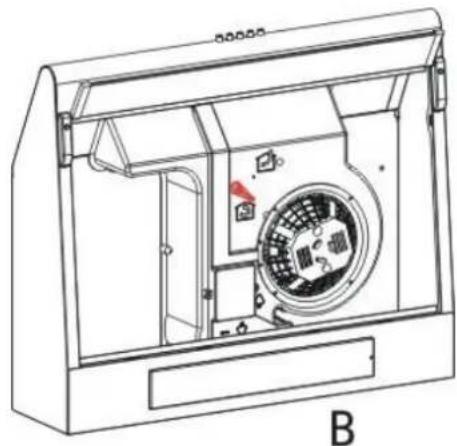

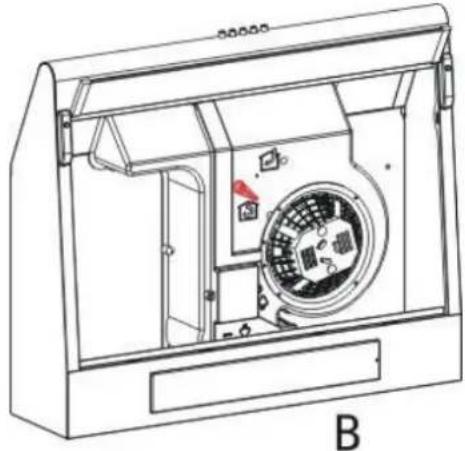

Air ventilation setting

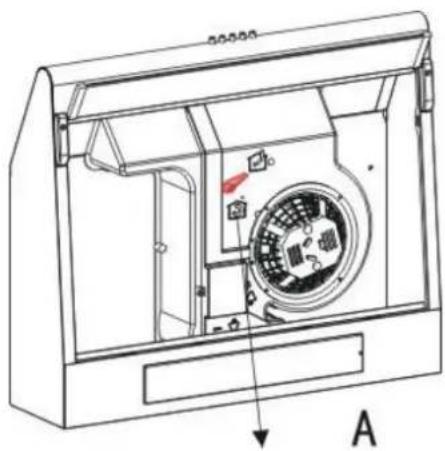

Outdoor air ventilation: Turn the adjuster to outdoor position (pic. A), install the outlet, turn on the cooker hood, then the air will be vented from the outside outlet. Indoor air ventilation: Turn the adjuster to indoor position (pic. B), install the outlet cover, turn on the cooker hood, then the air can be vented from the inside outlet.

Technical line drawing of a mechanical device with internal components and labeled section A (no text or symbols beyond labels)

Technical line drawing of a mechanical device with internal components and a labeled section B (no text or symbols on the diagram itself)

V. OPERATION

The switch is operated as below :

1. Press "0", the motor will be off.
2. Press the button to "low", "middle" and "high", the motor will be turned on at "low", "middle" and "high" speed respectively.
3. Press "light", the light will be on. Press it again, the light will be off.

VI. CLEANING AND MAINTENANCE

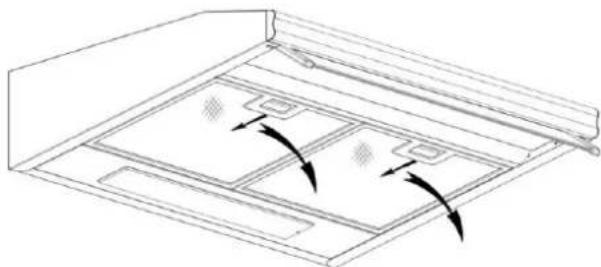

Changing and cleaning the filter

Technical line drawing of a mechanical or architectural component with internal compartments and directional arrows indicating movement (no text or symbols)

1. Put the filter into the water of 40-50°C, put some detergent in, and leave it for 2-3 minutes. Then use the soft brush to clean it with proper strength, in order not to damage the filter.
2. The filter can be cleaned by dish washer. Put the filter into the dish washer and put some detergent in, then turn the temperature to 60^ C.
   If the filters are made of acryl, please do not use any corrosive detergent when cleaning. Notice: Please unplug before cleaning.

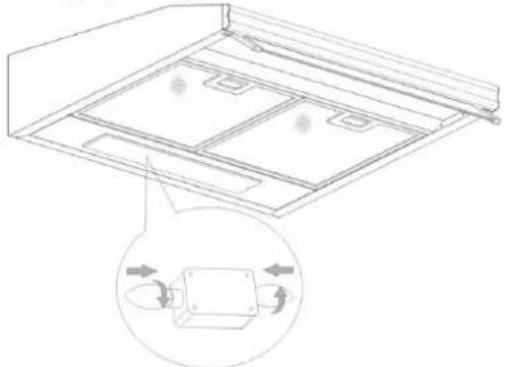

Changing the light

Technical line drawing of a mechanical assembly with internal components and a magnified inset showing internal flow direction (no text or symbols)

*Before changing the lights, make sure that the appliance is plugged off.
*Open the filter, see beside picture.
*Change the Max. 40W E14 olive-shaped bulb.
*Replace the filter to the original position.

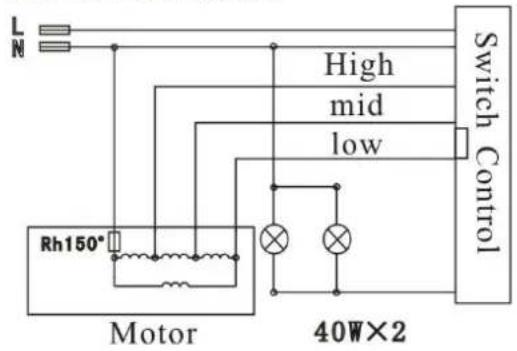

AC 220-240V /50Hz

VII. TROUBLESHOOTING

Symptom	Solution
The cooker hood does not start.	Check that the hood is connected to the electricity supply.Check that the fan speed control is set properly.
The cooker hood is not working Effectively.	The fan speed is not set high enough.The grease filter is dirty.The kitchen is not ventilated well enough.If the hood is set for recirculation, check that the carbon filters have not expired.If the hood is set for extraction, check that the ducting and outlets are not blocked.
The cooker hood has switched off during operation.	The safety cut-out device has been tripped.Turn off the hob and then wait for the device to reset.Note that if you have installed your cooker hood too low, this will happen.If it happens frequently, it will be damaged.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

Product fiche according to Commission Delegated Regulation (EU) No. 65/2014
Trademark	Heinner
Model	CH-250-WHN CH-250-GRY, CH-250-BK
Annual energy consumption (kWh/year)	111.6
Energy efficiency class	E
Fluid dynamic efficiency	4.6
Fluid dynamic efficiency class	F
Lighting efficiency (lux/W)	0.7
Lighting efficiency class	G
Grease filtering efficiency (%)	75.7
Grease filtering efficiency class	C
Airflow at minimum and maximum speed under normal conditions of use (m3/h)	119/174
Airborne acoustical A-weighted sound power emissions at minimum and maximum speed under normal conditions of use (dB(A))	55/65
Power consumption in standby mode (W)	0
Power consumption in off mode (W)	0

HEINNER

Line drawing of a front air duct system with mounting brackets and ventilation slots (no text or symbols)

• Кухненски абсорбатор
• Засмукваша мощност: 174 m³/h

Technical line drawing of a mechanical device with mounting holes and a central hub, set against a grid background (no text or symbols)

Pic 4

Метод Б

Simple line drawing of a rectangular electronic device with two circular components and upward arrows indicating motion (no text or symbols)

A

Simple line drawing of a rectangular electronic device with a circular opening and two rectangular slots, no text or symbols present.

B

Pic 6

Diagram showing airflow or ventilation between two brick walls, with no text or symbols present.

Technical line drawing of a mechanical device with internal components and labeled section A (no text or symbols beyond labels)

Technical line drawing of a mechanical device with internal components and a circular component (no text or symbols)

V. РАБОТА

VI. ПОДДРЬЖКА

Technical line drawing of a mechanical or architectural component with internal compartments and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a magnified inset showing rotational flow (no text or symbols)

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.heinner.com, http://www.nod.ro

CE

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

HEINNER

HAGYOMÁNYOS GÓZELSZÍVÓ

Modell: CH-250-BK

CH-250-GRY

CH-250-BRW

Line drawing of a front air duct system with mounting brackets and ventilation slots (no text or symbols)

Diagram of a mounted device on a brick wall, showing two circular components and a base plate (no text or symbols)

B. lehetőség

Technical line drawing of a rectangular electronic component with circular holes and mounting feet, labeled A (no text or symbols on the diagram itself)

PIC4

Simple line drawing of a rectangular box with two circular components and an arrow indicating direction (no text or symbols)

Diagram showing airflow or ventilation between two building walls, one with brick walls and one with a curved pipe (no text or symbols)

Keringető üzemmód

Technical line drawing of a mechanical device with internal components and labeled section A (no text or symbols beyond labels)

Technical line drawing of a mechanical device with internal components and labeled section B (no text or symbols on the diagram itself)

V. MÜKÖDTETÉS

Technical line drawing of a mechanical or architectural component with internal compartments and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a magnified inset showing fluid flow direction (no text or symbols)

VII. MÜSZAKI ADATLAP

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.heinner.com, http://www.nod.ro

Str. Marcel Iancu, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.ro, www.nod.ro

HEINNER

TRADYCYJNY OKAP

Model: CH-250-BK

CH-250-BRW

CH-50-GRY

Line drawing of a front-loading air conditioner unit with mounting brackets and ventilation slots (no text or symbols)

Diagram of a mounted device with two circular components on a brick wall (no text or symbols)

Sposób B

Technical line drawing of two views (A and B) of a mechanical device with internal components, no visible text or symbols.

V. UŻYCIE

VI. CZYSZCZENIE I KONSERWACJA

Technical line drawing of a mechanical or architectural component with internal compartments and directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and a magnified inset showing rotational motion (no text or symbols)

VII. SPECYFIKACJA TECHNICZNA

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.heinner.com, http://www.nod.ro
