USER MANUAL TF-L32B ATV TechnoStar

Abstract geometric diagram with overlapping planes and lines, no text or symbols present

Inhaltsverzeichnis

Front panel of a remote control with labeled buttons and function keys

Fernbedienung X 1

Simple line drawing of a cord tied with a plug, no text or symbols present

Netzkabel X 1

Rear of the TV main unit S-VIDEO VIDEO L R P r P b Y HDMI DVD Player Power Supply Obey the same voltage and frequency indication on the rating label of the main unit. Antenna /TV STB CAMCORDER AUDIO OUT PC Small Tips Do not connect the power cord of the AC adaptor to an AC outlet until all connections have been made. The system is not completely disconnected from the power cord when the ◦ button is set the standby mode. Please refer to the instruction manuals for the equipment that you are connecting (DVD Player, PC, Camcorder, etc.).

Diagram showing battery charging process with two stages: before and after, no text or symbols present

Remote sensor Within approx. 8 metres 30°30

Hinweis:

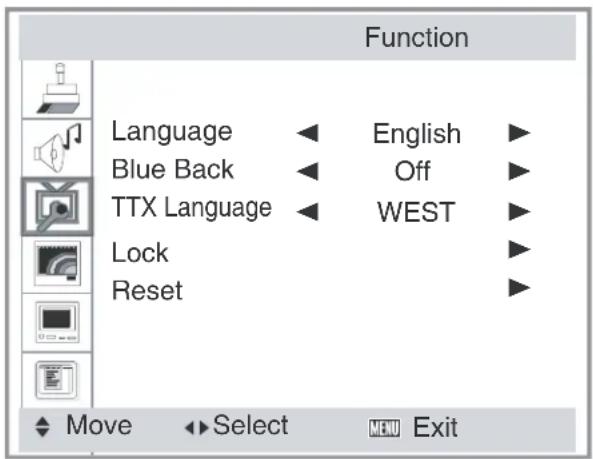

Function Language ▶ English ▶ Blue Back ▶ Off ▶ TTX Language ▶ WEST ▶ Lock Reset Move ▶ Select MENU Exit

Please Input Password.

---

MENU Exit

Lock Mode	◀	OFF	▶
Change Password			▶
Max Volume	◀	100	▶
Volume Lock	◀	OFF	▶
Keyboard Lock	◀	OFF	▶
Source Lock			▶
Tuning Lock	◀	OFF	▶
TV on Source	◀	OFF	▶
TV on Channel	◀	0	▶

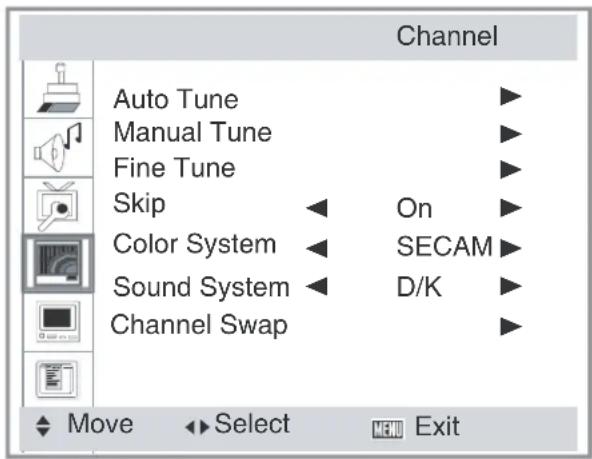

Channel Auto Tune Manual Tune Fine Tune Skip On Color System SECAM Sound System D/K Channel Swap Move Select Exit

PC H Position V Position Clock Phase Auto Move Select Exit

Advance Scale 16:9 3D NR Mid Color Temp. Normal Back Light OSD Transparency OSD Duration PIP/POP Move Select Exit

Scale (Skalierung):

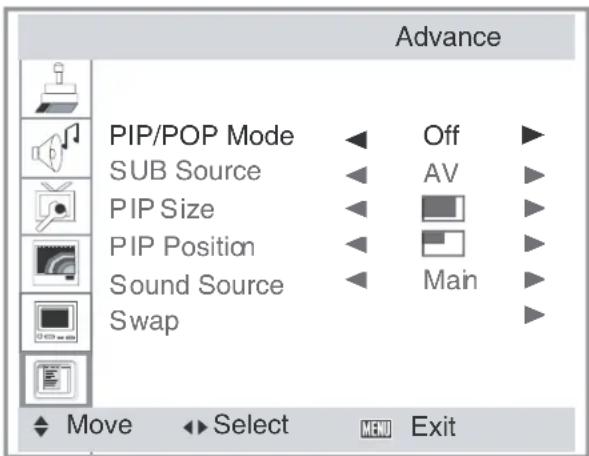

Advance PIP/POP Mode Off SUB Source AV PIP Size PIP Position Sound Source Main Swap Move Select Exit

PIP/POP Mode:

Sub/Main (Unter/Haupt)	TV	AV1	AV2	SVIDEO	SCART	YPbPr	PC	HDMI
TV	X	X	X	X	X	O	O	O
AV1	X	X	X	X	X	O	O	O
AV2	X	X	X	X	X	O	O	O
SVIDEO	X	X	X	X	X	O	O	O
SCART	X	X	X	X	X	X	X	O
YPbPr	O	O	O	O	X	X	PIP	PIP
PC	O	O	O	O	X	PIP	X	PIP
HDMI	O	O	O	O	O	PIP	PIP	X

WARTUNG

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Klangsystem D/K, B/G, I, L/LL

Stromanforderungen

Abstract geometric diagram with overlapping planes and lines, no text or symbols present

Inhoudstafel

VOORZORGEN......D3

AANSLUITVOORBEELDEN...... D4

BEDIENINGSTOETSEN...... D5

BASISFUNCTIONS...... D7

INSTELLING OSD-MENU......D9

ONDERHOUD......D17

VERHELPEN VAN STORINGEN...... D18

Simple line drawing of a cord tied with a plug, no text or symbols present

Power cord X 1

Rear of the TV main unit S-VIDEO VIDEO L R P r P b Y HDMI DVD Player Power Supply Obey the same voltage and frequency indication on the rating label of the main unit. Antenna /TV STB CCTV-SWART PC AUDIO CAMCORDER AUDIO OUT PC Small Tips Do not connect the power cord of the AC adaptor to an AC outlet until all connections have been made. The system is not completely disconnected from the power cord when the ○ button is set the standby mode. Please refer to the instruction manuals for the equipment that you are connecting (DVD Player. PC, Camcorder, etc.).

Diagram showing a device inside a remote control panel, with arrows indicating motion and polarity (no text or symbols)

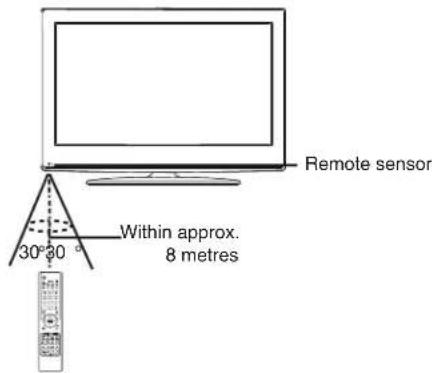

Bedieningsbereik

Remote sensor Within approx. 8 metres 30° 30°

Opmerking:

Remote sensor	Afstandssensor
Within approx. 8 metres	Binnen circa 8 meter

Bedieningstoetsen

1 2 3 4 5 6 22 21 20 S.STD NR. SLEEP I/II P.STD ASPECT FREEZE INFO 1 2 3 4 5 6 7 8 9 -/-- 0 SOURCE MENU 19 18 ENTER EXIT 17 VOLUME CHANNEL - + - RED GREEN YELLOW CYAN INDEX CANCEL SIZE SUBPAGE MIX HOLD REVEAL TXT POSITION WINDOW SWAP ON/OFF 16

Picture—Sound Function (Channel PC)—Advance ...

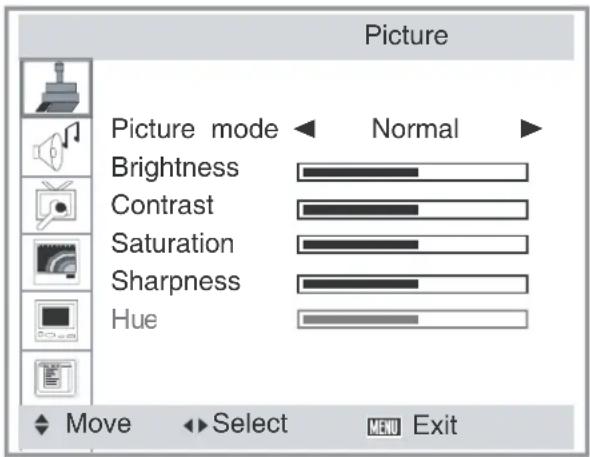

Picture Picture mode ← Normal ► Brightness Contrast Saturation Sharpness Hue Move Select END Exit

Beeldmodus:

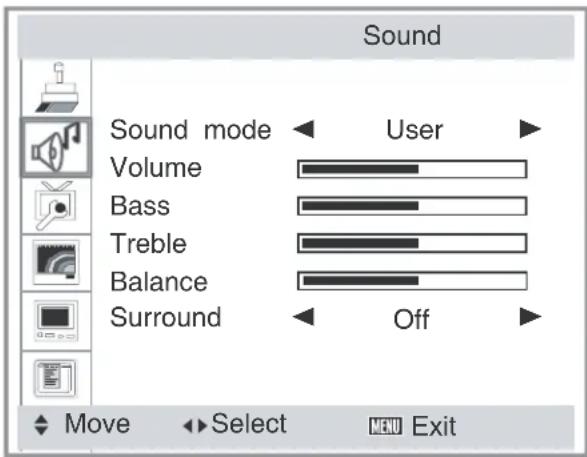

Surround: Zet de surround-klank op "On" (aan) of "Off" (uit).

Functie- menu

Please Input Password.

---

MENU Exit

LOCK SETTING Lock Mode ◀ OFF ▶ Change Password ▶ Max Volume ◀ 100 ▶ Volume Lock ◀ OFF ▶ Keyboard Lock ◀ OFF ▶ Source Lock ▶ Tuning Lock ◀ OFF ▶ TV on Source ◀ OFF ▶ TV on Channel ◀ 0 ▶

Volume Lock (volumevergrendeling):

Keyboard Lock (toetsvergrendeling):

Channel Auto Tune Manual Tune Fine Tune Skip Color System Sound System Channel Swap On SECAM D/K Move Select Exit

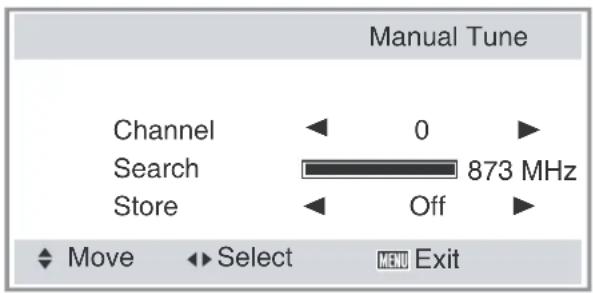

Manual Tune (manuele tuning):

Manual Tune Channel 0 Search 873 MHz Store Off Move Select Exit

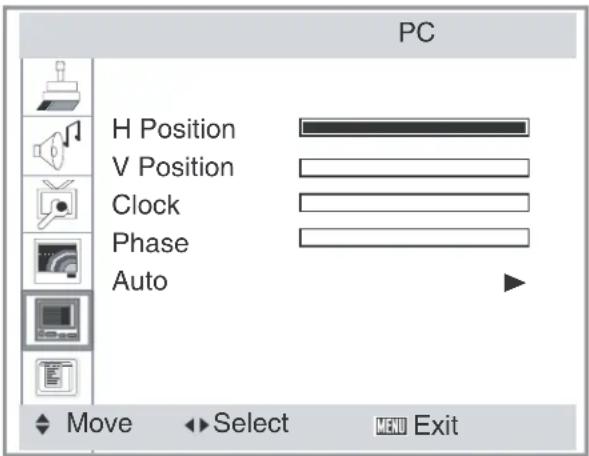

PC H Position V Position Clock Phase Auto Move Select MENU Exit

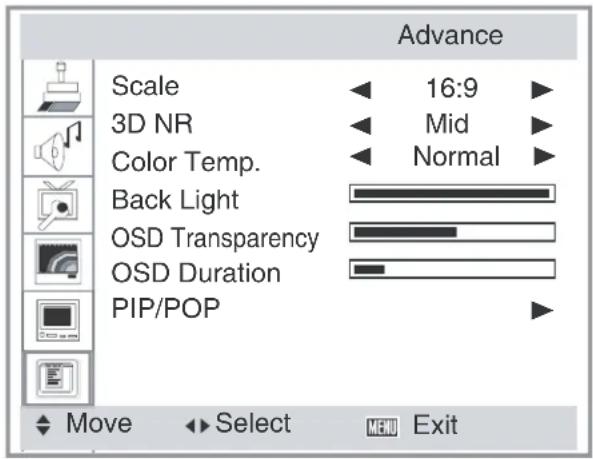

Advance Scale 16:9 3D NR Mid Color Temp. Normal Back Light OSD Transparency OSD Duration PIP/POP Move Select Exit

Schaal:

Advance PIP/POP Mode Off SUB Source AV PIP Size PIP Position Sound Source Main Swap Move Select Exit

PIP/POP-modus:

U kunt de gewenste modus instellen. (Off / PIP / POP 4:3 / POP 16:9)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Abstract geometric diagram with overlapping planes and lines, no text or symbols present

Table of contents

PRECAUTONS.... E3

CONNECTION EXAMPLES...... E4

CONTROLS E5

BASIC OPERATIONS...... E7

OSD MENU SETTING ...... E9

MAINTENANCE ...... E17

TROUBLE SHOOTING E18

SPECIFICATION ...... E19

Dear Customer:

Thank you for purchasing this LCD TV. When opening the box for the first time, please check whether all the accessories are present. Before connecting parts and power, please carefully read the user manual and always keep these instructions handy and close by your LCD TV.

STOP START

Remote control X 1

User manual X 1

AV cable X 1

Batteries X 2

Simple line drawing of a cord tied with a plug, no text or symbols present

Power cord X 1

Please check the accessories when open the package. If anything damaged or lacked, consult with your local dealer.

Note:

This handling description is printed prior to product development.

When a part of the product specification must be changed to improve operability or other functions, priority is given to the product specification itself. In such instances, the user manual may not entirely match all the functions of the actual product.

Therefore, the actual product and packaging, as well as the name and illustration, may differ from the manual.

The screen shown as an example in this manual may be different from the actual screen display.

A few bright dots and dark dots may appear on the TV screen, that is normal appearance.

PRECAUTIONS

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

	This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
	This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

CAUTION

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

• Do not install the unit in an unstable space.
• Do not exposed the unit to where there are extremes of temperature (below 5 or exceeding 35°C) or moisture.
• Do not expose the unit to directly sunlight or heat nearby.
• Do not install this unit in a confined space, such as a bookcase or built-in cabinet.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc..

- Do not place this unit in any liquid.

- Do not insert any tiny object into the unit through the ventilation.

- The apparatus shall not be exposed to dropping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.

- No naked flame sources, such as lighted candles, should be placed on the apparatus.

- Never touch the TV screen or antenna / power cord during thunderstorms. Stop use it during thunderstorms.

- Do not step on the power cord, or twist the power cord wire.

- This product should not be adjusted or repaired by anyone except properly qualified personal when an abnormal condition or trouble happens. Please consult with the qualified service person.

- Always remove the batteries and store in a dry place if the remote control is not to be used for a long time.

- Avoid drop down the remote control and damage it.

- Always power this unit from an outlet with the same rating (voltage and frequency) as indicated on the rating label at the back of this unit.

- When not in use, disconnect the power cord from the outlet. Grasp the plug, not the cord, when disconnecting the unit.

- Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

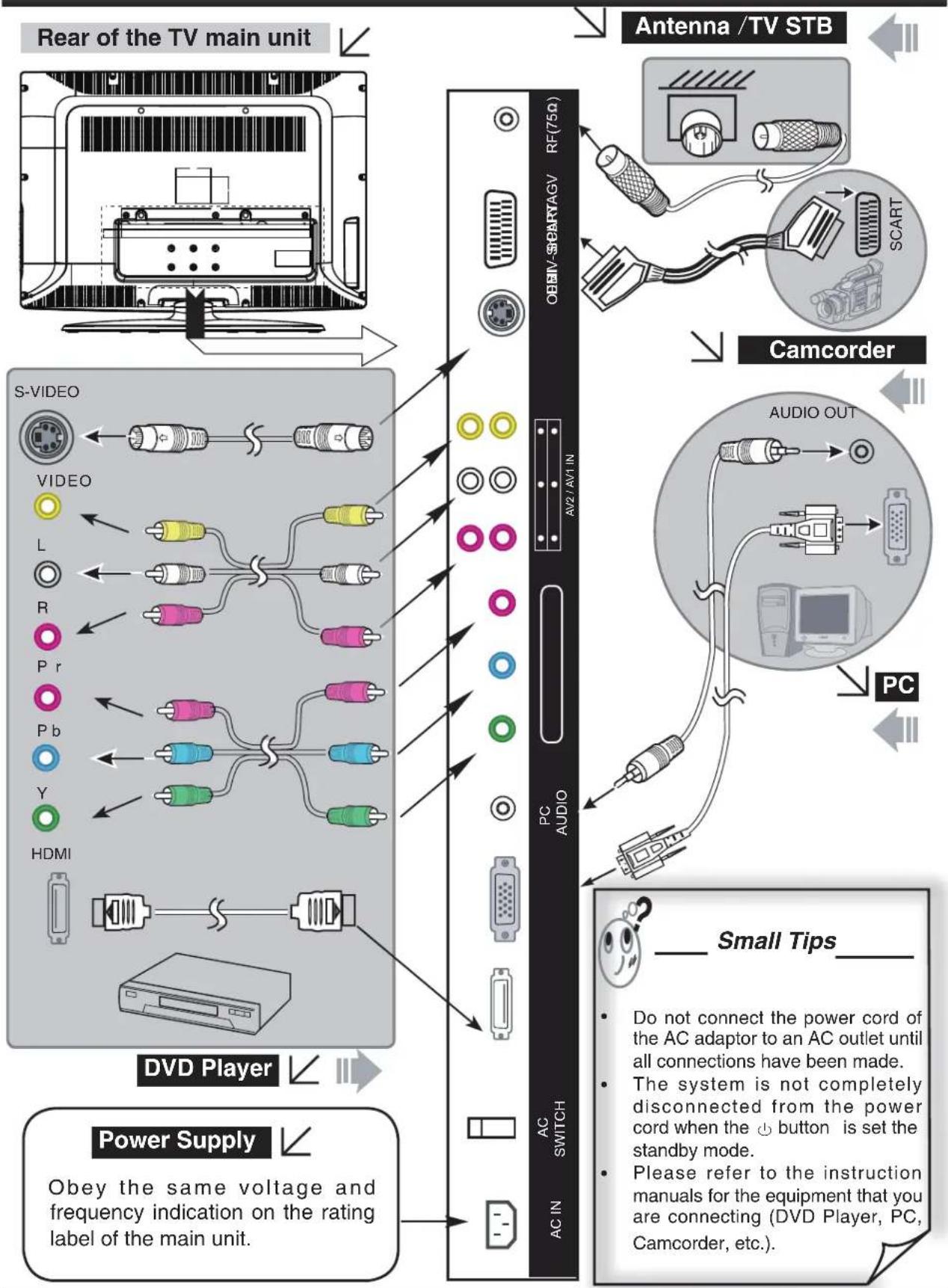

CONNECTION EXAMPLES


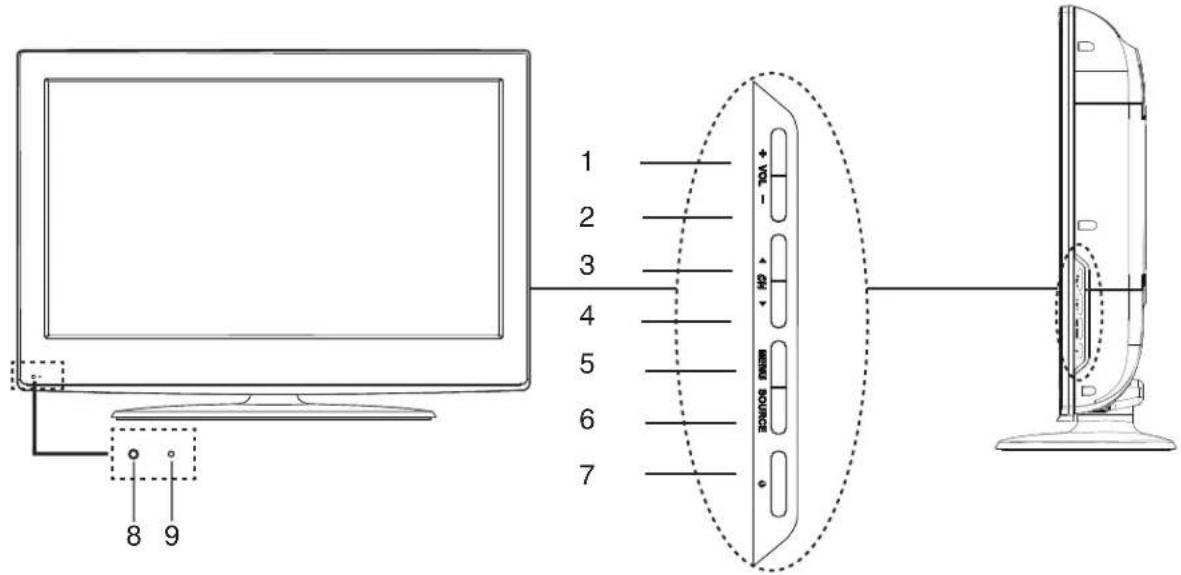

CONTROLS

MAIN UNIT

1 2 3 4 5 6 7 8 9 + - 70A + + - + - 70A + - + SOURCE NAME -

1. Volume increase button (+ VOL)
2. Volume decrease button (VOL -)
3. Channel up button (▲ CH)
4. Channel down button (CH ▼)

5. Menu button (MENU)

6. Input source select button (SOURCE)

7. Power/Standby button (⏻)
8. Remote sensor
9. Power indicator

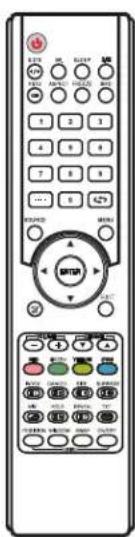

REMOTE CONTROL

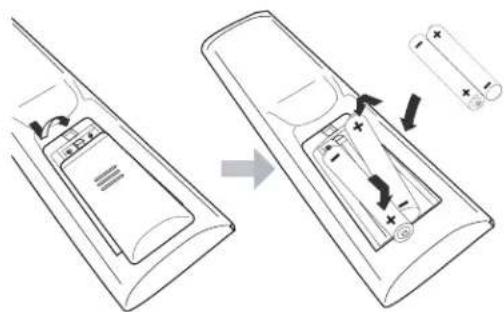

Inserting Batteries
Two "R03/AAA" batteries

Diagram illustrating battery charging process with labeled components and directional arrows

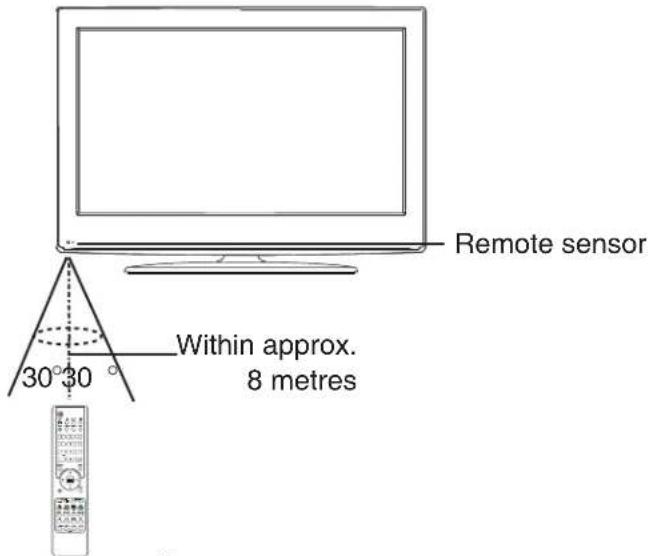

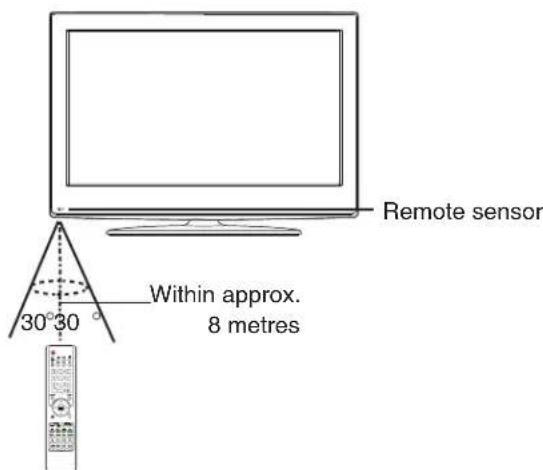

Control Range

Remote sensor Within approx. 30°30° 8 metres

Note:

- Bright Sunlight or lighting may cause erratic remote operation.

- Always remove batteries if the remote control is not to be used for a month or more. Batteries left in it may cause damage.

- The buttons on the remote control perform similar function to similarly marked buttons on the main unit.

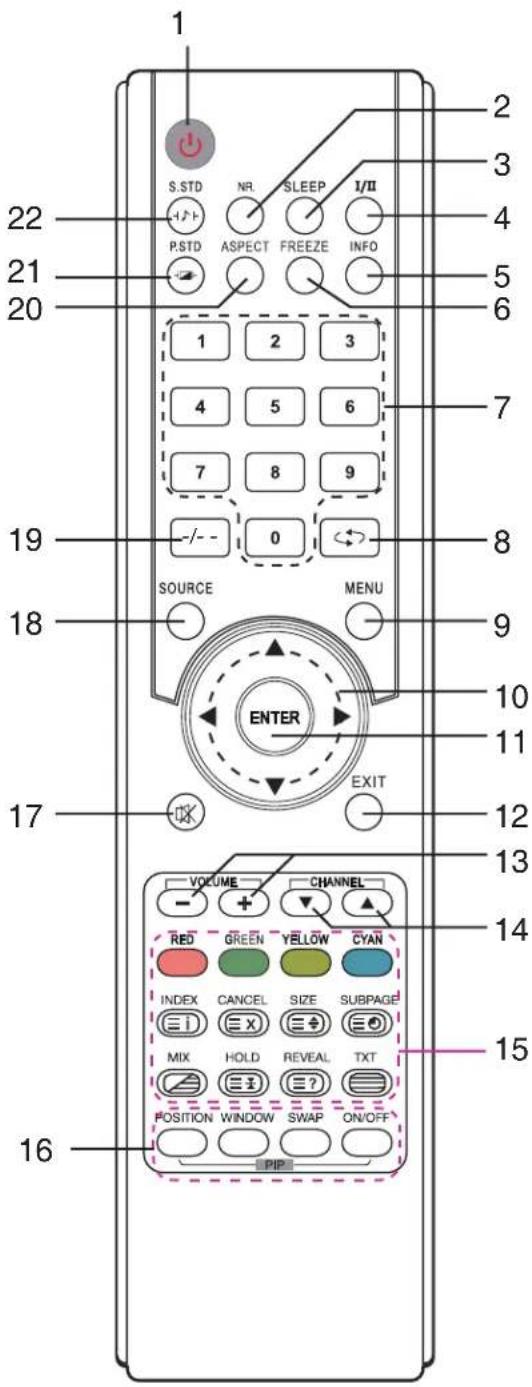

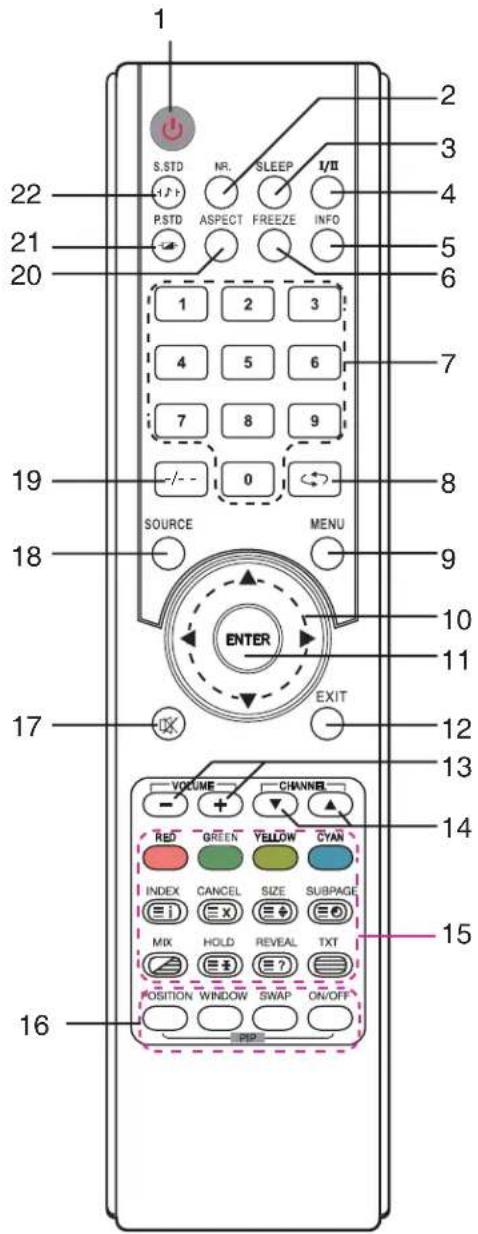

Control buttons

1 2 3 4 5 6 7 8 9 10 11 SOURCE MENU 9 ENTER EXIT 12 13 14 VOLUME CHANNEL RED GREEN YELLOW CYAN INDEX CANCEL SIZE SUBPAGE MIX HOLD REVEAL TXT POSITION WINDOW SWAP ON/OFF PIP 16

1. Power/Standby button ( ⏻)
2. Picture noise reduction button (NR.)
3. Sleep function button (SLEEP)
4. NICAM sound mode select button (I/II)
5. Information display button (INFO)
6. Picture frozen button (FREEZE)
7. Number buttons (0, 1\~9)
8. Channel return button ( ⇧ )
9. Menu button (MENU)
10. Arrow buttons (▲, ▶, ▼, ◀)
11. Con□ rm button (ENTER)
12. Menu exit button (EXIT)
13. Volume control buttons (- VOLUME +)
14. Channel select buttons (▼ CHANNEL ▲)
15. For Teletext functions :
    INDEX: Teletext index display button
    CANCEL: Teletext cancel button
    SIZE: Teletext size button
    SUBPAGE: Teletext subpage button
    MIX: Teletext mix button
    HOLD: Teletext hold button
    REVEAL: Teletext reveal button
    TXT: Teletext on/off button
16. For PIP functions :
    POSITION: PIP position option button
    WINDOW: Select the audio output signal source
    SWAP: Main/Sub window exchange button
    ON/OFF: PIP function On/Off button
17. Mute button (✗)
18. Input source select button (SOURCE)
19. Multi-digitals channel button (-/-)
20. Display mode selection button (ASPECT)
21. Picture mode selection button (P.STD ▼)
22. Sound mode selection button (S.STD -)

BASIC OPERATIONS

Turn on/off the power

Make sure all the necessary connections are correctly connected before turn on the power.

When the AC power cord plugged into an AC outlet,

the power indicator turns red and the unit is in the standby mode.

Press [∅], the power indicator turns blue, the main unit turns on completely.

Press [⏻] agin to turn off the power.

If not to use the main unit for a long time, unplug the AC power cord from the AC outlet.

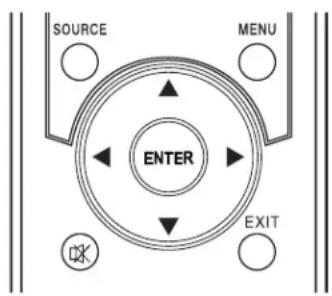

Select the input source

After turns on the main unit, press [SOURCE] to select the proper input source.

The input source menu appears.

SOURCE MENU ENTER EXIT

TV

AV1

AV2

SVIDEO

SCART

YPBPR

PC

HDMI

1. Press [▲▼] to move the high-lighted bar to the desired source item.
2. Press [▶] ( or [ENTER] ) to con□ rm.

Select the OSD language

The factory setting of OSD ( On Screen Display) language is “ English ”. If you are used to using other language, for your convenience, you can change it to your desired language firstly.

1. Press [MENU], OSD menu appears.
2. Press [▼] until "Function" menu appears.
3. Press [▶] to enter the setting menu, and "Language" is high-lighted.
4. Press [◀] to set the language to your desired language.
5. Press [EXIT] to exit the submenu.

Select the TV channel

After selected "TV" as input source, you can do either one of followings to select your channel.

• Press [▼ CHANNEL ▲].
• Press [0, 1\~9] to input the channel number directly.
• Press [ ⇌ ] to go back the previous channel you've watched.

Adjust the volume level

Press [VOLUME +/-] to increase or decrease the volume level.

Note:

The factory setting of OSD (On Screen Display) language is “English”, for the convenience of description, in this manual, all the OSD illustrations we use English ones as examples.

NICAM Function

Press [I/II] on the remote control.

This operation do no effect on the channels without NICAM signal.

Once the [I/II] is pressed, it alternates between the different audio language options depending on the NICAM signal style.

NICAM signal style	Audio language options
Mono	NICAM mono/mono
Stereo	stereo/mono
NICAM dual	mono/ Main dual (Dual I) / Sub Dual (Dual II)

Freezing the picture

Press [FREEZE] on the remote control, the picture on the screen will be frozen at current frame.

Press this button once more to resume normal playback.

Selecting the display mode

Press [ASPECT] repeatedly on the remote control to select the different display scale ratio:

16:9 4:3

16:9: Using this while play 16:9 scale ratio video signal.

4:3: Generally used in enjoying TV programmes.

Information display

Press [INFO] on the remote control, the related information of current source appears on the screen automatically.

E.g.: Channel No, Color System, Sound System, etc..

Using the Sleep Timer

The sleep timer automatically switches off the power after a preset time has elapsed. Press [SLEEP] on the remote control repeatedly to select the desired sleep time period:

$$ \text { Off } \longrightarrow 1 5 (\text { Min }) \longrightarrow 3 0 (\text { Min }) \longrightarrow 4 5 (\text { Min }) \longrightarrow 6 0 (\text { Min }) \longrightarrow 9 0 (\text { Min }) \longrightarrow 1 2 0 (\text { Min }) \longrightarrow \text { Off } $$

(The sleep timer starts when the setting is finished.)

To check the remain sleep time

Press [SLEEP] on the remote control, the remain sleep time appears on the screen for a few seconds.

OSD Menu Setting

Press [MENU], OSD main menu appears.

Press [▼], the main menu displays in turn as below:

Picture → Sound → Function → (Channel → PC →) Advance → ...

When some menu option is gray displayed, that means the option is not available in current setting mode.

Common procedure of operation:

• For each main menu, press [▶] to enter its sub-menu firstly.
• Press [▲/▼] to select the desired adjustable option.
• Press [◀/▶] to set the option to proper value. (If there's only “▶” behind, press [▶] only.)
• After setting of an option is over: Press [MENU] to return to the upper level menu, If you want set other options continually, Press [EXIT] to quit the menu screen directly.

Picture menu

Press [MENU], "Picture" menu screen appears.

Press [▶] to enter picture menu, and set the options as “Common procedure of operation” described.

Picture Picture mode ← Normal ► Brightness Contrast Saturation Sharpness Hue Move Select MEN Exit

Picture Mode:

Normal: Standard picture mode

Soft: Softly picture mode

Vivid: The contrast and sharpness, brightness, saturation of the picture are more higher than normal mode.

User: Customer definition.

Brightness: Set the picture's brightness.

Contrast: Set the picture's contrast.

Saturation: Set the picture's saturation.

Sharpness: Set the picture's sharpness.

Hue: Set the picture's hue.

(Avaliable for NTSC video signal only)

Sound menu

Press [MENU] then [▼] until "Sound" menu screen appears.

Press [▶] to enter, and set the options as "Common procedure of operation" described.

Sound Sound mode ← User ► Volume Bass Treble Balance Surround ← Off ► Move ▶ Select MENU Exit

Sound Mode:

Normal: Standard sound mode

News: Listen to the news programmes

Movie: Enjoy movie programmes

User: Customer definition.

Volume: Set the proper volume level.

Bass: Set the proper value of bass.

Treble: Set the proper value of treble.

Balance: Set the proper value of left and right channel speaker's balance.

Surround: Set the surround sound to "On" or "Off".

Function menu

Press [MENU], then press [▼] continually until “Function” menu screen appears.

Function Language ▶ English ▶ Blue Back ▶ Off ▶ TTX Language ▶ WEST ▶ Lock Reset Move ▶ Select ▶ Exit

Press [▶] to enter, and set the options as “Common procedure of operation” described.

Language: Set the On-screen display menu language.

The factory setting is Russian.

Blue Back:

Set to "On", blue screen displays;

set to "Off", blue screen disappears.

TTX Language:

Set the teletext language according to your desires.

Lock:

1) Press [▲ / ▼] to select "Lock".
2) Press [▶].
Password enquiry picture appears.

Please Input Password.

---

MENU Exit

3) Enter the password of 4 digits.

( The default setting is “0000”.)

If you forget the password...

Input "2008" to enter it.

Avoid young kids know this password.

The sub-menu appears.

LOCK SETTING

Lock Mode	◀	OFF	▶
Change Password			▶
Max Volume	◀	100	▶
Volume Lock	◀	OFF	▶
Keyboard Lock	◀	OFF	▶
Source Lock			▶
Tuning Lock	◀	OFF	▶
TV on Source	◀	OFF	▶
TV on Channel	◀	0	▶

Lock Mode: Have the priority than other options below. To set below options, this item must be set to "ON" firstly.

When it set to "On", all options below it are available.

Change Password:

i) Press [▲ / ▼] to select "Change Password".
ii) Press [▶].

Change Password

---

MENU Exit

iii) Press the number buttons to input a 4 digitals password.

Confirm Password

---

MEHU Exit

iii) Re-input the new password again.

After the new password is set, it returns to the upper level menu automatically.

Max Volume: To set the maxinium volume value.

Volume Lock: Keep the volume control status to be available or to not to released.

Keyboard Lock: All the buttons on the main unit come to abate when it set to "On".

Source Lock:

When Press [▶], the options expanded as below:

TV	◀	OFF	▶
AV1	◀	OFF	▶
AV2	◀	OFF	▶
SVIDEO	◀	OFF	▶
SCART	◀	OFF	▶
YPBPR	◀	OFF	▶
PC	◀	OFF	▶
HDMI	◀	OFF	▶

Select the input source item which you want to lock, and set the value to "On".

Note:

- When either source's lock is set, it's related item is not able to adjusted.

Tuning Lock:

The channel tuning is disable when it is set to "On".

TV on Source:

To set the default input source when you open the TV main unit.

TV on Channel:

To set the default TV channel number when you power on the TV.

Reset: (Set this option only when it is necessary.)

Press [▶].

It will quit the setup menu automatically, and all the settings return to the original factory setting.

If your display is not normal, or the operations work incorrectly, you can use this setting, then resume operations.

Confirm the operation is necessary before use it. For all the data of internal memories will be cleared up.

Note:

When the "LOCK MODE" sets to "ON", the reset option appears gray and it's unavailable.

Channel menu

(Available only when "TV" is set as the input source.)

Press [MENU] then [▼] till "Channel" menu screen appears.

Channel Auto Tune Manual Tune Fine Tune Skip On Color System SECAM Sound System D/K Channel Swap Move Select Exit

Press [▶] to enter, and set the options as “Common procedure of operation” described.

Auto Tune:

It will tuning the channels automatically and stopped at the high end of the channels.

The auto tuning result stores in the internal memory automatically.

If you want to exit during auto tuning process, press [MENU].

It exits the screen after auto tuning completed.

Manual Tune:

It will tuning the channels manually and stopped when any program is searched.

Set "Store" to "On", the tuning result stores in the internal memory.

Press [MENU] to return to the upper level menu.

Manual Tune Channel 0 Search 873 MHz Store Off Move Select Exit

Fine Tune:

It will scan current programme within a frequency range accurately and store the result manually.

Skip:

Set the skip sign of current channel to "On" or "Off".

Note:

To make a skip mark on current channel, when you select the channel by pressing [P+/-] , it skips over the channels with “On” marks smartly.

Color System:

Set the proper color system as "SECAM", "PAL" or "Auto".

Sound System:

Set the proper sound system as "D/K", "B/G", "I", "L/LL" or "Auto".

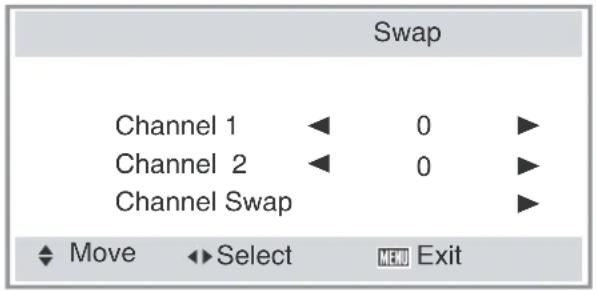

Channel swap:

Exchange the program information stored in two different channels. (E.g.: Channel 3 & 8)

Move the cursor by pressing [▲/▼], and input the channel No. by pressing [◀/▶].

Swap Channel 1 ◀ 0 ► Channel 2 ◀ 0 ► Channel Swap ► ◄ Move ◀► Select MEL Exit

1). Change the number after channel 1 from "0" to "3".
2). Change the number after channel 2 from "0" to "8".
3). Select "Channel Swap", and press [▶].
4). Press [MENU] to exit.

PC menu

(Available only when "PC" is set as the input source.)

Press [MENU] then [▼] till "PC" menu screen appears.

PC H Position V Position Clock Phase Auto Move Select Exit

Press [▶] to enter, and set the options as “Common procedure of operation” described.

H Position: Adjust the position of picture in horizontal.

V Position: Adjust the position of picture in vertical.

Clock: When Vertical stripes appears on the screen, adjust this item.

Phase: Adjust the phase of picture.

Auto: Adjust above items automatically.

Generally, it will adjust the picture's location on the screen, clock and phase, according to the signal output from the PC you connected.

In some special instance, the auto adjust item may not do effect. You may adjust the position, clock, phase manually.

Advance menu

Press [MENU] then [▼] till "Advance" menu screen appears.

Press [▶] to enter, and set the options as “Common procedure of operation” described.

Advance Scale 16:9 3D NR Mid Color Temp. Normal Back Light OSD Transparency OSD Duration PIP/POP Move Select Exit

Scale:

Set the proper screen display scale to get a better view.

3D NR:

Set the proper 3D Noise reduction setting to "Low", "Mid", "High" or "Off".

Color Temp.:

Set the proper color temperature setting.

Back Light:

Set the proper background light (Strong or Weak).

OSD Transparency:

Set the transparency of OSD menu bar.

OSD Duration:

Set the OSD menu duration time appears on the screen.

PIP/POP:

Set the related options of PIP (Picture-in-picture) or POP (Picture-on-picture) mode.

Press [▶] to enter, and set the options as “Common procedure of operation” described.

Advance PIP/POP Mode Off SUB Source AV PIP Size PIP Position Sound Source Main Swap Move Select Exit

PIP/POP Mode:

You can set the desired mode.

(Off / PIP / POP 4:3 / POP 16:9)

SUB source: Set the sub-window source.

PIP Size: Set the desired sub-window size.

PIP Position: Set the desired sub-window position.

Sound Source: Set "Main" or "Sub" source as the audio output signal source.

Swap: To exchange the main and sub source if necessary.

Note:

PIP/POP maybe not avaliable under some mode. (See the "PIP/POP source configuration" below.)

O: Available

X: Not Available

PIP: For PIP only

PIP/POP source con☐ guration

SubMain	TV A	V1 AV2	SVIDEO	SCART YP	BPR PC	HDMI
TV	X	XX	XXO O O
AV1	X	XX	XXO O O
AV2	X	XX	XXO O O
SVIDEO	X	XX	XXO O O
SCART	X	XX	XXX X O
YPBPR	O	O	O O	XX	PIP	PIP
PC	O	O	O	O	X	PIP	X	PIP
HDMI	O	O	O	O	O	PIP	PIP	X

MAINTENANCE

Cleaning the LCD Panel

The LCD panel should not be toughed with sharp objects. If dust and fingerprints is on the LCD panel surface, wipe them off with a clean soft cloth.

Wipe in a straight motion from the center to the outside of the LCD panel.

Never use chemicals such as record cleaning sprays, antistatic sprays or fluids, benzene or thinner to clean the LCD panel.

Cleaning the Main Unit

Clean the outside of the unit with a clean soft cloth moistened with luke-warm water. Do not use benzene, thinner or alcohol since they will mar the ☐nish of the surface.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Your product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre.

In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!

TROUBLESHOOTING

Symptom

Possible cause

Corrective active

No Picture and sound.

Power cord is not correctly connected with the main unit.

Connected the power cord with the main unit.

Power cord is not plugged into an AC outlet.

Plug the power cord into an AC outlet.

The wrong input source is selected.

Select a correct input source.

The input source is failed to connect with the TV.

Make correct connections.

No sound only.

Volume control is set to minimum.

Press the VOLUME+ button to increase the volume.

The ☒ MUTE button on the remote control is pressed.

Press the ☒ MUTE (or VOLUME+/-) button to release the volume.

An incorrect sound system mode is setted.

Set a correct sound system from the main menu to match your TV.

No picture only, or monochrome picture.

The color system setting doesn't match the program.

Set the proper color system setting.

The sound system setting doesn't match the program.

Set the proper sound system setting.

Interfered sound or picture.

Some equipment that brings interference is nearby the TV.

Keep these things away from the TV.

Multi devices plug into the same one AC outlet collections.

Plug the power cord into another AC outlet.

An incorrect sound system mode is setted.

Set a correct sound system from the main menu to match your TV.

Some functions are not available.

These functions' "LOCK" setting are set to "ON".

Release the "LOCK" setting.

SPECIFICATION

TF-L32B ATV

Display Features

Display Type LCD

Active Area 697.7 (H) X 392.2 (V) mm

Aspect Ratio 16:9

Panel Resolution 1366 (H) X 768 (V)

Brightness 480 cd/m 2

Contrast Ratio 3000:1

Dot Pitch 0.17025 (H) X 0.51075 (V) mm

Maximum Color 16.7M

Response Time 6.5 ms

Characters

HDMI compatible

480I, 480P, 576I, 576P, 720P, 1080I, 1080P

TV Reception

TV System: SECAM/PAL

Sound System: D/K, B/G, I, L/LL

Power Requirements

TV Power Input AC100-240V \~ 50/60Hz

Power Consumption < 150 W

Connections

Input:

TV Tuner (RF 75Ω) 1

Composite Video Input (AV1/2) 2

S-Video Input (S-VIDEO) 1

HDMI Input (HDMI) 1

Component Input (YPbPr) 1

VGA Input (VGA) 1

PC audio Input (PC AUDIO) 1

SCART 1

VGA Resolutions Supported

640 x 480@ 60Hz/75Hz

800 x 600@ 60Hz/75Hz

1024 x 768@ 60Hz/75Hz

1366 x 768 @ 60Hz

Dimension(WxHxD)

Unit W/stand/speakers 794 x 571 x 232mm

Unit W/O stand 794 x 528 x 113mm

Weight(N.W.)

Unit W/stand/speakers 13.7 Kg

Speakers Specification

Speaker (Built-In) 2 (10W, 8Ω)

Environment

Operating Temperature 5°C-35°C

Operating Humidity 10%-90%

Note:

Specifications subject to change without notice.

Abstract geometric design with overlapping planes and lines (no text or symbols)
