USER MANUAL TF-L16B DVB-T TechnoStar

Abstract geometric diagram with overlapping planes and lines, no text or symbols present

Inhaltsverzeichnis

VORSICHTSMASSNAHMEN....G3

BEDIENELEMENTE...... G4

ERSTE INBETRIEBNAME DES TV-GERÄTES...... G7

GRUNDFUNKTIONEN...... G8

Front panel of a remote control with labeled buttons and color palette

Fernbedienung X 1

Diagram showing a device being processed with a battery, labeled in Chinese.

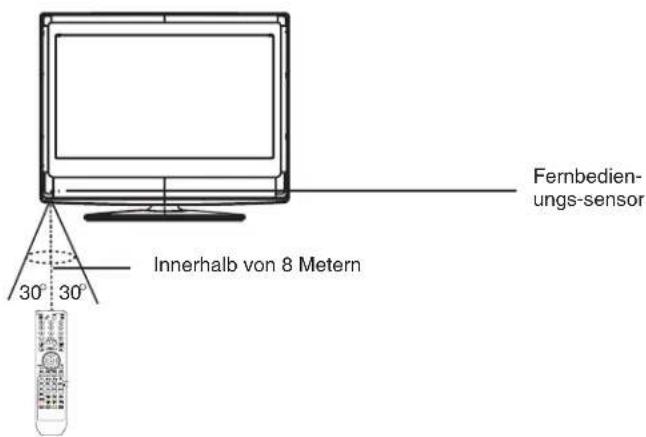

Reichweite

Haupt-OSD:

BILDMENÜ KLANGMENÜ

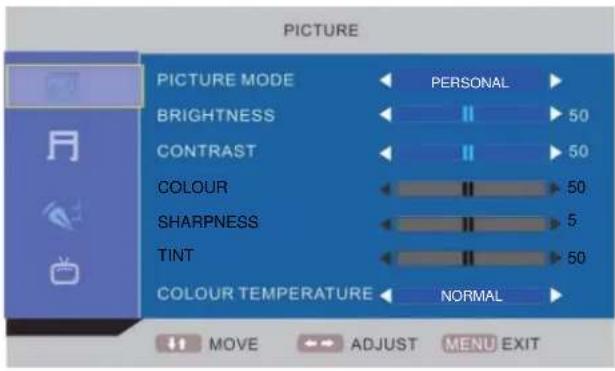

PICTURE PICTURE MODE BRIGHTNESS CONTRAST COLOUR SHARPNESS TINT COLOUR TEMPERATURE PERSONAL 50 50 50 5 50 NORMAL MOVE ADJUST MENU EXIT

SOUND SOUND MODE BASS TREBLE BALANCE AVC PERSONAL 50 50 0 OFF MOVE ADJUST MENU EXIT

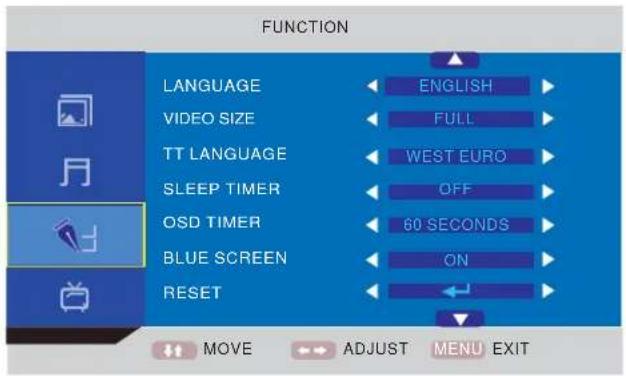

FUNKTIONSMENÜ

FUNCTION LANGUAGE ENGLISH VIDEO SIZE FULL TT LANGUAGE WEST EURO SLEEP TIMER OFF OSD TIMER 60 SECONDS BLUE SCREEN ON RESET MOVE ADJUST MENU EXIT

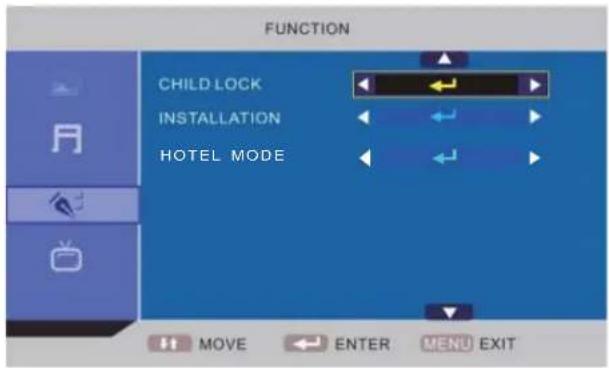

FUNCTION CHILD LOCK INSTALLATION HOTEL MODE MOVE ENTER MENU EXIT

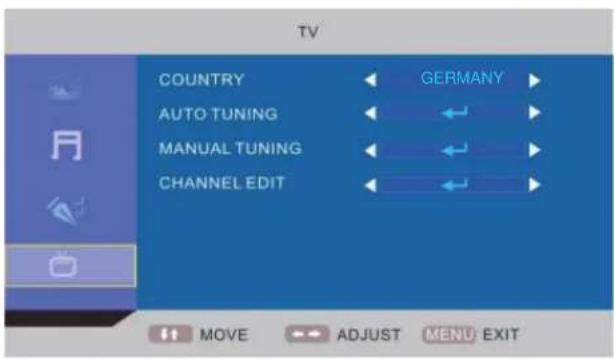

TV-MENÜ

TV COUNTRY AUTO TUNING MANUAL TUNING CHANNEL EDIT GERMANY MOVE ADJUST MENU EXIT

TV MANUAL TUNING CHANNEL 001 SOUND SYSTEM DK COLOR SYSTEM PAL AFT OFF MANUAL TUNING 49.7MHz MOVE ADJUST MENU BACK

DTV-MENÜ

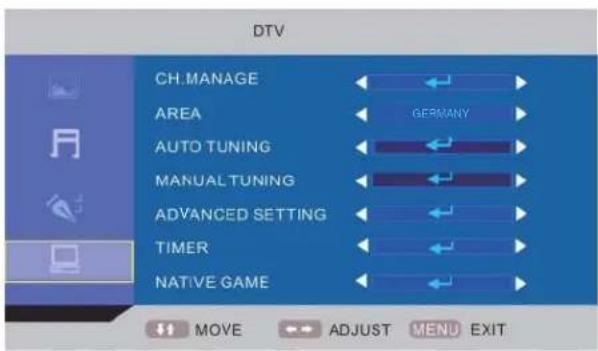

DTV CH MANAGE AREA AUTO TUNING MANUAL TUNING ADVANCED SETTING TIMER NATIVE GAME MOVE ADJUST MENU EXIT

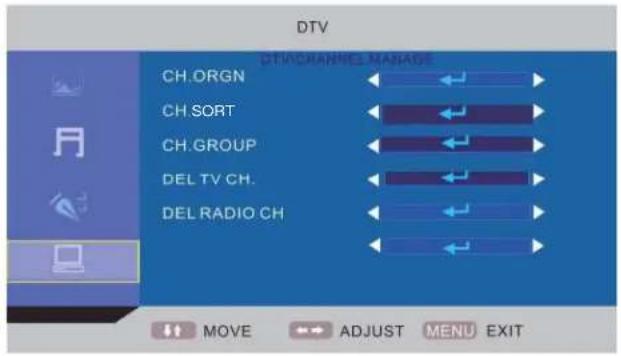

DTV CH.ORGN CH.SORT CH.GROUP DEL TV CH. DEL RADIO CH DTVCHANNEL MASHAGE MOVE ADJUST MENU EXIT

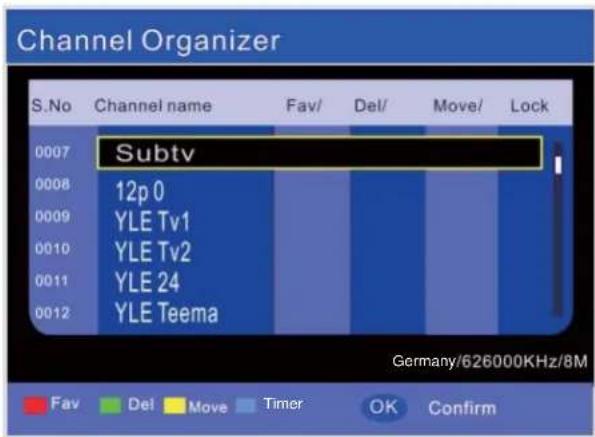

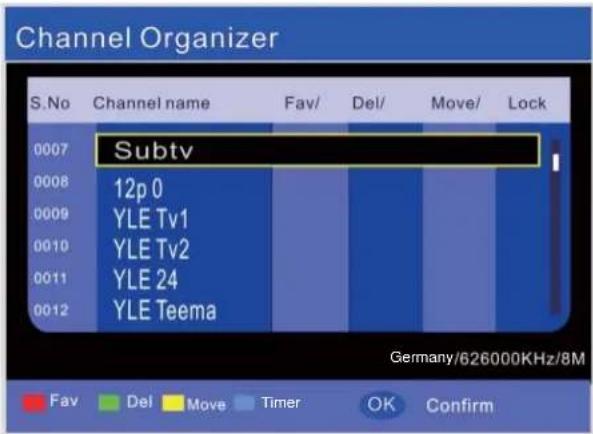

Channel Organizer S. No Channel name Fav/ Del/ Move/ Lock 0007 Subtv 0008 12p 0 0009 YLE Tv1 0010 YLE Tv2 0011 YLE 24 0012 YLE Teema Germany/626000KHz/8M Fav Del Move Timer OK Confirm

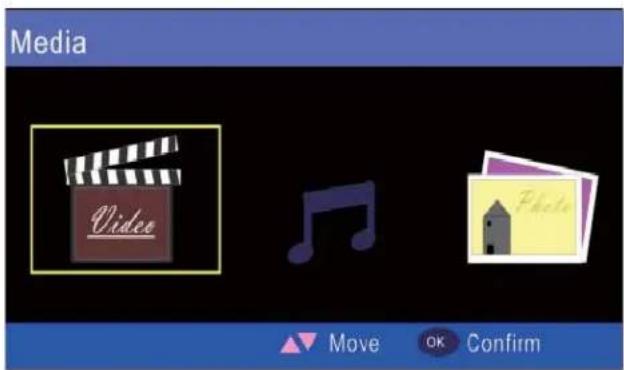

Media Video Move OK Confirm

Pixelpitch 0.252 (H) X 0.252 (V) mm

Maximale Farben 16.7 M

Reaktionszeit 8 ms

Merkmale

HD-kompatibel 480l, 480P, 576l, 576P, 720P, 1080l, 1080P

Wandmontage VESA 100

TV-Empfang

Abstract geometric diagram with overlapping planes and lines, no text or symbols present

Inhoudstafel

VOORZORGEN...... D3

BEDIENINGSTOETSEN...... D4

EERSTE GEBRUIK VAN DE TV...... D7

BASISFUNCTIONS...... D8

INSTELLING OSD-MENU......D9

ONDERHOUD......D16

VERHELPEN VAN STORINGEN...... D16

Front panel of a remote control with labeled buttons and function keys

Afstandsbediening X 1

CAUTION: TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Twee "LR03/AAA" batterijen

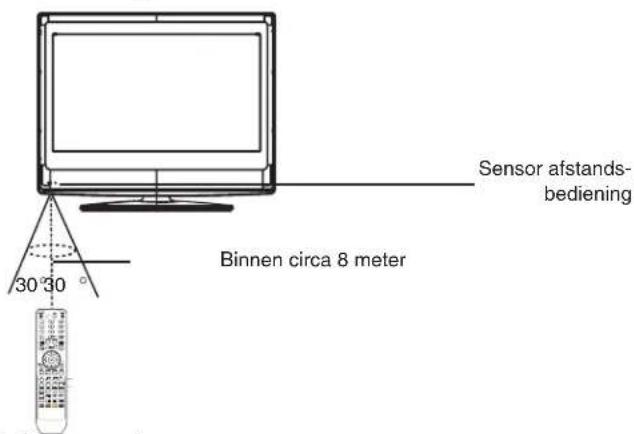

Bedieningsbereik

Sensor afstands- bediening 30 30 Binnen circa 8 meter

Opmerking:

ROOD Selecteert STADSINFORMATIE,

BLAUW selecteert REISINFORMATIE,

GROEN selecteert WEERSINFORMATIE,

GEEL selecteert TV-PROGRAMMERING.

FAV TEXT INDEX MEDIA TV/RADIO FAV# HOLD SIZE DIA TV/RADIO FAV++ OLD/LA REVEAL Reveal Subpages SUBTITLE SUBTITLE SUBPAGE

EERSTE GEBRUIK VAN DE TV

Hoofdmenu OSD:

BEELDMENU KLANKMENU

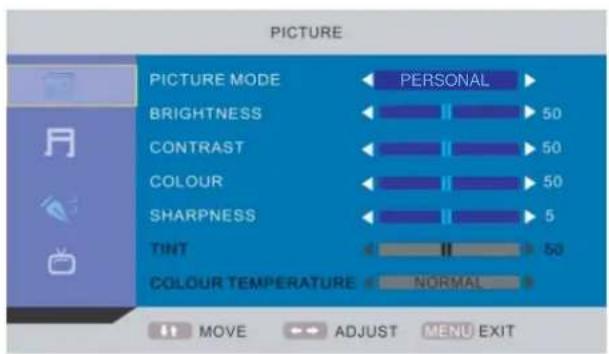

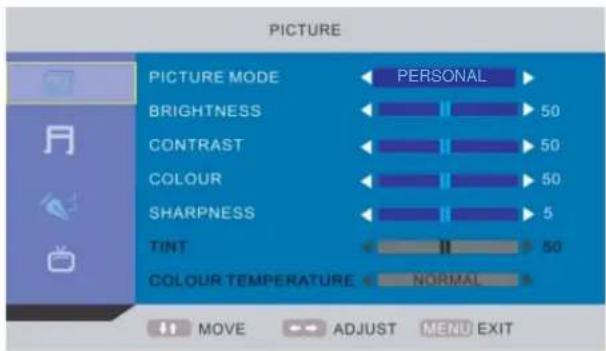

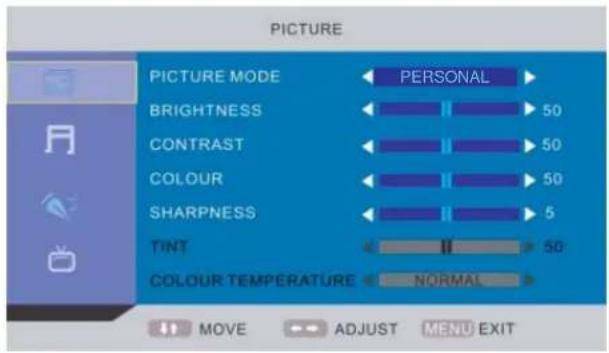

PICTURE PICTURE MODE ← PERSONAL → BRIGHTNESS ← 50 CONTRAST ← 50 COLOUR ← 50 SHARPNESS ← 5 TINT ← II 50 COLOUR TEMPERATURE ← NORMAL → MOVE → ADJUST MENU EXIT

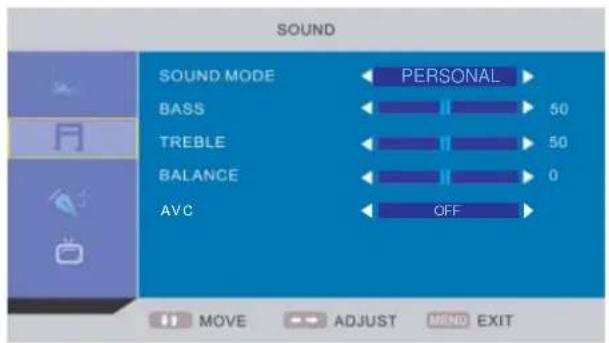

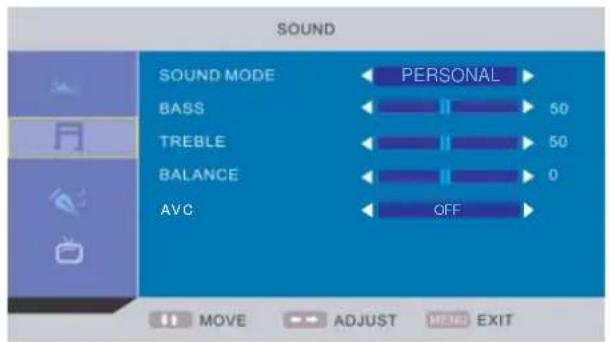

SOUND SOUND MODE BASS TREBLE BALANCE AVC PERSONAL 50 50 0 OFF MOVE ADJUST MENU EXIT

FUNCTIEMENU

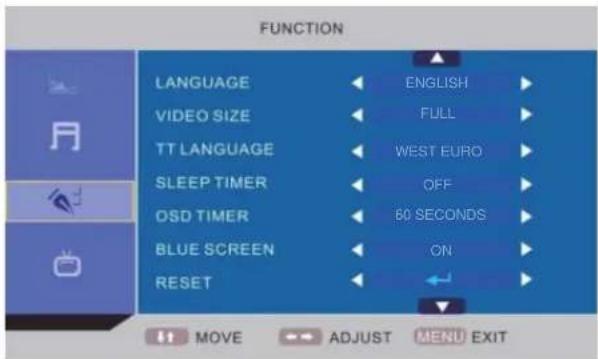

FUNCTION LANGUAGE ENGLISH VIDEO SIZE FULL TT LANGUAGE WEST EURO SLEEP TIMER OFF OSD TIMER 60 SECONDS BLUE SCREEN ON RESET MOVE ADJUST MENU EXIT

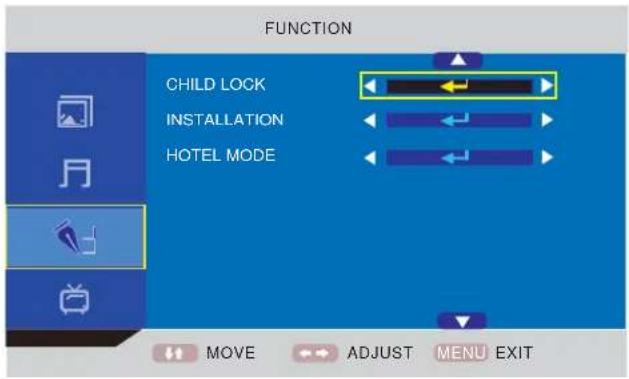

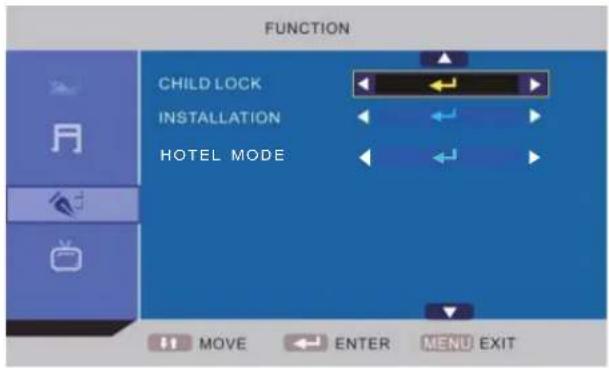

FUNCTION CHILD LOCK INSTALLATION HOTEL MODE MOVE ENTER MENU EXIT

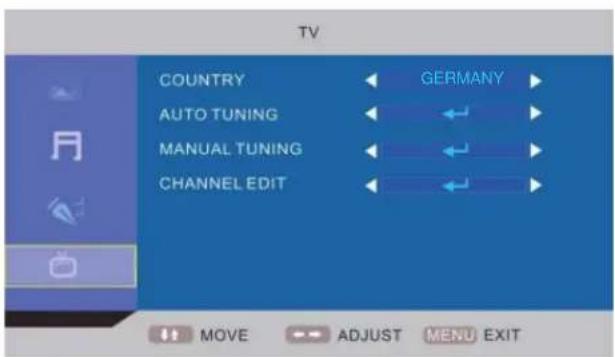

TV-MENU

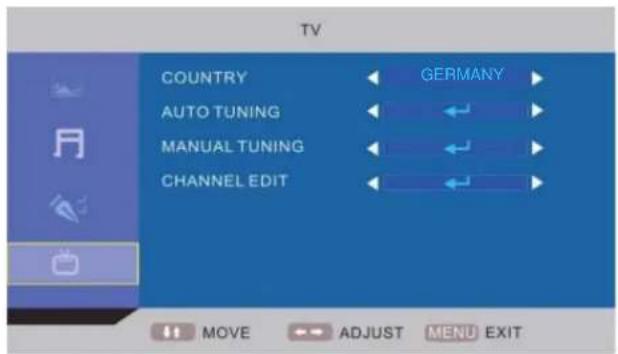

TV COUNTRY GERMANY AUTO TUNING MANUAL TUNING CHANNEL EDIT MOVE ADJUST MENU EXIT

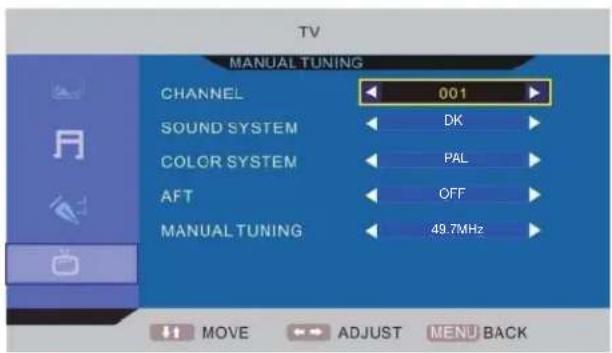

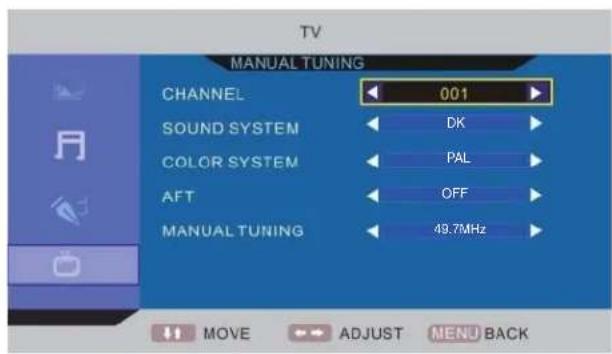

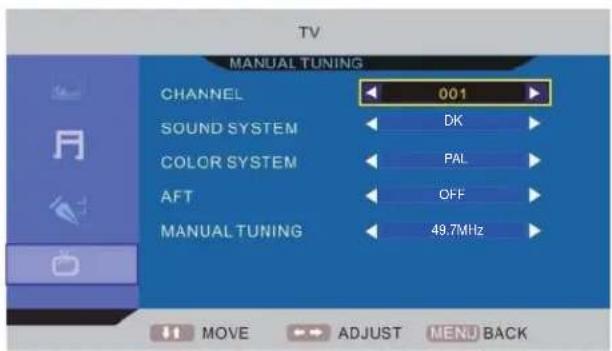

TV MANUAL TUNING CHANNEL 001 SOUND SYSTEM DK COLOR SYSTEM PAL AFT OFF MANUAL TUNING 49.7MHz MOVE ADJUST MENU BACK

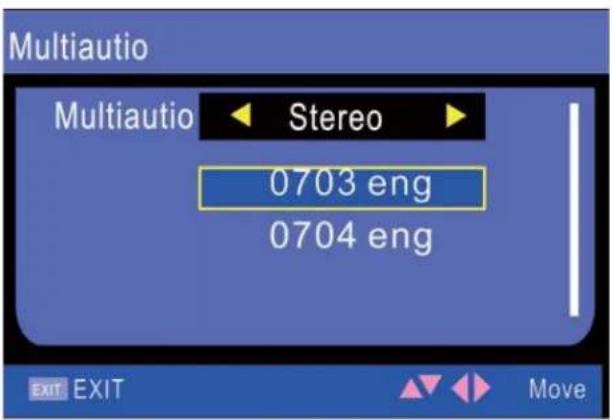

DTV MENU

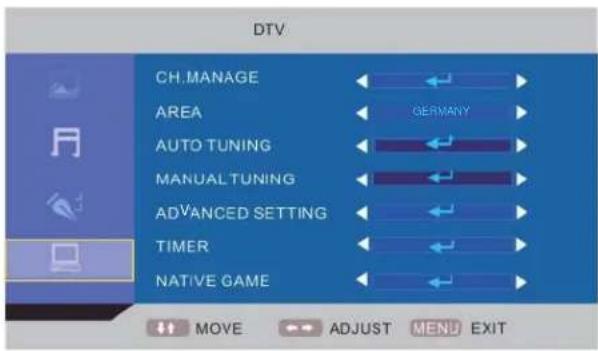

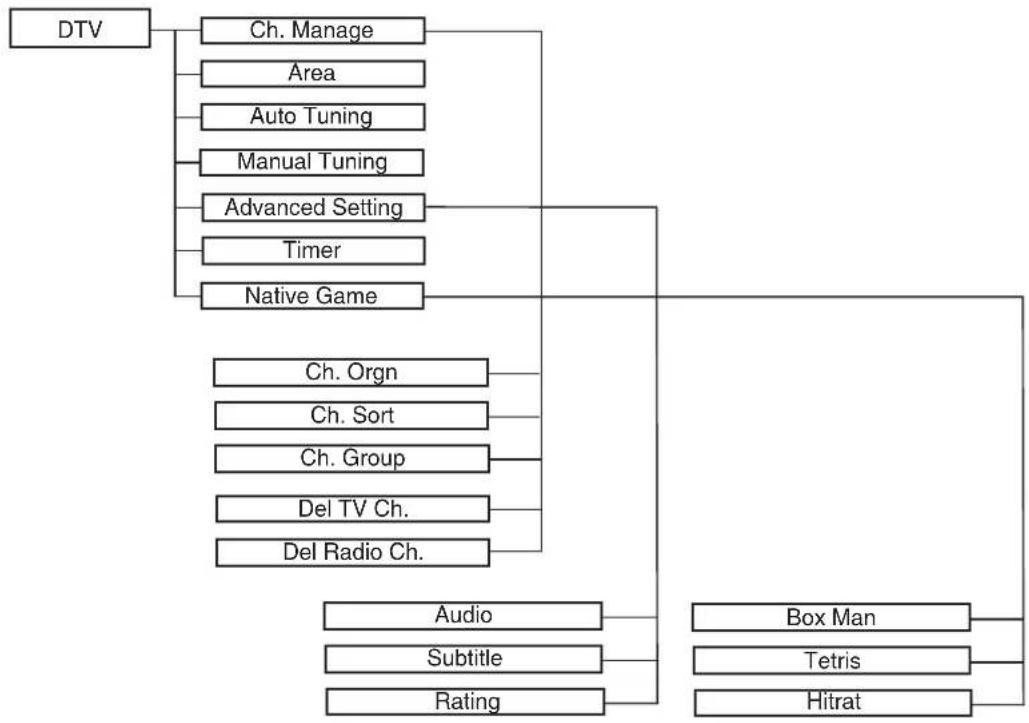

DTV CH.MANAGE AREA AUTO TUNING MANUAL TUNING ADVANCED SETTING TIMER NATIVE GAME MOVE ADJUST MENU EXIT

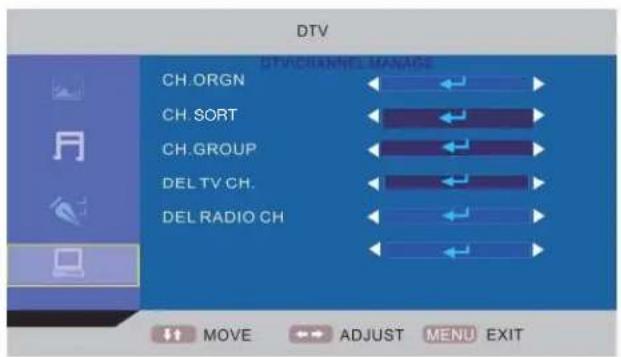

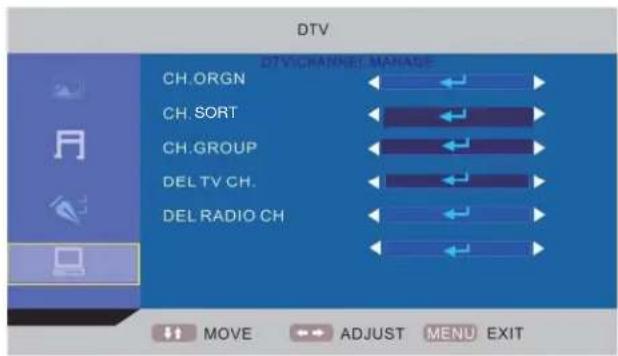

DTV CH.ORGN CH. SORT CH.GROUP DEL TV CH. DEL RADIO CH DTV CHANNEL MANAGE MOVE ADJUST MENU EXIT

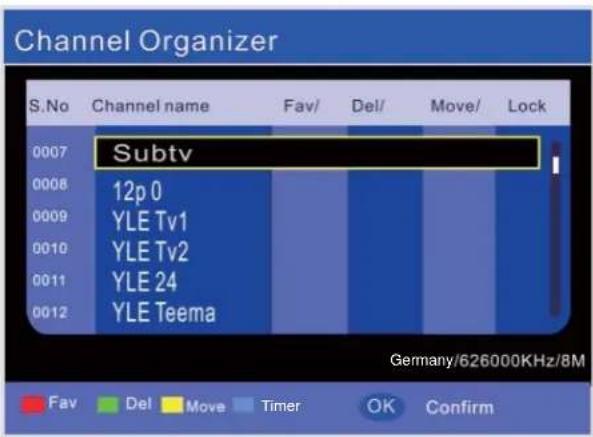

Channel Organizer S. No Channel name Fav/ Del/ Move/ Lock 0007 Subtv 0008 12p 0 0009 YLE Tv1 0010 YLE Tv2 0011 YLE 24 0012 YLE Teema Germany/626000KHz/8M Fav Del Move Timer OK Confirm

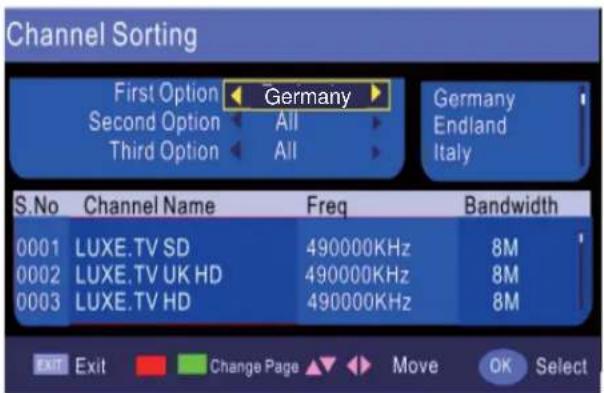

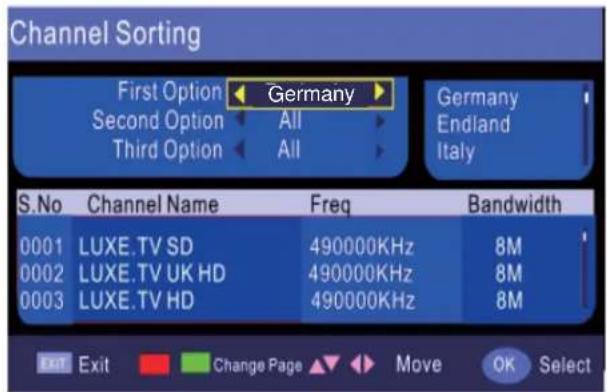

Channel Sorting First Option ← Germany → Second Option ← All → Third Option ← All → Germany Endland Italy S.No Channel Name Freq Bandwidth 0001 LUXE.TV SD 490000KHz 8M 0002 LUXE.TV UK HD 490000KHz 8M 0003 LUXE.TV HD 490000KHz 8M EXIT Exit Change Page Move OK Select

Media Video Move OK Confirm

FUNCTION → Hotel Mode → Hotel Lock → ...

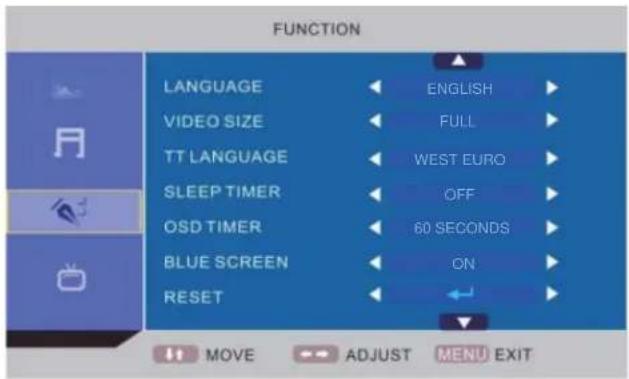

FUNCTION LANGUAGE ENGLISH VIDEO SIZE FULL TT LANGUAGE WEST EURO SLEEP TIMER OFF OSD TIMER 60 SECONDS BLUE SCREEN ON RESET MOVE ADJUST MENU EXIT

FUNCTION CHILD LOCK INSTALLATION HOTEL MODE MOVE ADJUST MENU EXIT

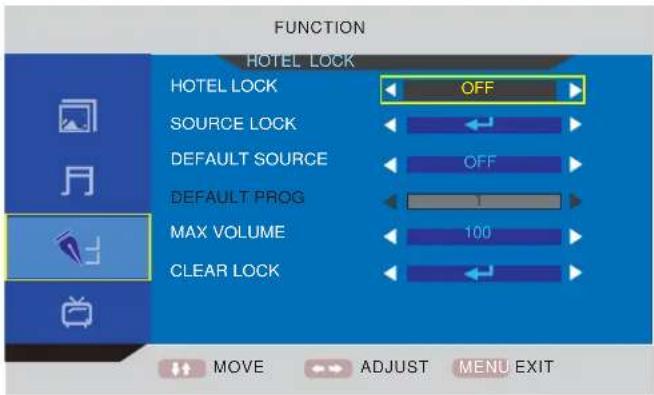

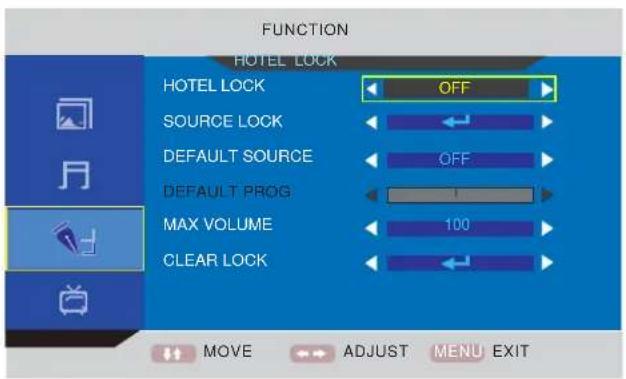

FUNCTION HOTEL LOCK HOTEL LOCK OFF SOURCE LOCK DEFAULT SOURCE OFF DEFAULT PROG 1 MAX VOLUME 100 CLEAR LOCK MOVE ADJUST MENU EXIT

Abstract geometric diagram with overlapping planes and lines, no text or symbols present

Table of contents

PRECAUTONS.... E3

CONTROLS E4

USING THE TV FOR THE FIRST TIME ...... E7

BASIC OPERATIONS.... E8

OSD MENU SETTING ...... E9

MAINTENANCE E16

TROUBLE SHOOTING E16

SPECIFICATIONS ...... E17

Dear Customer:

Thank you for purchasing this LCD TV. When opening the box for the first time, please check whether all the accessories are present. Before connecting parts and power, please carefully read the user manual and always keep these instructions handy and close by your LCD TV.

Front panel of a remote control with labeled buttons and function keys

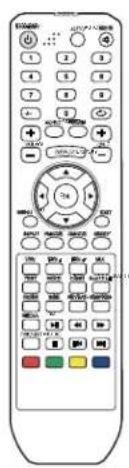

Remote control X 1

Instruction Manual X 1

AV cable X 1

Batteries X 2

Power cord X 1

Please check the accessories when open the package. If anything damaged or lacked, consult with your local dealer.

Note:

This handling description is printed prior to product development.

When a part of the product specification must be changed to improve operability or other functions, priority is given to the product specification itself. In such instances, the instruction manual may not entirely match all the functions of the actual product.

Therefore, the actual product and packaging, as well as the name and illustration, may differ from the manual.

The screen shown as an example in this manual may be different from the actual screen display.

If at any time in the future you should need to dispose of this product, please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice (Waste Electrical and Electronic Equipment).

PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

	This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
	This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

CAUTION

TO ENSURE CONTINUED SAFETY DO NOT REMOVE ANY COVERS OR ATTEMPT TO GAIN ACCESS TO THE INSIDE OF THE PRODUCT.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

• Do not install the unit in an unstable space.
• Do not exposed the unit to where there are extremes of temperature (below 5°C or exceeding 35°C) or moisture.
• Do not expose the unit to directly sunlight or heat nearby.
• Do not install this unit in a confined space, such as a bookcase or built-in cabinet. For suffi cent ventilation, there should be at least 20 m distance around the apparatus.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc..
• Do not place this unit in any liquid.
• Do not insert any tiny object into the unit through the ventilation.
• The apparatus shall not be exposed to dropping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Never touch the TV screen or antenna / power cord during thunderstorms. Stop use it during thunderstorms.
• Do not step on the power cord, or twist the power cord wire.
• This product should not be adjusted or repaired by anyone except properly qualified personal when an abnormal condition or trouble happens. Please consult with the qualified service person.
  • Always remove the batteries and store in a dry place if the remote control is not to be used for a long time.
• Avoid drop down the remote control and damage it.
• Always power this unit from an outlet with the same rating (voltage and frequency) as indicated on the rating label at the back of this unit.
• When not in use, disconnect the power cord from the outlet. Grasp the plug, not the cord, when disconnecting the unit.
• This CLASS 1 device should be connected to the AC power plug with earthed-protective, and place the AC power plug at the position easy to plug in and out.
• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

CONTROLS

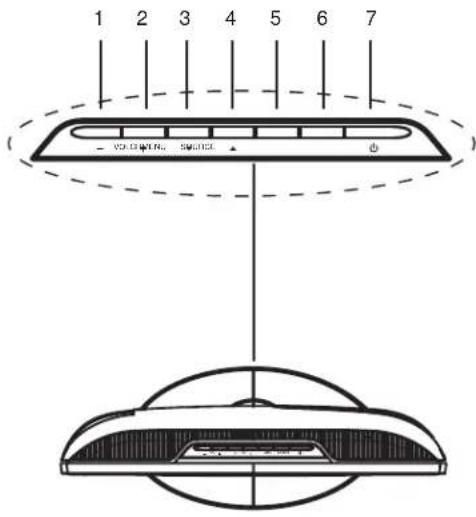

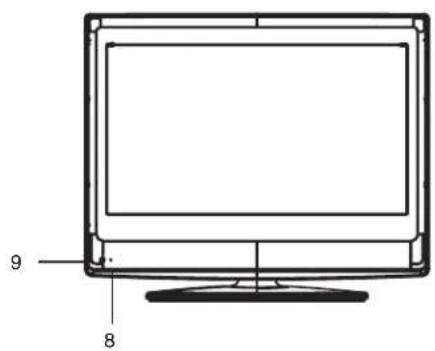

MAIN UNIT

Control buttons

1 2 3 4 5 6 7 ( VOLONIC SOURCE)

9 8

General control buttons

1. Volume decrease button (- VOL)
2. Volume increase button (VOL+)
3. Channel down button (▼ CH)
4. Channel up button (CH ▲)
5. Menu button (MENU)
6. Input source select button (SOURCE)
7. Power/Standby button (☐)
8. Power indicator
9. Remote sensor

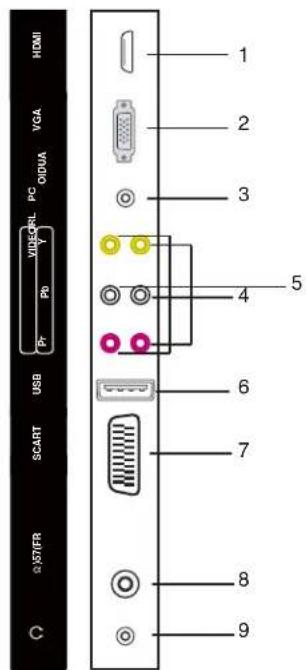

Jacks (Rear Panel)

1. High-Definition Multimedia interface input plug (HDMI)
2. VGA interface input plug (VGA)
3. PC audio input plug (PC AUDIO)
4. Component video input plugs (Y Pb Pr)
5. Composite audio & video input plug (R/L/VIDEO)
6. USB input plug (USB)
7. SCART input plug (SCART)
8. Antenna/Cable TV input plug (RF 75)
9. Audio output plug (Ω)

HDMI VGA PC ODUA VISA USB PC Pr Pb I/O 2 1 2 3 4 5 6 7 8 9 SCART 2\STIFR

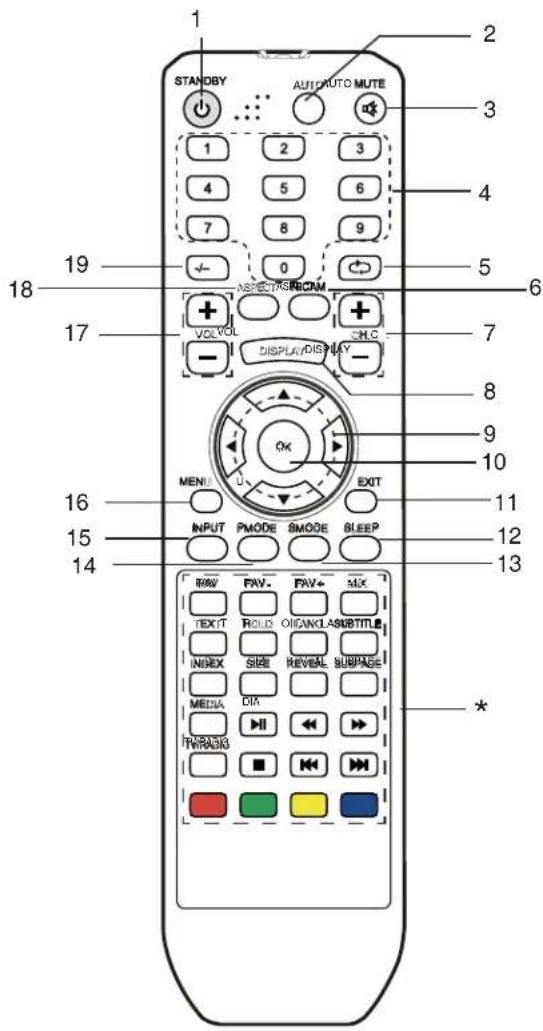

REMOTE CONTROL

Control buttons

1 STANDBY AUTO MUTE 2 3 4 5 6 7 8 9 0 19 ASPECTS RICAM VOLVOL DHLC DISPLAY/DISPLAY - 7 8 9 10 16 INPUT PMODE SMODE SLEEP EXIT 11 15 14 BMW FAV. FAV+ MIX TEXIT ROLDS OIGANCLASUBTITLE INDEX SIZE REVEAL SUBPAGE MEDIA DIM TWRASH * 13 *

1. Power/Standby button (⏻)

2. Auto button (AUTO)

3. Mute button (MUTE)

4. Number buttons (0, 1\~9)

5. Channel return button (←)

6. NICAM mode select button (NICAM)

7. Channel select buttons (+ CH. -)

8. Display button (DISPLAY)

9. Navigation keys (▲, ▶, ▼, ◀)

10. Confirm button (OK)

11. Menu exit button (EXIT)

12. Sleep timer button (SLEEP)

13. Sound mode button (SMODE)

14. Picture mode button (PMODE)

15. Input source select button (INPUT)

16. Menu button (MENU)

17. Volume control buttons (+ VOL -)

18. Display mode select button (ASPECT)

19. Multi-digitals button (-/-)

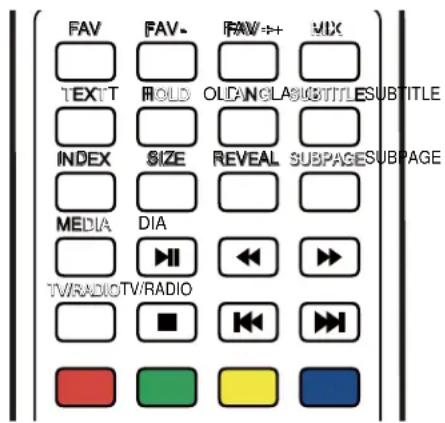

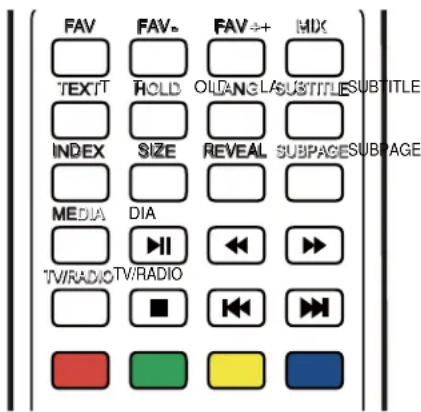

*. Special buttons:

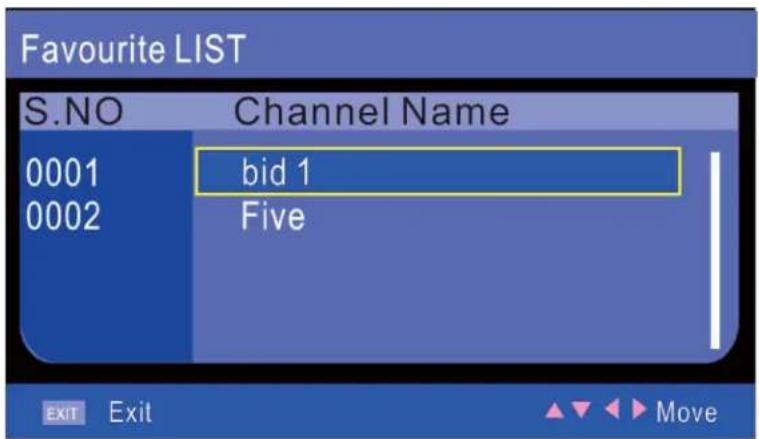

FAV: Favorite program list button

FAV-: Favorite program channel down

FAV+: Favorite program channel up

MIX: Teletext mix button

TEXT: Teletext button

HOLD: Teletext hold button

LANG: Language select button

SUBTITLE: Teletext subtitle button

INDEX: Teletext index button

SIZE: Teletext size button

REVEAL: Teletext reveal button

SUBPAGE: Teletext subpage button

MEDIA: Media select button

▶ II: Play/pause button

◀◀: Fast-backward button

▶▶: Fast-forward button

TV/RADIO: TV / Radio select button

■: Stop button

◀◀: Previous button

▶▶: Next button

Inserting Batteries

Two "LR03/AAA" batteries

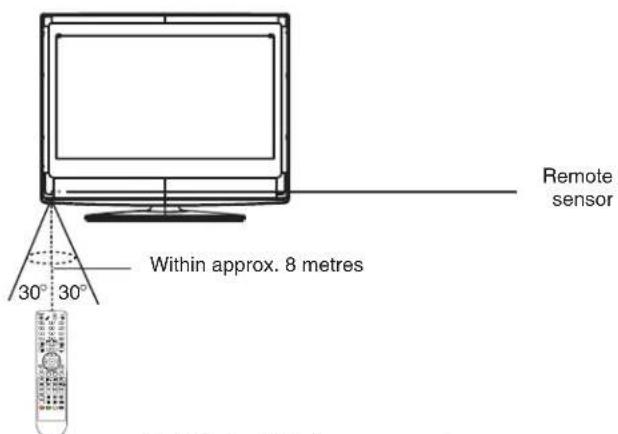

Control Range

Remote sensor Within approx. 8 metres 30° 30°

Note:
- Bright Sunlight or lighting may cause erratic remote operation.
• Always remove batteries if the remote control is not to be used for more than a month. Batteries left in it may cause damage.
- The buttons on the remote control perform similar function to similarly marked buttons on the main unit.

Teletext Function

TEXT: Press this button to enter teletext state and display teletext page. If you want to exit teletext state, press this button again.

MIX: Press this button to display both image and teletext page at the same time.

SUBPAGE: It is refer to the subpage of teletext page, i.e subcode page. When it is pressed, the screen display the requirement of subpage code entry. If there is no subpage, it will not be displayed. In most case, there is no subpage.

HOLD: Press this button if you want to keep the displaying of the page and press it again to exit hold state.

SIZE: Press this button if you want to enlarge the content on the upper part of the page, and press the second time to enlarge the content on the lower part of the page, and the third time to resume normal display of all the contents on the page.

REVEAL: Press this button if you want to display the concealed text. Press it again to close the display of concealed text.

INDEX: Press this button if you want to display the index for all the teletext page.

Number buttons 0\~9 on the remote control can be used to get to a certain page. "▲▼" button on the remote control can be used to display the content of previous or next page.

Press the RED/GREEN/YELLOW/CYAN button on the remote control, the page of relevant color displayed on the lower part of the screen will be displayed.

FAST TEXT:

The RED, GREEN, YELLOW & CYAN buttons are used for quick access to color coded pages transmitted by FAST TEXT broadcast.

Example:

RED selects CITY INFORMATION,

CYAN selects TRAVEL INFORMATION,

GREEN selects WEATHER INFORMATION,

YELLOW selects TV PROGRAMMING.

FAV TEXT INDEX MEDIA TV/RADIO FAV- HOLD SIZE DIA ■ FAV++ OLDANGLASUBTITLES REVEAL REVEAL SUBPAGESUBPAGE TV/RADIO/TV/RADIO MIX SUBTITLE

USING THE TV FOR THE FIRST TIME

1. Connect the antenna or DTV STB to the RF 75Ω socket.
2. Turn on the TV unit.

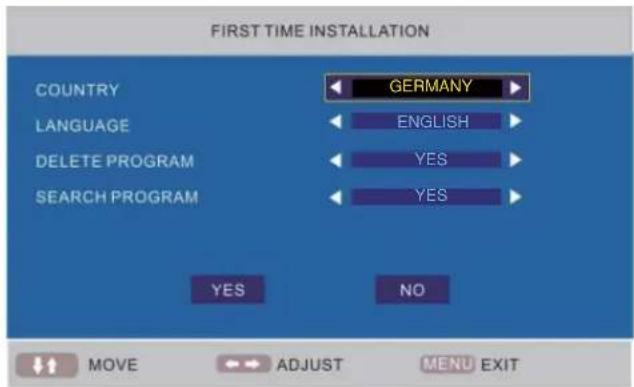

3. The Installing Guide screen appears as below:

FIRST TIME INSTALLATION COUNTRY GEMANY LANGUAGE ENGLISH DELETE PROGRAM YES SEARCH PROGRAM YES NO MOVE ADJUST MENU EXIT

1. Press [▲] or [▼] to select the desired settings.
2. Press [◀] or [▶] to adjust the desired settings.
3. Press [▼] to select "YES", and press [OK] to confirm.

Note:

To cancel the first time installation during it's installation process, press [▼] to select "NO", below screen appears:

To cancel clearing channel search, press [MENU].

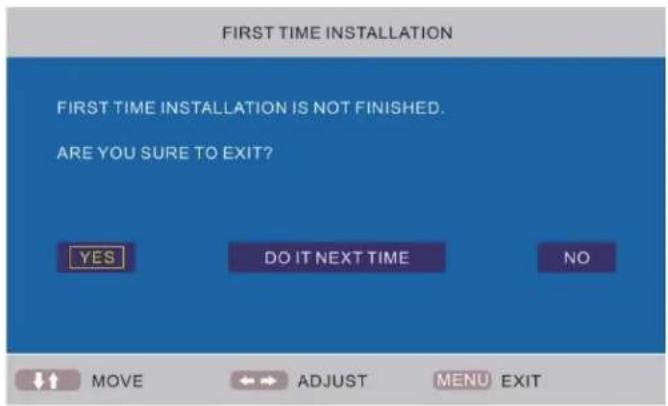

FIRST TIME INSTALLATION FIRST TIME INSTALLATION IS NOT FINISHED. ARE YOU SURE TO EXIT? YES DO IT NEXT TIME NO MOVE ADJUST MENU EXIT

Note:

The first time installation screen appears again, when the "reset" operation has been done, and then turn off and turn on the main unit.

TV information

Press [DISPLAY] to display the program information.

Program number Color system Sound system TV 002 PAL DK

BASIC OPERATIONS

Make sure all necessary connections are correctly connected before turn on the power.

The power indicator turns red and the unit is in the standby mode.

Turn on the power

Press [⏻] to turn on the main unit.

The power indicator turns blue.

Turn off the power

Press [☐] again can turn off the main unit.

The unit is automatically set standby mode.

The power indicator turns red.

Using the Sleep Timer

The sleep timer automatically switches off the power after a preset time has elapsed. There are 9 time periods available, press [SLEEP] on the remote control repeatedly to select the desired sleep time:

0 Min → 15 Min → 30 Min → 45 Min

→60 Min → 75 Min → 90 Min → 105 Min → 120 Min

(The sleep timer starts when the setting is finished.)

To check the remain sleep time

Press [SLEEP] on the remote control, the remain sleep time appears on the screen for a few seconds.

Select the TV channel

After selected "ATV" or "DTV" as input source, you can do either one of followings to select your channel.

- Press [CH.+] or [CH.-] (or [▼ CH] or [CH ▲] on the main unit).

or

• Press [0, 1\~9] to input the channel number directly.
• Press [] to go back the previous channel you've watched last time.

Selecting the picture mode

Press [PMODE] repeatedly on the remote control to select the desired picture mode.

Select the input source

Turn on the connected necessary external device. Press [INPUT] to select the proper input source.

The input source menu appears.

1. Press [▲▼] to move the high-lighted bar to the desired source item.
2. Press [OK] (or [▶]) to confirm.

DTV

TV

AV

SCART

YPBPR

HDMI

PC

MEDIA

Information of the selected source name appears on the TV for a few seconds.

Information display

Press [DISPLAY] on the remote control, the related information of current source appears on the screen automatically.

Adjusting the volume

Press [-VOL] to increase the volume.

Press [VOL+] to reduce the volume.

or

NICAM Function

Press [NICAM] on the remote control when input source is "TV". This operation do no effect to the channels without NICAM signal.

Once [NICAM] is pressed, it alternates in the different sound options such as mono, stereo, dual I, dual II.

Selecting the OSD language

The factory setting of OSD (On Screen Display) language is "English". To edit the OSD.

1. Press [MENU], OSD menu appears.
2. Press [▼] until "Function" menu appears.
3. Press [▶] to enter the setting menu, and "Language" is high-lighted.
4. Press [◀▶] to set the language to your desired language.
5. Press [MENU] to exit the submenu.

Mute function

Press [MUTE] on the remote control to switch off the sound temporarily.

Press this button again (or [VOL+]), the sound comes back.

Selecting the sound mode

Press [SMODE] repeatedly on the remote control to select the desired sound mode.

OSD MENU SETTING

Navigating through menus

Press [MENU], OSD main menu appears.

Press [▼], the main menu displays sequentially:

PICTURE → SOUND → FUNCTION → TV → ...

When some menu option is gray displayed, that means the option is not available in current setting mode.

Common procedure of operation:

- For each menu, press [▲,▼] on the remote control to select the options of the main menu.

- Press [◀, ▶, ▲, ▼] on the remote control to change or confirm your settings.

(Follow the tips at the bottom of the related OSD screens.)

- After setting of an option is finished, press [MENU] to exit stage by stage, while press [EXIT] to turn off OSD screen directly.

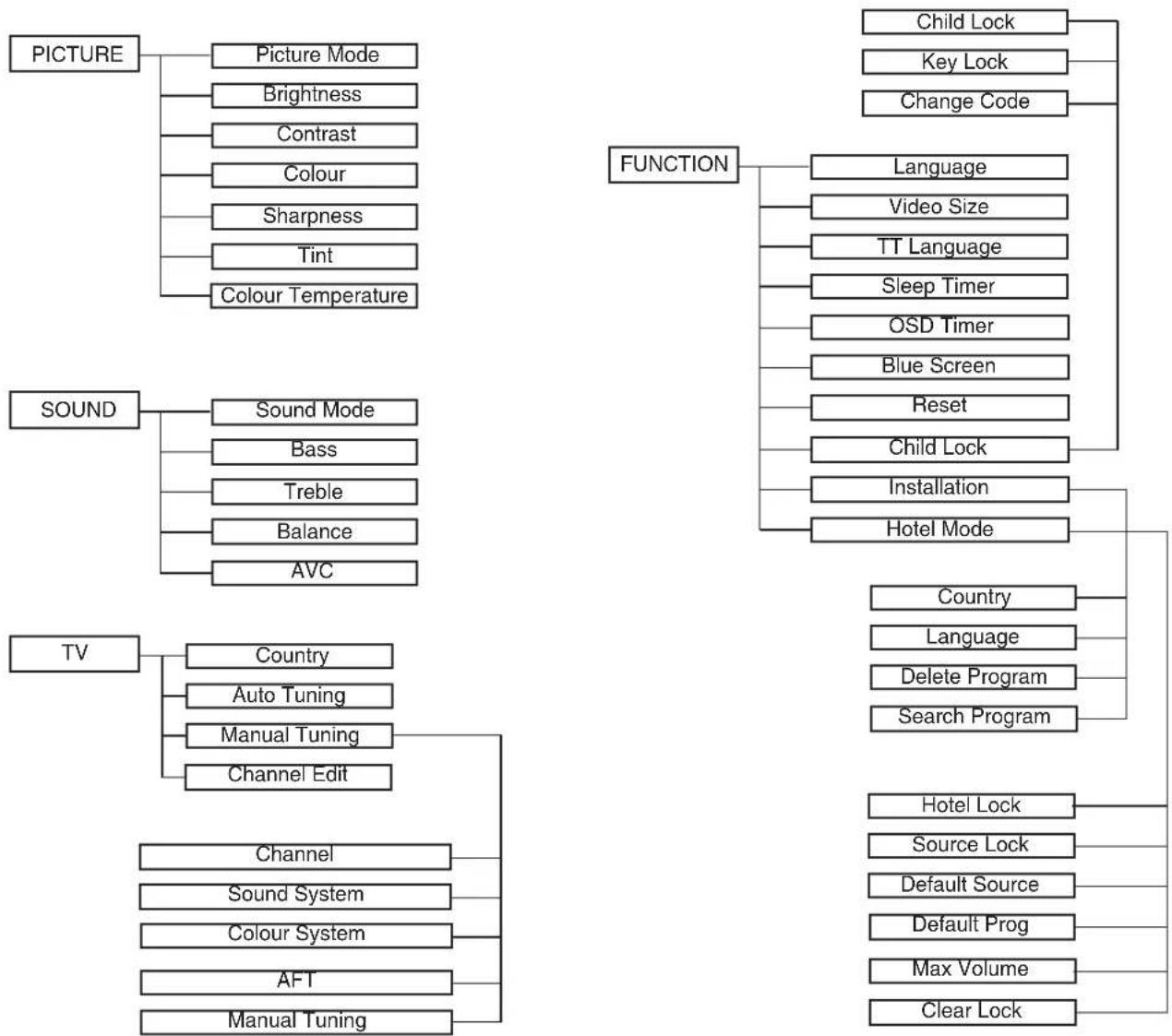

Structure of OSD menu:

    I["SOUND"] --> J["Sound Mode"]
    I --> K["Bass"]
    I --> L["Treble"]
    I --> M["Balance"]
    I --> N["AVC"]

    O["TV"] --> P["Country"]
    O --> Q["Auto Tuning"]
    O --> R["Manual Tuning"]
    O --> S["Channel Edit"]

    T["FUNCTION"] --> U["Language"]
    T --> V["Video Size"]
    T --> W["TT Language"]
    T --> X["Sleep Timer"]
    T --> Y["OSD Timer"]
    T --> Z["Blue Screen"]
    T --> AA["Reset"]
    T --> AB["Child Lock"]
    T --> AC["Installation"]
    T --> AD["Hotel Mode"]

    AE["TV"] --> AF["Channel"]
    AE --> AG["Sound System"]
    AE --> AH["Colour System"]
    AE --> AI["AFT"]
    AE --> AJ["Manual Tuning"]

    AK["FUNCTION"] --> AL["Country"]
    AK --> AM["Language"]
    AK --> AN["Delete Program"]
    AK --> AO["Search Program"]

    AP["TV"] --> AQ["Channel"]
    AP --> AR["Sound System"]
    AP --> AS["AFT"]
    AP --> AT["Manual Tuning"]

    AU["FUNCTION"] --> AV["Child Lock"]
    AU --> AW["Key Lock"]
    AU --> AX["Change Code"]

    AY["FUNCTION"] --> AZ["Country"]
    AY --> BA["Language"]
    AY --> BB["Delete Program"]
    AY --> BC["Search Program"]

    ADY --> BD["Hotel Lock"]
    ADY --> BE["Source Lock"]
    ADY --> BF["Default Source"]
    ADY --> BG["Default Prog"]
    ADY --> BH["Max Volume"]
    ADY --> BI["Clear Lock"]


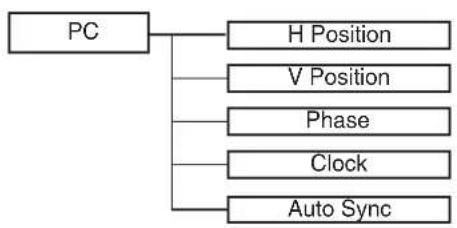


Main OSD :

PICTURE MENU

PICTURE PICTURE MODE ← PERSONAL ► BRIGHTNESS ← 50 CONTRAST ← 50 COLOUR ← 50 SHARPNESS ← 5 TINT ← 50 COLOUR TEMPERATURE ← NORMAL ► MOVE → ADJUST MENU EXIT

SOUND MENU

SOUND SOUND MODE BASS TREBLE BALANCE AVC PERSONAL 50 50 0 OFF MOVE ADJUST MEND EXIT

FUNCTION MENU

FUNCTION LANGUAGE VIDEO SIZE TT LANGUAGE SLEEP TIMER OSD TIMER BLUE SCREEN RESET ENGLISH FULL WEST EURO OFF 60 SECONDS ON MOVE ADJUST MENU EXIT

FUNCTION CHILD LOCK INSTALLATION HOTEL MODE MOVE ENTER MENU EXIT

TV MENU

TV COUNTRY AUTO TUNING MANUAL TUNING CHANNEL EDIT GERMANY MOVE ADJUST MENU EXIT

TV MANUAL TUNING CHANNEL 001 SOUND SYSTEM DK COLOR SYSTEM PAL AFT OFF MANUAL TUNING 49.7MHz MOVE ADJUST MENU BACK

DTV MENU

DTV CH.MANAGE AREA AUTO TUNING MANUAL TUNING ADVANCED SETTING TIMER NATIVE GAME MOVE ADJUST MENU EXIT

DTV DTV CHANNEL MANAGE CH.ORGN CH. SORT CH.GROUP DEL TV CH. DEL RADIO CH MOVE ADJUST MENU EXIT

Channel Organizer S.No Channel name Fav/ Del/ Move/ Lock 0007 Subtv 0008 12p 0 0009 YLE Tv1 0010 YLE Tv2 0011 YLE 24 0012 YLE Teema Germany/626000KHz/8M Fav Del Move Timer OK Confirm

Channel Sorting First Option ← Germany → Second Option All Third Option All Germany Endland Italy S.No Channel Name Freq Bandwidth 0001 LUXE.TV SD 490000KHz 8M 0002 LUXE.TV UK HD 490000KHz 8M 0003 LUXE.TV HD 490000KHz 8M Exit Exit Change Page Move OK Select

Note: Press RED button to label it as your favorite channel; press GREEN button to delete the chosen channel; Press YELLOW button to move it to the number you want to sign it and then press [▲▼] to select other channel, and press [OK] to confirm it; press BLUE button to set timer.

Note: Press RED button to the above page or GREEN button to the bottom page. The bottom page is the list of the channels you have set on the above page.

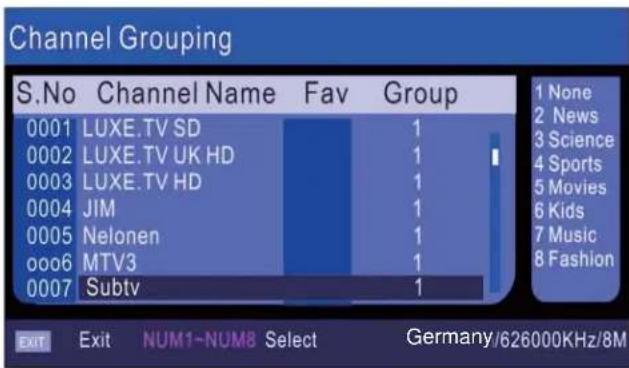

Channel Grouping S.No Channel Name Fav Group 0001 LUXE.TV SD 1 None 0002 LUXE.TV UK HD 1 News 0003 LUXE.TV HD 1 Science 0004 JIM 1 Sports 0005 Nelonen 1 Movies 0006 MTV3 1 Kids 0007 Subtv 1 Music EXIT Exit NUM1-NUM8 Select Germany/626000KHz/8M

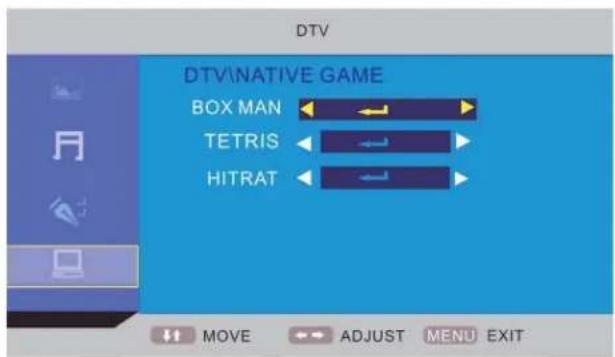

DTV DTV\NATIVE GAME BOX MAN TETRIS HITRAT MOVE ADJUST MENU EXIT

Note: Press [▲▼] to select the channel you want to adjust and press the number (1\~8) which stand for the group (you can see it on the right). Press [EXIT] or [MENU] to back to the upper page.

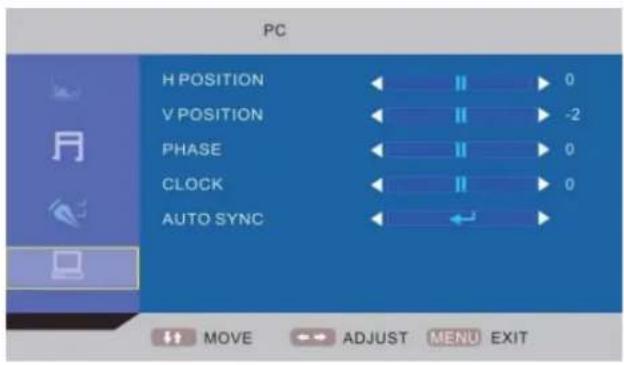

PC MENU

PICTURE PICTURE MODE ← PERSONAL ► BRIGHTNESS ← II > 50 CONTRAST ← II > 50 COLOUR ← II > 50 SHARPNESS ← II > 5 TINT ← II > 50 COLOUR TEMPERATURE ← NORMAL ► MOVE → ADJUST MENU EXIT

Note: Picture menu is the same as that of TV mode except the COLOUR, SHARPNESS and TINT are invalid (in gray), and COLOUR TEMPERATURE is valid (Available options: WARM, COLD and NORMAL).

PC H POSITION V POSITION PHASE CLOCK AUTO SYNC 0 -2 0 0 MOVE ADJUST MENU EXIT

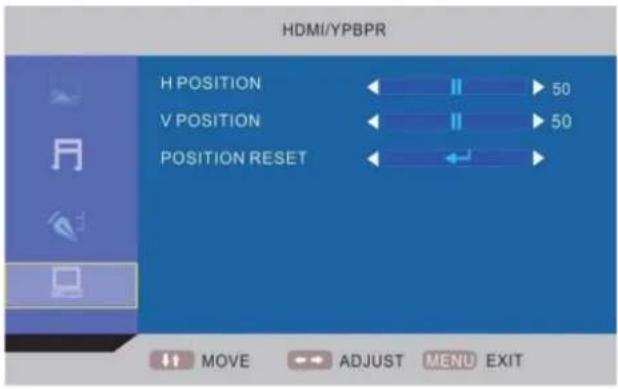

HDMI/YPBPR MENU

HDMI/YPBPR H POSITION 50 V POSITION 50 POSITION RESET MOVE ADJUST MENU EXIT

MULTIAUDIO MENU

Multiautio Multiautio Stereo 0703 eng 0704 eng EXIT EXIT Move

Note: Press [LANG] to enter the Multiaudio.

MEDIA MENU

Media Video Move OK Confirm

Note: Press [◀/▶] to select Video/Music/Photo and press [OK] to enter in.

QUICK SELECT MENU

QUICK SELECT Group Favorite 001 bid tv 002 Film EXIT EXIT Move

Note: Press [OK] to enter the Quick Select.

For Digital TV :

Favorite List

Favourite LIST S.NO Channel Name 0001 bid 1 0002 Five EXIT Exit Move

Note: Press [FAV] to enter the Favorite List.

About the Hotel Lock function

Expand the sub-menu stage by stage in turn:

FUNCTION → Hotel Mode → Hotel Lock → ...

FUNCTION LANGUAGE ENGLISH VIDEO SIZE FULL TT LANGUAGE WEST EURO SLEEP TIMER OFF OSD TIMER 60 SECONDS BLUE SCREEN ON RESET MOVE ADJUST MENU EXIT

FUNCTION CHILD LOCK INSTALLATION HOTEL MODE MOVE ENTER MENU EXIT

FUNCTION HOTEL LOCK OFF HOTEL LOCK SOURCE LOCK DEFAULT SOURCE DEFAULT PROG MAX VOLUME CLEAR LOCK MOVE ADJUST MENU EXIT

Hotel Lock: Have the priority than other options below. To set below options, this item must be set to "ON" firstly. When it set to "On", all options below it are available.

Source Lock: Set the lock to the input source (E.g.: TV,HDMI...) you want to set.

Default source: Set an input source channel as default while turning on the TV unit.

Default Prog: Set a TV programme number as default while alternate into "ATV".

Max Volume: To set the maxinium volume value.

Clear Lock: Clear the locks.

About the PIN Code:

(The default setting is "0000".)

If you forget the password...

Input "2008" to enter it.

Avoid young kids know this password.

MAINTENANCE

WARNING:

FOR YOUR PERSONAL SAFETY, BE SURE TO DISCONNECT THE AC POWER CORD BEFORE PROCEEDING WITH ANY MAINTENANCE OR CLEANING.

Cleaning the LCD Panel

The LCD panel should not be toughed with sharp objects. If dust and fingerprints is on the LCD panel surface, wipe them off with a clean soft cloth.

Wipe in a straight motion from the center to the outside of the LCD panel.

Never use chemicals such as record cleaning sprays, antistatic sprays or fluids, benzene or thinner to clean the LCD panel.

Cleaning the Main Unit

Clean the outside of the unit with a clean soft cloth moistened with luke-warm water. Do not use benzene, thinner or alcohol since they will mar the fi nish of the surface.

TROUBLESHOOTING

Symptom

Possible cause

Corrective active

No Picture and sound.

Power cord is not correctly connected with the main unit. Connected the power cord with the main unit.

Power cord is not plugged into an AC outlet. Plug the power cord into an AC outlet.

The wrong input source is selected. Select a correct input source.

The input source is failed to connect with the TV. Make correct connections.

No sound only.

Volume control is set to minimum.

Press the VOL+ button to increase the volume.

The ☒ button on the remote control is pressed. Press the ☒ (or VOL+/-) button to release the volume.

An incorrect sound system mode is setted. Set a correct sound system from the main menu to match your TV.

Symptom

Possible cause

Corrective active

No picture only, or monochrome picture.

The color system setting doesn't match the program. Set the proper color system setting.

The sound system setting doesn't match the program. Set the proper sound system setting.

Interfered sound or picture.

Some equipment that brings interference is nearby the TV. Keep these things away from the TV.

Multi devices plug into the same one AC outlet collections. Plug the power cord into another AC outlet.

An incorrect sound system mode is setted.

Set a correct sound system from the main menu to match your TV.

Note:

A few bright dots and dark dots may appear on the TV screen, that is normal appearance.

SPECIFICATIONS

TF-L16B DVB-T

Display Features

Display Type LCD

Screen Size 15.6 inch

Aspect ratio 16:9

Active Area 344.2 (H) X 193.5 (V)

Panel Resolution 1366 (H) X 768 (V)

Brightness 250 ^2 cd/m

Contrast Ratio 500:1

Dot Pitch 0.252 (H) X 0.252 (V) mm

Maximum Color 16.7 M

Response Time 8 ms

Features

HD compatible 480I, 480P, 576I, 576P, 720P, 1080I, 1080P

Wall mounting VESA 100

TV Reception

TV System: PAL / SECAM

Sound System B/G, I, D/K

Antenna Impedance: 75 Ohm

Tuner receiving range:

ATV 49MHz - 863MHz

DTV VHF (174MHz - 230MHz)

UHF (474MHz - 862MHz)

Power Requirements

Power Input 100-240V \~ 50/60 Hz

Power Consumption

Maximum < 50W

Connections

Input:

TV Tuner (RF 75Ω) 1

Component Video Input (Y Pb Pr) 1

Video Input (AV) 1

SCART 1

VGA Input (VGA) 1

PC audio Input (PC AUDIO) 1

HDMI input (HDMI) 1

USB port 1

Output:

Earphone (♀) 1

VGA Resolutions Supported

up to 1360 x 768

Dimension(WxHxD)

Unit W/stand/speakers 396 x 330 x 144 mm

Unit W/O stand 396 x 303 x 70 mm

Weight(N.W.)

Unit W/stand/speakers 2.7 Kg

Environment

Operating Temperature 5°C-35°C

Operating Humidity 20%-80%

Note:

Specifications subject to change without notice.

Abstract geometric design with overlapping planes and lines (no text or symbols)
