USER MANUAL VL863 TOSHIBA

VL86* Digital Series

Simple line icon of an open book with an information symbol (no text or numbers present)

Contents

INSTALLING YOUR TV

Safety Precautions 4

Installation and important information .... 5

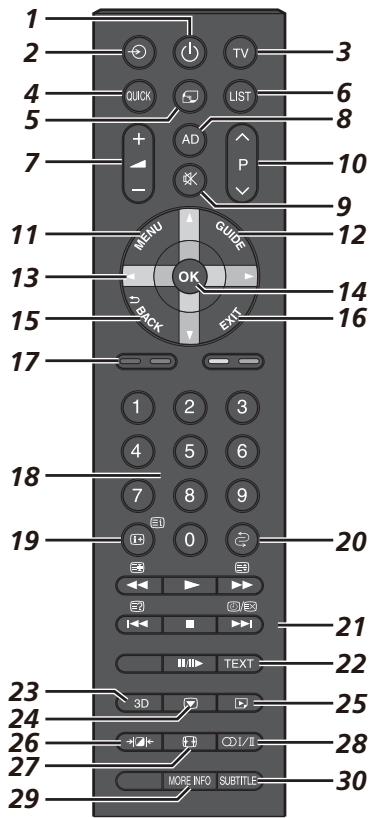

The remote control 7

Inserting batteries and effective range 7

CONNECTING YOUR TV

Connecting external equipment 8

Connecting an HDMI ^® or DVI device to the HDMI input .....9

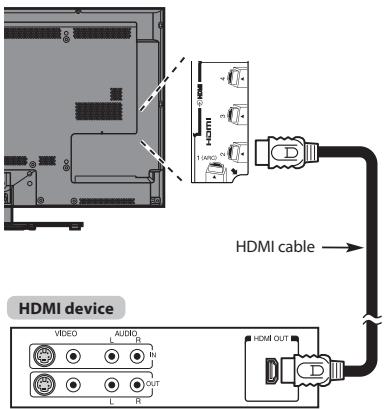

To connect an HDMI device 9

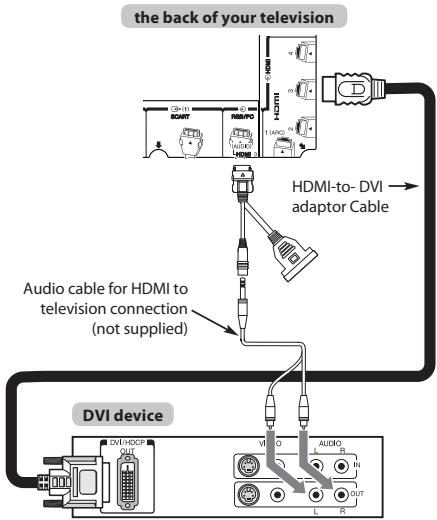

To connect a DVI device 9

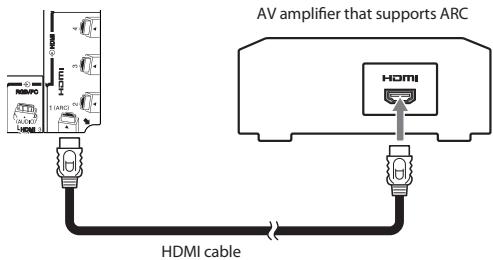

HDMI's ARC (Audio Return Channel) feature ...... 9

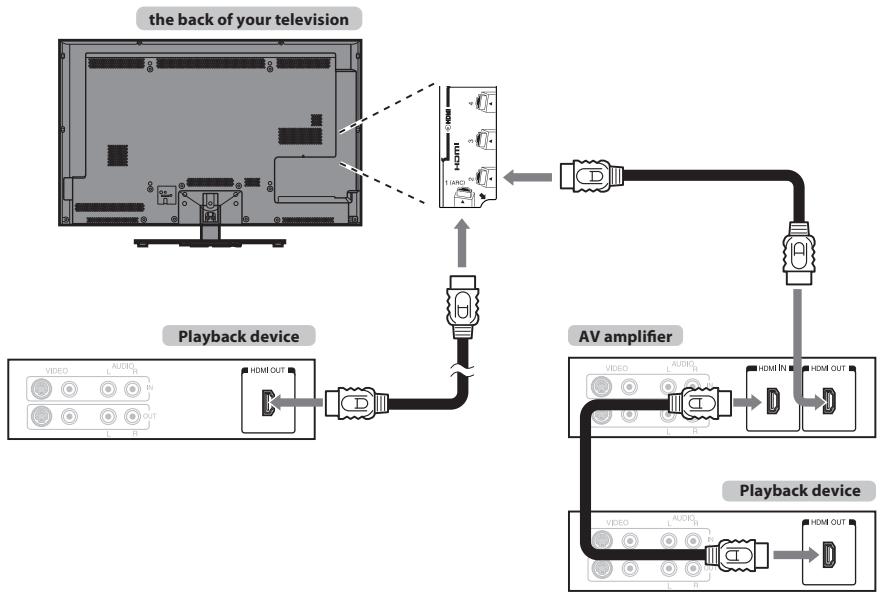

REGZA-LINK connection ....10

Connecting a computer ....11

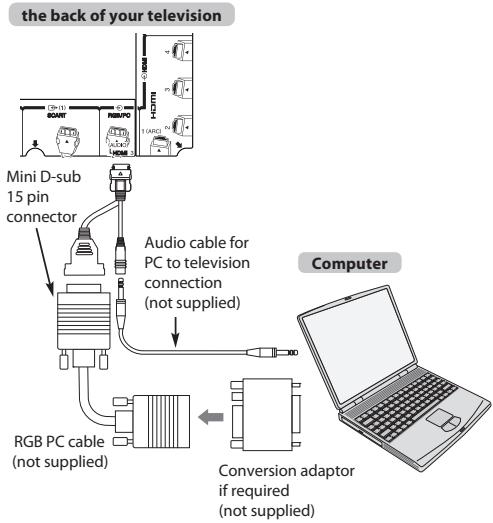

To connect a PC to the RGB/PC terminal .....11

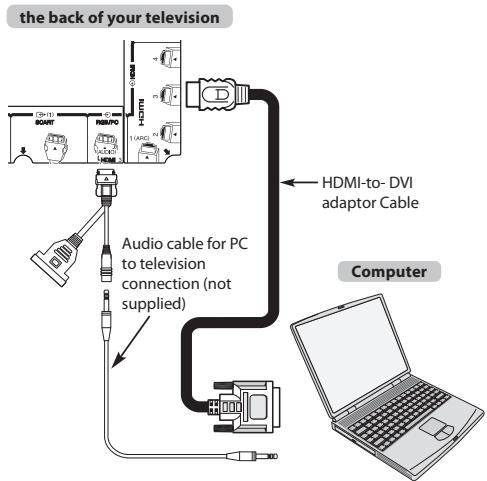

To connect a PC to the HDMI terminal ....11

Connecting a home network ....12

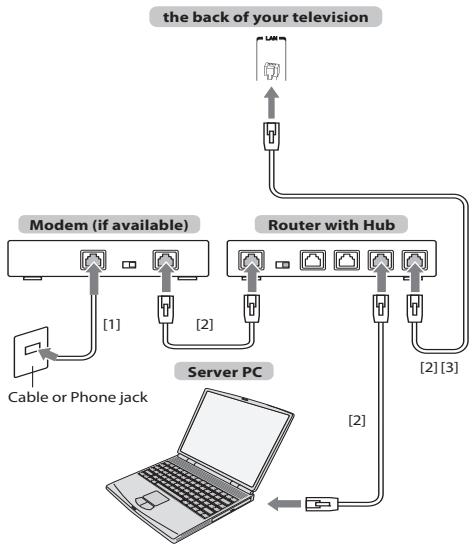

To connect the TV to a home network - Wired ......12

To connect the TV to a home network with an internet connection - Wireless ....12

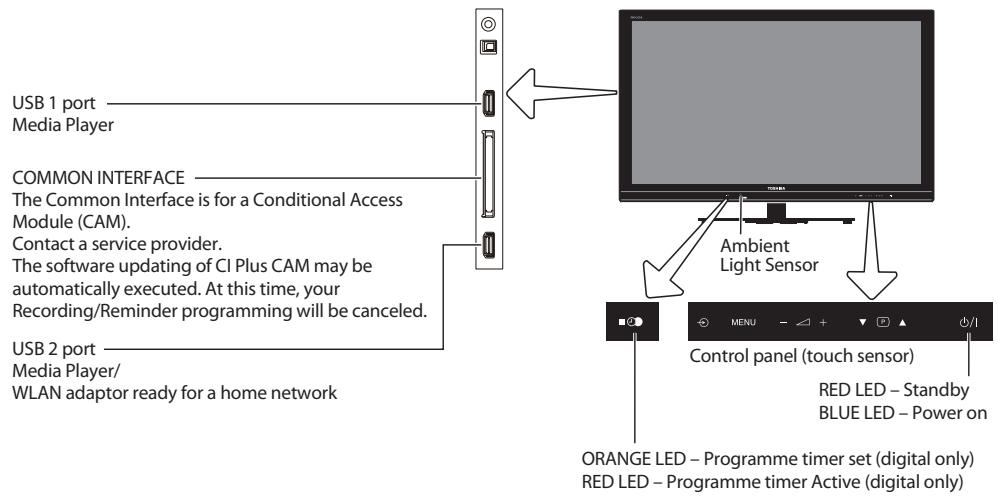

Controls and input connections ....13

Switching on ....13

Using the remote control ....13

Using the controls and connections ....13

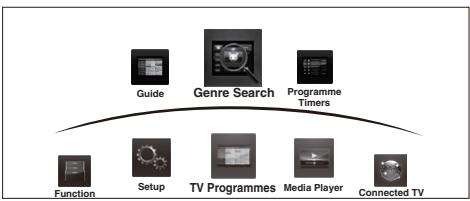

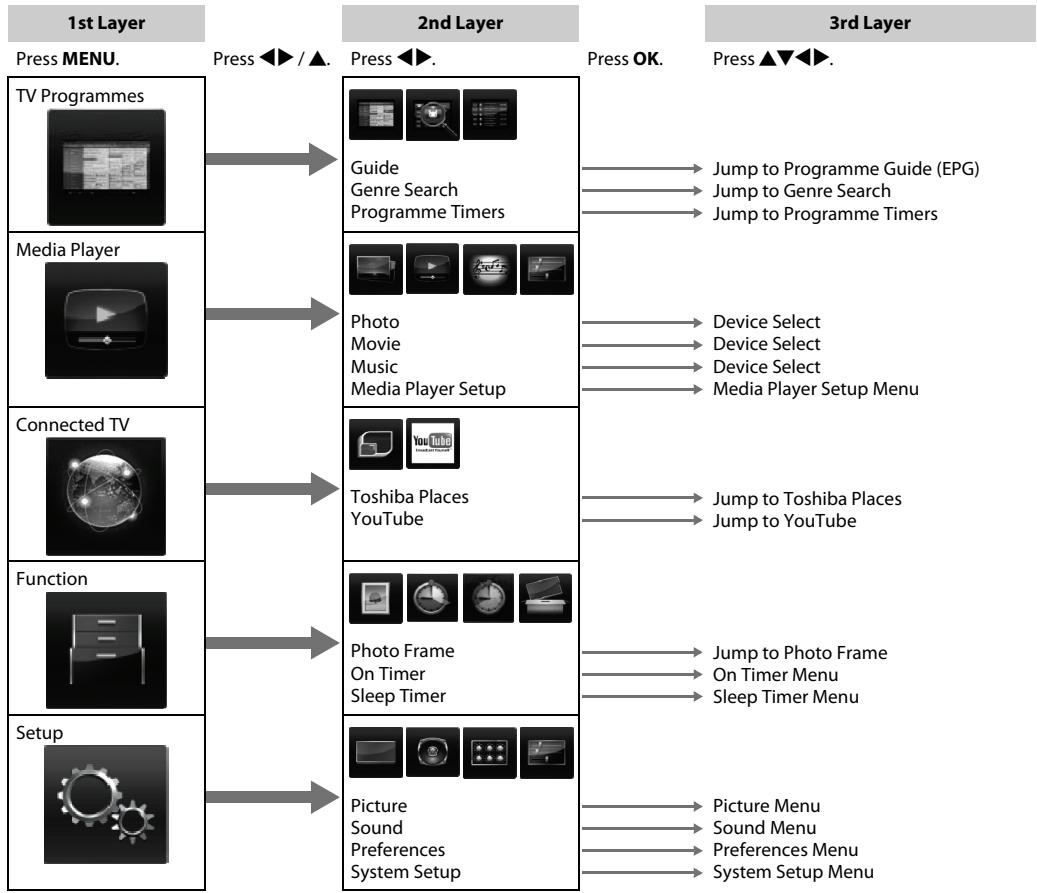

MENU structure ....14

SETTING UP YOUR TV

Startup Application ....15

Quick Setup ....15

Ant/Cable/Satellite (if available) 16

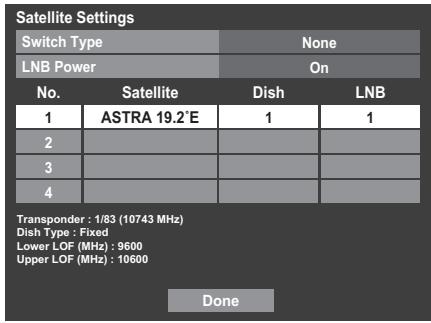

Satellite Settings 17

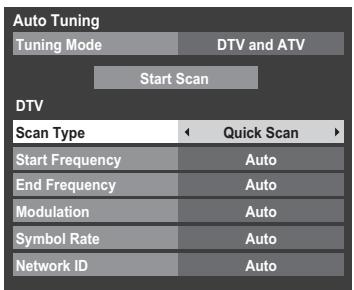

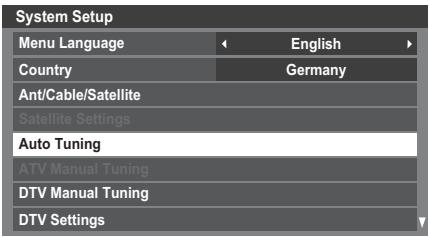

Auto Tuning 19

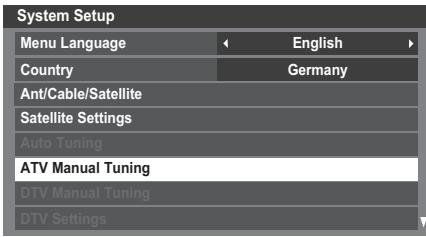

ATV Manual Tuning 20

Tuning 20

Skip 21

Sorting positions ......21

DTV Manual Tuning 22

Manual Tuning 22

Manual Tuning for DVB-C 22

Manual Tuning for DVB-S 22

DTV Settings 23

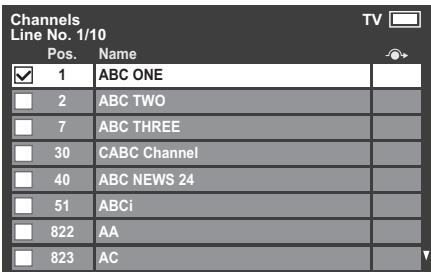

Channels (Antenna/Cable) 23

Channels (Satellite) 24

Standby Channel Update 24

DVB Character Set ....24

Dynamic Scan 24

Location setting 25

Analogue switch-off 25

CONTROLS AND FEATURES

General controls 26

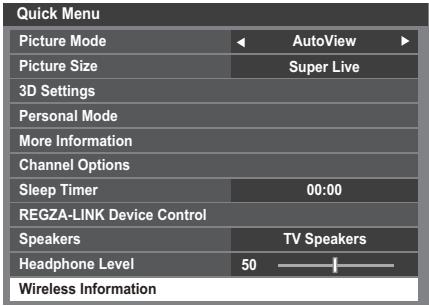

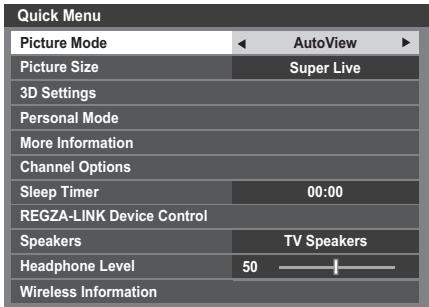

Quick Menu 26

Selecting positions ......26

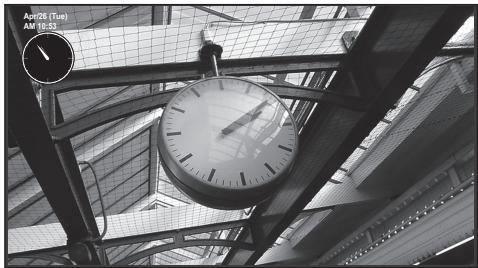

The Time Display – analogue only .....26

Stereo and Bilingual transmissions 26

Using 3D functions ......27

Viewing 3D images 27

Switching display mode or selecting 3D format .....27

Setting the auto start mode 29

Setting the 3D PIN code ......29

Setting 3D Start Message 29

Setting 3D Lock 30

Setting 3D Timer Lock ....30

Setting Enable 3D Timer ....30

Displaying 3D Important Info ....30

Switching left and right images 30

Adjusting your viewing position 30

Sound controls 31

Volume controls and sound mute 31

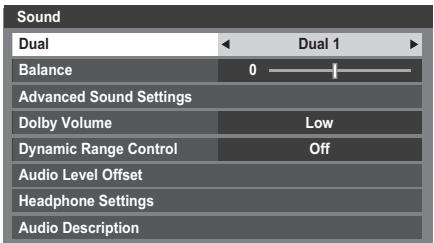

Dual 31

Balance 31

Sound Navi 31

Surround Settings 31

Dolby Volume ^® 32

Dynamic Range Control 32

Audio Level Offset 32

Headphone Settings 32

Audio Description 32

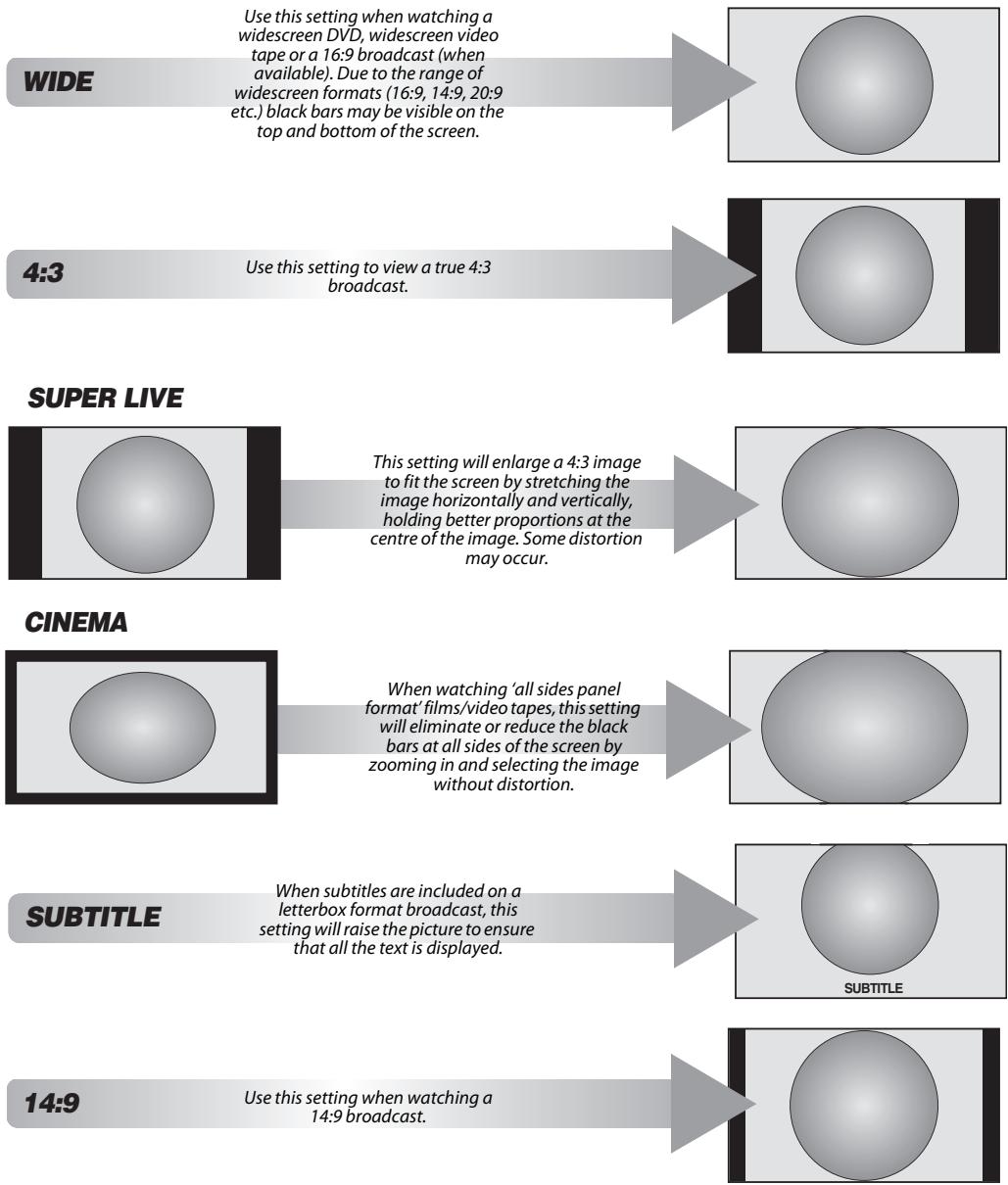

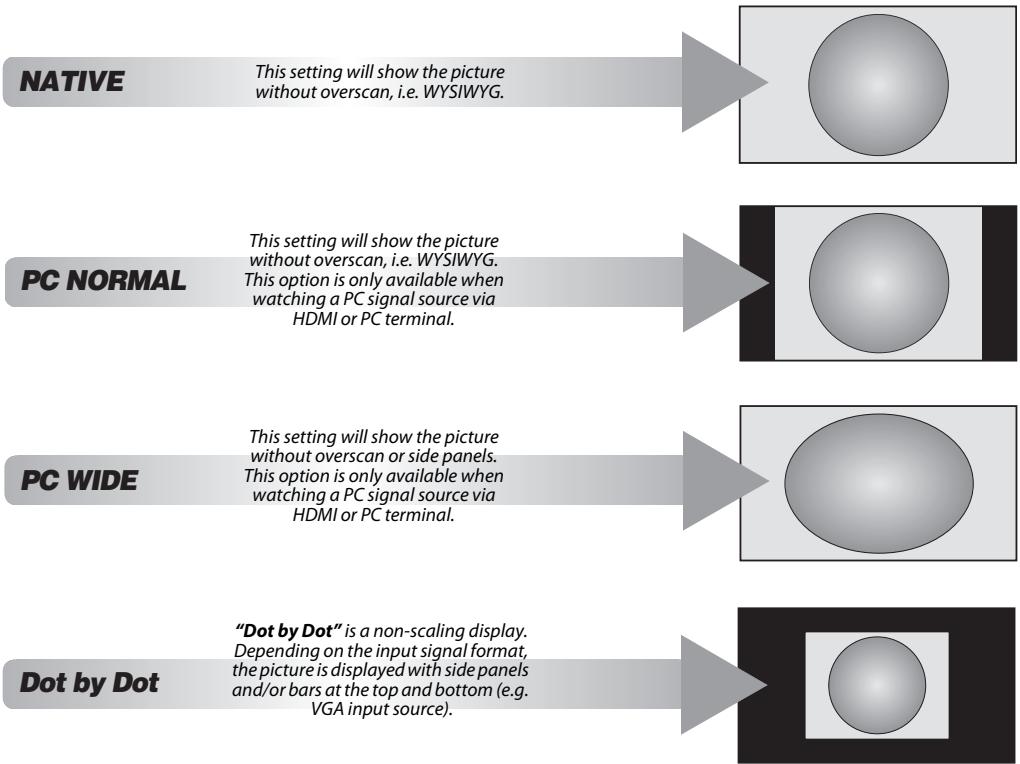

Widescreen viewing 33

Picture controls 35

Picture Mode 35

Picture preferences ....35

Reset 35

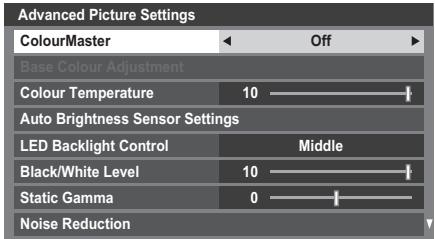

ColourMaster 35

Base Colour Adjustment 36

Colour Temperature 36

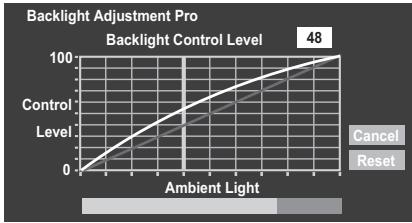

Auto Brightness Sensor Settings 36

LED Backlight Control 36

Black/White Level 37

Static Gamma 37

MPEG NR – Noise Reduction ......37

DNR – Digital Noise Reduction ......37

Resolution+ 37

Active Vision M400 37

Motion Detection Range 37

Resetting the advanced picture settings ....38

Expert Picture Settings 38

Control Visualization 40

Automatic Format (Widescreen) 40

4:3 Stretch 40

Blue Screen 40

Picture Position 40

Picture still 41

HDMI Information Display 41

Using your home network 42

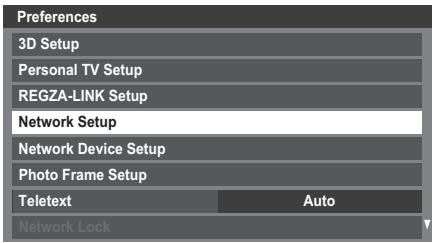

Setting up the Network 43

Wireless Setup 43

Advanced Network Setup 45

DNS Setup 46

Network Connection Test 47

Using the software keyboard 47

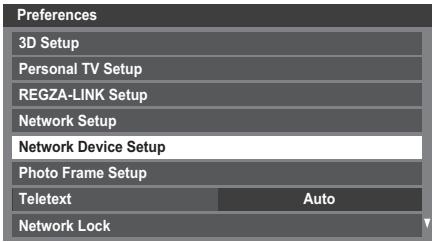

Network Device Setup 48

External Control Setup 48

Media Renderer Setup 48

Device Name Setup 49

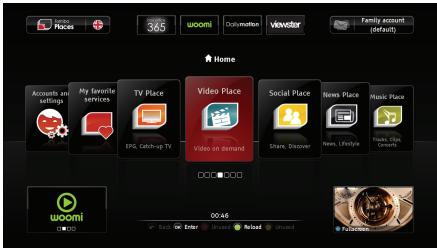

Using Toshiba Places 49

Using YouTube ^TM .....50

Using the Function Menu ....50

Using the Media Player 52

Basic operation ....53

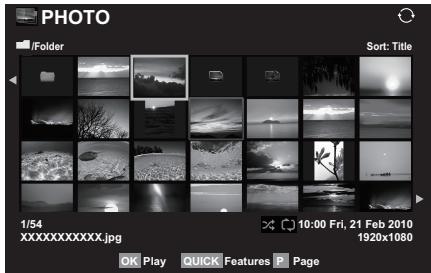

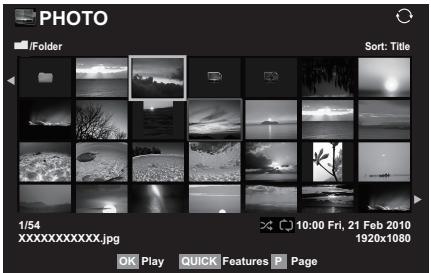

Viewing photo files

(on a DLNA CERTIFIED™ Server or USB device) .....54

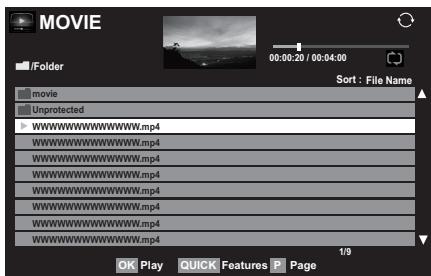

Viewing movie files

(on a DLNA CERTIFIED™ Server or USB device) .....56

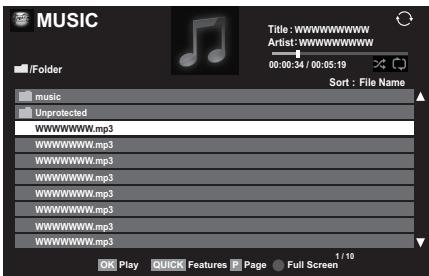

Playing music files

(on a DLNA CERTIFIED™ Server or USB device) .....58

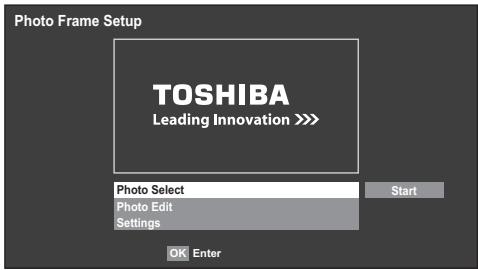

Using the Photo Frame feature ....59

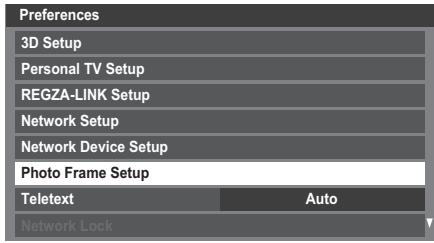

To open Photo Frame 59

Setting the features 60

Other features ....61

Panel Lock 61

The timers 62

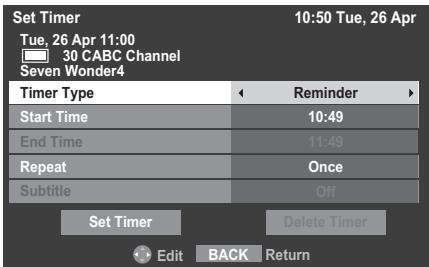

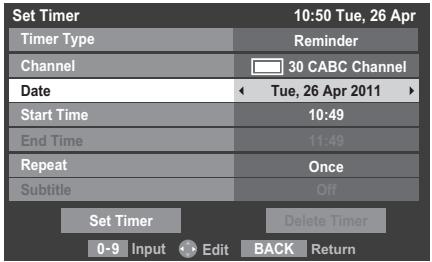

Programme Timers – digital only ......62

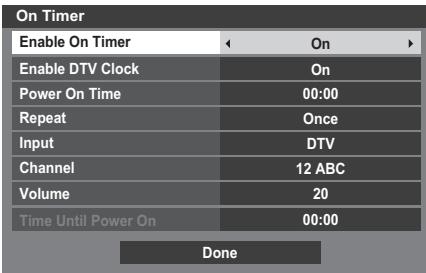

On Timer 62

Sleep Timer 63

Energy Saving Settings 63

Automatic Power Down 63

No Signal Power Down 63

Digital on-screen information and Programme Guide .....64

Information 64

Guide 65

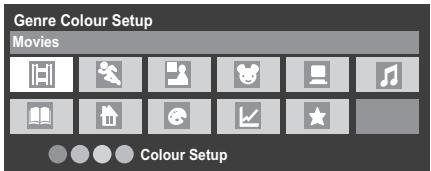

Genre selection/searching 65

Digital settings – parental control ....66

Parental PIN Setup 66

Parental Setup 66

Network Lock 66

Digital settings – Channel Options ....67

Selecting favorite channels 67

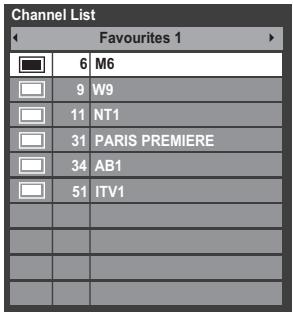

Favorite Channel Lists 67

Skip channels 67

Locking channels 67

Digital settings – other settings ....68

Subtitles 68

Audio languages 68

Common Interface 68

Software Upgrade and Licences 69

Auto Upgrade 69

Searching for New Software 69

Network Upgrade 69

Software Licences 69

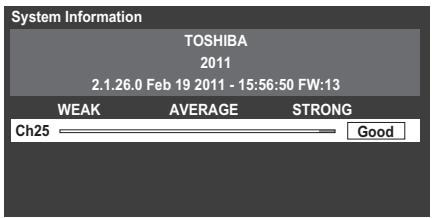

System Information and Reset TV 70

System Information 70

Reset TV 70

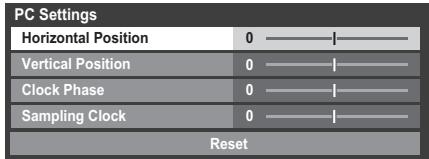

PC Settings 70

Horizontal and Vertical Position 70

Clock Phase 70

Sampling Clock 71

Reset 71

Input selection and AV connections 71

Input selection 71

External input skip 72

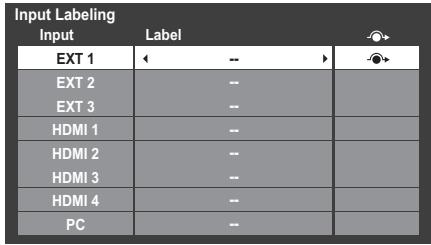

Labeling video input sources 72

PC Audio 73

Side Shared Audio 73

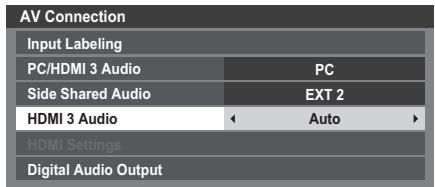

HDMI 3 Audio 73

HDMI Settings 73

Digital Audio Output 73

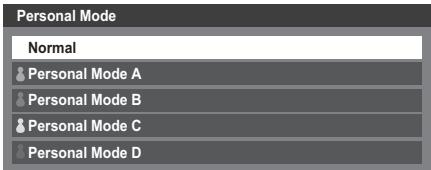

Using Personal TV Mode 74

Using REGZA-LINK 76

Enable REGZA-LINK 76

TV Auto Power 76

Auto Standby 76

Amplifier Control 76

Initial Speaker Setting 76

Position Key Pass Through 76

REGZA-LINK input source selection 77

REGZA-LINK Device Control 77

REGZA-LINK one touch play 77

REGZA-LINK system standby 77

REGZA-LINK system audio control 78

Toshiba PC compatible with REGZA-LINK 78

TEXT SERVICES

Text services 79

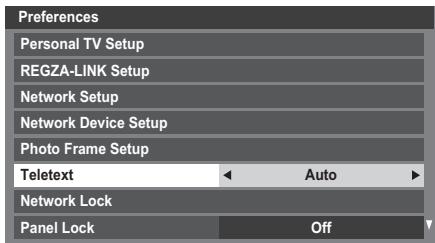

Selecting modes 79

Text information 79

Navigating pages using Auto 79

Navigating pages using LIST 79

Control buttons 80

PROBLEM SOLVING

Questions and Answers 81

INFORMATION

License Information 84

Information 86

Specifications and accessories 91

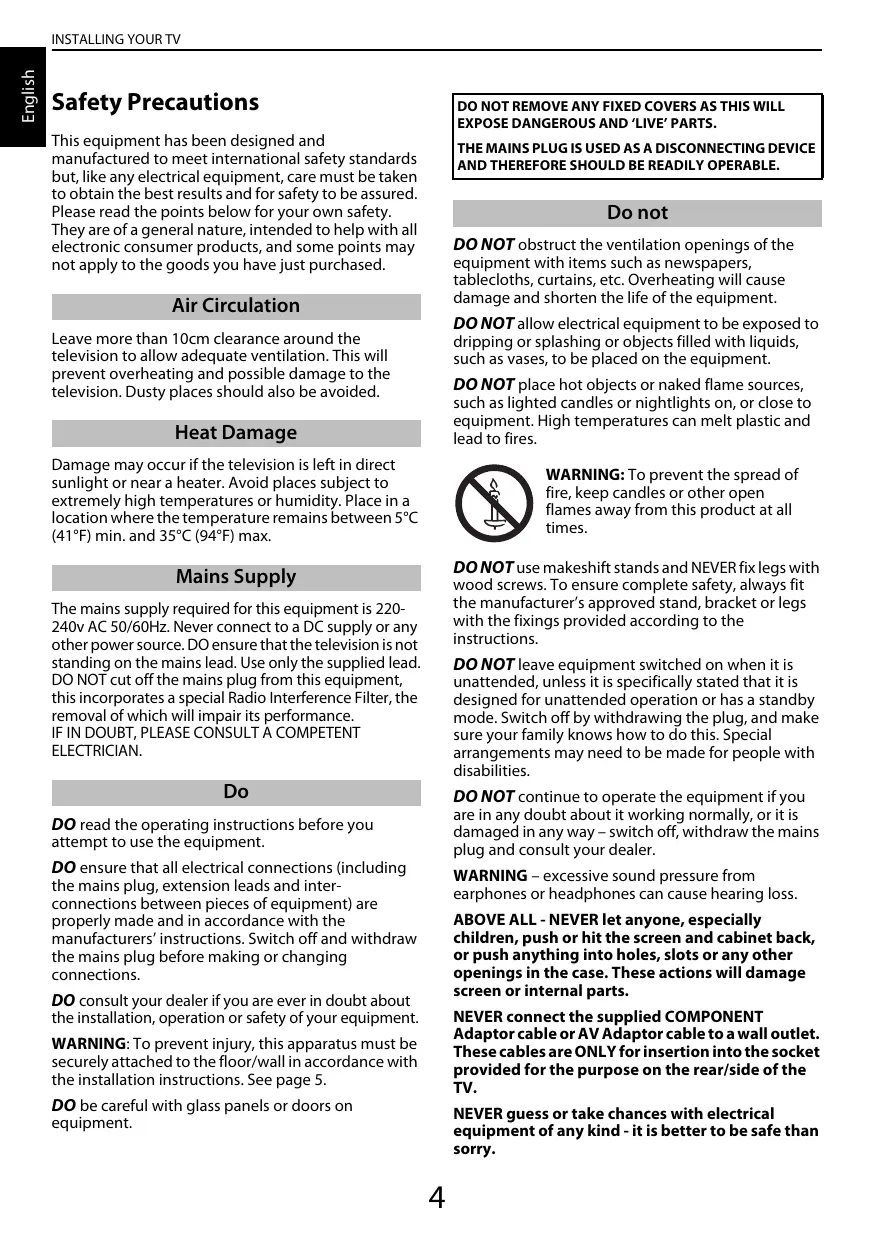

Safety Precautions

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products, and some points may not apply to the goods you have just purchased.

Air Circulation

Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided.

Heat Damage

Damage may occur if the television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5^ C ( 41^ F) min. and 35^ C ( 94^ F) max.

Mains Supply

The mains supply required for this equipment is 220-240v AC 50/60Hz. Never connect to a DC supply or any other power source. DO ensure that the television is not standing on the mains lead. Use only the supplied lead. DO NOT cut off the mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance. IF IN DOUBT, PLEASE CONSULT A COMPETENT ELECTRICIAN.

Do

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturers' instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. See page 5.

DO be careful with glass panels or doors on equipment.

DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND 'LIVE' PARTS.

THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

Do not

DO NOT obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.

DO NOT allow electrical equipment to be exposed to dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.

DO NOT place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all times.

DO NOT use makeshift stands and NEVER fix legs with wood screws. To ensure complete safety, always fit the manufacturer's approved stand, bracket or legs with the fixings provided according to the instructions.

DO NOT leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, and make sure your family knows how to do this. Special arrangements may need to be made for people with disabilities.

DO NOT continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way – switch off, withdraw the mains plug and consult your dealer.

WARNING – excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen and cabinet back, or push anything into holes, slots or any other openings in the case. These actions will damage screen or internal parts.

NEVER connect the supplied COMPONENT Adaptor cable or AV Adaptor cable to a wall outlet. These cables are ONLY for insertion into the socket provided for the purpose on the rear/side of the TV.

NEVER guess or take chances with electrical equipment of any kind - it is better to be safe than sorry.

Installation and important information

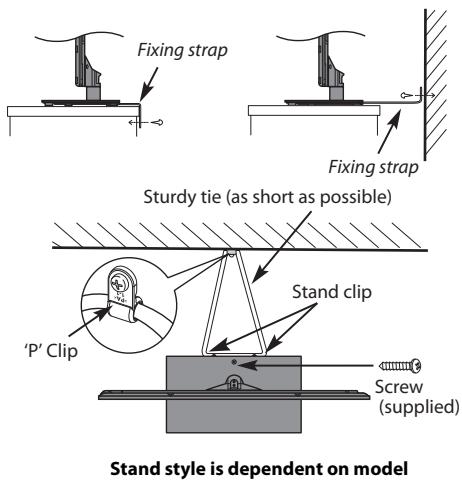

Where to install

Locate the television away from direct sunlight and strong lights. Soft, indirect lighting is recommended for comfortable viewing. Use curtains or blinds to prevent direct sunlight falling on the screen.

Place the TV on a stable, level surface that can support the weight of the TV. In order to prevent injury and maintain stability of this apparatus, secure the TV to the level surface using the strap if fitted, or to a wall using a sturdy tie to the P clips provided. Otherwise secure the TV on the level surface using the supplied mounting screw.

The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction.

Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen. Also, please be certain that small items cannot be inserted into slots or openings in the case.

Cleaning the screen and cabinet...

Turn off the power, and clean the screen and cabinet with a soft, dry cloth. We recommend that you do not use any proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Please take note

The digital reception function of this television is only effective in the countries listed in the "Country" section of the "Setup/System Setup" menu. Depending on country/area, some of this television's functions may not be available. Reception of future additional or modified services can not be guaranteed with this television.

If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on-screen menus, etc. are left on the television screen for any length of time, they could become conspicuous. It is always advisable to reduce both the brightness and contrast settings.

Very long, continuous use of the 4:3 picture on a 16:9 screen may result in some retention of the image at the 4:3 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer's warranty. Regular use of other size modes (eg: Super Live) will prevent permanent retention.

EXCLUSION CLAUSE

Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

i) Fire;
ii) Earthquake;
iii) Accidental damage;
iv) Intentional misuse of the product;
v) Use of the product in improper conditions;
vi) Loss and/or damage caused to the product whilst in the possession of a third party;
vii) Any damage or loss caused as a result of the owner's failure and/or neglect to follow the instructions set out in the owner's manual;
viii) Any loss or damage caused directly as a result of misuse or malfunction of the product when used simultaneously with associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following: loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

NOTE: A Toshiba wall bracket or stand, where available, must be used.

When using the 3D glasses

About the 3D glasses

- Do not repair, modify, or disassemble the 3D glasses by yourself.

Doing so may cause you to become indisposed while watching 3D images.

- Do not use the 3D glasses if they are cracked, broken, or not working properly.

Continuing to use them in such a state may cause injury, eye strain, or indisposition.

- Do not stand or walk while wearing 3D glasses.

You may lose your balance which could result in falls or other accidents.

- Do not wear the 3D glasses for any purpose other than viewing 3D programming.

Not for use as sunglasses.

- Do not drop, exert pressure on, or step on the 3D glasses.

Doing so may damage the glass section, which may result in injury.

Exposing the 3D glasses to liquid or excessive heat may damage the function.

- If your nose or temple turns red, or you feel any pain or discomfort, stop using the 3D glasses.

Such symptoms may occur when wearing 3D glasses for long periods of time.

Cautions on watching 3D images

- Some viewers may experience a seizure or blackout when exposed to certain flashing images or lights contained in certain 3D television pictures or video games.

Anyone who has had a seizure, loss of awareness, or other symptom linked to an epileptic condition, or has a family history of epilepsy, should contact a health care professional before using the 3D function.

- Avoid using the 3D function when under the influence of alcohol.

- If you are ill or feel ill, you should refrain from viewing 3D images, and consult your health care provider as may be appropriate.

- If you experience any of the following symptoms when viewing 3D video images, stop viewing and contact your health care provider:

Convulsions, Eye or muscle twitching, Loss of awareness, Altered vision, Involuntary movements, Disorientation, Eye Strain, Nausea/Vomiting, Dizziness, Headaches.

- If you feel eye fatigue or other discomfort from viewing 3D video images, remove the 3D glasses and discontinue use until the condition improves.

- Viewing in 3D may cause dizziness and/or disorientation for some viewers.

Therefore, to avoid injury do not place your TV near open stairwells, balconies, or wires.

Also do not sit near objects that could be broken if accidentally hit.

- When viewing 3D images, always wear 3D glasses.

Watching 3D images without specified 3D glasses may cause eye strain.

- Do not wear 3D glasses or watch 3D images from steep angles or while lying down.

The 3D effect is lost in these conditions and eye strain may result.

- It is recommended that the viewer's eyes and 3D glasses are level with the screen.

- If you have prescription eye glasses or contact lenses, wear the 3D glasses over them.

Watching 3D images without appropriate eyewear may cause eye strain.

- If 3D images often appear doubled or if you cannot see the images in 3D, stop viewing.

Continuous viewing may cause eye strain.

- Due to the possible impact on vision development, viewers of 3D video images should be age 6 or above.

Children and teenagers may be more susceptible to health issues associated with viewing in 3D and should be closely supervised to avoid prolonged viewing without rest.

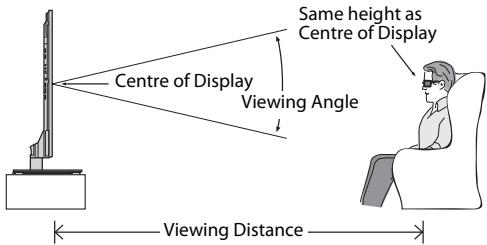

- For optimal 3D effect and to avoid eye fatigue it is important that you properly select your viewing position.

The best viewing position is at the indicated viewing distance with your eyes at the same level as the centre of the display as shown below. The centre of the optimum viewing area varies from set to set. The usable viewing area is generally over the range shown in the table below (actual angle not depicted in drawing).

Same height as Centre of Display Viewing Angle Centre of Display Viewing Distance

	Viewing Angle	Viewing Distance
42VL	Approx. 26 deg.	Over 1.6m
47VL	Approx. 26 deg.	Over 1.8m

IMPORTANT: If you see a double image, your eyes are either too high or too low in relation to the horizontal centre of the screen. Adjust your position so that it is closer to the centre to avoid eye fatigue and to enjoy optimum 3D effects.

The remote control

Simple at-a-glance reference of your remote control.

1 2 3 4 6 5 8 7 AD P - 10 9 11 GUIDE 12 13 OK 14 5/BACK EXT 15 16 17 1 2 3 4 5 6 7 8 9 18 20 19 21 3D 3D 22 23 24 25 26 CDI/II 27 28 29 MORE INFO SUBTITLE 30

1 For On/Standby mode
2 To select external input sources
3 To select TV Mode
4 To access Quick Menu
5 To access the "TOSHIBA PLACES" Top Page When network is not connected, an error message will be displayed.
6 To access the analogue or digital Channel List
7 To alter the TV volume
8 Switch the Audio Description On/Off
9 To mute the TV sound
10 To change programme positions To change TEXT pages
11 On-screen Menus
12 To display the digital on-screen Programme Guide
13 When using menus, the arrows move the cursor on the screen up, down, left or right
14 Press OK to confirm your selection
15 To return to previous Menu
16 To exit menus

17 Colour buttons: Text and interactive service control buttons

18 Number buttons

19 To display on-screen information To access the index page in Text mode

20 To return to previous programme position

21 When in TV mode:

☑/☑ Analogue time display

When in Text mode:

≡? To reveal concealed text

To hold a wanted page

To enlarge text display size

☑/☐× To select a page while viewing a normal picture

When using Programme Guide:

-24 hours
▶▶ +24 hours
◀ -1 page
▶▶ +1 page

During Playback:

To PLAY
To STOP
To PAUSE/STEP
To SKIP-BACK
To REWIND
To FAST FORWARD
▶ To SKIP-FORWARD

22 To call up text services
23 To switch between 2D and 3D mode
24 Picture still
25 To access Media Player Menu
26 Selectable Picture preferences
27 Widescreen viewing
28 ⒶI/Ⅱ Stereo/bilingual transmissions
29 To access More Information Menu
30 Digital Subtitles or Analogue TEXT Subtitle pages if available

Inserting batteries and effective range

Diagram illustrating battery internal structure with labeled components and directional arrows indicating movement or flow.

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the proper way. Suitable battery types for this remote are AAA, IEC R03 1.5V.

Do not combine a used, old battery with a new one or mix battery types. Remove dead batteries immediately to

prevent acid from leaking into the battery compartment. Dispose of them in accordance with instructions on page 85 of this manual.

Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. If the operating range becomes reduced, the batteries may need replacing.

Connecting external equipment

Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.

Cable Clamps (for Stand type)

HEADPHONE jack DIGITAL AUDIO OUTPUT (OPTICAL) Cable Clamps (for Wall Mount type) COMPONENT VIDEO INPUT (EXT 2) VIDEO INPUT (EXT 3) HDMI 1/2/3/4 INPUTS LAN port RGB/PC INPUT SCART INPUT Aerial Cable Media Recorder IN/OUT Satellite dish

Aerial cables:

Connect the aerial to the socket on the rear of the television. If you use a decoder and/or a media recorder, it is essential that the aerial cable is connected through the decoder and/or through the media recorder to the television.

Satellite cable: ....

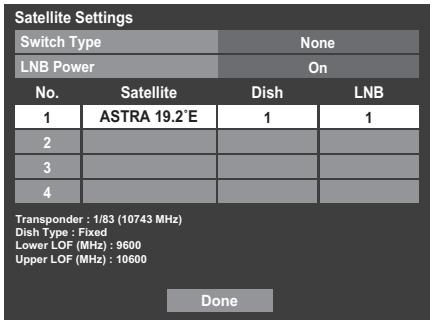

Connect the LNB from the satellite dish to the SATELLITE

ANTENNA socket on the TV. You can receive TV, radio, interactive TV, and HD TV with clear reception.

SCART leads:....

Connect the media recorder IN/OUT socket to the television. Connect the decoder TV socket to the television.

Before running Auto Tuning, put your decoder and media recorder to Standby.

The phono sockets alongside the COMPONENT VIDEO INPUT sockets will accept L and R audio signals.

The Digital Audio Output socket enables the connection of a suitable surround sound system.

NOTE: This output is always active.

HDMI® (High-Definition Multimedia Interface) is for use with a DVD decoder or electrical equipment with digital audio and video output. For acceptable video or PC signal formats through the HDMI terminals, see page 87.

NOTE: Although this television is able to connect to HDMI equipment, it is possible that some equipment may not operate correctly.

LAN port is used to connect the TV to your home network. This TV can play digital content stored on a DLNA CERTIFIED™ product with server function.

A wide variety of external equipment can be connected to the back of the television; therefore, the relevant owner's manuals for all additional equipment must be referred to for exact instructions.

If the television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button. To recall external equipment, press ➕ to select between DTV, EXT 1, EXT 2, EXT 3, HDMI 1, HDMI 2, HDMI 3, HDMI 4, PC or ATV.

When the external input mode is selected while viewing DTV mode, the SCART socket does not output video/audio signals.

Connecting an HDMI ^® or DVI device to the HDMI input

The HDMI input on your television receives digital audio and uncompressed digital video from an HDMI source device or uncompressed digital video from a DVI (Digital Visual Interface) source device.

This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) programme material in digital form from EIA/CEA-861-D-compliant [1] consumer electronic devices (such as a set-top box or DVD player with HDMI or DVI output). For acceptable video signal formats, see page 87.

NOTE:

- Some early HDMI equipment may not work properly with your latest HDMI TV, due to the adoption of a new standard. Please unplug your HDMI cable first and then try setting the INSTAPORT™ and Enable Content Type options to "Off". Your early HDMI source should operate properly with your television. See page 73.

- Supported Audio format: Linear PCM, Dolby Digital (AC-3), sampling rate 32/44.1/48kHz.

To connect an HDMI device

Connect an HDMI cable (type A connector) to the HDMI terminal.

For proper operation, it is recommended that you use an HDMI cable with the HDMI Logo (HDMI®).

• If your HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 50Hz, you will need a Category 2 cable. Conventional HDMI/DVI cable may not work properly with this model.
• HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration).
  • See "HDMI 3 Audio" on page 73.

the back of your television

HDMI HDMI 1.0/2.0/3.0 HDMI cable → HDMI device VIDEO AUDIO L R OUT HDMI OUT

To view the HDMI device video, press the ⏻ button to select HDMI 1, HDMI 2, HDMI 3 or HDMI 4 mode.

To connect a DVI device

Connect an HDMI-to-DVI adaptor cable (HDMI type A connector) to the HDMI 3 terminal and audio cables to the PC/HDMI 3 (AUDIO) socket (see illustration).

• The recommended HDMI-to-DVI adaptor cable length is 6.6 ft (2m).
• An HDMI-to-DVI adaptor cable transfers video only. Separate analogue audio cables are required.
  • See "HDMI 3 Audio" on page 73.

the back of your television HDMI-to- DVI adaptor Cable Audio cable for HDMI to television connection (not supplied) DVI device DVI-HDCP OUT V1 O AUDIO R L R N

NOTE:

To ensure that the HDMI or DVI device is reset properly, it is recommended that you follow these procedures:

• When turning on your electronic components, turn on the television first, and then the HDMI or DVI device.
• When turning off your electronic components, turn off the HDMI or DVI device first, and then the television.

HDMI's ARC (Audio Return Channel) feature

This feature enables the audio signal of the TV to be sent to the AV amplifier via the HDMI cable. It will not be necessary to connect a cable from the audio output of the TV to the audio input of the AV amplifier to reproduce the audio received from the tuner of the TV through the AV amplifier.

the back of your television

AV amplifier that supports ARC HDMI HDMI cable

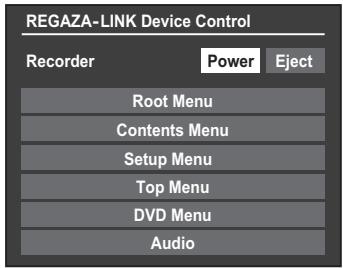

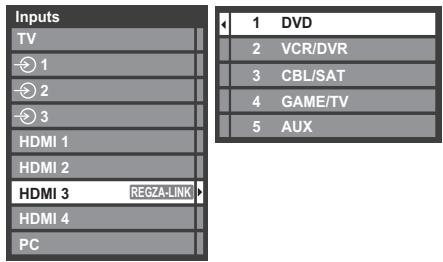

REGZA-LINK connection

You can control the basic functions of connected audio/video devices using the television's remote control if you connect a REGZA-LINK compatible AV amplifier or playback device. For an explanation of setup and operations, see pages 76–78.

For the setup shown above, you will need three HDMI cables.

NOTE:

• If several devices are connected, the REGZA-LINK feature may not operate properly.
• For proper operation, it is recommended that you use HDMI cables with the HDMI Logo (HDMI®).
• This function is available when one PC and one AV amplifier are connected separately. However, it may not operate properly if the PC is connected via the AV amplifier.

Before controlling the device(s):

• After completing the above connections, set the REGZA-LINK Setup menu as you desire (see page 76).
• The connected devices must also be set. For details, see the operation manual for each device.
• The REGZA-LINK feature uses CEC technology as regulated by the HDMI standard.
• This feature is limited to models incorporating Toshiba's REGZA-LINK. However, Toshiba is not liable for those operations. Refer to individual instruction manuals for compatibility information.

Connecting a computer

With either an RGB/PC or an HDMI connection, you can watch your computer's display on the television and hear the sound from the television's speakers.

To connect a PC to the RGB/PC terminal

When connecting a PC to the RGB/PC terminal on the television, use an analogue RGB (15-pin) computer cable and a PC audio cable for the PC/HDMI 3 (AUDIO) socket. Select PC from the PC/HDMI 3 Audio options in the AV Connection menu located in the Preferences menu.

To use a PC, set the monitor output resolution on the PC before connecting it to the television. For acceptable PC signal formats, see page 86.

To display the optimum picture, use the PC setting feature (see page 70).

NOTE:

• The PC audio input terminal on the television is shared with the HDMI 3 analogue audio input terminal (see page 73).
• Some PC models cannot be connected to this television.
• An adaptor is not needed for computers with a compatible mini D-sub15-pin terminal.
• Depending on the DVD's title and the specifications of the PC on which you are playing the DVD-Video, some scenes may be skipped or you may not be able to pause during multi-angle scenes.
• A band may appear at the edges of the screen or parts of the picture may be obscured. This is due to scaling of the picture by the set, it is not a malfunction.
• When PC input mode is selected, some of the television's features will be unavailable e.g. Colour System in the Setup/System Setup menu.

- Some PC models may output unique signals that the television may be unable to detect (see page 86).

To connect a PC to the HDMI terminal

When connecting a PC to the HDMI terminal on the television, use an HDMI-to-DVI adaptor cable and an analogue audio cable.

If connecting a PC with an HDMI terminal, use an HDMI cable (type A connector). A separate analogue cable is not necessary.

the back of your television Audio cable for PC to television connection (not supplied) HDMI-to- DVI adaptor Cable Computer

For acceptable PC and video signal formats, see page 87.

NOTE:

• The edges of the images may be hidden.
• If connecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.

Connecting a home network

The LAN port allows your Toshiba TV to connect to your home network. You can use this revolutionary home entertainment networking system to access photo, video and audio files that are stored on a DLNA CERTIFIED™ server and play/display them on your TV.

NOTE:

• If you connect to a shared network outside your home, it is advisable to use a router. Always use DLNA CERTIFIED™ products in private network environments.
• If you use a hub or switch to connect the TV to your home network, you may not be able to use the automatic setup and will have to manually set up the network address. See page 46.
• If you use a router with built-in DHCP functionality, use the automatic setup. Manual setup may not work.
• If you connect the TV and PC directly, use a crossover LAN cable.

To connect the TV to a home network - Wired

[1] Coaxial or telephone cable (depending on your modem type)
[2] Standard LAN cable
[3] Do NOT connect a phone jack directly to the TV's LAN port.

To connect the TV to a home network with an internet connection - Wireless

Please refer to "Wireless Setup" section on page 43.

the back of your television

USB TOSHIBA Dual Band WLAN adaptor

Access point (AP)

Wireless LAN router Modem Computer

Controls and input connections

A wide variety of external equipment can be connected to the input sockets on the side of the television. While all the necessary adjustments and controls for the television are made using the remote control, the buttons on the television may be used for some functions.

USB 1 port Media Player COMMON INTERFACE The Common Interface is for a Conditional Access Module (CAM). Contact a service provider. The software updating of CI Plus CAM may be automatically executed. At this time, your Recording/Reminder programming will be canceled. USB 2 port Media Player/ WLAN adaptor ready for a home network Ambient Light Sensor MENU Control panel (touch sensor) RED LED – Standby BLUE LED – Power on ORANGE LED – Programme timer set (digital only) RED LED – Programme timer Active (digital only)

Switching on

If the RED LED is not lit, check that the mains plug is connected to the power supply and press ⏻ on the remote control; it may take a few moments. The BLUE LED will be lit.

To put the television into Standby, press ⏻ on the remote control. To view the television, press ⏻ again. The picture may take a few seconds to appear.

For energy saving:

We recommend that you use the television with the factory settings. The factory settings are for energy saving. Unplugging the mains plug will cut energy use to zero for all televisions. This is recommended when the television is not being used for a long time, e.g. when on holiday. Reducing the brightness of the screen will reduce energy use. Energy efficiency cuts energy consumption and thus saves money by reducing electricity bills. NOTE: Putting the television into standby mode will reduce energy consumption, but will still draw some power.

Using the remote control

Press MENU on the remote control to display the menu. The five initial topics icons will appear. As each symbol is selected by pressing ◀ or ▶ on the remote control. Press ▲▼◀▶ to enter a sub menu and then enter a further sub menu to see any options.

NOTE: The same menu is displayed in DTV (Digital TV) and ATV (Analogue TV) modes; however, where some items are not available in a mode, they will appear greyed out.

To use the option, press ▲ and ▼ on the remote control to move up and down and press ◀ or ▶ to select your desired setting. Follow the on-screen instructions. The functions of each menu are described in detail throughout the manual.

Using the controls and connections

To alter the volume gently touch - △+. To alter the programme position touch ▼P▲.

Touch MENU and ▼▲, -△+ to control the sound and picture options.

Touch MENU to finish.

The Media Player feature provides access to photo, movie and music files stored on an USB storage device that is connected via the USB 1 or USB 2 port or on a network device.

NOTE: The USB socket has limited functionality and Toshiba can take no responsibility for damage to other connected equipment.

The USB 2 socket has to be used with the "TOSHIBA Dual Band WLAN Adaptor WLM-10U2" in order to access a wireless network.

This feature is available only when the "TOSHIBA Dual Band WLAN Adaptor" is used.

To select an external input, touch ⬤ until the appropriate input source is selected.

Please always refer to the owner's manual of the equipment to be connected for full details.

NOTE: Interactive video games that involve shooting a "gun" at an on-screen target may not work with this TV.

MENU structure

To open the main menu (illustration below), press MENU on the remote control or on the TV control panel.

    X["2nd Layer"] --> Y["Press OK."]
    Y --> Z["Jump to Programme Guide (EPG)"]
    Y --> AA["Jump to Genre Search"]
    Y --> AB["Jump to Programme Timers"]
    AC["3rd Layer"] --> AD["Press ▲▼◀▶."]
    AD --> AE["Device Select"]
    AD --> AF["Device Select"]
    AD --> AG["Device Select"]
    AD --> AH["Media Player Setup Menu"]
    AI["Setup"] --> AJ["Picture"]
    AJ --> AK["Sound"]
    AJ --> AL["Preferences"]
    AJ --> AM["System Setup Menu"]

    style A fill:#f9f,stroke:#333
    style G fill:#f9f,stroke:#333
    style L fill:#f9f,stroke:#333
    style AC fill:#f9f,stroke:#333

Startup Application

Before switching on the television, set your decoder and media recorder, if applicable, to Standby. To set up the television, use the buttons on the remote control as detailed on page 7.

Quick Setup

1 Press the ⏻ button. The Menu Language screen will appear. This screen will appear the first time that the television is switched on and each time Reset TV is selected.
2 Press ▲, ▼, ◀, or ▶ to select the menu language, and then press OK.
3 Highlight Country and press ◀ or ▶ to select. The television is now set to tune the stations for your country.

Quick Setup
Country	<	Germany
Primary Subtitle Language		English
Secondary Subtitle Language		German
Primary Audio Language		English
Secondary Audio Language		English

NOTE:

• The following display menus will differ slightly according to the country you selected.
• If there is not a country that you want to select in the list, select Others.

4 Press OK, and the Location screen will appear.

Location To use the TV for displaying in a store showroom, please select [Store]. [Home] mode is recommended for normal use. Home

5 Press ◀ or ▶ to select Home or Store. For normal home use, select Home.

6 Press OK, and the TV Mounting screen will appear, press ◀ or ▶ to select Stand or Wall.

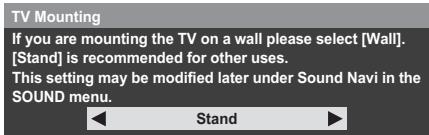

TV Mounting If you are mounting the TV on a wall please select [Wall]. [Stand] is recommended for other uses. This setting may be modified later under Sound Navi in the SOUND menu. Stand

7 Press OK, and the AutoView screen will appear, press ◀ or ▶ to select Yes or No.

AutoView AutoView mode automatically adjusts picture settings to suit ambient light conditions. Do you wish to enable AutoView mode? No

8 Press OK. If the Ant/Cable/Satellite screen appears, press ▲ or ▼ to select Antenna, Cable or Satellite and then press OK to check (√).

Ant/Cable/Satellite Antenna Cable Satellite Next

If DVB-C is not supported in your area, Cable will not be displayed.

• When you select Antenna or Cable, follow steps 9 to 12.
• When you select Satellite, skip to step 13.
• When you select Antenna (or Cable) and Satellite, the Satellite Settings startup screen will appear automatically after completing the Antenna (or Cable) scan and pressing OK.

9 Select Next and press OK. The Auto Tuning start up screen will appear with the option to select between DTV and ATV, DTV or ATV if available. Use ◀ or ▶ to select the appropriate mode.

10 Press ▼ or ▲ to highlight Start Scan, and then press OK.

The television will start to search for available DTV and/or ATV channels. The progress bar will indicate the scan status.

You must allow the television to complete the search.

When the search is complete, the television will automatically select position one.

The Auto Tuning screen will display the total number of services found.

NOTE: If there are multiple channels with the same channel number, a confirmation window will appear. Press ◀ or ▶ to select the one you prefer.

11 Press ◀ or ▶ to view the DTV (digital channel) or ATV (analogue channel) lists.
12 Use ▼ or ▲ to move through the list to select a channel, and then press OK to view.

In ATV mode, some areas may receive duplicate stations. There may not be a clear picture or the signal may be weak, so the station order can be changed using ATV Manual Tuning.

REMEMBER: Press TV at any time to select between ATV and DTV (DTV Ant TV/Radio/Text, DTV Cable TV/Radio/Text, DTV Sat TV/Radio/Text if available) modes.

NOTE: The time will be set automatically by transmission but can be advanced or decreased by using Local Time Setting in the DTV Settings screen.

13 Select Next and press OK. The Satellite Settings screen will appear. From this window, you can add the satellites that you wish to tune and configure detailed settings for each one individually. See "Satellite Settings" on page 17.

Satellite Settings Switch Type None LNB Power.On No.Satellite Dish LNB 1 ASTRA 19.2'E 1 1 2 3 4 Transponder : 1/83 (10743 MHz) Dish Type : Fixed Lower LOF (MHz) : 9600 Upper LOF (MHz) : 10600 Done

Highlight Done and press OK.

14 If your satellite dish is movable, the following Positioning screen will appear.

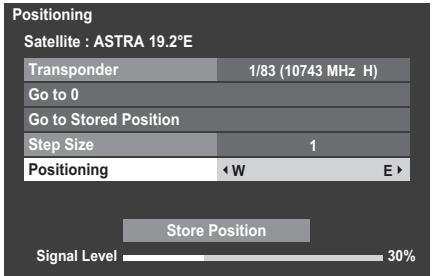

Positioning Satellite : ASTRA 19.2°E Transponder 1/83 (10743 MHz H) Go to 0 Go to Stored Position Step Size 1 Positioning < W E >> Store Position Signal Level 30%

Press ▲ or ▼ to highlight Positioning, and then press ◀ or ▶ to find the dish position with the strongest signal level.

Press ▲ or ▼ to highlight Store Position and press OK to store the dish position. Repeat steps 13 and 14 for the next satellite as necessary.

If your satellite dish is not movable, the Positioning screen will not appear.

Adjust the dish position manually for the maximum Signal Level strength.

Highlight Done and press OK.

15 If the reception testing completes successfully, the Auto Tuning startup screen will display.

Auto Tuning - Satellite Start Scan Satellite ← ASTRA(19.2°E) ► Scan Option Free to Air

You can select Scan Option from Free to Air and All.

16 Press ▲ or ▼ to highlight Start Scan, and then press OK.

The television will start to search for available DVB-S channels. The progress bar will indicate the scan status.

When the search is complete, the Auto Tuning results screen will display the total number of services found.

17 Use ▲ or ▼ to move through the list to select a channel, and then press OK to view.

PLEASE NOTE

The Quick Setup menu can also be accessed at any time from the Setup/System Setup menu.

Ant/Cable/Satellite (if available)

From this menu, you can set the RF input configuration.

1 Press MENU / ◀▶ to highlight Setup icon.
2 Press ▲ / ◀▶ to highlight System Setup icon.
3 Press OK to display System Setup menu.
4 Press ▲ or ▼ to select Ant/Cable/Satellite and press ◀ or ▶ to select Antenna, Cable or Satellite.

NOTE: When you attempt to change the Ant/Cable/Satellite setting, a warning message will appear followed by PIN entry (if PIN has been set) and a prompt for Auto Tuning.

When Ant/Cable/Satellite is set to Cable, the following setting options will be provided in the Auto Tuning screen.

Press ▲ or ▼ to select an item, and then press ◀ or ▶ to select your desired option.

Auto Tuning Tuning Mode DTV and ATV Start Scan DTV Scan Type Quick Scan Start Frequency Auto End Frequency Auto Modulation Auto Symbol Rate Auto Network ID Auto

With the exception of DTV Scan Type and DTV Modulation items, all of the following items will have 2 operating modes. The first is Auto where the values for each item are preset by the system. The second is an Input mode where you will be able to enter a single value in place of the pre-set value. If no channel is currently tuned and the Input state is chosen, a system default value will be shown. However, if a channel is currently tuned when the item is accessed, the value of the current channel will be displayed.

DTV Scan Type:

This item determines whether a Quick Scan or a Full Scan will be executed.

The Quick Scan is a simplified version of the Full Scan that is designed to complete in less time.

DTV Start Frequency:

This sets the frequency from which the scan will begin.

DTV End Frequency:

This sets the frequency at which the scan will end.

DTV Modulation:

You can choose from five QAM modulation settings.

DTV Symbol Rate:

This is the baud rate (KS/s) of the scan.

DTV Network ID:

This is the Network ID to be utilized for the scan. This item is greyed out when DTV Scan Type is set to "Full Scan".

Satellite Settings

From the System Setup menu, you can add the satellites that you wish to tune and configure detailed settings for each one individually.

To add a satellite:

1 Press MENU / ◀▶ to highlight Setup icon.
2 Press ▲ / ◀▶ to highlight System Setup icon.
3 Press OK to display System Setup menu.
4 Press ▲ or ▼ to select Satellite Settings and press OK.

Satellite Settings Switch Type None LNB Power On No.Satellite Dish LNB 1 ASTRA 19.2°E 1 1 2 3 4 Transponder : 1/83 (10743 MHz) Dish Type : Fixed Lower LOF (MHz) : 9600 Upper LOF (MHz) : 10600 Done

5 Press ▼ to highlight a new line to add an another satellite and press OK.
6 Press ▼ until the required satellite is displayed and press OK.

To delete a satellite:

1 In the Satellite Settings menu, press ▲ or ▼ to select the satellite you want to delete.
2 Press the RED button. A confirmation window will appear.
3 Press ◀ or ▶ to select Yes and press OK.

NOTE: It is not possible to delete position No.1.

To edit the satellite settings:

1 In the Satellite Settings menu, press ▲ to highlight Switch Type.
2 Press ◀ or ▶ to select None, ToneBurst, DiSEqC 2way or DiSEqC 4way as your satellite switch type.
3 Press ▼ to highlight LNB Power and press ◀ or ▶ to select On or Off.

To add a transponder:

1 In the Satellite Settings menu, press ▲ or ▼ to highlight the line you want to edit and press OK.

1

ASTRA 19.2°E

1

1

2 Press the GREEN button. The Transponder Settings screen will appear.

Transponder Settings
	Frequency	Polarisation	Symbol Rate	S/S2
1	10743	H	22000	S
2	10773	H	22000	S
3	10788	V	22000	S
4	10817	V	22000	S
5	10832	H	22000	S
6	10847	V	22000	S
7	10861	H	22000	S
8	10876	V	22000	S

3 Press ▲ to highlight a new line.

Transponder Settings
	Frequency	Polarisation	Symbol Rate	S/S2
76	12640	V	22000	S
77	12662	H	22000	S
78	12669	V	22000	S
79	12692	H	22000	S
80	12699	V	22000	S
81	12721	H	22000	S
82	12728	V	22000	S
83

4 Press OK.

83

0

H

0

S

5 Edit each parameter as required and press OK. See page 18.

83

12731

H

22000

S2

To delete a transponder:

1 In the Transponder Settings menu, press ▲ or ▼ to highlight the line you want to delete.
2 Press the RED button.

To edit the Transponder Settings:

1 In the Transponder Settings menu, press ▲ or ▼ to highlight the line you want to edit and press OK.
2 Press ◀ or ▶ to select Frequency, Polarisation, Symbol Rate or S/S2, and set the item using the number buttons if necessary.
3 Press OK to save your settings.
4 Repeat steps 1 through 3 for other lines.
5 Press the BLUE button to finish editing and return to Satellite Settings.

Press the GREEN button to cancel any edits that were made this time.

Press the YELLOW button to reset all transponder settings to their initial default settings.

To select the Dish Type:

1 In the Satellite Settings menu, press ▲ or ▼ to select the required satellite line, and then press OK.
2 Press ◀ or ▶ to highlight Dish and press the GREEN button.

Dish Settings
Dish : 1
Dish Type	←	Fixed

3 Press ◀ or ▶ to select Dish Type. You can select Movable or Fixed as the Dish Type.

To select the LNB Settings:

In the Satellite Settings menu, press ▲ or ▼ to select the required satellite line, and then press OK.
2 Press ◀ or ▶ to highlight LNB and press the GREEN button.

LNB Settings
LNB : 1
Lower LOF	9750
Upper LOF	10600

3 Press ▲ or ▼ to select Lower LOF or Upper LOF and input the appropriate frequencies.

Auto Tuning

NOTE: As new services are broadcast, it will be necessary to re-tune the television in order to view them.

Auto Tuning will completely re-tune the television and can be used to update the channel list. It is recommended that Auto Tuning is run periodically to ensure that all new services are added. All current channels and settings, i.e. locked channels, will be lost.

1 Press MENU / ◀▶ to highlight Setup icon.
2 Press ▲ / ◀▶ to highlight System Setup icon.
3 Press OK to display System Setup menu.
4 Press ▲ or ▼ to select Auto Tuning and press OK.

System Setup Menu Language English Country Germany Ant/Cable/Satellite Satellite Settings Auto Tuning ATV Manual Tuning DTV Manual Tuning DTV Settings

5 For DTV/ATV Tuning:

A screen will appear warning that previous programmes and settings will be deleted.

Auto Tuning Previous settings will be lost! Press EXIT for no change. Tuning Mode DTV and ATV Start Scan

Press ◀ or ▶ to select DTV and ATV, DTV or ATV, if available, then highlight Start Scan and press OK to continue with the Auto Tuning.

NOTE: If you have selected "Others" for the Country field in the System Setup menu, and selected a tuning mode other than "DTV", choose the optimum ATV broadcasting system (B/G, I, D/K or L).

The television will start to search for all available DTV and/or ATV services.

You must allow the television to complete the search.

When the search is complete, the Auto Tuning screen will display the services found.

For Satellite Tuning:

A screen will appear warning that previous programmes and settings will be deleted.

Auto Tuning Previous settings will be lost! Press EXIT for no change. Start Scan Satellite All Search Option Free to Air

Press ▲ or ▼ to highlight Satellite and then press ◀ or ▶ to select the desired satellite (No.1 Sat \~ No.4 Sat or All).

You can select Free to Air or All as the Search Option. Highlight Start Scan and press OK to continue with the Auto Tuning.

When the search is complete, the Auto Tuning screen will display the services found.

6 Press ▼ or ▲ to move through the list to select a channel, and then press OK to view.

ATV Manual Tuning

Tuning

The television can be tuned-in manually using ATV Manual Tuning. For example, you might use the feature if the television cannot be connected to a media recorder/decoder with a SCART lead or when you want to tune-in a station on another System.

Use ◀ and ▶ to move across the screen and select any of the ATV Manual Tuning options. Then use ▲ or ▼ to adjust the settings.

ATV Manual Tuning System 1 I A C 2 Q 0 V C R 1 2 3 4 5 6 7 8 9

1 Position

The number to be pressed on the remote control to tune the channel.

2 System

Specific to certain areas.

3 Colour System

Factory set to Auto, should only be changed if problems are experienced, i.e. NTSC input from external source.

4 Skip

Set Skip to On (→) or Off (→) for the selected channel. See page 21.

5 Signal Class

The channel classification.

6 Channel

The channel number on which a station is being broadcast.

7 Search

Search up and down for a signal.

8 Manual Fine Tuning

Only used if interference/weak signal is experienced. See page 81.

9 Station

Station identification. Use the ▲▼ and ◀▶ buttons to enter up to seven characters.

To allocate a position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder, press PLAY, and then manually tune.

1 In the System Setup menu, press ▼ to highlight ATV Manual Tuning and press OK.

System Setup Menu Language English Country Germany Ant/Cable/Satellite Satellite Settings Auto Tuning ATV Manual Tuning DTV Manual Tuning DTV Settings

2 Use ▲ or ▼ to highlight the desired position. We suggest Pos. 0 for a media recorder.

ATV Manual Tuning
Pos.	Channel	Station
1	C2
2	S10
3	C7
4	S40
5	C22
6	C25
7	C28
8	C30

Different Channel numbers may be displayed.

3 Press OK to select. If the channel chosen for the media recorder is set to skip, Skip should be removed before storing.

4 Press▶ to select System and use ▲ or ▼ to change if required.

ATV Manual Tuning System 1 I A → C 2 Q 0

5 Then press▶ to select Search.

6 Press ▲ or ▼ to begin the search. The search symbol will flash.

ATV Manual Tuning Search 1 I A C 2 0

7 Each signal will show on the television. If it is not your media recorder, press ▲ or ▼ again to restart the search.
8 When your media recorder signal is found, press ▶ to move along to Station. Use ▲, ▼, ◀ and ▶ to put in the required characters, e.g. VCR.

ATV Manual Tuning Station 1 I A → C 2 Q 0 V C R

9 Press OK to save.
10 Repeat for each position you want to tune, or press BACK to return to the list of channels and select the next number to tune.
11 Press EXIT when you have finished.

PLEASE NOTE

This television has direct channel entry if the channel numbers are known. Select the ATV Manual Tuning screen in Step 3. Enter the Position number, the System, then C for standard (terrestrial) channels or S for cable channels and the Channel number. Press OK to save.

Skip

To prevent certain channels from being viewed, positions can be skipped.

1 Select ATV Manual Tuning from the System Setup menu.
2 Use ▲ or ▼ to highlight the position to be skipped and press OK to select.

ATV Manual Tuning
Pos.	Channel	Station
1	C2
2	S10
3	C7
4	S40	ABC1
5	C22	ABC1
6	C25
7	C28
8	C30

3 Press▶ to select Skip.

4 Use ▲ or ▼ to turn Skip on. Press OK.

→ on the screen indicates a skipped position.

ATV Manual Tuning Skip: On 1 I A C 2 0

5 Press BACK and repeat from Step 2 or press EXIT.

Each position has to be individually selected. To turn Skip off, repeat the procedure for each position.

Skipped positions cannot be selected by P^ and P∨ or by the controls on the television but can still be accessed by the number buttons on the remote control.

Sorting positions

Channels may be moved and saved to the position of your choice.

1 Select ATV Manual Tuning from the System Setup menu.
2 With the list of channels showing, use ▲ or ▼ to highlight the channel you want to move and press ▶.

ATV Manual Tuning
Pos.	Channel	Station
2	S10
3	C7
4	C40	ABC1
5	C22	ABC1
1	C2
6	C25
7	C28
8	C30

3 Use ▲ or ▼ to move through the list to your preferred position. As you do so, the other channels will move to make room.
4 Press ◀ to save your move.

Repeat as necessary, and then press EXIT.

DTV Manual Tuning

NOTE: The content of this menu varies depending on the DTV input (Antenna, Cable, or Satellite) that is currently selected.

Manual Tuning

This feature is available for service engineers or can be used for direct channel entry if the multiplex channel is known.

1 Select DTV Manual Tuning from the System Setup menu and press OK.

DTV Manual Tuning Signal Strength WEAK AVERAGE STRONG Quality GOOD Channel 13 Start Scan

2 Enter the multiplex number using the number buttons or use ◀ or ▶ to adjust the number up or down.

3 Highlight Start Scan, and then press OK. The television will automatically search for that multiplex.

DTV Manual Tuning
0 New Channels - Total 6
New	Pos.	Name	Type
	1	ABC ONE
	2	ABC TWO
	7	ABC THREE
	40	ABC NEWS 24
	51	ABCi

When the multiplex is found, any channels that are not currently in the channel list will be added and the channel information at the top of the screen will be updated.

4 Repeat as necessary. Press EXIT to finish.

Manual Tuning for DVB-C

When Ant/Cable/Satellite is set to Cable, DTV Manual Tuning items are as follows:

Frequency – input a specific frequency to be scanned

Modulation – choose from one of five QAM modulation options

Symbol Rate – input a specific baud rate (KS/s) to be used for the manual scan

Highlight Start Scan, and then press OK.

Manual Tuning for DVB-S

When Ant/Cable/Satellite is set to Satellite, DTV Manual Tuning items are as follows:

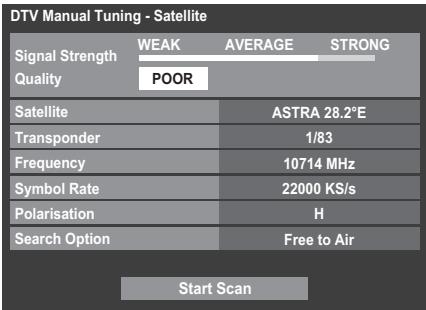

DTV Manual Tuning - Satellite Signal Strength WEAK AVERAGE STRONG Quality POOR Satellite ASTRA 28.2°E Transponder 1/83 Frequency 10714 MHz Symbol Rate 22000 KS/s Polarisation H Search Option Free to Air Start Scan

Use ▲ or ▼ to highlight an item (Satellite, Transponder, Frequency, Symbol Rate, Polarisation or Search Option), and then press ◀ or ▶ to select the required option.

Highlight Start Scan, and then press OK.

DTV Settings

Channels (Antenna/Cable)

The channel order may be changed to suit your personal preference.

1 Select DTV Settings from the System Setup menu and press OK.

2 Select Channels and press OK.

DTV Settings
Channels
Subtitle and Audio
Parental PIN Setup
Parental Control
Local Time Setting
Standby Channel Update	Off
DVB Character Set	Standard
Dynamic Scan	On

3 For your convenience, you can jump to specific places in the list by one of two methods.

ChannelsLine No. 1/10		TV
Pos.	Name
1	ABC ONE
2	ABC TWO
7	ABC THREE
30	CABC Channel
40	ABC NEWS 24
51	ABCi
822	AA
823	AC

Line Number Jump — Use the number buttons (0-9) to input the line number you want to select, and then press OK.

Name Jump — Press ◀◀ or ▶▶ to jump to the next station name with a different initial letter.

It is also possible to change the Position number of a particular channel.

Renumber — Press the RED button to renumber the highlighted channel. Edit the channel number using the number buttons and press OK. If the position number you input already exists, a confirmation window will appear.

Pos. Name - - - - ABC ONE

Move — Press the GREEN button to activate the Move feature. Use the ▲ or ▼ buttons to select the channel you wish to move and press OK to check. If you wish to move multiple channels at once, select another channel and check in the same way. Repeat as necessary.

Once all desired channels have been checked, use the ▲ or ▼ buttons to place the focus at the position to which you wish to move the channels. The channels will be inserted above the highlighted channel. Press the GREEN button to execute the move.

Channels Line No. 1/10 Pos. Name ✓ 1 ABC ONE □ 2 ABC TWO □ 7 ABC THREE □ 30 CABC Channel □ 40 ABC NEWS 24 □ 51 ABCi □ 822 AA □ 823 AC

Sort — Press the YELLOW button. A confirmation window will appear. Press ◀ or ▶ to select Yes and press OK.

Sort Your existing channel order will be lost. Do you wish to continue? ◀ Yes ▶

The Sorting Type selection window will appear.

Sort Sorting Type ← Number ► Sort

Press ◀ or ▶ to set the sorting type.

A-Z Sort Station name order (A to Z)

Number Position No. order (numerical sequence)

Press ▼ to highlight Sort and press OK.

Channels (Satellite)

1 Select DTV Settings from the System Setup menu and press OK.

2 Select Channels and press OK.

The satellite channel list will appear.

ChannelsLine No. 4/1200		Satellite TV
Pos.	Station	Satellite
1	DDD	19.2°E
2	AB	19.2°E
3	E	19.2°E
801	BBC	22.5°E
802	BB	22.5°E
803	BA	22.5°E
822	AA	25.6°E
823	AC	25.6°E

3 For your convenience, you can edit and sort your channel list.

Line Number Jump — Use the number buttons (0-9) to input the line number you want to select, and then press OK.

Station Letter Jump — Press ◀◀ or ▶▶ to jump to the next station name with a different initial letter.

Satellite Jump — Press ◀◀ or ▶▶I to jump to the next channel on a different Satellite.

Renumber — Same as Antenna/Cable channels. See page 23.

Move — Same as Antenna/Cable channels. See page 23.

Sort — Press the YELLOW button. A confirmation window will appear. Press ◀ or ▶ to select Yes and press OK.

The Sort menu will appear.

Sort Group By Satellite Sorting Type Channel Number Preset Order Yes Sort

Group — Press ◀ or ▶ to select All or By Satellite.

Sorting Type — Press ◀ or ▶ to set the sorting type.

A-Z

Station name order (A to Z)

Channel Number

Position No. order (numerical sequence)

Preset Order — Press ◀ or ▶ to set Yes or No.

This item is displayed when Country is set to Germany, and only applies to the Astra 19.2°E satellite.

Press ▼ to highlight Sort and press OK.

Standby Channel Update

If the Standby Channel Update is set to On, when the TV is in standby mode, Digital Tuning is automatically executed and any new channels are saved.

1 Select DTV Settings from the System Setup menu and press OK.

2 Press ▼ to select Standby Channel Update and use ◀ or ▶ to select On.

DVB Character Set

This feature allows you to manually select the character set (Standard = Table 0, West = Table 5 or Latin alphabet 9) to be used for DVB-C or DVB-T channels.

1 Select DTV Settings from the System Setup menu and press OK.

2 Press ▼ to select DVB Character Set and use ◀ or ▶ to select Standard, West or Latin alphabet 9.

Dynamic Scan

If the broadcast information has changed in your DVB-T receiving area, the TV screen will display the message "Broadcast information has changed. Would you like to rescan now?". Please follow the message. If you do not wish for the TV to detect changes and prompt you to rescan, you should set this feature to "Off".

1 Select DTV Settings from the System Setup menu and press OK.

2 Press ▼ to select Dynamic Scan and use ◀ or ▶ to select On.

Location setting

You can select either Home or Store mode. Home is recommended for normal home use. Select Store when using the television for displaying in a shop, etc.

1 Select Location from the System Setup menu.
2 Press ◀ or ▶ to select Home or Store.

Analogue switch-off

This is a digital television which is integrated to allow the use of both digital and analogue services. However, during the lifetime of this set it is very likely that analogue services will be switched off to allow for more new digital services.

This ‘switch-off’ will happen in a number of phases, which will be advertised in your area well in advance. It is recommended that at each phase the television is re-tuned to ensure that existing and new digital services can be viewed without disruption.

General controls

Quick Menu

Quick Menu helps you access some options quickly, such as Picture Mode, Picture Size, More Information, Sleep Timer etc.

Press QUICK to display the Quick Menu and use ▲ or ▼ to select the option.

Quick Menu Picture Mode AutoView Picture Size Super Live 3D Settings Personal Mode More Information Channel Options Sleep Timer 00:00 REGZA-LINK Device Control Speakers TV Speakers Headphone Level 50 Wireless Information

NOTE: Quick Menu items are different depending on the current mode.

Quick menu item example

Mode	Quick menu item	Description
When viewing a TV programme or pictures from the external inputSingle Window or 3D Single Window	Picture Mode	See page 35.
	Picture Size	See page 33.
	3D Settings	See page 28.
	Personal Mode	See page 74.
	More Information	See page 64.
	Channel Options	See page 67.
	Sleep Timer	See page 63.
	REGZA-LINK Device Control	See page 77.
	Speakers	See page 76.
	Headphone Level	See page 32.
	Wireless Information	See page 45.
When using EPG	Genre Colour	See page 65.
	EPG Update/ Cancel EPG Update	See page 65.
Media Player (Photo Multi View, List View)	Sort	See page 55.
	Interval Time	See page 55.
	Repeat	See page 55.
	Shuffle	See page 58.
	Device Information	See page 55.
	Wireless Information	See page 45.

Mode	Quick menu item	Description
Photo Frame (Full Screen)	Picture	See page 35.
	Picture Size	See page 33.
	3D Settings	See page 28.
	Personal Mode	See page 74.

Selecting positions

To select a position, use the numbered buttons on the remote control.

Positions can also be selected using P^ and P∨.

To display on-screen information such as position, input mode or stereo/mono signal, press ⓘ+. Press again to cancel.

The Time Display – analogue only

The time display facility allows the current (text service) time to be seen on the television screen.

Press ⏻/≡X whilst watching a normal television broadcast to see the time display from the broadcaster. It will remain on screen for about 5 seconds.

NOTE: This display may not be available in some cases.

Stereo and Bilingual transmissions

For DTV programmes

For stereo or dual mono broadcasts, press ⒶI/Ⅱ and use ◀ or ▶ to select settings.

Mode Display	Pressing ▶
○○ Stereo	Stereo → Left → Right
●○ Dual mono	Dual 1 → Dual 2
○ Mono	-
○○ Multichannel	-

For multi-audio track broadcasts, press ⒪I/Ⅱ repeatedly to change the audio language (see "Audio languages" on page 68).

For ATV programmes

If stereo or dual language broadcasts are transmitted, the word Stereo or Dual will appear on the screen each time positions are changed, disappearing after a few seconds. If the broadcast is not in stereo, the word Mono will appear.

Stereo... Press ⒶI/Ⅱ to select Stereo or Mono.

Bilingual... Bilingual transmissions are rare. If they are transmitted, the word Dual will be displayed. Choose the required programme number, and if the word Dual appears, press ⒶI/Ⅱ to select Dual 1, Dual 2 or Mono.

Using 3D functions

Before using 3D programming, see and follow "When using the 3D glasses" section on page 6.

Viewing 3D programming requires the following:

• TOSHIBA 3D Glasses FPT-P200 (supplied)
- Compatible 3D playback device or 3D source
• 3D capable high quality HDMI cable

Viewing 3D images

Incoming video signals can either be in 2D or 3D format. A 2D signal can only be viewed as 2D, but 3D can be viewed in either 2D or 3D. If the TV can detect the fact that a signal is 3D, it can change to 3D mode automatically - see "3D Auto Start", below. Otherwise the user can change the viewing mode using the 3D button. Finally, the format of the 3D signal can be either Side by Side (SBS) or Top and Bottom (TB). You may have to choose the correct format if the TV can not detect it automatically - see "3D format select", below.

NOTE:

• When 3D format signal is not received, display mode is not switched to 3D.
• The 3D button is available in digital channels or HDMI input.
• If appropriate mode and format are not selected, 3D image is not correctly displayed.
• There will be restrictions on the Picture Size settings for 3D Mode and 2D Mode.
• There are individual differences in perception of 3D images.
• When viewing 3D images, wear the 3D Glasses.

Switching display mode or selecting 3D format

There are three modes for watching TV.

Mode	Description
3D	Displays 3D images.
2D	Changes 3D images to 2D.
Native	Displays a received signal format as it is.

3D format select:

If a right and left images are same in Native mode, select SBS.

If a top and bottom images are same in Native mode, select TB. 3D formats are the following.

3D format	Description
Side by Side (SBS)	Images for the left and right eyes are positioned side-by-side.
Top and Bottom (TB)	Images for the left and right eyes are positioned at the top and bottom of the screen.
Frame Packing (FP) *	Image for eyes of right and left for two frames are positioned at the top and bottom of the screen.

* This format cannot be selected manually.

The 3D button's operation:

The behaviour of 3D when viewing in Native mode is different depending on the input mode.

Depending on the input mode, the screen for selecting 2D or 3D is displayed or the display mode switches between 2D and 3D.

To switch to 3D mode:

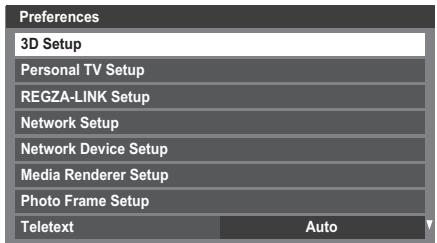

• Set Preferences/3D Setup/3D Auto Start to 3D.
• Press 3D while viewing 2D mode or Native mode.

Trigger of Switching Display Mode Input Signal				Press 3D button
Type	Additional Info	Format	Source Signal
3D Format Signal	With 3D Auto Detect Information	FP		* 3D
		SBS		* 3D
		TB		* 3D
	Without 3D Auto Detect Information	SBS		* 3D
		TB		D 3 D 3
2D Format Signal				D 3

* Correct 3D image

To select 3D format from the Quick menu in 3D mode:

1 Press QUICK to display the Quick Menu.
2 Press ▲ or ▼ to select 3D Settings and press OK.
3 Press ▲ or ▼ to select 3D Format Select and press OK.
4 Press ◀ or ▶ to select Side by Side or Top and Bottom.

Trigger of Switching Display Mode Input Signal				Quick menu
				3D Fomat Select
Type	Additional Info	Format	Source Signal	SBS	TB
3D Format Signal	With 3D Auto Detect Information	FP
		SBS
		TB
	Without 3D Auto Detect Information	SBS		*3D
		TB		D3D3	*3D
2D Format Signal

* Correct 3D image

To switch to 2D mode:

• Set Preferences/3D Setup/3D Auto Start to 2D.
• Press 3D while viewing 3D mode or Native mode.

Trigger of Switching Display Mode Input Signal				Press 3D button
Type	Additional Info	Format	Source Signal
3D Format Signal	With 3D Auto Detect Information	FP		* 3D
		SBS		* 3D
		TB		* 3D
	Without 3D Auto Detect Information	SBS		3D 3D
		TB		3D 3D
2D Format Signal				* 3D

* Correct 2D image

To select 2D format from the Quick menu in 2D mode:

1 Press QUICK to display the Quick Menu.
2 Press ▲ or ▼ to select 3D Settings and press OK.
3 Press ▲ or ▼ to select 2D Format Select and press OK.
4 Press ◀ or ▶ to select 2D (SBS) or 2D (TB).

Trigger of Switching Display Mode Input Signal				Quick menu
				2D Fomat Select
Type	Additional Info	Format	Source Signal	SBS	TB	Native
3D Format Signal	With 3D AutoDetect Information	FP
		SBS
		TB
	Without 3D Auto Detect Information	SBS
		TB
2D Format Signal

* Correct 2D image

NOTE: Take off the 3D Glasses in 2D mode.

To switch to Native mode:

• Press 3D while viewing 3D mode.
  • From the Quick Menu in 2D mode.

1 In the Quick Menu, press ▲ or ▼ to select 3D Settings, and then press OK.
2 Press ▲ or ▼ to select 2D Format Select and press OK.
3 Press ◀ or ▶ to select Native.

NOTE: When Frame Packing is input, 2D Format Select will be grayed out.

Setting the auto start mode

Controls what the TV does when it detects a 3D signal.

1 Press MENU / ◀▶ to highlight Setup icon.
2 Press ▲ / ◀▶ to highlight Preferences icon and press OK.
3 Press ▲ or ▼ to select 3D Setup and press OK.

Preferences 3D Setup Personal TV Setup REGZA-LINK Setup Network Setup Network Device Setup Media Renderer Setup Photo Frame Setup Teletext Auto

4 Press ▲ or ▼ to select 3D Auto Start.
5 Press ◀ or ▶ to select 3D, 2D, or Off.

Option	Description
3D	Displays as 3D mode automatically when 3D format signal is received.
2D	Displays as 2D mode automatically when 3D format signal is received.
Off	Displays a screen that allows you to select 3D or 2D when 3D format signal is received.

Setting the 3D PIN code

A 3D PIN code is necessary for using 3D Safety Settings.

To enter a new PIN code:

1 In the Preferences menu, press ▲ or ▼ to select 3D Setup and press OK.
2 Press ▲ or ▼ to select 3D PIN Setup and press OK.
3 Press the number buttons to enter a 4-digit number. Confirm the code.

NOTE: PIN code cannot be set to "0000".

To change or delete your PIN code:

1 In the Preferences menu, press ▲ or ▼ to select 3D Setup and press OK.
2 Press ▲ or ▼ to select 3D PIN Setup.
3 Press the number buttons to enter your 4-digit PIN code.
4 Select Change PIN or Delete PIN and press OK.

NOTE:

• PIN code cannot be set to "0000".
- If PIN is deleted, 3D Safety Settings is grayed out, and the settings are reset to the factory default.

Forgotten PIN codes:

1 In the Preferences menu, press ▲ or ▼ to select 3D Setup and press OK.
2 Press ▲ or ▼ to select 3D PIN Setup.
3 Press i+ 4 times within 5 seconds. The code clears.
4 Enter a new PIN code.

Setting 3D Start Message

When this feature is set to On, a message is displayed onscreen when a 3D signal is received.

1 In the Preferences menu, press ▲ or ▼ to select 3D Setup and press OK.
2 Press ▲ or ▼ to select 3D Safety Settings and press OK.
3 Enter your 4-digit 3D PIN code.
4 Press ▲ or ▼ to select 3D Start Message.
5 Press ◀ or ▶ to select On or Off.

Setting 3D Lock

When this feature is set to On, you must enter 3D PIN code for changing display mode.

1 In the Preferences menu, press ▲ or ▼ to select 3D Setup and press OK.
2 Press ▲ or ▼ to select 3D Safety Settings and press OK.
3 Enter your 4-digit 3D PIN code.
4 Press ▲ or ▼ to select 3D Lock.
5 Press ◀ or ▶ to select On.

Setting 3D Timer Lock

When the 3D Timer Lock feature is set to On, neither the PIN input window nor the 3D start message will be shown while the 3D Enable timer is active, even if a switch to 3D Mode occurs. This helps to avoid asking the 3D Lock PIN and displaying 3D start message every time when switching to 3D.

1 In the Preferences menu, press ▲ or ▼ to select 3D Setup and press OK.
2 Press ▲ or ▼ to select 3D Safety Settings and press OK.
3 Enter your 4-digit 3D PIN code.
4 Press ▲ or ▼ to select 3D Timer Lock.
5 Press ◀ or ▶ to select On.

Setting Enable 3D Timer

This feature helps to remind you not to watch 3D video for extended periods of time. Once a set period of time has passed, a dialogue will be shown asking you if you wish to continue viewing or not.

1 In the Preferences menu, press ▲ or ▼ to select 3D Setup and press OK.
2 Press ▲ or ▼ to select 3D Safety Settings and press OK.
3 Enter your 4-digit 3D PIN code.
4 Press ▲ or ▼ to select Enable 3D Timer.
5 Press ◀ or ▶ to select 30, 60, 90, or 120 minutes.
6 To cancel the timer, select Off.

Displaying 3D Important Info

1 In the Preferences menu, press ▲ or ▼ to select 3D Setup and press OK.
2 Press ▲ or ▼ to select 3D Important Info and press OK.

Switching left and right images

The left and right images of the glasses can be swapped. If 3D images look blurred, switch the left and right sides of the 3D image.

1 Press QUICK on the remote to open the Quick Menu.
2 Press ▲ or ▼ to select 3D Settings and press OK.
3 Press ▲ or ▼ to select Left and Right Image.
4 Press ◀ or ▶ to select Swapped.

Adjusting your viewing position

If you experience a double image when viewing 3D content, adjust your viewing position.

1 In the Preferences menu, press ▲ or ▼ to select 3D Setup and press OK.
2 Press ▲ or ▼ to select 3D Test Pattern and press OK.

The 3D Test Pattern is displayed.

3 Put on the 3D glasses (supplied).
4 Adjust your viewing position so that there is no double image effect.

For the correct position for viewing 3D content, see "Cautions on watching 3D images" in "When using the 3D glasses" (page 6).

Sound controls

Volume controls and sound mute

Volume

Press or to adjust the volume.

Sound Mute

Press ☒ once to turn the sound off and again to cancel.

Dual

If a programme or film is being broadcast with a soundtrack in more than one language, the DUAL feature allows selection between them.

1 Press MENU / ◀▶ to highlight Setup icon.
2 Press ▲ / ◀▶ to highlight Sound icon and press OK.
3 Press ▲ or ▼ to select Dual and press ◀ or ▶ to choose between Dual 1 or Dual 2.

Sound Dual ← Dual 1 ► Balance 0 ———— Advanced Sound Settings Dolby Volume Low Dynamic Range Control Off Audio Level Offset Headphone Settings Audio Description

Balance

In the Sound menu, press ▲ or ▼ to select Balance, and then press ◀ or ▶ to emphasize left or right speaker balance.

Sound Navi

You can customize current sound mode settings. Select the appropriate mode in accordance with the installation location of the TV (Stand or Wall) and adjust the equalizer on-screen as desired.

1 In the Sound menu, press ▲ or ▼ to select Advanced Sound Settings and press OK.
2 Press ▲ or ▼ to select Sound Navi and press OK.

Advanced Sound Settings Sound Navi Surround Off Voice Enhancement On Dynamic Bass Boost Low

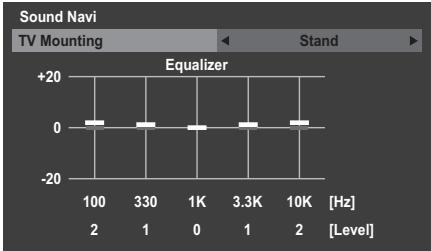

3 Press ◀or▶ to select either Stand or Wall depending on how your TV is installed, and then press the RED button.
4 Press ◀ or ▶ to select the frequency range you want to adjust from the equalizer window, and then press ▲ or ▼ to adjust the level.

5 Repeat step 4 for other frequencies.

Surround Settings

Surround, Voice Enhancement, and Dynamic Bass Boost help to create an enhanced surround sound experience with deep, rich bass from stereo sound sources. Your TV's audio will sound fuller, richer, and wider.

1 In the Sound menu, press ▲ or ▼ to select Advanced Sound Settings and press OK.
2 Press ▲ or ▼ to select Surround and press ◀ or ▶ to select Off, Spatial or Cinema.

Advanced Sound Settings Sound Navi Surround Off Voice Enhancement On Dynamic Bass Boost Off

3 Press ▼ to highlight Voice Enhancement and press ◀ or ▶ to select On.
4 Press ▼ to highlight Dynamic Bass Boost and press ◀ or ▶ to select the desired bass expansion level (Off, Low or High).

Dolby Volume®

This feature provides a consistent sound volume regardless of programmes, channels or input sources.

1 In the Sound menu, press ▲ or ▼ to select Dolby Volume.

2 Press ◀ or ▶ to select Low, High or Off.

NOTE:

- The Dolby Volume setting influences the Dynamic Range Control and Digital Audio Output settings.

- If Dynamic Range Control is set to On, this feature will be disabled.

Dynamic Range Control

This feature allows control of audio compression for some digital TV programmes (MPEG-1 and MPEG-2 audio programmes are not supported).

1 In the Sound menu, press ▲ or ▼ to select Dynamic Range Control.
2 Press ◀ or ▶ to select On or Off.

NOTE: This feature is disabled when Dolby Volume is set to Low or High.

Audio Level Offset

Sometimes there can be large changes in volume when switching from a DTV 5.1ch to a DTV 2ch, an ATV channel, or an external input. Using the Audio Level Offset feature reduces these volume differences.

1 Set the volume level usually used when watching a DTV 5.1ch programme.
2 Tune to a channel which is DTV 2ch, ATV or an external input.
3 In the Sound menu, press ▲ or ▼ to select Audio Level Offset and press OK.
4 Press ▲ or ▼ to select an option, and then use ◀ or ▶ to adjust the volume level.

• The available item changes depending on the current input source. For example, while watching a DTV 2ch programme, only DTV 2ch is available and the other two items are greyed out in the menu. This allows you to easily adjust according to each condition.
• When watching a DTV 5.1ch programme, this feature is not available.

Headphone Settings

This setting is used to set the sound output when headphones are connected.

Speaker Link	Headphone	Speakers
On	Sound is output (∠- + is available.)	No sound
Off	Sound is output (Headphone level menu is available.)	Sound is output (∠- + is available.)

1 In the Sound menu, press ▲ or ▼ to select Headphone Settings and press OK.
2 Press ▲ or ▼ to select Speaker Link and use ◀ or ▶ to select On or Off.
3 If you select Off, then highlight Headphone Level and use ◀ or ▶ to adjust the headphone sound.

Headphone Settings
Speaker Link	Off
Headphone Level	50 ———|—

Audio Description

Audio Description is an additional narrative sound track for visually impaired individuals to understand and enjoy the story line more fully. The letters AD will be displayed in the channel banner when programmes contain AD content.

1 In the Sound menu, select Audio Description and press OK.
2 Press ▲ or ▼ to select Audio Description, and then press ◀ or ▶ to select On.

Audio Description
Audio Description	On
Mixing Level	50

The AD button on the Remote can also be used to toggle the Audio Description feature between On and Off.

3 To adjust the level of the audio description sound to the main sound, highlight Mixing Level and use ◀ or ▶.

Widescreen viewing

Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats.

Press the ⏻ button on the Remote to display the list of available widescreen formats.

Press the button repeatedly to highlight the required format.

The Quick Menu feature can also be used to select Picture Size.

AV format

Picture Size

Native

Wide

4:3

Super Live

Cinema

Subtitle

14:9

PC format

Picture Size

Dot by Dot

PC Normal

PC Wide

Using the special functions to change the size of the displayed image (i.e. changing the height/width ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

Picture controls

Most of the picture controls and functions are available in both digital and analogue modes. PLEASE NOTE: Features not available will be greyed out.

Picture Mode

This television offers the choice of personalising the picture style.

AutoView, Dynamic, Standard, Hollywood Night, Hollywood Day, Hollywood Pro, Store, Game and PC are preset options and affect many features/settings within the television.

NOTE:

• Because the AutoView mode automatically adjusts picture settings based on ambient light conditions and input signal content, the Auto Brightness Sensor and Expert Mode menus are greyed out when it is selected.
• Store mode is only available when Location is set to Store.
• Game mode is available in external input mode (other than aerial input). When you select Game mode, suitable widescreen formats will be selected.
• PC mode is available in RGB/PC input mode or HDMI input mode.

1 Press MENU / ◀▶ to highlight Setup icon.

2 Press ▲ / ◀▶ to highlight Picture icon and press OK to display Picture menu.

3 Press ▲ or ▼ to select Picture Mode.

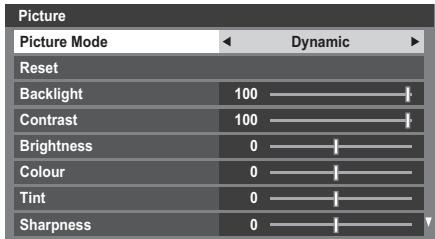

Picture Picture Mode ← Dynamic ► Reset Backlight 100 ———— Contrast 100 ———— Brightness 0 ———— Colour 0 ———— Tint 0 ———— Sharpness 0 ————

4 Press ◀ or ▶ to select the picture mode you prefer and press OK.

NOTE: The picture mode you select affects the current input only. You can select a different picture mode for each input.

Picture preferences

You can customize current picture mode settings as desired. For example, while selecting "Dynamic", if you change the following items, such as Backlight, Contrast, Brightness, Colour, Tint, Sharpness and the Advanced Picture Settings items, your new settings are saved for "Dynamic" picture mode.

1 In the Picture menu press ▲ or ▼ to select either Backlight, Contrast, Brightness, Colour, Tint or Sharpness and press OK.

2 Press ◀ or ▶ to adjust the settings.

Reset

This feature resets all picture settings to the factory settings except Picture Mode.

In the Picture menu, press ▲ or ▼ to select Reset and press OK.

2 A confirmation message will appear. Press ◀ or ▶ to select Yes and press OK.

ColourMaster

When ColourMaster is set to On, it allows the 'Base Colour Adjustment' feature to become available.

1 In the Picture menu, press ▲ or ▼ to select Advanced Picture Settings and press OK.

2 Press ▲ or ▼ to select ColourMaster.

Advanced Picture Settings ColourMaster Off Base Colour Adjustment Colour Temperature 10 Auto Brightness Sensor Settings LED Backlight Control Middle Black/White Level 10 Static Gamma 0 Noise Reduction

3 Press ◀ or ▶ to select On or Off, and then press OK.

Base Colour Adjustment

The Base Colour Adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful when using an external source.

1 In the Advanced Picture Settings menu, press ▲ or ▼ to select Base Colour Adjustment and press OK.
2 Press ▲ or ▼ to select an option, and then press ▶ to move to the adjustment window.

Base Colour Adjustment
	Hue	Saturation	Brightness
Red	0	0	0	▶
Green	0	0	0
Blue	0	0	0
Yellow	0	0	0
Magenta	0	0	0
Cyan	0	0	0
Reset

3 Press ◀ or ▶ to select Hue, Saturation or Brightness, and then press ▲ or ▼ to adjust the settings as required.

Hue Saturation Brightness 0 0 -1 Red

4 Press BACK to return to the previous menu.

To return to the factory settings, select Reset and press OK.

Colour Temperature

Colour Temperature increases the 'warmth' or 'coolness' of the picture by increasing the red or blue tint.

1 In the Advanced Picture Settings menu, press ▲ or ▼ to select Colour Temperature and press OK.
2 Press ◀ or ▶ to adjust the level. The adjustment range is 0 (warm) to 10 (cool).

NOTE: If Picture Mode is set to AutoView, the adjustment range is -5 to +5.

Auto Brightness Sensor Settings

When the Auto Brightness Sensor is activated, it will automatically optimise the backlighting levels to suit ambient light conditions.

1 In the Advanced Picture Settings menu, press ▲ or ▼ to select Auto Brightness Sensor Settings and press OK.
2 Press ◀ or ▶ to select On and press OK.

Auto Brightness Sensor Settings Auto Brightness Sensor On Backlight Adjustment Pro

3 Press ▲ or ▼ to select Backlight Adjustment Pro and press OK.
4 The Backlight Adjustment Pro window will appear. Press OK again to display the adjustment window.
5 Press ◀ or ▶ to select a point and press ▲ or ▼ to adjust the level.

6 Press OK to fix the adjustment.

To cancel the adjustment when selecting a point, select Cancel and press OK.

To return the adjustments of all points to the factory defaults, select Reset and press OK.

LED Backlight Control

You can adjust the backlighting of the black areas of the image and enhance the contrast.

1 In the Advanced Picture Settings menu, press ▲ or ▼ to select LED Backlight Control.
2 Press ◀ or ▶ to select Low, Middle, High, Auto or Off.

NOTE: When Picture Mode is set to any mode other than Auto View, Auto is greyed out.

Black/White Level

Black/White Level increases the strength of dark areas of the picture to improve the definition.

1 In the Advanced Picture Settings menu, press ▲ or ▼ to select Black/White Level.
2 Press ◀or▶ to adjust the level. The effect depends on the broadcast and is most noticeable on dark colours.

Static Gamma

The static gamma feature allows you to adjust the levels of black in the picture.

1 In the Advanced Picture Settings menu, press ▲ or ▼ to select Static Gamma.
2 Press ◀ or ▶ to adjust the level.

MPEG NR – Noise Reduction

When watching a DVD, the compression may cause some words or picture elements to become distorted or pixelated.

Using the MPEG NR feature reduces this effect by smoothing out the edges.

1 In the Advanced Picture Settings menu, press ▲ or ▼ to select Noise Reduction and press OK.
2 Press ▼ to select MPEG NR.

Noise Reduction MPEG NR ◄ Low► DNR Auto

3 Press ◀ or ▶ to select Low, Middle, High or Off to suit your preference.

DNR – Digital Noise Reduction

DNR allows you to 'soften' the screen representation of a weak signal to reduce the noise effect.

1 Select DNR from the Noise Reduction menu.
2 Use ◀ or ▶ to select Low, Middle, High, Auto or Off. The differences may not always be noticeable (for the best result use lower settings as picture quality can be lost if the setting is too high).

Resolution+

The Resolution+ feature allows you to adjust the clarity levels for your desired picture settings.

1 In the Advanced Picture Settings menu, press ▲ or ▼ to select Resolution+ and press OK.
2 In the Resolution+ field, select On.

Resolution+ Resolution+ On Level 3

3 Press ▲ or ▼ to highlight Level, and then press ◀ or ▶ to adjust the level.

NOTE:

• This feature may not work properly depending on the content.
• Adjustable range varies according to the Picture Mode you set.
• Noise may appear in the picture depending on the device connected to the TV (e.g. a device with a specific enhancer function).

Active Vision M400

This feature will reduce picture blur without decreasing image brightness or adding flicker.

1 In the Advanced Picture Settings menu, press ▲ or ▼ to select Active Vision M400.
2 Press ◀ or ▶ to select Smooth, Standard or Off.

NOTE: When Picture Mode is set to Game, this feature will be grayed out and automatically set to Off.

Motion Detection Range

This feature is to set the range of the adjustment of movement in the double-scan processing. If you feel uncomfortable in motion picture, select Standard.

1 In the Advanced Picture Settings menu, press ▲ or ▼ to select Motion Detection Range.
2 Press ◀ or ▶ to select Wide or Standard.

Wide — Double-scan effect for higher-speed motion picture

Standard — Stabilized double-scan effect

NOTE: When Active Vision M400 is set to Off, this feature will be grayed out.

Resetting the advanced picture settings

This feature allows you to reset the current Advanced Picture Settings to the default values.

1 In the Advanced Picture Settings menu, press ▲ or ▼ to select Reset.

2 Press OK.

Expert Picture Settings

Test Pattern

When the test pattern is on screen, you can navigate in the Picture submenus and adjust picture settings without removing the image.

When you move to a non-Picture menu, or close the menus, regular video will be restored.

In the Picture menu, press ▲ or ▼ to select Expert Picture Settings and press OK to display Expert Picture Settings menu.
2 Press ▲ or ▼ to select Test Pattern.
3 Press ◀ or ▶ to select On.
4 Press EXIT to close.

RGB Filter

This feature individually enables or disables the red, green, and blue components of the picture to allow for more accurate adjustment of each colour.

In the Expert Picture Settings menu, press ▲ or ▼ to select RGB Filter, and then press OK.
2 Press ▲ or ▼ to select Red, Green or Blue to adjust.
3 Press ◀ or ▶ to select On.
4 Press ▲ or ▼ to select Colour or Tint, and then press ◀ or ▶ to adjust.
5 Press EXIT.

NOTE: It is not possible to turn off all three colours simultaneously.

Colour Decoding

If you view DVDs with this TV, the Colour Decoding option may be set to ensure the colourimetry reproduction.

NOTE: The modes excluding Auto (BT601 and BT709) are to convert an irregular signal output from the DVD etc. with incorrect colour to the optimum state. If BT601 or BT709 is selected with a normal signal received, the colour may not be correctly displayed. This feature should normally be set to Auto.

In the Expert Picture Settings menu, press ▲ or ▼ to select Colour Decoding.
2 Press ◀ or ▶ to select Auto, BT601 or BT709.

White Balance-Window Display

This feature displays a special Window Pattern to be used when adjusting white balance with a measuring device.

1 In the Expert Picture Settings menu, press ▲ or ▼ to select White Balance and press OK.
2 Press ▲ or ▼ to select Window Display and press ◀ or ▶ to select On.
3 Press EXIT to close.

White Balance-Setting Type

You can choose from two types of White Balance adjustment.

1 In the Expert Picture Settings menu, press ▲ or ▼ to select White Balance and press OK.
2 Press ▲ or ▼ to select Setting Type and press ◀ or ▶ to select 2P or 10P.

White Balance-2P White Balance

1 Press ▼ to select 2P White Balance.
2 Press ▲ or ▼ to select Red-Offset, Green-Offset, Blue-Offset, Red-Gain, Green-Gain, or Blue-Gain.
3 Press ◀ or ▶ to adjust.

White Balance-10P White Balance

1 Press ▼ to select 10P White Balance.
2 Press ▲ or ▼ to select IRE, Red, Green, or Blue.
3 Press ◀ or ▶ to adjust.

NOTE: The adjustments made for Red / Green / Blue are stored separately for each IRE setting. (There are ten IRE settings from 10 to 100.)

Colour Calibration

The aim of Colour Calibration is to measure and/or adjust the colour response (White Balance) of your LCD panel. Colour Calibration is used by various fields, such as gaming, photography, engineering, medical and more. In order to calibrate a display correctly, you need a colour analyzer EODIS3-TS (not supplied).

Apply Calibration

1 In the Expert Picture Settings menu, press ▲ or ▼ to select Colour Calibration and press OK.

2 Press ▲ or ▼ or to select Apply Calibration and press ◀ or ▶ to select On.

Manual Colour Calibration

1 In the Colour Calibration menu, press ▲ or ▼ to select Manual Color Calibration and press OK.

Manual Colour Calibration Please input the value measured with the couleur analyser. Red 0.642 0.335 Green 0.277 0.603 Blue 0.143 0.067 x y Start Reset

2 Place the prove of the USB colour analyzer over the square on screen to measure.

3 Input the value measured with the colour analyzer using the number buttons (0-9).

	x	y
Red	0.642	0.335
Green	0.277	0.603
Blue	0.143	0.067

4 Press ▲▼◀▶ and input the values to fill all RGByc matrix table.

5 Highlight Start and press OK.

Please wait until you see "Manual Colour Calibration has been completed" on screen.

To return to factory setting

1 Highlight Reset and press OK.

Auto Colour Calibration

1 In the Colour Calibration menu, press ▲ or ▼ to select Auto Colour Calibration and press OK.

2 Place the prove of the USB colour analyzer over the square on screen and press OK.

Auto Colour Calibration will start.

Please wait until you see "Auto Colour Calibration has been completed."

Gamma Calibration

1 In the Expert Picture Settings menu, press ▲ or ▼ to select Gamma Calibration and press OK.

2 Press ▲ or ▼ to select Apply Calibration and press ◀ or ▶ to select On.

3 Press ▲ or ▼ to select Auto Gamma Calibration and press OK.

4 Input the target value and place the USB colour analyzer over the square on screen.

Auto Gamma Calibration Please input the target value and place the USB colour analyser over the square. Target Colour Temperature 0.313 0.329 Target Gamma 2.4 Start Reset

5 Highlight Start and press OK.

Auto Gamma Calibration will start.

Please wait until you see "Auto Gamma Calibration has been completed" on screen.

To return to factory setting

1 Highlight Reset and press OK.

Resetting to the factory defaults

In the Expert Picture Settings menu, press ▲ or ▼ to select Reset and press OK.

A confirmation screen appears.

2 Select Yes and press OK.

Control Visualization

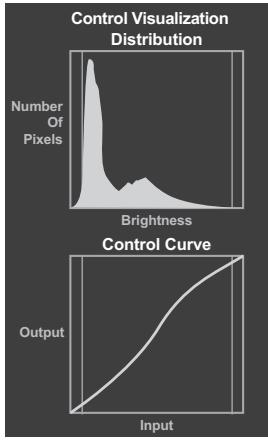

This feature displays the brightness histogram and control curve of the current video signal.

In the Picture menu, press ▲ or ▼ to select Control Visualization and press OK. The histogram window will appear.

2 Press BACK to return to the previous menu.

Automatic Format (Widescreen)

When this television receives a true Widescreen picture and Auto format is On, it will automatically be displayed in Widescreen format irrespective of the television's previous setting.

1 Press MENU / ◀▶ to highlight Setup icon.
2 Press ▲ / ◀▶ to highlight Preferences icon and press OK.
3 Press ▲ or ▼ to select Display Settings and press OK.
4 Press ▲ or ▼ to select Auto Format and press ◀ or ▶ to select On or Off.

Display Settings Auto Format On 4:3 Stretch Off Picture Position

4:3 Stretch

When 4:3 Stretch is activated, the size switching system changes 4:3 programmes into full screen picture.

1 In the Preferences menu, press ▲ or ▼ to select Display Settings and press OK.
2 Press ▲ or ▼ to select 4:3 Stretch and press ◀ or ▶ to select On or Off.

Blue Screen

When Blue Screen is selected, the screen will turn blue and the sound will be muted on analogue channels and external input modes when no signal is received.

NOTE: Some external input sounds may not be muted.

1 In the Preferences menu, press ▲ or ▼ to select Blue Screen.
2 Press ◀ or ▶ to select On or Off.

Picture Position

The picture position may be adjusted to suit personal preference and can be particularly useful for external inputs.

1 In the Preferences menu, press ▲ or ▼ to select Display Settings and press OK.
2 In the Display Settings menu, press ▲ or ▼ to select Picture Position.

Display Settings
Auto Format	On
4:3 Stretch	Off
Picture Position
PC Settings

3 Press OK to view the options available for the picture format that has been selected.
4 Press ▲ or ▼ to select an option, and then ◀ or ▶ to adjust the settings.

The options differ depending on the currently selected widescreen format and the input signal.

In Cinema mode:

Picture Position
Horizontal Position	0 —— | ——
Vertical Position	0 —— | ——
Reset

To return to the original factory settings, select Reset in the Picture Position menu and press OK.

Picture still

This feature is used to hold a still image on the screen.

1 Press ▼ to hold an image on the screen, and press ▼ again to cancel.

HDMI Information Display

When the HDMI Information Display feature is On and you are watching an HDMI input source, pressing the i+ button displays the HDMI signal information banner.

1 In the Preferences menu, press ▲ or ▼ to select HDMI Information Display.

2 Press ◀ or ▶ to select On.

HDMI signal information is as follows: Resolution, Scan Type, Frame Rate*, Aspect, Bit Depth, Colour Space, RGB/YUV, Chroma Format, and Content Type (if available).

* If the HDMI input source is interlaced, "Field Rate" will be displayed instead of "Frame Rate".

Using your home network

This TV is a DLNA CERTIFIED™ Player and Renderer. This TV can play digital content stored on a DLNA CERTIFIED™ product with server function. If you want to use this TV as a DLNA CERTIFIED™ Player or Renderer, you will have to configure the network on your TV (see page 12).

If you want to use your home network, you will have to configure the network on your TV. (see page 12)

Change the network settings if necessary (see "Setting up the Network" on page 43).

When using a wireless home network:

Wireless Interoperability

The TOSHIBA Dual Band WLAN Adaptor is designed to be interoperable with any wireless LAN product that is based on Direct Sequence Spread Spectrum (DSSS)/Orthogonal Frequency Division Multiplexing (OFDM) radio technology, and is compliant to:

• The IEEE 802.11 Standard on Wireless LANs (Revision a/b/g/n), as defined and approved by the Institute of Electrical and Electronics Engineers.
• The TOSHIBA Dual Band WLAN Adaptor is intended for use with the VL86 series LCD TV's and should not be used with any other devices.

Use of the WLAN Adaptor in other USB products may result in damage to the WLAN Adaptor and or the equipment. Such use will void any warranty that may otherwise apply, and TOSHIBA will have no liability for any damage that may result from such use.

CAUTION

Bluetooth™ and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. If you use Bluetooth™ and Wireless LAN devices simultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection.

If you should experience any such problem, immediately turn off either your Bluetooth ^™ or Wireless LAN device.

Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage.

Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

Wireless LAN and your Health

Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices, however, is far less than the electromagnetic energy emitted by wireless devices such as mobile phones.

Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the building or responsible representatives of the organization. Such restrictions may apply in environments where the risk of interference to other devices or services is perceived or identified as harmful.

If you are uncertain of the policy that applies to the use of wireless devices in a specific organization or environment, you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment.

This Dual Band Wireless LAN Adaptor may be operated in the following countries:

AT	Austria	IS	Iceland
BE	Belgium	LI	Liechtenstein
CH	Switzerland	LT	Lithuania
CY	Cyprus	LU	Luxembourg
CZ	Czech Republic	LV	Latvia
DE	Germany	MT	Malta
DK	Denmark	NL	Netherlands
ES	Spain	NO	Norway
FI	Finland	PL	Poland
FR	France	PT	Portugal
GB	United Kingdom	SE	Sweden
GR	Greece	SI	Slovenia
EE	Estonia	SK	Slovakia
HU	Hungary	BG	Bulgaria
IT	Italy	RO	Romania
IE	Ireland	TR	Turkey

How to use this Dual Band Wireless LAN Adaptor

• If this device is going to be operated in the frequency range of 5.15 GHz to 5.35 GHz, it is restricted to indoor use.
• If this device is going to be operated for 802.11 b/g/n function in the frequency range of 2.454 GHz to 2.4835 GHz in France, it is restricted to indoor use.
• A general authorization is required for using this device outdoors or in public places in Italy.
• This device is NOT ALLOWED to be used in the geographical area within a radius of 20km from the centre of Ny-Alesund in Norway.

Setting up the Network

You can select the Network Type.

1 Press MENU / ◀▶ to highlight Setup icon.
2 Press ▲ / ◀▶ to highlight Preferences icon and press OK.
3 Press ▲ or ▼ to select Network Setup and press OK.

Preferences 3D Setup Personal TV Setup REGZA-LINK Setup Network Setup Network Device Setup Photo Frame Setup Teletext Auto Network Lock

NOTE: If the Dual Band WLAN Adaptor is not connected, Wireless cannot be selected.

4 Press ▲ or ▼ to select Network Type, and then press ◀ or ▶ to select Wired or Wireless.

Network Setup Network Type ← Wired ► Wireless Setup Advanced Network Setup Network Connection Test

5 If you selected Wired, see "Advanced Network Setup" on page 45.

Wireless Setup

NOTE:

• This feature is grayed out when the Dual Band WLAN Adaptor is not connected or Network Type is set to Wired.
• When you insert or remove the wireless LAN adaptor, you must turn off your TV and unplug the power cord, and then plug and turn on again.
• Continued connection of AP (Access Point) is not guaranteed. The connection may be disconnected while watching TV.
• Do not remove the Dual Band WLAN Adaptor when Network Type is set to Wireless or wireless communication is active.

There are 3 methods for Wireless Setup:

Easy Setup (WPS)

If the AP supports WPS, this method can be used.

- WPS is an industry standard designed to make connection of wireless LAN equipment and security setup easy. WPS will automatically configure all wireless settings.

Assisted Setup (setup by using the AP's notification information)

Network Name, Authentication, and Encryption are decided based on information from the AP. You will manually set the Security Key.

Manual Setup (manual input of all settings)

Easy Setup using PBC (Push Button Configuration)

1 In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK.
2 Press ▲ or ▼ to select Wireless Setup and press OK.
3 Press ▲ or ▼ to select Easy Setup and press OK.

Wireless Setup Easy Setup Assisted Setup Manual Setup Enhanced 11n Off

4 Press ◀ or ▶ to select PBC.
5 Press ▼ to highlight Start Scan and press OK.
6 Following the on-screen instructions, push the appropriate button on your AP.
7 When a window reporting that the setup is complete appears, press OK.

To cancel searching for the AP:

Press BACK while searching for the AP. A message will appear, and then press ◀ or ▶ to select Yes and press OK.

Easy Setup using PIN (Personal Identification Number)

1 In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK.
2 Press ▲ or ▼ to select Wireless Setup and press OK.
3 Press ▲ or ▼ to select Easy Setup and press OK.
4 Press ◀ or ▶ to select PIN.

5 Press ▼ to select Start Scan and press OK.

6 Press ▲ or ▼ to select the desired AP and press OK.

NOTE: Check the MAC address on the label of the AP or in the manual, and select your AP.

7 When the PIN code window appears, enter the displayed PIN into your AP, and then press Next to continue the PIN Setup. When a message displays to report that the setup is complete, press OK.

To cancel searching for the AP:

Press BACK while searching for the AP. A message will appear; then, press ◀ or ▶ to select Yes and press OK.

Assisted Setup

1 In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK.
2 Press ▲ or ▼ to select Wireless Setup and press OK.
3 Press ▲ or ▼ to select Assisted Setup and press OK.
4 Press ▲ or ▼ to select the desired AP and press OK.

NOTE: Check the MAC address on the label of the AP or in the manual, and select your AP.

5 Highlight Security Key and press OK. The Software Keyboard window will appear.
6 Input the Security Key by using the Software Keyboard (see page 47). To save your setting, press the BLUE button.

NOTE:

• The Security Key must adhere to these conditions:
• TKIP/AES: 8-63 ASCII or 64 Hex characters
• WEP: 5 or 13 ASCII or 10 or 26 Hex characters
• There is only one key ID to set for WEP encryption.

7 Highlight Done and press OK.

NOTE: If Network Name is not displayed, see step 4 and 5 in Manual Setup below to set Network Name before pressing Done.

NOTE: Settings are not saved if BACK is pressed before Done is selected.

Manual Setup

1 In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK.
2 Press ▲ or ▼ to select Wireless Setup and press OK.
3 Press ▲ or ▼ to select Manual Setup and press OK.
4 Press ▲ or ▼ to select Network Name and press OK. The Software Keyboard window will appear.
5 Input the Network Name by using the Software Keyboard (see page 47). To save your setting, press the BLUE button.

6 Press ▲ or ▼ to select Authentication, and then press ◀ or ▶ to select Open System, Shared Key, WPA-PSK or WPA2-PSK.
7 Press ▲ or ▼ to select Encryption, and then press ◀ or ▶ to select None, WEP, TKIP or AES.

NOTE:

• Certain encryption types are only compatible with specific authentication types.
• When Authentication is Open System, only WEP or None is compatible.
• When Authentication is Shared Key, only WEP is compatible.
• When Authentication is WPA-PSK or WPA2-PSK, only TKIP or AES is compatible.
• When incompatible Authentication/Encryption pairings are detected, a warning message will be displayed, and no connection attempt will be made until the incompatibility is resolved.
• There is only one key ID to set for WEP encryption.

8 Press ▲ or ▼ to select Security Key and press OK.
9 Input the Security Key by using the Software Keyboard (see page 47). To save your setting, press the BLUE button.

NOTE: This item is grayed out when Encryption is None.

10 Highlight Done, and then press OK.

NOTE: When Encryption is None, a message will appear. Press ◀ or ▶ to select Yes and press OK.

NOTE: Settings are not saved if BACK is pressed before Done is selected.

Enhanced 11n

When Enhanced 11n is set to On, the Dual Channel (40MHz) feature is available.

NOTE: In addition, some other optional 11n features will be enabled.

In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK. Highlight Wireless Setup and press OK.
2 Press ▲ or ▼ to select Enhanced 11n, and then press ◀ or ▶ to select On.

Wireless Information

The settings configured in Wireless Setup can be confirmed.

1 Press QUICK to open the Quick Menu.

2 Press ▲ or ▼ to select Wireless Information and press OK.

Quick Menu Picture Mode < AutoView ▶ Picture Size Super Live 3D Settings Personal Mode More Information Channel Options Sleep Timer 00:00 REGZA-LINK Device Control Speakers TV Speakers Headphone Level 50 Wireless Information

3 When the AP connection succeeds, a Wireless Information window will appear.

NOTE: Press the RED button to scan for all available APs.

Item	Description
Status	Connectedis displayed when the TV is connected with the AP.Disconnectedis displayed when the TV is not connected with the AP.
Signal	Connection signal strength with AP (STRONG/MEDIUM/WEAK)
Speed	Link with AP
Mode	Working mode (11a, 11b, 11g, 11n)
Channel	Channel in use (1-165)
Network Name	SSID set
Authentication	Authentication set
Encryption	Encryption set
Security Key	Security Key set
AP MAC Address	The AP's MAC address is displayed when the TV is connected with the AP.
TV or USB MAC Address	The MAC address of the TV or USB (Dual Band WLAN Adaptor) is displayed.
DHCP	Enabledis displayed when using DHCP. Disabledis displayed when not using DHCP.
IP Address	The TV's IP address
Subnet Mask	Value of the Subnet Mask
Default Gateway	Address of the Default GATEWAY
DNS	Address of the DNS

NOTE: Even if an AP for IEEE 802.11n is used when Encryption is set to WEP or TKIP, the Speed value might be low. It is recommended that Encryption be changed to AES (see "Manual Setup" on see page 44).

Notes on wireless LAN environment:

• The function of all IEEE802.11 is not supported.
  • The ad-hoc mode is not supported.
• It is recommended to use IEEE 802.11a or IEEE 802.11n on 5 GHz for audio and SD video streaming.
• It is recommended to use IEEE 802.11n on 5 GHz for HD video streaming.
• It is recommended that the encoding rate for streaming video content is 20 Mbps or less.
• It is not recommended to use 2.4 GHz for audio and video streaming.
• Content playback may be interrupted by various surrounding interference.

Advanced Network Setup

NOTE:

• When the DHCP function of the router connected with this TV is On, you can set Auto Setup to On or Off. (This should usually be set to On.)
• When the DHCP function of the router is Off, set Auto Setup to Off, and set the IP Address manually.

IP Address Setup

Auto Setup:

1 In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK.
2 Press ▲ or ▼ to select Advanced Network Setup and press OK.

Network Setup
Network Type	Wired
Wireless Setup
Advanced Network Setup

3 Press ▲ or ▼ to select IP Address Setup and press OK.

Advanced Network Setup

IP Address Setup

DNS Setup

MAC Address

4 Highlight Auto Setup, and then press ◀or▶ to select On.

IP Address Setup
Auto Setup	On
IP Address	133	.	177	.	108
Subnet Mask	255	.	255	.	255
Default Gateway

NOTE: Other items will be grayed out when Auto Setup is set to On.

Manual Setup:

1 In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK.
2 Press ▲ or ▼ to select Advanced Network Setup and press OK.
3 Press ▲ or ▼ to select IP Address Setup and press OK.
4 Highlight Auto Setup, and then press ◀ or ▶ to select Off.

IP Address Setup
Auto Setup	Off
IP Address	133	. 177	. 108	. 157
Subnet Mask	255	. 255	. 255	. 0
Default Gateway

5 Press ▲ or ▼ to select IP Address.
6 Press ◀ or ▶ to highlight the field you want to change, and then use the number buttons to input the IP address. To save the setting, press OK.

NOTE: IP address field numbers must be between 0 and 255. After each field number has been set, press OK to store the entire address. If the entire IP Address is invalid, a warning message will appear after OK is pressed.

7 Press ▲ or ▼ to select Subnet Mask, and edit in the same way as IP Address.

IP Address Setup
Auto Setup	Off
IP Address	133	. 177	. 108	. 157
Subnet Mask	255	. 255	. 255	. 0
Default Gateway

8 Press ▲ or ▼ to select Default Gateway, and edit in the same way as IP Address.

NOTE: If you manually set the IP address, you must not use the same IP address for any other device. The IP address you use should be a private address.

DNS Setup

NOTE: When the DHCP function of the router connected to this TV is Off, set Auto Setup to Off, and manually set the DNS address(es). Your internet service provider should have provided these to you.

Auto setup:

1 In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK.
2 Press ▲ or ▼ to select Advanced Network Setup and press OK.
3 Press ▲ or ▼ to select DNS Setup and press OK.
4 Press ▲ or ▼ to highlight Auto Setup, and then press ◀ or ▶ to select On.

NOTE: Other items will be grayed out when Auto Setup is set to On.

Manual setup:

1 In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK.
2 Press ▲ or ▼ to select Advanced Network Setup and press OK.
3 Press ▲ or ▼ to select DNS Setup and press OK.
4 Press ▲ or ▼ to select Auto Setup, and then press ◀ or ▶ to select Off.

DNS Setup
Auto Setup	Off
Primary DNS Address	133	.	177	.	108
Secondary DNS Address	255	.	255	.	255

5 Press ▲ or ▼ to select Primary DNS Address.
6 Press ◀ or ▶ to highlight the field you want to change, and then use the number buttons to input the Primary DNS Address. To save the setting, press OK.

NOTE: DNS address field numbers must be between 0 and 255. If you input an incompatible number and press OK, the field number will reset to the previous value.

7 Press ▲ or ▼ to select Secondary DNS Address, and edit in the same way as Primary DNS Address.

MAC Address

You can view the fixed MAC address for the TV and for the Dual Band WLAN Adaptor, if one is installed.

1 In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK.
2 Press ▲ or ▼ to select Advanced Network Setup and press OK.
3 Press ▲ or ▼ to select MAC Address and press OK.

Network Connection Test

This function checks the Internet connectivity.

1 In the Preferences menu, press ▲ or ▼ to select Network Setup and press OK.
2 Press ▲ or ▼ to select Network Connection Test and press OK.

A message will appear to indicate if the connection was successful or if it could not be completed.

NOTE: The result of Network Connection Test does not always guarantee the connection. Depending on the situation, YouTube may not be able to be used.

To cancel the Network Connection Test:

Press BACK while searching for the Internet connection.

Using the software keyboard

You can enter text by using the Software Keyboard. The Software Keyboard window will appear when you press OK on a field that accepts character input.

To enter text using the software keyboard:

1 Highlight the desired character on the on-screen software keyboard.
2 Press OK.
3 Repeat steps 1 and 2 until you have entered all desired text.
4 Press the BLUE button to close the software keyboard and return to the previous screen.

NOTE: If BACK is pressed, changes are not saved and the software keyboard window is closed. The text will remain as it was before starting the keyboard.

A a 1 @ AAA| A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Input operation on the remote control:

Button	Description
OK	Inputs the selected character.
0-9	Inputs the number directly.
▲▼◀▶	Moves the character highlight.
◀◀▶▶	Moves the cursor.
◀◀	Moves the cursor to the head of a character string.
▶▶	Moves the cursor to the end of a character string.
RED	Deletes 1 character to the left of the cursor.
GREEN	Cycles through upper case, lower case, numbers, and symbols, if available.
YELLOW	Chooses an accented version of the current letter, if applicable.
BLUE	Saves changes and closes the Software Keyboard window.
BACK	Closes the Software Keyboard window without saving changes.

Network Device Setup

External Control Setup

This setup allows you to operate a home network-connected your TV from an external device.

Media Controller Setup

1 In the Preferences menu, press ▲ or ▼ to select Network Device Setup and press OK.

Preferences 3D Setup Personal TV Setup REGZA-LINK Setup Network Setup Network Device Setup Photo Frame Setup Teletext Auto Network Lock

2 Press ▲ or ▼ to select External Control Setup and press OK.
3 Press ▲ or ▼ to select an option and press OK.

The Software Keyboard window will appear.

User Name — Input the User Name (to control the TV from the iPhone etc.) by using the on-screen software keyboard (see page 47). The maximum number of characters is 16.

Password — Input the Password (to control the TV from the iPhone etc.) by using the on-screen software keyboard (see page 47). The maximum number of characters is 16.

NOTE: Toshiba does not guarantee normal operation with all connected devices.

Media Renderer Setup

Terminology:

DMS: DLNA CERTIFIED™ Server

DMR: DLNA CERTIFIED™ Renderer

DMC: DLNA CERTIFIED™ Controller

The TV can be configured as a DMR. When operating as a DMR, the TV displays content provided by a DMS. The selection of the media is done by the DMC - the TV does not select the input. The TV can play photo, movie, or audio files when operating as a DMR.

Media Renderer

1 In the Preferences menu, press ▲ or ▼ to select Network Device Setup and press OK.
2 Press ▲ or ▼ to select Media Renderer Setup and press OK.
3 Press ▲ or ▼ to select Media Renderer, and then press ◀ or ▶ to select On or Off.

Media Controller Setup

You can limit which DMC can control this TV. If Access Control is enabled, only those DMCs with a check will be allowed to control the TV.

1 In the Media Renderer Setup menu, press ▲ or ▼ to select Media Controller Setup and press OK.

2 Press ▲ or ▼ to select Access Control, and then press ◀ or ▶ to select On.

3 Press ▲ or ▼ to select Select Media Controller and press OK.

4 Press ▲ or ▼ to highlight the item you want to accept, and press OK. A check will appear in the box. To remove the check, press OK again.

5 Press ▶ to highlight Done and press OK.

NOTE:

• You can select up to 8 DMC devices.
• If you would not like to limit the DMCs for this TV, set Access Control to Off.
  • Devices other than DMCs may be displayed in the list. Confirm the MAC address of the DMC and set it.

Maximum Volume Setup

This feature allows you to set the maximum volume of the TV when it receives volume operation commands from a DMC.

In the Media Renderer Setup menu, press ▲ or ▼ to select Maximum Volume Setup, and press ◀ or ▶ to adjust to the desired volume.

NOTE:

• The TV's remote control can set volume regardless of the value of Maximum Volume Setup.
• When DMR playback ends, the TV volume will return to the value in effect when DMR playback was started.

Device Name Setup

The TV's DMR device name can be changed. The device name can be confirmed from the DMC.

1 In the Preferences menu, highlight Media Renderer Setup and press OK.
2 Press ▲ or ▼ to highlight Device Name Setup and press OK.
3 Highlight the Device Name field and press OK. The Software Keyboard window will appear.
4 Input the Device Name by using the Software Keyboard (see page 47). Press the BLUE button.

NOTE: The Device Name can be up to 127 characters long.

5 Highlight Done, and then press OK to save your setting.

Using Toshiba Places

A new cloud based service, where content (movies, photos, etc.) can be viewed and shared across the web through a simple user interface called "Toshiba Places".

NOTE:

• You need to configure a home network before using this feature (see page 12).
• If Network Lock is set to On, it will be necessary to enter your four-digit PIN code in order to access network features (see page 66).

1 Press 📋 on the remote control, or press MENU / ▲/ ◀▶ to highlight Connected TV/Toshiba Places icons and press OK.
2 Press ▲▼◀▶ to select the desired place and press OK.

Display Example

Home 365 woomi Dish-motion Viewer Family account (default) Accounts and settings My favorite services TV Place EPIC, Catch-up TV Video on demand Social Place Share, Discover News Place Music Place New, Lifestyle Wooomi 00:46 Back Enter Unused Reload Unused

NOTE: Some features require an always-on broadband internet connection, firmware update and/or additional bandwidth dedicated to this product. Third party internet services may change or be discontinued or restricted at any time. Toshiba makes no warranties, representations, or assurances about the content, availability or functionality of third-party content or services. Use of third party internet services may require registration by a computer and/or payment of charges and membership. Not all services or content may be available on this product, in your country or with your language. In order to experience the full capabilities of this product, fully compatible devices may be required. For more information, visit http://www.toshibaplaces.com/about.

Using YouTube™

YouTube is a video-sharing service managed by YouTube, LLC.

This TV allows you to view YouTube content.

NOTE:

• You need to configure a home network before using this feature (see page 12).
• If Network Lock is set to On, it will be necessary to enter your four-digit PIN code in order to access network features (see page 66).

1 Press MENU / ▲ / ◀▶ to highlight Connected TV/ YouTube icons and press OK.

The YouTube top page will appear.

2 Press ▲▼◀▶ to select the file you want to view, and press OK.

To close YouTube:

1 Press EXIT.

NOTE:

• This TV may not be able to perform all of the same operations as a computer.
• Depending on the network environment and use case, you may experience difficulty viewing content.
• Though the same volume value, actual volume might be greatly different depending on contents.
• It may take time for the TV to load and begin playing back content.
• Service content and the look and feel of the interface may be changed at any time without prior notice.

Using the Function Menu

The Function Menu provides easy access to functions that are commonly used.

1 Press the BLUE button while displaying YouTube. The Function menu window will appear.

Back Forward Reload Home Pointer Menu http://www.youtube.com/xl

2 Press ◀ or ▶ to select the desired icon and press OK.

Item	Description
Back	Returns to the previous page.
Forward	Moves to the forward page.
Reload/Abort	Updates the displayed page./Aborts update( × is displayed while reading, and ⇌ is displayed in other case.)
Home	Returns to the top page of YouTube.
Pointer	Switches the pointer On/Off or drag mode.
Menu	Switches the frame or sets various settings.

Switching the pointer

The tool that operates the screen can be changed to pointer or drag mode.

1 From the Function menu, press ◀ or ▶ to select Pointer, and then press OK.

2 If you select 📁, see "To use the Pointer: ON" on this page. If you select ⏻, see "To use the Drag Mode" on this page.

To use the Pointer: ON:

1 Press ▲ or ▼ to select Pointer: ON and press OK.

• will appear.

2 Press ▲▼◀▶ to the place where ↕ changes to ↖, and then press OK.

NOTE: When Pointer: OFF is selected and ▲▼◀▶ is pressed, the highlight moves to linked areas.

To use the Drag Mode:

1 Press ▲ or ▼ to select Pointer: ON and press OK.
2 Press the BLUE button.
3 From the Function menu, press ◀ or ▶ to select Pointer, and then press OK.
4 Press ▲ or ▼ to select Drag Mode and press OK. • 📋 will appear.
5 Press OK, and then 🤨 changes to ⏻.
6 Press ▲▼◀▶ to move the selected item in the desired place.

Switching the frame

1 From the Function menu, press ◀ or ▶ to select Menu, and then press OK.
2 Press ◀ or ▶ to select Page Tasks.
3 Highlight Switch Frames and press OK.

Setting the view feature

1 From the Function menu, press ◀ or ▶ to select Menu, and then press OK.
2 Press ◀ or ▶ to select View.
3 Press ▲ or ▼ to select the desired item, and press OK.
4 Press ▲ or ▼ to select the desired setting, and press OK.

Item	Settings
Display Mode	Normal: Displays YouTube page with the size as it is.Just-Fit Rendering: Displays YouTube page at a size that has been adjusted to precisely fit the width of your TV.
Text Size	Changes the font size of the screen. Select from Largest, Large, Medium, Small or Smallest.NOTE: This font size is effective only for the page.
Advanced Settings	See the next column.
Page Information	Displays the information of the page you are viewing.
Server Certificates	Displays the server certification.

If you select Advanced Settings:

1 Press ▲▼◀▶ to select the setting items, and press OK. A check will appear in the box. To remove the check, press OK again.
2 Press ▲▼◀▶ to select OK field, and press OK.

Item	Description
Image	Sets display/non-display of images.
Table	Sets effect/non-effect of tables.
CSS	Sets effect/non-effect of CSS.
Pop-up window	Sets effect/non-effect of pop-up windows.
Animation	Sets display/non-display of animations.
JavaScript	Sets effect/non-effect of JavaScript.
Word wrap	Sets effect/non-effect of Word Wrap. If Word Wrap is enabled, a word not finished at the end of a line is shifted to the next line.
Rapid-Render	Sets effect/non-effect of Rapid-Render. If Rapid-Render is enabled, texts and links are displayed first, and the images and the tables, etc. are displayed afterward. The highlight can be moved with the text and the link displayed.

Setting other features

1 From the Function menu, press ◀ or ▶ to select Menu, and then press OK.
2 Press ◀ or ▶ to select Settings.
3 Press ▲ or ▼ to select the desired item, and press OK.
4 Press ▲ or ▼ to select the desired setting, and press OK.

Item	Settings
Security	When jumping from a protected page to an unprotected page, the message is displayed when the check is applied to Notify of secure/non-secure page changes.Apply the check to select SSL version from SSL Version to use (SSL2.0, SSL3.0, TSL1.0).A content confirmation of the certification and a setting effect/non-effect can be done in Root Certificates and CA Certificates shown below.
Cookies	Accept all: Cookie is received, and it records in this TV.Reject all: Cookie is not received.Prompt before accepting: When Cookie is received, a message window will be displayed.
Delete Cookies	Deletes all recorded Cookies.
Cache	Use cache: When the check is applied to this, cache is used.Delete All Cache Data: Deletes all the cache preserved in the television.
Browser Information	Displays the information on a browser.

NOTE:

• Cookie is the technical information that a website leaves in this TV so that the website will recognize you when you use it again.
• Cache is a system used to shorten the display time by checking the past data preserved in this television when a page that you viewed before is seen again.

To confirm Root Certificates or CA Certificates:

1 Press ▲ or ▼ to select Security in step3 in Setting other features.
2 Press ▲▼◀▶ to select Root Certificates or CA Certificates, and press OK.
3 Press ▲ or ▼ to select the desired certificate.

- When OK is pressed, a detailed information window will appear.

- When the BLUE button is pressed, Disable or Enable bar will appear. It changes whenever BLUE button is pressed.

4 Press BACK.

Using the Media Player

This TV allows you to enjoy movie, music and photo files stored on a USB device connected to the USB port.

Moreover, you can also play photos, movies or music files from your PC by connecting the TV to your home network.

Terminology:

DMP: DLNA CERTIFIED™ Player

DMS: DLNA CERTIFIED™ Server

DMR: DLNA CERTIFIED™ Renderer

DMC: DLNA CERTIFIED™ Controller

• DMP: The TV can control and play content from a DMS.
- A DMS is a device that can function as a server for DMP or DMR.
- DMR: The TV can play content from a DMS. Playback is controlled by a DMC.
- A DMC is a device that can instruct the TV to display content.

NOTE:

• Do not insert/remove USB device while in use.
• MENU is not available during playback.
• When you want to use your TV as a DMR, set Media Renderer to On (see "Media Renderer" on page 48).

Media Player Specifications

Device

USB device

Interface version: USB2.0 HS

USB Mass Storage Class devices (MSC)

NOTE:

• Connectivity is not guaranteed for all devices.
• Incorrect behavior may occur with a USB hub connection.

File system: FAT16 and FAT32

Maximum memory size: Unlimited

DLNA CERTIFIED™ Server: Your PC (for example)

You must obtain any required permission from copyright owners to download or use copyrighted content. TOSHIBA cannot and does not grant such permission.

Basic operation

Using Media Player with USB

When Auto Start is enabled, you will be asked if you want to start the Media Player whenever a USB device is inserted. If Auto Start is disabled (or if you want to connect to a DMS on the network), you must manually start the Media Player from the menu.

To change the Auto Start setting:

1 Press MENU / ◀◀/▲/◀◀ to highlight Media Player/Media Player Setup icons and press OK.

2 Press ▲ or ▼ to select USB Auto Start, and then press ◀ or ▶ to select On or Off.

Media Player Setup USB Auto Start On DivX® VOD Media Server Setup

Auto Start:

1 Insert USB device into the USB socket on the left side of the TV. A prompt will appear.
2 Press ◀ or ▶ to select Yes, and then press OK.
3 Press ▲ or ▼ to select Photo, Movie, or Music and press OK.

NOTE: If Auto Start is set to Off, you can start the Media Player manually.

Manual Start:

1 Insert USB device into the USB socket on the left side of the TV.
2 Press MENU / ◀▶ to highlight Media Player icon.
3 Press ▲ / ◀▶ to highlight Photo, Movie or Music icon and press OK. The thumbnail will appear.

To select a file in the list of contents:

1 Press ▲▼ (◀▶) to select a file or folder.
2 Press OK to move to the next layer, or press BACK to return to the previous layer.

To close the Media Player:

1 Press EXIT.

Using the Media Player with a DLNA CERTIFIED™ Server

You need to configure a home network before using this feature (see page 12).

1 Press MENU / ◀▶ to highlight Media Player icon.
2 Press ▲ / ◀▶ to highlight Photo, Movie, or Music icon and press OK. The thumbnail (for Photo) or list of files (for Movie and Music) will appear.

NOTE: If there is more than one media server on the network, a list of all media servers will be displayed. Highlight the server you want to use, and press OK.

3 Press ▲ or ▼ to select a DMS if the selection window is displayed.

To select a file in the list of contents:

1 Press ▲ or ▼ to select a file or folder.

2 Press OK to move to the next layer, or press BACK to return to the previous layer.

To close the Media Player:

1 Press EXIT.

To display the device information

1 Press QUICK to open the Quick Menu in list mode or Multi View mode.

2 Press ▲ or ▼ to select Device Information.

Setting DLNA CERTIFIED™ Server waking up:

You only need to complete the Media Server Setup if you wish to use the "Wake-on-LAN" feature.

1 Press MENU / ◀▶ / ▲ / ◀▶ to highlight Media Player/Media Player Setup icons and press OK.
2 Press ▲ or ▼ to select Media Server Setup and press OK. A list of currently available DMSs will appear.
3 Press ▲ or ▼ to select the desired device, and press OK. A check will appear in the box. To remove the check, press OK again.
4 Press▶ to highlight Done, and then press OK to save.

NOTE:

• Up to 8 DMSes can be selected.
• Even if the device checked is powered off, it will be displayed but grayed out in the Select Device window. When OK is pressed on a highlighted grayed out item, a confirmation of Wake-on-LAN is displayed. The TV tries to wake up the DMS if Yes is pressed. The Server will start if it supports Wake-on-LAN feature.

• When some DMSs are connected, it may take time until the list is displayed. The list may be refreshed by the following operation.

• The device selection window is closed once and it is displayed again.

• The RED button is pressed.

Viewing photo files (on a DLNA CERTIFIED™ Server or USB device)

There are three types of viewing modes.

Multi View

This view allows you to search for photos in a grid format. The pictures are displayed using thumbnail data in each image file.

Photo list example

PHOTO /Folder Sort: Title 1/54 XXXXXXXXX.jpg 10:00 Fri, 21 Feb 2010 1920x1080 OK Play QUICK Features P Page

The initial highlighted position will be on the top left thumbnail in the Multi View.

1 Press ▲▼◀▶ to move the highlight in one window. If all of the photos will not fit in one screen, when pressing ◀ at the top left thumbnail, the screen will move to the previous page. Conversely, when pressing ▶ at the bottom right thumbnail, the screen will move to the next page.

P^P∨ buttons can be used to page up/down the photo list when there are more photos than will fit onto one screen. When the P^P∨ buttons are pressed, the highlight shall be on the photo at the top left of Previous/Next list.

2 When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.
3 Press OK to view the selected photo in Single View mode.

NOTE: When the TV is used as a DMR, this feature is not available.

Single View

In this mode, only files located in the selected directory will be displayed. This view allows you to change the photo content manually. When moving from Multi View to Single View, the currently selected photo will be displayed.

1 Press ▶ to view the next photo. Press ◀ to view the previous photo.
2 Press ▲ to rotate the image 90° clockwise. Press ▼ to rotate the image 90° counterclockwise.
3 Press i+ to display file status information (file number, photo title, date and time taken, resolution etc.).

NOTE: The information may not be correctly displayed depending on the content, DMC or DMS.

Slide Show

This view allows you to watch a slide show of your photos. In this mode, only files located in the selected directory will be played.

1 To start slideshow, press OK in the Single View mode.
2 Press ◀ or ▶ to view the previous/next photo.
3 Press ▲ or ▼ to rotate the photo.
4 Press i+ to display file status information.

To set Interval Time and Repeat settings:

1 Press QUICK to open the Quick Menu while in the Single View mode or Slide Show mode.
2 Press ▲ or ▼ to select either Interval Time or Repeat.
3 Press ◀ or ▶ to adjust the setting and press OK.

To set Background Music

1 Press QUICK to open the Quick Menu while in the Slide Show mode.
2 Press ▲ or ▼ to select Background Music and press OK.
3 Press ▲ or ▼ to select Background Music and press ◀ or ▶ to select On.
4 Press ▼ to select Select Music and press OK.
5 Select a music.

NOTE:

• The music must be selected from the same media (USB) device or DMS from which the picture files will be played.
• This feature is not available when there is no music that can be selected.

To zoom in/out photos

During the Single View mode or Slide Show mode, the zoom function can be used.

RED button: x1 → x2 → x4 → x8 → x16 zoom

GREEN button: x16 → x8 → x4 → x2 → x1 zoom

BACK button: Normal playback

▲▼◀▶ buttons: Vertical or Horizontal scrolling

To sort the folders and files

1 Press QUICK to open the Quick Menu from Multi View mode.
2 Press ▲ or ▼ to select Sort.
3 Press ◀ or ▶ to select Title/File Name, New or Old to set the sorting rule.

Item	Description
Title (DMS)	File sorting rules:1. Unicode priority2. (0, 1, ..., 9), capital alphabet (A, B, ..., Z),small alphabet (a, b, ..., z)3. Increasing order
File Name (USB)	File sorting rules:1. Unicode priority2. (0, 1, ..., 9), capital alphabet (A, B, ..., Z),small alphabet (a, b, ..., z)3. Increasing order
New	From new to old according to the date and time when the picture was taken.
Old	From old to new according to the date and time when the picture was taken.

NOTE: Sorting may not be supported by some DMSs.

To display the device information

1 Press QUICK to open the Quick Menu from Multi View mode.

2 Press ▲ or ▼ to select Device Information and press OK.

NOTE: When the photos on the USB device are used, or the TV is used as a DMR, this feature is not available.

To close the Photo Viewer

1 Press EXIT. The television will return to the last viewed channel or external input.

File Compatibility

See page 88.

Viewing movie files (on a DLNA CERTIFIED™ Server or USB device)

You can select movies from a list of available files.

Movie list example

MOVIE Folder 00:00:20 / 00:04:00 Sort : File Name movie Unprotected WWWWWWWWWWWW.mp4 WWWWWWWWWWWW.mp4 WWWWWWWWWWWW.mp4 WWWWWWWWWWWW.mp4 WWWWWWWWWWWW.mp4 OK Play QUICK Features P Page 1/9

1 Press ▲ ▼ to select a file or folder. P^ P∨ buttons can be used to page up/down the movie list when there are more files than will fit onto one screen.
2 When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.
3 With the desired file selected, press OK or ▶ (play) to start playback.

NOTE:

• On preview screen, if you highlight the file without pressing OK, the content is played on a preview screen. When OK is pressed, it is played in full screen mode.
• Depending on the file size, it may take some time to start playback.

4 Press ■ to stop playback.

NOTE:

• If playback finishes before ■ is pressed, the screen will return to the list.
• Depending on the file size, it may take some time for playback to begin.

During playback:

- Press ||||► to pause.

You can move to the desired replay position by pressing ◀ or ▶ during PAUSE.

PAUSE or operations during PAUSE may not be available depending on the contents, DMC or DMS.

• To resume normal playback, press ▶ (play).
• To play in fast reverse or fast forward directions, press ◀◀ or ▶▶ during playback. Each time you press the ◀◀ or ▶▶, the playback speed will change.
• To locate a specific file, press ◀◀ or ▶▶ repeatedly.
• Press i+ to display the file status information (content number, movie title, progress time etc.).

NOTE:

• The information may not be correctly displayed depending on the contents, DMC or DMS.
• During playback, you can adjust the Picture, Picture Size and Sound menu functions from the Quick Menu.

To select subtitle and audio languages

• Press SUBTITLE repeatedly to select your preferred subtitle language.
• Press ⒶI/Ⅱ repeatedly to select your preferred audio language.

NOTE: This future is not available depending on the contents.

To set the repeat mode

1 Press QUICK to open the Quick Menu.
2 Press ◀ or ▶ to select Off, All or 1.

Mode	Description
Off	The file is played back only once.
All	Files in the same folder are repeatedly played back.
1	The same file is repeatedly played back.

3 Press BACK.

NOTE: When the TV is used as a DMR, this feature is not available.

To sort the folders and files

1 Press QUICK to open the Quick Menu in list mode.
2 Press ▲ or ▼ to select Sort.
3 Press ◀ or ▶ to select Title/File Name, New or Old to set the sorting rule.

Item	Description
Title (DMS)	File sorting rules:1. Unicode priority2. (0, 1, ..., 9), capital alphabet (A, B, ...,Z), small alphabet (a, b, ..., z)3. Increasing order
File Name (USB)	File sorting rules:1. Unicode priority2. (0, 1, ..., 9), alphabet (A, B, ...,Z)3. Increasing order
New	From new to old according to the date and time when the contents were updated.
Old	From old to new according to the date and time when the contents were updated.

NOTE: Sorting may not be supported by some DMSs.

To display the device information

1 Press QUICK to open the Quick Menu in list mode.
2 Press ▲ or ▼ to select Device Information and press OK.

NOTE: When the movies on the USB device are used, or the TV is used as a DMR, this feature is not available.

To close the Movie Viewer

1 Press EXIT.

File Compatibility

See page 88.

To register your TV to a DivX ^® account

This TV allows you to play back files purchased or rented from DivX ^® Video-On Demand (VOD) services. When you purchase or rent DivX ^® VOD files on the internet, you will be asked to enter a registration code.

1 In the Media Player Setup menu, press ▲ or ▼ to display DivX® VOD and press OK.
2 Press ▲ or ▼ to highlight DivX® VOD Registration and press OK.

DivX® VOD DivX® VOD Registration DivX® VOD Deactivation

3 The DivX ^® VOD window will appear and you will see the registration code. For details on registration, please visit the DivX ^® website at

http://vod.divx.com

4 Copy the activation file to a memory device and play it on the TV.

To deactivate your device

1 In step 3 above, highlight DivX® VOD Deactivation, and then press OK.
2 A confirmation message will appear. Select Yes, and then press OK.
3 The DivX ^® VOD window will appear and you will see the deactivation code. For details on registration, please visit the DivX ^® website at

http://vod.divx.com

ABOUT DIVX VIDEO: DivX ^® is a digital video format created by DivX, Inc. This is an official DivX Certified ^® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ^® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX Certified ^® to play DivX ^® and DivX Plus ^™ HD (H.264/MKV) video up to 1080p HD including premium content.

Playing music files (on a DLNA CERTIFIED™ Server or USB device)

You can listen to music from a list of available files.

Music list example

MUSIC Folder music Unprotected WWWWWWW.mp3 WWWWWWW.mp3 WWWWWWW.mp3 WWWWWWW.mp3 WWWWWWW.mp3 WWWWWWW.mp3 WWWWWWW.mp3 OK Play QUICK Features Page Full Screen 1 / 10

1 Press ▲ ▼ to select a file or folder. P^P∨ buttons can be used to page up/down the music list when there are more files than will fit onto one screen.
2 When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.
3 With the desired file selected, press OK or ▶ (play) to start playback.

NOTE: If you highlight the file without pressing OK, the content is played on a music list. When OK is pressed, it is played in full screen mode.

4 Press ■ to stop playback.

NOTE:

• Depending on the file size, it may take some time for playback to begin.
• During playback, you can adjust the Sound menu functions from the QUICK Menu.

During playback:

• Press ||||► to pause.
• To resume normal playback, press ▶ (play).
• You can move to the desired replay position by pressing ◀ or ▶ during PAUSE.
• PAUSE or operations during PAUSE may not be available depending on the content, DMC or DMS.
• To play in fast reverse or fast forward directions, press ◀◀ or ▶▶. Each time you press ◀◀ or ▶▶, the playback speed will change.

To set the repeat mode:

1 Press QUICK to open the Quick Menu in list mode.
2 Press ▲ or ▼ to select Repeat.
3 Press ◀ or ▶ to select Off, All or 1.

Mode	Description
Off	Files in the same folder are played back once.
All	Files in the same folder are repeatedly played back.
1	The same file is repeatedly played back.

4 Press BACK.

NOTE: When the TV is used as a DMR, this feature is not available.

To set the shuffle mode:

1 Press QUICK to open the Quick Menu in list mode.
2 Press ▲ or ▼ to select Shuffle.
3 Press ◀ or ▶ to select On or Off.

To sort the folders and files

1 Press QUICK to open the Quick Menu in list mode.
2 Press ▲ or ▼ to select Sort.
3 Press ◀ or ▶ to select Title/File Name, New or Old to set the sorting rule.

Item	Description
Title (DMS)	File sorting rules:1. Unicode priority2. (0, 1, ..., 9), alphabet (A, B, ...,Z)3. Increasing order
File Name (USB)	File sorting rules:1. Unicode priority2. (0, 1, ..., 9), alphabet (A, B, ...,Z)3. Increasing order
New	From new to old according to the date and time when the contents were updated.
Old	From old to new according to the date and time when the contents were updated.

NOTE: Sorting may not be supported by some DMSs.

To display the device information

1 Press QUICK to open the Quick Menu in list mode.
2 Press ▲ or ▼ to select Device Information and press OK.

NOTE: When the music files on the USB device are used, or the TV is used as a DMR, this feature is not available.

To display the file status information

1 Press i+ during playback. The information will be displayed on the bottom of the screen.
2 Press i+ again to remove the information.

NOTE: The information may not be correctly displayed depending on the content, DMC or DMS.

To close the Music Player:

1 Press EXIT.

File Compatibility

See page 88.

Using the Photo Frame feature

You can use the TV screen as a digital photo frame. One image (pre-installed or user-installed) can be displayed. Date info can also be superimposed, if desired.

You can overwrite the photo file with a file from a USB storage device or DLNA CERTIFIED™ Server.

To open Photo Frame

1 Press MENU / ◀◀/▲/◀◀ to highlight Setup/ Preferences icons and press OK.

2 Press ▲ or ▼ to select Photo Frame Setup and press OK.

Preferences 3D Setup Personal TV Setup REGZA-LINK Setup Network Setup Network Device Setup Photo Frame Setup Teletext Auto Network Lock

The preview screen will appear.

Photo Frame Setup TOSHIBA Leading Innovation >> Photo Select Photo Edit Settings Start OK Enter

3 Press ▶ to select Start and press OK to open Photo Frame.

TOSHIBA Leading Innovation >>>

To open from the Quick Menu

1 Press QUICK to open the Quick Menu.

2 Press ▲ or ▼ to select Photo Frame and press OK to open Photo Frame.

To close Photo Frame:

1 Press EXIT.

Setting the features

In the preview screen, you can set various settings for Photo Frame.

Photo Select

1 In the Photo Frame Setup menu, press ▲ or ▼ to select Photo Select and press OK.

Photo Frame Setup TOSHIBA Leading Innovation >> Photo Select Photo Edit Settings Start OK Enter

2 If the device selection screen appears, press ▲ or ▼ to select the appropriate device and press OK.

3 Press ▲ ▼ ◀▶ to select the photo you want to copy from the USB storage device or DLNA CERTIFIED™ server to the TV's flash memory, and then press OK.

PHOTO /Folder Sort: Title 1/54 XXXXXXXXXX.jpg 10:00 Fri, 21 Feb 2010 1920x1080 OK Play QUICK Features P Page

Photo Edit

1 Press ▲ or ▼ to select Photo Edit and press OK.

2 Press ▲ or ▼ to select Rotate or Delete.

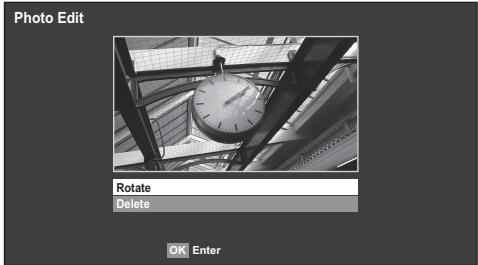

Photo Edit Rotate Delete OK Enter

3 Set the following items as required.

• Rotate — Press OK to rotate the image 90°clockwise.
• Delete — Press OK. A confirmation window will appear. Press ◀ or ▶ to select YES, and then press OK.

4 Press BACK.

Settings

1 Press ▲ or ▼ to select Settings, and then press OK.
2 Press ▲ or ▼ to select Clock, Position or Auto Power Off.

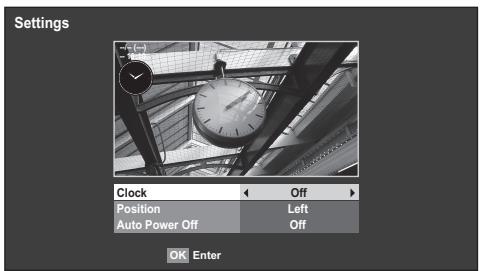

Settings Clock Off Position Left Auto Power Off Off OK Enter

3 Set the following items as required.

• Clock — Press ◀ or ▶ to select Off, Digital Clock, Analogue Clock or Analogue + Digital.
• Position — Press ◀ or ▶ to select Left or Right.
• Auto Power Off — Press ◀ or ▶ to select Off, 00:30, 01:00, 02:00, 04:00, 06:00 or 12:00.

If the Photo Frame window is left open, the TV will automatically turn off after the set length of time (maximum 12 hours).

4 Press BACK.
5 Select Start and press OK.

Black-and-white photo of a large wall-mounted clock with two analog clocks showing time (no readable text or symbols)

NOTE:

• The clock display will only appear when time from a digital broadcast is available.
• The photo and clock displays are moved by 4 dots every 5 minutes to minimize the risk of screen burn-in.
• The pre-installed photo file is stored in the TV's flash memory before shipment.
• Picture Size selection (Normal/ Dot by Dot) is available by pressing the QUICK button. However when the resolution is 1920 x 1080 or above, the Picture Size selection menu will be grayed out.

Other features

Panel Lock

Panel Lock disables the buttons on the television. All buttons on the remote control can still be used.

1 Press MENU / ◀◀/▲/◀◀ to highlight Setup/ Preferences icons and press OK.

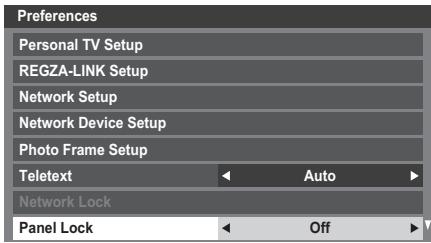

Preferences Personal TV Setup REGZA-LINK Setup Network Setup Network Device Setup Photo Frame Setup Teletext ◀ Auto ▶ Network Lock Panel Lock ◀ Off ▶▼

When Panel Lock is On, a reminder will appear when the buttons on the television are pressed. If the standby button is pressed, the television will switch off and can only be brought out of standby by using the remote control.

The timers

Programme Timers – digital only

This feature will set the television to go to a specific channel at a certain time. It can be used to view a particular programme, or by setting the mode to daily or weekly, can be used to view a series of programmes.

1 Press MENU / ◀◀ / ▲ / ◀◀ to highlight TV Programmes/Programme Timers icons and press OK.
2 Press ▼ to select Programme Timers, and then press OK.
3 Press ▼ if necessary to select an open timer position, then press OK. The Set Timer menu will now appear on screen.
4 Press ▲ and ▼ to go through the list adding the details of the programme by using the number buttons and ◀ and ▶ to make selections.

Set Timer 10:50 Tue, 26 Apr Timer Type Reminder Channel 30 CABC Channel Date Tue, 26 Apr 2011 Start Time 10:49 End Time 11:49 Repeat Once Subtitle Off Set Timer Delete Timer 0-9 Input Edit BACK Return

5 When all of the details have been entered, highlight Set Timer and press OK to save the timer.

The ORANGE/RED programme timer indicator on the front of the television will be lit (see page 83 for details).

PLEASE NOTE: When a timed programme is about to start, an information screen will appear offering the option of watching or cancelling the programme. The menus and other channels will not be available during the timed programme unless the programme timer is cancelled. It will only be possible to create or edit programme timers for the currently tuned DTV input.

On Timer

The feature allows you to set the television to turn on automatically to a preset channel at a certain time of day or after a certain length of time.

1 Press MENU / ◀◀ / ▲ / ◀◀ to highlight Function/ On Timer icons and press OK.

2 Press ▲ or ▼ to select Enable On Timer and press ◀ or ▶ to select On.

On Timer Enable On Timer Enable DTV Clock Power On Time Repeat Input Channel Volume Time Until Power On On On 00:00 Once DTV 12 ABC 20 00:00 Done

3 Press ▼ to select Enable DTV Clock, and then press ◀ or ▶ to select On or Off.
4 Press ▲ or ▼ to go through the list adding the details of the On Timer by using the number buttons and ◀ and ▶ to make selections.

Power On Time (only for DTV Clock On mode): Set the time you prefer with the number buttons.

Repeat (only for DTV Clock On mode): Select the desired On Timer operation (Once, Every Day, Mon-Fri, Mon-Sat, Sat-Sun).

Input: Select a video input source (ATV, DTV, EXT 1, EXT 2, EXT 3, HDMI 1, HDMI 2, HDMI 3, HDMI 4 or PC).

Channel: Set the channel that will be tuned when the television turns on.

NOTE: When an external input is selected in the Input field, a channel cannot be selected.

Volume: Set the volume that will be applied when the television turns on.

Time until Power On (only for DTV Clock Off mode): Set the amount of time from now until the TV turns on using the number buttons (maximum of 12 hours).

5 Press ▲ or ▼ to highlight Done and press OK.

To cancel the On Timer

1 In the On Timer menu, select Enable On Timer
2 Press ◀ or ▶ to select Off.

Sleep Timer

The television can be set to turn itself Off after a certain length of time.

1 Press MENU / ◀▶ / ▲ / ◀▶ to highlight Function/ Sleep Timer icons and press OK.
2 Use the number buttons to set the desired time. For example, to switch the television off in one and a half hours enter 01:30, or press ▶ / ◀ to increase/decrease in steps of 10 minutes. (Maximum time setting is 12 hours)
3 Press EXIT to finish.
4 To cancel the Sleep Timer, enter all zeros for the above setting.

Energy Saving Settings

Automatic Power Down

The TV will automatically turn itself off (standby) after 4 hours, if you do not operate the TV either from the remote control or the TV control panel.

1 Press MENU / ◀◀/▲/◀◀ to highlight Setup/ Preferences icons and press OK.
2 Press ▲ or ▼ to select Energy Saving Settings and press OK.
3 Press ▲ or ▼ to select Automatic Power Down.
4 Press ◀ or ▶ to select On or Off, and press OK.

NOTE:

• This feature is set to On when Location is set to Home.
• 1 minute before switching to standby, a Warning message will appear.
• When the following features are set, the feature that is set for the nearest time will function.
• Automatic Power Down
• Sleep Timer
• Photo Frame/Auto Power Off
• Auto shutdown after 1 hour of inactivity (after power on by On Timer)
• No signal auto power off (after 15 minute of no signal)

No Signal Power Down

The TV will automatically turn itself off after 15 minutes when no signal is detected. You can change the setting to Off for the following purposes:

• Low signal strength of analog channel (no signal detection)
• Only Audio L/R is connected to external input to listen to music through the TV speakers.

1 In the Energy Saving Settings menu, highlight No Signal Power Down, and press OK.

2 Press ▲ or ▼ to highlight the item you want to change, and press ◀ or ▶ to select On or Off.

NOTE:

• Default setting is all On.
• A warning message will appear 1 minute before turning off.

Digital on-screen information and Programme Guide

When viewing in digital mode, the on-screen information and programme guide provide access to programme details for all available channels.

Information

1 Press i+, the information screen will appear giving details of the channel and programme currently being viewed.

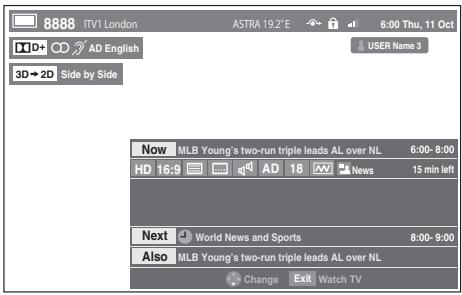

8888 iTV1 London ASTRA 19.2°E 6:00 Thu, 11 Oct DQ D+ AD English 3D→2D Side by Side USER Name 3 Now MLB Young's two-run triple leads AL over NL 6:00-8:00 HD 16:9 AD 18 News 15 min left Next World News and Sports 8:00-9:00 Also MLB Young's two-run triple leads AL over NL Change Exit Watch TV

2 Press ▲ or ▼ to select the "Now", "Next" or "Also" information guide.
3 To record the next scheduled programme, select "Next" and press OK. The Set Timer screen will appear.

Set Timer Tue, 26 Apr 11:00 30 CABC Channel Seven Wonder4 10:50 Tue, 26 Apr Timer Type Reminder Start Time 10:49 End Time 11:49 Repeat Once Subtitle Off Set Timer Delete Timer Edit BACK Return

4 The details of the programme will already have been added to the timer. Highlight Set Timer and press OK to save.

To indicate that a Recording Timer has been set, a clock icon will be displayed in the Next and Also fields of the information screen. A check mark will appear if the timer is a Reminder Timer.

5 Press ▼ to select Also. Details of programmes that have started on other channels will be provided. Use ◀ or ▶ to change the display contents.

To display More Information

1 Press QUICK to open the Quick Menu.
2 Press ▼ to highlight More Information and press OK.

On-screen Information icons

	Icon	Description
Service info		Service type (TV, Radio, Text)
		Skip
Audio info		Mono
		Stereo
		Dual mono
		Multichannel
		Dolby Digital
		Dolby Digital+
	HE-AAC	Audio Coding
	AD	Audio Description
Audio/Subtitle info		For Hard of Hearing
3D info	3D3D→2D	Frame Packing Side by Side
Personal Mode info		Personal Mode (Personal Name)
Event info	HD, SD	Video format (HD, SD)
	16:9, 4:3	Video Aspect
		Teletext
		Subtitle (Single, Multi)
		Multi-audio track
	0, 4 – 18	Parental rating
		Encrypted
Timer info		Recording
		Reminder

Guide

1 Select the on-screen guide by pressing GUIDE, and the guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear.

Thu6 10:50 Tue, 6 Apr
TV	18:00	18:30	19:00	19:30	20:00
6 M6	LES SIM...LES SIM...TOP MODEL
9 W9	SUMMERLAND SUMMERLAND LES SIM...
11 NT1	Nicky La... Street fight... Dragon B... Dragon B... K 2000
31 PARIS PREMIERE	MA SORCIE... HAPPY DAYS HAPPY DAYS
34 AB1	Evamag 21 jump street Jerry Springer Show City guys L...
800 FlowerGd 6Mbs
801 FlowerGd 4Mbs
802 FlowerGd 2Mbs
804 Codec 4:3
806 ITV1
807 ITV3
808 ITV2
809 ITV4

You can switch the time scale to 1.25 or 2.5 hours by pressing the GREEN button.

NOTE: Channels are displayed in groups by service type (TV, Radio, Text). Pressing the TV button will switch the service type.

2 Press ◀ or ▶ for information on other programmes scheduled for the channel selected. To highlight the first programme in the genre grid, press the RED button.
3 For details of other programmes currently available, press ▲ and ▼ to scroll up and down the channel list. As channels are selected, details of the programme currently being broadcast will appear. Press ◀ or ▶ to view information for future programmes.
4 For information on a highlighted programme, press i+.
5 To set the timer for that programme, press the BLUE button to bring up the Programme Timers menu.

NOTE: In order for the recording operation to work properly, the media recorder must be set to the same time as the TV. Regarding the process for recording, please refer to the owner's manual of the recording equipment.

6 Press P▼ to advance to the next page, or press P^ to go back to the previous page.

Genre selection/searching

From the guide screen, you can use the genre selection and search features.

1 Press QUICK from the guide screen.
2 Press ▲ or ▼ to highlight Genre Colour in the Quick Menu and press OK.

Genre Colour Setup Movies Colour Setup

3 With the focus on a particular genre, press the desired colour key to assign. Four colours will be available to set. Press BACK to go back to the guide screen.

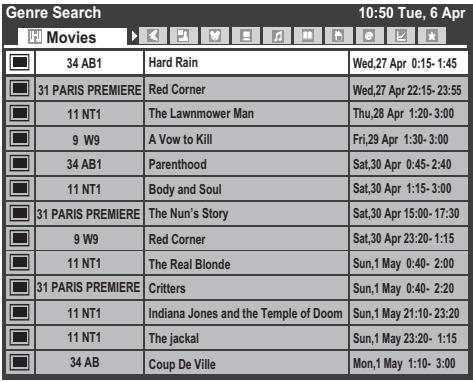

4 Press the YELLOW button to access the Genre Search screen.

5 Press ◀ or ▶ to select the genre. Programmes listed will change for the new genre. Press ▲ or ▼ to highlight a particular programme.
6 When a current programme is selected, pressing OK will tune to that programme. When a future programme is selected, pressing OK will open the Set Timer menu.
7 For information on a highlighted programme, press i+.
8 To exit the Genre Search and go back to the guide screen, press the YELLOW button.

Digital settings – parental control

In order to prevent viewing of unsuitable films and programmes, channels and menus can be locked in digital mode. These can then only be accessed with a security code PIN.

Parental PIN Setup

1 Press MENU / ◀◀ / ▲ / ◀◀ to highlight Setup/System Setup icons and press OK.

2 Press ▲ or ▼ to select DTV Settings and press OK.

System Setup
Menu Language	English
Country	Germany
Ant/Cable/Satellite	Antenna
Auto Tuning
ATV Manual Tuning
DTV Manual Tuning
DTV Settings
Quick Setup

3 Press ▲ or ▼ to highlight Parental PIN Setup and press OK.

DTV Settings
Channels
Subtitle and Audio
Parental PIN Setup
Parental Control
Local Time Setting
Standby Channel Update	Off
DVB Character Set	Standard
Dynamic Scan	On

4 Using the number buttons enter a four digit number. Once entered you will be prompted to confirm by entering again.

Parental PIN Setup New PIN: * * * * Confirm PIN: 0 0 0 0

The PIN number is now set.

If the PIN code has been set, when Auto Tuning and Reset TV are executed, entering the PIN will be necessary.

Parental Setup

The Parental Control feature allows you to block programmes according to their rating levels. If a PIN has been set, you will need to enter it before adjusting the level.

1 In the DTV Settings menu, press ▲ or ▼ to select Parental Control and press OK.

2 Use ◀ or ▶ to choose an option (None or an age setting (4-17 or 4-18 depending on the Country setting)).

Parental Control
Parental Setup	←	None →

To view blocked programmes, enter the PIN. To reactivate the Parental Control, turn the TV off and then on again.

Network Lock

You can use the Network Lock feature to prevent the Web browser from launching. When this feature is set to On, PIN input will be necessary to use YouTube.

This feature will be grayed out until a PIN is set.

1 Press MENU / ◀◀/▲/◀◀ to highlight Setup/ Preferences icons and press OK.

2 Press ▲ or ▼ to select Network Lock and press OK.

Preferences
Personal TV Setup
REGZA-LINK Setup
Network Setup
Network Device Setup
Photo Frame Setup
Teletext	Auto
Network Lock
Panel Lock	Off

3 Enter your four-digit PIN code.

4 Press ◀ or ▶ to select On, and then press OK.

To unlock the Network:

1 Select Off in step 4 above.

Digital settings – Channel Options

Selecting favorite channels

Favorite Channels creates a list of the digital channels that are watched most. Four lists can be created, they can be a mixture of television, radio and text channels.

1 Select a channel you want to add to your favorite list.
2 Press QUICK to open the Quick Menu.
3 Press ▼ to select Channel Options and press OK.
4 Press▶ repeatedly to select the favorite list (Fav.1-4)

Channel Options Fav. 1 2 3 4 □ □ □ □ □

5 Press OK to select the ones required. A tick will appear in the box as they are selected.
6 Repeat steps 1 through 5 for other channels.
7 When all favorites have been selected, press EXIT.

Favorite Channel Lists

1 Press LIST to display Channel List.
2 Press ◀ or ▶ to select Favourites 1-4. The number of favourites available depends on how many lists have been created.

Channel List Favourites 1 6 M6 9 W9 11 NT1 31 PARIS PREMIERE 34 AB1 51 ITV1

3 Press ▲ or ▼ to highlight a channel and press OK to watch.

Skip channels

This feature allows you to set channels that will be skipped when P∨ or P∧ are used to tune.

1 Select the channel you want to skip in your channel list.
2 From the Quick Menu, press ▼ to select Channel Options and press OK.
3 Press▶ repeatedly to highlight the skip (→) box.
4 Press OK to select. A tick will appear in the box.
5 Repeat steps 1 through 4 for other channels.
6 Press EXIT.

NOTE: Skipped channels cannot be selected by P∨ or P∧ but still be accessed by direct number entry (when tuned a ⬇→ icon will be displayed in the banner to indicate as a skipped channel).

Locking channels

Locking Channels stops the viewing of digital channels, and they can only be accessed by entering the PIN.

1 Select the channel you want to lock in your channel list.
2 From the Quick Menu, press ▼ to select Channel Options and press OK.
3 Press▶ repeatedly to highlight the lock (🔒) box.
4 Press OK to select. A tick will appear in the box. If a PIN has already been set, PIN entry will be required to set the locked channels.
5 Repeat steps 1 through 4 for other channels.
6 Press EXIT.
7 From this point on, when any of the channels in the Locked Channel list are selected, the PIN must be entered before they can be accessed.

Digital settings – other settings

Subtitles

In digital mode, this feature will show subtitles on the screen in the selected language provided they are being broadcast.

1 In the DTV Settings menu, press ▲ or ▼ to select Subtitle and Audio and press OK.

2 Press ▼ to select Subtitle Display and use ◀ or ▶ to select On or Off.

Subtitle and Audio
Subtitle Display	Off
Subtitle Type	Normal
Primary Subtitle Language	English
Secondary Subtitle Language	English
Audio Type	Normal
Primary Audio Language	English
Secondary Audio Language	English

3 Press ▲ or ▼ to select Primary Subtitle Language or Secondary Subtitle Language and press ◀ or ▶ to select an option.

The SUBTITLE button can be used to select subtitle on or off for the current channel only and to select the subtitle language if more than one subtitle is available.

Audio languages

This feature allows a programme or film to be viewed with a choice of soundtrack language, provided multiple language tracks are being broadcast.

1 In the Subtitle and Audio menu, press ▲ or ▼ to select Audio Type and press ◀ or ▶ to select Normal or For Hard of Hearing.

2 Press ▲ or ▼ to select Primary Audio Language or Secondary Audio Language and press ◀ or ▶ to select an option.

If more than one soundtrack is available, use the ⒶI/Ⅱ button to select between them.

Common Interface

The Common Interface Slot, situated on the side of the television, enables the insertion of a CAM (Conditional Access Module) and card. These are purchased from a service provider and allow additional subscription broadcasts to be viewed. For information, see a service provider.

1 Insert the CAM and card into the Common Interface Slot, following the instructions provided with the CAM. A box will appear on screen to confirm that the CAM has been inserted.
2 Press MENU / ◀◀/▲/◀◀ to highlight Setup/System Setup icons and press OK.
3 Press ▲ or ▼ to select DTV Settings and press OK.
4 Press ▲ or ▼ to select Common Interface and press OK.
5 Details of the CAM should now be available.

NOTE:

• Software update of a CI Plus CAM may occur automatically if instigated by the broadcaster. This could cause the cancellation of any Reminders/Recordings during this process.
• Some CI or CI+ CAM may not be supported.
• Cl+ operation is not guaranteed except for Canal Ready DTT services on suffix FC models.

Software Upgrade and Licences

Auto Upgrade

When Auto Upgrade is set to On, the television will automatically upgrade while in standby if new software is available.

1 In the System Setup menu, press ▲ or ▼ to select Software Upgrade and press OK.
2 Press ▲ or ▼ to select Over-the-air Upgrade and press OK.
3 Press ▲ or ▼ to select Auto Upgrade.
4 Use ◀ or ▶ to select On or Off.

Searching for New Software

If preferred, software upgrades can be searched for manually using Search for New Software.

1 In the System Setup menu, press ▲ or ▼ to select Software Upgrade and press OK.
2 Press ▲ or ▼ to select Over-the-air Upgrade and press OK.
3 Press ▲ or ▼ to select Search for New Software.
4 Press OK. The television will automatically start searching for a software upgrade, the progress bar will move along the line.

SEARCHING FOR NEW SOFTWARE

Searching for a new software upgrade for this TV.

Searching

If an upgrade is found, the television will automatically start downloading. If not, a screen will appear stating that an upgrade is unavailable.

Network Upgrade

TOSHIBA may offer upgrades for the TV's software in the future. The TV's software is upgraded via the Network.

Before downloading software;

Configure your TV to connect to the Internet.

NOTE: While the upgrade is being performed, you will not be able to watch the TV.

1 In the System Setup menu, press ▲ or ▼ to select Software Upgrade and press OK.
2 Press ▲ or ▼ to select Network Upgrade and press OK.

NOTE: If the network is not available, a warning message will appear.

3 The TV software upgrade will start when download succeeds.

Software Licences

The licences for the software used in this television are available for viewing.

1 In the System Setup menu, press ▲ or ▼ to select Software Licences and press OK.

A screen will appear displaying all the licensing information required for the televisions software.

System Information and Reset TV

System Information

This feature can be used to check the version of software currently installed. When in DTV mode, it includes additional diagnostic information such as signal strength, signal quality, centre frequency, modulation, etc.

1 In the System Setup menu, press ▲ or ▼ to select System Information.
2 Press OK to display the System Information.

System Information TOSHIBA 2011 2.1.26.0 Feb 19 2011 - 15:56:50 FW:13 WEAK AVERAGE STRONG Ch25 Good

3 For information about the signal quality of a particular multiplex, press ▲ or ▼ to select that multiplex.
4 Press OK for a screen showing detailed technical information about the selected multiplex.

Reset TV

Selecting Reset TV will reset all TV settings, including saved channels, to their original factory values.

1 In the System Setup menu, press ▲ or ▼ to select Reset TV.
2 Press OK to select. A screen will appear warning that all settings will be lost. Press OK to continue.

When the set powers back on, the Quick Setup screen will appear. Press OK to advance the setup and perform an auto tune. (See "Quick Setup" section on page 15.)

PC Settings

Horizontal and Vertical Position

Connect the PC (as shown in the 'Connecting a computer' section) and ensure that a picture is showing on the television screen. The picture position may now be adjusted to suit personal preference.

1 Press MENU / ◀◀/▲/◀◀ to highlight Setup/ Preferences icons and press OK.
2 Press ▲ or ▼ to select Display Settings and press OK.
3 Press ▲ or ▼ to select PC Settings.

Display Settings Auto Format On 4:3 Stretch Off Picture Position PC Settings

4 Press OK. Press ▲ and ▼ to select an option, then ◀ or ▶ to adjust the settings.

PC Settings Horizontal Position 0 ———— I ———— Vertical Position 0 ———— I ———— Clock Phase 0 ———— I ———— Sampling Clock 0 ———— I ———— Reset

Clock Phase

The Clock Phase matches the PC signal with the LCD display. Adjusting this can clear horizontal stripes and picture blur.

1 In the Display Settings menu, press ▲ or ▼ to select PC Settings and press OK.
2 Press ▲ or ▼ to select Clock Phase.
3 Press ◀ or ▶ to adjust until the picture clears.

Sampling Clock

Adjusting the Sampling Clock alters the number of pulses per scan, this will clear vertical lines on the screen.

1 In the Display Settings menu, press ▲ or ▼ to select PC Settings and press OK.

2 Press ▲ or ▼ to select Sampling Clock.

3 Press ◀ or ▶ to adjust until the picture clears.

Reset

Use Reset to return all items to the original factory settings.

1 In the Display Settings menu, press ▲ or ▼ to select PC Settings and press OK.

2 Press ▲ or ▼ to select Reset and press OK.

NOTE: When a PC is connected using HDMI, none of these functions will be available.

The screen is disrupted momentarily when adjusting PC Settings. This is not a sign of malfunction.

The default settings and adjustment ranges may vary depending on the input signal format.

Input selection and AV connections

See page 8 for a detailed image showing recommended connections.

Most media recorders and decoders send a signal through the SCART lead to switch the television to the correct Input socket.

Alternatively, press the external source selection button ⬤ until the picture from connected equipment is shown.

Input selection

Use the Input Selection window if the television does not switch over automatically.

1 By pressing ➕ on the remote control or TV, a list will appear on screen showing all inputs and external equipment.

Pressing → on the remote control

Inputs

TV

1

2

3

HDMI 1

HDMI 2

HDMI 3

HDMI 4

PC

Pressing ➕ on the TV

Inputs

DTV Ant (or Cable) TV *

DTV Ant (or Cable) Radio *

DTV Ant (or Cable) Text *

DTV Sat TV *

DTV Sat Radio *

DTV Sat Text *

1

2

3

HDMI 1

HDMI 2

HDMI 3

HDMI 4

PC

ATV

* If radio or text channels are currently available for DTV.

HDMI ^® displays equipment connected to Input HDMI on the back or side of the television.

PC displays a computer connected to Input RGB/PC on the back of the television.

External input skip

This feature is designed to make input selection more convenient by allowing you to skip unused inputs.

1 Press MENU / ◀◀/▲/◀◀ to highlight Setup/ Preferences icons and press OK.
2 Press ▲ or ▼ to select AV Connection.

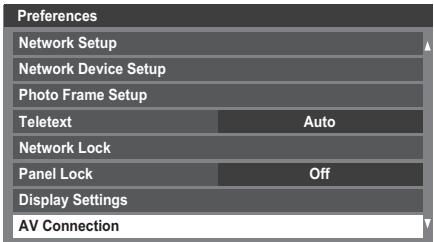

Preferences Network Setup Network Device Setup Photo Frame Setup Teletext Auto Network Lock Panel Lock Off Display Settings AV Connection

3 Press OK to display the AV Connection menu.
4 Press ▲ or ▼ to highlight Input Labeling and press OK.

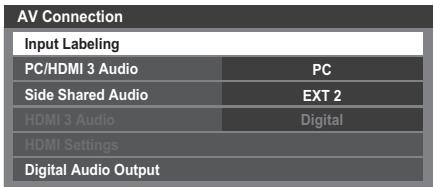

AV Connection Input Labeling PC/HDMI 3 Audio PC Side Shared Audio EXT 2 HDMI 3 Audio Digital HDMI Settings Digital Audio Output

5 Press ▲ or ▼ to select the input you want to skip, and then press the RED button to turn on the skip.

Input Labeling Input Label EXT 1 ← -- ► -▼ EXT 2 -- EXT 3 -- HDMI 1 -- HDMI 2 -- HDMI 3 -- HDMI 4 -- PC --

6 To turn off the skip, press the RED button again.

The input set to Skip is grayed out in the Input Selection window and is skipped over when you press ⬤ on the remote control.

Labeling video input sources

These input labels are shown in the input selector. You can label video inputs according to the devices you have connected to the TV.

1 Press MENU / ◀▶ / ▲ / ◀▶ to highlight Setup/ Preferences icons and press OK.
2 Press ▲ or ▼ to select AV Connection and press OK.
3 Press ▲ or ▼ to select Input Labeling and press OK.

Input Labeling
Input	Label
EXT 1	<	--	>
EXT 2		--
EXT 3		--
HDMI 1		--
HDMI 2		--
HDMI 3		--
HDMI 4		--
PC		--

4 Press ▲ or ▼ to highlight the item you want to label, and then press ◀ or ▶ to select --, Amplifier, Cable, DVD, Game, PC, Recorder, Satellite or VCR, or press the GREEN button to select User Input.

NOTE: When User Input is selected by pressing the GREEN button, the Software Keyboard window will appear. Input the desired characters (10 characters or less) by using the Software Keyboard (see page 47) or using the number buttons for a number input. To save your settings, press the BLUE button.

5 Repeat step 4 for other video inputs.

PC Audio

In order to receive sound from a connected PC, plug the audio cable into the back of the television (as shown in the 'Connecting a computer' section), and then use the PC/HDMI 3 Audio setting.

In the Preferences menu, press ▲ or ▼ to select AV Connection and press OK.

2 Press ▲ or ▼ to highlight PC/HDMI 3 Audio, and then press ◀ or ▶ to select the PC option.

NOTE: Selecting the PC option will force HDMI 3 Audio to Digital mode.

Side Shared Audio

The AUDIO terminals for the COMPONENT VIDEO INPUT (EXT 2) and VIDEO INPUT (EXT 3) are shared.

Select an appropriate option (EXT 2 or EXT 3) for the input that you are using.

In the Preferences menu, press ▲ or ▼ to select AV Connection and press OK.

2 Press ▲ or ▼ to highlight Side Shared Audio, and then press ◀ or ▶ to select EXT 2 or EXT 3.

HDMI 3 Audio

If the connected HDMI source does not support digital audio, plug the audio cable into PC/HDMI 3 (AUDIO) on the back of the television (as shown in the 'Connecting an HDMI® or DVI device to the HDMI input' section), then use the HDMI 3 Audio setting.

1 In the Preferences menu, press ▲ or ▼ to select AV Connection and press OK.

2 Press ▲ or ▼ to select HDMI 3 Audio, and then press ◀ or ▶ to select Auto or Analogue.

AV Connection Input Labeling PC/HDMI 3 Audio PC Side Shared Audio EXT 2 HDMI 3 Audio Auto HDMI Settings Digital Audio Output

If the sound is absent, try selecting a different setting.

NOTE: HDMI 3 supports digital and analogue sound, HDMI 1, HDMI 2 and HDMI 4 are digital sound only.

Certain DVD disk formats may not output from this TV (32/44.1/48kHz and 16/20/24 bits are acceptable).

HDMI Settings

Some early HDMI equipment may not work properly with your HDMI TV. Please try setting the Enable Content Type and INSTAPORT™ options to Off. Adjusting these settings should allow your early HDMI source to operate properly with your television.

1 In the Preferences menu, press ▲ or ▼ to select AV Connection and press OK.

2 Press ▲ or ▼ to select HDMI Settings and press OK. NOTE: HDMI Settings is grayed out on non-HDMI inputs.

3 Press ▲ or ▼ to select an item, and then press ◀ or ▶ to select a setting.

HDMI Settings
Enable Content Type	<	On
INSTAPORTTM		On
RGB Range		Auto

- Enable Content Type: On

This feature is part of the HDMI1.4 standard.

When set to On, the TV will automatically adjust settings according to the content type data sent from the connected HDMI device.

- INSTAPORT™: On

This feature reduces the lag time when switching HDMI sources.

- RGB Range: Auto

This feature adjusts RGB full range signal automatically. When Limited is selected, RGB signal is output in the range from 16 to 235. When Full is selected, RGB signal is output in the range from 0 to 255.

NOTE:

- If your HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 50Hz or supports Deep Colour, you will need a Category 2 cable. Conventional HDMI/DVI cables may not work properly with this mode.

- All of the above HDMI settings need proper HDMI source devices. If the HDMI source products do not support these features, the television may not work properly by activating these features.

Digital Audio Output

When connecting a surround sound amplifier to the digital audio output (Sony/Philips Digital Interface Format [S/PDIF]), the following options can be selected or adjusted.

1 In the Preferences menu, press ▲ or ▼ to select AV Connection and press OK.

2 Press ▲ or ▼ to select Digital Audio Output.

AV Connection
Input Labeling
PC/HDMI 3 Audio	PC
Side Shared Audio	EXT 2
HDMI 3 Audio	Auto
HDMI Settings
Digital Audio Output

3 Press OK to display Digital Audio Output menu and press ▲ or ▼ to select an option.

Audio Format:

Press ◀ or ▶ to select PCM or Auto.

PCM: This mode outputs PCM format to the digital audio output socket.

Auto: This mode outputs Dolby Digital (if available) or PCM to the digital audio output socket. Dolby Digital → Dolby Digital Dolby Digital Plus → Dolby Digital MPEG → PCM HE-AAC → Dolby Digital

Audio Delay:

Press ◀ or ▶ to select Auto or Manual.

Auto: This mode automatically adjusts the audio timing to meet the video timing. NOTE: The time lag might be large between the image and sound depending on the connected equipment (amplifier etc.). In that case, select Manual.

Manual: You can manually adjust the audio signal timing to meet the video signal timing.

Delay Adjustment:

Press ◀ or ▶ to adjust the audio signal timing (0 – 250ms) to meet the video signal timing.

NOTE:

• This feature is grayed out when Audio Delay is in Auto.
• A time lag will occur when the video signal or audio signal is changed. Adjust the timing accordingly.
• When adjusting the timing, turn down the volume of the AV equipment used as far as possible. Depending on the equipment, noise etc. may occur when the signal is changed.
• Depending on the connected equipment (amplifier, etc.), adjustment may not be possible.
• When the optical digital output setting (Auto PCM) is changed, it may be necessary to adjust the timing again.
• Do not use other than for audio output from the AV amplifier, etc. (Malfunction may occur)

Using Personal TV Mode

You can customize some TV functions as desired and those settings can be saved in one of 4 Personal Modes (A to D). The Personal Mode can be selected from the Quick Menu.

To select the Personal Mode

1 Press QUICK to open the Quick Menu.

2 Press ▲ or ▼ to select Personal Mode and press OK.

Personal Mode Normal Personal Mode A Personal Mode B Personal Mode C Personal Mode D

3 Press ▲▼ or corresponding coloured button to select individual Personal Mode from Normal, Personal Mode A, Personal Mode B, Personal Mode C and Personal Mode D. The mode will default to Normal every the TV is turned off and on.

NOTE: If the Personal PIN has been set, the Lock icon will be displayed. If the Personal PIN entry screen is displayed, enter the correct Personal PIN.

Personal TV Setup

1 Press MENU / ◀◀/▲/◀◀ to highlight Setup/ Preferences icons and press OK.

2 Press ▲ or ▼ to select Personal TV Setup and press OK.

Personal TV Setup Personal Mode A Personal Mode B Personal Mode C Personal Mode D

3 Press ▲ or ▼ (or corresponding coloured button) to select the individual Personal Mode and press OK.

Personal TV Setup Personal Mode A
Edit Name
Personal PIN Setup
Volume Type	Default
Preset Volume	50

Edit Name

You can edit the name of your Personal Mode.

Press ▲ or ▼ to select Edit Name and press OK.

Edit the desired name by using the software keyboard. (See page 47) The maximum number of characters is 25.

Personal PIN Setup

Press ▲ or ▼ to select Personal PIN Setup and press OK.

Enter your personal PIN in same manner as "Parental PIN Setup" on page 66.

Volume Type

Press ▲ or ▼ to select Volume Type and press ◀ or ▶ to select Preset or Last.

Last — Volume level just before you turn off the TV.

Preset — Your personal volume level you set.

Preset Volume

Press ▲ or ▼ to select Preset Volume and press ▲ or ▼ to adjust your desired volume level. When the

Volume Type is set to Last, this feature will be grayed out.

Behavior in Personal Mode

• Personal Favourite Channel List (Fav5 -Fav8):

Normal Mode: Fav1 / Fav2 / Fav3 / Fav4

Personal Mode A: Fav5

Personal Mode B: Fav6

Personal Mode C: Fav7

Personal Mode D: Fav8

Press the LIST button to display Channel List and press ◀ or ▶ to select All or your Personal Mode (Fav5 – Fav8)

• Personal Picture Mode:

The Picture Mode you selected is stored in your Personal Mode.

Using REGZA-LINK

This is a new feature that uses CEC technology and allows you to control Toshiba REGZA-LINK compatible devices from the television remote control via HDMI connection (page 10).

When the Enable REGZA-LINK item in the REGZA-LINK Setup menu is set to On, individual functions also set to On will be activated.

Enable REGZA-LINK

1 Press MENU / ◀◀/ ▲/ ◀◀ to highlight Setup/ Preferences icons and press OK.
2 Press ▲ or ▼ to select REGZA-LINK Setup and press OK.
3 Press ▼ to highlight Enable REGZA-LINK and press OK.
4 Press ◀ or ▶ to select On.

REGZA-LINK Setup
Enable REGZA-LINK	◀	On ▶
TV Auto Power		On
Auto Standby		On
Amplifier Control		On
Initial Speaker Setting		TV Speakers
Position Key Pass Through		On

NOTE: If you set Enable REGZA-LINK to Off, all other items will be grayed out.

TV Auto Power

The TV Auto Power setting allows the television to be automatically switched on if a REGZA-LINK device is turned on.

1 In the REGZA-LINK Setup menu, press ▼ to highlight TV Auto Power.
2 Press ◀ or ▶ to select On or Off.

Auto Standby

When Auto Standby is enabled, the television, when switched off, will automatically switch off (standby mode) all connected REGZA-LINK equipment.

1 In the REGZA-LINK Setup menu, press ▼ to highlight Auto Standby.
2 Press ◀ or ▶ to select On or Off.

Amplifier Control

When Amplifier Control is set to On, it allows the "Speaker Preference" feature to become available.

1 In the REGZA-LINK Setup menu, press ▼ to highlight Amplifier Control.
2 Press ◀ or ▶ to select On or Off.

Initial Speaker Setting

This feature allows the audio output preference to be set to the TV speakers or AV amplifier speakers. The AV Amplifier option lets the television's remote control adjust or mute the volume of the audio.

1 In the REGZA-LINK Setup menu, press ▼ to highlight Initial Speaker Setting.
2 Press ◀ or ▶ to select TV Speakers or Amplifier.

Position Key Pass Through

When Position Key Pass Through for the selected HDMI input mode is set to On, the P^P∨ and number (0-9) keys on the remote control will pass through. When in Off, those operate as TV programme selection keys.

1 In the REGZA-LINK Setup menu, press ▼ to highlight Position Key Pass Through and press OK.
2 Press ▲ or ▼ to select the appropriate HDMI mode.
3 Press ◀ or ▶ to select On.

REGZA-LINK input source selection

If a REGZA-LINK device with HDMI switching capability (e.g. AV amplifier) is connected to the HDMI input, you can select another REGZA-LINK device that is connected to the master HDMI device on the input source list.

1 Press ➕ and a list will appear on screen showing available input sources.
2 Press ▼ to select the desired input source with REGZA-LINK icon.
3 Press ▶ and a second selection screen will appear showing all connected REGZA-LINK equipment.

Inputs TV 1 2 3 HDMI 1 HDMI 2 HDMI 3 REGZA-LINK HDMI 4 PC 1 DVD 2 VCR/DVR 3 CBL/SAT 4 GAME/TV 5 AUX

4 Press ▲ or ▼ to select the desired input source, and then press OK.

NOTE:

• These functions depend on the device connected.
- If you select the REGZA-LINK input source from the popup window, some REGZA-LINK devices may automatically turn on.
- When the television is switched on it will take a few minutes for the REGZA-LINK icon to appear in the list. When an HDMI cable is removed, it will take a few minutes for the icon to disappear.
- If the HDMI cable from connected equipment is changed, Enable REGZA-LINK in the REGZA-LINK Setup menu may need to be reset to On.
- If you change the HDMI lead to a connected device or change an HDMI device setting, reset the Enable REGZA-LINK item on the REGZA-LINK Setup menu from Off to On.

REGZA-LINK Device Control

With the REGZA-LINK mode on your television's remote control, you can control the connected REGZA-LINK device you are watching.

To control the REGZA-LINK input source first select the equipment by REGZA-LINK input source selection.

1 Press QUICK to open the Quick Menu.
2 Press ▲ or ▼ to select REGZA-LINK Device Control and press OK.

REGAZA-LINK Device Control Recorder Power Eject Root Menu Contents Menu Setup Menu Top Menu DVD Menu Audio

3 Press ▲ or ▼ to select a control option and press OK.

NOTE: The available functions depend on the equipment connected. Please refer to the operation manual for each piece of equipment connected.

REGZA-LINK one touch play

When connected equipment is switched on, REGZA-LINK will automatically detect the television through the input selection. If the television is in standby, it will be switched on automatically.

These functions can be enabled or disabled from the REGZA-LINK Setup (see page 76).

NOTE:

• Even if the equipment is showing a menu, the television may automatically show the input source.
• This feature depends on the connected equipment and television state.

REGZA-LINK system standby

If the television is turned off (standby mode), the television will send a message to turn off (standby mode) all of the REGZA-LINK devices connected to the television.

These functions can be enabled or disabled from the REGZA-LINK Setup (see page 76).

NOTE: This feature depends on the connected equipment and television state.

REGZA-LINK system audio control

With your television's remote control, you can adjust or mute the sound volume of the speakers connected to the television via an AV amplifier.

1 Set the Initial Speaker setting to Amplifier in the REGZA-LINK Setup menu.

2 Confirm that a connected REGZA-LINK device (such as a DVD player, etc) is selected for the AV amplifier input source.

NOTE:

• These functions depend on the device connected.
- When you turn on the AV amplifier, change its input source, or adjust the sound volume, the sound will be output from the AV amplifier's speakers even if TV Speakers has been selected. Turn the television off and on again to output the sound from the TV Speakers.
- This feature may not work if the AV amplifier is operated.

Toshiba PC compatible with REGZA-LINK

This feature automatically adjusts the suitable widescreen formats and picture preferences when connected to a Toshiba PC compatible with REGZA-LINK.

NOTE: This feature depends on the connected equipment state.

Text services

This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of viewing text – Auto will display Fastext, if available. List will save your four favorite pages.

Selecting modes

The text character set will be automatically chosen by the language setting in the Setup menu.

1 Press MENU / ◀▶ / ▲ / ◀▶ to highlight Setup/ Preferences icons and press OK.

2 Press ▲ or ▼ to select Teletext, and then press ◀ or ▶ to select Auto or List.

Preferences Personal TV Setup REGZA-LINK Setup Network Setup Network Device Setup Photo Frame Setup Teletext Auto Network Lock Panel Lock Off

Text information

The TEXT button:

To view text services press TEXT. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Channels cannot be changed until text is cancelled.

The first text page shown will be the initial page.

Any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing P^ to advance to the next page and P∨ to go back to the previous page.

Sub-pages

The pages on the screen will dynamically update as subpages are received.

If you open a page containing sub-pages, the sub-pages are automatically displayed in sequence. To quit automatic sub-page change, press ◀ or ▶.

Once selected, the sub-page you are viewing will be highlighted and, as the television loads any additional sub-pages, the colour of the numbers will change, indicating that these pages have been loaded.

These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.

Navigating pages using Auto

If Fastext is available, four coloured titles will appear at the base of the screen.

To access one of the four given subjects, press the relevant coloured button on the remote control.

For further information on your particular text system(s), see the broadcast text index page or, consult your local Toshiba dealer.

Navigating pages using LIST

The four coloured choices at the bottom of the screen are numbers – 100, 200, 300 and 400, which have been programmed into the television's memory. To view these pages, press the relevant coloured buttons.

To change these saved pages, press the relevant coloured button and enter the 3 digit number. This number will change in the top left of the screen and in the coloured highlight.

Press OK to save. Whenever OK is pressed, all four page numbers showing at the bottom will be saved and the previous ones will be lost.

If OK is not pressed, the selection will be forgotten when the channel is changed.

Other pages may be viewed by entering the 3 digit page number – but DO NOT press OK or these pages will be saved.

Control buttons

Below is a guide to the functions of the remote control text buttons.

≡i To display the index/initial page:

Press i to access the index/initial page. The one displayed is dependant on the broadcaster.

TEXT To display a page of text:

Press TEXT to display text. Press again to superimpose text over a normal picture. Press again to return to normal television viewing. Channels cannot be changed until this has been done.

≡? To reveal concealed text:

To discover the solutions on quiz and joke pages press the ☐? button.

To hold a wanted page:

At times it is convenient to hold a page of text. Press ≡ and ≡ will appear in the top left of the screen. The page will be held on screen until the button is pressed again.

To enlarge the text display size:

Press ☐ once to enlarge the top half of the page, press again to enlarge the bottom half of the page. Press again to revert to normal size.

☑/☑ To select a page whilst viewing normal picture:

Enter the page number then press ⏻/≡×, normal picture will be displayed. The television will indicate when the page is ready by changing the colour of the page number at the top of the screen. Press TEXT to view the page.

To display news flashes:

Select the news flash page for the chosen text service (see the index page of text service). The news flashes will be displayed as and when they are broadcast.

Remember to cancel text before

changing channels - press the TEXT button twice.

Questions and Answers

Below are the answers to some of the most common queries.

Why is there no sound or picture?

Check the television is not in standby mode. Check the mains plug and all mains connections.

There is a picture, but why is there little or no colour?

When using an external source, for instance, a poor quality video tape, if there is little or no colour, improvements may sometimes be achieved. The colour is factory set to Auto to automatically display the best colour system.

To check that you have the best colour:

With the external source playing, select Colour System from the System Setup menu.

System Setup
Menu Language	English
Country	Germany
Colour System	Auto

With ◀ or ▶ choose between Auto, PAL, SECAM, NTSC 4.43 or NTSC 3.58.

Why doesn't the video/DVD being played show on screen?

Make sure the media recorder or DVD player is connected to the television as shown on page 8, and then select the correct input by pressing ⬤.

Why is there a picture but no sound?

Check all lead connections.
No sound or unacceptable format sound may be received.
Check the volume has not been turned down or that sound mute has not been selected.
Check shared audio settings.

What else can cause a poor picture?

Interference or a weak signal. Try a different television station. Manual Fine Tuning may help.

Select the ATV Manual Tuning menu. Highlight the station and press OK. Then press ▶ to select Manual Fine Tuning.

Using ▲ or ▼ adjust to get the best picture and sound. Press OK and then EXIT.

ATV Manual Tuning Manual Fine Tuning 1 I A → C 9 Q 0

Why don't the controls of the television work?

Check that Panel Lock is not On.

Why doesn't the remote control work?

Check that the batteries aren't dead or inserted incorrectly.

Why is the digital channel locked?

The channel has been locked in Channel Options (see 'Digital Settings' section).

Why are some of the digital subscription channels unavailable?

Your subscription needs upgrading. Contact your service provider.

Why is the soundtrack in English when a different audio language has been selected?

The programme is currently being broadcast with an English soundtrack only.

Why is there incorrect or no sound when in DTV mode?

Press ⒶI/Ⅱ to ensure the hard of hearing option has not been selected.

What is DVB-T?

Digital Video Broadcast via an aerial/antenna.

What is DVB-C?

Digital Video Broadcast via a cable connection.

How are radio channels selected?

Press TV on the remote control and select DTV Radio. Alternatively select from the GUIDE.

What can be done if the PIN number has been forgotten?

Use the Master PIN code of 1276, then change to a number of your choice. Select Parental PIN Setup from the DTV Settings menu to enter PIN. Ensure that no-one else can use the Master PIN by removing the Owner's Manual.

Why are there vertical stripes on the screen when in PC mode?

The Sampling Clock may need adjustment. Select PC Settings from the Display Settings menu, highlight Sampling Clock and adjust until the lines clear.

Why are there horizontal stripes and/or blurred images on the screen when in PC mode?

The Clock Phase may need adjustment. Select PC Settings from the Display Settings menu, highlight Clock Phase and adjust until the picture clears.

Why when digital subtitles have been selected are they not showing on screen?

Subtitles are not currently being transmitted by the broadcaster.

Why are there problems with analogue text?

Good performance of text depends on a good strong broadcast signal. This normally requires a roof or loft aerial. If the text is unreadable or garbled, check the aerial. Go to the main index page of the text service and look for the User Guide. This will explain the basic operation of text in some detail. If further information is needed on how to use text see the text section.

Why is a page number visible at the top of the screen but no text?

Text has been selected but Teletext information is currently unavailable on the current source.

Why are the colours wrong when an NTSC source is played?

Connect the source via a SCART lead and play. Select Colour System from the System Setup menu.

Set the Colour to Auto and exit.

Go to the Picture menu and adjust the tint.

Why don't the devices connected via HDMI operate properly?

Make sure to use cables with the HDMI logo HDMI® (see page 9).

Some early HDMI equipment may not work properly with the latest HDMI TV products, due to new standard adoption. Try switching the HDMI settings (Enable Content Type and INSTAPORT™) to Off.

Why don't the REGZA-LINK devices work?

When the connected REGZA-LINK device does not work correctly after you have changed the settings of the device, turn off your television and unplug the power cord, and then plug and turn on again. Unplug the HDMI cable of the REGZA-LINK device and lead again.

Why is the REGZA-LINK logo still showing when the equipment has been disconnected?

If the REGZA-LINK device is disconnected, the logo will disappear after approximately one minute.

Why don't the networked devices work?

The LAN cables are not connected properly or at all. Connect all cables (see page 12). Make sure your network address is set up correctly (see page 45).

Why doesn't the wireless network work?

Make sure the TOSHIBA Dual Band WLAN Adaptor is used (see page 12). Check that the AP is powered on.

Why doesn't the Media Player feature operate?

Make sure that devices are connected correctly.

Incorrect behavior may occur with a USB Hub connection.

Check your network setup if using DLNA CERTIFIED™ Server.

What do the LEDs on the front of the television indicate?

Check the table below.

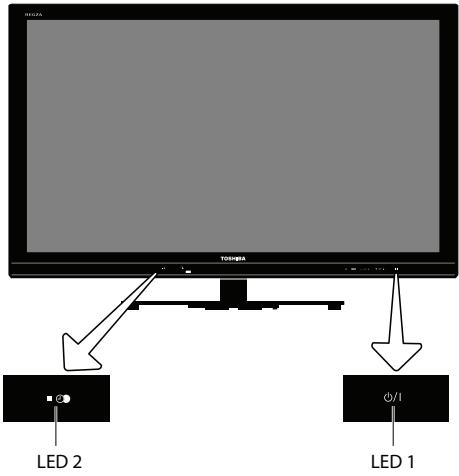

LED 2 LED 1

LED indication		Condition	Solution
LED-1	LED-2
Blue	Orange	Power ONProgramme Timer is setBoth Programme Timer(Recording) and Recording are NOT working	-
Blue	Red	Power ONProgramme Timer (Recording)or Recording is working	-
Blue	OFF	Power ONProgramme Timer is NOT setBoth Programme Timer(Recording) and Recording are NOT working	-
Red	Orange	Power OFF (Standby)Programme Timer is setBoth Programme Timer(Recording) and Recording are NOT working	-
Red	Red	Power OFF (Standby)Programme Timer (Recording)or Recording is working	-

LED indication		Condition	Solution
LED-1	LED-2
Red	OFF	Power OFF (Standby)Programme Timer is NOT setBoth Programme Timer(Recording) and Recording areNOT working	-
OFF	Green(Blinks)	Abnormal operation of BUS line.	Turn OFF the TVand unplug thepower cord. Plugthe power cord inagain and turn ONthe TV.
Red(Blinks)	OFF	Abnormal operation of WDT.
Blue(Blinks)	OFF	Fan stopped.(if applicable)
Orange	Green	For ServiceSW Upgrade in Progress	-
Red	OFF	For ServiceSW Upgrade Failed	-
Blue	OFF	For ServiceSW Upgrade Successful	-

License Information

• DOLBY. Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• HDMI® HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
- INSTAPORT™ and INSTAPORT logo are trademarks of Silicon Image, Inc. in the United States and other countries.
- YouTube and the YouTube Logo are trademarks of Google Inc.
• This product contains NetFront Browser of ACCESS CO., LTD.
- ACCESS® NetFront ACCESS, the ACCESS logo and NetFront are trademarks or registered trademarks of ACCESS CO., LTD. in the United States, Japan and other countries. © 2010 ACCESS CO., LTD. All rights reserved. This software is based in part on the work of the Independent JPEG Group.
• O OPERA® software Opera® Browser from Opera Software ASA. Copyright 1995-2010 Opera Software ASA. All rights reserved. For further information, please see http://www.opera.com
- This product contains Adobe® Flash® Player software under license from Adobe Systems Incorporated. Copyright © 1995-2009 Adobe Systems Incorporated. All rights reserved. Adobe and Flash are trademarks of Adobe Systems Incorporated.
- DIVX+ DivX®, DivX Certified®, DivX Plus™ HD and associated logos are trademarks of DivX, Inc. and are used under license. Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274
• DVB is a registered trademark of the DVB Project.

• DLNA ^ , DLNA ^ Certification Logo and DLNA CERTIFIED ^TM are registered trademarks, service marks, or certification marks of the Digital Living Network Alliance.
• THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (AVC VIDEO) AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

- THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD ("MPEG-4 VIDEO") AND/OR (ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA,L.L.C. SEE HTTP://WWW.MPEGLA.COM.

- MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

• AUDYSSEY Audyssey EQ technology EQ

- Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey EQ is a registered trademark of Audyssey Laboratories. Audyssey EQ is based on the same core technology as Audyssey MultEQ that is used for automatic correction of room acoustics. Audyssey EQ uses time-domain filters to correct problems that arise from speaker drivers and enclosures and is calibrated to account for the acoustical problems in a typical listening environment.

Disposal...

The following information is only for EU-member states:

Disposal of products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres.

The black bar indicates that the product was placed on the market after August 13, 2005.

By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

If the battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Information

Before connecting any external equipment, turn off all main power switches. If there is no switch, remove the mains plug from the wall socket.

Signal information for Mini D-sub 15 pin connector

Pin No.	Signal name	Pin No.	Signal name	Pin No.	Signal name
1	R	6	Ground	11	NC
2	G	7	Ground	12	NC
3	B	8	Ground	13	H-sync
4	NC*	9	NC	14	V-sync
5	Ground	10	Ground	15	NC

* NC = not connected

Acceptable PC signals through the PC terminal

The PC input on this TV only accepts signal formats which are compliant with VESA-DMT as shown in the table below. Since some PCs input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur; incorrect display, false format detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC to conform to a signal in the table below.

Format	Resolution	V. Frequency	H. Frequency	Pixel Clock Frequency	VESA Standard (DMT)
VGA	640 × 480	59.940Hz	31.469kHz	25.175MHz	●
		72.809Hz	37.861kHz	31.500MHz	●
		75.000Hz	37.500kHz	31.500MHz	●
SVGA	800 × 600	56.250Hz	35.156kHz	36.000MHz	●
		60.317Hz	37.879kHz	40.000MHz	●
		72.188Hz	48.077kHz	50.000MHz	●
		75.000Hz	46.875kHz	49.500MHz	●
XGA	1024 × 768	60.004Hz	48.363kHz	65.000MHz	●
		70.069Hz	56.476kHz	75.000MHz	●
		75.029Hz	60.023kHz	78.750MHz	●
WXGA	1280 × 768	59.995Hz	47.396kHz	68.250MHz	●
		59.870Hz	47.776kHz	79.500MHz	●
		74.893Hz	60.289kHz	102.250MHz	●
	1360 × 768	60.015Hz	47.712kHz	85.500MHz	●
SXGA	1280 × 1024	60.020Hz	63.981kHz	108.000MHz	●
		75.025Hz	79.976kHz	135.000MHz	●

Acceptable video or PC signals through the HDMI terminals

The HDMI inputs on this TV only accept VGA, SVGA, XGA, WXGA, and SXGA signal formats which are compliant with VESA as shown in the table below. Since some PCs and HDMI or DVI devices input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur; incorrect display, false format detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC, HDMI or DVI device to conform to a signal in the table below.

Format	Resolution	V. Frequency	H. Frequency	Pixel Clock Frequency	VESA Standard
480i	720 × 480i	59.940/60.000Hz	15.734/15.750kHz	27.000/27.027MHz
576i	720 × 576i	50.000Hz	15.625kHz	27.000MHz
480p	720 × 480p	59.940/60.000Hz	31.469/31.500kHz	27.000/27.027MHz
576p	720 × 576p	50.000Hz	31.250kHz	27.000MHz
1080i	1920 × 1080i	59.940/60.000Hz	33.716/33.750kHz	74.176/74.250MHz
1080i	1920 × 1080i	50.000Hz	28.125kHz	74.250MHz
720p	1280 × 720p	59.940/60.000Hz	44.955/45.000kHz	74.176/74.250MHz
720p	1280 × 720p	50.000Hz	37.500kHz	74.250MHz
1080p	1920 × 1080p	59.940/60.000Hz	67.433/67.500kHz	148.352/148.500MHz
1080p	1920 × 1080p	50.000Hz	56.250kHz	148.500MHz
1080p	1920 × 1080p	24.000Hz	27.000kHz	74.250MHz
VGA	640 × 480	59.940/60.000Hz	31.469/31.500kHz	25.175/25.200MHz	●
		72.809Hz	37.861kHz	31.500MHz	●
		75.000Hz	37.500kHz	31.500MHz	●
SVGA	800 × 600	56.250Hz	35.156kHz	36.000MHz	●
		60.317Hz	37.879kHz	40.000MHz	●
		72.188Hz	48.077kHz	50.000MHz	●
		75.000Hz	46.875kHz	49.500MHz	●
XGA	1024 × 768	60.004Hz	48.363kHz	65.000MHz	●
		70.069Hz	56.476kHz	75.000MHz	●
		75.029Hz	60.023kHz	78.750MHz	●
WXGA	1280 × 768	59.995Hz	47.396kHz	68.250MHz	●
		59.870Hz	47.776kHz	79.500MHz	●
		74.893Hz	60.289kHz	102.250MHz	●
	1360 × 768	60.015Hz	47.712kHz	85.500MHz	●
SXGA	1280 × 1024	60.020Hz	63.981kHz	108.000MHz	●
		75.025Hz	79.976kHz	135.000MHz	●

Media Player Supported Format

Media Player	Media Format	File Extension	Video/Audio codec	USB	DLNA	Note
Photo	JPEG	.jpg.jpeg	JPEG	Yes	Yes
						Data compatibility: JPEG Exif ver 2.2Maximum viewable resolution:4096 x 4096 (HW decode)16384 x 16384 (SW decode)Maximum photo size: 9MBMaximum number of files: 2000 / folderData compatibility: JPEG EXIF Ver.1.x or later, JFIF 1.02aMaximum photo resolution: 4096 x 4096Maximum photo size: 6 MBMaximum number of files: 2000 / folder
Movie	MPEG-2 PS MPEG-2 TS	.mpg.mpeg.ts	Video) MPEG-1 Video	Yes	No
			Video) MPEG-2 VideoH.264(MPEG-4 AVC)	Yes	Yes	Maximum number of files: 2000 / folderMaximum number of files: 2000 / folder*) Some files may not be played.*) Normal playing and trick playing may not be available depending on the contents.*) Div X external subtitles are not support.
			Audio) MPEG-1 Layer1MPEG-1 Layer2MPEG-2 Layer2Dolby Digital (AC-3)L-PCM	Yes	Yes
			Audio) Dolby Digital PlusAACHE AAC	Yes	No
	MP4	.mp4.m4v	Video) H.264(MPEG-4 AVC)	Yes	Yes
			Audio) AAC	Yes	Yes
			Audio) HE AACDolby Digital (AC-3)Dolby Digital Plus	Yes	No
	AVIDivXDivX Plus HD	.avi.divx.div	Video) DivX (3,4,5,6)	Yes	No
			Audio) Dolby Digital (AC-3)MPEG-1 Layer3MPEG-1 layer3	Yes	No
	MKVDivX Plus HD	.mkv	Video) H.264	Yes	No
			Audio) AACHE AACDolby Digital (AC-3)MPEG-1 Layer 3	Yes	No
	AVCHD	.mts.m2ts	Video) H.264(MPEG-4 AVC)	Yes	Yes
			Audio) Dolby Digital (AC-3)	Yes	Yes
Music	MP3	.mp3	Audio) MPEG-1 Audio Layer-3MPEG-2 Audio Layer-3MPEG-2.5 Audio Layer-3	Yes	Yes
	MP4	.mp4.m4a	Audio) AAC	Yes	No	Maximum number of files: 2000 / folderMaximum number of files: 2000 / folder* Some files may not be played.
			Audio) HE AAC	Yes	No
	L-PCM		Audio) L-PCM	No	Yes

3D Support Format (HDMI)

Resolution	Aspect ratio	V.Frequency	H.Frequency	Pixel Clock Frequency	3D Structure
720 × 480p	16:9	59.940/60.000Hz	31.469/31.500kHz	27.000/27.027MHz	Side by Side (Full)
					Side by Side (Harf)
					Top and Bottom
720 × 576p	16:9	50.000Hz	31.250kHz	27.000MHz	Side by Side (Full)
					Side by Side (Harf)
					Top and Bottom
1280 × 720p	16:9	59.940/60.000Hz	90.0/89.91kHz	148.352/148.500MHz	Frame Packing
			44.955/45.000kHz	74.176/74.250MHz	Side by Side (Harf)
					Top and Bottom
		50.000Hz	75.000kHz	148.500MHz	Frame Packing
			37.500kHz	74.250MHz	Side by Side (Harf)
					Top and Bottom
1920 × 1080i	16:9	59.940/60.000Hz	33.716/33.750kHz	74.176/74.250MHz	Side by Side (Harf)
					Top and Bottom
		50.000Hz	28.125kHz	74.250MHz	Side by Side (Harf)
					Top and Bottom
1920 × 1080p	16:9	24.000Hz	54.000kHz	148.500MHz	Frame Packing
			27.000kHz	74.250MHz	Side by Side (Harf)
					Top and Bottom
		30.000Hz	67.433/67.500kHz	148.352/148.500MHz	Frame Packing
			33.716/33.750kHz	74.176/74.250MHz	Side by Side (Harf)
					Top and Bottom
		50.000Hz	56.250kHz	148.500MHz	Side by Side (Harf)
					Top and Bottom
		59.940/60.000Hz	67.433/67.500kHz	148.352/148.500MHz	Side by Side (Harf)
					Top and Bottom

3D Support Format (DTV)

Video Format	Aspect ratio	V.Frequency	3D Structure
720p	16:9	59.940/60.000Hz	Side by Side (Harf)
			Top and Bottom
		50.000Hz	Side by Side (Harf)
			Top and Bottom
1080i	16:9	59.940/60.000Hz	Side by Side (Harf)
		50.000Hz	Side by Side (Harf)
1080p	16:9	24.000Hz	Side by Side (Harf)
			Top and Bottom
		30.000Hz	Side by Side (Harf)
			Top and Bottom
		50.000Hz	Side by Side (Harf)
			Top and Bottom
		59.940/60.000Hz	Side by Side (Harf)
			Top and Bottom

* Side by Side (Full) is composed of left and right stereoscopic pictures that each size is equal to 2D.

Side by Side (Full)

2D Video

L

R

3D Video

Side by Side (Half)

2D Video

3D Video

Specifications and accessories

Receiving systems

DVB-T Broadcast systems/channels		Broadcast systems/channels
UK	UHF 21-68	PAL-I	UHF UK21-UK69
France	VHF 05-10 (VHF 01-05)UHF 21-69	PAL-B/G	UHF E21-E69VHF E2-E12, S1-S41
Germany	VHF 05-12UHF 21-69	SECAM-L	UHF F21-F69VHF F1-F10, B-Q
Austria	VHF 05-12UHF 21-69	SECAM-D/K	UHF R21-R69VHF R1-R12

Switzerland	VHF 05-12
	UHF 21-69

Italy	VHF 05-12 (D,E,F,G,H,H1,H2)
	UHF 21-69

Spain

UHF 21-69

Greece	VHF 05-12
	UHF 21-69

DVB-C Broadcast systems DVB-S/DVB-S2 Broadcast systems

Video Input PAL, SECAM, NTSC 3.58/4.43
External connections

EXT 1	Input/Output	21-pin SCART	RGB, A/V inputAV out, TV out
EXT 2	Input	Phono jacks	Y, P_B/C_B, P_R/C_R Audio L + R
		Phono jacks
EXT 3	Input	Phono jacks	Video/Audio L + R
HDMI 1/2/3/4	Input	HDMI® compliant
		HDCP compliant(Enable Content Type, INSTAPORTTM, RGB Range, supported)
PC	Input	Analog RGB
PC/HDMI 3	Audio input	3.5mm mini jack	Audio
Digital Audio Output (S/PDIF)		Optical
LAN port		RJ-45
USB 1/USB 2 port		Media PlayerInterface version: USB 2.0USB class: Mass StorageFile system: FAT16 and FAT32
USB 2 port		Wireless LAN adaptor ready for a home network, IEEE802.11a/b/g/n compatible
Headphone socket		3.5mm stereo
Stereo		A2, Nicam2 carrier system
Visible Screen Size (approx.)	Model	42	107cm
		47	119cm
Display		16:9
Sound output(at 10% distortion)		Main:	10W + 10W
		Woofer:	10W

Power consumption(approx.)	42VL	163W
	47VL	163W
Annual power consumption*(approx.)	42VL	167.9kWh
	47VL	167.9kWh
On mode power consumption**(approx.)	42VL	115W
	47VL	115W
Standby power consumption(approx.)	42VL	0.3W
	47VL	0.3W

* Operating 4 hours a day and 365 days a year.
** Tested in accordance with IEC 62087-BD Ed. 2.0:2008.

Dimensions(approx.)	42VL	69cm (H) 101cm (W)	29cm (D)
	47VL	75cm (H) 112cm (W)	29cm (D)

(Height dimension includes foot stand)

Weight (approx.)	42VL	17.5kg
	47VL	22.5kg

Operating condition

Temperature 5°C - 35°C (41°F - 94°F) Humidity 20 - 80% (non-condensing)

Supplied accessories

• Remote control CT-903832 batteries (AAA, IEC R03 1.5V)

• Four pairs of 3D glasses

• SCART Adaptor cable

• Component Adaptor cable

• AV Adaptor cable

• RGB/PC-D-sub15pin(mini) Adaptor cables(w/audio)

• Two Cable clamps

• 'P' Clip/Screw (for TV mounting)See page 5.

Optional accessories

TOSHIBA Dual Band WLAN AdaptorWLM-10U2

Specification is subject to change without notice.

© TOSHIBA Television Central Europe Sp. z o.o.

All rights reserved.

Reproduction in whole or part without written permission is strictly prohibited.
