Product Type	Ice Cube Machine
Brand	Bifinett
Model	KH 670
Power Supply	230-240 V~, 50 Hz
Power Consumption	200 W
Water Reservoir Capacity	ca. 3.5 L
Ice Cube Sizes	Small, Medium, Large (selectable)
Ice Production Time	Approx. 15 minutes per cycle
Water Temperature Range	7°C to 32°C
Ambient Temperature Range	Below 32°C
Ventilation Clearance	At least 15 cm from walls
Drainage Valve	Yes, at rear
Control Panel	ON/OFF button, ice cube size button, status displays
Auto Shut-off	Yes, when ice collector full or water reservoir empty
Ice Cube Collector Container	Included
Intended Use	Domestic households only, not for commercial use
Cleaning	Regular cleaning with damp cloth; drain water when not in use
Storage	Dry place, do not tip during transportation or storage
Warranty	Provided on warranty card
Service Address	Kompernaß GmbH, Burgstrasse 21, D-44867 Bochum, Germany

Frequently Asked Questions - KH 670 BIFINETT

How do I start ice production?

Fill the water reservoir up to the fill line (ca. 3.5 L) with drinking water. Place the ice cube collector container inside, close the lid, and press the ON/OFF button. The machine will start pumping water and freezing.

What type of water should I use?

Only use drinking water for ice production. For health reasons, discard the first batch of ice cubes.

How do I select the ice cube size?

Press the Ice Cube Size button repeatedly until the control lamp under the desired size (small, medium, large) glows. If ambient temperature exceeds 16°C, choose small or medium to prevent sticking.

What should I do if no ice cubes are produced?

Check if the water temperature is between 7°C and 32°C and ambient temperature below 32°C. Ensure the water reservoir is filled and the ice collector container is not full. If the issue persists, contact the Service department.

How do I clean the ice maker?

Unplug the appliance, allow it to cool, and drain any remaining water via the drainage valve at the rear. Wipe all surfaces with a lightly moistened cloth. Do not use cleaning agents or solvents. Leave the lid open until dry.

How should I store the ice maker when not in use?

Ensure the machine is completely dry inside. Store it in a dry place. During transportation or storage, do not tip the appliance.

What does it mean when the 'Ice cube collector container' indicator glows?

The ice cube collector container is full. Remove the ice cubes to allow the machine to continue automatically.

Can I use an extension cord?

No, do not use extension cables. In an emergency, the power plug must be quickly accessible.

How do I drain the water from the machine?

Unplug the appliance, place a container under the drainage valve at the rear, open the valve, and let the water drain out. Close the valve when done.

What is the warranty period?

Refer to the warranty card included with your appliance for warranty conditions and service address.

USER MANUAL KH 670 BIFINETT

Exterior view of a modern ice cream appliance with a digital display, surrounded by people in the background (no visible text or symbols on the device itself)

Operating instructions

NL Ijsblokjesmachine KH 670

Gebruiksaanwijzing

Empty black rectangle with corner markers, no text or symbols present

bifinett KH 670

Safety instructions 10

Delivery Contents 11

Description of the appliance 11

Starting up 11

Producing ice cubes 11

Cleaning and care 13

Storage and transportation 13

Disposal 13

Warranty & service 13

Troubleshooting 14

Read the operating instructions carefully before using the appliance for the first time and preserve this booklet for later reference. Pass the manual on to whomsoever might acquire the appliance at a later date.

Ice Cube Machine KH 670

Intended use

This appliance is intended exclusively for the production of ice cubes in domestic households. It is not intended for continuous operation. The appliance is not intended for use in a commercial setting.

Technical data

Power supply: 230-240 V\~, 50Hz

Power consumption: 200 W

Safety instructions △

To avoid potentially fatal electric shocks:

• Ensure that the power cable never becomes wet or damp during operation. Lay the cable such that it cannot be pinched or otherwise damaged. Should the power cable or the plug be damaged, have the customer service replace it before you use the appliance again.
• Do not leave the appliance permanently connected to the mains network.
  • Always remove the plug from the power socket after use. This will ensure that the appliance does not start unintentionally.
• Do not use the Ice Cube Machine outdoors. Do not expose the Ice Cube Machine to rain.

To avoid the risk of fire or injury:

• When in use, do not attempt to touch anything inside the appliance, especially the cooling/heating pipes.
• Do not insert objects of any kind into the appliance.
• Do not touch any moving or electrically charged parts in the interior of the appliance.
• Never cover the ventilation slots. Ensure it is placed at a sufficient distance from walls (min.15cm).
• Never leave the appliance unattended when it is in use.
• Do not permit children or infirm persons to use the appliance without supervision. They cannot always correctly assess the potential hazards.
• Only use the appliance on a stable, non-slippery and level surface.
• Do not place burning objects, such as for example candles, on the appliance.
• Avoid close proximity to heat sources, e.g. direct solar radiation, heaters and other appliances etc.!
• Do not place water-filled receptacles, such as flower vases, on the appliance.
• Do not use extension cables. In an emergency the power plug must be quickly accessible.
• You may not open the casing or repair the appliance yourself. If you do, appliance-safety can no longer be assured and the warranty is voided. Repairs are to be carried out exclusively by a specialist firm or the service centre.

Delivery Contents

Ice Cube Machine Ice cube collector container Operating instructions Warranty card

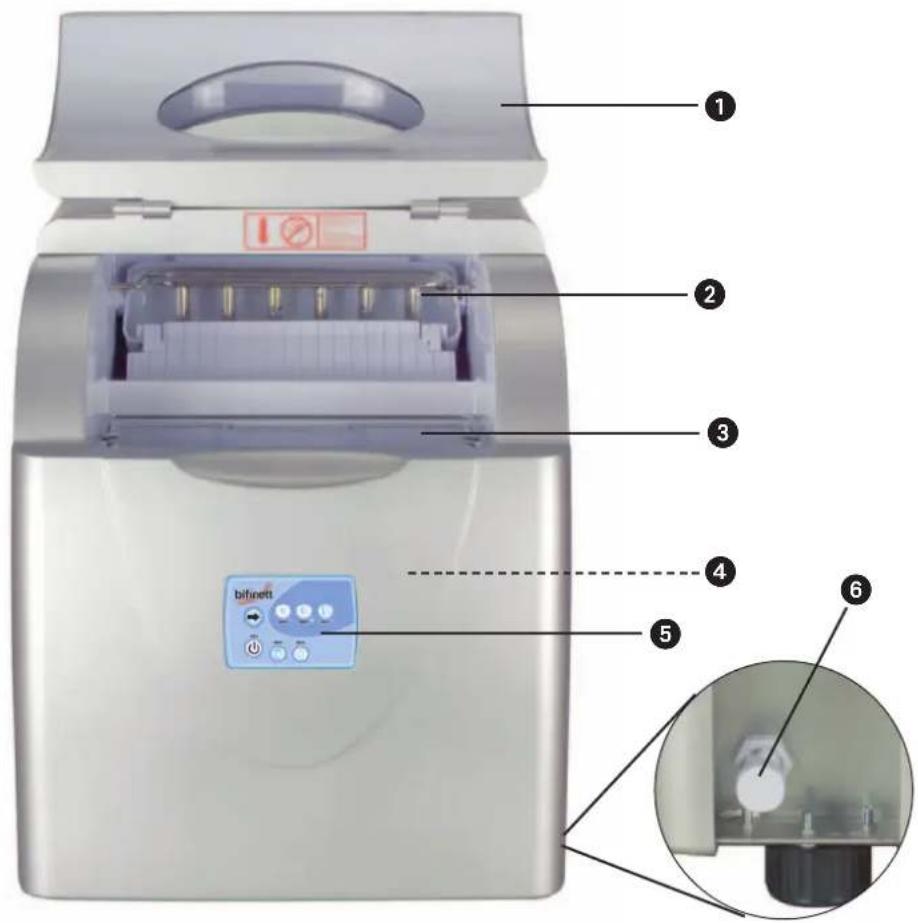

Description of the appliance

Device

① Lid
② Cooling/Heating pipes
③ Ice cube collecter container
④ Water reservoir (ca. 3,5 Liter)
5 Control panel
⑥ Drainage valve at the rear of the Ice Cube Machine

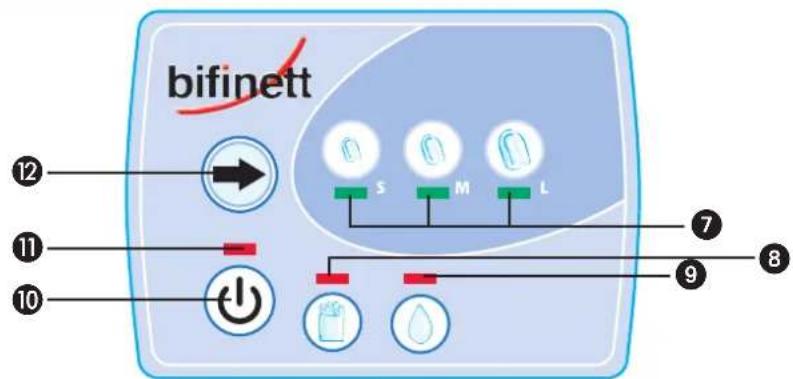

Control panel

⑦ Control lamps - ice cube size
⑧ Display - "Content level - Ice cube collector container"
⑨ Display - "Content level - Water reservoir"
⑩ Button - ON/OFF
Control lamp ON/OFF
⑫ Button - Ice cube size

Starting up

Before starting up the appliance, make certain that ...

• the appliance, power plug and power cable are in a faultless condition and
• all packaging materials have been removed from the Ice Cube Machine.
  First of all, clean the appliance as described in the chapter „Cleaning and Care“.

① Note: Allow the Ice Cube Machine to stand undisturbed for 12 hours before taking it into use, this will permit the cooling agent to settle and allow the appliance to adjust itself to the ambient temperature.
⚠ Important: Never cover the ventilation slots. Ensure it is placed at a sufficient distance from walls (min.15cm).

Producing ice cubes

1. Place the power plug in a wall socket. The control lamp ON/OFF ⑪ flashes, showing the standby readiness of the Ice Cube Machine.
   ① Note: Only use drinking water for the production of ice cubes.
   ① Note: For health and hygiene reasons you should dispose of the ice cubes produced in the first production cycle and not use them for the cooling of foodstuffs or drinks.
2. Open the lid ① and remove the ice cube collector container ③ from the appliance.
3. Pour water in up to the fill marking ("Fill Line") inside the water reservoir ④. The water reservoir holds ca. 3,5 Liters ④.
   (i) Note: To achieve correctly sized ice cubes the water temperature must lie between 7°C and 32°C.

bifinett KH 670

1. Replace the ice cube collector container ③ into the appliance and close the lid ①.
2. Press the button ON/OFF 10 on the control panel 5. The control lamp ON/OFF 11 glows. The Ice Cube Machine pumps water to the cooling/heating pipes 2 and commences with freezing.
3. Select the desired ice cube size: Press repeatedly on the button ice cube size 12 until the control lamp 7 glows under the desired size. Should the ambient temperature exceed 16°C, selecting the small or medium size is to be recommended. Otherwise, the ice cubes could stick to each other.

⚠ Important: Under no circumstances should you place your hands or fingers in the Ice Cube Machine during the freezing process!

After ca. 15 minutes the finished ice cubes automatically slide through the throw-out mechanism into the ice cube collector container ③.

The Ice Cube Machine automatically interrupts the freezing process if the ice cube collector container is full ③ or the water reservoir ④ is empty:

• The display „Content level - Ice cube collector container“ ⑧ on the control panel ⑤ glows:
  The ice cube collector container is full. Remove the ice cubes. The Ice Cube Machine automatically continues the process.

• The display „Content level - Water reservoir“ ⑨ on the control panel ⑤ glows.
  There is too little water in the water reservoir ④. Refill it. Wait for 3 minutes until the cooling agent in the compressor has settled.
  Press the button ON/OFF 10. The ice cube machine switches itself off.
  Press the button ON/OFF 10. The ice cube machine restarts itself.

① Note: On hygienic grounds the water in the water reservoir should be changed every 24 hours.
① Note: Should the appliance become separated from the mains network during operation or the lamps on the control panel glow, please check to see if an ice cube is blocking the throw-out mechanism. Should this be the case, remove the plug from the wall socket and carefully move the throw-out mechanism to the rear! Loosen and remove the blocking ice cube.

In the ice cube collector container ③ the ice cubes are kept cool for a short period.

For long-term storage remove the processed ice cubes from the appliance and store them in, for example, the freezer compartment of a refrigerator. Switch the appliance off when you no longer require further ice cubes.

Cleaning and care

Clean the Ice Cube Machine regularly. If you are not using the appliance, absolutely remove the water in it - by means of the drainage valve 6:

→ Remove the plug from the wall socket.
Place the Ice Cube Machine in such a position that you can hold a sufficiently large container under the drainage valve ⑥.
Hold a sufficiently large container under the drainage valve ⑥.
→ Open the drainage valve ⑥. The water drains out.
Close the drainage valve ⑥ when no more water flows from the valve.
Leave the lid ① open until the Ice Cube Machine is dry on the inside. This will avoid the formation of mould.

Before cleaning the appliance:

→ Remove the power plug from the power socket.
Allow the appliance to cool.
Should there still be water in the appliance, pull the drainage valve out and drain off the water.
Clean all areas, surfaces and the power cable with a lightly moistened dishcloth. Dry the appliance well before re-using it.
Do not use cleaning agents or solvents. These can cause damage to the appliance.

Storage and transportation

First allow the appliance to dry completely before before placing it in storage.

→ Store the appliance in a dry place.
Do not tip the Ice Cube Machine during transportation or storage.

Disposal

Do not dispose of the appliance in your normal domestic waste.

Dispose of the appliance through a registered specialist disposal firm or through your community waste disposal department.

Observe the currently applicable regulations. In case of doubt, contact your local waste disposal facility.

Warranty & service

The warranty conditions and the service address can be found on the warranty slip.

Kompernaß GmbH

Burgstrasse 21

D-44867 Bochum

www.kompernass.com

Troubleshooting

Problem Possible Cause	Solution
The display „Content level - Ice cube collector container” 8 glows.	There are too many ice cubes in the ice cube collection container3.	Empty the ice cube collection container3.
	The temperature of the water is too low.	Raise the water temperature to above 7°C.
The display „Content level - Water reservoir” 9 glows.	There is too little water in the water reservoir4.	Switch the appliance off, top up the water level, and after 3 minutes switch the appliance back on.
The displays „Content level - Ice cube collector container” 8 and „Content level - Water reservoir” 6 are flashing.	The throw-out mechanism cannot move itself.	Disconnect the power plug. Check to see if an ice cube is blocking the throw-out mechanism. If yes, carefully remove the ice cube. Restart the freezing process.Contact the Service department if the throw-out mechanism continues to be immobile after removing the ice cube.
The ice cubes are too big and stick to each other.	The ice cube production process takes too long.	Select a smaller ice cube size.Switch the appliance off, wait until the ice cubes melt, then switch the appliance back on.
	The water temperature in the water reservoir is too low.	Exchange the water in the water reservoir4. The water temperature must lie between 7°C and 32°C.
The ice cube production process runs normally, but no ice cubes are produced.	The ambient temperature or the water temperature in the water reservoir is too high.	Operate the Ice Cube Machine with an ambient temperature of less than 32°C.Fill the water reservoir4with colder water.
	The cooling system is leaky.The pipeline in the cooling system is blocked.	Contact the Service department.
The control lamp ON/OFF 11 flashes, even though you have just recently started a production process.	The power supply to the appliance is unintentionally interrupted during the ice cube production process.	Switch the appliance off and remove the power plug. Wait a few minutes and remove the possibly jammed ice cube. Switch the appliance back on and restart the ice cube production process.
