Type	Freestanding Cooker
Brand	M-System
Model	PRDK-1050
Energy Source	Electric
Number of Burners	4
Oven Capacity	60 liters
Oven Type	Conventional
Dimensions (HxWxD)	900 x 600 x 600 mm
Weight	60 kg
Power Consumption	10.5 kW
Functions	Bake, Grill, Defrost, Fan Oven
Cleaning Method	Manual cleaning with damp cloth
Safety Features	Child lock, Automatic shut-off
Spare Parts Availability	Available from M-System service centers
Warranty	2 years
Control Type	Knobs and digital display
Oven Door	Drop-down with double glazing
Certification	CE, RoHS

Frequently Asked Questions - PRDK-1050 M-SYSTEM

How do I install the PRDK-1050 cooker?

Ensure the appliance is placed on a level, heat-resistant surface. Connect to a dedicated 230V/16A socket. Do not plug into an extension cord. Refer to the installation guide in the manual.

What should I do if the oven doesn't heat up?

Check the power supply and circuit breaker. Verify that the oven function selector is set correctly. If the issue persists, contact M-System support for heating element replacement.

How do I clean the ceramic hob?

Use a dedicated ceramic hob cleaner and a soft cloth. Avoid abrasive sponges. Clean spills immediately to prevent staining. For burned-on residues, use a scraper tool.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire oven bottom as it may block airflow. Do not let foil touch the heating elements. Use only for lining baking trays.

Why is the timer not working?

Ensure the oven is powered on. The timer may need to be set after selecting a function. Check the manual for specific timer programming steps. If still faulty, reset the appliance.

How do I activate the child lock?

Press and hold the 'Key' or 'Lock' button for 3 seconds until the symbol appears on the display. Repeat to deactivate. This prevents accidental operation by children.

What are the recommended oven temperatures for baking?

For most cakes, preheat to 180°C (350°F). For bread, 200-220°C. Always follow your recipe. Use an oven thermometer for accuracy.

How often should I replace the oven door seal?

Replace if the seal is torn, worn, or if heat escapes. Typically every 2-3 years. Contact M-System for genuine replacement seals.

Can I cook directly on the oven floor?

No, always use a baking tray or rack. Direct contact may damage the enamel and cause uneven cooking. Place food on the appropriate shelf level.

What does the 'Defrost' function do?

The defrost function uses the oven fan at room temperature to circulate air, speeding up thawing without cooking the food. Ideal for meat and bread.

USER MANUAL PRDK-1050 M-SYSTEM

Instruction for the use

Installation advice

English Page Instruction for the use - Installation advice

Circular maze pattern with concentric rings and a central oval, labeled 'Afb. 3.2' at bottom (no other text or symbols)

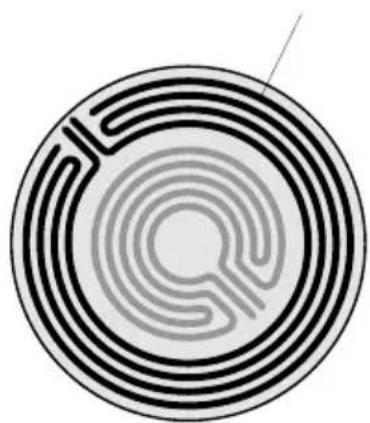

DOPPELE KOOKZONES

Abstract spiral pattern with concentric black and gray lines forming a circular design (no text or symbols)

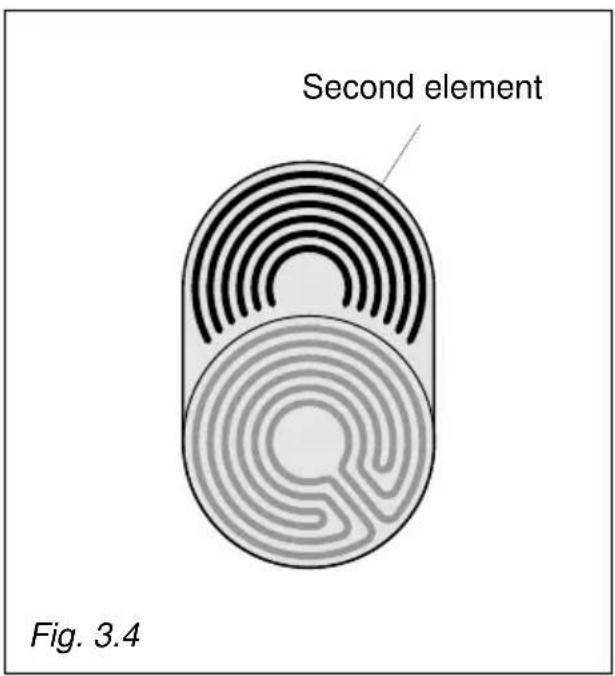

Afb. 3.4

Doppele kookzone

Circular diagram with concentric black and gray spiral patterns, no text or symbols present

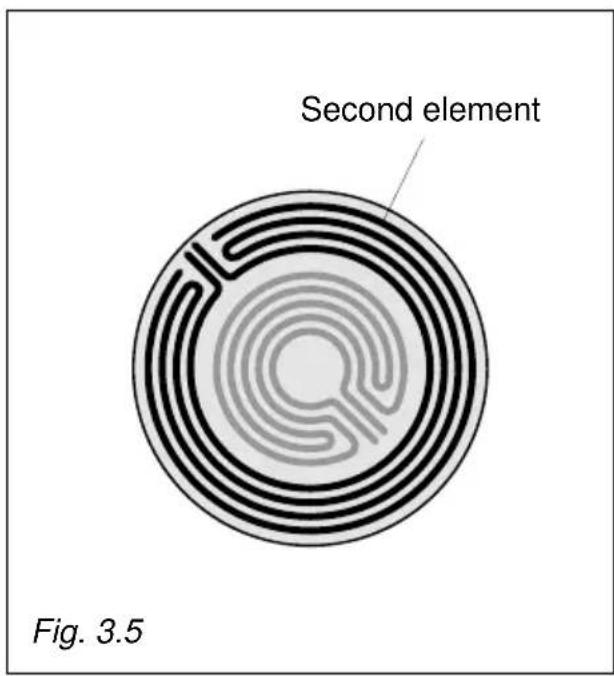

Afb. 3.5

CONTROLELAMPJE "PLAAT WARMI"

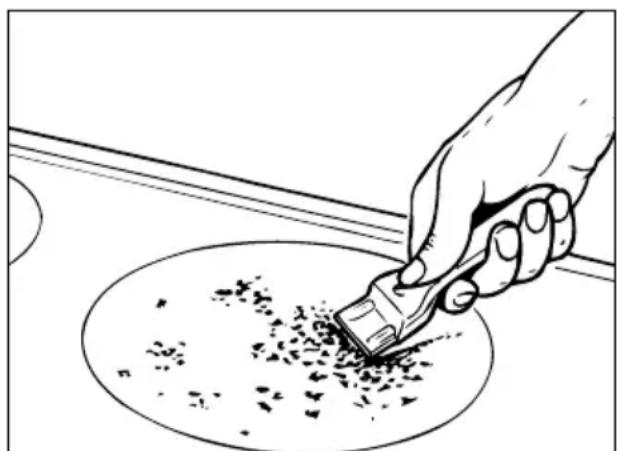

Hand using a tool to brush or mark on a circular surface, no text or symbols visible

4 - ELEKTRISCHE MULTIFUNKTIE OVEN (oven links)

Opgelet :

Line drawing of an open refrigerator with internal compartments and a labeled section (Afb. 5.3), no text or symbols on the diagram itself.

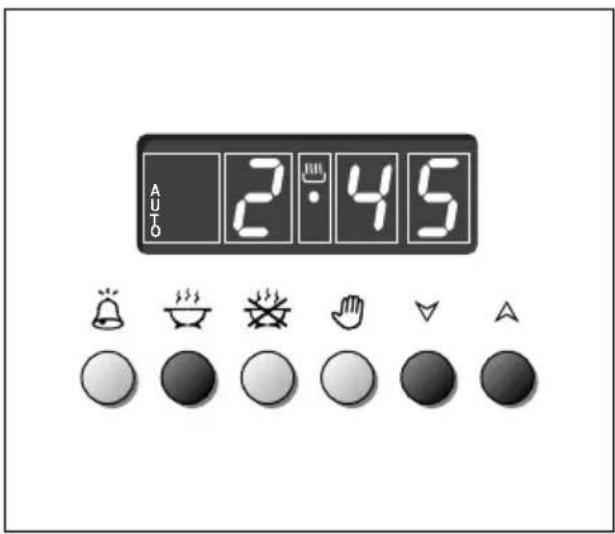

6 - ELEKTRONISCHE DIGITALE PROGRAMMERING

Row of eight simple icons including bell, alarm, hand gesture, and circle (no text or labels)

Afb. 6.1

Row of eight simple icons including bell, steam drop, alarm, hand gesture, play button, and triangle (no text or symbols)

Afb. 6.2

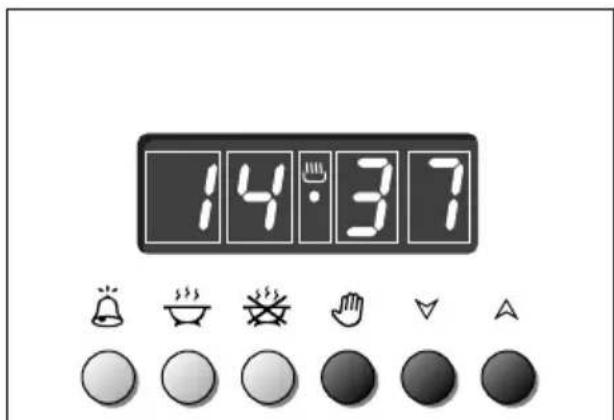

DIGITAALKLOK (afb. 6.2)

Technical line drawing of a cabinet interior with two compartments mounted on a tray (no text or symbols)

Afb. 7.1

OVENDEUR

Technical line drawing of a structural support bracket with mounting base (no text or symbols)

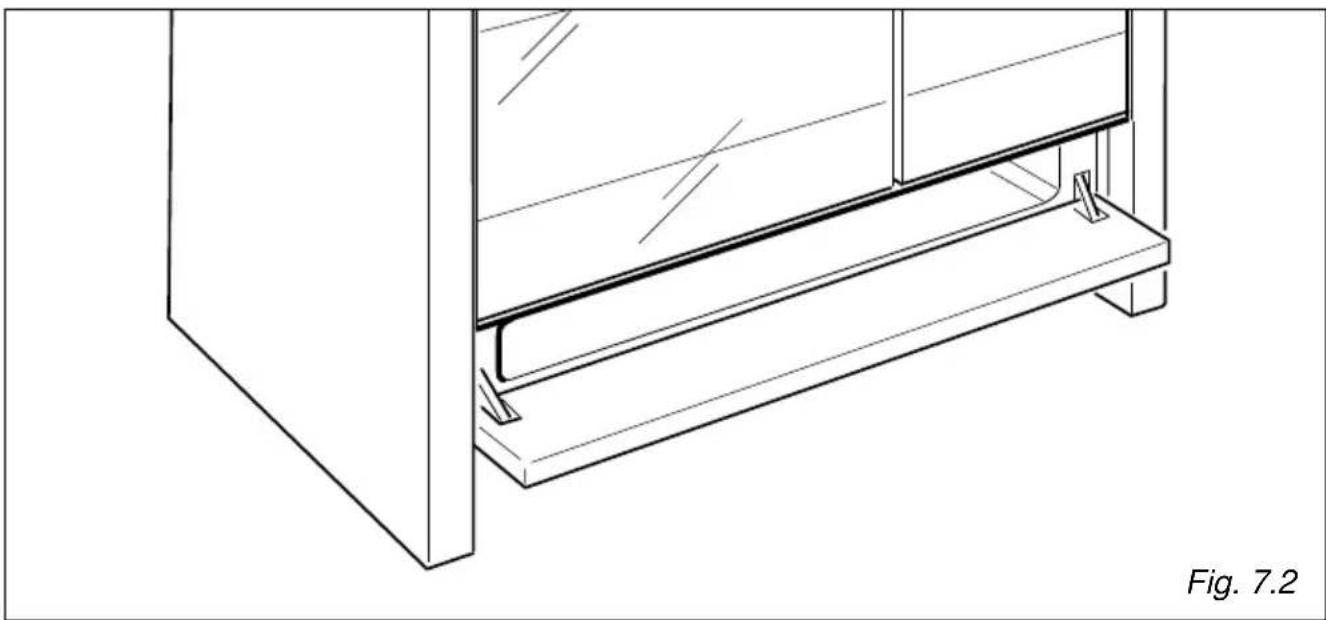

Afb. 7.2

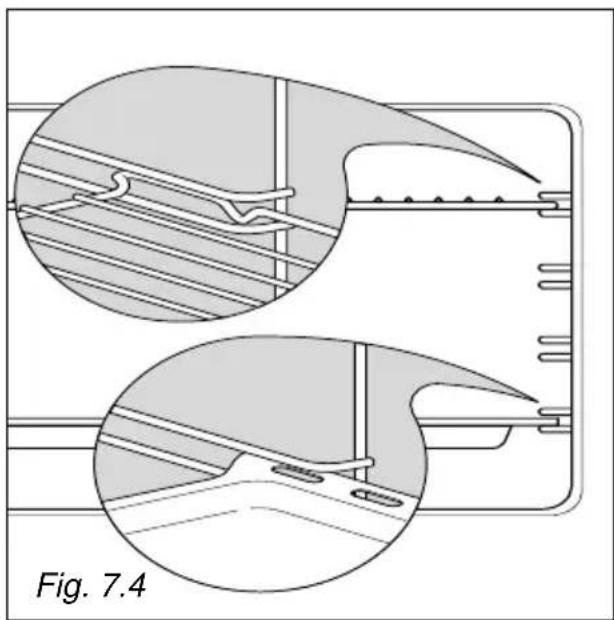

OVEN

Technical diagram of a mechanical assembly with spring-loaded components and directional arrows (no text or symbols)

Technical diagram showing two views of a mechanical component with hinged parts and fasteners, labeled 'Afb. 7.4' (no text or symbols on the diagram itself)

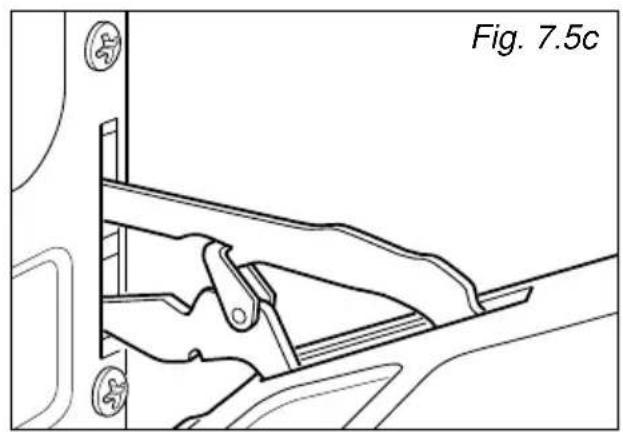

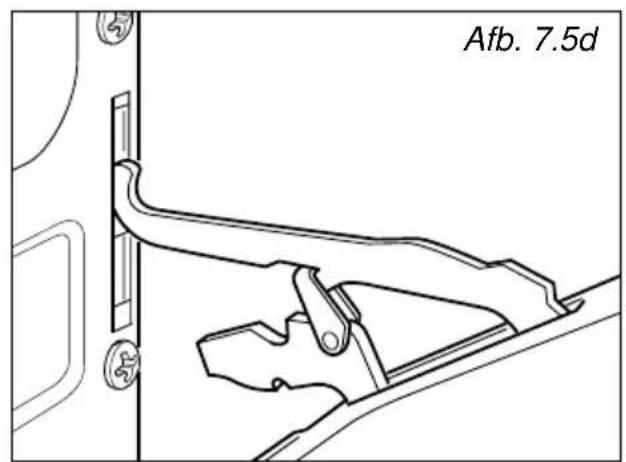

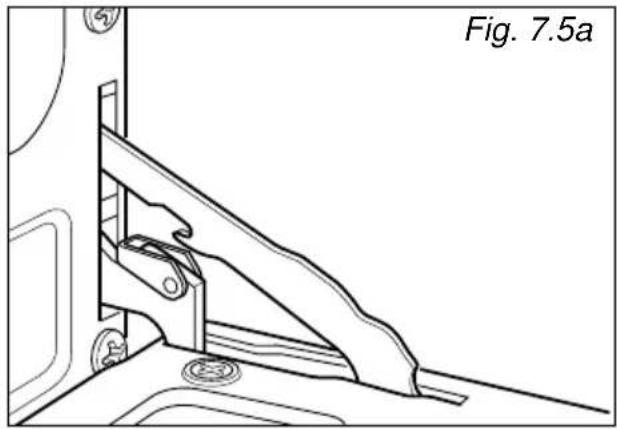

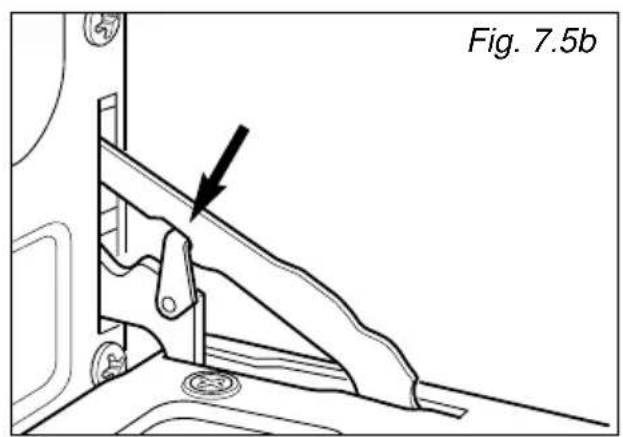

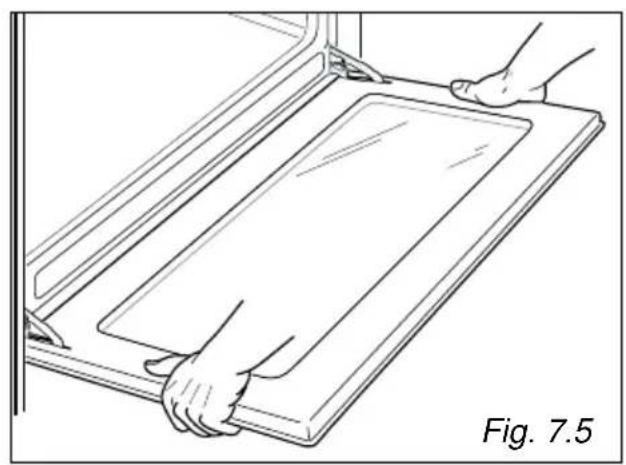

DEMONTAGE VAN DE OVENDEUR

Line drawing of hands installing or adjusting a rectangular panel on a shelf (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with motion arrows and label 'Afb. 8.2' (no text or symbols on the diagram itself)

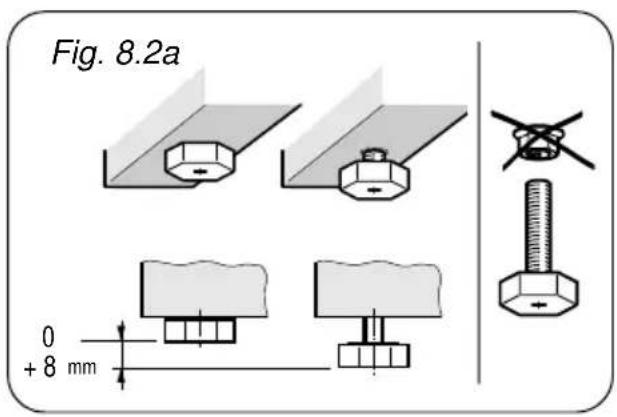

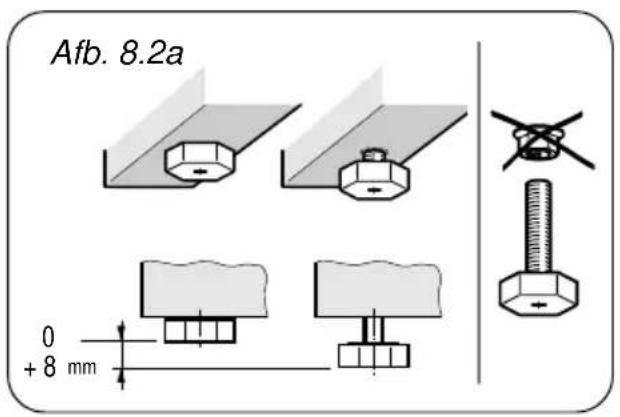

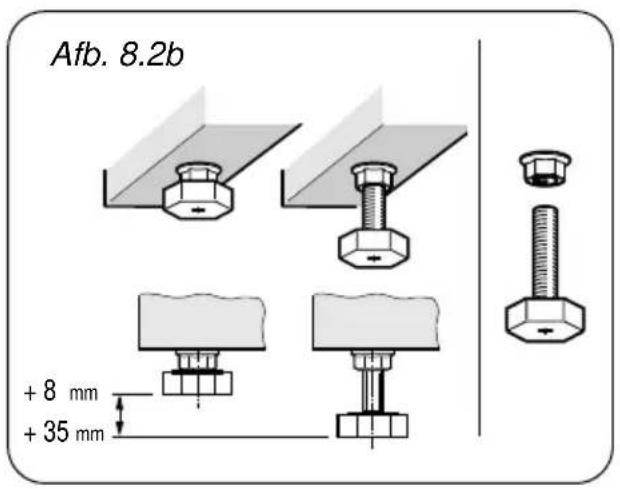

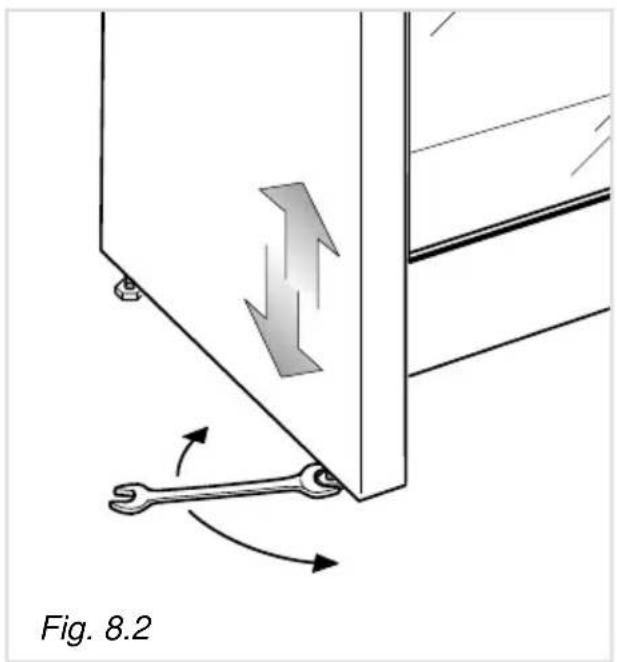

INSTALLATIE VAN REGELBARE VOETJES

Line drawing of two people assembling a large stove on a tiled floor (no text or symbols)

Afb. 8.4

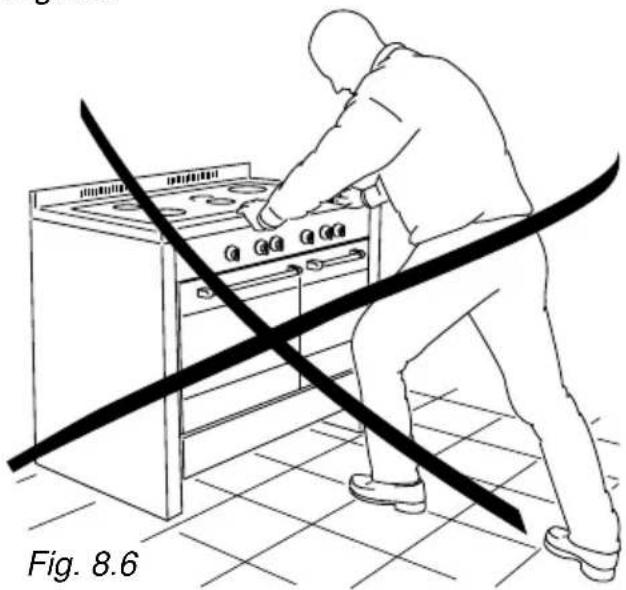

Line drawing of a person using a portable stove with a diagonal line crossing the floor (no text or symbols)

Afb. 8.6

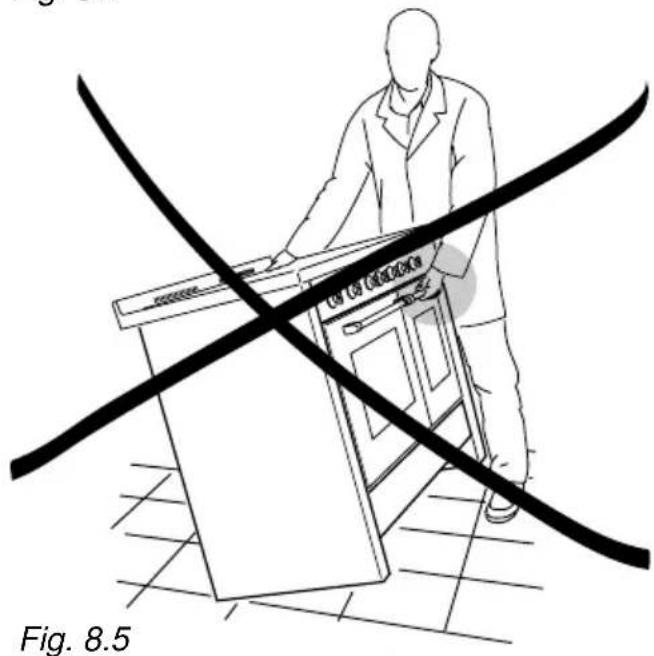

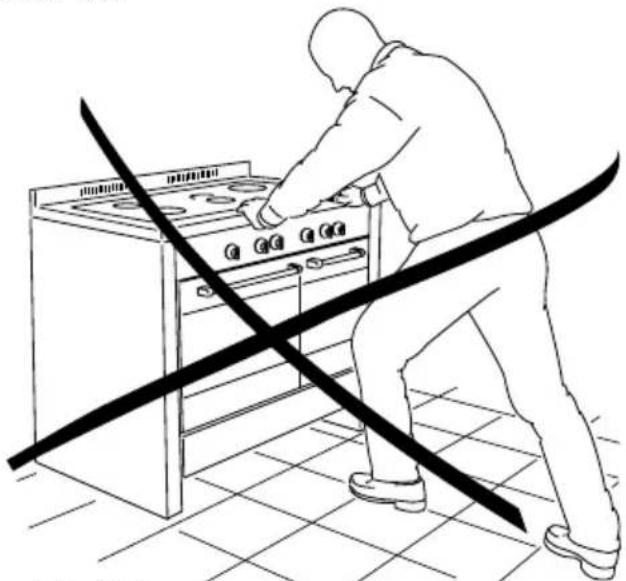

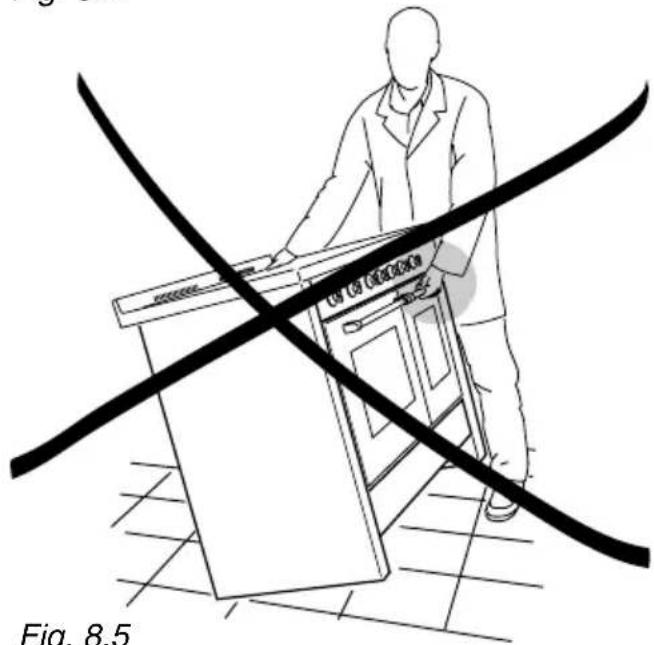

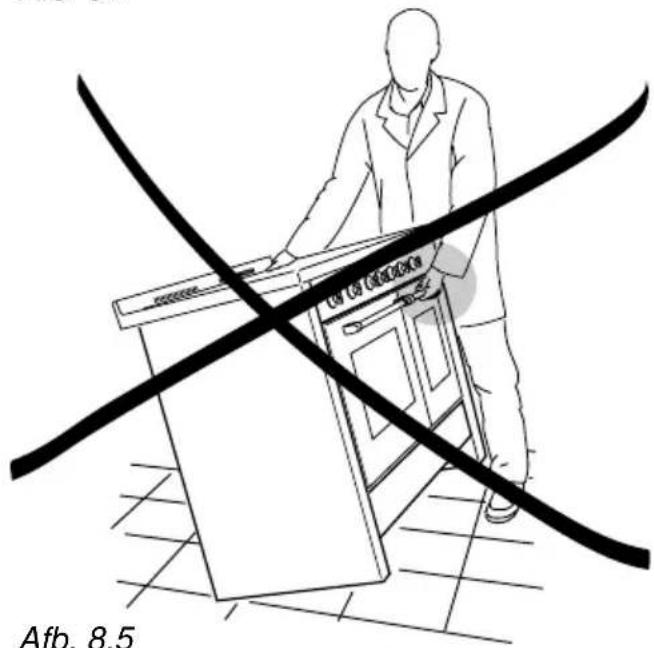

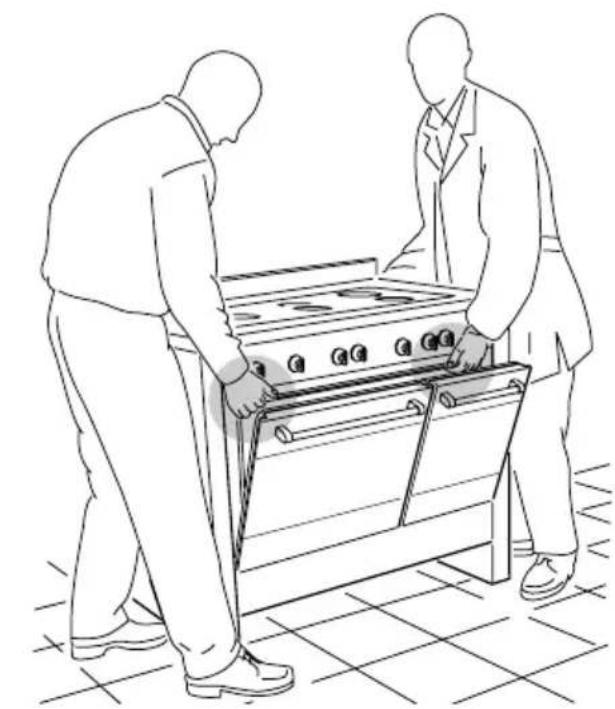

BEWEGINGSSYSTEEM VAN HET FORNUIS

WAARSCHUWING

Circular maze pattern with concentric rings and a central oval, labeled 'Abb. 3.2' (no other text or symbols)

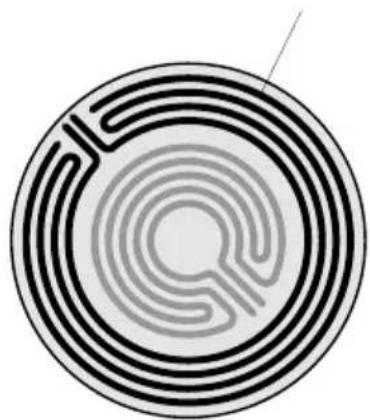

DUO-SCHNELLKOCHZONE

Abstract spiral pattern with concentric black and gray lines forming a circular design (no text or symbols)

Abb. 3.4

Zweiten Kochzone

Circular diagram with concentric black and gray spiral patterns, no text or symbols present

Abb. 3.5

Illustration of a hand using a tool to brush or mark on a circular surface with scattered particles (no text or symbols)

Abb. 3.8

4 - MULTIFUNKTIONS-BACKOFENS (Ofen links)

Line drawing of an open refrigerator with internal compartments and a labeled section (no text or symbols on the diagram itself)

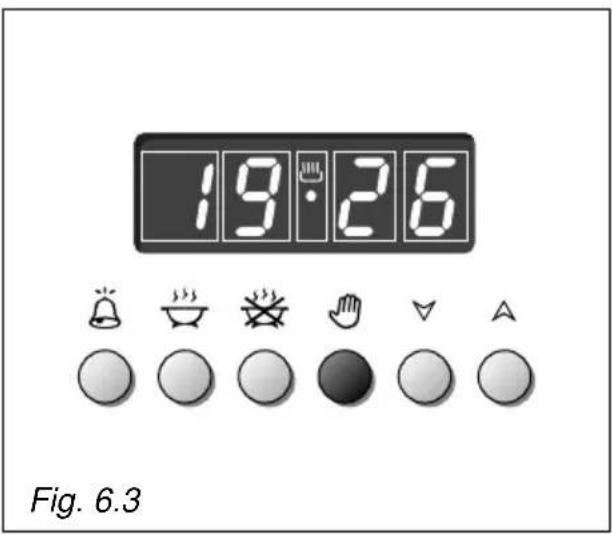

6 - GEBRAUCH DES ELEKTRONISCHEN PROGRAMMIERERS

Row of grayscale icons representing basic symbols (bell, spoon, flame, hand, triangle) with no text or labels

Abb. 6.1

Row of eight simple icons including bell, alarm, hand gesture, and triangle (no text or labels)

Abb. 6.2

ELEKTRONISCHE UHR (Abb. 6.2)

Row of grayscale circular icons representing basic symbols (bell, spoon, crossed-out hand, hand gesture, etc.) without any text or labels.

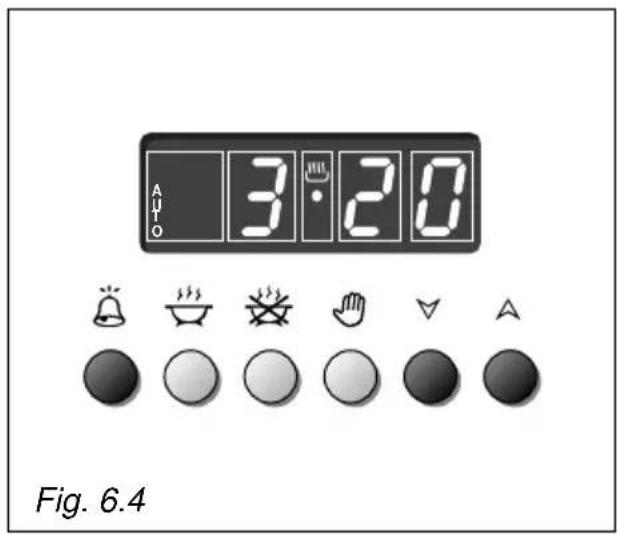

Abb. 6.3

Row of eight simple icons including bell, alarm, hand gesture, and triangle (no text or labels)

Abb. 6.4

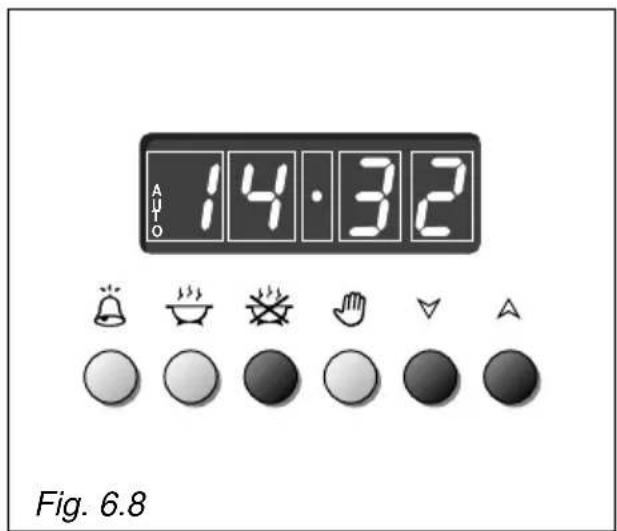

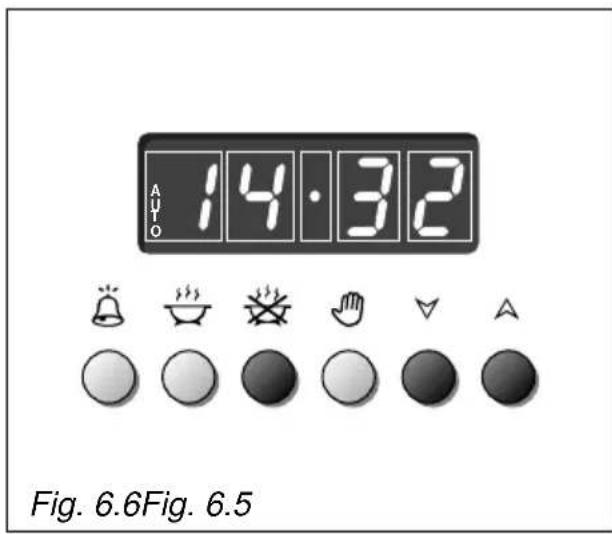

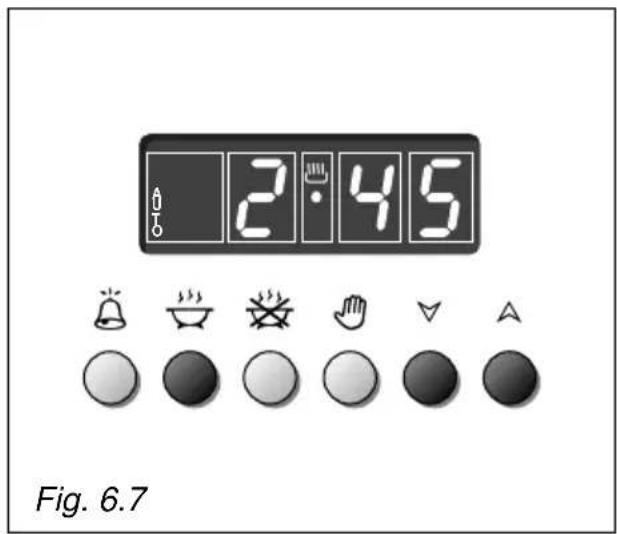

AUTOMATISCHES GAREN IM BACKOFEN (Abb. 6.5 - 6.6)

Technical line drawing of a kitchen appliance with a tray and door, no text or symbols present

OFENTÜR

Technical line drawing of a mechanical assembly with no visible text or symbols

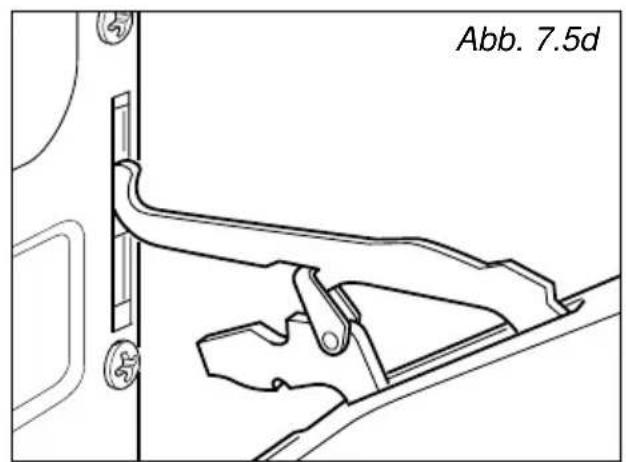

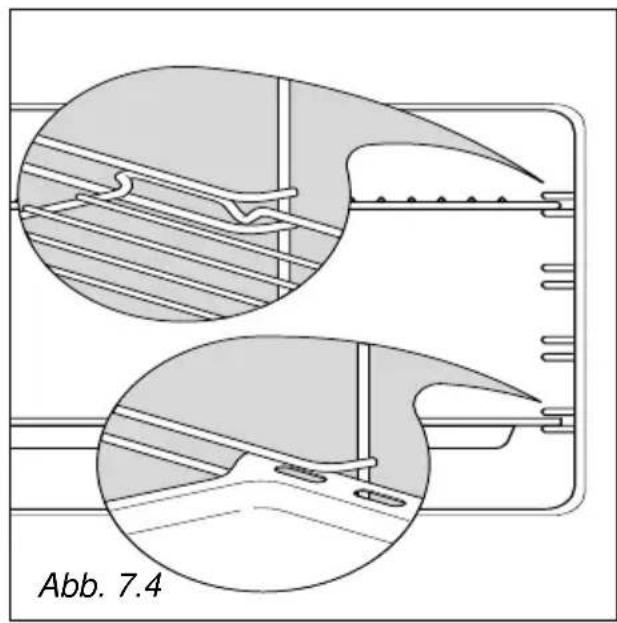

BACKOFEN

Technical diagram of a mechanical assembly with spring-loaded components and directional arrows, labeled Abb. 7.3 (no text or symbols on the diagram itself)

Technical diagram showing two views of a mechanical component with internal channels and fasteners (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of hands installing or adjusting a rectangular panel on a cabinet (no text or symbols)

Technical line drawing of a mechanical bracket or latch assembly (no text or symbols)

Einbau-Anleitung

WICHTIG

Mechanical assembly diagram showing a lever mechanism with motion arrows and label Abb. 8.2 (no text or symbols on the diagram itself)

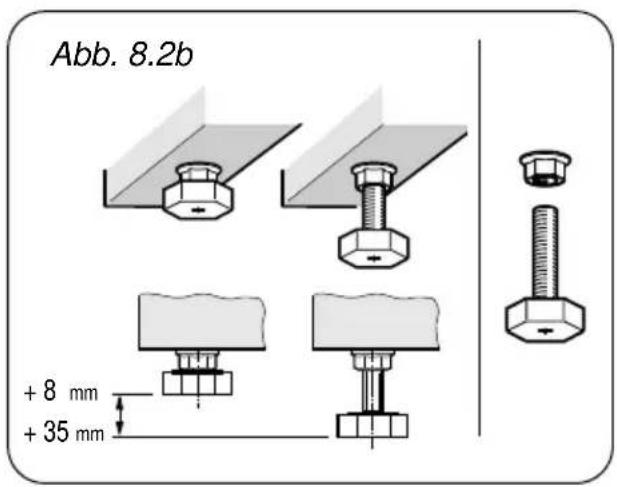

INSTALLATION DER EINSTELLBAREN FÜSSE

Line drawing of two people installing or adjusting a large stove on a tiled floor (no text or symbols)

Abb. 8.4

Line drawing of a person using a portable stove with a diagonal line crossing the floor (no text or symbols)

Abb. 8.6

KÜCHENHERD TRANSPORTIEREN

HINWEIS

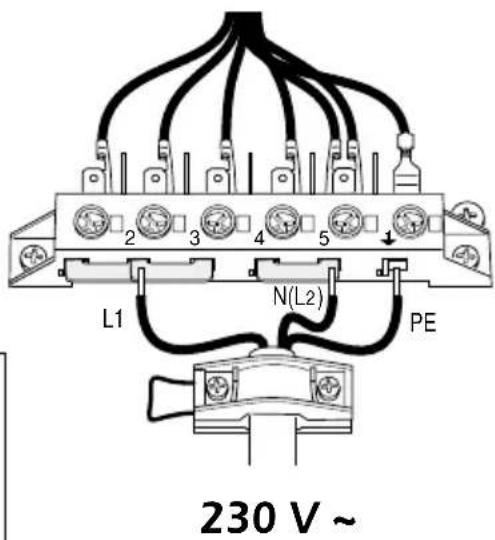

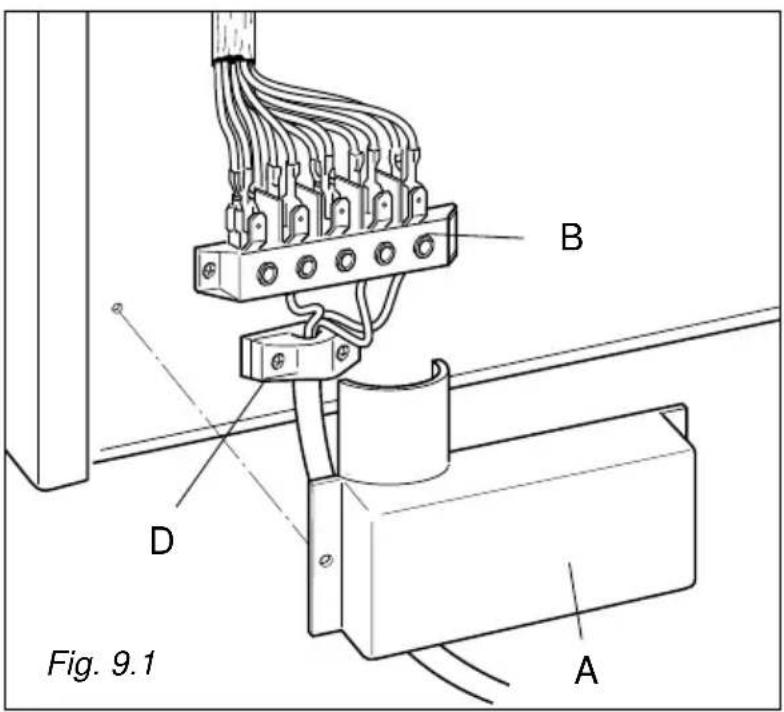

N.B. For connection to the mains, do not use adapters, reducers or branching devices as they can cause overheating and burning.

If the installation requires alterations to the domestic electrical system or if the socket and appliance plug are incompatible, call an expert.

He should also check that the socket cable section is suitable for the power absorbed by the appliance.

Circular maze pattern with concentric rings and a central void, labeled Fig. 3.2 (no text or symbols on the maze itself)

ZONA RADIANTE DOUBLE Y OVAL

Line drawing of a hand using a tool to brush or mark on a circular surface with scattered debris (no text or symbols)

Fig. 3.8

Line drawing of an open refrigerator with internal compartments and a labeled section (Fig. 5.3), no text or symbols on the diagram itself.

6 - PROGRAMADOR ELECTRONICO

Row of grayscale icons representing various symbols (bell, alarm, crossed-out, hand, down arrow, triangle) with no text or labels.

Fig. 6.1

Row of eight simple icons including bell, alarm, hand gesture, and circle (no text or symbols)

Fig. 6.2

RELOJ DIGITAL (Fig. 6.2)

Technical line drawing of a cabinet or rack with two rectangular compartments mounted on a base (no text or symbols)

Fig. 7.1

PUERTA DEL HORNO

Technical line drawing of a structural support frame with no text or symbols

Fig. 7.2

HORNO

Technical line drawing of a mechanical component with spring-loaded housing and mounting bracket (no text or symbols)

Technical diagram showing two views of a mechanical component with internal structure and mounting points (no text or symbols)

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of hands installing or adjusting a rectangular panel on a cabinet (no text or symbols)

Technical line drawing of a mechanical bracket or latch assembly (no text or symbols)

Mechanical diagram showing a lever mechanism with directional arrows indicating motion, labeled Fig. 8.2 (no text or symbols on the diagram itself)

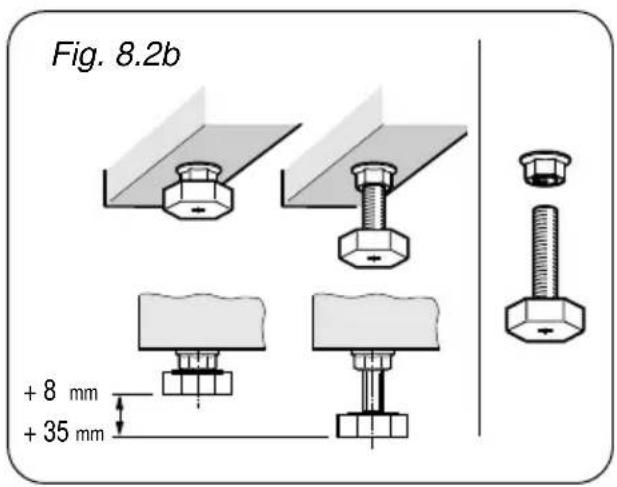

MONTAJE DE LAS PATAS AJUSTABLES

Line drawing of two people installing or adjusting a large stove on a tiled floor (no text or symbols)

Fig. 8.4

Line drawing of a person using a portable stove with a diagonal line crossing the floor (no text or symbols)

Fig. 8.6

CUIDADO:

Thank you for having purchased and given your preference to our product.

The safety precautions and recommendations given below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.

Please keep this booklet carefully. It may be useful in future, either to yourself or to others if doubts should arise relating to its operation.

This appliance must be used only for the task it has explicitly been designed for, that is for cooking foodstuffs. Any other form of usage is to be considered as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the event of damage caused by improper, incorrect or unreasonable use of the appliance.

USEFUL HINTS

After removing the appliance from its packing, make sure of its integrity.

In case of doubt, please apply to your supplier or to a qualified engineer.

The packing materials (plastic bags, polyfoam, nails, metal strips etc.) must be moved away from the reach of the children as potential sources of danger.

• Do not attempt to alter the technical features of the appliance as this may result very dangerous.
• Do not carry out any operation of cleaning or maintenance without prior disconnection of the appliance from the electric supply.
• Whenever you decide to get rid of this appliance (in case of replacement with a new one), before scrapping it is recommended to render it inoperative and harmless in respect of health and antipollution regulations.

IMPORTANT INSTRUCTIONS AND ADVICE FOR THE USE OF ELECTRICAL APPLIANCES

The use of any electrical appliance requires the compliance with some basic rules, namely:

• do not touch the appliance with wet or damp hands (or feet)
  – do not use the appliance whilst in bare feet
• do not allow the appliance to be operated by children or unqualified persons without supervision.

The manufacturer cannot be deemed responsible for damages caused by wrong or incorrect use.

FIRST USE THE OVEN

It is advised to follow these instructions:

• Clean the interior of the oven with cloth soaked in water and detergent (neutral) then dry carefully.
• Furnish the interior of the oven by placing the wire racks as described at chapter "Cleaning and maintenance".
• Insert shelves and tray.
• Empty the oven and close the door. Heat the oven at the maximum temperature setting for around two hours to eliminate the odour of grease and fumes from the manufacturing process. Make sure that the kitchen is well ventilated and do not remain in the room during this process.

This cooker has been designed, constructed and marketed in compliance with:

- safety requirements of EEC Directive "Low voltage" 73/23;

- protection requirements of EEC Directive "EMC" 89/336;

- requirements of EEC Directive 93/68.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS

• ATTENTION: please peel plastic cover of both sides and front before use.
• After use, ensure that the knobs are in "off" position.
• Do not allow children or other unqualified people to use the appliance without your supervision.
• During and after use of the cooker, certain parts will become very hot. Do not touch hot parts.
• Keep children well away from the appliance while it is in use.
• Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the appliance.
• Fire risk! Do not store flammable material in the oven, above the glass ceramic hob and in the storage compartment.
• Make sure that electrical cables connecting other appliances near the cooker cannot come into contact with the hob or be trapped in the oven door.
• Do not line the oven walls with aluminium foil. Do not place baking trays or the drip tray on the floor of the oven chamber.
• Do not allow heavy or sharp objects to drop on the glass ceramic hob. If the hob is cracked or otherwise damaged by falling objects etc., disconnect the electrical power cord and call Customer Service.
• Do not scratch the hob with sharp objects. Do not use the hob as a work surface.

• Do not use a steam cleaner because the moisture can get into the appliance thus making it unsafe.

• The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the appliance.

• The various components of the appliance are recyclable. Dispose of them in accordance with the regulations in force in your country. If the appliance is to be scrapped, cut off the power cord.

IMPORTANT:

This appliance is designed solely for the cooking of domestic food and is not suitable for commercial use.

This appliance incorporates a safety cooling fan which can be heard when the oven or grill are operating.

Fig. 1.1

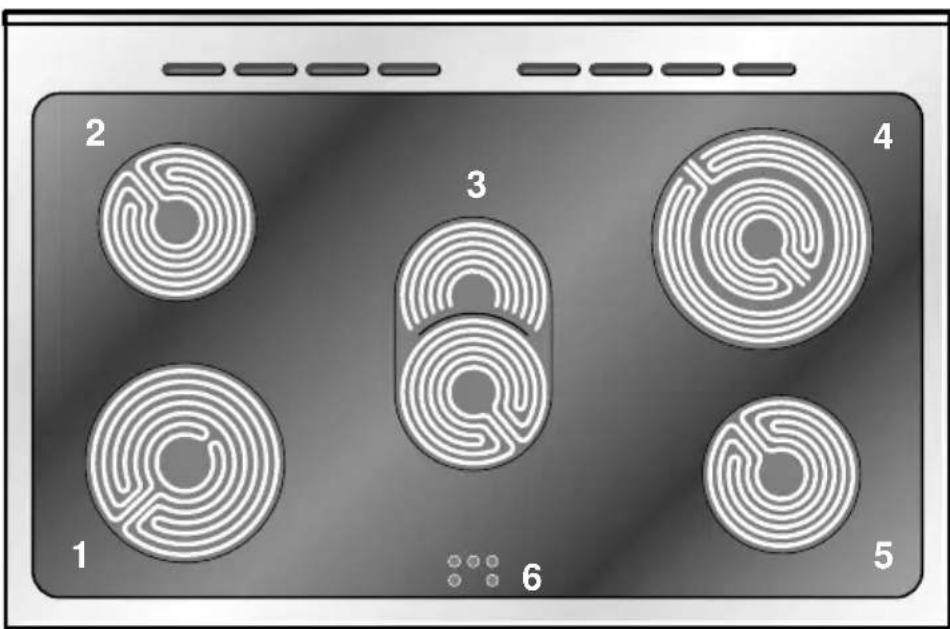

VITROCERAMIC COOKING HOB

1. 3 circuits cooking zone ∅ 180 1700 W
2. 3 circuits cooking zone ∅ 145 1200 W
3. Oval cooking zone ∅ 140 x 250 1800/1000 W
4. Double cooking zone ∅ 210/120 2100/700 W
5. 3 circuits cooking zone ∅ 145 1200 W
6. Cooking zone residual heat indicators

Attention: Detach the appliance from the mains if the ceramic hobs is cracked.

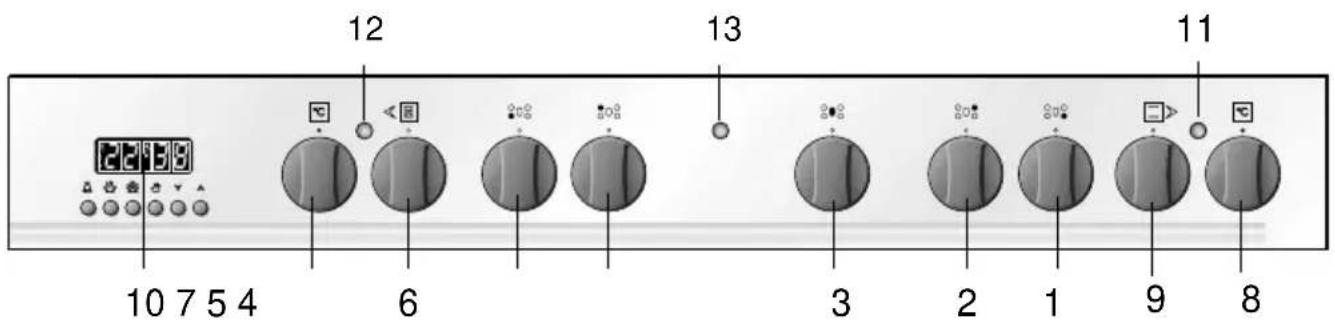

2 - CONTROL PANEL

Fig. 2.1

CONTROL PANEL - Controls description

1. Front right cooking zone control knob
2. Rear right cooking zone control knob
3. Central cooking zone control knob
4. Rear left cooking zone control knob
5. Front left cooking zone control knob

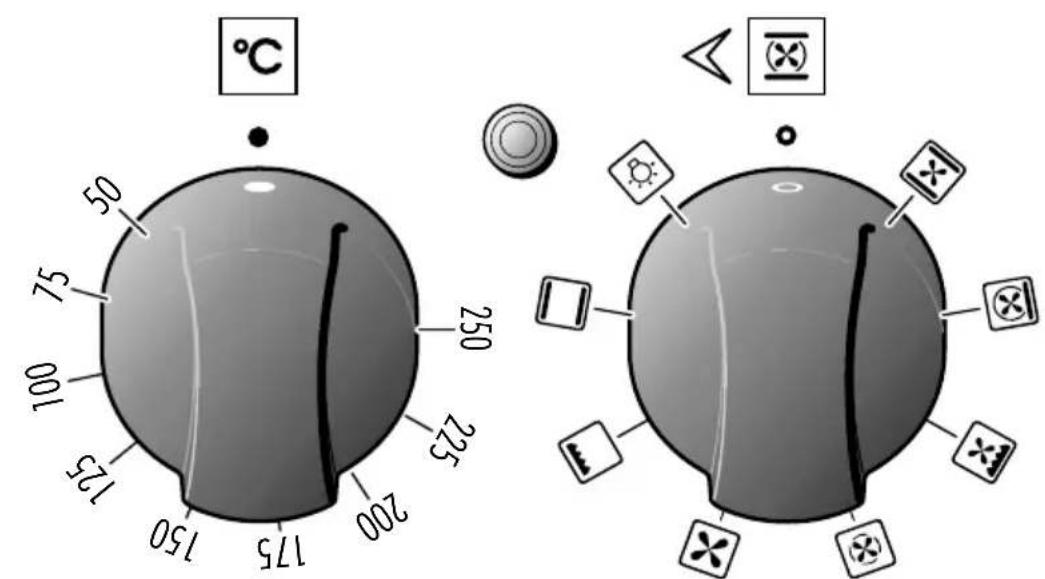

6. Multifunction oven switch knob (left oven)
7. Multifunction oven thermostat knob (left oven)
8. Conventional oven thermostat knob (right oven)
9. Conventional oven switch knob (right oven)
10. Electronic programmer (left main oven only)

Pilot lamps:

1. Conventional oven temperature indicator light (right oven)
2. Multifunction oven temperature indicator light (left oven)
3. Ceramic hob ON indicator light

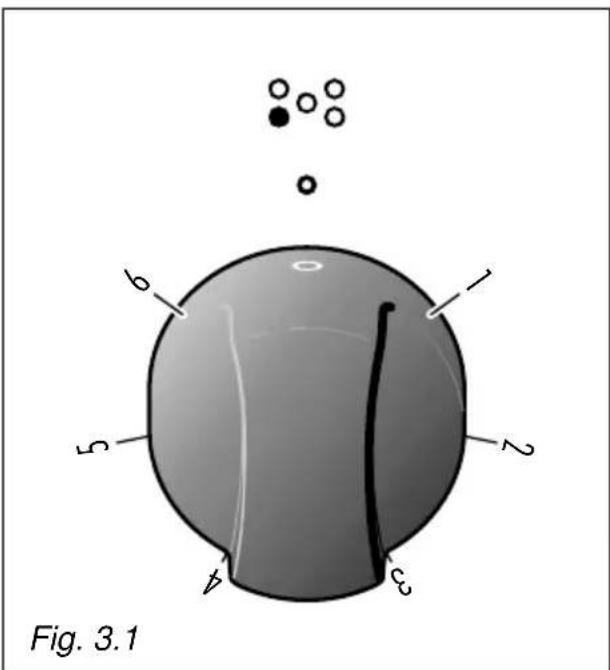

3 - USE OF COOKING HOB

The ceramic surface of the hob allows a fast transmission of heat in the vertical direction, from the heating elements underneath the ceramic glass to the pans set on it.

The heat does not spread in the horizontal direction, so that the glass stays "cool" at only a few centimeters from the cooking plate.

The 5 cooking zones are shown by dark disks on the ceramic surface.

IMPORTANT NOTE:

The heating elements incorporate a thermolimiter that switches ON/OFF the element in all settings to protect any overheating of the ceramic glass.

The use of incorrect pans and/or wrong pan positioning will cause the temperature limiter to operate more frequently, resulting in a reduction of cooking performance.

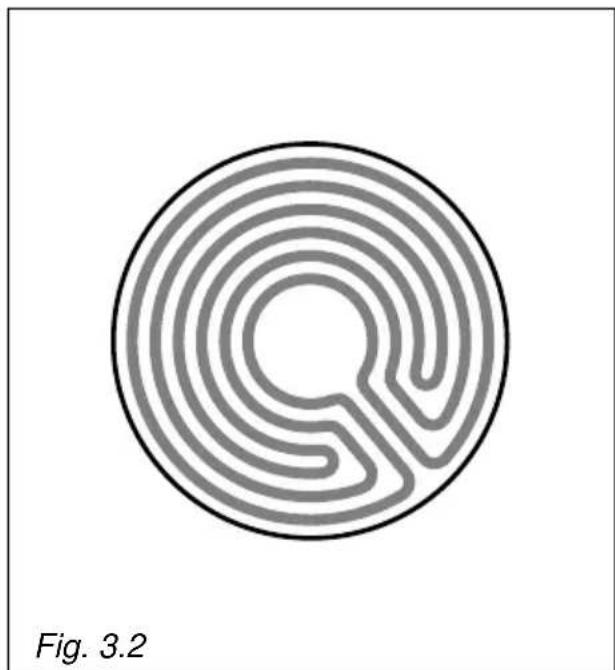

3 CIRCUITS RADIANT ZONES

Incorporating 3 heating elements (fig. 3.2) you can control and light up all together or separately by a 6 position switch (fig. 3.1).

Reaches the working temperature in a very short time.

Circular maze pattern with concentric rings and a central circle, labeled Fig. 3.2 (no text or symbols on the maze itself)

DOUBLE AND OVAL RADIANT ZONES

The heating element is formed of a coil of resistant material which reaches the working temperature quickly.

Operation of the cooking zone is controlled by a continuous energy regulator from "1" to "12" (maximum temperature) (fig. 3.3).

By switching on the second element (fig. 3.4 and 3.5), the surface area of the rear right and central radiant zones can be extended.

For this purpose, turn the control knob (fig. 3.3) fully to the right (position ⊙).

Fig. 3.3

Cooking plate controlled by a 7 position switch

Cooking plate controlled by a 12 position switch

Heating

Cooking

Roasting-frying

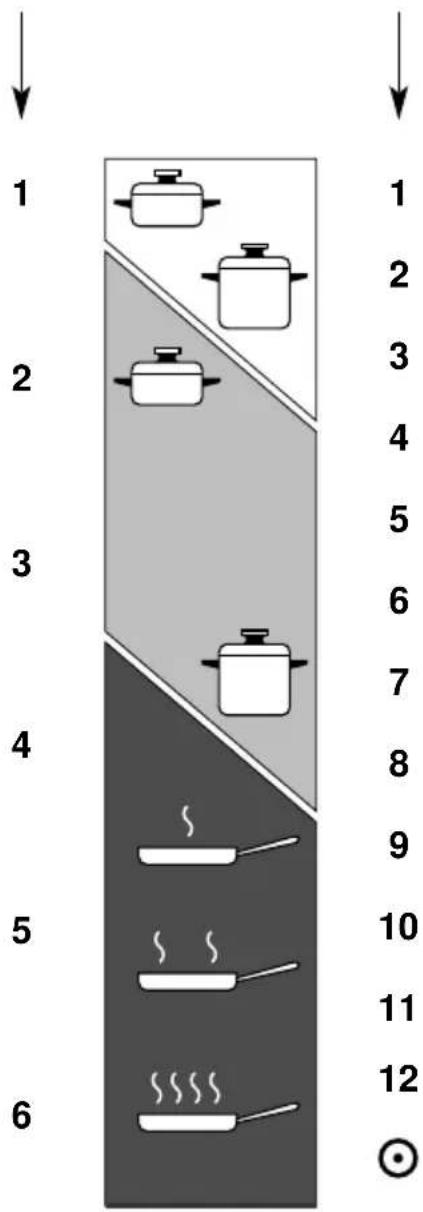

Fig. 3.6

COOKING HINTS

Knob setting		TYPE OF COOKING
0	0	Switched OFF
12	12	For melting operations (butter, chocolate).
2	234	To maintain food hot and to heat small quantities of liquid (sauces, eggs).
3	456	To heat bigger quantities; to whip creams and sauces. (vegetables, fruits, soups).
34	67	Slow boiling, i.e.: boiled meats, spaghetti, soups, continuations of steam cooking of roasts, stews, potatoes.
4	78	For every kind of frying, cutlets, uncovered cooking, i.e.: risotto.
45	8910	Browning of meats, roasted potatoes, fried fish, omelettes, and for boiling large quantities of water.
6	1112	Fast frying, grilled steaks, etc.
	◎	Switching on the second element (Double and oval radiant plate only)

After a short period of use, experience will teach you which setting is the right one for your needs.

RESIDUAL HEAT INDICATOR

The hob also features 5 warning lamps which are wired to the corresponding plate.

When the temperature of a cooking plate is over 60^ C, the relevant warning lamp is also lit-up to warn of heat on the surface of the hob.

This lamp also stay on after the cooking plate has been switched off to shown that the hob surface is still hot.

This residual heat lasts for a rather long time after the cooking plate has been switched off.

During this period of time you should avoid touching the hob surface over the cooking area.

Please pay special attention to ensuring children are not allowed near the hob.

The lamp will switch off automatically as soon as the surface temperature of the cooking plate falls below 60^ C.

Caution!

the cooking hob becomes very hot during operation.

Keep children well out of reach.

Cooking hints:

• To reduce the cooking time, you can turn the control knob to the max when you switch the plate on.
  After a short time you will set the control knob to the required position for the cooking.
• You should use pots and pans with flat bases (pans with the test mark for glass-ceramic hobs are available from specialist shops).
  The diameter of the pan should match that of the cooking plate (or be slightly bigger) to make the most of the energy.
• Since the cooking surface stays hot for a certain time after the plate has been switched off, you can switch it off 5 or 10 minutes before the end of the cooking.
  The residual heat of the hob will complete the cooking.
• To save electricity, use pan lids whenever possible.
• Never cook the food directly on the glass ceramic cooktop, but in special pans or containers.

Fig. 3.7

ADVICE FOR SAFE USE OF THE COOKTOP

• Before switching on make sure that you have the correct knob for the hotplate chosen. It is advisable to put the pan on the hotplate before switching on and to take it away after switching off.
• Use cookware with flat and even bottoms (be careful when using cast iron vessels). Uneven bottoms can scratch the glass ceramic surfaces. Be careful that the bottom is clean and dry.
• Pots with aluminium bottoms may leave silver streaks or spots on the bob.
• Do not leave wet or damp lids on the bob.
• The glass-ceramic surface and pans must be clean. Carefully eliminate any food remains (especially containing sugar), dirt etc. with the aid of a cleansing agent.
• Make sure that the handles of cookware do not stick out over the edge of the cooker, to avoid them being knocked over by accident. This also makes it more difficult for children to reach the cooking vessels.
• Do not lean over the cooking zones when they are switched on.
• Do not drop heavy or sharp objects on the glass ceramic cooktop. If the surface is broken or damaged unplug the cooktop and contact the after-sales service.
• Do not put aluminium foil or plastic objects on the cooking zones when they are hot.
• Remember that the cooking zones remain hot for some time after they are switched off (about 30 mm.).
• Follow the cleaning instructions carefully.
• If you note a crack in the cooktop, switch the appliance off immediately and call the After-Sales Service.

Do not scratch the cooktop with cutting or sharp objects.

Do not use the glass ceramic surface as a work surface.

CLEANING

Before you begin cleaning make sure that the appliance is switched off.

Remove any encrustation using the scraper provided.

Dust or food particles can be removed with a damp cloth.

If you use a detergent, please make sure that it is not abrasive or scouring.

Abrasive or scouring powders can damage the glass surface of the hob.

All traces of the cleaner have to be removed with a damp cloth.

It is highly recommended to keep off the hob any article which can melt: plastic, aluminium foil, sugar, sugar syrup mixtures etc.

If any of these products has melted on the ceramic surface, you should remove it immediately (when the surface is still hot) by using the scraper to avoid any permanent damage to the surface of the hob.

Avoid using any knife or sharp utensil since these can damage the ceramic.

Do not use steel wool or an abrasive sponge which could scratch the surface in an irreparable way

ATTENTION: MOST IMPORTANT!

If cleaning the glass ceramic hob using a special tool (i.e. scraper) take extra care to avoid damage to the seal at the edges of the glass ceramic surface.

Line drawing of a hand using a tool to clean granular material on a circular surface (no text or symbols)

Fig. 3.8

4 - MULTI-FUNCTION OVEN (left oven)

Attention: the oven door becomes very hot during operation.

Keep children away.

GENERAL FEATURES

As its name indicates, this is an oven that presents particular features from an operational point of view.

In fact, it is possible to insert 7 different programs to satisfy every cooking need.

The 7 positions, thermostatically controlled, are obtained by 4 heating elements which are:

• Bottom element 1400 W
• Top element 1000 W
• Grill element 2000 W
  – Circular element 2500 W
• Fan motor 25 W
• Oven lamp 15 W

NOTE:

Upon first use, it is advisable to operate the oven for 30 minutes in the position and for another 30 minutes at the maximum temperature (thermostat knob on position 250) in the positions and, to eliminate possible traces of grease on the heating elements.

Clean the oven and accessories with warm water and washing-up liquid.

WARNING:

The door is hot, use the handle.

OPERATING PRINCIPLES

Heating and cooking in the MULTI-FUNCTION oven are obtained in the following ways:

a. by normal convection

The heat is produced by the upper and lower heating elements.

b. by forced convection

A fan sucks in the air contained in the oven muffle, which sends it through the circular heating element and then sends it back through the muffle. Before the hot air is sucked back again by the fan to repeat the described cycle, it envelops the food in the oven, provoking a complete and rapid cooking.

It is possible to cook several dishes simultaneously.

c. by semi-forced convection

The heat produced by the upper and lower heating elements is distributed throughout the oven by the fan.

d. by radiation

The heat is irradiated by the infra red grill element.

e. by radiation and ventilation

The irradiated heat from the infra red grill element is distributed throughout the oven by the fan.

f. by ventilation

The food is defrosted by using the fan only function without heat.

Fig. 4.1
Fig. 4.2

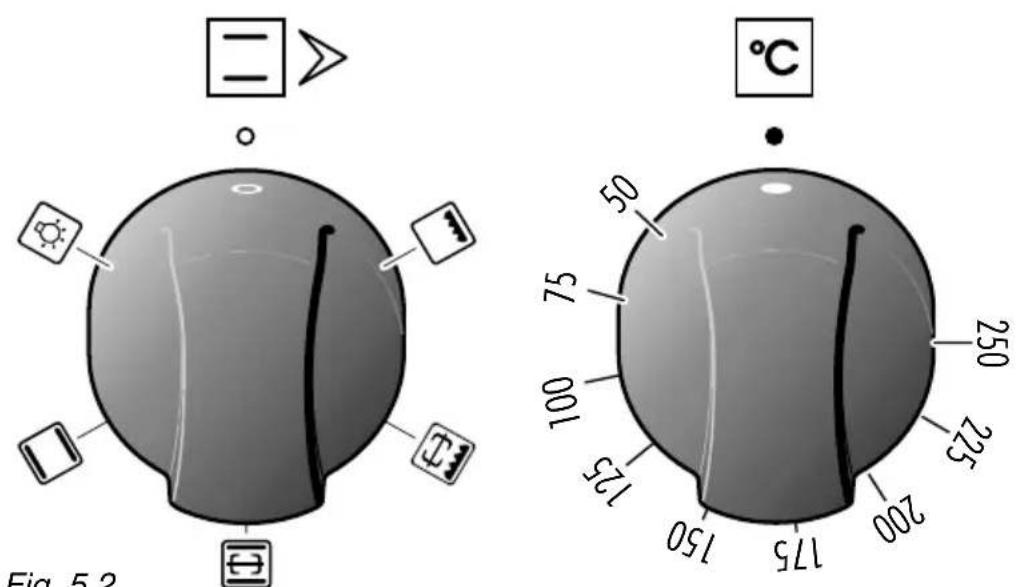

THERMOSTAT KNOB (Fig. 4.1)

To turn on the heating elements of the oven, set the switch knob on the desired program and the thermostat knob onto the desired temperature.

To set the temperature, it is necessary to make the knob indicator meet the chosen number.

The elements will turn ON or OFF automatically according to the energy need which is determined by the thermostat.

FUNCTION SELECTOR KNOB (Fig. 4.2)

Rotate the knob clockwise to set the oven for one of the following functions:

OVEN LIGHT

By turning the knob onto this setting we light the oven cavity (15 W).

The oven remains alight while any of the functions is on.

TRADITIONAL CONVECTION COOKING

The upper and lower heating elements are switched on. The heat is diffused by natural convection and the temperature must be regulated between 50^ and 250^ with the thermostat knob.

It is necessary to preheat the oven before introducing the foods to be cooked.

Recommended for:

For foods which require the same cooking temperature both internally and externally, i. 116 e. roasts, spare ribs, meringue, etc.

GRILLING

The infra-red heating element is switched on. The heat is diffused by radiation.

Use with the oven door closed and the thermostat knob to between 50° and 225°C for max 15 minutes, then to position 175°C.

Note: It is recommended that you do not grill for longer than 30 minutes at any one time.

Attention: the oven door becomes very hot during operation. Keep children away.

For correct use see chapter "USE OF THE GRILL"

Recommended for:

Intense grilling action for cooking with a broiler; browning, crisping, “au gratin”, toasting, etc.

DEFROSTING FROZEN FOODS

Only the oven fan is on. To be used with the thermostat knob on “●” because the other positions have no effect. The defrosting is done by simple ventilation without heat.

Recommended for:

To rapidly defrost frozen foods; 1 kilogram requires about one hour.

The defrosting times vary according to the quantity and type of foods to be defrosted.

HOT AIR COOKING

The circular element and the fan are on. The heat is diffused by forced convection and the temperature must be regulated between 50^ and 250^ C with the thermostat knob. It is not necessary to preheat the oven.

Recommended for:

For foods that must be well done on the outside and tender or rare on the inside, i. e. lasagna, lamb, roast beef, whole fish, etc.

VENTILATED GRILL COOKING

The infra-red ray grill and the fan are on. The heat is mainly diffused by radiation and the fan then distributes it throughout the oven. The temperature must be regulated between 50° and 175 °C for max 30 minutes, with the thermostat knob. It is necessary to preheat the oven for about 5 minutes.

Use with the oven door closed.

Attention: the oven door becomes very hot during operation.

Keep children away.

For correct use see chapter "GRILLING AND "AU GRATIN".

Recommended for:

For grill cooking when a fast outside browning is necessary to keep the juices in, i. e. veal steak, steak, hamburger, etc.

THAWING AND WARMING UP

The upper element and the circular element connected in series, are switched on; also the fan is on. The heat is diffused by forced convection with the most heat being produced by the upper element.

The temperature must be regulated between 50° and 140 °C with the thermostat knob.

Recommended for:

To keep foods hot after cooking. To slowly heat already cooked foods.

CONVECTION COOKING WITH VENTILATION

The upper and lower heating elements and the fan turn on.

The heat coming from the top and bottom is diffused by forced convection.

The temperature must be regulated between 50° and 250 °C with the thermostat knob.

Recommended for:

For foods of large volume and quantity which require the same internal and external degree of cooking; for ie: rolled roasts, turkey, legs, cakes, etc.

COOKING ADVICE STERILIZATION

Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the following way:

a. Set the switch to position
b. Set the thermostat knob to position 185 °C and preheat the oven.
c. Fill the dripping pan with hot water.
d. Set the jars onto the dripping pan making sure they do not touch each other and the door and set the thermostat knob to position 135 °C.

When sterilization has begun, that is, when the contents of the jars start to bubble, turn off the oven and let cool.

REGENERATION

Set the switch to position and the thermostat knob to position 150°C.

Bread becomes fragrant again if wet with a few drops of water and put into the oven for about 10 minutes at the highest temperature.

ROASTING

To obtain classical roasting, it is necessary to remember:

• that it is advisable to maintain a temperature between 180 and 200^ .
  – that the cooking time depends on the quantity and the type of foods.

SIMULTANEOUS COOKING OF DIFFERENT FOODS

The MULTI-FUNCTION oven set on position ✕ and ✗ gives simultaneous heterogeneous cooking of different foods. Different foods such as fish, cake and meat can be cooked together without mixing the smells and flavours.

This is possible since the fats and vapors are oxidized while passing through the electrical element and therefore are not deposited onto the foods.

The only precautions to follow are:

• The cooking temperatures of the different foods must be as close to as possible, with a maximum difference of 20^ - 25^ .
• The introduction of the different dishes in the oven must be done at different times in relation to the cooking times of each one.

The time and energy saved with this type of cooking is obvious.

GRILLING AND "AU GRATIN"

Set the switch to position

Set the thermostat to position 175 °C and after having preheated the oven, simply place the food on the shelf.

Close the door and let the oven operate with the thermostat on, until grilling is complete.

Adding a few dabs of butter before the end of the cooking time gives the golden “au gratin” effect.

Note: It is recommended that you do not grill for longer than 30 minutes at any one time.

ATTENTION: the oven door becomes very hot during operation.

Keep children away.

USE OF THE GRILL

Preheat the oven for about 5 minutes.

Introduce the food to be cooked, positioning the rack as close to the grill as possible.

The dripping pan should be placed under the rack to catch the cooking juices and fats.

Grilling with the oven door closed.

Do not grill for longer than 30 minutes at any one time.

CAUTION: the oven door becomes very hot during operation. Keep children well out of reach.

OVEN COOKING

Before introducing the food, preheat the oven to the desired temperature.

For a correct preheating operation, it is advisable to remove the tray from the oven and introduce it together with the food, when the oven has reached the desired temperature.

Check the cooking time and turn off the oven 5 minutes before the theoretical time to recuperate the stored heat.

COOKING EXAMPLES

Temperatures and times are approximate as they vary depending on the quality and amount of food.

Remember to use ovenproof dishes and to adjust the oven temperature during cooking if necessary.

DISHES TEMPERATURE

Cakes 180°

Doughnuts 180°

Cheese soufflé 200°

Potatoes in milk 200°

Chicken breasts in tomato 200°

Sole fish filet 200°

Whiting 200°

Cream puffs 200°

Plum pie 200°

Meat balls 200°

Veal meatloaf 200°

Grilled chicken - roast chicken 220°

Baked lasagna 220°

Roast beef 220°

Oven cooked pasta 220°

Lemon cake 220°

Rice creol 225°

Baked onions 225°

Stuffed potatoes 225°

Grilled veal joint 225°

Marmalade pie 225°

Pound cake 225°

Turkish shishkebab 250°

Pizza with anchovies 250°

5 - CONVENTIONAL OVEN (right oven)

Attention: the oven door becomes very hot during operation. Keep children away.

GENERAL FEATURES

As its name indicates, this is an oven that presents particular features from an operational point of view.

The conventional oven is provided with 3 heating elements which are:

• Top element 700 W
• Bottom element 800 W
• Grill element 1450 W

WARNING:

The door is hot, use the handle.

NOTE:

Upon first use, it is advisable to operate the oven at the maximum temperature (thermostat knob on position 250) for 60 minutes in the position and for another 15 minutes in the position to eliminate possible traces of grease on the heating elements.

OPERATING PRINCIPLES

Heating and cooking in the CONVENTIONAL oven are obtained in the following ways:

a. by normal convection

The heat is produced by the upper and lower heating elements.

b. by radiation

The heat is irradiated by the infra red grill element (grilling with the oven door closed).

Fig. 5.1 Fig. 5.2

FUNCTION SELECTOR KNOB (fig. 5.1)

Rotate the knob clockwise to set the oven for one of the following functions.

THERMOSTAT (Fig. 5.2)

This only sets the cooking temperature and does not switch the oven on.

Rotate clockwise until the required temperature is reached (from 50 to 250°C).

The light above the function selector will illuminate when the oven is switched on and turns off when the oven reaches the correct temperature.

The light will cycle on and off during cooking in line with the oven temperature.

OVEN LIGHT

By setting the knob to this position, only the oven light comes on (15 W).

It remains on in all the cooking modes.

TRADITIONAL CONVECTION COOKING

The upper and lower heating elements come on.

The heat is dispersed by natural convection and the temperature must be set to between 50° and 250°C via the thermostat knob.

The oven must be preheated before cooking.

In the position the rotisserie motor come on for cooking with the rotisserie.

RECOMMENDED USE:

Dish warming using the special rack. For correct use see the chapter "USE OF SPECIAL DISH RACK".

TRADITIONAL GRILLING

The infrared grill element at the top of the oven comes on. The heat is dispersed by radiation.

Use with the oven door closed and the thermostat knob to position 225°C for 15 minutes then to 175°C.

In the position the rotisserie motor come on for cooking with the rotisserie.

For cooking hints, see the chapter "USE OF THE GRILL".

RECOMMENDED USE:

Intense grilling, browning, cooking au gratin and toasting etc.

It is recommended that you do not grill for longer than 30 minutes at any one time.

Attention: the oven door becomes very hot during operation.

Keep children away.

USE OF THE GRILL

Leave to warm up for approximately 5 minutes with the door closed

Place the food inside positioning the rack as near as possible to the grill.

Insert the drip pan under the rack to collect the cooking juices.

Grilling with the oven door closed.

Do not grill for longer than 30 minutes at any one time.

Caution: the oven door becomes very hot during operation. Keep children well out of reach.

OVEN COOKING

Before introducing the food, preheat the oven to the desired temperature.

For a correct preheating operation, it is advisable to remove the tray from the oven and introduce it together with the food, when the oven has reached the desired temperature.

Check the cooking time and turn off the oven 5 minutes before the theoretical time to recuperate the stored heat.

COOKING EXAMPLES

Temperatures and times are approximate as they vary depending on the quality and amount of food.

Remember to use ovenproof dishes and to adjust the oven temperature during cooking if necessary.

DISHES	TEMPERATURE
Lasagne 190°
Baked pasta	190°
Pizza	220°
Creole rice	190°
Baked onions	190°
Spinach crêpes	185°
Potatoes baked in milk	185°
Stuffed tomatoes	180°
Cheese soufflé	170°
Roast veal	180°
Grilled veal chops	210°
Chicken breasts with tomato	180°
Grilled chicken - roast chicken	190°
Veal loaf	175°
Roast beef	170°
Fillet of sole	175°
Aromatic hake	170°
Beignets	160°
Ring cake	150°
Plum tart	170°
Jam tartlets	160°
Sponge cake	170°
Sweet dough	160°
Sweet puffs	170°
Plain sponge cake	170°

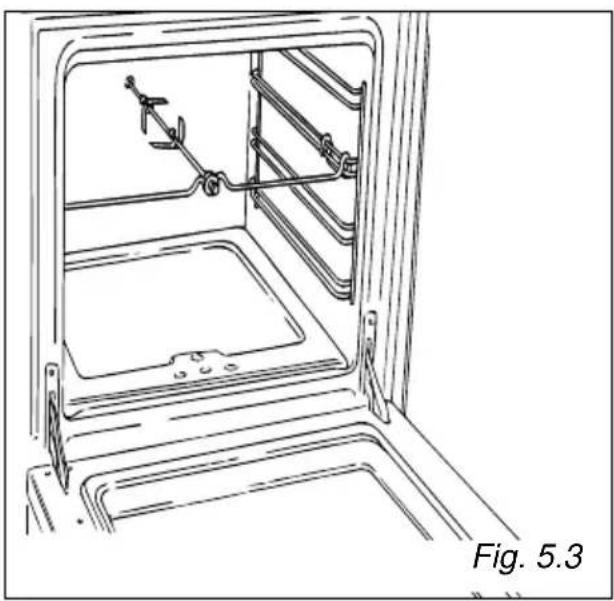

ROTISSERIE (Fig. 5.3)

The oven is equipped with a rotis-serie.

This device is made up of:

• an electrical motor mounted on the rear part of the oven
• a stainless steel rod, equipped with a detachable athermic grip and 2 recordable forks
• a rod support to be inserted into the central rack holders of the oven.

USE OF THE ROTISSERIE (Fig. 5.3)

• Insert the dripping pan into the lowest rack holders of the oven and insert the rod support into the intermediate rack holders.
• Put the meat to be cooked onto the rod, being careful to secure it in the center with the special forks.
• Insert the rod into the motor opening and rest it onto the support of the spit collar; then remove the grip by turning it to the left.

The rotation direction of the rotisserie can be either clockwise or counter-clockwise.

Grilling with the oven door closed.

Attention: the oven door becomes very hot during operation.

Keep children away.

It is recommended that you do not grill for longer than 30 minutes at any one time.

Line drawing of an open refrigerator with internal compartments and a labeled section (Fig. 5.3), no text or symbols on the diagram itself.

6 - ELECTRONIC PROGRAMMER

If you use the oven for none automatic or semi-automatic cooking, ensure programmer is set to manual position by pushing button.

The electronic programmer performs the following functions:

• 24 hours clock with illuminated display
  – Timer (up to 23 hours and 59 minutes)
  – Program for automatic oven cooking
• Program for semi-automatic oven cooking.

Description of the buttons:

Timer
Cooking time
End of cooking time
Manual position and cancellation of the set cooking program
Ⓐ Advance the time for of all programs
Decrease the program time and changing the frequency of the audible signal.

Row of grayscale icons including bell, steam drop, flame, hand, triangle, and circle (no text or symbols)

Fig. 6.1

Description of the illuminated symbols:

AUTO - flashing - Programmer in automatic position but not programmed

AUTO - always lit - Programmer in automatic position with program set.

Automatic cooking taking place

Timer in operation

and AUTO - flashing - Program error.

(The time of day lies between the calculated cooking start and end time).

Note:

Select a function by the respective button and, in 5 seconds, set the required time with the 🔊buttons ("one-hand" operation).

A power cut makes the clock go to zero and cancels the set programs.

Fig. 6.2

ELECTRONIC CLOCK (fig. 6.2)

The programmer is equipped with an electronic clock with an illuminated display which indicates hours and minutes. Upon immediate connection of the oven or after a powercut, three zeros will flash on the programmer panel.

To set the hour it is necessary to push the button and then the or △ button until you have set the exact hour (fig. 6.2).

Another way is to simultaneously push the two buttons and at the same time push the or button.

Note: The hour setting deletes any program.

NORMAL COOKING WITHOUT THE USE OF THE PROGRAMMER

To manually use the oven, that is, without the aid of the programmer, it is necessary to cancel the flashing AUTO by pushing the button ⓄAUTO will be switched off and the symbol will go on - Fig. 5.3).

Attention: If the AUTO is steadily lit (which means a cooking program has already been set), the program can be cancelled and switched to manual by pushing the button 🔗.

If the oven is switched on, you must switch off manually.

ELECTRONIC TIMER

The timer program consists only of a buzzer which may be set for a maximum period of 23 hours and 59 minutes.

If the AUTO is flashing push the button.

To set the time, push the button and the or until you obtain the desired time in the panel (fig. 6.4).

Having finished the setting, the clock hour will appear on the panel and the symbol will be lit.

The countdown will start immediately and may be seen at any moment on the panel by simply pressing the button 📄

At the end of the time, the ⚙ symbol will be switched off and an intermittent buzzer will go off; this can be stopped by pressing any of the buttons.

SETTING THE FREQUENCY OF THE AUDIBLE SIGNAL

3 possible sounds can be selected by pressing the button.

To cook food automatically in the oven, it is necessary to:

1. Set the length of the cooking time
2. Set the end of the cooking time
3. Set the temperature and the oven cooking program.

These operations are done in the following way:

1. Set the length of time you need to cook the food by pushing the button and the button to advance, or to go back if you have passed the desired time (fig. 6.5). The AUTO and the symbol will be on.

2. Set the time you need the food to stop cooking by pushing the button (the cooking time already added to the clock time will appear), and the button (fig. 6.6); if you pass the desired time you can go back by pushing the button.

After this setting, the symbol will go off. If after this setting, the AUTO flashes on the panel and a buzzer goes off, it means there was an error in the programming, that is the the cooking cycle has been superimposed on the clock. In this case, change the end of cooking time or the cooking time itself by following the instructions above.

1. Set the temperature and the cooking program (see the relevant sections).

Once the oven is programmed it will switch on automatically at the right time to stop the cooking at the desired end time.

During cooking, the symbol remains on.

By pushing the button you can see the time that remains until the end of cooking.

The cooking program may be cancelled at any time by pushing 🙏

At the end of the cooking time the oven will turn off automatically, the symbol will turn off, AUTO will flash and the buzzer will sound, which can be turned off by pushing any of the buttons.

Turn the switch and temperature knobs to "OFF" and put the programmer onto "manual" by pressing the button.

Attention: A powercut will make the clock go to zero and will cancel the set programs.

After a powercut, three zeros will flash on the panel.

SEMI - AUTOMATIC COOKING

This is used to switch the oven off automatically after the desired cooking time has elapsed.

There are two ways to set the semi-automatic cooking function:

1. Set the length of time you need to cook the food by pushing the button and the button to advance, or to go backwards (Fig. 6.7). This sets the desired "stop" time.

or

1. Set the time you need the food to stop cooking by pushing the button and the button to advance, or to go backwards if you have passed the desired time (Fig. 6.8).

AUTO and the symbol will be on.

Then set the temperature and the cooking program (see the relevant sections). The oven is switched on and it will switch off automatically at the end of the desired time.

During cooking, the symbol remains on and by pressing the button you can see the time that remains until the end of the cooking.

The cooking program can be cancelled at any moment by pushing the 🤨 button.

At the end of the cooking, the oven and the symbol will turn off, the AUTO will flash and a buzzer will go off which can be stopped by pushing any of the buttons.

Turn the switch and temperature knobs to "OFF" and put the programmer onto "manual" by pressing the button.

Important:

Before any operation of cleaning and maintenance disconnect the appliance from the electrical supply and wait for it to cool down.

Attention

The appliance gets very hot, mainly around the cooking areas. It is very important that children are not left alone in the kitchen when you are cooking.

Do not use a steam cleaner because the moisture can get into the appliance thus make it unsafe.

ENAMELLED PARTS

All the enamelled parts must be cleaned with a sponge and soapy water or other non-abrasive products.

Dry preferably with a soft cloth.

Acidic substances like lemon juice, tomato sauce, vinegar etc. can damage the enamel if left too long.

STAINLESS STEEL SURFACES

mod. PRDK 1050 IX

The stainless steel front panels on this cooker (facia, oven door, bottom panel) are protected by a finger-print proof lacquer.

To avoid damaging this lacquer, do not clean the stainless steel with abrasive cleaners or abrasive cloths or scouring pads.

ONLY SOAP/WARM WATER MUST BE USED TO CLEAN THE STAINLESS STEEL SURFACES.

STAINLESS STEEL, ALUMINIUM PARTS AND SILK-SCREEN PRINTED SURFACES

Clean using an appropriate product. Always dry thoroughly.

IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion. You are advised to use a soft cloth and neutral soap.

CAUTION: Do not use abrasive substances or non-neutral detergents as these will irreparably damage the protective surface.

VITROCERAMIC COOKING HOB

- See page 114

REPLACING THE OVEN LIGHT BULB

Switch the cooker off at the mains. When the oven is cool, unscrew and replace the bulb with another one resistant to high temperatures (300°C), voltage 230 V (50 Hz), 15 W, E14.

Note: Oven bulb replacement is not covered by your guarantee.

Technical line drawing of a server rack with two access panels and mounting brackets (no text or symbols)

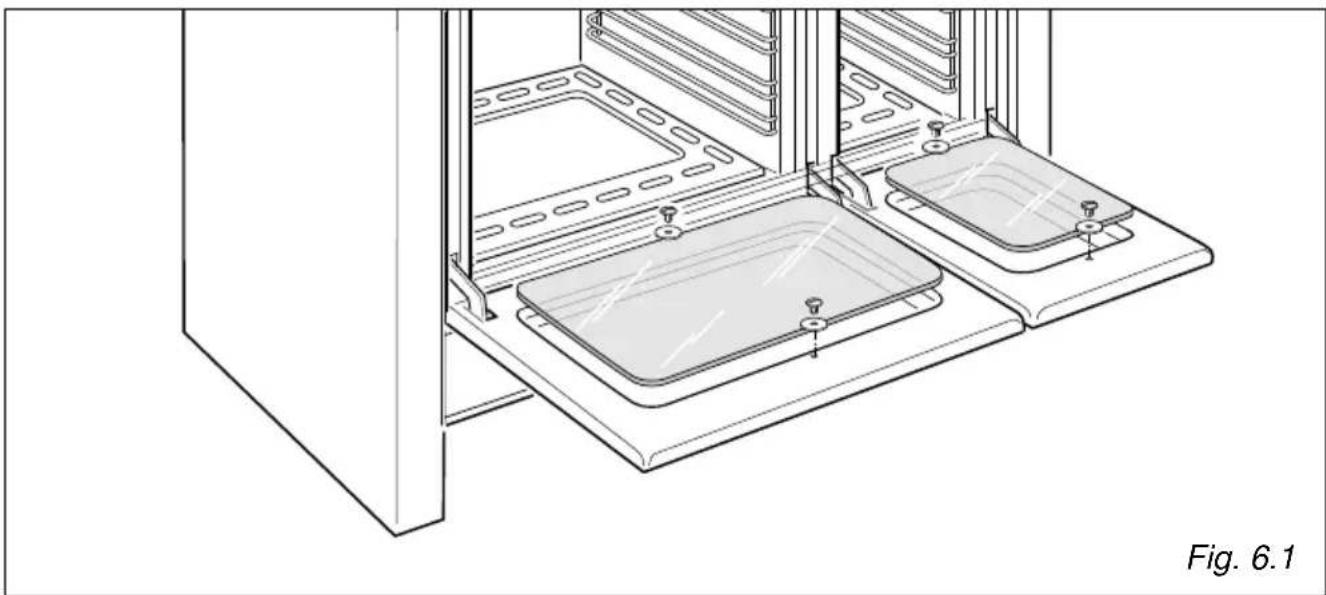

OVEN DOOR

The internal glass panel can be easily removed for cleaning by unscrewing the 2 retaining screws (Fig. 7.1)

STORAGE COMPARTMENT

The storage compartment is accessible through the pivoting panel (fig. 7.2).

Do not store flammable material in the oven or in the storage compartment.

Technical line drawing of a structural support frame with no text or symbols

INSIDE OF OVEN

This must be cleaned regularly.

Remove and refit the side runner frames as described on the next chapter.

With the oven warm, wipe the inside walls with a cloth soaked in very hot soapy water or another suitable product. Side runner frames, tray, lower panel and rack can be removed and washed in the sink.

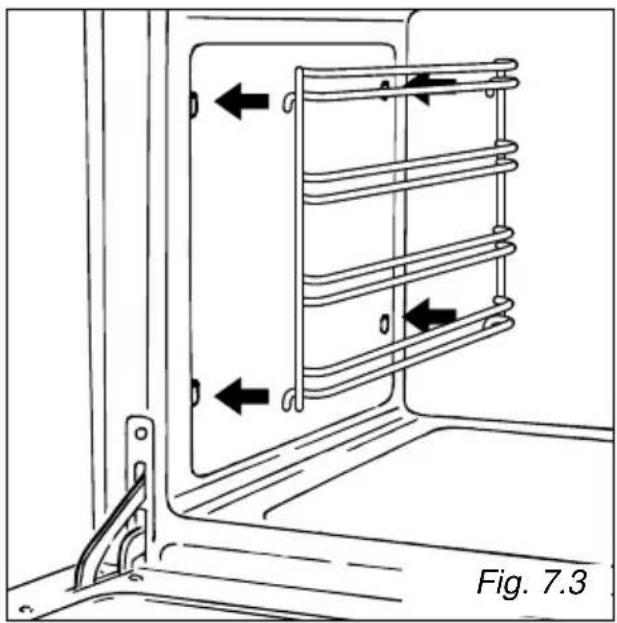

ASSEMBLY AND DISMANTLING OF THE SIDE RUNNER FRAMES

• Fit the side runner frames into the holes on the side walls inside the oven (Fig. 7.3).
• Slide the tray and rack into the runners (Fig. 7.4).
  The rack must be fitted so that the safety catch, which stops it sliding out, faces the inside of the oven (fig. 7.4).
• To dismantle, operate in reverse order.

Technical line drawing of a mechanical component with spring-loaded housing and mounting bracket (no text or symbols)

Technical diagram showing two views of a mechanical component with internal channels and fasteners, labeled Fig. 7.4 (no text or symbols on the diagram itself)

REMOVING THE OVEN DOOR

The oven door can easily be removed as follows:

• Open the door to the full extent (fig. 7.5A).
• Attach the retaining rings to the hooks on the left and right hinges (fig. 7.5B).
• Hold the door as shown in fig. 7.5.
• Gently close the door and withdraw the lower hinge pins from their location (fig. 7.5C).
• Withdraw the upper hinge pins from their location (fig. 7.5D).
• Rest the door on a soft surface.
• To replace the door, repeat the above steps in reverse order.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of hands installing or adjusting a rectangular panel on a cabinet (no text or symbols)

Technical line drawing of a mechanical bracket or latch assembly (no text or symbols)

Advice for the installer

IMPORTANT

• The appliance should be installed by a qualified technician in compliance with the laws in force in your country and in observation of the instructions supplied by the manufacturer.
• Always disconnect the cooker from mains power supply before carrying out any maintenance operations or repairs.
• Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the appliance.

8 - INSTALLATION

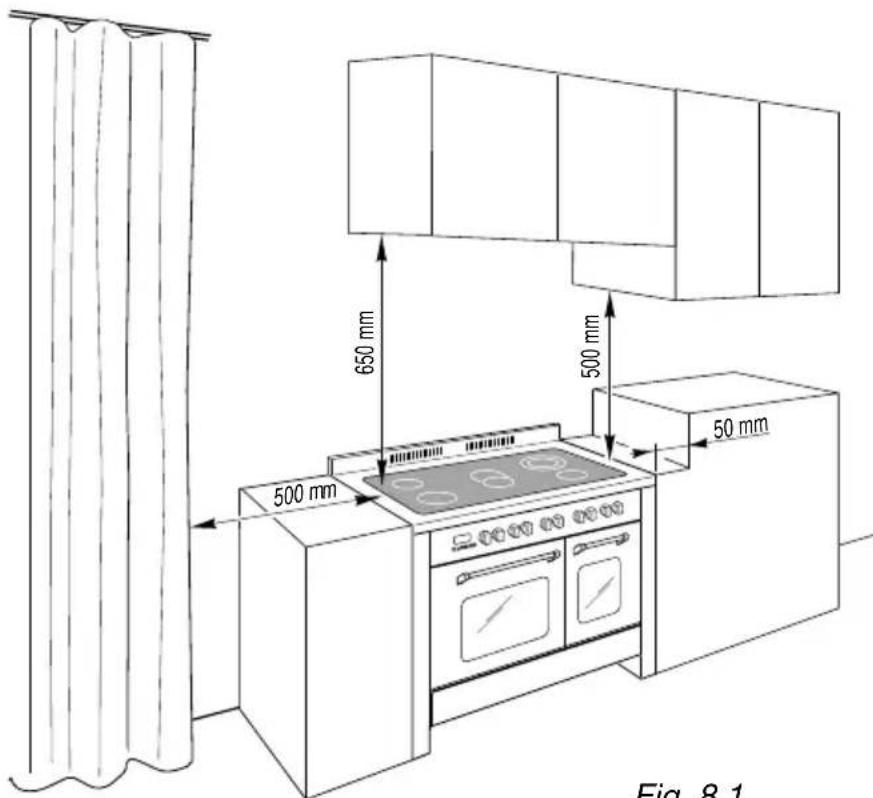

Fig. 8.1

LOCATION

The appliance must be kept no less than 50 mm away from any side wall which exceed the height of the hob surface (fig. 8.1).

The appliance must be housed in heat resistant units.

The walls of the units must be capable of resisting temperatures of 75 °C above room temperature.

Do not install the appli- ance near inflammable materials (eg. curtains).

If the cooker is located on a pedestal it is necessary to provide safety measures to prevent falling out.

Mechanical diagram showing a lever mechanism with directional arrows indicating motion, labeled Fig. 8.2 (no text or symbols on the diagram itself)

The cooker is equipped with 4 LEVEL-LING FEET and may be levelled by screwing or unscrewing the feet with a spanner (fig. 8.2).

It is important to observe the pre-scriptions of figures 8.2a - 8.2b.

BACKGUARD

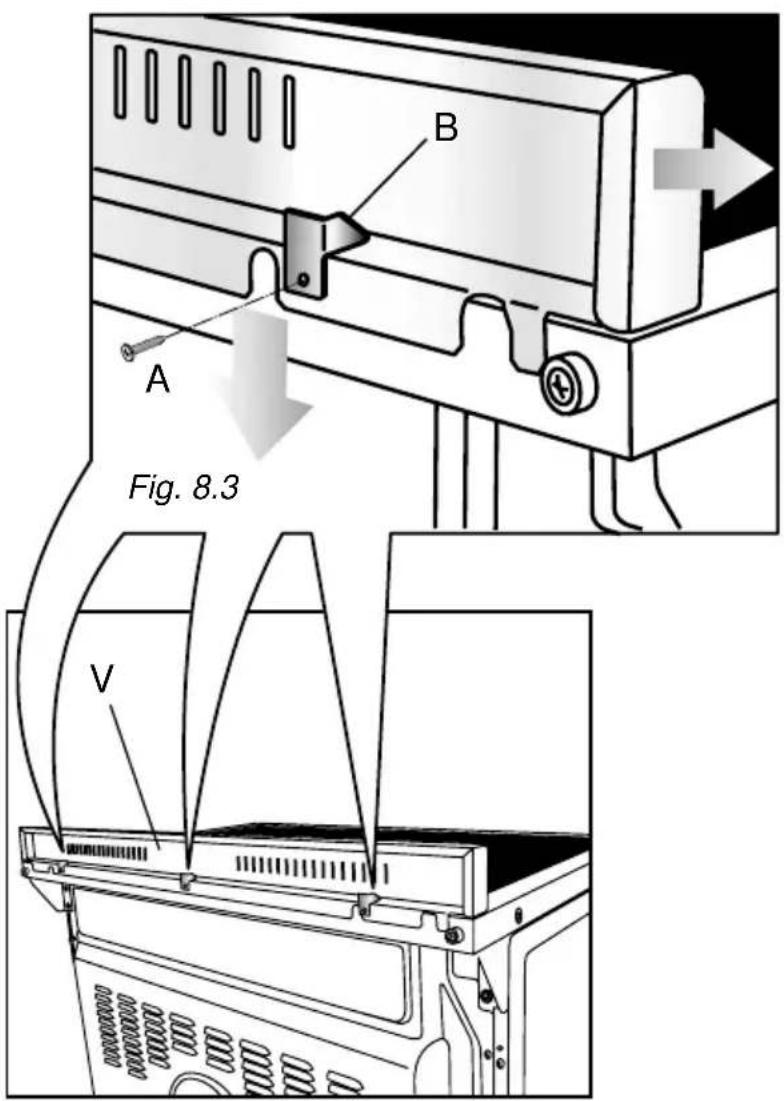

Before installing the cooker, assemble the backguard "V" (fig. 8.3).

Please note that :

• The backguard "V" can be found packed at the rear of the cooker.
• Before assembling remove any protective film/adhesive tape.
• The backguard must be fixed to the cooktop using the three supports "B" supplied with the appliance (see fig. 8.3).

Line drawing of two people installing or adjusting a large stove on a tiled floor (no text or symbols)

Fig. 8.4

Line drawing of a person using a portable stove with a diagonal line crossing the floor (no text or symbols)

MOVING THE COOKER

WARNING

When raising cooker to upright position always ensure two people carry out this manoeuvre to prevent damage to the adjustable feet (fig. 8.4).

WARNING

Be careful: DO NOT LIFT the cooker by the door handle when raising to the upright position (fig. 8.5).

WARNING

When moving cooker to its final position DO NOT DRAG (fig. 8.6).

Lift feet clear of floor (fig. 8.4).

IMPORTANT: The cooker must be installed in accordance with the manufacturer's instructions. Incorrect installation, for which the manufacturer accepts no responsibility, may cause injury to persons or animals etc.

GENERAL

• Connection to the mains must be carried out by qualified personnel in accordance with current regulations.
• The appliance must be connected to the mains checking that the voltage corresponds to the value given in the rating plate and that the electrical cable sections can withstand the load specified on the plate.
• The cooker can be connected directly to the mains placing an omnipolar switch with minimum opening between the contacts of 3 mm between the appliance and the mains.
• The power supply cable must not touch any hot parts and must be positioned so that it does not exceed 75°C at any point.
• Once the cooker has been installed, the switch or socket must always be accessible.

Before effecting any intervention on the electrical parts of the appliance, the connection to the network must be interrupted.

N.B. For connection to the mains, do not use adapters, reducers or branching devices as they can cause overheating and burning.

If the installation requires alterations to the domestic electrical system or if the socket and appliance plug are incompatible, call an expert.

He should also check that the socket cable section is suitable for the power absorbed by the appliance.

IMPORTANT: this cooker must be connected to a suitable double pole control unit adjacent to the cooker.

WARNING!

This appliance must be earthed.

The connection of the appliance to earth is mandatory.

The manufacturer declines all responsibility for any inconvenience resulting from the none observance of this condition.

CONNECTING THE FEEDER CABLE

To connect the feeder cable to the cooker it is necessary to:

• Remove the two screws that hold shield A behind the cooker.
• Open completely the cable clamp D.
• Insert the mains cable into the cable clamp D.
• Connect the phase and earth cables to terminal B according figure 9.2 and 9.3.
• Pull the feeder cable and block it with the cable clamp D
• Re-mount shield A.

FEEDER CABLE SECTION "TYPE H05RR-F or H05VV-F"

230V 3×4 mm ^2 or 3×6 mm ^2 (**)

(**) - Connection with wall box connection.

– Diversity factor applied
- A diversity factor may be applied to the total loading of the cooker only by a suitable qualified person.

Fig. 9.2

Fig. 9.3

The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in the present booklet.

The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacture or commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances.
