Product Type	LCD Television Set / DVD Player with DVB-T Receiver
Model	CTV 4894
Dimensions (with stand and handle)	270 x 120.6 x 254 mm
Weight	3.8 kg
Power Supply	DC 9V, 2A
Power Consumption	15 W
Display Type	LCD
Signal Format	PAL / NTSC
Tuner	DVB-T (Digital) and Analogue
DVD Region Code	2 (Europe, Greenland, South Africa, Egypt, Middle East, Japan)
Compatible Media	DVD-Video, DVD±R/RW, Audio CD, Video CD, CD-R/RW, MPEG-4, MP3
USB Port	Yes (for USB storage devices)
Memory Card Slot	SD / MMC / Memory Stick
Headphone Jack	3.5 mm stereo
AV Input/Output	RCA (switchable IN/OUT)
VGA Input	Yes (PC monitor)
Antenna Input	Coaxial (for DVB-T/analogue)
Remote Control	Infrared, range up to 5 m

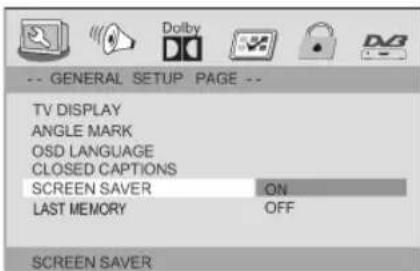

Screen Saver	Yes (adjustable on/off)
Child Lock	Yes (parental control with password)
Teletext	Yes (DVB-T mode)
EPG	Yes (Electronic Programme Guide)
Cleaning	Use a soft, dry cloth. Do not use liquids or solvents.
Safety	Do not expose to moisture or heat sources. Use only supplied adapters.
Repair	Only by manufacturer or authorized service workshop.

Frequently Asked Questions - CTV 4894 AEG

How do I set up DVB-T channels?

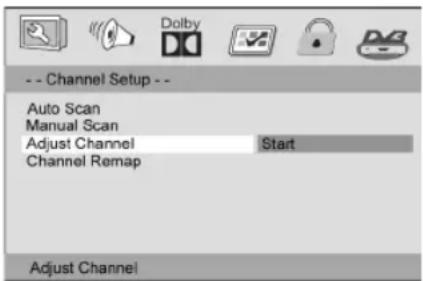

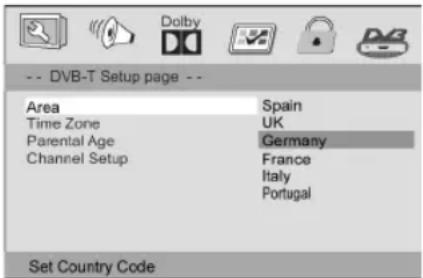

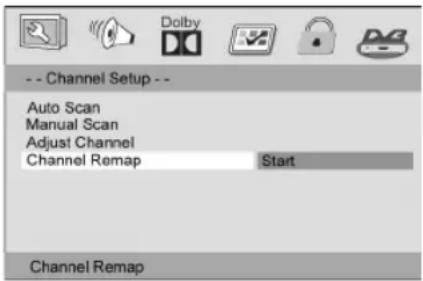

Press the SETUP button, go to DVB-T Setup, then select Channel Setup and choose Auto Scan. Confirm with ENTER. The device will search for all available digital terrestrial channels. You can also start a manual scan if you know the frequency.

How do I play a DVD?

Press SOURCE to select DVD mode. Insert a 12 cm disc with the label facing forward. The disc will be drawn automatically. Press ▶II to start playback. Use the remote control buttons for navigation, pause, stop, fast forward, and chapter selection.

Can I play files from a USB drive?

Yes. Insert a USB storage device into the USB port on the left side. Press SOURCE to enter file mode. Use the cursor buttons to navigate and select files. Supported formats include MP3, MPEG-4, and JPEG images. Note that not all USB devices may be compatible.

How do I change the on-screen display language?

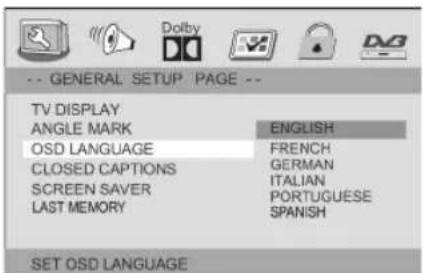

Press SETUP and go to General Setup. Select OSD Language and choose from the available languages (e.g., English, German, French). Press ENTER to confirm.

How do I reset the device to factory settings?

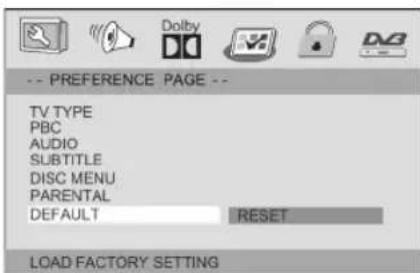

Press SETUP and go to Preference Page. Select Default and confirm with ENTER. All customized settings will be lost.

How do I activate the child lock?

Press SETUP and go to Password Setup Page. Turn Password Mode to On and set a password (default master password is 1369). Then go to Preference Page and set Parental to the desired age limit. For DVB-T, go to DVB-T Setup and set Age Lock.

What should I do if there is no picture?

Check that the device is powered on and the correct source is selected. For external TV, ensure the AV cable is properly connected and the AV IN/OUT switch is set to OUT. If using the built-in screen, check if the disc is inserted correctly or if the battery is charged. Reset the device by unplugging the power for a few seconds.

How do I clean the device?

Use a soft, dry cloth to wipe the exterior. Do not use water, solvents, or abrasive cleaners. For the LCD screen, gently wipe with a dry microfiber cloth to avoid scratches.

Can I connect the device to a television?

Yes. Use the RCA cable to connect the AV OUT jacks of the device to your TV's AV input. Set the AV IN/OUT switch to OUT. You can also connect via VGA for use as a monitor.

How do I use teletext in DVB-T mode?

Press the ANGLE/TTX button on the remote control to enter teletext mode. Use the numerical buttons to enter a page number. Navigate with I◀◀ and ▶▶▶I buttons. Press ANGLE/TTX again to exit.

USER MANUAL CTV 4894 AEG

LCD TV/DVD Player with DVB-T Receiver

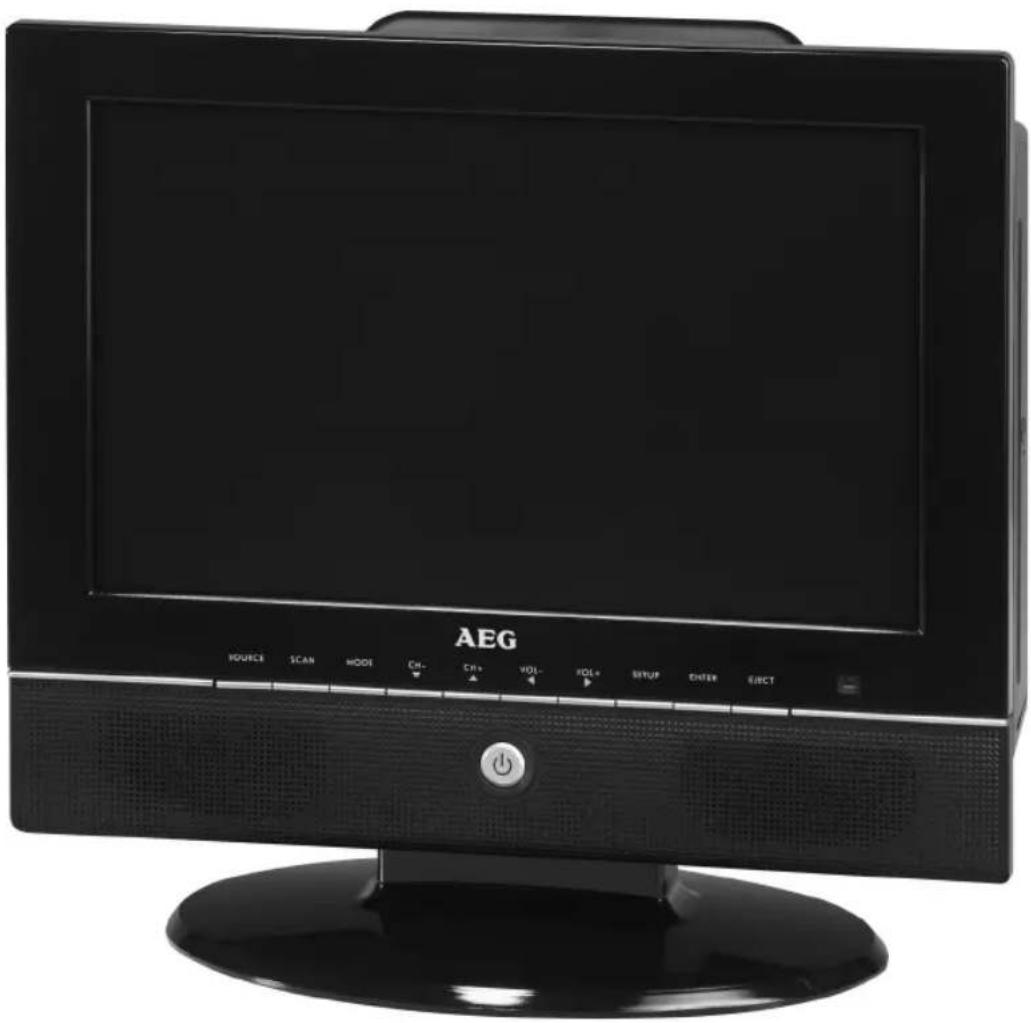

Black-and-white photo of a computer monitor with visible control buttons and display screen (no readable text or symbols)

PERFECT IN FORM AND FUNCTION

AEG

Inhalt/Contents

2

Deutsch

Inhalt

Overview of the Components ......Page 3

Instruction Manual Page 42

Technical Data Page 44

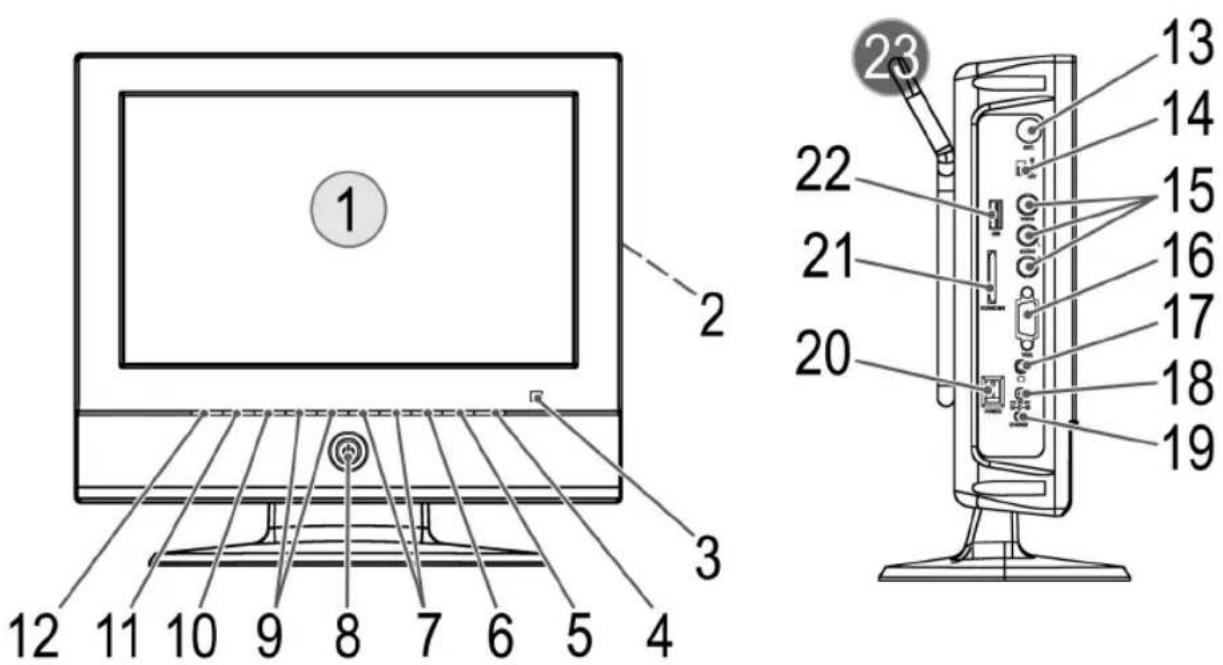

Overview of the Components

Line drawing of a flat-screen computer monitor with a circular button on the front panel (no text or symbols)

SD-Card
Multi Media Card
Memory-Stick

1 MUTE: To switch of the sound.

2 POWER: To activate standby mode.

3 Numerical buttons: For direct selection of chapter or song number. For direct selection of the channel numbers in DVB-T / analogue TV.

4 ANGLE/TTX: To select the viewing angle. For switching on/off teletext in DVB-T mode.

5 SUBTITLE: To show/hide sub-titles.

6 TITLE: Display the title menu of the DVD.

7 ENTER: Confirm the input.

8 Cursor buttons: Navigation in screen menu. In DVB-T / TV analogue mode: for scrolling through the stored channels (▲/▼) / increasing/reducing the volume (▶/◀).

9 SETUP: To start the setup menu.

10 TV/RADIO: For switching between TV and radio mode (if available) in DVB-T mode.

11 REPEAT/DEL: To repeat title, chapters, etc. For deleting channels in DVB-T mode.

12 PRO/EPG: Calling up the play list. For calling up the EPG function in DVB-T mode.

13 DISPLAY: To display the play status on screen. For displaying the current channel slot, as well as the date, time and audio in DVB-T mode. Press the button again to display the signal strength and signal quality. Pressing again hides the information.

14 SOURCE: For selecting between analogue TV/DVD/USB/CARD and DVB-T.

15 EJECT: for ejecting CDs/DVDs.

16 10+: For selecting the chapters/tracks above 9. Pressing again increases by a further 10. In DVB-T / analogue TV mode: for selecting the channels above 9.

17 GOTO: For direct accessing of a section on the CD/DVD.

18 AUDIO: To change the Audio settings.

19 PBC/SCAN: To show the Playback-Control for VCD. In DVB-T / analogue TV mode: for activating the channel search.

20 „■“: Stop play.

21 „▶II“: Start playback. To freeze the picture. Press the „▶II“ button to continue the fi lm.

22 MODE: For setting the picture parameters of the LCD display.

23 ZOOM: To zoom in or out.

24 MENU: To display the main menu of the DVD/VCD.

25 I◀◀: To return to the previous chapter or song.

26 ▶▶▶I: To jump to the next chapter or song.

27 ▶▶/PROT: Fast forward. For protecting channels in DVB-T mode.

28 ◀◀/FAV: Fast reverse. For administering the favourites in DVB-T mode.

English

Technical Data

Type of equipment LCD Television Set/DVD Player with DVB-T Receiver
Model CTV 48 DVB-T/DVD	94
Voltage DC 9V, 2A
Output 15 W
Dimensions (including stand and carrying handle)	270 x 120.6 x 254 mm
Weight 3.8 kg
Laser Semiconductor laser
Signal format PAL/NTSC
Signal noise distance >= 80 dB
Video output 1.0 V (P-P) 75 Ω
Analogue Audio output 1.4 V (rms)
Operating environment 0°C bis 40°C, level base
Compatible media	ATTENTION:With this device it is possible to play back only 12 cm discs!DVD-Video (DVD Disc, DVD ±R/RW)MPEG-4 Video (von CD/DVD Disc, DVD±R/RW, CD-R/RW)Audio CD (von CD Disc, CD-R/RW)Video CD (von CD Disc, CD-R/RW)MP3 files (von CD/DVD Disc, DVD±R/RW, CD-R/RW)
Regional 2 (= Europe, Greenland, South Africa, Egypt and Middle East, Japan)

English

45

Table of Contents

Device parts 3/42

Remote control 3/43

Technical data 44

Safety instructions 47

Setting up and connecting 49

Starting up 49

Power Supply....50

Connection to Other Equipment 51

Changing the Picture Settings 54

About the DVD-Player 55

Playing media 56

Working in file mode 59

Changing the default settings 62

The DVB-T Receiver 70

About the Analogue TV Receiver ....71

Troubleshooting 73

Disposal 74

Declaration of conformity 74

OSD Menu overview 75

English

Many thanks!

We are pleased that you have decided to purchase the CTV4@VB-T/DVD LCD television set/DVD player with DVB-T receiver!

We would like to wish you much joy with your machine and thank you for your purchase!

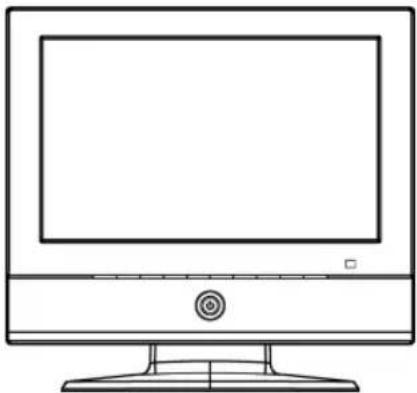

Line drawing of a flat-screen computer monitor with no text or symbols on the screen or side

Symbols in this operating manual

Important instructions for your safety are especially marked. You must follow these instructions to avoid accidents and damage to the machine:

WARNING:

Warns against dangers to your health and indicates potential risks of injury.

ATTENTION:

Indicates potential hazards for the player or other objects.

NOTE: Highlights tips and information for you.

Manufacturer address

ETV

We reserve the right to make technical and design-related changes in the course of ongoing product improvements.

Safety instructions

Operating manual

Read the complete operating manual before using the player.

Keep the manual in a safe place. If you pass the player on to a third party, pass on the operating manual as well.

Non-compliance with this manual can lead to severe injuries or damage to the machine.

We assume no liability for damage caused as a result of non-compliance with this operating manual.

The player may only be used in households for private use. It is not suitable for commercial use.

Children

Do not leave the machine unattended, and do not use it if children or persons who cannot assess the risk are nearby.
Children or persons who cannot assess the risks are not allowed to use the player. Keep the player out of reach.
Packaging material must not be used to play with. There is a risk of suffocation.

Power supply

The machine is operated with electrical current, which means there is in principle a risk of electric shock. For this reason, pay particular attention to the following:

• Never touch the plug with wet hands.
  If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.
  Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.
  Make sure that the power cable is not wound around the device while in operation.
  Never place the machine on the power cable while it is being operated.
  Only use extension cables that are designed for the power consumption level of the machine.
• Keep the appliance away from rain and any moisture.
  You should only operate this device if the electric voltage stated on the type plate of the device is the same as that supplied by your power socket. The wrong voltage can destroy the machine.
  Do not stand vases etc. on the appliance. Water could seep into the appliance.
  Do not open the appliance.
  Pull out the mains plug if the appliance is not to be used over a longer period of time.
  Take care that nobody can trip over the power supply cable.

English

Laser

Where to position the appliance

This appliance is classified as laser appliance of class 1 (CLASS 1 LASER). The associated label is attached to the outside of the appliance.

Laser beams can damage the eyes. Therefore observe the following:

Do not open the appliance. Do not attempt to dismantle the appliance.
In order to avoid any danger: Have service work only carried out by the manufacturer or an authorized service workshop.

Safe operation of the appliance presupposes that it is positioned in an appropriate place. Therefore observe the following:

Protect the appliance against the influence of weather. Never use it in the open-air.
Protect the appliance against moisture.
Do not place liquid filled vessels, e.g. vases, on the device.
Never place the appliance on or in direct vicinity of heat sources, such as e.g. hobs, ovens, etc.
Do not expose the appliance to direct sunlight.
Place the appliance so that a sufficient air supply is assured. This is to avoid a build up of heat inside the appliance. Make sure that the ventilation slots are not blocked.
Protect the appliance against the mechanical vibrations.
Always place the device on a firm, even base.
Protect the remote control against weather influences, moisture and high temperatures (e.g. by direct sunlight).
Do not use the device while travelling in a motor vehicle.

Operation

The player is able to show a still image on the TV-screen/monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver Page 64, "System settings".
Do not increase the volume when the player is just playing very quiet sections. This could damage the speaker if very loud passages start all of a sudden after the quiet section.
Place only DVDs or CDs on the DVD-tray, as otherwise the player may be damaged.
Switch the player off by the On/Off-switch if it is not going to be used for a longer period of time.
Please disconnect the mains plug during thunderstorms.

Intended use

The device is intended exclusively for the following tasks:

Playing of Video DVD/Video CD.
Playing of Audio-CD,
■ Reception of Analogue TV Channels.
■ Reception of digital terrestrial channels (DVB-T).

Any other use is considered non-intended use and is prohibited.

English

49

Defect

If the machine should become defective at some point:

If the power supply cable for this appliance is damaged, it must be replaced by the manufacturer or his customer services, in order to avoid hazards.
Should fluid have seeped into the player or if the player has been dropped down or damaged in any other way, the player must be examined by an authorized dealer. Disconnect the player from the power supply and consult an authorized dealer.

Setting up and connecting

Unpacking

Unpack the appliance and all accessories and check that the contents are complete.

ATTENTION:

Always transport/send the player in its original packaging to prevent it from being damaged. Keep the packaging for this purpose. Dispose of unnecessary packaging material in accordance with the regulations applicable in your country.

NOTE:

Get in touch with your dealer immediately if you notice damage caused by transport.

Setting up

1. Place the player on a stable, heat resistant, horizontal and level surface. Keep a distance of at least 10 cm from walls and objects.
2. Connect the device to a properly installed power socket.
3. If present, remove the protective fi lm from the device/LCD screen.

Starting up

Remote control battery installation

WARNING:

Leaking out battery acid can damage your health. Remove the battery from the battery compartment as soon as it is exhausted or if the remote control is not going to be used for a longer period of time. Wipe up leaked out battery acid with a cloth. In case of skin contact immediately wash the affected area. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes wash out the eyes and seek medical advice.

ATTENTION:

Mismatching battery types or new and used batteries must never be used together. Different battery types have different properties. Do not use old and new batteries together. The mutual use of old and new batteries can shorten the lifetime of the new batteries and possibly result in leakage of the old batteries. When disposing of old batteries you should strictly comply with the legal and environmental regulations applicable in your country. Do not throw batteries into fire!

NOTE:

The lifetime of the enclosed batteries may be shortened because of storage.

A. With the alternating current adapter

B. With the adapter for the cigarette lighter

1. Open and remove the battery compartment cover.
2. Insert two batteries of type AAA/R03 (1.5 V), ensure correct polarity (+ and -). Start with the negative pole (-).
3. Attach and close the battery compartment cover.

i NOTE:

The signals from the remote control are transmitted to the DVD-Player by infrared light. You should therefore take care that the DVD-Player is not exposed to the direct sunlight. This could make the transmission of signals from the remote control to the DVD-Player impossible.

Eff ective range of the remote control

If you want to use the remote control it has to be pointed at the remote control sensor on the front of the device. The distance between remote control and sensor should not exceed 5 m. The angle of the remote control to the remote control sensor to right, left, top and bottom should not exceed 30°.

Power Supply

The alternating current adapter works with alternating current of between 100 V and 240 V, but

In Europe the mains lead (supplied) may only be connected to an alternating current power source of 230-240 V.
When connecting to an alternating current source outside Europe a plug adapter must be used that conforms to the socket.

1. Insert the cable from the alternating current adapter into the DC IN 9V socket (Fig. 2/18) of the device.

2. Connect the alternating current adapter to a correctly installed shock-proof socket.

ATTENTION:

The alternating current adapter supplied is intended for use only with this device. Do not use it with other equipment.
If the device is not going to be used for a prolonged period the alternating current adapter must be removed from the power socket.

The cigarette lighter adapter is used in vehicles that have a 12 V power supply with negative earth.

Connect the plug from the cigarette lighter to the DC IN 9V socket (Fig. 2/18). Then insert the cigarette lighter into the corresponding socket in your vehicle.

Precautionary Measures:

This device may only be used with the original vehicle adapter, as a different adapter can damage the device.
The original vehicle adapter may only be used for this device. Do not use it for other equipment.
Do not use the device when driving. Ensure that the device is firmly fixed in place or stowed away and cannot fall into the vehicle in the case of an accident.

English

51

C. With the rechargeable battery

While you are driving the vehicle it is forbidden to adjust the device or watch videos and CDs.
If the cigarette lighter is dirty, poor conductivity will make the connection hot. Please ensure that the adapter is only inserted into a clean cigarette lighter connection.
After use the adapter should be removed from the device and from the cigarette lighter socket.

- Charge up the battery before initial use.

The rechargeable battery is intended for portable use and for the viewing of DVDs out of doors.

Recharging the Battery

1. Insert the cable from the alternating current adapter into the DC IN 9V socket (Fig. 2/18) of the device.
2. Connect the alternating current adapter to a properly installed shock-proof socket. The charging display lights up in red (Fig. 2/19).

ATTENTION:

The alternating current adapter supplied is only intended for use with this device. Do not use it for other equipment.
If the device is not going to be used for a prolonged period the mains lead must be removed from the power socket.

The battery is fully charged when the CHARGE control lamp changes to green. Remove the mains lead from the alternating current adapter and then the battery from the charging device.

NOTE:

If the power of the rechargeable battery falls, playback stops.
If the device switches itself off during operation the battery is flat. The battery has to be charged up.
Only the original adapter and the original charging device should be used to charge up the battery.
Charge up the battery shortly before the next time it is used.

Connection to a television set (Fig. 2/15)

Connection to Other Equipment

1. Insert the cinch cable into the corresponding sockets on the device.
2. Connect the other end of the cinch cable to your television set. If necessary you should use an RCA/start adapter (not included in the scope of supply).
3. Turn the AV IN/OUT switch (Fig. 2/14) to „OUT".

Playback of a DVD on the Television Set

1. Turn on the DVD player by the POWER I/O switch.
2. Turn on the television set and follow the instructions supplied with the television set.

English

Use of ear/headphones (Fig. 2/17)

NOTE:

Please ensure that the correct audio/video cable is used as the wrong cable will produce a weak signal.
DVDs are copy-protected and cannot be copied. If a DVD is copied onto a video cassette you will see a blurred picture with poor sound quality. This is NOT the fault of the device!

1. If you use a set of headphones you should use one with a 3.5 mm stereo jack, which should be inserted into headphone socket (☐).
2. Set the desired volume with the VOL+/- (▶/◀) volume buttons (Fig. 1/7 / 3/8).

WARNING:

Make sure that the volume of your headphones or earphones is not too high, as otherwise this may damage your ears and you may endanger yourself or others.
In order not to disturb those around you the volume should be set to a low level.
If you suffer from tinnitus you should turn the volume down low or refrain from using this device.
Ear doctors recommend that earphones should not be used continuously over a prolonged period.

Connecting other Playback Devices

In order to show the image from another playback device (e.g. digital camera) on the LCD screen, please connect the cinch cable to the corresponding sockets on the device (Fig. 2/15) and the other end to the playback device. Turn the AV IN/OUT switch (Fig. 2/14) to „IN“.

NOTE:

If you would like to display the picture from the internal DVD player on the LCD screen you should turn the AV IN/OUT switch to „OUT".

Connecting to a PC (Fig. 2/16)

1. In order to use the LCD screen as a monitor your PC, please connect the VGA cable (not supplied) to the VGA socket of the device.
2. Then connect the other end of the cable to the graphic card of your PC.
3. Turn the AV IN/OUT switch (Fig. 2/14) to „IN“.

NOTE:

If you would like to display the picture from the internal DVD player on the LCD screen you should turn the AV IN/OUT switch to „OUT".

Antenna connections

Antenna Input (Fig. 2/13)

i NOTE:

Please ensure that it is possible to receive DVB-T signals in your area. Information on the transmission area is available on the Internet under: http://www.ueberallfernsehen.de, or from your specialist dealer.

This device has a built-in DVB-T receiver.

In order to be able to receive digital terrestrial channels with the built-in DVB receiver it is necessary to connect your permanently installed house aerial.

If you are located in the central section of the transmission area you can also use an optional passive or active DVB-T aerial.

- Connect the cable from your DVB-T aerial system or your DVB-T room aerial to the ANT. socket on the left-hand side of the device.

This device also has a built-in analogue receiver.

In order to be able to receive cable television channels with the built-in analogue receiver it is necessary to connect your permanently installed cable system.

For this you should connect the cable of your cable connection to the ANT. socket on the left-hand side of the device.

Inputs on the side of the device

USB Input (on the left-hand side of the device) (Fig. 2/22)

Insert a USB storage medium into the corresponding socket on the left-hand side of the device.

Memory Card Slot (on the left-hand side of the device) (Fig. 2/21)

Insert an MMC/SD or MS storage card into the card slot on the left-hand side of the device.

Switching on the player (Fig. 2/20)

Turn on the main switch of the DVD player by moving the „POWER I/O“ switch on the left-hand side of the device to the „I“ position.


BRIGHT

CONTRAST

COLOR

ENGLISH

RESET

VOLUME

VOLUME

OPTION
	NORMALDOWN
ZOOM	16:94:3

SYSTEM
S-ROLOC	AUTO

PRESET
AUTO-SEARCH
SEARCH
FINE
BAND	VHF-LVHF-HUHF
POSITION
SKIP	OFFON

Changing the Screen Settings

Press the MODE button (Fig. 3/22) repeatedly in order to select the individual menus (PICTURE, VOLUME, OPTION, SYSTEM, PRESET).

Use the (▲/▼) cursor buttons (Fig. 3/8) to select the option. Make the adjustments with the cursor buttons (▶/◀).


In the „Picture" menu you can set the brightness, contrast, colour saturation and OSD language. You can also use the „Reset" function to return the settings to the default values.

Volume

Here you can set the volume.

Option

Here you can adjust the settings for the picture mode. Display screen ("Normal" and "Down") as well as the zoom (16:9 and 4:3).

System

The „System“ menu varies depending on the mode of operation. In DVB-T and DVD mode it is not possible to make any adjustments. For the settings available in analogue TV mode see the section „About the Analogue TV Receiver".

Preset

This menu is only available in analogue TV mode (see the section „About the Analogue TV Receiver").

About the DVD-Player

With this DVD-Player you can play a vast variety of DVD-formats Page 44, "Technical data".

However, you must be aware that in many cases DVDs are encrypted with a so-called "Regional Code". This specifies for which region in the world the DVD is intended. As an example, the DVDs marked with regional code "1" are intended for the USA and Canada. DVDs with regional code "2" are for use in Europe.

i NOTE:

With your DVD-Player you can only play DVDs with regional code "2". There are both lots of burning and compressing methods as well as high quality differences in (burned) CDs/DVDs. Moreover, the music industry has not yet agreed on a fixed standard for copy protection. This may, in very isolated cases, result in problems when relaying CDs, DVDs and MP3 CDs. This is no malfunction of the player.

Furthermore, there may be isolated problems when playing CDs or DVDs which were created on a PC (e.g. holiday photographs). In case of problems check the settings of the DVD writing program on your computer. You should in particular make sure that the DVD has been finalized. For further information on this matter please refer to the operating manual of your recorder.

Terminology

Input Not Possible

If a function or input selected by you is not possible, the adjacent symbol is shown on the screen.

Track: "Track" is the designation for sections on an Audio-CD. This may be a song, the set of a symphony, etc.
Title/Chapter: Video-DVDs are divided into "Title" and "Chapters". A "Title" may be e.g. a particular fi Im, the "Chapters" may be subsections of this fi Im.
MPEG4: Your DVD player is also suitable for playing back files that have been compressed using the MPEG-4 system (short for Moving Picture Experts Group-4). MPEG-4 is a compression method by means of which large quantities of data can be reduced without any noticeable loss of picture and sound quality.

English

Using the remote control

Loading a CD/DVD

Understanding the onscreen CD-menu

Understanding the onscreen DVD-menu

Starting the replay

Playing media

You transmit commands to the DVD-Player via remote control. It is thus important to point the end of the remote control towards the DVD-Player.

1. Press the SOURCE button (Fig. 3/14) to select the DVD mode.
2. Insert a CD or DVD into the drive. The CD is automatically drawn.
3. The word "Loading" appears briefly in the display.

ATTENTION:

With this device it is possible to play back only 12 cm discs!

NOTE:

The CD/DVD is only drawn in if the device is turned to DVD mode.
Insert the CD/DVD into the drawer with the cover facing forwards.

When playing CDs you can view the on-screen menu by pressing the DISPLAY-button (Fig. 3/13).

Current track/total number of tracks (1).
Time (2): This provides information about the duration and the remaining play time. By standard the play time expired of the current track is displayed. The display is in hours, minutes and seconds. Press the DISPLAY-button (Fig. 3/13) once or several times to have further times displayed.

The following possibilities are available for selection

• time remaining to the end of the track,
• playback time of the CD so far,
• time remaining to the end of the CD.

When playing DVDs you can view the on-screen menu by pressing the DISPLAY-button (Fig. 3/13).

DVD-menu

Current title/total number of titles (1).
Current chapter/total number of chapters (2).
Time (3): This provides information about the duration and the remaining play time. By standard the play time expired of the current title is displayed. The display is in hours, minutes and seconds. Press the DISPLAY-button (Fig. 3/13) once or several times to have further times displayed. The following possibilities are available for selection

• time remaining to the end of the title,
• expired playing time of the chapter,
• time remaining to the end of the chapter.

Insert the CD or DVD into the drive Page 56, "Loading a CD/DVD".

Press the „▶II"-button (Fig. 3/21) on the remote control.

NOTE:

If the replay does not start or the replay is of poor quality, you should check the default settings of the DVD-Player.

English

57

Interrupting the replay

Press the „▶II"-button (Fig. 3/21) on the remote control. The replay is interrupted, the currently visible image is „frozen".

Press the „▶II“-button (Fig. 3/21) on the remote control to restart the „normal“ replay.

Changing Audio-Language/

Press the AUDIO-button (Fig. 3/18) several times to change the Audio language. The available audio languages depend on the DVD.

Audio-Mode

i NOTE:

If the medium does not support this function (e.g. a CD), you can use this button to change the Audio mode and set it e.g. to „Mono“ or „Stereo“.

Showing subtitles

Press the SUBTITLE-button (Fig. 3/5) to display the current subtitle status. Press the button several times if you would like to activate or deactivate the subtitle function or if you want to choose a different subtitle language. The available subtitle languages depend on the DVD.

Stopping the replay

Press the „■“-button (Fig. 3/20) during replay. The replay stops.

Press the "▶II"-button (Fig. 3/21) again, to continue the replay from the last position.

Press the „■“-button (Fig. 3/20) twice to stop the replay completely. Press the „▶II“-button (Fig. 3/21) again, to replay the CD/DVD from the beginning.

Selecting previous chapter/track

Press the I◀◀ button (Fig 3/25) to jump to the start of the previous chapter or track.

Selecting next chapter/track

Press the ▶▶1 button (Fig 3/26) to jump to the start of the next chapter or track.

Selecting track directly

Enter the number of the desired chapter/track with the Numerical Buttons on the remote control (Fig. 3/3).

Replay of the chapter/track starts after a short while.

Accessing a section via menu

The on-screen menu enables comfortable access to any sections of a medium. To do this, proceed as follows:

1. Select the desired category by repeatedly pressing the button GOTO button (Fig. 3/17).
2. Now move to the point from which the replay should start. Depending on the type of medium this may be a track number, a chapter or even a point in time. The input must be made with the Numerical Buttons (Fig. 3/3). Playback begins after a short time.

Repeating DVD-title/chapter

1. Choose the chapter or title to be repeated.
2. Press the REPEAT/DEL-button (Fig. 3/11). The message "Chapter" appears on the screen.
3. Press the REPEAT/DEL-button again, until the message "Title" or "All" is displayed.

58 English

Repeating track on CD	1. Select the track to be repeated.2. Press the REPEAT/DEL-button (Fig. 3/11). The message „Track" appears on the screen.
Repeating CD	Keep pressing the REPEAT/DEL-button (Fig. 3/11), until the message „All" is displayed on screen.
Stopping repeat	Press the REPEAT/DEL (Fig. 3/11) repeatedly until the message disappears from the screen.
Using the DVD-menu	Normally each DVD has its own menu. Here you can choose chapters, make settings, etc. This menu is specifi c for the DVD and can thus not be explained in detail.Press the MENU-button (Fig. 3/24) to access the DVD-menu. Use the Cursor Buttons (Fig. 3/8) to navigate in the Menu. Press the ENTER-button (Fig. 3/7) to confi rm.If you are in a menu area for direct chapter selection, you can enter the number of this chapter with the Numerical Buttons (Fig. 3/3) on the remote control.
Using fast forward or reverse	The DVD-Player has a fast forward and a fast reverse feature.1. Press the ▶▶/PROT (Fig. 3/27) or ◀◀/FAV-button (Fig. 3/28) to start fast forward or fast reverse. The current replay direction and the speed, e.g. „2x“ is now displayed on screen.2. Press the ▶▶/PROT or ◀◀/FAV-button several times in order to change the speed. The speed can be accelerated by factor 2, 4, 8, 16 or 32.3. Press the „▶II"-button (Fig. 3/21) to restart the "normal" replay when the desired section is reached.
Enlarging a screen section	You can change the screen section when viewing DVDs, VCDs or images.Press the ZOOM-button (Fig. 3/23) to change the screen section. Press the button several times to select the suitable zoom factor or to return to the original zoom factor.
Changing the viewing angle	Some DVDs off er the possibility to select the viewing angle.Press the ANGLE-button (Fig. 3/4) to change the viewing angle.
	NOTE:If changing the Viewing Angle is not possible, the message „©will be displayed.Repeat pressing the the button to choose a different viewing angle, or to return to the original viewing angle.

Adjusting the volume

Creating a playlist (CD/DVD CD:

Program

DVD:

Program

Deleting a playlist (CD/DVD)

Using CD/DVD

The desired volume can be set with the cursor buttons (▶/◀) (Fig. 3/8).

You may want to replay the titles, e.g. on a CD, in a different order to the order determined by the producer. The function „Create Playlist“ you can create your own playing order.

To do this, proceed as follows:

1. Press the PRO/EPG-button (Fig. 3/12). A table is displayed. Here you can enter the desired order of the tracks (in the case of CDs) or chapters/titles (for DVDs).

i NOTE:

However, your playlist will be lost when switching off the DVD-Players or when inserting a new CD/DVD.

1. Use the Cursor Buttons (Fig. 3/8) to navigate in the table.
2. Enter the desired track (in the case of CDs) or the desired title and chapter (for DVDs) at the appropriate position in the table. Use the Numerical Buttons (Fig. 3/3) for this purpose.
3. Use the Cursor Buttons (Fig. 3/8) to select the command "Start" at the bottom of the screen to save the input.

4. Press the ENTER-button (Fig. 3/7) on the remote control to confirm this command.

5. Press the PRO/EPG-button. You will now see a table (Fig. CD or Fig. DVD).

6. Use the Cursor Buttons (Fig. 3/8) to manoeuvre to the command "Stop" at the bottom of the table.
7. Press the ENTER-button (Fig. 3/7) on the remote control to confirm this command.
8. Press the PRO/EPG button to terminate this procedure.

Working in fi le mode

As well as being able to play back „normal" fi lms or music from CDs/DVDs, this DVD player is also able to play back video or audio fi les from CDs or DVDs which are stored in the fi le system. Such media are frequently available if you create CDs of digital photographs or MP3 music on your computer.

1. Press the SOURCE button (Fig. 3/14) to select DVD mode.
2. Insert a CD/DVD into the CD/DVD drawer Page 56, "Loading a CD/DVD".
3. Select the desired file(s) and start the replay Page 61, "Selecting file/directory and starting replay".

60 English

Using a memory card

The following memory cards can be used:

SD-Card
Multi Media Card
Memory-Stick

1. Insert the memory card into the card reader (Fig. 2/21).
2. Press the SOURCE button (Fig. 3/14) on the remote control in order to turn the DVD player to the file mode.
3. Select the desired file(s) und start playback Page 61, "Selecting a file/directory and starting playback".
4. If you would like to change back to DVD mode, press the SOURCE button (Fig. 3/14) repeatedly.

i NOTE:

In order to find out which files can be played back the DVD player now reads the contents of the storage medium. In the case of large storage media this procedure may take a long time. During this time you will see the words "WAITING" on the screen.
If you have connected an output device to the USB socket its content is displayed first. Press the SOURCE (Fig. 3/14) button a second time to display the contents of the memory card.

Using a USB medium

By means of the USB connection it is possible to connect various USB storage media to the DVD player. Examples of such devices are USB memory sticks or digital cameras.

This device has been developed in accordance with the latest technical developments in the USB fi eld. Unfortunately the large number of different types of USB storage media on off er today makes it impossible to guarantee full compatibility with all USB storage media. For this reason there may be problems in rare cases with playing back from USB storage media. This is not a malfunction of the device.

1. Press the SOURCE button (Fig. 3/14) on the remote control in order to switch the DVD player to the file mode.
2. Insert a USB storage medium into the corresponding connection of the DVD player (Fig. 2/22).

i NOTE:

In order to find out which fi les can be played back the DVD player now reads the contents of the storage medium. In the case of large storage media this procedure may take a long time. During this time you will see the words „WAITING“ on the screen.

1. Select the desired file(s) and start playback Page 61, "Selecting a file/directory and starting playback".
2. If you would like to change back to DVD mode, press the SOURCE button (Fig. 3/14) repeatedly.
3. Then remove the USB storage medium.

English

61

Selecting fi le/directory and starting replay

Media may contain numerous data/fi les and directories. You must therefore fi rst determine the data to be played.

1. If necessary, insert the CD or DVD into the drive or connect a USB storage medium.
2. A two-column menu window appears in which the directories (if there are any directories present) or the files are listed on the left.
3. Use the Cursor buttons (Fig. 3/8) to select the desired directory of file in the left-hand list.
4. Select this by pressing the ENTER button (Fig. 3/7).

File: Once you have selected a file, this is now displayed directly or played back.

Directory: If you have called up a directory, a list of files now opens.

Here too you can select the desired fi le with the Cursor buttons and the ENTER button (Fig. 3/7). If you have selected a fi le, this is now displayed or played back.

Please note:

There are both lots of burning and compressing methods as well as high quality differences in CDs/DVDs and burned CDs/DVDs.

For this reason there may occasionally be problems when fi les are played back (for example fi les are displayed but cannot be played back). This is no malfunction of the player.

NOTE:

In order to return from the files to the folders, select the symbol (higher-level folder) and press the ENTER key (Fig. 3/7).

Stopping the replay

Press the „■“-button (Fig. 3/20) on the remote control to stop the replay.

Viewing pictures

The DVD player is suitable for displaying your digital photographs. These photos may be stored only any medium (DVD, CD, etc.) supported by the DVD player.

NOTE:

Please ensure a suitable size of the photos. Large size photos may take some time to be displayed or may not be displayed at all. It is of advantage if the size of the photo corresponds with the screen size of the playback device. For TVs this is normally 1024x576 pixel (TV-aspect 16:9) or 768x576 (TV-aspect 4:3).
Please note that any conversion generally involves a loss of data with respect to the original format.

Start the replay of photos by selecting the file from which the replay shall start Page 61, "Selecting file/directory and starting replay".

NOTE:

After a few seconds a preview picture appears on the right-hand side in the two-column menu window.

Scrolling

Manual: Press the I◀◀ (Fig. 3/25) or ▶▶▶I -button (Fig. 3/26) on the remote control to scroll forward or back.
Automatic: Press the ENTER button (Fig. 3/7). The pictures change automatically.

Rotating a photo

You can use the Cursor buttons to rotate a photo during replay:

Rotate clockwise for 90°: Cursor Button „▶“
Rotate counter-clockwise for 90°: Cursor Button „◀“

Changing the default settings

A large number of default settings can be comfortably changed via the screen menu.

Press the SETUP-button (Fig. 3/9) on the remote control to start the menu for changing the default settings.

NOTE:

Many of these default settings can be changed via both the remote control and the menu. The difference is: If you change the default settings via the remote control, these changes will only be valid until the DVD-Player is switched off or the DVD is changed.

Understanding the menu structure

Using the menu

The Setup menu has two menu levels:

Main menu: The main level is represented by graphical symbols.
Sub-menu: The corresponding sub-menu options can be found under each of the main menu options.

Navigation and selection

Use the Cursor Buttons (Fig. 3/8) (▶ / ◀) on the remote control to browse through the main menu.
In contrast to this, you must use the Cursor Buttons (▼/▲) to move in the sub-menu.
Select a menu option with the ENTER-button (Fig. 3/7).
Use the ENTER-button also to select an option (e.g. "PAL" in the illustration on the left). The selected option (in the example „PAL") is now highlighted.

Slide control

In some menus you will find slide controls with which you can adjust the volume or picture brightness, for example. The slide control is used as follows:

1. Select with the ENTER-button.
2. Move the control with the Cursor Buttons (▼/▲).
3. Confirm the entry with the ENTER-button.

Overview of the main menu

General Setup (1)
Audio Setup Page (2)
Dolby Digital Settings (3)
Preference Page (4)
Password Setup Page (5)
DVB-T Settings (6)

i NOTE:

Some of the menu settings are only available in stop mode (depending on the DVD).

System settings

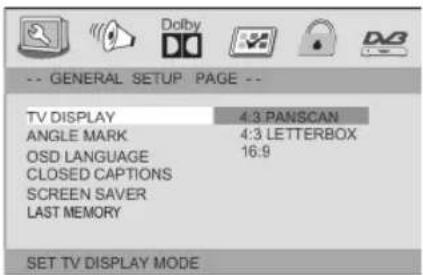

TV Display

Here you can adapt the output of the DVD-Player to the TV-aspect.

Concerning the background: If you do not have a wide screen TV the TV-aspect will be 4:3. However, most feature films have an aspect of 16:9, the image is therefore too wide for the TV-screen.

Here you can specify how the replay of the film is to be adapted to the playback device:

4:3 Panscan: You will only see the middle section of the film. The borders will be cut off.
4:3 Letterbox: You will see the complete width of the film. The film is thus reduced in size, whereby black bars appear below and above the film
16:9 Wide: Select this option if you use a wide screen TV for replay. Please note that fi lms, that have been recorded with TV-aspect 4:3 can still be replayed using aspect 4:3. This means, that replaying this fi lm will not require the complete wide screen area of the television.

i NOTE: The setting "4:3 Panscan" is not supported by all DVDs.

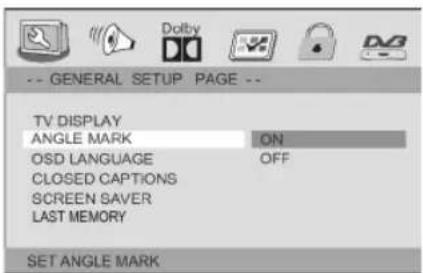

Angle Mark (Camera Angle)

If the DVD contains sequences recorded from different camera angles you can use the ANGLE/TTX button (Fig. 3/4) to select the various camera angles. This function is only available if the DVD contains scenes with various camera angles.

Before you can use this function it has to be activated.

On: The angle symbol is shown on the screen.
Off: No angle symbol is shown on the screen.

OSD Language

Here you can select the language of the on-screen displays.

64

English

Analogue Output Setup

Dolby Digital Setup

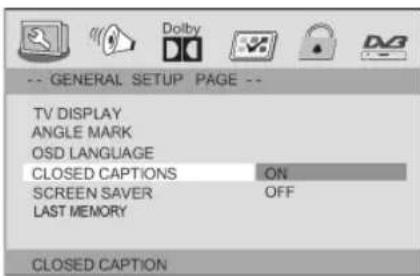

Closed Captions

Some DVDs contain commentaries that accompany the film, e.g. subtitles for the hard of hearing.

On: The commentary is displayed.
Off: No commentaries are displayed.

Screen saver

The player is able to display a still image for any time on the screen. This can cause damage to the screen. It is therefore recommended to activate the screen saver.

The following options are available:

On: The screen saver is activated (default setting).
Off: The screen saver is deactivated.

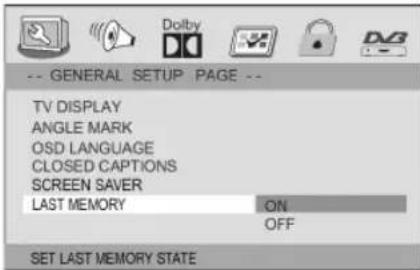

Last Memory

Here you can define how the DVD player should behave if the user presses the „STOP ■“ button (Fig. 3/20) during playback.

On: If the playback of a DVD, CD or VCD is stopped and then restarted, playback begins from the previous position.
Off: If the playback of a DVD, CD or VCD is stopped and then restarted, playback begins from the beginning of the medium.

Downmix

Change the characteristics of the speaker output:

LT/RT: Choose this setting if you want to play the DVD with the Pro Logic Dolby stereo effect. This produces a almost real 2-channel replay effect.
Stereo: Choose this setting if you want to play a DVD, that has been produced in the 5.1-Audio format, as 2-channel stereo sound.

Dual Mono

The Audio output is normally in stereo. Here you have the possibility to choose Mono-output instead of Stereo-output.

Stereo: The Audio output is in Stereo (default).
L-Mono: The Audio output is in Mono. In this case the signal of the "left" stereo channel is transmitted to all speakers.
R-Mono: The Audio output is in Mono. In this case the signal of the "right" stereo channel is transmitted to all speakers.
Mix Mono: The Audio output is in Mono. In this case the signal of the "both" stereo channel is transmitted to all speakers.

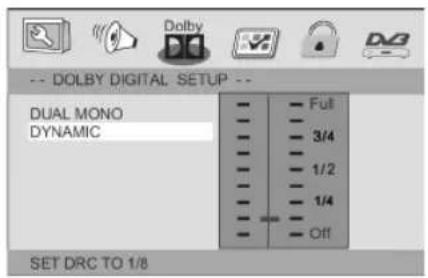

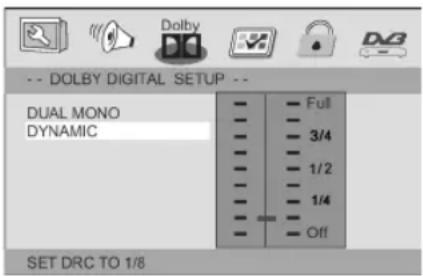

Dynamic

The term „Dynamic“ (Dynamic Range) describes the ratio of quietest and loudest sound. If the dynamic range is very large, you will experience very quiet and very loud sounds.

This may cause replay problems. Let us assume that you are watching a DVD in a relatively loud environment. You can now increase the volume to be able to hear also the very quiet passages, however with the disadvantage that loud passages will be unacceptably loud. In this case it would make sense to compress the dynamic range (i.e. reduce) and increase the output volume at the same time.

FULL -1/8: The dynamic range is compressed slightly (1/8) to full (FULL).
OFF: The dynamic range is not compressed at all (default).

Preference Page

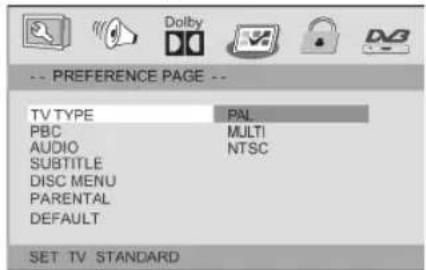

TV Type

Match the output of the DVD-Player to the colour transfer system of your playback device.

The following options are available:

PAL: A system commonly used in Europe.
MULTI: Select this setting if your playback device is a multi-system unit.
NTSC: A system primarily used in North America.

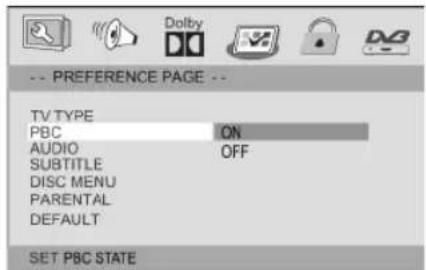

PBC

By means of the PBC (Playback Control) function the interactive menus specified by the manufacturer on the DVDs or VCDs are started automatically. If you turn the PBC option to "Off" the tracks are played automatically in order from the DVD or VCD.

i NOTE:

If the DVD or VCD is not PBC-compatible no selection menu is displayed even if the „PBC“ function is switched on.

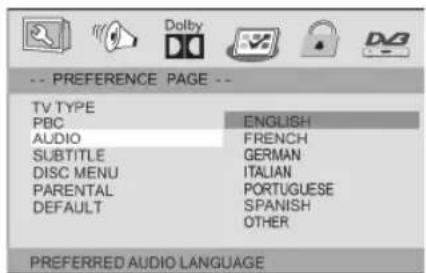

Audio; Subtitle; Disc Menu

Audio: Here you can select the preferred audio language.
Subtitle: Here you can select the preferred language for the film subtitles.
Disc Menu: Here you can select the preferred language for the DVD menus.

English

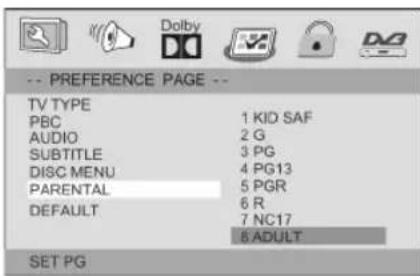

Parental

Some DVD contain information concerning the target group. This method is comparable with the rating of cinema fi lms ("Suitable only for persons of 12 years and over" e.g.).

If you have the child lock option activated a probably existing corresponding information is read from the DVD and compared with the value pre-set by you. If a DVD is intended for an older age group than the one pre-set by you, the DVD cannot be played.

The following child lock options are available:

Kid Saf: Suitable for children.
G: Suitable for all age groups.
PG: The presence of parents is recommended. Some scenes may be unsuitable for children.
PG 13: The presence of parents is strictly recommended. Some scenes may be unsuitable for children under the age of 13.
PGR: The presence of parents is strictly necessary.
R: Young persons under the age of 17 may only view this film in the presence of an adult.
NC17: Children and juveniles under the age of 17 are not allowed to watch this fi Im.
Adult: The film must only be watched by adults.

Default

Select the command „Default/Reset" if you want to reset the player to the factory implemented default settings.

Any settings you have made will be lost.

Password Setup

If you want to operate the DVD-Player with a child lock system, you must first enter a password. This password safeguards the settings for the child lock system, so that it can only be changed by yourself.

Password Mode

On: A password has to be entered whenever an attempt is made to modify the child lock function.
Off: The child lock system can be changed without a password being required.

Password

In this menu you can change the password for the child lock system.

In order to change the password, you must first enter the current password. The master password is „1369“.

NOTE:

If you forgot your password, you can deactivate the child lock system with this password.

Proceed as follows to change the password:

1. Enter the present password in the „Old Password“ line with the Numerical buttons (Fig. 3/3) of the remote control.
   To prevent the password from being read by unauthorized persons only the characters "XXXX" will appear on the screen.
2. Enter the new password in the „New Password" line with the Numerical buttons of the remote control.
3. Confirm the new password by entering it again in the "Confirm" line. Confirm your entry with the ENTER button (Fig. 3/7).

DVB-T Setup

NOTE:

The DVB-T settings menu can only be selected during DVB-T operation.

Zone (location)

Here you can select the region where you are located.

Time zone

Here you can select the time zone corresponding to your location. This is synchronised by the reception signal to Greenwich Mean Time (GMT). The automatic setting of the time is carried out in accordance with your selection.

Make the adjustments with the cursor buttons (▲/▼). Confirm your selection with the ENTER button.

In the majority of Europe:

Normal time = hour 01, minutes 00

Summertime = hour 02, minutes 00

English

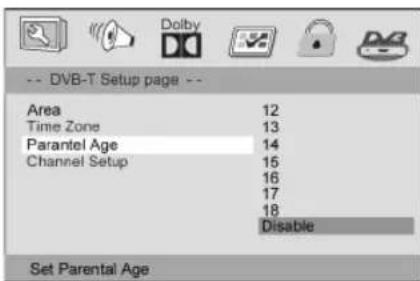

Age lock

Here you can select the age of the child lock or deactivate the setting.

If you have activated the child lock option, the corresponding information is compared with the age set by you (if such information is transmitted by the respective station). If a programme is intended for an older age group than the age you have set, the programme cannot be shown.

NOTE:

You are asked to put in the password. This is identical to the one you entered in the menu „Password Setup Page/Password“.

Channel Setting

Automatic Scan

Select this type of scan to search for channels through the entire reception frequency range of the receiver.

1. Select the "Start" command.

2. Confir rm the confi rmation prompt shown with the ENTER button (Fig.3/7).

The channel search is now performed automatically and may take several minutes.

NOTE:

If you would like to interrupt the procedure, press the PBC/SCAN (Fig. 3/19) button and acknowledge the confirmation prompt with the ENTER button (Fig. 3/7).
By pressing the PBC/SCAN button (Fig. 3/19) you can also activate the automatic channel search.

Manual Scan

NOTE:

In this type of search it is necessary to know the frequency of the channel you are searching for. This can be obtained either on the Internet or directly from the respective channel provider.

Select this type of scan in order to specifically search a certain channel or a certain frequency for programmes.

1. Select the "Start" command.
2. Confir rm the confi rmation prompt shown with the ENTER button (Fig. 3/7).
3. The manual search window opens. Use the numerical buttons (Fig. 3/3) to enter the desired frequency and select the „SCAN“ command. In the frequency range that has been entered a search is carried out for channels that can be received.

NOTE:

If you would like to interrupt the procedure, press the PBC/SCAN button (Fig. 3/19).

Setting the Channel

Select the „Start" command. The channel setting menu appears. Use the cursor buttons (Fig. 3/8) to select the channel that you would like to modify. In order to display the following or previous fi ve channels, press the ▶▶1 or ◀◀ button on the remote control.

• Favourite: Press the ◀◀/FAV button (Fig. 3/28) to include the currently selected channel in the favourites list.
• Delete: Press the REPEAT/DEL button (Fig. 3/11) to jump over the currently selected channel when switching over.
• Protected: Press the ▶▶/PROT button (Fig. 3/27) to protect the currently selected channel. You will then be asked to enter the password. If you now want to select the channel, you will be asked once more to enter the password.

To leave the channel setting menu, select the „EXIT" command and confirm with the ENTER button (Fig. 3/7).

i NOTE:

The „EXIT" command can only be selected if the first five channels are displayed.
The password is identical to the one you entered in the menu „Password Setup Page/Password".

Sorting the Channels

1. Select the "Start" command. The channel sorting menu appears.
2. Use the cursor buttons (Fig. 3/8) to select the channel you would like to move.
3. Press the ENTER button (Fig. 3/7) and use the cursor buttons to select the new channel slot.
4. Press the ENTER button again.

In order to leave the channel sorting menu, select the „EXIT" command and confirm with the ENTER button (Fig. 3/7).

i NOTE:

The „EXIT" command can only be selected if the first five channels are displayed.

The DVB-T Receiver

The signals received from the aerial cannot be processed by a television set. They are processed in the built-in DVB receiver in such a way that audio and video signals (AV) are available at its outputs, which are then passed on to the television set.

DVB-T stands for:

Digital Video Broadcasting Terrestrial: a digital, universal transmission technology for pictures, graphics, sound and text, i.e. for data in every conceivable form and in every possible appropriate quality.

EPG (Electronic Programme Guide)

NOTE:

This function can only be used if it is supported by the selected station.

The built-in DVB-T receiver has an electronic programme magazine. This makes it possible to depict the information of the individual channels on the screen. Here you can find an overview of the channels currently being shown as well as the following ones.

In order to access the EPG menu, press the PROG/EPG (Fig. 3/12) button during DVB-T operation. The EPG information window appears:

Current channel (1).
Current programme (2).
Following programme (3).
Current date and time (4).

Teletext

Press the ANGLE/TTX button (Fig. 3/4) to call up the teletext function. Enter the desired teletext page with the help of the numerical buttons (Fig. 3/3). The number you have entered is shown in the top left-hand corner of the screen. After you have entered the desired teletext page number your television set searches for the page. As the teletext pages cannot all be transmitted at the same time it may take a few seconds until your set has found the page.

For all teletext operators page 100 shows the list of contents.

Use the „I◀◀” or MENU button (Fig. 3/25, 24) to scroll one page forwards or backwards.
By pressing the ZOOM button (Fig. 3/23) the teletext group shown in the yellow fi eld is called up.
By pressing the „▶▶I“ button (Fig. 3/26) the teletext block shown in the blue fi eld is called up.

In order to turn off the teletext, press the ANGLE/TTX (Fig. 3/4) button again.

Selecting favourites

By repeatedly pressing the „◀◀/FAV" button (Fig. 3/28) you can switch through the previously selected favourite channels. (For selecting favourites see the DVB-T menu „Setting the channel".)

About the Analogue TV Receiver

If you are in analogue TV mode you can make the adjustments described above in the „Changing the Screen Settings" section.

You can also now access the menus „System“ and „Preset“.

Here you can start the automatic channel search, move and skip channels, etc.

Analogue TV Settings

i NOTE:

The analogue settings menu can only be selected in analogue TV mode.

Press the MODE button (Fig. 3/22) repeatedly to select the individual menus and a (PICTURE, VOLUME, OPTION, SYSTEM, PRESET).

Use the (▲/▼) cursor buttons (Fig. 3/8) to select the option. Make the adjustments with the cursor buttons (▶/◀).

System

SYSTEM
S-ROLOC	AUTOPALSECAM
S-SYS	BGDKIL
SWAP
COPY

Colour System (S-ROLOC)

Adapt the output of the device to the colour transmission system of your playback device. The following options are available:

AUTO: Select this setting if your playback device is a multisystem device.

PAL: A widespread system in Europe.

SECAM: A system used in France and Eastern Europe.

Sound System (S-SYS)

Here you can set the standard system according to your region.

BG: A widely used system in Western Europe.

DK: A widely used system in Eastern Europe.

I: The most widely used system in the United Kingdom, Ireland, Hong Kong and South Africa.

L: The most widely used system in France.

Swap

In this menu you can swap two television channel places with one another.

1. First set the channel which you would like to swap. Now call up the analogue OSD menu and select the "Swap" option.
2. Use the cursor buttons (▶/◀) to select the channel place with which the selected channel is to be swapped (e.g. 2 ⇔).
3. Then press the cursor button (▼) in order to select the channel to be swapped.
4. For example 2→3 is shown in the display. In this example, the channel is moved from position 3 to position 2 by pressing the cursor button (▶).

Preset

PRESET
AUTO-SEARCH
SEARCH
FINE
BAND	VHF-LVHF-HUHF
POSITION
SKIP	OFFON

Copy

In this menu you can copy a TV channel to another channel position.

1. First set the channel which she would like to copy. Now call up the analogue OSD menu and select the "Copy" option.
2. Use the cursor buttons (▶/◀) to select the channel position to which the selected channel should be copied (e.g. 2 ⇔).
3. Then press the cursor button (▼) to select the channel to be copied.
4. For example ②3 is shown in the display. In this example, the channel is copied from position 3 to position 2 by pressing the cursor button (▶).

Auto Search

Press the cursor button (▶) to start the automatic channel search. The device now searches for all available channels. This process can take a few minutes.

Search

Start the manual search to the next or previous channel by pressing the cursor buttons (▶/◀). The channel found is automatically stored in the current channel position.

Fine

In this menu you can adjust the frequency of the current channel upwards or downwards (fi ne adjustment).

Band

Here you can set the corresponding frequency band.

Position

Here you can select the channel whose settings you wish to change.

Skip

In this menu you can determine whether the current channel should be skipped when switching over.

• Off: The current channel is not skipped.
  On: The current channel is skipped.

Troubleshooting

Before sending the machine to the Customer Services, use the following table to check whether you can rectify the fault yourself.

Fault	Possible cause	Solution
The power supply light does not light	No power supply	⚠ WARNING:Before searching for the fault, please turn the device off.■ During battery operation: check whether the battery is charged.■ During mains adapter operation: Put the mains plug in correctly, if necessary, check the socket is working with another appliance.
	no power supply/ mains switch switched off	Switch the player on by the mains switch (Fig. 2/20).
No image displayed on screen	During operation with a television set:Video cable not correctly connected	⚠ WARNING:Before searching for the fault, please turn the device off. Check the correct fi t of the Video cable. Make sure that the jacks are tightly in the sockets.
	no DVD/CD inserted Insert a CD/DVD.
	DVD/CD not compatible Use only compatible media.
	DVD/CD incorrectly placed in CD/DVD-tray	Turn the CD/DVD around.
	CD/DVD is dirty Clean the CD/DVD around.
	CD/DVD is damaged Use a different CD/DVD.
	Incorrect settings Check the settings of your DVD-Player.
	The child protection system is activated	Deactivate the child protection.
	The AV IN/OUT switch (Fig. 2/14) is turned to „IN“.	Turn the AV IN/OUT switch to „OUT”.
No response when pressing button	Power supply problem or static charging of appliance	Switch off the main switch and pull out the mains plug. Insert the mains plug into the socket and switch the player on again.
No sound During operation with a television set:Audio cable not connected		⚠ WARNING:Before searching for the fault, please turn the device off. Check the correct fi t of the Audio cable. Make sure that the jacks are tightly in the sockets.

74 English

Fault	Possible cause	Solution
No DVB-T reception The	the station being received is too weak for reception via the telescopic aerial.	Turn the aerial or connect your roof or room aerial.
	No DVB-T reception in your region.
	The station being received is too weak.	Realign the aerial.
	The AV IN/OUT switch (Fig. 2/14) is turned to „IN“.	Turn the AV IN/OUT switch to „OUT“.
Mosaic similar picture	The station being received is too weak.	Realign the aerial.

Disposal

At the end of the service life of the appliance, in particular if it is malfunctioning, make the appliance unusable by pulling the mains plug out of the socket and separating the power cable. Dispose of the appliance according to the environmental regulations applicable in your country. Electrical waste may not be disposed of together with household waste. For any advice regarding recycling, contact your local municipal authorities or your dealer.

Batteries

Notes on Handling Batteries

• Keep batteries away from children. They are not a toy!
  Never throw batteries into a fire or immerse in water.
  When inserting a battery, ensure the correct polarity.
  Do not open the batteries by force.
  Avoid contact with metallic objects (rings, nails, screws et cetera). There is a danger of short-circuiting!
  As a result of a short-circuit batteries may heat up considerably or even catch fi re. This may result in burns.
  If a battery leaks do not rub the liquid into your eyes or mucous membranes. If hands come into contact with the liquid they should be washed thoroughly and eyes rinsed out with clear water; if symptoms persist please consult a doctor.
  Used batteries should not be disposed of in the normal domestic waste. Please return old batteries to an appropriate connection point.

The following symbols are to be found on (rechargeable) batteries containing harmful substances:

Pb = contains lead

Cd = contains cadmium

Hg = contains mercury

Li = contains lithium

Declaration of conformity

ETV Elektro-Technische Vertriebsgesellschaft mbH hereby declares that the device CTV 4894 DVB-T/DVD is in conformity with the basic requirements of the European guideline for electromagnetic compatibility (2004/108/EG) and the low voltage guideline (93/68/EWG and 2006/95/EG).

OSD Menu overview

-- GENERAL SETUP PAGE --
TV DISPLAY 4:3 PANSCAN	4:3 LETTERBOX16:9
ANGLE MARK ON	OFF
OSD LANGUAGE
CLOSED CAPTIONS ON	OFF
SCREEN SAVER ON	OFF
LAST MEMORY ON	OFF

-- ANALOG AUDIO SETUP PAGE --
DOWNMIX LT/RT	STEREO

-- DOLBY DIGITAL SETUP --
DUAL MONO	STEREOL-MONOR-MONOMIX-MONO
DYNAMIC

-- PREFERENCE PAGE --
TV TYPE	PALMULTINTSC
PBC ON	OFF
AUDIO
SUBTITLE
DISC MENU
PARENTAL 1 KID SAFE	2 G3 PG4 PG 135 PGR6 R7 NC178 ADULT
DEFAULT. RESET

-- PASSWORD SETUP PAGE --
PASSWORD MODE	ONOFF
PASSWORD CHANGE

-- DVB-T SETUP PAGE --
AREA
TIME ZONE CHANGE
PARENTIAL AGE	4-18 DISABLE
CHANNEL SETUP
-- CHANNEL SETUP --
AUTO SCAN	START
MANUAL SCAN START
ADJUST CHANNEL	START
CHANNEL REMAP	START

ANALOG OSD MENU


BRIGHT

CONTRAST

COLOR

ENGLISH

RESET

VOLUME

VOLUME

OPTION
	NORMALDOWN
ZOOM	16:94:3

SYSTEM
S-ROLOC	AUTOPALSECAM
S-SYS	BGDKIL
SWAP
COPY

PRESET
AUTO-SEARCH
SEARCH
FINE
BAND	VHF-LVHF-HUHF
POSITION
SKIP	OFFON

GARANTIE-KARTE
