Product Type	Range Hood (Chimney Style)
Brand	Bomann
Model	DU 650 G
Width	60 cm (23.6 inches)
Installation Type	Wall-mounted
Exhaust Method	Ducted or recirculating (with charcoal filter)
Motor Power	200 W
Number of Motors	1
Fan Speeds	3
Maximum Airflow	650 m³/h
Noise Level (max)	65 dB(A)
Lighting	2 x 40 W halogen bulbs (G4 base)
Controls	Mechanical push buttons
Grease Filter Type	Aluminum mesh, washable
Charcoal Filter	Optional, for recirculation mode
Weight	Approx. 8.5 kg
Power Supply	220-240 V ~ 50 Hz
Energy Class	C (EU energy label)
Yearly Energy Consumption	32 kWh/year
Fluid Dynamic Efficiency Class	E
Grease Filtering Efficiency Class	C
Noise Level (min)	50 dB(A)
Duct Diameter	150 mm (6 inches)
Safety Features	Overload protection, anti-tip bracket

Frequently Asked Questions - DU 650 G BOMANN

How do I clean the grease filter?

The aluminum mesh grease filter can be removed and washed by hand or in the dishwasher. Allow it to dry completely before reinstalling.

Does this hood require ducting?

The hood can be installed in ducted mode (exhaust outdoors) or recirculating mode using a charcoal filter (not included).

What type of bulbs does it use?

It uses two halogen bulbs with G4 base, 40 W each. Ensure the hood is unplugged before replacing.

How often should I replace the charcoal filter?

In recirculation mode, replace the charcoal filter every 3 to 6 months depending on usage.

What is the noise level?

Noise ranges from 50 dB( A) on lowest speed to 65 dB(A) on maximum speed.

Can I install it over a gas stove?

Yes, but maintain a minimum distance of 65 cm from the hob for safety.

How do I change the fan speed?

Use the push buttons on the front panel. There are three speeds: low, medium, and high.

What is the warranty period?

Standard warranty is 2 years for manufacturing defects. Check your local dealer for details.

Can the duct be reduced to a smaller diameter?

Using a smaller diameter than 150 mm will reduce performance and is not recommended.

How do I reset the filter indicator?

After cleaning or replacing filters, press and hold the light button for 3 seconds until the indicator turns off.

USER MANUAL DU 650 G BOMANN

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

Special safety Information for this Unit....Page 17

Unpacking the Appliance......Page 18

Overview of the Appliance....Page 18

Installation......Page 18

Startup / Operation......Page 21

Cleaning and Maintenance......Page 23

Repairs....Page 24

Troubleshooting......Page 24

Technical Data....Page 25

Architectural cross-section diagram showing brick wall and insulation layers with a magnified inset (no text or symbols)

Diagram of a brick wall with two embedded rectangular components and directional arrows indicating movement (no text or symbols)

Simple line drawing of a cylindrical object above a square base, with no text or symbols present.

Diagram showing a brick wall and a container with a pipe inserted, no text or symbols present

Simple line drawing of a rectangular box with a side panel and an arrow indicating direction (no text or symbols)

Simple line drawing of a box with two downward arrows on a flat surface (no text or symbols)

Diagram of a brick wall with a vertical structure and directional arrows, no text or symbols present

⚠️ WARNING: WARNING:

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:CAUTION

This refers to possible hazards to the machine or other objects.

NOTENDIT highlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Operate the appliance only properly installed.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity. Do not use the appliance with wet hands.
• Do not operate the machine without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and if possibly disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possibly the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING: WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this Uspecial safety Information fo

• Provision shall be made for adequate ventilation in the room when the cooker hood is operated simultaneously with appliances that burn gas or other fuels.
• Attention! Attractable parts of the appliance may become hot when used with cooking utensils.
• Do not flambé under the cooker hood! You can fry under the hood due to fire hazard only under constant observation.
• Open the gas supply at gas stoves only when cookware is on the stove. Risk of Risk of fireIfThe filter can be damaged.
• Food during frying should be constantly supervised. By overheated oil can arise a fire hazardfire hazard
• Do not check the filter condition while the hood is in operation.
• NEVER use the appliance without fixed aluminum grease filter.
• If the cooker hood and other devices which are powered b other forms of energy as electricity, served together, the pressure in the room should not exceed 4 Pa ( 4 × 10^-5 bar).
• Regulations concerning the discharge of air have to be fulfilled.
• Follow the installation instructions. Note the instructions that we give you in the chapter "Installation".
• This appliance can be used by children and guide from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of use of the appliance in a safe way and understand the hazards involved.
• ChildrenChildrent play with the appliance.
• Cleaning and user maintenance must maintain a trade by children, children, they are older 8 years and supervised.
• The appliance must be cleaned regularly. Follow the instructions that we give you in the chapter “Cleaning and Maintenance”. There is a risk of fire if cleaning is not carried out according to these instructions.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

Unpacking the Appliance Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filler, cable holder and cardboard packaging.
3. To prevent hazards, check the appliance for any transport damage.
4. In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and Maintenance".

Overview of the Appliance Overview of the Appliance

i NOTENOTEoriginal appliance may differ from the appliance pictured here.

1	Telescopic duct, 2-part
2	Glass capture panel
3	Control panel
4	Aluminum grease filter
5	Lighting

Supplied parts Supplied parts

1 x outer (lower) duct without ventilation slots

2 x non-return valves

1 x inner (upper) duct with ventilation slots

Assembly material incl. drill template

Installation

There must be a safety distance between the hotplate of the cooking pot on the hob and the bottom part of the extractor hood:

The distance must be between 60 distance must be at least 65 cm. If the installation instructions for the gas cooker specify a greater distance, this distance must be taken into consideration.

Selecting the fume outletSelecting the fume outlet

You can operate the extractor hood in two modes:

Extraction mode Extraction mode

WARNING: WARNING:

• The extracted air may not be vented into a flue which is used for the waste gas from appliances which are powered by gas or other fuels.
• When venting the extracted air, comply with the regulations of the relevant local authorities.

The hood has an upper air outlet to vent cooking odours to the outside.

- The extracted air is normally vented vertically. If there is a suitable loft space above your kitch-

en, the extracted air is vented through the wall units and the loft floor to the roof ridge.

Architectural cross-section diagram showing brick wall and insulation layers with a magnified inset of insulation (no text or symbols)

- If there is a conduit in your kitchen under the wall units, the extraction duct can be routed so that the extracted

air can be vented horizontally through the wall.

Recirculation mode Recirculation mode

If you do not have a direct extraction vent to the outside; the hood can also work in recirculation mode (i.e. without an extraction vent to the out side; the filtered air is released back into the room). In this case, two activated carbon filter as de scribed uncler "Installing the activated car bon filter for recirculation mode", must be used.

The activated carbon filter are not supplied. You can order the car bon filter from your dealer or in our online accessories shop, www.bomann.dewToorderusedthe reference number found under "Technical Data".

AssemblyAssembly

WARNING: WARNING:

• When assembling or inserting the extraction filter as well as the carbon filter, the appliance must not be connected to the mains.
• Failure to use the mounting fixtures may lead to a risk of electric shockrisk of electric shock

CAUTIONCAUTION

• Before mounting, check that the wall has sufficient load capacity to bear the extractor hood.
• When drilling the holes in the wall always make sure that no existing electrical cables or other objects are damaged.
  • Make sure that the vents are clear of obstacles and are not covered.

i NOTENRECOMMEDATIONS for preparation work

• When installing, ask another person to assist.
• Wear protective gloves to prevent injuries from any sharp edges.

1	2	3

4	5 6		7
			travel

• Determine the position of the extractor hood centrally above the hob in conformance with the specified safety distances.
• Mark the necessary holes for the wall mounting by using the supplied drill template and check them with a spirit level.

Diagram of a brick wall with two embedded rectangular components and directional arrows indicating movement (no text or symbols)

Simple line drawing of a cylindrical object above a square base, with no text or symbols present.

Diagram showing a brick wall and a small container with a pipe inserted, labeled 'C' (no text or symbols on the diagram itself)

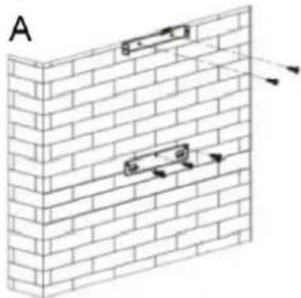

• Drill ∅ 8 mm mounting holes into the wall for the respective brackets (1+2+3). Insert the dowel pins (5) and fasten the brackets with the screws (6).
• Attach the suspension rail (1) for the hood body as well as the mounting rail with bracket (2) to the top edge parallel to the rail (1) (Fig. A). Determine the extension length of the duct cover in advance!
• Before suspending the hood the non-return valves (4) must be inserted onto the extractor duct from above by gently bending them.

For extraction mode: For extraction mode:

• Hereupon a flexible extraction hose (not supplied) with an inner diameter of ∅ 150 mm must be attached (Fig. B) and connected to the outside by the extraction outlet.

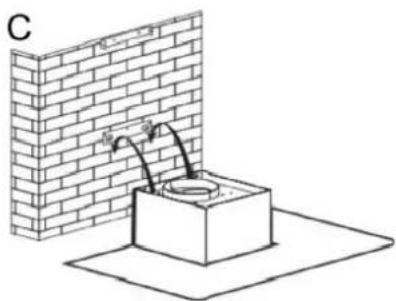

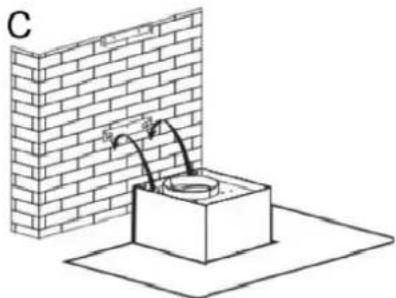

• Hook the extractor hood into the suspension rail (1) (Fig. C). Check that it is secure and horizontally level.

Simple line drawing of a refrigerator with ladder and door, no text or symbols present

Simple line drawing of a box with two downward arrows on a flat surface (no text or symbols)

Diagram of a brick wall with an open chimney and directional arrows indicating force or movement (no text or symbols)

• Remove the protective plastic from the telescopic duct.

• Fix the outer (lower) duct with the mounting rail without the bracket (3). The rail is fastened to the holes provided from the inside of the duct. Screw in two plate screws (7) from the back (Fig. D).

• Place the outer duct with the fixed rail (3) onto the extractor hood (Fig. E). Fasten the rail (3) to the wall parallel to the other rails (1 + 2) .

• Slide the inner (upper) duct along the slide fixture into the outer (lower) duct. Make sure that the inner duct is aligned with the vents at the top. Determine the extension length of the duct cover by pulling up the inner duct or sliding back into the outer duct.
• For extraction mode, correctly position the flexible extraction hose (not supplied).

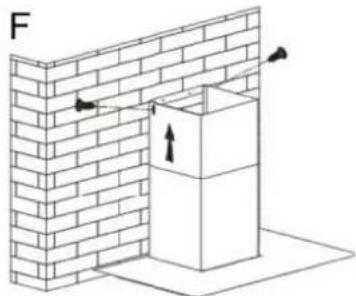

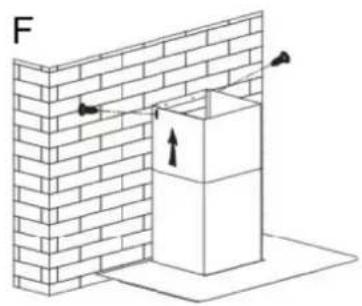

• Pull the inner duct cover up and fasten the duct unit on the side to the previously mounted rail (2) by screwing in the plate screws (7) (Fig. F).

Installing the activated carbon filling into the activation mode

• Remove the alumin um grease filter.
• Place the carbon filter onto the air intake of the extraction duct. Make sure that the mounting pins on the extraction duct engage the mounting slots of the carbon filter. Turn the respective filter clockwise until it clicks into place.
• Reinstall the alumin um grease filter.

i NOTENOTE

The activated carbon filter absorbs odours and must be replaced at least every six months regardless of use.

Electrical connection Electrical connection

WARNING: WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured in order to disconnect the appliance from the power supply in case of an emergency.
• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.
• Connect the mains cable to a properly installed and earthed wall outlet.

Startup / Operation

Information to reduce the environmental effect of cooking

(acc. VO (EU) No. 66/2014 appendix I, No. 2)

Cooker hood

The diameter of the pot and pan floors should be according to the size of the cooking zone.

Use pans and pots with flat floors, uneven floors increase the energy consumption.

Ensure that there is sufficient supply air for the operation of the cooker hood.

Adjust the fan step intensity of the damp evolution of the cooking process.

To product the optimal effect of the cooker hood, install it according to the installation instructions. Keep the distance between the upper edge of the cooker and the lower edge of the cooker hood.

Clean the filter regularly.

Controll the active carbon filter regularly and renew it as required.

Switch off the cooker hood after use.

If your cooker hood has a switch-off delay, activate this function.

Switch off the lighting after the cooking process.

We recommend the use of biological cleaners.

Information to professional users for disassembly Information to professional users for disassembly (acc. VO (EU) No. 66/2014 appendix I, No. 2)(acc. VO (EU) No. 66/2014 appendix I, No. 2)

Cooker hood Cooker hood

Information for non-destructive disassembly for maintenance purposes

Please remove the filter and lamps as described in the manual.

Further steps of disassembly for maintenance are not provided

If you would like to exchange defective components, please contact our customer service.

Accumulators are not included.

Information for disassembly in terms of recycling, recovery and disposal at the end of the life of the appliance

Check that the unit is disconnected from the power supply before removing all filter from the hood.

First remove the chimney.

When disassembling the hood, be sure that you first loosen the lower and then the upper screws.

For the recycling and recovery of resources give the appliance, the lamps and the various filter to:

- a communal collection point of public waste disposal authorities

- a dedicated disposal company, offering a return system

- a resident electric trader, who voluntary withdraws electrical appliances

The extractor hood is operated via pushbuttons:

0 Fan off

Lowest fan setting

The motor begins to run at low speed. This setting is suitable for cooking on a low flame and for dishes which produce no or little steam, in order to circulate the air around the kitchen.

Power level: Power level:

The motor runs at moderate speed. This setting is suitable for normal cooking.

Power level Power level

The motor runs at high speed. The setting is suitable if large quantities of smoke and steam need to be extracted or filtered (e.g. when frying).

i NOTENOTE

If a lot of vapour is produced, the fan should be left running for a few minutes after cooking. Only leave the fan running if absolutely necessary, since otherwise unnecessary energy is consumed.

Cleaning and Maintenance

The appliance and the operation there of are best maintained by regular cleaning of your extractor hood as well as the filter. The extractor hood and accessories should also be cleaned regularly for hygiene reasons.

WARNING: WARNING:

• Before cleaning or maintenance work, the device should always turn off and disconnect the mains plug or switch off the fuse.
• Allow the unit to cool down be fore cleaning.
• Do not uses steam cleaners for cleaning the device; moisture could enter electrical components. Risk of electric shock! Hot sites should damage the plastic parts. The device must be dry before restarting.

CAUTION:CAUTION

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive cleaners.

- To clean the surface of the housing, use a mild detergent and a soft cloth to prevent scratching.

- The appliance can be used again after everything has dried properly.

- If you use your ex tractor hood in recirculation mode, you must replace the activated carbon filter regularly (see "Replacing the activated carbon filter").

Cleaning the aluminone grease the filter

⚠ WARNING: Risk of fire! WARNING: Risk of fire!

Grease residues in the aluminum grease filter may ignite on exposure to high temperatures. It is therefore important that the grease filter is regularly cleaned / replaced.

Grease and vapours collect in the filter and may accumulate if not regularly cleaned. We recommend that you clean the grease filter monthly:

• Remove the aluminum grease filter by sliding back the lock in the handle recess, push the filter down gently and pull out towards the front.
• Rinse the grease filter in a solution of hot water and neutral detergent. Soak the grease filter in the solution.
• Then clean with a soft brush, rinse thoroughly with hot water and leave to dry.
• Alternatively, the grease filter can also be cleaned in the dishwasher (up to 60^ ). Slight discoloration may occur in the dishwasher. This does not affect the function of the grease filter.

Replacing the activated carbon filterReplacing the activated carbon filter

The activated carbon filter absorbs odours and must be replaced at least every six months. depending on use. Order the carbon filter from your dealer or in our online accessories shop, www.bomann.de. To order, use the reference number found under “Technical Data”.

• See "Installing the activated carbon filter for recirculation mode".
• Remove the old carbon filter by turning the filter anti-clockwise.

Replacing the lightingReplacing the lighting

WARNING: WARNING:

Allow the lamps to cool before replacing the lighting. Risk of burns!Risk of burns!

• Use the correct lighting: 22x2002N Halogen lamps (Type GU10)Halogen lamps (Type GU10)
• Remove the aluminum grease filter.
• Change the lamp.
• Replace the aluminum grease filter.

Repairs

A wrong or improperly performed repair brings danger to the user.

Repairs to electrical appliances must only be carried out by an authorized specialist. A damaged power cord must be changed only by a qualified electrician.

Troubleshooting

Before you contact an authorized specialist

The following problems can be solved by you by checking for the possible cause.

ProblemPossible	Possible causePossible cause	Solution
The appliance is not working or does not work properly	- Is the unit not connected to mains power?- Have you set the power level?	- Insert the plug properly in the contact socket. Check the fuse.- Check the setting.
ProblemPossible	Possible causePossible cause	SolutionSolution
The appliance does not run efficiently	- Have you set the correct power level?- Is the grease filter dirty?- Are the carbon filter needed for recirculation (correctly) installed?- Is the air outlet required for extraction mode clear?	- Check the setting. The kitchen is not properly ventilated.- Clean the grease filter (see “Cleaning the aluminum grease filter”).- Check the carbon filter (see “Replacing the activated carbon filter”).- Check the air outlet.
The lighting does not work	The lighting is faulty, was incorrectly installed, lamp not secure in the fitting.	Check the lighting (see “Replacing the lighting”).
Oil dripping from the appliance	The grease filter is dirty.	Clean the grease filter.

i NOTE:NOTE:

If a problem still persists after following the steps above, contact your trader or an authorized technician.

Technical Data Technical Data

ModelModel	DU 650.1 GDU 650.1 G
Wall flue	Glass capture panel 60 cm wide
Power supply	220-240 V~, 50 Hz
Lighting, Halogen	2 x 20 W (Type GU10)
Power rating	105 W
Protection class	I
Appliance dimensions H x W x D	5.0 x 60.0 x 40.0 cm
Duct dimensions H x W x D	49.0 - 97.0 x 25.5 x 26.3 cm
Net weight	approx. 9.5 kg

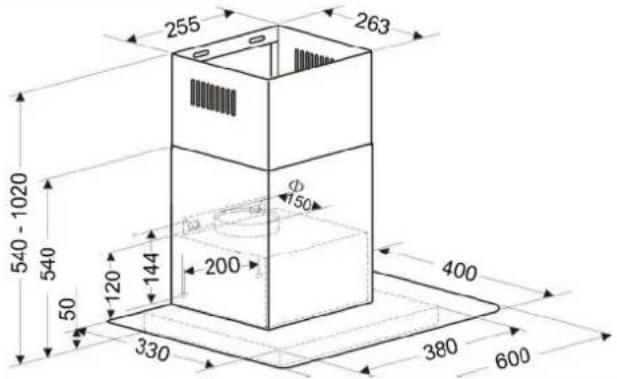

Overview of dimensions, figures in mm
Activated carbon filter for recirculation mode (not supplied) KF 563	(Part no. 256 300) Set: 2 units

The right to make technical and design modifications in the course of continuous product development remains reserved.

Product data sheet for household Bookethotdsheetofingdosregulation (EU) No. 65/2014

BrandBrand		Bomann
ModelModel		DU 650.1 G
Annual Energy Consumption (AEC Annual Energy Consumption (AEC)	kWh/a	64.6
Energy Efficiency class Energy Efficiency class		D
Fluid Dynamic Efficiency (FDEF liquid Dynamic Efficiency (FDE		6.6
Fluid Dynamic Efficiency class Fluid Dynamic Efficiency class		F
Lighting Efficiency ( LE_hood )	lux/W	6.0
Lighting Efficiency class3)		F
Grease Filtering Efficiency	%	82.4
Grease Filtering Efficiency class4)		C
Air flow at minimum speed in normal use	m^3/h	192.2
Air flow at maximum speed in normal use	m^3/h	260.3
Air flow in use at intensive or boost setting	m^3/h	-
A-weighted sound power emission in normal use
- at minimum speed	dB	55
- at maximum speed	dB	61
A-weighted sound power emission in use at intensive or boost setting	dB	-
Power consumption in off mode ( P_o )	W	-
Power consumption in standby mode ( P_s )	W	-
1) A+ (highest efficiency) to F (lowest efficiency) 3) A (highest efficiency) to G (lowest efficiency)2) A (highest efficiency) to G (lowest efficiency) 4) A (highest efficiency) to G (lowest efficiency)

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the appliance out of operation or dispose it.

BOMANN®
