USER MANUAL STE 604 XF1 SAUTER

INSTALLATION MANUAL AND INSTRUCTIONS FOR USE OF INDEPENDENT HOBS

BET WITH US ON ECOLOGY. RECYCLE THE PACKAGING.

We contribute in the defence of the Environment. Thus our packagins:

• Are 100% recyclable.
• Contain the smaller quantity of parts and possible material to facilitate thus the recycling.

HELP MEE OM SAMEN MET ONS HET MILIEU TE BESCHERMEN. RECYCLE DEVERPAKKING

Operating instructions Page 25

NEDERLANDS

1 2 3 4 5 6 R N A S T 220...240V.2~	1 2 3 4 5 6 R S T A S T 300...400V.3N~
1 2 3 4 5 6 R S T 220...240V.3~	1 2 3 4 5 6 R S T A S T 300...400V.2N~

ESQUEMA DE CONEXIONES
POSICIONE	Sa	1a - 2a			3a-4a
	S	1	2	3	3	4
0
1	X	X			X
2	X			X		X
3	X		X			X
4	X		X		X
5	X		X		X	X
6	X	X	X		X	X

INDICE

Descrição geral 12

REMARQUE: NE PAS UTILISER D'ELEMENTS "NON AMOVIBLES" AVEC LA SILICONE.

INSTALLATION

Plaque: 60 cms., 6,3kW

PLAQUE				Triphaso Δ
	Tension	Int.nominale by phases	Protection	Tension	Int.nominale by phases	Protection
60 cms	220...240V~	27,5 Å	32 Å	220...240V~	14 Å	16 Å

PLAQUE	Triphaso Δ
	Tension	Int.nominale by phases	Protection	Tension	Int.nominale by phases	Protection
60 cms	380...400V~	11 Å	12 Å	380...400V~	16 Å	20 Å

Connections sheamtic 31

WARNING

a) Repair of any fault in your hob must be carried out only by an Authorized Repair Service, otherwise the guarantee is not valid.
b) The technical details and identification of the appliance are shown on the specification plate.
c) Consult his plate before proceeding with electrical connection.
d) Electrical connection must be carried out by a specialist familiar with the laws and official regulations governing such while they are not covered by a pan.

Fill in the data table in the manual with all the data of the cooker that appear on its label.

MAKE

TYPE

MAX POWER -

TENSION

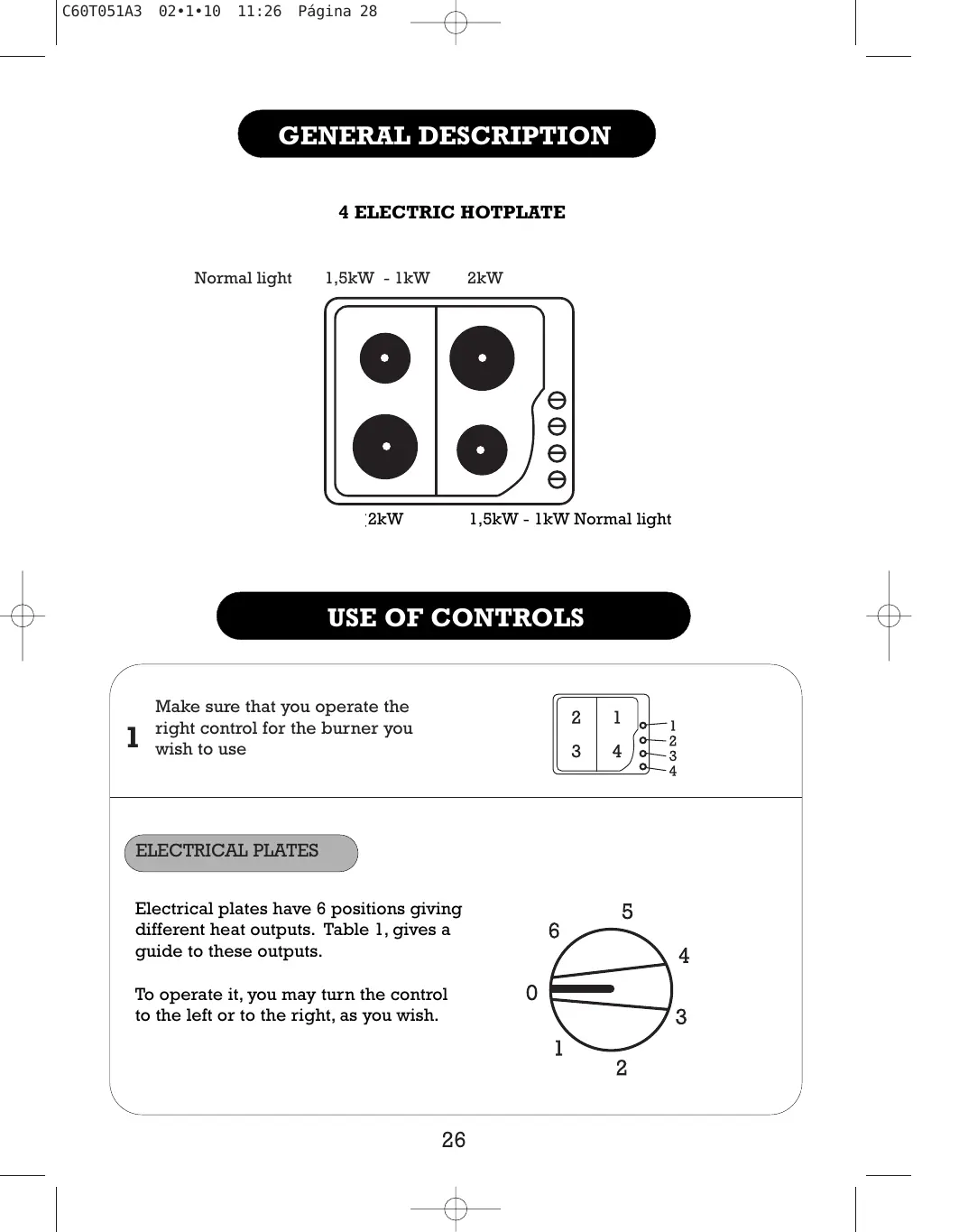

GENERAL DESCRIPTION

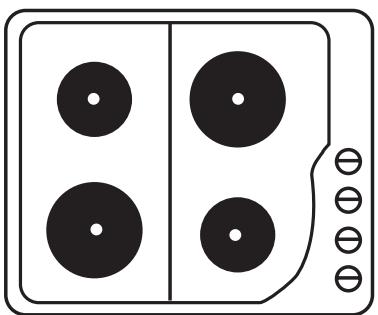

4 ELECTRIC HOTPLATE

Normal light

1,5kW - 1kW

2kW

2kW
1,5kW - 1kW Normal light

USE OF CONTROLS

Make sure that you operate the right control for the burner you wish to use

ELECTRICAL PLATES

Electrical plates have 6 positions giving different heat outputs. Table 1, gives a guide to these outputs.

To operate it, you may turn the control to the left or to the right, as you wish.

TABLE 1

0	MINIMUM 1 2	3 4	MAXIMUM 5 6
OFF	LOW	MEDIUM	HIGH
	Keep warm	Boil and roast white meats, fish or puddings.	Boil and roast red meats, minced meat, omelettes.
	Prepare delicate sauces and cremes	Boil potatoes, pulses, soups	Fry potatoes, fish, pasta.
		Prepare sauces	Boil relatively large quantities of water
1000 W. normal	100 W 165 W	250 W 500 W	750 W 1000 W
1500 W. p Hot	135 W 165 W	250 W 500 W	750 W 1500 W
2000 W. p Hot	175 W 220 W	300 W 850 W	1150 W 2000 W

USE OF PANS

ELECTRICAL PLATES

Make sure that the diameter of the pan is equal to or bigger than the plate you are going to use.

The plate should not be lit without a pan.

The base of the pan should be flat and dry.

CLEANING

IMPORTANT: First of all, switch off the equipment.

If your top is stainless steel, there are adequate products available in shops that you may use. Once it is clean, rinse the top with water and a soft cloth.

If the top is enamelled, use soapy water to clean it. Never use abrasive products or pads. Immediately remove all stains of vinegar, lemon and acids spillage in general.

WATER + SOAP

METAI SAND

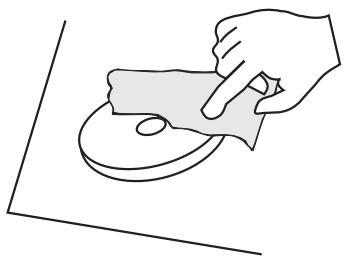

Clean electric plates immediately with water and soap. Then, heat the plate slightly and rub it with mewspaper.

INSTALLATION

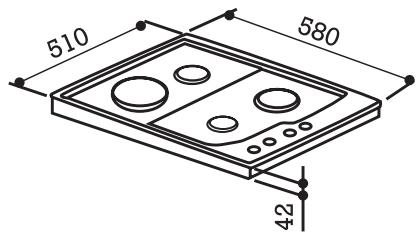

Before the installation, please check all measures of the equipment and fit-in housing.

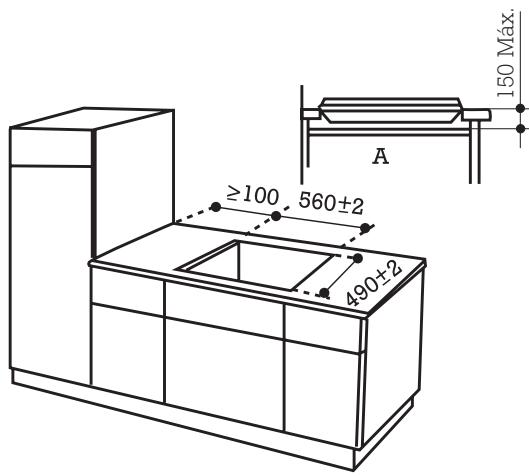

Cut out a piece of the worktop following the instructions. Equipment type "X" for fire protection grade.

NOTE: The worktop must be provided with a shelf "A" so that the top cannot be reached from inside, due to the temperatures it reaches.

Such shelf will be located once the top has been fixed in the worktop.

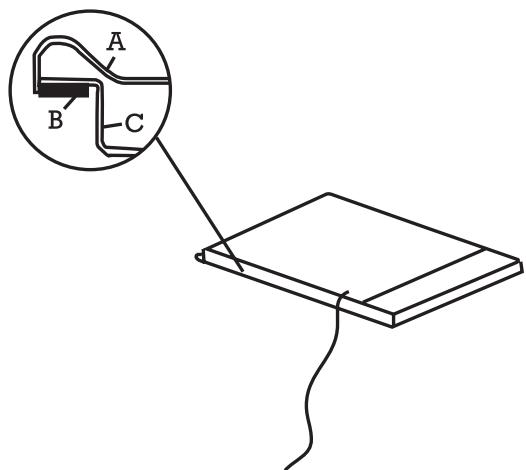

Place the hob face down on a table, and after removing the backing paper, affix the sealing gasket all around the hob.

A: operating table
B: joint
C: Bottom cover

NOTE: DO NOT SILICONE SEAL THIS APPLIANCE TO THE WORK SURFACE.

INSTALLATION

Then, place the hob in the cavity in the woktop. Press down tightly so that sealing joint is perfectly closed.

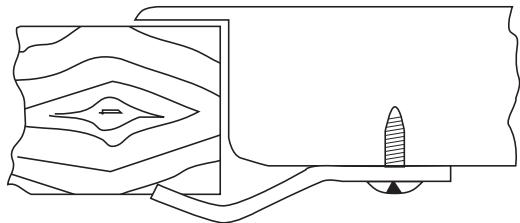

Fix the 4 clamps underneath the hob to the corresponding 4 corners of the cavity. (Clamps and nuts are supplied in the accessory bag).

CONNECTIONS SCHEAMTIC

The hot plate is supplied with a power cable.

If the power feed wire is damaged, it must be replaced by the manufacturer, by the after-sales service or by authorized personnel for safety reasons.

If the type of connections to which the hotplate is to be installed is other than 220 to 240VAc remove the cable and make the connection according to the adjacent drawings. (The cable must support temperatures of up to 120^ ).

The hotplate must be connected to the mains with a plug that meets the EEC 7 publication or with a multi-pole with a distance between the open contacts of a least 3mm .

Total power

Hotplate: 60 cms., 6,3kW

PLATE				Three phase Δ
	Voltage	Int.nominal by phases	Protection	Tensión	Int.nominal por fases	Protección
60 cms	220...240V~	27,5 Å	32 Å	220...240V~	14 Å	16 Å

PLATE	Three phase Δ
	Voltage	Int.nominal by phases	Protection	Voltage	Int.nominal by phases	Protection
60 cms	380…400V~	11 Å	12 Å	380…400V~	16 Å	20 Å

This device conforms to European directives 73/23/Cee and 89/336/CEE
