Vorwort

GEFAHR EINES ELEKTRO-

SCHOCKS

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL A LASER DE CLASS 1

LUOKAN 1 CLASSLAITE

KLASS 1 LASERAPPARAT

SEHEN SIE NIEMALS DIREKT IN DEN LASERSTRAHL!

Batterien und Akkus

Isometric line drawing of a mechanical component with a screw and base plate (no text or symbols)

Schallplatten

Simple line drawing of a mechanical component with an arrow pointing to a circular feature (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Stromversorgung

MW (AM) 530 - 1600 kHz

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
    a) The power-supply cord or the plug has been damaged; or
    b) Objects have fallen, or liquid has been spilled into the appliance; or
    c) The appliance has been exposed to rain; or
    d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
    e) The appliance has been dropped, or the enclosure damaged.
15. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
16. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.
17. Thunderstorms – During a thunderstorm the mains plug should be unplugged.
18. Safety Check – After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.

19. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.

20. Volume Levels – To prevent possible hearing damage, do not listen at high volume levels for long periods.

21. Headphones – Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CLASS 1 LASER PRODUCT LASER KLASSE 1

APPAREIL A LASER DE CLASS 1

LUOKAN 1 CLASSLAITE

KLASS 1 LASERAPPARAT

DO NOT STARE INTO BEAM – INVISIBLE LASER RADIATION

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipment waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Care & Maintenance

Main Unit

Care for the cabinet as you would care for any piece of fine furniture. When the cabinet becomes dusty, wipe it with a soft, non-abrasive dusting cloth.

If the cabinet becomes smudged with finger prints, you may use a good quality dust cleaner. However, avoid spraying plastic or metal parts of this system. We recommend that you spray the cleaner onto your dusting cloth rather than directly onto the cabinet to avoid getting any of the spray on the plastic or metal parts.

Discs

1. Handling discs

2. Always keep the CD compartment shut to prevent dust or dirt from getting into the CD mechanism.

3. Do not touch the recorded surface.
4. Do not stick paper or write on either side of the CD.
5. Do not bend the CD.
6. Only handle a disc on its outer edges.

Simple line drawing of a hand holding a circular object (no text or symbols)

1. Storing discs

• To avoid scratches/damages always put CDs back into their cases after use.
- Do not expose CDs to direct sunlight, dust, dirt, high temperatures, high humidity or water.

1. Cleaning discs

2. Use a soft cloth to wipe fingerprints and dust from the disc surface.

3. Carefully move the cloth from the center of the disc to its edge:

Simple line drawing of a stylized object resembling a rocket or explosion (no text or symbols)

Correct False

- Never use benzene, thinners, record cleaner fluid or antistatic spray to clean CDs.

1. Compatibility

- Due to the numerous compression methods, some discs may not play.

Cassette Tapes

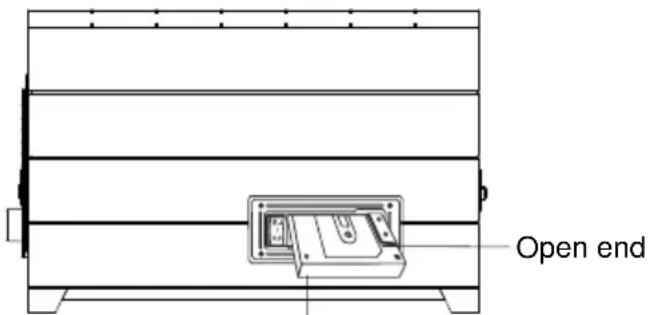

Loose tape may jam or get tangled in the cassette player. With a hexagonal pencil or a similar tool, gently turn the pencil to tighten the tape, as shown opposite.

If the spool feels tight when taking up slack tape as described above, this may be due to ridges on the spool of tape. Tight spools can lead to uneven playback speed or tape tangling. In most cases the ridges can be removed by fast winding the cassette from one end to the other and back again.

Avoid the use of C120 tapes with this unit.

Furthermore, do not expose cassettes to direct sunlight, dust or oil and do not touch the tape surfaces.

Isometric line drawing of a mechanical component with a base and pin (no text or symbols)

Records

Records are highly sensitive and need good and proper care. If you are unsure of how to care and maintain your records, please contact an expert.

Further Notes on the Device

Setting a safe volume level

• If you continually listen to loud music, your hearing gradually adapts to it and gives you the impression that the volume is lower.
• What seems normal to you can be already for long time too loud and unhealthy.
• To protect yourself from this, set the volume to a low level.
• Increase the volume slowly.
• Damage to your hearing can be extensive and cannot be reversed.
• If you notice a hearing problem, please consult a doctor.

Condensation

• Condensation may occur when moving the device from a cold to a warm environment. If there is moisture inside the player, it may not operate properly.
• Don't turn on the device and wait about one hour for the moisture to evaporate.

Saving energy

• If there is no audio signal within approximately 20 minutes, the unit will switch into standby mode automatically (except in radio mode).
  To use the unit again, switch it off and back on using the ON/OFF Switch.
• If the unit is not used for a long period of time, it should be unplugged from the AC socket and batteries removed from the remote control.

Preparations before Use

Unpacking & Setup

1. Carefully remove the unit from the carton and remove all packing material from the unit.
2. Place the unit on a level and stable surface, convenient to an AC outlet.
3. Raise the lid to expose the phonograph (IMPORTANT: Also see part ‘Raising & Lowering the Lid’ under this chapter).
   The phonograph has been secured for shipment with a transit screw. Use a suitable screwdriver to turn this transit screw clockwise (IMPORTANT: Also see part 'Transit Screw' under this chapter).

Transit Screw

1. Remove the opaque white plastic stylus cover from the phonograph stylus by sliding it forward and down and discard the stylus cover.
2. Remove the twist-tie that was used to secure the tone arm during shipment.
3. Release the tone arm lock lever.

Tone Arm Lock Lever

Stylus Cover

Raising & Lowering the Lid

1. To open the lid, gently raise it as far as it will go until the lid support bracket locks in the open position.
2. To close the lid, lift it upward slightly (1) until the lid support bracket unlocks (2) and then gently lower the lid.

TO AVOID DAMAGING THE CABINET OR THE LID, NEVER FORCE THE LID CLOSED. ALWAYS RAISE THE LID TO RELEASE THE LID SUPPORT BRACKET.

Transit Screw

To protect the turntable from damage during transportation, a silver transit screw is located in the upper right corner of the turntable platform.

• Before playing a record, please use a suitable screwdriver to turn the transit screw completely down in clockwise direction to unlock the turntable.
  With the transit screw turned down, it is on purpose that the turntable is not entirely rigid on the cabinet. It needs to provide a small area of free play. However, never push down or lift up the turntable as this may damage the unit!

Mechanical diagram showing a tool interacting with a curved surface, no text or symbols present

- To lock the turntable again for transportation, please turn the screw out (in counter-clockwise direction) because otherwise the turntable may be damaged during transport.

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

Power Supply

EN

Plug the AC power cord to a household outlet. Ensure that the output power of the outlet matches the power requirement as indicated on the unit's rating label.

AC plug AC outlet

Location of Controls

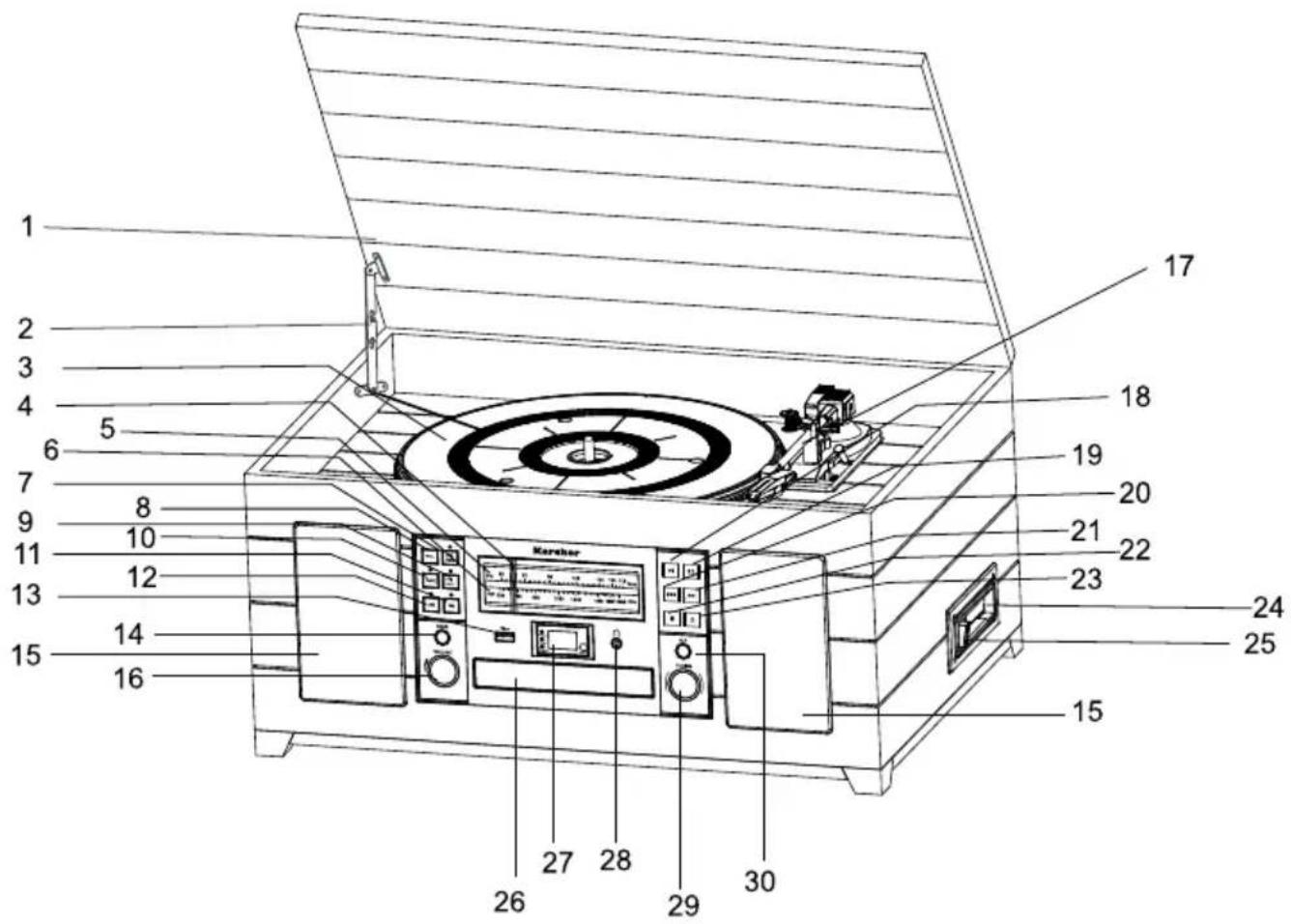

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Karshor

1. Phonograph lid
2. Phonograph lid support bracket
3. Turntable
4. Pointer
5. FM dial scale
6. AM dial scale
7. CD/USB button
8. PROGRAM button
9. PHONO/AUX button

10. TAPE button

11. FM button

12. AM button
13. USB socket
14. BASS button
15. Speakers
16. VOLUME knob
17. Tone arm
18. PLAY/PAUSE button
19. REPEAT button

20. SKIP REV. button

21. SKIP FWD. button

22. ■ STOP button
23. OPEN/CLOSE button
24. Cassette slot
25. Cassette EJ/FF button (Eject/ Fast Forward)
26. CD drawer
27. LED display
28. Headphone jack
29. Tuning knob
30. ALT button

Back Side Side

31 33 34 32

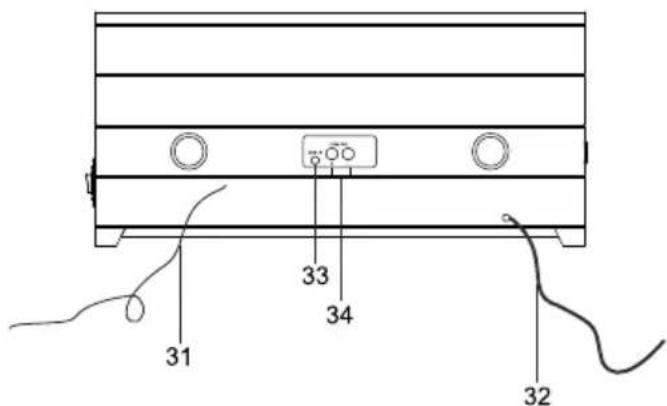

1. FM wire antenna
2. AC power cord
3. AUX In jack
4. Line Out (R/L) jack

35

1. ON/OFF Switch

Phonograph

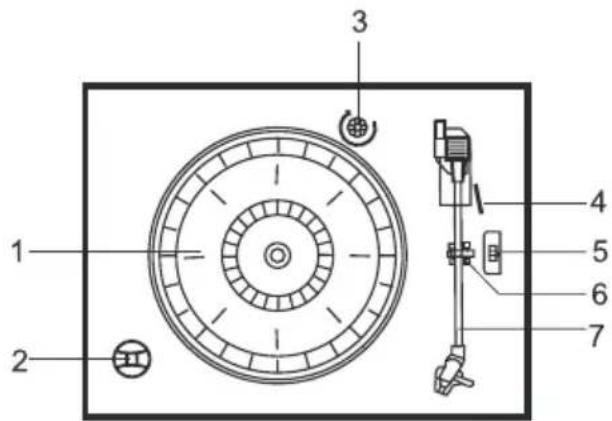

1. Turntable
2. 45 RPM adapter
3. Transit screw
4. Cue lever
5. Speed selector (33, 45, 78 RPM)
6. Tone arm lock
7. Tone arm with stylus

1 2 3 4 5 6 7

Remote Control

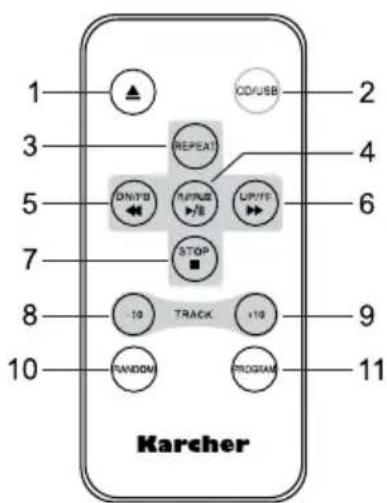

1. ▲ OPEN/CLOSE
2. CD/USB
3. REPEAT
4. PLAY/PAUSE
5. DN/FB (SKIP REV)
6. DN/FF (SKIP FWD)
7. ■ STOP
8. TRACK -10
9. TRACK +10
10. RANDOM
11. PROGRAM

1 2 3 4 5 6 7 8 9 10 11 Karcher 10 RANDOM PROGRAM STOP UP/FF TURN/SS REPEAT ON/OB 10 TRACK +10

Note:

- The buttons of the remote control have the same functions as their equivalent buttons on the unit. The remote control can be used for CD/MP3 and USB modes.

Basic Functions

Switching the Unit On & Off

1. Power the unit as described above.
2. To turn the unit on, press the ON/OFF Switch to the "I" position.
3. To turn the unit off, press the ON/OFF Switch to the "O" position.

Volume Control

• To increase the volume, turn the VOLUME knob clockwise.
• To decrease the volume, turn the VOLUME knob counter-clockwise.

Bass

• While music is playing, press the BASS button to increase the bass effect.

Alt

• While music is playing, press the ALT button to increase the treble effect.

Radio

1. Turn the unit on as described above.
2. Press the AM or FM button to select AM or FM band.
3. Select the desired station by rotating the TUNING knob.
4. Adjust the volume by turning the VOLUME knob to the desired sound level.

Notes:

• For the best FM reception completely unroll the FM wire antenna.
• The AM antenna is inside the unit. To improve the reception try to re-position the unit.

CD Player

Playback

1. Turn the unit on as described above.
2. Press the CD/USB button to select CD mode.
3. Press the OPEN/CLOSE button to open the CD drawer. The LED display will show "OP".
4. Place a CD / CD-R / CD-RW / CD-MP3 disc with its printed side facing up in the drawer.
5. Press the OPEN/CLOSE button again to close the CD drawer. The LED display will show “--” for a few seconds, then the total number of tracks on the disc will be shown. If no disc is inside the unit or the disc is inserted the wrong way, “NOD” will be shown in the display.
6. Playback will start automatically.
7. Adjust the volume by turning the VOLUME knob to the desired sound level.
8. To temporarily stop the playback (pause), press the ▶II PLAY/PAUSE button once. Press the button again to resume playback.
9. To stop playback, press the ■ STOP button.

Fast Forward / Fast Rewind & Skipping Tracks

• To skip to the previous track, press the ◀ SKIP REV. button once.
- To skip to the next track, press the SKIP FWD. button once.
• To skip 10 tracks at once, press the TRACK -10 or TRACK +10 button on the remote control.
- To fast forward the currently playing track, press and hold the ▶ SKIP FWD. button. Once you reach the desired section of the track, release the button to resume normal playback.
- To fast rewind the currently playing track, press and hold the SKIP REV. button. Once you reach the desired section of the track, release the button to resume normal playback.

Repeat Playback

At any time during playback,

• press the ( ) REPEAT button once to repeat the current track. The Repeat Indicator will be flashing.
• press the <> REPEAT button a second time to repeat all tracks. The Repeat Indicator will be lit steadily.
• press the ( ) REPEAT button a third time to deactivate the repeat function. The Repeat Indicator will go off. Repeat playback will also be cancelled when pressing the ■ STOP button.

Random Playback

At any time during playback press the RANDOM button on the remote control to play all tracks on the disc in random order. The Random Indicator will be lit. To cancel the random function, press the RANDOM button again.

Programming Track Order

You can store up to 20 tracks (CD mode) or up to 99 tracks (MP3/USB mode) in a desired sequence.

1. While in CD stop mode, press the PROGRAM button to enter the program mode. The program number briefly shows "P01" and the Program Indicator will flash.

2. Using the ◀ SKIP REV. / ▶ SKIP FWD. buttons, select the track to be played first in the sequence.

3. Press the PROGRAM button again. "P02" will be flashing in the display.

4. Repeat the steps 2 - 3 to select up to 20 tracks (or 99 tracks) for your sequence.

5. Press the ▶II PLAY/PAUSE button to start the playback of your sequence.

6. Fast Forward, Fast Rewind, Skipping Tracks and Repeat Modes can be used as described above.

7. To stop playback, press the ■ STOP button. To delete your sequence press this button a second time.

USB Playback

1. Turn the unit on as described above.
2. Press the CD/USB button to select CD mode. Then press and hold the ▶II PLAY/PAUSE button on the unit briefly to switch to USB mode. "USb" will be shown in the display.
3. Insert a USB stick into the USB socket of the unit.
4. The LED display will show “--” for a few seconds, then the total number of tracks on the USB will be shown. If no USB is inserted, “NOU” will be shown in the display.
5. Playback will start automatically.
6. Adjust the volume by turning the VOLUME knob to the desired sound level.
7. To temporarily stop the playback (pause), press the ▶II PLAY/PAUSE button once. Press the button again to resume playback.
8. To stop playback, press the ■ STOP button.

Playback modes

Skipping, fast forwarding and fast rewinding tracks, repeat modes and random function in USB mode are the same as for CD playback.

Notes:

• A USB device must always be connected directly to the USB port of this product. The use of a USB extension cord is not supported by this product. The USB port of this product cannot communicate with a computer directly.

• The reading time for a USB drive varies depending on the speed of the memory device and the number of songs and folders. In some cases the reading time may be as long as 60 seconds.

• Always switch off the unit before removing a USB flash drive to prevent damage to your USB device. The manufacturer is not responsible for the loss or damage of data.

• Due to numerous methods of compression it could be that some files or USB flash drives cannot be played.

Cassette Playback

1. Turn the unit on as described above.
2. Press the TAPE button to select cassette mode.
3. Insert a cassette into the slot as shown in the following illustration, with the side you wish to play facing up and the open end on the right side.

Open end

Cassette tape

1. Cassette playback begins as soon as the tape is inserted.
2. Adjust the volume by turning the VOLUME knob to the desired sound level.
3. To advance the tape rapidly, press the EJ/FF (Eject/Fast Forward) button approximately half way. The tape will move forward rapidly for as long as the button is pressed. Normal playback will resume when the button is released.
4. When the tape ends the player stops automatically. Press the EJ/FF (Eject/Fast Forward) button completely to remove the cassette from the player. You may press the EJ/FF (Eject/Fast Forward) button to stop playback and remove the cassette at any time.

Record Player

1. Turn the unit on as described above.
2. Press the PH(ONO)/AUX button to select record player mode. Make sure you have removed the stylus cover from the stylus.
3. Place a record on the center spindle.
4. Set the turntable speed selector to the appropriate speed (33, 45 or 78 RPM). If you are playing 45 RPM singles, place the 45 RPM adapter on the center spindle.
5. Release the tone arm lock.
6. Using the cue lever raise the tone arm off its rest and gently move the tonearm towards the record. The turntable will start turning.
7. Carefully move the tone arm over the record and lower it at the desired spot using the cue lever.
8. Adjust the volume by turning the VOLUME knob to the desired sound level.
9. When the turntable finishes playing, the tone arm will return to its rest automatically!

10. If you want to stop playback before the record reaches its end, carefully lift up the tone arm using the cue lever and gently move the tone arm above its rest. Lower the tone arm using the cue lever.

11. Raise and lower the tone arm always using the cue lever.

12. Do not turn or stop the turntable manually.
13. Moving or jarring the turntable without securing the tone arm clamp could result in damage to the tone arm.
14. Before playing, the needle and record should be cleaned properly to avoid premature wear.
15. Gently swipe the needle with a cleaning brush back to front.
16. With a special record cloth carefully wipe the record.
17. Before playing make sure that the needle is still in good condition, as it is prone to natural wear and tear during use.
    Used or splintered needles need to be replaced as they can cause damage to the record while playing. Only replace with original needles.

Connectors

Headphones

A headphone jack (3.5mm) is located in the front of the cabinet, so that you can listen to the set without disturbing others. To use this jack, plug in suitable headphones/earphones (not included) and adjust the VOLUME to a comfortable listening level.

Notes:

• When external headphones/earphones are connected, the sound from the unit of main speakers will be muted.
• Avoid listening in high volumes while using headphones/earphones as this may damage your hearing.

AUX In

You can connect the audio output of an external device such as an MP3 player to this unit to listen to the sound of that device through the speakers of this music system.

1. To connect the external device please use a standard stereo audio cable (3.5 mm to 3.5 mm plugs) (not included) to connect the headphone out or audio line out of the external device to the AUX input socket of this unit.
2. Turn the unit on as described above and press the PH(ONO)/AUX button to select Phono/AUX mode. To use AUX, do not start the turntable (the tonearm must be resting on the rest position)!
3. Switch the external device (e.g. MP3 player) on.
4. Start playback of the external device and adjust the volume control of the main unit to the desired level.
5. To return to any other mode, unplug the AUX cable from the unit and press the button for the desired mode.
6. Remember to switch off the unit when you are finished using the external device.

Line Out

This music system provides a Line Out (L/R) connector on which you can connect external speakers for additional hearing pleasure.

Technical Specifications

Power Supply: AC 230V \~ 50Hz

Radio Frequency Range: FM 88 - 108 MHz

AM 530 - 1600 kHz

Dimensions (WxDxH) ca.: 470 x 335 x 225 mm

Technical specifications and design may change without notice.

Karcher

www.karcher-audio.de
