Type of product	Hi-Fi System
Dimensions (L x W x H)	482 x 234 x 95.3 mm
Net weight	2.63 kg
Power supply	100-240 V ~ 50/60 Hz
CD player	Audio CD, CD-R, CD-RW, MP3/WMA
Cassette player	Playback, auto stop, tape speed 4.75 cm/s
Radio	FM 87.5-108 MHz, 30 presets
Equalizer	PASS, CLASSIC, ROCK, POP, JAZZ
Playback modes	Normal, repeat, random, intro, program
Additional functions	Sleep timer, timer, mute, headphone jack, LINE IN
Remote control	Included, range approx. 6 m
Backup batteries	3x UM-3 (AA) for clock/memory
Recommended cleaning	Wipe with dry cloth; do not use chemical cleaners
Safety standards	Class 1 laser, protection against electric shock
Ventilation distance	At least 5 cm around the unit

Frequently Asked Questions - MC 6550 Karcher Audio

How do I set the clock on my Karcher Audio MC 6550?

Ensure the device is in standby mode. Press and hold MEM/C-ADJ. until the hour digit flashes. Use ▶▶SKIP/TUN. UP or ◀◀SKIP/TUN. DOWN to adjust the hour, then press MEM/C-ADJ. again to set minutes. Press MEM/C-ADJ. a final time to confirm.

Why is my CD not playing?

Check if the CD is inserted with the label facing up. If the disc is dirty or scratched, clean it with a soft cloth from the center outward. Ensure the function is set to CD. If the display shows 'NO DISC', reinsert the CD or try another disc.

How can I improve FM radio reception?

Fully unwind the FM wire antenna at the rear of the unit. Reposition the antenna for best signal. Keep away from other electronic devices. You can also try MONO/ST. mode for weak stations.

How do I program preset radio stations?

Set the function to TUNER. Tune to the desired station, press MEM/C-ADJ., then use PRESET/FOLDER buttons to select a memory number (1-30). Press MEM/C-ADJ. again to store. Repeat for additional stations.

What should I do if the cassette playback sounds distorted?

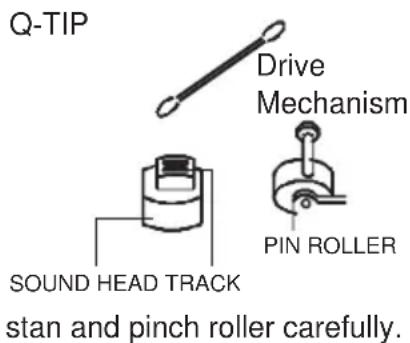

Clean the tape head, capstan, and pinch roller with a cotton swab dipped in alcohol. Use only good quality cassettes. Ensure the tape is not loose by tightening it gently with a pencil.

How do I use the sleep timer?

Press the SLEEP button repeatedly to select the desired time (10 to 90 minutes in 10-minute steps). The unit will automatically turn off after the set time. This works in radio, CD, or cassette mode.

What does the equalizer do and how do I adjust it?

Press EQ to cycle through presets: PASS (off), CLASSIC, ROCK, POP, JAZZ. Each changes the sound profile. Select the one that suits your music.

Can I connect an external device like a smartphone?

Yes, use the LINE IN jack (3.5 mm) on the front. Connect your device with an audio cable, then press FUNCTION until LINE IN appears on the display. Adjust volume on both devices.

How do I replace the backup batteries?

Open the battery compartment cover by pressing down and sliding it out. Insert 3 UM-3 (AA) alkaline batteries with correct polarity. Replace the cover. Backup batteries keep clock and presets during short power outages.

What safety precautions should I follow?

Do not use near water. Keep at least 5 cm ventilation space around the unit. Unplug during thunderstorms. Clean with a dry cloth only. Do not remove covers; refer servicing to qualified personnel. Avoid high volume for long periods to prevent hearing damage.

USER MANUAL MC 6550 Karcher Audio

Exterior view of a Karcher portable electronic device with CD, dials, and control knobs (no visible text or symbols on main body)

MC 6550(N)

→ 90 → 80 → 70 → 60 → 50 → 40 → 30 → 20 → 10 NORMAL

Equalizer

07 [d] 00:07 VOLUME - - -

F11

09 C_d 00:00 VOLUME

F10

00 00 00:07 VOLUME - - -

F12

00:1 00:5 VOLUME 00:00

F13

C d REPEAT 07 00:0 1 VOLUME

F14

07 00:07 VOLUME REPEAT ALL

F15

001 REPEAT 001 00:01 VOLUME - - -

F16

00:1 REPEAT ALL 00:1 00:07 VOLUME - - -

F17

00:1 REPEAT ALBUM 00:1 00:07 VOLUME

Cd MEMORY 00 P-0 1 VOLUME

F21

000 MEMORY P-01 VOLUME

F22

000 MEMORY P-01 VOLUME

Programm löschen

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
   Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
    a) The power-supply cord or the plug has been damaged; or
    b) Objects have fallen, or liquid has been spilled into the appliance; or
    c) The appliance has been exposed to rain; or
    d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
    e) The appliance has been dropped, or the enclosure damaged.
15. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
16. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.
17. Thunderstorms – During a thunderstorm the mains plug should be unplugged.
18. Safety Check – After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.

19. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.

20. Volume Levels – To prevent possible hearing damage, do not listen at high volume levels for long periods.

21. Headphones – Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION RISK OF ELECTRO SHOCK DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CLASS 1 LASER PRODUCT LASER KLASSE1 APPAREILA LASER DE CLASS 1 LUOKAN 1 CLASSLAITE KLASS 1 LASERAPPARAT

DO NOT STARE INTO BEAM – INVISIBLE LASER RADIATION

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

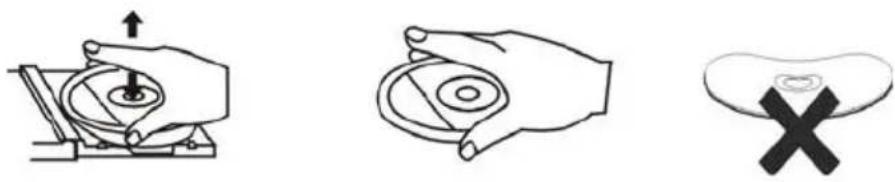

1. Handling discs

• Always keep the CD compartment shut to prevent dust or dirt from getting into the CD mechanism.
- Do not touch the recorded surface.
- Do not stick paper or write on either side of the CD.
- Do not bend the CD.
- Only handle a disc on its outer edges.

1. Storing discs

• To avoid scratches/damages always put CDs back into their cases after use.
- Do not expose CDs to direct sunlight, dust, dirt, high temperatures, high humidity or water.

1. Cleaning discs

2. Use a soft cloth to wipe fingerprints and dust from the disc surface.

3. Carefully move the cloth from the center of the disc to its edge:

Simple line drawing of a stylized insect head (no text or symbols)

Correct False

- Never use benzene, thinners, record cleaner fluid or antistatic spray to clean CDs.

1. Compatibility
2. Due to the numerous compression methods, some discs may not play.

NOTES ABOUT THIS INSTRUCTION MANUAL:

1. This instruction manual is published by the manufacturer without any warranty. Corrections and changes of this instruction manual for the removal of typographic mistakes and editorial inaccuracies as well as due to (technical) improvements (changes) of the devices can be done by the manufacturer at any time without announcement. Changes of this kind are considered in future versions of this user manual. All rights reserved.
2. All figures are only for illustration and do not always show the exact representation of the product.
3. This unit is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the unit.

FURTHER NOTES ON THE DEVICE

Setting a safe volume level

• If you continually listen to loud music, your hearing gradually adapts to it and gives you the impression that the volume is lower.
• What seems normal to you can be already for long time too loud and unhealthy.
• To protect yourself from this, set the volume to a low level.
- Increase the volume slowly.
- Damage to your hearing can be extensive and cannot be reversed.
• If you notice a hearing problem, please consult a doctor.

Condensation:

- Condensation may occur when moving the device from a cold to a warm environment. If there is moisture inside the player, it may not operate properly. Don't turn on the device and wait about one hour for the moisture to evaporate.

Saving energy

- If the unit is not used for a long period of time, it should be unplugged from the AC socket

Unpacking:

• Take out carefully the unit from the packing. Please keep the packing for further use.
- Carefully remove possible protection cardboards and slipcovers.

Control elements and functions

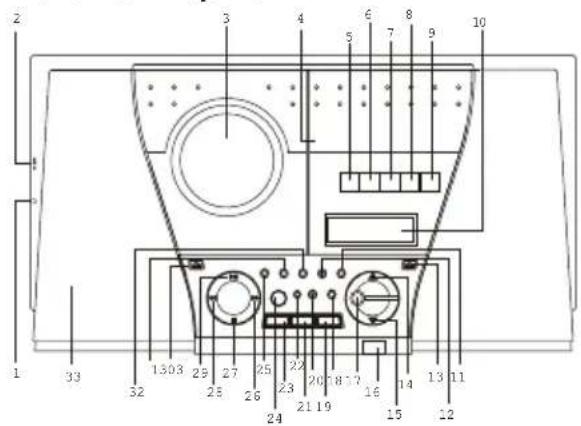

Front view Top view

1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

34 35

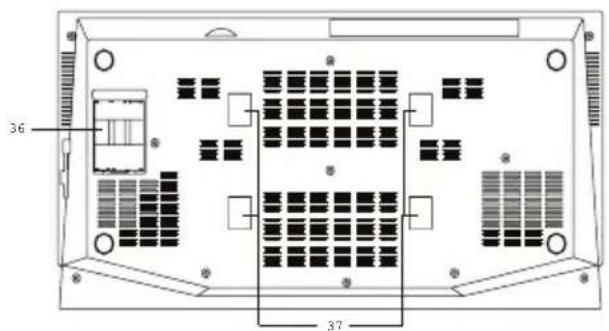

Rear view

36 37

1. Headphone jack
2. Line In
3. CD tray
4. Cassette tray

Cassette functions:
5. PLAY ▶: Play
6. REW ◀◀: Fast rewind
7. F.FWD ▶▶: Fast forward
8. STOP : Stop
9. PAUSE : Pause
10. LCD indications
11. ID3: ID3 tag
12. REPEAT : Repeat mode
13. OPEN: Button for opening the cassette door
14. VOLUME UP: Increase volume
15. VOLUME DOWN: Decrease volume
16. IR: remote control sensor
17. MUTE: Mute
18. TIMER: Timer function
19. EQ : Equalizer
20. SLEEP: Sleep function
21. FUNCTION: Function selector
22. STANDBY: Standby LED
23. MONO/ST.
24. STANDBY/ ON : Standby mode/On
25. ◀ PRESET /FOLDER : Previous memory location/Previous folder

1. ▶▶SKIP/TUN. UP: Next track/Radio station search forward
2. ■ STOP: Stop
3. ◀◀SKIP/TUN. DOWN: Previous track/Radio station search backward
4. ▶/|| PLAY /PAUSE: Playback/Pause
5. OPEN: Button for opening the CD door
6. PRESET /FOLDER ▶: Next memory location/Next folder
7. MEM/C-ADJ: Preset/Adjust clock
8. Speaker
9. FM antenna
10. AC\~: Power cord
11. Compartment for backup batteries
12. Mounting holes

Remote control

1. Indicator Light
2. STANDBY: Standby mode/On
3. PRESET/FOL UP/DOWN
4. EQ
5. ▶/|| PLAY /PAUSE: Playback/Pause
6. |◀◀ Previous track/Radio station search backward
7. ■ Stop
8. INTRO : Short introductory playback of tracks
9. 0-9: Number keys
10. MUTE: Mute
11. FUNCTION: Function selector
12. ID3: ID3 tag
13. VOLUME +/-
14. MONO/ST
15. REPEAT: Repeat mode
16. RANDOM: Random playback
17. ▶▶| Next track/Radio station search forward
18. MEM/C-ADJ.: Preset/Adjust clock
19. TIMER: Timer function
20. SLEEP: Sleep function

LCD display

A. Symbol for sleep function
B. Symbol for timer
C. Album/radio memory number/CD indication
D. Stereo indication
E. Volume indication (low - high)
F. Track number/time

MP3 WMA ALBUM INTRO RANDOM A B C D 8 8 8 REPEAT ALL ALBUM MEMORY ST. #1HZ MHz E F

Power supply

• The unit is designed for mains power supply 100-240V \~ 50/60Hz.
• Do not connect the unit to any other power supply to avoid damage that is not covered by your warranty.
• To disconnect from wall outlet only pull the plug and not the cable to avoid a cable break and the resulting risks.

Inserting backup batteries (not included):

1. Open the battery compartment cover by slightly pushing down and slide it towards the arrow, until you can lift it up.
2. Insert 3 batteries type UM-3, 1.5 V into the battery compartment (preferably Alkaline). These three batteries keep at short power outages the real-time clock and the data stored in the proces-

sor. Please observe the correct polarity marked inside the battery compartment ("+" and "-").

1. Place the cover again onto the battery compartment and slide it opposite to the direction of the arrow until it snaps in.

Inserting batteries into the remote control

Batteries not supplied

Remove the battery compartment cover by pressing it down and sliding it outwards. Take the cover of the battery compartment away. Insert two batteries type UM-4, 1.5V. Please observe the correct polarity marked inside the battery compartment and on the batteries (“+” and “-”). Place the cover over the compartment, press down lightly, and push it upward until it snaps in.

Battery Safety Precautions

Please follow these safety instructions if handling batteries for this device:

• Only use batteries of the same type and size.
• Observe the polarity as marked in the battery compartment. Failure to properly align the battery polarity can cause damages.
• Do not mix different battery types (e.g. alkaline and zinc/carbon batteries) or exhausted and new batteries.
• Do not recharge normal batteries to avoid overheating and explosion.
  • Use alkaline batteries for extending the operating time of the batteries as much as possible.
• During longer periods of non-use, please remove the batteries to avoid leaking.

General operating instructions

The settings described below refer to the control elements at the device. The settings are, if not differently indicated, also possible with the remote control.

When connecting the plug with a power outlet for the first time, the appliance will be in the standby mode and the STANDBY LED lights up. Instead of the time the indication flashes “-- --:-- --” on the display. This is an indication that the time must be set.

Press the STANDBY/ ON button to turn the appliance on or to set it into standby mode. Pull the power plug out of the wall socket if you want to switch off completely.

On/Off

• By pressing STANDBY/ON you can set the device at any time into the standby mode. The device is in standby mode if the current time is indicated and the blue background illumination is dimmed. The STANDBY LED also lights up.
• At the activated device, the blue background of the display lights up intensely and the STANDBY LED extinguishes. The device is now ready for use. When turning on from standby mode to the activated mode, the device continues with the last adjusted mode.
• Select the audio source by repeated pressing of the FUNCTION key. The corresponding indication “CD”, “TAPE”, “LINE IN” or “TUNER” will light up.
• Adjust the volume with VOLUME (UP or DOWN) (VOLUME + or - VOLUME on the remote control).
• Set the equalizer with the EQ button ("PASS", "CLASSIC", "ROCK", "POP" or "JAZZ").
• During nonuse switch the device with STANDBY/ON back to the standby mode. In the standby mode the current time is shown on the display.
• The device is construed for continuous operation; it is either turned on or in standby mode.
• If you don't use the unit, please switch the device for power savings reasons into the standby mode and pull the power plug.

Note:

If in the CD mode no signal is present, the device turns into standby within 15 minutes.

Clock setting

The device must be in the standby mode.

1. Press and hold MEM /C-ADJ. until the time will display 12-hour or 24-hour digit flashing.
2. Press ▶▶SKIP/TUN. UP or ◀◀SKIP/TUN. DOWN to adjust the 12-hour or 24-hour digit.
3. Press the MEM /C-AD J. button again. The hour indication "00" flashes. Press ▶▶SKIP/TUN. UP or ◀◀SKIP/TUN. DOWN to adjust the hours.
4. Press the MEM /C-AD J. button again. The minute indication "00" flashes. Press ▶▶SKIP/TUN. UP or ◀◀SKIP/TUN. DOWN to adjust the minutes.
5. Press the MEM /C-ADJ. button again to confirm the clock settings.

Note:

If within approx. 10 seconds no key is pressed, the setting mode will be canceled and the appliance returns to the last mode.

Timer setting

The device must be in the standby mode and the clock must be set.

1. Press once the TIMER button. The symbol “ON” and “00:00” are shown on the display and the hour digits will flash (see figure F1).
2. Press ▶▶SKIP/TUN. UP or ◀◀SKIP/TUN. DOWN to adjust the hours.
3. Press the TIMER button again. The minute indication flashes. Press ▶▶SKIP/TUN. UP or ◀◀SKIP/ TUN. DOWN to adjust the minutes.
4. Press the TIMER button again to confirm the turning on time of the timer.
5. The symbol “OFF” and “00:00” is shown on the display and the hour digits will flash (see figure F2).
6. Repeat steps 2 to 3 and then confirm the turning off time of the time by pressing the TIMER button.
7. Press ▶▶SKIP/TUN. UP or ◀◀SKIP/TUN. DOWN to select the operation mode "TUNER" or "CD" for the adjusted turning on time.
8. Press the TIMER button again. The indication "VOL" flashes on the display. Press ▶▶SKIP/TUN. UP or ◀◀SKIP/TUN. DOWN to adjust the desired volume of the sound.
9. Confirm again with the TIMER button. The timer settings will be shown on the display one after the other.
10. The appliance will be turned on automatically at the adjusted turning on time, switches to the preset operation mode and will automatically shut off at the adjusted off time.

Notes:

• If within approx. 10 seconds no key is pressed, the setting mode will be canceled and the appliance returns to the last mode.
• If the display shows "ERROR" while setting the turning on time of the timer, then the time for turning on and off is identical. In this case, please set the off time first.

F1 ② □□ □□:□□

F2 ON OFF OK OK:OK

Disabling or modifying of the timer settings:

Disable: Press briefly the TIMER button. The symbol “💡” disappears on the display.

Modify: Press and hold the TIMER button for more than 1 second. Now you can modify the timer settings beginning at step 2 at the "Timer settings" section.

Sleep function

1. If you want to fall asleep to music, press the SLEEP button.
2. You can select the period until turning off automatically: 90, 80, 70 etc. up to 10 minutes. The sleep function can be adjusted during the radio, CD or cassette operation.

→ 90 → 80 → 70 → 60 → 50 → 40 → 30 → 20 → 10 NORMAL

EN

Equalizer

Pressing EQ shows the current adjusted sound effect.

Select the desired sound effect by repeated pressing of EQ:

“PASS” means that the equalizer function is deactivated.

Function selector

Each time you press FUNCTION, you can select a different operating mode, see below:

Radio

- Turn on the appliance by pressing the STANDBY/ON button and press repeatedly the FUNCTION button until "TUNER" is shown on the display.

Manual tuning

To tune for weak stations: Press ▶▶SKIP/TUN. UP or ◀◀SKIP/TUN. DOWN, until the correct frequency is shown, or until you achieve the best reception quality.

Automatic tuning

1. Press and hold ▶▶ SKIP/TUN. UP or ◀◀ SKIP/TUN. DOWN at least one second. Then release the button. The tuner scans automatically for the first radio station with sufficient signal strength.

2. To select another radio station, repeat the procedure above.

Mono/Stereo

This function can only be used in FM mode.

1. If you cannot select a FM stereo station, press the MONO/ST. button. On the Display the indication "STEREO" is shown. When you receive a FM stereo station the symbol "c" will appear on the display.

2. If you press the MONO/ST. button again, the display will show "MONO" and the FM stereo indication "c" will disappear. The appliance will switches to the FM mono operation mode.

Programming of preset radio stations

You can also store your favorite stations in the program memory (up to 30 FM stations).

1. Repeatedly press the FUNCTION button until "TUNER" is shown on the display.

2. Tune the desired radio station.

3. Press the MEM/C-ADJ. button.

4. Press the PRESET /FOLDER (◀ or ▶) or PRESET FOL (UP or DN) on the remote control to select the desired memory number.

5. Press the MEM /C-ADJ. button again to confirm the selection.

6. For storing additional radio stations, please repeat the steps 2 to 5.

7. For replacing the stored radio stations, please repeat the steps 2 to 5.

Notes:

- If within approx. 8 seconds no button is pressed, the storing mode will be canceled and the appliance returns to the last mode.

• Storing a new station into a preset location will erase the previously stored radio station in that location.

• To delete all the preset station press and hold the ▶/|| PLAY /PAUSE button in standby mode until the STANDBY LED and the LCD will flash once.

Selecting a preset radio station

• Press the PRESET /FOLDER (◀ or ▶) or PRESET FOL (UP or. DN) on the remote control, to select the desired preset radio station.
• The number of the radio station will be shown on the display together with its corresponding frequency.

Recommendations for better reception

FM: For best reception fully unwind the FM wire antenna at the rear of the unit.

Cassette operation

Cassette playback

1. To play a cassette first open the cover of the cassette player by pressing the OPEN button at the right side.
2. Be sure to tighten any slack tape in the cassette before use. Using either a pencil or a ball-point pen, simply insert the pen or pencil into the centre of the spool and rotate to remove slackness.
3. Insert the cassette into the compartment with the open end facing downwards and full reel on the left hand side and push the cassette down carefully.
   Be sure not to touch the tape surface.
4. Select "TAPE" with the FUNCTION button and press the cassette PLAY ▶ button. You can now close the cassette door.
5. To stop playback, press the cassette STOP ■ button once. Remove the cassette carefully from the cassette tray.

Note:

Please press the cassette STOP ■ button quickly before it reaches the end of the tape in order to prevent potential effects of tape.

Auto Stop

When the tape reaches its end in the playback, the built-in Auto Stop system releases the depressed PLAY ▶ button. Only the cassette function is stopped automatically.

Notes on tapes

1. Loose tapes may cause trouble. With a pencil etc. gently tighten the tape as shown in Figure 1.

2. Storage of tapes:
   Do not store tapes in places which are subject to direct sunlight or near equipment that generates heat; keep cassette tapes away from magnetic fields.

3. 120-minute tapes:

Since 120-minute tapes are very thin, the tape could be easily damaged or cut.

1. Endless tape:

Q-TIP Drive Mechanism SOUND HEAD TRACK PIN ROLLER stan and pinch roller carefully.

Do not use endless tapes, as this could damage the mechanism of the unit.

1. Cleaning tape heads:

For maintaining the best condition of the deck and for a longer lifespan always keep the head, capstan and pinch rollers clean. Clean as follows:

1. Open the cassette compartment.
2. Use a cotton swab dipped in alcohol to clean the head, cap-

(Fig.1)

Note: When cleaning, pay special attention not to damage any components.

CD/MP3/WMA

The CD-player can only play Audio CDs and MP3/WMA CDs. Do not attempt to play data CD or VCD/DVD discs.

EN

Loading a CD

1. Depress the OPEN button to open the CD door. The display shows "OPEN" (see figure F3).
2. Insert a CD into the CD drive and press onto the CD door (CLOSE), until it snaps in.
3. Select with the FUNCTION button the option "CD", to change to the CD/MP3 mode or press the ▶/|| PLAY /PAUSE button. The player reads the MP3/WMA/Audio CD automatically.

Notes:

1. The player can play CD, CD-R, CD-RW and MP3/WMA discs.
2. It can read "8 cm" and "Multisession" MP3 discs.
3. The transfer rate during playback is at 8 - 320 kbps.
4. A CD can contain max. 99 folders and 999 tracks.
5. If no CD is inserted or the table of content (TOC) cannot be read, "NO DISC" is shown on the display (see figure F4).

Removing a disc

1. Depress the OPEN button to open the CD door. On the display "OPEN" is shown.
2. Remove the CD by grasping with the fingers at the edge and pull it carefully upwards.
3. To protect the removed CD store it in its cover.

Normal playback (Audio CD)

1. Playback will start by pressing ▶/|| PLAY /PAUSE. Playback start with the first track. The display will show "Cd", the current track number and its elapsed time (see figure F5).
2. To pause playback, press ▶/|| PLAY /PAUSE. The time elapse indicator will flash (see figure F6).
3. To resume playback, press ▶/|| PLAY /PAUSE again.
4. Press ■ STOP to stop the playback.

Normal playback (MP3 or WMA CD)

1. Playback will start by pressing ▶/|| PLAY /PAUSE. Playback start with the first track. The display will show "MP3", the album number and its elapsed time (see figure F7).
2. To pause playback, press ▶/|| PLAY /PAUSE. The time elapse indicator will flash (see figure F8).
3. To resume playback, press ▶/|| PLAY /PAUSE again.
4. Press ■ STOP to stop the playback.

F3 OPEN VOLUME

F4 NO DISC

F5 0 1 [d] 00:07 VOLUO - - -

F6 VOLUME

F7 00:1 00:07

F8 WOLUSS

Selection of a different track (Audio and MP3/WMA CD)

1. Press ▶▶SKIP/TUN. UP or ◀◀SKIP/TUN. DOWN, until the desired track number is shown on the display (see figures F9 and F10).
2. Press ▶▶SKIP/TUN. UP or ◀◀SKIP/TUN. DOWN once. The next or previous track number will be shown and the playback will start.
3. Press during the pause mode the ▶▶SKIP/TUN. UP button once. The next track number will be displayed. Resume the playback by pressing the PLAY /PAUSE button.
4. Press during the pause mode the ◀◀SKIP/TUN. DOWN button once. The player skips to the beginning of the current track, but remains in the pause mode. On the display flashes "00:00"

(see figures F11 and F12).

1. By pressing the number keys on the remote control you can select the desired track number (The display shows an error message if the number is bigger than the number of tracks on the CD).

Search for a certain position (only during playback, Audio and MP3/WMA CD)

Press ▶▶SKIP/TUN. UP or ◀◀SKIP/TUN. DOWN to search for the desired position within the track. Normal playback continues when the button is released. In search mode the volume is reduced.

Selection of one of the other albums (only MP3/WMA CD)

Skip with PRESET/FOLDER (◀ or ▶) or PRESET FOL (UP or DN) on the remote control to the next or previous album (if the CD contains more than one album). The album function can only be used with MP3/WMA -CDs which include albums. Playback starts with the first track in the selected album.

ID3 tags

Only in MP3/WMA mode.

1. Press ID3 to invoke the ID3 function.
2. If the MP3 file is contains ID 3 information, it will show "Title", "Artist" and "Album" on the display.
3. Press the ID3 button again. The ID3 function will be disabled.

TITLE ARTIST ALBUM CURRENT TIME

Repeat mode

Audio CD:

1. If you want to repeat a single track while playing an Audio CD, press the REPEAT button once. The "REPEAT" indication will light up (see figure F13).
2. If you want to repeat all tracks, press the REPEAT button twice. The "REPEAT ALL" indication will light up (see figure F14).
3. Press REPEAT three times to terminate the repeat mode.

MP3/WMA CD:

1. If you want to repeat a single track while playing a MP3/WMA CD, press the REPEAT button once. The "REPEAT" indication will light up (see figure F15).
2. If you want to repeat all tracks, press the REPEAT button twice. The "REPEAT ALL" indication will light up (see figure F16).
3. If you want to repeat the current album, press the REPEAT button three times. The "REPEAT ALBUM" indication will light up (see figure F17).
4. Press REPEAT four times to terminate the repeat mode.

F9 07 00:07 VOLUME

F11 09 00:00 VOLUME

F10 00:0 00:7 00:07 VOLUME - - -

F12 00:1 009 00:00 VOLUME - - - - - - - -

F13 REPEAT 07 00:0 1 VOLUME

F14 REPEAT ALL 07 00:07 VOLUSS

F15 00 | 100:0 | VOLUME

F16 00:00 REPEAT ALL 00:00 VOLUTED

F17 00 | 00:07 REPEAT ALBUM VOLUME

Random playback (only on the remote control)

1. Press once the RANDOM button. The "RANDOM" indication will light up (see figure F18).

2. Press PLAY/PAUSE button to start playback. The tracks on the CD will be played in a random order.

3. Press the RANDOM button again to terminate the random playback.

Intro (only on the remote control)

1. Press once the INTRO button. The "INTRO" indication will light up (see figure F19).
2. The device will play the first 10 seconds of each track.
3. Press the INTRO button again to terminate the Intro playback.

F18 RANDOM 07 Cd 00:0 1 VOLUME

F19 INTRO Cd 07 00:01 VOLUME - - -

Programming the CD player

Up to 32 tracks at an Audio CD or up to 64 tracks at a MP3/WMA CD can be programmed in a specific sequence. The CD player must be in the stop mode.

Audio CD:

1. Insert the CD to be programmed into the CD tray and invoke the programming mode with the MEM/C-ADJ. button.
2. On the display "MEMORY" and "P-01" will be shown (see figure F20).
3. Press SKIP/TUN. UP or SKIP/TUN. DOWN to select the first track to be programmed.
4. When the desired track is shown on the display, press the MEM/C-ADJ. button again.
5. On the display "MEMORY" and "P-02" will be shown.
6. Repeat these steps to store additional CD tracks into the program memory.
7. Afterwards press the PLAY/PAUSE button. The player plays the first programmed track.

Notes:

• When all tracks are played, the total number and total playback time of the Audio/MP3 CD titles will be shown on the display.
• If within approx. 8 seconds no key is pressed, the storing mode will be canceled and the appliance returns to the last mode.

MP3/WMA CD:

1. Insert the CD to be programmed into the CD tray and invoke with the MEM/C-ADJ. button the programming mode.
2. On the display "00", "MEMORY" and "P-01" will be shown, the album number "00" flashes (see figure F21).
3. The album number can be changed by pressing PRESET/FOLDER (◀ or ▶) or PRESET FOL (UP or DN) on the remote control.
4. Press the MEM/C-ADJ. button again, the track number flashes (see figure F22).
5. Press SKIP/TUN. UP or SKIP/TUN. DOWN to select the first track to be programmed.
6. When the desired track is shown on the display, press the MEM/C-ADJ. button again.
7. On the display "00", "MEMORY" and "P-02" will be shown.
8. Repeat these steps to store additional CD tracks into the program memory.
9. Afterwards press the PLAY/PAUSE button. The player plays the first programmed track.

Notes:

• When all tracks are played, the total number and total playback time of the Audio/MP3 CD titles will be shown on the display.
• If within approx. 8 seconds no button is pressed, the storing mode will be canceled and the appliance returns to the last mode.

F20

Cd MEMORY 00 P-0 1 VOLUME - - -

F21

000 MEMORY 000 P-0 1 VOLUMS - - - -

F22

000 MEMORY 000 P-01 VOLUME

Cancel the programmed playback

1. The program will be deleted by pressing the MEM/C-ADJ. button and then change with STOP to the stop mode, or by opening the disc tray and closing it again.
2. By entering a new program an existing program will be deleted.

Notes:

• If you want to repeat the current track in the program mode, press the REPEAT button on the appliance or on the remote control once. The indication "REPEAT" turns on.
• If you want to repeat all programmed tracks, press the REPEAT button twice. The indication "REPEAT ALL" turns on.
• Press REPEAT three times to terminate the repeat mode.

Mute

1. When you press MUTE once, the volume level indicator flashes and the sound output is muted temporarily (see figure F23).
2. Press the MUTE button again. The indication disappears and the audio output sounds as usual.

F23 C 0 7 0 0:0 1 VOLUME!

Listen to the music by using headphones

A stereo headphone jack is provided for private listening. To connect the headphones (not included), insert the 3.5mm mini-stereo plug from the headphones into the rack on the left of the appliance.

When connecting the earphones the speakers are automatically muted.

LINE IN jack

Line In mode plays audio from an external audio source, such as an MP3 player or Smartphone.

To play audio through LINE IN mode:

1. Connect the external audio source to the LINE IN (3.5mm) stereo socket.
2. Repeatedly press the FUNCTION button until the display shows LINE IN.
3. Set the desired volume on the radio and external audio device if necessary.

TROUBLESHOOTING

To solve the common problems, read and follow the troubleshooting list. If you still cannot solve the problem, consult your nearest service dealer.

Problem Possible Cause Solution
GeneralNo sound	Volume is set too low.Mains cable not connected.	Adjust the volume.Connect mains cable correctly.
No key function Electrostatic discharge. Disconnect mains cable for some seconds and reconnect.
RadioPoor reception	The radio station is not tuned properly.FM: The wire antenna is not directed properly.Interferences by other appliances (TV sets, VCRs, computers, etc.).	Tune to the radio station again.FM: Adjust wire antenna.Keep distance to other appliances.
CD/MP3No playbackFaulty playback	The CD is inserted upside down.The CD is dirty or damaged.The CD is steamy.The CD is dirty or damaged.	Reinsert CD with label side facing up.Replace or clean the CD.Wipe with a soft cloth.Replace or clean the CD.
Tape PlayerPoor sound quality	Head, capstan or pinch rollers dirty. C	Clean head, capstan and pinch rollers.
Remote controlNo function.	The batteries are inserted in the wrong direction.The batteries are exhausted.The remote control is not directed towards the device.There are obstacles between remote control and the remote control sensor.The operation range is exceeded.	Check the polarity of the inserted batteries.Replace the batteries.Direct the remote control directly towards the remote control sensor on the front of the device.Remove the obstacles.The remote control has an operation range of 6 meters.
HeadphonesNo sound	The headphones jack is not plugged in correctly.Volume is set too low.The CD is damaged.	Plug in the headphones jack correctly.Adjust the volume.Replace the CD.
Backup batteriesPreset is lost after power outage	No backup batteries inserted.The backup batteries are exhausted.	Insert backup batteries.Replace the backup batteries.

TECHNICAL SPECIFICATIONS

General

Power Supply: 100-240V \~ 50/60Hz

Radio

Frequency Range: FM 87.5 - 108 MHz

Cassette Player

Tape Speed: 4.75 CM/SEC.

Frequency Response: 125 Hz – 8 kHz

CD Player

Optical Pickup: 3 - Beam Laser

Frequency Response: 100 Hz – 16 kHz

Dimensions: 482 (L) x 234 (W) x 95.3 (H) mm

Net Weight: 2.63 kg

Technical specifications and design may change without notice.

Karcher

www.karcher-audio.de
