Type	2 Channel Class A/B
RMS Power @ 4 Ω (1% THD+N)	2 x 60 W
RMS Power @ 2 Ω (1% THD+N)	2 x 80 W
RMS Power @ 4 Ω Bridged (1% THD+N)	1 x 200 W
Damping Factor	> 150
Signal to Noise Ratio	> 85 dB
Lowpass Filter Range	30 – 250 Hz
Highpass Filter Range	40 – 3000 Hz
Frequency Response	10 Hz – 30 kHz
Input Sensitivity	200 mV – 6 V
Inputs	RCA (Cinch) and High Level (speaker level)
Auto-On Function	Yes (via High Level Input)
Bass Remote Control	Not included (optional for some models)
Protection Features	Thermal, short circuit, overload
Recommended Fuse	1 x 20 A
Dimensions (W x H x L)	175 x 213 x 50 mm (6.89" x 8.39" x 1.97")
Power Supply	12 V DC (negative ground)
Mounting	Screw mounting; ensure adequate ventilation
Maintenance	Clean with a dry cloth; avoid moisture.
Warranty	Limited warranty; defective products returned in original packaging with proof of purchase.

Frequently Asked Questions - GZIA 2080HPX Ground Zero

How do I connect the amplifier to an OEM headunit?

Use the High Level Input (speaker level) on the amplifier. Connect the speaker outputs of your headunit to the HI INPUT terminals. The amplifier will automatically turn on when a signal is detected (Auto-On function). Do not use the remote terminal in this mode.

What is the recommended fuse rating for the GZIA 2080HPX?

The recommended fuse rating is 20 A. Use only a fuse identical to the supplied one. Using a different rating may cause damage.

Can I use both high level and RCA inputs at the same time?

No, you must use either the High Level inputs or the Cinch (RCA) inputs. Using both simultaneously can damage the amplifier.

Why is the protection LED on?

The protection LED indicates an error. Common causes: short circuit on speaker wires, overheating (the amplifier will shut down temporarily), or overload. Check speaker connections and ensure adequate ventilation.

How do I adjust the crossover?

Use the mode switch to select LPF (low frequencies only), HPF (mid/high frequencies only), or FLAT (full range). Then adjust the Low Pass (30-250 Hz) and High Pass (40-3000 Hz) controllers to set the desired cutoff frequencies.

What is the difference between HPF and LPF?

HPF (High Pass Filter) allows frequencies above the cutoff point to pass, blocking low frequencies. It is used for midrange and tweeters. LPF (Low Pass Filter) allows frequencies below the cutoff point to pass, blocking high frequencies. It is used for subwoofers.

Can I bridge the channels on the GZIA 2080HPX?

Yes, the amplifier supports bridged mode. Connect the positive speaker wire to the left channel (+) and the negative to the right channel (-). The bridged output delivers up to 200 W RMS @ 4 Ω.

What is the input sensitivity range?

The input sensitivity can be adjusted from 200 mV to 6 V using the GAIN controller. This allows matching the amplifier to the output level of your headunit.

How can I prevent the amplifier from overheating?

Ensure adequate ventilation around the amplifier. Do not mount it in an enclosed space without airflow. If the amplifier gets too hot, it will temporarily shut down. Reduce volume or improve cooling.

Does the GZIA 2080HPX include a bass remote control?

No, the GZIA 2080HPX does not include a bass remote control. Some other models in the IRIDIUM series (e.g., GZIA 2235HPX) include one, and the GZIA 2130HPX offers it as an optional accessory.

USER MANUAL GZIA 2080HPX Ground Zero

GZ1A 4115HPX X-OVER HI INPUT IRUTO ONI CHI INPUT HI INPUT IRUTO ONI X-OVER LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF LRF

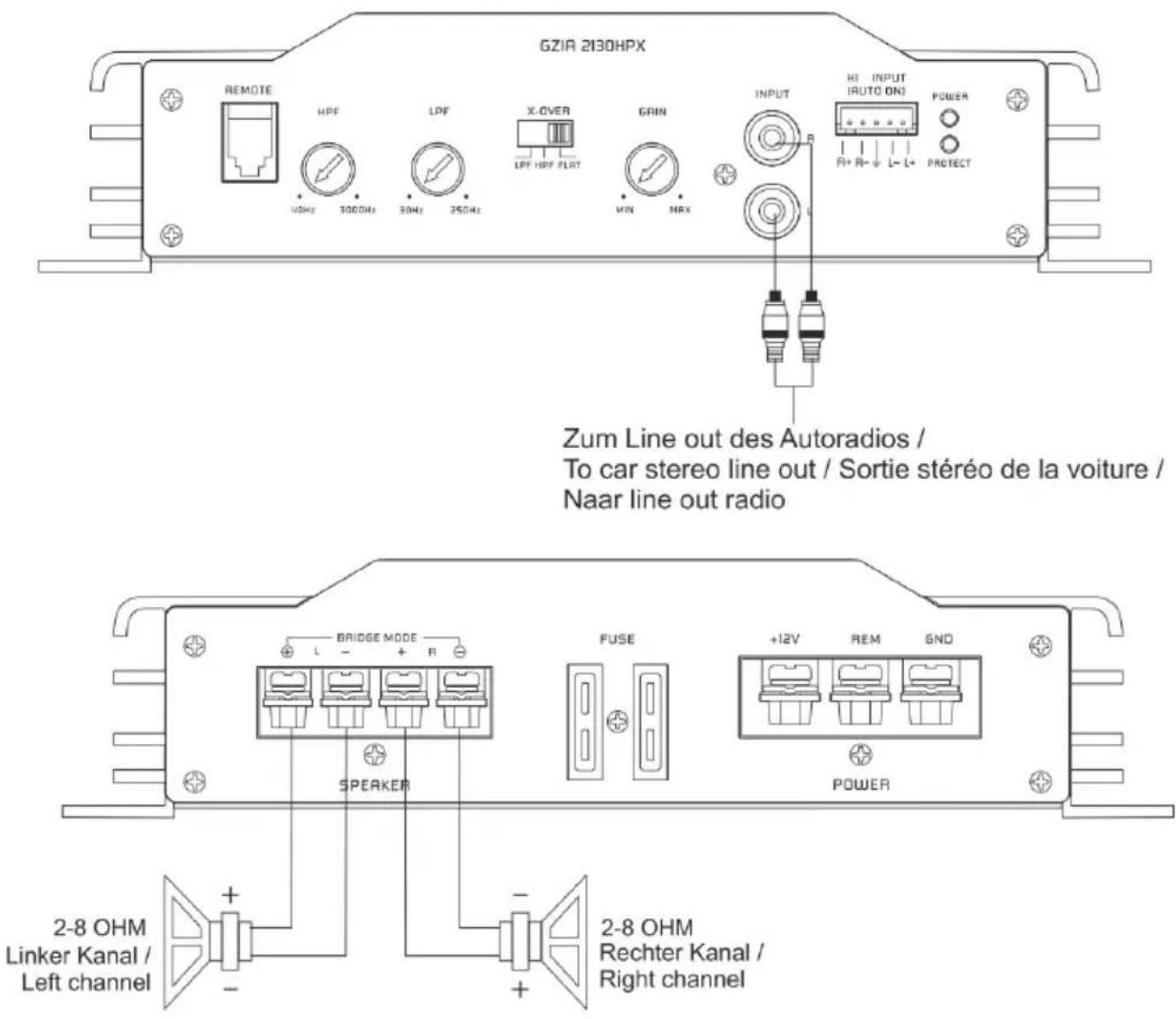

To car stereo line out /

GZIR 4116HPX X-OVER HI INPUT AUTO ONI CH8 ON2 INPUT CH8 HI INPUT AUTO ONI CH8 ON3 CH8 ON4 X-OVER HDF 200Hz HDF 50Hz LFP MIN GRIN MIN GRIN MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MIN HOFF UPF MAX 200Hz MAX 50Hz MAX 100Hz

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

www.ground-zero-audio.com

We reserve the right to make needed change or improvement to the product without informing customer about this in advance.

Abstract geometric shape with diagonal stripes and a central vertical bar, no text or symbols present

GROUND ZER

MOBILE ENTERTAINMENT

GERMAN ENGINEERING

Amplifier

Owner's Manual

IRIDIUM

GZIA 1.300HPX

GZIA 1.600HPX

GZIA 2080HPX

GZIA 2130HPX

GZIA 2235HPX

GZIA 4115HPX

PLEASE READ BEFORE INSTALLATION

Thank you for selecting a Ground Zero amplifier.

We are providing a helpful hints list which should keep you from experiencing unnecessary shut down. Have fun with this high quality Titanium product.

Features

• 4 Ohm / 2 Ohm stable Stereo
• 4 Ohm stable Mono (GZIA 1.300HPX)
• 1 Ohm stable Mono (GZIA 1.600HPX)
• Power & Protection indicator
• Bass Boost (GZIA 1.300HPX / 1.600HPX)
• Variable highpass (GZIA 2080HPX / 2235HPX / 2130HPX / 4115HPX)
- Variable lowpass
• Auto-On @ High Level Input
- White illuminated logo (except GZIA 1.300HPX / 2080HPX)
- Adjustable input sensitivity
- Soft delayed remote turn-on
• Bass remote (GZIA 1.300HPX / 1.600HPX / 2235HPX, GZIA 2130HPX optional)
• Thermal / Short / Overload protection

Tools and materials you need

• Screwdriver
  • Electric drill, 3 mm / 0.12" carbide drill bit
• Mounting screws
  • Power wire min. 10 mm ^4
  • Ground wire min. 10 mm ^4
• Speaker wire min. 2 × 1,5 ~mm^2

Please note!

• As a precaution it is advisable to disconnect the vehicle's battery before making connection to the +12 Volts supply wiring (see owner's manual of your car for further information).
• Please use great caution drilling your trunk. Your gas tank and brake lines can be damaged by puncturing with your drill bit – this could cause damage or failure of your cars operating systems.
• Never pass wires over sharp angles. It is recommended to buffer the power supply of the amplifier with a capacitor min. 1 Farad to guarantee a stable operation voltage.

WARNING!

High powered audio systems in a vehicle are capable of generating "Live Concert" levels of sound pressure. Continued exposure to excessively high volume sound levels may cause hearing loss or damage. Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear

external sounds such as; horns, warning signals, or emergency vehicles, thus constituting to a potential traffic hazard. In the interest of safety, Consumer Electronics recommends listening at lower volume levels while driving.

Planning your system

Before beginning the installation, consider the following:

a. If you plan to expand your system by adding other components sometime in the future, ensure adequate space is left, and cooling requirements are met.
b. If your radio / source is equipped with pre-amp outputs, it is possible to utilize them to drive the amplifier and connecting (amplifier) to the 2 rear speakers.

Mounting your amplifier

a. Select a suitable location that is convenient for mounting, is accessible for wiring and has ample room for air circulation and cooling.
b. Use the amplifier as a template to mark the mounting holes, remove the amplifier.

Warning

Chose a mounting position where all eclectic wires are protected from being damaged by sharp edges, heat or other conditions. +12Volt DC electrical connections must be fused on the battery side. Make sure your radio and all other devices will be turned off while connection your system.

If you need to replace the power fuse, replace it only with a fuse identical to that supplied with the system. Using a fuse of different type or rating may result in damage to this system which isn't covered by the warranty.

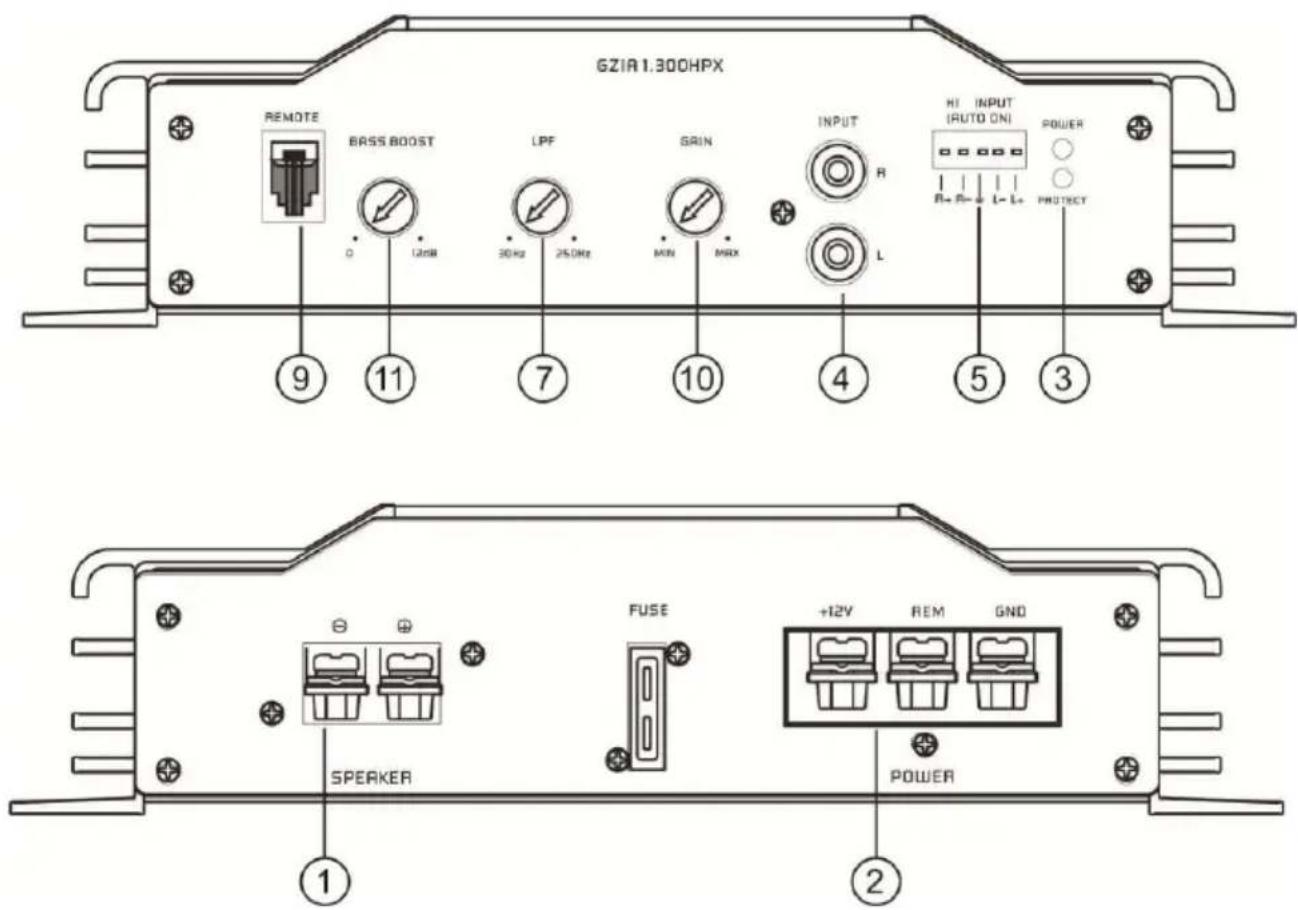

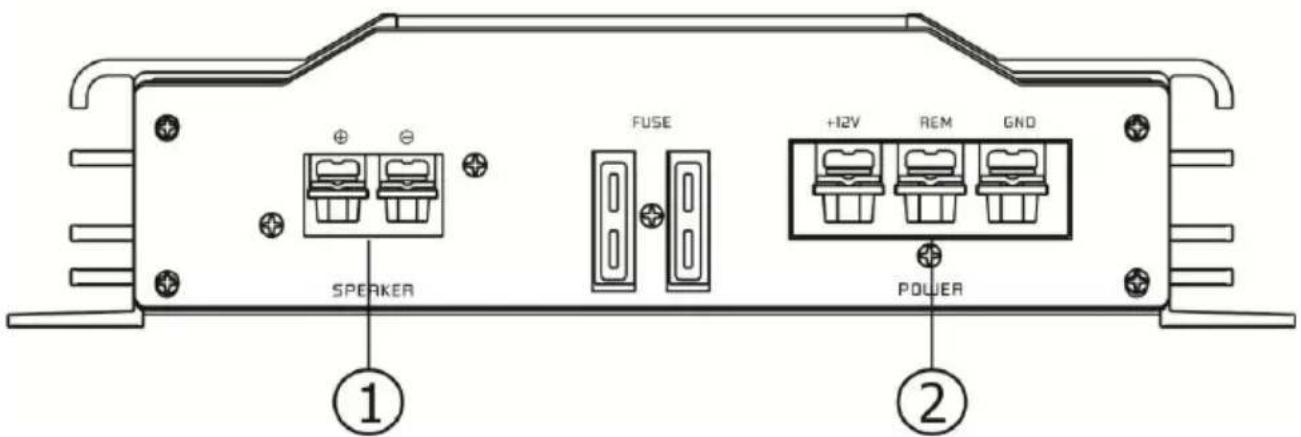

Controls and functions - GZIA 1.300HPX

GZIA 1.300HPX REMOTE BASS BOOST LPF SRIN INPUT HI INPUT (AUTO ON) POWER R L PROTECT 9 11 7 10 4 5 3 FUSE +12V REM GND POWER SPEAKER 1 2

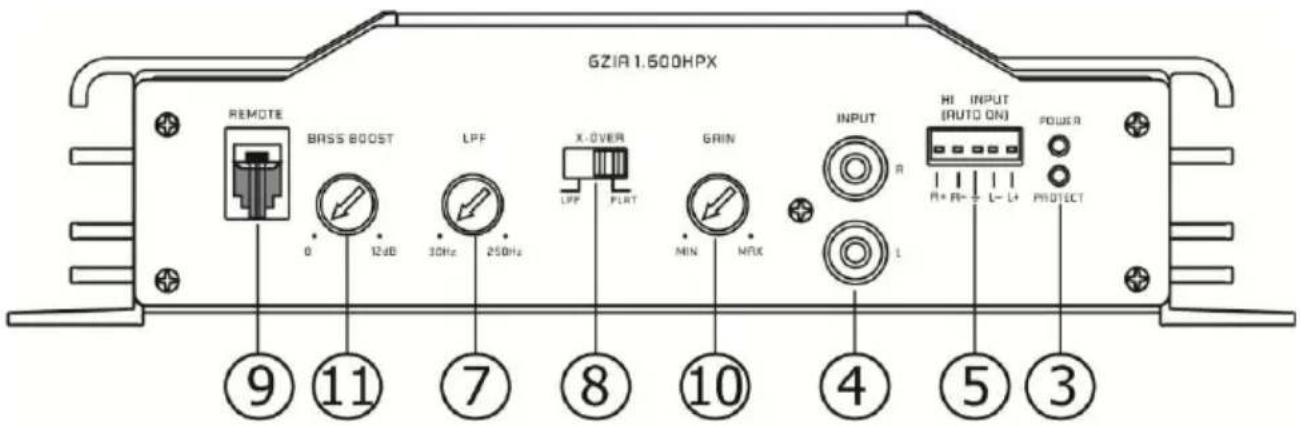

Controls and functions - GZIA 1.600HPX

GZIA 1.600HPX REMOTE BASS BOOST LPF X-OVER LPP PLRT GRIN MIN MAX INPUT R HI INPUT (RUTO ON) POWER R+ R+→ L- L+ PROTECT ⑨ ⑪ ⑦ ⑧ ⑩ ④ ⑤ ③

SPEAKER FUSE +12V REM GND POWER ① ②

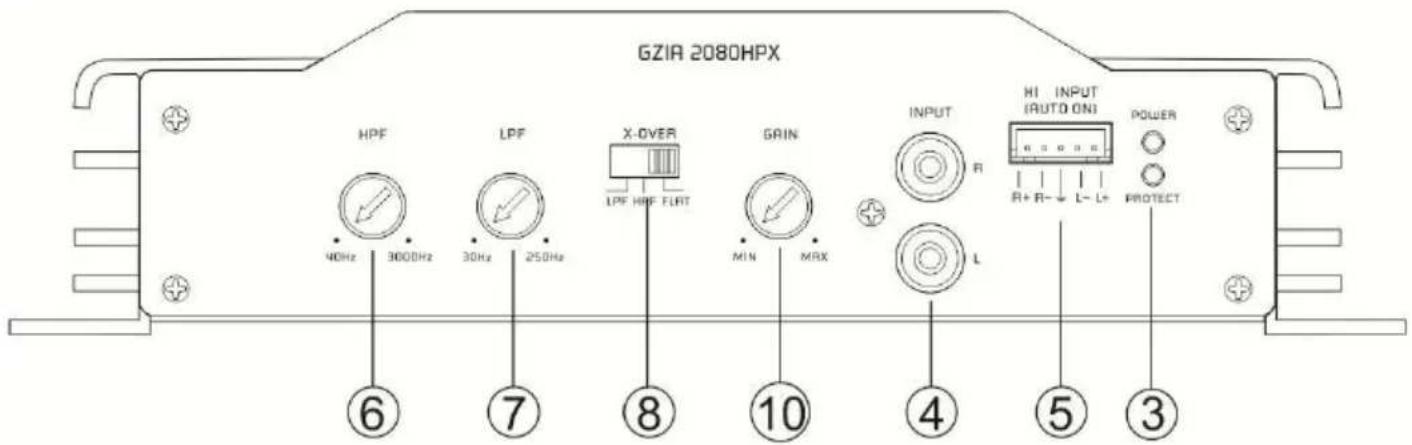

Controls and functions - GZIA 2080HPX

GZIA 2080HPX HPF LPF X-OVER GRIN INPUT HI INPUT (AUTO ON) POWER 40Hz 3000Hz 30Hz 250Hz LPF HRF FLT MIN MRX L 6 7 8 10 4 5 3

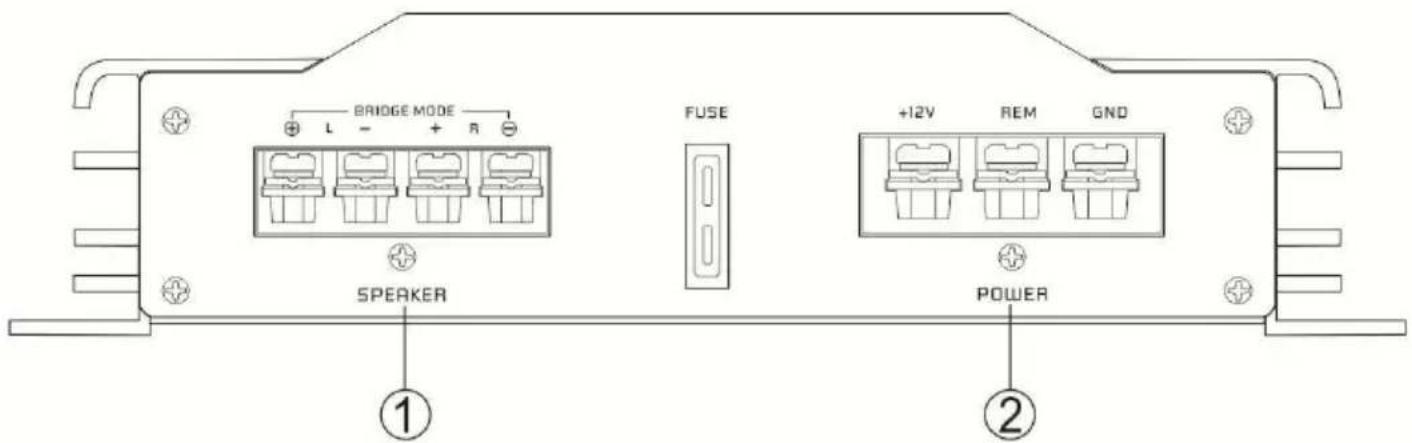

BRIDGE MODE L - + R - SPEAKER FUSE +12V REM GND POWER ① ②

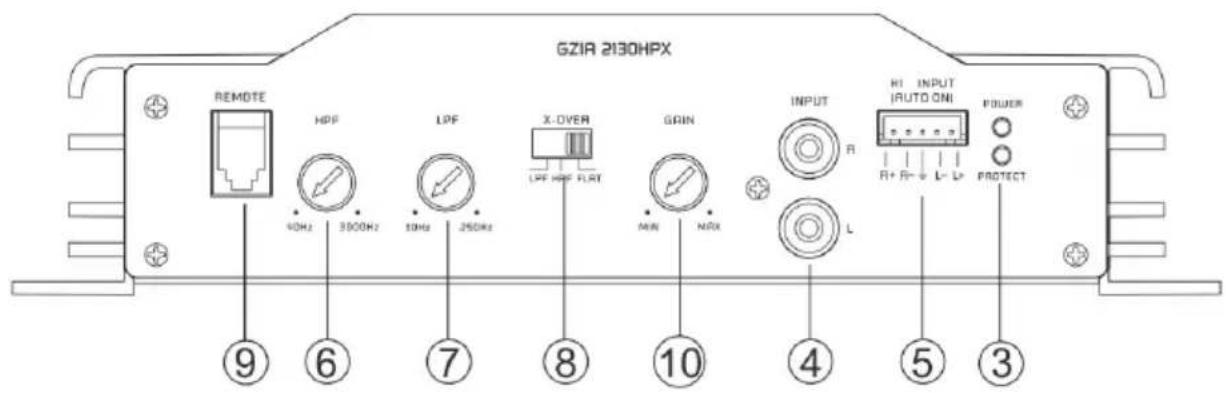

Controls and functions - GZIA 2130HPX

GZIA 2130HPX REMOTE HDF LPF X-OVER GAIN INPUT R1 INPUT AUTO ONI POWER 40Hz 3500Hz 10Hz 250Hz L MAX MAX L R+ R- L+ L+ PROTECT ⑨ ⑥ ⑦ ⑧ ⑩ ④ ⑤ ③

BRIDGE MODE L - + R FUSE +12V REM GND SPEAKER POWER ① ②

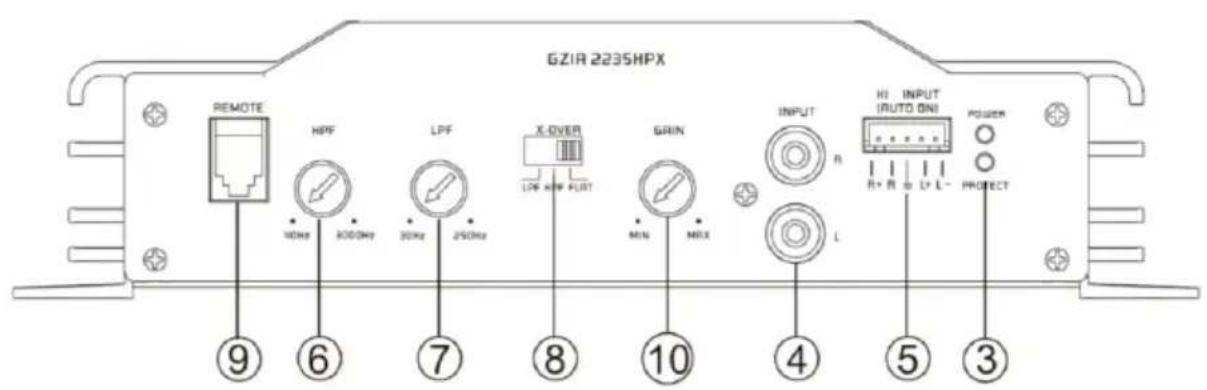

Controls and functions - GZIA 2235HPX

GZIR 2235HPX REMOTE HPF LPF X-OVER LOW NEW FLUT GRIN INPUT HI INPUT (AUTO ON) POWER R L+ R L+ L- PROTECT MIN MAX ⑨ ⑥ ⑦ ⑧ ⑩ ④ ⑤ ③

BRIDGE MODE L - + R SPEAKER FUSE +12V REM GND POWER ① ②

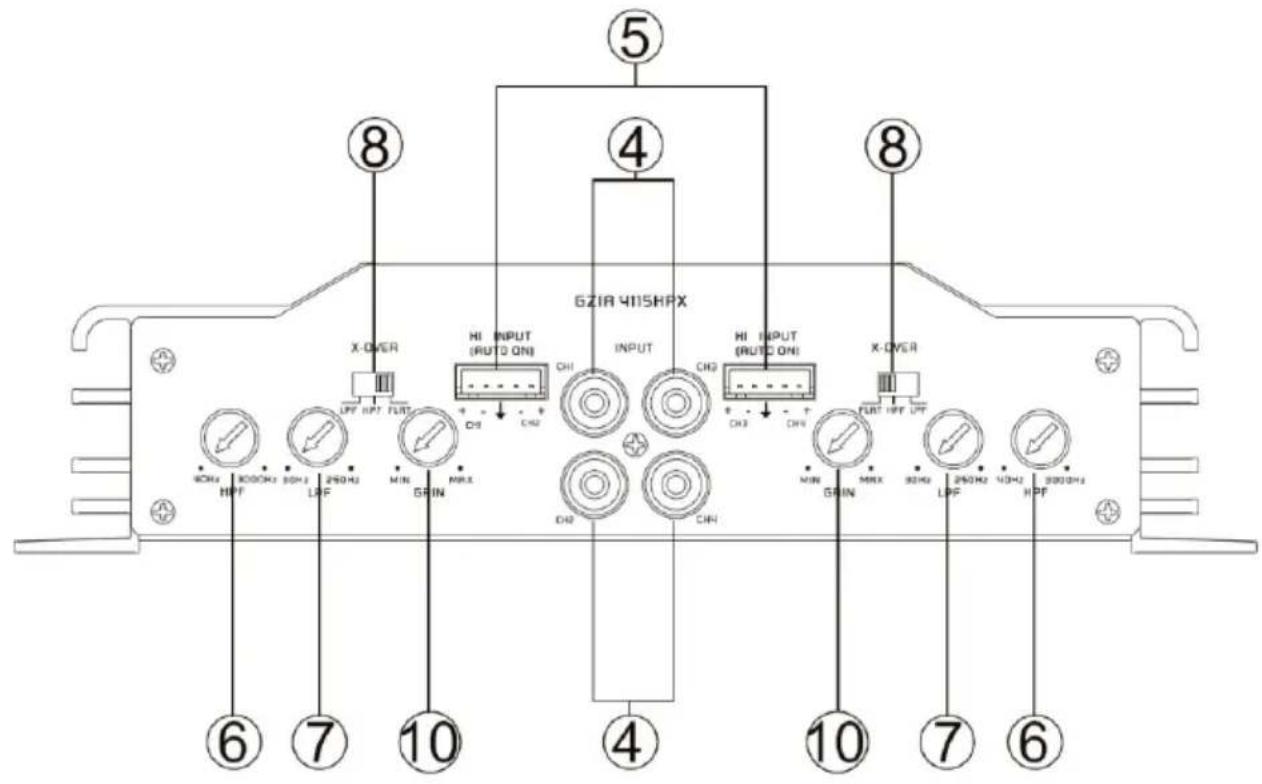

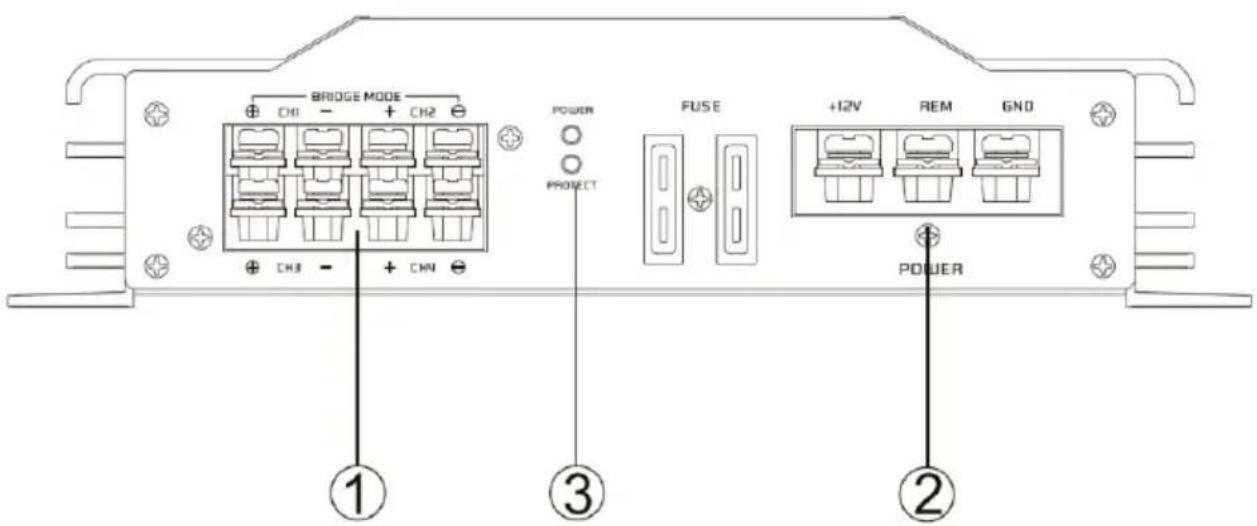

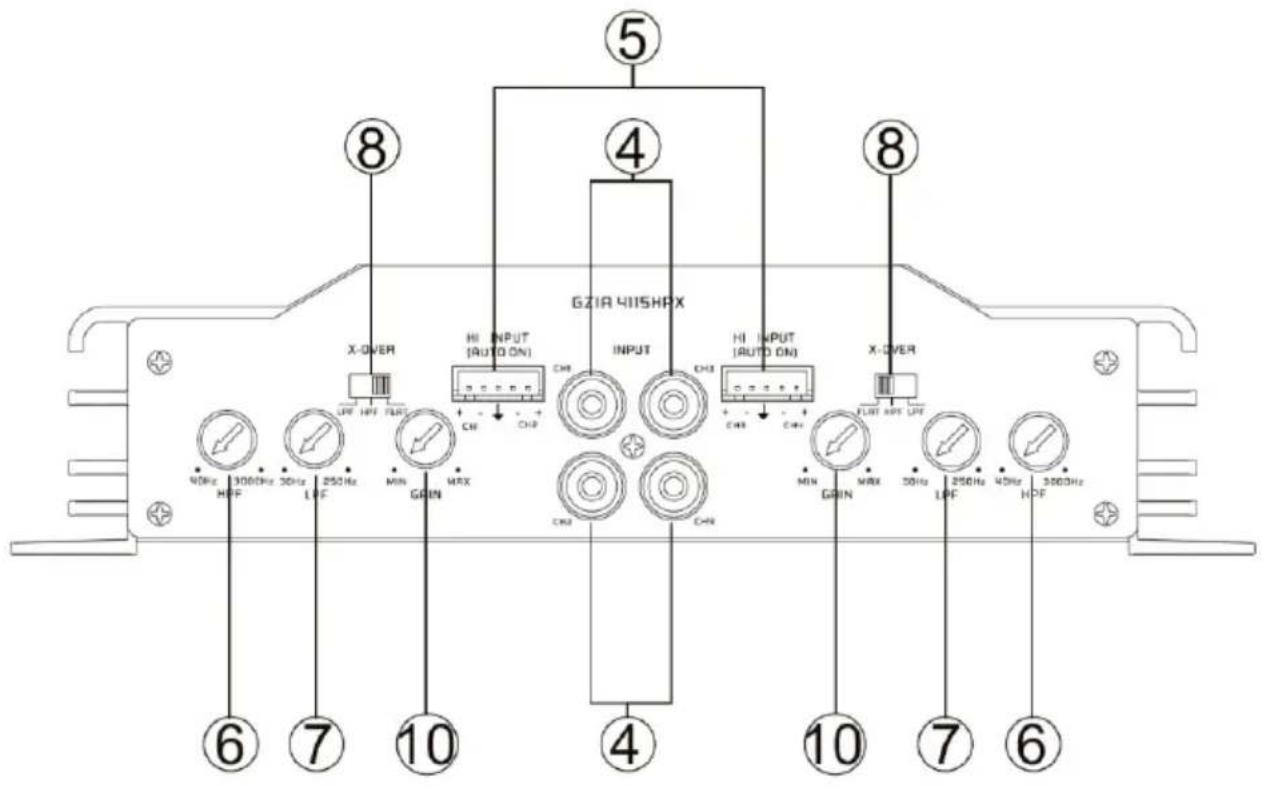

Controls and functions - GZIA 4115HPX

GZIA 4116HPX X-OVER HI INPUT (AUTO ON) CHS CHS INPUT CHS HI INPUT (AUTO ON) CHS CHS X-OVER LIFE 30Hz LFE MIN GAIN CHS CHS MIN GAIN MAX 50Hz LIFE 250Hz 40Hz HDF 300Hz ⑥ ⑦ ⑩ ④ ⑤ ⑧ ⑩ ⑥ ⑦ ⑥

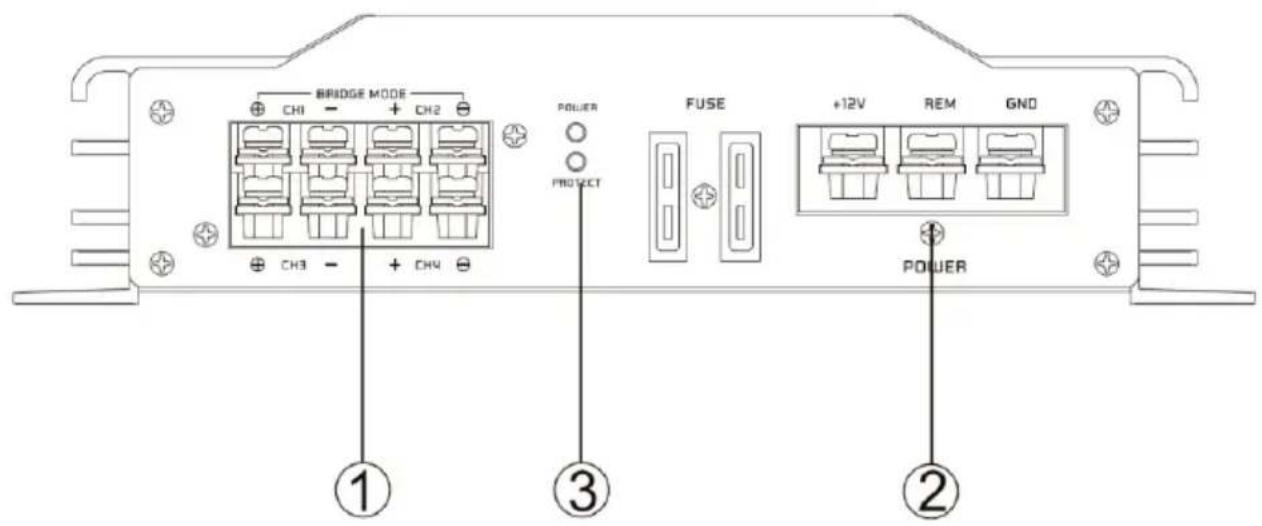

BRIDGE MODE CH1 - + CH2 POWER PROJECT FUSE +12V REM GND POWER ① ③ ②

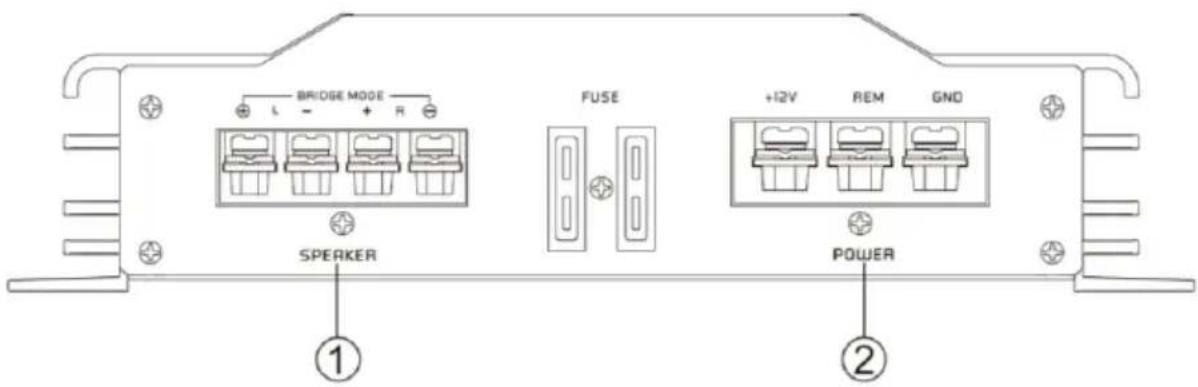

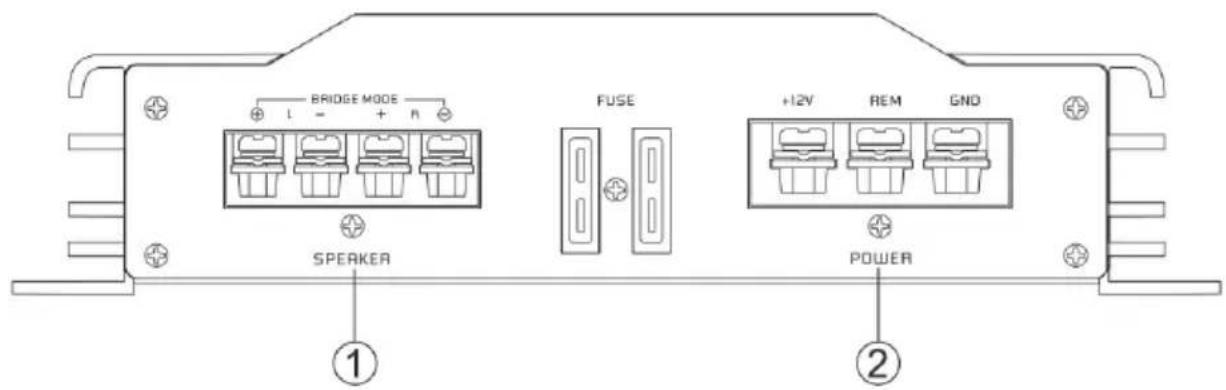

Controls and functions

1	Speaker terminals	For connection of the speakers
2	Power terminals	GND -> Ground connectionREM -> Remote antenna terminal [Not for use with High level inputs (5)]BATT -> +12 Volt
3	Satus indication	GREEN - OKRED - Error
4	Cinch inputs	Terminal for connection of the RCA wires.To avoid failure, please use high quality RCA wires.IMPORTANT!Do not use the High level inputs and the Cinch inputs parallel, this can damage the amplifier. Use either the Cinch OR the High Level inputs.
5	High Level inputs	These inputs must be used if your head unit is not equipped with a Low Level Cinch output.Connect this input to the speaker outputs of your head unit. The amplifier automatically turns on as soon as a signal is received (Auto On). The remote connection of the Power- Terminal (2) won't be used.IMPORTANT!Do not use the High level inputs and the Cinch inputs parallel, this can damage the amplifier. Use either the Cinch OR the High Level inputs.
6	High Pass controller	Set the filter switch to „HIGH" position.Adjust the variable HPF crossover frequency to the desired frequency using the controller. All frequency between 40 and 3000 Hz will be reproduced.
7	Low Pass controller	Only frequencies from 30Hz to 250Hz will be reproduced (depending on the LPF filter controller position). Set the filter switch to „LOW" position. Adjust the variable LPF frequency to the desired frequency using the controller.
8	Mode switch	Adjust the crossover for the chosen utilization.LPF - Only bass frequencies (below 30Hz - 250Hz) will be reproduced.FLAT - All frequencies will be reproduced.HPF - Only middle and high frequencies (over 40Hz - 3000Hz) will be reproduced.
9	Remote control input	For connection of bass remote control (GZIA 2130HPX/2235HPX/1.600HPX)
10	Input level controller	With this controller you can adjust the input sensitivity.
11	Bass Boost controller	For adjusting a Bass Boost at 45 Hz from 0 - 12 dB

High Level Input

Depending on the configuration of your car and sound system, error noises may appear when using the high level inputs. Please use the additional middle ground-connection of this input to reduce these noises.

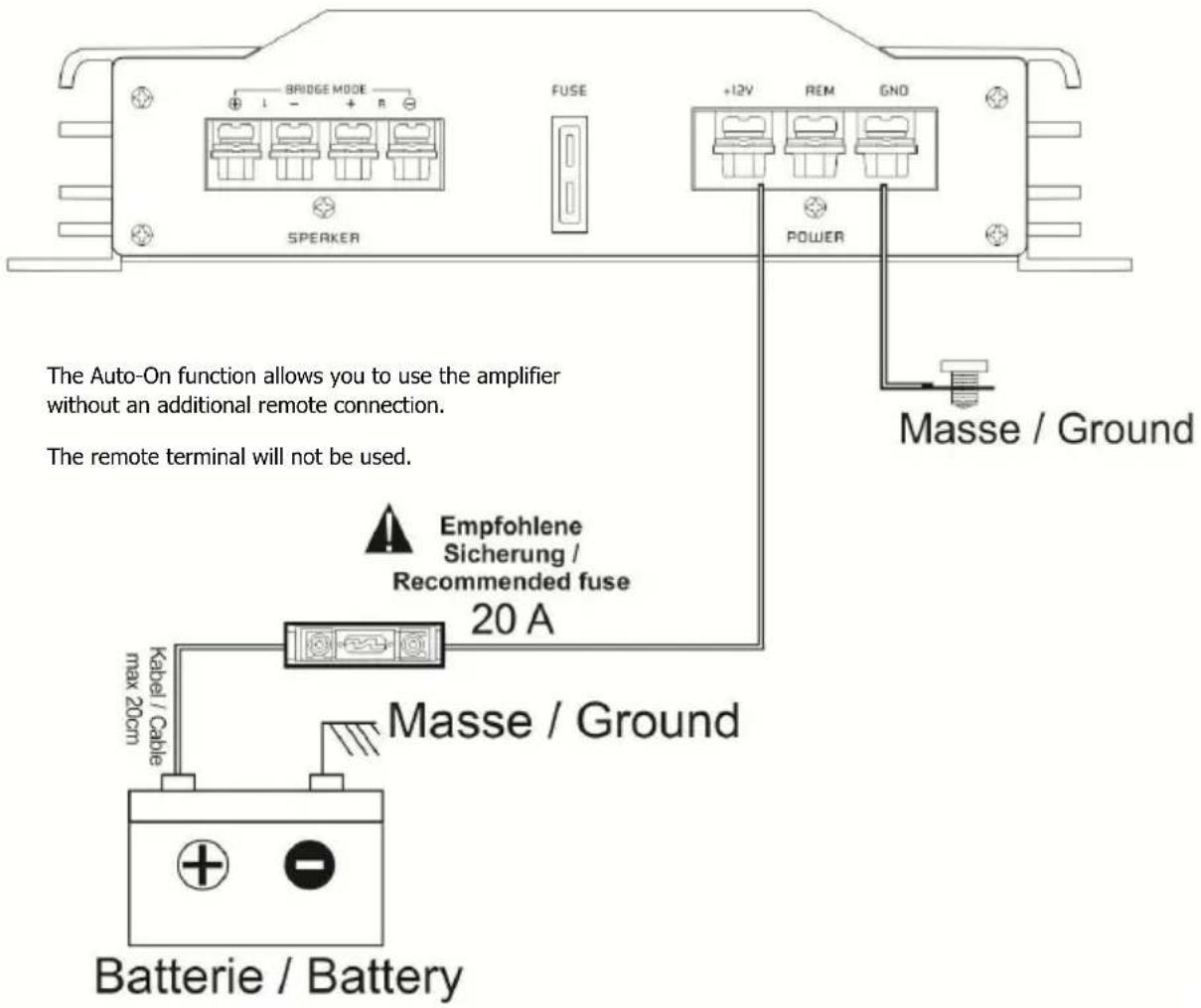

The Auto-On function allows you to use the amplifier without an additional remote connection. This makes it possible to operate it with an OEM headunit and OEM active systems, which are not equipped with cinch outputs or switched remote-outputs.

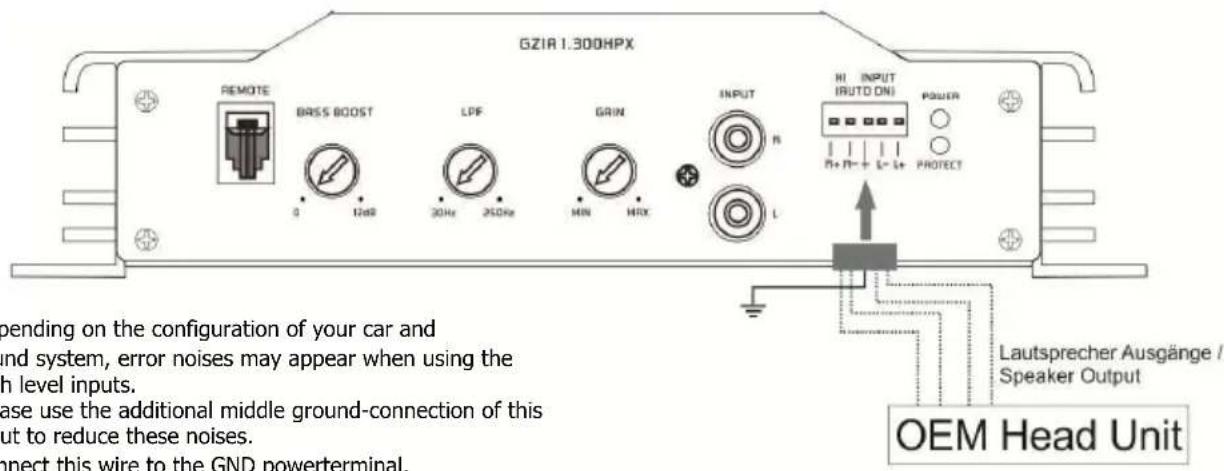

High Level Input - GZIA 1.300HPX

GZIR 1.300HPX REMOTE BASS BOOST LPF GRIN INPUT HI INPUT (RUTO ON) POWER 0 12dB 20Hz 250Hz MIN HRX L R+ R-+ L-+ PROTECT Spending on the configuration of your car and and system, error noises may appear when using the h level inputs. ase use the additional middle ground-connection of this ut to reduce these noises. connect this wire to the GND powerterminal. Lautsprecher Ausgänge / Speaker Output OEM Head Unit

A connection to the GND connection of the signal source can also be useful.

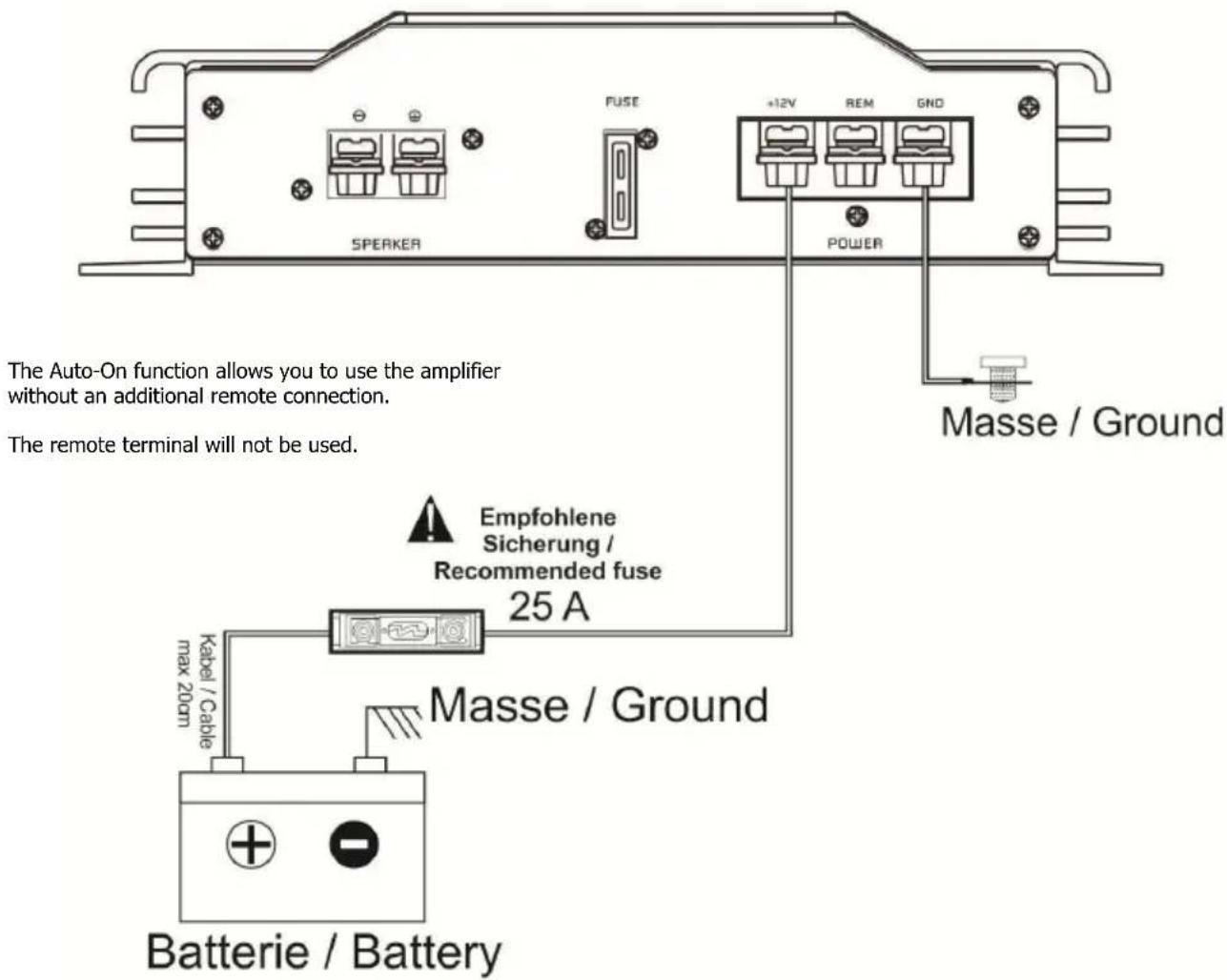

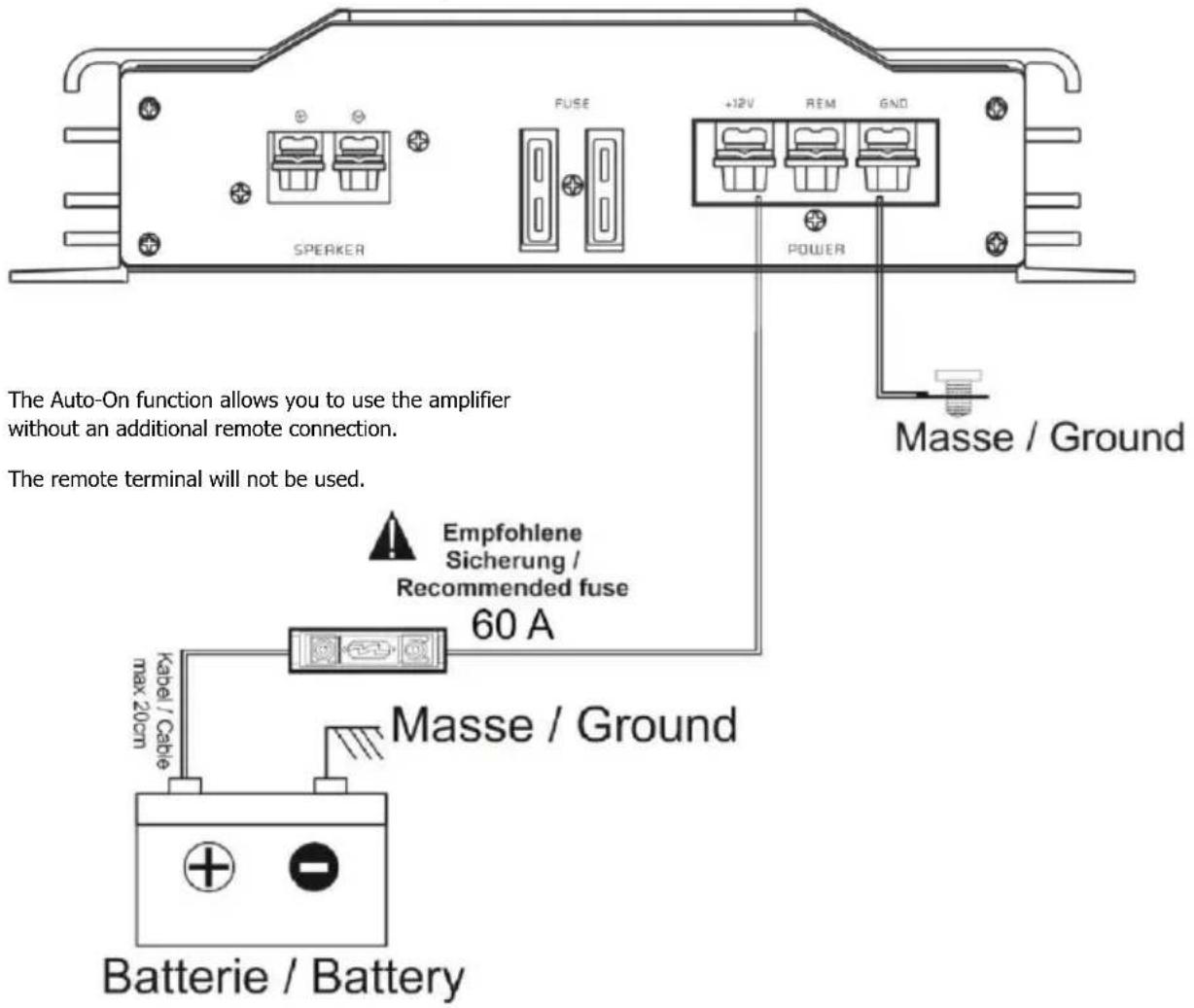

The Auto-On function allows you to use the amplifier without an additional remote connection. The remote terminal will not be used. SPEAKER FUSE +12V REM GNO POWER Masse / Ground Empfohlene Sicherung / Recommended fuse 25 A Kabel / Cable max 20cm Masse / Ground Batterie / Battery

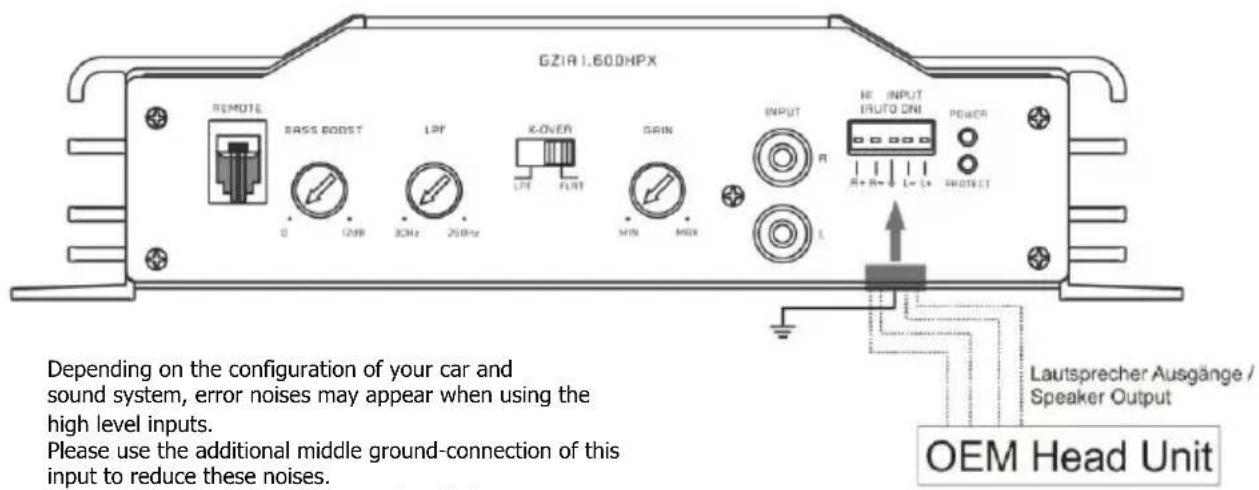

High Level Input - GZIA 1.600HPX

GZIR 1.600HPX DEPENDING ON THE CONFIGURATION OF YOUR CAR AND SOUND SYSTEM, ERROR NOISES MAY APPEAR WHEN USING THE HIGH LEVEL INPUTS. Please use the additional middle ground-CONNECTION OF THIS INPUT TO REDUCE THESE NOISES. Lautsprecher Ausgänge / Speaker Output OEM Head Unit

Connect this wire to the GND powerterminal. A connection to the GND connection of the signal source can also be useful.

The Auto-On function allows you to use the amplifier without an additional remote connection. The remote terminal will not be used. Masse / Ground Empfohlene Sicherung / Recommended fuse 60 A Kabel / Cable max 20cm Masse / Ground Batterie / Battery

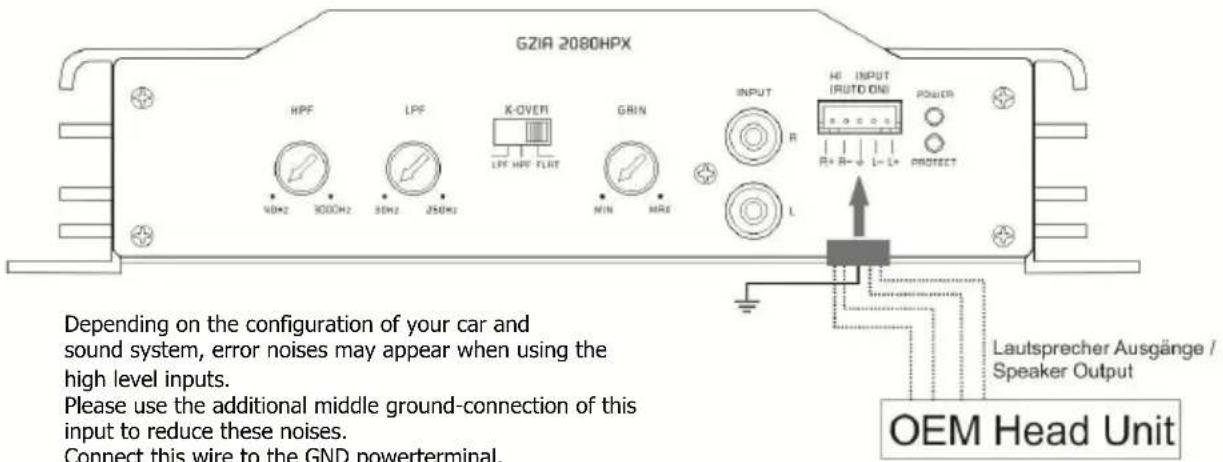

High Level Input - GZIA 2080HPX

GZIA 2080HPX HPF LPF K-OVER LPF HPF FLAT GRIN INPUT R HI INPUT (RUTO ON) POWER R+ R- L+ PROTECT L Depending on the configuration of your car and sound system, error noises may appear when using the high level inputs. Please use the additional middle ground-connection of this input to reduce these noises. Connect this wire to the GND powerterminal. Lautsprecher Ausgänge / Speaker Output OEM Head Unit

A connection to the GND connection of the signal source can also be useful.

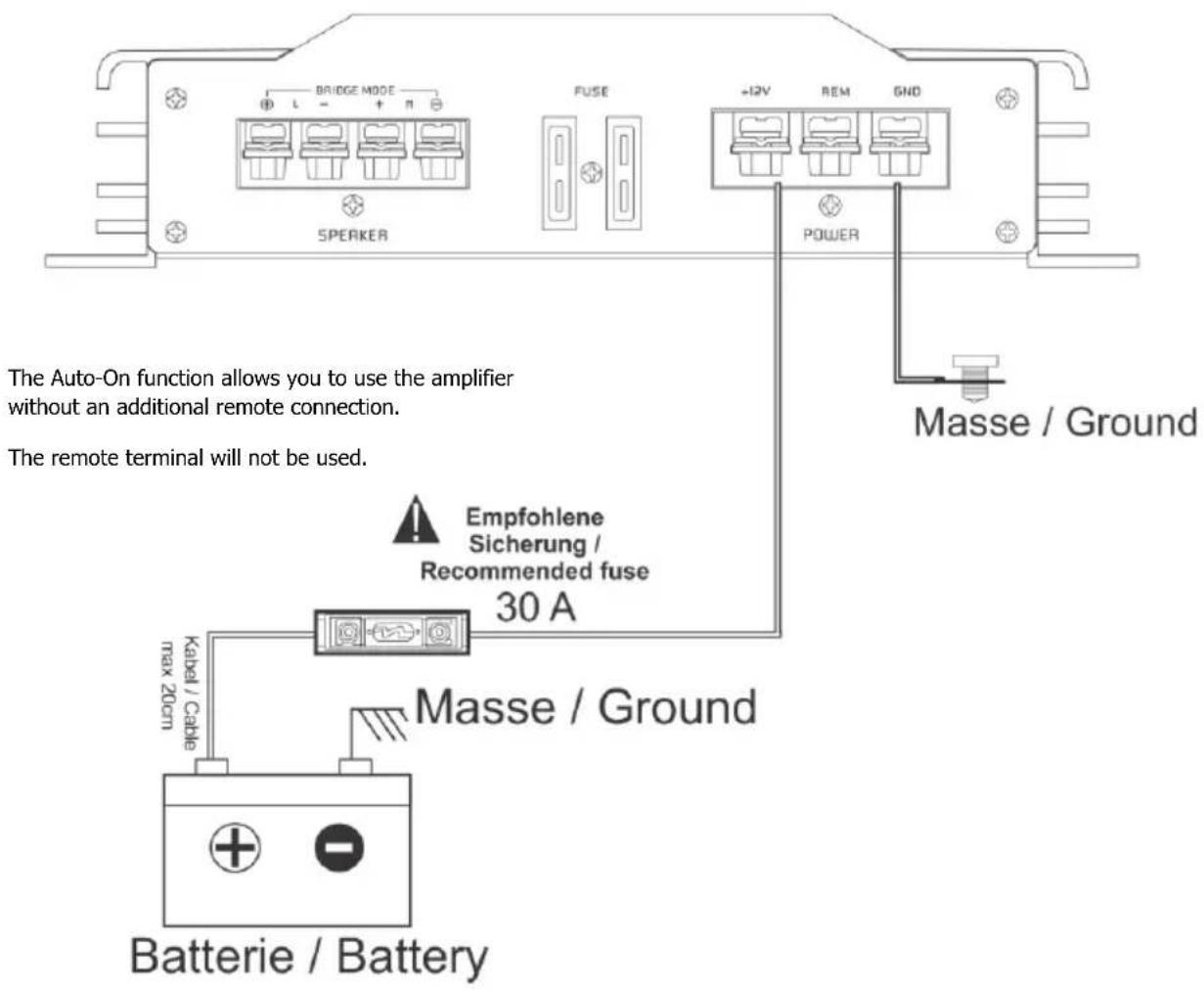

BRIDGE MODE + - + - FUSE +12V REM GND SPERKER POWER Masse / Ground The Auto-On function allows you to use the amplifier without an additional remote connection. The remote terminal will not be used. Empfohlene Sicherung / Recommended fuse 20 A Kabel / Cable max 20cm Masse / Ground Batterie / Battery

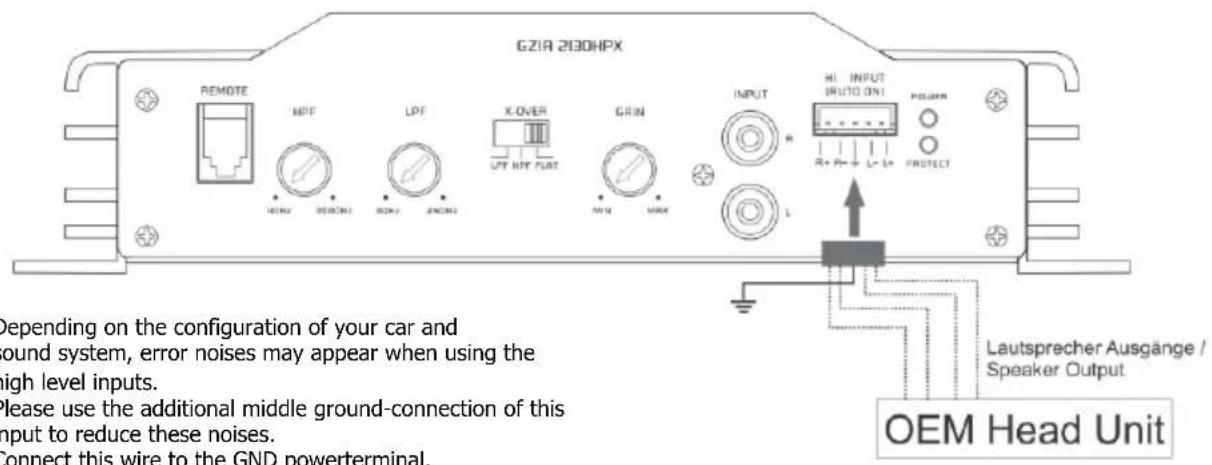

GZ1A 2130HPX REMOTE MPF LPF X-OVER UP/INT OUT GRIN INPUT HI INPUT AUTO ON1 PUMEN PROTECT L depending on the configuration of your car and sound system, error noises may appear when using the high level inputs. Please use the additional middle ground-connection of this input to reduce these noises. Connect this wire to the GND powerterminal. Lautsprecher Ausgänge / Speaker Output OEM Head Unit

A connection to the GND connection of the signal source can also be useful.

BRIDGE MODE L - + R SPEAKER FUSE -12V REM GND POWER Masse / Ground The Auto-On function allows you to use the amplifier without an additional remote connection. The remote terminal will not be used. Empfohlene Sicherung / Recommended fuse 30 A Kabel / Cable max 20cm Masse / Ground Batterie / Battery

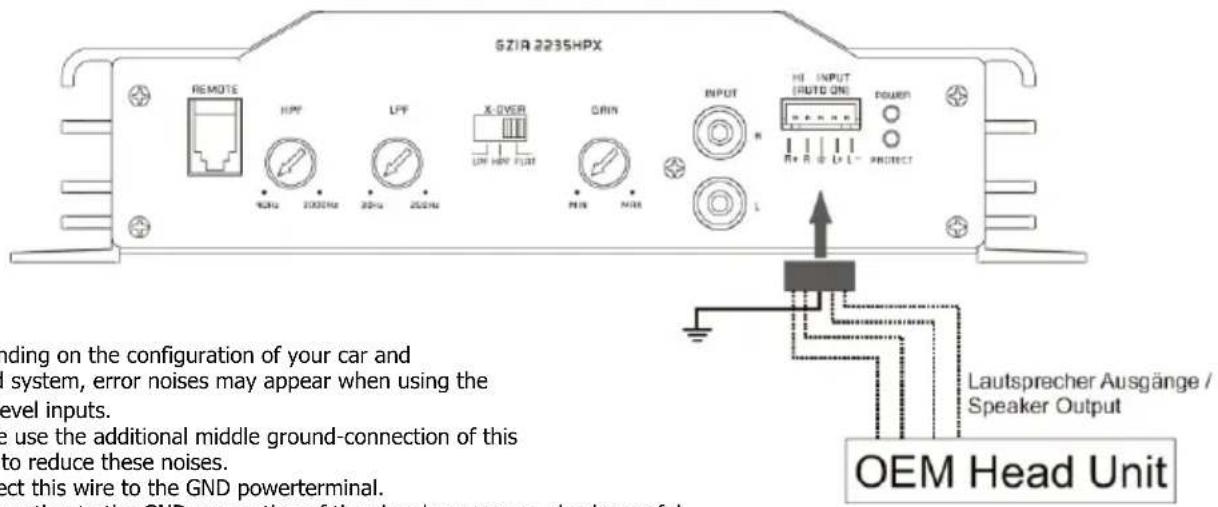

High Level Input - GZIA 2235HPX

GZIR 2235HPX REMOTE 10Hz 200Hz 25Hz 200Hz LPF X-OVER ON HAN FLAT ORIN INPUT R HI INPUT AUTO ON POWER Re R or U+ L- PROVECT Lautsprecher Ausgänge / Speaker Output OEM Head Unit nding on the configuration of your car and l system, error noises may appear when using the level inputs. e use the additional middle ground-connection of this to reduce these noises. ect this wire to the GND powerterminal.

Depending on the configuration of your car and sound system, error noises may appear when using the high level inputs.

Please use the additional middle ground-connection of this input to reduce these noises.

Connect this wire to the GND powerterminal.

A connection to the GND connection of the signal source can also be useful.

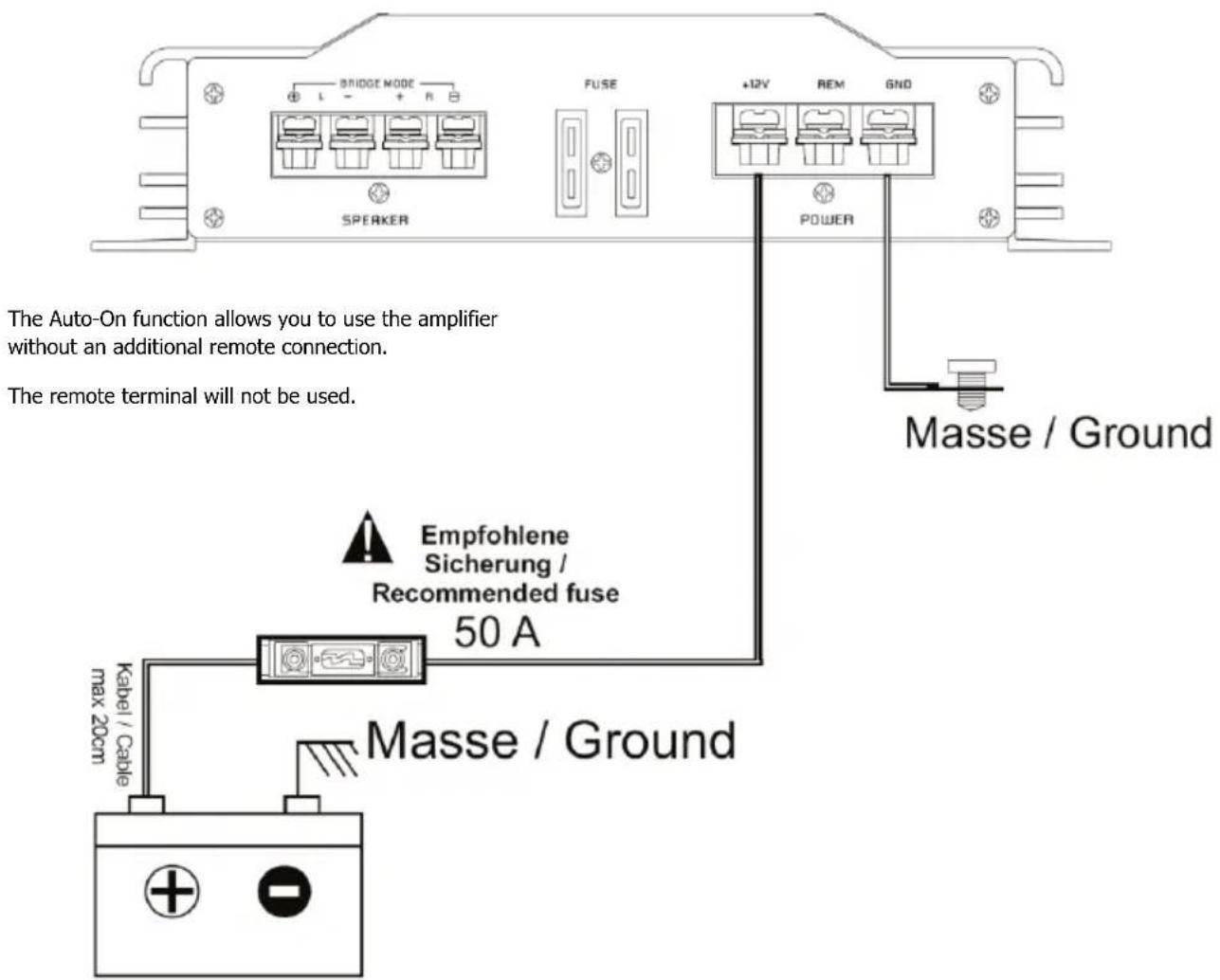

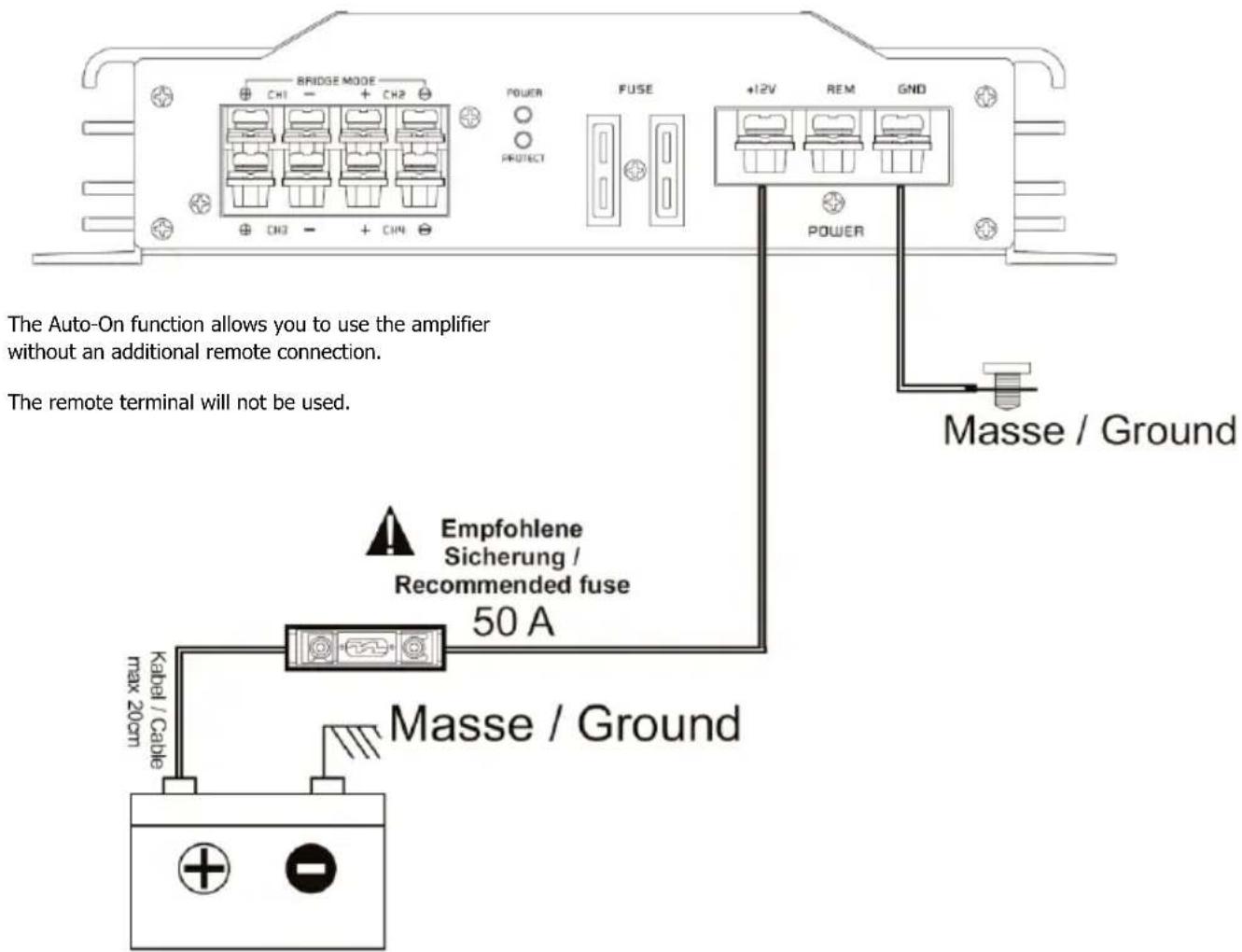

BRIDGE MODE + - + - R FUSE +12V REM GND SPEAKER POWER Masse / Ground The Auto-On function allows you to use the amplifier without an additional remote connection. The remote terminal will not be used. Empfohlene Sicherung / Recommended fuse 50 A Kabel / Cable max 20cm Masse / Ground

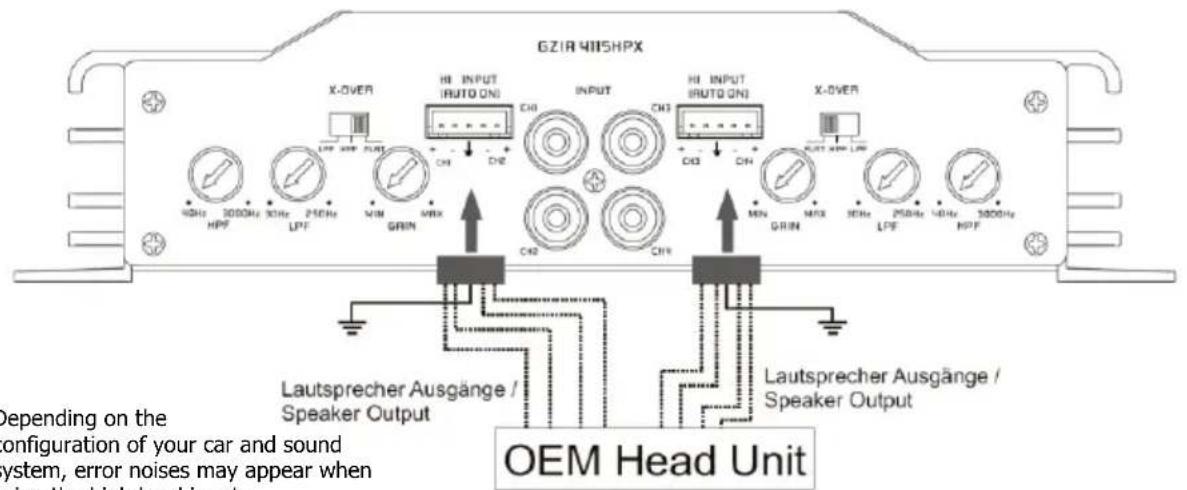

High Level Input - GZIA 4115HPX

GZ1A 4115HPX X-OVER HI INPUT AUTO ON CH0 INPUT CH3 HI INPUT AUTO ON CH0 CH X-OVER LUTS PWR LWP LPT PWR MIN GRIN CH2 CH9 MIN GRIN CH0 CH9 Lautsprecher Ausgänge / Speaker Output Lautsprecher Ausgänge / Speaker Output Depending on the configuration of your car and sound system, error noises may appear when using the high level inputs. OEM Head Unit

Depending on the
configuration of your car and sound system, error noises may appear when using the high level inputs.
Please use the additional middle ground-connection of this input to reduce these noises.
Connect this wire to the GND powerterminal.
A connection to the GND connection of the signal source can also be useful.

BRIDGE MODE CH1 CH2 POWER PROTECT FUSE +12V REM GND POWER Masse / Ground The Auto-On function allows you to use the amplifier without an additional remote connection. The remote terminal will not be used. Empfohlene Sicherung / Recommended fuse 50 A Kabel / Cable max 20cm Masse / Ground

Turning on the amplifier

The amplifier automatically turns on a few seconds after you turn on your radio.

Note: Your amplifier temporarily shuts down if it gets too hot, then restarts automatically once it cools

(At about 80^ / 176^ F).

Adjusting the audio level

1. LEVEL (Min/Max): Turn fully counter-clockwise to MIN position
2. Turn the auto sound system's volume control to about two-third of its full range.
3. Adjust LEVEL to a comfortable listening level.

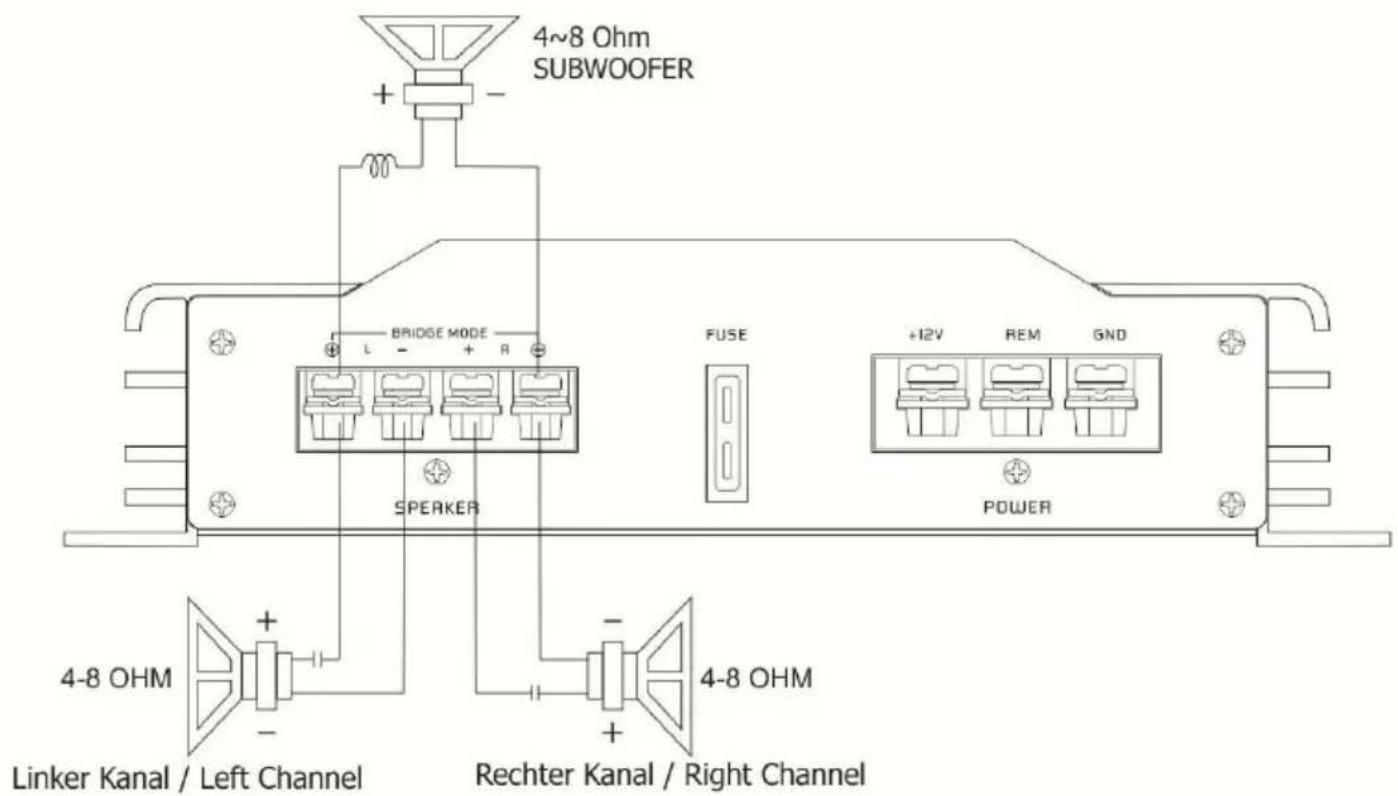

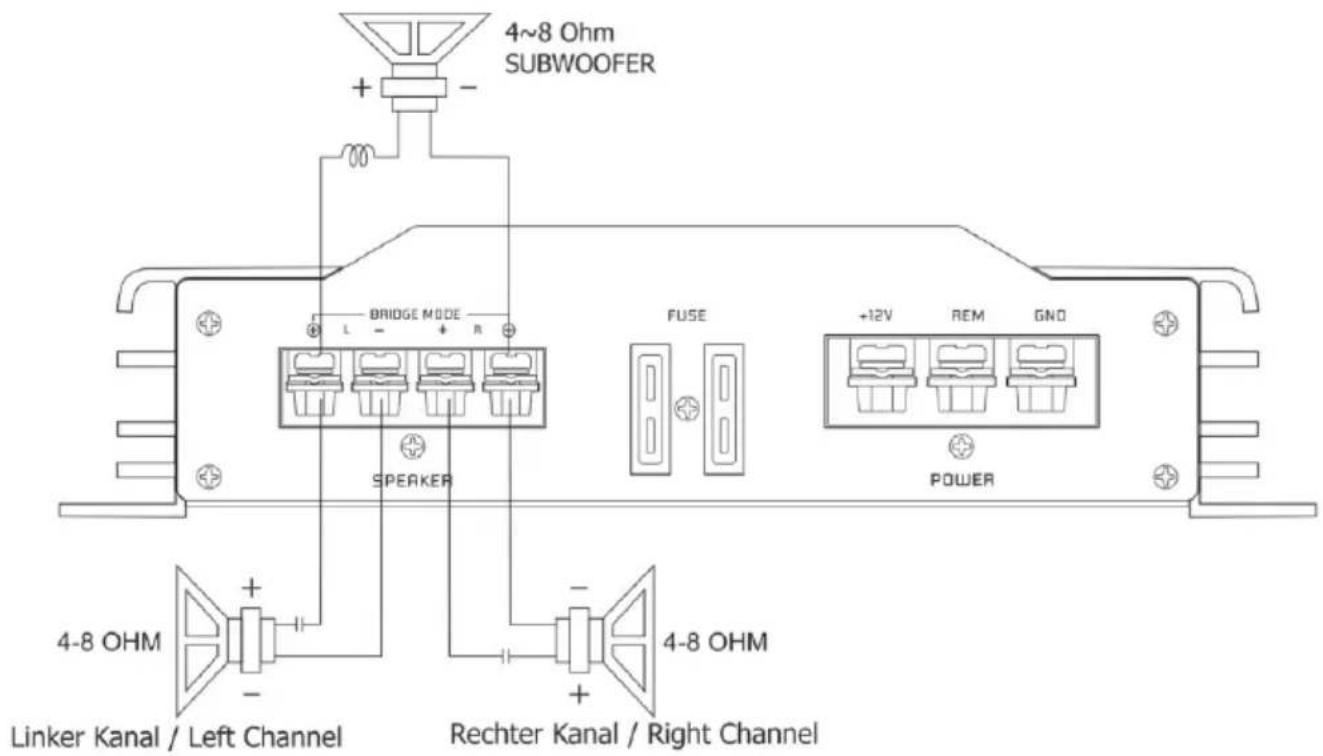

Connecting the speaker for trimode operation - notes

TRI MODE operation output allows a subwoofer to be operated in mono mode while the main speakers are playing in stereo. Leave the crossover switch on "Full" position.

Use 100 volt, non-polar capacitors for a high pass crossover to filter out low frequencies and Air-core or Ferrit-ore coils with a minimum diameter of 1 mm / 0.039" for the lowpass crossover to filter out high frequencies.

The capacitor and inductor values as written in the below table. The front and rear channels of this amplifier get this capability. Only the rear left and right channels are shown on the following pictures.

Values for 6dB passive crossover

Frequency	Inductor	Capacitor
80 Hz	7,5 mH	470 uF
100 Hz	6,5 mH	330 uF
120 Hz	5,5 mH	370 uF
150 Hz	4 mH	220 uF

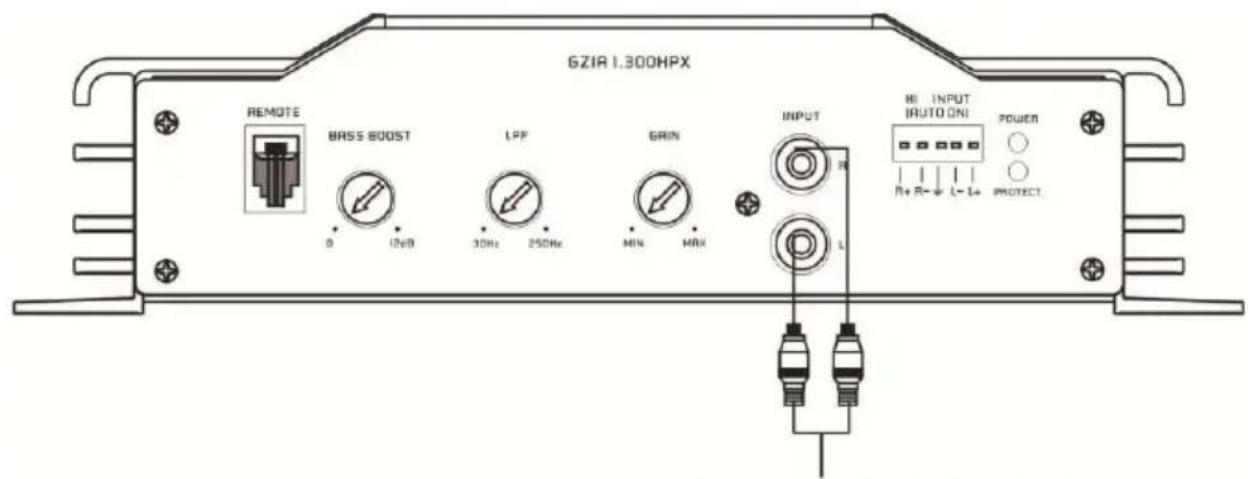

Wiring - GZIA 1.300HPX

6ZIR 1.300HPX REMOTE BASS BOOST LPP GRIN INPUT HI INPUT (AUTO ONI) POWER 0 10dB 30Hz 250Hz MIN MAX R R+ R-↓ L- L+ PROTECT

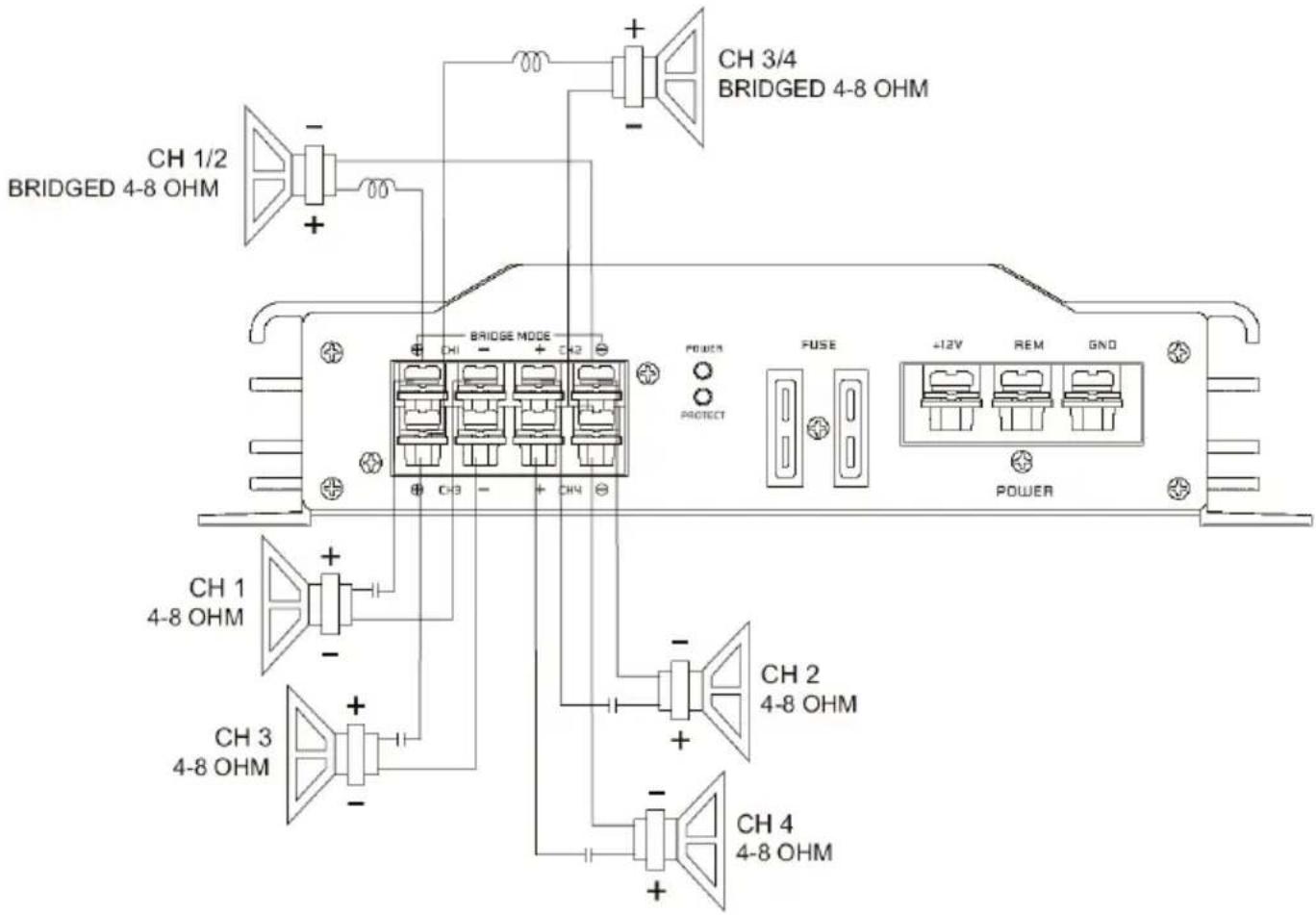

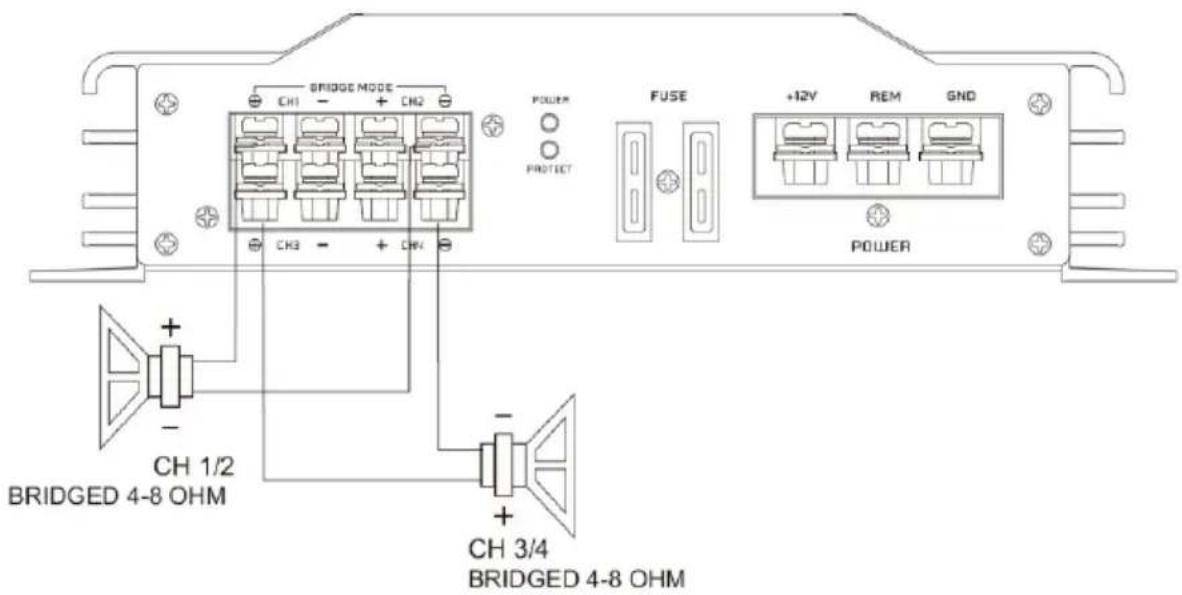

Trimode operation - GZIA 4115HPX

CH 1/2 BRIDGED 4-8 OHM CH 3/4 BRIDGED 4-8 OHM CH 1 4-8 OHM CH 3 4-8 OHM BRIDGE MODE CH1 CH2 POWER PROTECT FUSE +12V REM GND POWER CH 2 4-8 OHM CH 4 4-8 OHM

Spule / Inductor / Filtre Pass bas / Spoiel Lowpass Filter
—|— Kondensator / Capacitor / Condensateur / Condensator Highpass Filter

Lautsprecher Impedanz / Speaker impedance / Impédance haut parleur 4 \~ 8 Ohm

Specifications

Model	GZIA1.300HPX	GZIA1.600HPX
Type	1 Channel Class A/B	1 Channel Class A/B
RMS Power @ 4 ΩCEA Standard CEA-2006-A	1 x 200 W(1% THD+N)	1 x 230 W(1% THD+N)
RMS Power @ 2 ΩCEA Standard CEA-2006-A	-	1 x 400 W(1% THD+N)
RMS Power @ 1 ΩCEA Standard CEA-2006-A	-	1 x 600 W(1% THD+N)
MAX PowerCEA Standard CEA-2006-A	1 x 300 W @ 4 Ω(10% THD+N)	1 x 700 W @ 1 Ω(10% THD+N)
Damping factor	> 150	> 150
Signal to noise Ratio	> 80 dB	> 80 dB
Lowpass	30 – 250 Hz	30 – 250 Hz
Bass Boost	0 – 12 dB	0 – 12 dB
Highpass	-	-
Frequency response	10 Hz – 250 Hz	10 Hz – 30 KHz
Input sensitivity	200 mV – 6 V	200 mV – 6 V
Bass remote control	√	√
Auto-On @ High Input	√	√
Fuse	1 x 30A	2 x 30A
DimensionsW x H x L mm	200 x 213 x 50	333 x 213 x 50
DimensionsW x H x L inch	8.39" x 8.39" x 1.97"	13.11" x 8.39" x 1.97"

Specifications

Model	GZIA2080HPX	GZIA2130HPX	GZIA2235HPX	GZIA4115HPX
Type	2 Channel ClassA/B	2 Channel ClassA/B	2 Channel ClassA/B	4 Channel ClassA/B
RMS Power @ 4 ΩCEA Standard CEA-2006-A	2 x 60 W(1% THD+N)	2 x 85 W(1% THD+N)	2 x 150 W(1% THD+N)	4 x 70 W(1% THD+N)
RMS Power @ 2 ΩCEA Standard CEA-2006-A	2 x 80 W(1% THD+N)	2 x 130 W(1% THD+N)	2 x 235 W(1% THD+N)	4 x 115 W(1% THD+N)
RMS Power @ 1 ΩCEA Standard CEA-2006-A	-	-	-	-
RMS Power @ 4ΩBridgedCEA Standard CEA-2006-A	1 x 200 W(1% THD+N)1 x 240 W(10% THD+N)	1 x 260 W(1% THD+N)1 x 320 W(10% THD+N)	1 x 470 W(1% THD+N)1 x 540 W(10% THD+N)	2 x 230 W(1% THD+N)2 x 250 W(10% THD+N)
Damping factor	> 150	> 150	> 100	> 100
Signal to noise Ratio	> 85 dB	> 85 dB	> 80 dB	> 80 dB
Lowpass	30 – 250 Hz	30 – 250 Hz	30 – 250 Hz	30 – 250 Hz
Highpass	40 – 3000 Hz	40 – 3000 Hz	40 – 3000 Hz	40 – 3000 Hz
Frequency response	10 Hz – 30 KHz	10 Hz – 30 KHz	10 Hz – 30 KHz	10 Hz – 30 KHz
Input sensitivity	200 mV – 6 V	200 mV – 6 V	200 mV – 6 V	200 mV – 6 V
Bass remote control	-	√ (optional)	√	-
Auto-On @ High Input	√	√	√	√
Fuse	1 x 20A	2 x 15A	2 x 25A	2 x 25A
DimensionsW x H x L mm	175 x 213 x 50	215 x 213 x 50	285 x 213 x 50	285 x 213 x 50
DimensionsW x H x L inch	6.89" x 8.39" x1.97"	8.46" x 8.39" x1.97"	11.22" x 8.39" x1.97"	11.22" x 8.39" x1.97"

Trouble shooting guide

Symptoms	Check Points	Cure
No sound	Is the POWER LED illuminated?	Check fuses in amplifier. Be sure remote lead is connected. Check signal leads. Check again control. Check tuner/deck volume level.
	Is the diagnostic LED illuminated?	Check for speaker short or amplifier overheating
Amp not switching on	No power to the amplifier	Check power wire or connections
	No power to remote wire with receiver on	Check connections to radio
No sound in one channel	Check speaker leads	Inspect for short circuit or an open connection
	Check audio leads	Reverse left and right RCA inputs to determine if it is occurring before the amp
Amp turning off at medium / high volume	Check speaker load impedance	Be sure proper speaker load impedance recommendations are observed (If you use an ohm meter to check speaker resistance, please remember that DC resistance and AC impedance may not be the same.)
Protection LED is on	Temperature shut down	Turn radio volume down
	Speaker wires short	Separate speaker wires and insulate

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

www.ground-zero-audio.com

We reserve the right to make needed change or improvement to the product without informing customer about this in advance.

Controles and functions - GZIA 4115HPX

6218 4115HPX ⑤ ④ ⑧ ⑧ X-OVER HI INPUT (RUTO QN) CH1 INPUT CH2 HI INPUT (RUTO ON) CH3 X-OVER FURT HPF LPF MIN GAIN CH2 MIN GAIN SEH0 250Hz 40Hz LPF HPT HPT LPF HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT HPT

BRIDGE MODE CH1 - + CH2 POWER PROVECT FUSE +12V REM GND POWER ① ③ ②

To car stereo line out /

To car stereo line out /

Trimode operation – GZIA 2080HPX

4~8 Ohm SUBWOOFER BRIDGE MODE L - + R SPEAKER FUSE +12V REM GND POWER 4-8 OHM Linker Kanal / Left Channel Rechter Kanal / Right Channel 4-8 OHM

Spule / Inductor / Filtre Pass bas / Spioel Lowpass Filter

Kondensator / Capacitor / Condensateur / Condensator Highpass Filter

Lautsprecher Impedanz / Speaker impedance / Impédance haut parleur 4 \~ 8 Ohm

Stereo wiring - GZIA 2130HPX

GZIR 2130HPX REMOTE HPF LPF X-OVER LPF HPF FLAT GRIN MIN MAX INPUT HI INPUT (AUTO ON) POWER R R+ R-↓ L- L+ PROTECT Zum Line out des Autoradios / To car stereo line out / Sortie stéréo de la voiture / Naar line out radio BRIDGE MODE L - + R - SPEAKER FUSE +12V REM SND POWER 2-8 OHM Linker Kanal / Left channel + - + 2-8 OHM Rechter Kanal / Right channel

Lautsprecher Impedanz / Speaker impedance / Impédance haut parleur 2 \~ 8 Ohm

Trimode operation – GZIA 2130HPX

4~8 Ohm SUBWOOFER BRIDGE MODE L - + R SPEAKER FUSE +12V REM GNO POWER 4-8 OHM Linker Kanal / Left Channel Rechter Kanal / Right Channel 4-8 OHM

00
Spule / Inductor / Filtre Pass bas / Spioel Lowpass Filter
—|—
Kondensator / Capacitor / Condensateur / Condensator Highpass Filter

Lautsprecher Impedanz / Speaker impedance / Impédance haut parleur 4 \~ 8 Ohm

Stereo wiring - GZIA 2235HPX

Bridged wiring – GZIA 4115HPX

BRIDGE MODE CH1 - + CH2 POWER PROTECT FUSE +12V REM GND POWER CH 1/2 BRIDGED 4-8 OHM CH 3/4 BRIDGED 4-8 OHM

Lautsprecher Impedanz / Speaker impedance / Impédance haut parleur 4 \~ 8 Ohm

Trimode operation - GZIA 4115HPX

CH 1/2 BRIDGED 4-8 OHM CH 3/4 BRIDGED 4-8 OHM PHOUR FUSE +12V REM GND POWER PHOTECT CH 1 4-8 OHM CH 2 4-8 OHM CH 3 4-8 OHM CH 4 4-8 OHM

Spule / Inductor / Filtre Pass bas / Spioel Lowpass Filter

—|— Kondensator / Capacitor / Condensateur / Condensator Highpass Filter

Lautsprecher Impedanz / Speaker impedance / Impédance haut parleur 4 \~ 8 Ohm

Modelo	GZIA1.300HPX	GZIA1.600HPX
Tipo	1 Canales Class A/B	1 Canales Class A/B
RMS Power @ 4 ΩCEA Standard CEA-2006-A	1 x 200 W(1% THD+N)	1 x 230 W(1% THD+N)
RMS Power @ 2 ΩCEA Standard CEA-2006-A	-	1 x 400 W(1% THD+N)
RMS Power @ 1 ΩCEA Standard CEA-2006-A	-	1 x 600 W(1% THD+N)
MAX PowerCEA Standard CEA-2006-A	1 x 300 W @ 4 Ω(10% THD+N)	1 x 700 W @ 1 Ω(10% THD+N)
Damping factor	>150	>150
Signal to noise Ratio	>80 dB	>80 dB
Lowpass	30 – 250 Hz	30 – 250 Hz
Bass Boost	0 – 12 dB	0 – 12 dB
Highpass	-	-
Respuesta de frecuencia	10 Hz – 250 Hz	10 Hz – 30 KHz
Sensibilidad de entrada	200 mV – 6 V	200 mV – 6 V
Bass remote control	√	√
Auto-On @ High Input	√	√
Fusible	1 x 30A	2 x 30A
DimensionesW x H x L mm	200 x 213 x 50	333 x 213 x 50
DimensionesW x H x L inch	8.39" x 8.39" x 1.97"	13.11" x 8.39" x 1.97"

Modelo	GZIA2080HPX	GZIA2130HPX	GZIA2235HPX	GZIA4115HPX
Tipo	2 Canales Class A/B	2 Canales Class A/B	2 Canales Class A/B	4 Canales Class A/B
RMS Power @ 4 ΩCEA Standard CEA-2006-A	2 x 60 W(1% THD+N)	2 x 85 W (1%THD+N)	2 x 150 W (1%THD+N)	4 x 70 W (1%THD+N)
RMS Power @ 2 ΩCEA Standard CEA-2006-A	2 x 80 W(1% THD+N)	2 x 130 W (1%THD+N)	2 x 235 W (1%THD+N)	4 x 115 W (1%THD+N)
RMS Power @ 1 ΩCEA Standard CEA-2006-A	-	-	-	-
RMS Power @ 4ΩBridgedCEA Standard CEA-2006-A	1 x 200 W(1% THD+N)1 x 240 W(10% THD+N)	1 x 260 W (1%THD+N)1 x 320 W (10%THD+N)	1 x 470 W (1%THD+N)1 x 540 W (10%THD+N)	2 x 230 W (1%THD+N)2 x 250 W (10%THD+N)
Damping factor	>150	>150	>100	>100
Signal to noise Ratio	>85 dB	>85 dB	>80 dB	>80 dB
Lowpass	30 - 250 Hz	30 - 250 Hz	30 - 250 Hz	30 - 250 Hz
Highpass	40 - 3000 Hz	40 - 3000 Hz	40 - 3000 Hz	40 - 3000 Hz
Respuesta de frecuencia	10 Hz - 30 KHz	10 Hz - 30 KHz	10 Hz - 30 KHz	10 Hz - 30 KHz
Sensibilidad de entrada	200 mV - 6 V	200 mV - 6 V	200 mV - 6 V	200 mV - 6 V
Bass remote control	-	√ (opcional)	√	-
Auto-On @ High Input	√	√	√	√
Fusible	1 x 20A	2 x 15A	2 x 25A	2 x 25A
DimensionesW x H x L mm	175 x 213 x 50	215 x 213 x 50	285 x 213 x 50	285 x 213 x 50
DimensionesW x H x L inch	6.89" x 8.39" x1.97"	8.46" x 8.39" x1.97"	11.22" x 8.39" x1.97"	11.22" x 8.39" x1.97"

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

www.ground-zero-audio.com

Abstract geometric shape with diagonal stripes and internal lines, no text or symbols present

GROUND ZERO

MOBILE ENTERTAINMENT

GERMAN ENGINEERING

Vahvistimen

Käyttöohje

IRIDIUM

GZIA 1.300HPX

GZIA 1.600HPX

GZIA 2080HPX

GZIA 2130HPX

GZIA 2235HPX

GZIA 4115HPX

To car stereo line out /

To car stereo line out /

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

www.ground-zero-audio.com

We reserve the right to make needed change or improvement to the product without informing customer about this in advance.
