Product Type	Hand Blender (Immersion Blender)
Brand	Zelmer
Model	ZHB4555S
Voltage	220-240 V ~ 50/60 Hz (estimated)
Accessories Included	Stainless steel blender attachment, plastic blender attachment, measuring cup, whisk, chopping accessory, mixer accessory (model ZHB4553/ZHB4554), sport cup (model ZHB4553/ZHB4554)
Functions	Blending, whisking, chopping, mixing, sport blending
Materials	Stainless steel blade and attachments, plastic parts
Speed Settings	Two speeds (Button I / Button II)
Maximum Operating Time (Blender)	1 minute, then 1 minute rest
Maximum Operating Time (Mixer)	5 minutes, then 10 minutes cooling
Blade Type	Sharp stainless steel blade
Maximum Altitude	2000 m above sea level
Safety Features	Disabled when not properly assembled; not for children; blade caution
Cleaning Instructions	Wipe motor unit with damp cloth; accessories can be washed under running water; some parts dishwasher safe (check manual)
Warranty	2 years
Certifications	CE, WEEE compliant
Power Cord	Detachable? No, but stored in base
Intended Use	Domestic use only
Additional Features	Sport cup for on-the-go blending (except ZHB4555S?)

Frequently Asked Questions - ZHB4555S Zelmer

How do I use the blender attachment?

Connect the rod to the motor body and turn in the direction of the arrow (Fig. 1). Place food (cubes < 15 mm) in a container and press the on/off button. Do not use for more than 1 minute continuously. After each cycle, let the appliance rest for at least 1 minute.

Can I clean the motor unit in water?

No, never immerse the motor unit in water or rinse it. Use a soft, dry cloth to clean the main unit. Only the accessories (blade, whisk, chopper, etc.) can be washed under running water or in the dishwasher as indicated.

What is the maximum operating time for the whisk?

The whisk can be used for 90-120 seconds for egg whites. For general whisking, follow the recipe times. After using the mixer accessory for more than 5 minutes, let the machine cool for at least 10 minutes before using it again.

How do I chop meat with the chopping accessory?

Cut meat into strips of about 2 cm x 2 cm x 6 cm. Place in the chopper bowl, close the lid, attach the adaptor to the motor unit, and turn on. Process for about 15 seconds at maximum speed. Do not operate if not properly assembled.

Can I blend hot liquids?

Be careful when pouring hot liquid into the mixing recipient, as it may bubble over due to sudden steam action. It is recommended to let hot liquids cool slightly before blending.

What accessories are included with the ZHB4555S?

The ZHB4555S includes a stainless steel blender attachment, a plastic blender attachment, a measuring cup, a whisk, and a chopping accessory. The mixer accessory and sport cup are only available in models ZHB4553/ZHB4554.

How should I store the blender?

After use, unplug the appliance, clean it, and store the cable in the cable box. Keep the appliance and its cable out of reach of children. Store in a dry place.

What should I do if the power cable is damaged?

If the power cable is damaged, it must be replaced by the manufacturer, its technical assistance agent, or a qualified professional to prevent hazards. Do not attempt to repair it yourself.

Can children use this blender?

No, this appliance should not be used by children. Keep the appliance and its cable out of reach of children. People with reduced abilities may use it only under supervision.

What is the warranty period?

The product comes with a 2-year warranty from EUROGAMA Sp. Z o.o. It covers repair or replacement of defective parts, provided the product has been used according to the manual and not tampered with by unauthorized third parties.

USER MANUAL ZHB4555S Zelmer

Diagram showing three stages of dental implant tool installation, with no visible text or symbols

Fig.14-1 Fig.14-2

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

Please read the instructions for use carefully prior to using the product. store these in a safe place for future reference.

DESCRIPTION

1. Stainless steel blender attachment / Plastic blender attachment
2. Measuring Cup
3. Whisk accessory
4. Chopping accessory
5. Button I / Button II
6. Motor subset
7. Adaptor
8. Stainless steel/plastic blender attachments
9. Whisk
10. Whisk mechanism
11. Cup lid
12. Cup
13. Blade
14. Mixer Accessory (*)
15. Sport Blender (*)
    *Only available in model ZHB4553 / ZHB4554

SAFETY INSTRUCTIONS

If the power cable is damaged, the manufacturer, its technical assistance agent or other professionals with equivalent qualifications should replace it to prevent hazards.

Observe the operating times of the accessories, as indicated in each section of the manual.

To clean the appliance, follow the instructions in the section of the manual dedicated to cleaning and maintenance.

Warning: Improper use could result in an injury.

Be careful when handling the sharp blades when emptying the cup and during cleaning.

Be careful when pouring hot liquid into the mixing recipient, as it may bubble over due to sudden action caused by the steam.

Always disconnect the blender from the base when it is not in use and before assembling, disassembling or cleaning it.

Turn off the appliance and disconnect it from the mains before changing any accessories or you have to touch parts which move during use.

This appliance should not be used by children. Keep the appliance and its cable out of the reach of children.

This appliance may be used by people with reduced physical, sensory and mental abilities or with a lack of experience, provided that they have been given supervision or suitable instructions regarding the use of a safe mode and are aware of the risks involved.

Children should not use it as a toy. This appliance is intended for use at a maximum altitude

of 2000m above sea level.

IMPORTANT WARNINGS

This appliance has been designed for domestic use and under no circumstances should it be used for commercial or industrial purposes. Any incorrect use or improper handling of the product will nullify and invalidate the guarantee.

Before connecting the product, check that the mains voltage is the same as that indicated on the product label.

The mains connection cable should not become entangled or be wrapped round the product while it is in use.

Do not use the appliance or connect it or disconnect it from the mains when your hands and/or feet are wet.

For an ideal mixing effect from the blade accessory, avoid using it without any food.

Do not pull on the connection cable to unplug it or to use it to carry the appliance.

Immediately disconnect the product from the mains in the event of detecting a failure or any damage and contact the authorised technical assistance service. Do not attempt to repair the appliance yourself, in order to prevent risks and hazards. Only qualified technical personnel from the brand's official technical assistance service may carry out repairs or other operations on the appliance.

B&B Trends, S.L. will not be held liable for any harm or damage which may occur to people, animals or objects as a result of failure to observe the aforementioned warnings.

INSTRUCTIONS FOR USE

Make sure that all the product packaging has been removed.

Clean the parts which will come into contact with the food before using the product for the first time, as outlined in the cleaning section.

Prepare the appliance in accordance with the function you wish to use:

Use

Unwind the cable fully before plugging it in.

Connect the appliance to the mains.

Turn on the appliance using the on/off button.

Select the desired function of the appliance.

Select the desired speed.

Start mixing the food you wish to process.

Once you have finished using the appliance:

Stop the appliance by releasing the pressure on the on/off button.

Disconnect the appliance from the mains.

Put the cable back in the cable box.

Clean the appliance.

Accessories: Blender accessory attachment (Fig. 1)

This accessory can be used to make sauces, soups, mayonnaise, milk shakes, baby food, etc.

Connect the rod to the body of the motor and turn it in the direction indicated by the arrow (Fig. 1).

Place the food to be prepared in the recipient and turn on the appliance. We suggest cutting the food into cubes no more than 15 mm in size.

For additional cleaning, disconnect and extract the rod by turning it in the opposite direction indicated by the arrow (Fig. 1).

Do not use the appliance for more than one minute at a time. In the event of operating in cycles, allow the appliance to rest for a period of at least one minute between each cycle.

Whisk accessory (Fig. 3)

This accessory can be used for whisking cream, egg whites, etc.

Connect the whisk to the whisk mechanism unit of the motor by turning it in the direction indicated by the arrow (Fig. 3).

Place the food in a large recipient and turn on the appliance. To achieve the best results, turn the whisk to the right.

Remove the whisk accessory and release it from the mechanism connection (Fig. 3)

Note 2: Pull the whisk to release it from the mechanism's mount.

Chopping accessory (Fig. 4)

This accessory can be used to chop up vegetables, meat, etc.

Place the food to be prepared into the recipient for it to be cut with the blades inside and close the lid tight.

We suggest cutting the food into the appropriate forms and sizes. E.g. cut meat into 2 cm x 2 cm x 6 cm strips, cut onions into 4 to 6 discs, etc.

Place the adaptor into the motor unit by turning it in the direction indicated by the arrow.

Attach the unit to the cover and turn on the appliance (be careful: do not turn on the appliance if the whole unit has not been properly installed and connected).

Turn off the appliance when the food has reached the desired texture.

Remove the unit from the lid and release the adaptor.

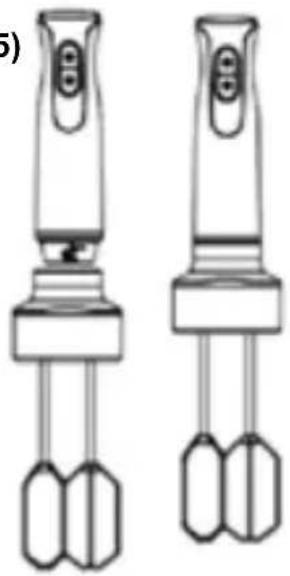

Mixer accessory & sport cup (Fig. 5)

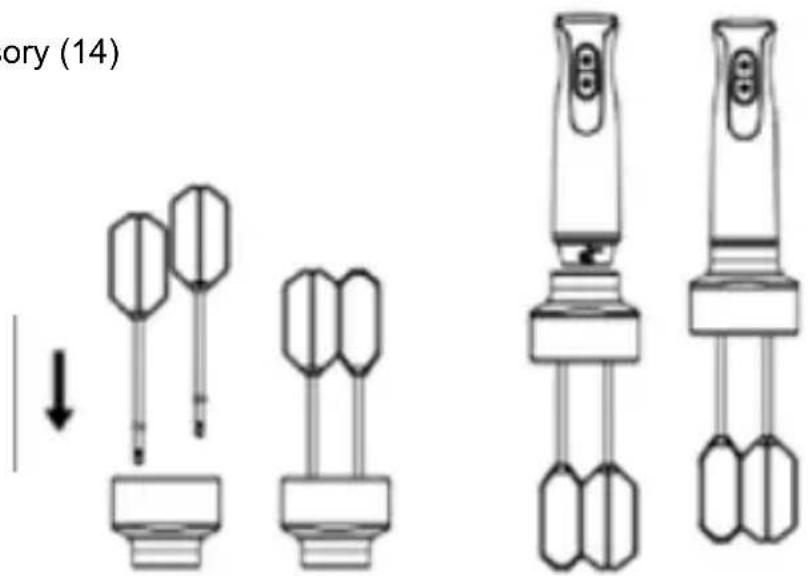

Mixer accesory (14)

Fig.14-1 Fig.14-2

Used the whisk only for whipping cream, beating egg whites, Egg yolk, Ice cream, Jam and mixing sponges and ready-mix desserts.

please follow the product instructions for use. it should not be used continuously for a long time to prolong the life of the motor. After using more than 5 minutes, the machine should be cooled for more than 10 minutes before it can be used again.

1. Insert the bar of square stir bar into the gear box, then insert the Body into the gear box until it locks.
2. Place the Egg-beater in a vessel and only then, press switch to operate it.
3. To release, Revolve and pull off the gear box. Then pull the whisk out of the gear box. For best results:

- Do not use the beaker, but a wider bowl Diameter bigger than 12 cm.

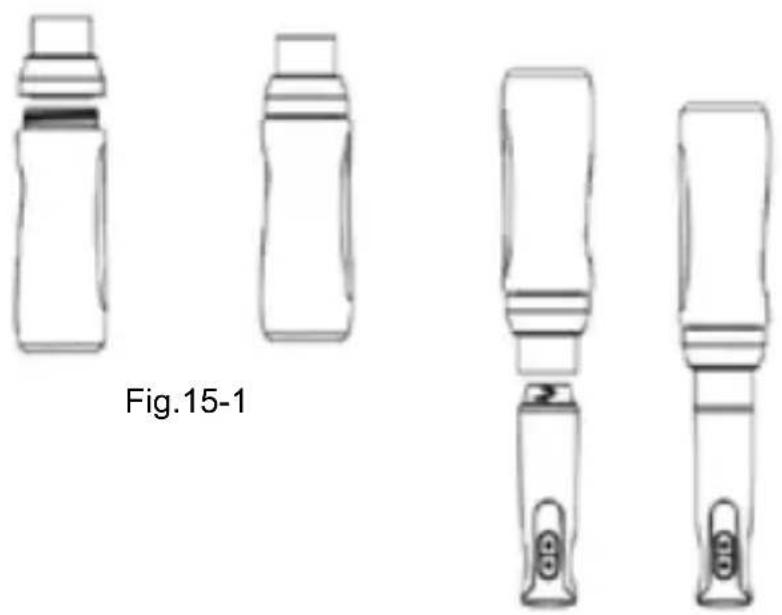

Sport cup (15)

Fig.15-2

The hand blender + sport cup is intended for:
- blending liquids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks and shakes.
- mixing soft ingredients, pureeing cooked ingredients, e.g. for making baby food.
1. Screw the knife holder into the cup (15-1).
2. Then insert the Body into the knife holder until it locks (15-2).
3. Pressing the button to switch on the appliance.
4. The ratio of carrot to water is 1:2 (200g of carrots + 400g of water).
5. The blender with sport cup is operated at vertical (15-2)

MANITENANCE AND CLEANING

Unplug the power cable before cleaning.

Do not touch the blade.

Use a dry kitchen cloth to clean the product. It is strictly forbidden to rinse the main unit with water or immerse it in water.

Do not use metal or nylon brushes, abrasive household products, thinners or other similar cleaning products to clean the appliance as they can damage its surface structure.

Use a soft, dry cloth to remove any dirt from the power cable.

Cleaning requirements for each accessory

Cleaning accessories	Washing	Rinsing	Cleaning by immersion	Dishwasher Observations
Mixing blade					Do not immerse in water
Glass
Components for whisking egg whites					Do not immerse in water
Rod *
Chopper lid					Do not immerse in water
Chopper
Chopper blade
Mixer (14)					Do not immerse in water
Sport cup (15)

Table of recipes

Contents Time Speed Accessory
Soaked carrots: 240gWater: 360g	10” MAXIMUM Mixing blade
Cubes of Meat: 150g 15” MAXIMUM Chopper
Egg whites: 4-5 eggs 90-120” MAXIMUM Whisk

More recipes:

Recipe	Recommended accessory	quantity	time
Egg liquid		4 eggs	2 minutes
Ice cream		200g Cream50g refined milk25ml pure milk	1 minute
Cake		85 gr Low gluten flour5 eggs40g vegetable oil40g MilkSugarYeast	1 min
Carrot juice		200g carrots400g water	10s

ELIMINATION OF THE PRODUCT

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste electrical and electronic equipment), which establishes the applicable legal framework in the European Union regarding the elimination and recycling of electrical and electronic devices. Do not put this product in the bin. Take it to your closest electrical and electronic waste treatment centre.

We hope that you will be satisfied with this product.

WIR MÖCHTEN UNS BEI IHNEN BEDANKEN, DASS SIE SICH FÜR ZELMER ENTSCHIEDEN HABEN. WIR HOFFEN, DASS DAS PRODUKT ZU IHRER ZUFRIEDENHEIT FUNKTIONIERT.

ACHTUNG

Diagram showing two types of dart bidders with arrows indicating movement (no text or symbols)

Technical line drawing of two identical mechanical components with multi-pipe heads and shafts (no text or symbols)

Fig.14-1 Fig.14-2

Two simple line drawings of baby bottles with caps (no text or symbols)

Fig.15-1

Line drawing of two identical mechanical components with ports and mounting brackets (no text or symbols)

Fig.15-2

Fig.14-1 Fig.14-2

Diagram showing three types of dental implant designs with arrows indicating direction (no text or labels)

Fig.14-1 Fig.14-2

Diagram showing three types of dental implant designs with arrows indicating transformation (no text or labels)

Fig.14-1 Fig.14-2

RO

ELIMINAREA PRODUSULUI

Line drawings of four different types of baby bottle designs, labeled Fig.15-1 (no text or symbols on the diagrams themselves)

Fig.15-2

Fig.14-1 Fig.14-2

Line drawings of four different types of baby bottle designs, labeled Fig.15-1 (no text or symbols on the diagrams themselves)

Fig.15-2

EUROGAMA Sp. Z o.o. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by EUROGAMA Sp. Z o.o.. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a EUROGAMA Sp. Z o.o.

authorised Technical Service for repair of the product.

Since any tampering of the same by anyone not authorised by EUROGAMA Sp.

Z o.o., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com
