USER MANUAL ELP4V1 Vigan Mammoth

Vigan® Mammoth ŠETRNÝ K ŽIVOTINIMU PROSTAFIJI

Close-up of a hand holding a handheld device with a cylindrical grip (no visible text or symbols)

2. POUŽITÍ LIKVIDÁTORU PLEVELE

VAROVÁNÍ!

Close-up of a hand holding a tool with a metallic rod (no visible text or symbols)

Close-up of a hand holding a tool with a cylindrical rod, no visible text or symbols

Mechanical device with lever and pump assembly (no visible text or symbols)

3. POUŽITÍ ZAPALOVAČE GRILU, KRBU

VAROVÁNÍ!

Illustration of a firearm with a long trigger and a close-up of its face (no text or symbols)

Close-up of a hand holding a handheld weapon (no visible text or symbols)

2. POUŽITIE LIKVIDÁTORA BURINY

VAROVANIE!

Close-up of a hand holding a tool with a cylindrical object inserted (no visible text or symbols)

Close-up of a hand holding a tool with a cylindrical rod, no visible text or symbols

Mechanical device with lever and pump assembly (no visible text or symbols)

3. POUŽITIE ZAPAŁOVAČA GRILU, KRBU

VAROVANIE!

Illustration of a mechanical device with a tool and connector, alongside a close-up of a face mask (no text or symbols visible)

thank you for purchasing this product. Before using it, please read the instructions carefully. Only use the product as described in this manual. For damages arising out of use contrary to this manual, neither the manufacturer nor the seller bears any responsibility. Keep this manual in case of later use. At least for the duration of the valid warranty, we recommend that you store the original sales package and cash receipt. If you pass the product on to another person, pass it on with this manual. This product is designed to meet the highest standards of quality, functionality and design. We believe that this device will soon become an irreplaceable helper in your home.

INTENDED USE

The electrical weed burning system (multifunctional - high temperature - hot air) is intended primarily for heat weed disposal, ecologically, environmentally friendly, without the use of highly polluting chemicals such as controversial glyphosate - Roundup, the heat from the nozzle destroys weeds by extremely high temperature to the roots to prevent its further growth, cellular expansion spreads out due to rapid temperature rise, cell wall tears, protein collapses and weeds die, all within 5 seconds, innovative design and design allows precise focus on weeds without risk damage to surrounding plants and soil without the use of gas and open fire, remove weeds eg on outdoor stairs, entrances, pavements, paths, terraces, garage entrances, parking places, sandboxes, outdoor walls, etc.

Its multifunctionality can also be used for removing old paint or for separating glued joints, loosening the screw connections, softening the paint, removing wax residues from skis, snowboards or candlesticks, as a hot air gun or as an electric fireplace lighter, safe and quick charcoal or briquettes lighter in garden grills, all safely and quickly within 2 minutes. In addition, you can use the appliance in winter to help defrost ice on pavements, frozen water in metal containers, frozen heaters, water pipes and other non-flammable materials.

The device has an ergonomic, detachable handle for easy handling and carrying. The swivel handle and removable bar allow quick conversion to various tools. From the weed burner, you can quickly and easily get a hot air gun, a fireplace lighter, or a charcoal lighter or a defroster.

Very low weight of 0.79 kg allows comfortable work with one hand.

PRODUCT DESCRIPTION

1. Nozzle for weed burning
2. On/Off switch and temperature setting
3. Extension rod connector
4. Handle
5. Cable clamp
6. Power connector
7. Rotation button
8. Stand
9. Wide nozzle for old paint removal
10. Flat nozzle for separating of glued connections and paint softening
11. Concentrating reduction nozzle for plastic welding, shrink tubes and films
12. Lighting nozzle for grill or fireplace
13. Extension rod
14. Hanging loop

1.2.3. 13.14. 3. 4. 5. 6. 7. 8. 11.12.9.10.

BASIC SAFETY WARNINGS FOR POWER TOOLS

WARNING! Read all warnings and other instructions carefully. Failure to follow these may result in electric shock, fire, and/or serious injury.

Keep all warnings and instructions for future use.

The term "power tools" and all warnings below refer to your power tools.

IMPORTANT SAFETY NOTICES

Before connecting the appliance to the power supply, read these operating instructions carefully to avoid damage or electric shock caused by improper use. Pay special attention to safety information. When using electrical appliances, comply with the safety regulations in your country, reducing the risk of fire, electric shock and personal injury.

The device may be used by children from the age of eight and older persons with reduced physical, sensory or mental capabilities or lack of experience when supervised or instructed to use this device and understand the potential risks. Children must not play with the device. Only children older than 8 years and under supervision may carry out cleaning or maintenance. Keep the appliance and its power cord out of reach of children under 8 years of age.

• This appliance is not intended for control via remote control, external timer, or programmer.
• Before connecting to a power socket, make sure that the voltage indicated on the label is the same as that in your power grid. If not, do not use the appliance and return it to your dealer.
• Only connect the appliance to a properly grounded socket.
• The device is intended for home use only and not for commercial use.
• Do not use the appliance for purposes other than the intended.
• Use only in places that are clean and illuminated enough to prevent injury or damage.
• Ensure that children and animals are not around when device is in use.
• Never aim the hot air flow at people or animals.
• Do not use the device in an explosive atmosphere or environment.
• Pay attention to the direct and indirect work space because the high temperatures can cause fire to materials which are close but not necessarily in your field of vision.
• Only use the appliance where it is out of reach of sources of heat and flammable objects.
• This device generates a temperature of up to 650 degrees, without visible signs of such temperature, without visible flames, which increases the risk of fire. Pay attention to the hot air flow from the nozzle. This flow can cause serious burns.
• Do not expose the power tool to rain or moisture. If water gets inside the power tool, the risk of electric shock is increased. Do not use the device!
• If you cannot avoid working with a power tool in a damp location, use a protected residual current device (RCD). Using this source reduces the risk of electric shock.
• Use outdoor cables that are suitable for outdoor use when working with the device in outdoor areas. The connection must be placed in a dry place and must not lie on the ground. This reduces the risk of electric shock.
• Use only a suitable extension cable that is designed for power consumption. The minimum wire size is 1.5 mm. Inappropriate extension cable may be dangerous.
• When not in use, always unplug the appliance before cleaning or if it is unattended.
• When using this unit, be careful, keep an eye on what you are doing, do not distract yourself and think about your work. Do not use the device if you are tired or under the influence of drugs, medicine or alcohol. A moment of inattention while operating this device can lead to serious injuries.
• Use safety equipment while working. Wear safety shoes with anti-slip sole, which reduces the risk of slipping and consequent injury.
• Wear appropriate clothing. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves at a safe distance from the hot parts of the device.
• Prevent accidental start the device. Make sure the switch is off before plugging in the appliance. Moving the power tool with your finger on the on/off switch or near it, when the switch is turned on can lead to injury.
• When working with the device, make sure that you are in the right position and keep the balance. It will give you better control over the device in an emergency.

• Before moving, cleaning or storing, allow the appliance to cool completely.

• Never leave the device turned on, never leave it unattended.

• Do not immerse any part of the appliance in water or other liquid, do not clean the appliance under running water.
• If any appliance has damaged any part of the power cord or is damaged or malfunctioned, do not use it and contact a qualified service center.
• The appliance with a damaged power cord or plug of a network cable is forbidden to use.
• Damaged or tangled cables increase the risk of electric shock.
• To avoid potential risk, the damaged power cord must be replaced by the manufacturer, a qualified person or an authorized service center.
• Only genuine spare parts may be used in the case of service work by a qualified person. This ensures the safety of the power tool.

- The plug and power cord may only be replaced by the manufacturer of this power tool or its authorized service facility. This ensures the safety of the power tool.

- The device and the power cord must not come into contact with the hot surface or lead over sharp edges.

- Do not handle the power cord with wet hands. Do not pull on the wire, hold it behind the plug when disconnecting it. It could damage the power cord or socket

- Do not use power tools unless they can be switched on and off. If the power tool cannot be operated with a switch, it is dangerous and needs to be repaired.

- Do not use the device in very dry places or in their close proximity because of the risk of fire.

- To avoid electric shock, do not repair the appliance yourself or modify it in any way. Have all repairs of this appliance carried out by a specialist workshop.

- Design changes, disassembly of parts, or the use of other non-original parts that have not been approved by the manufacturer are prohibited and could affect the functionality of the device and could result in the risk of injury or damage.

- Incorrect interference with the appliance during the warranty period will expose you to the risk of losing any warranty.

SAFETY INSTRUCTIONS FOR HOT AIR GUN

• Make sure the switch is off before connecting the appliance to the power supply.
• Keep the power cord in all circumstances out of the nozzle of the hot air gun.
• You may cause a fire by improper use of the device.
• Be careful when working with the device near flammable materials.
• When operating the unit, make sure that children and animals are not around.
• Do not aim the hot air gun on the same place for too long.
• Do not use a hot air gun in an explosive atmosphere or environment.
• Heat can be transferred to flammable materials that are hidden from your view.
  • After use, place the gun on the stand and allow it to cool down before storing it.
• Do not leave the unit unattended during operation.

- Keep all parts of your body at a safe distance from the heating nozzle. Do not touch it unless it is cold. Always hold and carry the device using the handle.

SAFETY INSTRUCTIONS FOR SOLID FUEL LIGHTER

– charcoal, briquettes and wood in grills and fireplaces

• Make sure the switch is off before connecting the appliance to the power supply.
• Keep the power cord in all circumstances out of the nozzle of the hot air gun.
• You may cause a fire by improper use of the device.
• Check that the solid fuel is in the correct position.
• Disconnect the appliance from the power supply before removing it from the fire.
• Ensure that the device has cooled before storing.
• The power cord and other flammable materials must not come in contact with the hot parts of the lighter.
• Do not leave the unit unattended during operation.
  • Always hold and carry the device using the handle.

SAFETY INSTRUCTIONS FOR WEED BURNER

• If you use a weed burner, you must use an extension tube and a handle. Hold the device firmly by the handle.
• Check that the extension bar and handle are firmly attached to the device and that the device is switched off.
• Keep the power cord away from the hot-air nozzle.
• Do not hold the nozzle too close to the place you are working on. If the air gets too hot, it can damage the unit.
• Careless use of this device may cause fire.
  • Always check the plants you burned. If they smolder, they may later start to burn and cause a fire.
• Be careful when working with the device near flammable materials, liquids, gases or dust.
• When operating the unit, make sure that children and animals are not around.
• Do not aim at the same place for too long.
• Do not use this unit in explosive atmospheres or environment.
• Heat can be transferred to flammable materials that are hidden from your view.

OTHER SAFETY INSTRUCTIONS

CAUTION! Prevent the risk of fire injury as well as safety risks:

In the event of danger, unplug the power cord of this unit from the socket outlet immediately.

Turn off the device immediately if you notice:

• The plug and / or the power cord are defective or damaged.
• The control switch has a fault.
• You smell or see smoke caused by burned insulation, or it is coming out of another part of the hot air gun.

CAUTION! RISK OF INJURY!

• Do not use this appliance as a replacement for the hairdryer.
• Do not aim at hot air on people or animals.
• Do not look directly at the nozzle outlet.

CAUTION! RISK OF BURNS!

• Do not touch the hot nozzle.
• Wear protective gloves.
• Wear safety goggles.
• During breaks, when adjusting the appliance (eg changing the nozzle) and when you have finished working, always unplug the appliance.
• Before changing the nozzle, allow the unit to cool completely.
• Do not hold the nozzle too close to the place or object you are working on. If the air gets too hot, it can damage the unit.
  • Always keep the unit clean, dry and free from any grease on the surface.
• Do not use the device for any purpose other than what it is designed for.

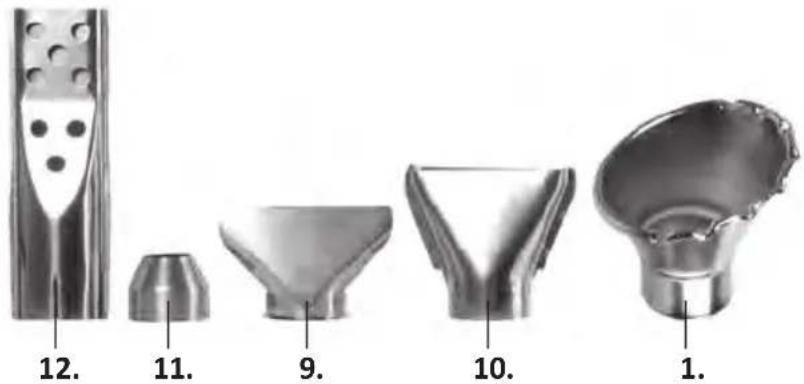

Use different nozzles for different uses (9), (10), (11), (1), (12)

Wide nozzle (9) – removing paint or varnish:

• Connect the nozzle (9) to the hot air outlet.
• The shape of this nozzle is designed to target the hot air. Use it together with a spatula to remove paint.

Flat nozzle (10) – separates glued joints, softens paints:

• Connect the nozzle (10) to the hot air outlet.
• Do not expose the workpiece to the heat for too long, because the burnt color is very difficult to remove. Many adhesives can be softened by heat. The glued joints can be separated and the excess adhesive removed.

Concentration reduction nozzle (11) – plastic welding:

• Connect the nozzle (11) to the hot air outlet.
• Use this nozzle for heat shrinking tubes and films.

Weed burning nozzle (1)

For plant use, aim the nozzle at the plant and expose it to heat for 5 to 10 seconds depending on the plant species. In the case of larger plants, treat the upper part of the plant briefly and then aim the nozzle at the dried plant for 5 to 10 seconds.

Ignition nozzle for grill or fireplace (12)

For use as an electric fireplace lighter, safe and fast charcoal, wooden briquettes or wood in garden grills lighter, all safely and quickly within 2 minutes.

BEFORE THE FIRST USE

Remove any packaging materials from the device and dispose of them in order to prevent them from getting into the hands of children (risk of suffocation). Do not remove labels attached from the product.

Turning the device on:

Make a loop on the power cord and push it through the clamp on the handle to fasten it.

Connect the unit to an electrical socket with a voltage appropriate to the device.

Switch the device on by switching the main switch (2) to "I" or "II". The instrument the teaches full operating temperature reaches within one.

Turning the device off:

Allow the appliance to cool completely before turning it off. Set the temperature to level I for at least 1 minute. Then it is possible to turn off the device safely.

Turn switch (2) to position "O".

After use, unplug the appliance from the electrical socket.

Place the instrument on a stand on a flat, non-flammable surface and allow it to cool completely.

Temperature setting:

You can set the temperature with the temperature switch (2) between positions I and II.

Depending on your application, you can select the most suitable temperature of the air coming out of the nozzle:

Level I: about 80 °C

Level II: about 650 °C

Rotating the working head

The working head is rotatable. Press the button (7) to rotate it.

CAUTION! Do not cover the ventilation openings during use. CAUTION! RISK OF BURNS! Do not touch the hot nozzle.

1. HOT AIR GUN USE

WARNING!

• Before changing the nozzle, make sure that the nozzle has cooled down to prevent burns.
• Too high temperature can cause ignition of paint and plastics.

CAUTION! Do not breathe fumes during work.

• Select the best angle for working with the hot air gun using the button (7).
• Replace the head for use with the hot air gun (9, 10, 11).
• Plug in the appliance.
• Check that the head is not clogged before turning on the device.
• Switch the control switch to position II: the unit will start working.
• Allow the unit to warm up for about 1 minute to reach full operating temperature.

Close-up of a hand holding a handheld electrical fuse (no visible text or symbols)

2. WEED BURNER USE

WARNING!

• Before changing the nozzle, make sure that the nozzle has cooled down to prevent burns.
• Too high temperature can cause ignition of paint and plastics.

CAUTION! Do not breathe fumes during work.

• Assemble an extension rod for weed burning.
  • Install the weed burning nozzle (1).
• Plug in the appliance.
• Check that the head is not clogged before turning on the device.
• Switch the control switch to position II: the unit will start working.

• Allow the unit to warm up for about 1 minute to reach full operating temperature.

• Weed disposal is most effective during the growing season.
  • The best time for disposal is spring.

• Disposal has the greatest effect on young plants. It does not have to be obvious right away that it was successful. The visible part of the plant may burn during extended exposure.
• For effective action and disposal, hold the nozzle about 0 to 5cm above the weed for about 5 seconds. During this short time, the cell structure will be destroyed and, as a result, weeds will die within a few days.
• It is not necessary to completely burn the plant.
• Plants do not respond immediately to thermal radiation during the recommended exposure time.
• Young plants with soft leaves are the most sensitive to the process and will not survive.
• Older plants with hard leaves, such as thistles, have to be exposed to the heat several times with intervals of one to two weeks to dry out.
  • Still green plant species are very durable and require more care.
• You must treat the overgrown areas several times at short intervals to ensure long-term effects. Then take care at longer intervals.
• Some weeds need to be exposed to heat repeatedly.

Close-up of a hand holding a tool with a metallic rod (no visible text or symbols)

Close-up of a hand holding a tool with a cylindrical rod and cable, no visible text or symbols

Mechanical device with lever and pump assembly (no visible text or symbols)

3. USE OF GRILL OD FIREPLACE LIGHTER

WARNING!

• Before changing the nozzle, make sure that the nozzle has cooled down to prevent burns.
• Too high temperature can cause ignition of paint and plastics.
• Do not use any liquid lighters.
• You will light the charcoal in a few minutes.
• Before changing the nozzle, make sure that the nozzle has cooled down to prevent burns.
• Too high temperature can ignite color and plastics.

CAUTION! Do not breathe fumes during work.

Ignition of charcoal, wood or briquettes:

- For your safety use a grill/fireplace lighter with an extension rod and a handle.

• Install the nozzle (12) to the appliance.
- Place the nozzle under the coal, briquettes or wood.
- Plug the appliance into the power socket.
- Make sure the nozzle is not clogged before switching on the device.
- Switch the control switch to position II: the unit will start working.
- Allow the unit to warm up for about 1 minute to reach full operating temperature.
- Remove the appliance as soon as charcoal, briquettes or wood begin to glow.

- Then blow the hot air on charcoal, briquettes or wood from a distance of about 10-20 cm until they start to burn or catch flame. This will ensure that the head is not damaged. Exposing the head to an extreme temperature for a long time could also cause the material to melt.

Illustration of a mechanical device with a tool and a separate close-up of a face (no text or symbols)

Caution! To prevent overheating of the head, grill or fireplace, do not use the appliance for longer than necessary.

OTHER EXAMPLES OF USE IN THE HOUSE, CAR AND GARDEN 4. DEFROSTER USE

Ice defrosting:

- You can use the appliance in the winter to defrost ice on pavements, frozen water in metal containers, frozen heaters and other non-flammable materials.

Defrosting water pipes:

Note! Do not use this product on PVC pipes.

Note! From outside view water and gas pipes are often indistinguishable. If you have any doubts, ask a professional.

Note! Copper pipes are soldered and must not be heated above 200 °C.

Loosen the screw connection:

- Carefully heat the screw connection. The screws can then easily be released.

Removal of wax:

- Use this product with caution to remove residual wax from skis, showboards or candlesticks.

Cooling and permanent power off:

Allow the appliance to cool completely before turning it off. Set the temperature to level I for at least 1 minute. Then it is possible to turn off the device safely. Allow the device to cool completely before storing it. We recommend it to stand on the stand. Never leave the appliance unattended for complete cooling!

Storing:

Check that the appliance has cooled completely before storing.

CLEANING

CAUTION! RISK OF INJURY! Always unplug the appliance and allow it to cool before performing any maintenance.

• Always keep clean air intakes and outlets to avoid overheating.
- Clean the plastic cover with a damp cloth with a suitable detergent, then wipe it dry.
- Do not use sharp metal tools, brushes, abrasive cleaners, gasoline or other aggressive thinners that can damage plastic.
- Do not rinse the appliance under running water or immerse it in water or other liquid.

STORING

• If the nozzles are cool and clean, put them in the box.
• Store the device in a dry, clean place and out of reach of children.

PACKAGE INCLUDES

1 ks multifunctional weed burner 4 in 1
1 ks extension rod
1 ks handle
1 ks stand
1 ks wide nozzle
1 ks flat nozzle

1 ks concentration nozzle for weed burning
1 ks lighter nozzle for grill or fireplace
1 ks reduction nozzle for shrinking of tubes and films
1 ks manual in CZ, SK, EN, DE, HU

TECHNICAL PARAMETERS

Rated voltage range - 220–240 V

Rated frequency - 50 Hz

Rated power - 2 000 W

Temperature (nozzle output):

Level I: about 80 °C

Level II: about 650 °C

Max. reachable temperature - 650 °C

Product dimensions with package - 17.5 x 9.8 x 45 cm

Product dimensions without package - 108 x 8.5 x 16 cm

Gross product weight - 1,15 kg

Net product weight - 0,79 kg

Automatic thermostat against overheating – yes

Construction: aluminum – plastic – stainless steel (nozzles)

Air flow - 550 l/min

Power cable length - 1,8 m

Protection class: II

Sound pressure level rated A less than 70 dB (A).

Number of pcs in carton - 8

USE AND DISPOSAL OF WASTE

Use the used packaging material at a designated waste disposal site.

Wrapping paper and corrugated cardboard - handed over to collection materials.

Packaging foil, PE bags, plastic parts – into collecting containers for plastics.

SAFETY SYMBOLS

1.

2.

1. CE - this product meets all the essential requirements of EU directives that apply to it.
2. The product must not be treated as ordinary household waste (see section Disposal of old electrical and electronic equipment).

DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on the product, its accessories, packaging or accompanying documents indicates that the product should not be treated as household waste. Please take this product to the respective collection point where will be carried out specialist recycling of electronic equipment. In the European Union and other European countries there are collection points for used electrical and electronic equipment. By ensuring proper product disposal, you prevent potential negative impact for the environment and human

health, which could result from improper handling of this product. Recycling of these materials also helps to preserve natural resources. For this reason, please do not throw the old electric and electronic equipment together with household waste. For more information please contact your local authority, any service company liquidating household waste or the store where you purchased the product. Details also refer to the relevant laws about waste, in the Czech Republic no. 185/2001 Coll. as amended. Furthermore, the websites www.elektrowin.cz, www.remasystem.cz and www.asekol.cz (disposal of electrical waste). The improper disposal of this waste can be in accordance with applicable laws, regulations and fines.

WARRANTY

We offer warranty for 24 months sounding from the day of purchase by you. This warranty covers defect caused by defective material or error in workmanship. It does not cover defects caused by mechanical damage, natural disaster of other inevitable events, connecting to the wrong power grid voltage, modifications or service work by non-qualified or unauthorized personal, misuse or use in contradiction to this manual.

All documents about your purchase and service repairs on any product keep for at least three years to ensure quality customer service.

Please remember, that this product is only for home use, not professional use.

If you find out, that this product does not suit you, it is not a reason for a complaint.

In the case of complaint please submit receipt.

In the case of malfunction of your product, please contact the dealer, you bought it from, or service at the following address:

Czech republic:

Interservis Liberec s r.o.

Close-up of a hand holding a handheld electric shaver (no visible text or symbols)

Close-up of a hand holding a tool with a metallic rod (no visible text or symbols)

Close-up of a hand holding a tool with a cylindrical rod, no visible text or symbols

Mechanical device with lever and pump assembly (no visible text or symbols)

Illustration of a firearm with a long rod and a close-up of its face (no text or symbols)

Close-up of a hand holding a handheld electrical fuse (no visible text or symbols)

2. POUŽITÍ LIKVIDÁTORU PLEVELE

VESZÉLY!

Close-up of a hand holding a tool with a metallic rod (no visible text or symbols)

Close-up of a hand holding a tool with a cylindrical rod, no visible text or symbols

Mechanical device with lever and pump assembly (no visible text or symbols)

3. GRILL- ÉS KANDALLÓGYÚJTÓ HASZNÁLATA

VESZÉLY!

Illustration of a mechanical tool with a bracket and a close-up of its face (no text or symbols visible)

ŠETRNY K ŽIVOTINMO PROSTHEJI V1.501 CE ☐ 20 PAP i COCONUTROZEN © 2017
