GZ 27DD - Wine cellar Guzzanti - Free user manual and instructions

Product type	Wine cellar / Wine cooler
Brand	Guzzanti
Model	GZ 27DD
Capacity	27 bottles
Number of shelves	7 + 1 display shelf
Temperature control	Digital with dual zone (upper & lower)
Temperature range	5°C to 18°C (41°F to 64°F) for both zones
Energy consumption	0.419 kWh/24h at 12°C ambient
Refrigerant	R600a (flammable)
Insulation	Cyclopentane foaming agent
Power supply	220-240 V ~ 50/60 Hz
Interior light	LED, auto-off after 10 minutes
Control panel lock	Automatic after 20 seconds, unlock via long press
Forced defrost	Automatic after 12 hours of compressor run
Memory function	Retains settings after power off
Display	LED display showing temperature in °C or °F
Door type	Glass door (tempered, not specified but typical)
Installation	Freestanding, requires clear space for ventilation
Usage	Wine storage only, not for freezing food
Safety	Flammable refrigerant, keep away from fire

Frequently Asked Questions - GZ 27DD Guzzanti

How do I set the temperature on my Guzzanti GZ 27DD wine cooler?

Press the unlock key for 2 seconds to unlock the control panel. Then press the Add or Minus key to adjust the temperature. The upper and lower zones can be set independently. Short press the unlock key to switch between zones.

What is the recommended temperature for storing wine?

The recommended temperature for wine storage is 12°C (54°F). However, you can adjust between 5°C and 18°C depending on the type of wine.

How do I clean the wine cooler?

Clean the interior regularly with a mild detergent and water. Do not use abrasive cleaners. Ensure the drainage system is clear. For long periods of non-use, switch off, defrost, clean, dry, and leave the door open to prevent mould.

Why is my wine cooler making unusual noise?

Check if the cooler is placed on a flat, stable surface. Ensure it is not in contact with walls or other objects. Noise can also be from the compressor or fan; this is normal. If excessive, contact service.

What should I do if the wine cooler is not cooling properly?

Check that the power is on and voltage is correct. Ensure the temperature setting is appropriate. Verify that the door is closing tightly and not opened frequently. Make sure there is enough space around the cooler for ventilation. Avoid direct sunlight or nearby heat sources.

How do I change the interior light?

The interior light is LED and should last long. If it fails, contact customer service for replacement. The light turns on/off via the Light/CF key on the control panel; it also auto-off after 10 minutes of inactivity.

How do I lock or unlock the control panel?

The control panel locks automatically after 20 seconds of no operation. To unlock, press and hold the unlock key (first key) for 2 seconds. While locked, only the unlock and light keys work.

What is the energy consumption of the GZ 27DD?

The energy consumption is 0.419 kWh per 24 hours at an ambient temperature of 25°C and a set temperature of 12°C. Higher set temperatures will consume less energy.

How many bottles can the Guzzanti GZ 27DD hold?

It can hold up to 27 standard wine bottles. It comes with 7 shelves and 1 display shelf.

Is the refrigerant in the wine cooler flammable?

Yes, it uses R600a refrigerant which is flammable. Also, the insulation contains cyclopentane. Keep the appliance away from open flames and heat sources during use, transport, and disposal. Service should be done by qualified professionals.

USER MANUAL GZ 27DD Guzzanti

Hand inserting a circular component into a rectangular device (no text or symbols)

Simple line drawing of a sad light bulb with eyes closed and nose, no text or symbols present

Line drawing of a hand pressing down on a rectangular object (no text or symbols)

Simple line drawing of an electric refrigerator next to a small stool with steam lines indicating heat or smoke (no text or symbols)

Simple line drawing of a refrigerator with smoke and steam (no text or symbols)

Simple line drawing of a refrigerator with a sun and a stove nearby (no text or symbols)

Cartoon illustration of a smiling refrigerator with steam rising, next to a sheet of paper (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

PRED POUŽITÍM SI PREČÍTAJTE A DODRŽIAVAJTE VŠETKY BEZPEČNOSTNÉ PRAVIDLÁ A NÁVOD NA OBSLUHU.

Hand inserting a circular component into a rectangular device (no text or symbols)

Simple line drawing of a sad light bulb with eyes closed and nose, no text or symbols present

Line drawing of a hand pressing down on a cube-shaped object (no text or symbols)

Simple line drawing of an electric refrigerator next to a small stool with steam lines indicating heat or smoke (no text or symbols)

Simple line drawing of a refrigerator with smoke and steam (no text or symbols)

Simple line drawing of a refrigerator with steam rising and a stove nearby (no text or symbols)

Cartoon illustration of a smiling refrigerator with steam rising, next to a sheet of paper (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

OPIS NAJCZĘSTSZYCH PROBLEMÓW

Line drawing of a hand using a tool to press or clean a rectangular object (no text or symbols)

Simple line drawing of a sad light bulb with eyes closed and nose, no text or symbols present

Line drawing of a hand pressing down on a cube-shaped object (no text or symbols)

Simple line drawing of a refrigerator and a small stool with steam lines indicating airflow (no text or symbols)

Simple line drawing of a refrigerator with exhaust smoke and two leaf drops (no text or symbols)

Simple line drawing of a refrigerator with steam rising, and a stovetted stove with a sun in the background (no text or symbols)

Cartoon illustration of a smiling refrigerator with steam rising (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Hand inserting a circular component into a rectangular device (no text or symbols)

Simple line drawing of a sad light bulb with eyes closed and nose, no text or symbols present

Line drawing of a hand pressing down on a rectangular object (no text or symbols)

Simple line drawing of an electric refrigerator next to a small stool with steam lines (no text or symbols)

Simple line drawing of a refrigerator with smoke and steam (no text or symbols)

Simple line drawing of a refrigerator with steam rising and a stove with flames nearby (no text or symbols)

Cartoon illustration of a smiling refrigerator with steam rising, next to a folded sheet of paper (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Simple line drawing of a hand inserting a device into a circular component (no text or symbols)

Ali je naprava priključena na omrežje?

0 220

Zelo nizka napetost v omrežju?

Simple line drawing of a sad light bulb with closed eyes and a small mouth, no text or symbols present.

Line drawing of a hand pressing down on a rectangular object (no text or symbols)

Ali je naprava priključena na omrežje?

Preverite, ali so tla ravna in ali je naprava nameščena stabilno.

Simple line drawing of an electric refrigerator next to a small stool with steam rising (no text or symbols)

Prepričajte se, da naprava ni v stiku s stenami ali drugim predmeti

Notranja temperatura aparata je zelo visoka

Nepravilno nastavljena temperatura, nastavite ustrezno temperaturo.

Simple line drawing of a refrigerator with two exhaust smoke bubbles (no text or symbols)

Simple line drawing of a refrigerator and a stove with sun in the background (no text or symbols)

Cartoon illustration of a smiling refrigerator with steam rising, next to a folded sheet of paper (no text or symbols)

Slabo odvajanje toplote, preverite, ali je okoli izdelka dovolj prostora za hlajenje.

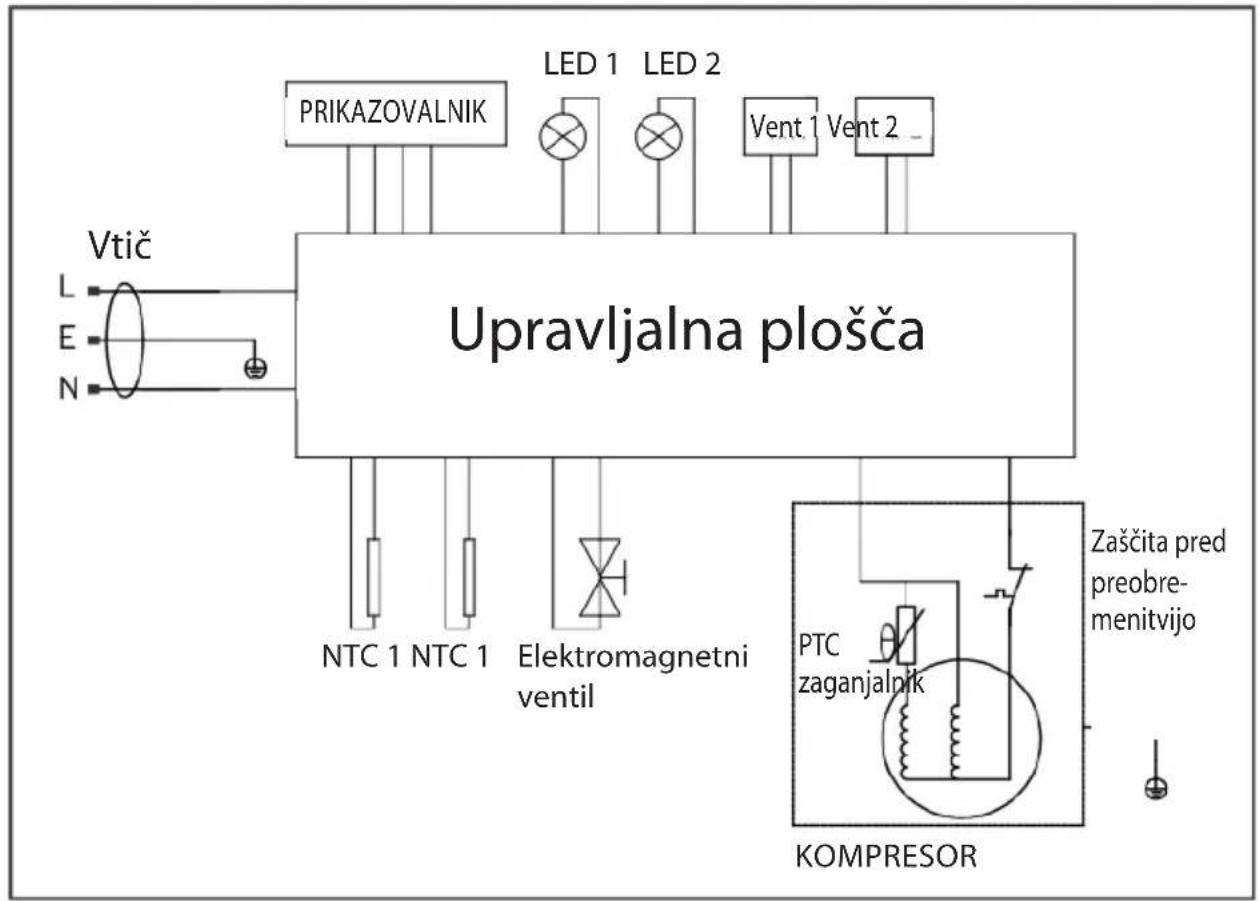

SHEMA PRIKLJUČITVE

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

IMPORTANT SAFETY INSTRUCTIONS

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTION.

WARNING To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

·Before using the appliance, please read this user manual to ensure that you gain the maximum benefit from it.

WARNING:1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.2) Children should be supervised to ensure that they do not play with the appliance.3) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.4) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.5) To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.6) When positioning the appliance, ensure the supply cord is not trapped or damaged.7) Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.8) Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.9) Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.10) Do not damage the refrigerant circuit.11) Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.12) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.13) This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments;- farm houses and by clients in hotels, motels and other residential type environments;- bed and breakfast type environments;- catering and similar non-retail applications.14) Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

15) To avoid contamination of drink, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- Note: This appliance contains flammable refrigerant R600a and foaming agent cyclopentane. Please avoid contact fire when you transport and use it.

Please ask professional for servicing when the machine broke down. Please send it to your local appointed disposal station when you discard it.

-Save these instructions-

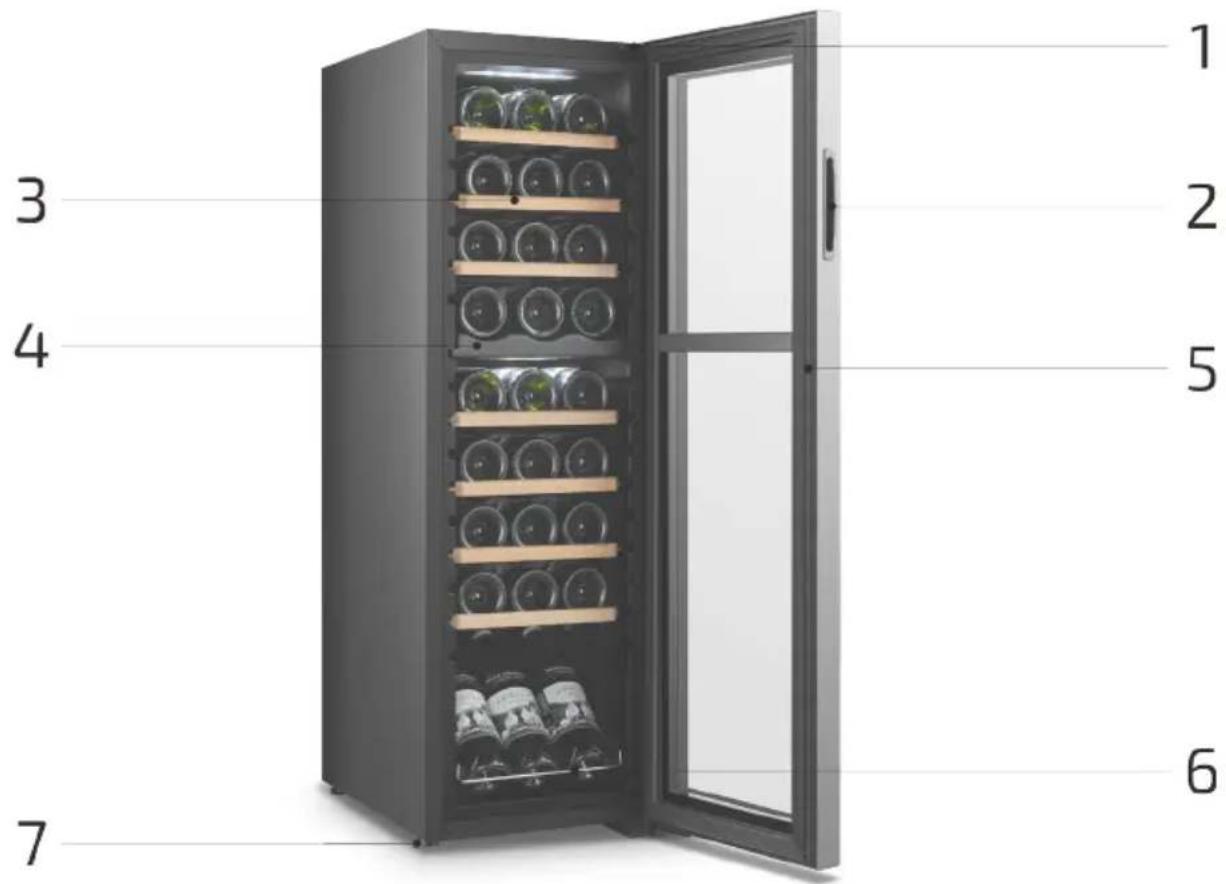

INSTALLATION INSTRUCTIONS

1 2 3 4 5 6 7

1 Up1per Hinge
2 Door Handle
3 Shelves
4 Partitions

5 Door Gasket
6 Display Shelves
7 Adjust Foot

OPERATING YOUR UNIT

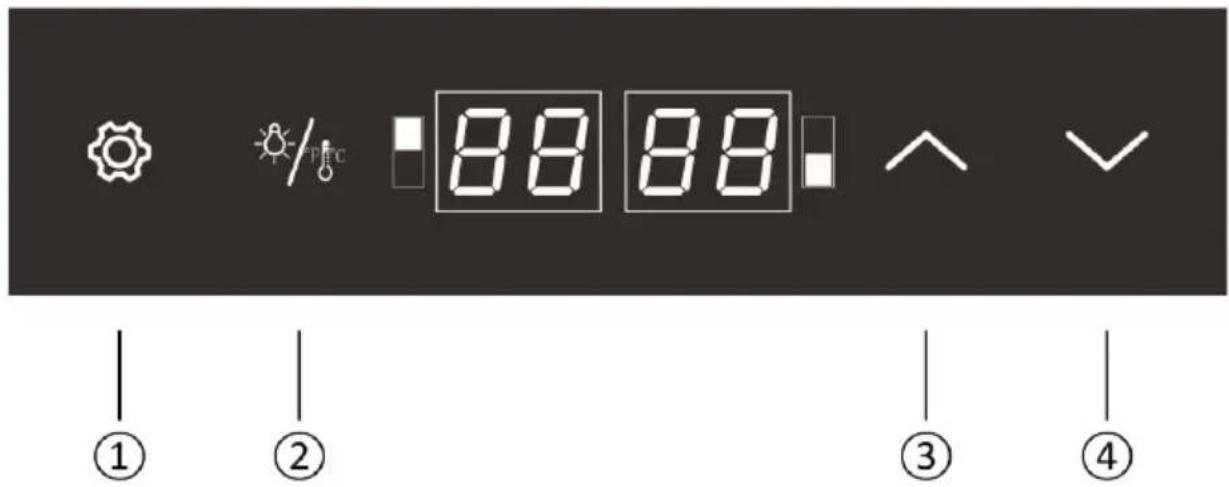

Setting the Temperature Control

88 88 ① ② ③ ④

Key Function

① Unlock key: short press to switch the upper room/lower room setting state; long press for 2 seconds to unlock
② Light/CF key: short press to turn on or off; long press to switch between Fahrenheit and Celsius.
③ Add key: temperature setting
④ Minus key: temperature setting

Automatic locking function

When all the key no operation for 20 seconds, the key will be locked automatically. After locking, the plus and minus keys cannot be operated. The unlock key and light / CF key operate normally

Auto light off function

When all the key no operation for 10 minutes, the lamp will turn off automatically

Adjustable range

Upper room:

lowest value: 5°C / 41°F

Maximum value: 18°C / 64°F

Lower chamber:

lowest value: 5°C / 41°F

Maximum value: 18°C / 64°F

Display range

Temperature display range of control panel:0\~37°C / 32\~99°F

Forced defrosting function

When the compressor works for 12 hours, the compressor will stop working for 30 minutes

Memory function

The control board is re-energized after each power-off, the temperature setting value, Fahrenheit/Celsius state will be the same as before the power-off, and the length of power-off time is not limited

Tips

• It is intended to be used exclusively for the storage of wine.

• This refrigerating appliance is not suitable for the freezing foodstuffs.

• The wine cooler is recommended to be designed at 12^ C.

- The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances.

- The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

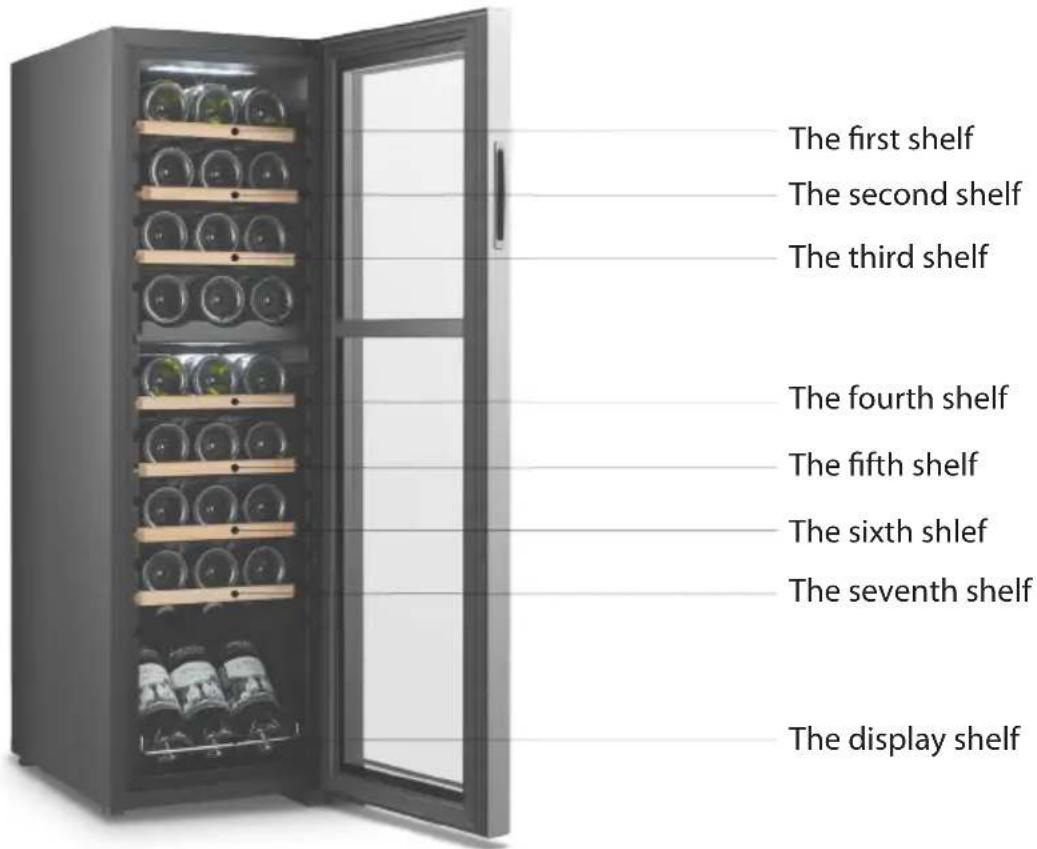

THERE ARE SEVEN SHELVES AND ONE DISPLAY SHELF IN TOTAL

The first shelf The second shelf The third shelf The fourth shelf The fifth shelf The sixth shelf The seventh shelf The display shelf

• When the surrounding temperature is 25^ C and the wine cooler has no bottle loaded, it will take around 30 minutes to increase the wine cooler's temperature from 5^ C to 12^ C. Under the same circumstance, it will take around one hour to decrease the wine cooler's temperature from 12^ C to 5^ C. The less the temperature span is, the less time it will take
• The setting temperature of upper zone should be lower than the setting temperature of lower zone
• The wine cooler is recommended to be designed at 12°C. The energy consumption is 0.419kWh/24h. If the setting temperature is higher than 12°C, the energy consumption will be lower. If the setting temperature is lower than 12°C, the energy consumption will be higher.
• When the compressor works for 12 hours, the compressor will stop and defrost for 30 minutes

GENERAL FAULT DESCRIPTION

If the product is not working properly, please check and handle according to the following methods. If the situation can not be changed, please contact the local after-sales service center in time, and be sure to provide the model name and product number in detail.

The refrigerator doesn't work

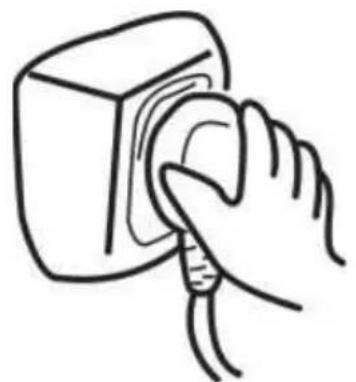

Hand inserting a circular component into a rectangular device (no text or symbols)

Is the power on?

0 220

Is the power supply voltage too low?

Nolighting It's noisy

Simple line drawing of a sad light bulb with eyes closed and nose, no text or symbols present

The light switch was not pressed

Line drawing of a hand pressing down on a button (no text or symbols)

Is the power on? Wh

ether the ground is flat and whether the product is placed stably

Simple line drawing of an electric refrigerator next to a small stool with steam lines indicating heat or smoke (no text or symbols)

Is the product in contact with external objects or walls

The internal temperature is too high

Improper setting temperature, please select the appropriate temperature

Simple line drawing of a refrigerator with smoke and steam bubbles (no text or symbols)

The door is not closed tightly or opened frequently, and the opening time is too long

Simple line drawing of a refrigerator with steam rising and a stove nearby (no text or symbols)

Is the location exposed to direct sunlight or too close to the furnace and other heat sources

Cartoon illustration of a smiling refrigerator with steam rising, next to a folded paper sheet (no text or symbols)

Poor heat dissipation, please check whether there is enough cooling space around the product

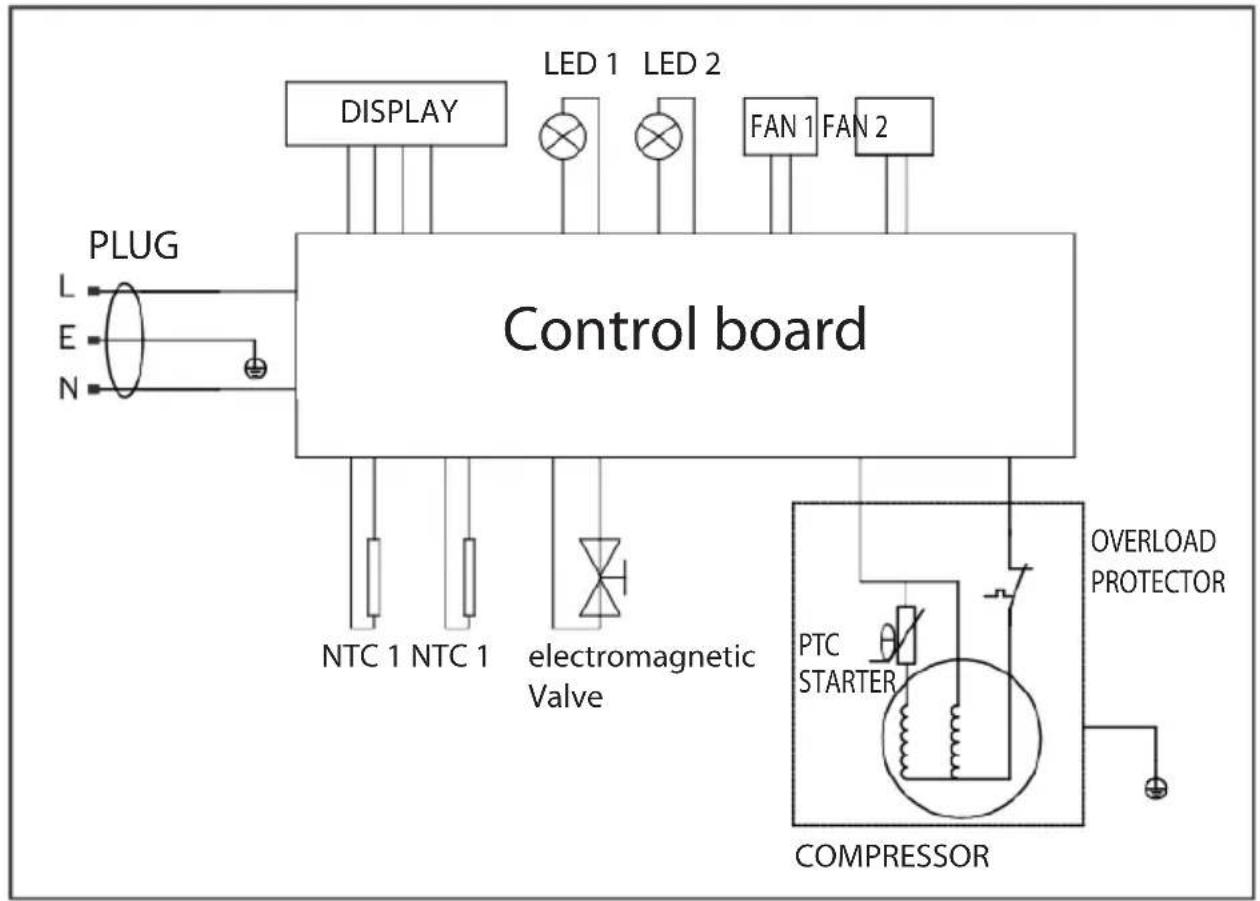

WIRING DIAGRAM

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

IMPORTANT SAFETY INSTRUCTIONS

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTION.

WARNING To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

·Before using the appliance, please read this user manual to ensure that you gain the maximum benefit from it.

WARNING:1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.2) Children should be supervised to ensure that they do not play with the appliance.3) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.4) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.5) To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.6) When positioning the appliance, ensure the supply cord is not trapped or damaged.7) Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.8) Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.9) Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.10) Do not damage the refrigerant circuit.11) Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.12) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.13) This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments;- farm houses and by clients in hotels, motels and other residential type environments;- bed and breakfast type environments;- catering and similar non-retail applications.14) Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

15) To avoid contamination of drink, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- Note: This appliance contains flammable refrigerant R600a and foaming agent cyclopentane. Please avoid contact fire when you transport and use it.

Please ask professional for servicing when the machine broke down. Please send it to your local appointed disposal station when you discard it.

-Save these instructions-

INSTALLATION INSTRUCTIONS

1 2 3 4 5 6 7

1 Up1per Hinge
2 Door Handle
3 Shelves
4 Partitions

5 Door Gasket
6 Display Shelves
7 Adjust Foot

OPERATING YOUR UNIT

Setting the Temperature Control

88 88 ① ② ③ ④

Key Function

① Unlock key: short press to switch the upper room/lower room setting state; long press for 2 seconds to unlock
② Light/CF key: short press to turn on or off; long press to switch between Fahrenheit and Celsius.
③ Add key: temperature setting
④ Minus key: temperature setting

Automatic locking function

When all the key no operation for 20 seconds, the key will be locked automatically. After locking, the plus and minus keys cannot be operated. The unlock key and light / CF key operate normally

Auto light off function

When all the key no operation for 10 minutes, the lamp will turn off automatically

Adjustable range

Upper room:

lowest value: 5°C / 41°F

Maximum value: 18°C / 64°F

Lower chamber:

lowest value: 5°C / 41°F

Maximum value: 18°C / 64°F

Display range

Temperature display range of control panel:0\~37°C / 32\~99°F

Forced defrosting function

When the compressor works for 12 hours, the compressor will stop working for 30 minutes

Memory function

The control board is re-energized after each power-off, the temperature setting value, Fahrenheit/Celsius state will be the same as before the power-off, and the length of power-off time is not limited

Tips

• It is intended to be used exclusively for the storage of wine.

• This refrigerating appliance is not suitable for the freezing foodstuffs.

• The wine cooler is recommended to be designed at 12^ C.

- The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances.

- The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

THERE ARE SEVEN SHELVES AND ONE DISPLAY SHELF IN TOTAL

The first shelf The second shelf The third shelf The fourth shelf The fifth shelf The sixth shelf The seventh shelf The display shelf

• When the surrounding temperature is 25^ C and the wine cooler has no bottle loaded, it will take around 30 minutes to increase the wine cooler's temperature from 5^ C to 12^ C. Under the same circumstance, it will take around one hour to decrease the wine cooler's temperature from 12^ C to 5^ C. The less the temperature span is, the less time it will take
• The setting temperature of upper zone should be lower than the setting temperature of lower zone
• The wine cooler is recommended to be designed at 12°C. The energy consumption is 0.419kWh/24h. If the setting temperature is higher than 12°C, the energy consumption will be lower. If the setting temperature is lower than 12°C, the energy consumption will be higher.
• When the compressor works for 12 hours, the compressor will stop and defrost for 30 minutes

GENERAL FAULT DESCRIPTION

If the product is not working properly, please check and handle according to the following methods. If the situation can not be changed, please contact the local after-sales service center in time, and be sure to provide the model name and product number in detail.

The refrigerator doesn't work

Hand inserting a circular component into a rectangular device (no text or symbols)

Is the power on?

0 220

Is the power supply voltage too low?

Nolighting It's noisy

Simple line drawing of a sad light bulb with eyes closed and nose, no text or symbols present

The light switch was not pressed

Line drawing of a hand pressing down on a button (no text or symbols)

Is the power on? Wh

ether the ground is flat and whether the product is placed stably

Simple line drawing of an electric refrigerator next to a small stool with steam lines indicating heat or smoke (no text or symbols)

Is the product in contact with external objects or walls

The internal temperature is too high

Improper setting temperature, please select the appropriate temperature

Simple line drawing of a refrigerator with two exhaust smoke bubbles (no text or symbols)

The door is not closed tightly or opened frequently, and the opening time is too long

Simple line drawing of a refrigerator and a stove with sun in the background (no text or symbols)

Is the location exposed to direct sunlight or too close to the furnace and other heat sources

Cartoon illustration of a smiling refrigerator with steam rising, next to a folded paper sheet (no text or symbols)

Poor heat dissipation, please check whether there is enough cooling space around the product

WIRING DIAGRAM

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
