OPK5860BC - Range hood Concept - Free user manual and instructions

Product Type	Range hood (wall-mounted or island)
Brand	Concept
Model	OPK5860BC
Width	60 cm (23.6 inches)
Depth	50 cm (19.7 inches)
Height (min-max)	60–110 cm (adjustable telescopic chimney)
Net Weight	Approx. 15 kg
Power Supply	220–240 V ~ 50 Hz, 2.8 A
Motor Power	200 W
Extraction Rate (max)	600 m³/h (ducted mode)
Noise Level (max speed)	65 dB(A)
Number of Speeds	3
Lighting	2 x 1.5 W LED (warm white)
Grease Filter	Aluminum mesh, washable
Carbon Filter	Optional (for recirculation mode)
Controls	Mechanical push buttons
Energy Class	A (on a scale of A+++ to D)
Ducting Diameter	150 mm (6 inches)
Operation Mode	Ducted (air exhaust) or recirculating
Warranty	2 years (subject to country regulations)

Frequently Asked Questions - OPK5860BC Concept

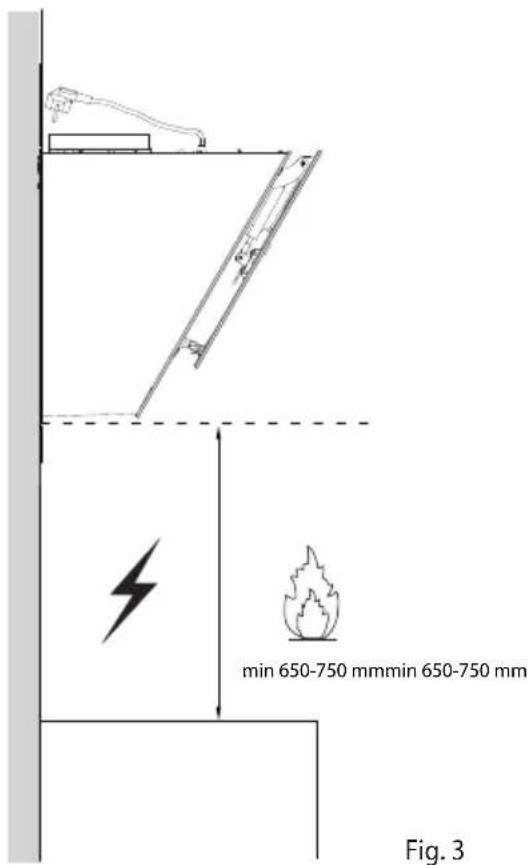

What is the recommended installation height above a gas or electric hob?

For gas hobs, a minimum height of 65 cm is recommended; for electric hobs, 55 cm. Follow local regulations for safety.

How often should the grease filters be cleaned?

Clean the aluminum grease filters every 2–3 months or when the filter saturation indicator lights up. Use warm water and mild detergent, then dry thoroughly before reinserting.

Can the range hood operate in recirculation mode without external ducting?

Yes, the hood can be used in recirculation mode with an optional carbon filter (not included). The filter absorbs odors and needs replacement every 3–6 months depending on usage.

Why is the hood unusually noisy?

Check if the ducting is blocked or if the filters are clogged. Also ensure the hood is properly installed and not vibrating against cabinets. Maximum noise level is 65 dB(A) at highest speed.

How do I change the LED bulbs?

The LED lights are integrated and non-replaceable. If they fail, contact Concept customer service for assistance.

What is the maximum extraction rate and does it vary with duct length?

Maximum extraction rate is 600 m³/h in ducted mode. Actual performance decreases with longer or more curved ducting. Use smooth, short ducts for best efficiency.

Does the hood come with a remote control?

No, this model is controlled via mechanical buttons on the front panel. No remote control is included.

Can I use the hood if there is no power outlet nearby?

The hood requires a dedicated 220–240 V grounded outlet. Installation by a qualified electrician is recommended to ensure compliance with local electrical codes.

How do I reset the filter saturation indicator?

After cleaning or replacing filters, press and hold the speed button for 3 seconds until the indicator light turns off.

Is the warranty valid if I install the hood myself?

Warranty remains valid as long as installation follows the manual and local regulations. However, damage due to improper installation may not be covered.

USER MANUAL OPK5860BC Concept

concept OPK5860bc

PODĚKOVÁNÍ

Simple line drawing of a rectangular object with internal slots and a labeled section A (no text or symbols on the object itself)

Simple line drawing of a rectangular object with two small figures and dots, labeled 'B' at the bottom (no text or symbols on the object itself)

3D rendered image of a curved pipe fitting with flanged ends (no text or symbols)

Metal mesh panel with a labeled point 'D' above it (no other text or symbols)

Circular black fan or blade with radial lines, labeled 'E' at top (no other text or symbols)

POPIS OVLÁDACÍHO PANELU

Simple line drawing of a rectangular frame with four small circular elements and two protruding pins, no text or symbols present.

Obr. 5 Obr. 6

Technical diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

Obr. 7

Simple line drawing of a rectangular box with directional arrows indicating movement or force (no text or symbols)

Demontáž

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a rectangular device with internal components, labeled 'A' (no text or symbols on the device itself)

3D rendered image of a curved pipe fitting with a labeled point 'C' (no text or symbols on the object itself)

Simple diagram of a rectangular object with two identical human figures and dots, labeled 'B' at the top (no text or symbols on the object itself)

Close-up of a textured surface with a labeled point 'D' above it (no other text or symbols visible)

Circular black object with radial lines and a labeled point 'E' above it (no other text or symbols)

POPIS OVLÁDACIEHO PANELU

Simple line drawing of a rectangular frame with four small circular elements and two protruding pins, no text or symbols present.

Obr. 5 Obr. 6

Technical diagram showing a mechanical assembly with a dashed circular inset view of a component (no text or symbols present)

Simple line drawing of a rectangular box with horizontal arrows indicating direction, no text or symbols present.

Obr. 7

Demontáž

Technical illustration of a curved pipe fitting with labeled components A and C (no text or symbols beyond labels)

B D E

OPIS PANELU STEROWANIA

Technical diagram showing a mechanical assembly with a dashed circular inset view of a cabinet and a coiled spring (no text or symbols)

Simple line drawing of a rectangular box with a horizontal bar above it and dashed lines indicating measurement or alignment (no text or symbols)

Rys. 7

Demontaż

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a rectangular object with internal channels and a labeled section A (no text or symbols on the object itself)

Simple line drawing of a rectangular object with two human figures and dots, labeled 'B' (no text or symbols on the object itself)

3D rendering of a curved blue pipe fitting with flanged ends, labeled 'C' in the corner (no text or symbols on the object itself)

Metal mesh panel with a labeled point 'D' above it (no other text or symbols)

Circular black fan or sensor device with radial blades and a labeled point E (no text or symbols on the device itself)

VADĪBAS PANELA APRAKSTS

Simple line drawing of a rectangular frame with four small circular elements and evenly spaced dots below (no text or symbols)

att. 5 att. 6

Technical diagram showing a door opening and a cylindrical component with a magnified inset (no text or symbols)

att. 7

Simple line drawing of a rectangular box with two horizontal lines above it and directional arrows indicating movement (no text or symbols)

Demontāža

TRAUCĚJUMU NOVĚRŠANA

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using this product is familiarized with the instructions.

TABLE OF CONTENTS

Technical specifications

Important safety information

Product description

Control panel description

Description of individual buttons of the control panel

User manual

Cleaning and maintenance

Installation of the appliance

Troubleshooting

Environmental protection

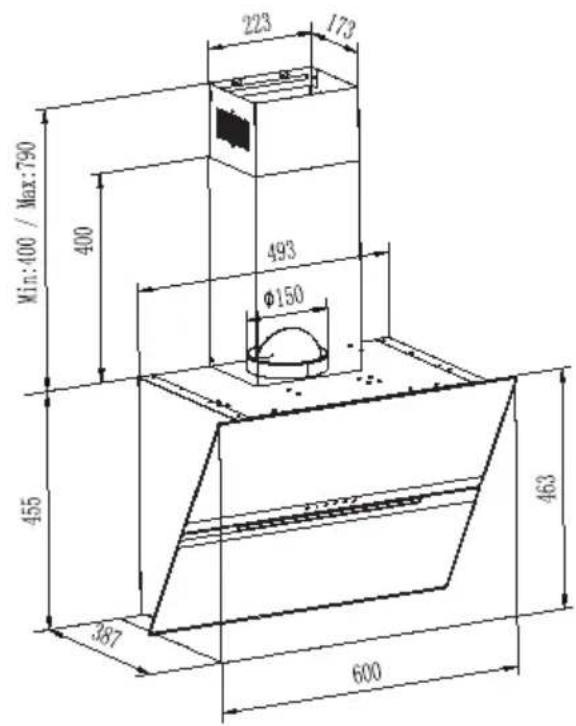

TECHNICAL SPECIFICATIONS

Technical specifications
Voltage 220–240 V ~ 50 Hz
Total power input 253 W
Motor power input 250 W
Type Chimney type
Assembly Wall mounting
Height 415 mm
Width 600 mm
Depth 430 mm
Diameter of flexible outlet duct 150 mm
Extracted air output stages 3
Capacity of extracted air 568,8 m	^3/h
Fat filters 1
Required number of carbon filters for recirculation 2
Mode	Ventilation/recirculation
LED lamp	2 x 1.5 W
Weight	17,5 kg
Noise level of ventilation/recirculation	≤58 dB (A)

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

IMPORTANT SAFETY INFORMATION

Upon delivery of fume hood

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to get cut when handling an uninstalled unit.
• Do not install the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any way other than as described in this manual.
• Only use it as a household appliance and for removal of fumes arising from cooking of food or for recirculation and absorption of smells arising from cooking of food.
  • This appliance can be used in households and similar places like:
• Kitchen cabinets in shops, offices and other workplaces.
• Appliances used in agriculture.
• Appliances used by guests in hotels and other areas in a hotel environment.

• Appliances used in a Bed and Breakfast environment.

• Do not touch the appliance with wet hands.

• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
  • Children should not play with the appliance.
• Pay extra attention if the appliance is used near children.
• Do not allow the appliance to be used as a toy.
• This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.
• If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.

- When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

- Do not immerse the power cord or the plug in water or any other liquid.

- Check the appliance and the power cord for damage regularly.

- Do not switch on the appliance if it has been damaged.

- Unless the appliance is in operation, ensure that all its controls are switched off.

- Do not manipulate with an open flame (e.g. singeing) under the appliance. If you remove a cooking vessel from a gas burner, reduce its flame to minimum or turn it off!

- Caution! Risk of fire! Care must be taken to ensure that the diameter of the gas burners on the gas cooker or the cooking plate corresponds to that of cooking utensils used. If cooking vessels with a diameter lower than recommended are used, the flame could start to burn around the cooking vessel resulting in a risk of melting plastic handles.

- While deep frying or frying of food, observe this food all the time. In the case of oil overheating, there is a risk of fire!

- Ensure that the flames do not get too close to the appliance.

- Observe intervals for replacement and cleaning of filters (at least every 2-3 months). Failure to observe these requirements results in a risk of fire due to fat accumulating in the filters!

- All the respective current standards and official regulations must be observed relating to the removal of the extracted air.

- A ventilation duct diameter for the removal of the extracted air should be approximately the same or larger than that of the hood's flexible outlet duct.

- Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products or a shaft serving for ventilation of rooms where fireplaces are situated.

- When the appliance and fireplaces are in operation simultaneously, vacuum in the room should not be higher than 4 Pa (0.04 mbar).

- Do not use any accessories other than those recommended by the manufacturer.

- Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.

- Do not use any corrosive cleaning agents for cleaning. Maintenance and cleaning on a regular basis extend the lifetime of the appliance.

• Children should not clean and maintain the appliance unless they are at least 8 years old and under supervision.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• If the power cord is damaged, contact the authorised service centre.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

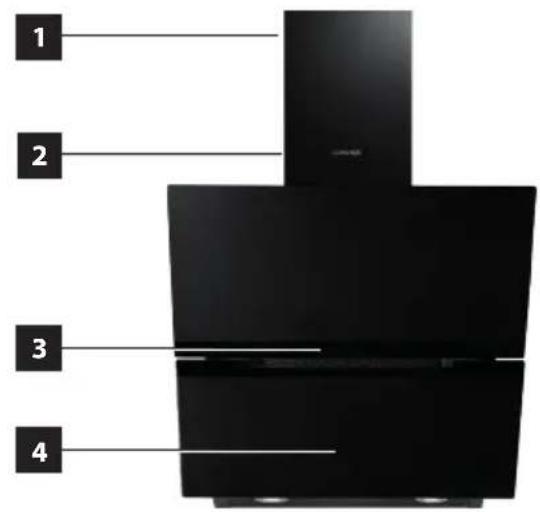

PRODUCT DESCRIPTION

1 Upper chimney cover
2 Lower chimney cover
3 Control panel
4 Appliance body

Accessories

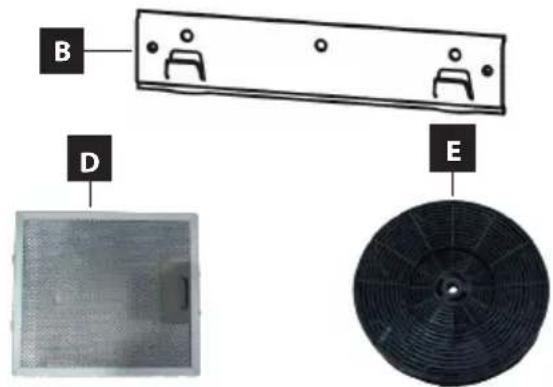

A Bracket for upper and lower chimney cover
B Bracket for appliance
C Flexible outlet duct
D Metal fat filter (imagine is for reference only)

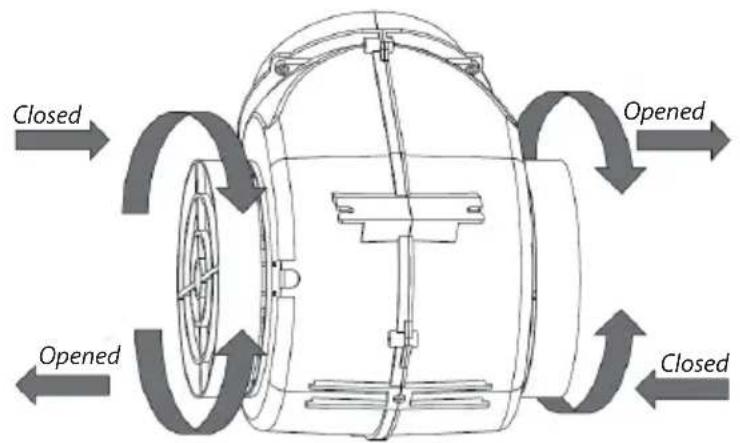

E Carbon filter (to be purchased)

1 2 3 4

Simple line drawing of a rectangular object with internal slots and a labeled section A (no text or symbols on the object itself)

Simple diagram of a rectangular object with two identical human figures and dots, labeled 'B' at the bottom (no text or symbols on the object itself)

3D rendering of a blue curved pipe fitting with flanged ends, labeled 'C' in the corner (no text or symbols on the object itself)

Square grid pattern with a labeled point 'D' above it (no text or symbols within the pattern)

Circular black fan or blade with radial lines, labeled 'E' at top (no other text or symbols)

CONTROL PANEL DESCRIPTION

1 Appliance On/Off button
2 Low power ventilation button
3 Medium power ventilation button
4 High power ventilation button
5 Lighting On/Off button
6 Sensor for remote control

1 2 3 R 1 2

DESCRIPTION OF CONTROL PANEL BUTTONS

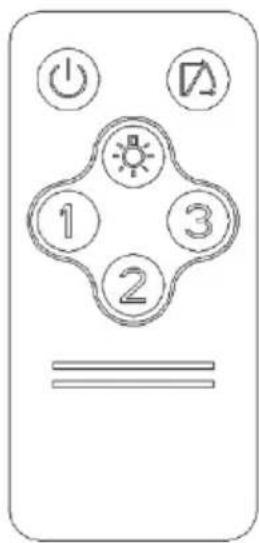

Remote control

- Pressing the button will fully open the upper glass cover, allowing easier cleaning and replacement of the grease filter. After cleaning and replacing the grease filter back on the hood, press this button on the remote control again. The upper glass cover returns to its original position.

Lighting On/Off button

• Push the button to switch on/off the appliance lighting.
• Press the button for 3 seconds to change the light intensity.

Low power ventilation button

- Press the button for low power ventilation.

Medium power ventilation button

- Press the button for medium power ventilation.

High power ventilation button

- Press the button for high power ventilation.

Appliance On/Off button

• Push the button to switch on/off the appliance.
• When pushed, the button illuminates.
• Upon switching the appliance on, the extracted air output is set to the lowest output value.
• Whenever the appliance is switched on, the extracted air output shall always be set to the lowest output value.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

USER'S MANUAL

Before first use

Before first use you should wipe the outside and inside of the appliance with a damp cloth for hygiene reasons.

Ventilation mode

The extracted air is discharged through the flexible outlet duct to the ventilation shaft out of the room. If the appliance is equipped with a carbon filter, remove it (see chapter Cleaning and maintenance).

1. Push button (1) to switch on the appliance.
2. Press a button (2, 3 or 4) to select the air suction power.
3. The select button will light up.
4. Push button (1) twice to switch the appliance off.

Recirculation mode

If there is no possibility of discharging the extracted air out of the room, you can use the recirculation mode. In this case, the extracted air is filtered through the metal fat filters and the carbon filter. An active carbon in this filter absorbs the smell. Air, free from the smell, flows back into the room through openings situated in the upper chimney cover. When the recirculation mode is used, it is necessary to purchase and install the appropriate carbon filters (see chapter Cleaning and maintenance).

1. Push button (1) to switch on the appliance.
2. Press a button (2, 3 or 4) to select the air suction power.
3. The select button will light up.
4. Push button (1) twice to switch the appliance off.

Note:

When the recirculation mode is used (carbon filter installed), the extracted air output can drop.

CLEANING AND MAINTENANCE

• Disconnect the power cord from the wall outlet or switch off the circuit breaker of the appliance before cleaning and maintenance.
  • To clean the appliance outside, use a damp cloth, a soft brush or a fine sponge, and then wipe it dry.
• Do not use coarse abrasive cleaning agents or sharp metal scrapers for cleaning of the appliance as this could result in surface scoring.
• Do not use steam jets to clean the appliance!
• Never leave aggressive or acidic substances (lemon juice, vinegar) on enamelled or stainless parts of the appliance.

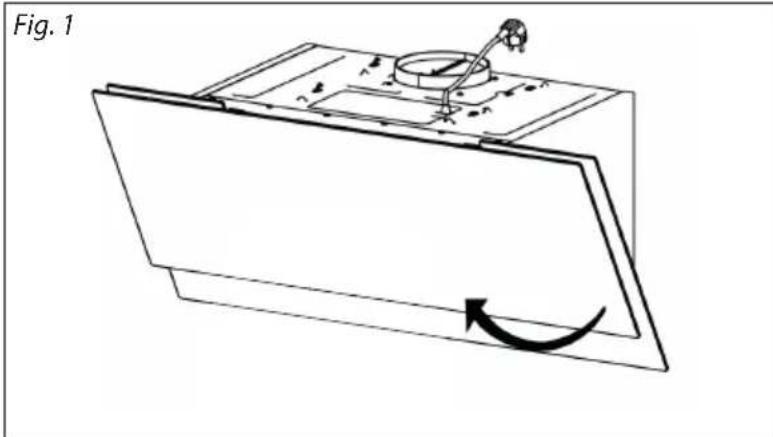

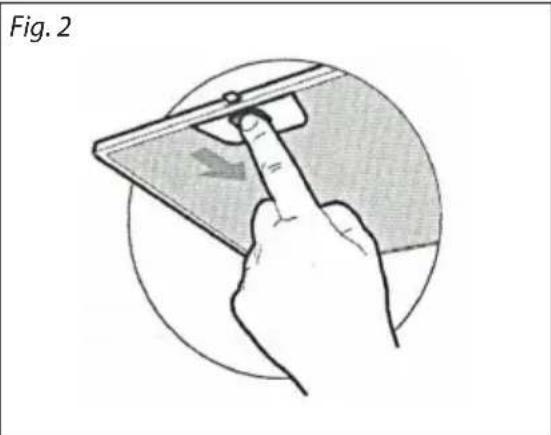

Cleaning and replacement of filters

Metal fat filters

When the appliance is in common use, the metal fat filters should be checked or cleaned every month. In case of more frequent frying or deep frying, shorten this interval.

Do not use the appliance without the metal fat filters properly installed!

1. To remove the metal filter, first open the top glass cover.

2. Press the icon ☑ to fully open the top glass cover for easier cleaning and replacement of the grease filter.

3. Remove the metal filter according to Fig. 2.

4. We recommend to soak the metal filters in warm water with a detergent, then to clean with a soft brush, rinse with clean water and allow to dry. The filters are also dishwasher safe using a program below 60 °C. In this case, it is necessary to avoid the use of aggressive detergents –the aluminum filters can blacken under the influence of the chemical reaction.

5. After cleaning and replacing the grease filter on the hood, press the button on the remote control again. The top glass cover returns to its original position.

Diagram of a mechanical device with a rotating component and directional arrow, labeled Fig. 1 (no text or symbols on the diagram itself)

Illustration of a hand using a compass to interact with a device, showing a curved arrow (no text or symbols)

Carbon filter (to be purchased)

This filter is only used for the recirculation mode.

The filter contains an active carbon absorbing the smell being discharged. The active carbon will be saturated after some time, hence the absorption capacity will be shortened. This filter cannot be washed or cleaned in any other way.

When the appliance is in common use, the carbon filter should be replaced every 2-3 months. In case of more frequent frying or deep frying, shorten this interval.

1. Remove the metal filters as shown in Fig. 2.

2. The carbon filters are situated on both sides of the motor. Turn the filters, until they are secured (see Fig. 3).

3. To replace the carbon filter, proceed in reverse order.

Fig. 3

Closed Opened Closed

INSTALLATION OF THE APPLIANCE

Caution!

Risk of electric shock! Before installation, disconnect the power cord from the wall outlet. Otherwise there is a risk of death or electric shock.

• Defects caused by improper installation are not covered by the warranty.
  • Installation is the responsibility of the customer not the manufacturer.
• The manufacturer bears no responsibility for damage caused to people, animals or property due to incorrect installation.
• All guards must be placed firmly in their appropriate place in a way they cannot be removed without using special tools.
  • Install the appliance at least 650 mm above the electric and gas cookers or electric and gas hobs.
• Extracted air should not be led to a chimney intended for discharge of flue gases and combustion products or a shaft serving for ventilation of rooms where fireplaces are situated.
• Any bend of the ventilation pipe should be ≥ 120^ .
  • The room must be well ventilated during cooking.

Connection to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance.
• Only use grounded sockets.
• Do not use multiple sockets, plugs and extension cords.
• The plug of the power cord on the appliance must be freely accessible even after the installation.
  • Changes in a connection may only be performed by a qualified professional.
• Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.
• The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.

Appliance dimensions

Min:400 / Max:790 400 223 173 493 Φ150 455 387 600 463

When installing the appliance, follow these steps:

1. Remove all the packaging and marketing materials before first use.

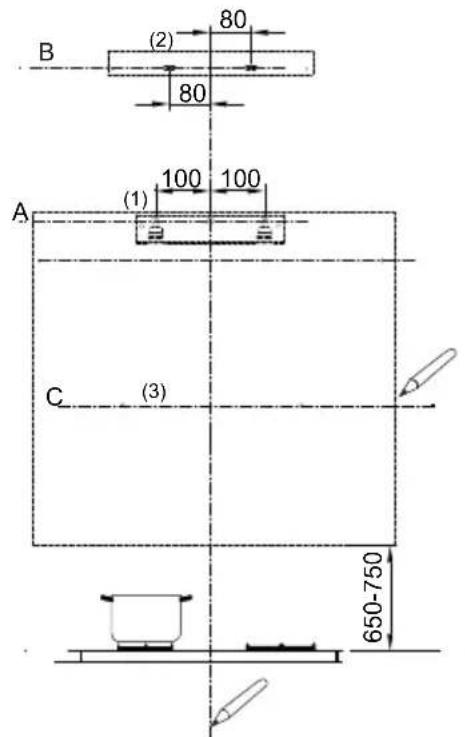

2. Mark the required installation height (650 mm for electric and 650 mm for gas cooking plates) on the wall behind the cooker or the cooking plate (Fig. 3).

3. Draw a vertical line to mark the centre of the cooking plate (of the cooker).

4. Drill holes and attach the hood according to Fig. 4.

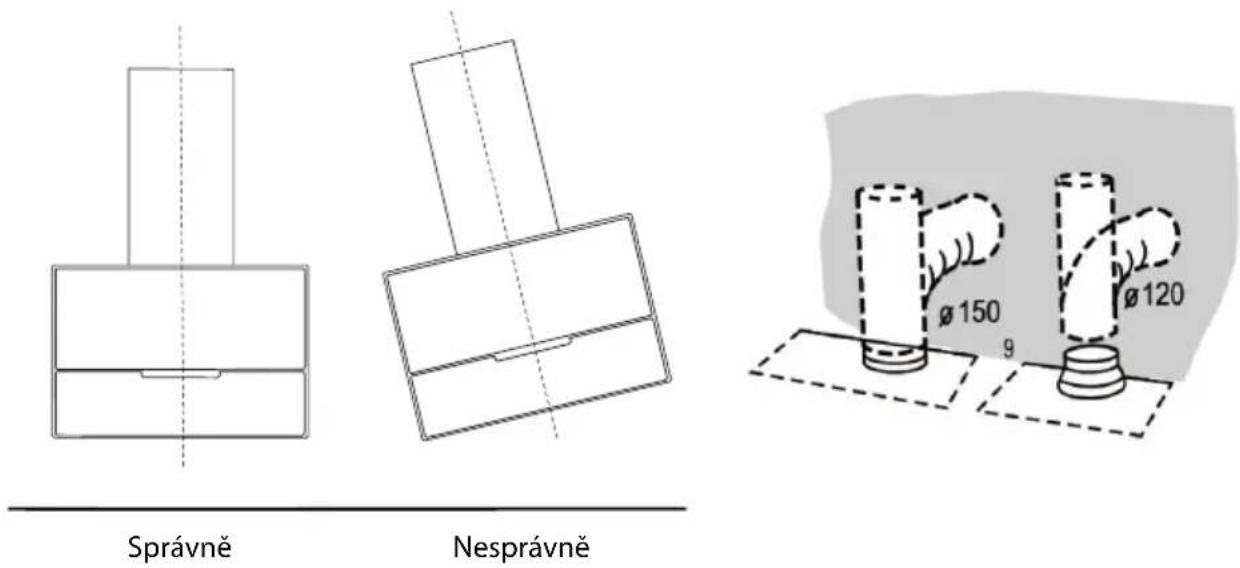

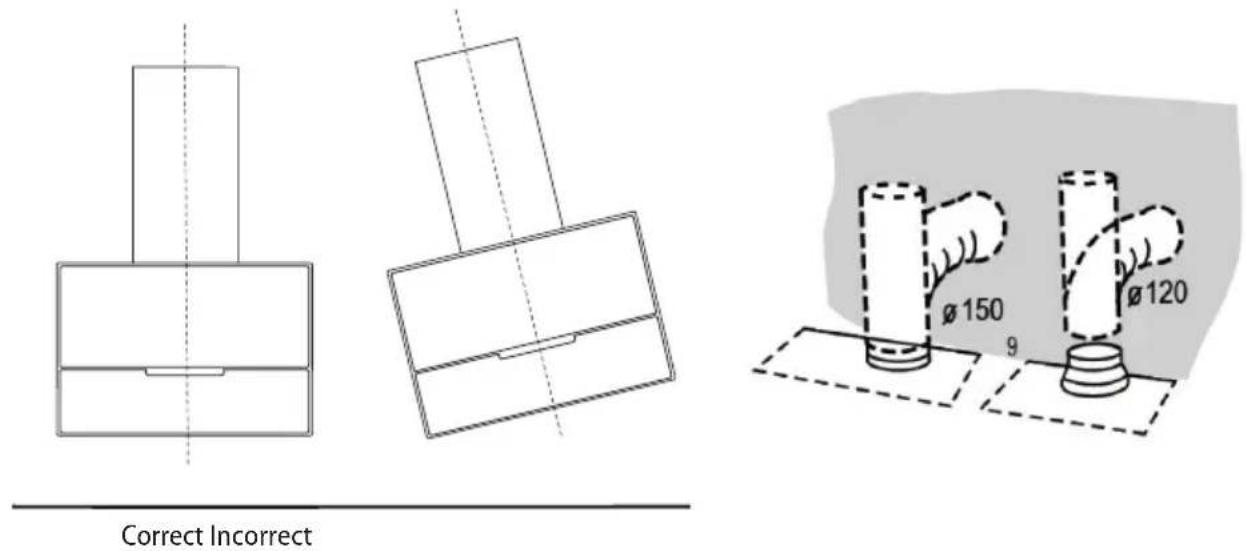

5. Make sure that the bracket is in the horizontal position in order to prevent grease (fat) from being accumulated on one side after the hood has been hung (Fig. 5).

6. After the hood has been hung, install the flexible outlet duct to the outlet opening (Fig. 6). Use a reducer fitting 150/120 mm in diameter, if required. Insert the second part of the flexible duct in the opening prepared in the wall.

7. Place the lower part as well as the upper part of the chimney on the hood hung (Fig. 4). Lift the upper part up to the required height and mark holes on the wall for attachment of the upper chimney part bracket. Subsequently remove the lower as well as the upper chimney part.

8. Drill holes and attach the upper chimney part bracket as shown in Fig. 4.

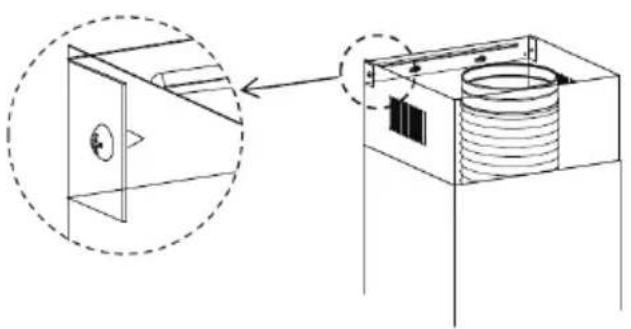

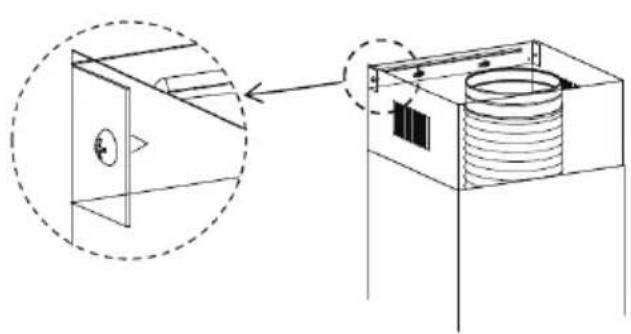

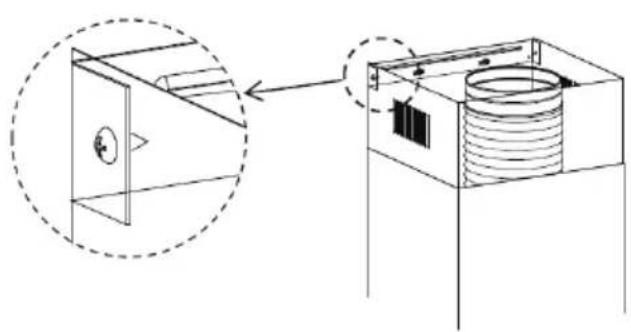

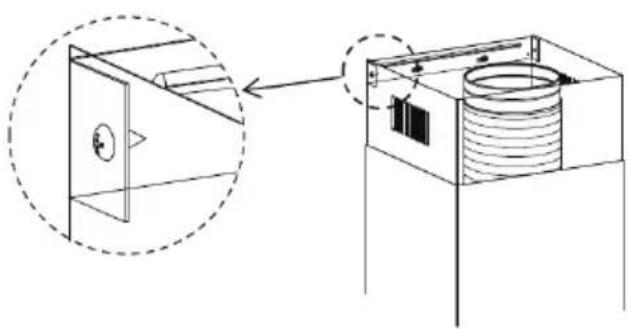

9. Place the lower as well as the upper chimney part. Lift the upper part up to the required height and attach the upper chimney part to the upper chimney part holder as shown in Fig. 7.

10. Plug the power cord into the wall outlet.

min 650-750 mmmin 650-750 mm Fig. 3

B (2) 80 80 100 100 A (1) C (3) 650-750

Fig. 4

Simple line drawing of a rectangular frame with four small protrusions and scattered small objects below (no text or symbols)

Fig. 5

Fig. 6

Technical diagram of a mechanical device with a magnified inset showing a component detail (no text or symbols)

Fig. 7

Simple line drawing of a rectangular box with horizontal arrows indicating direction, no text or symbols present.

Disassembling

If you disassemble the appliance, it is important to follow the steps in the correct order:

1. First, unplug the power cord from the mains (pull the plug out or switch off the circuit breaker).
2. Subsequently disassemble individual parts of the hood in reverse order of the appliance installation.

TROUBLESHOOTING

Defect description Possible cause Solution
Lamps illuminate but the motor stands idle	The motor blades are blocked. Contact the service centre.
	The motor or its essential parts are damaged.	Contact the service centre.
	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Lamps do not illuminate and the motor stands idle	The plug inserted incorrectly or insufficiently in the wall outlet.	Check connection of the plug.
	The wall outlet is not energized.	Check that the wall outlet is energized, e.g. by connecting another appliance.
Fat drops from the metal fat filters	Heavily fouled filters.Risk of fire!	Immediately clean or replace the metal fat filters.
The appliance vibrates when the appliance is on	The motor blades are damaged. Contact the service centre.
	The motor is not fixed fast.	Contact the service centre or fix the motor fast.
	The hood is not fixed fast. Fix the hood fast.
Insufficient exhaust of the extracted air	Distance between the hood and the cooking plate is too long.	Reduce distance between the hood and the cooking plate.
	Strong draught, too many doors or windows opened.	Close some doors or windows.
The motor stopped working	The thermal overload protection against the motor overheating triggered.	Improve the room ventilation, open doors or windows or check distance between the hood and the cooking plate. If required, increase distance between the hood and the cooking plate.
The hood is not levelled	The hood bracket is not levelled or the bracket screws are not tightened firmly.	Check the bracket for being levelled or tighten holding screws and level the hood.

Lightning replacement

When replacing, keep on mid the lighting must be replaced with lighting of the same type and the same parameters.

To replace the lightning, proceed as follows:

1. Disconnect the appliance from the mains or switch off the circuit breaker.
2. Remove the metal filters (see chapters Cleaning and Filter Replacement) and remove the bottom cover by unscrewing two screws.
3. Disconnect the LED lightning terminal.
4. Push on the entire body (storage) of the lightning from the back of the bottom cover and remove the lightning.
5. Replace the lighting with a new one of the same type.
6. Install the bottom cover in the opposite way to removing it.
7. Put the metal filters back and connect the appliance to the mains or switch on the appropriate circuit breaker.

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

CONCEPT POLSKA sp. z o.o.
