USER MANUAL PureStar E60 TESLA

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including internal components and component labels.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a portable electric shaver with attached power cord (no text or symbols)

Diagram of a mechanical assembly showing a connector and shaft with directional arrows (no text or labels)

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including internal components and component labels.

Technical line drawing of a mechanical device with no visible text or symbols

Vložte batériu do slotu v tele vysávača.

2.

Line drawing of a portable handheld device connected to a power cord (no text or symbols)

Diagram of a mechanical assembly showing a shaft connected to a housing and a motor, with directional arrows indicating motion (no text or symbols present)

Pripojte k flexibilné trubici turbokefa a potom trubicu pripojte do tela vysávača.

4.

Technical line drawing of a mechanical assembly with two views: one showing a drill bit and the other showing a drill bit (no text or symbols present)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including control panel and component labels.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a portable air purifier connected to a power cord (no text or symbols)

Diagram of a mechanical assembly showing a connector, shaft, and housing with directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including control panel and socket components.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a portable handheld device connected to a power cord (no text or symbols)

Diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical assembly process with labeled components and directional arrows indicating assembly steps.

Technical line drawing of a mechanical assembly with two views: one showing a disassembled component and the other showing a drill bit (no text or symbols present)

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including labeled parts 1 through 14.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a portable handheld device connected to a power cord (no text or symbols)

Diagram of a mechanical assembly showing a connector and shaft with directional arrows (no text or symbols)

Turbo krtačo priključite na prožno cev in nato cev na telo sesalnika.

4.

Technical line drawing of a mechanical assembly with two views: one showing a disassembled component and the other showing a drill bit (no text or symbols present)

VAŽNA SIGURNOSNA UPOZORENJA

PROIZVOD JE NAMIJENJEN SAMO ZA UPORABU U KUĆANSTVU.

Pročitajte sve upute s razumijevanjem. Nepridržavanje niže navedenih uputa može dovesti do električnog udara, požara ili teških ozljeda. Upozorenja i upute navedene u ovom priručniku ne mogu pokriti sve okolnosti i situacije koje mogu nastati. Osoba koja rukuje aparatom mora shvatiti da su zdrav razum i oprez čimbenici koji se ne mogu ugraditi u proizvod već se za njih mora pobrinuti onaj tko aparatom rukuje.

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including labeled parts 1 through 14.

1. Turbo četka
2. Gumb za otpuštanje glave poda
3. Fleksibilna cijev
4. Fleksibilni gumb za otpuštanje cijevi
5. Gumb za Uključivanje/Isključivanje
6. Indikator stanja baterije

7. Regulacija snage

8. Gumb za otpuštanje baterije

9. Gumb za otpuštanje spremnika za prljavštinu
10. Zidni nosač
11. Napajanje
12. Četkica 2u1
13. Duga cijev s prorezom
14. Mini turbo rotirajuća četka

SKLOP USISIVAČA

1.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a portable handheld device connected to a power cord (no text or symbols)

Spojite napajanje na bateriju. Kad je potpuno napunjen, iskopčajte punjač. Bateriju možete puniti bilo umetnutu u tijelo usisavača ili odvojeno.

Ako indikator stanja baterije (6) trepće, napunite bateriju. Status napunjenosti baterije označava se postupnim osvjetljavanjem indikatora statusa baterije. Status napunjenosti baterije označava se postupnim paljenjem indikatora baterije. Kada je baterija potpuno napunjena, indikatorsko svjetlo se gasi, iskopčajte punjač iz električne utičnice. Kad je potpuno napunjen, iskopčajte punjač iz zidne utičnice.

3.

Diagram of a mechanical assembly showing a connector and shaft with directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Ako je proizvodu pridružen simbol prekrižene kante za smeće, to znači da se na proizvod odnosi europska direktiva 2002/96/EZ. Molimo vas da se informirate o lokalnom sustavu odvojenog prikupljanja električnih i elektroničkih proizvoda. Pridržavajte se lokalnih propisa i ne odlazite stare proizvode u komunalni otpad. Ispravno odlaganje starih proizvoda pomaže spriječiti potencijalne negativne posljedice za životno okruženje i zdravlje ljudi.

S obzirom na to da se proizvod razvija i poboljšava, zadržavamo pravo na prilagodbu korisničkog priručnika. Važeću verziju korisničkog priručnika uvijek ćete naći na www.tesla-electronics.eu.

Dizajn i specifikacije mogu se izmijeniti bez prethodnog upozorenja. Moguće su tiskarske pogreške.

ROM

Stimate client,

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including control panel and component labels.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a portable electric shaver with attached power cord (no text or symbols)

Technical line drawing of a mechanical assembly with exploded and assembled views (no text or symbols)

thank you for choosing the TESLA PureStar E60.

Before using the device, please read the rules of safe use carefully and follow all common safety rules.

- Read through the instructions for use thoroughly before using

- Keep the user manual for future reference

- Follow the rules in this manual to reduce the risk of equipment damage or personal injury

IMPORTANT SAFETY INSTRUCTIONS

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.

Read and understand all instructions. Failure to follow the instructions below may result in electric shock, fire or serious injury. The warnings, cautions, and instructions discussed in this manual may not cover all possible conditions and situations that may occur. The operator must understand that common sense and caution are factors that cannot be incorporated into this product, but must be provided by the operator.

This appliance is a complex electromechanical device, please pay attention to the following instructions:

• This appliance is intended for domestic use; The brand bears no responsibility for improper use or for use contrary to the instructions for use and is not covered by the warranty.
• Improper use of the vacuum cleaner is considered, among other things, non-compliance with regular replacement or maintenance of all filters, as well as the use of non-original filters, due to the properties of which the vacuum cleaner has failed or been damaged.
  • The device is intended for indoor use only at room temperature (max. 40 °C).
• Check if the information on the type plate of the appliance corresponds to the voltage in your electrical socket.
• It is strictly forbidden to vacuum the following objects, otherwise the vacuum cleaner may be damaged or a fire may occur: hot objects such as coals, burning matches, hot ashes; large pieces of sharp fragments such as glass, etc.; solvents, caustics, water and liquids; plasterboard dust, fine sand, cement, construction dust, parts of plaster; grease, oil, flammable and explosive objects.
  • Always switch off the vacuum cleaner when cleaning or temporarily not using it.
• Never immerse the AC adapter, the battery and the motor part of the device in water (even partially) and protect it from moisture. Do not touch the vacuum cleaner with wet or damp hands.
• The vacuum cleaner must not be used in humid or wet environments and in any environment with a risk of fire or explosion.
• Never vacuum without filters. Each time you use the vacuum cleaner, make sure that the filters are fitted correctly.
• Do not allow children to play with the vacuum cleaner to avoid an accident.
• When handling the vacuum cleaner, avoid contact (eg loose clothing, hair, fingers, jewelry, bracelets, etc.) with the rotating brush.

• Do not touch the driven moving parts of the vacuum cleaner during operation.

• In the event of a fall and obvious damage or unusual operation, do not continue to use the vacuum cleaner and send it immediately to an authorized service center for repair.

• If the suction opening is clogged, avoid long-term operation to prevent damage to the motor and heat generation in the vacuum cleaner.
• If you do not use the vacuum cleaner for a long time, we recommend charging its battery once every three months. When the vacuum cleaner is shut down, its battery must be removed and safely recycled.
• The AC adapter becomes hot while charging the battery. Always switch off the vacuum cleaner when charging the battery and after using it.
• Never recharge a battery that leaks electrolyte. Do not dispose of the battery in a fire.
  • Only use original accessories that are designed for this model of vacuum cleaner.
• The manufacturer and importer into the European Union are not liable for damages caused by the operation of the vacuum cleaner, such as injuries, scalds, fire, injuries, deterioration of other items, etc.

PACKAGE CONTENTS

Carefully check that you have unpacked all the supplied accessories, we recommend that you keep the original paper box, user manual and packing material during the warranty period.

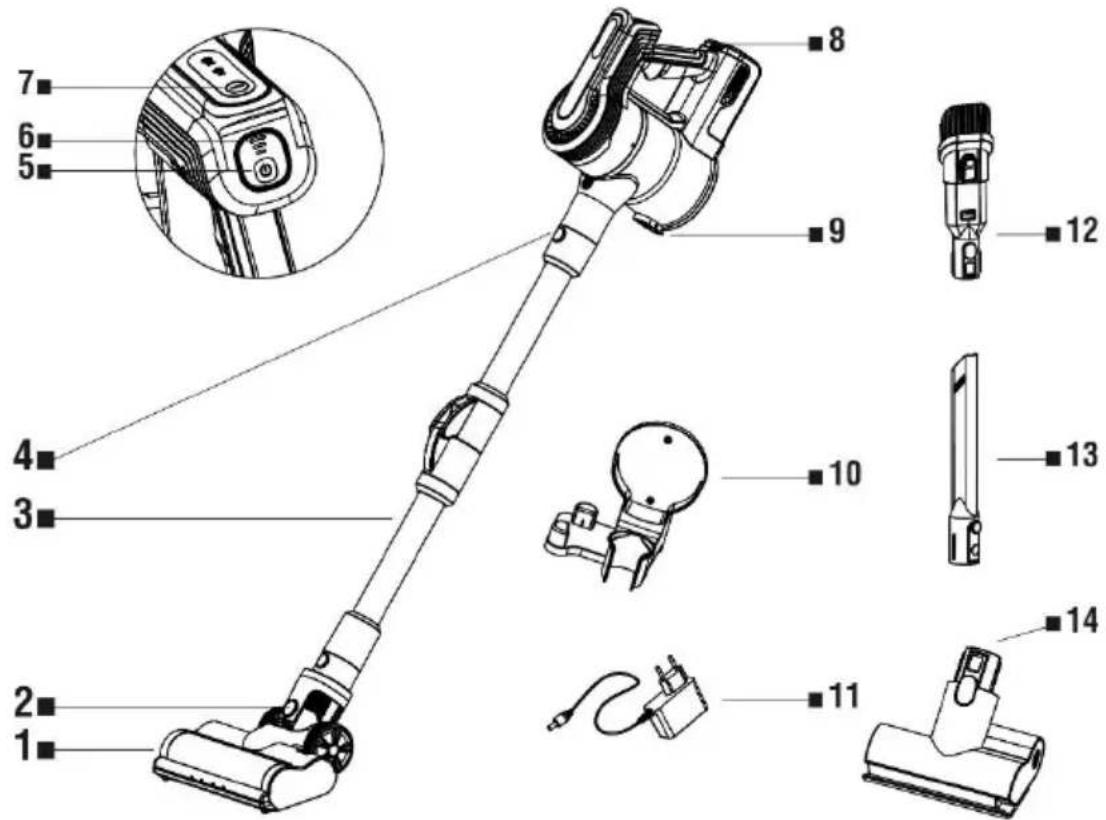

DESCRIPTION VACUUM CLEANER

Technical diagram of a vacuum cleaner with numbered parts and exploded view, including control panel and component labels.

1. Turbo brush
2. Floor head release button
3. Flexible tube
4. Flexible tube release button
5. On/Off button
6. Battery status indicator

7. Power regulation

8. Battery release button

9. Dust container release button
10. Wall mount
11. Power supply
12. 2in1 brush
13. Long nozzle
14. Mini turbo rotary brush

VACUUM CLEANER ASSEMBLY

1.

Technical line drawing of a mechanical device with no visible text or symbols

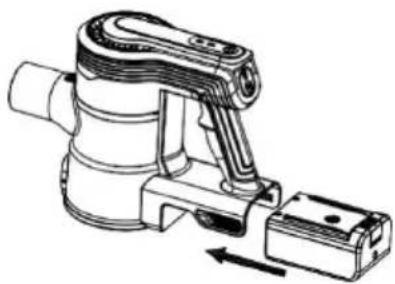

Insert the battery into the slot in the body of the vacuum cleaner.

1.

Line drawing of a portable handheld device connected to a power cord (no text or symbols)

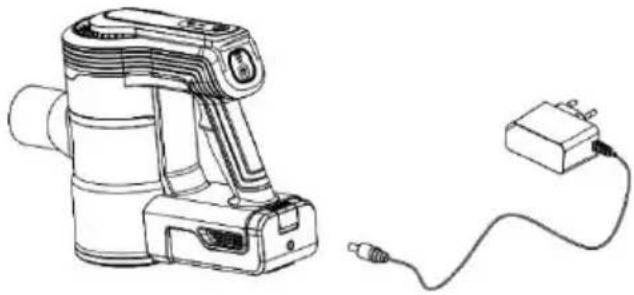

Connect the power supply to the battery. When fully charged, unplug the charger. You can charge the battery either inserted in the body of the vacuum cleaner or separately.

If the battery status indicator (6) flashes, charge the battery. The battery charge status is indicated by the gradual lighting of the Battery Status Indicator. The sttatus of charge of the battery is signaled by the gradual lighting of the battery indicator. When the battery is fully charged, the indicator light turns off, unplug the charger from the electrical outlet. When fully charged, disconnect the charger from the wall outlet.

1.

Diagram of a mechanical assembly showing a connector, shaft, and housing with directional arrows indicating motion (no text or symbols)

Connect the turbo brush to the flexible tube and then connect the tube to the body of the vacuum cleaner.

1.


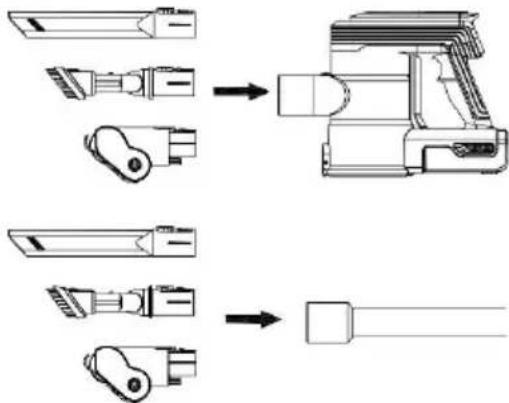

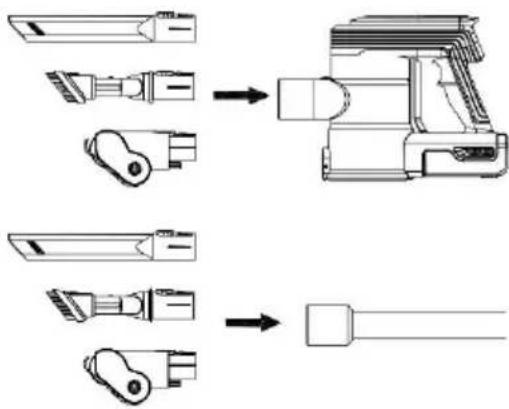

You can connect the vacuuming attachments directly to the body of the vacuum cleaner or to a flexible tube.

Use the On/Off button to turn on the device. You can switch between MIN or MAX modes by pressing the power control button. To switch off the vacuum cleaner, press the On/Off button again.

EMPTYING THE DUST TANK

We recommend emptying the dust tank and cleaning the filters after each cleaning for hygienic reasons. To empty the dust tank, press the button on its lid and empty the contents into the waste bin.

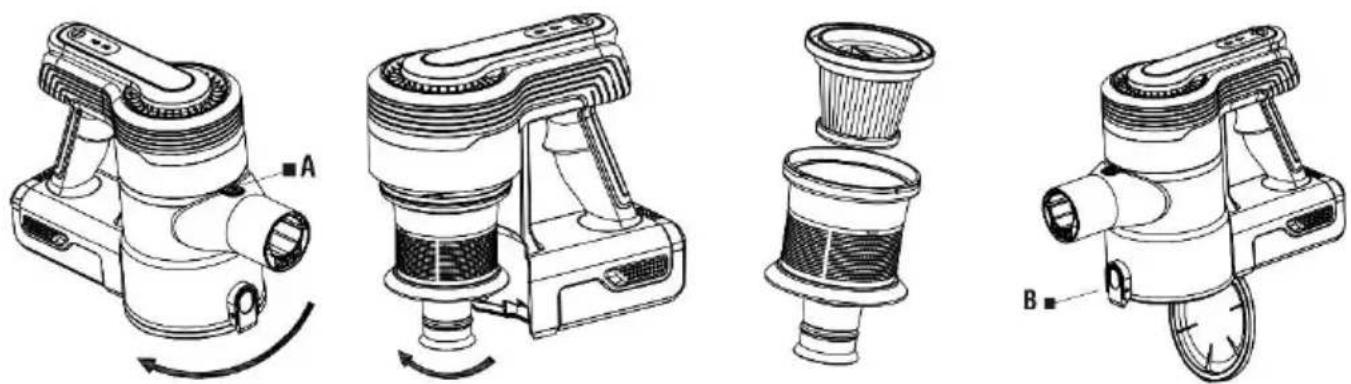

CLEANING THE HEPA FILTER

Switch off the vacuum cleaner.

1. Release the dust tank (A) and remove it from the body of the vacuum cleaner.
2. Turn to remove the HEPA filter from the metal filter body.
3. Open the dust tank lid (B) for rough cleaning, gently tap the dirt from the HEPA filter into the waste bin.
4. Both filters can also be rinsed under running water. Allow the filters to dry thoroughly before using them again.
5. Replace both filters.

HEPA filter

In case of heavy soiling or poor performance of the vacuum cleaner, replace it with a new one. We recommend replacing it once every 6 months.

WARNING

• Failure to clean or replace the filters can lead to a vacuum cleaner failure!
• Do not use any aggressive detergents or cleaning agents or hot water to clean the filters.
  • To maintain the filtration parameters of the HEPA filter, we recommend dry cleaning.
• If you decide to wash the HEPA filter with water, its filtration capacity will be reduced. The maximum number of filter washes is 3 times, then it is necessary to purchase a new HEPA filter.
• Replace the filters if they can no longer be cleaned properly or are damaged.
  • The filters are not dishwasher safe.
  • Make sure that the seating surfaces and sealing elements are clean and functional.
• Before putting the filters back in the vacuum cleaner, make sure that they are completely dry (ideally put them back in after 24 hours).

All of the above instructions are very important if you feel that the vacuum cleaner has poor suction power or poorly sucks dirt from the floor. This condition is a clear indication that the vacuum cleaner's filtration system requires cleaning.

IMPORTANT - never use the vacuum cleaner without filters installed!

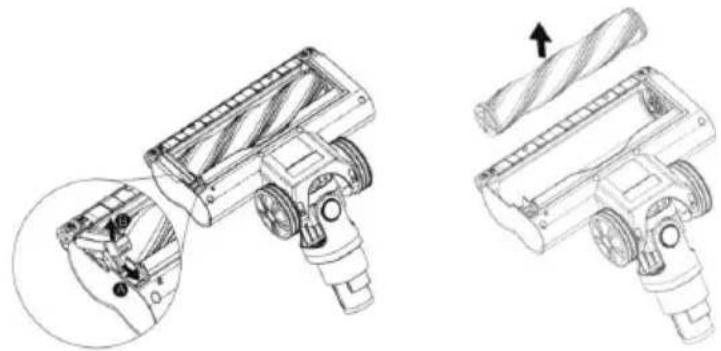

CLEANING THE BRUSH

Technical line drawing of a mechanical assembly with two views: one showing a disassembled component, the other showing a drill bit (no text or symbols present)

Visually inspect the brush for dirt after each vacuuming. Remove hairs, animal hairs, etc.

MAINS ADAPTOR

If the mains adapter of this appliance is damaged, it must be repaired by the manufacturer, its service technician or a similarly qualified person in order to avoid a dangerous situation.

NOTE: To charge the battery, use only the AC adapter supplied with the vacuum cleaner.

• The vacuum cleaner must only be supplied with a safe low voltage corresponding to the marking of the appliance.
• Use the AC adapter only in a room.
• The mains adapter supplied with the vacuum cleaner is intended for this appliance only, do not use it for other purposes.
• The power cord of the adapter must not be damaged by sharp or hot objects, open flames, immersed in water or bent over sharp edges.
• If you need to use an extension cord, make sure that it is not damaged and complies with the applicable standards.
• Check the condition of the AC adapter power cord regularly.

Treat the surface of the vacuum cleaner and adapter with a soft damp cloth, do not use harsh and aggressive cleaning agents.

WARRANTY REPAIR

For warranty repair, contact the dealer where you purchased the TESLA product.

The warranty DOES NOT APPLY to:

• using the device for other purposes than it was designed to
• normal wear and tear
- failure to observe the "Important safety instructions" stated in the user manual
• electrical or mechanical damage caused by improper use
- damage caused by natural elements such as water, fire, static electricity, power surges etcetera
• damage caused by an unauthorized repair
- unreadable serial number
- the battery capacity drops after 6 months of using (6-months battery life warranty)

DECLARATION OF CONFORMITY

We, INTER-SAT LTD, org. složka, declare that this device complies with the essential requirements and other relevant provisions of the standards and regulations relevant to the type of equipment.

This product complies with the requirements of the European Community.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Due to the fact that the product is being developed and improved, we reserve the right to edit the user manual. You can always find the latest version of the this user manual at www.tesla-electronics.eu.

Design and specification may be changed without prior notice, print errors reserved.
