Product Type	Steam Vacuum Cleaner
Brand	Tesla
Model	SteamPower FX30
Power Supply	220-240 V ~ 50 Hz
Power Consumption	1500 W
Water Tank Capacity	1.2 L
Weight	5.5 kg
Dimensions (L x W x H)	30 x 28 x 120 cm
Cord Length	6 m
Noise Level	75 dB
Vacuum Suction Power	250 Air Watts
Steam Output	Adjustable, up to 30 g/min
Filtration System	HEPA washable filter
Functions	Steam cleaning, vacuuming, carpet cleaning, hard floor mode
Attachments Included	Floor nozzle, crevice tool, brush tool, steam mop pad
Water Level Indicator	Yes, transparent tank with marks
Auto Shut-Off	When water tank is empty
Maintenance	Clean water tank, rinse filter, descale monthly
Safety Features	Thermal cut-off, no water shut-off, child lock
Spare Parts Available	Filters, nozzles, pads, water tank
Repairability Index	7.5/10 (user-replaceable parts)

Frequently Asked Questions - SteamPower FX30 TESLA

How do I fill the water tank on the Tesla SteamPower FX30?

Open the cap on the top of the water tank and fill with tap water up to the Max line. Do not exceed the maximum level.

Can I use the SteamPower FX30 on all floor types?

Yes, it works on hard floors (tile, vinyl, laminate) and carpets when using the appropriate attachment. For delicate floors, start with low steam.

What does the auto shut-off feature do?

The vacuum automatically turns off when the water tank is empty to prevent overheating. Refill the tank to resume.

How often should I clean the HEPA filter?

Rinse the HEPA filter under running water every 3 months. Let it dry completely before reinstalling. Replace every 6-12 months.

Why is the steam output weak?

Check if the water tank is full and the steam control is set to high. Descaling may be needed if mineral buildup blocks the steam outlets.

Can I use vinegar to descale the SteamPower FX30?

Yes, mix equal parts white vinegar and water in the tank, run the steam cycle, and rinse thoroughly. Do this every 1-2 months.

What is the cord length and does it have a rewind?

The power cord is 6 meters long and features automatic cord rewind for easy storage.

Is the SteamPower FX30 safe for use around pets?

Yes, the steam sanitizes surfaces without chemicals. However, keep pets away from hot steam during use.

How do I switch between vacuum and steam modes?

Press the mode button on the handle. The vacuum mode sucks up debris, while steam mode releases steam for cleaning. You can combine both.

Where can I buy replacement parts?

Replacement parts are available through Tesla customer service, authorized dealers, or online retailers. Use genuine parts for best performance.

USER MANUAL SteamPower FX30 TESLA

Diagram showing a mechanical component labeled A and B, with an arrow indicating transformation from a gear-like component to a threaded screw (no text or symbols present)

Diagram showing a mechanical component labeled A and B, with an arrow indicating transformation from a cylindrical component to a threaded shaft (no text or symbols present)

Diagram showing a mechanical component labeled A and B, with an arrow indicating transformation from a cylindrical component to a threaded shaft (no text or symbols present)

Diagram showing two mechanical components labeled A and B, with component A being converted to component B (no text or symbols present)

Diagram showing two types of mechanical components labeled A and B, with a directional arrow indicating transformation (no text or symbols on the components themselves)

VAŽNA SIGURNOSNA UPOZORENJA

OVAJ PROIZVOD NAMIJENJEN JE SAMO ZA UPOTREBU U KUĆANSTVU.

1 Ručka
2 Kuka za namatanje kabela za napajanje
3 Gumb za sklapanje/rasklapanje parnog čistača
4 Gumb za otpuštanje ručnog čistača
5 Drška ručnog čistača
6 Gumb za uključivanje/isključivanje
7 Čep spremnika za vodu
8 Gumb za otpuštanje spremnika za vodu
9 Regulator količine ispuštene pare
10 Regulator ispuštanja otopine za čišćenje (ON - ispuštanje/OFF - zatvoreno)
11 Čep spremnika otopine za čišćenje
12 Klizač za tepih

PRIJE PRVE UPORABE

Diagram showing two types of connector parts: a multi-pin connector and a threaded screw, with no text or symbols present.

Diagram showing two mechanical components labeled A and B, with component A being inserted into a threaded shaft (no text or symbols present)

Thank you for choosing the TESLA SteamPower FX30.

Before using the device, please read the rules of safe use carefully and follow all common safety rules.

• Read through the instructions for use thoroughly before using
• Keep the user manual for future reference
• Follow the rules in this manual to reduce the risk of equipment damage or personal injury

IMPORTANT SAFETY INSTRUCTIONS

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY.

This appliance is a complex electromechanical device, please pay attention to the following instructions:

• This appliance is intended for domestic use only; The brand bears no responsibility for improper use or use contrary to the instructions for use and is not covered by the warranty.
  • The appliance is only intended for indoor use at room temperature (max. 40°C).
• Do not direct the discharged steam at people, animals, electrical appliances or electrical outlets.
• Do not immerse the appliance in water.
• Do not leave the appliance unattended.
• Do not leave the appliance plugged in when not in use.
• Never unplug the appliance by pulling on the power cord.
• Keep the appliance's power cord away from heat, oil and sharp edges.
• Do not pull or carry the appliance by the power cord.
• Do not handle the appliance with wet hands.
• Do not use the appliance in an enclosed space filled with steam released from oil paints, paint thinner, certain moth repellents, flammable dust or other explosive or toxic fumes.
• The appliance emits very hot steam to disinfect the area of use. This means that the steam head and the microfiber cleaning mop become very hot during use.
• Always wear suitable footwear when handling the appliance. Do not wear slippers or shoes with an open toe.
• The lid of the water tank may be hot during use.
• Do not use the appliance if there is no water in the Water tank.
• Never add ingredients to the water tank.
• Use only standard floor cleaners in the detergent dispenser. Do not use perfumes, stain removers or substances containing alcohol.
• You should be careful when using this appliance. DO NOT touch any parts that may become hot during use.
  • Before use, make sure that the Water tank cap is completely screwed on.
• Do not use without a properly installed microfiber cleaning mop.
• Use only original accessories designed for this model.

• Do not touch the parts that are connected to the mains when your hands are wet.

• Do not open or repair the device, as there is a risk of electric shock and loss of warranty.

• The manufacturer and importer into the European Union are not liable for damages caused by the operation of the device, such as injury, scalding, fire, injury, deterioration of other items, etc.

Do not use on leather, waxed polished furniture or floors, synthetic fabrics, velvet or other delicate steam-sensitive materials. Do not use on any unsealed hard floor surfaces. In addition, on surfaces that have been treated with wax or some wax-free floors, the gloss can be removed by heat and steam. It is always recommended to test the insulated area of the surface to be cleaned before cleaning. We also recommend checking the floor manufacturer's instructions for use and care.

PACKAGE CONTENTS

Carefully check that you have unpacked all the supplied accessories, we recommend that you keep the original paper box, user manual and packaging material during the warranty period.

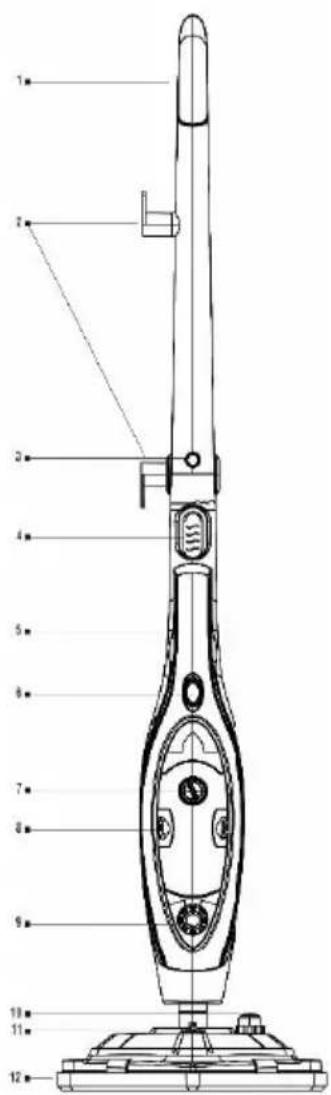

DESCRIPTION

1 Handle
2 Hook for attaching the power cord
3 Button for folding/unfolding the steam mop
4 Button for releasing the Handheld steam cleaner
5 Handheld steam cleaner handle
6 On/Off button
7 Water tank cap
8 Water tank release buttons
9 Steam discharge rate regulator
10 Control for draining the cleaning solution
11 Cleaning solution tank cap
12 Carpet glider

BEFORE FIRST USE

Remove all packaging material, appliance and accessories. Remove any transparencies, stickers, or paper. Check that the appliance and any part of it is not damaged.

WARNING: Before carrying out any of the following operations, make sure that the appliance is switched off, unplugged and contains little or no water.

Locking the handle in position/releasing the handle

To lock the handle to a vertical position, simply lift the handle until it clicks into place. Check the handle before using the steam mop. To release the handle and fold the appliance for storage, press the release button (3) on the handle and then gently lower the handle.

Attach the base to the main body until it clicks into place. The steam head can be removed from the main body of the appliance by pressing the release button on the back of the main body of the appliance. Then simply push the microfiber mop onto the bottom of the base.

Connecting the glider to the carpet

For easier movement of the steam mop on the carpet, we recommend attaching the plastic glider to the carpet. After attaching the microfiber mop, place the white plastic carpet glider on a flat surface with the open side facing up. The steam mop simply snaps into place by pushing into the glider. To remove the glider, carefully release the securing clips and the carpet glider will release.

FILLING THE WATER TANK

1st method of filling

Open the lid of the water tank and fill it with a plastic water measuring cup. Replace the cap and close it by turning it clockwise.

2nd method of filling

Remove the water tank from the main body by pressing the buttons on the side (8). Open the lid of the tank and pour water directly into it from the tap. Then replace the cap and close it by turning it clockwise. Insert the tray back into the main body until it clicks into place.

Do not add any cleaning agents, chemicals or perfume to the Water tank. To significantly reduce the formation of limescale and prolong the life of your steam mop, we recommend using distilled water for cleaning. NEVER overfill the water tank.

FLOOR CLEANING

Connect the appliance to a grounded socket.

1. When the appliance is switched on, a red light comes on under the water tank (on the sides), which means preheating.
2. Preheating takes approximately 20 seconds. When the steam mop is ready for use, the light turns blue and automatically releases steam. For this reason, it is important not to leave it unattended during the preheating process.
3. When cleaning a surface contaminated with grease, oil, etc., it is also possible to add a cleaning agent to the hot steam. Open the Cleaning solution container cap (11), pour the cleaning solution into it, and then close the cleaning solution tank again. Press the cleaning solution drain button (10) to the ON position.
4. The amount of steam discharged can be adjusted using the rotary knob of Steam discharge rate regulator (9).

CLEANING WITH A HANDHELD STEAM CLEANER

Press the release button (4) to remove the handheld steam cleaner from the main body.

Diagram showing a mechanical component labeled A and B, with an arrow indicating transformation from a cylindrical component to a threaded shaft (no text or symbols present)

Select the appropriate cleaning attachment (A) you want to use, place it on the adapter (B) and turn it clockwise to firmly lock both parts. Then insert the adapter (B) into the body of the handheld steam cleaner.

To remove the Adapter (B), press the gray button on the back of the handheld steam cleaner.

CLEANING AND MAINTENANCE

Make sure the steam mop is unplugged and completely cool.

1. Drain the remaining water into the sink.
2. The cleaning attachments can be washed in warm water with a small amount of dish soap if they are dirty.
3. If necessary, wash the microfiber mop in warm soapy water, maximum 30 - 40°C, without bleach or fabric softener. Let it dry naturally, do not use the clothes dryer.

If your steam mop starts to produce steam more slowly than usual or stops producing steam completely, it may be the cause of limescale build-up. We recommend removing limescale regularly about once a month, depending on the hardness of the water and the frequency of use of the steam mop.

SOLUTION FOR LIMESCALE REMOVAL

1. Prepare a solution: 1/3 white vinegar and 2/3 tap water and pour it into the water tank.
2. Ensure that the released steam is not directed at the floor or surrounding objects and switch on the steam mop. Wait until all the water has been consumed, you can repeat this procedure several times until the steam flow is sufficient again.
3. Rinse the water tank thoroughly.
4. Fill the Water tank with clean water and repeat the steam release so that any residual cleaning solution is completely flushed from the steam mop.

NOTICE

Do not leave the steam mop unattended during the descaling process. After each descaling, carry out a test cleaning on a suitable insulated surface to make sure that no unwanted residues remain in the steam mop.

This appliance does not contain any serviceable internal components. Do not try to repair it yourself. Maintenance or repair that requires disassembly or any steps other than those specified in this user manual must be performed or approved by TESLA service department.

STORAGE

After use, turn off the power to the steam mop and unplug the power cord. Remove the Water tank, pour out the residual water and wipe the steam mop dry. Store the steam mop in a dry and clean place.

TROUBLESHOOTING

Problem	Reason
Reduced amount of steam or no steam.	The Water tank is empty or incorrectly inserted in the body of the appliance
	The steam wand may be clogged or clogged with limescale.
	The appliance is not powered.
	The steam discharge regulator is in the MIN position.

WARRANTY REPAIR

For warranty repair, contact the dealer where you purchased the TESLA product.

The warranty DOES NOT APPLY to:

• using the device for other purposes than it was designed to
• normal wear and tear
- failure to observe the „Important safety instructions“ stated in the user manual
• electrical or mechanical damage caused by improper use
- damage caused by natural elements such as water, fire, static electricity, power surges etcetera
- damage caused by an unauthorized repair or unreadable serial number

DECLARATION OF CONFORMITY

We, INTER-SAT LTD, org. složka, declare that this device complies with the essential requirements and other relevant provisions of the standards and regulations relevant to the type of equipment.

This product complies with the requirements of the European Community.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96 / EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please follow local regulations and do not dispose of old products with normal household waste. Proper disposal of your old product will help prevent potential negative consequences for the environment and human health.

As the product evolves and improves, we reserve the right to modify the user manual. You can always find the current version of this user manual at www.tesla-electronics.eu.

Design and specifications are subject to change without notice, printing errors reserved.
