Product Type	Dash Cam with GPS
Brand	Navitel
Model	R300 GPS
Processor	MSC8336
Display	2-inch TFT, 320×240
Camera Sensor	GC2053 (night vision)
Video Resolution	1920×1080 @ 30 fps
Recording Format	MOV (H.264)
Photo Resolution	12 MP
Viewing Angle	140°
Lens	4-layer glass
Storage	MicroSD card (8–64 GB, Class 10 or above)
Battery	120 mAh, 3.7 V Li-ion
Power Input	5 V, 1 A via micro-USB
GPS	Built-in GPS chipset and antenna
G-sensor	Built-in 3-axis accelerometer for impact detection
Loop Recording	Yes (user-selectable clip duration)
Motion Detection	Yes (auto recording upon movement, stops after 20 sec idle)
Parking Monitor	Yes (auto start on vibration, locks file)
Audio	Built-in microphone and speaker
Languages	12 languages including English, French, German, etc.
Operating Temperature	0 to +35 °C
Storage Temperature	+5 to +45 °C
Warranty	Standard manufacturer warranty (check local terms)

Frequently Asked Questions - R300 GPS Navitel

What memory card does the Navitel R300 GPS support?

It supports MicroSD cards from 8 GB up to 64 GB. Use a high-speed card (Class 10 or above) for best performance.

How do I format the microSD card for the R300?

Go to the Menu, select Format SD-card, and confirm. Format the card inside the device before first use to avoid data errors.

Does the R300 GPS have a parking mode?

Yes, it has a Parking monitor. When the car is off and vibration is detected, the device automatically turns on, records, and locks the file.

How does the G-sensor work on this dash cam?

The G-sensor detects impacts or collisions. It automatically locks the current recording so it is not overwritten by loop recording.

Can I turn off audio recording?

Yes, in recording standby mode, press the Down button to toggle the microphone on or off.

What is the maximum video resolution of the R300 GPS?

It records at 1920×1080 Full HD at 30 frames per second.

How do I lock a recording to prevent deletion?

While recording, press the Mode button to lock the current file (a key icon appears). In playback, go to Menu → Protect → Lock Current or Lock All.

Does the R300 GPS display speed and camera alerts?

Yes, the Digital Speed & Camera Info feature shows current speed, time, and alerts for speed cameras using GPS data.

What should I do if the device freezes?

Press the Reset button using a pin or paperclip. This will restart the device without losing saved files.

Can I connect the dash cam to a computer?

Yes, via a micro-USB cable. You can choose Mass Storage to access files or Record mode for normal operation (firmware 1.7.28+).

USER MANUAL R300 GPS Navitel

cz Tlačítka

Tasten

Nupud

Thank you for purchasing this NAVITEL® product.

NAVITEL R300 GPS is a multifunctional high-definition DVR with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

EN

Device layout

1. MicroSD slot
2. Reset
3. Microphone
4. Display
5. LED indicator (record)
6. LED indicator (charge)
7. Mode
8. Menu
9. OK
10. Up
11. Down
12. Power
13. Mount
14. Micro-USB port
15. Speaker

Specifications

Processor MSC8336
Display 2", 320×240, TFT
Camera GC2053 (night vision)
Recording format MOV (H.264)
Video resolution 1920×1080, 30 fps
Image format JPG
Image resolution 12 MP
View angle 140°
Lens 4-layer glass
Storage microSD card
MicroSD card capacity Max. 64 GB
USB micro-USB 2.0

Frequency 50/60 Hz
Battery 120 mAh, 3.7 V
Power	5 V, 1 A
Microphone / speaker	Yes
GPS-alert	cameras / warnings / speed
Language	Czech, English, French, German, Hungarian, Italian, Polish, Romanian, Russian, Slovak, Spanish, Ukrainian

Note: the specifications may change due to upgrades.

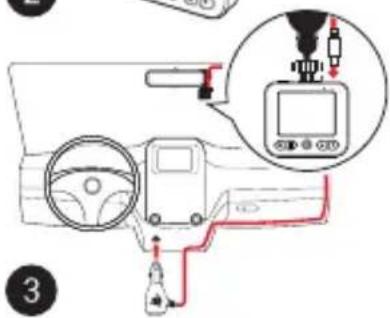

Installation

1. Put the microSD card into the DVR. Use a high-speed SD card (Class10 or above); capacity should be within 8-64 GB.

• To avoid malfunctions of the DVR and / or SD-card, don't insert and remove SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

• Secure the device on the windshield with the holder.

• Connect the car charger to the cigarette lighter socket.
• Connect the car charger to the DVR (micro-USB).
• Adjust the camera position.
• Turn the power on; check whether the device is installed correctly. If the device is installed correctly, the indicator will glow red; the device will start up and begin recording (indicated by flashing blue light).

Precautions

• Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
• Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the device away from fire sources to avoid explosion or fire.
• Do not expose the device to physical impacts.
• Avoid contacting the device with sources of electromagnetic radiation.
• Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.

1

2

Buttons

Button Functions
	Press shortly to turn the device on.Press and hold for 3 seconds to turn the device off.
	In Record mode (STBY), press to switch between Record, Capture and Playback modes.In Record mode (REC), press to lock a file (protected file cannot be deleted or overwritten).In Menu press to choose the next menu section.
	Press to enter Menu mode.In Menu mode, press to exit any menu or list of functions.
	In Record mode (STBY), press to start recording; press again to stop recording.In Capture mode, press to take a picture.In Playback mode, press to select a file, or pause / resume video.In Menu, press to select a menu item.
	In Record mode, press Down to turn the microphone on / off.In Playback mode, press to select the previous / next file.In Menu, press to select the previous / next menu item.
Reset If the device is not responding, press to reset.

Note: the built-in battery is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off; for the full operation of the device in any mode, a constant power connection is required.
NAVITEL s.r.o. hereby declares that the device NAVITEL R300 GPS is compatible with the European directive RED 2014/53/EU. The full text of Declaration of conformity is available at the following internet address: www.navitel.cz/en/declaration_of_conformity/r300gps

Device functions

Format SD-card	Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.
Record	Connect the device to an external power supply and it will start recording automatically (indicated by the flashing blue light). Press the OK button to stop recording. Press OK again to record another video. Each video will be saved automatically.
Capture	In Record mode (STBY), press the Mode button to enter Capture mode, press the OK button to take a photo (it will be saved automatically).
Playback	In Record mode (STBY), press the Mode button twice to enter Playback mode; press the Up and Down buttons to select a file; press the OK button to play a file. During playback, press OK to pause/unpause; press the Up and Down buttons to fast forward / rewind.
Loop recording	This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.
Motion detection	When an object is moving the device will automatically start recording. If the object does not move for more than 20 seconds, recording stops.
Record audio Record	video with or without sound.
Lock file	In Record mode (REC), press Mode to protect the current recording. A key symbol will appear at the bottom of the screen. Press again to remove protection. In Playback mode, select a file, press Menu and select Protect, then Lock Current or Lock All. Protected files cannot be deleted or overwritten. Select Unlock Current / Unlock All to remove protection.
Stamp This function adds date stamp to the record.
G-sensor If the vehicle is hit by something, the DVR will automatically lock the current video.
Parking monitor	In shutdown state, if vibration is detected, the device will turn on automatically and start recording. The file will be protected (locked).
Battery	Red indicator lights up when the device is plugged into an external power supply; as the battery is charging, the red light becomes green.
LCD OFF	The device can automatically shut off the screen to reduce power consumption; time interval can be set in the LCD OFF menu.
GPS location	Device supports built-in GPS chipset and GPS antenna, it can show longitude, latitude and other information on your current location. Press GPS Status to check GPS dates.
USB-connection *	When connecting the device to a PC using a USB cable, two connection options will appear:1) Mass Storage: play, copy and delete files.2) Record: standard mode.

* This function is available only in firmware version 1.7.28 and higher.

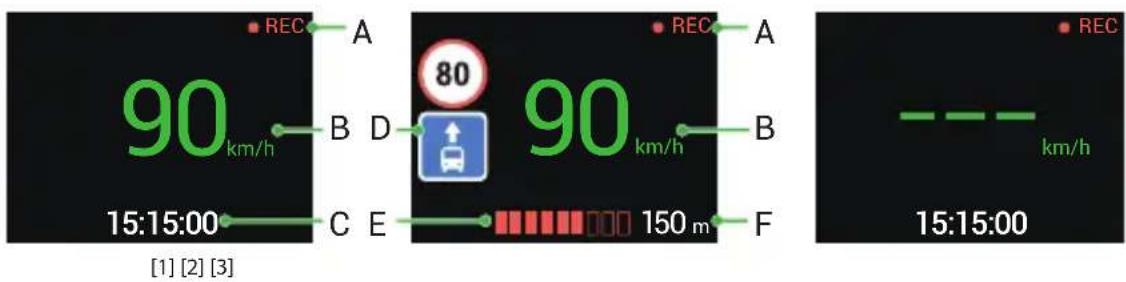

Digital Speed & Camera Info

The Digital speed feature is used to display time and vehicle speed calculated with the help of GPS signal [1]. Modes:

• Speed – current speed is displayed constantly [B],
• Speed + time - current speed [B] and time [C] are displayed.

The Camera info feature notifies the driver about cameras and warnings (hereinafter – Cameras) along the way. When you turn on the Camera info, the current speed and time are displayed. With the approach to the nearest camera the following information is displayed [2]:

• current speed [B],
• camera type [D],
  • dynamic progress bar indicating approach to the nearest camera [E],
  • distance to the camera [F].

All information is displayed on a black screen.

In Record mode (REC), ●REC or ● are displayed [A].

If the vehicle is still, 0 is displayed.

If there is no GPS-signal, -- - [3] is displayed.

Note. A weak GPS signal may be caused by bad weather conditions and other external factors. Please consult your vehicle speedometer.
