FM130.3 - Refrigerator AMICA - Free user manual and instructions

Product type	Fridge-freezer
Brand	Amica
Model	FM130.3
Total net volume	115 L
Fridge net volume	99 L
Freezer net volume	16 L
Energy class	A+
Annual energy consumption	171 kWh/year
Dimensions (H x W x D)	845 x 552 x 574 mm
Weight	31 kg
Supply voltage	230 V / 50 Hz
Climate class	ST (16°C to 38°C)
Noise level	38 dB(A)
Freezing capacity	2 kg/24h
Storage time during power failure	12.2 hours
Freezer star rating	***
Number of glass shelves	3 (2 in fridge + 1 above vegetable compartment)
Number of door shelves	3 (1 large, 2 medium)
Vegetable compartment	1
Egg tray	2
Lighting type	Incandescent bulb (max 15 W, E14)
Defrost method (fridge)	Automatic
Defrost method (freezer)	Manual
Refrigerant	R600a (isobutane)
Door reversibility	Yes (user-reversible)

Frequently Asked Questions - FM130.3 AMICA

What is the energy efficiency class of the Amica FM130.3?

The Amica FM130.3 has an energy class of A+, with an annual energy consumption of 171 kWh.

How do I adjust the temperature?

Use the temperature adjustment knob inside the fridge. Settings: 1 (warmest) to 6 (coldest), or OFF to switch off. The optimal setting is between 2 and 5.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual: unplug the appliance, remove doors and hinges, and reinstall on the opposite side. The procedure requires basic tools.

How often should I defrost the freezer?

Defrost the freezer at least once or twice a year, or when the frost layer exceeds 10 mm. Before defrosting, set the knob to max for 4 hours to keep food cold longer.

What bulb does the fridge use?

The fridge uses an incandescent bulb: 220-240 V, max 15 W, E14 thread, with maximum dimensions of 26 mm diameter and 55 mm length.

What is the capacity of the fridge and freezer?

The fridge has a net volume of 99 L and the freezer 16 L, for a total of 115 L.

How do I clean the refrigerator?

Unplug the appliance and clean the interior with a mild detergent dissolved in lukewarm water. Avoid water penetrating the control panel or light. Clean the door gasket with water only and dry thoroughly.

What should I do if the water collects at the bottom?

This is usually due to a clogged water discharge opening. Clean it using the cleaning plug provided, as shown in figure 11 of the manual.

Why is the compressor running continuously?

Possible causes: temperature set too high (adjust knob to a lower setting), door open too often, warm food just loaded, or poor ventilation (ensure 30 mm clearance from walls). Check also if the ambient temperature is very high.

What are the dimensions and weight of the appliance?

Dimensions are 845 mm (height) x 552 mm (width) x 574 mm (depth), and the weight is 31 kg.

USER MANUAL FM130.3 AMICA

Exterior view of a stainless steel enclosure with a single door handle (no text or symbols visible)

FM130.3 / KS 15302 W

FM204.3 / KS 15306 W

PL - INSTRUKCJA OBSŁUGI....2

Technical line drawing of a mechanical assembly with a circular inset showing a gear mechanism (no text or symbols)

Line drawing of a wall socket and hand holding a plug (no text or symbols)

5

ZAMIANA KIERUNKU OTWIERANIA DRZWI

Hand holding a small tool inside a white cabinet with visible wiring (no text or symbols)

6

Person in lab coat handling a white folder with a tool, no visible text or symbols

7

Hand using a screwdriver to adjust or install a battery component (no visible text or symbols)

8

Close-up of a hand using a screwdriver to adjust a mechanical gear component (no text or symbols visible)

9

Close-up of a hand inserting a striped cable into a black plastic component (no text or symbols visible)

10

Diagram of a mechanical component with a magnified inset showing a pin (no text or symbols present)

11

Diagram of a cabinet or shelf with two upward arrows indicating flow or movement, no text or symbols present.

12

Wymiana żarówki

Diagram of a cylindrical object with internal structure and directional arrow, no text or symbols present

13

Diagram of a mechanical component with two upward arrows indicating direction (no text or symbols)

14

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Technical line drawing of a mechanical assembly with a circular inset showing a gear mechanism (no text or symbols)

Verflüssiger

3

Line drawing of a wall socket and electrical plug (no text or symbols)

Hand holding a small electronic device next to a white box (no visible text or symbols)

6

Person opening a white cabinet with a lid, no visible text or symbols

7

Hand using a screwdriver to adjust or install a battery casing (no text or symbols visible)

8

Close-up of a hand using a screwdriver to adjust a mechanical component (no text or symbols visible)

9

Close-up of a hand inserting a textured cylindrical component into a white panel or device (no visible text or symbols)

10

Simple line drawing of a bed with a magnified inset showing a magnified view of the bed (no text or symbols)

11

Diagram of a refrigerator with two upward arrows indicating movement or force, no text or symbols present

14

Diagram of a rectangular device with two upward arrows indicating flow or movement (no text or symbols)

3D diagram of a cylindrical object with internal ribbed structure and directional arrow (no text or symbols)

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

The Amica appliance is a combination of exceptional user-friendliness and excellent efficiency. Prior to dispatch, each unit was carefully checked for its safety and operating capabilities.

Before starting the appliance, please read this operating manual carefully.

Note!

This fridge-freezer is intended for use at home only.

The manufacturer reserves the right to introduce modifications, which do not affect the operation of the appliance. The changes in the equipment, as well as the inside and outside decoration, which do not affect its functionality and safety are permissible.

TABLE OF CONTENTS

Construction and equipment of the appliance....46

Guidelines concerning the safety of use....48

Installation....49

Change in the door hinging....51

Operation and functions....52

Using the refrigerator efficiently....55

Defrosting, washing and maintenance....57

Trouble-shooting....59

Environmental protection....61

Specification....62

Example: model FM204.3

Additional equipment

CONSTRUCTION AND EQUIPMENT OF THE APPLIANCE

1 Freezing chamber
2	Control
3 Glass Shelf
4 Cord
5 Glass shelf above the vegetable compartment
6 Vegetable compartment
7 Adjustable feet
8 Wire on lower basket
9 Small door shelf
10 Medium door shelf
11	Egg tray
12 Plunger

Items of equipment	FM204.3 FM130.3
Glass Shelf 2 2
Glass shelf above the vegeta-ble compartment	1	1
Vegetable compartment 1 1
Large door shelf - 1
Small door shelf 2 -
Medium door shelf 3 2
Wire on lower basket yes -
Egg tray 2 2
Lighting type incande-	scent bulb	incande-scent bulb
Plunger 1 1

• The Manufacturer shall not be held liable for the damage arising from the failure to observe the principles contained in this manual.
• Keep this manual for future reference, or to pass it over to the possible next user.
• This appliance is not intended for use by persons (including children) with limited physical, sensual or psychical capabilities and persons who lack experience or familiarity with the appliance, unless attended or in accordance with the operating manual for the appliance delivered by persons responsible for their safety.
• Do not allow the unattended children to use the appliance. Do not allow them to play with the appliance. They must climb inside the drawers and swing on the doors.
• The fridge-freezer operates properly at the ST ambient temperature (see page 63). Do not use it in the cellar, unheated summer cottage during autumn and winter.
• When placing, moving, lifting the appliance, do not hold the door handles, pull the condenser at the rear part of the refrigerator and touch the compressor unit.
• When transporting, moving or placing the fridge-freezer do not tilt it by more than 40° from the vertical position. Should such a situation occur, the appliance may be switched on after minimum 2 hours from its placement in the right position (fig.1).

1

• Pull the plug out from the mains socket before each maintenance activity. Do not pull the cord, but hold the body of the plug instead.
  ● The cracking-like sound, which the appliance may emit is caused by expansion and shrinking of parts as a result of temperature variations.
• For safety reasons do not repair the appliance on your own. Repairs carried out by persons who do not have required qualifications may constitute a serious hazard for the user of the appliance.
  ● Air the room in which the appliance is placed for a few minutes (the size of the room for a product containing isobuthane/R600a must be at least 4m3) in case of the damage of the cooling system.
  ● Make sure you do not damage the cooling system, by punching the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant splashes are flammable. Rinse the eyes with clean water and call for medical assistance immediately in case of their contact with the refrigerant.

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE

Installation before using the appliance for the first time

1. Take the product out of the package, remove the scotch tapes protecting the door and the equipment. The possibly remaining adhesive stains may be removed with a mild washing agent.
2. Do not throw away the polystyrene elements of the packaging. In the case of the necessity to transport the fridge-freezer, pack it in the polystyrene elements and film, as well as protect it with a scotch tape.
3. Clean the interior surface of the fridge-freezer and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry.

4. Place the fridge-freezer on an even, flat and stable surface, in dry, aired and shadowy room, far from the heat sources such as an oven, cooktop, central heating radiator, central heating pipe, hot water installation, etc.

5. Make sure the appliance is placed in the horizontal position by screwing in 2 adjustable front legs (fig. 2)

Simple line drawing of a person inside a circular frame, no text or symbols present

2

1. In order to ensure easy opening of the door, the distance between the side wall of the appliance (from the side of the door hinges), and the wall should amount to: 50 / 70 mm.

2. Ensure adequate ventilation of the room and free air circulation from all sides of the appliance (fig. 3).

Minimal distances from the heat sources

• from the electric gas and other ovens
• 30 mm,
• from oil or coal fired ovens - 300 mm,
• from in-built ovens - 50 mm

3

If there is no possibility to ensure the above-mentioned distances, provide an appropriate insulation board.

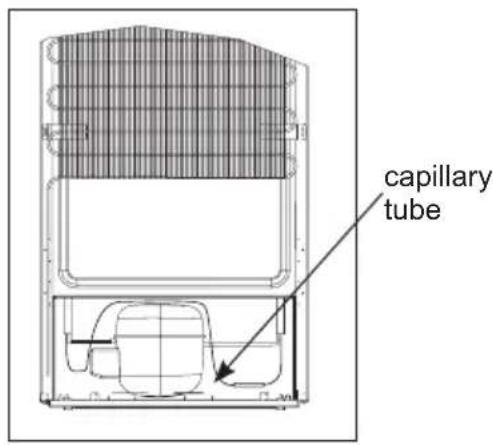

The rear wall of the refrigerator, in particular, the condenser and other elements of the cooling system may not contact other elements, which may damage them, (e.g. central heating pipe and the water supply pipe).

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE

It is prohibited to readjust or modify any parts of the unit. It is crucial not to damage the capillary tube visible in the compressor recess. The tube may not be bent, straightened and wound.

If the capillary tube is damaged by the user the guarantee will be void (fig. 4).

This appliance must be earthed The flexible cord (mains lead) fitted to this appliance has three cores for use with a 3-pin 13-amp plug. If a BS 1363 (13-amp) fused plug is used, it should be fitted with a 13-amp fuse.

4

- The data is provided on the rated plate located at the bottom of the wall inside the chamber.

Important

The cores in this mains lead are coloured in accordance with the following code:

These colours might not correspond with the colour markings identifying the terminals in your plug.

Mains connection

• Before the appliance is connected to the mains, set the adjustment knob to the "OFF" position.
• The appliance is intended for connection to alternating current. The connection values for voltage (V) and frequency (Hz) are given on the nameplate in the cabinet. Power must be connected via a wall socket with switch. The wall socket should be easily accessible. All earthing requirements stipulated by the local electricity authority must be observed. The cabinet plug and wall socket should then give correct earthing. If in doubt, contact your local supplier or an authorised electrician.

5

CHANGE OF THE DOOR HINGING

1. Set the temperature adjustment knob to "OFF" and unplug the appliance.
2. Remove food from the appliance.

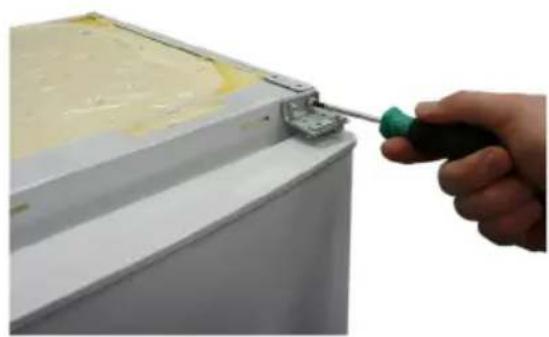

3. Unscrew the fridge-freezer top cover (Photo 6).

4. Tilt the fridge-freezer back approx. 40^ to gain access to the lower hinge.

5. Unscrew the lower hinge (photo 10).

Hand holding a small electronic device next to a white cabinet with visible wiring (no text or symbols)

1. Remove the top cover from the fridge freezer (photo 7).

Close-up of a hand using a screwdriver to adjust a mechanical component (no text or symbols visible)

9

1. Unscrew the adjustable foot (photo 11).

Person in lab coat and tie opening a white cabinet with a lid, no visible text or symbols

1. Unscrew the upper hinge, remove the fridge-freezer door and set it aside in a safe place (photo 8).

Close-up of a hand inserting a textured cable into a device component (no visible text or symbols)

10

Hand inserting a screwdriver into a battery casing (no text or symbols visible)

8

1. Using the same method transfer the upper, middle and lower hinge to the opposite side of the door.
2. Once the door is attached, please make sure it is correctly aligned with the appliance body. Door edge should be parallel to the edge of the appliance body. Adjustments are made to the middle hinge using a Phillips screwdriver (star screwdriver).
3. Switch on the fridge-freezer as described in the relevant section of its operating instructions.

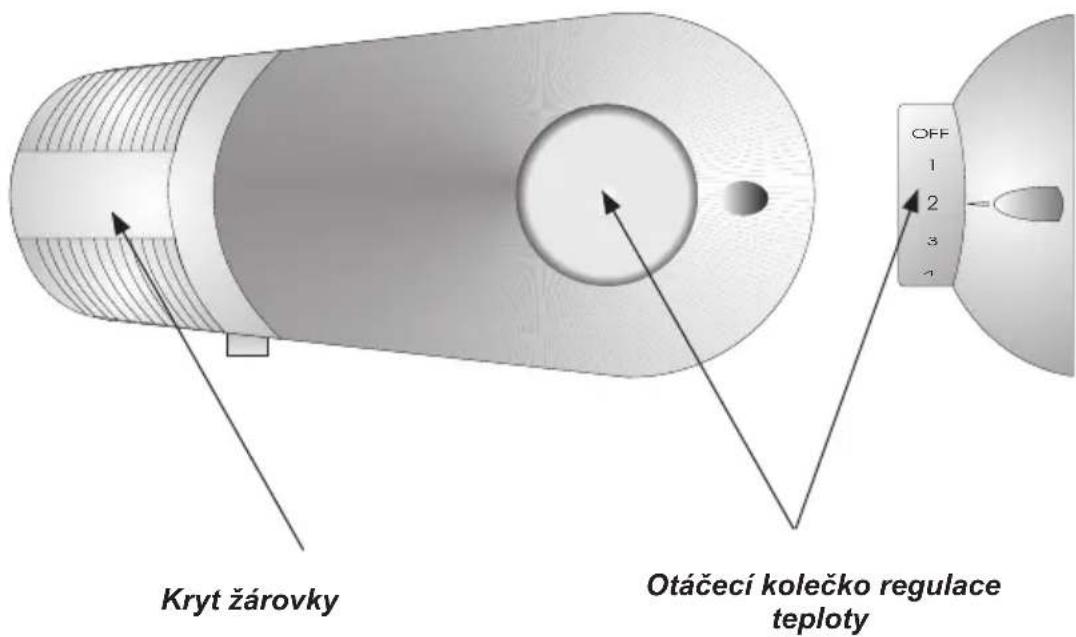

Control panel

Temperature adjustment

Turning the knob to a different setting changes the temperature in the fridge-freezer. Available knob settings:

• appliance switched off - OFF setting
• maximum temperature - 1 setting
• optimal temperature - 2-5 setting
• minimum temperature - 6 setting

Do not put food into the fridge freezer before it has reached its operating temperature, which takes minimum 4 hours.

Temperature inside the fridge / LCT (\*/\*\*\* )

Do not change the temperature settings due to the change in the season of the year. The ambient temperature increase will be detected by the sensor and the compressor will be switched on automatically for a longer period of time in order to maintain the temperature set inside the chambers.

Minor changes in temperature

The slight changes in temperature are perfectly normal and may occur, for instance during the storage of great quantities of fresh products in the fridge, or when the door is open for a longer period of time. This will not affect the condition of the stored foodstuff, and the temperature will quickly return to its set value.

Storage of food in the fridge (LCT \*/\*\*\*

Observe the following recommendations to ensure the food remains fresh.

• The products should be placed on plates in containers or packed in food wrap.
  Distribute them evenly all over the she- lves.
• Pay attention whether the food contacts the rear wall, if so, it may cause frosting or wetting of the products.
• Do not put dishes with hot content into the fridge
  ● Products which take over foreign flavours easily such as butter, milk, white cheese and products with intense flavour, such as fish, smoked meat, hard cheese must be placed on shelves, packed in food wrap or in tightly sealed containers.
  ● Storage of vegetables containing significant quantity of water will cause the deposition of water steam on the vegetable containers, it does not impact the proper functioning of the fridge.
• Before putting the vegetables into the fridge, dry them well.
• Excessive moisture shortens the shelf life of vegetables, especially the leafed vegetables.
• Do not wash the vegetables before storing in the refrigerator. Washing removes the natural protection, therefore it is better to wash the vegetables directly before consumption.

Freezing food

● Practically all the food products, except for vegetables consumed raw, such as lettuce can be frozen.
- Only food products of the highest quality, divided into small portions for single use, should be frozen.
- Products should be packed in materials that are odourless, resistant to air and moisture penetration, and not susceptible to fat. Plastic bags, polyethylene and aluminium sheets are the best wrapping materials.
- The packaging should be tight and should stick to the frozen products. Do not use glass containers.
- Keep the fresh and warm foodstuff at ambient temperature away from the products, which have already been frozen.
- We advise not to place more than 2 kg of fresh food at a time to the freezer per day (see table on page 21).
- In order to maintain good quality of the frozen food, reorganise the food that is in the middle of the freezer, so that it does not touch the products that are not frozen yet.
- It is recommended to move the already frozen products to one side and place the fresh products that are to be frozen to the opposite side, as close to the rear and side walls as possible.

The time of storage of the frozen products depends on their quality when fresh, before freezing and on the storage temperature.

The following storage periods are recommended when the temperature of -18^ or lower is maintained:

Products Months
Beef 6-8
Veal 3-6
Giblets 1-2
Pork 3-6
Poultry 6-8
Eggs 3-6
Fish 3-6
Vegetables 10-12
Fruit 10-12

Practical everyday tips

• Do not place fridges or freezers next to radiators, heaters, stoves or in direct sunlight.
  ● Make sure that air vents are not covered up and clean the dust off them once or twice a year.
• Select the right temperature: 6 to 8°C in your refrigerator and -18°C in your freezer is sufficient.
• When on holiday, turn up the temperature in your fridge.
• Only open your fridge or freezer when necessary. It helps if you know what food they contain and where it is located. Return food to the fridge or freezer as soon as possible after you have used it so that it doesn't warm up too much.
• Wipe out the inside of your fridge regularly with a cloth soaked in a mild detergent. Appliances which are not self-defrosting will require regular defrosting. Don't allow frost layers thicker than 10 mm to form.
• Keep the seal around the door clean, otherwise it won't shut properly. Always replace broken seals.

Understanding the stars

* Temperature is at least -6°C; sufficient to store frozen food for about a week. Drawers or compartments marked with one star used to be a feature of (mostly) cheaper fridges.
** Food can be stored at -12°C or below for 1-2 weeks without losing their taste. Not suitable for freezing food.
*** Mainly used to store foods at -18°C or below. Can also be used to freeze up to 1 kilogram of fresh food.
****This appliance is suitable for storing foods at -18°C or below and freezing larger quantities of fresh foods.

USING THE REFRIGERATOR EFFICIENTLY

Storage zones in the refrigerator

● Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber.
- The coldest area is directly above the vegetables drawers. Use this area for all delicate and highly perishable food e.g.

• Fish, meat, poultry
• Sausage products, ready meals
• Dishes or baked goods containing eggs or cream
• Fresh dough, cake mixtures
• Pre-packed vegetable and other fresh food with a label stating it should be kept at a temperature of approx 4^ C.

- The warmest area is in the top section of the door. Use this for storing butter and cheese.

Defrosting the fridge

Frost settles on the rear wall of the fridge chamber. It is removed automatically. During the defrosting, the condensate, which contains contaminants may clog the opening in the through. Should it occur, carefully unclog the opening with the cleaning plug (fig. 11).

Diagram of a mechanical component with a magnified inset showing a pin (no text or symbols)

11

- The appliance operates in cycles: it refrigerates (then the frost settles on the rear wall), and defrosts (water flows down the rear wall).

Disconnect the appliance from the mains before cleaning by removing the plug from the mains socket or switching off the fuse. Prevent water from penetrating the control panel or the light.

• Do not use defrosting aerosols. They may cause the formation of explosive mixture, or contain slovents which may damage the plastic components of the appliance and even be harmful to health.
  ● Make sure the water used for cleaning does not flow into the evaporation container through the discharge opening.
• The whole appliance, except for the door gasket must be cleaned with a mild cleaning detergent. The door gasket should be cleaned with water and wiped dry.
• Wash all the accessories (vegetable containers, door shelves, glass shelves, etc.).

Defrosting the freezer (LCT)

• It is recommended to combine defrosting the appliance with washing it.
• Excessive accumulation of ice on the freezing areas impairs the appliance's freezing capacity and increases the energy consumption.
• Defrost the appliance at least once or twice a year.
• If there is food in the freezer, set the knob to the max. position about 4 hours before the planned defrosting. This will ensure the possibility of storing the food at the ambient temperature for a longer time.
• After taking the food out of the freezer, put it in a container, wrap it with several layers of paper, a blanket and store it at a cool place.
• The defrosting operation should last as short as possible. Long storage of food at the ambient temperature shortens their shelf life.

You must not put an electric heater, a heating fan or a hair dryer into the freezer by any means.

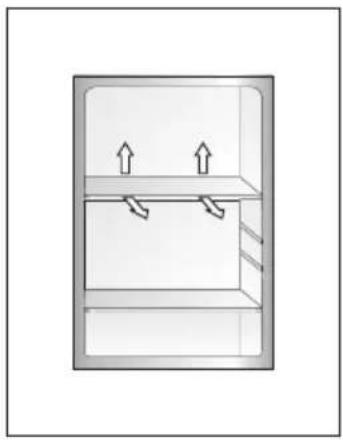

Taking out and putting in the shelves

Slide the shelf out, then slide it in as much as possible so that its clamp could fit the guide groove (fig. 12).

Diagram of a refrigerator with two upward arrows indicating flow or movement (no text or symbols)

12

Wymiana żarówki

1. Set the knob at "OFF", then unplug the appliance.
2. Pull away the bulb cover bracket and remove it (photo 13).
3. Replace the bulb with a working one with the following specification: 220 - 240 V, max. 15 W, E14 thread, maximum bulb dimensions: diameter - 26 mm, length - 55 mm.
4. Replace and secure the bulb cover.

Taking out and putting in the door shelf

Lift the door shelf, remove it and put it back from the top into its required position (fig. 14).

Diagram of a mechanical component with two upward arrows indicating direction (no text or symbols)

14

Do not use bulbs of greater or smaller power, apply only the bulbs of parameters given above.

3D diagram of a cylindrical object with internal structure and directional arrow, labeled '13' (no text or symbols on the object itself)

13

TROUBLE-SHOOTING

Problems Possible	causes Remedies
The appliance does not work	Electric circuit rupture -	check whether the plug is properly inserted into the socket- check whether the power cable of the appliance is not damaged- check whether there is voltage in the socket, by plugging another appliance, e.g. a night lamp- check whether the appliance is switched on by setting the thermostat to a position above 0.
The lighting inside the chamber does not work	The bulb is loose or fused	- see the point above “The appliance does not work” – fit the bulb correctly or replace it.
Temperature inside the appliance is not low enough	Incorrect setting of the adjustment knob	- reset the knob to a higher position
	The ambient temperature is higher or lower than the ST climate range	- the appliance is adapted to operation in the ST climate range (see page 63).
	The appliance is located at the sunlit place or near the heat sources	- move the appliance to another place. Observe the guidelines contained in the manual
	Too much warm food loaded at a time	- wait 72 hours until the food becomes cool (freezes) and the required temperature is reached inside the chamber
	Internal air circulation hindered	- place the food and containers in such a way that they do not touch the rear wall of the fridge
	The air circulation at the back of the appliance is hindered	- move the appliance min. 30 mm away from the wall
	Too much white frost accumulated on the freezing elements	defrost the freezer chamber
	The door of the fridge/freezer are opened too often and/or remain open for too long	- reduce the frequency of opening the door and/or shorten the time when door remains open
	The door does not close completely	- place the food and containers so that they would not interfere with door closed

TROUBLE-SHOOTING

Problems Possible causes	Remedies
	The compressor is switched on too rarely	- check whether the ambient temperature is not lower than 16°C
	Door gasket inserted incorrectly	- press the gasket in
The appliance works continuously	Incorrect setting of the adjustment knob	- reset the knob to a lower position
	See. "Temperature inside the appliance is not low enough for description of other possible causes	See. "Temperature inside the appliance is not low enough for description of other possible remedies
Water collects in the lower part of the appliance	The water discharge opening is clogged	- clean the discharge opening (see the operating manual – chapter entitled "Defrosting the fridge")
	Internal air circulation hindered	- place the food and containers in such a way as that they do not touch the rear wall of the fridge
The appliance generates unusual noise	Incorrect levelling of the appliance	- level the appliance properly
	The appliance touches furniture and/or other objects	- place the appliance at a location that ensures proper clearances around it

Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation.

Sounds, which can be easily prevented:

• noise caused by the appliance which is not level - adjust the position with the adjustable turn-in front feet. Alternatively, place pads made of soft material under the rear rollers, especially when the appliance is placed on tiles.
• touching the adjacent piece of furniture - move the refrigerator away.
• creaking of the drawers or shelves - take out and put back the drawer or shelf.
  ●sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the thermostat, compressor (switching on) and cooling system (thermal expansion and contraction of the radiator caused by flow of the cooling agent).

Ozone layer protection

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

The refrigerants and fo-aming agents, which are 100% free of FCKW and FKW have been used for manufacturing our product. Therefore we help protecting the ozone layer and prevent the greenhouse effect increase. On the other hand, the innovative technology and environmentally friendly insulation help in reducing energy consumption.

Recycling of the packaging

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Our packaging are made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

Elimination / disposal of the equipment

If the appliance is no longer in use, cut the connecting conduit off the used equipment before its scrapping.

This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment properly contributes to the avoidance of consequences harmful to the human health and natural environment, resulting from the presence of hazardous substances and improper storage and processing of such equipment.

TYPE	FM204.3 FM130.3
Manufacturer	AMICA WRONKI S.A.
Type of the appliance fridge-freezer LCT
Energy class ^1 A+ A+
Annual power consumption kWh/year ^2	197 171
Net usable volume (l) 171 115
Fridge 150 99
Freezer (LTC) 21 16
Freezing chamber star classi-fication ^3	*/\*\*\*\*/\*\*\*
Storage time (hrs), at no power supply	9,9 12,2
Freezing capacity (kg/24h) 2 2
Climate range ^4	ST ST
Noise level [dB(A) re1pW]	38 dB (A)	38 dB (A)
Supply voltage V/Hz	230V; 50Hz	230V; 50Hz
H x W x D	1260 x 547 x 570	845 x 552 x 574
Appliance weight (kg)	42 31

^1) A++/A+ (=low consumption) to G (=high consumption).
^2) The energy consumption refers to the yearly consumption in kWh, indicated according to DIN EN 153. Deviations may occur in the practical operation of the appliance, depending on the use and place of its location.
3)*= storage room of approximately. -6°C
(**) = storage room of approximately. -12°C
(^) = freezing storage room of approximately -18^
(^/) = freezing storage room of approximately -18^ or below

^4) Climate range means that your set temperature is maintained at "normal" ambient temperature. Should the room temperature drop significantly below the defined scope, the appliance does not work so often and the undesirable temperature increase may occur dojść do niepożądanego wzrostu temperatury.

The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

Climate range Permissible ambient temperature
SN from +10°C do +32°C
N from +16°C do +32°C
ST from +16°C do +38°C
T from +16°C do +43°C

Manufacturer's declaration

The manufacturer hereby declares that the appliance fulfils the requirements of the following European directives:

● The Low Voltage Directive 2006/95/EC,
● The Electromagnetic Compatibility Directive 2004/108/EC,

and therefore it has been marked with a CC and assigned a declaration of conformity, which is made available to the market supervising authorities.

Vážení klienti,

Diagram showing a mechanical assembly with a bracket and a circular inset view of a lever mechanism (no text or symbols)

2

3

Line drawing of a wall socket and hand holding a plug (no text or symbols)

5

Hand inserting a small component into a white box with visible internal wiring (no text or symbols)

Close-up of a hand using a screwdriver to adjust or install a mechanical component (no text or symbols visible)

Person opening a white cabinet with a lid, no visible text or symbols

Close-up of a hand inserting a textured cylindrical component into a white electronic device (no visible text or symbols)

10

Hand holding a screwdriver next to a battery casing with yellow liquid (no text or symbols visible)

8

Ovládací panel

Diagram of a mechanical component with a magnified inset showing a pin inserted into a housing (no text or symbols)

11

Diagram of a mechanical or electrical component with two upward arrows and internal features, no text or symbols present.

14

Diagram of a rectangular device with three horizontal bands and two upward arrows inside, no text or symbols present.

Výměna žárovky

3D rendering of a cylindrical mechanical component with internal threading and a central hole, showing no text or symbols.

Určování závad

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Diagram showing a mechanical assembly with a bracket and a circular inset view of a lever mechanism (no text or symbols)

2

3

Line drawing of a wall socket and hand holding a plug (no text or symbols)

5

ZMENA SMERU OTVÁRANIA DVERÍ

Hand holding a small tool inside a white box, with attached cables and a coiled cable (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust a mechanical component (no text or symbols visible)

9

Person opening a white cabinet with a lid, viewed from above (no text or symbols visible)

Close-up of a hand inserting a metallic clip into a black plastic component (no text or symbols visible)

10

Hand inserting a screwdriver into a battery casing (no text or symbols visible)

6

7

8

Ovládací panel

Storage of food in the fridge (PNT x/xxx)

Odmrazovanie chladničky

Diagram of a mechanical component with a magnified inset showing a cross-section view (no text or symbols)

11

Diagram of a refrigerator with two upward arrows indicating flow or movement (no text or symbols)

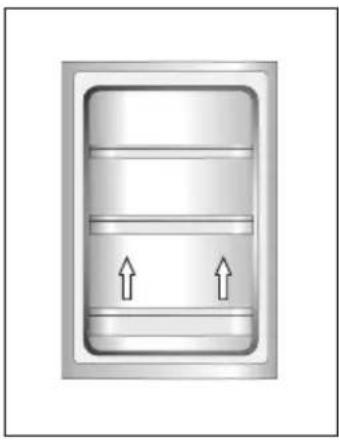

Vyt'ahovanie a vkladanie priehradky

Nadvihnút' priehradku, vytiahnut' a nasadit' odhora spät' do požadovanej polohy (obr. 14).

Diagram of a mechanical component with two upward arrows indicating direction (no text or symbols)

14

Výmena žiarovky

3D illustration of a cylindrical object with internal structure and directional arrow (no text or symbols)

LOKALIZÁCIA ZÁVAD

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Diagram showing a mechanical assembly with a bracket and a circular inset view of a rotating component (no text or symbols)

2

3

Line drawing of a wall socket and hand holding an electrical plug (no text or symbols)

5

ЗАМЯНА ПОСОКА НА ОТВАРЯНЕ НА ВРАТИ

Hand holding a small tool inside a white box, with visible wiring and components (no text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component (no text or symbols visible)

9

Person opening a white cabinet with a lid, viewed from above (no text or symbols visible)

Close-up of a hand inserting a textured cylindrical component into a white car (no visible text or symbols)

10

Hand holding a screwdriver next to a battery casing with yellow liquid (no text or symbols visible)

8

Simple line drawing of a mechanical component with a magnified inset showing a pin (no text or symbols)

11

Diagram of a cabinet or shelf with two upward arrows indicating flow or movement, no text or symbols present.

14

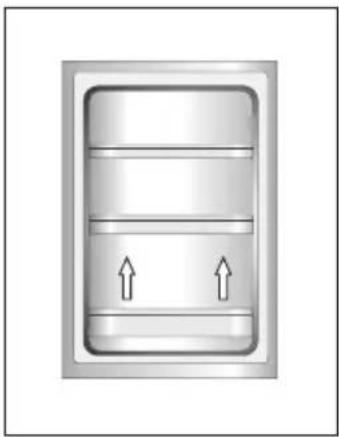

Diagram of a rectangular container with horizontal bands and two upward arrows inside, no text or symbols present.

3D diagram of a cylindrical object with internal structure and directional arrow, no text or symbols present

Simple black-and-white line drawing of a tree with two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

2

3

Line drawing of a wall socket and electrical plug (no text or symbols)

5

Hand holding a small object next to a white box with wires attached (no visible text or symbols)

Close-up of a hand using a screwdriver to adjust a mechanical component (no text or symbols visible)

9

Person installing or adjusting a white cabinet with a tool, no visible text or symbols

Close-up of a hand inserting a textured cylindrical component into a black plastic or plastic housing (no text or symbols visible)

10

Hand using a screwdriver to adjust or install a battery component (no visible text or symbols)

8

Hűtő leolvasztása

Simple line drawing of a bed with a magnified inset showing a hand holding a pointer (no text or symbols)

11

Diagram of a refrigerator with two upward arrows indicating flow or movement, no text or symbols present

14

Diagram of a mechanical component with two upward arrows indicating direction (no text or symbols)

3D illustration of a cylindrical object with internal structure and directional arrow (no text or symbols)

HIBÁK LOKALIZÁCIÓJA

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Diagram showing a device mounted on a wall with an inset circular view of a mechanical component (no text or symbols)

2

3

Line drawing of a wall socket and electrical plug (no text or symbols)

5

REVERSIBILITATEA UŞII

Hand inserting a small component into a white box (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust a mechanical component (no text or symbols visible)

9

1. Deşurubați picioruşul de reglare (poza 11).


Person installing or adjusting a white cabinet with a tool, no visible text or symbols

Close-up of a hand inserting a button into a device component (no visible text or symbols)

10

Hand using a screwdriver to adjust or install a battery component (no visible text or symbols)

8

Diagram of a mechanical component with a magnified inset showing a tool or part (no text or symbols present)

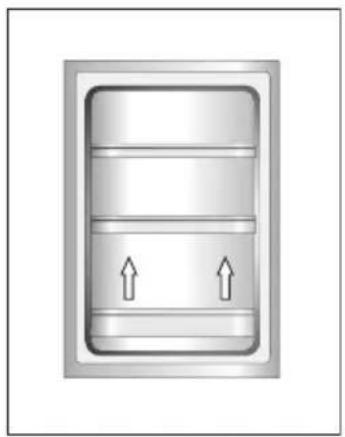

Diagram of a cabinet or shelf with two upward arrows indicating flow or movement, no text or symbols present.

14

Diagram of a mechanical component with two upward arrows indicating direction (no text or symbols)

Diagram of a cylindrical object with internal structure and directional arrow, labeled '13' (no text or symbols on the object itself)

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.
