ZCK1275X - Kettle Zelmer - Free user manual and instructions
Find the device manual for free ZCK1275X Zelmer in PDF.
| Product Type | Electric Kettle |
| Brand | Zelmer |
| Model | ZCK1275X |
| Capacity | 1.7 L |
| Body Material | Stainless Steel |
| Base Type | 360° Swivel Base |
| Power Indicator | Illuminated On/Off Switch |
| Filter | Removable Anti-Deposit Filter |
| Cord Storage | Yes, Cord Compartment |
| Automatic Shut-Off | Yes, After Boiling |
| Boil-Dry Protection | Yes, Thermal Switch |
| Lid Opening | Push-Button Release |
| Water Level Indicator | Yes, External Window |
| Safety Features | Cool-Touch Handle; Steam Protection; Child Safety (Age 8+) |
| Recommended Use | Indoor Domestic Use Only |
| Power Supply | 220–240 V ~ 50–60 Hz (AC) |
| Power Consumption | Approx. 2200–2400 W (Typical for 1.7 L) |
| Dimensions (Approx.) | 22 x 15 x 24 cm (Height with Base) |
| Weight (Approx.) | 1.2 kg |
| Cleaning Instructions | Wipe with Damp Cloth; Do Not Immerse |
| Descaling | Use 6–10% Vinegar or Citric Acid |
| Repairability | Only Authorized Service; Do Not Open |
Frequently Asked Questions - ZCK1275X Zelmer
User questions about ZCK1275X Zelmer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kettle in PDF format for free! Find your manual ZCK1275X - Zelmer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZCK1275X by Zelmer.
USER MANUAL ZCK1275X Zelmer
CZAJNIK ELEKTRYCZNY 4–6
CZ NÁVOD K POUŽITÍ
ELEKTRICKÁ VARNÁ KONVICE 7–9
SK NÁVOD NA OBSLUHU
ELEKTRICKÁ VARNÁ KANVICA 10–12
HU HASZNÁLATI UTASÍTÁS
ELEKTROMOS VÍZFORRALÓ 13–15
RO INSTRUCTIUNI DE UTILIZARE
FIERBĂTOR ELECTRIC 16–18
RU ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ
ЭЛЕКТРИЧЕСКИЙ ЧАЙНИК 19–21
BG ИНСТРУКЦИЯ ЗА УПОТРЕБА
ЕЛЕКТРИЧЕСКА КАНА 22–24
UA ІНСТРУКЦІЯ З ВИКОРИСТАННЯ
ЕЛЕКТРОЧАЙНИК 25–28
LT VARTOJIMO INSTRUKCIJA
ELEKTRINIAI VIRDULIAI 29–31
LV LIETOŠANAS INSTRUKCIJA
ELEKTRISKĀS TĒJKANNAS 32–34
ET KASUTUSJUHEND
ELEKTRITEEKANNUD 35–37
EN USER MANUAL
ELECTRIC KETTLE 38-40
ZCK1275X
CZAJNIK ELEKTRYCZNY
Fast and functional stainless steel electric kettle


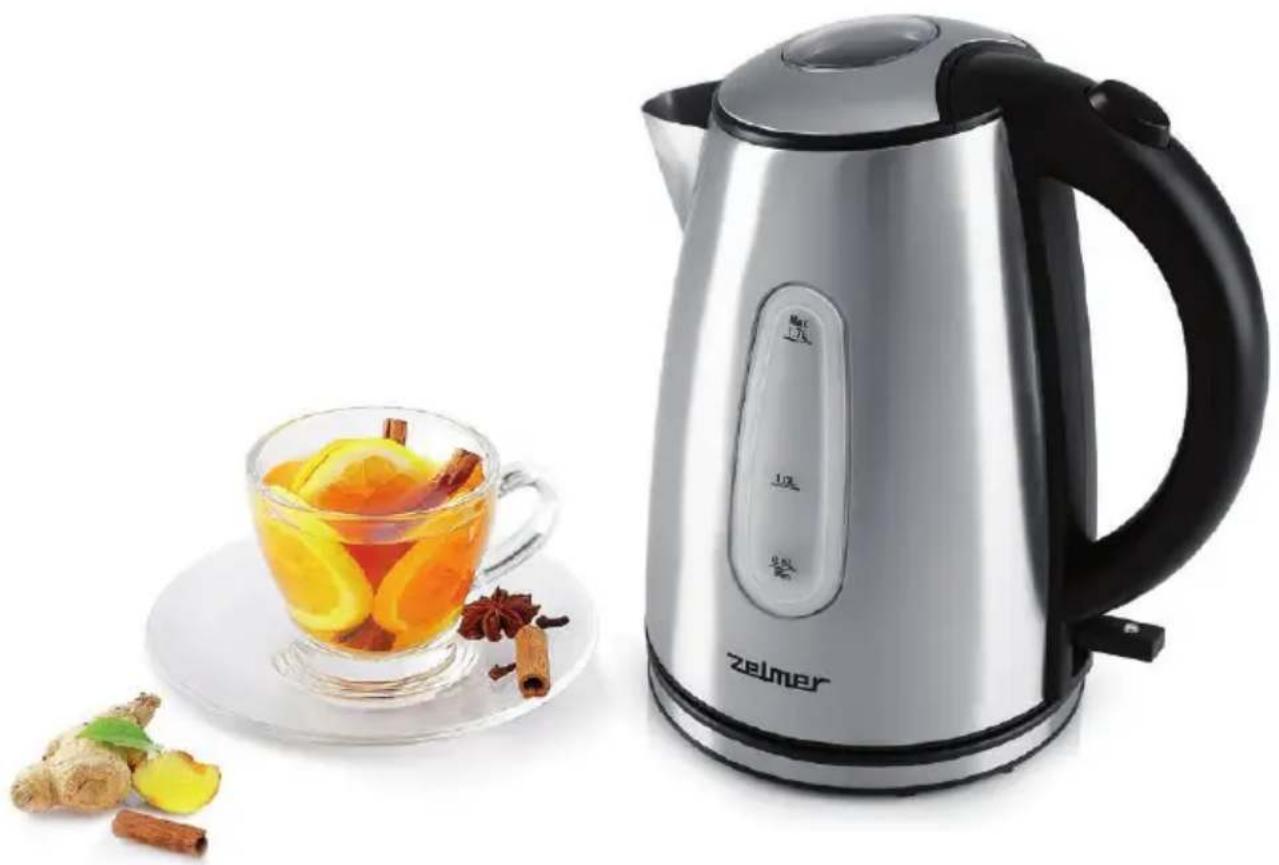

Modern kitchen setup with a silver kettle, glass of tea, and ginger slices (no text or symbols visible)A
B
C
Congratulations on your choice of Zelmer electric kettle, and welcome among the users of Zelmer products.
In order to achieve best results, we recommend using only original Zelmer accessories. They have been specially designed for this product.
Please read this user manual carefully. Special attention should be paid to the safety precautions. Please keep this manual safe for future reference.
Safety precautions and instructions on the proper use of the electric kettle
Before using the device, read the whole content of the manual.
DANGER! / WARNING! Health hazard
- Special attention should be kept when using the kettle in the presence of children.
- Do not operate the kettle if the power cord is damaged or if there is any visible damage to the kettle body.
- Do not plug the power cord with wet hands.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Only qualified staff may repair the appliance. Improper repair may cause a serious threat to the user. In case of any defects, contact an authorised ZELMER service point.
- Do not touch the metal body of the kettle when in use; move the kettle only using the handle.
- Do not touch any hot surfaces of the kettle. Surfaces remain hot even after the device is switched off.
- Do not fill the kettle beyond the maximum fill indicator "max" – water might spatter out of the kettle.
- Be careful not to wet the plug of the power cord.
- Steam coming out of the kettle when the water is boiling may cause scalding.
- Allow the kettle to cool completely before cleaning.
- Do not open the lid while the water is boiling.
• Always remove the plug from the mains before cleaning the kettle.
- This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Only use the appliance indoors at room temperature and up to 2000 m above sea level.
- Avoid spillage on the connector.
- A misuse of the appliance can potentially lead to injury.
- After the use the heating element surfaces and warming plate can be subjected to residual heat.
- Cleaning surfaces which come contact with foodstuffs! Please note the special information on cleaning in the instructions.
CAUTION!
Not observance can result in damage to possessions
Always plug the appliance to the mains (AC only) with voltage corresponding to that indicated on the rating plate.
Always place the kettle on a stable, smooth, flat surface; the power cord must not hang loosely off the edge of a table (or any other work surface) or touch a heated surface.
Do not remove the plug from the mains by pulling by the cord.
This appliance is intended for indoor use only.
The kettle can only be operated with the original power base (each base is type-specific).
Use the kettle for boiling water only.
Do not open the lid right after the water has boiled – steam might condense and appear on the exterior of the kettle.
Do not place the kettle on or near hot objects.
Do not immerse the kettle or the power base in water when filling or washing the electric kettle.
If water gets into any electric elements inside the kettle or onto the base, carefully dry these elements before plugging the kettle to the mains.
Do not operate the kettle when empty.
Do not use the kettle with the lid open – the automatic shut off will not work then.
Do not use any abrasive cleaning agents – such as emulsions, creams, pastes, etc. – for cleaning the kettle body. They might remove graphic information symbols, such as scales, marks, warning signs, etc.
The appliance is not intended to be operated by means of an external timer or separate remote-control system.
GESTION
Information on the product and suggestions for its use
This appliance is intended for domestic use only. In case it is used for food business purposes, the warranty conditions shall change.
Do not use the kettle without a filter.
Technical data
The technical parameters are given on the rating plate of the product.
1.7 litre capacity.

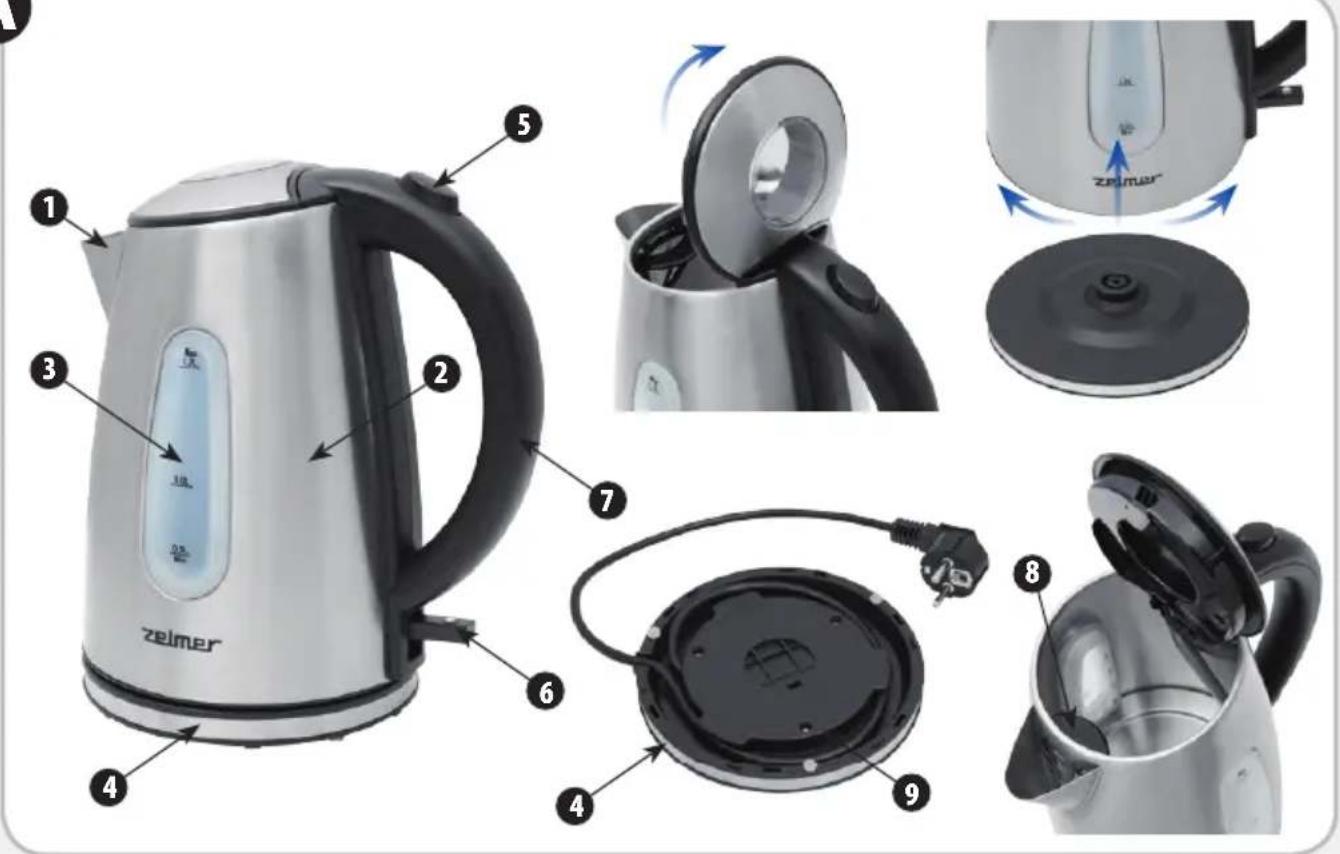

Kettle elements
1 Spout
2 Kettle body
3 Water level indicator
4 360° swivel base
5 Lid release button
6 On/off switch (0-I with power indicator)
7 Handle
8 Anti-deposit filter
9 Cord storage
Preparing the kettle for operation
re first use, wash the kettle inside (for washing instructions see the "Cleaning and maintenance" section), fill it with water up to the "max" level, boil water four times (each time use fresh water) and wash the kettle inside again.
Operating the kettle
① Press the lid button (5) – the kettle lid will open.
② Place the filter (8) in the kettle (if it is not in place).
③ Fill the kettle with the desired amount of water (the level is visible on the indicator (3)).
Do not boil the water if it is below the minimum level or beyond the maximum level on the indicator (3).
④ Close the lid.
⑤ Place the kettle on the base (4).
⑥ Plug the kettle to a socket provided with an earth pin.
⑦ Turn the kettle on by pressing the switch (6) – the power indicator light will come on.
⑧ After the water is boiled, the kettle will switch off automatically, the lever switch will return to its starting position and the power indicator will go off.
If you plan to use the kettle again soon, it is not necessary to remove the plug from the mains.
Make sure that the maximum kettle capacity is not exceeded when the kettle is filled with water.
In the event that an empty kettle is switched on, it will be switched off automatically by a thermal device.
witch on the kettle after it has cooled down (about 15 min), remove it from the base, fill with water, replace on the base and switch on by pressing the switch (6). The cooling down of the kettle can be accelerated by pouring cold water into the kettle.
Cleaning and maintenance
ys allow the kettle to cool down completely before cleaning!
① Unplug the kettle from the mains.
② Remove the filter (8) and rinse it under running water.
③ Clean the outside surfaces with a soft damp cloth and washing-up liquid.
In order to remove the build-up of hard water film from the outside and inside walls of the kettle, wipe them with a damp cloth and vinegar.
④ Rinse the kettle with fresh water.
ous black-coloured, rusty, milky, etc. deposits may form inside the kettle and float on the water. This is caused by minerals occurring naturally in water (calcium, magnesium, iron, etc.). Such discoloration is not caused by faulty operation of the appliance and does not affect its use. In case of substantial accumulation of mineral deposits, proceed as described in the "Descaling" section.
Descaling
In the event that scale builds up on the bottom of the kettle, it needs to be removed. For this purpose use 6-10% vinegar or citric acid.
Open the lid by pressing the lid release button (5).
Add 0.5 l of vinegar or 40 g of citric acid and fill the kettle with water up to the maximum level. Switch on the kettle.
Bring the mixture to boil and allow the kettle to stand for 30 minutes.
Empty the kettle and rinse it with fresh water.
Remove the filter (8) and rinse it under running water. Replace the filter.
Fill the kettle with fresh water, boil the water and empty the kettle.
If sediment is still visible in the kettle, remove it with a sponge and rinse the kettle again. If unsuccessful, repeat the descaling process.
The kettle should be descaled periodically to avoid its possible damage.
Disposal
Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.
The manufacturer is not liable for any damages resulting from improper use or handling of the appliance.
The manufacturer reserves the right to modify the product at any time and without prior notice in order to adjust it to valid law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons.


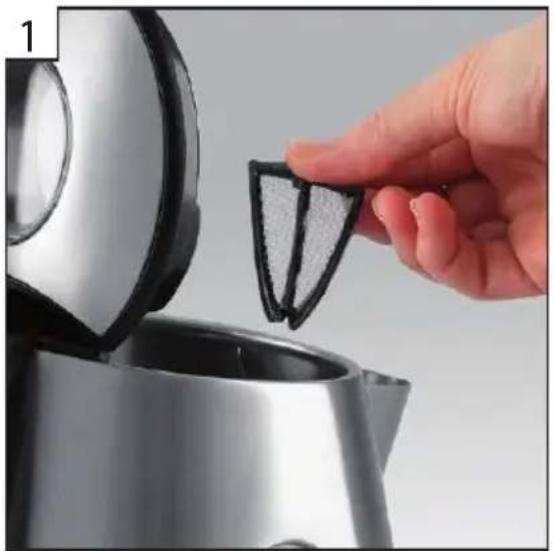

Close-up of a hand pouring a black triangular mesh into a stainless steel kitchen pot (no text or symbols visible)


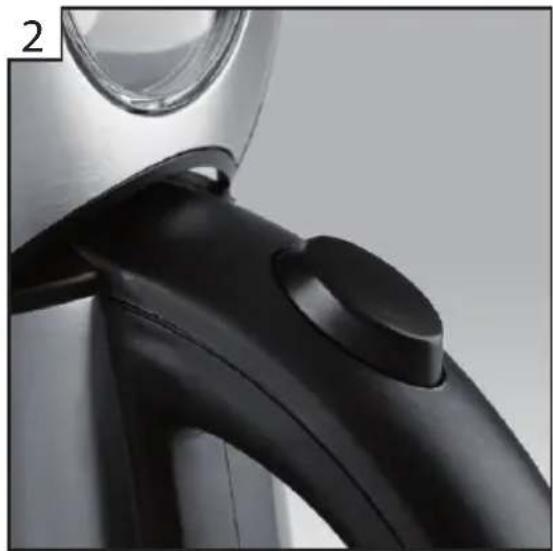

Close-up of a black industrial machine handle and lever component (no visible text or symbols)


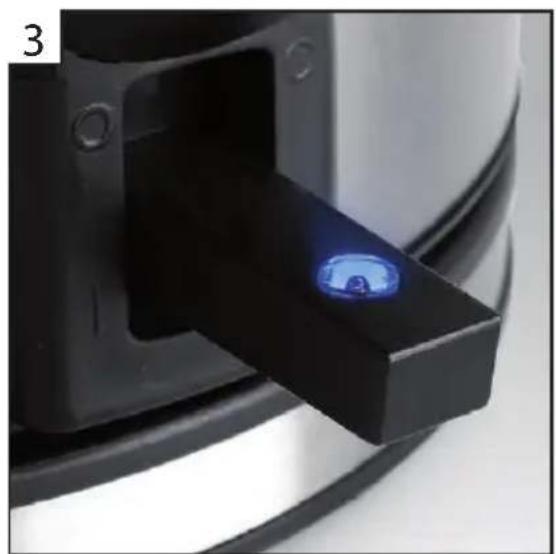

Close-up of a black mechanical component with a blue circular light source on its side (no text or symbols visible)


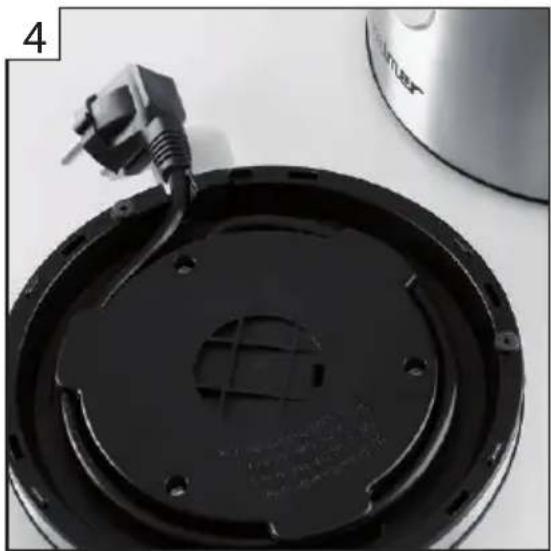

Close-up of a black circular device with a power plug inserted, next to a metallic fan (no visible text or symbols)EN 1. Removable limescale filter 2. Open lid with a button 3. Illuminated switch 4. Cord compartment
