Product Type	Internal DVD Burner
Dimensions (W x H x D)	148 x 42.3 x 180 mm
Weight	0.78 kg
Power Supply	+12 VDC / 1.5 A, +5 VDC / 1.7 A
Interface	Serial ATA (SATA) – 1.5 Gbit/s
Buffer Size	2 MB
Supported Disc Formats (Read/Write)	DVD±R, DVD±R DL, DVD±RW, DVD-RAM (read only), CD-R, CD-RW, CD-DA, Video-CD, etc.
Maximum Write Speeds	DVD-R: 20x; DVD+R: 20x; DVD-RW: 6x; DVD+RW: 8x; CD-R: 40x; CD-RW: 32x
Maximum Read Speeds	DVD-ROM: 16x; CD-ROM: 40x
Operating Temperature	+5 °C to +45 °C
Operating Humidity	5% to 85% (non-condensing)
Operating Position	Horizontal or vertical (8 cm discs not recommended in vertical)
DVD Region Code	Changeable up to 5 times (last setting is final)
Laser Safety	Class 1 – Visible/invisible laser radiation when open; avoid exposure
Write Speed Optimization Function	Yes (adjustable via DriveUtility.exe)
Emergency Manual Eject	Hole on the front panel to insert a paperclip
Cleaning the Device	Damp cloth only; no liquids, aerosols, alcohol
Supplied Accessories	Software disc, user manual

Frequently Asked Questions - DVR-2920Q PIONEER

How to install the DVR-2920Q burner in my computer?

Turn off the computer, unplug the power cord, remove the case. Remove the blanking plate from the 5.25-inch bay, insert the burner and secure it with screws of 5 mm maximum. Reconnect the power and SATA cable. Refer to your computer's manual for details.

What types of discs can I use with this burner?

This burner supports DVD±R, DVD±R DL, DVD±RW, DVD-RAM (read only), CD-R, CD-RW, CD-DA, Video-CD, and other CD formats. 12 cm and 8 cm discs are accepted, but 8 cm discs are not recommended in vertical position.

How to eject the tray if the eject button does not work?

Use the emergency eject hole on the front of the burner. Insert a straightened paperclip or rigid wire, push gently until the tray extends about 5 to 10 mm, then pull it manually. Make sure the power is off and the disc has stopped spinning (wait 60 seconds).

What is the write speed optimization function and how to enable it?

This function automatically adjusts the write speed to ensure the best recording quality. To enable it, launch DriveUtility.exe (provided on the software disc), select 'Pioneer DVR-216' from the drop-down menu, then activate the option. Click 'Apply' to confirm. You can choose to save the setting.

Can I burn dual-layer (DL) DVDs?

Yes, the burner supports writing to DVD-R DL and DVD+R DL at speeds up to 12x (depending on the media). Use compatible discs for best performance.

How to clean the DVR-2920Q burner?

Never use liquids, aerosols, or alcohol. Wipe the external surfaces with a soft damp cloth. For discs, clean them radially (from the center outward) with a soft cloth.

What is the DVD region code limitation?

The region code can be changed 5 times in total, with the first setting counting as one change. The fifth change is final. Discs without region code can be played without restriction.

Can the burner read DualDiscs?

Yes, the DVD side of DualDiscs can be read. However, the non-DVD audio side does not conform to CD audio specifications and may not be readable. Consult the disc manufacturer for more information.

What are the recommended temperature and humidity conditions?

Operating: +5 °C to +45 °C with humidity 5% to 85% (non-condensing). Storage: -40 °C to +60 °C with humidity 5% to 90%. Avoid dusty or humid environments.

Is the DVR-2920Q burner compatible with my computer?

It requires a SATA interface and standard power supply (12V and 5V). Most recent computers with a 5.25-inch bay are compatible. Check the BIOS version and SATA controller type. Refer to your computer's manual for compatibility.

USER MANUAL DVR-2920Q PIONEER

• Pioneer DVR-216MBK DVD/CD Writer
• Software from Roxio®

The lightening flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" with the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to individuals.

CAUTION

RISK OF ELECTRICAL SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE POSSIBLE RISK OF ELECTRICAL SHOCK OR INJURY,DO NOT REMOVE THE COVER (FRONT,BACK,OR TOP). NO USER-SERVICABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiver or receiving antenna.
• Increase the separation between the equipment and the receiver.
• Plug the equipment into an outlet on a circuit different from the receiver.
• Consult the dealer or an experienced radio/TV technician for assistance.

Information to User:

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to warranty service or other assistance.

[For Canadian Model]

This Class B apparatus complies with Canadian ICES-003.

CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION: The use of optical instruments with this product will increase eye hazard.

This product complies with the EMC Directives (89/336/EEC, amended by 92/31/EEC and 93/68/ECC).

Federal Communications Commission: Declaration or Conformity

This device complies with part 15 of the FCC Rules. Operation is subject to the following two (2) conditions:

(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired operation.

Product Name: DVD / CD Writer

Model Numbers: DVR-2920Q

Responsible Party Name:

PIONEER ELECTRONICS (USA) INC.

Customer Support Division

1925 E. Dominguez Street, Long Beach, CA 90810 U.S.A.

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

WARNING:

This product is not waterproof. To prevent a fire or shock hazard, do not place a container filled with liquid near this unit or expose it to other sources of moisture.

WARNING: Handling the product's cord or cords associated with accessories sold with the unit will expose you to lead, a chemical known by California and other governmental entities to cause cancer and birth defects or other reproductive harm. Wash Hands After Handling.

The generation of acoustical noise is less than 70dB (ISO7779/DIN45635)

CAUTION

This product is a Class 1 laser product but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of this product. Refer all servicing to qualified personnel. The caution label shown to the right appears on your unit (top of cover).

CLASS 1 LASER PRODUCT LASER KLASSE 1

IMPORTANT NOTICE - RECORD THE MODEL NUMBER AND SERIAL NUMBER OF THIS UNIT BELOW. THE NUMBERS ARE ON THE REAR PANEL.

MODEL #: Pioneer DVR-2920Q

SERIAL #:

KEEP THESE NUMBERS FOR FUTURE REFERENCE.

To ensure your personal safety and to maximize the full operating potential of your unit, read and follow these safety instructions.

Read & Retain Instructions - Read all operating and user information provided with this drive.

Cleaning - Use a damp cloth to clean the exterior housing. Avoid using any fluids including liquid, aerosol or alcohol-based cleaning products.

Water or Moisture - Avoid operating or locating this drive near water or other sources of fluid.

Ventilation - Slots and openings in the chassis are for cooling and proper operation of the unit. Do NOT block or cover the openings. Do NOT place this unit on a bed, rug, etc. as this can block the openings. This unit should not be placed in a built-in installation unless properly ventilated.

Environment - Avoid installing this drive in a location with exposure to large quantities of dust, high temperatures, high humidity, or subject to excessive vibrations or shocks.

Power Sources - Operate this drive only from the recommended power sources. If you are unsure of the power source, consult an authorized Pioneer representative.

Power-Cord Protection - When unplugging the unit, pull on the plug - not on the cord. Do not handle the cord or plug with wet hands; doing so could cause an electric short or shock. Do not allow anything to pinch or rest on the power cord and do not place in a walkway.

Power - Turn OFF the system before installing this or any other hardware device.

Overloading - Avoid connecting too many devices to a single wall socket or power source as this can cause fires or short circuits.

Object & Liquid Entry - Never push inappropriate objects in to the device. Avoid spilling any liquids in to or on the outside of the drive.

Condensation - Moisture can form in the operating section of the product if the drive is taken from cool surroundings to a room with a warmer temperature. Let the drive stand for one to two hours in the new location before turning it ON.

Servicing - Opening or removing the cover exposes you to possible electrical shock or other danger. Contact a Pioneer authorized service representative for repairing this drive (refer to the enclosed Service & Support Card).

Damage Requiring Service – Unplug the unit and refer servicing to qualified service personnel in the following situations:

• When the power cord, plug, or chassis is damaged
• If liquid has been spilled, or objects have fallen into the video product
• If the product has been exposed to rain or water
• If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and can require extensive work by a qualified technician to restore the unit to its normal operation.
• When the product exhibits a distinct change in performance – this indicates a need for service

About DualDisc Playback - DualDisc is a new two-sided disc with one side containing DVD video / audio / etc. content and the opposite side containing non-DVD content such as digital audio material. The non-DVD audio side is not compliant with the CD Audio Specification; therefore, may not play. The DVD side of DualDisc media plays in this unit. For more details about the DualDisc specification, please refer t to the disc manufacturer or your retailer.

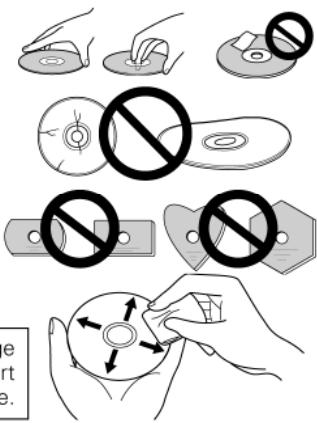

• Avoid touching or scratching the signal surface (shiny side) of the disc.
• Hold the disc by the edges or by the center hold and one edge.
• Do not affix paper or labels to the disc.
• Discard warped or cracked discs as they may cause damage to the drive.
• Avoid specially shaped discs such as hearts or polygons.
• Remove dust or lint from the disc with a soft cloth by wiping from the inside to the outside edge rather than in a circular motion.
• Do not use record-cleaning or anti-static agents as the solutions may cause damage to a disc.

Always be sure to store your discs in proper DVD-R storage cases when not in use, and always be sure to check for dirt or dust on discs (especially on the recording side) before use.

Note: Some discs may not be playable due to different recording formats or the physical condition of the disc at the time of recording or playback.

• Write Speed ( CAV, ZCLV, *** This specification describes the maximum speed in one zone.)

DVD-Download disc* 8X PCAV (6X CLV)

DVD-R 1X,2X,4X,6X,8X*,12X*,16X*,18X*,20X*

DVD-R (DL) 2X, 4X, 6X, 8X^ , 10X^ , 12X^ ,

DVD-RW 1X,2X,4X,6X

DVD+R 2.4X, 4X, 6X, 8X*, 12X*, 16X*, 18X*, 20X*

DVD+R (DL) 2.4X, 4X, 6X, 8X , 10X , 12X

DVD+RW 2.4X,3.3X,4X,6X,8X

DVD-RAM 2X,3X,5X,6X,8X*,12X

CD-R 4X,10X,16X,24X,32X*,40X

CD-RW 4X,10X,16X,20X*,24X*,32X*

*Note : DVD Download Disc for CSS Managed Recording (Qfix supported software application will be required.)

Maximum Read Speed

DVD-Download disc 12X CAV

DVD-ROM (single) 16X DVD-ROM (DL) 12X

DVD-R, DVD+R 16X DVD-R/+R (DL) 12X

DVD-RW, DVD+RW 13X DVD-RAM 5X

CD-ROM, CD-R 40X CD-RW 32X

DualDisc: please refer to the previous page in this document

Buffer Size 2 MBytes (Read/Write)

• Serial ATA Data Transfer Speed 1.5 G bits/sec
  Horizontal / Vertical orientation
  LCD Tilt Servo Mechanism in a 5.25" Half-Height built-in type
  DVD Download using recordable CSS technology

Disc Format (Read/Write)

DVD-Download disc
DVD single layer/dual layer / 120 mm / 80 mm (usable only when unit is mounted horizontally) disc
DVD-R (when writing, use only 650nm - for General use - media)
DVD-R (4X, 8X, 16X write speed)
- Dual Layer DVD-R (DL)
DVD-RW (1X, 2X, 4X, 6X write speed)
DVD+R (2.4X, 4X, 8X, 16X write speed)
- Double Layer DVD+R (DL)
DVD+RW (2.4X, 4X, 8X write speed)
DVD-RAM (non-cartridge, Ver 2.0, 2.1, 2.2) (Read only)
- CD-ROM Mode 1
- CD-R XA Mode 2 (form 1, form 2)
- Photo CD (single and multiple sessions)
CD-DA
CD-Extra (CD PLUS)
Video-CD
CD Text
CD-R
- CD-RW / High Speed CD-RW / Ultra Speed CD-RW (CD-RW, HS CD-RW, US CD-RW, US ^+ CD-RW)

Note:

• A specific software application is necessary to write the formats listed above.
• Supported media required for specific DVD and CD writing speeds.
• Average writing speed may decrease when multiple discs are written during the same session.
• When writing to DVD at 12X and 16X, use Pioneer-tested media. For media brand information, refer to the Pioneer website:

www.pioneerelectronics.com

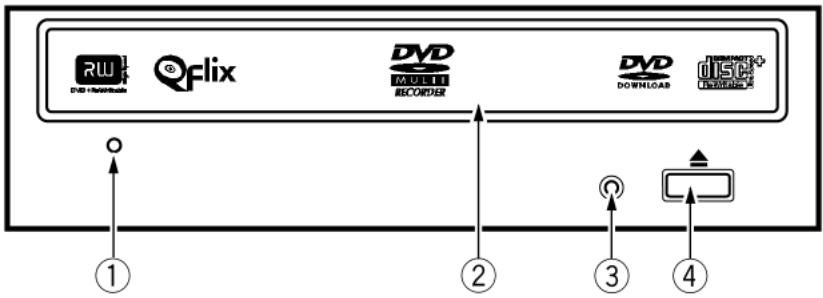

1) Forced Ejection Hole

If the tray fails to eject when the Eject button is pressed, insert a stiff rod into the hole and push to eject the tray.

During normal operation, the eject button should be used to unload the tray. Turn the power to the drive OFF then wait approximately one minute until the disc stops spinning before trying to eject the tray using the Forced Ejection Hole.

2) Disc Tray

Press the Eject button to open the loading tray then place a CD or DVD disc onto the tray with the label facing up. Press the Eject button again or gently push the tray to close and load. Do not attempt to pull out the disc tray forcibly – use the Forced Ejection Hole (1).

3) BUSY Indicator

Operation status is indicated as follows:

During reading

Lights

During writing

Lights

4) Eject Button

Press the button to unload / load the disc.

ABOUT REGION CODES

The region code can only be changed five (5) times, including the initial setting. Please be aware that the fifth change becomes PERMANENT. Therefore, avoid changing the region code unless absolutely necessary.

• Region codes are part of the DVD Standard. However, region codes on DVD discs are optional. DVD discs with no specified region code can be played on all compliant players.

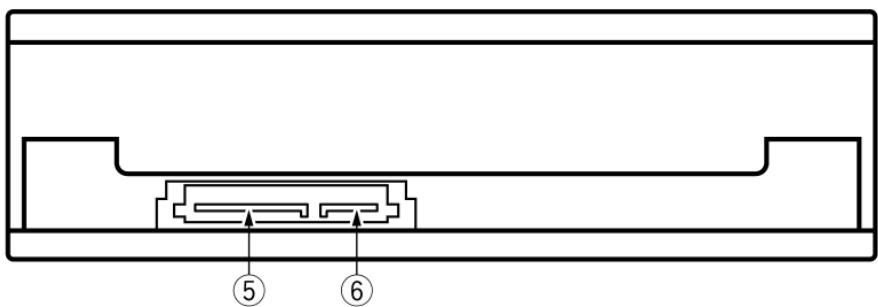

5) DC Input

Serial ATA electrical power connector

6) Serial ATA Interface

Serial ATA connector, for connection to serial ATA cable.

Proper operation and desired performance may not be achieved, depending on the BIOS version; computer settings, or the type of Serial ATA interface used.

For further information regarding computer specifications and settings, consult the Operating Instructions accompanying your computer or contact the computer manufacturer.

1) Turn off the power to the computer (PC) and remove the power cord from the AC outlet.
2) Remove the cover or the front panel from the PC.
3) Remove the blank panel installed on the front of the 5.25" slot.
4) Insert the drive into the slot.
5) When affixing is required, please refer to the instruction manual that came with your PC.

• Please use screws with a length of 5mm (3/16") or less for mounting. Using longer screws may damage the drive.
• When the mounting screws are loose, the vibrations from disc rotation may generate a ripping noise. To prevent this noise, securely tighten the screws
• When slide rails are required, please contact your place of purchase or the computer manufacturer.

Cable Connections

1) Turn off the power to the computer (PC).
2) Insert the cable into the PC, paying close attention to the cable connector's shape and polarity
3) Connect the Serial ATA interface cable to the PC again paying close attention to the connector shape and polarity.

Power for the drive is drawn from the PC. Do not use any other power supply than what is supplied through the PC.

The Optimal Write Speed feature (when enabled) recognizes the disc media and automatically adjusts the drive's write speed, ensuring the highest quality digital file preservation. When this feature is on, the disc writing speed reduces from the fastest possible speed to that which produces the highest quality written disc.

To use Optimal Write Speed, turn on the feature through the utility included on the software disc. To enable/disable Optimal Write Speed, follow these instructions:

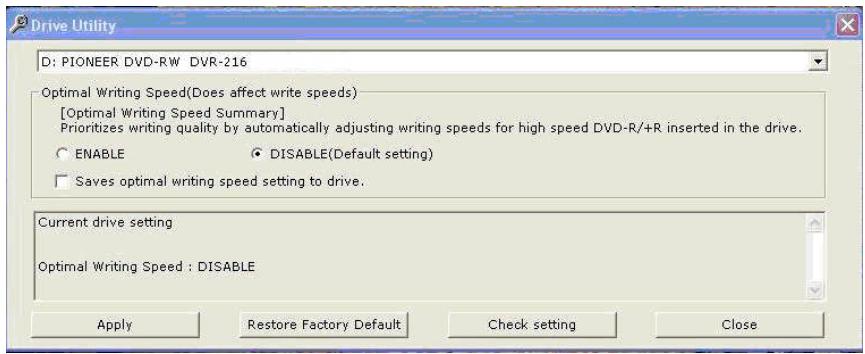

1. Double-click the DriveUtility.exe file to launch the program.

The Drive Utility window appears.

1. Choose the Pioneer DVR-216 drive from the drop-down menu.
   The DVR-2920Q consists of a Pioneer DVR-216 drive bundled with software from Roxio. Please ignore any letters or numbers that may appear after the model number. These characters have no affect on this operation.
2. To activate/deactivate the Optimal Writing Speed function, click on the applicable option.
   Though not required, clicking on the "Saves" check box stores this setting for the drive. Use this option if the drive will be moved between two or more PCs.
3. Click on the "Apply" button at the bottom to activate the option.
4. Verify that the display area (just above the Apply button) shows that the function is turned on or off, whichever is appropriate for your usage.

Manual Disc Ejection

If the tray fails to open and all other methods have been exhausted, use the method below to open the drive tray.

1) Shut down the PC.
2) Wait for a minimum of 60 seconds to allow the disc to stop spinning.
3) Insert a straightened paper clip or small wire into the manual eject hole.
4) Press smoothly but firmly until the tray protrudes by at least a 1/2 inch (5 mm to 10 mm).
5) Gently pull the tray straight out and remove the disc.

Notes:

• To prevent personal injury or damage to the drive, do NOT force the tray open while the disc is still spinning.
• Do not place objects in front of the tray while in operation.

[Position]

This unit may be installed horizontally or vertically.

[Disc Size]

12 cm / 8 cm (Drive does not support non-standard shapes such as business cards, diamond, etc.)

[Disc Transfer Rate]

Data Read (sustained)

DVD Max. 22.16 MBytes/sec (6.6X-16X CAV Mode over 16 block transfer)

CD Max. 6.14 MBytes/sec (16.2X - 40X CAV Mode over 16 block transfer)

Data Write (sustained)

DVD Max. 27.7 MBytes/sec. (Max 20X DVD-R)

CD Max. 6.14 MBytes/sec. (Max. 40X CD-R)

• Media that is dirty or damaged can affect the transfer rate.

[Access Time / Seek Time] (Random Averages)

Access Time DVD-ROM 130 ms CD-ROM 120 ms

Seek Time DVD-ROM 120 ms CD-ROM 110 ms

[Power]

Power Supply +12 V DC / 1.5 A

+5 V DC / 1.7 A

[Physical Information]

Dimensions 5-27/32 ^nW x 1-11/16 ^nH x 148 (W) x 42.3 (H) x 180 (D) mm (including front panel) 7-3/32 ^nD

Weight 1.72 pounds 0.78kg

Operating Temperature +41^ F to +113^ F ( +5^ C to +45^ C )

Operating Humidity 5% to 85% (no condensation)

Storage Temperature -40°F to +140°F

(-40^ to +60^)

Storage Humidity 5% to 90% (no condensation)

[Accessories]

• Software disc (x 1)
• Operating Instructions (x 1)

Note: Specifications and designs are subject to possible modifications without notice, due to improvements.

CLASS 1 LASER PRODUCT LASER KLASSE 1

CLASS 1 LASER PRODUCT
LASER KLASSE 1

(this page intentionally left blank)

AFTER SALES SERVICE FOR PIONEER PRODUCTS

Please contact the dealer or distributor where you purchased this product for its after-sale service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the Pioneer's subsidiaries (regional service headquarters) listed below.

PLEASE DO NOT SHIP YOUR PRODUCT TO THE COMPANIES

at the addresses listed below for repair without advance contact as these locations are not repair facilities.

United States

UNITED STATES

PIONEER ELECTRONICS (USA) INC.

Customer Support Division

P.O.Box 1760

Long Beach, CA 90801-1760

United States of America

CANADA

PIONEER ELECTRONICS OF CANADA, INC.

Customer Support

300 Allstate Parkway

Markham, Ontario

L3R-0P2 Canada

PIONEER CORPORATION

Published by Pioneer Corporation

All Rights Reserved

Copyright © 2008 Pioneer Corporation

PIONEER CORPORATION 4-1, Meguro, 1-Chrome, Meguro-ku, Tokyo 153-8654, Japan

Pioneer Electronics (USA) Inc.

Industrial Solutions Business Division

2265 E. 220^th Street, Long Beach, CA 90810 USA

Customer Support Division

1925 East Dominguez Street, Log Beach, CA 90810 USA

Pioneer Electronics of Canada, Inc.

Industrial Products Division

300 Allstate Parkway, Markham, Ontario, L3R-0P2 Canada

For software related issues, please contact:

SONIC/ROXIO

http://support.sonic.com/Desktop/dms/

For DVR-2920Q Support, go to:

http://www.pioneerelectronics.com/DVR2920Qsupport/
