Product Type	Range Hood
Brand	AEG
Model	DIE5970M
Control Panel	6 buttons: Lamp, First speed/Off, Second speed, Third speed, Maximum speed, Timer
Speed Levels	4 speeds (1st, 2nd, 3rd, Maximum)
Timer Function	5 minutes auto shut-off
Lighting	LED lamp
Lamp Replacement	By technician only
Grease Filter Type	Aluminum mesh, washable
Grease Filter Cleaning	Monthly; dishwasher safe (low temperature, short cycle)
Charcoal Filter	Non-washable, replace every 4 months
Recommended Usage Speeds	Speed 1: Heating with covered pots; Speed 2: Covered pots on multiple zones; Speed 3: Boiling/frying without lid; Speed 4: Large quantities, high humidity
Safety	Refer to separate installation instructions and safety chapters
Environmental	Recycle packaging; do not dispose with household waste
Customer Service	www.aeg.com/support; www.registeraeg.com; www.aeg.com/shop
Spare Parts	Original spare parts available via Authorised Service Centre

Frequently Asked Questions - DIE5970M AEG

How do I use the timer function?

Press the Timer button while the hood is operating at any speed. The motor speed level will flash, and the appliance will turn off after 5 minutes. Press the button again to deactivate.

How often should I clean the grease filter?

Clean the grease filter at least once a month. It can be washed in a dishwasher using a low temperature and short cycle. Hand washing with a mild detergent is also possible.

Can I wash the charcoal filter?

No, the charcoal filter is non-washable. It must be replaced every four months. Remove the grease filters first, then press the tab to release the charcoal filter.

What do I do if the lamp fails?

The appliance is equipped with an LED lamp that can only be replaced by a qualified technician. Contact an Authorised Service Centre if the lamp malfunctions.

Which speed should I use for different cooking?

Use Speed 1 for heating with covered pots, Speed 2 for covered pots on multiple zones, Speed 3 for boiling/frying without lid, and Speed 4 (maximum) for large quantities and high humidity.

How do I turn off the hood?

Press the First speed / Off button again when the hood is operating at the first speed. If operating at a higher speed, press the First speed button first, then press again to turn off.

How do I clean the exterior?

Use a soft cloth with warm water and a mild detergent. For stainless steel models, use denatured ethyl alcohol or specific steel cleaners. Avoid abrasive products.

Is the grease filter dishwasher safe?

Yes, the grease filter can be washed in a dishwasher. Use a low temperature and short cycle. Discoloration may occur but does not affect performance.

Why is my hood not working?

Check if the appliance is plugged in and the circuit breaker is on. Ensure the speed button is pressed. If problems persist, refer to the 'Service' section in the safety instructions.

How can I get replacement parts?

Visit www.aeg.com/shop or contact an Authorised Service Centre. Always use original spare parts. Have your Model, PNC, and Serial Number ready.

USER MANUAL DIE5970M AEG

Simple line drawing of a kitchen chimney with three dots on the base (no text or symbols)

DBE5670R

DBE5670M

DBE5970R

DBE5970M

DBS5971MM

DIE5970M

PËRMBAJTJA

1. INFORMACIONI I SIGURISË DHE INSTALIMI....2
2. PËRSHKRIM I PRODUKTIT....3
3. PËRDORIMI I PËRDITSHËM.... 3
4. KUJDESI DHE PASTRIMI.... 4

PËR REZULTATE TË SHKËLQYERA

2. PËRSHKRIM I PRODUKTIT

Isometric line drawing of a rectangular grid structure with a labeled dimension '1' (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned rectangular object with a labeled feature '1' (no text or symbols beyond the label)

3. SVAKODNEVNA UPORABA

3.1 Uporaba nape

Isometric line drawing of a grid-patterned rectangular object with a labeled feature '1' (no text or symbols beyond the label)

1. Da biste instalirali novi filtar, izvršite iste korake obrnutim redoslijedom. U svakom slučaju, potrebno je zamijeniti filtre najmanje svaka četiri mjeseca.

4.4 Zamjena žarulje

Ovaj uređaj opremljen je LED žaruljom.
Ovaj dio može zamijeniti samo tehničar.
U slučaju bilo kakve neispravnosti, pogledajte "Servis" u poglavlju "Sigurnosne upute".

simbolom 📄 ne bacajte zajedno s kućnim otpadom. Proizvod odnesite na lokalno reciklažno mjesto ili kontaktirajte nadležnu službu.

OBSAH

1. BEZPEČNOSTNÍ INFORMACE A INSTALACE.... 14
2. POPIS SPOTŘEBIČE....15
3. DENNÍ POUŽÍVÁNÍ......15
4. ČIŠTĚNÍ A ÚDRŽBA....16

PRO DOKONALÉ VÝSLEDKY

Isometric line drawing of a 3D grid-patterned rectangular block with a labeled corner '1' (no text or symbols beyond the label)

Isometric line drawing of a 3D grid-patterned rectangular block with a labeled corner '1' (no text or symbols beyond the label)

Isometric line drawing of a rectangular grid structure with a labeled section '1' (no text or symbols beyond the label)

1. SAFETY INFORMATION AND INSTALLATION....26
2. PRODUCT DESCRIPTION....27
3. DAILY USE....27
4. CARE AND CLEANING....28

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information:

www.aeg.com/support

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION AND INSTALLATION

WARNING!

Refer to the separate Installation Instructions booklet for Safety Information and Installation.

Read carefully the Safety chapters before any use or maintenance of the appliance.

2. PRODUCT DESCRIPTION

2.1 Control panel overview

	Function Description
1	Lamp Turns the lights on and off.
2	First speed / Off The motor switches to first speed level. Second press turns off the appliance.
3	Second speed The motor switches to second speed level.
4	Third speed The motor switches to third speed level.
5	Maximum speed The motor switches to maximum speed level.
6	Timer Turns off the appliance after 5 minutes.

3. DAILY USE

3.1 Using the hood

Check the recommended speed according to the table below.

Y01	While heating up food, cooking with covered pots.
Y2	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
Y3	While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
Y4	While boiling and frying big quantities of food without a lid, big humidity.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

To operate the hood:

1. Press the first speed button switch on the appliance.

1. If needed, press the light button to illuminate the cooking surface.
2. If needed, change the speed by pressing the desired button. To turn off the appliance press the first speed button Yoll again.

3.2 Timer

This function allows to turn off the appliance after 5 minutes of operating. The function can be used only if the appliance operates at any motor speed level.

Motor speed level starts to flash on the display.

1. After 5 minutes the appliance turns off.

To turn off the function press the ⏻s button again.

1. Press the ⏻ button.

4. CARE AND CLEANING

4.1 Notes on cleaning

	Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.
	Use a cloth or a brush soaked in denatured ethyl alcohol or use specific products for steel (AISI 1.4016 type) to clean the interior of the appliance.
	Clean stains with a mild detergent.
	Clean the appliance each month. Fat accumulation or other residue may cause fire.
	Clean the interior and grease filters carefully from fat. Grease filters can be washed in a dishwasher.The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.
	The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter.
	Grease filters must be cleaned at least once a month.

4.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1. Slightly tilt the front of the filter downwards (2), then pull. Repeat the first two steps for all filters.

2. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order. Repeat the steps for all filters if applicable.

4.3 Replacing the charcoal filter

WARNING!

The charcoal filter is non-washable!

To replace the filter:

1. Remove the grease filters from the appliance.

Refer to "Cleaning the grease filter" in this chapter.

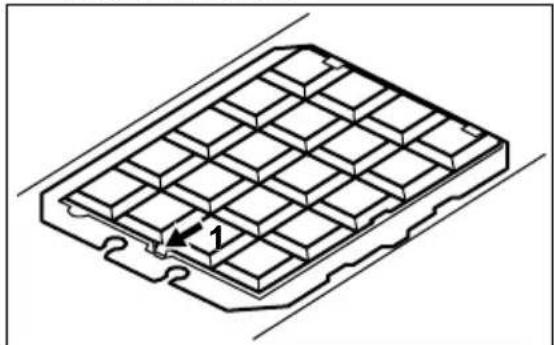

1. press the tab (1) and slightly tilt the front of the filter.

Isometric line drawing of a rectangular grid structure with a labeled component '1' (no text or symbols beyond the label)

1. To install a new filter, perform the same steps in reverse order. In any case, it is necessary to replace the filters at least every four months.

4.4 Replacing the lamp

This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

5. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📀 with the household waste. Return the product to your local recycling facility or contact your municipal office.
