KBO 0974 SV PT X - Oven Kernau - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Kernau
Model	KBO 0974 SV PT X
Energy Class	A
Oven Volume	78 L
Energy Consumption (Conventional)	0.99 kWh/cycle
Energy Consumption (Fan Forced)	0.93 kWh/cycle
Number of Cavities	1
Heat Source	Electric
Power Supply	220-240 V ~
Control Type	Visio Touch (digital)
Oven Functions	Static Cooking, Turbo, Fan, Grill, Fast Grill, Double Grill & Fan, Pizza, Defrost, Oven Lamp
Timer	Yes (minute minder, cooking duration, end time)
Key Lock	Yes
Oven Light	Yes, 25W E14 (replaceable by authorized service)
Cleaning	Catalytic enamel panels on rear and side walls (self-cleaning)
Accessories Included	Wire grid, shallow tray, deep tray
Installation Type	Built-in
Safety Features	Auto shut-off after 6 hours, child lock, cool-touch door (not specified)
Dimensions (Approx.)	595 x 595 x 575 mm (height x width x depth)

Frequently Asked Questions - KBO 0974 SV PT X Kernau

How do I set the current time on the oven?

When first installed, '0.00' flashes on the display. Touch the 'M' sensor or '-' and '+' sensors to adjust the day time. The ':' symbol will flash. Use '-' and '+' to set the time. To manually adjust later, touch '-' and '+' simultaneously while auto cooking mode is off.

How can I use the timer for delayed cooking?

First, set the cooking function and temperature. Then touch 'M' until the duration symbol '|>|' appears, 'AUTO' displays. Set cooking time with '-' and '+'. Then touch 'M' until '>|' symbol appears, set the end time. The oven will start automatically to finish at that time.

What should I do if the oven does not heat?

Check that the oven is plugged in and the power is on. Ensure the time of day is set (required for operation). Verify that the oven function and temperature are selected. If still not heating, contact authorized service.

How do I clean the oven interior?

Unplug the oven and let it cool. Wipe with a soft cloth dampened with soapy water after each use. For catalytic enamel panels (rear and side walls), no manual cleaning is needed; they self-clean during normal use. Do not use abrasive cleaners or steam cleaners.

Can I use aluminum foil in the oven?

It is not recommended to use aluminum foil on the oven bottom as it can damage the enamel. You can use foil to cover food, but ensure it does not block air circulation.

How do I replace the oven light?

The oven light must be replaced by an authorized service technician. The bulb is 230V, 25W, type E14, T300. Unplug the oven and ensure it is cool before service.

What are the different oven functions?

Functions include: Static Cooking (upper+lower heat), Turbo (ring element+fan for even heat), Fan (upper+lower+fan), Grill, Fast Grill, Double Grill & Fan, Pizza (ring+lower+fan), Defrost (fan only), and Oven Lamp. Each function is suitable for specific dishes.

Does the oven have a self-cleaning feature?

The oven has catalytic enamel panels on the rear and side walls. These panels absorb grease and burn it off during high-temperature cooking, reducing cleaning effort. They do not require manual cleaning but may need replacement after some time.

How do I activate the key lock?

Touch the '+' sensor until the key lock symbol appears on the display. To deactivate, touch the '+' sensor again. This prevents accidental operation of the control unit.

What does 'AUTO' on the display mean?

'AUTO' appears when a timer function (duration or end time) is active. It indicates the oven will automatically start or stop cooking. When cooking is complete, 'AUTO' flashes and an audible warning sounds. Touch any sensor to stop the alarm, then touch '-' and '+' simultaneously to cancel AUTO mode.

USER MANUAL KBO 0974 SV PT X Kernau

Line drawing of a standard oven with front panel and top outlets (no text or symbols)

KBO 0972 SVPT B

KBO 0972 SVPT W

KBO 0974 SVPT X

Dear Customer,

Our goal is to offer you, high quality products that exceed your expectations. Your appliance is produced in modern facilities and is carefully, particularly tested for quality. This manual is prepared in order to help you use your appliance, which has been manufactured using the most recent technology with confidence and maximum efficiency. Before using your appliance, carefully read this guide which includes basic information to safe installation, maintenance and use. Please contact your nearest Authorized Service centre for the installation of your product.

Contents

Presentation and size of product

Warnings

Preparation for installation and use

Using the oven

Cleaning and maintenance of your product

Service and Transport

PRESENTATION AND SIZE OF PRODUCT

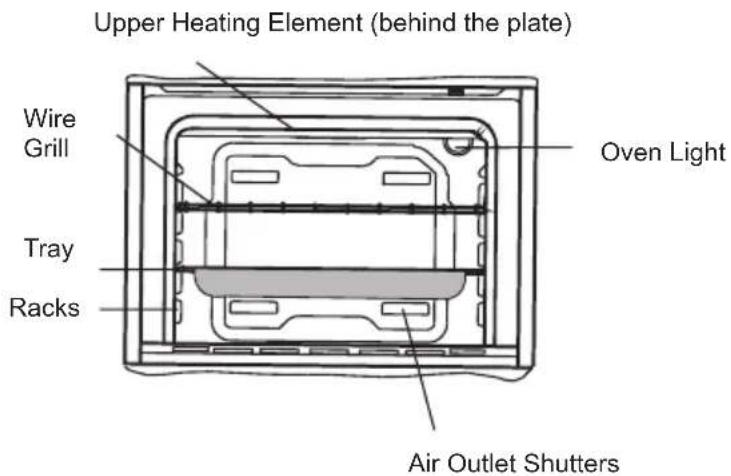

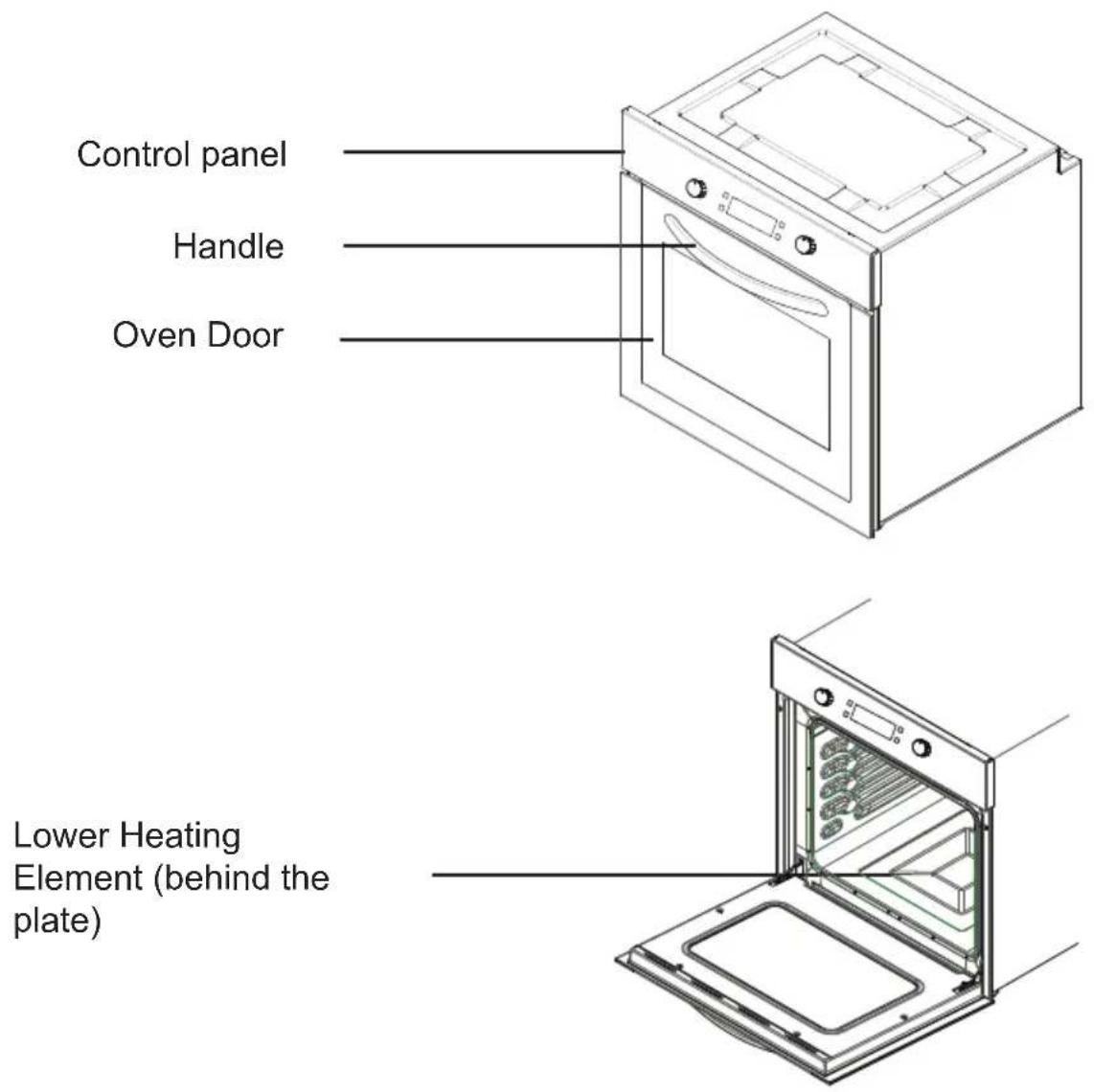

Lower Heating Element (behind the plate)

Upper Heating Element (behind the plate) Wire Grill Tray Racks Oven Light Air Outlet Shutters

SAFETY WARNINGS

READ THESE INSTRUCTIONS CARE- FULLY AND COMPLETELY BEFORE USING YOUR APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR RE- FERENCE WHEN NECESSARY.

THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. PAY ATTENTION TO THE EXPRESSIONS THAT HAVE FIGURES, WHILE YOU ARE READING THE OPERATING MANUAL.

General Safety Warnings

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children

shall not play with the appliance. Cleaning and user maintenance ce shall not be made by children without supervision.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

- The appliance is not intended to be operated by means of an external timer or se-

parate remote-control system.

• During use, the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
• During use, handles held for short periods in normal use can get hot.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface since they can scratch the surface, which may result in shattering of the glass or damage to the surface.
• Do not use steam cleaners for cleaning the appliance.
• WARNING: Ensure that the appliance is switched off before replacing the lamp to

avoid the possibility of electric shock.

- CAUTION: Accessible parts may be hot when the cooking or grilling is in use. Young children should be kept away.

• Your appliance is produced in accordance with all applicable local and international standards and regulations.
• Maintenance and repair work must be made only by authorized service technicians. Installation and repair work that is carried out by unauthorized technicians may endanger you. It is dangerous to alter or modify the specifications of the appliance in any way.
• Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the requirements of the appliance are compatible. The requirements for this appliance are stated on the label.
• CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment or room heating.
• Do not try to lift or move the app-

liance by pulling the door handle.

• All possible security measures have been taken to ensure your safety. Since the glass may break, you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on the glass with accessories.
• Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• While the oven door is open, do not let children climb on the door or sit on it.

Installation Warnings

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement and installation by unauthorized people.
• When you unpack the appliance, make sure that it is not damaged during transportation. In case of any defect; do not use the appliance and contact a qualified service agent immediately. As the materials used for packaging (nylon, staplers, styrofoam...etc) may cause harmful effects to children, they should be collected and removed immediately.
• Protect your appliance against

atmospheric effects. Do not expose it to effects such as sun, rain, snow etc.
- The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of min 100°C.

During usage

• When you first run your oven a certain smell will emanate from the insulation materials and the heater elements. For this reason, before using your oven, run it empty at maximum temperature for 45 minutes. At the same time you need to properly ventilate the environment in which the product is installed.
• During usage, the outer and inner surfaces of the oven get hot. While opening the oven door, step back to avoid the hot steam coming out of the oven. There may be a risk of burns.
• Do not put flammable or combustible materials, in or near the appliance when it is operating.
  • Always use oven gloves to remove and replace food in the oven.
• Do not leave the cooker while co-oking with solid or liquid oils. They may catch fire on condition of extreme heating. Never pour water on to flames that are caused by oil. Cover the saucepan or frypan with its cover in order to choke the flame that has occurred in this case and turn the cooker off.
• If you will not use the appliance for a long time, plug it off. Keep the

main control switch off. Also when you do not use the appliance, keep the gas valve off.

- Make sure the appliance control knobs are always in the "0" (stop) position when it is not used.

- The trays incline when pulled out. Be careful not to let hot liquid spill over.

- When the door or drawer of the oven is open, do not leave anything on it. You may unbalance your appliance or break the cover.

- Do not put heavy things or flammable or ignitable goods (nylon, plastic bag, paper, cloth...etc) into the drawer. This includes cookware with plastic accessories (e.g. handles).

- Do not hang towels, dishcloths or clothes from the appliance or its handles.

- During cleaning and maintenance

• Always turn the appliance off before operations such as cleaning or maintenance. You can do it after plugging the appliance off or turning the main switches off.

- Do not remove the control knobs to clean the control panel.

• TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU ALWAYS USE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR AUTHORIZED SERVICE AGENTS IN CASE OF NEED.

PREPARATION FOR INSTALLATION AND USE

Manufactured with best quality parts and materials, this modern, functional and practical oven will meet your needs in all respects. Make sure to read the manual to obtain successful results and not to experience any problems in the future. The information given below contain rules that are necessary for correct positioning and service operations. They should be read without fail especially by the technician who will position the appliance.

CONTACT THE AUTHORIZED SERVICE FOR INSTALLATION OF YOUR OVEN!

CHOOSING A PLACE FOR THE OVEN

- There are several points to pay attention to when choosing a place for your oven. Make sure to take into account our recommendations below in order to prevent any problems and dangerous situations, which might occur later!

-When choosing a place for the oven, attention should be paid that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which quickly catch fire.

-Furnitures surrounding the oven must be made of materials resistant to heat more than 50C^ of the room temperature.

Required changes to wall cabinets and exhaust fans above the built-in combined product as well as minimum heights from the oven board are shown in Figure 1. Accordingly, the exhaust fan should be at a minimum height of 65 cm from the hob board. If there is no exhaust fan the height should not be less than 70 cm.

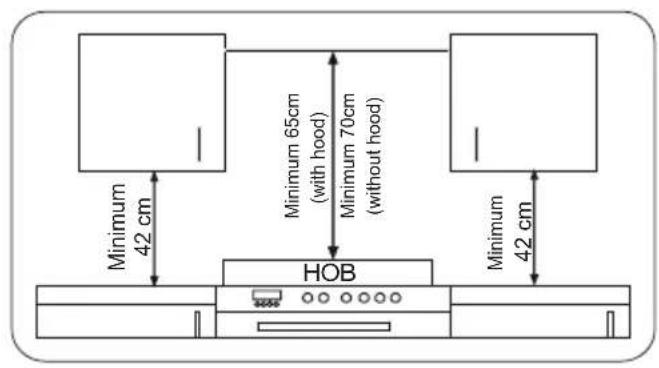

Minimum 42 cm Minimum 65cm (with hood) Minimum 70cm (without hood) HOB Minimum 42 cm

INSTALLATION OF BUILT-IN OVEN

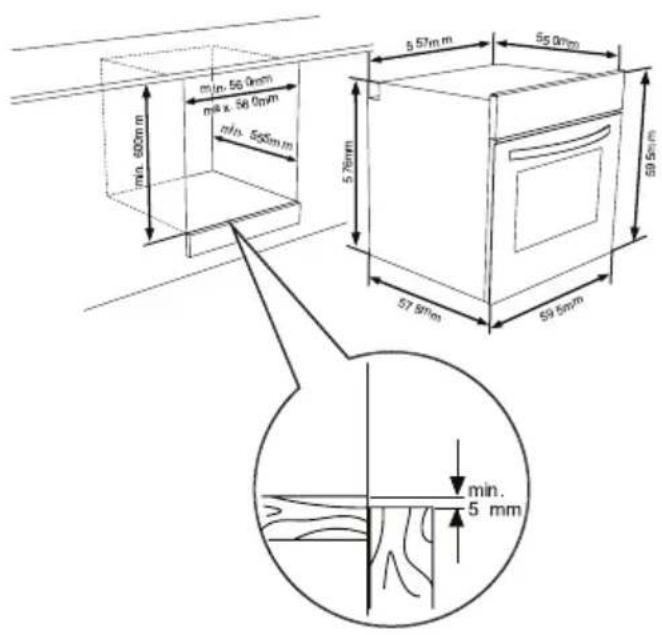

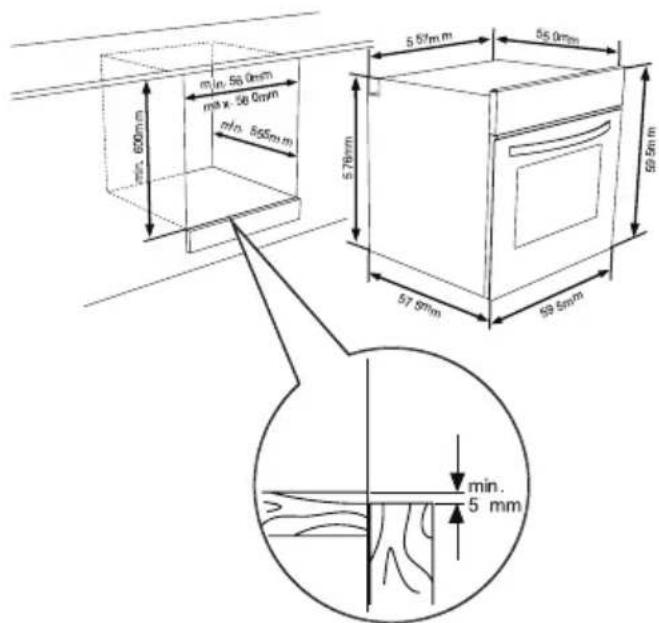

min. 600mm min. 56.0mm min. 56.0mm min. 565mm 5.76mm 5.57mm 5.50mm 59.5mm 57.9mm 59.5mm min. 5 mm

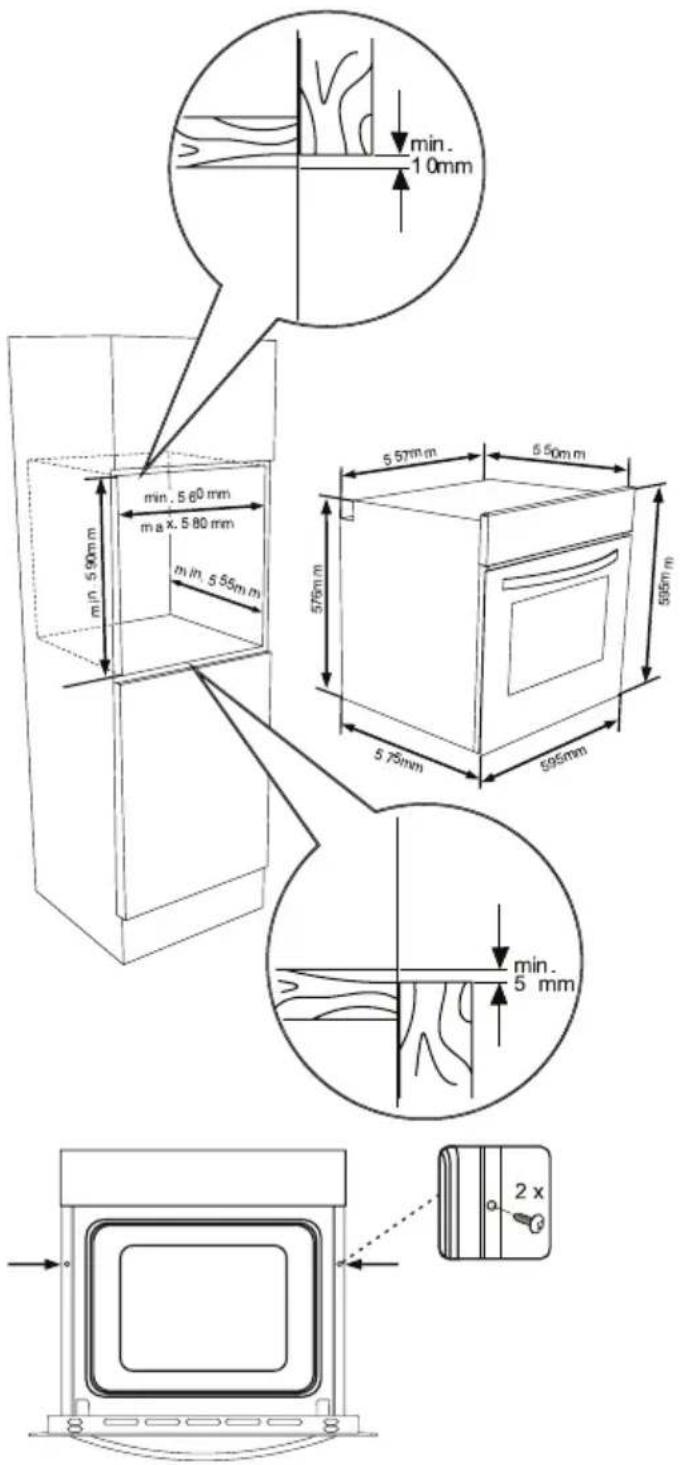

min. 10mm 5.57mm 5.50mm 5.75mm 5.95mm 5.80mm 5.90mm 5.55mm min. 5.60mm min. 5.80mm min. 5.90mm min. 5.55mm min. 5 mm 2 x

Insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of cabinet, tighten the screws.

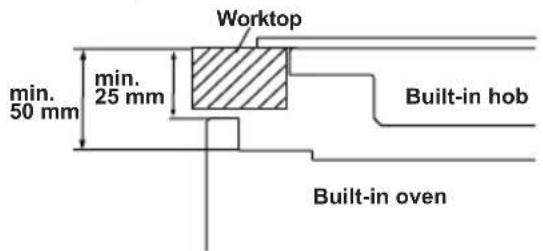

Worktop min. 25 mm min. 50 mm Built-in hob Built-in oven

If the oven is installed under a hob, the distance between the worktop and the top panel of the oven must be minimum 50 mm and the distance between the worktop and the top of control panel must be minimum 25 mm.

WIRING AND SAFETY OF BUILT\_IN OVEN

The instructions given below must be followed without fail during wiring :

-The earthing cable must be connected via the screw with the earthing mark. Supply cable connection must be as shown in Figure 6. If there is no earthed outlet conforming to regulations in the installation environment, call the Authorized Service immediately.

-The earthed outlet must be in close vicinity of the appliance. Never use an extension cord.

-The supply cable should not contact the product's hot surface.

-In case of any damage to the supply cable, make sure to call the Authorized Service. The cable must be replaced by the Authorized Service.

-Wiring of the appliance must be performed by the Authorized Service. H05VV-F type supply cable must be used.

-Faulty wiring may damage the appliance. Such a damage will not be covered under the warranty.

-The appliance is designed to connect to 220-240V\~ electricity is different than the value given above, call the Authorized Service immediately.

-The Manucaturer Firm declares that its bears no responsibility

whatsoever for any kind of damage and loss arising from not complying with safety norms!

-Wiring of the appliance must be performed by the Authorized Service. The appliance is

-designed to connect to 220-240V\~electricity. If the mains electricity is different than the value given, call the Authorized Service immediately. The appliance is designed for using with plug ofor fixed connection to the mains. It is necessary that you install a double pole switch between the product and the electricity supply (ma-ins), with a minimum gap of 3 mm between the switch contacts. (20A rated, delay function type).

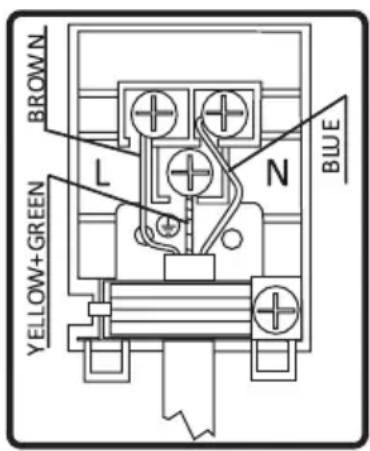

BROWN YELLOW+GREEN L N BLUE

3.4. GENERAL WARNING AND PRECAUTIONS

Your appliance is produced in conformity with the relevant safety instructions relating to electrical appliances. Maintenance and repair works must be performed only by Authorized Service technicians trained by the manufacturer

firm. Installation and repair works, performed without observing the rules may be dangerous.

The outer surfaces is heated while your appliance is operating. The elements heating the inner surface of the oven and the steam out are extremely hot. These sections will continue to preserve their heat for certain while even if the appliance is switched off. Never touch the hot surfaces. Keep children away.

In order to cook in your oven, the oven function and temperature setting buttons need to be adjusted and the oven timer, needs to be programmed. Otherwise, the oven will not operate.

While the oven door is open, do not place anything on it. You may disturb the balance of the appliance or break the door.

Unplug your appliance when it is not in use.

Protect your appliance from atmospheric effects. Do not leave it under the effects of the sun, rain, snow, dust etc.

Using the oven function control button

Oven Functions

* The functions of your oven may be different due to the model of your product.

Oven Lamp:

Only the oven light will be turned on and it remains on in all the cooking function.

Defrost Function:

The oven's warning lights will be turned on, the fan starts operating.

To use the defrost function, take your frozen food and place it in the oven on a shelf placed in the third slot from the bottom. It is recommended that you can place an oven tray under the defrosting food, to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Turbo Function

The oven's thermostat and warning lights will be turned on, the ring heating element and fan will start operating.

The turbo function evenly disperse the heat in the oven. All foods on all racks will be cooked evenly. It is recommended to pre-heat the oven about 10 minutes.

Static Cooking Function:

The oven's thermostat and warning lights will be turned on, the lower and upper heating elements will start operating. The static cooking function emits heat, ensuring even cooking of the lower and upper food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Prehating the oven for 10 minutes is recommended and it is best to cook on only one shelf at a time in this function.

Fan Function:

The oven's thermostat and warning lights will be turned on, the upper and lower heating elements and fan will start operating.

This function is very good for obtaining results in baking pastry. Cooking is carried

out by the lower and upper heating element within the oven and by the fan providing air circulation, which will give a slight grill effect to the food. It is recommended to pre-heat the oven about 10 minutes.

Grilling Function:

The oven's thermostat and warning lights will be turned on, the grill heating element will start operating. The function is used for grilling and toasting foods, use the upper shelves of oven. Lightly brush the wire grid with oil to stop foods sticking and place foods in the center of the grid. Always place a tray beneath to catch any drips of oil or fat. It is recommended to pre-heat the oven about 10 minutes. Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190^ .

Faster Grilling Function:

The oven's thermostat and warning lights will be turned on, the grill and upper heating elements will start operating. The function is used for faster grilling and for covering a larger surface area, such as grilling meats, use the upper shelves of oven. Lightly brush the wire grid with oil to stop foods sticking and place foods in the center of the grid. Always place a tray beneath to catch any drips of oil or fat. It is recommended to pre-heat the oven about 10 minutes. Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190^

Double Grill and Fan Function:

The oven's thermostat and warning lights will be turned on, the grill and upper heating elements and fan will start operating.

The function is used for faster grilling of thicker foods and for covering a larger surface area. Both the upper heating elements and grill will be energised along with the fan to ensure even cooking.

Use the upper shelves of oven. Lightly brush the wire grid with oil to stop foods sticking and place foods in the center of the grid. Always place a tray beneath to catch any drips of oil or fat. It is recommended to pre-heat the oven about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to 190C°.

Pizza Function:

The oven's thermostat and warning lights will be turned on, the ring and lower heating elements and fan will start operating.

Fan and lower heating function is ideal for baking food, such as pizza, equally in a short time. While the fan evenly disperses the heat of the oven, the lower heating element ensures the baking of food dough.

ENERGY SAVING

Minimize the amount of liquid or fat to reduce cooking times.

Oven door should not be opened often during cooking period.

4.2. HOW TO USE THE VISIO TOUCH CONTROL UNIT

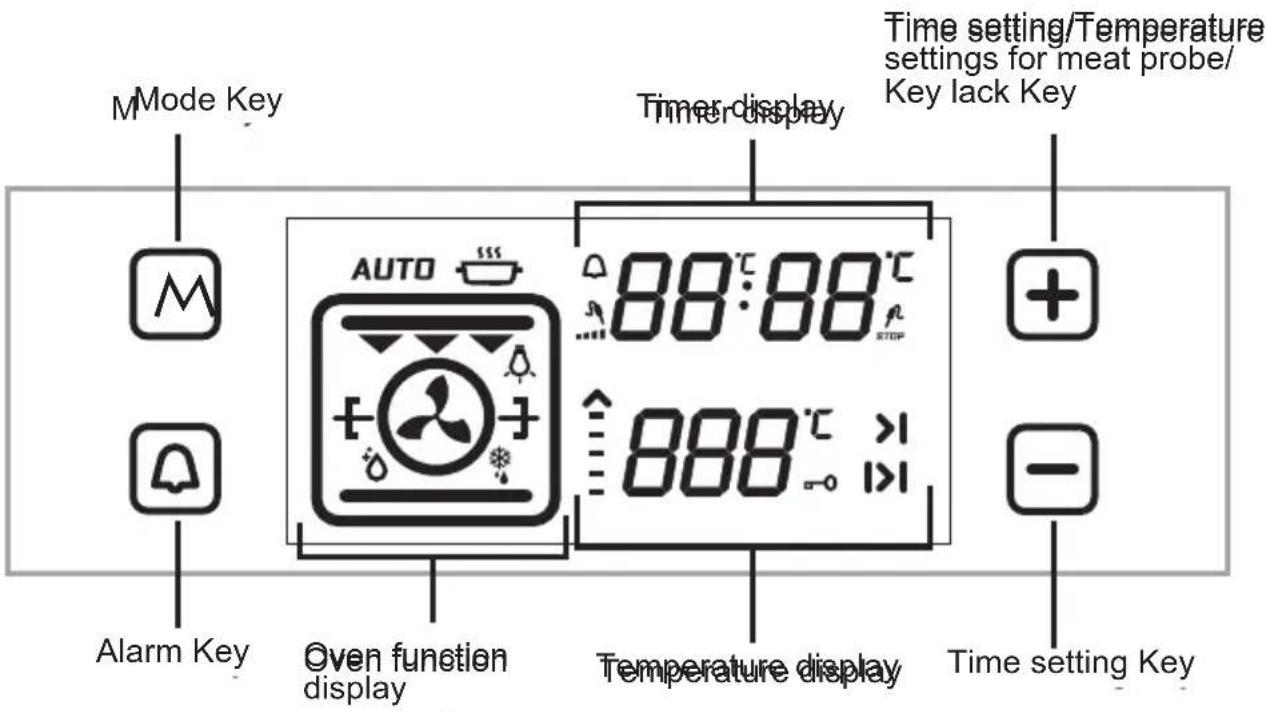

Mode Key Timer display Time setting/Temperature settings for meat probe/ Key lack Key M AUTO 88:88°C STOP + - Alarm Key Oven function display Temperature display Time setting Key

Adjusting the Day Time:

When the built in oven installed firstly the time of day must be adjusted according to below instructions.

When oven installed firstly, "0.00" will start to flash on the display. Touch "M" sensor or "-" and "+" sensors to adjust the day time mode. " : " symbol will start to flash on the display. You can adjust it with "-" and "+" sensor. If Auto cooking mode is off, touch "-" and "+" sensors at the same time to the day time mode. You can adjust it with "-" and "+" sensor.

You have to adjust the day time to use oven function.

ADJUSTING THE COOKER TIME:

Adjusting the Minute Minder:

Touch alarm sensor which shows “” symbol. “” will be flashing on the display. “0.00” will appear on the clock digits. Adjust the desired time period for the warning by using Timer Plus and Minus sensor while the symbol is flashing. Some time after the completion of the adjustment, symbol will begin to light continuously. When the symbol begins to light continuously, the audible warning time adjustment is done. When the set time is up, the timer gives an audible warning and symbol begins to flash on the screen. Pressing “-” or “+” will stop the audible warning and the symbol disappears on the screen.

Adjusting the Cooking Duration Time:

This function is used to cook in the desired time range. The foods to be cooked are put into the oven. The oven is adjusted to the desired cooking function. The oven temperature is adjusted to the desired degree depending on the dish to be cooked. Touch on the “M” sensor until you see Duration time symbol “|>|” on the timer display screen. “AUTO” appear on the display. Adjusted the cooking period for the food you wish to cook, by using the Timer Plus and minus sensor while the timer is in this position. Some time after the adjustment operation is completed, the day’s time will appear on the screen and the Duration time symbol will begin to continuously light on the screen.

At the completion of the set duration, the timer will stop the oven and give an audible warning. Also, "AUTO" will begin to flash on the screen. Touching any sensor of the control unit will end the audible warning. "AUTO" will go on to flash. Touch " - " and " + " symbols at the same time to finish "AUTO" mode.

Adjusting the Cooking End Time:

This function is used to cook after a certain period of time, within certain duration. The food to be cooked is put into the oven. The oven is adjusted to the desired cooking function. The oven temperature is adjusted to the desired degree depending on the dish to be cooked.

Touch on the "M" sensor until you see Duration time symbol "|>|" on the timer display screen. "AUTO" appear on the display. Adjusted the cooking period for the food you wish to cook, by using the Timer Plus and minus sensor while the timer is in this position. Then touch the "M" sensor until you see ">|” symbol. the day time will begin to flash, with the addition of the cooking period. Adjust the finishing time for the food by using the Timer Plus and minus sensor while the timer is in this position. Some time after the adjustment operation is completed, the day time will appear on the screen and the “>|” symbol will begin to continuously light on the screen. The oven will start operating at the time calculated by deducting the cooking period from the set finishing time, and will stop at the set finishing time. The timer will give an audible warning and "AUTO" will begin to flash on the screen will begin to flash. Touching any button of the timer will end the audible warning. "AUTO" will go on to flash. Touch “-” and “+” symbols at the same time to finish "AUTO" mode.

Digital Timer Sound Adjustment:

Touch “-” sensor until you hear sound. timer will give an audible signal beep. After that each time “-” sensor is touched, timer will give three different types of signal beep. Do not touch any further sensor and timer will save the last selected signal type.

Key Lock Function

The key lock function is used to prevent operating any functions of the control unit by mistake. Touch “+” sensor until you see key lock symbol on the display to activate key lock. Touch the “+” sensor to deactivate key lock.

While oven is operating, if control switches and touch buttons are not pushed or touched for 6 hours, oven turns off.

DISHES	TURBO LOWER-UPPER LOWER-UPPER FAN GRILL
	Thermostat pos. (°C)	Rack pos.	Cooking period (min)	Thermostat pos. (°C)	Rack pos.	Cooking period (min)	Thermostat pos. (°C)	Rack pos.	Cooking period (min)	Thermostat pos. (min)	Rack pos.	Cooking period (min)
Layered pastry	170-190 1-2	3 35-45 17	0-190 1-2 35	45 170-190 1-2	25-35
Cake 150-170	1-2-3 30-40 17	0-190 1-2	30-40 150-170	1-2-3 25-35
Cookie 150-170	1-2-3 25-35	170-190 1-2	30-40 150-170	1-2-3 25-35
Grilled meatballs										200 4 10-15
Watery food	175-200	2	40-50	175-200	2	40-50	175-200	2	40-50
Chicken				200	1-2	45-60	200	1-2	45-60	200	*	50-60
Chop										200	3-4	15-25
Beefstake										200 4 15-25
Two-tray cake	160-180	1-4 30-40
Two-tray pastry	170-190	1-4 35-45
* Cook with roast chicken skewer...

Accessories

The product is supplied with accessories. You can also use accessories you purchase from other sources, but they must be heat and flame resistant. You can also use glass dishes, cake molds and oven trays that are appropriate for use in oven. Follow manufacturer's instructions when using other accessories. In case small size dishes are used, place the dish onto the wire grid, as it will completely be on the middle part of the grid. If the food to be cooked does not cover the oven tray completely, if the food is taken from the deep freezer or the tray is being used for the collection of food's juices that flow during grilling, the form changes can be observed in the tray. This is due to the high temperatures that occur during cooking. The tray will return to its old form when the tray cools down after cooking. This is a normal physical event that occurs during heat transfer. Do not place hot glass trays and dishes into a cold environment straight from the oven to avoid breaking the tray or dish. Do not put onto cold and wet surfaces. Place on a dry kitchen cloth and allow to cool slowly. When using the grill in your oven; we recommend (where appropriate) you use the grid that was supplied with the product. When using the wire grid; put a tray onto one of the lower shelves to enable oil to be collected. Water may be added to the tray to assist cleaning. As explained in the corresponding clauses, never attempt to use the gas operated grill burner without the grill protection lid. If your oven has a gas operated grill burner, but the grill heat shield is missing, or if it is da maged and cannot be used, request a spare part from the nearest service centre.

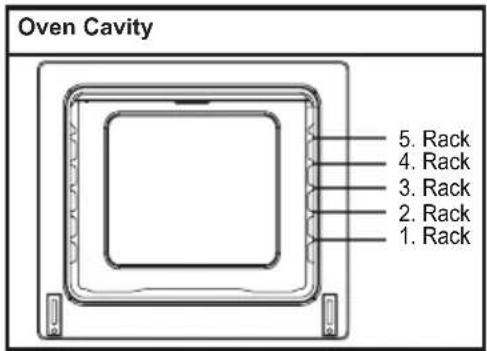

Oven Cavity 5. Rack 4. Rack 3. Rack 2. Rack 1. Rack

Oven Accessories

The accessories for your oven may be different due to the model of your product.

Wire grid

Isometric line drawing of a folded or corrugated material with parallel grooves (no text or symbols)

Wire grid is used to grill or to place different cookwares on.

WARNING- Fit the grid correctly into any corresponding rack in the oven cavity and push it to the back.

Diagram of a refrigerator interior showing internal compartments and wiring (no text or labels)

Shallow Tray

Shallow tray is used to bake pastry such as flans etc.To locate the tray correctly in the cavity, put it to any rack and push

it to the back.

Simple line drawing of a square frame with no text or symbols

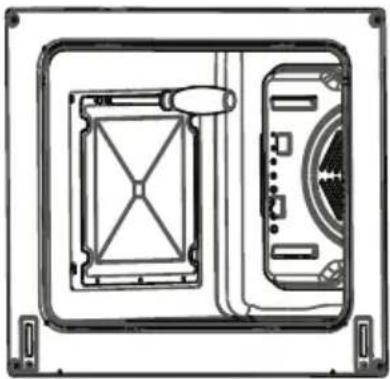

Deep Tray

Deep tray is used to cook stews. To locate the tray correctly in the cavity, put it to any rack and push it to the back.

Pure geometric diagram of a square frame with no text, numbers, or symbols

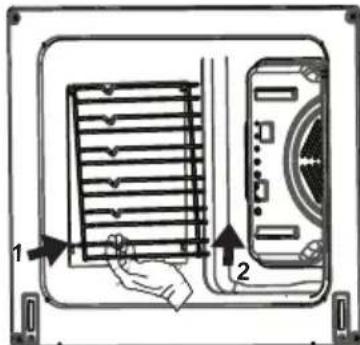

Removal of wire shelf

Pull the wire shelf as shown in the picture. After releasing it from clips, lift it up.

Diagram showing a hand pressing down on a rack with labeled parts 1 and 2, likely illustrating a mechanical or electrical component.

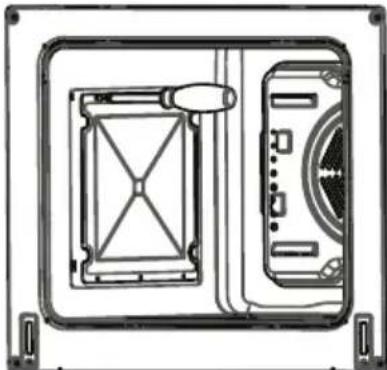

Removal of catalitic panel

Remove G screws on the each catalitic enamel coated panel.

Technical line drawing of a device casing with internal components and mounting bracket (no text or symbols)

Telescopic rails

Remove G screws on the each catalitic enamel coated panel.

CLEANING AND MAINTENANCE OF YOUR OVEN

CLEANING

Before starting to clean your oven, be sure that all control buttons are off and your appliance is cooled off. Unplug the appliance.

Do not use cleaning materials containing particles that might scratch the enamelled and

painted parts of your oven. Use cream cleaners or liquid cleaners, which do not contain particles. As they might ahrm the surfaces, do not use caustic creams, abrasive cleaning powders, rough wire wool or hard tools. In the event the excess liquids spilling over your oven should burn, it may cause a damage to the enamel. Immediately clean up the split liquids. Do not use steam cleaners for cleaning the oven.

Cleaning the interior of the oven

Make sure to unplug the oven before starting to clean it. You will obtain best results if you clean the oven interior while the oven is slightly warm. Wipe your oven with a soft piece of cloth dampened with soap water after each use. Then wipe it again, this time with a wetted cloth, and wipe it dry. A complete cleaning using dry and powder type cleaners. For product with catalytic enamel frames, the rear and side walls of the inner frame do not require cleaning. However; depending on usage, it is recommended that you replace them after a certain period of time.

MAINTENANCE

Replacing the Oven Light

The change of oven lamp must be done by authorized technician. The rating of the bulb should be 230V, 25Watt, Type E14,T300 before changing the lamp,the oven should be plugged off and it should be cool.

The lamp design is specific for the use in household cooking appliances and it is not suitable for household room illumination.

SERVICE AND TRANSPORT

REQUIREMENTS BEFORE CONTAINING TO SERVICE

If the oven does not operate :

The oven may be plugged off, there has been a black out. On models fitted with a timer, time may not be regulated.

If the oven does not heat :

The heat may be not adjusted with oven's heater control switch.

If the interior lighting lamp does not light :

The electricity must be controlled. It must be controlled whether the lamps are defective. If they are defective, you can change them as following the guide.

Cooking (if lower-upper part does not cook equally):

Control the shelf locations, cooking period and heat values according to the manual.

Except these, if you still have any problem with your product, please call to the "Authorized Service".

INFORMATION RELATED TO TRANSPORT

If you need any transport :

Keep the original case of product and carry it with its original case when need to be carried. Follow the transport signs on case. Tape the cooker on upper parts, hats and heads and saucepan

carriers to the cooking panels.

Place a paper between the upper cover and cooking panel, cover the upper cover, than tape to the side surfaces of oven.

Tape carboard or paper onto the front cover on interior glass of oven as it will be suitable to the trays, for the wire grill and trays in your oven not damage to the oven's cover during transport. Also tape the oven's covers to the side walls.

If does not have the original case :

Take measure for external surfaces (glass and paintes surfaces) of oven against possible blows.

Brand		KERNAU
Model		KBO 0972 SVPT BKBO 0972 SVPT WKBO 0974 SVPT X
Type of Oven		ELECTRIC
Mass	kg
Energy Efficiency Index - conventional		112,8
Energy Efficiency Index - fan forced		106,0
Energy Class		A
Energy consumption (electricity) - conventional	kWh/cycle	0,99
Energy consumption (electricity) - fan forced	kWh/cycle	0,93
Number of cavities		1
Heat Source		ELECTRIC
Volume	I	78
This oven complies with EN 60350-1

Energy Saving Tips

Oven

• Cook the meals together, if possible.
• Keep the pre-heating time short.
• Do not elongate cooking time.
• Do not forget to turn-off the oven at the end of cooking.
• Do not open oven door during cooking period.

Vážený zákazníku,

INSTALACE VESTAVĚNÉ TROUBY

5.57mm 55.0mm 59.5mm 57.9mm 59.5mm min. 5 mm min. 600mm max x 56.0mm m/n 655mm

min. 10mm min. 5.60 mm max. 5.80 mm min. 5.55 mm min. 5.90 mm 5.75 mm 5.57 mm 5.50 mm 5.95 mm 5.75 mm 5 mm 2 x

Isometric view of a folded or corrugated material with parallel grooves (no text or symbols)

Diagram of a device interior showing internal components and directional arrows (no text or symbols)

Mělký pekáč

Pure geometric diagram of a square frame with no text, numbers, or symbols

Hluboký plech

Pure geometric diagram of a diamond-shaped frame with internal lines, no text or symbols present

Diagram showing a hand pressing down on a fan grille next to a device, labeled with parts 1 and 2.

Vyjmutí panelu

Technical line drawing of a device casing with internal components and mounting brackets (no text or symbols)

ČIŠTĚNÍ A ÚDRŽBA VAŠÍ TROUBY

ČIŠTĚNÍ

Isometric view of a folded or corrugated material with parallel grooves and ridges (no text or symbols)

Diagram of a refrigerator interior showing internal compartments and wiring (no text or labels)

Taca płytka

Pure geometric diagram of a square frame with no text, numbers, or symbols

Taca głęboka

Pure geometric diagram of a diamond-shaped frame with no text, numbers, or symbols

Technical line drawing of a device casing with internal components and mounting brackets (no text or symbols)

Wyjmowanie kratki

Diagram showing a hand pressing a fan grille into a device panel, labeled with components 1 and 2.
