Product Type	Built-in Electric Oven
Brand	Kernau
Model	KSFO 541 M B
Energy Source	Electric
Power Consumption	2.3 kW
Oven Capacity	65 L
Dimensions (H x W x D)	595 x 595 x 548 mm
Weight	32 kg
Energy Efficiency Class	A+
Number of Functions	8 (Convection, Grill, Defrost, etc.)
Temperature Range	50 °C – 250 °C
Control Type	Rotary knobs with digital display
Interior Light	Yes
Clean Type	Enamel catalytic
Door Type	Cool front glass door
Child Safety Lock	Yes
Safety Features	Automatic shut-off, thermal fuse
Spare Parts Availability	Yes (original Kernau parts for 10 years)
Repairability Index	8.2/10
Installation Type	Built-in under counter or column

Frequently Asked Questions - KSFO 541 M B Kernau

How do I set the cooking time on my Kernau KSFO 541 M B oven?

Turn the function knob to the desired mode, then use the plus/minus buttons to set the time. Press the start button to begin. Refer to the manual for detailed instructions.

Why is my oven not heating up?

Check that the oven is properly connected to power and the circuit breaker has not tripped. Ensure the timer is set correctly. If the problem persists, contact a certified technician.

How do I clean the oven interior?

Use a damp cloth with mild detergent. For stubborn stains, use a non-abrasive cleaner. The catalytic enamel self-cleans during high-temperature cooking.

Can I use aluminum foil in the oven?

Yes, but avoid covering the bottom of the oven or the heating elements. Use it only on baking trays to prevent drips.

What is the maximum weight for baking?

The maximum load per shelf is approximately 10 kg. Distribute weight evenly.

How do I replace the oven light?

Disconnect the oven from power. Remove the glass cover by turning it counterclockwise. Replace the bulb with a 40W, 300°C halogen bulb. Reassemble.

What do the error codes mean?

Error codes are displayed on the screen. Refer to the manual for specific codes. Common codes indicate a probe fault (E1) or temperature sensor error (E2). Contact support if needed.

How do I activate the child lock?

Press and hold the lock key for 3 seconds. A lock icon will appear on the display. To deactivate, repeat the process.

Is my oven suitable for commercial use?

No, this oven is designed for domestic use only. Commercial use may void the warranty and cause damage.

Where can I purchase spare parts?

Spare parts are available from authorized Kernau dealers or online through the official website. Use only original parts for safety.

USER MANUAL KSFO 541 M B Kernau

Line drawing of a microwave oven with control panel and three buttons (no text or symbols)

SZANOWNY KLIENCIE,

Line drawing of a hand holding a small object over a surface, with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

Line drawing of a hand turning a circular object on a piece of wood (no text or symbols)

ROZDZIAŁ 11. CZYSZCZENIE I KONSERWACJA

Line drawing of a microwave oven with control panel and three buttons (no text or symbols)

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Caption Description
	Warning Risk of serious injury or death
	Risk of electric shock Dangerous voltage
	Fire	Risk of fire / flammable materials
	Attention	Risk of injury or material damage
	Important/Note	Information on correct operation of the system
	Read the instructions
	Hot surface

CONTENSTS

CHAPTER 1. Warnings ....19

CHAPTER 2. Electrical connection and safety....21

CHAPTER 3. Explanation of the oven and the control panel....21

CHAPTER 4. Technical specifications....23

CHAPTER 5. Cooking chart ....24

CHAPTER 6. Operation of the oven....25

If your oven does not operate....25

CHAPTER 7. Maintenance and cleaning....25

CHAPTER 8. Oven lamp (*)....28

Replacement of the Oven Lamp....28

CHAPTER 9. Compliance with AEEE regulations and waste disposal ....29

Package information....29

CHAPTER 10. Disposal of used equipment....29

CHAPTER 1. WARNINGS

This appliance is manufactured in accordance with the safety regulations.

Operation against the rules cause harm both to the person and the appliance.

Do not put any flammable, ignitable materials or material that may melt or deform due to the heat inside the oven against possible risks even when your appliance is not operated.

The appliance is not intended to be operated by means of an external timer or separate remote-control system

Door surface may reach high temperatures when the appliance is operated.

Do not pour cold water to the tray or inside the oven while the surface of the appliance is still hot. Surface of the appliance may get damaged as a result of the sudden change in the temperature, and it may cause scaldings.

Long term intense use of the appliance may require extra ventilation, for example, opening a window, or a better ventilation, such as increasing the mechanical ventilation level. Put curtains, tulles, paper or any flammable (ignitable) material away from the appliance before starting to use the appliance. Do not put ignitable or flammable materials on or in the appliance.

Keep an eye on the children in the vicinity of the appliance.

This appliance is not intended to be used by people with physical, sensory and mental disabilities (including children) or those who have not adequate experience and knowledge regarding its use, unless they are under the supervision of a person responsible for the safety of the appliance.

Appliance may be used by children above age of 8, persons with limited physical, perceptual or mental abilities or persons with a lack of experience and knowledge if they are supervised or given instructions on the operation of the appliance and any relevant risks they may be encountered.

Children should not tamper with the appliance.

Cleaning and user maintenance of the appliance shall not be performed by unattended children.

Appliance shall be very hot while it is being operated or after a short while when it is operated; do not touch heater surfaces, and let children to touch these surfaces.

Keep the appliance and cord away from children under 8. Children shall be supervised to ensure that they do not play with the appliance.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
  – Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments.

Do not apply pressure on the oven door with heavy objects when the door is open; do not lean, place heavy objects on the door or handle the appliance by holding its door.

Use your appliance for cooking and heating your meal only. Do not use your appliance for unintended purposes (heating the room, for commercial purposes etc.).

Ensure that the appliance is unplugged before replacing the lamp of your appliance to prevent a risk of electric shock.

CAUTION!

The surfaces of the areas with this label are hot.

Do not touch.

CHAPTER 2. ELECTRICAL CONNECTION AND SAFETY

Your appliance requires a current of 13 Amperes. Have the appliance installed by qualified persons, if required.

Your appliance is designed for a power supply of 220-240V, \~ 50/60Hz. If your mains supply specifications are different from the specified values, contact qualified persons.

Electrical connection of your appliance shall only be performed with earthed outlets installed as per the regulations. Contact authorized service if an earthed outlet is not available where the appliance shall be placed. Manufacturer is not responsible for damages caused by unearthed outlets. If the mains cord (plugged cord is damaged, this cord must be replaced by the importer or its service agent or an equally qualified personnel to prevent a hazardous situation.

Power cord of your appliance shall not come into contact with the hot components of the appliance.

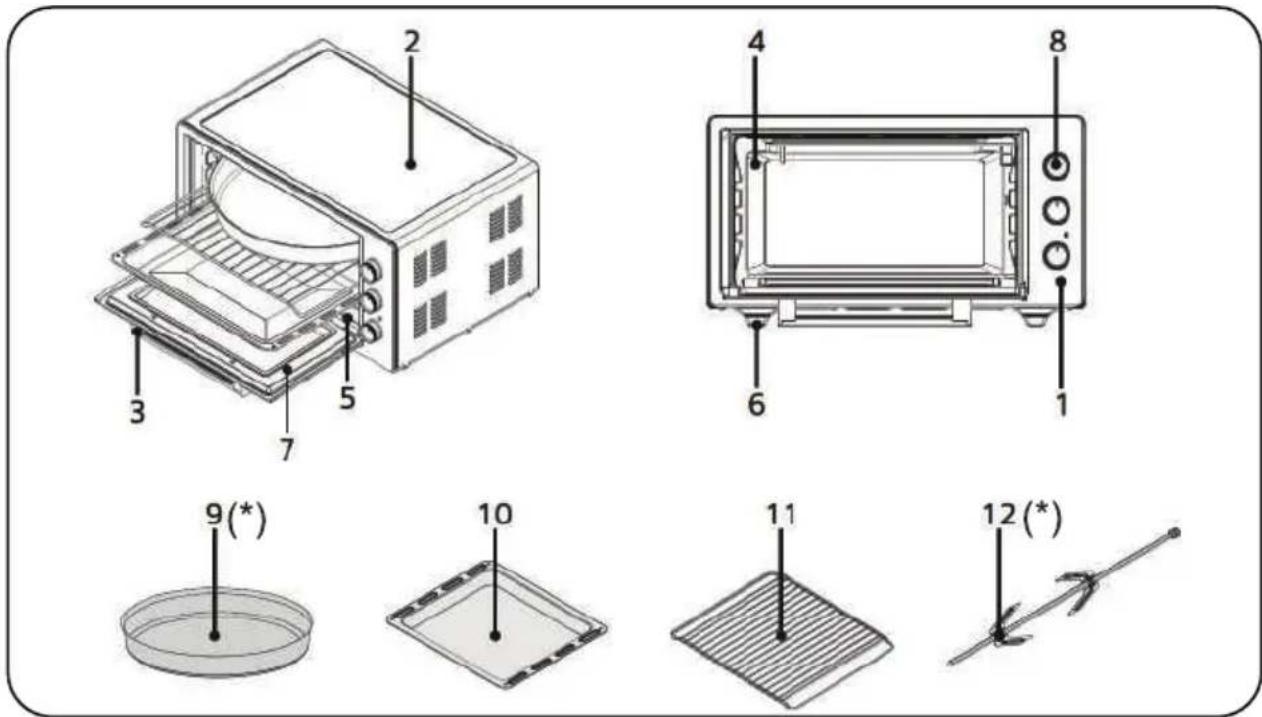

CHAPTER 3. EXPLANATION OF THE OVEN AND THE CONTROL PANEL

1. Control panel
2. Oven body
3. Handle
4. Cooker
5. Heaters

6. Oven pedestals

7. Oven glass door

8. Control buttons
9. Circular tray (Option*)
10. Rectangular tray
11. Wire grill
12. Chicken roast set (option*)

(*) This feature is only available on some models

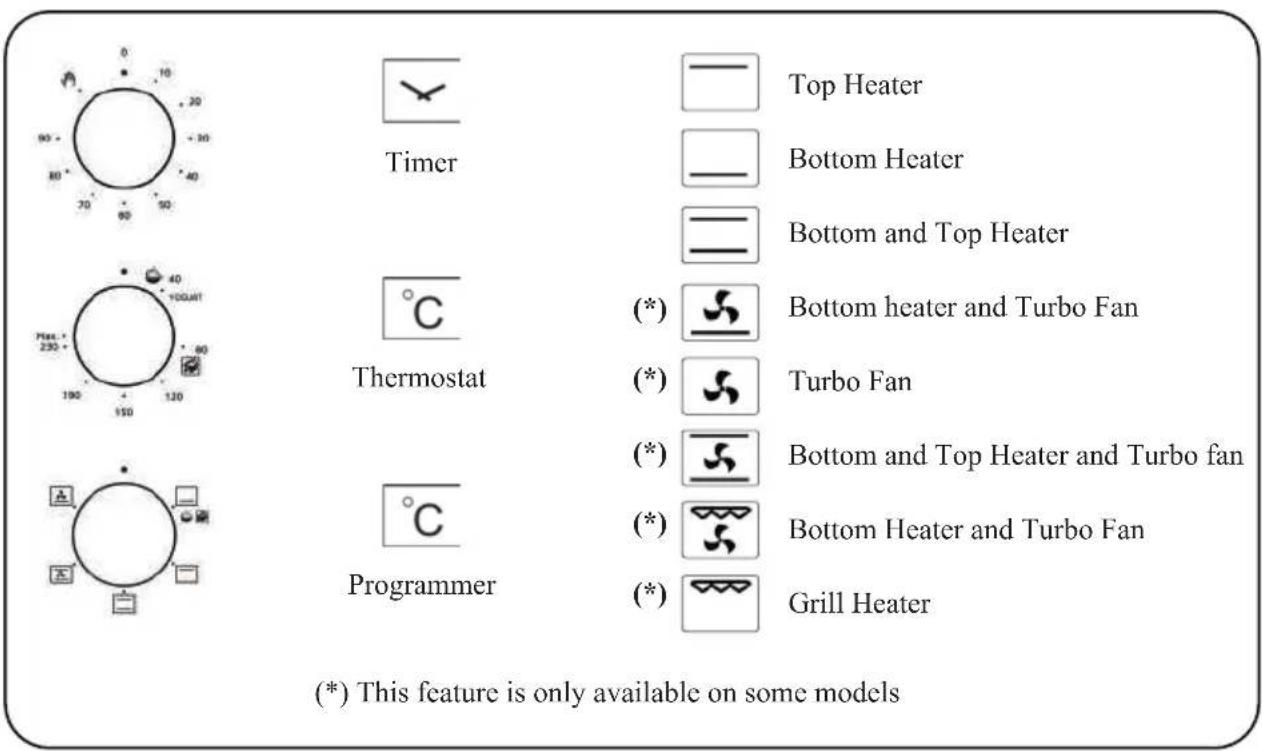

Timer:

Enables adjusting of cooking time. When the set time has expired, timer shall cut off the power of the heaters and provide a warning with a tingling sound. Set the timer program and thermostat buttons to „0” to turn off your appliance.

When the timer is set to 🔊, it shall operate indefinitely.

Thermostat:

Used with oven program function button. When the temperature in your oven reaches the set value, the thermostat will break the circuit and thermostat light will go off. If the temperature drops below the set temperature, the thermostat will be activated and the indicator light will illuminate.

Programmer:

Allows you to select oven functions. Functions are described in the next section. The function selection button and oven thermostat button shall be set to a desired temperature rate.

Otherwise selected function button does not operate. Hotplate and oven functions do not operate simultaneously.

Chicken roast function:

Only chicken roast motor operates.

Switch on/off button for turnspit activation

Provides chicken roast by rotating the skewer. Grill heater ca also be used for roasting.

CHAPTER 4. TECHNICAL SPECIFICATIONS

	45 LT 60 LT	70 LT 71 LT
External width 590 mm 619 mm 632 mm 632 mm
External depth 470 mm 493 mm 485 mm 485 mm
External height 330 mm 378 mm 418mm 418mm
Internal width 440 mm 468 mm 466 mm 466 mm
Internal depth 420 mm 414 mm 390 mm 390 mm
Internal height 240 mm 276 mm 283 mm 283 mm
Thermostat 40-240 °C 40-220 °C 40-240 °C 40-300°C
Timer (*) 0 to 90min. 0 to 90min. 0 to 90min.
Bottom heater 800 W 1200 W 1000 W 1200 W
Top heater	600 W	800 W	800 W	100 W
Supply voltage	220-240V,~50/60Hz.		220-240V,~50/60Hz.
Turbo fan (*)	11-15 W	11-15 W	11-15 W	11-15 W
Oven lamp (*)	15 - 25 W 15 - 25 W 15 - 25 W 15 - 25 W		25 W

(*) This feature is only available on some models

CHAPTER 5. COOKING CHART

Below you may find the information about the food we have tested in our laboratories to determined their cooking times. Cooking times may vary as per mains voltage, quality, amount of the ingredients to be cooked, and the temperature. Meals you cook using these values may not appeal to your tastes. You may discover different values by making experiments to achieve different flavours and results that appeal to your taste.

Food	Thermostat setting (°C)	Cooking time (min.)	Shelf order
Cookie 170-180	25-30 Center shelf
Cake 170-190	30-40 Center shelf
Pie 180-220	40-50 Center shelf
Muffin 160-180	30-40 Center shelf
Pasta (baked)	190-210 20-30 Center shelf
Fish 220-MAX	30-40 Center shelf
Lamb 220-MAX	90-120 Center shelf
Mutton 220-MAX	90-120 Center shelf
Veal	220-MAX 90-120	Center shelf
Turkey 220-MAX	45-55 Center shelf
Poultry	220-MAX 75-100	Center shelf
Defrost	60-120	55-60 Center shelf

„Pre-heat your oven before cooking.
You may consider the time required until the temperature light is turned off for the first time as the preheating time."

Connect the plug to the earthed outlet. Bring the timer to manual or automatic cooking position.

Set the thermostat to a proper temperature as per the values in the cooking chart. If you have set the timer to manual, you shall hear a warning sound at the end of cooking.

Some smoke and odour may occur while the protective materials on the heaters harden during the first operation of your oven. This is normal and not a manufacturing fault.

In order to make yoghurt: Boil the unpasteurised milk. Cure the boiled milk after it is cooled. Set the oven temperature to 40 - 50 °C, and operate the fan. Cook the cured milk in the oven for 3 to 3.5 hours in a pan with a lid.

Thawing: Remove the food to be thawed from its container and place it on the grill. Slide the rectangular tray under the grill to collect dripping water. Thus, thawed food shall not be kept inside its thawed water. Do not use thawed water (for health purposes) and discharge it.

You may use thawing feature as specified in the cooking chart,

Please check if the power cord is plugged to the outlet securely.

Check the electrical installation. Check the fuse.

Check for any damage to the power cord. Contact the authorized dealership if the issue is not resolved.

CHAPTER 7. MAINTENANCE AND CLEANING

Unplug your appliance.

Appliance may be very hot while it is being operated or after a short while when it is operated. In this case, do not touch hot parts.

Do not clean the interior parts, door, tray and other parts of the oven with tools such as bristle brushes, steel wool or knives. Do not use abrasive and scratching detergents.

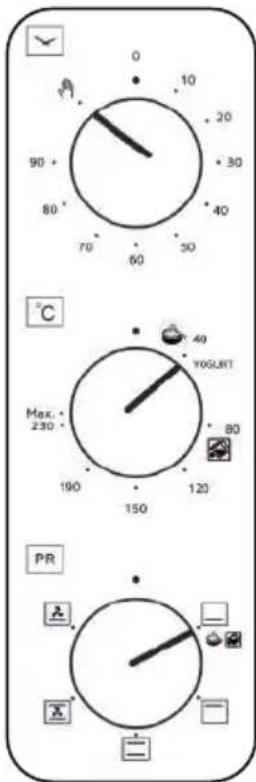

CURING YOGHURT

Select yoghurt mode from thermostat section while the oven is empty, set the switch to lower resistance, pre-heat for 10 minutes and start curing at some were else.

For curing, we boil the raw milk we have purchased at 90^ C for minutes, and then cool it down to 43-45^ C (curing temperature). Add yeast with a ratio of 1%-3% add stir slowly while the milk is at this temperature. Put the milk added with yeast to the 1st shelf of the pre-heated oven without closing its lid and close the oven door

and set the timer to manual. After 5 hours, remove the cured yoghurt from the oven and keep it at room temperature for 15-20 minutes, and keep the yoghurt without shaking it for 1 day at 4°C in a refrigerator. After 1 day, yoghurt is ready to be consumed. Bon appetite.

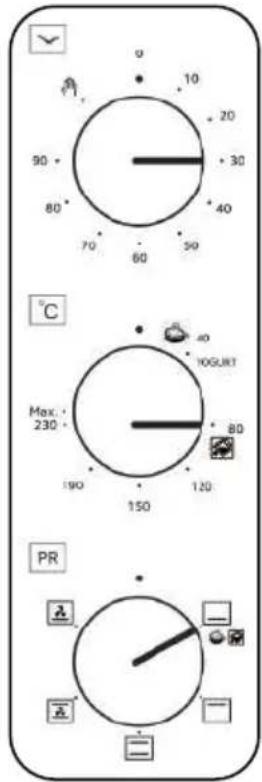

STEAM CLEANING

This allows cleaning of the dirt that is softened by the steam occurred inside the oven without using chemicals.

Remove all accessories from the oven. Put 2 glasses of water inside the square tray, and place the tray to the bottom shelf.

Bring the thermostat to steam cleaning mode.

Set the timer to 30 minutes.

Bring the switch ☐ to lower resistance mode.

After operating the oven for 30 minutes, open the door and wipe the inner surface of oven with a damp cloth.

USAGE OF THE DIGITAL TIMER (\*)

1. STANDBY MODE

When the device is first energized, the numbers „00” begin to flash on the screen. Flashing takes place once a second. The relay is not in transmission. Unless any button is touched, 00 numbers continue to flash. As time goes on, there is no increase in 00 numbers.

When the device is in standby mode, pressing only the minus or only the plus button does not perform any function.

(*): Only available on some models.

2. TIMER MODE

While the device is in manual mode, timer mode is activated by pressing the „Plus” button. Timer adjustment is made between 1 minute and 4 hours by using the plus and minus buttons in the timer mode. Increasing and decreasing operations can be provided by holding down the buttons. After installation, the timer value on the screen counts down until it reaches ,00’.

The timer value set for 1 hour displayed on the screen as „1h” The timer value set for 2 hour displayed on the screen as „2h” The timer value set for 3 hour displayed on the screen as „3h” The timer value set for 4 hour displayed on the screen as „4h” As soon as the established value counts down and falls below 1 minute, the remaining seconds value appears on the screen as 59, 58, 57... seconds. When the timer expires and reaches 00, the alarm sound is activated, the relay stops transmission. The value 00 on the display also flashes in a coordinated manner with the alarm sound. Unless any button is touched, the alarm sounds for about 7 minutes. After 7 minutes, the alarm stops, but the numbers ,00’ continue to flash on the screen. When the plus and minus buttons are pressed at the same time, the flashing process stops and the relay turn on the transmission. If the plus and minus buttons are pressed together before the 7-minute period has expired, the alarm sound will be cut, ,00’ numbers will be fixed on the screen, the relay will be transmitted. If only the minus or only the plus button is pressed while the alarm is active, the alarm sound is cut off, the flashing operation continues.

3. ADJUSTMENT OF BUZZER TONE

When the device is in manual mode and the numbers ,00' appear on the screen, the buzzer tone setting is activated by holding down the minus button for about 2 seconds. When the buzzer tone setting is activated, the currently active buzzer tone appears with a beep {tl,t2 or t3}. Then the buzzer tone changes{in order of tl, t2, t3, tl, t2.} in order to each minus button pressing. To activate the selected tone, while the name of the buzzer tone appears on the screen, it is waited for 3 seconds without pressing any button or the tone is activated by pressing the plus button.

NOTE:

During the operation of the device, a beep sounds at every valid key press.

(*): Only available on some models.

CHAPTER 8. OVEN LAMP (\*)

REPLACEMENT OF THE OVEN LAMP

WARNING:

To avoid electric shock, ensure that the device circuit is open before changing the lamp.

(Open circuit means that the power is cut-off.)

Gut off the power supply of your appliance first, and ensure that the it is cooled down. Remove the glass protector by rotating as shown in the figure. Using plastic gloves may help you if you have difficulty in rotating it.

Then, remove the lamp by rotating it, and install the new lamp with the same specifications.

Replace the glass protector, plug the appliance and complete the replacement procedure. You can now use your oven.

Lamp Type G9 Bulb

Line drawing of a hand adjusting a mechanical component (no text or symbols)

22 -240 V, AC 15-25 W

Lamp Type E14 Bulb

Line drawing of a mechanical joint or bracket (no text or symbols)

220-240 V, AC 15-25W

Pure diagram of a mechanical component with directional arrows and internal structure (no text or symbols)

Figure 1

Line drawing of a hand holding a circular object over layered materials (no text or symbols)

Figure 2

CHAPTER 9. COMPLIANCE WITH AEEE REGULATIONS AND WASTE DISPOSAL

This product was manufactured from recyclable and reusable high quality parts and materials. Therefore, do not dispose of this product with other domestic wastes at the end of its life cycle. Take it to a collection point for electrical and electronic equipment. You can ask your local administration about these collection points.

You can help protect the environment and natural resources by delivering the used products for recycling. Before disposing of the product, cut the power cord and render it non-functional for children's safety.

PACKAGE INFORMATION

The product's packaging is made of recyclable materials, in accordance with the National Legislation. Do not dispose the packing waste with the household waste or other wastes, dispose it to the packaging collection areas specified by local authorities.

CHAPTER 10. DISPOSAL OF USED EQUIPENT

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. a crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials. Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device. Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

Fig. A

Fig. B

KERNAU

Line drawing of a microwave oven with control buttons (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

22 -240 V, AC 15-25 W

Type E14 Lamp

Pure mechanical component outline without any text, numbers, or symbols

220-240 V, AC 15-25W

Line drawing of a hand pressing down on a piece of paper (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or component, with no visible text or symbols.

УХОД И ОЧИСТКА

Line drawing of a microwave oven with control panel and three buttons (no text or symbols)

Vážený zákazníku,

Line drawing of a hand holding a circular object over a surface, with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

Line drawing of a hand turning a circular object on a surface (no text or symbols)

KAPITOLA 11. ČIŠTĚNÍ A ÚDRŽBA
