IAN 273985 - Wristwatch AURIOL - Free user manual and instructions

Product type	Wristwatch
Model number	IAN 273985
Brand	Auriol
Battery type	SR626SW
Water resistance	5 bar (tested to DIN 8310)
Functions	Time display
Band shortening	Removable links (models 2-LD4216-2 and 2-LD4216-8)
Cleaning instructions	Soft, dry, lint-free cloth
Warranty period	3 years from date of purchase
Intended use	Personal timekeeping, not for commercial use
Disposal	Do not dispose with household waste; recycle at approved facilities
Battery disposal	Dispose at retailer or recycling center
Battery replacement	To be performed by an expert
Safety	Keep batteries away from children; avoid swallowing
Case material	Not specified
Band material	Not specified

Frequently Asked Questions - IAN 273985 AURIOL

How do I set the time on my Auriol watch?

Carefully pull the crown out all the way. Turn the crown clockwise or counterclockwise to set the desired time. Then press the crown back to the case.

Can I shorten the watch band myself?

Yes, for models 2-LD4216-2 and 2-LD4216-8. The band includes removable links. Use the provided tool for model 2-LD4216-2 or open the fastener for model 2-LD4216-8. Follow the instructions in the manual.

What battery does my Auriol watch use?

It uses a SR626SW battery. Replacement should be done by an expert to avoid damaging the case or gaskets.

Is the watch water resistant?

Yes, it is water resistant up to 5 bar (tested to DIN 8310). It can withstand splashes and brief immersion, but not swimming or diving.

How should I clean my Auriol watch?

Clean it with a soft, dry, lint-free cloth. A glasses cleaning cloth is ideal. Avoid using water or chemicals.

What is the warranty period for this watch?

The watch comes with a 3-year warranty from the date of purchase. Keep the receipt as proof of purchase.

How do I dispose of the watch when it is no longer usable?

Do not throw it in household waste. Take it to an approved disposal facility or local recycling center. Observe local regulations.

What should I do if the battery leaks?

Avoid contact with skin, eyes, and mucous membranes. Use gloves. Rinse affected areas with plenty of clean water and seek medical attention immediately.

Are there any parts I can replace myself?

Only the battery and band links are user-serviceable. Battery replacement is recommended to be done by an expert to maintain water resistance.

Can I use the watch for swimming or diving?

No, the watch is only water resistant up to 5 bar, which is suitable for splashes and brief immersion, not for swimming or diving.

USER MANUAL IAN 273985 AURIOL

Usage and safety instructions

SI

ROČNA URA

GB Usage and safety instructions

Table of contents

Table of contents....- 1 -

Introduction - 2 -

Intended use....-2-

Scope of delivery - 2 -

Important safety information important safety information....-3 -

Time setting....- 4 -

Band shortening instruction for model 2-LD4216-2 - 4 -

Shortening the band for model 2-LD4216-8 -5 -

Cleaning instructions....-5-

Replacement of battery (SR626SW)....-5-

Water resistance....-6-

Disposal of the watch....-6-

Disposal of the batteries....-6-

digi-tech gmbh warranty - 6 -

Warranty conditions -7-

Warranty period and defects liability -7 -

Scope of the warranty....-7 -

Warranty claim procedure....- 8 -

Service....-8-

Supplier -9-

-1-

GB

WRISTWATCH

Introduction

Congratulations on the purchase of your new wristwatch. You have chosen a high quality product. The instruction manual is part of the product- it contains important information about safety, use and disposal. Read the manual with all usage and safety notes before using the watch. Only use the watch in the intended way and for the intended applications.

If the watch is given to someone else, include all documentation with the watch.

Intended use

This watch is intended for time display and the described additional features. Any other use or modification of the electronic appliance does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use.

Scope of delivery

Please note: Check the scope of delivery after purchase. Please ensure that all parts are included and undamaged.

• wristwatch incl. battery
• two removable links for models: 2-LD4216-2, 2-LD4216-8
  • band changing tool for model: 2-LD4216-2
• instruction manual

-2-

GB

Important safety information

User

This device may be used by persons (including children over 8 years of age) with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they are supervised or instructed regarding the safe use of the device and understand the dangers that may arise. Children may not play with the device. Cleaning and user maintenance of the device may not be performed by children without supervision. Keep packaging films out of the hands of children. There is a danger of suffocation.

Batteries

Keep batteries out of reach of small children. If a battery is swallowed, you must seek medical attention immediately. Batteries/rechargeable batteries must always be inserted in the correct polarity. If necessary, clean the battery and device contacts. Never attempt to recharge non-rechargeable batteries. Never short-circuit or attempt to open batteries. Never throw batteries into fire as they may explode. If the device will not be used for an extended time period, remove the battery and store the device in a dry and dust-free area. Improper use of the battery can lead to explosion or leakage. If the battery leaks, avoid contact with skin, eyes and mucous membranes. Use gloves. If you are exposed to battery acid, rinse the affected areas with plenty of clean water and immediately seek medical attention. Remove discharged batteries from the device as they present an increased risk of leakage.

-3-

GB

Time setting

Carefully pull the crown out all the way. Turn the crown clockwise or counter clockwise to set the time. Press the crown back to the case to complete the setting.

Band shortening instruction for model 2-LD4216-2

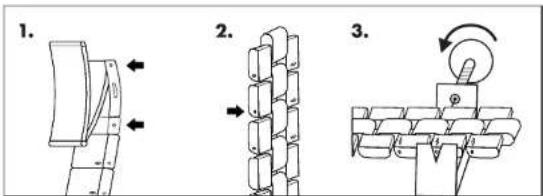

Band shortening can be accomplished by removing links. Open the band clasp safety and open the clasp. The band is held to the clasp by a spring bar. Image 1. Compress and remove the spring bar by using a pointed tool. Now place the watch face down on a soft surface. Image 2. The links that can be removed are marked with an arrow. Image 3. Place the band in the band changing tool in such a way that the pointed end of the tool points directly at the metal rod. Turn the screw in the direction of the arrow until the metal rod is pushed out a small distance. The rod can now be pulled out (using pliers if necessary). The strap can now be taken disassembled. Remove as many links as necessary using this method. Reinsert the rod in the opposite direction of the arrow and push it back into the band. The strap and clasp can now be reassembled.

An instructional video is available for online viewing at the following URL: http://specials.lidl.com/videos/nou9nohN/

-4-

GB

...or simply scan the following QR code:

Shortening the band for model 2-LD4216-8

To shorten the band, two removable links are included. Open the fastener of the band and the fastener of the removable link. Remove one or two links and re-close the fastener of the band.

Diagram of three mechanical components with curved arms and linkages, no text or symbols present

Cleaning instructions

Clean the wristwatch with a soft, dry and lint-free cloth. A glasses cleaning cloth is ideal.

Replacement of battery (SR626SW)

Battery replacements must be performed by an expert to avoid damaging the case or gaskets.

-5-

GB

Water resistance

Water resistant up to 5 bar. The bar value specifies the atmospheric overpressure which is applied during testing (DIN 8310).

3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

Disposal of the watch

This wristwatch may not be disposed of with normal household waste. Dispose of the wristwatch at an approved disposal facility or at your local recycling centre. Please observe the current rules and regulations when disposing of the watch. Contact the disposal system if in doubt.

Disposal of the batteries

Please dispose of your batteries properly in containers especially set up at retailers. Batteries do not belong in household waste. Dispose of the batteries at an approved disposal facility or at your local recycling centre. Contact the disposal system if in doubt.

digi-tech gmbh warranty

This wristwatch includes a 3 year warranty starting on the day of purchase. In case of defects of this wristwatch you have, by law, certain rights regarding the vendor of the watch. These rights are not changed by the warranty which is described in the following paragraphs.

-6-

GB

Warranty conditions

The warranty duration starts on the date of purchase. Please keep the original receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the wristwatch within 3 years, the wristwatch will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the wristwatch and the receipt can be made available to us along with a short written description of the defect and when it occurred. If the defect is covered by the warranty, you will receive the repaired wristwatch or a new watch. Repair or replacement does not cause the warranty period to restart.

Warranty period and defects liability

The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period.

Scope of the warranty

The wristwatch was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are damaged. Examples include Switches, Batteries or parts made of glass. This warranty becomes void if the wristwatch is damaged, is not used in the recommended way or is improperly repaired. For proper use of the wristwatch all instructions in this manual must be adhered to exactly. Use of the wristwatch in a way that is discouraged in the manual must be avoided. The wristwatch is not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centers will void the warranty.

-7-

GB

Warranty claim procedure

To ensure that your call is processed in a fast and efficient manner please note the following directions:

• Have your receipt (as proof of purchase) and the article number (273985) handy.
• The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the back side or bottom side of the case.
• In case defects occur, please first contact the service center (see first contact below) by phone or email.below) by phone or email.

Visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service

Please note that the following address is not a service address. Please first contact the service address (see above).

Name: digi-tech gmbh

Street: Valterweg 27A

Town: Eppstein 65817

Country: Germany

-9-

GB

Line drawing of three mechanical components with curved ends and arrows indicating motion (no text or symbols)

Tisztítási tanács

3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

Odlaganje ure

[e-mail]

Garancijski list

teAfoHicky2-LD4216-1, 2-LD4216-2, 2-LD4216-4, 2-LD4216-6-9

Dodavatel

Three mechanical lever mechanisms shown in line drawings, no text or symbols present

Čistenie

3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√

Batteriewechsel (SR626SW)

3 BAR	√	×	×	×
5 BAR	√	√	×	×
10 BAR	√	√	√	×
20 BAR	√	√	√	√
