IAN 56628 - Cric ULTIMATE SPEED - Free user manual and instructions

Brand	Ultimate Speed
Model	IAN 56628
Product Type	Hydraulic Trolley Jack
Lifting Capacity	2000 kg
Lifting Height Range	135 - 342 mm
Maximum Lever Force	400 N
Rotation Range for Lifting Lever	180°
Hydraulic Oil Viscosity	SAE 10
Dimensions (approx.)	Not specified in manual; typically ~500 x 200 x 300 mm
Weight (approx.)	Not specified; estimated ~15 kg
Power Source	Manual (hydraulic)
Items Included	Trolley Jack, 2 Lifting Rods, Carrying Grip, Operating Instructions
Safety Features	Release valve, overload protection (implicit), warning signs
Adjusting Screw	Factory set; do not readjust (service only)
Cleaning	Lightly oiled cloth
Storage	Clean environment, protect from dust, heat, sharp objects
Maintenance	User maintenance excluded; service centre only
Warranty	3 years from date of purchase
Intended Use	Domestic, short-term lifting of motor vehicles (not for commercial/industrial)
Standards	EN 1494:2000 + A1:2008

Frequently Asked Questions - IAN 56628 ULTIMATE SPEED

What is the lifting capacity of the Ultimate Speed IAN 56628 trolley jack?

The lifting capacity is 2000 kg (2 tonnes). Never exceed this limit.

What type of hydraulic oil should I use?

Use SAE 10 hydraulic oil. Refilling should only be done by the service centre.

How do I raise a vehicle safely?

First, apply the handbrake and chock the wheels not being lifted. Close the release valve by turning it clockwise. Place the lifting plate under the manufacturer-recommended lifting point. Pump the lever until the vehicle reaches the desired height. Always use axle stands for support.

Can I use this jack to hold a vehicle in the air?

No. The jack is only for lifting and lowering. You must secure the vehicle with axle stands before working underneath.

How do I lower the vehicle?

First raise the vehicle slightly to remove axle stands, then slowly turn the release valve anti-clockwise with the lifting lever to lower it carefully.

What maintenance is required?

No user maintenance is required. Cleaning with a lightly oiled cloth is sufficient. All repairs and oil refills must be performed by an authorized service centre.

What should I do if the jack is not lifting properly?

After long storage, pump the jack 6-7 times with no load to redistribute oil. If the problem persists, contact the service centre. Do not adjust the screw.

Is the jack suitable for commercial use?

No. It is intended for domestic use only, not for commercial or industrial applications.

How should I store the trolley jack?

Lower the lifting plate completely to save space. Store in a clean, dry place away from dust, heat, and sharp objects.

What is the warranty period and how do I claim?

The warranty is 3 years from purchase. Contact the service department by phone (UK: 0871 5000 700, IE: 1850 930 412) to arrange a claim. Keep your receipt as proof.

USER MANUAL IAN 56628 ULTIMATE SPEED

Hydraulic trolley Jack

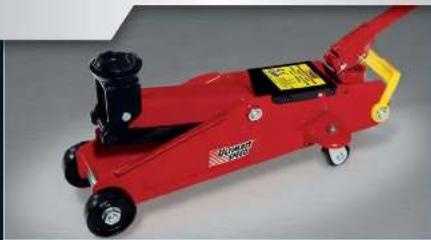

Red industrial machine with yellow handle and black wheels (no visible text or symbols)

Hydraulic trolley Jack

Operating

instructions

PL Podnośnik

hydrauliczny

Instrukcja

obstugi

Hidraulikus

autóemelő

Használati

utasítás

GB HYDRAULIC TROLLEY JACK 2-5

Read the operating instructions carefully before using the appliance for the first time and preserve this booklet for later reference. Pass the manual on to whomsoever might acquire the appliance at a later date.

PL PODNOŚNIK HYDRAULICZNY 6-9

© CZ HYDRAULICKÝ ZVEDÁK 18-21

The Trolley Jack is intended for the short term lifting of motor vehicles and only for domestic use.

This trolley jack is not designed for lifting people, to permanently hold a vehicle in a raised position and is not intended for use in commercial or industrial areas.

⚠ Safety instructions

• Only use the Trolley Jack if it is in a faultless condition. The appliance may not be used if it has been visibly damaged!
• Use the Trolley Jack only for raising and lowering motor vehicles - not for holding them in a raised position. Secure the vehicle in the raised position with axle stands to prevent it from dropping suddenly.
• Before raising, ensure that the vehicle cannot roll: Apply the handbrake and place wedges against the wheels not being raised.
• Only use the Trolley Jack on firm and level surfaces. This will help prevent the vehicle from rolling, or shifting while it is being raised.
• Never use the Trolley Jack at an oblique angle to the vehicle.
• Raise the vehicle only at the lifting points specified by the vehicle manufacturer.
• During use, take heed of all motions of the trolley jack and the load, so as to be able to respond to potential dangers in a timely manner.
• Do not make any modifications to the trolley jack. All modifications are adjudged to be improper usage and they can lead to personal injury and property damage.

• Ensure that the warning signs remain in a good condition. Should the warning signs be in need of replacement, please contact the importer.

• NEVER readjust the adjusting screw ⑦.

• This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
  • Children should be supervised to ensure that they do not play with the appliance.
• Never overburden the Trolley Jack – also not for a short period!
• Never use the Trolley Jack to shift a raised vehicle. The Trolley Jack is not designed to cope with the loading that this would cause!
• Do not grip between the lifting arm and the housing of the Trolley Jack. Thus you can avoid crush injuries when the lifting arm moves itself.
• Ensure that no one is in or under the vehicle when raising and/or lowering it. Otherwise there is a danger of accidents.

Technical data

Lifting capacity: 2000 kg

Lifting height: approx. 135 - 342 mm

Maximum applied

lever force: 400 N

Rotation range for

lifting lever: 180°

Hydraulic oil for Trolley Jack

Oil viscosity : SAE 10

Items supplied

1 x Trolley Jack
2 x Lifting rods
1 x Carrying grip
1 x Operating instructions

Description of the appliance

① Lifting lever
② Loading plate
③ Carrying grip
4 Release valve
⑤ Lifting lever collet
⑥ Securing points for the carrying grip ③
⑦ Adjusting screw

Preparatory steps

1. Attach the carrying grip ③ to one of the two securing points ⑥. Ensure that the carrying grip ③ is not overloaded and breaks.
2. Push the lifting levers ① into each other. Turn them until they are secured against being pulled apart.
3. Place the lifting levers ① onto the release valve ④ at the front. Turn it clockwise to close it completely.
4. Now place the lifting levers ① in the lifting lever collet ⑤.
5. Turn the lifting levers ① clockwise until they are secure against being pulled out.
6. On the first utilisation or after an extended period of non-usage, first pump the Trolley Jack without any loading (6-7 pump movements). This distributes the hydraulic oil evenly again inside the device.

Raising the vehicle

⚠️ Important: Refer to the vehicle owner's handbook to find out where the lifting points are located. To avoid damage, the vehicle may only be raised at these places.

1. Push the loading plate ② to exactly in the middle below the lifting point.
   ① Note: Ensure that you place the vehicle jack in such a position that the lifting levers ① are not under the vehicle.
2. To start, only pump until the loading plate ② is just touching the lifting point. This permits you to make corrections if needed.
3. Now raise the vehicle until you have sufficient clearance to position the axle stands.
4. Permit the vehicle to drop onto the axle stands in that you slowly open the release valve ④ by turning it in an anti-clockwise direction.

Lowering the vehicle

1. First raise the vehicle a little to remove the axle stands.
2. Then, with the lifting lever ①, slowly turn the release valve ④ (anti-clockwise) and carefully allow the vehicle to descend.
3. As soon as the Trolley Jack is removed from under the vehicle, the loading plate ② can be completely pressed down with the foot.

Cleaning and Care

① Note: Refilling with hydraulic oil may only be carried out by the Service Centre!

The Trolley Jack can simply be cleaned with a lightly oiled cloth.

① Note: Do not readjust the factory set adjustment screw ⑦, this is intended only for repairs by the Service centre.

Storage

Lower the loading plate ② completely. This will enable you to save space when storing the trolley jack.

Store the trolley jack in a clean environment and protect it from dust, heat and sharp objects.

Maintenance

All manner of maintenance work by the user is excluded!

The exchange of spare parts and/or repairs is to be carried out exclusively by the appropriate Service Centre.

In all cases of defects and/or necessary repairs, make contact with the Service Centre (see chapter Warranty & Service).

Disposal

Dispose of the appliance and the hydraulic oil through an approved disposal centre or at your community waste facility.

Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally responsible manner.

Warranty & Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB DES UK LTD

Tel.: [phone] (£ 0.10 / minute)

E-Mail: [e-mail]

IE Kompernass Service Ireland

Tel.: [phone] (0,082 EUR/Min.)

Standard call rates apply. Mobile operators may vary.

E-Mail: [e-mail]

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

Declaration of conformity

Bochum, declare on our own responsibility that the product conforms with all requirements of the Machine Guideline 2006/42/EC.

Type/Appliance Designation:

Ultimate Speed Trolley Jack URW 2 A1

Year of manufacture:

10/2010

Serial number:

IAN 56628

Applied harmonised standards:

EN 1494: 2000 + A1: 2008

Bochum, dated 16.09.2010
