Product Type	Hydraulic trolley jack
Brand	Ultimate Speed
Model	IAN 54911
Stroke (without adapter)	142-336 mm
Stroke (with adapter)	157-351 mm
Maximum Load	2000 kg
Hydraulic Oil Grade	SAE 10
Hydraulic Oil Quantity	95 ml
Maximum Force on Lever	350 N
Operating Temperature	-20°C to +40°C
Safety Features	Use on solid, level surface; always use axle stands and wheel chocks; never exceed rated load; never work under raised load without additional safety; check for oil leaks before use
Maintenance	Clean with slightly oily cloth; liberally grease all external moving parts; have hydraulic oil replaced by professional
Included Items	1 hydraulic trolley jack, 1 adapter, 1 pump lever, 1 operating instructions
Warranty	3 years from date of purchase
Compliance	EN 1494/A1:2008, 2006/42/EC

Frequently Asked Questions - IAN 54911 ULTIMATE SPEED

How do I distribute hydraulic oil before first use?

With the release valve closed, insert the lifting handle and pump at least 6 firm strokes to distribute the oil evenly.

Can I use this jack on gravel or uneven surfaces?

No, always use on a solid, level surface to prevent the load from slipping.

What is the maximum load capacity?

The maximum load is 2000 kg. Never exceed this rating.

Do I need to use axle stands with this jack?

Yes, always use axle stands and wheel chocks. Never work under a raised vehicle without additional safety measures.

How do I lower the vehicle safely?

First raise the vehicle slightly to remove axle stands, then slowly turn the release valve anticlockwise. Ensure no one is under the vehicle.

What type of hydraulic oil should I use?

Use SAE 10 hydraulic oil. The system holds 95 ml.

Can I adjust the safety valve?

No, the safety valve is factory-set and must not be adjusted. Stop using if altered.

How often should the jack be inspected?

We recommend professional inspection every three years.

What should I do if hydraulic oil leaks?

Stop using the jack immediately and have it repaired by a professional. Do not attempt repair yourself.

How do I store the jack when not in use?

Fully lower the lifting arm and handle sleeve, then store in a dry place. Keep the release valve closed.

USER MANUAL IAN 54911 ULTIMATE SPEED

Operation and Safety Notes

Translation of original operation manual

RO

CRIC HIDRAULIC RULANT

GB / CY Operation and Safety Notes Page 5

HR Upute za posluživanje i za Vašu sigurnost Stranica 9

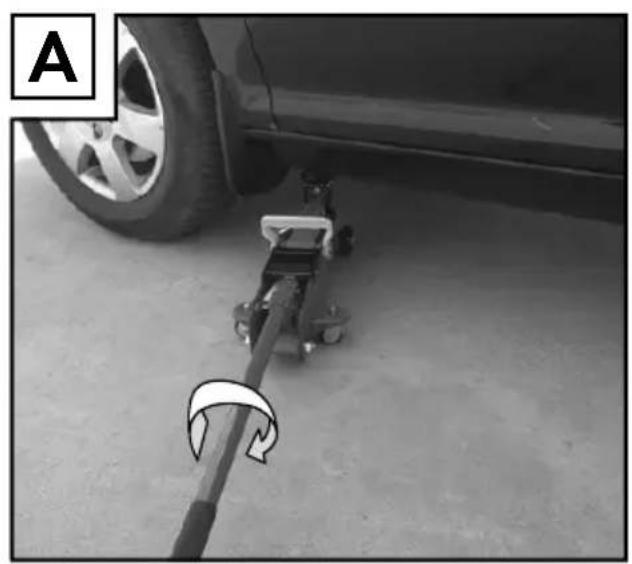

Mechanical testing setup showing a car wheel and a lever mechanism with a curved arrow indicating motion (no text or symbols)

Close-up of a car's lower suspension system with a hand pump, showing tire and wheels (no text or symbols visible)

Close-up of a car's rear suspension system with a mechanical lift, no visible text or symbols

Mechanical testing setup showing a car wheel and attached lever with a curved arrow indicating motion (no text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component (no visible text or symbols)

Hydraulic Trolley Jack

- Properuse

The hydraulic vehicle jack is intended for raising and lowering motor vehicles. Other uses or modification of the hydraulic vehicle jack shall be considered as improper use and may lead to injury or damage. The manufacturer will not accept liability for loss or damage arising from improper use. The product is not intended for commercial use.

Note: Reclose the release valve 5 after each use!

• Description of parts

1 Lifting handle
2 Lifting arm
3 Support plate
4 Carrying handle
5 Release valve
6 Lifting handle socket
7 Cover
8 Relief valve
9 Adapter
10 Hex bolt
11 Nut

- Technical data

Stroke:142-336mm

157-351 mm (with adapter)

Maximum load: 2000 kg

Hydraulic oil

grade: SAE 10

Hydraulic oil

quantity: 95 ml

Maximum

force on lever: 350 N

- Includeditems

1 hydraulic trolley jack
1 adapter
1 pump lever
1 operating instructions

Safety notes

⚠️ DANGER! Follow the instructions below to avoid the threat of loss of life, injury, or damage to the product etc.

■ Always use axle stands and wheel chocks in addition to your hydraulic vehicle jack.
Never work under a raised vehicle unless you have taken additional safety precautions. This is intended to prevent the vehicle from rolling away, sliding off or overturning the jack.
Use the product on a solid, level surface only. Using the product on an unstable or uneven surface – such as a gravel surface – may lead to the load slipping.

Ensure that you never exceed the allowable (rated) load capacity.

The person operating the jack must observe the jack and the load during all movements.

■ Never work under the raised load if it has not been made secure by suitable means.

Do not allow the hydraulic vehicle jack to be used by uninstructed or inexperienced persons.

Before using the hydraulic vehicle jack take precautions to prevent the vehicle from rolling away. Put the handbrake on, place the vehicle in gear (with automatic gearboxes set to "P") and chock the wheels.

Even with safety measures in place always remain alert and make a visual check that the support plate 3 is firmly seated against the vehicle jacking point.

■ Make sure that no petrol, battery acid or any other dangerous substance can flow out of the vehicle when the vehicle is being lifted.

- Check that no person or object is under the vehicle before you lower it.

Lower the vehicle slowly.
- Check that all parts have been assembled and fitted properly and are undamaged.
Before each use check that the hydraulic vehicle jack is working properly. Check the screws and valves of the hydraulic vehicle jack for correct seating and look out for hydraulic oil leaks in particular.

Never use the hydraulic vehicle jack for moving or loading a vehicle. Never use it to lift a whole vehicle completely off the ground.

Make sure that no-one - especially a child - is in the vehicle and that everyone is kept at an adequate distance away from the vehicle when the hydraulic vehicle jack is in use.

■ Never change the setting of the safety valve 8. It has been set at the factory and must not be adjusted. Stop using the product if the safety valve setting is changed.

Before using the vehicle jack, the user must be made familiar with the device by an experienced person. The pump force and the transferred force are equal to approximately 350 N.

If the markings on the product are damaged enough so as to be illegible then the vehicle jack must not be used until the markings are renewed.

No modifications may be carried out to the hydraulic trolley jack. Any physical modification of the device has an effect on the safety of the device and its compliance with EN 1494/A1:2008.

The applied force when using the vehicle jack must not exceed 350 N. The equates to a force on the lever of approximately 35 kg.

The operating temperature of the hydraulic oil of this equipment is between -20 °C to +40 °C.

- Only use this device to lift and lower the vehicle, not to keep the vehicle in a lifted position. Do not move it whilst raising or lowering.

■ After use return all parts used into their original position. Have the hydraulic oil or

oil pump replaced by a professional if the parts can no longer be moved.

- Before first use

Distribution of the hydraulic oil

With the release valve closed, insert the lifting handle 1 into the lifting handle socket 6. Use at least 6 firm pumping movements to charge the hydraulic system (move lifting handle 1 up and down). This action distributes the hydraulic oil evenly.

Note: Check that the release valve 5 is closed by inserting the lifting handle 1 and trying to turn it clockwise (see Fig. A). When you cannot turn it any further, the release valve 5 is closed.

- Using the jack

- Raising the vehicle

With the release valve closed turn the lifting handle 1 into the lifting handle socket 6.
Place the hydraulic vehicle jack under one of the lifting positions as shown in the owner's manual supplied by the vehicle manufacturer.
☐ Ensure that the support plate is centrally loaded. By moving the lifting handle 1 up and down, raise the vehicle sufficiently to allow you to insert axle stands under the vehicle (see Fig. B).
Allow the vehicle to come down on to the axle stands by slowly opening the release valve 5 by turning the lifting handle 1 anticlockwise.

- Lowering the vehicle

DANGER TO LIFE! Check that no person or object is under the vehicle before you lower it.

☐ First raise the vehicle slightly (as described earlier) in order to be able to remove the axle stands.

Turn the release valve anticlockwise until the vehicle lowers, but do not turn it to the extent that it detaches or hydraulic oil leaks from the release valve 5.

CAUTION! Lower the vehicle slowly, otherwise there is the danger of injury and damage to the product or to the vehicle.

☐ Pull the trolley jack out from under the vehicle and fully lower the lifting arm 2.

☐ Close the release valve by turning it clockwise.

- Attaching the adapter (optional)

From its original height (14.2 cm), bring the vehicle jack to a height of 15.7 cm by moving the lifting handle 1 up and down (see the section on „Using the jack“).

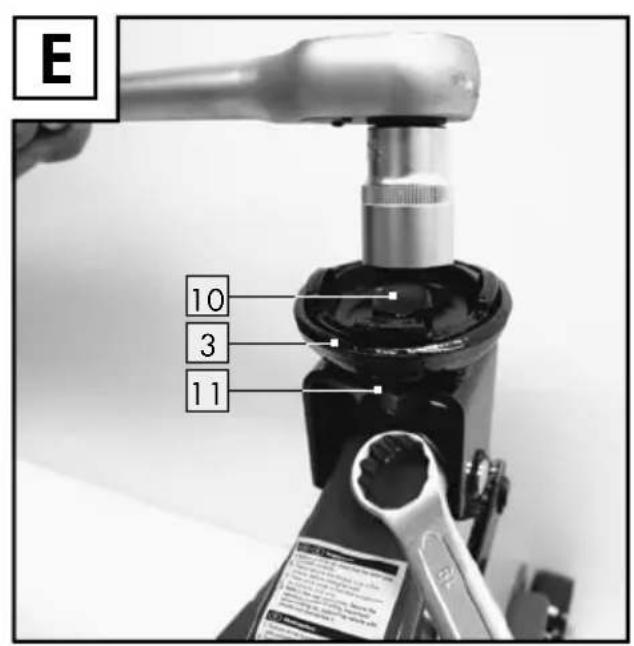

☐ Remove the hex bolt 10 from the nut 11 with a socket wrench plus socket (19 mm) and a ring spanner (19 mm) (see Fig. E).

Place the adapter 9 on to the load plate 3. From above, guide the hex bolt 10 through the adapter 9 and load plate 3 (see Fig. F).

☐ At the same time as you are doing this, place the nut 11 under the load plate 3 with the help of a ring spanner (see Fig. F).

☐ Fix the hex bolt 10 and nut 11 in place together with a socket wrench plus socket (19 mm) and a ring spanner (19 mm) (see Fig. G).

☐ Lower the vehicle jack back down to its original height by turning the release valve 5 anticlockwise. Ensure that the release valve 5 does not become detached and allows the

hydraulic oil to escape (see the section on „Raising the vehicle“).

☐ If you no longer need to use the adapter 9 remove it by releasing the hex bolt 10 from the nut 11 with a socket wrench plus socket (19 mm) and a ring spanner (19 mm) (see Fig. E).

☐ Then fix the hex bolt 10 and the nut 11 in place together inside the load plate 3 for safe keeping.

Cleaning and care

■ Never use harsh or corrosive cleaning agents.

Liberally grease all external moving parts.

□ Clean the hydraulic trolley jack using a slightly oily cloth.

☐ Fully lower the lifting and lifting handle sleeve 6 to be able to store the trolley jack in the smallest possible space.

Maintenance and service

Note: Refilling or topping up with hydraulic oil may only be carried out by specialist personnel! Always use hydraulic oil that fulfils the specification for SAE 10. Please note that filling with too much oil may adversely affect the functioning of the vehicle jack. Fill with a maximum of 95 ml oil when all the oil has been used. Fill the hydraulic oil reservoir up to the bottom edge of the filling opening (see Fig. H).

Note: We recommend having the equipment inspected by a professional every three years.

☐ Defective hydraulic vehicle jacks must be repaired by a specialist workshop only. Never attempt to repair the hydraulic vehicle jack yourself.

□ Never take the hydraulic vehicle jack to pieces. Taking the vehicle jack to pieces yourself may result in it not working properly.

- Disposal

The packaging and ancillary packing consist entirely of environmentally-friendly materials. They can be disposed of at your local recycling facility.

In the interest of the environment, do not throw out the product with your household refuse. Take it to a suitable centre where it can be disposed of properly. Your local council will be able to tell you where the collection centres are located and their opening times.

Dispose of the hydraulic oil in an environmentally compatible manner. Ask your local repair garage to see to its disposal or find your nearest waste materials collection centre.

- Information

Declaration of Conformity

We, OWIM GmbH & Co. KG Stiftsbergstraße 1 D-74167 Neckarsulm, hereby declare under our sole responsibility that the product: Hydraulic Trolley Jack, Model No.: Z32196, Version: 05 / 2014, to which this declaration refers, complies with the standards/normative documents of 2006/42/EC.

Related harmonised standard: EN 1494/A1:2008

Tobias Koenig Division Manager Neckarsulm, 24 Mar 2014

The complete declaration of conformity can be viewed at: www.owim.com

- Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
