Product Type	Cooker hood (range hood)
Brand	Hoover
Model	HCV61/2C
Installation Type	Vented outside (ducting)
Installation Height	65-75 cm above cooking surface
Duct Diameter	150 mm
Control Type	Electronic push buttons
Fan Speeds	3 speeds (Low, Mid, High)
Lighting	LED, 2W, round, ILCOS DBR-2/65-H-64
Grease Filter	Metal mesh, washable
Carbon Filter	Optional, replace every 3-6 months
Power Supply	AC 220-240V
Safety Features	Automatic disconnection on terminal access, child safety (8+), fire risk warnings
Maintenance	Clean stainless steel regularly, wash mesh filters manually, replace carbon filter
Environmental Protection	WEEE directive compliant, do not dispose with household waste
Weight	Approx. 10-15 kg (estimated)
Dimensions (approx.)	Width: 60 cm, Depth: 50 cm, Height: 45 cm (estimated)

Frequently Asked Questions - HCV61/2C HOOVER

What is the minimum installation height for the cooker hood above a gas hob?

For gas cookers, the minimum distance between the hob support surface and the lowest part of the hood is 75 cm. For electric cookers it is 65 cm.

How do I clean the grease mesh filters?

Remove the mesh filters and soak them in warm water with a grease-loosening detergent for about 3 minutes. Gently brush with a soft brush, rinse, and dry naturally out of direct sunlight. Do not use rinse aid.

How often should I replace the carbon filter?

Activated carbon filters should be replaced every 3 to 6 months depending on cooking habits. They are not supplied with the hood.

The motor does not run but the lights work. What could be wrong?

Possible causes: the fan switch is turned off, the fan switch is faulty, or the motor is defective. Check the switch position and contact service center if needed.

How do I replace the LED bulb?

Switch off and unplug the hood. Wait for the bulb to cool. Unscrew the glass cover, pull out the lamp wire, push the LED light out, press the clamp to remove it, then insert a new 2W LED bulb (ILCOS DBR-2/65-H-64). Reattach the glass.

Can I use the hood without the grease filters?

No, never operate the cooker hood without the grease filters or with excessively greasy filters. This can cause damage and fire risk.

What type of ducting is recommended?

Use an extraction duct of 150 mm diameter (enamel, aluminum, flexible pipe, or fire retardant material). Keep the duct short and straight with no bends sharper than 90 degrees.

The hood is leaking oil. What should I check?

Check if the one-way valve and outlet are tightly sealed. If not, take down the valve and seal with sealant. Also inspect chimney connections for leaks.

Can I use a steam cleaner to clean the hood?

No, a steam cleaner must not be used. Use a soft cloth with warm soapy water for the control panel and stainless steel surfaces.

What is the appropriate disposal method for this product?

This product must not be disposed of with household waste. Follow local regulations for separate collection of waste electrical and electronic equipment (WEEE) to minimize environmental impact.

USER MANUAL HCV61/2C HOOVER

Line drawing of a kitchen chimney with a gridded sink and mounting bracket (no text or symbols)

ENGLISH(EN)---- page 001

CECO(CZ) -- page 013

SLOVAK(SK)----page 030

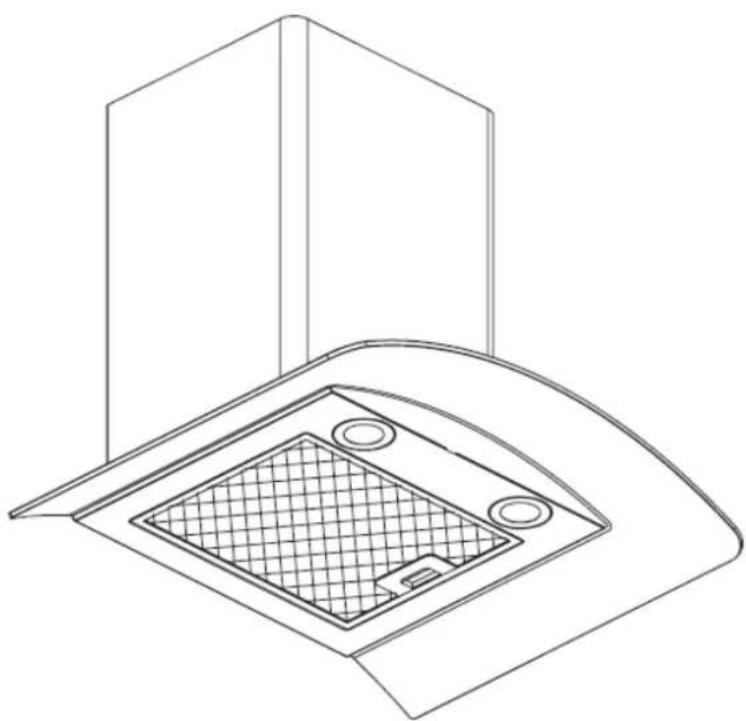

Cooker Hood Instruction Manual

Line drawing of a kitchen chimney with a mesh grille and mounting holes (no text or symbols)

Content

1. Safety instructions
   2....Installation
   3....Start using your cooker hood
   4....Troubleshooting
   5....Maintenance and cleaning
   6 Environment protection

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

These instructions shall also be available in an alternative format, e.g. on a website or on request from the user in a format such as a DVD.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
  ● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
  ● All installation work must be carried out by a competent person or qualified electrician.
  ● Please dispose of the packing material carefully. Children are vulnerable to it.
  ● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
• When the cooker hood is located above a gas appliance, the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood that distance must be: Gas cookers: 75 cm Electric cookers: 65 cm Coal or oil cookers: 75 cm
  ● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
  ● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards
  ● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Prohibition sign showing two people crossed out of a diagonal line (no text or symbols)

● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

• Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
  ● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
  ● There is a fire risk if cleaning is not carried out in accordance with the instructions
  ● Regulations concerning the discharge of air have to be fulfilled.
  ● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
  ● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
  ● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
  ● Cleaning and user maintenance shall not be made by children without supervision.
• When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
  ● WARNING: Danger of fire: do not store items on the cooking surfaces.
  ●A steam cleaner is not to be used.
  ● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

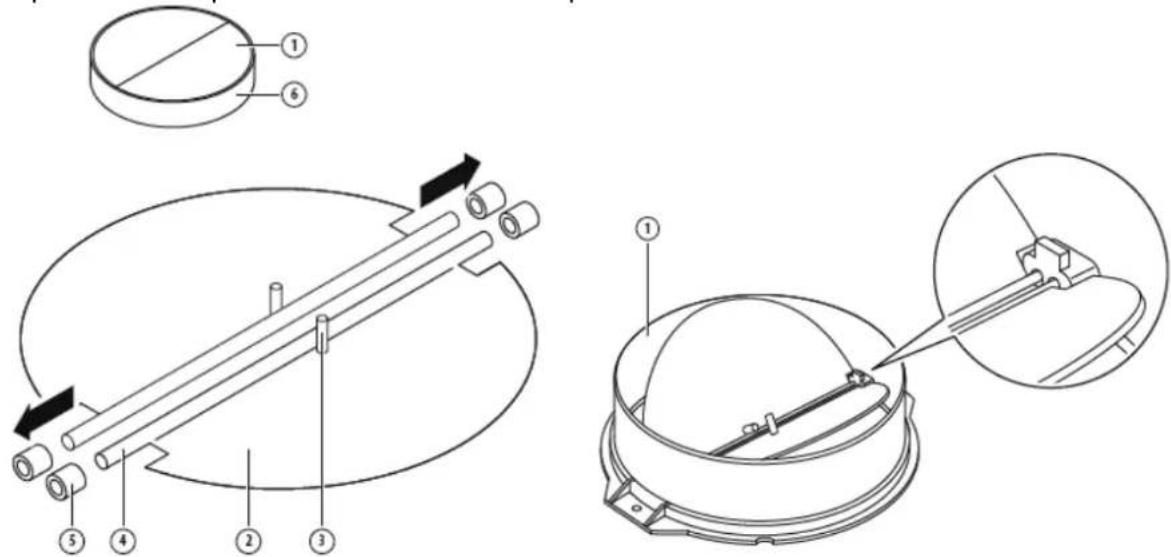

MOUNTING OF THE V-FLAP

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, the outlet may be various according to different models and configuration.

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part

INSTALLATION

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

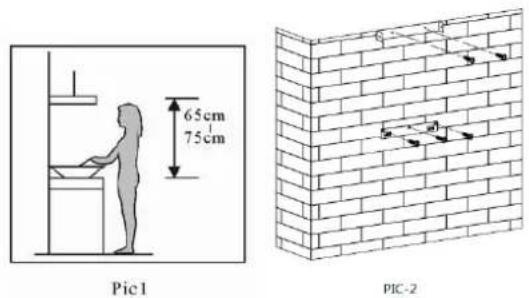

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking surface for best effect.

1. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of chimney. See pic 2.
2. Attach the expansion pipe onto the one-way-valve as shown below, and fix the pipe on the valve by cable tie. And then put the cooker hood on the hook. See pic 3. After adjust the height, fix the body with 2 pcs ST4*30mm safety screws. See Pic 4.

Diagram of a mechanical setup with a cylindrical component mounted on a base, next to a brick wall (no text or symbols)

Pic 3

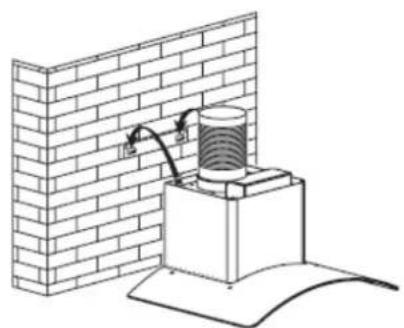

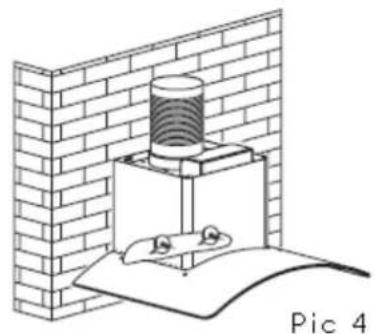

1. Lead the expansion pipe outside of the room, then use 2pcs ST4*8mm screws to install the outside chimney bracket onto the outside chimney, here should be sure the inside chimney can be moved inside freely. See Pic 5.

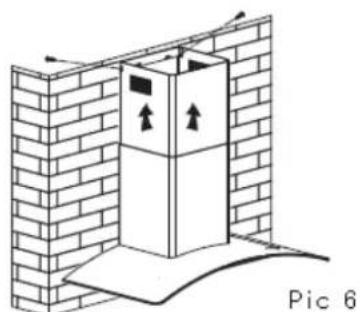

2. Put the two chimneys together onto the cooker hood body, meanwhile adjust the height of the inside chimney into the suitable height, and fix the inside chimney to the inside chimney bracket by 2pcs ST4*8mm screws. See Pic 6.

Technical line drawing of a brick wall assembly with a cylindrical component mounted on a base, labeled 'Pic 4' (no text or symbols on the diagram itself)

Diagram of a brick wall with a box and directional arrows, labeled 'Pic 6' (no text or symbols on the diagram itself)

Note: The two safety vents are positioned on the back housing, with diameter of 6mm.

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.

• When using expansion pipe always install the pipe pulled taut to minimize pressure loss.

• Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.

• Any installation work must be carried out by a qualified electrician or competent person.
• Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.
• The angle of the bend of the expansion pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.
  •After the installation, make sure that the cooker hood is level to avoid grease collection at on end.
• Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

WARNING:

For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

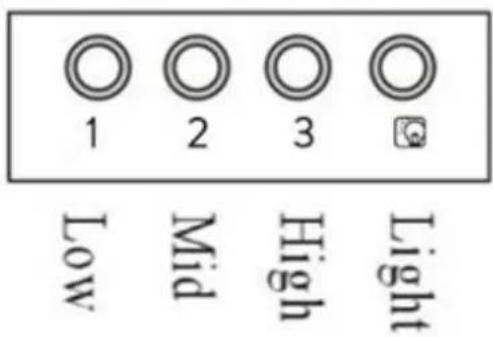

Electronic button

1. Press the button "Low", the inner indicator light of switch starts shining, the motor is running at low speed. Press the button again, the motor stop.
2. Press the button "Mid", the inner indicator light of switch starts shining, the motor is running at medium speed. Press the button again, the motor stop.
3. Press the button "High", the inner indicator light of switch starts shining, the motor is running at high speed. Press the button again, the motor stop.
4. Press the button "Light", both lights start shining. Press the button again, the lights are switched off then.

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work	Fan switch turned off Select a fan switch position.
	Fan switch failed Contact service center.
	Motor failed Contact service center.
Light does not work, motor does not work	House fuses blown Reset/Replace fuses.
	Power cord loose or disconnected	Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working Broken/Faulty globes		Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

- Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that

Abstract line drawing of a stylized figure holding a circular object, no text or symbols present

the cooker hood is switched off at the wall socket and the plug removed.

- External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it. (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

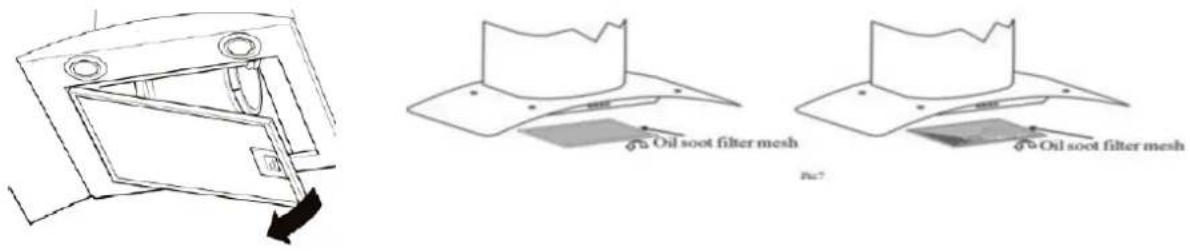

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

CARBON FILTER-not supplied

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

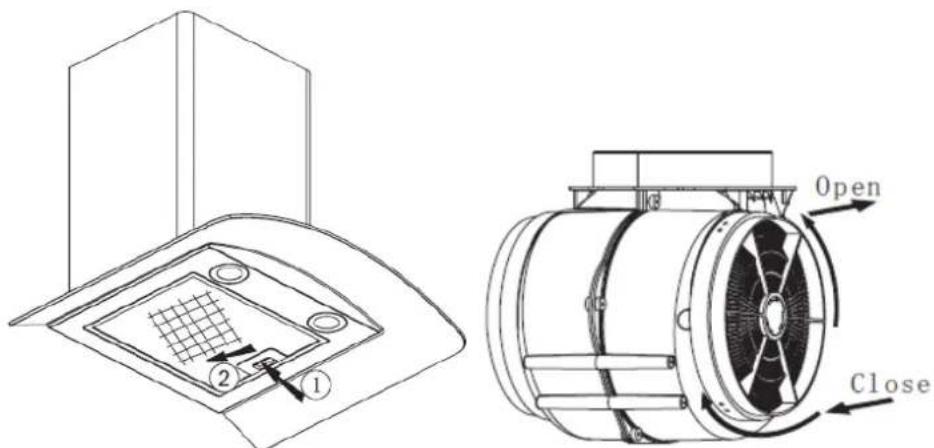

1. In order to install the activated carbon filter, the mesh filter should be detached first. Press the lock and pull it downward.

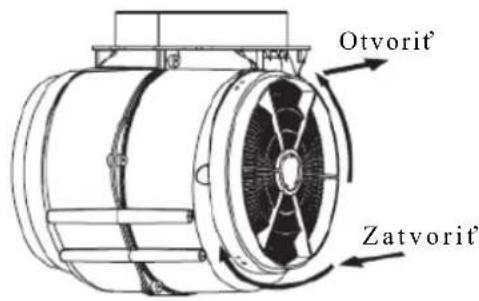

2. Turn the carbon filter on both side of the motor anti-clockwise. Replace the carbon filters with the new carbon filters.
3. Place the mesh filter.
4. Connect the power supply to the wall socket.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

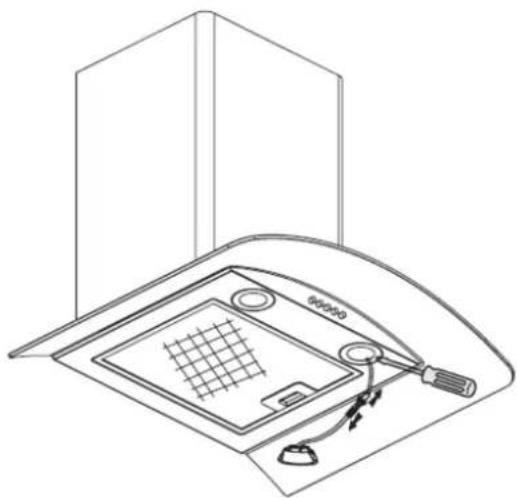

LED LIGHTS:

• Switch the unit off and pull out the plug first.
• Wait until the light bulb is cooled down before replacement.
• Please use a cross screwdriver to unscrew the glass and remove it.
  • Find the lamp wire, then pull out from the terminal.
• Push the LED light out, and press the clamp with 2 finger and pull out the light, then change a new one, and put the glass back, and screw it.
• ILCOS D code for this lamp is: DBR-2/65-H-64
• LED modules, self- ballasted - round lamp
• Max wattage: 2 W
  – Voltage range: AC 220-240V
• Dimensions:

Line drawing of a circular mechanical component with mounting bracket (no text or symbols)

Line drawing of a kitchen appliance with a grid-patterned tray and control knob (no text or symbols)

ENVIRONMENTAL PROTECTION:

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances.For more information, please contact your local or regional authorities.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

Line drawing of a kitchen chimney with a gridded grille and two circular fixtures (no text or symbols)

Obsah

Black and white pictogram showing a person crossed out of a diagonal line, no text or symbols present

INSTALACE

Abstract line drawing of a stylized figure holding a fish, with no text or symbols present.

Line drawing of a kitchen chimney with a gridded sink and two circular fixtures (no text or symbols)

Obsah

INŠTALÁCIA

Diagram of a mechanical setup with a cylindrical component mounted on a base, next to a brick wall (no text or symbols)

Obr. 3

Technical line drawing of a mechanical assembly mounted on a brick wall, labeled 'Obr. 4' (no text or symbols on the diagram itself)

Diagram of a brick wall with a vertical box and upward arrows, labeled 'Obr. 6' (no text or symbols on the diagram itself)

5

Two identical line drawings of a top hat with curved base, no text or symbols present

Správne Nesprávne

WARNING:

Abstract line drawing of a stylized animal figure with wings and legs, no text or symbols present

Simple line drawing of a door handle with a scroll wheel and arrow indicating direction (no text or symbols)

olejových sadzí

Technical line drawing of a mechanical component with labeled parts (1, 2), no readable text or symbols present.

POZNÁMKA:
