Titanox K109 - Iron IMETEC - Free user manual and instructions

Product type	Steam iron
Brand	IMETEC
Model	Titanox K109
Power supply	220-240 V, 50-60 Hz
Power consumption	2400 W
Water tank capacity	300 ml
Steam output (continuous)	Up to 40 g/min
Steam burst	Up to 150 g/min
Soleplate type	Ceramic
Spray function	Yes
Auto shut-off	Yes, after 30 sec horizontal, 8 min vertical
Anti-scale system	Yes, integrated
Self-cleaning function	Yes
Adjustable temperature	Yes, with dial
Variable steam	Yes
Dry ironing	Yes
Cable length	2 m
Cable type	Swivel
Dimensions (L x W x H)	30 x 12 x 15 cm
Weight	1.2 kg
Color	White and purple
Warranty	2 years

Frequently Asked Questions - Titanox K109 IMETEC

How do I use the steam burst function?

Press the steam burst button located on the handle for extra steam to remove stubborn creases.

What type of water should I use?

Use distilled or demineralized water to prevent scale buildup. Tap water can be used but may require more frequent cleaning.

How do I clean the iron?

Use the self-cleaning function regularly: fill the tank, set to max temperature, unplug, hold over sink, press self-clean button. Wipe soleplate with damp cloth.

Why is the iron not producing steam?

Check if water tank is filled, temperature dial is set to steam zone, and steam control is open. Ensure iron is heated up.

How does the auto shut-off work?

The iron switches off automatically if left horizontal for 30 seconds or vertical for 8 minutes. Simply move it to reactivate.

Can I use the iron without steam?

Yes, set the steam control to dry ironing position. Ensure no water in tank or use the dry setting.

What is the anti-scale system?

An integrated anti-scale cartridge reduces mineral deposits. Replace cartridge as indicated in manual.

Is the iron suitable for delicate fabrics?

Yes, use low temperature settings for silk, synthetic, and wool. Test on an inconspicuous area first.

How do I store the iron?

Let it cool completely, empty water tank, wrap cable loosely, and store upright on its heel.

What should I do if the iron leaks water?

Ensure temperature is high enough for steam. If leaking persists, check water level and clean steam vents with a soft brush.

USER MANUAL Titanox K109 IMETEC

Operating instructions

Tel. +39.035.888.111 Fax +39.035.320.149

1015-0497

TYPE L6501

IMETEC

I || III

Illustration of a steam iron with smoke plumes (no text or symbols)

Illustration of a hand washing machine with dental implants (no text or symbols)

Illustration of a steam iron with motion lines indicating speed (no text or symbols)

DATI TECNICI

TECHNICAL DATA

SISTEMA SELF CLEAN/CALC CLEAN

Dear customer, IMETEC thanks you for having purchased this product. We are certain you will appreciate the quality and reliability of this appliance, designed and manufactured with customer satisfaction in mind. This instruction manual has been drawn up in compliance with the European Standard EN 82079.

ATTENTION!

Instructions and warnings for a safe use

Before using this appliance, carefully read the instructions and in particular the safety warnings, which must be complied with. Keep this manual and illustrative guide with the appliance for future consultation. Should you pass the appliance on to another user, make sure to also include this documentation.

NOTE: Should certain parts of this booklet be difficult to understand or should doubts arise, contact the company before using the product, at the address indicated on the last page.

INDEX

Instructions for use page 10

Safety warnings page 10

Symbols page 13

Description of appliance and its accessories page 13

Preparation page 13

Use page 14

After ironing page 15

Maintenance page 15

Troubleshooting page 16

Disposal

Assistance and warranty

Illustrative guide

Technical data

page 17

page 17

I-II

|||

SAFETY WARNINGS

• After having removed the appliance from its packaging, verify its integrity based on the drawing and any presence of damage caused by transport. If in doubt, do not use the appliance and contact an authorised service centre.
• Do not let children play with the packaging! Keep the plastic bag

out of the reach of children - risk of suffocation!

- Before connecting the appliance, please make sure that the voltage data indicated on the identification technical data (12) correspond to those of the mains voltage. The technical identification data (12) are on the appliance under the heel of the steam iron.

- This appliance must be used solely for the purpose for which it was designed, namely, as a steam iron for home use. Any other use is considered not compliant and therefore dangerous.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved or if supervised by a person responsible for their safety. Children shall not play with the appliance. The appliance cannot be cleaned or serviced by children without adult supervision. Keep the appliance and power cord away from children under 8 when the appliance is on or cooling down.

DO NOT use the appliance with wet hands, damp feet or barefoot.

DO NOT pull the power cable or the appliance itself to remove the plug from the socket.

DO NOT expose the appliance to humidity or weather conditions (rain, sun, etc.).

- Always disconnect the appliance from the mains supply before cleaning or performing maintenance and when the appliance is not in use.

- If the appliance is faulty or malfunctions, switch it off and do not tamper with it. Any repairs must only be carried out by an authorised technical service centre.

- The iron must be used on a stable surface. When the iron is placed on the iron rest, make sure the support is stable. The iron must not be used if it has been dropped, if it is visibly damaged or if it leaks water.

- If the power cable is damaged it must be replaced by an authorised technical service centre, so as to prevent all risks.

EN

- The electrical safety of this appliance is only guaranteed when it is connected correctly to an effective earthing system as required by applicable electrical safety standards. This important safety requirement must be verified and, if in doubt, request a thorough check of the system by a qualified technician.

DO NOT immerse the iron, the power cord or the plug in any kind of liquid.

DO NOT leave the hot iron in contact with easily flammable fabric.

DO NOT leave the iron unattended when connected to the power supply.

DO NOT dispense steam when the iron is resting on its mat.

ATTENTION! Hot surface.

DO NOT use chemical additives, scented substances or descaling agents.

- This iron is not equipped with a pressure boiler and has been designed to be used for brief periods of time in order to prevent stress related to this chore. For this reason it is recommended not to iron for more than an hour.

IMPORTANT GUIDELINES

The appliance is designed to work with tap water; however, if the water in your area is very hard, mix the tap water (50%) with distilled and/or demineralised water (50%). Salt concentration in water in certain seaside areas is very high: in such cases it is important to use “demineralised water for irons” available on the market. If in doubt, only demineralised water for steam irons must be used.

Do not use diluting agents, scented liquids or descaling agents as these substances can damage the product. Do not use water from dryers, air-conditioners and rain water.

The reservoir may contain some water as each product is tested before being put on the market.

It is recommended to place a cloth between the iron and the fabric when using the iron for the first time.

It is recommended to direct a jet of steam into the air before starting

to iron, for any residual condensation to be let out.

- The appliance must be unplugged from the socket before filling the reservoir.

SYMBOLS

WARNING PROHIBITION

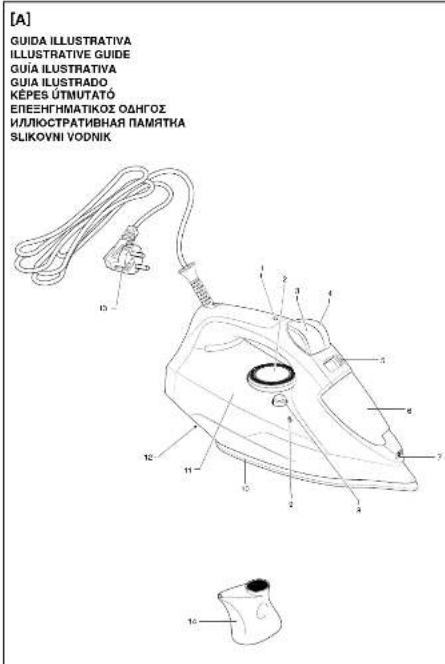

DESCRIPTION OF THE APPLIANCE AND ITS ACCESSORIES

Refer to the illustrative drawing at the beginning of this instructions booklet to verify your appliance equipment. All the figures are on the cover pages of these instructions for use.

ATTENTION! The accessories and features vary according to the models. Identify your model by referring to the illustrative drawings at the beginning of the instruction booklet and on the product package.

1. Plate temperature LED
2. Calc clean button
3. Temperature adjustment knob
4. Max fill-up level
5. Spray button
6. Plate with steam holes
7. Super-steam button
8. Waterreservoir
9. Steam selector
10. Technical data
11. Water fill-up opening
    13.Plug
12. Spray
13. Water cup

PREPARATION

Sort the laundry according to the international symbols shown on the label; if this is missing, sort according to the type of material.

Start to iron the garments that require a lower temperature so as to reduce idle time (the iron requires less time to warm up than to cool down) and eliminate the risk of burning the fabric.

synthetic, acrylic, nylon, polyester: low temperatures;

wool, silk: medium temperatures;

cotton, linen: high temperatures;

do not iron.

FILLING THE RESERVOIR

Verify that the plug (13) is disconnected from the socket.

Set the steam selector (5) to 0 [Fig. B].

Open the latch (6).

Set the iron in a position that facilitates filling the water and prevents it from overflowing.

Slowly pour the water into the reservoir (11) using the special cup (14) [Fig. C].

Do not exceed the maximum (MAX) level indicated on the reservoir (9).

Close the hatch (6).

SELECTING THE TEMPERATURE

Set the iron upright.

Insert the plug (13) in the socket.

Set the temperature according to the type of fabric in line with the international symbols shown on the labels; using the adjustment knob (2) [Fig. D].

The plate temperature LED (1) indicates that the iron is warming up.

Wait for the plate temperature LED (1) to go off before starting to iron.

Consult the table below to select the cortemperature:

Label garments	Type material	Temperature control
	synthetics e.g. viscose, polyester	●
	silk, wool	● ●
	cotton, linen	● ● ●

ECO FUNCTION

The appliance is equipped with new technology that optimises steam production, thereby reducing energy consumption.

Set the steam selector (5) to ECO to activate the function.

IRONING WITHOUT STEAM (DRY)

Follow the instructions in the “steam ironing” section, leaving the steam selector (5) set to 0.

IRONING WITH STEAM

Select the amount of steam via the steam selector (5).

Move the steam selector (5) to any position between minimum and maximum according to the desired amount.

Continuous steam will only be dispensed when the iron is in a horizontal position.

This stops when the iron is set upright or the steam selector (5) is set to 0.

Steam can only be used at the highest temperatures, as indicated by the symbol on the temperature adjustment knob (2) [Fig. D].

If the selected temperature is too low, water droplets may drip from the plate.

Warning: the plate temperature LED (1) goes on intermittently while ironing, thereby indicating that the selected temperature is maintained.

SUPER-STEAM AND VERTICAL STEAM

Press the super-steam button (4) to generate a strong shot of steam that penetrates the fabric and eliminates the most difficult creases.

Wait a few seconds between each pressing action of the iron [Fig. E].

Press the super-steam button (4) intermittently to iron in an upright direction (curtains, hung clothes, etc.) [Fig. F].

Warning: the super-steam function can only be used at high temperatures. Stop the steam when the plate temperature LED (1) lights up and start ironing when this goes off.

SPRAY FUNCTION

Verify that there is water in the reservoir (11).

Press the spray button (3): slowly for dense spray or fast for mist [Fig. G].

Warnings: dampen delicate fabric using the spray function (3) or alternatively, lay a damp cloth between the fabric and the iron. Do not use the spray on silk or synthetics.

AFTER IRONING

EMPTYING PROCESS

Disconnect the plug (13) from the socket.

Open the latch (6)

Empty the reservoir (11) by turning the iron upside down and shaking it lightly.

Let the iron cool down completely.

Always set the iron upright.

MAINTENANCE

SELF CLEAN/CALC-CLEAN SYSTEM

The function allows the internal part of the plate to be cleaned from limescale residue or other impurities.

It is recommended to implement this function every 5 - 10 times it is used.

Fill the water reservoir (11) up to the maximum (MAX) level (9).

Set the steam selector (5) to 0.

Adjust the temperature knob (2) to maximum and wait for the plate temperature control LED (1) to go off.

Disconnect the plug (13) from the socket and immediately place the iron in a horizontal position over a wash basin.

Press the Calc-Clean (8) button until hot water, steam and any impurities or limescale come out of the plate.

Once the iron plate has cooled down (10), clean it with a damp cloth.

ATTENTION!

ure the plug of the appliance (13) is disconnected from the socket and the plate has cooled down completely before cleaning the iron.

Any starch deposits or residue on the surface of the plate can be removed with a damp cloth and non-abrasive liquid detergent.

Avoid scratching the plate with steel wool or metal objects.

The plastic parts can be cleaned with a damp cloth and then wiped with a dry cloth.

TROUBLESHOOTING

This chapter describes the most common problems that can arise using the appliance. If the problems cannot be solved with the information below, please contact the Authorised Assistance Centre.

Problem Possible cause Solution
The plate (10) remains cold or does not heat up.	There is no power supply.	Verify whether the plug (13) is inserted correctly or try inserting it in another socket.
		Verify whether the temperature adjustment knob (2) is set to the minimum temperature (Fig. D).
The plate temperature LED (1) goes on and off.	Normal procedure.	The switching ON and OFF of the LED indicates the heating phase of the iron. The LED goes off once the set temperature is reached.
Only a little steam or none at all is dispensed.	The steam selector (5) is set to 0.	Set the steam selector (5) to the desired field (Fig. B).
	There is not enough water in the reservoir (11).	Fill the reservoir (11).
The impurities that come out from the steam holes stain the garments.	Possible residue in the steam chamber/plate.	Carry out the Self Clean procedure (see paragraph Seal Clean/Calc-Clean System).
	Chemical additives, scented liquids or descaling agents are being used.	These substances damage the product: do not add additives to the water in the reservoir.
	Pure distilled water or softened water is being used.	Mix tap water (50%) with distilled and/or demineralised (50%) water.
	Starch is being used.	Always spray the starch on the reverse side of the fabric.
Water leaks from the plate.	The plate temperature is too low due to the super-steam button (4) being pressed too often.	Allow slightly longer intervals between the jets of steam.
	The temperature adjustment knob (2) is set to a temperature that is too low (Fig. D).	Turn the temperature adjustment knob (2) to the Max level (Fig. D).

DISPOSAL

The product is packaged in recyclable materials. Dispose of it in compliance with the environmental protection standards.

Pursuant to Art. 26 of Italian Legislative Decree no. 49 of 14 March 2014 “Implementation of Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)” the crossed bin symbol on the appliance or its packaging indicates that the product must be disposed of separately from other waste at the end of its useful life.

The user must therefore take the appliance to an appropriate recycling centre for electrical and electronic equipment. Alternatively, instead of handling the disposal, the appliance can be handed over to the retailer when a new, equivalent appliance is purchased. Retailers of electronic products having a sales area of at least 400 m2 can also be handed electronic products that are to be disposed of measuring less than 25 cm, free of charge and with no obligation to buy. Appropriate separate collection for the subsequent procedure for the decommissioned appliance for recycling, which includes treatment and environmentally friendly disposal helps prevent adverse effects on the environment and health and promotes reusing and/or recycling materials that the appliance consists.

ASSISTANCE AND WARRANTY

The appliance is guaranteed for a period of 2 years from the date of purchase. Evidence shall be constituted by the date indicated on the receipt/invoice (provided it is legible), unless the buyer can prove that the delivery occurred later. In the case of a defective product existing prior to the date of delivery, IMETEC guarantees to repair or replace the appliance at no cost, unless one of the two solutions is disproportionate to the other. The buyer has the obligation to notify an IMETEC Service Centre of the non-conformity within two months after discovering the defect.

The warranty does not cover any part that may be defective due to:

a. transport damage or accidental drops,
b. incorrect installation or an inadequate electrical system,
c. repairs or alterations made by unauthorised personnel,
d. poor or incorrect maintenance and cleaning,
e. product and/or product parts subject to wear and/or consumables,
f. failure to comply with the operating instructions and/or negligent or careless use.

The list above is purely indicative and not exhaustive and in any case, this warranty shall not cover all circumstances that cannot be attributed to manufacturing defects of the appliance.

EN

The warranty also does not cover any case of improper use of the appliance and professional use. IMETEC declines all responsibility for any damage that may directly or indirectly be caused to persons, property and pets as a result of failure to comply with all the instructions provided in the Instructions and Warnings Manual regarding appliance installation, use and maintenance. This is without prejudice to any contractual warranty claims against the seller.

Methods of support

Appliance repairs must be carried out by an IMETEC Service Centre. If the faulty appliance is under warranty, it must be sent to the Service Centre together with a fiscal document that attests the date of sale or delivery.
