Product Type	Powered speaker (active speaker)
Brand	Laney
Model	AH110-G2
Inputs CH1 and CH2	Mono: unbalanced LINE jack (6.35 mm) and switchable XLR MIC/LINE
Input CH3	For built-in SD/USB player or stereo AUX IN input (3.5 mm)
MIX OUT output	Balanced (XLR) for daisy-chaining with another speaker or mixer
Level controls	LEVEL potentiometers per channel and MASTER for overall volume
Equalization	Active BASS and TREBLE (bass and treble adjustments)
Bluetooth	Built-in, with True Wireless Stereo (TWS) function for wireless stereo pairing with a second AH speaker
Indicators	POWER (green, lit when on) and CLIP (red, indicates impending clipping)
Power supply	IEC socket with voltage selector (110-240 V ~) and fuse
Fuse	Drawer-type fuse holder, replace only with an identical fuse
Cooling	Cooler fins: do not obstruct
Cleaning	With a dry cloth only
Safety	Do not open the cover; maintenance by qualified personnel; use a grounded outlet; do not expose to water or moisture
Mounting	Use on stand or pole, precautions against tipping
Rear panel information	Label with serial number, voltage and rated power

Frequently Asked Questions - AH110-G2 Laney

How to connect a Bluetooth source to the AH110-G2 speaker?

Turn on the speaker and press the MODE button to select Bluetooth mode. On your source device (smartphone, tablet), enable Bluetooth and search for available devices. Select 'Laney AH110-G2' from the list. The Bluetooth indicator flashes and then stays solid once connected.

How to set up True Wireless Stereo (TWS) with two speakers?

First connect the primary speaker to your Bluetooth device as described above. On the secondary speaker, select Bluetooth mode with the MODE button, then press and hold this button for 5 to 10 seconds until the BT symbol flashes on both displays. The TWS link establishes automatically; a specific icon appears on both screens.

What is the difference between MIC and LINE inputs on the XLR jack?

The MIC/LINE switch (5a) on the channel allows switching between the two modes. In MIC mode, the input is suitable for microphones (low level, low impedance, balanced). In LINE mode, the XLR input accepts high line-level sources (keyboard, drum machine) in balanced.

How to use the AUX IN input?

The AUX IN input (3.5 mm stereo jack) allows connecting an external line-level source (smartphone, MP3 player). Use a stereo cable and adjust the level with the CH3 LEVEL potentiometer.

What does the CLIP indicator mean?

The CLIP indicator lights up just before the amplifier begins to clip. Adjust the level controls (channels and master) as well as the level of your sources so that this indicator lights only briefly during volume peaks. Prolonged illumination indicates a risk of saturation and damage.

How to clean the speaker?

Use a dry cloth to clean the speaker. Never use liquids or abrasive products. Do not clean the inside of the device.

How to change the fuse?

First disconnect the power cord. Pull out the drawer of the fuse holder located next to the mains socket. Replace the fuse only with an identical fuse (same type and rating, indicated on the rear panel). Reinsert the drawer.

How to adjust the voltage selector?

Before first power-on, verify that the voltage selector is set to your region's voltage. Use a suitable tool (screwdriver) to slide the selector to the appropriate position (110 V or 230 V). An incorrect setting may damage the device.

What are the important safety precautions?

Do not open the cover; no user-serviceable parts inside. Always use a grounded outlet. Do not expose the device to rain or moisture. Do not obstruct the cooling fins. Place the speaker on a stable, flat surface. Use a suitable stand and prevent tipping.

How to connect multiple speakers in series?

Use the MIX OUT output (balanced XLR) of the main speaker to connect to the input of a second AH speaker. This connection transmits the audio signal. You can also connect a powered monitor or mixer to this output.

USER MANUAL AH110-G2 Laney

Thank you very much for purchasing your new Laney product and becoming part of the worldwide Laney family. Each and every Laney unit is designed and built with the utmost attention to care and detail, so I trust yours will give you many years of enjoyment.

Laney products have a heritage which stretches back to 1967 when I first began building valve amplifiers in my parents' garage.

Since then we have moved on from strength to strength developing an extensive range of guitar, bass, public address, multi instrument and keyboard amplification products along with a list of Laney endorsees that includes some of the world's most famous and respected musicians.

At the same time we believe we have not lost sight of the reason Laney was founded in the first place - a dedication to building great sounding amplification for working musicians.

Warm Regards,

Simple line drawing of a stylized banana or leaf with curved stem (no text or symbols)

Lyndon Laney

Chairman and Founder.

INTRODUCTION

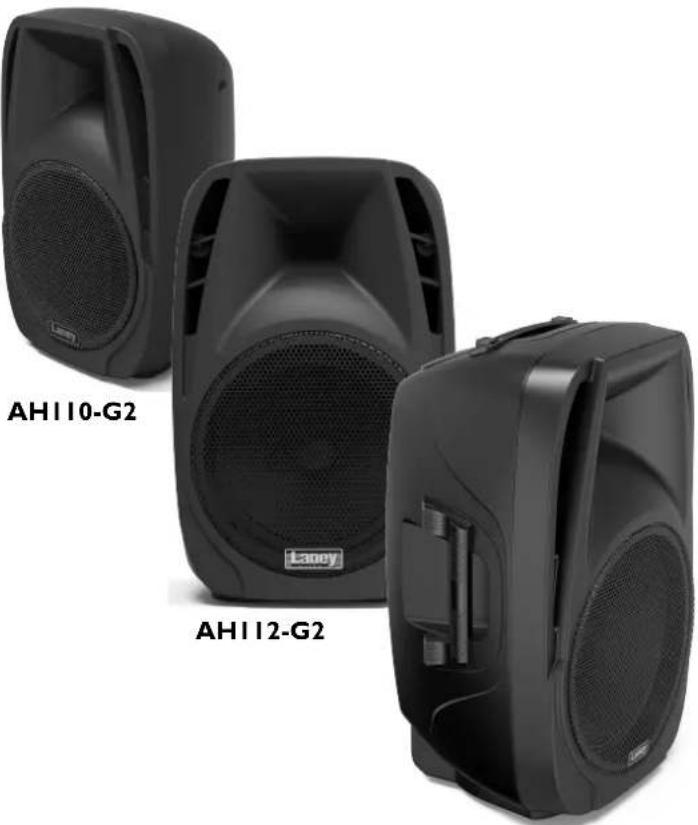

The Laney Audiohub Venue range of enclosures is designed to deliver a high performance in a wide variety of demanding audio applications.

The Audiohub Venue range is ideally suited for use in classrooms, business seminars, presentations, worship meets, parties, bars, BBQ's and a variety of different styles of musical performances.

Housing a flexible on-board mixer which includes a Bluetooth® equipped media player, each Audiohub Venue gives you a compact yet flexible solution to your audio sound reinforcement requirements.

These lightweight, portable, full range moulded enclosures, can be either floor standing, mounted on a pole or tripod stand (via the 35mm pole socket), or used on stage as a wedge monitor.

This manual contains important information regarding correct and safe operation of your active system. Please read it thoroughly in order to get the best performance and reliability from your new Laney product.

Three black audio speakers labeled AH110-G2 and AH112-G2, no additional text or symbols visible on the devices themselves.

AH115-G2

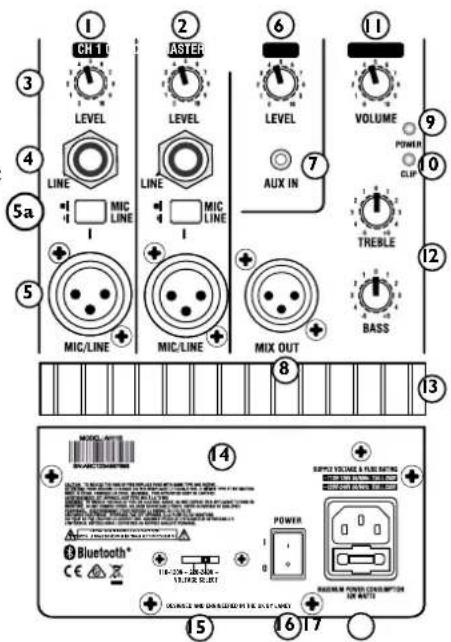

REAR PANEL CONTROLS

1/2. CHI and CH2: Mono Input channels.

1. LEVEL: Use the Level control to set the channel volume.

2. LINE INPUT: An unbalanced input - for higher output line level devices eg. - keyboard, processor, drum machine.

5/5a. MIC/LINE INPUT: Use the push button (5a) to switch the XLR Skt between: MIC: a balanced input for low level, low impedance devices eg.-mic (200-600 Ohms) or electro-acoustic guitar. LINE (via XLR Input): A balanced input for higher output line level devices eg.-keyboard/drum machine.

1. CH3 LEVEL: Use this control to adjust the level of the onboard USB/SD player or an external (line level) signal feed connected to the AUX IN.

2. AUX IN: This gives you the option to connect an additional line level device. Control the Level with CH3 Level control. Please use a stereo cable.

3. MIX OUT: A BALANCED signal feed that can be used to connect to a second Audiohub cab (daisy chained - see page 8), active wedge monitor, house PA or mixing console for example.

4. POWER LED: This will illuminate when the unit is powered up. There is also a second power LED on the front of the cab.

5. CLIP LED: Illuminates just before the amplifier begins to clip. Adjust the level controls and signal level from your source so this illuminates only briefly on peaks in the music.

II. MASTER VOLUME: Controls the overall level of your Audiohub.

1. ACTIVE BASS and TREBLE: These controls allow you to boost or cut the low/high frequency response of the Audiohub amplifier.

2. HEAT SINK: Cooling fins for the amplifier. Do not obstruct.

3. INFORMATION: Area relating to the amplifier: Serial Number, operational information, power rating, etc.

4. VOLTAGE SELECT SWITCH: Although every effort has been made to select the correct voltage for the region of use, please check before powering up for the first time. Damage could occur if the voltage is incorrectly set. See page 9 for more information.

5. MAINS SWITCH: Turns the system on and off. Ensure the Level/Volume controls are at minimum when switching on and off.

6. MAINS INLET SOCKET AND FUSE: IEC input for connection of an appropriate mains lead. Only replace the fuse with the type indicated for your mains voltage. See page 9 for more information.

① CH 10 ② ASTER ⑥ LEVEL ⑪ VOLUME ⑨ POWER ⑩ CLIP ④ LEVEL ⑦ AUX IN ⑤ MIC/LINE ⑧ BASS ⑤ MIC/LINE ⑧ MIX OUT ⑬ Bluetooth® ⑭ POWER ⑮ SENSILE FLOWING CONSTRUCTION ⑰ ON WATZ

(AH115-G2 Panel shown)

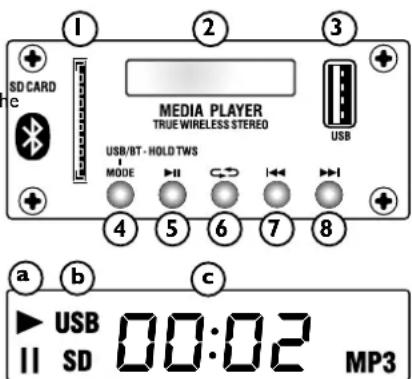

MEDIA PLAYER CONTROLS

Use the onboard player for playing MP3 encoded audio tracks from SD card/USB or Bluetooth® device.

I. SD CARD SLOT: Insert your standard SD card here.

(Automatically detected on insertion, or if removed and reinserted uses smart technology to resume play from the previous point).

1. DISPLAY SCREEN: Display track information.

a. Play or Pause indicator.

b. What device is being used: USB or SD Card.

c. Time into track.

d. "bt" is displayed when connecting to a Bluetooth Device.

1. MEMORY STICK SLOT: Connect your USB thumb drive here. If removed and reinserted, the system uses smart technology to resume play from the previous point.

NOTE. The USB socket is for the playback of recorded tracks only, not for charging a USB device.

1. MODE: Select the input source - SD card USB, Bluetooth/TWS with two cabinets. See page 6 for more information.

2. PLAY/PAUSE: Use this control to play or pause your MP3 music/backing track.

3. LOOP: Use this to enable/disable the looped playback modes. When using this button with an SD card or USB thumb drive, there are 3 options:

ALL - Plays all the tracks on the root of the device in date order, then the sub folders

ONE - Plays one track repeatedly (cycle to the required track to play using NEXT button (8).

FOD - Plays all track in the current active folder.

1. PREVIOUS: Press to skip to the preceding track. A prolonged press will reduce the volume of the MP3 player.

2. NEXT: Press to skip to the next track. A prolonged press will increase the volume of the MP3 player.

CONNECT TO BLUETOOTH DEVICE:

a. Toggle through the system modes and select Bluetooth (using MODE switch (4)).
b. On your Bluetooth capable device, make sure Bluetooth is enabled. Scan down the list of available devices - search for: 'Laney Audiohub' and select.
c. Your Audiohub enclosure is now connected to your Bluetooth device and controlled using the PLAY/PAUSE, PREVIOUS and NEXT BUTTONS.
d. Switching between a USB device and a Bluetooth device is possible, but the Bluetooth device will need to be re-selected by pressing the MODE button once.

1 2 3 SD CARD e MEDIA PLAYER TRUE WIRELESS STEREO USB/BT - HOLD TWS MODE 4 5 6 7 8 a b c ► USB II SD 00:02 MP3

TWS

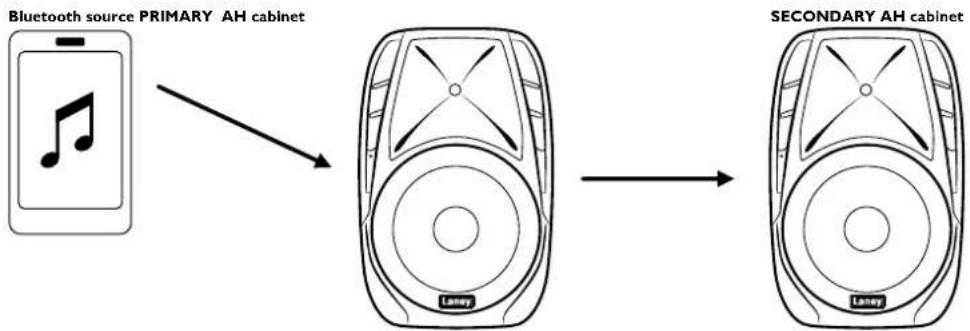

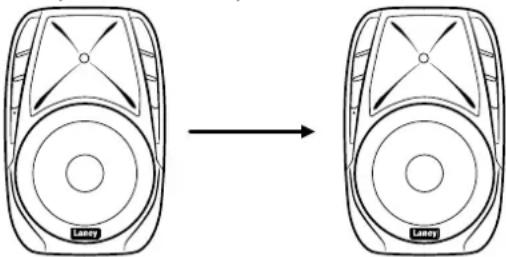

True Wireless Stereo is a feature that allows for the connection of two Audiohub cabinets to a Bluetooth capable device. The result is a true stereo system via Bluetooth with the first AudioHub providing the left and the second providing the right portion of the stereo image.


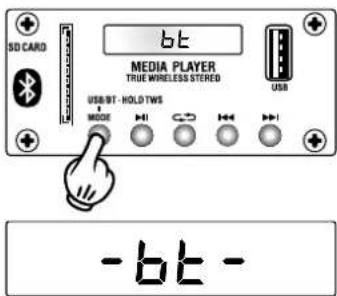

SETTING UP THE CONNECTION

SD CARD MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT MT mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt mt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt nt

I. Connect the Primary Audiohub cabinet to a Bluetooth capable device as explained on the previous page.
2. Using the Mode switch, select the Bluetooth mode on the secondary cabinet, then hold the MODE switch for a further 5 - 10 seconds, then release. bE will appear on the display of both cabinets (flashing on and off) and indicates the TWS connection is in progress.
3. Once the connection has been established, the image (to the left) will appear on the display of both Primary and Secondary cabinet.

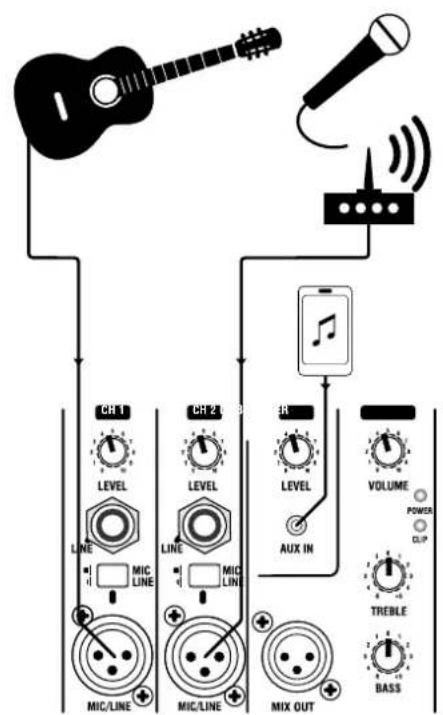

APPLICATIONS

CH 1 LEVEL LINE MIC MIC LINE MIC/LINE CH 2 LEVEL LINE MIC LINE R LEVEL AUX IN VOLUME POWER CLIP TREBLE BASS

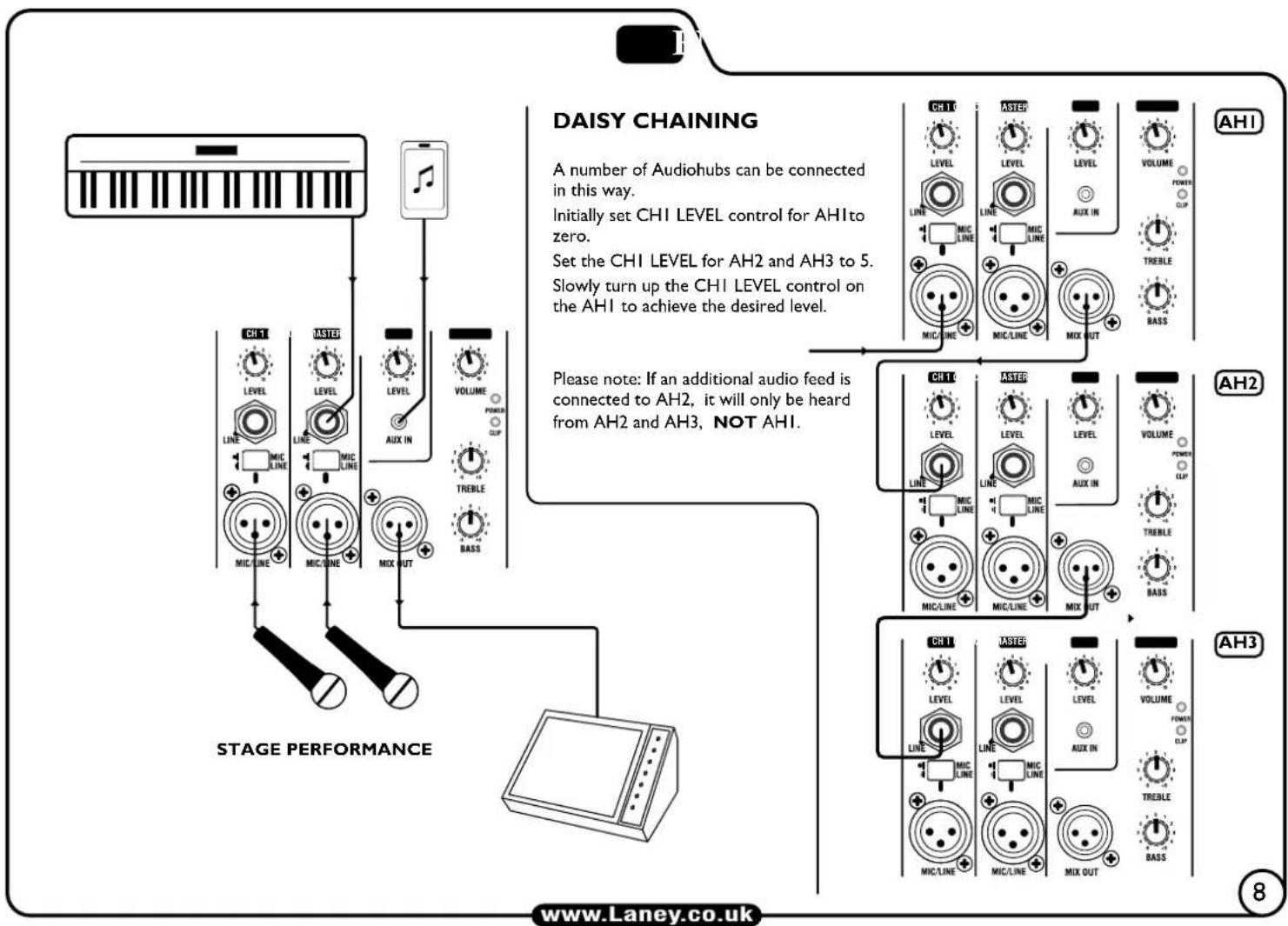

SOLO PERFORMANCE

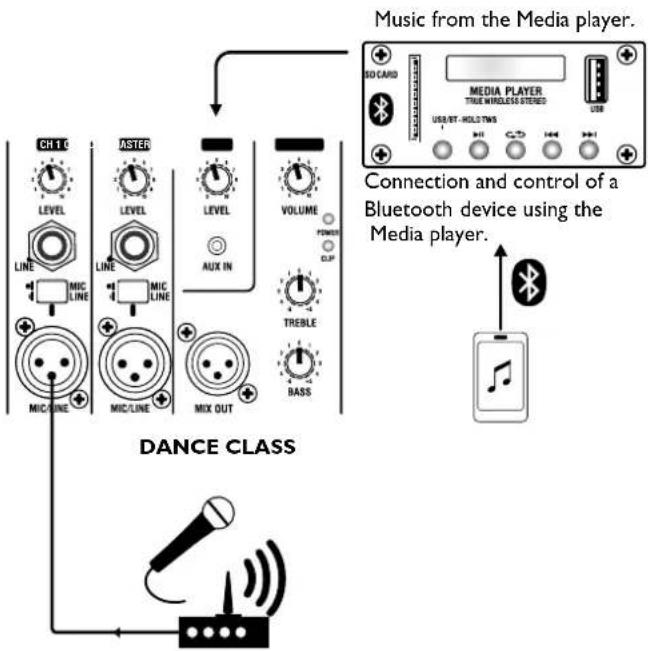

Music from the Media player. NO CARD MEDIA PLAYER TRUE WIRELESS STENED USB/RT-HOLD TWS Connection and control of a Bluetooth device using the Media player. DANCE CLASS

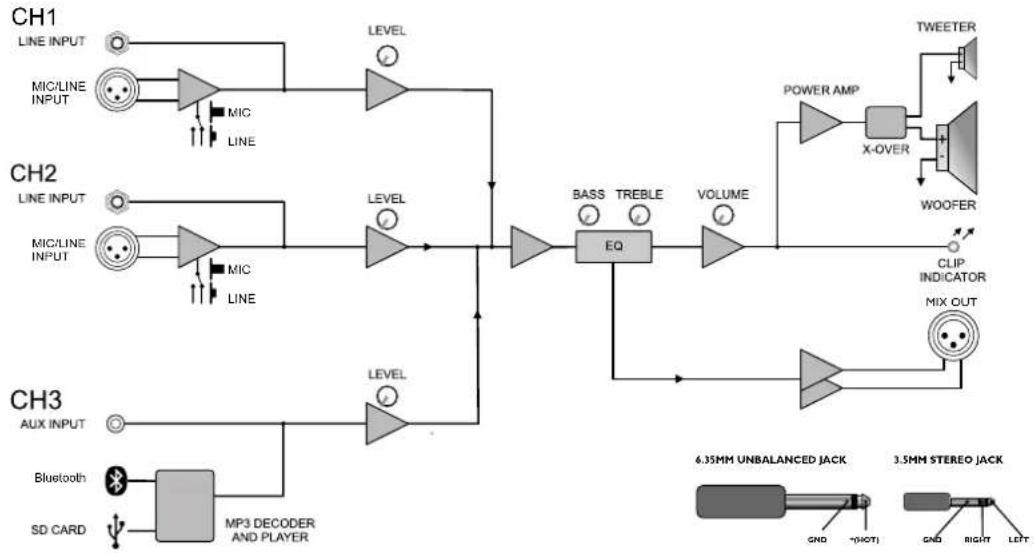

BLOCK DIAGRAM

EN

I/O CONNECTOR WIRING:

6.35MM UNBALANCED JACK

FUSE REPLACEMENT AND VOLTAGE SELECTION

Switch off and disconnect the power cord before proceeding.

Pure electrical outlet diagram without any text, numbers, or symbols

I.) Slide out the fuse holder tray.
2.) Only replace fuse with the same type and power rating as specified on the rear panel.

I10-120V setting 110-120V~ 220-240V~ VOLTAGE SELECT

Using a suitable tool, slide the voltage selector switch to the required operating voltage.

220-240V setting 110-120V~ 220-240V~ VOLTAGE SELECT

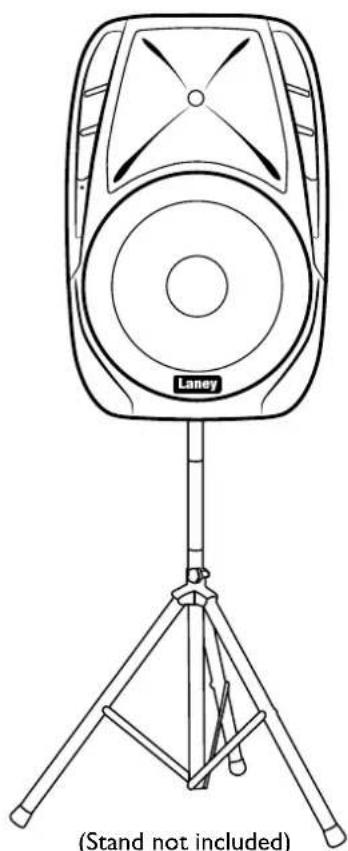

POLE MOUNTING

Line drawing of a Laney speaker mounted on a tripod stand (no text or symbols on the device itself)

All cabinets should be balanced and steady.

Don't over-extend poles/tripods; ensure at least 4 x the pole diameter is still inside the outer pole.

Make sure the legs have a good splay on tripods, but do not obstruct doorways or other access-ways.

If a pole mount is used, make sure that the thumb screw on the cabinet is tight.

Keep lights away from speakers; heat can cause fires / speaker damage.

Don't run cables across access-ways; if you have to, run them above doors or use approved cable covers.

Be aware of total power usage. Overloading a mains socket is potentially dangerous, and likely to cause a power out during use.

Keep lighting cables away from ALL sound cables including mains, use separate circuit for lights if possible.

Keep power and signal cables apart.

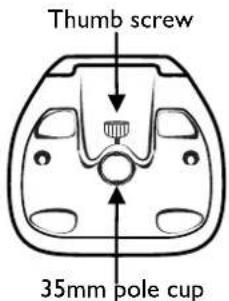

Thumb screw 35mm pole cup

www.Laney.co.uk

SPECIFICATION: AHI10-G2

Description	: Laney AUDIOHUB VENUE - Active Moulded Enclosure, 400W, 10"+1" CD - 3CH, Bluetooth/SD/USB
Amplifier
Power Rating	: 400W
Amplifier Type	: Class A/B
Power Supply	: Linear Toroidal PSU - Switchable Voltage
Features
Inputs	: 2x balanced XLR with mic/line switch, 2x 6.3mm single ended jack inputs, 1x 3.5mm stereo jack in, Media player with Bluetooth 5.0, USB and SD card
Outputs	: Balanced XLR mix out.
Controls	: CH1,2,3 Gain controls, Master 2 Band EQ, Master Volume
Speaker
HF Driver	: 1" Compression Driver
LF Driver	: 10" Woofer
Coverage	: 90°H X 40°V
Enclosure
Cabinet	: Robust polypropylene cabinet with top handle and monitor angle
Finish	: Black
Grille	: Powdercoated steel
Other	: 35mm Distance Pole
Unit dimensions (HWD)	: 49 x 31.5 x 26.5 CM19.3" x 12.4" x 10.4"
Unit weight	: 6.75Kg, 14.9 lbs
Carton dimensions (HWD)	: 55.5 x 37 x 30.5 CM21.9" x 14.6" x 12", 0.063 M3
Packed weight	: 8.75Kg, 19.3 lbs

In the interest of continued development, Laney reserves the right to amend product specification without prior notification.

SPECIFICATION: AHI12-G2

Description	: Laney AUDIOHUB VENUE - Active Moulded Enclosure, 800W, 12"+1" CD - 3CH, Bluetooth/SD/USB
Amplifier
Power Rating	: 800W
Amplifier Type	: Class A/B
Power Supply	: Linear Toroidal PSU - Switchable Voltage
Features
Inputs	: 2x balanced XLR with mic/line switch, 2x 6.3mm single ended jack inputs, 1x 3.5mm stereo jack in, Media player with Bluetooth 5.0, USB and SD card
Outputs	: Balanced XLR mix out.
Controls	: CH1,2,3 Gain controls, Master 2 Band EQ, Master Volume
Speaker
HF Driver	: 1" Compression Driver
LF Driver	: 12" Woofer
Coverage	: 90°H X 40°V
Enclosure
Cabinet	: Robust polypropylene cabinet with three handles and monitor angle
Finish	: Black
Grille	: Powdercoated steel
Other	: 35mm Distance Pole
Unit dimensions (HWD)	: 58.5 x 37.5 x 31 CM23" x 14.8" x 12.2"
Unit weight	: 11.7Kg, 25.8 lbs
Carton dimensions (HWD)	: 66 x 43.5 x 36 CM26" x 17.1" x 14.2", 0.103 M3
Packed weight	: 12.7Kg, 28 lbs

In the interest of continued development, Laney reserves the right to amend product specification without prior notification.

SPECIFICATION: AHI15-G2

Description	: Laney AUDIOHUB VENUE - Active Moulded Enclosure, 800W, 15"+1" CD - 3CH, Bluetooth/SD/USB
Amplifier
Power Rating	: 800W
Amplifier Type	: Class A/B
Power Supply	: Linear Toroidal PSU - Switchable Voltage
Features
Inputs	: 2x balanced XLR with mic/line switch, 2x 6.3mm single ended jack inputs, 1x 3.5mm stereo jack in, Media player with Bluetooth 5.0, USB and SD card
Outputs	: Balanced XLR mix out.
Controls	: CH1,2,3 Gain controls, Master 2 Band EQ, Master Volume
Speaker
HF Driver	: 1" Compression Driver
LF Driver	: 12" Woofer
Coverage	: 90°H X 40°V
Enclosure
Cabinet	: Robust polypropylene cabinet with three handles and monitor angle
Finish	: Black
Grille	: Powdercoated steel
Other	: 35mm Distance Pole
Unit dimensions (HWD)	: 71.5 x 46.5 x 38 CM28.1" x 18.3" x 15"
Unit weight	: 13.5Kg, 29.8 lbs
Carton dimensions (HWD)	: 74 x 48.5 x 40 CM29.1" x 19.1" x 15.7", 0.144 M3
Packed weight	: 16.9Kg, 37.3 lbs

In the interest of continued development, Laney reserves the right to amend product specification without prior notification.

Laney

USER MANUAL

TRANSLATION DOCUMENTS

WWW.LANEY.CO.UK

DESIGNED & ENGINEERED IN THE UK BY LANey

PANNEAU DE COMMANDE

FR

(AH115-G2 Panel shown)

FR

RÉGLAGE DE LA CONNEXION

REPLACEMENT DU FUSIBLE

AJUSTANDO LAS CONEXIONES

(AH115-G2 Panel shown)

REPRODUTOR DE MÍDIA

FAZENDO AS CONEXÕES

(AH115-G2 Panel shown)

DE

MEDIA PLAYER

Primary AH Cabinet Secondary AH Cabinet

(AH115-G2 Panel shown)

MEDIASPELER

Diagram showing a smartphone screen with musical note and a right-pointing arrow, indicating playback or navigation.

Primary AH Cabinet Secondary AH Cabinet

Diagram showing a device transformation from a two-port speaker to a three-port speaker, with labels 'Laney' and directional arrow.

DE VERBINDING TOT STAND BRENGEN

In order to take full advantage of your new product and enjoy long and trouble-free performance, please read this owner's manual carefully, and keep it in a safe place for future reference.

1) Unpacking: On unpacking your product please check carefully for any signs of damage that may have occurred whilst in transit from the Laney factory to your dealer. In the unlikely event that there has been damage, please re-pack your unit in its original carton and consult your dealer. We strongly advise you to keep your original transit carton, since in the unlikely event that your unit should develop a fault, you will be able to return it to you dealer for rectification securely packed.
2) Amplifier Connection: In order to avoid damage, it is advisable to establish and follow a pattern for turning on and off your system. With all system parts connected, turn on source equipment, tape decks, cd players, mixers, effects processors etc. BEFORE turning on your amplifier. Many products have large transient surges at turn on and off which can cause damage to your speakers. By turning on your bass amplifier LAST and making sure its level control is set to a minimum, any transients from other equipment should not reach your loud speakers. Wait till all system parts have stabilised, usually a couple of seconds. Similarly when turning off your system always turn down the level controls on your bass amplifier and then turn off its power before turning off other equipment.
3) Cables: Never use shielded or microphone cable for any speaker connections as this will not be substantial enough to handle the amplifier load and could cause damage to your complete system.
4) Servicing: The user should not attempt to service these products. Refer all servicing to qualified service personnel.

	Intended to alert the user to the presence of uninsulated 'Dangerous Voltage' within the products enclosure that may be sufficient to constitute a risk of electrical shock to persons.Ca symbole est utilise pur indiquer a l'utilisateur de ce produit de tension non-isoles dangereuse pouvant être d'intensite suffisante pour constituer un risque de choc électrique.Este simbolo tiene el proposito de alertar al usuario de la presencia de 'voltaje' peligroso' que no tiene aislamiento dentro de la caja del producto que puede tener una magnitud suficiente como para constituir riesgo de corrientazo.Dieses Symbol soll den Anwender vor unsolierten gefährlichen Spannungen innerhalb des Gehauses warnen, die von Ausrichender Starke sind, um einen elektrischen Schlag verursachten zu können.
	Intended to alert the user of the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.Dieses Symbol soll den Anwender vor unsolierten gefährlichen Spannungen innerhalb des Gehauses warnen, die von Ausrichender Starke sind, um einen elektrischen Schlag verursachten zu können.Este simbolo tiene el proposito de la alertar al usuario de la presencia de instrucciones importantes sobre la operacion y mantenimiento en la literatura que viene conel producto.Dieses Symbol soll den Benutzer auf wichtige Instruktionen in der Bedienungsanleitung aufmerksam machen, die Handhabung und Wartung des Produkts betreffen.
CAUTION:ATTENTION:PRECAUCION:VORSICHT:	Risk of electrical shock - DO NOT OPEN.To reduce the risk of electrical shock, do not remove the cover. No user serviceable parts inside. Refer servicing to qualified personnel.Riaques de choc électrique - NE PAS OUVIRIAfin de reduire le risque de choc électrique, ne pas erliever le couvercle. Il ne se trouve a l'interieur aucune pièce pouvant être reparse par l'utiliseur. Confler l'entretien a un personnel qualifie.Riesgo de corrientazo - no abraPara dominuir al risque de carrietante, no abra la cubierta. No hay piezas adentro que el pueda reparar. Deje todo mantenimiento a los tecnicos calificado.Risiko - Elektrischer Schlag! Nicht offen!Lim das Risiko eines elektrischen Schilages zu vermeiden, nicht die Abdeckung entfernen. Es befinden sich keine Teile darin, die vom Anwender repariert werden Konnten. Reparaituren nur von qualifiziertem Fachpersoral durchführen lassen.
WARNING:ADVERTISSEMENT:ADVERTENCIA:ACHTUNG:	To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this appliance please read the operating instructions for further warnings.Afin de prevenir les risques de recharge électrique ou de feu, n'exposes pas cet appareil a la pluie ou a l'humidite. Avant d'utiliser cet appareil, lesze les advertisements supplanteres situes dans le guide.Para evitar corrientazos o peligro de incendio, no deja expuesto a la livra o humedad este aparato Antes de usar este aparato, lea mas advertistas en la guía de operacion.Lim einen elektrischen Schalg oder Feurgefahr zu vermeiden, sollte dieses Gerat nicht dem Regen oder Feuchtigkeit ausgesetzt werden.Vor Industriebnahme unbedingt die Bedienungsanleitung lessen.

FCC COMPLIANCY STATEMENT

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference

2) This device must accept any interference received, that may cause undesired operation.

Warning: Changes or modification to the equipment not approved by Laney can void the user's authority to use the equipment. Note: This equipment has been tested and found to comply with the limits for Class 8 digital device, pursuant to Part I5 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help

This product conforms to the requirements of the following European Regulations, Directives & Rules: CE Mark (93/68/EEC), Low Voltage 2014/35/EU, EMC (2014/30/EU), RoHS (2011/65/EU), RED (2014/30/EU), ErP 2009/125/EU

In order to reduce environmental damage, at the end of its useful life, this product must not be disposed of along with normal household waste to landfill sites. It must be taken to an approved recycling centre according to the recommendations of the WEEE (Waste Electrical and Electronic Equipment) directive applicable in your country.

SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby Laney Electronics Ltd. declares that the radio equipment is in compliance with Directives 2014/53/EU, 2011/65/EU, 2009/125/EU Full text of the EU declaration of conformity is available at the following internet address: support.Laney.co.uk/approvals

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, inc. and any use of such marks by Headstock Distribution Ltd is under license. Other trademarks and trade names are those of their respective owners. Laney is a registered trademark of Headstock Distribution Ltd.

INCORPORATED RADIO EQUIPMENT DEVICE TECHNICAL SPECIFICATION:

Frequency Range:

Transmit Power:

Receiver Sensitivity:

Operating Protocol:

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electrical products, basic cautions should always be followed, including the following.

1. Read these instructions.

2. Make the instructions.

3. Keep these instructions sale.

4. Heed all warnings.

5. Follow all instructions.

6. Do not use this apparatus near water.

7. Clean only with a dry cloth

8. Do not block any of the ventilation openings, install in accordance with manufacturer's instructions.

9. Do not break any of the ventilation opening, install in laser devices with manufacturer's instructions.

10. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
11. An apparatus with Class I construction shall be connected to a mains socket outlet with a protective connection. Do not defeat the safety

purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

1. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.

2. Only use attachments/accessories provided by the manufacturer.

3. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cars'apparatus combination to avoid injury from tip-over.

4. The mains plug or appliance coupler is used as the disconnect device and shall remain readily operable. The user should allow easy access to any mains plug, mains coupler and mains switch used in conjunction with this unit thus making it readily operable. Unplug this apparatus during lightning storms or when unused for long periods of time.

5. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

6. Never break off the ground pin. Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.

7. If this product is to be mounted in an equipment rack, rear support should be provided.

8. Note for UK only: If the colours of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows:

a) The wire that is coloured green and yellow must be connected to the terminal that is marked by the letter E. the earth symbol, coloured green or

coloured green and yellow.

b) The wire that is coloured blue must be connected to the terminal that is marked with the letter N or the colour black.

The wire that is released brown must be connected to the terminal that is marked with the letter 1 or the colour red.

1. This electrical apparatus should not be exposed to dripping or splashing and care should be taken not to place objects containing liquids, such as vases, upon the apparatus.

2. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time.

The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures: According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Earplugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

1. Symbols & nomenclature used on the product and in the product manuals, intended to alert the operator to areas where extra caution may be necessary, are as follows:

Intended to alert the user to the presence of high 'Dangerous Voltage' within the products enclosure that may be sufficient to constitute a risk of electrical shock to persons.

Intended to alert the user of the presence of important operating and maintenance (Servicing) instructions in the literature accompanying the product.

Risk of electrical shock - DO NOT OPEN. To reduce the risk of electrical shock, do not remove the cover. No user serviceable parts inside. Refer servicing to qualified personnel.

To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using use read the operating instructions.

If your appliance features a tilting mechanism or a kickback style cabinet, please use this design feature with caution. Due to the ease with which the amplifier can be moved between straight and tilted back positions, only use the amplifier on a level, stable surface. DO NOT operate the amplifier on a desk, table, shelf or otherwise unsuitable non-stable platform.

The following described information is to the above reference section of the research institute and research institute.

MODEL NUMBER: SERIAL NUMBER: PLACE OF PURCHASE: DATE OF PURCHASE:

PLEASE COMPLETE FOR FUTURE REFERENCE

LANEYAMPLIFICATION

LANEYAMPLIFICATION

LANEYAMPS

LANEYTV

DESIGNED & ENGINEERED IN THE UK BY LANEY

WWW.LANEY.CO.UK
