GUH3C410 - Computer accessory IOGEAR - Free user manual and instructions

Brand	IOGEAR
Model	GUH3C410
Product Type	USB-C Hub (4-port hub)
Host Ports	1 x USB-C (10 Gbps)
Peripheral Ports	2 x USB-A (10 Gbps) + 2 x USB-C (10 Gbps)
Transfer Rate	Up to 10 Gbps
Power Supply	Powered by host USB-C port (bus-powered)
Compatible Operating Systems	Windows 8.1, 10, 11; macOS 10.13+
Package Contents	1 x GUH3C410, 1 x Quick Start Guide, 1 x Warranty Card
Warranty	1-year limited
Compatibility	Computers with USB-C port (10 Gbps required for maximum performance)
Housing Material	Plastic (estimated)
Maintenance	Clean with a soft, dry cloth
Safety	Compliant with FCC Class B
Usage	USB port expansion to connect smartphones, tablets, SSDs, etc.

Frequently Asked Questions - GUH3C410 IOGEAR

Which operating systems are compatible with the GUH3C410?

The hub is compatible with Windows 8.1, 10, 11 and macOS 10.13 or later.

Can the hub be used with a computer equipped with a USB 3.0 port?

Yes, but the transfer rate will be limited to the host port speed. For 10 Gbps performance, a USB-C 10 Gbps port is required.

Does the hub require external power?

No, it is powered by the USB-C port of the host computer (bus-powered). No power adapter is required.

How many devices can be connected simultaneously?

Up to four peripherals: two on the USB-A ports and two on the USB-C ports.

Do the USB-C ports support device power (Power Delivery)?

The hub does not support Power Delivery; it is designed for data transfer only. Host power is not passed through.

What is the maximum transfer speed?

Each port supports speeds up to 10 Gbps (USB 3.1 Gen 2).

Is the hub backward compatible with USB 2.0 devices?

Yes, it is backward compatible with USB 2.0 and 3.0 devices, but speeds will be limited by the slowest device.

How to install the GUH3C410?

Simply connect devices to the USB-A or USB-C ports, then plug the hub's USB-C cable into the host computer. No additional drivers are required.

What is the length of the built-in cable?

The hub comes with a fixed USB-C cable of approximately 15 cm (estimated).

Is the product guaranteed?

Yes, it comes with a one-year limited warranty. For more details, visit the IOGEAR website.

USER MANUAL GUH3C410 IOGEAR

Solid green vertical rectangle with no text, symbols, or patterns

Quick Start Guide

4 Port USB-C® Hub

• USB-C port (10 Gbps required for full bandwidth)
• Windows® 8.1, Windows® 10, Windows® 11
• macOS® 10.13+

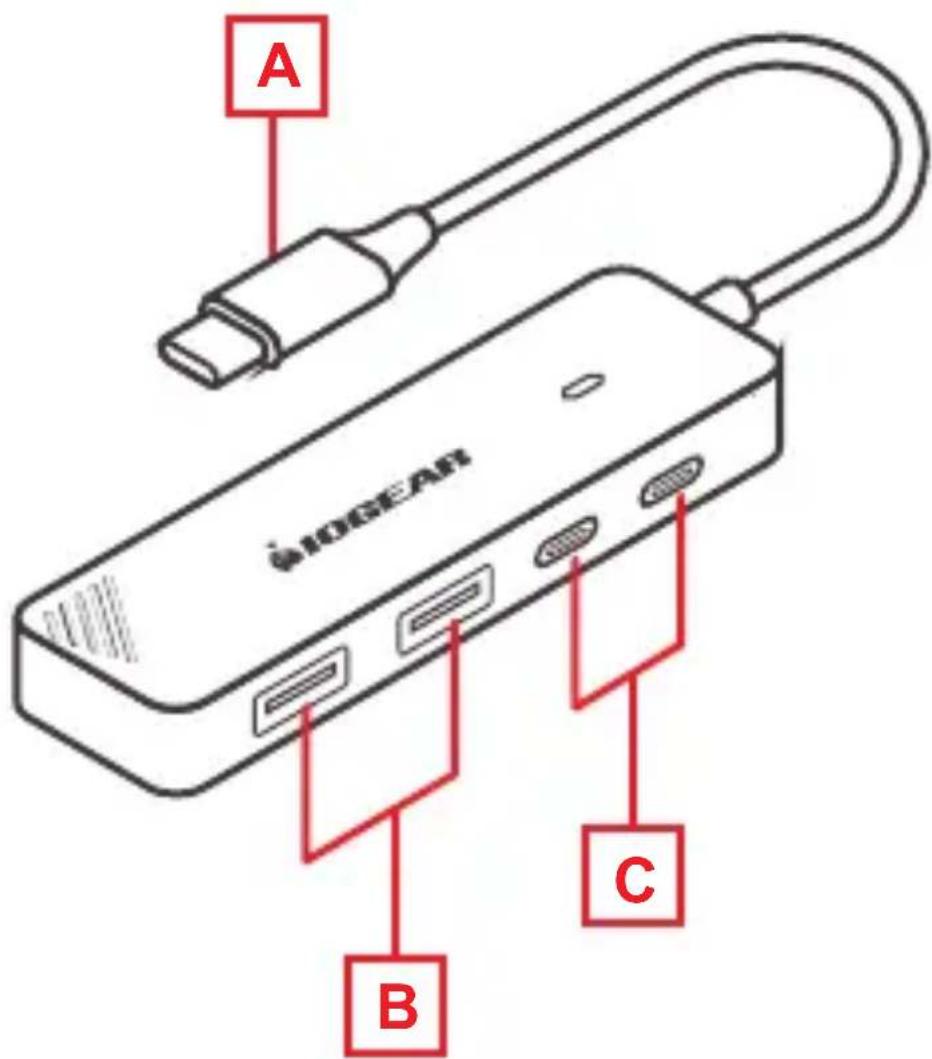

Overview

2

A. USB-C for Host connection (10 Gbps)
B. 2 x USB-A Ports for USB peripherals (10 Gbps)
C. 2 x USB-C Ports for USB peripherals (10 Gbps)

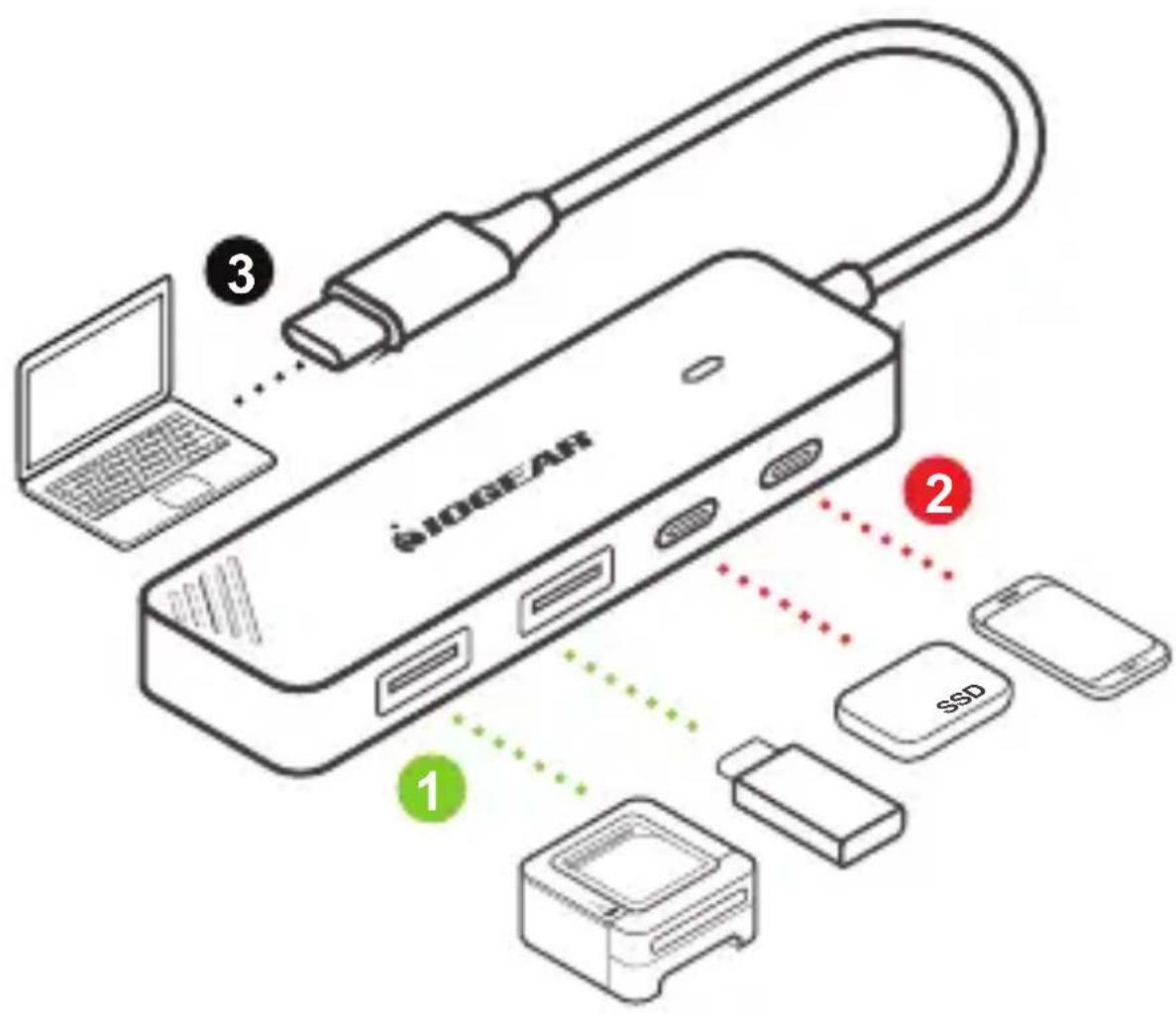

Hardware Installation

3

1 Connect up to 2 USB-A peripherals to USB-A ports like Smartphone, tablet, SSD, or other devices.
2 Connect up to 2 USB-C peripherals to USB-C ports like Smartphone, tablet, SSD, or other devices.
3 Connect your host laptop or computer.

Limited Warranty

Warranty Information

This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, go to https://www.iogear.com/support/warranty

Register online at https://www.iogear.com/register

Important Product Information

Product Model ____

Serial Number ____

Contact

WE'RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT?

Make sure you:

1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support

IOGEAR

https://iogear.custhelp.com

[e-mail]

www.iogear.com

Compliance Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user's authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
