USER MANUAL Detect Pro IW3612EU SHARK

Shark Cordless Detect Vacuum

Shark Cordless Detect Vacuum

Aspiradora sin cable Shark Detect

Exterior view of a modern vacuum cleaner (no signage or text visible on body)

VIELEN DANK

ANTI-ODOUR TECHNOLOGY

DREHKNOPF FÜR GERUCHSNEUTRALISIERUNG

Technical line drawing of a mechanical component with a knob and mounting base (no text or symbols)

1. DREHKNOPF VON AUTO-EMPTY-DOCK ENTFERNEN

Illustration of a hand inserting a small object into a container, with an inset showing a circular component (no text or symbols)

Technical diagram showing mechanical components with labeled parts and directional arrows, including a valve and a circular component.

1. DREHKNOPF IN

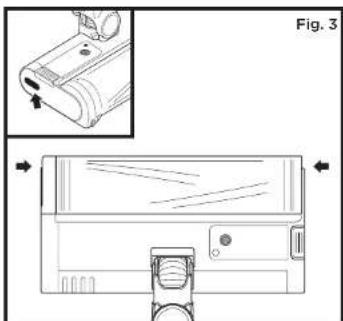

AUTO-EMPTY-DOCK EINSETZEN

Hand holding a circular device with a scroll wheel and directional arrow (no text or symbols visible)

Line drawing of a hand pouring liquid into a container (no text or symbols)

Technical line drawing of a handheld device with attached wires and connectors (no text or symbols)

Technical diagram showing mechanical components with directional arrows indicating movement or assembly (no text or symbols)

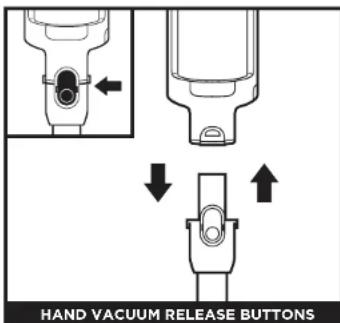

HANDSTAUBSAUGER-ENTRIEGELUNGSKNÖPFE

Technical line drawing of a mechanical component with an attached plug (no text or symbols)

AUS DER STAUBSAUGERSERIEIN HANDS

Line drawing of a cabinet interior with front and side views, no text or symbols present

Technical line drawing of a mechanical component with an inset showing a cross-section view (no text or symbols)

ÜBERFLUR MIT HANDSTAUBSAUGER

Technical line drawing of a mechanical tool with an inset showing a close-up of a component (no text or symbols)

ÜBERFLUR MIT SAUGROHR

Technical line drawing of a vertical industrial machine with a side-view inset showing internal components (no text or labels)

Technical line drawing of a vacuum cleaner with attached pump and control unit (no text or symbols)

Diagram showing a control panel with '✓' and circular button, indicating a process or operation.

Technical line drawing of a vertical support structure with a handle and base (no text or symbols)

Technical line drawing of a door handle and adjacent door panel with an arrow indicating left side (no text or symbols)

Technical illustration of a mechanical device with a downward arrow indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Line drawing of a hand pouring liquid into a container with a funnel (no text or symbols)

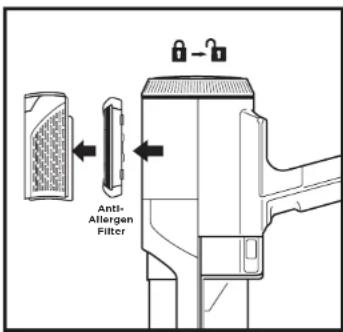

Anti- Allergen- Filter

Technical line drawing of a mechanical device with internal components and a vertical scale indicator (no text or symbols)

Line drawing of a human foot and ankle with a foot highlighted, showing a mechanical device (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of two hands holding a mechanical device with a cylindrical component above (no text or symbols)

Technical diagram showing hands operating a mechanical device with labeled components and measurement lines

Line drawing of a handheld electric shaver with a probe inserted (no text or symbols)

Diagram showing a hand holding a tool with a spring, alongside a magnified inset of a mechanical component (no text or symbols)

Line drawing of a mechanical component with a rod and connector (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and base mount (no text or symbols)

Technical line drawing of a mechanical assembly with a suspended component (no text or symbols)

ANTI-ODOUR TECHNOLOGY

BOUTON DE RÉGLAGE
ANTI-ODEUR

Technical line drawing of a mechanical component with a central knob and mounting base (no text or symbols)

1. RETIRER LE BOUTON DE RÉGLAGE
   ANTI-ODEUR DE LA STATION DE MIRAGE AUTOMATIQUE

Illustration of a hand inserting a container into a cup, with an inset showing a lid (no text or symbols)

1. RETIRER LA CARTOUCHE NEUVE CARTOUCHE DE LA BOÎTE

Technical diagram showing a mechanical component with labeled parts and directional arrows, including a gauge or dial indicator.

1. INSTALLEZ LE BOUTON DANS LA STATION DE VIDAGE AUTOMATIQUE

Hand holding a circular device with a black arrow indicating rotation (no text or symbols visible)

1. RETIREZ L'ANCIENNE
   CARTOUCHE ANTI-ODEUR

Line drawing of a hand pouring liquid into a container (no text or symbols)

1. ÉLIMINATION DE CARTOUCHES USAGÉES

Diagram of a mechanical component with arrows indicating movement or assembly (no text or symbols)

BOUTONS DE DÉVERROUILLAGE DE L'ASPIRATEUR À MAIN

Technical line drawing of a handheld electric shaver with attached wires and connectors (no text or symbols)

DANS L'ASPIRATEUR À MAIN

Technical diagram showing a mechanical component with an attached plug and a close-up view of the part (no text or symbols)

EN-DEHORS DE L'ASPIRATEUR

Architectural line drawing of a double door with a water dispenser, showing front and side views (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

NETTOYAGE EN HAUTEUR AVEC L'ASPIRATEUR À MAIN

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

NETTOYAGE EN HAUTEUR AVEC LE MANCHE

Technical line drawing of a vertical cylindrical device with a base and internal components, shown from an inset view (no text or symbols present)

Technical line drawing of a vacuum cleaner with attached pump and base mount (no text or symbols)

Technical line drawing of a vertical support structure with a handle and base (no text or symbols)

Technical line drawing of a door handle and adjacent door panel with an arrow indicating left side (no text or symbols)

Technical diagram of a spray gun with labeled components and directional arrow indicating assembly or inspection

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Line drawing of a hand pouring liquid into a glass container using a funnel (no text or symbols)

Technical line drawing of a mechanical device with internal components and a side view showing internal structure (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a human foot and ankle with a hanging device, showing a movement arrow (no text or symbols)

Line drawing of two hands holding a rectangular object with a circular top and internal lines, no text or symbols present.

Technical diagram showing hands operating a mechanical device with labeled parts and directional arrows

Technical line drawing of a mechanical assembly with a cylindrical component inserted into a housing (no text or symbols)

NETTOYAGE DU LIGHT DETECT

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

NETTOYAGE DU CAPTEUR EDGE DETECT

ENTRETIEN DE VOTRE ASPIRATEUR

CONTRÔLER LES OBSTRUCTIONS DANS L'ASPIRATEUR

Line drawing of a handheld vacuum cleaner with a probe inserted (no text or symbols)

Simple line drawing of a tool emitting exhaust smoke (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand holding a tool with a spring, alongside a magnified inset of a mechanical component (no text or symbols)

Isometric line drawing of a mechanical device with a cylindrical component and base (no text or symbols)

for purchasing the Shark Detect Cordless Vacuum.

TIP: You can find the model and serial numbers on the QR code label located on the back of your unit.

TIP: You can locate the date code on one of the prongs of the power cord plug.

ANTI-ODOUR TECHNOLOGY

DANGER

If in direct contact with contents of cartridge:

May cause an allergic reaction to skin. Wear protective gloves if directly coming into the contact with the cartridge. Wash skin thoroughly after handling. Harmful if swallowed. Avoid breathing in mist or vapours

intentional misuse and directly inhaling contents may be dangerous. Avoid release to the environment. Very toxic to aquatic life with long lasting effects, ensure cartridge is disposed of correctly as general waste.

2-(4-tert-butylbenzyl) propionaldehyde May damage fertility and suspected of damaging the unborn child. Do not handle until all safety precautions have been read and understood. Use personal protective equipment, such as protective gloves, as required.

REGISTER YOUR PURCHASE

TO BENEFIT FROM YOUR PRODUCT'S EXTENDED GUARANTEE, SIMPLY REGISTER YOUR PURCHASE AT:

sharkclean.eu

Scan QR code using mobile device

Please note, products purchased directly from Shark are automatically registered.

Benefits of registering your product and creating an account:

• Get easier, faster product support and access to guarantee information
• Access troubleshooting and product care instructions
• Be among the first to know about exclusive product promotions

RECORD THIS INFORMATION

Model Number: ____

Serial Number:

Date Code

Date of Purchase (Keep Receipt):

Store of Purchase:

TECHNICAL SPECIFICATIONS

Voltage: 18V

Body Motor Watts: 240W

Nozzle Watts: 60W

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

This instruction manual is designed to help you get a complete understanding of your new Shark Detect Cordless Vacuum.

If you have any questions, please contact customer service at www.sharkclean.eu

CONTENTS

Product Registration....50

Important Safety Instructions....52

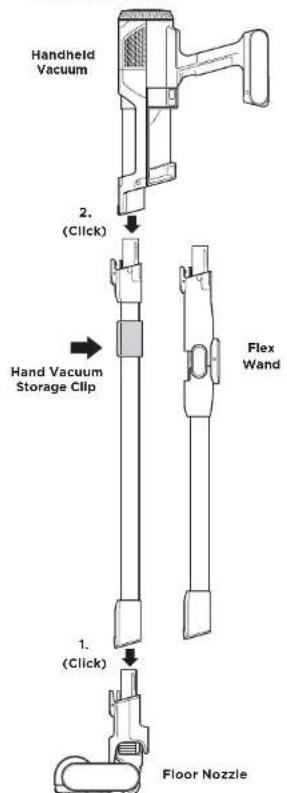

Assembling your Shark Detect Vacuum Cleaner....54

Using Your Anti-Odour Technology (IW3612 Series Only) 56

Adjusting the Anti-Odour Technology Intensity....56

Odour Cartridge Replacement....57

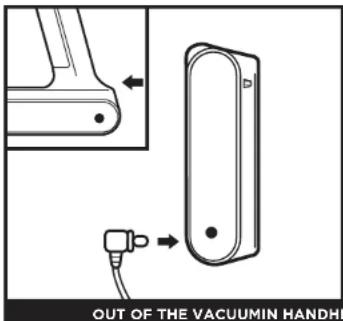

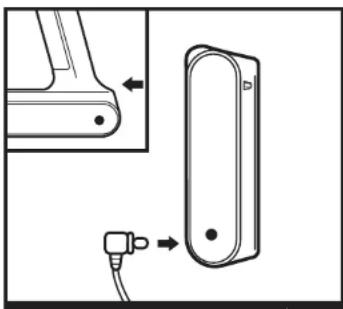

Charging Your LI-ION Battery....58

Battery Removal 60

Using Your Vacuum....61

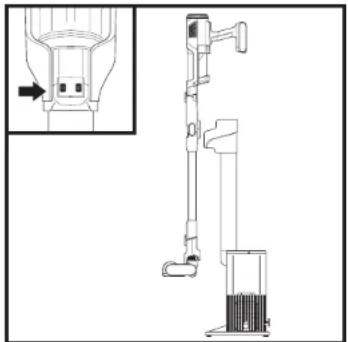

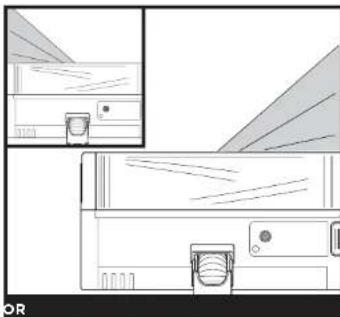

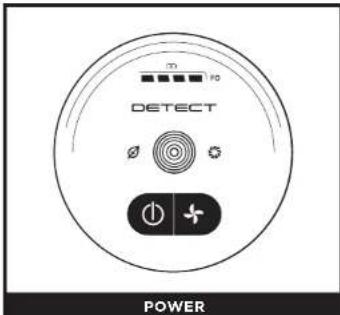

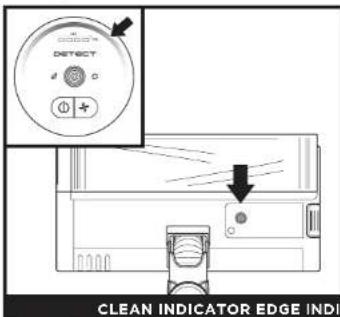

Controls And Cleaning Modes 61

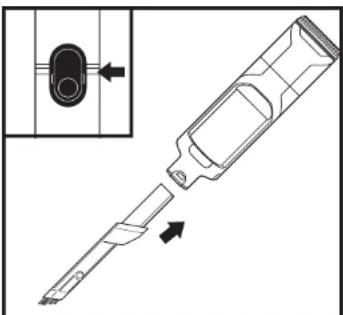

Above Floor Cleaning....62

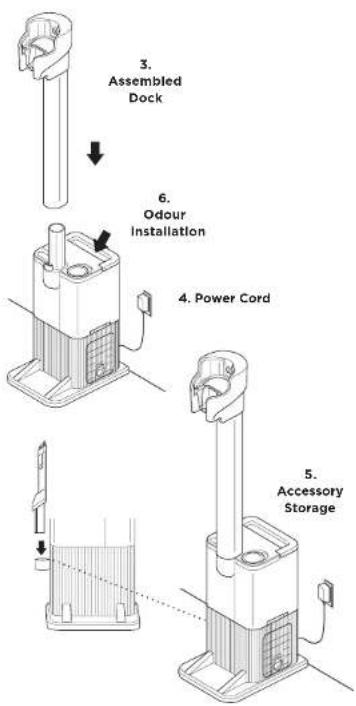

Using The Auto Empty Dock (IW3612 Series Only)....63

Maintaining Your Vacuum Cleaner....64

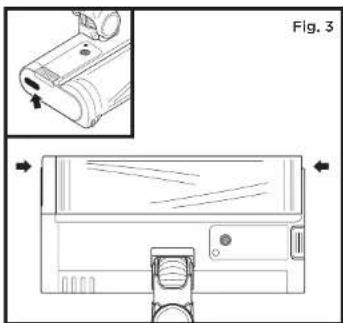

Emptying The Dock Dust Bin (IW3612 Series Only)....64

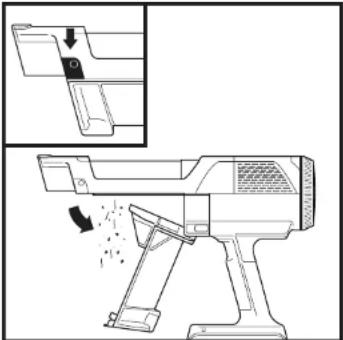

Emptying The Handheld Vacuum Dust Cup 64

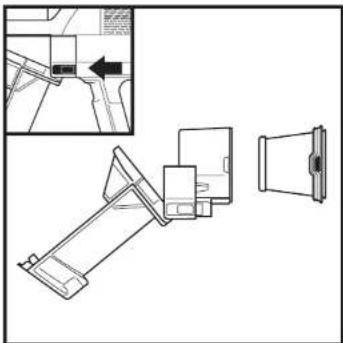

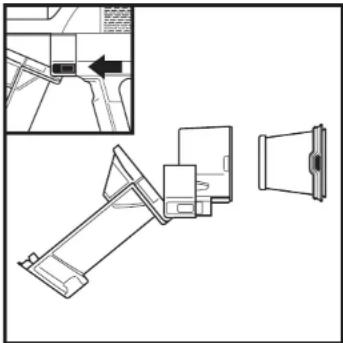

Cleaning The Dust Cup And Filter 65

Removing The Hand Vac Anti-Allergen Filter 65

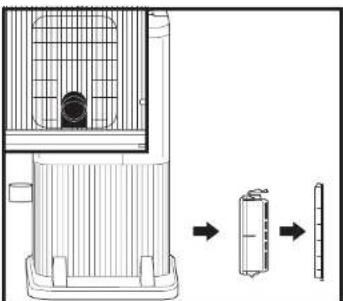

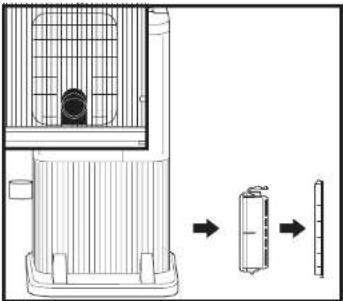

Cleaning The Auto Empty Dock Filter (IW3612 Series Only)....66

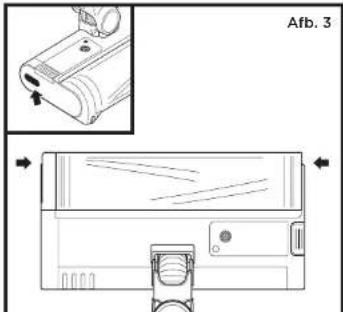

Nozzle Maintenance 66

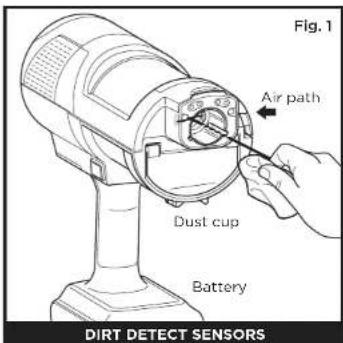

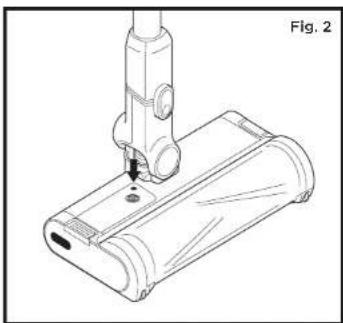

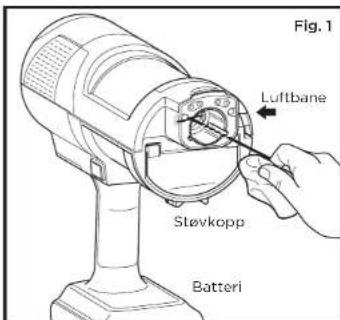

Cleaning The Sensors....67

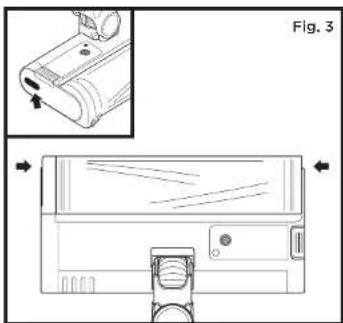

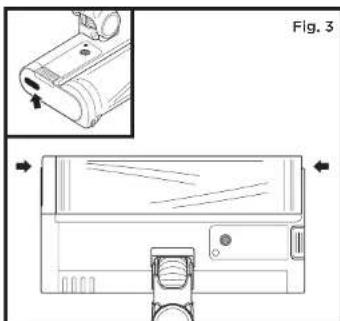

Checking For Blockages In The Vacuum 68

Checking For Blockages In The Auto Empty Dock (IW3612 Series Only)....68

Troubleshooting 69

Additional Accessories Available....70

Guarantee 71

Battery Guarantee....72

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material sources. To return your used device, please use the return and collection systems or contact the retailer where this product was purchased. They can take this product for environmentally safe recycling.

IMPORTANT SAFETY INSTRUCTIONS

FOR HOUSEHOLD USE ONLY • PLEASE READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM.

To reduce the risk of shock and unintended operation, turn off power and remove the ION Power Pack battery before servicing.

NOTE: If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the spinning brush-rolls do not damage or unpick carpet fibres.

WARNING

REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, INJURY, OR PROPERTY DAMAGE:

1. This vacuum consists of a motorised nozzle, wand, and handheld vacuum. These components contain electrical connections, electrical wiring, and moving parts that potentially present risk to the user.

2. Before each use, carefully inspect all parts for any damage. If a part is damaged, discontinue use.

3. Use only identical replacement parts.

4. This vacuum contains no serviceable parts.

5. Use only as described in this manual. DO NOT use the vacuum for any purpose other than those described in this manual.

6. With the exception of the filters and dust cup, DO NOT expose any parts of the vacuum to water or other liquids.

7 DO NOT allow the appliance to be used by children. Keep the appliance and its cord out of reach of children. Do not allow to be used as a toy. Close supervision is necessary when used near children.

GENERAL USE

8 This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance should not be done by children.

9 Always turn off the vacuum before connecting or disconnecting any current carrying hoses, motorised nozzles, chargers, batteries, or other electrical or mechanical parts.

10 DO NOT handle plug or vacuum with wet hands

11 DO NOT use without dust cup, filters, and crush-roll in place.

12 Only use Shark branded filters and accessories. Damage caused by non-Shark filters and accessories may not be covered by the guarantee.

13 DO NOT put any objects into nozzle or accessory openings. DO NOT use with any opening blocked, keep free of dust, Int. hair, and anything that may reduce airflow.

14 DO NOT use if nozzle or accessory airflow is restricted. If the air paths or the motorised floor nozzle become blocked, turn the vacuum off. Remove all obstructions before you turn on the unit again.

15 Keep nozzle and all vacuum openings away from hair, face, fingers, uncovered feet, or loose clothing.

16 DO NOT use if vacuum is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water.

17 Use extra care when cleaning on stairs.

18 DO NOT leave the vacuum unattended while powered on.

19 When powered on, keep the vacuum moving over the carpet surface at all times to avoid damaging the carpet fibres.

20 If you have delicate or wool carpets, particularly loop pile, please try the vacuum on a hidden area first to ensure the spinning brush-rolls do not damage or unpick carpet fibres.

21 DO NOT use to pick up:

a) Liquids

b) Large objects

c) Hard or sharp objects (glass, nails, screws, or soins)

d) Large quantities of dust (including drywall, [replace ash or embers]).

DO NOT use as an attachment to power tools for dust collection

e) Smoking or burning objects (hot coals, cigarette bulls, or matches)

f) Flammable or combustible materials (lighter fluid, petrol, or kerosene)

g) Toxic materials (chlorine bleach, ammonia, or drain cleaner)

22 DO NOT use in the following areas:

a) wet or damp surfaces

b) Outdoor areas

c) Spaces that are enclosed and may contain explosive or toxic fumes or vapours (lighter fluid, petrol, kerosene, paint, paint thinners, mothproofing substances, or flammable dust)

23 Turn off the vacuum before plugging in or unplugging the charger.

24 Turn off the vacuum before any adjustment, cleaning, maintenance or troubleshooting.

25 During cleaning or routine maintenance, DO NOT cut anything other than hair, fibres, or string wrapped around the brush-roll.

26 Allow all filters to air-dry completely before replacing in the vacuum to prevent liquid from being drawn into electric parts.

27 DO NOT modify or attempt to repair the vacuum or the battery yourself, except as indicated in this manual.

DO NOT use the battery or vacuum if it has been modified or damaged. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

28 Turn off all controls before unplugging.

29 Always turn off this appliance before connecting or disconnecting motorised nozzle or hand tool.

30 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

BATTERY PACK

1. The battery is the power source for the vacuum. Carefully read and follow all charging instructions.

2. To prevent unintentional starting, ensure the vacuum is powered off before picking up or carrying the vacuum. DO NOT carry the appliance with your finger on the power switch.

3. Only use charging station XDCKIW3000LEU, DK18-22008015-V or YLS0251A-E220080 chargers. Use of incorrect charger may result in no charging and/or unsafe conditions.

4. Keep the battery away from all metal objects such as paper clips, coins, keys, nails, or screws. Shorting the battery termina s increases the risk of fire or burns.

5. Under abusive conditions, liquid may be ejected from the battery. Avoid contact with this liquid, as it may cause irritation or burns. If contact occurs, flush with water. If liquid contacts eyes, seek medical help.

6. Battery should not be stored at temperatures below 3°C (37.4°F) or above 40°C (104°F) to maintain long-term battery life.

7. DO NOT charge battery at temperatures below 5°C (40°F) or above 40°C (104°F). Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

8. Store the appliance indoors.

9. DO NOT expose the battery to fire or temperatures above 130°C (265°F) as it may exploce.

10. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

11. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

12. For IW3612 Series use only Shark battery pack XBTR540DCEU.

ODOUR (IW3612 SERIES ONLY)

1. Observe the following when interacting with the Ant- Odour Technology cartridge:

a) DO NOT attempt to disassemble Anti-Odour Technology cartridge

b) Avoid direct contact with the fragrance pod in the cartridge.

c) DO NOT directly innate from the Anti Odour Technology cartridge.

d) Keep away from children and pets. e) Keep away from heat, sparks, and open flame.

f) DO NOT place in direct sunlight.

FRAGRANCE CARTRIDGE FIRST AID

1. Observe the following when interacting with the An-Odour Technology cartridge

a) Avoid contact with fabrics and finished surfaces.

b) Eye contact. Remove contact lenses if present. Rinse continuously with water for several minutes.

c) Skin contact: Wash hands thoroughly after handling. If irritation or rash develops, seek medical advice/attention

d) Inhalation: Move person to fresh air if they are experiencing any respiratory symptoms. If symptoms persist, seek medical advice/attention.

d) Ingestion: DO NOT induce vomiting. Seek media advice/attention.

AUTO-EMPTY ASSEMBLY (IW3612 SERIES)

1. Slide the Wand onto the neck of the Floor Nozzle until it clicks into place.
2. Align the Hand Vacuum nozzle opening with the top of the wand and slide it on until it clicks into place.
3. Make sure the Dock is facing upright. Slide the Charging Post into the slot on front of dock until it clicks.

Handheld Vacuum 2. (Click) Hand Vacuum Storage Clip 1. (Click) Flex Wand Floor Nozzle

1. Place the dock on the floor near a wall outlet. Plug the Power Cord into the outlet, then connect the cord to the port on the back of the charging post.
2. Store the crevice tool accessory on the mount on the dock.
3. Refer to pages 56 and 57 for Odour Installation and Replacement instructions. For proper operation, ensure all components are completely connected and clicked into place.

NOTE: Once the charging post is installed, it can't be removed.

NOTES

ANTI-ODOUR TECHNOLOGY (IW3612 SERIES)

ADJUSTING THE ANTI-ODOUR TECHNOLOGY INTENSITY

ANTI-ODOUR TECHNOLOGY ANTI-ODOUR TECHNOLOGY DIAL

Flip up the dial handle and rotate the odour dial to adjust odour neutraliser technology intensity or to unlock the dial for cartridge access.

Insertion/Removal: Rotate the odour dial to align the teal arrows. Remove the dial to access the odour cartridge for removal or replacement.

LOW: Rotate the dial toward the Low position to decrease the intensity to the lowest level when the vacuum is in use.

High: Rotate the dial toward the High position for the highest intensity level when the vacuum is in use. This position is the recommended setting for optimal performance.

ANTI-ODOUR TECHNOLOGY TIPS (IW3612 SERIES)

The Anti-Odour Technology Dial Must be Installed for Vacuum to Function Properly

- Remove anti-odour cartridge from dial if you don't want the benefits of the Anti-Odour Technology.

Maintenance Required

• Clean all filters as recommended under Cleaning Filters.
  • Empty the dust cup before storing your vacuum.
• Replace the cartridge as recommended under Odour Cartridge Replacement.
• Visit sharkclean.eu to learn more and purchase replacements.

Fragrance Strength Over Time

- The intensity of the Anti-Odour Technology's fragrance may diminish over time. It may also have no noticeable fragrance at all. This is natural and does not indicate the technology isn't working. Follow replacement instructions to ensure continued performance.

NOTES: • The odour dial needs to be installed for the vacuum to function properly, with or without the odour cartridge.

ANTI-ODOUR TECHNOLOGY (IW3612 SERIES)

ODOUR CARTRIDGE REPLACEMENT

1. REMOVE ODOUR DIAL FROM THE AUTO-EMPTY DOCK

Flip up the handle and rotate the dial clockwise until the two arrows are aligned. Pull the handle to remove the dial from the auto-empty dock.

3. REMOVE NEW CARTRIDGE FROM CAN

Remove the new Anti-Odour cartridge from the can. To maintain the life of the cartridge, keep it in the can until you are ready to install it.

5. INSTALL DIAL IN THE AUTO-EMPTY DOCK

Align the teal arrow on the dial cover with the arrow on the auto-empty dock, then reinsert the dial into the auto-empty dock. Rotate the dial counterclockwise until it clicks into an intensity setting to engage. Rotate further to change the intensity setting.

2. REMOVE OLD ODOUR CARTRIDGE

Rotate the cartridge counterclockwise in the dial housing and pull out the cartridge to remove it.

1=2 TURN UNTIL CLICK TO LOCK 4. INSTALL NEW CARTRIDGE IN DIAL

Align the yellow arrow on the side of the cartridge with the yellow arrow on the side of the dial cover, then insert the cartridge into the dial. Rotate the cartridge clockwise to lock it in place.

6. USED CARTRIDGE DISPOSAL

Dispose of the old cartridge by dropping it into the bin.

NOTE: Odour cartridges should be replaced every 6 months for optimal odour neutraliser technology performance.

LI-ION BATTERY

Prior to first use, charge the battery completely. A full charge takes approximately 6.5 hours.

RUNTIMES PER FULLY CHARGED BATTERY

With a full charge, the unit will have up to a 60-minute runtime. Visit sharkclean.eu online for more information.

LED BATTERY POWER AND CHARGING INDICATORS

Charging

LED on the battery pack will pulse yellow when reaching 0-74% charge.

LED on the battery pack will pulse green from 75% - 100% charge.

White LED the battery pack is fully charged.

NOTE: Full charge takes approximately 6.5 hours.

Additional Notes

1. LEDs turn off once the battery is fully charged.

2. Unit will not power on when charger is connected.

In Use

Full Charge
Mid Charge
Low Charge
Nearly Empty
No Charge

RECYCLING THE LI-ION BATTERY

When the Shark Li-ion battery needs to be replaced, dispose of it or recycle it in accordance with local ordinances or regulations. In some areas, it is illegal to place spent lithium-ion batteries in the standard rubbish bin. Return spent batteries to an authorised recycling centre or to the retailer for recycling. Contact your local recycling centre for information on where to drop off the spent battery.

NOTE: The Shark battery, like all lithium-ion batteries, will naturally decrease in capacity over time from the 100% capacity of a new battery.

CHARGING YOUR LI-ION BATTERY

CHARGING WHILE IN STORAGE MODE

CONTACTS

UPRIGHT DOCK CHARGING IW3612 SERIES

Charge the unit by placing it on the dock. Make sure the contacts on the wand are aligned with the contacts on the charging post. When charging is complete and you need to use the unit again, lift it off the dock.

Technical line drawing of a handheld device with attached wires and connectors (no text or symbols)

To charge the battery inside the handheld vacuum, connect the charger to an electrical outlet, then insert the charger plug into the port below the handle on the handheld vacuum.

HAND VACUUM RELEASE BUTTONS

To detach the hand vacuum from the wand, press the front latch release button on the hand vac where it meets the wand, then lift off the hand vacuum. To reattach the hand vacuum to the wand, align the hand vacuum opening over the top of the wand and slide it on until it clicks into place.

OUT OF THE VACUUMIN HANDH

Press and hold the Battery Release Button, then pull out the battery. Plug the charger into the charging port on the battery. To reinstall the battery, insert it into the slot in the back of the handheld vacuum.

NOTE: When the unit is docked properly, the charging lights on the battery will blink, indicating that charging has begun.

NOTE: The main unit comes with a partial charge. For maximum runtimes, charge fully before first use (approximately 6.5 hours). Leaving the unit plugged in will not damage battery life.

BATTERY REMOVAL

REMOVING THE BATTERY

BATTERY

To remove the battery from the hand vacuum, press the release tab on the battery cap and slide out the battery. To reinstall, slide the battery into the compartment in the handle until it clicks into place.

USING YOUR VACUUM

CONTROLS AND CLEANING MODES

m 10 DETECT φ + POWER

Press the button on the UI Screen to turn on power. To turn off power, press the button again. To toggle between ECO, DETECT, and BOOST modes, press the mode selection button.

Line drawing of a hand holding a vertical device with an arrow indicating motion, labeled 'UPRIGHT' below (no other text or symbols)

When upright, the nozzle will lock to allow for freestanding storage when the hand vac is detached. Place your foot on the nozzle to disengage the lock to begin floor cleaning.

DETECT CLEAN INDICATOR EDGE INDI

When the Detect Indicator light is blue, this means no heavy debris is detected and suction power is normal. When the vacuum senses heavy debris, the light will turn red, and suction will increase for more cleaning power. When the indicator light turns amber, debris is being removed—continue cleaning until the indicator turns blue again.

Line drawing of a refrigerator with front and side views, no text or symbols present

When an edge is detected, the headlights will illuminate the edge to focus on targeted debris.

USING YOUR VACUUM

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

ABOVE-FLOOR WITH HAND VACUUM

Detach the hand vacuum to clean above-floor areas. Press the front latch release button on the hand vac where it meets the wand, then lift off the hand vacuum. To attach an accessory to the hand vacuum, slide it into the opening in the nozzle. To remove, press the front latch release button on the hand vac where it meets the wand, and slide out the accessory.

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

ABOVE-FLOOR WITH WAND

To detach the floor nozzle from the wand, step on the nozzle while pressing the nozzle release button at the bottom of the wand. Lift the wand to remove it. To reattach the wand, align it over the neck of the floor nozzle, then slide it on until it clicks into place.

NOTE: All accessories are compatible with both the wand and the hand vacuum.

USING YOUR VACUUM
USING THE AUTO-EMPTY DOCK (IW3612 SERIES)

Technical line drawing of a vertical pump or lift system with a side-view inset showing internal components (no text or symbols)

Place the vacuum on the dock in a downward motion. Once properly attached, the auto evacuation process will begin. The evacuation cycle will last for 15 seconds.

Line drawing of a vacuum cleaner with attached pump and control panel (no text or symbols)

Once evacuation is complete, the vacuum will continue charging until it is removed from the dock.

W

QUIET MODE BUTTON LOCATION DU

Press the button on the top of the dock that shows an image of a moon. This will initiate Quiet Mode. When the dock is in Quiet Mode, you can dock the vacuum without auto evacuation occurring.

A

\$IN FULL INDICATOR

The Dust Bin Full indicator will illuminate when the dust bin is full of debris and needs to be emptied. To reset the indicator, remove the dust bin and empty it.

Note: do not remove the vacuum while the evacuation cycle is taking place.

MAINTAINING YOUR VACUUM

EMPTYING THE DOCK DUST BIN (IW3612 SERIES)

Technical line drawing of a vertical support structure with a handle and base (no text or symbols)

The dock dust bin holds up to 45 days' worth of dust and debris. Empty the dock dust bin when the dust bin full indicator light comes on. To remove the bin, lift it out by the handle.

Technical line drawing of a door handle and adjacent view of a device with a circular button (no text or symbols)

To empty the bin, hold it over the bin and press the release button on the side. The bottom will open to release the debris.

EMPTYING THE HANDHELD VACUUM DUST CUP

Technical diagram of a spray gun with labeled components and motion arrows indicating movement

To empty the handheld vacuum (IW3612 Series) dust cup, turn off the power and hold the hand vac over the bin. Press the release button and the dust cup lid will drop open, releasing debris.

MAINTAINING YOUR VACUUM

CLEANING THE DUST CUP AND FILTER

Technical line drawing of a mechanical component assembly with an inset showing a close-up view of a bracket (no text or symbols present)

With the dust cup open and the power off, press both release buttons and slide the dust cup out of the hand vac.
Press the tabs on both sides of the filter housing and pull the filter out of the housing. To clean the filter, rinse it with water only and allow it to air-dry for at least 24 hours before reinstalling. To reinstall the filter, slide it back into the housing, then slide the housing back into place.

Line drawing of a hand pouring liquid into a glass container using a funnel (no text or symbols)

To deep-clean the dust cup, slide the release button until the lid opens completely. Wipe away any dust and debris with a dry cloth, then rinse it out with water. Use a damp cloth to remove any remaining debris. Allow the dust cup to air-dry completely for at least 24 hours before reinstalling it.

REMOVING THE HAND VAC ANTI-ALLERGEN FILTER

Anti- Allergen Filter

IMPORTANT: DO NOT use soap when cleaning the filters. Use water only. The vacuum will not have suction if the post-motor filter is not installed. Ensure that all filters are installed before using.

MAINTAINING YOUR VACUUM

CLEANING THE AUTO-EMPTY DOCK FILTER (IW3612 SERIES)

Technical line drawing of a mechanical device with internal components and directional arrows indicating assembly (no text or symbols)

To access the filter in the dock, remove the Filter Door. Press the button at the bottom of the door, then tilt the door and lift it off. Remove the filter from the dock. After the filter has been rinsed and dried, reinstall it by reinserting it into the dock and replacing the filter door.

Technical line drawing of a mechanical device with no visible text or symbols

To access the the Auto-Empty Exhaust Foam Filter, remove the dust bin. Before removing the Exhaust Foam Filter, vacuum off any fine debris from the surface. Lift the Exhaust Foam Filter out of the dock, then rinse it with water only (do not use soap). Allow the filter to air-dry completely before reinstalling it.

For best results, clean your Auto-Empty filters at least once a month and replace the filters regularly. To clean filters, rinse with cold water ONLY to prevent damage from cleaning chemicals. Allow all filters to air-dry for at least 24 hours before reinstalling them to prevent liquid from being drawn into electrical parts. Maintaining your Exhaust Foam Filter will ensure successful Auto-Empty evacuation.

NOZZLE MAINTENANCE

Line drawing of a human foot and ankle with a foot highlighted by an arrow (no text or symbols)

1. Turn off the vacuum.
2. Press the nozzle release button to detach the nozzle from the wand.
3. Press the brushroll release button and slide the brushroll out of the nozzle.
4. Clear any blockages and remove any debris from the brushroll and floor nozzle.

Line drawing of two hands holding a rectangular object with a circular component above (no text or symbols)

Technical diagram showing hands operating a mechanical device with labeled components and measurement markings

1. Tap off loose debris and wipe the brushroll clean with a dry towel. Hand wash the brushroll if needed, using only water, and then let it air dry completely for at least 24 hours.
2. When the brushroll is dry, reinstall it into the nozzle by inserting it into the nozzle until it clicks.

MAINTAINING YOUR VACUUM

CLEANING THE SENSORS

Fig. 1 Air path Dust cup Battery DIRT DETECT SENSORS

Make sure to clean the Detect sensors regularly, as hair and other debris may build up and obstruct them. If the sensors are partially obstructed, Clean Sense Detect mode will not function as expected.

To clean the sensors (Fig. 1):

1. Turn off power and remove the floor nozzle.

2. Locate the DirtDetect Sensor in the nozzle of the hand vac (Fig. 1), the LightDetect Sensor on the top of the nozzle (Fig. 2), and the EdgeDetect sensor on the side of the nozzle (Fig. 3).

3. Gently wipe the sensors with a microfibre cloth and remove all hair and debris.
4. Reattach the floor nozzle to the rest of the unit and turn on power. Verify that the unit is functioning normally.

Technical line drawing of a mechanical assembly with a tool inserted into a housing (no text or symbols)

CLEANING THE LIGHT REACT SENSOR

Technical line drawing of a device with an inset showing a close-up view of a component (no text or symbols present)

CLEANING THE EDGE DETECT SENSOR

MAINTAINING YOUR VACUUM

CHECKING FOR BLOCKAGES IN THE VACUUM

If you run over a hard or sharp object or notice a noise change while vacuuming, check for blockages or objects caught in the brushroll.

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

Checking for Blockages In the Hand Vacuum:

1. Turn off the vacuum.
2. Remove the hand vacuum from the wand.
3. Check all intake openings to the dust cup and remove any debris or blockages.

Simple line drawing of a tool emitting exhaust smoke (no text or symbols)

Checking for Blockages In the Wand:

1. Turn off the vacuum.
2. Detach the hand vacuum and floor nozzle from the wand.
3. Check both ends of the wand for blockages and debris.
4. Clear away any debris or blockages.

Technical line drawing of a mechanical assembly with no visible text or symbols

Checking for Blockages in the Floor Nozzle:

1. Turn off the vacuum.
2. Detachthewand from the floor nozzle.
3. Press the brushroll release button and slide the brushroll out of the nozzle.
4. Clear any blockages and release any debris from the brushroll and floor nozzle.
5. Slide the brushroll back into the nozzle, ensuring everything is lined up and in place.

CHECKING FOR BLOCKAGES IN THE AUTO-EMPTY DOCK (IW3612 SERIES)

Diagram showing a hand holding a tool with a spring, alongside an inset view of a mechanical component (no text or symbols present)

Checking for Blockages In the Charging Post:

1. Unplug the dock.
2. Remove the vacuum from the dock.
3. Press the latch on the back of the charging post and lift the post away from the dock.
4. Check the end of the charging post and top of the dock for any debris or blockages.

Technical line drawing of a mechanical device with a cylindrical component and base housing (no text or symbols)

Checking for Blockages in the Dock:

1. Unplug the dock.
2. Remove the vacuum from the dock.
3. Remove the dust bin from the dock.
4. Check the exit for any debris or blockages.

WARNING: To reduce the risk of shock and unintended operation, turn off power and remove the battery before servicing.

Vacuum is not picking up debris. No suction or light suction. Third indicator light on hand vacuum is solid yellow.

(Refer to Checking for Blockages section for more information.)

1. Dust cup may be full; empty dust cup.
2. Check floor nozzle for blockages; clear blockages if required.
3. Remove any string, carpet fibres, or hair that may be wrapped around the brushroll.
4. Check connection between hand vacuum and wand for blockages; clear blockages if required.
5. Check filters to see if they need cleaning. Follow instructions for rinsing and completely air-drying the filters before reinstalling them.

Vacuum lifts area rugs.

1. Make sure you are not engaging Boost mode. Take care when vacuuming area rugs or rugs with delicately sewn edges.
2. Turn off the unit to disengage from the carpet, then restart.

The brushroll in the floor nozzle doesn't spin.

1. Immediately turn off the vacuum. Remove any blockages before turning the vacuum back on. Make sure the hand vacuum is tilted back far enough for the brushroll to engage while in use.
2. If the floor nozzle has headlights and they are not illuminated, there is a connection issue between the hand vacuum, wand, and nozzle. Try detaching the parts, then reconnecting them.

Vacuum turns off on its own.

There are several possible reasons for the vacuum turning off on its own, including blockages, battery issues, and overheating. If vacuum turns off on its own, perform the following steps:
1. Turn on the vacuum and check the battery indicator lights on the hand vacuum. If recharging is needed, make sure vacuum power is off placing it on the charging dock.
2. Empty dust cup and clean filters (See the Cleaning the Dust Cup and Filter section).
3. Check wand, accessories, and inlet openings and remove any blockages.
4. Allow unit and battery to cool for at least 45 minutes, until they return to room temperature.
5. Press the On/Off switch to restart the vacuum.

Battery Indicator Lights on hand vacuum are flashing.

- Nozzle Ring Light flashes red (Fig. A): Nozzle

(See the Maintaining Your Vacuum section.)

Contact Customer Service on www.sharkclean.eu

if you experience any of the indications listed below:

• ECO and BOOST LEDs are flashing (Fig. B):

Overcurrent or short.

• All LEDs except ECO are flashing (Fig. C): Motor is overheating.
• All LEDs except ECO and DETECT are flashing (Fig. D): Overspeed.
  • All LEDs except BOOST and DETECT are flashing (Fig. E): Communication.
• DETECT and BOOST LEDs are flashing (Fig. F): There may be an electrical problem with the nozzle.
• DETECT and UI RING are flashing (Fig. G): Debris Detect Error. Wipe debris detect sensor.
  • HEADLIGHTS and DETECT LEDs are flashing (Fig. H): Edge Detect Error.

Fig. A

Fig. B

Fig. C

Fig. D

Fig. E

Fig. F

Fig. G

Fig. H

NOTE: If vacuum still does not operate properly, contact Customer Service on www.sharkclean.eu

ADDITIONAL ACCESSORIES AVAILABLE ON SHARKACCESSORIES.EU

A Crevice Tool

B Duster Crevice Tool

© Upholstery Tool

D Wide Upholstery Tool

E Pet Multi-Tool

F Motorised Pet Tool

Replacement Battery

H Hand Vac Pre-Motor Filter

① Auto-Empty Dock

Post-Motor Anti-Allergen Filter (IW3612 SERIES)

Auto-Empty Exhaust Foam Filter (IW3612 SERIES)

K Hand Vac Post-Motor Anti-Allergen Filter

A

B

C

D

E

F

G

H

|

J

K

NOTE: Not all accessories come with all units. Please see the Quick Start Guide on the packaging box for your unit's configuration. To order additional accessories, visit sharkclean.eu.

Shark NINJA

FIVE (5) YEAR LIMITED WARRANTY

When a consumer buys a product in Europe, they get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Shark* we are so confident about the quality of our products that we give the original product owner an additional manufacturer's guarantee of up to five years (2 year standard plus 3 on registration). These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected. The conditions below describe the prerequisites and scope of our guarantee. They do not affect your statutory rights or the obligations of your retailer and your contract with them. The Lithium ION power pack is not covered by the 5 year guarantee (see battery guarantee below)

Shark ^® Guarantees

A household appliance like a vacuum cleaner constitutes a sizeable investment. Your new machine needs to work properly for as long as possible. The guarantee it comes with is an important consideration - and reflects how much confidence the manufacturer has in its product and manufacturing quality.

Every Shark* machine comes with a free parts and labour guarantee. You'll find online support at

www.sharkclean.eu

How do I register my extended Shark guarantee?

You can register your guarantee online within 28 days of purchase. To save time, you'll need the following information about your machine:

- Date you purchased the machine (receipt or delivery note)

To register online, please visit www.sharkclean.eu/register-guarantee. Products purchased directly from Shark® are automatically registered.

IMPORTANT

- Both the 2 years and the extended 3 years guarantee will only cover your product from the date of purchase.

- Please keep your receipt at all times. Should you need to use your guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

What are the benefits of registering my free Shark guarantee?

When you register your guarantee we'll have your details to hand if we ever need to get in touch. If you further agree to receive communications from us, you can also receive tips and advice on how to get the best out of your Shark® vacuum and hear the latest news about new Shark® technology and launches.

If you register your guarantee online, you'll get instant confirmation that we've received your details.

How long are new Shark ^® machines guaranteed for?

Our confidence in our design and quality control means that your new Shark® vacuum cleaner is guaranteed for a total of up to five years (2 years plus 3 years on registration).

What is covered by the free Shark® guarantee?

Repair or replacement (at Shark's discretion) of your Shark ^® machine, including all parts and labour. A Shark ^® guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark guarantee?

1. Blockages - for details of how to unblock your vacuum cleaner, please refer to the instructions.

2. Normal wear and tear such as brush bar, fuse, belt, batteries, hose etc.

3. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Shark® instructions supplied with your machine.

4. Use of the vacuum cleaner for anything other than normal domestic household purposes.

5. Use of parts not assembled or installed in accordance with the operating instructions.

6. Use of parts and accessories which are not Shark® Genuine Components.

7. Faulty installation (except where installed by Shark).

8. Repairs or alterations carried out by parties other than Shark ^® or its agents.

9. The Lithium ION power pack battery. Please see below for battery guarantee.

What happens when my guarantee runs out?

Shark ^® does not design products to last for a limited time. We do appreciate that there may be a desire for our customers to want to repair their vacuum cleaners after the guarantee has lapsed. In this case please contact our Freephone customer service help line.

Where can I buy genuine Shark ^3 spares and accessories?

Shark ^ spares and accessories are developed by the same engineers who developed your Shark ^ vacuum. You'll find a full range of Shark ^ spares, replacement parts and accessories for all Shark ^ machines at www.sharkclean.eu. Please remember that damage caused by use of non-Shark ^ spares is not covered under your guarantee.

Shark | NINJA

TWO (2) YEAR LIMITED BATTERY GUARANTEE

When a consumer buys a product in Europe, they get the benefit of legal rights relating to the quality of the product (your "statutory rights"). You can enforce these rights against your retailer. However, at Shark® we are so confident about the quality of our products that we give you an additional manufacturer's guarantee of two years for the battery. These terms and conditions relate to our manufacturer's guarantee only - your statutory rights are unaffected.

Every Shark ^® machine comes with a free parts and labour guarantee. You'll find online support at www.sharkclean.eu/register-guarantee

IMPORTANT

- The manufacturer's guarantee covers your battery for 2 years starting on the date of delivery.

- Please keep your receipt at all times. Should you need to use your guarantee we will need your receipt to verify the information you have supplied to us is correct. The inability to produce a valid receipt may invalidate your guarantee.

How long are new Shark® batteries guaranteed for?

Our confidence in our design and quality control means that your new Shark ^1 vacuum cleaner battery is guaranteed for a total of two years.

What is covered by the free Shark guarantee?

Repair or replacement of your Shark ^® machine (at Shark's discretion to decide whether to replace or repair) including all parts and labour. A Shark ^® guarantee is in addition to your legal rights as a consumer.

What is not covered by the free Shark guarantee?

1. Normal wear and tear of parts which require regular maintenance and/or replacement to ensure the proper functioning of your unit.

2. Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the vacuum cleaner which is not in accordance with the Shark® Instructions supplied with your machine.

3. Use of the battery for anything other than normal domestic household purposes.
4. Use of parts not assembled or installed in accordance with the instructions.
5. Use of parts and accessories which are not Shark® spares.
6. Faulty installation (except where installed by Shark*).

Where can I buy genuine Shark ^1 spares and accessories?

Shark® spares and accessories are developed by the same engineers who developed your Shark® vacuum. You'll find a full range of Shark® spares, replacement parts and accessories for all Shark® machines at www.Sharkclean.eu. Please remember that damage caused by use of non-Shark® spares is not covered under guarantee.

NOTES

Illustration of a hand inserting a container into a cup, with an inset showing a circular component (no text or symbols)

1. FJERN DEN NYE PATRON FRA DÄSEN

Diagram showing mechanical components with labeled parts and directional arrows, including a magnified view of a circular component.

1. INSTALLER SKIVEN I AUTO-EMPTY-LADESTATIONEN

Line drawing of a hand holding a circular device with an arrow indicating rotation (no text or symbols)

1. FJERN GAMMEL LUGTPATRON

DREJ INDITIL KLIK FOR AT LASE

1. INSTALLER NY PATRON I SKIVEN

Line drawing of a hand pouring liquid into a container (no text or symbols)

1. BORTSKAFFELSE AF BRUGT PATRON

Bortskaf den gamle patron ved at smide den i skraldespanden.

Technical line drawing of a handheld device with attached wires and connectors (no text or symbols)

Architectural line drawing of a refrigerator with front and side views (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

OVER GULV MED HÅNDST∅VSUGER

Technical line drawing of a mechanical tool with an inset showing a close-up view of a component (no text or symbols present)

OVER GULV MED SKAFT

Technical line drawing of a vertical industrial machine with a side-view inset showing internal components (no text or symbols)

Technical line drawing of a vacuum cleaner device with attached housing (no text or symbols)

T∅MNING AF ST∅VBEHOLDEREN (IW3612-SERIEN)

Technical line drawing of a vertical support structure with a handle and base (no text or symbols)

Technical line drawing of a door handle and adjacent view of a device with a circular button and dotted pattern (no text or symbols)

Technical diagram of a spray gun with labeled components and motion arrows indicating movement

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Line drawing of a hand pouring liquid into a glass container with a funnel (no text or symbols)

Anti-allergon Filter

Technical line drawing of a mechanical device with internal components and directional arrows indicating assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a human foot and ankle using a footbelt device (no text or symbols)

Line drawing of two hands holding a rectangular object with internal lines, no text or symbols present

Technical diagram showing hands operating a mechanical device with labeled parts and measurement lines

Technical line drawing of a mechanical assembly with a tool inserted, labeled Fig. 2 (no text or symbols on the diagram itself)

RENG∅RING AF LIGHT DETECT-SENSOR

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

RENG∅RING AF EDGE DETECT-SENSOR

VEDLIGEHOLDELSE AF ST∅VSUGEREN

KONTROL AF BLOKERINGER I ST∅VSUGEREN

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

Simple line drawing of a tool emitting exhaust smoke (no text or symbols)

Kontrollér for blokeringer i skaftet: 1. Sluk for støvsugeren.
2. Tag den håndholdte støvsuger og gulvmundstykket af skaftet.
3. Tjek begge ender af skaftet for ting, som blokerer, og snavs.
4. Fjern snavs og ting eller blokering.

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

Diagram showing a hand holding a tool with a spring, alongside an inset view of a mechanical component (no text or symbols present)

Kontrollèr for blokeringer I ladestanderen:

Isometric line drawing of a mechanical device with a cylindrical component and housing (no text or symbols)

Kontrollèr for blokeringer i ladestationen:

Technical line drawing of a mechanical component with a central knob and mounting base (no text or symbols)

Hand holding a container with a lid, showing a close-up of its lid (no text or symbols visible)

1. RETIRE EL CARTUCHO NUEVO DE LA LATA

Technical diagram showing a kitchen appliance with labeled components and directional arrows indicating motion or assembly.

Illustration of hands holding a circular device with a curved arrow indicating rotation (no text or symbols)

1. RETIRA EL ANTIGUO CARTUCHO ANTILORES

Line drawing of a hand pouring liquid into a container (no text or symbols)

Technical line drawing of a handheld device with attached wires and connectors (no text or symbols)

Architectural line drawing of a double door with front and side views, no text or symbols present

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

Technical line drawing of a screwdriver with an inset showing internal components (no text or symbols)

Technical line drawing of a vacuum cleaner with a side-view inset showing internal components (no text or symbols)

Technical line drawing of a vacuum cleaner device with no visible text or symbols

Technical line drawing of a vertical support structure with a handle and base (no text or symbols)

Technical line drawing of a door handle and adjacent door panel with an arrow indicating left side (no text or symbols)

Technical line drawing of a spray gun with internal components and exhaust flow (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Line drawing of a hand pouring liquid into a glass container using a funnel (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows indicating assembly (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a human foot and ankle seat with a hanging device, no text or symbols present

Line drawing of two hands holding a rectangular object with internal lines, no text or symbols present

Line drawing of hands operating a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with a tool inserted into a housing (no text or symbols)

LIMPIEZA DEL SENSOR LIGHT DETECT

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

LIMPIEZA DEL SENSOR EDGE DETECT

MANTENIMIENTO DE LA ASPIRADORA

Line drawing of a handheld electric shaver with a probe inserted (no text or symbols)

Simple line drawing of a tool emitting exhaust smoke (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand holding a tool with a spring, alongside a magnified inset of a mechanical component (no text or symbols)

Isometric line drawing of a mechanical device with a cylindrical component and base (no text or symbols)

Technical line drawing of a vacuum cleaner with control panel and side view showing component details (no text or symbols)

Technical diagram showing mechanical components with directional arrows indicating movement or force (no text or symbols)

PULSANTI DI RILASCIO DELL'ASPIRAPOLVERE PORTATILE

Technical line drawing of a handheld electric shaver with attached wires and a valve (no text or symbols)

CARICARE LA BATTERIA NELL'ASPIRAPOLVERE PORTATILE

Technical line drawing of a mechanical component with an attached plug and arrow indicating assembly (no text or symbols)

CARICARE LA BATTERIA FUORI DALL'ASPIRAPOLVERE PORTATILE

Line drawing of a cabinet or rack with an open lid and front panel, showing internal components (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

SOPRA IL PAVIMENTO CON
ASPIRAPOLVERE PORTATILE

Technical line drawing of a mechanical tool with an inset showing a close-up of a component (no text or symbols)

Technical line drawing of a vacuum cleaner with a side-view inset showing internal components (no text or symbols)

Technical line drawing of a vertical industrial vacuum cleaner with control panel and base mount (no text or symbols)

Technical line drawing of a vertical support structure with a handle and base (no text or symbols)

Technical line drawing of a door handle and adjacent view of a device with a left-side arrow (no text or symbols)

Technical line drawing of a spray gun with internal components and exhaust plume (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Line drawing of a hand pouring liquid into a glass container using a funnel (no text or symbols)

Technical line drawing of a mechanical device with internal components and a side view showing internal structure (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a human foot and ankle with a hanging device, showing a movement arrow (no text or symbols)

Line drawing of two hands holding a rectangular object with a circular component above (no text or symbols)

Illustration of two hands operating a mechanical device with a cylindrical component (no text or symbols visible)

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

Simple line drawing of a tool emitting exhaust smoke (no text or symbols)

Diagram showing a hand holding a tool with a spring, alongside an inset view of a mechanical component (no text or symbols present)

Isometric line drawing of a mechanical device with a cylindrical component and base housing (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and base plate (no text or symbols)

ANTI-ODOUR TECHNOLOGY

GEVAAR

Technical line drawing of a mechanical component with a central knob and mounting base (no text or symbols)

1. GEURDRAAIKNOP VERWIJDEREN UIT ZELFLEGEND STATION

Illustration of a hand inserting food into a container with a lid, showing a magnified inset (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components and directional arrows, including a magnified inset of the component.

1. DRAAIKNOP IN ZELFLEGEND STATION PLAATSEN

Hand holding a circular device with a scroll wheel and directional arrow (no text or symbols)

Line drawing of a hand pouring liquid into a container (no text or symbols)

1. GEBRUIKTE CARTRIDGE WEGGOOIEN

Gooi de oude cartridge in de vuilnisemmer.

Diagram showing mechanical components with arrows indicating movement or force, no text or symbols present

ONTGRENDELKNOPPEN HANDSTOFZUIGER

Technical line drawing of a handheld device with attached wires and connectors (no text or symbols)

Technical diagram showing a mechanical component with an attached pin and a close-up view of its side profile (no text or symbols)

UIT STOFZUIGERIN HANDSTOR

Line drawing of a hand holding a vertical device with an arrow indicating rotation (no text or symbols)

Line drawing of a cabinet interior with front and side views, no text or symbols present

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

STAND VOOR WANDEN EN PLAFONDS MET HANDSTOFZUIGER

Technical line drawing of a screwdriver with an inset showing a close-up view of the component (no text or symbols)

STAND VOOR WANDEN EN PLAFONDS MET BUIS

Technical line drawing of a vacuum cleaner with a side-view inset showing internal components (no text or symbols)

Technical line drawing of a vacuum cleaner device with no visible text or symbols

Technical line drawing of a vertical support structure with a handle and base (no text or symbols)

Technical line drawing of a door handle and adjacent door panel with an arrow indicating left side (no text or symbols)

Technical line drawing of a spray gun with internal components and exhaust flow (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view of a bracket (no text or symbols present)

Line drawing of a hand pouring liquid into a glass container using a funnel (no text or symbols)

Anti- allergenfilter

Technical line drawing of a mechanical device with internal components and a side view showing internal structure (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a human foot and ankle mechanism with a hanging device (no text or symbols)

Line drawing of two hands holding a rectangular object with a circular component above (no text or symbols)

Illustration of hands operating a mechanical device with a cylindrical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with a tool inserted, showing no text or symbols

DE LIGHTDETECT-SENSOR REINIGEN

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

DE EDGEDETECT-SENSOR REINIGEN

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

Simple line drawing of a tool emitting exhaust smoke (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand holding a tool with a spring, alongside an inset view of a mechanical component (no text or symbols present)

Isometric line drawing of a mechanical device with a cylindrical component and base housing (no text or symbols)

Oversbroom of kortsluiting.

- Alle leds, behalve ECO knipperen (Fig. C):

Moter raakt oververhit.

- Alle leds behalve ECO en DETECT knipperen

ODOUR NEUTRALISER TECHNOLOGY (IW3612-SERIEN)

JUSTERE LUKTINTENSITETEN

ANTI-ODOUS TECHNOLOGY LUKTINNSTILLINGSHJUL

TIPS FOR ODOUR NEUTRALISER TECHNOLOGY (IW3612-SERIEN)

Luktlnnstillingshjulet må være Installert på støvsugeren for å fungere riktlg

ODOUR NEUTRALISER TECHNOLOGY (IW3612-SERIEN)

UTSKIFTING AV LUKTPATRON

Technical line drawing of a mechanical component with a central knob and mounting base (no text or symbols)

1. FJERN LUKTINNSTILLINGSHJULET FRA AUTO-EMPTY BASEN

Illustration of a hand inserting a small object into a container, with an inset showing a circular component (no text or symbols)

1. TA DEN NYE KASSETTEN UT AV BEHOLDEREN

Technical diagram showing a mechanical component with an attached gauge and its internal structure, including a magnified view of the gauge.

1. INSTALLER INNSTILLINGSHJUL I AUTO-EMPTY BASEN

Hand holding a circular device with a scroll wheel, showing a curved arrow indicating rotation (no text or symbols present)

1. FJERN GAMMEL LUKTPATRON

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

RELEASE (FRIGJ∅RINGS)-KNAPPER FOR HÄNDST∅VSÜGER

Technical line drawing of a handheld device with attached wires and connectors (no text or symbols)

For å lade batteriet inne i den håndholdte støvsugeren, koble laderen til en elektrisk kontakt, sett deretter laderpluggen inn i porten under håndtaket på den håndholdte støvsugeren.

Technical diagram showing a mechanical component with an attached cable, no text or symbols present

UT AV ST∅VSUGERENI HÄNDHOL

Line drawing of a refrigerator with front and side views, no text or symbols present

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

OVER GULV MED HÅNDHOLDT ST∅VSUGER

Technical line drawing of a screwdriver with an inset showing internal components (no text or symbols)

OVER GULV MED SKAFT

Technical line drawing of a vacuum cleaner with a side-view inset showing internal components (no text or symbols)

Plasser støvsugeren på basen i en nedadgående bevegelse. Når den er riktig festet, vil den automatiske evakueringsprosessen starte. Evakueringssyklusen vil vare i 15 sekunder.

Technical line drawing of a vacuum cleaner device with no visible text or symbols

VEDLIKEHOLDE ST∅VSUGEREN

T∅MME ST∅VBEHOLDEREN PÅ BASEN (IW3612-SERIEN)

Technical line drawing of a vertical support structure with a handle and base (no text or symbols)

Technical line drawing of a door handle and adjacent door panel with an arrow indicating left side (no text or symbols)

Technical line drawing of a spray gun with internal components and exhaust flow (no text or symbols)

VEDLIKEHOLDE ST∅VSUGEREN

T∅M ST∅VKOPPEN OG RENGJ∅R FILTRENE

Technical line drawing of a mechanical assembly with an inset showing a close-up view of a component (no text or symbols present)

Line drawing of a hand pouring liquid into a container with a funnel (no text or symbols)

Anti-allergen filter

VIKTIG: IKKE bruk säpe när du reregjør filtrene. Bruk kun vann. Stavssageren vil ikke såge hvis motorens etterfilter ikke er installert. Forsikre deg om at alle filtre er installert för bruk.

VEDLIKEHOLDE ST∅VSUGEREN

RENGJ∅RE AUTO-EMPTY BASEFILTERET (IW3612-SERIEN)

Technical line drawing of a mechanical device with internal components and a vertical scale indicator (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

VEDLIKEHOLD AV MUNNSTYKKET

Line drawing of a human foot and ankle with a hanging device, showing a movement arrow (no text or symbols)

Line drawing of two hands holding a rectangular object with a circular component above (no text or symbols)

Illustration of two hands operating a mechanical device with a cylindrical component (no text or symbols visible)

VEDLIKEHOLDE ST∅VSUGEREN

RENGJ∅RE SENSORENE

Fig. 1 Luftbane Støvkopp Batteri

Technical line drawing of a mechanical assembly with a cylindrical component inserted into a housing (no text or symbols)

RENGJ∅RE LIGHT DETECT-SENSOREN

Technical line drawing of a mechanical device with an inset showing a close-up view of a component (no text or symbols present)

RENGJ∅RE EDGE DETECT-SENSOREN

VEDLIKEHOLDE ST∅VSUGEREN

SJEKKE ETTER BLOKKERINGER I ST∅VSUGEREN

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

Sjekke etter blokkeringer i den håndholdte støvsugeren:

Simple line drawing of a tool emitting exhaust smoke (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand holding a tool with a spring, alongside a magnified inset of a mechanical component (no text or symbols)

Kontrollere for blokkeringer i ladestolpen:

Isometric line drawing of a mechanical device with a cylindrical component and base housing (no text or symbols)

Kontrollere for blokkeringer i basen:

VEDLIKEHOLDE ST∅VSUGEREN

FEILS∅KING

Technical line drawing of a mechanical component with a knob and mounting base (no text or symbols)

Illustration of a hand inserting a small object into a container, with an inset showing the lid (no text or symbols)

1. RETIRAR O CARTUCHO NOVO DA LATA

Hand holding a circular mechanical component with directional arrows indicating rotation (no text or symbols)

1. RETIRAR O CARTUCHO ANTIODORES ANTIGO

Line drawing of a hand pouring liquid into a container (no text or symbols)

Technical line drawing of a handheld device with attached wires and connectors (no text or symbols)

Line drawing of a vertical mechanical device with an arrow indicating motion (no text or symbols)

Technical line drawing of a cabinet or air conditioner unit with front and side views, no text or symbols present

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

SUPERFÍCIES ACIMA DO CHÃO COM ASPIRADOR DE MÃO

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

Technical line drawing of a vertical industrial machine with a side-view inset showing internal components (no text or symbols)

Technical line drawing of a vacuum cleaner device with attached housing (no text or symbols)

Technical line drawing of a vertical support structure with a handle and base (no text or symbols)

Technical line drawing of a door handle and adjacent view of a device with a left-side arrow (no text or symbols)

Technical line drawing of a spray gun with internal components and exhaust flow (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a component detail (no text or symbols)

Line drawing of a hand pouring liquid into a glass container using a funnel (no text or symbols)

Technical line drawing of a mechanical device with internal components and a vertical scale indicator (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a human foot and ankle with a device attached, showing a mechanical joint (no text or symbols)

Line drawing of two hands holding a rectangular object with a circular element above (no text or symbols)

Technical line drawing of a mechanical assembly with hands holding parts (no text or symbols)

Technical line drawing of a mechanical assembly with a tool inserted into a housing (no text or symbols)

LIMPEZA DO SENSOR LIGHT DETECT

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

LIMPEZA DO SENSOR EDGE DETECT

Line drawing of a handheld vacuum cleaner with a probe inserted (no text or symbols)

Simple line drawing of a tool with a handle and connector (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand holding a tool with a spring, alongside a magnified view of the handle (no text or symbols present)

Isometric line drawing of a mechanical device with a pipette and housing (no text or symbols)

ANTI-ODOUR TECHNOLOGY TUOKSUNSÄÄDIN

ANTI-BYDOSIS THERMICALS

1. ASENNA SÄÄDIN AUTOMAATTISESTI TYHJENTYVÄÄN TELAKKAAN

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

RIKKAIMURIN IRROTUSPAINIKKEET

Technical line drawing of a handheld device with attached wires and connectors (no text or symbols)

PYSTYASENTO

Line drawing of a kitchen appliance with a side view showing a tray and sink (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

PUHDISTAMINEN LATTIATASON YLÄPUOLELLA RIKKAIMURILLA

Technical line drawing of a screwdriver with an inset showing internal components (no text or symbols)

LATTIATASON YLÄPUOLELLA VARRELLA

Technical line drawing of a vacuum cleaner with a side-view inset showing internal components (no text or symbols)

Technical line drawing of a vacuum cleaner with mounted components (no text or symbols)

Technical line drawing of a vertical support structure with a handle and base (no text or symbols)

Technical line drawing of a door handle and adjacent door panel with an arrow indicating left side (no text or symbols)

Technical line drawing of a spray gun with an inset showing a component being cut (no text or symbols present)

Technical line drawing of a mechanical component with an inset showing a close-up view of a bracket (no text or symbols present)

Line drawing of a hand pouring liquid into a container using a funnel (no text or symbols)

Technical line drawing of a mechanical device with internal components and a separate view showing internal structure (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a foot wearing a high-heeled shoe and holding a small object, with an arrow indicating motion (no text or symbols)

Line drawing of two hands holding a rectangular object with a circular top and handle (no text or symbols)

Technical line drawing of a mechanical assembly with hands holding a component (no text or symbols visible)

Technical line drawing of a Kuvra 2 printer or scanner device with a base and top component (no text or symbols)

LIGHT DETECT -ANTURIN PUHDISTAMINEN

Technical line drawing of a Kuva 3 air conditioner unit with internal components and airflow indicators (no text or symbols)

EDGE DETECT -ANTURIN PUHDISTAMINEN

IMURIN HUOLTO

IMURIN TUKOSTEN TARKISTAMINEN

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

Rikkaimurin tukosten tarkistaminen:

Simple line drawing of a tool emitting exhaust smoke (no text or symbols)

Diagram showing a hand holding a tool with a spray nozzle, alongside an inset view of a mechanical component (no text or symbols present)

Latausaseman tukosten
tarkistaminen:

Isometric line drawing of a mechanical device with a cylindrical component and base (no text or symbols)

Telakan tukosten tarkistaminen:

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a central knob and mounting base (no text or symbols)

1. AVLÄGSNA LUKTREGLAGET FRÅN DEN SJÄLVTÖMMANDE LADDSTATIONEN

Hand holding a circular mechanical component with a black arrow indicating rotation (no text or symbols)

1. BYT UT EN GAMMAL LUKTPATRON

Line drawing of a hand inserting into a cup with a lid, showing liquid level (no text or symbols)

1. TA BORT DEN NYA PATRONEN FRÅN BEHÅLLAREN

VRID TILLS DET Klickar for ATT LASA

1. INSTALLERA EN NY PATRON I REGLAGET

Diagram showing a kitchen appliance with labeled parts and directional arrows, including a speedometer dial.

1. INSTALLERA REGLAGET I DEN SJÄLVTÖMMANDE LADDSTATIONEN

Line drawing of a hand pouring liquid from a container into a cylindrical tank (no text or symbols)

1. BORTSKAFFANDE AV ANVÄND PATRON

Technical line drawing of a handheld electric shaver with attached wires and connectors (no text or symbols)

Line drawing of a hand holding a Upprätt leg, showing motion direction with arrow (no text or symbols on diagram)

Line drawing of a refrigerator with front and side views, no text or symbols present

Technical line drawing of a mechanical component with an inset showing a close-up view of a cylindrical component (no text or symbols present)

OVAN GOLV MED HANDHÅLLEN DAMMSUGARE

Technical line drawing of a screwdriver with an inset showing a close-up view of the internal component (no text or symbols)

OVAN GOLV MED RÖR

Technical line drawing of a vacuum cleaner with a side-view inset showing internal components (no text or symbols)

Technical line drawing of a vacuum cleaner device with no visible text or symbols

Diagram showing a device with a circular button labeled 'C' and an arrow pointing to it, indicating rotation or adjustment.

Technical line drawing of a vertical support structure with a handle and base (no text or symbols)

Technical line drawing of a door handle and adjacent view showing internal components (no text or symbols)

Technical line drawing of a spray gun with internal components and exhaust flow (no text or symbols)

Technical line drawing of a mechanical component with an inset showing a close-up view of a bracket (no text or symbols present)

Line drawing of a hand pouring liquid into a glass container using a funnel (no text or symbols)

Antiallergenfilter

Technical line drawing of a mechanical device with internal components and a vertical scale (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a human foot and ankle seat with a hanging device, no text or symbols present

Line drawing of two hands assembling a mechanical component (no text or symbols)

Illustration of hands operating a mechanical device with a cylindrical component and a rectangular block (no text or symbols visible)

Technical line drawing of a mechanical assembly with a cylindrical component inserted into a housing (no text or symbols)

RENGÖRA LIGHT DETECT-SENSORN

Technical line drawing of a mechanical device with an inset showing a component detail (no text or symbols)

RENGÖRA EDGE DETECT-SENSORN

UNDERHÅLLA DAMMSUGAREN

KONTROLLERA EFTER BLOCKERINGAR | DAMMSUGAREN

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

Simple line drawing of a tool emitting exhaust smoke (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing a hand holding a tool with a spring, alongside a magnified view of the handle (no text or symbols present)

Isometric line drawing of a mechanical device with a cylindrical component and base housing (no text or symbols)

FLER TILLBEHÖR FINNS ATT BESTÄLLA PÅ SHARKACCESSORIES.EU

1. Product Name: Odour Neutraliser Cartridge
2. Manufacturer: Shark Ninja 89 A Street, Needham, MA 02494
3. Weight: 17.4g / 0.61oz
4. Ingredients: Solid SM composite polymer C17 + fragrance SE 446676 Illustrations may differ from actual product. We are constantly striving to improve our products; therefore the specifications contained herein are subject to change without notice. © 2024 SharkNinja Operating LLC. FLOOR DETECT and SHARK are registered trademarks of SharkNinja Operating LLC in the European Union.

LUGTNEUTRALISERINGSSPECIFIKATIONER

SharkNinja Europe Ltd, 1st/2nd Floor Building 3150, Thorpe Park, Century Way, Leeds, England, LS15 8ZB

SPECIFICATIES GEURNEUTRALISATIE

HAJUNPOISTON TEKNISET TIEDOT
