Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 24

Installation 26

Getting Started 31

Operation 32

Adjusting the shelves 33

Cleaning and Care 34

Troubleshooting 35

Disposal Considerations 40

Manufacturer & Importer (UK) 40

• Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.
• To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.
• It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.
• When positioning the appliance, ensure that there is at least a 5~cm clearance at the sides and a 10~cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.
• Do not place hot food or drink into the refrigerator before it cools down to room temperature.
• Close the door immediately after putting in any items so the inside temperature will not rise dramatically.
• Keep appliance away from any heat source or direct sunlight.
• To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.
• Do not place any other appliance on top of the refrigerator, and do not wet it.
• Do not store something like ether, methanol, gasoline, which is easy to evaporate, burn or explode.
• Do not use outdoors or in wet conditions.
• Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.
• Keep the cord away from heated surfaces.
• This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.
• Connect your refrigerator to an independent electrical socket and use a safe ground wire.
• Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Special notes

Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
- When positioning the unit, make sure that the power cord is not pinched or damaged.
- Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

• A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly mentioned in the instructions.
• This appliance is not suitable for freezing food.
• The shelves have been installed in advance to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12^ . If the temperature is set too high, the wine may spoil; if the temperature is set too low, a lot of electricity is consumed.

INSTALLATION

Before first Use

Allow 24 hours before switching on the wine cellar. During this time we recommend that you leave the door open to clear any residual odors.

Note: All models without front venting (air opening) are strictly for free standing only.

Location

The location you have selected for your wine cellar should:

• be unencumbered and well ventilated;
• be well away from any heat source and direct sunlight;
  not be too damp (laundry, pantry, bathroom etc.);
  have a flat floor;
  have a standard and reliable electricity supply
  have a surge protector fitted to the electrical outlet;
• Away from the microwave oven. Certain microwave ovens do not have wave interference shield. When placed within 1 meter vicinity of the wine cabinet, they may affect the operation of the wine cabinet.

Placing in cold or hot temperature conditions may cause cellar's temperatures fluctuating, and it will not reach the ideal one.

Installation

• Unpack and remove all of the protection and adhesive strips from the packaging around and inside the wine cellar.
• The wine cellar must be positioned such that the plug is accessible. Release the power cord. Move your wine cellar to its final location. The wine cellar should be installed in a suitable place where the compressor will not be subject to physical contact.
• Wine cellar must be leveled BEFORE loading your wines. Your wine cellar is equipped with 4 adjustable feet to facilitate easy leveling. The cooler recommends that you tighten the back feet to the maximum and adjust the front feet to level the wine cellar.

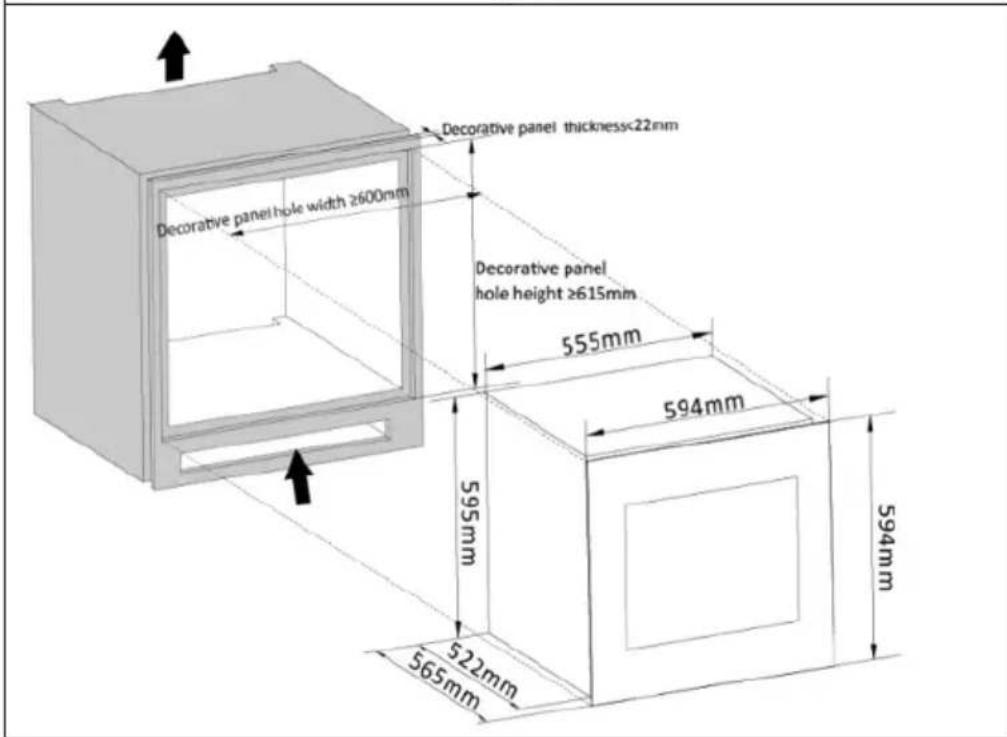

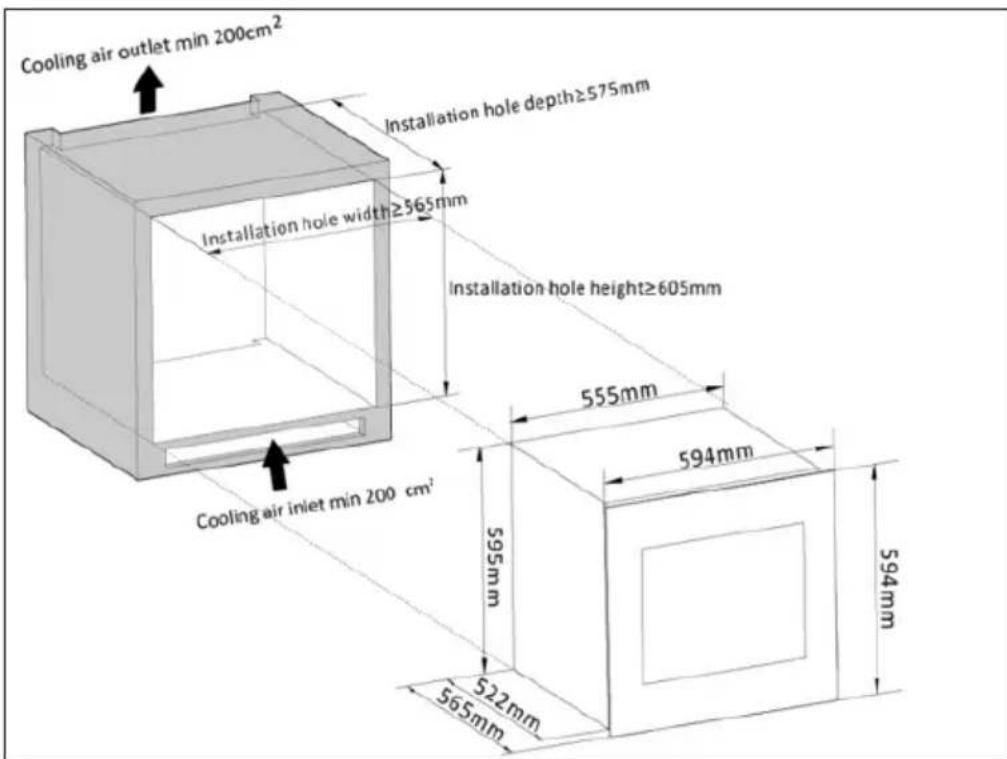

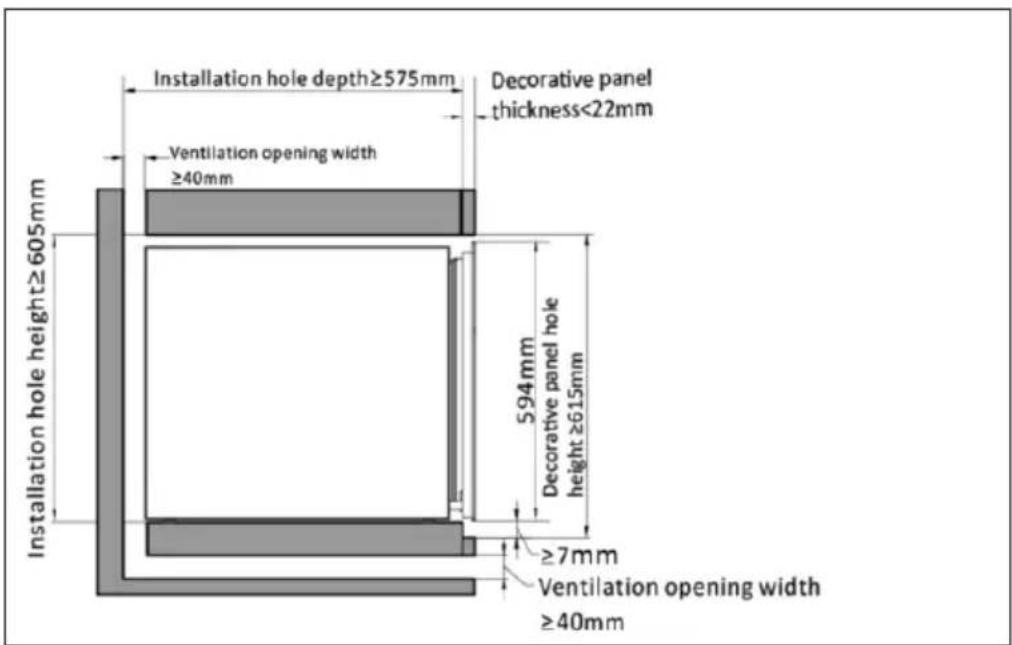

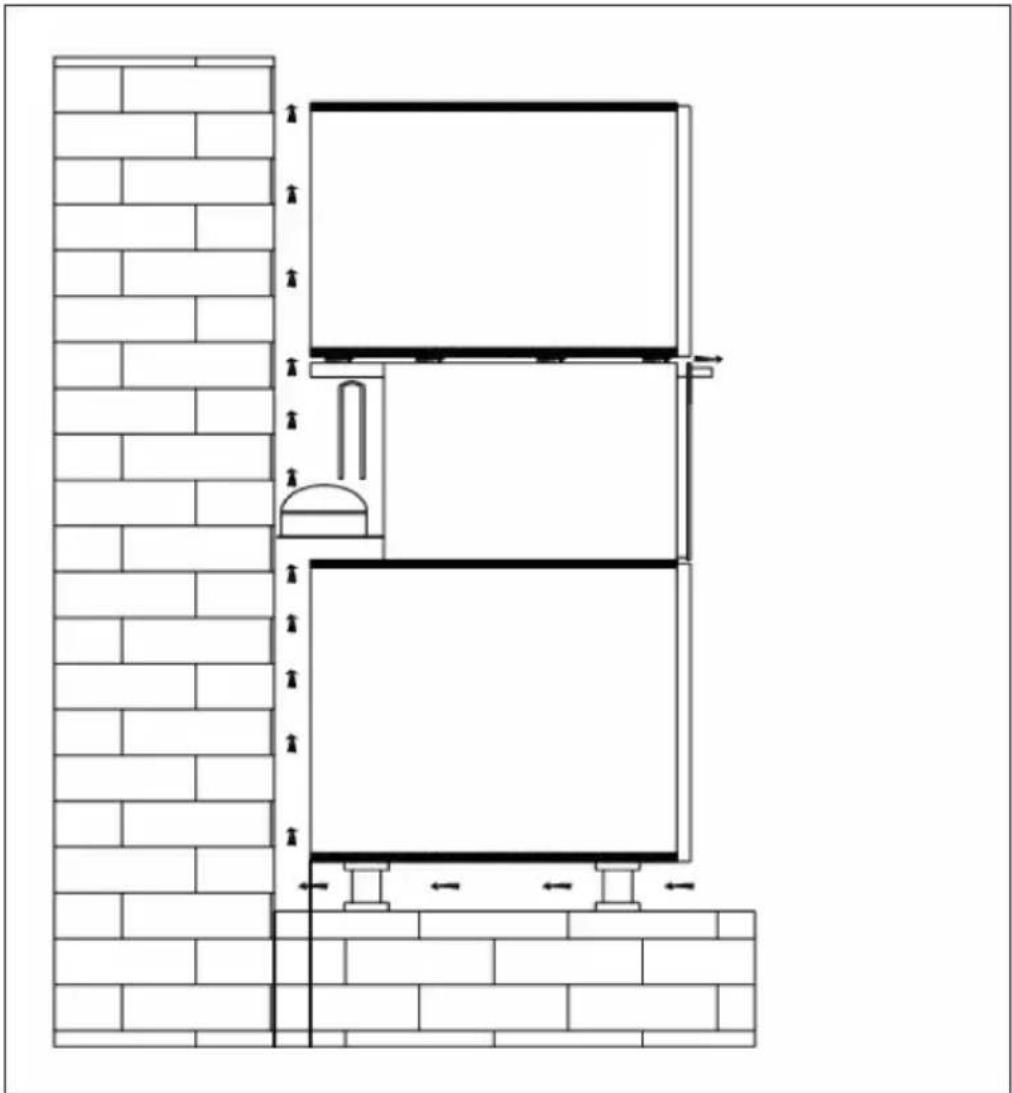

Hints on built-in Wine Cellars

• All units with ventilation slots on the front are suitable for installation, but must not be installed in completely closed housings.
• Built-in units suck air from the right side of the ventilation frame (some models also from the rear) and let it out through the front ventilation frame.
• Like many electrical appliances, the wine refrigerator has many sensitive parts that can be damaged by power failure or lightning. Your connections should therefore be equipped with overvoltage protection.
• If you install the unit in a frame with a door, there must be a ventilation opening at the bottom of the door. In hot climates, slots of at least 40mm × 200mm must also be provided at the top of the back or at the top of both sides of the enclosure to allow cool air to enter. Space of at least 30mm must be left to the rear wall of the frame. The ventilation slot should not be located on a side where another device, such as an oven, is already installed.

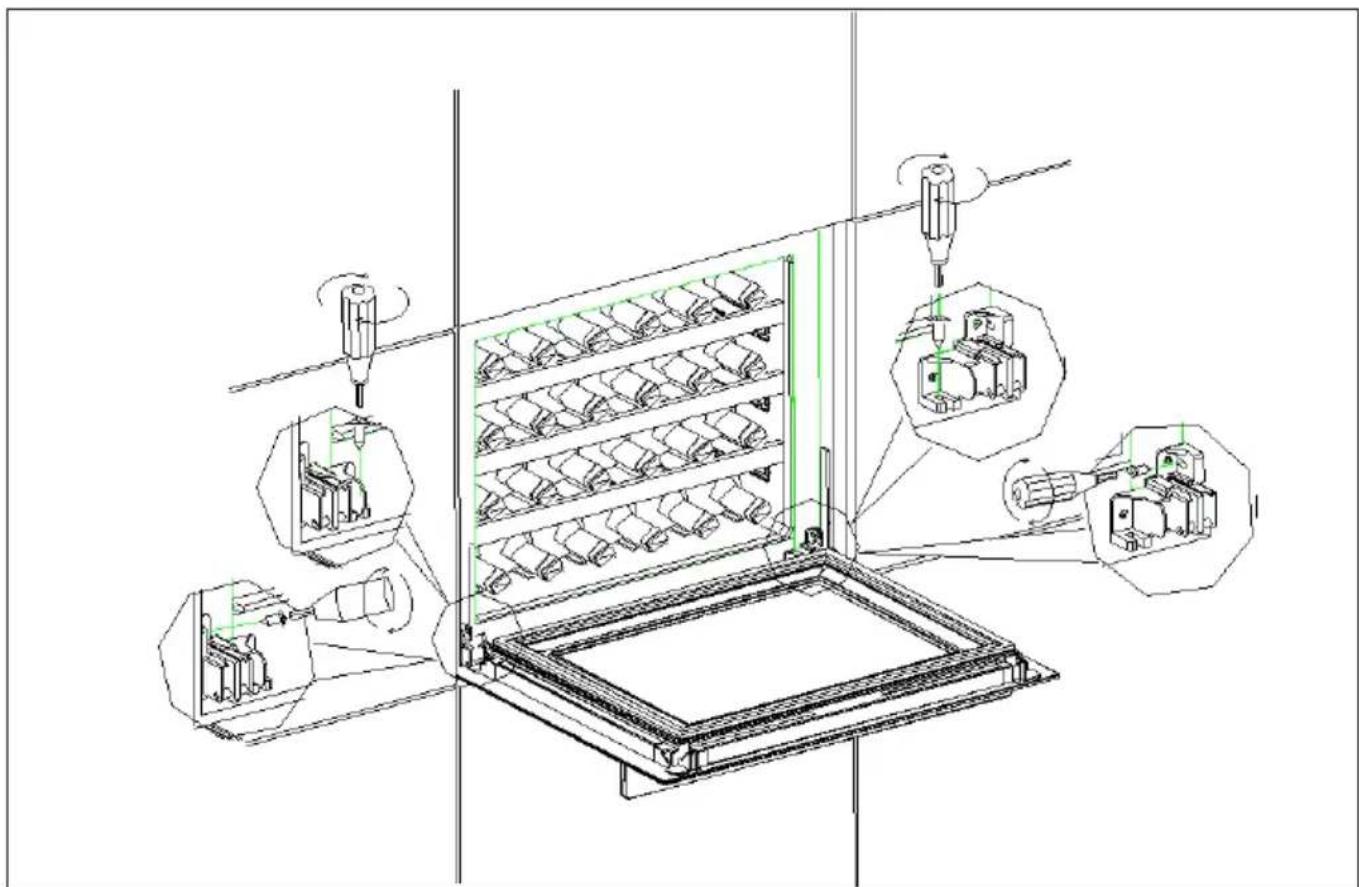

Mounting the wine cooler

1. Place the wine cooler in the cabinet and straighten it
2. Open the door, take 2 screws from the accessory pack and use the Phillips screwdriver to insert the screws through the screw holes on both sides of the door hinge or both sides of the cabinet as shown above (the screw holes are near the door hinge).
3. Tighten the screws.

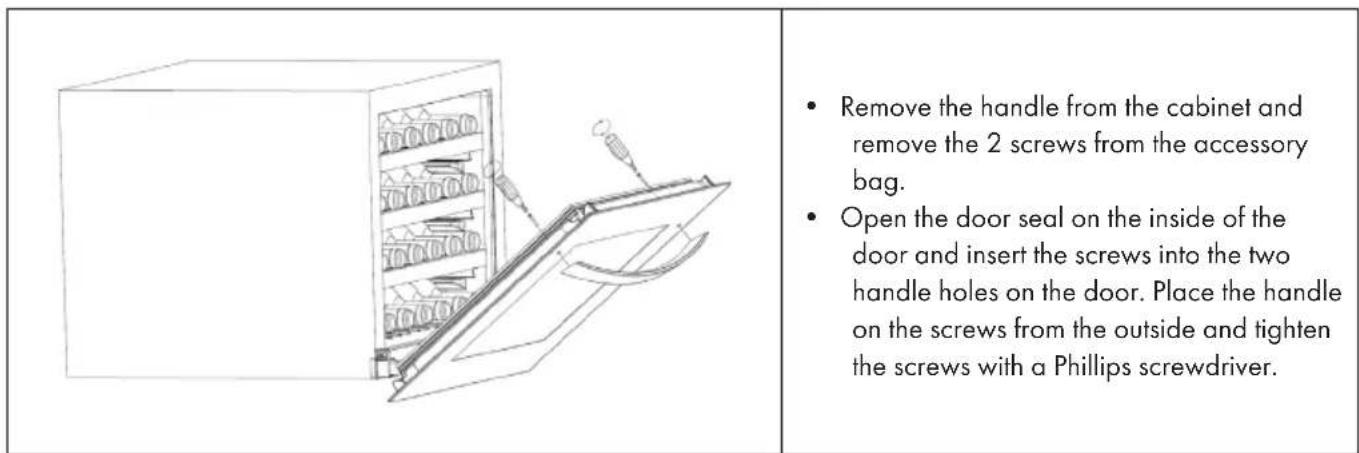

Attaching the door handle

GETTING STARTED

Plug in and switch on the cellar by pressing on the power button for a few seconds. When you use the wine cellar for the first time (or restart the wine cellar after having it shut off for a long time), there will be a few degrees variance between the temperature you have selected and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the wine cellar is running for a few hours everything will stabilize.

Note: If the unit is unplugged, power is lost, or turned off, wait 3 to 5 minutes before restarting the unit. The wine cellar will not start if you attempt to restart before this time delay.

Operating Noises

To reach the desired temperature settings, wine cellars, like all wine cellars operating with compressors and fans, may produce the following types of noises. These noises are normal and may occur as follows:

Gurgling sound - caused by the refrigerant flowing through the appliance's coils.
- Cracking/popping sounds - resulting from the contraction and expansion of the refrigerant gas to produce cold.
Fan operating sound - to circulate the air within the wine cellar.

Loading the Wine Cellar

• Do remove or relocate adjustable wooden shelves to accommodate larger type of bottles or increase the capacity of the cellar by stacking the bottles up when necessary. (See removing shelves)
• Keep smalls gap between the walls and the bottles to allow air circulation. Like an underground cellar air circulation is important to prevent mould and for a better homogeneous temperature within the cellar.
• Do not over load your wine cellar to facilitate air circulation.
• Avoid obstructing the internal fans (located inside on the back panel of the wine cellar).
• Do not slide the shelves outwards beyond the fixed position to prevent the bottles from falling.
• Do not pull out more than one loaded shelf at a time as this may cause the wine cellar to tilt forward.
• Do not cover the wooden shelves with alloy foil or other materials, as it will obstruct air circulation.
• Do not move your wine cellar while it is loaded with wines. This might distort the body of the wine cellar and cause back injury.

OPERATION

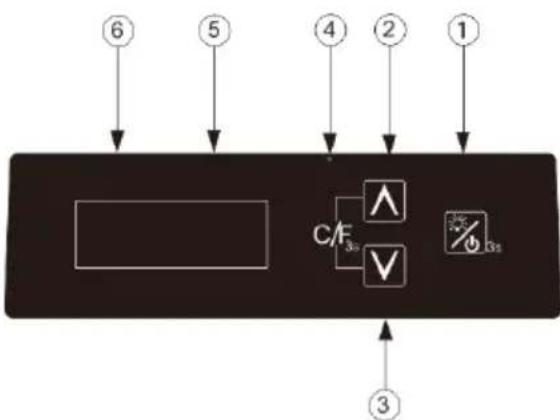

Control panel and key

For "Rhône Uno" (article 10046490)

(1) Lamp & Power Button

• When power cord connected: press and hold for 3 seconds, power is turned on, the machine starts.
• In the machine power-on-state: press this button, LED lights on; Press once again, LED lights off.
• In the machine power-on-state: press and hold for 3 seconds, power is turned off, the machine is off.

(2) Temperature setting up button

Setting up the temperature in window ⑥ by 1^ with each single touch.

(max. setting temperature: 20 degree Celsius)

(3) Temperature setting down button

Setting the temperature in window ⑤ by 1^ with each single touch. (min. setting temperature: 5 degree Celsius)

(2)+(3) C/F display conversion button

Converting the degrees Celsius/Fahrenheit display in windows, by simultaneously holding ② and ③ for 3 seconds.

(4) Celsius/Fahrenheit degree icon
(5) Actual temperature window
(6) Setting temperature window

For "Rhône Duo" (article 10046491)

(1) Lamp & Power Button

• When power cord connected: press and hold for 3 seconds, power is turned on, the machine starts.
• In the machine power-on-state: press this button, LED lights on; Press once again, LED lights off.
• In the machine power-on-state: press and hold for 3 seconds, power is turned off, the machine is off.

(2) Upper zone temperature setting up button

Setting the upper zone temperature in window ⑥ by 1^ with each single touch.

(3) Lower zone temperature setting down button

Setting the lower zone temperature in window ⑤ by 1^ with each single touch.

(2)+(3) C/F display conversion button

Converting the degrees Celsius / Fahrenheit display in windows, by simultaneously holding ② and ③ for 3 seconds.

(4) Celsius/Fahrenheit degree icon
(5) Lower zone setting temperature
(6) Upper zone setting temperature

ADJUSTING THE SHELVES

Wooden shelf

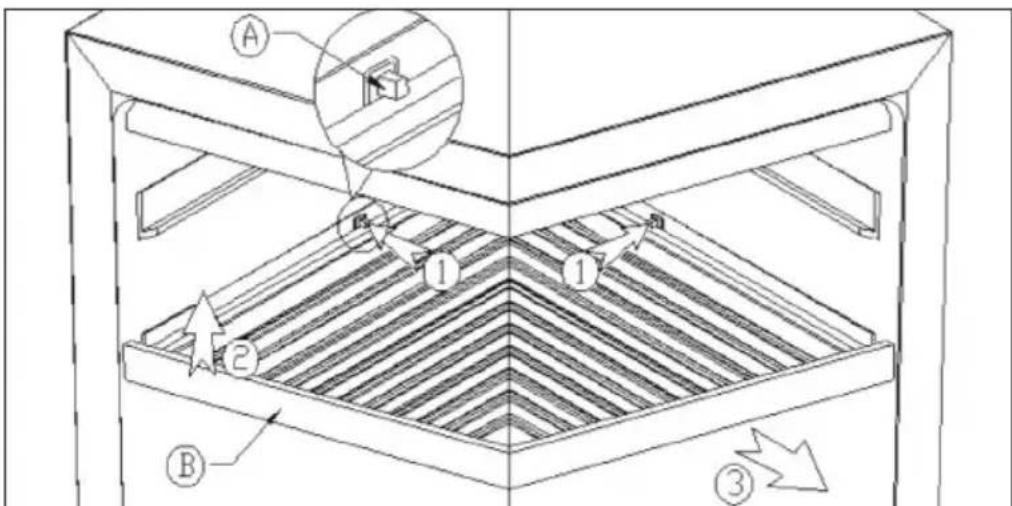

• Remove the shelf: Press the shelf pins (1), pull out the shelf and remove it from the other side of the holder (2). Then remove the shelf according to the arrow marking (3).
• Insert the shelf: The shelf is installed in the reverse order to the removal of the shelf.

CLEANING AND CARE

Cleaning the Unit

• First switch off the unit and disconnect the power plug from the socket. Remove the entire contents.
• Wash the interior with a damp cloth dipped in lukewarm water with a little detergent.
• Make sure that the rubber seal on the door is clean so that the unit remains powerful.
• The exterior of the wine refrigerator should be cleaned with a mild detergent.
• Dry the inside and outside with a soft cloth.
• Dust and anything else that blocks the exhaust air openings will reduce the cooling capacity of the unit. If necessary, suck off the exhaust air opening.

Shutdown in absentia

• Turn off the unit first. Then disconnect the power plug.
• Remove the entire contents.
  Clean the unit.
• Keep the lid open slightly to prevent condensation, mould or odours.

Installation at another Location

• Turn off the unit first. Disconnect the power plug.
• Remove the entire contents.
• Secure all loose objects with adhesive tape.
• Tape the doors shut.

Energy Saving Tips

The wine refrigerator should be placed in the coolest place in the room, away from appliances that emit heat. heating pipes and direct sunlight. Make sure the door is properly closed when the wine refrigerator is on.

TROUBLESHOOTING

Problem Possible Cause and Suggested Solution
Wine cellar does not operate.	Not plugged in.
	The appliance is turned off.
	The circuit breaker tripped or the fuse is broken.
Wine cellar is not cold enough.	Check the temperature control setting.
	External environment may require a higher setting.
	The door is opened too often.
	The door is not closed completely.
	The door gasket does not seal properly.
The light does not work.	Not plugged in.
	The circuit breaker tripped or a blown fuse.
	The bulb is out of order.
	The light button is "OFF".
Turns on and off frequently.	The room temperature is hotter than normal.
	A large amount of contents has been added to the Wine cellar.
	The door is opened too often.
	The door is not closed completely.
	The temperature control is not set correctly.
	The door gasket does not seal properly.
Vibrations. Check to assure that the Wine cellar is level.
The Wine cellar seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.
	As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cellar.
	Contraction and expansion of the inside walls may cause popping and crackling noises.
	The Wine cellar is not level.
The door will not close properly.	The Wine cellar is not level.
	The door was reversed and not properly installed.
	The gasket is faulty (magnet or rubber is spoiled).
	The shelves are out of position.

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: Klarstein
Supplier's address: Customer service, Wallstraße 16, 10179 Berlin, DE
Model identifier: 10046490
Type of refrigerating appliance:
Low-noise appliance: No Design type: built-in
Wine storage appliance: Yes			Other refrigerating appli- ance:	No
General product parameters:
Parameter Value Parameter Value
Overal dimensions (millimetre)	Height	598	Total volume (dm3or l) 76
	Width	590
	Depth	565
EEI 159 Energy efficiency class		G
Airborne acoustical noise emis- sions (dB(A) re 1 pW)		40	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		130 Climate class:	temperate
Minimum ambient tempera- ture (℃), for which the refriger- ating appliance is suitable		16	Maximum ambient tem- perature (℃), for which the refrigerating appliance is suitable	32
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment Vol- ume (dm3or l)	Recom- mended tempera- ture setting for opti- mised food storage (℃) These set- tings shall not con- tradict the storage conditions set out in Annex IV, Table 3	Defrosting type (automatic=A, manual defrost=M)
Pantry	No	-	-	-

Wine storage	Yes 76,05 - M
Cellar	No ----
Fresh food No ----
Chill	No ----
0-star or ice-making No ----
1-star No ----
2-star No ----
3-star No ----
4-star No ----
2-star section No ----
Variable temperature compartment	----
For wine storage appliances
Number of standard wine bottles	30
Light source parameters:
Type of light source - Energy efficiency class	-
M inimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: https://www.electronic-star.com/

Model placed on the Union market from 01/08/2024.

EPREL registration number: 2090086

https://eprel.ec.europa.eu/qr/2090086

Supplier: Chal-Tec GmbH (Authorised representative)

Website:

Customer care service:

Name: Customer service

Website: https://www.elektronik-star.de/
nfo/Impressum/

Email: [e-mail]

Phone: [phone]

Address:

Wallstraße 16

10179Berlin

Germany

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 with regard to energy labelling of refrigerating appliances
Supplier's name or trade mark: Klarstein
Supplier's address: Customer service, Wallstraße 16, 10179 Berlin, DE
Model identifier: 10046491
Type of refrigerating appliance:
Low-noise appliance: No Design type: built-in
Wine storage appliance: Yes		Other refrigerating appli- ance:	No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimetre)	Height 598	Total volume (dm3 or l) 69
	Width 590
	Depth 565
EEI 160 Energy efficiency class G
Airborne acoustical noise emis- sions (dB(A) re 1 pW)	41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)	130 Climate class:	temperate
Minimum ambient tempera- ture (℃), for which the refriger- ating appliance is suitable	16	Maximum ambient tem- perature (℃), for which the refrigerating appliance is suitable	32
Winter setting	No
Compartment Parameters:
Compartment type	Compartment Vol- ume (dm3 or l)	Recom- mended tempera- ture setting for opti- mised food storage (℃) These set- tings shall not con- tradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (automatic defrost=A, manual defrost=M)
Pantry	No	-	-	-
Wine storage Yes 69,0 12 - M
Cellar No - - -
Fresh food No - - -
Chill No - - -
0-star or ice-making No - - -
1-star No - - -
2-star No - - -
3-star No - - -
4-star No - - -
2-star section No - - -
Variable temperature compartment	-	- - -

For wine storage appliances

Number of standard wine bottles 30

Light source parameters:

Type of light source	-
Energy efficiency class	-

Minimum duration of the guarantee offered by the manufacturer: 24 months

Additional information:

Weblink to the supplier's website, where the information in point 4 of Annex II of Commission Regulation (EU) 2019/2019 is found: https://www.electronic-star.com/

Model placed on the Union market from 01/08/2024.

EPREL registration number: 2090118

Supplier: Chal-Tec GmbH (Authorised representative)

Customer care service:

Name: Customer service

Email: [e-mail]

Address:

Wallstraße 16

10179Berlin

Germany

https://eprel.ec.europa.eu/qr/2090118

Website:

Website: https://www.elektronik-star.de/Info/lmpressum/

Phone: [phone]

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chere cliente, cher client,

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

PRODUTTORE IMPORTATORE (UK)

Produtlore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
