USER MANUAL Vinovilla Grande 116 Built-in Duo Klarstein

COOKINGCO COOKINGCO KINGCOOKING KINGCOOKING COOKINGCO KINGCOOKING KINGCOOKING KINGCOOKING

KLARSTEIN

www.klarstein.com

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Upper Zone (C/CF) UP DOWN Lower Zone (Zone II) UP DOWN LIGHT

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

PRODUKTDATENBLATT

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 24

Installation 27

Product Overview 28

Control Panel and Key Functions (10034525) 30

Control Panel and Key Functions (10034524) 32

Cleaning and Care 33

Troubleshooting 34

Disposal Considerations 35

Manufacturer & Importer (UK) 35

Product Data Sheet 36

TECHNICAL DATA

Item number 10034525 10	034524
Power supply 220-240 V ~	50 Hz

SAFETY INSTRUCTIONS

- Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

- Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

- To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

- It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

- When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

- Do not place hot food or drink into the refrigerator before it cools down to room temperature.

- Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

- Keep appliance away from any heat source or direct sunlight.

- To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

- Do not place any other appliance on top of the refrigerator, and do not wet it.

- Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

- Do not use outdoors or in wet conditions.

- Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

- Keep the cord away from heated surfaces.

- This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

- Connect your refrigerator to an independent electrical socket and use a safe ground wire.

- Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Special notes

• Children between the ages of 3 and 8 are allowed to fill refrigerators with food and remove food.
• When positioning the unit, make sure that the power cord is not pinched or damaged.
  • Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

- A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

Notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly mentioned in the instructions.
  • This appliance is not suitable for freezing food.
• The shelves have been installed in advance to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12 °C. If the temperature is set too high, the wine may spoil; if the temperature is set too low, a lot of electricity is consumed.

Special notes on the shelves

• The shelves were placed in advance in such a way that they allow the most efficient use of energy.
• Only use the shelves provided by the manufacturer.
• Never block the holes in the shelves or use other types of shelves not approved by the manufacturer, which may cause poor cooling or increase energy consumption.
  • We recommend that you use the shelves as shown to ensure the most efficient use of energy.

Notes on ambient temperature

Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's nameplate.

SN	Extended temperate	This cooling unit is designed for use at ambient temperatures of 10-32 °C.
N	Temperate	This cooling unit is intended for use at ambient temperatures of 16-32 °C.
ST	Subtropical	This cooling unit is intended for use at ambient temperatures of 16-38 °C.
T	Tropical	This cooling unit is intended for use at ambient temperatures of 16-43 °C.

The ambient temperature influences the internal temperature of the wine refrigerator. For optimal operation of the wine refrigerator, we recommend an ambient temperature of 23 °C to 25 °C .

Notes on replacing the light source

• This product contains a light source of energy efficiency class G.
- The light source in this product may only be replaced by a professional.

INSTALLATION

Before first Use

Allow 24 hours before switching on the wine cellar. During this time we recommend that you leave the door open to clear any residual odors.

Note: All models without front venting (air opening) are strictly for free standing only.

Location

The location you have selected for your wine cellar should:

• be unencumbered and well ventilated;
- be well away from any heat source and direct sunlight;
• not be too damp (laundry, pantry, bathroom etc.);
• have a flat floor;
• have a standard and reliable electricity supply
• have a surge protector fitted to the electrical outlet;
- Away from the microwave oven. Certain microwave ovens do not have wave interference shield. When placed within 1 meter vicinity of the wine cabinet, they may affect the operation of the wine cabinet.

Placing in cold or hot temperature conditions may cause cellar's temperatures fluctuating, and it will not reach the ideal one.

Installation

• Unpack and remove all of the protection and adhesive strips from the packaging around and inside the wine cellar.
• The wine cellar must be positioned such that the plug is accessible. Release the power cord. Move your wine cellar to its final location. The wine cellar should be installed in a suitable place where the compressor will not be subject to physical contact.
• Wine cellar must be leveled BEFORE loading your wines. Your wine cellar is equipped with 4 adjustable feet to facilitate easy leveling. The cooler recommends that you tighten the back feet to the maximum and adjust the front feet to level the wine cellar.

PRODUCT OVERVIEW

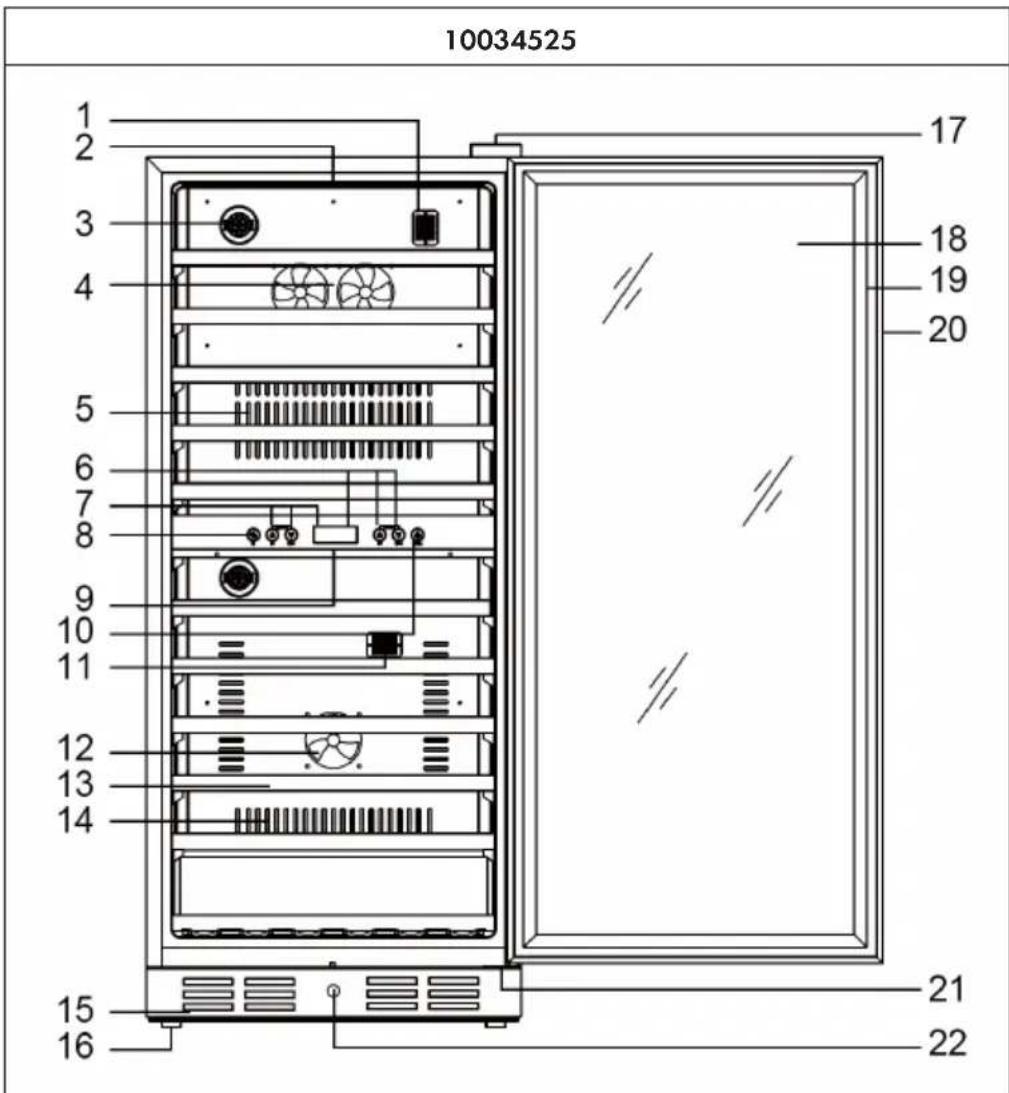

10034525 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

1	Temperature sensor upper zone	12	Fan lower zone
2	Light upper zone	13	Shelf
3	activated charcoal filter	14	Ventilation slits
4	ventilator	15	Ventilation slits
5	ventilation slits	16	Foot
6	Temperature lower zone	17	Upper hinge
7	Temperature upper zone	18	Glass
8	temperature switches	19	Door seal
9	Light lower zone	20	Grip
10	light switch	21	Lower hinge
11	Temperature sensor lower zone	22	Door lock

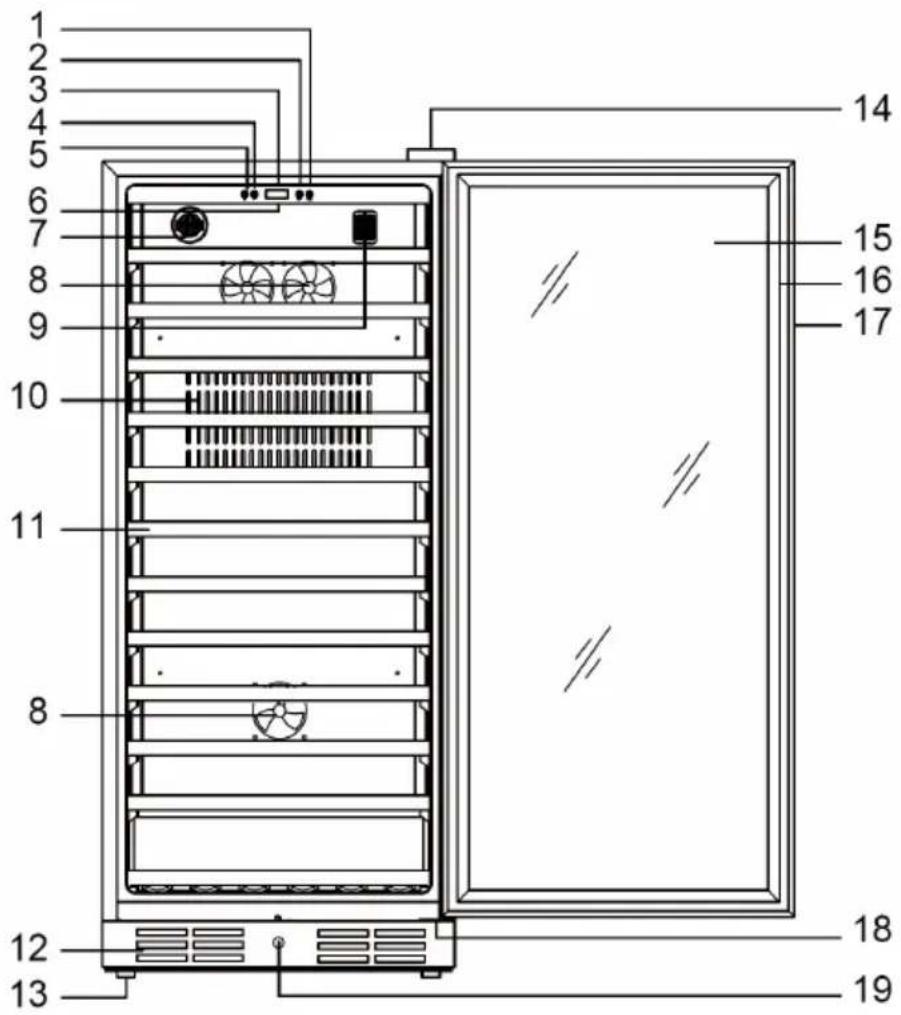

10034524

1 2 3 4 5 6 7 8 9 10 11 8 12 13 14 15 16 17 18 19

1	Light switch	11	Shelf
2	Temperature setting	12	Ventilation slits
3	Temperature display	13	Foot
4	Temperature setting	14	Right upper hinge
5	Temperature setting	15	Glass
6	Light	16	Door seal
7	Charcoal filter	17	Grip
8	Ventilator	18	Lower hinge
9	Temperature sensor	19	Door lock
10	Ventilation slits

CONTROL PANEL AND KEY FUNCTIONS (10034525)

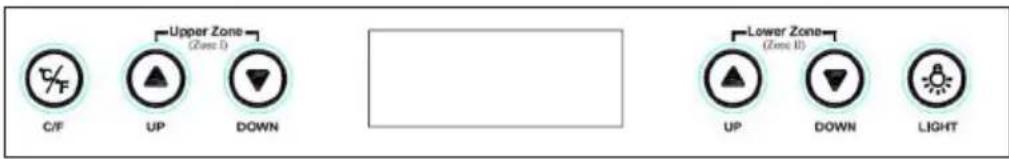

Control Panel

Upper Zone (Core D) C/F UP DOWN Lower Zone (Zone B) UP DOWN LIGHT

• To control the temperature of the upper zone, press the UP/DOWN button on the left. Each time the button is pressed, the temperature will increase/decrease by 1 °C between 5-10 °C or 1 °F between 40-50 °F.
• To control the temperature of the lower zone, press the UP/DOWN button on the right. Each time the button is pressed, the temperature increases/decreases by 1 °C between 10-18 °C or 1 °F between 50-64 °F.
  • To turn the internal LED illumination on or off, press the LIGHT button on the right.
• To switch the temperature display from Celsius degrees to Fahrenheit degrees or vice versa, press the C/F button.

Display

10 12 13 14 1 2
1	Display for the operating status of the entire unit.	11	Celsius or Fahrenheit
2	Display of the operating status of the lower zone:	12	Upper Zone
	Cooling
	Maintaining the current temperature
	Heating
3	Setting temperature of the lower zone	13	The actual temperature of the upper zone
4	Celsius or Fahrenheit	14	Display for the operating status of the upper zone:
			Cooling
			Heating
5	The actual temperature of the lower zone	15	Setting the temperature of the upper zone
6	Celsius or Fahrenheit	16	Celsius or Fahrenheit
7	Lower Zone	17	Display of the internal light (on/off)

CONTROL PANEL AND KEY FUNCTIONS (10034524)

Control Panel

- To control the temperature, press the UP/DOWN button. Each time the button is pressed, the temperature will increase/decrease by 1 °C between 5-18 °C or 1 °F between 40-64 °F.

- To turn the internal LED illumination on or off, press the LIGHTNING button on the right.

- To switch the temperature display from Celsius degrees to Fahrenheit degrees or vice versa, press the C/F button.

CLEANING AND CARE

Cleaning the Unit

• First switch off the unit and disconnect the power plug from the socket. Remove the entire contents.
• Wash the interior with a damp cloth dipped in lukewarm water with a little detergent.
• Make sure that the rubber seal on the door is clean so that the unit remains powerful.
• The exterior of the wine refrigerator should be cleaned with a mild detergent.
  • Dry the inside and outside with a soft cloth.
• Dust and anything else that blocks the exhaust air openings will reduce the cooling capacity of the unit. If necessary, suck off the exhaust air opening.

Shutdown in absentia

• Turn off the unit first. Then disconnect the power plug.
• Remove the entire contents.
• Clean the unit.
• Keep the lid open slightly to prevent condensation, mould or odours.

Installation at another Location

• Turn off the unit first. Disconnect the power plug.
• Remove the entire contents.
• Secure all loose objects with adhesive tape.
• Tape the doors shut.

Energy Saving Tips

The wine refrigerator should be placed in the coolest place in the room, away from appliances that emit heat. heating pipes and direct sunlight. Make sure the door is properly closed when the wine refrigerator is on.

TROUBLESHOOTING

Problem Possible Cause and Suggested Solution
Wine cellar does not operate.	Not plugged in.
	The appliance is turned off.
	The circuit breaker tripped or the fuse is broken.
Wine cellar is not cold enough.	Check the temperature control setting.
	External environment may require a higher setting.
	The door is opened too often.
	The door is not closed completely.
	The door gasket does not seal properly.
The light does not work.	Not plugged in.
	The circuit breaker tripped or a blown fuse.
	The bulb is out of order.
	The light button is "OFF".
Turns on and off frequently.	The room temperature is hotter than normal.
	A large amount of contents has been added to the Wine cellar.
	The door is opened too often.
	The door is not closed completely.
	The temperature control is not set correctly.
	The door gasket does not seal properly.
Vibrations. Check to assure that the Wine cellar is level.
The Wine cellar seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.
	As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cellar.
	Contraction and expansion of the inside walls may cause popping and crackling noises.
	The Wine cellar is not level.
The door will not close properly.	The Wine cellar is not level.
	The door was reversed and not properly installed.
	The gasket is faulty (magnet or rubber is spoiled).
	The shelves are out of position.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10034524
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes Other refrigerating			appliance:	No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 1 380		Total volume (dm3 or L)	320
	Width	597
	Depth 634
EEI		125	Energy efficiency class	F
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		122.28	Climate class:	extended temperate, temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry No - - - -
Wine storage	Yes	320.0	12	-	A
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or icemaking No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			Lighting technology used: LED; Non-directional or directional: NDLS; Mains or non-mains: NMLS; Connected light source (CLS): No; Colour-tuneable light source: No; Envelope: -; High luminance light source: No; Anti-glare shield: No; Dimmable: No
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10034525
Type of refrigerating appliance:
Low-noise appliance: No Design type: freestanding
Wine storage appliance: Yes Other refrigerating			appliance:	No
General product parameters:
Parameter Value Parameter Value
Overall dimensions (mm)	Height 1 397		Total volume (dm3 or L) 306	Width 595
	Depth 680
EEI		133	Energy efficiency class	G
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		129.0	Climate class:	extended temperate, temperate
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost = A, manual defrost = M)
Pantry No - - - -
Wine storage Yes 306.0	12 - M
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or icemaking No - - - -
1-star	No - - - -
2-star	No - - - -
3-star	No - - - -
4-star	No - - - -
2-star section	No - - - -
Variable temperature compartment	-	- - - -
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			Lighting technology used: LED; Non-directional or directional: NDLS; Mains or non-mains: NMLS; Connected light source (CLS): No; Colour-tuneable light source: No; Envelope: -; High luminance light source: No; Anti-glare shield: No; Dimmable: No
Energy efficiency class			G
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Upper Zone (Core D) C/F UP DOWN Lower Zone (Zone B) UP DOWN LIGHT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

FICHA TÉCNICA DEL PRODUCTO

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Upper Zone (Core D) C/F UP DOWN Lower Zone (Zone B) UP DOWN LIGHT

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

FICHE DE DONNÉES PRODUIT

FICHE DE DONNÉES PRODUIT

QR code image containing encoded data, no visible human-readable text

INDICE

Upper Zone (Core D) C/F UP DOWN Lower Zone (Zone B) UP DOWN LIGHT

Symbol of a trash bin crossed with a diagonal line, no text or labels present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SCHEDA DATI DEL PRODOTTO

KLARSTEIN
