Brand	IKEA
Model	FRILLESBO
Product type	Built-in oven
Intended use	Domestic, cooking, defrosting, grilling, frying
Power supply	220-240 V, 50 Hz (standard estimate)
Interior lighting	Incandescent or halogen G9 lamp, <60 W, energy class G
Included accessories	Metal grid, tray
Cleaning	With soapy water and a soft cloth. Do not use steam cleaner or abrasive products
Door	Removable, inner glass removable for cleaning
Side racks	Removable
Warranty	5 years (except LAGAN model: 2 years)
Spare parts availability	Thermostats, sensors, circuits, lamps: 7 years; door gaskets: 10 years
Compliance	WEEE (2012/19/EU), RoHS (2011/65/EU)
Safety instructions	Use protective gloves, do not touch hot surfaces, keep children away
Installation	Must be carried out by a qualified professional

Frequently Asked Questions - FRILLESBO IKEA

How to clean the interior of the FRILLESBO oven?

Wait for the oven to cool down. Clean with dish soap, hot water and a soft cloth. Do not use a steam cleaner, abrasive products or metal scrapers.

How to remove the oven door for cleaning?

Open the door, then open the hinge clips by pushing them down. Place the door in a semi-open position, then pull it upwards to release it. Follow the reverse steps to put it back.

How to replace the oven bulb?

Unplug the appliance and wait for it to cool down. Remove the glass cover by turning counterclockwise. Replace the bulb with a new G9 type, 60 W max, then put the cover back.

What is the warranty on the IKEA FRILLESBO oven?

The warranty is 5 years from the date of purchase, except for the LAGAN range (2 years). It covers manufacturing and material defects for domestic use. Keep the receipt.

Can I use parchment paper in the oven?

Yes, but place it on an accessory (rack or tray) with the food. Do not exceed the maximum temperature indicated by the manufacturer and do not put it in direct contact with the heating elements.

How to save energy with this oven?

Thaw foods before cooking, use dark or enameled containers, preheat only if necessary, and turn off the oven 5 to 10 minutes before the end to use residual heat.

What to do in case of oven breakdown?

Stop using the appliance, unplug it and contact IKEA authorized after-sales service. Do not attempt to repair it yourself unless indicated in the manual.

Can I cook several dishes at the same time?

Yes, you can cook multiple dishes at the same time by placing containers on different racks. This saves energy.

How to remove the side racks?

Pull the front part of the metal rack to the side, then pull the rack towards you to remove it completely. Repeat the operation in reverse to put them back.

Where to find spare parts for the oven?

Spare parts are available on www.ikea.com. Thermostats, sensors, circuits and lamps are available for 7 years after discontinuation, and door gaskets for 10 years.

USER MANUAL FRILLESBO IKEA

• This section includes the safety instructions necessary to prevent the risk of personal injury or material damage.
• If the product is handed over to someone else for personal use or second-hand use purposes, the user's manual, product labels and other relevant documents and parts should also be given.
• Our company shall not be held responsible for damages that may occur if these instructions are not observed.
• Failure to follow these instructions shall void any warranty.
• Always have the installation and repair works made by the manufacturer, the authorised service or a person that the importer company shall designate.
• Use original spare parts and accessories only.
• Do not repair or replace any component of the product unless it is clearly specified in the user's manual.
• Do not make technical modifications on the product.

Intended Use

• This product is designed to be used at home. It is not suitable for commercial use.
• Do not use the product in gardens, balconies or other outdoors. This product is intended to be used in households and in the staff kitchens of shops, offices and other working environments.
• CAUTION: This product should be used for cooking purposes only. It should not be used for different purposes, such as heating the room.
• The oven can be used to defrost, bake, fry and grill food.
• This product should not be used for plate heating, drying by hanging towels or clothes on the handle.

Child, Vulnerable Person and Pet Safety

• This product can be used by children 8 years of age and older, and people who are underdeveloped in physical, sensory or mental skills, or who have lack of experience and knowledge, as long as they are supervised or trained about the safe use and hazards of the product.
• Children should not play with the product. Cleaning and user maintenance should not be performed by children unless there is someone overseeing them.
• This product should not be used by people with limited physical, sensory or mental capacity (including children), unless they are kept under supervision or receive the necessary instructions.
• Children should be supervised to ensure that they do not play with the product.
• Electrical products are dangerous for children and pets. Children and pets must not play with, climb on, or enter the product.
• Do not put objects that children may reach on the product.
• CAUTION: During use, the accessible surfaces of the product are hot. Keep children away from the product.
• Keep the packaging materials out of the reach of children. There is a hazard of injury and suffocation.
• When the door is open, do not put any heavy objects on it or allow children to sit on it. You may cause the oven to tip over or damage the door hinges.

en

- Before discarding worn out and useless products:

1. Unplug the power plug and remove it from the socket.
2. Cut off the power cable and disconnect it with the plug from the product.
3. Take precautions to prevent children from entering the product.
4. Do not allow children to play with product when it is in idle mode.

Electrical Safety

- Plug the product into a grounded outlet protected by a fuse that matches the current ratings indicated on the type label. Have the grounding installation made by a qualified electrician. Do not use the product without grounding in accordance with local / national regulations.

- The plug or the electrical connection of the appliance shall be in an easily accessible place. If this is not possible, there should be a mechanism (fuse, switch, key switch, etc.) on the electrical installation to which the product is connected, in compliance with the electrical regulations and separating all poles from the network.

- Unplug the product or switch off the fuse before repair, maintenance and cleaning.

- Plug the product into an outlet that meets the voltage and frequency values specified on the type label.

- (If your product does not have a mains cable) only use the connecting cable described in the "Technical specifications" section.

- Do not jam the power cable under and behind the product. Do not put a heavy object on the power cable. The power cable should not be bent, crushed, and come into contact with any heat source.

- Make sure that the power cable is not jammed while putting the product to its place after assembly or cleaning.

- The rear surface of the oven gets hot when it is in use. The power cables must not touch the rear surface of the product. Otherwise it might get damaged.

- Do not jam the electric cables into the oven door and do not pass them over hot surfaces. Otherwise, cable insulation may melt and cause fire as a result of short circuit.

- Use original cable only. Do not use cut or damaged cables.

- Do not use an extension cord or multi-plug to operate your product.

- Contact the authorized service centre or importer to use the approved adapter in cases where the use of a converter adapter (for plug type) is necessary.

- Contact the importer or the authorized service centre if the length of the power line is inadequate.

- Portable power sources or multiple plugs may overheat and catch fire. Keep multiple plugs and portable power sources away from the product.

- If the power cable is damaged, it must be replaced by the manufacturer, an authorized service or a person to be specified by the importer company in order to prevent possible dangers.

- CAUTION: Before replacing the oven lamp, be sure to disconnect the product from the mains supply to avoid the risk of electric shock. Unplug the product or turn off the fuse from the fuse box.

If your product has a power cable and plug:

- Never put the product plug into a broken, loose, or out-of-socket plug. Make sure the plug is fully inserted into the socket. Otherwise the connections may overheat and cause a fire.

en

• Avoid inserting the device into plugs that are greasy, unclean, or potentially exposed to water (such as those near a worktop where water may escape). Otherwise there is a risk of short circuit and electrocution.
• Never touch the plug with wet hands!
• Pull the plug out of the socket using the plug's body rather than the cord itself.

Transportation Safety

• Disconnect the product from the mains before transporting the product.
• The product is heavy, carry the product with at least two people.
• Do not use the door and / or handle to transport or move the product.
• Do not place items on the appliance. Carry the appliance vertically.
• When you need to transport the product, wrap it with bubble wrap packaging material or thick cardboard and tape it tightly. Secure the moving parts of the product firmly to prevent damage.
• Before the product is installed, check the product for any damage after transport. Contact the importer or the authorized service centre if damaged.

Installation Safety

• Before beginning the installation, de-energize the power line to which the product will be connected by turning off the fuse.
• Always wear protective gloves during transport and installation. Otherwise there is a risk of injury from sharp edges!
• Before the product is installed, check the product for any damage. Do not have it installed if the product is damaged.
• Avoid using any heat-insulating materials to cover the interior of the furniture that will be installed.
• Direct sunlight and heat sources, such as electric or gas heaters, must not be present in the area where the product is installed.
• Keep the surroundings of all ventilation ducts of the product open.
• To avoid overheating, product installation should not be carried out behind decorative covers.
• In cases where a gas hose/pipe or plastic water pipe is situated behind the designated installation area for the product, it is imperative to guarantee that there is no contact between the product and these utility lines. Otherwise the hose/pipe may be crushed.
• If there is a socket behind the place where the product will be installed, it must be ensured that the product does not come into contact with the socket nor with the plug plugged into the socket.

Safety of Use

• Ensure that the appliance is switched off after every use.
• If you will not use the product for a long time, unplug it or turn off the power from the fuse box.
• Don't use the product if it breaks down or gets damaged while being used. Disconnect the product from the electricity. Contact the importer or the authorized service centre.
• Do not use the product if the front door glass is removed or cracked. Otherwise there is a risk of injury and environmental damage.
• Do not step on the appliance for any reason.

en

• Never use the product when your judgement or coordination is impaired by the use of alcohol and/or drugs.
• Flammable objects must not be kept in and around the cooking area. Otherwise, these may lead to fire.
• The oven handle is not a towel dryer. When using the product, do not hang towels, gloves or similar textiles on the handle.
• The hinges of the product door move when opening and closing the door and might jam. When opening / closing the door, do not hold the part with the hinges.

TemperatureWarnings

• CAUTION: When the product is in use, the product and its accessible parts will be hot. Care should be taken to avoid touching the product and heating elements. Children under 8 years of age should be kept away from the product unless constantly supervised.
• Do not place flammable / explosive materials near the product, as the surfaces will be hot while it is operating.
• Keep your distance when opening the oven door during or at the end of cooking. The steam may burn your hand, face and/or eyes.
• During operation the product is hot. Care should be taken to avoid touching hot parts, inside of the oven and heating elements.
  • Always wear heat-resistant oven gloves when handling the product.

Accessory Use

• It is important that the wire grill and tray are placed properly on the wire shelves. For detailed information, refer to the section "Usage of accessories".
• Close the oven door after pushing the accessories completely into the cooking space, otherwise they may hit the door glass and damage it.

Cooking Safety

• Be careful when using alcoholic drinks in your dishes. Alcohol evaporates at high temperatures and may cause fire since it can ignite when it comes into contact with hot surfaces.
• Food residues in the cooking area., such as oil, can ignite. Clean these residues before cooking.
• Food Poisoning Hazard: Do not let food sit in oven for more than 1 hour before or after cooking. Otherwise it may cause food poisoning or diseases.
• Do not heat closed tins and glass jars in the oven. The pressure that would build-up in the tin/jar may cause it to burst.
• Do not place baking trays, dishes or aluminium foil directly onto the bottom of the oven. The accumulated heat might damage the bottom of the oven.

Be mindful of the following precautions when using greasy parchment paper or similar materials:

• Place the greaseproof paper in a cookware or on the oven accessory (tray, wire grill, etc.) with food and place it in the preheated oven.
• To prevent the risk of touching the oven heating elements and obstructing the flow of hot air, remove any excess parts of greaseproof paper that hang from accessories or containers. Do not use greaseproof paper at oven temperatures higher than the maximum usage temperature specified by the manufacturer. Never place greaseproof paper on the oven base.
• Do not place it on top of accessories during preheating.

en

• Always press down with a plate or similar object to prevent the material from flying around due to the air circulation inside the oven.
• Only cover the necessary surface inside the tray.
• After each use, the tray should be cleaned, and any greaseproof paper or similar materials used in the tray should be replaced. Otherwise, liquids dripping onto the tray can cause smoking or even ignite flames.
• An air flow is generated when the product lid is opened. Greaseproof paper can come into contact with heating elements and ignite.
• When using a grilling rack for frying, a tray should be placed on the lower rack. Otherwise, the food oil and other components that drip onto the oven bottom can create heavy smoke and lead to flames.
• Close the oven door during grilling. Hot surfaces may cause burns!
• Food not suitable for grilling carries a fire hazard. Grill only food that is suitable for heavy grill fire. Do not place the food too far in the back of the grill. This is the hottest area and fatty foods may catch fire.

⚠ Maintenance and Cleaning Safety

• Wait for the product to cool before cleaning the product. Hot surfaces may cause burns!
• Never wash the product by spraying or pouring water on it! There is the risk of electric shock!
• Do not use steam cleaners to clean the product as this may cause an electric shock.
• Do not use harsh abrasive cleaners, metal scrapers, wire wool or bleach materials to clean the oven front door glass. These materials can cause glass surfaces to be scratched and broken.

Environmental Instructions

Waste Directive

Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. You can ask your local administration about these collection points. Disposing of the appliance properly helps prevent negative consequences for the environment and human health.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging waste with the household or other wastes, take it to the packaging material collection points designated by the local authorities.

Recommendations for Energy Saving

According to EU 66/2014, information on energy efficiency can be found on the product receipt supplied with the product. The following suggestions will help you use your product in an ecological and energy-efficient way:

• Defrost frozen food before baking.
• In the oven, use dark or enamelled containers that transmit heat better.
• If specified in the recipe or user's manual, always preheat. Do not open the oven door frequently during baking.

en

• Turn off the product 5 to 10 minutes before the end time of baking in prolonged bakings. You can save up to 20% electricity by using residual heat.
• Try to cook more than one dish at a time in the oven. You may cook at the same time by placing two cookers on the wire rack. In addition, if you cook your meals one after the other, it will save energy because the oven will not lose its heat.

Maintenance and Cleaning

For detailed cleaning information for the different surfaces of your product, see the "Maintenance and Cleaning" section in the full version of the User Manual available at www.ikea.com.

General warnings

• Wait for the product to cool before cleaning the product. Hot surfaces may cause burns!
• Do not apply the detergents directly on the hot surfaces. This may cause permanent stains.
• The product should be thoroughly cleaned and dried after each operation. Thus, food residues shall be easily cleaned and these residues shall be prevented from burning when the product is used again later. Thus, the service life of the appliance extends and frequently faced problems are decreased.
• Do not use steam cleaning products for cleaning.
  • Some detergents or cleaning agents cause damage to the surface. Unsuitable cleaning agents are: bleach, cleaning products containing ammonia, acid or chloride, steam cleaning products, descaling agents, stain and rust removers, abrasive cleaning products (cream cleaners, scouring powder, scouring cream, abrasive and scratching scrubber, wire, sponges, cleaning cloths containing dirt and detergent residues).
• No special cleaning material is needed in the cleaning made after each use. Clean the appliance using dishwashing detergent, warm water and a soft cloth or sponge and dry it with a dry cloth.
• Be sure to completely wipe off any remaining liquid after cleaning and immediately clean any food splashing around during cooking.
• Do not wash any component of your appliance in a dishwasher unless otherwise stated in the user's manual.

Remove the side wire shelves:

1	Remove the front of the wire shelf by pulling it on the side wall in the opposite direction.
2 Pull	the wire shelf towards you to remove it completely.
3	To reattach the shelves, the procedures applied when removing them must be repeated from the end to the beginning, respectively.

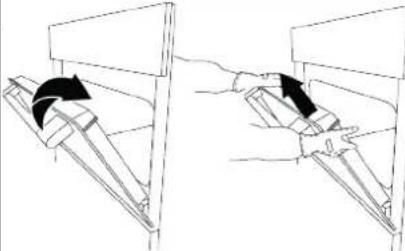

Removing the oven door

1 Open the oven door.

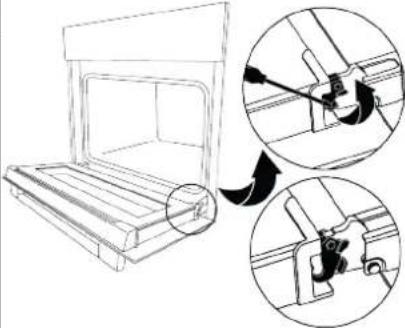

2	Open the clips in the front door hinge socket on the right and left by pushing them downwards as shown in the figure.
3 Get	the oven door to a half-open position.
4	Pull the removed door upwards to release it from the right and left hinges and remove it.

To reattach the door

1 Get the oven door to a half-open position.
2	Push the removed door downwards to place it from the right and left hinges and open the oven door fully.
3	Close the clips in the front door hinge socket on the right and left by pushing them upwards as shown in the figure.

Removing the inner glass of the oven door

1 Open	the oven door.
2	Pull the plastic component, attached on the upper section of the front door, towards yourself by simultaneously pushing on the pressure points on both sides of the component and remove it.
3	As shown in the figure, gently lift the innermost glass (1) towards “A” and then, remove it by pulling towards “B”.
4	If your product has an inner glass (2), repeat the same process to detach it (2).
5	The first step of regrouping the door is to reassemble the inner glass (2). Place the bevelled edge of the glass to meet the bevelled edge of the plastic slot. (If your product has an inner glass). Inner glass (2) must be attached to the plastic slot closest to the innermost glass (1).
6	While reassembling the innermost glass (1), pay attention to place the printed side of the glass on the inner glass. It is crucial to place the lower corners of the innermost glass (1) to meet the lower plastic slots.
7 Push	the plastic component towards the frame until a "click" sound is heard.

Replacing the oven lamp

General Warnings

• To avoid the risk of electric shock before replacing the oven lamp, disconnect the product and wait for the oven to cool. Hot surfaces may cause burns!
• This oven is powered by an incandescent lamp with less than 40 W, less than 60 mm in height, less than 30 mm in diameter, or a halogen lamp with G9 sockets with less than 60 W power. Lamps are suitable for operation at temperatures above 300 °C. Oven lamps are available from Authorised Services or licensed technicians. This product contains a G energy class lamp.
  • The position of the lamp may differ from that is shown in the figure.
• The lamp used in this product is not suitable for use in the lighting of home rooms. The purpose of this lamp is to help the user see food products.

- The lamps used in this product must withstand extreme physical conditions such as temperatures above 50^ .

1 Disconnect the product from the electricity.
2 Remove the glass cover by turning it counter clockwise.
3	If your oven lamp is type (A) shown in the figure below, rotate the oven lamp as shown in the figure and replace it with a new one. If it is type (B) model, pull it out as shown in the figure and replace it with a new one.
4 Refit the glass cover.

IKEA guarantee

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the original date of purchase of your appliance at IKEA, unless the appliance is named LAGAN in which case two (2) years of guarantee apply. The original sales receipt, is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance.

Which appliances are not covered by the IKEA five (5) years guarantee?

The range of appliances named LAGAN and all appliances purchased in IKEA before 1st of August 2007.

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline "What is not covered under this guarantee?" Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

What will IKEA do to correct the problem?

IKEA appointed Service Provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA Service Provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.

- Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

- Consumable parts including batteries and lamps.

- Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.

- Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

- Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

- Cases where no fault could be found during a technician's visit.

- Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.

- Repairs caused by installation which is faulty or not according to specification.

- The use of the appliance in a non-domestic environment i.e. professional use.

- Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by IKEA.

- Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary. These restrictions do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives you specific legal rights, which cover or exceed all the local legal demands. However these conditions do not limit in any way consumer rights described in the local legislation.

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country.

An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

- the technical specifications of the country in which the guarantee claim is made;

- the Assembly Instructions and User Manual Safety Information.

The dedicated AFTER SALES for IKEA appliances

Please don't hesitate to contact IKEA appointed After Sales Service Provider to:

• make a service request under this guarantee;
- ask for clarifications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture;
- ask for clarification on functions of IKEA appliances.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual before contacting us.

How to reach us if you need our service used.

You can find phone numbers of the IKEA appointed After Sales Service Providers at the end of this manual.

In order to provide you with a quicker service, we recommend that you use the specific phone numbers listed in this manual. Always use the phone numbers listed in the user manual for the specific appliance you need an assistance for. Please remember to provide the 8-digit article number and 22-digit serial number shown on the rating plate of your appliance.

SAVE THE SALES RECEIPT!

It is your proof of purchase and required for the guarantee to apply. The sales receipt also reports the IKEA name and article number (8 digit code) for each of the appliances you have purchased.

Do you need extra help?

For any additional questions not related to After Sales of your appliances please contact your nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

Spare parts information

• The following spare parts: thermostats, temperature sensors, printed circuit boards and light sources, will be available to professional repairers for a minimum period of seven years, after placing the last unit of the model on the market.
• The following spare parts: door handles, door hinges, trays and baskets will be available to professional repairers and end users for a minimum period of seven years, and door gaskets for a minimum period of 10 years, after placing the last unit of the model on the market.

The spare parts can be found: www.ikea.com

Sicherheitshinweise

Phone number:	02076601517
Rate:	Local rate
Opening hours:	Monday - Friday	8.00am - 6.00pm
	Saturday	8.30am - 4.30pm
	Sunday	9.30am - 3.30pm
