USER MANUAL PL201 PowerLocus

PowerLocus PL201 Wireless Speaker

User Manual/УПЪТВАНЕ/Manual de utilizare/

Please read all of the instructions carefully before use!

TECHNICAL SPECIFICATIONS:

TECHNICAL SPECIFICATIONS FOR THE MICROPHONE:

EN

Power Supply : DC 5V ---1A

Output Power : 5W

Driver Unit: 1.75"4Ω 5W*1

Bluetooth Version : 5.3

Micro SD Max Size: Max Size 64GB

S/N Ratio : >= 60dB

THD: >1%

Rechargeable Battery :

Lithium 3.7V 1200mAh

Product Size : W96*H96*D96 mm

Bluetooth Mode Protocol: HFP, AD2P, AVRCP

Frequency Response Rate: 20Hz - 20KHz

Impedance: 4Ω

Frequency band:2.4000 GHz - 2.4835 GHz

Operating Temperature: 0-55°C

Power Supply : DC 5V --- 1A

Bluetooth Mode Protocol: HFP, AD2P, AVRCP

Frequency response: 20Hz-20KHz

Operating temperature: 0-55°C

Operating band: 2.4\~2.4835GHz

Output Power : 0.06W

Bluetooth Version : v5.3

Rechargeable Battery : Lithium 3.7V 500mAh

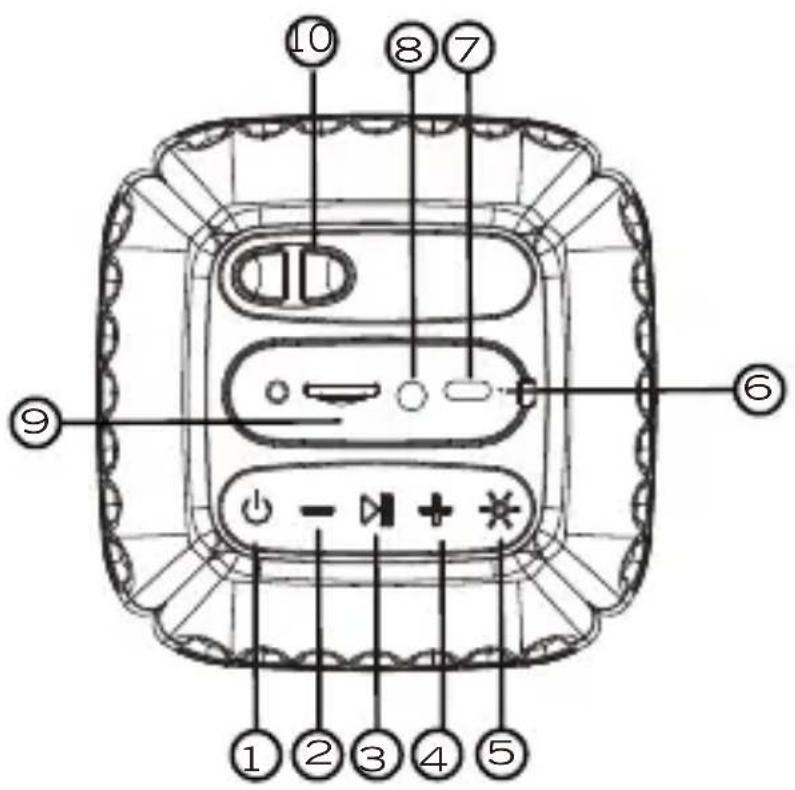

10 8 7 9 6 1 2 3 4 5

1 Power On/Off Button

2 Previous Song/ Vol-

3 Play/Pause Button

4 Next Song / Vol+

5 LED lights On/Off

6 LED Charging Indicator / Bluetooth Indicator

7 USB-C Charging port

8 Aux Mode Input

9 Micro SD Card Slot

10 Hanger Hole

HOW TO CONNECT THE SPEAKER VIA BLUETOOTH TO PHONE/TABLET/LAPTOP ETC?

1. Long press the Power button to turn on the speaker.
2. The speaker will enter immediately into Bluetooth mode when used for the first time.
3. In Bluetooth mode, the LED light indicator will flash alternately in green and blue.
4. Open the Bluetooth setting of your device and search the pairing name "PowerLocus PL201"
5. Once connected, the LED light indicator will change to solid blue with slowly glimming green light.
6. The second time when the Bluetooth speaker is turned on, it will pair automatically to the last paired device.

HOW TO CONNECT THE WIRELESS MICROPHONE TO THE SPEAKER?

Make sure that the wireless speaker is already turned on.

Then, simply turn the microphone on, by pressing the on/off button for 3-4 seconds and the LED light will appear.

Then, the speaker will pair with the microphone automatically.

Once connected, the LED on the speaker will be solid green lighting and flash blue lighting slowly.

The LED on the microphone will change from flashing Green to Solid Green.

HOW TO CHARGE THE WIRELESS SPEAKER?

• When the battery of the wireless speaker is low,
  there will be voice indicator to announce "Low Battery"
• Simply plug the usb-c charging cable inside the charging port of the speaker.
• During charging, the LED light will show up in constant RED.
  When fully charged, the LED lights will disappear.

• When the battery of the microphone is low, it will begin flashing in green quickly.
• Simply plug the usb-c charging cable inside the charging port of the microphone.
• During charging, the LED light will show up in constant RED. When fully charged, the LED lights will disappear.

HOW TO TURN ON THE LED LIGHTS?

1. The speaker will be default into fast breathing mode.
2. Press Lighting button to shift into medium breathing mode.
3. Press Lighting button to
   shift into slow breathing mode.
4. Press Lighting again to turn off the RGB lighting.

HOW TO USE THE WIRELESS SPEAKER WITH MICRO SD CARD?

1. Simply insert the micro-SD card inside the #9 Micro SD slot. Once it clicks inside, the card is ready to play.

2. Turn on the speaker and the Micro SD mode will be activated

3. Please note that the Maximum Size of the card is 64GB and all the content inside the card should be MP3. In case there is a different format file, it may not work!

4. Simply insert the micro-SD card inside the #9 Micro SD slot. Once it clicks inside, the card is ready to play.

5. Turn on the speaker and the Micro SD mode will be activated
6. Please note that the Maximum Size of the card is 64GB and all the content inside the card should be MP3. In case there is a different format file, it may not work!

*** Please don't take out SD card while playing, otherwise, SD card will be damaged ***

HOW TO PAIR TWO PL201 SPEAKERS SIMULTANEOUSLY?

1. Turn on two PL201 units and make sure without connecting other devices, Long press the Play/Pause to TWS mode, then the two units will be paired, there is tone after paired successful.

2. Then you can pair the unified PowerLocus PL201 pairing name to your phone from the bluetooth menu.

SAFETY INSTRUCTIONS:

1. When using electrical units, basic safety precautions should always be followed.
2. Children aged from 8 years and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this unit, only if they have been given supervision or instruction concerning use of the unit in a safe way and understand the hazards involved.
3. Children should be supervised to ensure that they do not play with unit.
4. Unless they are older than 8 and supervised, children should not perform cleaning or user maintenance.
5. This unit is not a toy.
6. This unit contains no user serviceable parts, if the unit and any of its accessories are malfunctioning or it has been dropped or damaged, only a qualified electrician should carry out repairs, improper repairs may place the user at risk of harm.
7. Keep the unit out of reach of children under 3 years old.
8. Keep the unit away from heat or sharp edges that could cause damage.
9. Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquid.
10. Do not play music at excessive volume levels as damage to hearing and / or the equipment may occur . It is imperative to unplug the adaptor after the unit has been used , before it is cleaned and whilst being repaired.
11. To prevent possible hearing damage, do not listen at high volume levels for long periods of time.
12. Warning : Keep the unit away from flammable materials.

CE for PL201 Wireless Speaker

Hereby GL Grup-2015 LTD declares that wireless speaker PowerLocus PL201 is in compliance with essential requirements and other relevant conditions of Directive 2014/53/EU.

The full text of the EU declaration conformity is available at the following internet address: (powerlocus.com/doc)

Frequency: 2402-2480 MHz

Max radio frequency power: 100 mW (EIRP)

GL GRUP-2015 LTD.

36 VASIL LEVSKI STREET, 5370 DRYANOVO, BULGARIA

CE for PL201 Wireless Microphone

Hereby GL Grup-2015 LTD declares that wireless microphone PowerLocus PL201 is in compliance with essential

requirements and other relevant conditions of Directive 2014/53/EU.

The full text of the EU declaration

conformity is available at the following internet address: (powerlocus.com/doc)

Frequency: 2402-2480 MHz

Max radio frequency power: 100 mW (EIRP)

GL GRUP-2015 LTD.

36 VASIL LEVSKI STREET, 5370 DRYANOVO, BULGARIA

Hereby, GL GRUP-2015 LTD. declares that this equipment is in compliance with the UK relevant statutory requirements.

To find more about the UK Declaration of Conformity,

please visit: https://powerlocus.com/doc-uk-pl201

For customers in the UK STATEMENT OF COMPLIANCE -

Wireless Speaker & Wireless Microphone

Model No.: PL201

Name and address of the manufacturer's authorised representative:

GL GRUP-2015 LTD,

Unit J. Hove Technology Centre,

Hove

BN3 7ES

United Kingdom

This statement of compliance is issued under the sole responsibility of the manufacturer:

GL GRUP-2015 LTD, Vasil Levski 36, Dryanovo 5370, Bulgaria

Object of the statement:

Wireless Speaker & Wireless Microphone

The object of the statement described above is in compliance with the applicable security requirements in Schedule 1 of S.I. 2023 No. 1007 (Product Security) Where applicable, references to the relevant standards used in relation to which compliance is declared: Defined support period for security updates: 2027-01-01

Additional information: Note(s):

Signed for and on behalf of: GL GRUP 2015 LTD

Abstract line drawing with intersecting diagonal and curved lines (no text or symbols)

Aleksandar Glushkov, General Manager

GL GRUP-2015 LTD. Dryanovo BG, 2024-06-06

Registered Office: GL GRUP-2015 LTD, Vasil Levski 36, Dryanovo 5370, Bulgaria

This symbol on the product, battery or on its packaging indicates that the product and battery shall not be treated as household waste. On some batteries, this symbol may be used in combination with a chemical symbol. The chemical symbol for lead (Pb) is added if the battery contains more than 0.004% lead. By ensuring these products and batteries are disposed of correctly, you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of materials will help to conserve natural resources. In the case of products that for safety, performance or data integrity reasons require a permanent connection with an integrated battery, this battery should only be replaced by qualified service personnel. To ensure that the battery and electrical and electronic equipment will be treated correctly, hand over these products at the end of their working life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please refer to the section on how to safely remove the battery from the product. Hand over the battery to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.

The power delivered by the charger must be between the minimum 0.05 watts required by the radio equipment and a maximum of 2 watts to achieve maximum charging speed.

Loud Sound.

Risk of hearing damage.

Do not listen at high volume levels for long periods of time.

Battery Manufacturer:

Company Name: Guangzhou Haohuiyuan Electronics Co.,LTD Address: Room 201, No. 44, Jinghu Avenue, Shitang Village, Xinya Street, HuaduDistrict, Guangzhou City China

Адрес: Room 201, No. 44, Jinghu Avenue, Shitang Village, Xinya Street,

HuaduDistrict, Guangzhou City

China

adresa: Room 201, No. 44, Jinghu Avenue, Shitang Village, Xinya Street,

HuaduDistrict, Guangzhou City, China

0,05-2 W

Company Name: Guangzhou Haohuiyuan Electronics Co.,LTD

Address:Room 201, No. 44, Jinghu Avenue, Shitang Village, Xinya Street, HuaduDistrict, Guangzhou City

China

0,05-2 W

Adresa:Room 201, No. 44, Jinghu Avenue, Shitang Village, Xinya Street, HuaduDistrict, Guangzhou City

China

Company Name: Guangzhou Haohuiyuan Electronics Co.,LTD

Address: Room 201, No. 44, Jinghu Avenue, Shitang Village, Xinya Street, HuaduDistrict, Guangzhou City

China

Batterie rechargeable :

Lithium 3,7V 1200mAh

Alimentation: DC 5 V = 1 A

3 Bouton Lecture/Pause

Company Name: Guangzhou Haohuiyuan Electronics Co.,LTD Address: Room 201, No. 44, Jinghu Avenue, Shitang Village, Xinya Street, HuaduDistrict, Guangzhou City China

0.05-2 W

Company Name: Guangzhou Haohuiyuan Electronics Co.,LTD Address:Room 201, No. 44, Jinghu Avenue, Shitang Village, Xinya Street, HuaduDistrict, Guangzhou City China

0.05-2 W

Company Name: Guangzhou Haohuiyuan Electronics Co.,LTD Address: Room 201, No. 44, Jinghu Avenue, Shitang Village, Xinya Street, HuaduDistrict, Guangzhou City China

0.05-2 W

Company Name: Guangzhou Haohuiyuan Electronics Co.,LTD

Address: Room 201, No. 44, Jinghu Avenue, Shitang Village, Xinya Street, HuaduDistrict, Guangzhou City, China

0.05-2 W

Company Name: Guangzhou Haohuiyuan Electronics Co.,LTD

Address: Room 201, No. 44, Jinghu Avenue, Shitang Village, Xinya Street, HuaduDistrict, Guangzhou City China

0.05-2 W

PowerLocus™ All rights reserved.

The Bluetooth® word mark and logos registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PowerLocus is under license. Other marks and trade names are those of their respective owners.

UK CA CE ROHS FC Reach Compliant Prop 65 22 PAP Raccolta Carta FR

Made in China
